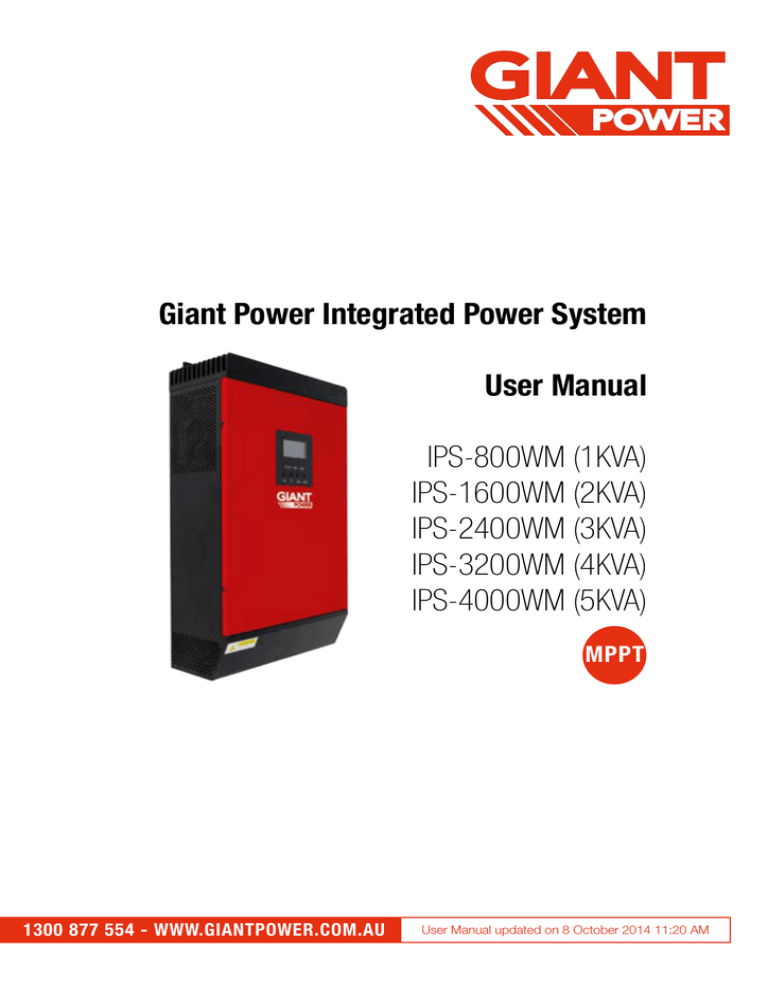

Giant Power Integrated Power System

User Manual

IPS-800WM (1KVA)

IPS-1600WM (2KVA)

IPS-2400WM (3KVA)

IPS-3200WM (4KVA)

IPS-4000WM (5KVA)

MPPT

1300 877 554 - WWW.GIANTPOWER.COM.AU

User Manual updated on 8 October 2014 11:20 AM

Table Of Contents

ABOUT THIS MANUAL ..................................................................................................................................... 1

Purpose ............................................................................................................................................................ 1

Scope ............................................................................................................................................................... 1

SAFETY INSTRUCTIONS .................................................................................................................................. 1

INTRODUCTION

............................................................................................................................................... 2

Features ........................................................................................................................................................... 2

Basic System Architecture ............................................................................................................................... 2

Product Overview ............................................................................................................................................. 3

INSTALLATION ................................................................................................................................................. 4

Unpacking and Inspection................................................................................................................................ 4

Preparation ...................................................................................................................................................... 4

Mounting the Unit ............................................................................................................................................. 4

Battery Connection .......................................................................................................................................... 5

AC Input/Output Connection ............................................................................................................................ 7

PV Connection ................................................................................................................................................. 8

Final Assembly ................................................................................................................................................. 9

Communication Connection ........................................................................................................................... 10

Dry Contact Signal ......................................................................................................................................... 10

OPERATION ..................................................................................................................................................... 11

Power ON/OFF .............................................................................................................................................. 11

Operation and Display Panel ......................................................................................................................... 11

LCD Display Icons ......................................................................................................................................... 12

LCD Setting .................................................................................................................................................... 14

Display Setting ............................................................................................................................................... 21

Operating Mode Description .......................................................................................................................... 24

Fault Reference Code .................................................................................................................................... 25

Warning Indicator ........................................................................................................................................... 26

Disconnect & Re-Connect Procedure .......................................................................................................... 27

SPECIFICATIONS

...........................................................................................................................................

28

Table 1 Line Mode Specifications ................................................................................................................... 2

8

Table 2 Inverter Mode Specifications

............................................................................................................. 2

9

Table 3 Charge Mode Specifications ..............................................................................................................

30

Table 4 General Specifications

....................................................................................................................... 3

1

TROUBLE SHOOTING

..................................................................................................................................... 3

2

Appendix: Approximate Back-up Time Table ........................................................................................... 3

3

ABOUT THIS MANUAL

Purpose

This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference.

Scope

This manual provides safety and installation guidelines as well as information on tools and wiring.

SAFETY INSTRUCTIONS

WARNING: This chapter contains important safety and operating instructions. Read and keep this manual for future reference.

1.

Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all appropriate sections of this manual.

2.

CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.

Other types of batteries may burst, causing personal injury and damage.

3.

Do not disassemble the unit. Take it to a qualified service center when service or repair is required.

Incorrect re-assembly may result in a risk of electric shock or fire.

4.

To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.

Turning off the unit will not reduce this risk.

5.

CAUTION – Only qualified personnel can install this device with battery.

6.

NEVER charge a frozen battery.

7.

For optimum operation of this inverter/charger, please follow required spec to select appropriate cable size. It’s very important to correctly operate this inverter/charger.

8.

Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.

9.

Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please refer to INSTALLATION section of this manual for the details.

10.

Fuses (3 pieces of 40A, 32VDC for 1KVA, 4 pieces of 40A, 32VDC for 2KVA and 6 pieces for 3KVA, 1 piece of 200A, 58VDC for 4KVA and 5KVA) are provided as over-current protection for the battery supply.

11.

GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded wiring system. Be sure to comply with local requirements and regulation to install this inverter.

12.

NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input short circuits.

13.

Warning!! Only qualified service persons are able to service this device. If errors still persist after following troubleshooting table, please send this inverter/charger back to local dealer or service center for maintenance.

1

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

Pure sine wave inverter

Built-in MPPT solar charge controller

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

Basic System Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:

Generator

PV modules (option)

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

Figure 1

Offgrid Power System

2

Product Overview

4KVA/5KVA single model

1-3KVA model

NOTE: For parallel model installation and operation, please check separate parallel installation guide for the details.

4KVA/5KVA parallel model

1. LCD display

2. Status indicator

3. Charging indicator

4. Fault indicator

5. Function buttons

6. Power on/off switch

7. AC input

8. AC output

9. PV input

10. Battery input

11. Circuit breaker

12. RS232 communication port

13. Parallel communication cable (only for parallel model)

14. Current sharing cable (only for parallel model)

15. Dry contact

3

INSTALLATION

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package:

 The unit x 1

 User manual x 1

 Communication cable x 1

 Software CD x 1

Preparation

Before connecting all wirings, please take off bottom cover by removing two screws as shown below.

Mounting the Unit

Consider the following points before selecting where to install:

Do not mount the inverter on flammable construction materials.

Mount on a solid surface

For proper air circulation to dissipate heat, allow clearance

The ambient temperature should be between 0°C and 55°C to ensure optimal operation.

Unit can be wall or floor mounted

Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and to have enough space for removing wires.

Installation in Large Spaces

- Allow clearance as shown below

Installation in Confined Spaces

- Important: The unit can only be installed in a confined space if the area is adequately vented, allowing sufficient airflow in and out.

SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.

4

Install the unit by screwing three screws.

1-3KVA 24V, 1KVA/3KVA 48V model 2-3KVA 24V/48V Plus, 4-5KVA 48V model

Battery Connection

CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be requested to have a disconnect device in some applications, however, it’s still requested to have over-current protection installed. Please refer to typical amperage in below table as required fuse or breaker size.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use appropriate cable for battery connection. To reduce risk of injury, please use the proper recommended cable and terminal size as below.

Recommended battery cable and terminal size:

Ring terminal:

Model

1KVA 48V

1KVA 24V, 2KVA 48V

3KVA 48V

2KVA 24V

3KVA 24V

4KVA

5KVA

Typical

Amperage

20A

33A

50A

66A

100A

66A

87A

100AH

100AH

100AH

100AH

200AH

100AH

200AH

Battery

Capacity

200AH

200AH

1*14AWG

1*10AWG

1*8AWG

1*6AWG

2*10AWG

1*4AWG

2*8AWG

1*4AWG

2*8AWG

1*4AWG

2*8AWG

Wire Size

Cable mm

2

2

5

Ring Terminal

Dimensions

D (mm) L (mm)

6.4

6.4

21.8

22.5

Torque

Value

2~ 3 Nm

2~ 3 Nm

8

14

8

22

14

22

6.4

6.4

6.4

6.4

6.4

6.4

23.8

29.2

23.8

33.2

29.2

2~ 3 Nm

2~ 3 Nm

2~ 3 Nm

2~ 3 Nm

14

22

6.4

6.4

33.2

29.2

33.2

2~ 3 Nm

14 6.4 29.2

5

Please follow below steps to implement battery connection:

1.

Assemble battery ring terminal based on recommended battery cable and terminal size.

2.

Connect all battery packs as units requires. It’s suggested to connect at least 100Ah capacity battery for

1-3KVA model and at least 200Ah capacity battery for 4KVA/5KVA model.

NOTE: Please only use sealed lead acid battery or sealed GEL/AGM lead-acid battery.

3.

Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly connected and ring terminals are tightly screwed to the battery terminals.

WARNING: Shock Hazard

Installation must be performed with care due to high battery voltage in series.

CAUTION!!

Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur.

CAUTION!!

Do not apply anti-oxidant substance on the terminals before terminals are connected tightly.

CAUTION!!

Before making the final DC connection or closing DC breaker/disconnector, be sure positive (+) must be connected to positive (+) and negative (-) must be connected to negative

(-).

6

AC Input/Output Connection

CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between inverter and AC input power source. This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 10A for 1KVA, 20A for 2KVA, 32A for 3KVA, 40A for 4KVA and 50A for 5KVA.

CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input and output connectors.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input connection. To reduce risk of injury, please use the proper recommended cable size as below.

Suggested cable requirement for AC wires

Model Gauge Torque Value

1KVA

2KVA 230VAC

16 AWG

14 AWG

0.5~ 0.6 Nm

0.8~ 1.0 Nm

2KVA 120VAC

3KVA

4KVA

12 AWG 1.2~ 1.6 Nm

10 AWG 1.4~ 1.6Nm

5KVA 8 AWG 1.4~ 1.6Nm

Please follow below steps to implement AC input/output connection:

1.

Before making AC input/output connection, be sure to open DC protector or disconnector first.

2.

Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm.

3.

Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

WARNING:

Be sure that AC power source is disconnected before attempting to hardwire it to the unit.

4.

Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws.

Be sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

7

5.

Make sure the wires are securely connected.

CAUTION: Important

Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility short-circuited when these inverters are worked in parallel operation.

CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a short time, it will cause damage to your connected appliances. To prevent this kind of damage, please check manufacturer of air conditioner if it’s equipped with time-delay function before installation. Otherwise, this inverter/charger will trig overload fault and cut off output to protect your appliance but sometimes it still causes internal damage to the air conditioner.

PV Connection

CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter and PV modules.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV module connection. To reduce risk of injury, please use the proper recommended cable size as below.

Model Typical Amperage Cable Size Torque

1KVA 24V / 2KVA 24V/

3KVA 24V

25A 12 AWG 1.2~1.6 Nm

18A 14 AWG 1.2~1.6 Nm 1KVA 48V / 3KVA 48V

2KVA 24V Plus

3KVA 24V Plus

2KVA 48V Plus

3KVA 48V Plus

4KVA / 5KVA

60A 8 AWG 1.4~1.6 Nm

8

PV Module Selection:

When selecting proper PV modules, please be sure to consider below parameters:

1.

Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.

2.

Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.

Solar Charging Mode

INVERTER MODEL

1KVA 24V

2KVA 24V

3KVA 24V

Max. PV Array Open Circuit Voltage

75Vdc max

1KVA 48V

3KVA 48V

102Vdc max

2KVA 24V

Plus/ 3KVA

24V Plus

2KVA 48V

Plus/3KVA 48V

Plus/ 4KVA/5KVA

145Vdc

60~115Vdc

34Vdc

PV Array MPPT Voltage Range

30~66Vdc 60~88Vdc 30~115Vdc

Min. battery voltage for PV charge

17Vdc 34Vdc

Please follow below steps to implement PV module connection:

1.

Remove insulation sleeve 10 mm for positive and negative conductors.

2.

Check correct polarity of connection cable from PV modules and PV input connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector.

17Vdc

3.

Make sure the wires are securely connected.

Final Assembly

After connecting all wirings, please put bottom cover back by screwing two screws as shown below.

1KVA/2KVA/3KVA 2KVA Plus/3KVA Plus/4KVA/5KVA

9

Communication Connection

Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD.

Dry Contact Signal

There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external device when battery voltage reaches warning level.

Unit Status Condition

Power Off Unit is off and no output is powered.

Output is powered from Utility.

Power On

Output powered from is

Battery or

Solar.

Program 01 set as Utility

Program 01 is set as

SBU or

Solar first

Battery voltage < Low DC warning voltage

Battery voltage > Setting value in

Program 13 or battery charging reaches floating stage

Battery voltage < Setting value in

Program 12

Battery voltage > Setting value in

Program 13 or battery charging reaches floating stage

Dry contact port:

NC & C

Close

Close

NO & C

Open

Open

Open Close

Close

Open

Close

Open

Close

Open

10

OPERATION

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch

(located on the button of the case) to turn on the unit.

Operation and Display Panel

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three indicators, four function keys and a LCD display, indicating the operating status and input/output power information.

LCD display

LED indicators

Function keys

LED Indicator

LED Indicator

Green

Green

Messages

Solid On Output is powered by utility in Line mode.

Flashing Output is powered by battery or PV in battery mode.

Solid On Battery is fully charged.

Flashing Battery is charging.

Red

Solid On Fault occurs in the inverter.

Flashing Warning condition occurs in the inverter.

Function Keys

Function Key Description

ESC To exit setting mode

UP

DOWN

ENTER

To go to previous selection

To go to next selection

To confirm the selection in setting mode or enter setting mode

11

LCD Display Icons

Icon

Input Source Information

Indicates the AC input.

Indicates the PV input

Function description

Indicate input voltage, input frequency, PV voltage, battery voltage and charger current.

Configuration Program and Fault Information

Indicates the setting programs.

Indicates the warning and fault codes.

Warning: flashing with warning code.

Fault:

Output Information

lighting with fault code

Indicate output voltage, output frequency, load percent, load in VA, load in

Watt and discharging current.

Battery Information

Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode and charging status in line mode.

In AC mode, it will present battery charging status.

Status Battery voltage

<2V/cell

Constant

Current mode /

Constant

Voltage mode

2 ~ 2.083V/cell

2.083 ~ 2.167V/cell

> 2.167 V/cell

LCD Display

4 bars will flash in turns.

Bottom bar will be on and the other three bars will flash in turns.

Bottom two bars will be on and the other two bars will flash in turns.

Bottom three bars will be on and the top bar will flash.

Floating mode. Batteries are fully charged. 4 bars will be on.

12

In battery mode, it will present battery capacity.

Load Percentage Battery Voltage

< 1.717V/cell

LCD Display

1.717V/cell ~ 1.8V/cell

Load >50%

1.8 ~ 1.883V/cell

> 1.883 V/cell

< 1.817V/cell

1.817V/cell ~ 1.9V/cell

50%> Load > 20%

1.9 ~ 1.983V/cell

> 1.983

< 1.867V/cell

1.867V/cell ~ 1.95V/cell

Load < 20%

1.95 ~ 2.033V/cell

> 2.033

Load Information

Indicates overload.

Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.

0%~25% 25%~50% 50%~75% 75%~100%

Mode Operation Information

Indicates unit connects to the mains.

Indicates unit connects to the PV panel.

Indicates load is supplied by utility power.

Indicates the utility charger circuit is working.

Mute Operation

Indicates the DC/AC inverter circuit is working.

Indicates unit alarm is disabled.

13

LCD Setting

After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit.

Setting Programs:

Program Description Selectable option

Escape

00 Exit setting mode

Solar first

Solar energy provides power to the loads as first priority.

If solar energy is not sufficient to power all connected loads, battery energy will supply power the loads at the same time.

Utility provides power to the loads only when any one condition happens:

- Solar energy is not available

- Battery voltage drops to either low-level warning voltage or the setting point in program 12.

01

Output source priority:

To configure load power source priority

Utility first (default)

SBU priority

Utility will provide power to the loads as first priority.

Solar and battery energy will provide power to the loads only when utility power is not available.

Solar energy provides power to the loads as first priority.

If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time.

Utility provides power to the loads only when battery voltage drops to either low-level warning voltage or the setting point in program 12.

Available options in 1KVA 24V and 1KVA/3KVA 48V models:

10A 20A (default)

02

Maximum charging current:

To configure total charging current for solar and utility chargers.

(Max. charging current = utility charging current + solar charging current)

20A

Available options in 2-3KVA 24V models:

30A (default)

Available options in 2-3KVA 24V/48V Plus and 4-5KVA 48V models:

14

03

04

05

06

10A (Not available

20A for 2-3KVA 24V Plus)

30A 40A

50A 60A (default)

Available options in 4K/5K model

70A 80A

90A 100A

AC input voltage range

Power saving mode enable/disable

110A 120A

Appliances (default) If selected, acceptable AC input

UPS voltage range will be within

90-280VAC.

If selected, acceptable AC input

Saving mode disable

(default) voltage range will be within

170-280VAC.

If disabled, no matter connected load is low or high, the on/off status of inverter output will not be effected.

Saving mode enable If enabled, the output of inverter will be off when connected load is pretty low or not detected.

AGM (default) Flooded

Battery type

User-Defined

Auto restart when overload occurs

Restart disable

(default)

If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 26,

27 and 29.

Restart enable

15

07

08

09

11

Auto restart when over temperature occurs

Output voltage (only available for 120Vac models)

Output frequency

Restart disable

(default)

Restart enable

110V 120V (default)

50Hz (default) 60Hz

Available options in 1KVA 24V and 2KVA 24V Plus 120Vac model:

10A 20A(default):

Available options in 2-3KVA 24V and 2-3KVA 24V Plus models:

20A 30A (default)

Available options in 1KVA/3KVA 48V and 2-3KVA 48V Plus models:

10A 15A(default):

Maximum utility charging current

Available options in 2KVA 48V Plus 120Vac model:

5A 10A(default)

Available options in 4KVA/5KVA models:

2A 10A

20A

40A

30A (default)

50A

60A

16

Available options in 24V models:

22.0V 22.5V

23.0V (default) 23.5V

24.0V 24.5V

25.0V 25.5V

12

Setting voltage point back to utility source when selecting “SBU priority” or

“Solar first” in program 01.

Available options in 48V models:

44V 45V

46V (default) 47V

48V 49V

13

Setting voltage point back to battery mode when selecting “SBU priority” or

“Solar first” in program 01.

50V 51V

Available options in 24V models:

Battery fully charged 24V

24.5V

25.5V

25V

26V

17

26.5V

27.5V

27V (default)

28V

29V 28.5V

Available options in 48V models:

Battery fully charged 48V

49V

51V

50V

52V

53V

55V

57V

54V (default)

56V

58V

16

Charger source priority:

To configure charger source priority

If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below:

Solar first

Utility first

Solar energy will charge battery as first priority.

Utility will charge battery only when solar energy is not available.

Utility will charge battery as first priority.

Solar energy will charge battery only when utility power is not available.

18

18

19

20

22

23

25

Solar and Utility

(Only available for

4KVA/5KVA model)

Solar energy and utility will charge battery at the same time.

Only Solar Solar energy will be the only charger source no matter utility is available or not.

If this inverter/charger is working in Battery mode or Power saving mode, only solar energy can charge battery. Solar energy will charge battery if it's available and sufficient.

Alarm on (default) Alarm off

Alarm control

Auto return to default display screen

Backlight control

Beeps while primary source is interrupted

Return to default display screen

(default)

Stay at latest screen

If selected, no matter how users switch display screen, it will automatically return to default display screen (Input voltage /output voltage) after no button is pressed for 1 minute.

If selected, the display screen will stay at latest screen user finally switches.

Backlight on

(default)

Backlight off

Alarm on (default) Alarm off

Overload bypass:

When enabled, the unit will transfer to line mode if overload occurs in battery mode.

Bypass disable

(default)

Bypass enable

Record enable Record disable (default)

Record Fault code

24V model default setting: 28.2V

26

Bulk charging voltage

(C.V voltage)

48V model default setting: 56.4V

19

If self-defined is selected in program 5, this program can be set up. Setting range is from 24.0V to 29.2V for 24V model and

48.0V to 58.4V for 48V model. Increment of each click is 0.1V.

24V model default to 27.0V

27 Floating charging voltage

48V model default setting: 54.0V

If self-defined is selected in program 5, this program can be set up. Setting range is from 24.0V to 29.2V for 24V model,

48.0V to 58.4V for 48V model. Increment of each click is 0.1V.

24V model default setting: 21.0V

29

31

48V model default setting: 42.0V

Low DC cut-off voltage

Solar power balance:

When enabled, solar input power will be automatically adjusted according to connected load power.

(Only available for

4KVA/5KVA model)

If self-defined is selected in program 5, this program can be set up. Setting range is from 20.0V to 24.0V for 24V model,

40.0V to 48.0V for 48V model. Increment of each click is 0.1V.

Low DC cut-off voltage will be fixed to setting value no matter what percentage of load is connected.

Solar power balance enable (Default):

Solar power balance disable:

If selected, solar input power will be automatically adjusted according to the following formula:

Max. input solar power = Max. battery charging power +

Connected load power.

If selected, the solar input power will be the same to max. battery charging power no matter how much loads are connected. The max. battery charging power will be based on the setting current in program 02.

(Max. solar power = Max. battery charging power)

20

Display Setting

The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable information is switched as below order:

input voltage, input frequency, PV voltage, MPPT charging current,

MPPT charging power, battery voltage, output voltage, output frequency, load percentage, load in VA, load in Watt, DC discharging current, main CPU Version and second CPU Version.

Selectable information LCD display

Input Voltage=230V, output voltage=230V

Input voltage/Output voltage

(Default Display Screen)

Input frequency=50Hz

Input frequency

PV voltage=60V

PV voltage

Current

10A

MPPT Charging current

MPPT Charging power

Current < 10A

MPPT charging power=500W

21

Battery voltage=25.5V, discharging current=1A

Battery voltage/ DC discharging current

Output frequency=50Hz

Output frequency

Load percent=70%

Load percentage

When connected load is lower than 1kVA, load in

VA will present xxxVA like below chart.

Load in VA

When load is larger than 1kVA (≧1KVA), load in

VA will present x.xkVA like below chart.

22

Load in Watt

When load is lower than 1kW, load in W will present xxxW like below chart.

When load is larger than 1kW (≧1KW), load in W will present x.xkW like below chart.

Main CPU version 00014.04

Main CPU version checking

Secondary CPU version checking

Secondary CPU version 00003.03

23

Operating Mode Description

Operation mode Description LCD display

Charging by utility.

Standby mode / Power saving mode

Note:

*Standby mode: The inverter is not turned on yet but at this time, the inverter can charge battery without AC output.

*Power saving mode: If enabled, the output of inverter will be off when connected load is pretty low or not detected.

No output is supplied by the unit but it still can charge batteries.

Charging by PV energy.

No charging.

Charging by utility. (Only available in 1K/2K/3K model)

Fault mode

Note:

*Fault mode: Errors are caused by inside circuit error or external reasons such as over temperature, output short circuited and so on.

PV energy and utility can charge batteries.

Charging by PV energy.

No charging.

Fault mode

Note:

*Fault mode: Errors are caused by inside circuit error or external reasons such as over temperature, output short circuited and so on.

Utility can power loads when the unit starts up without battery. (Only available in

4K/5K model with single operation)

Power from utility

Charging by PV energy

Line Mode

The unit will provide output power from the mains. It will also charge the battery at line mode.

Charging by utility.

24

Battery Mode

Power from battery and PV energy.

The unit will provide output power from battery and PV power.

Power from battery only.

Fault Reference Code

Fault Code

01

Fault Event

Fan is locked when inverter is off.

Icon on

02 Over temperature

03 Battery voltage is too high

04

05

06

07

Battery voltage is too low

Output short circuited or over temperature is detected by internal converter components.

Output voltage is abnormal. (For 1K/2K/3K model)

Output voltage is too high. (For 4K/5K model)

Overload time out

08 Bus voltage is too high

09 Bus soft start failed

11 Main relay failed

51 Over current or surge

52 Bus voltage is too low

53 Inverter soft start failed

55 Over DC voltage in AC output

56 Battery connection is open

57 Current sensor failed

58 Output voltage is too low

NOTE: Fault codes 51, 52, 53, 55, 56, 57 and 58 are only available in 4K/5K model.

25

Warning Indicator

07

10

12

01

Warning

Code

03

04

Warning Event

Fan is locked when inverter is on.

Audible Alarm

Beep three times every second

Battery is over-charged Beep once every second

Low battery Beep once every second

13

14

Overload Beep once every 0.5 second

Output power derating

Solar charger stops due to low battery.

Solar charger stops due to high PV voltage.

Solar charger stops due to overload.

Beep twice every 3 seconds

Icon flashing

26

Disconnect and Re-Connect Procedure

Shutdown Procedure

For IGS Press ESC/OFF till buzzer sounds

For IPS Press the Off Switch at the bottom right of the unit & disconnect remote signal switch if used.

Step 1: Turn off “SOLAR SUPPLY MAIN SWITCH” in Switchboard

Step 2: Turn off “PV ARRAY DC ISOLATOR” Next to Inverter

Disconnect Procedure

Step 3: Turn off AC Load/Grid Connect Breaker

Step 4: Turn off AC Input Breaker and/or Generator Input

Step 5: Open Battery DC Circuit Breaker

Step 6: Double check that are disconnected before disconnecting terminals.

You can now safely remove the unit.

Re-Connect Procedure

For IGS Physically Connect Up the inverter as described in the Manual.

Refer to Section 10) Commissioning in the Manual for procedure to switch unit on.

For IPS Physically Connect Up the inverter as described in the Manual.

Step 1: Turn on Battery

Step 2: Turn on PV

Step 3: Turn on AC Input (optional)

Step 4: Turn on Inverter using the rocker switch at the bottom right of the unit

27

SPECIFICATIONS

Table 1 Line Mode Specifications

INVERTER MODEL

Input Voltage Waveform

Nominal Input Voltage

Low Loss Voltage

Low Loss Return Voltage

High Loss Voltage

High Loss Return Voltage

Max AC Input Voltage

Nominal Input Frequency

Low Loss Frequency

Low Loss Return Frequency

High Loss Frequency

High Loss Return Frequency

Output Short Circuit Protection

Efficiency (Line Mode)

Transfer Time

1KVA 24V

2KVA 24V

3KVA 24V

1KVA 48V

3KVA 48V

2KVA 24V Plus

3KVA 24V Plus

2KVA 48V Plus

3KVA 48V Plus

Sinusoidal (utility or generator)

4KVA

5KVA

120Vac or 230Vac

95Vac±7V or 170Vac±7V (UPS)

65Vac±7V or 90Vac±7V (Appliances)

100Vac±7V or 180Vac±7V (UPS);

70Vac±7V or 100Vac±7V (Appliances)

140Vac±7V or 280Vac±7V

135Vac±7V or 270Vac±7V

150Vac or 300Vac

50Hz / 60Hz (Auto detection)

40±1Hz

42±1Hz

65±1Hz

63±1Hz

Line mode: Circuit Breaker

Battery mode: Electronic Circuits

>95% ( Rated R load, battery full charged )

10ms typical (UPS);

20ms typical (Appliances)

120Vac model:

Output power derating:

When AC input voltage drops to 95V or

170V depending on models, the output power will be derated.

230Vac model:

2

8

Table 2 Inverter Mode Specifications

INVERTER MODEL

1KVA 24V

2KVA 24V

3KVA 24V

2KVA 24V Plus

3KVA 24V Plus

1KVA/0.8KW

2KVA/1.6KW

3KVA/2.4KW

1KVA 48V

3KVA 48V

2KVA 48V Plus

3KVA 48V Plus

4KVA

5KVA

Rated Output Power

1KVA/1KW

2KVA/1.6KW

3KVA/2.4KW

Pure Sine Wave

4KVA/3.2KW

5KVA/4KW

Output Voltage Waveform

Output Voltage Regulation

110/120VAC

±5%*

or

230Vac±5%

Output Frequency

Peak Efficiency

Overload Protection

Surge Capacity

Nominal DC Input Voltage

Cold Start Voltage

Low DC Warning Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

60Hz or 50Hz

90%

[email protected]≥150% load; [email protected]%~150% load

24Vdc

23.0Vdc

2* rated power for 5 seconds

48Vdc

46.0Vdc

22.0Vdc

21.4Vdc

20.2Vdc

Low DC Warning Return Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

Low DC Cut-off Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

High DC Recovery Voltage

High DC Cut-off Voltage

No Load Power Consumption

Saving Mode Power Consumption

*4KVA/5KVA only supports 230VAC system.

23.0Vdc

22.4Vdc

21.2Vdc

21.0Vdc

20.4Vdc

19.2Vdc

29Vdc

31Vdc

<25W

<10W

62Vdc

44.0Vdc

42.8Vdc

40.4Vdc

46.0Vdc

44.8Vdc

42.4Vdc

42.0Vdc

40.8Vdc

38.4Vdc

58Vdc

60Vdc

<50W

<15W

2

9

Table 3 Charge Mode Specifications

Utility Charging Mode

INVERTER MODEL

Charging Current (UPS)

@ Nominal Input Voltage

Bulk

Charging

Voltage

Flooded

Battery

AGM / Gel

Battery

Floating Charging Voltage

2KVA 24V

1KVA 24V

3KVA 24V

2KVA 24V

Plus 120Vac

2KVA 24V Plus

3KVA 24V Plus

1KVA 48V

2KVA 48V 3KVA 48V

Plus 120Vac 2KVA 48V Plus

3KVA 48V Plus

4KVA

5KVA

10/20A 20/30A 5/10A 10/15A

2/10A/

20/30A/

40/50/60A

29.2

28.2

27Vdc

58.4

56.4

54Vdc

Charging Algorithm

3-Step

Charging Curve

Solar Charging Mode

INVERTER MODEL

Rated Power

Efficiency

1KVA 24V

2KVA 24V

3KVA 24V

600W

1KVA 48V

3KVA 48V

900W

2KVA 24V Plus

3KVA 24V Plus

2KVA 48V Plus

3KVA 48V Plus

4KVA

5KVA

1500W 3000W

98.0% max.

Max. PV Array Open Circuit Voltage 75Vdc max 102Vdc max

PV Array MPPT Voltage Range

30~66Vdc 60~88Vdc

Min battery voltage for PV charge

Standby Power Consumption

17Vdc 34Vdc

Battery Voltage Accuracy

17Vdc

2W

+/-0.3%

145Vdc

30~115Vdc 60~115Vdc

34Vdc

PV Voltage Accuracy

Charging Algorithm

+/-2V

3-Step

30

Joint Utility and Solar Charging (Only available for 4KVA and 5KVA model)

Max Charging Current

120Amp

Default Charging Current

60Amp

Table 4 General Specifications

INVERTER MODEL

Safety Certification

Operating Temperature

Range

Storage temperature

Dimension (D*W*H), mm

Net Weight, kg

1KVA 24V

1KVA 48V

2KVA 24V

3KVA 24V

3KVA 48V

2KVA 24V Plus

3KVA 24V Plus

2KVA 48V Plus

3KVA 48V Plus

CE

4KVA 5KVA

7.4

0°C to 55°C

128 x 272 x 355

7.6

-15°C~ 60°C

140 x 295 x 479 140 x295 x540

8.0 11.5 12.5 13.5

31

TROUBLE SHOOTING

Problem

Unit shuts down automatically during startup process.

No response after power on.

LCD/LED/Buzzer Explanation / Possible cause

LCD/LEDs and buzzer will be active for 3 seconds and then complete off.

The battery voltage is too low

(<1.91V/Cell)

No indication.

1. The battery voltage is far too low. (<1.4V/Cell)

2. Battery polarity is connected reversed.

Input voltage is displayed as 0 on the

LCD and green LED is flashing.

Input protector is tripped

1. Check if batteries and the wiring are connected well.

2. Re-charge battery.

3. Replace battery.

Check if AC breaker is tripped and AC wiring is connected well.

What to do

1. Re-charge battery.

2. Replace battery.

Mains exist but the unit works in battery mode. Green LED is flashing.

Insufficient quality of AC power.

(Shore or Generator)

1. Check if AC wires are too thin and/or too long.

2. Check if generator (if applied) is working well or if input voltage range setting is correct. (UPS Appliance)

Change output source priority to Utility first.

Buzzer beeps continuously and red LED is on.

Green LED is flashing.

Set “Solar First” as the priority of output source.

When the unit is turned on, internal relay is switched on and off repeatedly.

LCD display and LEDs are flashing

Battery is disconnected.

Fault code 07

Fault code 05

Fault code 02

Fault code 03

Fault code 01

Fault code 06/58

Check if battery wires are connected well.

Overload error. The inverter is overload 110% and time is up.

Output short circuited.

Reduce the connected load by switching off some equipment.

Check if wiring is connected well and remove abnormal load.

Temperature of internal converter component is over 120°C. (Only available for 1-3KVA models.)

Internal temperature of inverter component is over 100°C.

Battery is over-charged.

Check whether the air flow of the unit is blocked or whether the ambient temperature is too high.

The battery voltage is too high.

Fan fault

Output abnormal (Inverter voltage below than 190Vac or is higher than 260Vac)

Return to repair center.

Check if spec and quantity of batteries are meet requirements.

Replace the fan.

1. Reduce the connected load.

2. Return to repair center

Fault code

08/09/53/57

Fault code 51

Internal components failed.

Over current or surge.

Return to repair center.

Fault code 52

Fault code 55

Bus voltage is too low.

Output voltage is unbalanced.

Restart the unit, if the error happens again, please return to repair center.

Fault code 56

Battery is not connected well or fuse is burnt.

If the battery is connected well, please return to repair center.

3

2

Appendix: Approximate Back-up Time Table

Model

1KVA

2KVA

3KVA

2000

300

600

900

1200

1500

1800

600

800

1000

1200

1400

1600

1800

2100

2400

2700

3000

Load (VA)

200

400

600

800

1000

200

400

Backup Time @24Vdc 100Ah (min) Backup Time @24Vdc 200Ah (min)

766

335

198

139

112

766

335

1610

766

503

339

269

1610

766

50

449

222

124

95

68

56

48

35

31

28

198

139

112

95

81

62

55

503

339

269

227

176

140

125

112

1100

525

303

227

164

126

108

94

74

67

Model

1KVA

Load (VA)

100

200

300

400

500

600

700

800

900

1000

Backup Time @ 48Vdc 100Ah (min) Backup Time @ 48Vdc 200Ah (min)

2529 5058

1264

843

608

2529

1686

1279

482

406

310

268

231

186

1035

872

710

615

540

471

3

3

Model

2KVA

3KVA

4KVA

3000

400

800

1200

1600

2000

2400

900

1200

1500

1800

2100

2400

2700

Load (VA)

200

400

600

800

1000

1200

1400

1600

1800

2000

300

600

Backup Time @ 48Vdc 100Ah (min) Backup Time @ 48Vdc 200Ah (min)

1581 3161

751

491

1581

1054

331

268

760

615

221

172

136

120

106

1054

491

63

766

335

198

139

112

95

291

196

159

123

105

91

71

508

387

335

295

257

2107

1054

668

497

402

301

253

219

174

155

1610

766

503

339

269

227

5KVA

2000

2500

3000

3500

4000

4500

2800

3200

3600

4000

500

1000

1500

81

62

55

50

613

268

158

111

90

76

65

50

44

176

140

125

112

1288

613

402

5000 40 90

Note: Backup time depends on the quality of the battery, age of battery and type of battery.

Specifications of batteries may vary depending on different manufacturers.

271

215

182

141

112

100

3

4

FREE CALL - 1300 877 554 - WWW.GIANTPOWER.COM.AU

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
