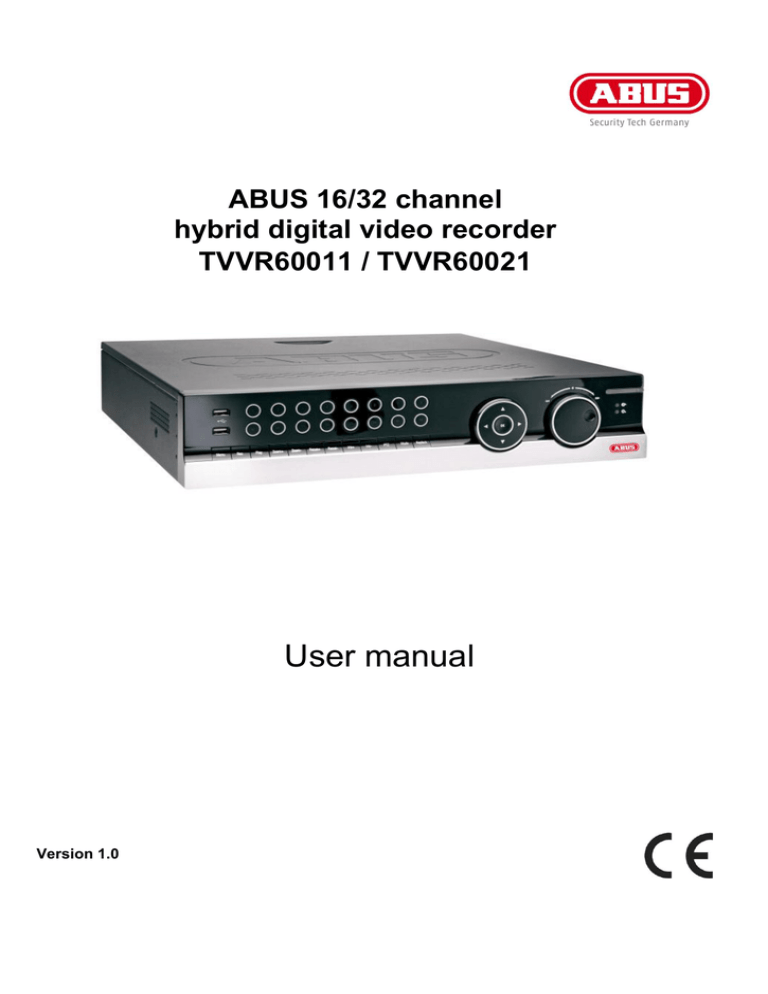

User manual

ABUS 16/32 channel hybrid digital video recorder

TVVR60011 / TVVR60021

Version 1.0

User manual

Notes on the operating instructions

English

These user manual contains important information for installation and operation.

This should be also noted when this product is passed on to a third party.

Therefore look after these operating instructions for future reference!

A list of contents with the corresponding page number can be found in the index.

See System operation on page 70.

Pay attention to the information in the separate quick guide, plus the notes on the

CD and in the accompanying documentation on “Web server control” and “Clients

Software”. These can be found on the Internet under www.abus.com.

68

Device overview

Front

Rearside

Device overview

69

System operation

System operation

General information

The device can be controlled as follows:

Using the operating elements on the front of the device

Using the remote control

Using the USB mouse

Operating elements on the device

Note

Pay attention to the overview on page 69.

No. Name

Function

1

Recorder operating keys:

MENU:

Calls up the main menu

Switches the key tones on and off (press and hold down for 5 seconds)

REC:

Calls up the menu for manual recording

2

PLAY:

Opens the playback menu

ZOOM+:

Zooms in on the image section in PTZ mode

ZOOM-:

Zooms out of the image section in PTZ mode

Switches the video output in live mode: Monitor

– Spot Monitor or Video Out – Video Spot

Out

FOCUS+:

Sets the focus in PTZ mode

FOCUS-:

Sets the focus in PTZ mode

IRIS+:

Opens the iris

IRIS-:

Closes the iris in PTZ mode

PTZ:

Activates the PTZ control

MODE:

Switches the screen view

KEYLOCK:

Locks the control keys

USB ports:

For external USB 2.0 devices (e.g. mouse, external disk drive or DVR burner)

No. Name

Function

3 Camera selection keys (1, 2, 3...):

4

Displays the camera status:

White: Camera is connected

Blue: Connected camera is recording

Not lit: No camera connected

In the live view:

Selects the camera and displays the full-screen view

Directional keypad:

During playback:

,  Sets the speed

,  Previous / next day

In the live view:

Selects the channel

In menus:

Navigation

OK key:

Press and hold for 5 seconds to switch the device on and off

Confirms the selection

Ticks / unticks the boxes

During playback:

PLAY/PAUSE

Increased/ decreased playback speed:

Normal playback speed

5

6

7

Jog Shuttle:

During playback:

Outer ring (shuttle ring) change playback speed

Inner ring to play single frames in single mode

In menus:

Inner ring moves the cursor upwards / downwards

Outer ring moves the cursor left / right

In the live view:

Selects the channel

DVR status LED:

Displays the device status:

White (constantly lit): System status is OK

White (flashing): System status is OK, recording settings are stored, surveillance mode is active

Blue (constantly lit): At least one camera is currently recording

Red (constantly lit): System maintenance required

IR receiver:

For the remote control

70

Connections on the rear of the device

Note

Pay attention to the overview on page 69.

No. Name

Function

8

Video IN: BNC video inputs for analog cameras

(1

–8 or 1–16 respectively)

9

Video LOOP OUT: looped video outputs

10 VIDEO SPOT OUT:

video spot outputs, configured using the recorder menu

11 VIDEO OUT:

BNC video output for connecting a monitor

12 AUDIO OUT:

audio outputs (RCA)

13 LINE IN:

audio input (line, RCA)

14 AUDIO IN (RCA): audio inputs 1

–4

15 AUDIO IN (DB26):

TVVR60011: audio inputs 5

–8

TVVR60021: audio inputs 5

–16

16 RS-232 port:

serial port

– not functional

17 VGA port:

VGA monitor port

18 HDMI port:

HDMI monitor port

19 eSATA port:

connection for an external hard drive

20 USB port:

additional USB connection

21 LAN1 & LAN2:

2 x RJ45 ports (for the network connection)

22 DIP switch:

DIP switch for end-of-line resistor RS-485 connection

23 RS-485, ALARM IN, ALARM OUT:

RS-485 port for PTZ cameras, max. 16 alarm inputs, max. 4 relay outputs

24 Ground (GND):

ground connection

25 Power supply:

connection for cold device cable, 100

–240 V AC,

50

–60 Hz

26 Power ON/OFF:

on and off device switch

71

Notes on the operating instructions

Remote control (TVAC40930)

72

Operating elements on the remote control

Note

Pay attention to the remote control diagram on page 67.

No. Name

Function

20 DEV:

Assigns the remote control with the device ID

21

22

23

24

25

26

27

Alphanumeric keys:

Selects the camera (channel) in the live view

Entry of letters and digits in system fields

A:

Changes the entry format (upper / lower case, symbols, digits)

PLAY:

Starts playback

VOIP:

Not used

PREV:

Changes the screen display in the live view

Navigation keys:

During playback:

,  Sets the speed

,  Previous / next day

In the live view:

Selects the camera (channel selection)

In menus:

Navigation

ESC:

Not used

No. Name

Function

28

Not used

29

Not used

30

31

32

33

34

35

36

37

Zoom +:

Zooms in on the image section in PTZ mode

F1:

In lists:

Selects all available options

Zoom -:

Zooms out of the image section in PTZ mode

F2:

Switches between tabs

IRIS-: In PTZ mode:

Closes the iris

Focus-: In PTZ mode:

Brings the image section into focus

IRIS+: In PTZ mode:

Opens the iris

Focus+: In PTZ mode:

Brings the image section into focus

38

◄II: Pause / reverse playback

39

: Stops playback

40

PTZ:

Switches on PTZ control

41

42

43

EnterII:

Confirms the selection

Ticks / unticks the boxes

During playback:

PLAY/PAUSE

Single play mode:

Advances by a single frame

MENU:

Calls up the main menu

Switches the key tones on and off (press and hold down for 5 seconds)

REC:

Opens / starts manual recording

44

45

INFO:

Switches to another monitor in the live view

EDIT:

General use:

Activates the text entry; backspace in text fields

46

POWER:

Switches on/off (hold down for 5 seconds)

Mouse operation

Note

Further descriptions in these operating instructions are made with the mouse.

The device is suitable for use with a USB mouse.

Connect the mouse to the USB port.

Button Function

Left Single-click:

Selection in menu, activation of an entry field or tab

Double-click:

Switches between the screen display of single and multiple images in the live view and during playback

Click and drag:

In PTZ mode: Camera control

Set-up of alarm areas or zones

Right Single-click:

Calls up the pop-up menu

Scroll wheel

In the live view:

Shows previous / next camera

In menus:

Scrolls through the menus

73

Contents

Device overview ............................................................................................................................................................. 69

System operation ........................................................................................................................................................... 70

General information ....................................................................................................................................................... 70

Operating elements on the device ................................................................................................................................. 70

Connections on the rear of the device ........................................................................................................................... 71

Operating elements on the remote control .................................................................................................................... 73

Mouse operation ............................................................................................................................................................ 73

Quick guide..................................................................................................................................................................... 77

Before you start .............................................................................................................................................................. 77

Installing the HDD .......................................................................................................................................................... 77

Establishing the connections ......................................................................................................................................... 77

Configuring the device ................................................................................................................................................... 77

Important safety information ........................................................................................................................................ 78

Explanation of symbols .................................................................................................................................................. 78

Proper use ..................................................................................................................................................................... 78

General information ....................................................................................................................................................... 78

Power supply ................................................................................................................................................................. 78

Overloading / overvoltage .............................................................................................................................................. 79

Cables ............................................................................................................................................................................ 79

Installation location / operating environment ................................................................................................................. 79

Remote control ............................................................................................................................................................... 79

Care and maintenance ................................................................................................................................................... 80

Accessories .................................................................................................................................................................... 80

Putting into operation ..................................................................................................................................................... 80

Children and the device ................................................................................................................................................. 80

Introduction .................................................................................................................................................................... 81

General information ....................................................................................................................................................... 81

Unpacking the device ..................................................................................................................................................... 81

Scope of delivery ........................................................................................................................................................... 81

On-screen keyboard ...................................................................................................................................................... 82

Starting the device ......................................................................................................................................................... 82

Switching off, locking and rebooting the device ............................................................................................................. 82

Status displays ............................................................................................................................................................... 83

General information ....................................................................................................................................................... 83

DVR status LED ............................................................................................................................................................. 83

Camera selection keys

– status LED ............................................................................................................................. 83

Displays on the monitor ................................................................................................................................................. 83

Setup wizard ................................................................................................................................................................... 84

Setting up the system .................................................................................................................................................... 84

Setting up the administrator ........................................................................................................................................... 84

Time / Date .................................................................................................................................................................... 84

Network Settings ............................................................................................................................................................ 85

HDD Management ......................................................................................................................................................... 85

Setting up network cameras .......................................................................................................................................... 85

Camera recording .......................................................................................................................................................... 86

Live view ......................................................................................................................................................................... 87

Overview ........................................................................................................................................................................ 87

Status symbols .............................................................................................................................................................. 87

Pop-up menu for mouse operation ................................................................................................................................ 87

74

Contents

Selection bar in the camera image ................................................................................................................................ 88

Settings .......................................................................................................................................................................... 89

Setting the camera output ............................................................................................................................................. 89

Playback......................................................................................................................................................................... 90

General information ....................................................................................................................................................... 90

Playback screen ............................................................................................................................................................ 90

Using the control panel .................................................................................................................................................. 90

Right click when playback is running ............................................................................................................................ 91

Main menu ...................................................................................................................................................................... 92

Menu overview ............................................................................................................................................................... 92

Menu description ........................................................................................................................................................... 92

Menu description ........................................................................................................................................................... 93

Settings ........................................................................................................................................................................... 94

Overview ........................................................................................................................................................................ 94

General .......................................................................................................................................................................... 94

Terms and definitions .................................................................................................................................................... 95

Network layout ............................................................................................................................................................... 96

Network-configuration ................................................................................................................................................... 96

Live view ...................................................................................................................................................................... 103

Warning ........................................................................................................................................................................ 103

User .............................................................................................................................................................................. 103

Camera ........................................................................................................................................................................ 105

OSD ............................................................................................................................................................................. 105

Image ........................................................................................................................................................................... 106

PTZ .............................................................................................................................................................................. 106

Motion .......................................................................................................................................................................... 106

Handling ....................................................................................................................................................................... 106

Private zone ................................................................................................................................................................. 108

Tamper surveillance ..................................................................................................................................................... 108

Video signal loss .......................................................................................................................................................... 108

Setting up ..................................................................................................................................................................... 109

Schedule ...................................................................................................................................................................... 109

Encoding ...................................................................................................................................................................... 110

Confirm the settings by clicking Apply and leave the menu with Back. ...................................................................... 111

Advanced settings ....................................................................................................................................................... 111

Holidays ....................................................................................................................................................................... 111

HDDs ............................................................................................................................................................................ 112

Installing the HDD ....................................................................................................................................................... 112

HDD Management parameters ................................................................................................................................... 112

HDD settings of the cameras ....................................................................................................................................... 113

Hard disc setting .......................................................................................................................................................... 113

Checking the HDD status ............................................................................................................................................ 114

Setting up the HDD alarm ........................................................................................................................................... 114

S.M.A.R.T..................................................................................................................................................................... 114

Continous Recording ................................................................................................................................................... 115

Event ............................................................................................................................................................................ 115

Marking ........................................................................................................................................................................ 115

Image ........................................................................................................................................................................... 115

Maintenance ................................................................................................................................................................. 117

System Info .................................................................................................................................................................. 117

Log Search ................................................................................................................................................................... 117

Import / Export ............................................................................................................................................................. 118

Upgrade ....................................................................................................................................................................... 118

75

Contents

Default .......................................................................................................................................................................... 119

Network ........................................................................................................................................................................ 119

Video Export ................................................................................................................................................................. 121

Duration........................................................................................................................................................................ 121

Event (event type ‘Alarm input’) ................................................................................................................................... 122

Event (event type ‘Motion’) .......................................................................................................................................... 122

Manual Management .................................................................................................................................................... 123

Record.......................................................................................................................................................................... 123

Continous Capture ....................................................................................................................................................... 123

Alarm ............................................................................................................................................................................ 123

Shutdown ...................................................................................................................................................................... 123

Troubleshooting ........................................................................................................................................................... 124

Device cleaning and care ............................................................................................................................................ 124

Note .............................................................................................................................................................................. 124

Technical data .............................................................................................................................................................. 125

Disposal ........................................................................................................................................................................ 126

Information on the EU directive on waste electrical and electronic equipment ........................................................... 126

Information on handling batteries ................................................................................................................................ 126

Important information on disposing of batteries .......................................................................................................... 126

Information on the European RoHS directive ............................................................................................................. 126

Glossary ........................................................................................................................................................................ 127

Overview of specialist terms ........................................................................................................................................ 127

Internal HDD ................................................................................................................................................................. 129

76

Quick guide

Quick guide

Before you start

The following preparatory steps must be made:

1. Pay attention to the general information, safety information and notes on setting up and connecting

the device (see page 70).

2. Check the contents of the package for completeness and damages.

3. Insert the batteries into the remote control.

Note

Pay attention to the information in the separate quick guide.

Installing the HDD

Warning

Switch off the device and disconnect it from the mains power supply.

Pay attention to the required earthing of the device to avoid static discharge.

1. Install one or more HDDs (see the separate quick guide).

2. Firstly, establish the connection to the motherboard using the red data cable (small connector).

3. Connect the power supply cable (large 5-pin connector).

4. Check that the connections are secure.

5. Close the housing.

Note

Only use HDD’s that are approved for video recording and 24/7 usage.

Establishing the connections

Note

Pay attention to the minimum radius when laying cables. Do not kink the cable.

1. Connect all network cameras with your network

2. Connect the audio connections.

3. Connect the sensors to the alarm inputs.

4. Connect the monitor to the HDMI/VGA or BNC connection.

5. Connect the mouse to the USB port.

6. Establish a connection to the mains power supply.

7. Switch on the device using the POWER switch on the rear. The DVR status display on the front of the device lights up.

Configuring the device

Note

Pay attention to the information in the separate quick guide.

Proceed through the individual steps in the setup wizard (see page 96).

The following settings are configured in sequence:

Language selection for the user interface

Administrator setup

General settings (date, time etc.)

HDD management (initialisation etc.)

Network settings

Camera management

Note

Subsequent changes to the date and time can lead to the loss of data!

Note

Check the ABUS homepage (www.abus.com) if for this device any firmware updates are available and install these

77

Important safety information

Important safety information

Explanation of symbols

The following symbols are used in this manual and on the device:

Symbol Signal word Meaning

Warning

Warning

Indicates a risk of injury or health hazards.

Indicates a risk of injury or health hazards caused by electrical voltage.

Important Indicates possible damage to the device/accessories.

Note Indicates important information.

The following labels are used in the text:

1.

2.

Meaning

Set of tasks or instructions with a defined sequence in the text

Set of points or warnings without a defined sequence in the text

General information

Before using the device for the first time, read the following instructions carefully and pay attention to all warnings, even if you are already familiar with electronic devices.

Warning

All guarantee claims become invalid for damages caused by non-compliance with these operating instructions.

We cannot be held liable for resulting damages.

Warning

We cannot be held liable in the event of material or personal damage caused by improper operation or non-compliance with the safety information.

All guarantee claims are invalid in such cases.

Keep this manual in a safe place for future reference.

If you pass on or sell the device, you must also include this user manual.

This device has been manufactured in accordance with international safety standards.

Proper use

Only use the device for the purpose which it was designed and built for. Any other use is considered inappropriate.

This device may only be used for the following purpose(s):

This DVR recorder is used in combination with connected video signal sources (network cameras) and video output devices (CRT or TFT monitors) for object surveillance.

Note

Data storage is subject to national data-protection guidelines.

During installation, inform your customers regarding the existence of these guidelines.

Power supply

Only operate this device through a power source which supplies the mains power specified on the type plate.

If you are unsure of the power supply at the installation location, contact your power supply company.

Warning

Avoid data loss!

Always use an uninterruptible power supply (UPS) with overvoltage protection.

Disconnect the device from the mains power supply before carrying out maintenance or installation work.

The on/off switch does not completely disconnect the device from the mains power supply.

To disconnect the device completely from the mains power supply, the plug must be disconnected from the mains socket. Therefore, the device should be positioned so that direct and unobstructed access to the mains socket is guaranteed at all times and the plug can be disconnected immediately in an emergency.

78

Important safety information

To avoid the possibility of fires, the plug should always be disconnected from the network socket if the device is not used for long periods. Disconnect the device from the mains power supply before impending electrical storms, or use an uninterruptible power supply.

Warning

Never open the device on your own! There is a risk of electric shocks!

If it is necessary to open the device, consult trained personnel or your local maintenance specialist.

The installation or modification of a HDD should only be made by trained personnel or your local maintenance specialist.

Warning

The installation of additional equipment or modification of the device invalidates your guarantee if not carried out by trained personnel.

We recommend having the HDD installed by a maintenance specialist.

Your guarantee is invalidated in the event of improper installation of the HDD.

Overloading / overvoltage

Avoid overloading of mains sockets, extension cables and adapters as this can result in fires or electric shocks.

Use overvoltage protection to prevent damages caused by overvoltage (e.g. electrical storms).

Installation location / operating environment

Position the device on a firm, level surface and do not place any heavy objects on the device.

The device is not designed for operation in rooms subject to high temperatures or moisture (e.g. bathrooms), or in excessively dusty rooms.

Operating temperature and ambient humidity:

-10 °C to 55 °C, maximum 85% relative humidity. The device may only be operated in moderate climate conditions.

Ensure the following:

Sufficient ventilation must be present at all times (do not place the device in a storage rack, on thick carpets, on a bed or anywhere where the ventilation slots are covered. Make sure that a gap of at least

10 cm is present on all sides).

The device must not be exposed to direct heat sources (e.g. heaters).

The device must not be exposed to direct sunlight or strong artificial light.

The device must not be placed in close proximity to magnetic fields (e.g. loudspeakers).

Naked flames (e.g. candles) must not be placed on or near the device.

Contact with spraying or dripping water and aggressive liquids must be avoided.

The device must not be operated in close proximity to water, and must not be submerged under any circumstances (do not place objects containing water on or near the device, such as vases or drinks).

Foreign objects must not penetrate the device.

The device must not be exposed to strong variations in temperature, as this can lead to condensation and electrical short circuits.

The device must not be exposed to excessive jolts or vibrations.

Cables

Always hold cables by the connector, and do not pull the cable itself.

Never touch the mains cable with wet hands, as this can lead to a short circuit or electric shock.

Never position the device, furniture or other heavy items on the cable. Ensure that the cable does not become kinked, especially on the connector and sockets.

Never knot the cable, and do not tie it to other cables.

All cables should be laid so that they cannot be stepped on or cause an obstruction.

A damaged mains cable can cause a fire or electric shock. Check the mains cable from time to time.

Never modify or manipulate the mains cable or plug.

Do not use plug adapters or extension cables that do not conform to the applicable safety standards, and do not make alterations to power supply cables or mains cables.

Remote control

Remove all batteries if the device will not be used for a sustained period, as these can leak and damage the device.

79

Important safety information

Care and maintenance

Maintenance is necessary if the device has been damaged. This includes damage to the plug, mains cable and housing, penetration of the interior by liquids or foreign objects, exposure to rain or moisture or when the device does not work properly or has fallen.

Disconnect the device from the mains power supply before maintenance (e.g. cleaning).

If smoke develops or unusual noises or odours are detected, then switch off the device immediately and pull the mains plug from the socket. In such cases, the device should not be used until it has been inspected by a qualified technician.

Maintenance work should only be carried out by qualified specialists.

Never open the housing on the device or accessories. There is a risk of fatal injury due to an electric shock when the housing is opened.

Clean the device housing and remote control with a damp cloth.

Do not use solvents, white spirit or thinners as these can damage the surface of the device.

Do not use any of the following substances:

Salt water, insecticides, solvents containing chlorine or acids (ammonium chloride) or scouring powder.

Gently rub the surface with a cotton cloth until it is completely dry.

Warning

The device works under dangerous voltages. The device must only be opened by authorised specialists. All maintenance and service work must be carried out by authorised firms. Improper repairs can expose device users to the risk of fatal injury.

Accessories

Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or damage to the device can occur.

Putting into operation

Observe all safety and operating instructions before putting the device into operation for the first time.

Only open the housing to install the HDD.

Warning

When installing the device in an existing video surveillance system, ensure that all devices are disconnected from the mains power supply and low-voltage circuit.

Warning

If in doubt, have a specialist technician carry out assembly, installation and connection of the device.

Improper or unprofessional work on the mains power supply or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Children and the device

Do not allow children access to electrical devices.

Never allow children to use electrical devices without supervision. Children may not be able to accurately detect possible risks. Small parts can be lifethreatening if swallowed.

Keep batteries away from small children. Call for medical assistance immediately if a battery is swallowed.

Keep packaging materials away from children (danger of suffocation).

This device should not be used by children. If used improperly, spring-loaded parts can be ejected and cause injuries to children (e.g. eye injuries).

80

Introduction

Introduction

Dear customers,

Thank you for purchasing this product.

This product complies with current domestic and European regulations. Conformity has been proven, and all related certifications are available from the manufacturer.

To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions!

Read the entire operating manual carefully before putting the product into operation and pay attention to all operating and safety information!

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

In the event of questions, please contact your local maintenance specialist or dealer.

Disclaimer

These operating instructions have been produced with the greatest care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and operating instructions at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance and use of this product.

No forms of guarantee are accepted for the contents of this document.

Unpacking the device

Handle the device with extreme care when unpacking it.

The packaging is made of reusable materials, and should always be passed on for recycling.

We recommend the following:

Paper, plastic packaging, cardboard and corrugated cardboard should be disposed of in the appropriate recycling containers.

If recycling containers are not available in your local area, then you can dispose of these materials as domestic waste.

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, then return it in the original packaging and contact the manufacturer.

Scope of delivery

ABUS 16/32 channel hybrid DVR

Mains cable

SATA cable and screws for HDD

Bracket and screws for server racks

Software CD

User manual (On CD or enclosed)

Quickguide (On CD or enclosed)

Terminal connectors

General information

In order to use the device correctly, read this user manual carefully and keep it in a safe place for later use.

This manual contains instructions on recorder operation and maintenance. Consult an authorised specialist if the device needs to be repaired.

81

On-screen keyboard

The on-screen keyboard appears after clicking on a text entry field with the mouse:

Switching off, locking and rebooting the device

Click on “ShutDown” in the main menu. The overview appears.

The following screen keyboard appears during mere numerical entry:

The keys have the same function as on a computer keyboard.

To enter the character, left-click the mouse.

To finish data entry, press Enter.

To delete the character in front of the cursor, click on

.

To switch between upper and lower case, click on the framed a symbol. The current setting is displayed above the keyboard.

To cancel the entry or exit the field, press ESC.

Starting the device

Important

The device must only be operated with the mains power specified on the type plate.

For safety reasons, use an uninterruptible power supply (UPS).

After the device has been connected to the power supply and the main switch on the rear of the device is switched on, the DVR status LED lights up.

1. The device carries out a self-test during the start-up procedure.

2. The setup wizard appears. Exit the wizard to access the live view.

1. To switch off the device, select ShutDown and confirm by pressing Yes. The device is then switched off.

Do not press any keys during the shutdown procedure.

2. To lock the system, select the corresponding Lock symbol on the left. The user interface is now locked and a password must be entered to access the menu.

3. To reboot the device, select the corresponding Re-

boot symbol on the right. The device is then rebooted.

Switching on the device

Press and hold the OK key for 5 seconds to switch the device back on.

82

Status displays

General information

The following status displays indicate the current operating state:

LEDs on the front of the device

Acoustic signal tones

Icons (display elements) on the monitor

Note

Pay attention to the information in the separate quick guide.

DVR status LED

State Function

White (constantly lit): System status is OK

White (flashing): System status is OK, recording settings are stored, surveillance mode is active

Blue (constantly lit): At least one camera is currently recording

Red (constantly lit): System maintenance required

Camera selection keys

– status LED

State

Off:

Function

No camera connected

White (constantly lit): Camera is connected

Blue (constantly lit):

Camera is currently recording

Displays on the monitor

The device shows the date and time, camera name and whether a recording is in progress.

Continuous recording: Blue “R”

Alarm recording: Red “R”

Motion recor ding: Yellow “R”

Status displays

83

Setup wizard

Setup wizard

Setting up the system

The setup wizard guides you through the necessary basic system settings. The DVR is then set up for recording and surveillance.

Note

All detailed settings can be found in the device

menu (see overview on 92).

The language selection appears after switching on for the first time:

Setting up the administrator

Warning

Note down the admin password.

The following password is preset

“1 2 3 4 5”

1. Click the entry field and select the desired language from the list. Click on Apply to continue. The following query appears:

1. Click the entry field and enter your admin password.

2. To assign a new password, tick the box next to New

Admin Password.

3. Enter the new password and confirm in the field below.

4. Click on Next.

Time / Date

Click on Next to start the wizard.

Note

After the system is set up, you can untick the box.

The setup wizard is then no longer started automatically.

Enter the system time (date and time). Click on Next to accept the data.

84

Network Settings HDD Management

Setup wizard

Note

To check whether DHCP can be selected (or if you have to set the IP address and other settings manually), consult your network administrator.

1. DHCP activated: If DHCP is set up in the network router, then tick the DHCP box. All network settings are then made automatically.

2. DHCP not activated: Enter the data manually (IPv4 address, IPv4 subnet mask and IPv4default gateway

= IPv4 address of the router). You can also optionally enter the address of the DNS server that you need for sending the E-mail.

A typical address specification is as follows:

IPv4 address: 192.168.0.50

IPv4 Subnet mask:

IPv4 Default gateway:

Preferred DNS server:

255.255.255.0

192.168.0.1

192.168.0.1

1. To set up a new hard disc, activate the “Check box” with a left click and then click on Init.

Warning

All data on the drive is deleted!

2. Confirm the prompt by pressing OK. The HDD is then set up for operation. The progress is displayed on the status bar.

3. Exit the setting by pressing Next.

Setting up network cameras

Note

When the device is accessed remotely via the internet, it should be given a fixed network address.

1. To setup network cameras, click on Search.

2. You can find an overview of all the network cameras found below.

3.

Activate the “Checkbox” with a left-click to select the network camera and then click on Add.

4. Click on Next

85

Setup wizard

Camera recording

1.

At “Camera” select a camera with which you would like to record.

2.

Activate the check box “Start recording”.

3. Select the type of recording. You can choose between “Time plan” and “Motion recognition”.

Arm the motion detection inside the camera for recording motion.

4. Press Copy to take on the setting for other cameras.

For this, select the cameras that appear in the new window. Activate the respective check box with a mouse click.

5. Finalize the setting and end the installation assistant with OK.

86

Live view

Live view

Overview

The live view starts automatically after the device is switched on.

You can also go back to the live view by pressing the

Menu key repeatedly.

Status symbols

The following symbols are displayed depending on the operating status of the device:

Symbol Meaning

R

R

R

Red: Event Recording

Event recording

Yellow: Motion Recording

Recording at motion detection

Blue: Recording

Continuous recording

The following menus are found in the screen header:

Menu

Playback

PTZ

The view pop-up menu is found on the right. The time and date are displayed on the right.

To open the view pop-up menu, click on the rectangular symbol at the top-right of the menu bar.

Click on one of the symbols to switch between the different views.

Pop-up menu for mouse operation

Note

Press the right mouse button when the cursor is positioned on a live image.

The following settings can be made. The arrow pointing to the right indicates that a sub-menu is opened for selection:

The signals of the connected cameras are displayed on the main screen.

By double-clicking the left mouse key, you can display the camera image as a full-screen view or switch back to the original view.

Menu

Single Screen

Multi Screen

Opens the main menu

Full-screen view for selected camera

Various camera layouts

Previous Screen Changing the presentation of the previous camera

Next Screen Displays the next camera(s)

Start Auto-Switch Starts the camera sequence

All-day Playback Switches to playback mode

Output mode

Aux Monitor

Renders the image softer or sharper to spot monitor

87

Live view

Note

Stop Auto-switch:

Specify the delay in the image sequence in the display settings.

Note

Activation of “AUX monitor” without a connected spot monitor:

Mouse pointer function is deactivated.

Selection bar in the camera image

Click on the camera image in single or multi view. A selection bar appears:

(1) (2) (3) (4) (5) (6) (7) (8)

Nr. Meaning of symbol

(1) Area to move the miniature bar

(2) Activate / deactivate manual recording

(3) Immediate playback of the last 5 minutes

(4) Activate / deactivate audio output of video output

(5) Immediate image of selected channel

(6) PTZ-control

(7) digital zoom

(8) Leaving the selection bar

88

Live view

Settings

Note

The live view can be set as follows.

Open the main menu, then click on “Configuration”. Then click on “Liveview”:

If during the boot process of the DVR the HDMI/ VGA cable is not connected, the main video signal is displayed at BNC output MAIN. Connect the HDMI/VGA cable and reboot the DVR in order to display the main video signal at the VGA output.

No HDMI/VGA monitor connected:

The main video signal is displayed at BNC output

MAIN. The BNC output Video Spot Out output displays the cameras in sequence and in full screen.

Setting the camera output

You can have a maximum of 8 or 16 cameras respectively (TVVR60011/TVVR60021) displayed in the live cast at the same time.

1. Click on the TAB “View”.

The following settings are available in the TAB “General”:

Video Output Interface

VGA/HDMI, Main CVBS, Spot monitor

Select the connection where the settings are changed

Live View Mode

Different camera layouts

Dwell Time

Enable Audio

Output

Event Output

Full Screen Monitoring Duration

Post Event Display Time

Switching time between the individual cameras and the sequence display

Activate/deactivate audio output of the video output The audio signal is only given if the corresponding camera input is presented as a full screen.

Allocate monitor for the output of events in seconds, where the event on the allocated monitor will be displayed. in seconds, the duration of the Popup window when an event occurs.

Note

The recorder image can either be shown on an

HDMI or a VGA monitor. The combination of HDMI and VGA output is supported.

The BNC output can be used either for a spot monitor or a separate monitor.

Note

VGA monitor connected:

A connected HDMI/VGA monitor automatically becomes the main monitor where the audio output is also assigned. The BNC output Video Spot Out output displays the cameras in sequence and in full screen.

2. Select the display mode.

1 x 1

2 x 2

3 x 3

1 + 5

1 + 7

4 x 4

3. The camera signal is assigned to the corresponding image section using the navigation keys.

“X” means that this camera is not displayed.

4. Click on Apply to accept the settings.

89

Playback

Playback

General information

Playback can be made in three different ways:

Through the video search in the main menu

From the live view

Through the log file in the maintenance menu

Note

The buttons “previous file/day/event” are used differently depending on the playback mode:

Normal playback:

By pressing the button the playback jumps to the previous/next day.

Video Search:

By pressing the button the playback jumps to the previous/next event day.

Video Export:

By pressing the button the playback jumps to the previous/next file.

Note

It is possible to start a simultaneous playback with up to 4/8 cameras.

Playback screen

Playback is controlled on the control panel:

 

Using the control panel

The control panel (4) is used for controlling the running playback. The symbols have the following meaning:

(1)

2

1

4

5

(17)

(18)

(19)

(7)

(8)

(9)

(10)

(7) (8) (9) (10) (11) (12) (13) (14) (15)

(17) (18) (19)

No. Meaning / function

(12)

1 Zoom in / Zoom out the time line (24/12/1 hours)

2

(13)

(14)

3

Define start point / end point of a video for secur-

(16)

4

Add marking

5

Add user-defined marking

6

Administer marking

7

Activates the digital zoom. One section of the

8 overview area can be marked for enlargement.

Smart search (section search): Mark a section in

2 the video image being played back which should

5

6 be checked for motion (alternatively, click on full

7 screen detection). The results will be displayed in

9

8

9 the time scale, and are marked in green.

Backwards playback

10 Stop

No. Area

Running playback with date and time

Used to select the camera for feedback

Calendar with recording type

Control panel with time bar (see right)

90

13 Jump forward 30 seconds

20

14 Slow forward (slow motion) (1/16x - 1x)

18

15 Fast forward (1x - 16x)

14

15

17

8

Next file/day/event

18 Time bar:

Click on the time bar with the mouse to contin-

13 ue playback from another point

9

To start playback from a specific time, click on

Siehe

Fehler! Kein gültiges Resultat für Tabelle.

S. 4.

3

2

1

4

5

1

2

1

3

1

0

9

)

(1

)

2

5

6

7

8

9

14

)

(5

)

(6

)

(3

)

(4

5)

(1

6)

(2

3)

(1

4)

(1

1)

(1

2)

(1

)

(1

0)

(1

)

(8

)

(9

4

1

5

8

1

1

0

1

8

1

7

1

9

2

1

6

1

(1

7)

(1

8)

(1

9)

(7

Siehe

Fehler! Kein gültiges Resultat für Tabelle.

S. 4.

le.

S. 4.

Playback

the slider and drag it to the required time

19 Recording type

Blue = Continuous recording

Red = Event recording

20 Hides the control panel

21 Exits playback

Note

You can zoom in on the screen image.

Right-click in the running playback.

Please choose ’Digital Zoom‘.

The zoom mode is active. Shift the zoom area by means of the window in the miniature screen.

Right-click the image to finish.

Please klick on ‚Tag management‘ (6):

In order to change the description of your marking, click on the process symbol. To remove, click on the delete symbol.

Right click when playback is running

Perform a right click on the playback image. The following options are available:

Camera

Digital

Zoom

Camera to be set

Enlarges the selected screen section digitally

Control

Panel

Exit

Fades in/out the control field for playback control

Ends playback

91

Main menu

Main menu

Menu overview

The following overview shows the main menus used to set and control the device.

Furthermore you can find important information regarding the devide on the right side of the menu.

Click on the menu to open it.

Click Exit to close the menu overview.

80 8000

554

Menu description

Menü

Settings

Playback

Video Export

Manual Management

Shutdown

Beschreibung

Includes the menus Configuration, Camera, Record, HDD, Playback.

Parameter-controlled search for video and image recordings which were triggered by events such as alarms or motion detection, as well as alarm events and markings set in playback.

Feature for exporting saved recordings onto USB media.

Starts or ends the manual video and image recording of selected cameras, as well as the manual switching of alarm outputs.

Lock, shutdown or restart the device. siehe S.

90

117

121

123

123

92

Main menu

Menu description

Menu

Configuration

Camera

Record

HDD

Playback

description

Used for managing all device settings (General, Camera, Record, Network,

Alarm, PTZ, RS232, Display, Exception, User).

Menu for setting camera parameters (OSD configuration, image mode, PTZ configuration, motion recognition etc.)

Menu to set recording parameters (time plan, camera resolution, camera stream etc.).

Used for initialising or managing installed HDDs (assigning read/write functions, cameras, network HDD management etc.).

Parameter-controlled search for video or image recordings which were started by events like alarms or motion recognition, as well as alarm events and markings set in playback.

page

94

129

109

112

115

93

Settings

Settings

Configuration

User Adding and changing users, assigning authorisation rights

103

Note

Pay attention to the instructions in the corresponding sections.

General

Note

The “Configuration” menu is used to manage all device settings.

Warning

Ensure that the date and time are set correctly.

IMPORTANT:

Subsequent changes to the settings can lead to data loss!

Ensure a data backup has been made in good time beforehand.

Overview

Menu

General

Network

Alarm

RS-232

Live View

Warning

Setting

Language, video, time, date, mouse pointer, password, time zones and other settings

Required network settings

(manual IP, DHCP, PPPOE,

DDNS etc.)

Assignment and parameterisation of detectors to alarm inputs and relay outputs

Parameters on the serial connection

Display settings and assignment of the event output

Behaviour of the device in exceptional cases

(HDD full, network disconnected etc.)

Page

94

96

125

103

103

103

“General” tab Setting

Language Language on the OSD

PAL / NTSC CVBS Output

Standard

Resolution

Time Zone

Resolution on the monitor

GMT (Greenwich Mean Time)

Date Format MM-DD-YYYY, DD-MM-YYYY,

YYYY-MM-DD

Date and time System

Date/Time

Mouse Pointer

Speed

Enable Wizard Box not ticked:

Wizard will not appear after restart of the device.

Box ticked:

Wizard will appear after restart of the device.

Enable ID Authentification

Set on the scroll bar (left = low speed; right = high speed)

Box not ticked:

In order to enter a menu no password has to be entered. At access by network the password has to be entered.

Box ticked:

Password must be entered in order to use the menu.

94

Settings

TAB “DST settings”

Auto DST Adjustment

Enable DST

From / To

DST Bias

Setting

With an activated check box, the device converts automatically to summer time.

With an activated check box, an exact start / end date can be selected

Date of DST start / end

Daylight Saving Time Bias: Correction of the DST to the reference time

Setting

TAB “More

Settings”

Device Name Unique specification of the device

Device Number Used for unique identification when using remote control

Output Mode

Makes the image softer or sharper.

CVBS Output

Brightness

Operation

Timeout

Scroll bar (left = darker; right = brighter)

Never / 1 to 30 minutes

– regulates how long the menu is shown

Menu Output

Mode

Defines the video outputs on which the OSD menu is visible. Options:

Auto, HDMI/VGA, CVBS

Event Hint Activates the event display in the live image (exclamation mark in the live image)

Confirm the settings by clicking Apply and leave the menu with OK.

Network configuration

Correct network settings are essential in the following cases:

When using remote control of the device and surveillance over your server

Note

Please read the following basic instructions before setting up the device.

A network is a connection of at least two network-capable devices.

Transmission types:

Wired networks (e.g. CAT5 cable)

Wireless networks (WLAN)

Other transmission types (Powerline)

All systems have certain similarities, but can also differ in many ways.

Terms and definitions

An overview of relevant terms when using the device in a network can be found below.

Parameter Setting

IP address An IP address is the unique address of a network device within a network.

This address may only appear once within a network. Certain IP address ranges are reserved for public networks (e.g. the

Internet).

Private address range e.g. 10.0.0.0

– 10.255.255.255

Subnet mask: 255.0.0.0

172.16.0.0 - 172.31.255.255

Subnet mask: 255.255.0.0

192.168.0.0 - 192.168.255.255

Subnet mask: 255.255.255.0

Subnet mask

A subnet mask is a bit mask used for making decisions and assignments during routing.

255.255.255.0 is the standard subnet mask in home networks.

Gateway A gateway is a network device which allows all other network devices to access the Internet.

This can be the computer connected to the DSL modem or

– usually – the router or access point within the network.

Parameter Setting

Name server

DHCP

The name server is responsible for assigning a unique IP address to a web address or URL (e.g. www.google.de). Also known as DNS (Domain Name Server).

When a domain name is entered into a browser, the DNS searches for the corresponding IP address of the server and forwards the query on.

The IP of the provider’s DNS can be entered here. However, it is often sufficient to select the IP of the gateway. This then forwards the queries independently to the provider DNS.

The DHCP server automatically assigns the IP address, subnet mask, gateway and name server to a network device.

DHCPs are available in current routers.

The DHCP service must be specially set and activated (see the corresponding manual for more information).

Note:

When using fixed IP addresses and a

DHCP server, make sure that the fixed IP addresses are outside the address range assigned by DHCP. Otherwise, problems could occur.

95

Settings

Port

MAC address

A port is an interface used for communication by different programs. Certain ports are fixed (23: Telnet, 21: FTP), whilst others can be freely selected.

Ports are important for different applications (e.g. external access to the device over a browser).

The MAC address (Media Access Control or Ethernet ID) is the specific hardware address of the network adapter.

This is used for the unique identification of the device in a computer network.

Network layout

The device must be physically connected to the network

over a CAT5 cable (see the connections on page 71).

Note

Pay attention to the specific information and instructions on the network devices.

Several switches, routers and access points can be connected to each other. Firewalls and other security software can affect the network.

Warning

When using a router, the network clients (e.g. the recorder) can be connected to the Internet and vice versa.

Make sure to use protective measures to prevent unauthorised external access (e.g. firewall, changing passwords, changing ports)!

Network-configuration

TAB

General

PPPOE

Settings

Settings for the local net and selecting the network mode.

PPPOE is used on ADSL connections and when using modems in Germany.

Click on “Set” to enter the access data

(ID and password) for your provider.

DDNS

NTP

Server for Dynamic Domain Name System management. Used for updating host names or DNS entries

Network Time Protocol

Server for time synchronisation

Email

FTP

Used to specify the e-mail settings which are sent as an e-mail to a specific address in the event of an alarm.

Configure the address of an FTP server and the path for saving the files.

SNMP Configure the parameters to receive information about the device status.

More Settings Communication and HTTP port.

96

Settings

TAB General

Parameter Setting

Working Mode Net fault tolerance: Both network adapters (NIC) use the same network settings. The 2nd network adapter remains, in the event of problems with the 1st network adapter, available.

Load balance: Both network adapters

(NIC) use the same network settings.

The bandwidth is split between the two adapters.

Multi-address (standard): The network adapters (NIC) use different network settings. One adapter is defined as the standard adapter for external communication. The 2nd adapter is used for connecting IP cameras.

Select NIC Choose between LAN1 and LAN2 for editing.

NIC Typ Set the transmission speed of the installed network card here.

Tip: 10M/100/1000M self adaptive

Enable DHCP Tick the box if the IP addresses are assigned dynamically via DHCP in the network.

DHCP activated: Subsequent entry fields are inactive (parameters assigned via DHCP).

Note:

If the IP addresses are assigned manually, ensure that DHCP is not active

(box not ticked).

IPv4 Adress Address of the network device in the network (manual assignment)

IPv4

Subnet Mask

Usually 255.255.255.0

IPv4 Default

Gateway

Address of the gateway for Internet access

IPv6 Adress 1 Currently no functioning

IPv6 Adress 2 Currently no functioning

IPv6 Standard

Gateway

Currently no functioning

MAC Adress Hardware address of the installed network card

MTU (Bytes) Describes the max. size of the largest protocol data .

Preferred

DNS Server

Address of the Domain Name Server

(usually the IP address of the gateway)

Alternate DNS IP address of the alternative DNS server

Default Route Selection of the Ethernet connection for the external network connection

(e.g. Internet).

Note

In certain modes some of these settings cannot be selected.

97

Settings

PPPOE NTP

1. Tick the PPPOE box, enter the user name (Internet access ID) and password, then confirm the password.

2. Confirm the settings by pressing Apply.

Warning

Use PPPOE only if there is no router available.

DDNS

Note

The recorder can synchronise the time with an external server. Several server addresses are available on the Internet for this purpose.

1. Tick t he “Enable NTP” box and then enter the interval at which the synchronisation should be made again. Enter the IP address of the NTP server and the NTP port.

2. Confirm the settings by pressing Apply.

Email

In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here:

1. To use the ABUS DDNS function, you must first set up an account under www.abus-server.com. Please note the FAQs on the website when doing this.

2.

Tick the “Enable DDNS” box, enter ‘ABUS DDNS’ as the “DDNS Type”, then enter www.abus-server.com or “62.153.88.107” under “Server Address”.

3. Confirm the settings by pressing Apply. The IP address of your Internet connection is now updated on the server every minute.

Parameter

Enable Server

Authentica...

User Name

Password

SMTP Server

SMTP Port

Enable SSL

Sender

Setting

Tick the box when authentication is made on the server of the Internet provider

E-mail account at the provider

Password connected to the e-mail account

SMTP server address of the provider

Enter the SMTP port here

(Default: 25)

Tick the box to activate the e-mail encryption

Name of the sender

98

Settings

Sender´s

Adresse

Sender´s Receiver

Receiver

Corresponding e-mail address for the e-mail account

Select three possible recipients for the e-mail

Enter the name of the recipient here

Receiver´s

Adresse

Enable Attached


Enter the e-mail address of the recipient here

Tick the box when camera images should also be sent with the e-mail as photo files

Interval Select the interval between the individual recordings (2 to 5 seconds)

1. Enter the parameters of the e-mail notification.

2. Click on Test to send a test e-mail.

3. Please clarify if your settings are correct and you have received a confirmation mail. Then click on

Apply.

Note

The device sends an e-mail to the specified recipients.

If the e-mail is not received, check the settings and correct them.

If necessary, check the spam filter of your e-mail client.

SNMP

Note

Because of the cause of compatibility please do only use E-Mail clients where a dial-up via SMTP is possible.

Write Community

Enter the “Key” according to the settings of your SNMP software.

Trap Adresse

Trap Port

Enter the IP address of the

SNMP manager

Enter the trap port

(Default: 162)

UPnP

Parameter Setting

Activate UPnP Activates the automatic UPnP port forwarding in the router

Allocation type The port allocation for port forwarding can be assigned automatically or manually.

Port type

Edit

External port

Server port: General communication port

HTTP port: Port for the HTTP protocol

RTSP port: Port for the RTSP protocol

HTTPS: Port for a secure HTTP protocol connection

Activates editing for the external port

Port for accessing the corresponding service on the external router side

Internal IP address of the DVR Allocate IP address

Port Internal port for the corresponding

Status service in the DVR

Activity status or the corresponding port forwarding

Parameter

Enable SNMP

Setting

Activate the checkbox to create a connection to SNMP software

SNMP Version Version of the SNMP system

SNMP Port Enter the SNMP port

(Default: 161)

Read Community

Enter the “Key” according to the settings of your SNMP software.

99

Settings

Note

SNMP is used for monitoring the device status.

For this you need SNMP software not available from ABUS.

Confirm the settings by clicking Apply and leave the menu with Back.

More settings

fied when there is an alarm, and performs various reactions depending on the setting.

Parameter Setting

Alarm Host IP Network address of the PC where the

CMS is installed

Alarm Host Port Port of your CMS Station

Server Port

HTTP Port

Multicast IP

Port for data communication (General: 8000)

Port for web server (General: 80)

In order to minimize traffic you can enter a Multicast IP. The IP address has to match the IP address of the

PC running the CMS software.

RTSP Service

Port

Activate HTTPS Activates a secure connection via

HTTPS

HTTPS port

RTSP-port

(Default: 554)

Activate highspeed download

Allocates the HTTPS communication port

The outgoing network performance is increased using resources otherwise used for local OSD display. This function should only be activated temporarily, for example to speed up data back-up to a PC.

Note

Server port 8000 and HTTP port 80 are the standard ports for remote clients and remote Internet browser access.

Note

With Alarm Host IP/Port you configure the address of your CMS software. The CMS software is noti-

100

Settings

Alarm

Alarm status

Handling

TAB Trigger channel

Here you see a list with all the alarm inputs and outputs and their current status.

Alarm input

Tick a checkbox to select which camera channel is triggered in the case of an alarm.

TAB Arming schedule

Select a reaction in the case of an alarm by clicking the ‘Setting’ symbol for “Handling”.

Parameter Setting

Alarm Input No. Select the alarm input to make the settings

Alarm Name Enter a clear description here (e.g. door contact on warehouse)

Type N.O.: Normally open circuit

N.C.: Normally closed circuit

Setting Activates a response

Response Edits a response

Activate the alarm input by ticking the checkbox for

“Setting”.

Define the response of the recorder when there is an alarm under “Handling”.

Click Copy to apply these settings for other cameras.

Confirm the settings by clicking Apply and leave the menu with OK.

Define the time at which the responses selected in the TAB “Handling” are activated when there is an alarm.

Click Copy to apply these settings for other days of the week or the entire week.

101

Settings

TAB Handling

Define the response in the case of an alarm:

Parameter Setting

Full Screen Monitoring

A message appears on the monitor.

Audible Warning The device emits a repeating tone.

Notify Surveillance Center

Send E-Mail

Sends an alarm signal to a PC with

ABUS CMS software. The software must be enabled and the recorder set to surveillance mode on the PC.

An e-mail is sent to a specific e-mail

address (see page 96).

Trigger Alarm

Output see also page Fehler! Textmarke

nicht definiert.

Confirm the settings by clicking Apply and leave the menu with OK.

Note

To record with the aid of an alarm, you must set

up the schedule under Recording (see p. 109).

1.

2.

3.

4.

5.

6.

TAB PTZ

Parameter

PTZ

Open presets

Preset

Start patrol

Patrol

Start pattern

Pattern

Alarm output

Setting

Select a PTZ camera

A preset (preset item) can be opened

Selects a preset

A patrol can be started

Patrol selection

A pattern can be opened

Pattern selection

Select an alarm output to be configured in the dropdown menu under “Alarm Output No.”.

Assign any name to the alarm output in “Alarm

Name”.

In “Dwell Time”, select how long the alarm is triggered for.

In “Handling”, select the schedule for the alarm output.

Click Copy to apply these settings for other alarm outputs.

Confirm the settings by clicking Apply and leave the menu with OK.

102

Settings

RS-232

Currently no functioning.

Live view

See page 87.

Warning

You can add new users, delete existing users and change the set tings in the “User Management” menu.

1. To add a new user, select Add.

Note

Enter the trigger under “Exception Type”, for example:

HDD Full

Disconnected

Video signal not normal

Video input/output signals not equal

After doing this, specify the device behaviour.

Confirm the settings by clicking Apply and leave the menu with Back.

User

Parameter

User Name

Password

Confirm

Level

User's MAC

Address

Setting

Unique identification

Access code for the device (device management)

Note: Change all passwords on a regular basis, using a combination of letters and numbers. Note down all passwords in a safe place.

Enter the access code again here

IMPORTANT:

More access rights can be set on the

Manager level than on the User level.

MAC address of the network adapter on the PC of the corresponding user

Note:

This limits access to the PC whose

MAC address is entered here!

2. Enter the name and password and confirm the password in the field below.

3. Select the level and enter the MAC address.

4. Confirm the settings by clicking Apply.

Warning

Pay attention to the instructions below on assigning access rights.

Permission

Control the access rights of the user by clicking the

“Permission” symbol. Only the access data of users added manually can be changed:

Warning

Note down the admin password.

The following password is preset

“1 2 3 4 5”

103

Settings

Note

The user can make the settings locally (i.e. on the device) or change the parameters.

The user can access the device via the network connection.

The “Camera Permission” tab is used to set access rights for individual cameras (network or local).

Parameter Setting

Local

Configuration

Local Log Search

Local Parameters Settings

Local Advanced Operation

Local Shutdown / Reboot

Remote

Confguration

Remote Log Search

Remote Parameters Settings

Remote Serial Port Ctnrol

Remote Video Output Cntrol

Two-way Audio

Remote Alarm Control

Remote Advanced Operation

Remote ShutDown / Reboot

Camera

Configuration

Camera Permission

Warning

Change the general settings of the user (name, password, level, MAC address) by clicking the

“Edit” symbol or in the TAB “Change password”.

104

Camera

Camera

TAB analog cameras

Parameter Setting

Camera no.

Camera name

Status

Live

Status

Shows the camera number

Shows the camera name

Automatic video signal state detection

A preview of the live image can be displayed here

Channels can be activated or deactivated here

TAB IP cameras

Settings

Note

In some cases, you need to enter the user names, password and http port by hand afterwards.

The available bandwidth shows you how much bandwidth is still available for setting up the network camera.

OSD

No.

User name

Shows the camera number

Camera address

Shows the set IP address of the camera

Log

Channel no.

Selecting the log

Managing the port Setting for http ports of the camera

Channel number display

Enter the user names of the camera here

Admin password

Enter the administrator password here

Display mode

Settings for displaying the camera name and date

Click on Add to link a camera to the system.

Click on “Search” to search the network for the available

ABUS network cameras. Mark the required cameras and then click on “Quick Add” to link the cameras.

Camera

Camera Name

Camera to be set

Allocation of camera name

Display Name

Display Date

Activate / deactivate display of camera name in the live view

Activate / deactivate display of date in the live view

Display weekday

Displays the weekday in the live cast

Display Week

Date Format

Activate / deactivate display of week in the live view

Selection of date display type

Time format

Position

Choose between 24-hour and 12hour time format for display

The position of the text overlay can be set directly in the preview image using the mouse. Simply use the mouse to drag the corresponding text overlay frame.

Time Format

Display Mode

12 hours / 24 hours

Settings relating to the presentation of camera name and date

105

Settings


1. Use the arrow buttons to move the network camera to the required image section and save the position, for example as Preset 1

2. Click on Call up to move to Preset 1.

Note

You can also start the patrol directly in the live image of the respective network camera.

Select the camera channel to be p rocessed at “Camera”.

Adapt the camera image to light conditions at “Mode” by means of specified settings or with user-defined settings.

PTZ

Note

Here you can set up presets and patrols for the

TVIP2xxxx network cameras.

Setting up and calling up patrols

1. Create several presets to use for the patrol

2. Click on + to select a preset

3. Add more presets to set up the required patrol.

4. Then click

on the play symbol to start the patrol.

Motion

Selec t the camera channel under “Camera”.

Select the checkbox for motion detection.

The motion detection in the network camera must also be activated. For further details, refer to the network camera manual.

Saving and retrieving presets

Note

In order to record using the motion recognition, you

must set the time plan at recording (see p. 109).

Handling

Trigger Channel

106

When “Reaction” is clicked, the TAB Trigger channel appears (only with motion recognition):

Settings

Handling

Click on the TAB Handling.

Here you can configure the behavior of the recorder during a detected event (for example: motion got detected) by clicking the respective check box.

Select one or more camera channels that should carry out a reaction in the event of an alarm.

Confirm the settings by clicking Apply and leave the menu with OK.

Armin Schedule

Select the TAB Arming Schedule.

Here you set the times when the reactions in the TAB

Reaction are triggered.

1. Select the day and enter the schedule.

Note

You can define up to 8 time periods (each from

00:00 to 00:00). The times in the individual periods must not overlap.

2. Select whether the settings should be applied to all days of the week with using Copy.

3. Confirm the settings by clicking Apply and leave the menu with OK.

Parameter Notification

Full Screen Monitoring The camera is displayed as a full-screen picture in live cast

Audible Warning

Notify Surveillance Center

Send E-Mail

The device emits a repeating tone

Sends an alarm signal to a

PC with the ABUS CMS software. For this, the software must be running and the recorder must be in surveillance mode.

An e-mail is sent to a specific e-mail address (see page

96)

Trigger Alarm Output

see page 96

Confirm the settings by clicking Apply and leave the menu with OK

107

Settings

Private zone

The private zone function allows sections of the video image to be masked. Start by selecting a camera. Activate the private zone function using the check box. Mark a rectangle at the left of the preview area. Up to four private zones can be configured. There are buttons on the right side which allow you to delete individual masks or all masks.

Tamper surveillance

The tamper surveillance function allows you to monitor the entire video image, or a section within the video image, for masking. Start by selecting a camera. Activate the tamper surveillance function. Mark a section within the preview window for monitoring (alternatively, mark the entire image). Schedules for monitoring and reactions when the camera is masked can be programmed as reactions (similar to motion detection). The adjustable sensitivity controls the reaction speed in the event of masking. The delete button removes the section to be monitored.

Video signal loss

In the event of video signal loss, a corresponding reaction can be triggered. Start by selecting a camera. Activate the function using the check box. Schedules for monitoring and reactions when the video signal is lost can be programmed as reactions (similar to motion detection).

108

Settings

Record

Setting up

Open the main menu and click on record:

Schedule

The schedule is used to specify the recording times and triggers (recording type) for the cameras. Click on the

“Schedule” tab:

Note

Because there is no difference between the settings for the TABs record and instant image, these are only listed once.

In the OSD, the hours of the respective days are listed from left to right (the days are listed from top to bottom).

A colour key is shown underneath the days (i.e. the recording periods in the schedule are shown in colour according to the trigger (recording types)).

Colour symbol Key

Blue Normal recording: Period in hours

Yellow

Light blue

Red

Motion detection

Motion detection and alarm

Alarm

Grey No selection

Brown Motion or alarm

Select the camera and click on the check box Ena-

ble Schedule.

Click on Edit to specify the type and duration of the time plan

1. Define the day to be set in the pull-down menu at

‘Schedule’.

2.

Activate/deactivate ‘All day’. If the full day is active, no definite times can be entered as the setting is now valid for the whole day.

3. To make specific time settings, deactivate the

“All

Day” box.

Application example

Recording should run from 11:00 to 07:00. 2 time zones must be set up for this:

1. 11:00 AM - 24:00PM

2. 00:00 AM - 7:00 AM

4. Specify the recording type in the drop-down menu:

Time

Motion detection

Alarm

Motion detection or alarm

Motion detection and alarm

Note

To record using motion detection or the alarm, you must first set this up in the Camera menu (see p.

Fehler! Textmarke nicht definiert.

“Setting up of zones”) or Configuration (see p. Fehler!

Textmarke nicht definiert.

“Alarm”).

5. When making a specific time setting, you can define up to 8 time periods (each from 00:00 to 24:00). The times in the individual periods must not overlap.

Note

The “Time” recording type defines the time window where a recording is made.

The other events (e.g. motion detection and/or alarm) only trigger the recording after the specific event has occurred.

109

Settings

At Copy you can take on this setting for other days or the whole week.

6. Finalize your settings in the record screen with Apply and then OK.

Encoding

TAB Record

The following setting options are available in this submenu:

Confirm the settings by clicking on Apply and exit the menu with OK.

Pre-record

Recording period before an alarm

(in seconds)

Post-record

Recording period after an alarm

(in seconds)

Record Audio

Audio record yes/no

Confirm the settings by clicking on Apply and leave the menu with OK.

110

Settings

TAB Captured

Holidays

The following parameters are adjustable:

Camera

Parameter Type

Resolution

Picture Quality

Interval

Camera to be set

Schedule or event

Auto, 4CIF(704x576),

CIF(352x288), QCIF(176x144) different qualities

+++: middle quality

+++++: high quality

Single images are saved every 1-

5 seconds according to event or time plan

Confirm the settings by clicking Apply and leave the menu with Back.

Advanced settings

Overwrite eSATA

In this sub-menu, 32 different recording settings for vacations or public holidays can be applied.

To apply these settings click on the “Edit” symbol:

You can specify whether older recordings are deleted when the

HDD memory is full

Specify if an eSATA hard disc connected by USB should be used for exporting, or for additional recording/image storing.

Holiday Name

Enable

Mode

Start Date

End Date

Confirm your settings with Apply and OK.

Manual name entry of the vacation or holiday

Activate or deactivate the set vacation

According to date / week / month

Selection of start date / start time

Selection of end date / end time

111

Settings

HDD

HDDs

Note

The device manages up to eight 3.5" SATA hard disk drives .

For additional data security, an e-SATA hard disc can be optionally connected.

Each of the installed HDDs must be initialised before the device can be used for recording. The device only detects the HDD and its assignment after initialisation has been made.

Click on “HDD” in the menu to define settings relating to hard disc administration

Warning

All data is deleted from the HDD during initialisation.

Ensure a data backup has been made in good time beforehand.

Installing the HDD

1. Disconnect the device from the mains power and open the cover.

2. Observe the applicable ESD guidelines when handling electronic devices and ensure they are earthed.

3. Do not open the device in rooms with carpets or other surfaces that can become electro statically charged.

4. Avoid bodily contact with all components on the

PCB.

Warning

If you have questions regarding the information or cannot find the information you need, please contact your maintenance specialist.

5. Install the HDD and then connect it.

6. Reattach the cover and connect the device to the mains power supply.

7. Switch on the device and start the HDD menu.

Note

If the initialised HDD is not displayed, check the connections

HDD Management parameters

HDD information

Label Shows the internal connection number

Capacity

Status

Property

Type

Free Space

HDD capacity (in GB)

Shows the current status of the

HDD:

Not initialised

Normal

Error

Redundancy: Works redundantly for data security

Read-only: Read-only protection

R/W: Read and write

Local: Device HDD

NFS: Network HDD

If possible, avoid using NFS storage due to compatibility problems that may occur.

Shows the approximate free memory for recordings

Group

Edit

Delete

HDD group (1 is preset)

Recordings can be assigned to groups

Define hard disc settings (First adjust the camera groups; see also p.32)

Removal of the hard disc

1. Select the HDD by ticking the corresponding box.

2. Start the process by clicking on Init.

3. Confirm the prompt by pressing OK.

4. The status bar shows the progress of the initialisation.

112

HDD settings of the cameras

Click on the submenu “Advanced”.

Mode: Quote

Settings

Hard disc setting

Note

To be able to define these settings, you must have allocated cameras to a hard disc group (see HDD

settings of cameras).

Specify the maximum recording size per camera on the hard disc.

Mode: Group

Click on the “Edit” symbol. A pop-up window appears:

1.

2.

3.

Select a hard disc group in the drop-down menu.

By activating the check box, specify which cameras should be saved on the hard disc group.

Click on Apply and confirm the restart in the next window with OK.

HDD No.

HDD Property

Hard disc memory

Selecting hard disc by means of internal connection number

R/W: Readable and writable

Read-only: Write protection

Redundant: operating redundantly for data security.

Selection of hard disc group

Group

HDD Capacity

Confirm the settings by clicking Apply and leave the menu with OK.

Warning:

If only one HDD is installed and this is set to

“Read-only”, then the device cannot make recordings.

Redundancy:

At least two HDDs are installed.

The redundant HDD makes an extra copy of the recordings. This is used as a data backup.

113

Settings

Warning:

If you want to use redundancy you have to activate the redundant storage in the recording menu

(see also p. 110)

R/W

At least one HDD must have the R/W status

(Read/Write). Otherwise, no recordings are possible.

Checking the HDD status

The status of each HDD can be checked in the “Maintenance” menu. S.M.A.R.T. information (Self-Monitoring,

Analysis and Reporting Technology) is stored in the log data.

Call up the log file and search according to the infor-

mation/S.M.A.R.T. HDD (see page 114).

Setting up the HDD alarm

You can specify alarms to inform you of HDD errors.

To do this, call up Warning in the “System Settings”

menu (see page 103).

S.M.A.R.T.

S.M.A.R.T. means Self-Monitoring Analysis and Reporting Technology.

Information on the hard disc status is displayed in this sub-menu.

This information helps to recognize hard disc errors. For this reason, do not deactivate this feature if possible.

Note

The log files saved for S.M.A.R.T. can be found in the menu Maintenance at “Log search” (see page

117).

Playback

114

Press Configuration in the main menu and then Play-

back to search for video recordings after an event or a marking, or to view your saved images.

Continous Recording

Settings

to identification or a keyword of the markings’ name

Event

Please klick on the TAB „Event“.

The following settings are available:

A1 - A4 Camera to be set

Record Type Schedule, motion detection, alarm or motion detection and/or alarm, manual recording, all

File Type Locked, unlocked, all

Start Time

End Time

Enter the date and time

Click on Search to search for recordings with the corresponding settings. The results are then shown:

A list with all alarm inputs is displayed.

Select at ‘Event type’ whether the search should take place at alarm ‘Alarm input’ or motion ‘Motion recognition’ after recording.

Select one or more alarm inputs by activating the check box.

Klick on Search.

Select one of more alarm recordings on the list that appears. Click on Details to receive more exact information on the recordings.

Marking

Click on the “Marking” tab.

Select the recording by clicking on the line and then on “Play”-symbol.

Note

You can return to events search at any time in the playback mode by performing a right click and selecting ‘Video Search’.

Note

The submenus ‘Tag’ and ‘Picture’ are almost identical with the menu described above and are therefore not listed separately.

In the submenu ‘Tag’, searching does not take place according to recording type, rather according

Select one or more network cameras by activating the checkbox.

Click on Search.

Select one or more markings from the list which appears.

Click on Details to obtain more information about the markings.


Click on the “Image” tab.

115

Settings

Select one or more network cameras by activating the checkbox.

Click on Search.

Select one or more images from the list which appears.

Click on Details to obtain more information about the images.

116

Maintenance

Maintenance

Note

This menu is used for device maintenance, and should only be operated by experienced users.

Note

The information menu shows the technical data for the device and information on the various settings of the cameras, recording etc.

This can be useful for support queries, for example.

Log Search

Menu Setting

System Info Device information (serial number, firmware status etc.)

Log Search

A search of recordings or information (S.M.A.R.T. HDD status) can be made in the log file according to certain criteria

(alarms, exceptions, operation or information).

Import/Export Used to export or import the settings

Upgrade

Default

Network

Carries out a firmware upgrade

System reset

Displays the transmission and reception rate of the recorder

P.

117

117

118

118

119

119

System Info

Note

An event search can be made according to the following main types, events and parameters:

All

Alarm

Exception

Operation

Information

Filter1

All

Alarm

Exception

Operation

Filter2

-

All

Alarm Input / Output

Start / Stop Motion Detection

Start / Stop Tamper-proof

All

Video Loss Signal

Video Signal Exception

Illegal Login

HDD Full

HDD Error

IP Conflicted

Network Disconnected

Record / Capture Exception

Input / recording resolution mismatch

All

117

Maintenance

Information

Power On

Abnormal Shutdown

Start / Stop Audio

Local Operation, e.g.:

Shutdown / Reboot / Login /

Logout / Configure Parameters / Upgrade / Start Recording

Remote Operation, e.g.:

Export Record File / Alarm

Arming / ...

All

Local HDD Information

HDD S.M.A.R.T.

Start / Stop Recording

Start / Stop Capture

Delete Expired Record

NetHDD Information

1. Select the event you wish to search for in the log, then select the sub-parameter.

2.

Enter the date and time under “Start Time” and “End

Time”, then click on Search.

3. The results are then displayed:

Import / Export

Note

The configuration data contains all settings made on the device since the start of operation. This data can be saved on a USB medium. You can then configure another device identically, for example.

Upgrade

The pages are changed using the navigation bar:

(1) (2) (3) (4) (5) (6)

Note

To scroll forwards or backwards press (3) or (2).

To jump to the first or last page press (4) or (1).

To go to a specific page number enter it in (5) and confirm by clicking (6).

Click on Details to see more detailed information.

Click on Play to start the recording for the event, when necessary.

Click on Export to back up the log file on a USB medium.

Note

A device upgrade can be made from a USB device or over the network via FTP.

Copy the upgrade file to the main directory of a

USB stick.

Connect the USB stick to a USB port on the device.

1. Select the USB port (click on Refresh, if necessary).

2. Select the upgrade file and click on Upgrade.

3. Wait until the device reboots.

4.

Check the firmware status in the “Maintenance” menu under “System Info”.

118

Maintenance

Default

Network

Note

In this process, the device is reset to the factory default settings.

Warning

All settings made since the start of operation are deleted (cameras, recording settings, PTZ, alarms etc.)!

Avoid data loss by backing up the settings in advance. These can be imported again following the system reset.

Note

Information regarding the network traffic and network interfaces are shown here.

TAB network load

The amount of received and sent data is displayed graphically.

Depending on the network settings, the status and information for one or two network connections is shown in the field underneath the graph.

TAB Network Detection

119

Maintenance

In “Destination Address”, you can check the connection to another device, such as a computer (‘pinging’). Enter the network address of the device to be checked (e.g.

192.168.0.25) and press Test.

TAB Network Stat.

Information on two parameters appears:

Parameter

Average delay

Packet loss

Rate:

Setting

The time the pinged device needs to reply.

Displays the percentage of packets that were not transmitted

Note

If the packet loss rate is high, we recommend that the “Network Test” is repeated.

Note

If the packet loss rate is still high, you should check that the cables are correct and not damaged.

The higher the packet loss rate, the poorer the connection between the pinged device and recorder.

For “Network Packet Export”, you can export the settings of the individual connections or

– depending on the setting

– the connection.

3. For “Device Name”, select a storage medium to save the settings to.

4. Click Export.

Displays all used in- and outcoming bandwidth.

After the progress display finishes and initialization is successful, an information window appears. Close it with OK.

Click Status to display the status of the LAN connections (connected/not connected).

Click Network to change your network settings (see

p. 96).

120

Video Export

Video Export

Duration

Note

The export function is used to store important recordings on connected external media, such as:

USB media

USB HDD

DVD writer

When

“Quick export” is selected, all recordings of the selected time span are exported. Please note that not more than 24 hours can be exported.

1. Enter the parameters.

2.

Click on “Details” to limit the search

1. Select the connected medium used for data storage from the drop-down menu.

2. If the medium is not displayed, click on Refresh.

If the medium is still not displayed, disconnect it from the device and reconnect the medium again. See also the manufacturer’s specifications.

3. Click on Export to start the export process. The progress of the export process is then displayed.

The file size of the individual recording and the total size of all found recordings are displayed.

By clicking the “Playback” symbol you can view the respective recording.

To block or unblo ck a file click on the “Lock” symbol.

3. Click on Export to access the export screen.

Note

After the storage process is completed, the data on the medium can be selected and played on the player (which was also backed up). In this way, you can check whether the export has been made successfully.

121

Video Export

Event (event type ‘Alarm input’)

For both types of event, the following window appears after activating the Search button:

Define the time span of the recording being searched for by means of the selection fields at “Start time” and “End time”. Select the alarm input by activating or deactivating the check box and click Search.

Event (event type ‘Motion’)

Select the files to be exported by activating or deactivating the check box. You can set the pre-alarm and postalarm time at “Pre-play” or “Post-play”. In this way you can define the length of your export video.

Click on Details to view the selected video. For more exact information on the Details window, see DURATION

(p. 121).

Note

The “Pre-play” recordings can only be viewed when recording has been carried out before the alarm.

Define the time span of the recording being searched for by means of the selection fields at “Start time” and “End time”. Select the camera by activating or deactivating the check box and click Search.

Note

The submenus “Normal” and “Picture” are similar and are therefore not listed separately.

122

Manual Management

Press the REC button or go to panic recording in the main menu in order to start a manual image / video recording or to switch to an alarm output.

Record

Alarm

Manual Management

Select the camera to start manual recording by clicking the corresponding button.

Note

Click “Analog” to record all connected cameras.

Continous Capture

In order to switch on one of the alarm outputs, select the alarm output with a left click and click on Trigger for one, or Trigger All, to switch on all outputs. To reset the output(s) again, click on Clear or Clear all.

Shutdown

Select the camera to manually record continuous instant images. You can set the time interval in which these are

recorded in the recording menu (see p. 109).

Click the control button for this.

Note

Select “Lock” to lock the operating menu.

Select “ShutDown” to switch off the device.

Select “Reboot” to reboot the system (switch off and back on).

123

Troubleshooting

Troubleshooting

Before calling the Service department, read the following information to determine the possible cause of a malfunction.

Malfunction

No power

Cause

Mains cable not connected

Power switch set to OFF

No current in the power socket

Solution

Connect the mains cable securely to the socket

Turn the power switch to ON

Use another device on the socket, where necessary

No image

No sound

HDD is not working

USB port not working

Screen not set for reception

Video cable not connected properly

Set the correct video input mode until an image from the recorder appears

Connect the video cable securely

Connected modem is switched off

Audio cables not connected properly

Devices connected over the audio cables are not switched on

Switch on the monitor

Connect the audio cables securely

Switch on the devices connected over the audio cables

Audio connection cable is damaged Replace the cable

Connection cables not connected properly Connect the cables securely

HDD defective or not system-compatible Replace with a recommended HDD

Device not supported Connect a compatible USB medium

(USB 2.0)

USB hub is in use Connect the USB medium directly

Network access not possible Network cable connections are loose

Network settings are incorrect (DHCP, IP address etc.)

Connect the network cable

Check the network configuration and cor-

rect it, ifnecessary (see page 96).

Remote control is not working Batteries inserted with the wrong polarity or are empty

Replace the batteries. To control the device with the remote control, point it at the remote control sensor on the device

Recording not possible

Sudden deactivation of the device

Remote control too far away from the recorder

Use the remote controller within 7 metres from the device

Signal blocked by obstruction between the remote control and recorder

Lighting too bright or fluorescent tubes in use?

Remove the obstruction

Switch off strong fluorescent lighting in the immediate vicinity

No HDD or HDD is not initialised Install and initialise the HDD

Temperature inside the device is too high

Clean the device and remove any obstructions from the ventilation area

Device cleaning and care

Note

Your device requires no maintenance.

Protect the device from dust, dirt and moisture.

124

Technical data

Technical data

Subject is to alterations and errors. The dimensions are approximate values.

ABUS digital recorder

Video compression

Hybrid-enabled

TVVR60011

H.264

Yes

Camera inputs (analog)

8

Camera inputs (IP)

Camera outputs

Monitor outputs

Operating mode

Resolution (live view)

TVVR60021

16

8 16

8 (analog, 1.0 V ss, 75 Ω)

16 (analog, 1.0 V ss, 75 Ω)

Monitor: 1 x BNC (1.0 V pp, 75 Ω), 1 x VGA, 1 x HDMI, 4 x BNC Spot (1.0 V p-p, 75 Ω)

Triplex

HDMI/VGA:

1920×1080/60 Hz (1080 p),1600×1200/60 Hz, 1280×1024/60 Hz,

1280×720/60 Hz,1024×768/60 Hz

Resolution @ frame rate per camera (recording)

Max. 1920 x 1080 p at @ 25 fps

Total frame rate

Network bandwidth (uploading)

Network bandwidth (downloading)

Compression levels

Storage medium

Data backup

Views

Recording modes

Search modes

Alarm inputs (NO/NC)

Relay outputs

User levels

Network access

Parallel network access

Network functions

DDNS

NTP

PTZ control

PTZ protocols

Alarms

Audio

Control

Software

OSD languages

Power supply

Power consumption

Operating temperature

Dimensions (W x H x D)

Weight

Certifications

400 fps

240

800 fps

240

40 80

Network camera-dependent

8 x SATA HDD

3 x USB 2.0, eSATA

8 x SATA HDD

3 x USB 2.0, eSATA

1/4/6/8/9 1/4/6/8/9/16

Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm

By event, date & time

8

2 (maximum load: 12 V DC/1 A)

2 (max. 31 users)

1 x RJ45 10/100/1,000 Mbps

16

4 (maximum load: 12 V DC/1 A)

128 camera connections

Live view, playback, data export, settings

RS-485

PELCO-D

Acoustic warning, OSD signal, e-mail, CMS

Line in: 1 x RCA (2.0 V ss, 1 kΩ),

Audio in 1

–4: RCA (2.0 V s-s, 1 kΩ),

Audio in 5

–8: DB26 (2.0 V s-s, 1 kΩ),

Audio out: 2 x RCA (2.0 V ss, 1 kΩ)

Line in: 1 x RCA (2.0 V ss, 1 kΩ),

Audio in 1

–4: RCA (2.0 V s-s, 1 kΩ),

Audio in 5

–16: DB26 (2.0 V s-s, 1 kΩ),

Audio out: 2 x RCA (2.0 V ss, 1 kΩ)

USB mouse, remote control (not included in scope of delivery)

ABUS CMS software

English, German, French, Dutch, Danish, Italian, Polish, Czech, Spanish

100~240 V AC, 6.3 A, 50~60 Hz 100~240 V AC, 6.3 A, 50~60 Hz

< 45 W (without HDD) < 40 W (without HDD)

-10 °C ~ +55 °C

470 x 90 x 445 mm

≤ 8 kg (without HDD)

CE

125

Disposal

Disposal

Information on the EU directive on waste electrical and electronic equipment

To protect the environment, do not dispose of the device with domestic waste at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material.

Dispose of the device in accordance with EU directive 2002/96/EC

– WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be disposed of, for example, by your local or municipal authority, the local waste disposal company or your dealer.

Information on handling batteries

Always insert batteries with the correct polarity. Never attempt to recharge the batteries supplied and do not throw them into naked flames under any circumstances. Do not use different batteries at the same time (old and new, alkaline and zinc-carbon etc.).

Remove the batteries if the device is not used for a long period of time. If used improperly, there is a risk of explosion and leaking batteries!

Take environmental protection into account

– used batteries should not be disposed of in domestic waste! They must be taken to a collection point for used batteries.

Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immediately.

Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).

Change low batteries in good time.

Always change all the batteries at the same time and use batteries of the same type.

Important

Leaky or damaged batteries can cause chemical burns on contact with the skin.

 In this case, wear protective gloves.

 Clean the battery compartment with a dry cloth.

Important information on disposing of batteries

Your product uses batteries which are subject to the European directive 2006/66/EC and may not be disposed of with domestic waste.

Find out about the regulations for the separate collection of batteries which apply in your country.

Proper disposal of batteries helps prevent harm to health and the environment.

Batteries that contain harmful chemicals are labelled with these signs:

Pb = battery contains lead

Cd = battery contains cadmium

Hg = battery contains mercury

Information on the European RoHS directive

The device complies with the RoHS directive.

Compliance with the RoHS directive means that the product or component does not contain more than the following maximum concentrations of the following substances in homogeneous materials, unless the substance is part of an application that is excluded from the RoHS directive: a) 0.1% lead (by weight) b) Mercury c) Hexavalent chromium d) Polybrominated biphenyl (PBB) and polybrominated diphenyl ether e) 0.01% cadmium (by weight)

126

Glossary

Glossary

Overview of specialist terms

1080i

HDTV image signal with 1080 pixels and interlaced display.

16:9

Cinematographic aspect ratio on widescreen displays.

720p

HDTV image signal with 1280 x 720 pixels and progressive display.

CIF

Common Intermediate Format

Originally planned for converting PAL to the NTSC standard. CIF corresponds to a video resolution of 352 x

288 pixels (2CIF = 704 x 288 pixels; 4CIF = 704 x 576 pixels).

CINCH

Socket type used for analogue audio or CVBS video signals.

CVBS

Colour, Video, Blank and Sync

– The simplest variation of video signals (also known as composite video). The image quality is comparatively low.

DDNS

Dynamic Domain Name System entry

Network service which provides and updates IP addresses of its clients in a database.

DHCP

Dynamic Host Configuration Protocol

Network protocol which allows the automatic connection of devices (clients) in existing networks. DHCP servers

(e.g. Internet routers) automatically assign the IP address, network mask, gateway, DNS server and WINS server (when required). Only the automatic acquisition of

IP addresses must be activated for the client in this case.

Domain

Name used for the identification of websites on the Internet (e.g. www.abus-sc.de).

Dual Stream

Dual stream is a video transmission method. A highresolution recording and lower-resolution transmission are made over the network, for example. The main stream has a 4CIF resolution and the sub-stream has a

CIF resolution.

DVR

Digital Video Recorder

– A device used for recording different video and audio sources (analogue, digital). The data is compressed for recording and saved on hard disk drives (HDD).

H.264

(MPEG-4 AVC)

– Standard method for the highly-efficient compression of video signals. Used on Blu-ray discs or video conference systems, for example.

HDD

Hard Disk Drive

Digital data storage on computers or DVRs.

GIGABYTE

Unit of capacity for storage media (HDD, USB, SD/MMC cards).

HDVR

Hybrid DVR

– DVR used for recording analogue cameras and network cameras.

http

Hypertext Transfer Protocol

Method for transmitting data across networks. Primarily used for displaying websites in a browser.

INTERLACED

Method for improving the picture quality of a video signal without consuming extra bandwidth (scan pattern on every second line).

IP address

An address in the computer network based on the Internet protocol. Allows different devices to identify themselves in a network so that they are accessed specifically.

JPEG

Compression method for photo images with minimal loss.

Most digital cameras save photos in JPEG format.

127

MPEG

Moving Picture Experts Group

– International standard for the compression of moving images. On some DVDs, the digital audio signals are compressed and recorded in this format.

NTP

Network Time Protocol

Method for synchronising the time across networks.

SNTP (Simple Network Time Protocol) is also available, offering a simplified protocol.

NTSC

Standard television format in the USA. The method is different from the European PAL system in certain ways. A full-screen NTSC image is comprised of 480 visible lines and a total of 525 lines. 60 half-images are displayed per second. Compared to PAL, the system is more susceptible to colour errors.

PAL

Phase Alternating Line

– European colour TV system.

Uses 576 visible image lines. Together with the lines used for signal management, a full-screen image is comprised of 625 lines. 50 half-images are displayed per second. The phase position of the colour signal changes from line to line in the image.

PANEL

Interior of a flatscreen display (e.g. LCD or plasma panels).

PC

Personal Computer

– Can be used as a remote site, either with the software supplied or over a browser.

Pixel

Short for “picture element”, the smallest unit for digital image transmission or display.

PIP

Picture in Picture

– Where two signal sources are shown on the screen at the same time. The second signal source is stored above the first.

PPPoE

PPP over Ethernet (point-to-point protocol)

Network transmission method used for establishing a connection over dial-up lines. Used in ADSL connections, for example).

PROGRESSIVE

Method for displaying, storing or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to the interlacing used in traditional television systems.

PTZ

Pan-Tilt-Zoom

Pan, tilt and zoom function on motor-driven cameras.

RESOLUTION

Normal PAL television systems show images in 576 lines, normally with 768 pixels. HDTV works with at least

1280 x 720 pixels.

SCREEN SIZE

Size of the display from the bottom-left corner to the topright corner in inches or centimetres.

Browser

Program for viewing websites on the Internet.

USB

Universal Serial Bus

Serial bus connection, used for connecting media whilst in operation. Maximum data rate for USB 2.0: ca. 320

Mbit/s (ca. 40 MB/s).

VGA

Video Graphics Array

– Standard interface for analogue video signals in PCs (primarily deals with RGB signals).

ZOLL (inches)

Typical unit of screen size. One inch is equivalent to 2.54 centimetres. The most common sizes of 16:9 displays are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42 inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).

128

Internal HDD

Internal HDD

The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss.

Note

Do not move the device during operation.

Moisture inside the device can condense and lead to HDD malfunctions.

When the device is turned on, never remove the mains plug from the socket or interrupt the power supply using the safety switch.

Do not move the device immediately after switching it off. To move the device, carry out the following steps:

1. Wait until OFF has been shown on the display for at least two minutes.

2. Remove the mains plug from the socket.

3. Move the device.

Data on the HDD can be lost in the event of a power failure during operation. Use an uninterruptible power supply (UPS)!

The HDD is very sensitive. Improper use or unsuitable surroundings can damage the HDD after some years of use. This may be indicated by the playback stopping unexpectedly or visible “mosaic” effects in the image.

In some circumstances, there are no prior signs of a HDD malfunction.

In the event of a malfunction, no recordings can be played. The HDD must be replaced in this case.

129

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
