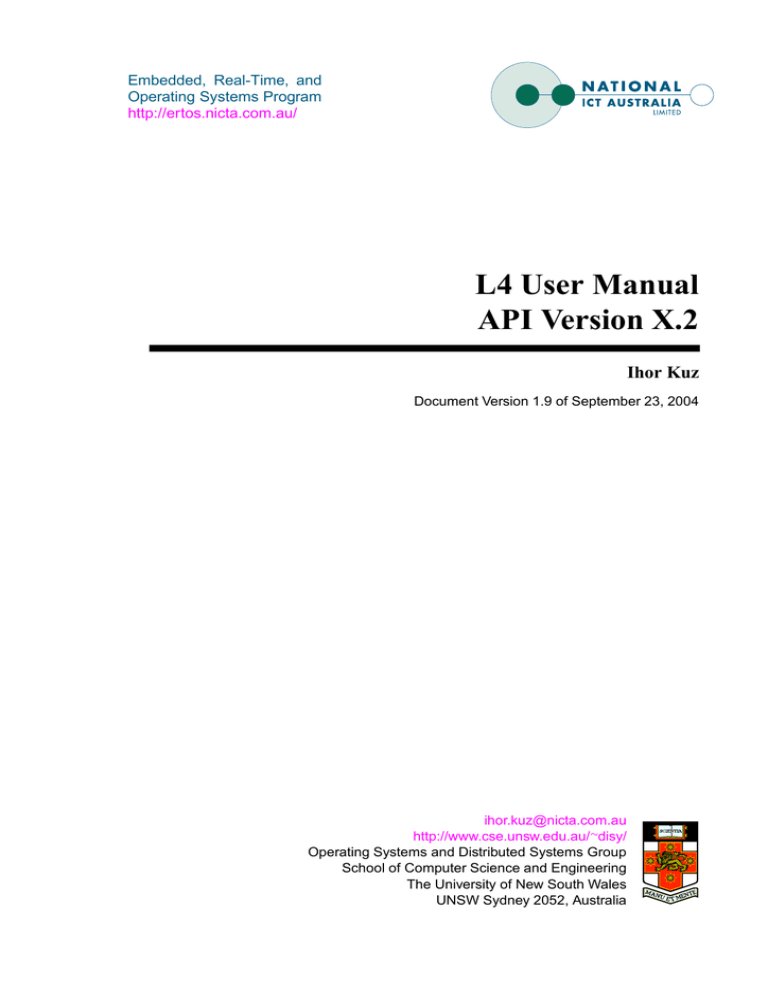

L4 User Manual API Version X.2

L4 User Manual API Version X.2
Embedded, Real-Time, and
Operating Systems Program
http://ertos.nicta.com.au/
L4 User Manual
API Version X.2
Ihor Kuz
Document Version 1.9 of September 23, 2004
[email protected]
http://www.cse.unsw.edu.au/ disy/
Operating Systems and Distributed Systems Group
School of Computer Science and Engineering
The University of New South Wales
UNSW Sydney 2052, Australia
ii
This document is a user manual for the L4 µ-kernel, specifically the L4Ka::Pistachio implementation of the Version X.2 (aka. beta Version 4) API. It gives an introduction to the main concepts and features of L4, and explains their use by a number of examples.
The manual is platform independent, however, examples showing the compiling and linking of
programs are based on the L4 implementation for the UNSW u4600 platform (which uses a MIPS
R4x00 processor). Compiling and linking may differ on other platforms.
This document supplements, rather than replaces, the L4 Reference Manual, and anyone intending to write applications on top of L4 should obtain the L4 Reference Manual.
Permission to make digital/hard copy of part or all of this work for personal or classroom use is granted
without fee provided that copies are not made or distributed for profit or commercial advantage, the copyright notice, the title of the publication and its date appear, and notice is given that copying is by permission
of the authors. To copy otherwise, to republish, to post on servers, or to redistribute to lists requires prior
specific permission and/or a fee.
c 2004 National ICT Australia
iii
Preface
This manual is a complete re-write of the original L4 User Manual [AH98] written by Alan Au and
Gernot Heiser for the MIPS implementation of the Version 2 API of L4. It has been adapted to the
latest kernel API (Version X.2 aka. beta Version 4) and extended by a more general introduction
in order to make it more approachable to the uninitiated.
The original user manual grew out of lecture notes for a course on Advanced Operating Systems given by Gernot Heiser at UNSW in July–November 1997. In that course students had
to build a small operating system on top of L4/MIPS which had previously been developed at
UNSW by Kevin Elphinstone with the help of Jochen Liedtke. The 44 students of that course (one
of whom was Alan Au) were guinea pigs who need to be thanked for their interest and patience, as
well as for their questions which prompted the lecturer to write and provide further documentation.
Thanks are also due to the late Jochen Liedtke, who provided the L4 specification and the original reference manual, Kevin Elphinstone for the MIPS implementation as well as for explaining
L4’s idiosyncrasies, the OS group at the Technical University of Dresden under Herrman H¨artig
for example code, C bindings and manual pages, and Jerry Vochteloo and many others for their
contributions.
Thanks for this manual are due also to...
This manual is still as an evolving document — a number of chapters are still empty waiting
for a volunteer to fill them in. It is hoped that it will continue to grow as more people learn to
use L4, and consequently discover shortcomings of the documentation. We welcome comments,
corrections and enhancements and will try to incorporate them quickly into the manual. The latest
version of this manual (as well as of the L4 Reference Manual [L4K01] and other L4-related
documentation) are available from .
iv
Contents
1
2
3
4
Introduction
1.1 About This Guide . . .
1.2 Quick Start . . . . . .
1.3 L4 History . . . . . . .
1.4 L4 Design Philosophy .
1.5 L4 Resources . . . . .
1.6 Overview . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Basic L4
2.1 Core Concepts . . . . . . . . . . . . . . . .
2.1.1 Memory and Address Spaces . . . .
2.1.2 Threads . . . . . . . . . . . . . . .
2.1.3 Communication . . . . . . . . . . .
2.1.4 Memory Mapping . . . . . . . . .
2.1.5 Interprocess Communication (IPC)
2.2 Kernel Data Structures . . . . . . . . . . .
2.3 L4 Architecture . . . . . . . . . . . . . . .
2.3.1 Kernel . . . . . . . . . . . . . . . .
2.3.2 Privileged Tasks (or Threads??) . .
2.3.3 Servers . . . . . . . . . . . . . . .
2.3.4 Programs . . . . . . . . . . . . . .
2.3.5 Memory Management . . . . . . .
2.3.6 Interrupt Handling . . . . . . . . .
2.3.7 Exception Handling . . . . . . . .
2.3.8 Scheduling . . . . . . . . . . . . .
Running L4
3.1 Startup . . . . . . .
3.2 Loading Programs .
3.3 Running Programs
3.4 Shutting Down . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Programming L4
4.1 L4 X.2 API . . . . . . . . . . . .
4.2 Threads and Address Spaces . . .
4.2.1 Thread Lifecycle . . . . .
4.2.2 Address Space Lifecycle .
4.3 Interprocess Communication (IPC)
4.3.1 Finding Threads . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
v
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
2
2
2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5
5
5
6
7
8
10
11
12
12
12
12
12
12
12
12
12
.
.
.
.
13
13
13
13
13
.
.
.
.
.
.
15
15
15
15
17
18
18
CONTENTS
vi
4.4
4.5
4.6
4.3.2 Sending Messages . . . . . . . . . . . . .
4.3.3 Receiving Messages . . . . . . . . . . . .
4.3.4 Reusing Messages . . . . . . . . . . . . .
4.3.5 Optimisation . . . . . . . . . . . . . . . .
Sharing Memory — Memory Mapping . . . . . . .
4.4.1 Flexpages . . . . . . . . . . . . . . . . . .
4.4.2 Sharing Memory the Right Way . . . . . .
4.4.3 Sharing Memory the Wrong Way . . . . .
4.4.4 Mapping Details . . . . . . . . . . . . . .
4.4.5 Resolving Mapping Ambiguities: The 4.4.6 Granting Details . . . . . . . . . . . . . .
4.4.7 Unmapping . . . . . . . . . . . . . . . . .
Interrupts . . . . . . . . . . . . . . . . . . . . . .
4.5.1 Interrupt Handler . . . . . . . . . . . . . .
4.5.2 Registering for Interrupts . . . . . . . . . .
4.5.3 Handling Interrupts . . . . . . . . . . . . .
4.5.4 Turning Interrupts On and Off . . . . . . .
Exceptions . . . . . . . . . . . . . . . . . . . . . .
4.6.1 Exception Handler . . . . . . . . . . . . .
4.6.2 Registering for Exceptions . . . . . . . . .
4.6.3 Handling Exceptions . . . . . . . . . . . .
4.6.4 Turning Exceptions On and Off . . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
Parameter
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
18
21
23
23
24
24
24
25
25
27
28
29
30
30
30
30
30
30
30
30
30
30
5
Recipes and Best Practice
31
6
L4e and Kenge
33
7
L4 Internals
7.1 Thread states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Mapping database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
35
37
8
Debugging
39
9
Not Implemented
41
10 Ports of L4
43
A An Example
45
B Compiling and Linking
47
C Glossary
49
Chapter 1
Introduction
1.1 About This Guide
L4 is an operating system microkernel (µ-kernel). That is, L4 by itself is not an operating system
(OS), but rather a minimal base on which a variety of complete operating systems can be built.
This guide will provide programmers 1 new to L4 with an easy way to familiarise themselves with
the concepts behind L4, its programming model, and its API.
Because of L4’s minimality, the API provides quite a low-level interface. As such it does not
include services available in traditional OS environments such as page swapping, device drivers,
and file systems. If such services are required it is up to the L4 programmer to provide them. This
guide does not cover the building of such services, which is what OS courses and textbooks are
for. It does, however, attempt to provide enough of an understanding of L4 and its programming
model that such services can be built to run on L4.
1.2 Quick Start
For those impatient readers who do not want to read about L4’s history, design philosophy, core
concepts, or the underlying architectural model, Chapter 4 provides a guide to the key issues involved in programming for L4. Readers looking for a quick start are advised to skip straight to
this chapter and refer back to Chapter 2 for clarification of terms and concepts when necessary.
Appendix A provides a complete example application, and can be used as a guide to structuring a
simple L4 program.
1.3 L4 History
The basic idea of a µ-kernel goes back to Brinch Hansen’s Nucleus [BH70] and Hydra [WCC 74]
and has been popularised by Mach [RTY 88]. The argument goes that by reducing the size of the
kernel (the part of the OS executing in privileged mode) it becomes possible to build a system with
a smaller trusted computing base, which results in a more secure and reliable system. Likewise,
by moving most OS services outside the kernel, it becomes easier to extend and customise and operating system. A further advantage is that µ-kernel-based system can easily implement a number
of different APIs (also called OS personalities) without having to emulate one within the other.
There was also hope of improved efficiency. Operating systems tend to grow when as features
are added, resulting in an increase of the number of layers of software that need to be traversed
when asking for service (an example being the addition of the VFS layer in UNIX for supporting
1 Note
that this is a guide for programmers writing software using the L4 API. It is not an L4 kernel hacker’s guide.
1
2
CHAPTER 1. INTRODUCTION
NFS). Unlike traditional (“monolithic”) operating systems, a microkernel-based system grows
horizontally rather than vertically: Adding new services means adding additional servers, without
lengthening the critical path of the most frequently-used operations.
Unfortunately, however, performance of first-generation microkernels proved disappointing,
with applications generally experiencing a significant slowdown compared to traditional monolithic operating systems [CB93]. Liedtke, however, has shown [Lie93, Lie95, Lie96] that these
performance problems are not inherent in the microkernel concept and can be overcome by good
design and implementation. L4 is the constructive proof of this theorem, as has been clearly
demonstrated by H¨artig et al. [HHL 97].
1.4 L4 Design Philosophy
The most fundamental task of an operating system is to provide secure sharing of resources. In
essence this is the only reason why there needs to be an operating system. A µ-kernel should to be
as small as possible. Hence, the main design criterion of the µ-kernel is minimality with respect to
security: A service (feature) is to be included in the µ-kernel if and only if it impossible to provide
that service outside the kernel without loss of security. The idea is that once we make things small
(and do it well), performance will look after itself.
A strict application of this rule has some surprising consequences. Take, for example, device
drivers. Some device drivers access physical memory (e.g. DMA) and can therefore break security.
They need to be trusted. This does not, however, mean that they need to be in the kernel. If they
do not need to execute privileged instructions and if the kernel can provide sufficient protection to
run them at user level, then this is what should be done. Consequently, this is what L4 does.
According to Liedtke, and based on such reasoning, a µ-kernel must provide:
address spaces: the basis of protection,
threads: an abstraction of program execution,
interprocess communication (IPC): a mechanism to transfer data between address spaces,
unique identifiers (UIDs): providing context-free addressing in IPC operations.
We return to these and other fundamental concepts in Chapter 2.
1.5 L4 Resources
The main L4 X.2 resource and official API document is the L4 Reference Manual [L4K01], which
contains a complete specification of the API. Besides the L4 source code itself, this is currently also
the only complete documentation. While documents describing older versions of L4, as well as
user guides describing these older versions, are also available, the L4 API and programming model
have changed significantly. This makes the older documents interesting only from a historical
perspective.
1.6 Overview
The rest of this guide is structured as follows. Chapter 2 introduces the core concepts of L4. It
also describes the fundamental L4 architectural model. Chapter 3 explains how to run an L4-based
system. Chapter 4 provides practical information about programming L4. It describes how standard L4 API procedures are best used and provides code to illustrate this. Chapter 5 continues
1.6. OVERVIEW
3
where Chapter 4 leaves off and provides examples of typical L4 programming practice or idioms.
Chapter 6 introduces Kenge and the L4 Environment, both of which provide an extended programming environment for L4. Chapter 8 provides information about the L4 kernel debugger and
explains how to use it to debug L4 programs. Chapter 9 provides a list of things that are not, or
not satisfactorially implemented in L4, while Chapter 10 provides some informaion about using
L4 on specific platforms.
Appendix A provides an example of the implementation of a simple L4 program. Appendix B
discusses how to compile a program, link and combine it into a single L4 loadable image, and boot
this image on a machine.
Note that this guide purposefully does not provide instructions on how to download and compile L4 itself. This is due to the fact that there are various versions of L4 (and also various ports of
L4) around and they are in constant flux. As such, the instructions would become obsolete quickly
leaving a large part of this guide obsolete as well. This kind of information is best presented on a
website where it can be updated as necessary. The best bet for finding information on downloading
and installing L4 is, therefore, to look on appropriate L4 websites (e.g., ),
or to ask someone already familiar with L4.
4
CHAPTER 1. INTRODUCTION
Chapter 2
Basic L4
2.1 Core Concepts
This section introduces key concepts that underly L4 and the L4 architecture. Most are general
concepts and common to most (µ-kernel) operating systems. The application of the concepts and
the relationships between them are, however, in some ways unique to L4. It is important that a
programmer understands how these concepts are used in L4 and how they fit into the general L4
architecture.
2.1.1 Memory and Address Spaces
Memory
In operating systems we distinguish between two types of memory: physical and virtual. Physical
memory refers the real memory available on the computer and is referenced using physical addresses. A physical address can be interpreted directly by a computer as a reference to a location
in RAM or ROM. On most architectures, however, programs running on the CPU generate virtual
addresses. A memory-management unit (MMU) has to translate virtual addresses into physical addresses before they can be used to address real memory. We will look at the relationship between
virtual and physical addresses when we discuss address spaces below.
Registers
Besides regular (virtual) memory, L4 also provides programs with access to virtual registers. Virtual registers offer a fast interface to exchange data between the microkernel and user threads.
They are registers in the sense that they are static per-thread objects. Depending on the specific
processor type, they can be mapped to hardware registers or to memory locations. Mixed mappings, where some virtual registers map to hardware registers while others map to memory, are
also possible.
There are three classes of virtual registers: Thread Control Registers (TCRs), Message Registers (MRs), and Buffer Registers (BRs). Each will be discussed in more detail later.
In general, virtual registers can only be addressed directly, not indirectly through pointers. The
L4 API provides specific functions for accessing the three different classes of registers. Loading
illegal values into virtual registers, overwriting read-only virtual registers, or accessing virtual
registers of other threads in the same address space (which may be physically possible if some are
mapped to memory locations) is illegal and can have undefined effects on all threads of the current
address space.
5
CHAPTER 2. BASIC L4
6
Address Space
An address space contains all the data that is directly accessible by a thread. It consists of a set of
mappings from virtual to physical memory. This set of mappings is partial in the sense that many
mappings may be undefined, making the corresponding virtual memory inaccessible. Figure 2.1
shows an example of how the virtual memory in an address space may map onto physical memory.
The regions of virtual memory that are not mapped are inaccessible to threads running in that
address space.
mapped memory
unmapped memory
Address Space
Physical Memory
mapping
Figure 2.1: Mapping of virtual memory to physical memory
Typically an address space will contain a number of standard regions. These include the text,
data, heap, and stack regions. The text region contains program code, the data region contains preinitialised data used by the program, the heap region is used for dynamically allocated data, and the
stack region is used for storing temporary data during execution. The text and data regions usually
have a fixed size and do not change during execution of a program. The heap and stack regions,
on the other hand, can grow or shrink while the program is executing. Note that by convention
on most architectures the heap grows up toward high memory, while the stack grows down toward
lower memory.
Figure 2.2 shows a typical arrangement of these regions in an address space. Note that L4
does not enforce any specific layout of address spaces. The layout is generally determined by a
combination of the compiler and higher-level operating system services built on top of L4.
Address Space
text
data
heap
stack
0x0
0xfffff
Figure 2.2: A typical address space layout
2.1.2 Threads
A thread is the basic execution abstraction in L4. L4 threads are light-weight and cheap to manage.
The light-weight thread concept together with fast IPC are the keys to the efficiency of L4 and OS
personalities running on top of L4.
A thread is always associated with a specific address space. The relationship between threads
and address spaces is one to many, that is, a thread is associated with exactly one address space,
while any address space can have many threads associated with it.
Each thread has its own set of virtual registers called the thread control registers (TCRs).
These virtual registers are static (they keep their values until explicitly modified) and store the
thread’s private state (e.g., parameters for IPCs, scheduling information, the thread’s identifiers,
etc.). They are stored in an area of the address space called the thread control block (TCB). The
TCB is actually split into two parts, there is the user TCB (UTCB), which is accessible by the
thread, and the kernel TCB (KTCB) which is accessible only by the kernel. Programmers are
2.1. CORE CONCEPTS
7
generally only interested in the UTCB, therefore, when we refer to the TCB we will generally
mean the UTCB. Details about the TCB and the information stored in TCRs can be found in the
L4 Reference Manual.
Each thread is further associated with a page-fault handler and an exception handler. These
are separate threads that are set up to handle page faults and other exceptions caused by the thread.
Page faults, pagers, exceptions and exception handlers will be discussed in more detail later.
Each thread in an address space has its own stack. A thread’s stack address is explicitly specified during thread creation. It is up to the thread to determine where to place its heap — this is a
design issue, but typically several threads in the same address space will share a heap.
L4 also distinguishes between privileged and non-privileged threads. Any thread belonging
to the same address space as one of the initial threads created by the kernel upon boot-time (see
Section 3.1) is treated as privileged. Some system calls can only be executed by privileged threads.
Threads can be created as active or inactive threads. Inactive threads do not execute but can
be activated by active threads that execute in the same address space. As discussed later, inactive
threads are typically used during the creation of address spaces. 1 A thread created active starts
executing immediately after it is created. The first thing it does is execute a short receive operation
waiting for a message from its pager. This message will provide the thread with an instruction and
stack pointer and allow it to start executing its code.
Tasks
A task is the set of of threads sharing an address space. The terms task and address space are often
used interchangeably, although strictly speaking they are not the same. We will try to avoid using
the term task where possible, prefering to specifically refer to an address space or thread.
Identifying Threads and Address Spaces
A thread is identified by its unique identifier (UID). A thread can actually have two identifiers, a
local identifier and a global identifier. While a global identifer is valid in any address space, a local
identifier is only valid within the thread’s address space. That is, a global identifier can be used by
any thread, while a local identifier can only be used by threads that are part of the same task. In
different address spaces, the same local thread ID may identify different and unrelated threads.
Unlike threads, address spaces do not have identifiers. Instead, an address space is identified
by the UID of any thread associated with that address space. This means that an address space
must always have at least one thread associated with it. That thread does not, however, have to be
active.
2.1.3 Communication
One of the main activities that threads engage in is to communicate with other threads (for example,
in order to request services from each other, in order to share results of computations, etc.). There
are two ways that threads communicate: using shared memory (see Section 2.1.4), or using L4’s
Interprocess Communication (IPC) facilities (see Section 2.1.5).
1 Inactive
threads are also useful for thread pools. Whenever a thread is needed an inactive thread from such a pool
can be activated using ExRegs rather than having to be created using ThreadControl. This moves the heavier work of
thread creation to initialisation time, rather than run-time.
8
CHAPTER 2. BASIC L4
Communication Within an Address Space.
When communicating with threads in the same address space, it is easiest (and most efficient) to
use shared memory. Threads in the same address space automatically share memory, so they do
not have to make use of L4’s memory mapping facilities. As long as both threads agree on which
shared memory region (or variables) to use, they are free to communicate in this way.
When threads communicate using shared memory it is necessary to avoid race conditions.
This is best done by enforcing mutual exclusive access to shared memory. Note that L4 does
not provide any mutual exclusion primitives (such as semaphores) to do this, it is expected that
these are provided at user level (possibly using mechanisms provided by the underlying hardware).
Various implementations of user level mutual exclusion primitives are available [?].
It is possible for threads in the same address space to communicate using IPC. The main use
for this is thread synchronisation. Addressing a thread in the same address space can be done using
local or global thread Ids.
Communication Between Address Spaces.
When communicating between address spaces (i.e., when threads in different address spaces communicate with each other) both the use of shared memory and IPC are valid approaches. IPC
is generally used for smaller messages and synchronisation, while shared memory is used to exchange larger amounts of data.
Communicating between address spaces using shared memory requires that all (communicating) threads have access to the same memory region. This is achieved by having one thread map
a region of its address space into the address spaces of the other threads. The concept of mapping
memory is explained in Section 2.1.4. Once a shared region of memory has been established, the
threads communicate by simply reading from or writing to the particular memory region. Note
that, as mentioned previously, when communicating using shared memory it is necessary to avoid
race conditions.
Communication using IPC requires that the threads send messages to one another. A message
is sent from a sender thread and addressed to a particular receiver thread. Messages can be used
to directly share data (by sending it back and forth), to indirectly share data (by sending memory
mappings), or as a control mechanism (e.g., to synchronise).
2.1.4 Memory Mapping
Address spaces can be recursively constructed. A thread can map parts of its address space into
another thread’s address space and thereby share data. Figure 2.3 shows an example of two address
spaces with a region of address space A mapped into address space B. Both the thread running
in address space A and the thread running in address space B can access the shared region of
memory. Note, however, that the memory may have different virtual addresses in the different
address spaces. Thus, in the example, a thread running in address space A accesses the shared
memory region using virtual address
while a thread in address space B uses virtual
address
.
A mapper (that is, the thread making the memory available) retains full control of the mapped
region of memory. In particular, the mapper is free to revoke a mapping at any time. Revoking a
mapping is called unmapping. After a mapping has been revoked, the receiver of that mapping (the
mappee) can no longer access the mapped memory. This is shown in Figure 2.4. Here a thread in
address space B can no longer access the region of virtual memory that used to contain the mapped
memory.
2.1. CORE CONCEPTS
9
0x2001000
Address Space B
0x1000000
Address Space A
Physical Memory
Figure 2.3: Two address spaces sharing a region of memory
Address Space B
Address Space A
Physical Memory
Figure 2.4: A shared region of memory is unmapped
Access to mapped memory is limited by the access permissions set by the mapper. These access permissions specify read permission, write permission, and execute permission and determine
how the mappee can access the mapped memory. Note that a mapper cannot grant access rights
that it does not itself have. Thus, if a thread does not have write access to a particular region of
memory, it cannot map that memory with write permission into another address space.
It is also possible for a region of one address space to be granted to another address space.
Granting differs from mapping in that after the grant has succeeded, the granter loses access to
that region of its address space (i.e., it no longer has a valid mapping for that region). Figure 2.5
shows an example of the situation before and after a region of address space A has been granted
to address space B. Unlike revocation of mappings, a granter cannot revoke a grant, as it no longer
has access to the page.
Before Grant
After Grant
Address Space B
Address Space A
Physical Memory
Address Space B
Address Space A
Physical Memory
Figure 2.5: A region of one address space is granted to another
Note that, for security reasons, when mapping or granting memory the receiver must always
explicitly agree to accept maps or grants.
Mapping and granting of memory are implemented using L4’s IPC mechanism (IPC is discussed in Chapter 4). In order to map memory, a mapper sends the intended mappee a message
containing a map item specifying the region of memory to be mapped. The mappee must explicitly
specify that it is willing to receive mappings. It also specifies where, in its own address space, the
memory should be mapped. The receiver does not actually have to do anything with the received
10
CHAPTER 2. BASIC L4
map item (or grant item). The mapping is performed as a side effect of the IPC.
Note that although mappings apply to an address space, map messages are sent via IPC to a
thread in that address space.
2.1.5 Interprocess Communication (IPC)
Message passing is the basic interprocess communication (IPC) mechanism in L4. It allows L4
threads in separate address spaces to communicate by sending messages to each other. This
message-passing IPC is the heart of L4. It is used to pass data between threads (either by value,
with the µ-kernel copying the data between two address spaces, or by reference, through mapping
or granting). L4 IPC is blocking, so it is used for synchronisation (each successful IPC operation
results in a rendez-vouz) and wakeup-calls (timeouts can be specified, so IPC can be used for timed
sleeps). It is even used for memory management (the µ-kernel converts a page fault into an IPC
to a user-level pager), exception handling (the µ-kernel converts an exception fault into an IPC to
a user-level exception handler), and interrupt handling (the µ-kernel converts an interrupt into an
IPC from a pseudo-thread to a user-level interrupt-handler).
Messages
A message consists of one mandatory and two optional sections. The mandatory message tag
is followed by the optional untyped-words section which is followed by the optional typed-items
section. The message tag contains message control information and a message label. The message
control information specifies the size of the message and the kind of data contained in it. The
µ-kernel associates no semantics with the message label; it allows threads to identify a message
and is often used to encode a request key or to identify the function to be invoked upon reception
of the message.
The untyped-words section holds arbitrary data that is untyped from the µ-kernel’s point of
view. The data is simply copied to the receiver. The µ-kernel associates no semantics with it. The
typed-items section contains typed data such as string items, map items, and grant items. Map
items and grant items were introduced earlier and are used to map and grant memory. String items
are used for passing string data by reference and will be discussed later in Chapter 4.
Message Registers
IPC messages are transferred using message registers (MRs). A sender writes a message into
the message registers associated with its own thread and a receiver reads the message out of the
message registers associated with its thread. Each thread has 64 MRs, numbered MR 0 to MR63
(inclusive). A message can use some or all MRs to transfer untyped words and typed items. The
message tag is always transfered in MR 0 .
MRs are transient read-once virtual registers. Once an MR has been read, its value is undefined
until the MR is written again. The send phase of an IPC implicitly reads all MRs; the receive phase
writes the received message into MRs.
MRs can be implemented as either special purpose (hardware) registers, general memory locations, or general purpose (hardware) registers. It is generally up to the particular L4 implementation (and the hardware that it is implemented on) whether any MRs are implemented as
hardware registers and if so which ones. For example, in the MIPS implementation MR 0 to MR9
are implemented as hardware registers.
2.2. KERNEL DATA STRUCTURES
11
Acceptor and Buffer Registers
In order to be able to handle a received message, the receiver must explicitly agree to accept
messages of that type. The acceptor is used to specify which typed items will be accepted when
a message is received. If an acceptor specifies that map or grant items are accepted, then it also
specifies where the associated memory will be mapped in the receiver’s address space. If an
acceptor specifies that string items are accepted, then any string items received are placed in the
buffer registers (BRs).
BRs are registers in the sense that they are per-thread objects and can only be addressed directly, not indirectly through pointers. BRs are static objects like TCRs, i.e., they keep their values
until explicitly modified. BRs can be mapped to either special registers or to memory locations.
There are 34 BRs numbered from BR0 to BR33 (inclusive).
The acceptor is always placed in BR0 . Any string items received are placed in the BRs starting
at BR1 .
Send and Receive
Messages are sent and received through the IPC system call. IPC is the fundamental operation for
inter-process communication and synchronization. It can be used for intra- and inter-address-space
communication. All communication is synchronous and unbuffered: a message is transferred from
the sender to the recipient if and only if the recipient has invoked a corresponding IPC operation.
The sender blocks until this happens or until a period specified by the sender has elapsed without
the destination becoming ready to receive. Similarly, the reciever blocks until a message has been
recieved. The receiver must also supply all necessary buffers, as the kernel does not provide any
such storage. This unbuffered operation reduces the amount of copying involved and is the key to
high-performance IPC.
A single IPC call combines an optional send phase and an optional receive phase. Which
phases are included is determined by specific parameters to the IPC call. It is also possible to
specify timeouts for IPCs. Different combinations of timeouts and send and receive phases lead
to fundamentally different kinds of IPCs. For example, including both a send and a receive phase
with no timeout implements a synchronous IPC that blocks until a reply is received, while an IPC
that includes only a receive phase and no (or rather infinite) timeout implements a blocking call
that waits for a message to arrive. The L4 API provides convenience interfaces to these different
kinds of IPC calls.
To enable implementation-specific optimizations, two variants of the IPC system call exist:
normal IPC and lightweight IPC (LIPC). Functionally, both variants are identical, but LIPC may
be optimized for sending messages to local threads. Transparently to the user, a kernel implementation can unify both variants or implement differently optimized functions. IPC is the default IPC
function. It must always be used, except if all criteria for using LIPC are fulfilled: both a send
and receive phase are included, the destination thread is specified as a local thread ID, the destination thread runs on the same processor, there is a short receive timeout, and the IPC includes no
map/grant operations. These restrictions allow LIPC to be up to an order of magnitude faster than
regular IPC.
IPC messages are always addressed to specific threads using their unique (local or global)
identifiers.
2.2 Kernel Data Structures
The kernel-interface page (KIP) contains API and kernel version data, system descriptors including memory descriptors, and system-call links. The page is a µ-kernel object and is directly
12
CHAPTER 2. BASIC L4
mapped through the µ-kernel into each address space upon address space creation. It is not mapped
by a pager, cannot be mapped or granted to another address space and can not be unmapped. The
creator of a new address space can specify the address where the kernel interface page will be
mapped. This address will remain constant through the lifetime of that address space.
2.3 L4 Architecture
2.3.1 Kernel
2.3.2 Privileged Tasks (or Threads??)
2.3.3 Servers
2.3.4 Programs
2.3.5 Memory Management
Sigma0
Page Faults
Pagers
2.3.6 Interrupt Handling
2.3.7 Exception Handling
2.3.8 Scheduling
Chapter 3
Running L4
3.1 Startup
3.2 Loading Programs
3.3 Running Programs
3.4 Shutting Down
13
14
CHAPTER 3. RUNNING L4
Chapter 4
Programming L4
4.1 L4 X.2 API
The L4 X.2 API is described in the L4 Reference Manual [L4K01]. This manual contains specifications of all the data structures and functions provided by the API. This includes kernel data
structures, message formats, system calls, and convenience functions. The API is presented in a
generic language-neutral way (based on a pseudo C++ syntax) and is valid for all 32-bit and 64bit architectures. Language bindings provide language-specific versions of the API. The generic
API specification makes use of function overloading (that is numerous functions have the same
name and are distinguished only by their formal parameters). Because this causes problems for
bindings to languages that do not support overloading (e.g., C), the API also specifies alternative,
non-ambiguous, names. These alternative names are provided (enclosed in square brackets [])
alongside the official names.
The code examples in this document use the C language binding of the API. This binding
prepends an prefix to all type and function names, and appends a suffix to all type names.
becomes in the C binding.
Thus, becomes , and 4.2 Threads and Address Spaces
4.2.1 Thread Lifecycle
A new thread is created using the function.
A call to
must specify a thread id, an address space identifier, a scheduler, a
pager and a pointer to the UTCB area (i.e., where the thread’s UTCB will be placed). A thread
can be created active or inactive. An inactive thread (i.e., one whose parameter is ) is
simply brought into being but does not run. A thread is activated by assigning it a pager. When a
thread is activated the first thing it does is wait for an IPC (from its pager) containing the IP and
SP (instruction pointer and stack pointer) of the code to execute.
The following function shows an example of the code required to create and activate a thread.
$
2 #
% 1&
!#"
!
'&
( *)+
, (-.&
% /
)+
, (0.&
)+ , (01&
15
CHAPTER 4. PROGRAMMING L4
16
! )+ ! (! % % 1
&
( ) #"
% &
In this example the thread is created in the same address space as the creator
( ( +)/ ,
(0 — recall that an address space is identified by the UID of a
thread associated with it), and it is assumed that the creating thread will take on the role of both
the scheduler and pager. This is not always the case, and will depend on the context that the thread
creation takes place in.
Note that can only be invoked by a privileged thread 1 .
The following function shows how a pager might start a thread by sending it an instruction
pointer and a stack pointer.
0 !
!
"
&
&
.&
$0 $ .
.&
$0 $ .
.&
% +( ! .&
% 0 .&
- 1&
/)+ 01&
! 0 "
(
We will discuss the code used to create and send a message (i.e.,
,
$0 , etc.) later. Of importance here is the setting of the propagation bit 2 with
! and the virtual sender TCR with % . This ensures that the message is seen to come from the new thread’s pager.
1 Recall (from Section 2.1.2) that a thread is privileged if it belongs to the same address space as one of the initial
threads created by the kernel at boot-time.
2 A discussion of propagation is beyond the scope of this document. Please see the L4 Reference Manual for more
details
4.2. THREADS AND ADDRESS SPACES
17
This is done by calling
is also used to destroy threads.
with a (! parameter of 2 (
). For example:
! % % ! !1&
4.2.2 Address Space Lifecycle
To create a new address space it is sufficient to create a thread in that address space. Since an
address space does not have an identifier of its own (but is simply identified by the threads that it
is associated with) this new thread must be created with the same UID for both its thread Id and
its address space identifier. After being created in this way, the address space must be initialised
before it can actually be used. Initialisation of an address space involves setting up appropriate
memory areas, and is done using the function as shown in the following
code.
2* !
$ 0&
2 1&
.#"
/
) ( )
#"
, (- 1
&
! )/
% 1&
( )
#"
!
/
) ( )
#"
0 %
% % ! !1&
1&
&
In this example the address space is created by creating a thread using the same UID ( )
for both its thread Id and its address space identifier. The thread is originally inactive (because
is given as its pager thread Id). After creating the thread is
called to initialise the address space. In particular this sets up the address space’s KIP and UTCB
areas. The original thread is subsequently activated by assigning it a pager process. Finally the
thread is started by sending it the given instruction pointer ( ) and stack pointer ( ).
CHAPTER 4. PROGRAMMING L4
18
Note that, like , can only be invoked by a privileged thread.
Destroying the last thread in an address space implicitly also destroys that address space.
4.3 Interprocess Communication (IPC)
4.3.1 Finding Threads
In order to directly communicate with another thread it is necessary to know its thread Id. In
particular, in order to communicate with a thread in another address space it is necessary to know
thread’s global thread Id. Unfortunately, when a thread is started it does not know of any other
thread (or thread Id), and therefore cannot initiate any communication.
The only function that L4 provides for finding another thread is 0 , which returns
the thread ID of the calling thread’s pager. Other ways of finding threads include: to receive a
thread Id from another thread (e.g., a thread’s parent, a naming service, etc.), to read it in from
persistent storage (e.g., a file stored on disk), to remember it after creating a thread (e.g., save a
child’s thread Id in a local variable or table), or to read it from a known location in memory (for
example, a parent thread may store ThreadIds on a child’s stack before starting the child).
Note that σ0 (“sigma-zero”) is the root thread’s pager. Therefore, calling 0 in the
root thread will return σ0 ’s thread ID. L4 also provides the , (- function which returns
the calling thread’s thread Id.
4.3.2 Sending Messages
Before being sent, a message must first be constructed (i.e., the headers and body must be filled
in) and placed in the message registers. A message consists of a header and a body. The following
subsection shows how a message may be constructed manually. Normally this is not necessary, as
the L4 interface generator, IDL4 (discussed in ??) can do this work.
Message Header
The message header (also called a message tag or ) consists of a label, message flags,
and two fields specifying the size of data in the body (see Figure 4.1). The label identifies the
message type. Neither labels nor label formats are specified by L4, so it is up to the programmer
to choose a labelling scheme for messages. The semantics of the message flags are specified in the
L4 Reference Manual, however, they are not often used and are usually set to 0. The size field t
specifies the number of typed items in the body, and u specifies the number of untyped words.
label (16/48)
flags (4)
t (6)
u (6)
Figure 4.1: The fields of a message header. Size in bits is included in parentheses. Where two
values are shown the first is the size on 32-bit architectures and the second is the size on 64-bit
architectures.
The following code can be used to set the values of a message header.
(! &
4.3. INTERPROCESS COMMUNICATION (IPC)
1&
19
1&
Note that before any values are entered into the header, the whole message is first cleared using
0 . After this the label is set using . The message flags do not
have to be set unless they differ from 0. It is also not necessary to set u and t explicitly, as they
will be set appropriately when data is added to the message.
Message Body
The message body contains of between zero and 63 data words. The data can be in the form
of typed items and untyped words. A typed item can be a , , or
!2 . These are used to map memory, grant memory, and copy strings respectively.
Untyped words are placed in the body first followed by the typed items.
The following code shows how untyped data is added to a message.
$
$
+ &
+
&
$0 .&
$0 .
&
The following code shows how a typed item (an ) is added to a message.
&
' 1&
s and ! s are added in a similar
and !2! ' respectively.
way
using
Note that the above code does not directly write into the message registers, it simply stores all
the header and content data in an data structure. Thus, before a message can be sent, the
data must first be loaded into the registers. This is done as follows.
- 1&
Send
Once the message registers have been loaded the message can be sent. This is done as follows.
&
&
/
)+
0 1&
The 0 function takes the destination thread Id as a parameter and returns an
, which is used to signal an error. Note that the - function does not take an
as a parameter. It sends the message previously loaded into the MR register set. Note
that IPC in L4 is blocking. This means that an - call will block until the message has
been successfully received by the intended recipient.
CHAPTER 4. PROGRAMMING L4
20
Error Handling
If an error occurred, causing the send to fail, the fourth bit of the returned message tag’s message
flag field will be set to 1. Error details can be retrieved from the appropriate ErrorCode TCR. To
make error checking easier, the L4 API provides convenience functions to check the error bit and
retrieve the error code. These functions can be used as follows.
$ &
( ! 0 "
+
)
-1&
The L4 API also provides a similar % - function. Please see the L4 Reference Manual for details about possible error values.
Call, Reply, ReplyWait
Besides 0 , there are three other ways to send a message. The first is , which
sends a message and waits for a reply from the receiver. The second is , which is used
to send a reply message (i.e., when the sender sent a message using ). The third is to
use ,$ , which is similar to in that it sends a message and waits for a
reply, except that in this case, it sends a reply and waits for a new incoming message from any
thread (see the discussion of $ 0 below).
Examples of these three approaches follow.
In the first example, showing , a message is sent to a given destination thread
(specified by ), after which the sender waits for a reply from that same thread. The return
value is used to indicate an error on failure as above, however, on success it will contain the header
) of the received message
(i.e., * ! &
&
+
)/ 1&
In the second example, showing for 0 .
,0 , the return value and parameters are the same as
* ! &
&
+
)/ ,0 !.&
Finally, in the third example, showing ,$ 0 , the second parameter ( ! ! ) is
used to return the thread Id of the sender of the new message. Unlike this might not be
the same as the thread that the message was sent to. As with , however, the return value
is used to indicate an error on failure and will contain the received message’s header on success.
*
+
)/ ,$
! &
&
&
.&
4.3. INTERPROCESS COMMUNICATION (IPC)
21
There are variations of these functions that take extra timeout parameters. Please see the L4
Reference Manual for more details.
4.3.3 Receiving Messages
Before receiving any messages, a thread must specify the kinds of messages that it is willing to
accept, as well as any receive windows and string buffers, (both of which will be discussed below).
This is done by setting values in the acceptor, which is stored in the BR 0 buffer register. Note that
since the buffer registers are static (i.e., they don’t change unless explicitly changed), it is sufficient
for a thread to set BR0 (the acceptor) only once. For example:
! , $! &
This specifies that the thread is willing to accept messages containing only untyped words. No
typed items will be accepted.
Other possible parameters for ! include !2! ! and
. The use of these will be discussed later in Section 4.4. The L4 API
defines several other convenience functions to modify the values in the acceptor. Please see the L4
Reference Manual for more details.
Wait
Wait is used to receive a message from any sender, either in the same address space or a remote
one. The following code shows how a message is received using $ .
&
&
/
)+
$ .&
$ blocks until a message is received. The thread Id of the sender is returned through
the first parameter, while the header of the received message is passed back in the return value.
When $ fails, the return value is used to indicate an error and the error details can be
extracted as discussed earlier in 4.3.2. $ can fail only if it timed out, or was cancelled
by another thread.
Call, ReplyWait, Receive
Similar to the sending of messages there are several alternative ways to receive a message. As
mentioned above, and ,$ 0 involve both a sending and a receiving phase.
Furthermore, the - function allows a receiver to wait for a message from a specific
thread. This function takes a thread Id as a parameter and blocks until a message from that thread
is received. Its use is shown in the following example.
&
! &
/
)+
- ! !1&
CHAPTER 4. PROGRAMMING L4
22
When fails, the return value is used to indicate an error and the error details
can be extracted as discussed earlier in 4.3.2. - can fail if it timed out, was cancelled
by another thread, or the given thread does not exist.
As with the send functions, there are also variations of these functions that take extra timeout
parameters. Please see the L4 Reference Manual for more details.
Message Header
When a thread receives a message it should first check the label to see what kind of message it
is. Based on its knowledge of what the body of that type of message should contain, it can then
unpack the data from the message.
Here is example code showing a thread receiving a message and extracting the label:
&
&
! &
$ 0&
+
)/ $ !
.&
*( .&
#)+ .&
In order to access the message data it is necessary to copy the data from the message registers
into an data structure using - . Once the message has been copied out
of the registers the label is extracted from the header using .
Message Body
Once a message has been received and the receiving thread knows what kind of message it is
(based on the value of the label), it can begin to extract data from the message body. We first look
at extracting untyped words. One way to do this is to explicitly extract each individual untyped
word. For example:
$ #%
$ +
$ +
% )+ ,
% )
&
&
&
$ .&
1&
)+ $ - 1&
)+ $ - 1
&
$ - specifies the word to extract, 0 being the first data
The second parameter of word, 1 being the second, and so on. Note that if the second parameter specifies an invalid word
(i.e., )*% ) then ... For this reason it is advisable to ensure that only correct parameters are passed
)
.& ).
to the function. In the example this is acheived using an assert statement ( 0 %
Another approach is to extract the untyped words all at once into an array. For example:
4.3. INTERPROCESS COMMUNICATION (IPC)
$ + % )
,
%/))
23
&
$. 1&
1&
1
&
The last parameter of can be a pointer to an array of typed items, in which case
the typed items will also be extracted from the message.
Typed items can also be extracted individually as follows.
$ &
&
)
, $ .&
+(! , ' 1
&
and !2 proceeds in a similar fashion. Note that
Extracting an it is usually not necessary to extract typed items. As we will discuss later, simply successfully
sending3 or is enough to map or grant a page.
4.3.4 Reusing Messages
Message headers and bodies can be reused. This is often useful when forwarding a message on to
another receiver, or when replying to a message. In the first case it is sufficient to simply reload
the message and send it off again. In the second case the receiver might replace the data, keeping
the header (i.e., the label) intact. Alternatively the receiver may keep the data intact and simply
replace the label. Note that in all cases the message contents should be reloaded into the message
registers before invoking a send function. This is to allow for compiler optimisations (see below).
4.3.5 Optimisation
The process of loading and accessing message registers shown in the preceding sections is somewhat non-optimal as it first stores the message data in memory, then copies it into the registers,
and at the receiving end copies them from registers back into memory. This somewhat defeats the
purpose of having a highly-optimised IPC mechanism that attempts to transfer as many messages
in registers as possible.
A highly optimising compiler should be able to optimise this overhead away, and transfer the
message directly to and from registers. However, many widely-used compilers (in particular, gcc
on RISC or EPIC architectures) are presently not up to this task, and therefore will produce rather
non-optimal code. It is not unheard off that the cost of moving data around in user space exceeds
the cost of the actual L4 IPC system call.
An alternative approach would be to use hand-optimised assembly stubs around the system
call, which are adapted to the parameters of the specific IPC operation. This may be reasonable
that strictly speaking, it is the act of receiving a or that causes the memory to be
mapped. However, successfully sending a message implies that the message was also successfully received
3 Note
CHAPTER 4. PROGRAMMING L4
24
approach for a system that uses raw L4 IPC in only a few places, and otherwise uses higher-level
abstractions that ultimately map to L4 IPC. However, this is not a very likely scenario.
A better and more general solution is to use an interface generator such as IDL4 (see ??).
Provided IDL4 supports optimised bindings for the specific architecture, this will produce performance that is close to that of hand-optimised assembler stubs. If no optimised IDL4 bindings are
available for the host architecture, the effort of adding them to IDL4 is probably comparable to that
of writing a complete set of hand-optimised assembler stubs, and will benefit all future users on
the same architecture.
4.4 Sharing Memory — Memory Mapping
In order for threads in separate address spaces to access the same memory, that memory must be
mapped into all of those address spaces. Mapping is achieved by sending a message containing an
or . Upon receipt of such a message the receiver will have a region of
the sender’s address space mapped into its own address space.
4.4.1 Flexpages
fpage(b,2 s )
b/2 10(22/54)
s (6)
0rwx
Figure 4.2: The flex page layout
In order to create an it is necessary to first define a flex page (fpage). An fpage is
a generalisation of a hardware page. It represents a region of memory, specifying a start address, a
size, and access bits (see Figure 4.2). Similar to hardware pages, there are restrictions on the size
of fpages. Specifically, the size of an fpage must be:
a power of 2
at least 1024 bytes
greater than or equal to the smallest hardware page size.
Note also, that, like a hardware page, the fpage must be aligned to its own size. For fpages
that are equal to a hardware page size this is not a problem. For larger fpages it is up to the
programmer to make sure the fpage is aligned properly. Most useful are fpages that correspond to
actual hardware pages, in which case they allow the user to specify to the kernel which super-page
size to use. However, the implementation may not support all hardware page sizes. Fpages which
do not correspond to supported hardware page sizes are treated as a range of individual pages.
In order to share the region of memory specified by an fpage with other threads, the fpage must
be put into an and that must be sent to those threads. Upon receiving
the message, the region specified by the fpage is mapped into the receiver’s address space.
4.4.2 Sharing Memory the Right Way
The simplest way to communicate using shared memory is for the communicating threads to
agree beforehand on a shared memory region that will be reserved specifically for communication. Agreeing on the location and size of this shared memory area makes setting up the shared
memory easier. Also, storing only shared data in this region protects the threads’ internal state
from unauthorised access or unintentional modification. An example of this approach is shown in
Figure 4.3.
4.4. SHARING MEMORY — MEMORY MAPPING
25
}
region for shared memory
Address Space B
text
Address Space A
text
data
heap
data
stack
heap
stack
Figure 4.3: An example of sharing a predetermined region of memory
4.4.3 Sharing Memory the Wrong Way
A different approach is to directly share the region of memory that contains the data to be shared
(e.g., share the page(s) containing a particular variable, array, etc.). This can be done in two ways.
The first is to define an fpage that contains the shared data region. The problem with this approach
is that if the data crosses page boundaries the final (size aligned) fpage may be many times larger
than the actual shared data. An example of this problem is shown in Figure 4.4; here the smallest
fpage fully containing a sub-page-sized object is four times the size of the base hardware page
size.
0x230000
0x231000
0x232000
0x233000
Address Space
0x234000
array
fpage
Figure 4.4: An example of making a shared array available using a single fpage. Note that the
resulting fpage is many times larger than the actual shared data
The second approach is to define several contiguous fpages that together contain the desired
shared data. These are then mapped using separate map items (which may be sent in the same
message). An example of this approach is shown in Figure 4.5.
0x232000
0x233000
Address Space
fpage1
0x234000
array
0x235000
0x236000
0x237000
fpage2
Figure 4.5: An example of making a shared array available using multiple fpages
As mentioned, a major problem with the first approach is the possible ballooning of fpage size.
While the second approach does not suffer from this problem, both approaches might unintentionally share more than just the desired data region. For example, any data on the sharer’s side that
falls on the same page as the shared data will also be made available to the sharee. The sharee can
then (purposefully or accidentally) read and overwrite data that was not meant to be shared. An
example of this is shown in Figure 4.6.
4.4.4 Mapping Details
Sharer
The following example code shows how an fpage is defined.
! *( 0&
CHAPTER 4. PROGRAMMING L4
26
private variable
shared array
Address Space A
Address Space B
private variable is also shared
Figure 4.6: An example of unintentional sharing of data
) ! ! &
2 +) &
( )+ ! 1&
.( !% , ! 1&
In this code the fpage is created using ! - and both the fpage’s starting address and
size have been predefined by the programmer. Note that besides creating the fpage the code also
sets the fpage’s access permissions. The L4 API provides several convenience constants for various
combinations of access permissions.
Next, a map item is created as follows:
'&
$ &
*) $ &
)/ ( .&
The variable determines how the fpage will be mapped onto the receive window, its use
is explained in Section 4.4.5 below. Once an has been created it is added to a message
and sent to the sharee.
&
&
- .&
1&
' .1&
1&
+/
)
01&
4.4. SHARING MEMORY — MEMORY MAPPING
27
Sharee
In order to receive a mapping the sharee must specify a receive window, i.e. an area of the sharee’s
local memory that the shared memory will be mapped into. A receive window is specified by
copying an fpage structure into the acceptor (BR 0 ). The L4 API provides convenience functions
for this: ! , and . . They are used as follows:
(! (! $
$! !
&
! ( &
( )+
! - $ 2 $! 1&
*
)/ . !( &
!
1&
The address and size of the receive window (
$ and $ ) can be predetermined by the programmer or generated at run time by the program.
It is also possible for a thread to open up its whole address space to be a receive window. The
following code shows how to do this.
! . 1&
Note that this should only be done in the rare occasion that the receiver fully trusts the mapper; a
typical instance of this is where the sender is the receiver’s pager, in which case the kernel sets up
full-size receive window on the faulting thread’s behalf.
4.4.5 Resolving Mapping Ambiguities: The Parameter
If the fpage is larger than the receive window, indicates which part of the fpage will be
mapped to the mappee. If the receive window is larger than the fpage, the base indicates where in
the receive window the fpage is mapped. A precise description of how the value of is used to
determine this is given in the L4 Reference Manual. Here we provide a more informal explanation.
Figure 4.7 shows an example of the two situations (mapping an fpage to a smaller receive
window and mapping an fpage to a larger receive window). In order to understand how the parameter is used, it is best to imagine the larger of the two fpages (the receive window is also
specified by an fpage) as being tiled with instances of the smaller fpage. The parameter
(modulo the larger fpage size) identifies one of these tiles, which is the part of the larger fpage that
corresponds to the smaller fpage in each specific case. The actual mapping occurs between the tile
identified by and the full smaller fpage.
From the above explanation it can be seen that the parameter is completely irrelevant if
the send and receive fpages are of the same size, as there is no ambiguity to resolve. Assume now
that the two fpages differ in size, say the larger one is of size 2 s and the smaller one of size 2t ,
with s t. Then the bits of which determine the offset within the smaller fpage, i.e. the least
significant t bits of , are also irrelevant, as they are not needed to identify the specific tile.
Furthermore, as is only used modulo the larger fpage size, the most significant N s bits of
, N being the word size of the machine, are also irrelevant. The only bits of which are
of any relevance are bits s 1 t (i.e., none if s t).
All this can be ignored (and an arbitrary value supplied for ) if the two fpages are of the
same size. However, because the sender may not know the size of the receive window provided
CHAPTER 4. PROGRAMMING L4
28
L4_Address(fpage) + (base mod 2s )
fpage (size 2s )
mapped region
Address Space A
Address Space B
receive window (size 2t)
(a) An example of an fpage being mapped onto a smaller window
L4_Address(fpage) + (base mod 2 s )
Address Space A
fpage (size 2 s )
receive window (size 2 t )
Address Space B
mapped region
L4_Address(receive window) + (base mod 2 t )
(b) An example of an fpage being mapped into a larger window
Figure 4.7: An example of an fpage being mapped onto a smaller window, and an fpage being
mapped into a larger window
by the receiver, ignoring is not always possible. In fact, a common case is that the receiver
specifies a large area, or even the full address space, as its receive window (the latter is what
happens on a page fault). The page fault scenario actually provides the simplest way of attaching
a meaning to : it is the address that triggered the page fault. In this case the sender is the
receiver’s pager, and is expected to provide a mapping that resolves the page fault. Rather than
sending a single page that would suffice to restart the faulting thread, the pager may choose to
supply a larger amount of virtual memory, in order to reduce the number of future page faults. In
this case the pager uses the fault address as , to identify which part of the fpage should cover
the address where the fault happened.
4.4.6 Granting Details
Granting of pages is similar to mapping (the main differences being the use of and ' . The following code shows how to create and send an
.
4.4. SHARING MEMORY — MEMORY MAPPING
$ ! *
(
)
2 *) 29
&
&
&
0&
0&
! ! &
&
( *)/
! - ( *) $ /
)/
- !1&
!% ,! !
1&
* . ( .&
( .&
1&
1&
' .&
1&
/)+
01&
The code for receiving a grant item is the same as that for receiving a map item.
4.4.7 Unmapping
In order to revoke access to memory that has previously been mapped, that memory must be
unmapped by the mapper. This is done using ! as follows:
! ( .&
A similar function, ! . , supports unmapping of several fpages in a single
system call.
Note that, because the granter loses ownership of the page as part of the grant process, granted
pages cannot be unmapped by the granter.
30
4.5 Interrupts
4.5.1 Interrupt Handler
4.5.2 Registering for Interrupts
4.5.3 Handling Interrupts
4.5.4 Turning Interrupts On and Off
4.6 Exceptions
4.6.1 Exception Handler
4.6.2 Registering for Exceptions
4.6.3 Handling Exceptions
4.6.4 Turning Exceptions On and Off
CHAPTER 4. PROGRAMMING L4
Chapter 5
Recipes and Best Practice
31
32
CHAPTER 5. RECIPES AND BEST PRACTICE
Chapter 6
L4e and Kenge
33
34
CHAPTER 6. L4E AND KENGE
Chapter 7
L4 Internals
7.1 Thread states
When debugging an L4 based systems it is useful to know about the various states a thread may
be in, and the state transitions. Figure Figure 7.1 shows this information.
35
36
Delete Thread
Thread Create (inactive)
IPC [Call (to==from)]
(never-timeout, to-ready) OR
IPC [with Receive]
(from-not-ready,
(if [with Send], to-ready), never-recv-timeout)
invalid
Thread Create (active)
Startup IPC OR IPC Done OR
IPC Cancelled
Delete Thread
IPC [Call (to==from)]
(zero-timeout, to-ready) OR
IPC [with Receive]
(from-not-ready, never recv-timeout)
waiting_forever
Activate
Delete Thread
IPC [with Receive]
(from-not-ready, never-recv-timeout)
aborted
Delete Thread
IPC [with Send and Receive]
(to-thread performs receive)
IPC [Send Only] Done OR
IPC send-timeout expired OR
IPC Cancelled
IPC [Send Only]
(to-ready) OR
IPC [with Send]
IPC (zero send-timeout, to-not-ready
(non-zero/never send-timeout, to-not-ready)
OR IPC Cancelled
IPC [Nil]
polling
locked_running
IPC [with Receive]
(from-not-ready, non-zero recv-timeout)
Delete Thread
IPC [with Receive]
(from-not-ready, non-zero recv-timeout)
IPC [with Receive]
(from-ready)
Delete Thread
waiting_timeout
IPC done OR
IPC timeout OR
IPC cancelled
running
IPC [with Receive]
(from-ready)
IPC [with Receive]
(from-not-ready,
(if [with Send], to-ready), non-zero recv-timeout)
locked_waiting
IPC [with Receive]
(from-ready, (if [with Send], to-ready,
(from!= to OR not-never-timeout)))
IPC Done OR
IPC Cancelled
Exregs resume
Delete Thread
halted
Figure 7.1: Thread states and thransitions
CHAPTER 7. L4 INTERNALS
Exregs halt thread
7.2. MAPPING DATABASE
37
7.2 Mapping database
L4 supports recursive mappings of flex-pages between address spaces. The L4 mapping database
(MDB) is the kernel data structure that represents and tracks these recursive mappings.
Conceptually each mapping consists of a tree of address spaces, however this tree is implemented as a linked list.
38
CHAPTER 7. L4 INTERNALS
Chapter 8
Debugging
39
40
CHAPTER 8. DEBUGGING
Chapter 9
Not Implemented
41
42
CHAPTER 9. NOT IMPLEMENTED
Chapter 10
Ports of L4
43
44
CHAPTER 10. PORTS OF L4
Appendix A
An Example
45
46
APPENDIX A. AN EXAMPLE
Appendix B
Compiling and Linking
47
48
APPENDIX B. COMPILING AND LINKING
Appendix C
Glossary
49
50
APPENDIX C. GLOSSARY
Bibliography
[AH98]
Alan Au and
puter Science
tralia, January
!
Gernot Heiser.
L4 User Manual.
School of Comand Engineering, University of NSW, Sydney 2052, Aus1998.
UNSW-CSE-TR-9801. Latest version available from
, % % % ( . iii
[BH70]
Per Brinch Hansen. The nucleus of a multiprogramming operating system. Communications of the ACM, 13:238–250, 1970. 1
[CB93]
J. Bradley Chen and Brian N. Bershad. The impact of operating system structure on
memory system performance. In Proceedings of the 14th ACM Symposium on OS
Principles, pages 120–133, Asheville, NC, USA, December 1993. 2
[HHL 97] Hermann H¨artig, Michael Hohmuth, Jochen Liedtke, Sebastian Sch¨onberg, and Jean
Wolter. The performance of µ-kernel-based systems. In Proceedings of the 16th ACM
Symposium on OS Principles, pages 66–77, St. Malo, France, October 1997. 2
[L4K01]
L4Ka Team. L4 eX perimental Kernel Reference Manual Version X.2. University of
Karlsruhe, October 2001. ( .
iii, 2, 15
[Lie93]
Jochen Liedtke. Improving IPC by kernel design. In Proceedings of the 14th ACM
Symposium on OS Principles, pages 175–88, Asheville, NC, USA, December 1993.
2
[Lie95]
Jochen Liedtke. On µ-kernel construction. In Proceedings of the 15th ACM Symposium on OS Principles, pages 237–250, Copper Mountain, CO, USA, December
1995. 2
[Lie96]
Jochen Liedtke. Towards real microkernels. Communications of the ACM, 39(9):70–
77, September 1996. 2
[RTY 88] Richard Rashid, Avadis Tevanian, Jr., Michael Young, David Golub, Robert Baron,
David Black, William J. Bolosky, and Jonathan Chew. Machine-independent virtual
memory management for paged uniprocessor and multiprocessor architectures. IEEE
Transactions on Computers, C-37:896–908, 1988. 1
[WCC 74] W. Wulf, E. Cohen, W. Corwin, A. Jones, R. Levin, C. Pierson, and F. Pollack. HYDRA: The kernel of a multiprocessor operating system. Communications of the ACM,
17:337–345, 1974. 1
51
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
