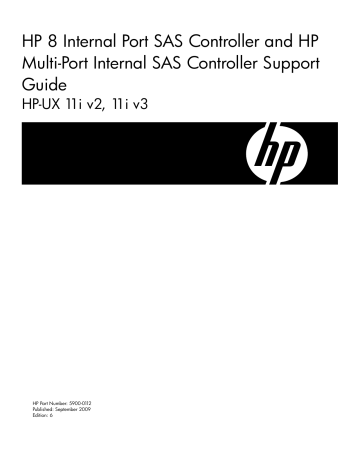

HP 8 Internal Port SAS Controller and HP Multi

HP 8 Internal Port SAS Controller and HP Multi

HP 8 Internal Port SAS Controller and HP

Multi-Port Internal SAS Controller Support

Guide

HP-UX 11i v2, 11i v3

HP Part Number: 5900-0112

Published: September 2009

Edition: 6

© Copyright 2009 Hewlett-Packard Development Company L.P.

Legal Notices

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United

States and other countries.

Printed in Taiwan

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial

Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Trademark Notices UNIX is a registered trademark of The Open Group.

Table of Contents

Preface: About This Document .........................................................................................7

Intended Audience.................................................................................................................................7

New and Changed Documentation in This Edition...............................................................................7

Publishing History..................................................................................................................................7

What’s in This Document........................................................................................................................7

Related Documents.................................................................................................................................8

HP Encourages Your Comments............................................................................................................8

1 Controller Overview.......................................................................................................9

Serial-Attached SCSI (SAS) Technology Description.............................................................................9

Controller Description............................................................................................................................9

Connectors and Indicators...............................................................................................................11

2 Replacing a Controller.................................................................................................13

Replacement Overview.........................................................................................................................13

Preparing the Server.............................................................................................................................13

Replacing the Controller.......................................................................................................................13

Completing the Controller Replacement..............................................................................................14

3 Configuring the Controller Offline..............................................................................15

Integrated RAID....................................................................................................................................15

Integrated Mirror.............................................................................................................................15

Global Hot Spare.............................................................................................................................15

Configuration Utilities..........................................................................................................................15

The drvcfg Utility..................................................................................................................................16

Starting the drvcfg Utility................................................................................................................16

Using the drvcfg Utility With a Terminal Emulation Program.......................................................16

Configuration Utility Screens..........................................................................................................16

Adapter List Screen.........................................................................................................................16

Adapter Properties Screen...............................................................................................................17

RAID Properties Screens.................................................................................................................19

Select New Array Type Screen........................................................................................................20

Create New Array Screen................................................................................................................20

View A New Array Screen..............................................................................................................21

Manage A New Array Screen..........................................................................................................23

Manage Hot Spare......................................................................................................................23

Synchronize Array.....................................................................................................................23

Activate Array............................................................................................................................23

Delete Array...............................................................................................................................23

SAS Topology Screen.......................................................................................................................24

Device Properties Screen.................................................................................................................25

Device Format and Device Verify Screens.......................................................................................25

Formatting..................................................................................................................................26

Verifying.....................................................................................................................................26

Advanced Adapter Properties Screen.............................................................................................26

Advanced Device Properties Screen................................................................................................27

Spinup Properties Screen.................................................................................................................29

PHY Properties Screen.....................................................................................................................29

Table of Contents 3

4

Resetting the Error Counts.........................................................................................................31

Exiting drvcfg..................................................................................................................................31

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg.....................32

Determining the Driver ID and Ctrl ID...........................................................................................32

Adding An Integrated Mirror Volume............................................................................................33

Viewing the Properties of an Array.................................................................................................37

Deleting an Integrated Mirror Volume............................................................................................38

The cfggen Utility.................................................................................................................................41

Starting cfggen.................................................................................................................................41

Using cfggen....................................................................................................................................41

Rules for creating IM volumes and hot spare disks:.......................................................................42

The cfggen Command Set................................................................................................................42

Using the CREATE Command...................................................................................................42

Syntax ...................................................................................................................................42

Parameters.............................................................................................................................42

Operation..............................................................................................................................42

Using the AUTO Command.......................................................................................................43

Syntax....................................................................................................................................43

Parameters ............................................................................................................................43

Operation..............................................................................................................................43

HOTSPARE................................................................................................................................43

Syntax....................................................................................................................................43

Parameters ............................................................................................................................43

Operation..............................................................................................................................43

DELETE......................................................................................................................................43

Syntax....................................................................................................................................43

Parameters ............................................................................................................................44

Operation..............................................................................................................................44

DISPLAY.....................................................................................................................................44

Syntax....................................................................................................................................44

Parameters ............................................................................................................................44

Sample Output......................................................................................................................44

Logical drive status values: ..................................................................................................46

Physical device status values are as follows:........................................................................46

FORMAT....................................................................................................................................46

Syntax....................................................................................................................................46

Parameters ............................................................................................................................46

Operation..............................................................................................................................46

STATUS.......................................................................................................................................47

Syntax....................................................................................................................................47

Parameters ............................................................................................................................47

Operation..............................................................................................................................47

Sample Output......................................................................................................................47

ENABLEIR..................................................................................................................................47

Syntax....................................................................................................................................47

Parameters ............................................................................................................................47

Operation..............................................................................................................................47

DISABLEIR.................................................................................................................................48

Syntax....................................................................................................................................48

Parameters ............................................................................................................................48

Sample Output......................................................................................................................48

LOCATE.....................................................................................................................................48

Syntax....................................................................................................................................48

Parameters ............................................................................................................................48

Updating SAS Controller Firmware Offline.........................................................................................48

Table of Contents

4 Configuring and Troubleshooting the Controller Online.........................................51

Introduction..........................................................................................................................................51

Troubleshooting sasd............................................................................................................................51

The ioscan Utility.............................................................................................................................51

Displaying Interface and Disk Information...............................................................................52

The sasmgr Utility...........................................................................................................................52

The sasmgr Command Set....................................................................................................................54

Using sasmgr: Common Command Examples.....................................................................................57

Displaying General Statistics and Information...............................................................................57

Displaying Information About Error Conditions............................................................................59

Deleting the Spare Disk...................................................................................................................64

Updating SAS Controller Firmware Online....................................................................................64

Performing Other Common Operations..........................................................................................65

Replacing a Disk Online Using sasmgr replace_tgt or io_redirect_dsf................................................65

Recommendations.................................................................................................................................67

Updating Physical Disk Firmware..................................................................................................67

Replacing Physical Disks.................................................................................................................67

Update to the Latest Drivers and Firmware....................................................................................68

Security Restrictions..............................................................................................................................68

A Electrostatic Discharge................................................................................................69

Handling Parts......................................................................................................................................69

Grounding.............................................................................................................................................69

B Specifications................................................................................................................71

HP 8 Internal Port SAS Controller Specifications.................................................................................71

Table of Contents 5

6

Preface: About This Document

This document describes how to install, configure, and troubleshoot HP internal Serial-Attached

SCSI (SAS) controllers on HP-UX 11i v2 and 11i v3 platforms. The latest version of this document is available online at: http://docs.hp.com/en/netcom.html

Intended Audience

This document is for system and network administrators responsible for installing, configuring, and managing fault tolerant data storage. Administrators must know HP-UX operating system concepts, commands, and configuration.

This document is not a tutorial.

New and Changed Documentation in This Edition

This Support Guide was published in conjunction with the September 2009 (AR0909) release of

HP-UX 11i v3. This is the sixth edition of this document.

Publishing History

Table 1 Publishing History Details

Document Manufacturing Part

Number

Operating Systems

Supported

5991-5495

J6369-90041

HP-UX 11i v2

HP-UX 11i v2

HP-UX 11i v3

Supported Product

Versions

B.11.23.0606

B.11.23.0612

B.11.31

Publication Date

September 2006

February 2007

J6369-90045

J6369-90070

J6369-90071

5900-0112

HP-UX 11i v2

HP-UX 11i v3

HP-UX 11i v2

HP-UX 11i v3

HP-UX 11i v2

HP-UX 11i v3

HP-UX 11i v2

HP-UX 11i v3

B.11.23.0706

B.11.31.0706

B.11.23.0712

B.11.31.0712

B.11.23.0803

B.11.31.0803

B.11.23.0909

B.11.31.0909

June 2007

December 2007

March 2008

September 2009

What’s in This Document

This Support Guide is divided into several chapters containing physical descriptions, installation, configuration, and troubleshooting information.

Chapter 1 “Controller Overview”

provides a general overview of controller features and functionality.

Chapter 2 “Replacing a Controller”

lists the steps to replace an HP 8 Internal Port PCI-X SAS

Controller.

Chapter 3 “Configuring the Controller Offline”

provides information on configuring HP internal

SAS controllers offline using the drvcfg and cfggen commands.

Intended Audience 7

8

Chapter 4 “Configuring and Troubleshooting the Controller Online”

provides information on configuring and troubleshooting the HP internal SAS controllers online using the ioscan and sasmgr commands.

Appendix A “Electrostatic Discharge”

provides information about preventing damage due to electrostatic discharge.

Appendix B “Specifications”

Related Documents

For more information about HP internal SAS controllers, see: http://docs.hp.com/en/netcom.html

Other documents in this collection include:

SerialSCSI-00 (sasd) Mass Storage Driver Release Notes

HP CommonIO Release Notes

SAS Host Bus Adapters Support Matrix

HP Encourages Your Comments

HP encourages your comments concerning this document. We are committed to providing documentation that meets your needs.

Please send comments to mailto:[email protected]

.

Please include document title, manufacturing part number, and any comment, error found, or suggestion for improvement you have concerning this document. Also, please let us know if there is anything about this document that is especially useful, so we can incorporate it into other documents.

1 Controller Overview

This chapter provides an overview of the SAS controller and its technology. This chapter includes the following topics:

“Serial-Attached SCSI (SAS) Technology Description” (page 9)

“Controller Description” (page 9)

Serial-Attached SCSI (SAS) Technology Description

Serial-attached SCSI (SAS) is a method for connecting computer peripheral devices that employs a serial (one bit at a time) means of digital data transfer over thin cables. The method is specified in the American National Standard Institute standard called Serial-attached SCSI (Small Computer

System Interface), also known as ANSI/INCITS 376-2003. In enterprise computing, SAS is of particular interest for access to mass storage devices, particularly hard disks.

Serial-attached SCSI offers the following advantages over older parallel SCSI technologies:

• The cables are thinner, and the connectors are less bulky.

• Serial data transfer allows the use of longer cables than parallel data transfer.

• Problems related to crosstalk are less likely in serial interfaces than in parallel interfaces, because there are fewer conductors in the cables.

• The hardware for serial interfaces is less costly than the hardware for equivalent parallel interfaces.

SAS offers data transfer rates in excess of 3 gigabits per second (Gb/s), with potential rates of 10

Gb/s or more. Serial-attached SCSI provides an ideal solution for businesses with substantial storage, backup, and archiving demands.

Controller Description

There are two internal SAS controller form factors, depending on the server model:

• HP 8 Internal Port SAS Controller, a low-profile, 64-bit, 133-MHz PCI-X host bus adapter which is available only as a factory-integrated core I/O option in certain servers.

• HP Multi-Port Internal SAS Controller, an embedded controller on the server motherboard.

Both controllers are supported by the SerialSCSI-00 operating system driver bundle, and by utilities delivered in the CommonIO bundle.

Both controllers have the same key features:

• SAS data transfer rates of up to 3 Gb/s

• Data protection through Integrated Mirror (RAID 1)

Serial-Attached SCSI (SAS) Technology Description 9

Figure 1-1 HP 8 Internal Port PCI-X SAS Controller

10 Controller Overview

Connectors and Indicators

Figure 1-2

illustrates the connectors and indicator LEDs on the HP 8 Internal Port PCI-X SAS

Controller.

Table 1-1

describes each component.

Figure 1-2 Connectors and Indicators

2

3

4

Table 1-1 Component Descriptions

Number

1

Description

Heartbeat LED (green/amber). Flashing green indicates normal operation. Amber indicates that the card’s firmware has detected a fault.

Activity LED (green). Blinks when there is I/O activity on any port.

Internal 4x SAS connector, port 1.

Internal 4x SAS connector, port 2.

See the server documentation for the location of HP 8 Internal Port Embedded SAS Controller connectors and indicator LEDs.

Controller Description 11

12

2 Replacing a Controller

This chapter provides information on replacing an HP 8 Internal Port PCI-X SAS Controller. This chapter includes the following topics:

“Replacement Overview” (page 13)

“Preparing the Server” (page 13)

“Replacing the Controller” (page 13)

“Completing the Controller Replacement” (page 14)

NOTE: The HP 8 Internal Port PCI-X SAS Controller is a factory-integrated core I/O card. Online

Addition, Deletion, and Replacement are not supported.

Replacement Overview

The installation procedure involves the following steps:

• Preparing the server.

• Replacing the controller.

• Completing the controller replacement.

Preparing the Server

To prepare the server for add or replacement, use the following steps:

1.

Perform a normal system shutdown.

2.

Power down the server.

3.

Power down all peripheral devices attached to the server.

4.

Unplug the AC power cord from the outlet, and then unplug it from the server.

5.

Disconnect all peripheral devices attached to the server.

Replacing the Controller

WARNING!

To reduce the risk of personal injury or damage to the equipment, consult the safety information and user documentation provided with the server before attempting the installation. Many servers are capable of producing energy levels that are considered hazardous and are intended to be serviced only by qualified personnel who have been trained to deal with these hazards. Do not remove enclosures or attempt to bypass any interlocks that may be provided for the purpose of removing these hazardous conditions.

WARNING!

WARNING! To reduce the risk of personal injury from hot surfaces, allow the internal system components to cool before touching them.

CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure that you are properly grounded before beginning this procedure. For more information, see the

"Electrostatic Discharge" section of this guide.

To replace the PCI-X card, follow these steps:

1.

Remove or open the server access panel and locate the PCI/PCI-X bus expansion slots.

For instructions on opening the server, see the server documentation at: http://docs.hp.com/en/hw.html

2.

Identify the controller that you need to replace.

Replacement Overview 13

3.

Label the connectors to the internal drive bays. The connector closest to the mounting bracket is Port 1, and the connector closest to the interior of the server is Port 2.

4.

Disconnect the cables from the PCI-X card.

5.

Depending on the server model, remove the retaining screw or open the expansion slot latch that secures the PCI-X card.

6.

Remove the card.

7.

Insert the new card into the slot, and press it firmly into place. The contacts on the adapter edge should be fully seated in the system board connector.

8.

Depending on the server model, secure the adapter by replacing the retaining screw or by closing the slot latch.

9.

Reconnect the cables to the internal drive bays.

Completing the Controller Replacement

To complete the replacement and boot the server, follow these steps:

1.

Verify that all cables are routed correctly and are not restricting or being pinched by other components. For the correct routing of the cables, see the server documentation.

2.

Replace or close the server access panel.

3.

Reconnect the peripheral devices.

4.

Reconnect the AC power cord.

5.

Power on the peripheral devices.

6.

Power on the server.

7.

Configure the replacement controller.

See

Chapter 3 (page 15)

.

8.

Update the adapter firmware, if necessary.

14 Replacing a Controller

3 Configuring the Controller Offline

The following information provides steps needed to configure the SAS controller during installation. This chapter includes the following topics:

“Integrated RAID” (page 15)

“The drvcfg Utility” (page 16)

“Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg” (page 32)

“The cfggen Utility” (page 41)

“Updating SAS Controller Firmware Offline” (page 48)

Integrated RAID

Use Integrated RAID (IR) when the fault tolerance of a RAID configuration are required. The components of IR are:

• Integrated Mirror (IM)

• Global Hot Spare

Use the drvcfg and cfggen EFI utilities to configure and maintain IR volumes offline. See

“The drvcfg Utility” (page 16)

, and

“The cfggen Utility” (page 41) .

Use the sasmgr HP-UX command to configure and maintain IR volumes online. See

“The sasmgr

Command Set” (page 54) .

Integrated Mirror

IM maintains a mirrored copy of the data in the array. An IM provides data protection for the system boot volume to safeguard critical information such as the operating system on servers and high performance workstations. An IM supports two simultaneous mirrored volumes, making an array, providing fault-tolerant protection for critical data. Typically, one of these volumes is the boot volume. If a disk in an IM fails, the hot swap capability enables you to easily restore the volume by replacing the failed disk. The firmware then automatically re-mirrors to the new disk.

Global Hot Spare

Each SAS controller can have one global hot spare disk available to automatically replace a failed disk in the one or two IM volumes configured on the controller. The hot spare makes the IM array more fault-tolerant. Up to two IM volumes are supported per SAS controller plus the hot spare.

Configuration Utilities

Table 3-1

lists the offline and online utilities you can use to configure IM arrays on your HP

Integrity Server.

Table 3-1 SAS Controller Configuration Utilities

Utility Name Interface Type drvcfg cfggen

GUI

CLI sasmgr

CLI

Operating System or Environment

EFI

Online or

Offline

Offline

HP-UX 11i v2 and

11i v3

Online

For more information

See “

“The drvcfg Utility”

.”

See

“The cfggen Utility” (page 41)

.

See

“The sasmgr Command Set” (page 54) .

Integrated RAID 15

The drvcfg Utility

This section describes in detail all of the available commands and options in the drvcfg utility.

For step-by-step examples of common configuration procedures using drvcfg, see:

“Determining the Driver ID and Ctrl ID” (page 32) .

“Adding An Integrated Mirror Volume” (page 33)

.

“Viewing the Properties of an Array” (page 37)

.

“Deleting an Integrated Mirror Volume” (page 38) .

Starting the drvcfg Utility

To start the drvcfg utility, follow these steps:

1.

Power on or reboot the server.

2.

Choose EFI shell from the console menu.

3.

At the Shell> prompt, enter drvcfg -s and press Enter.

Using the drvcfg Utility With a Terminal Emulation Program

The drvcfg utility uses input keys (F1, F2, Home, End, etc.) that may not be supported by all terminal emulation programs. Review the terminal emulation program documentation to determine which input keys are supported. If you have problems using any of the Function keys or navigation keys, use the alternate keys that are shown at the bottom of each drvcfg screen.

The following Function and navigation keys apply on all drvcfg screens:

F1 Help

Arrow Keys

Home/End

+/-

Context sensitive help for the field in which the cursor is located.

Select Item - Up, down, left, right movement to position the cursor.

Select Item - Up, down, left, right movement to position the cursor.

Change Item - Items with values in [brackets] are modifiable. Numeric keypad

+ and numeric keypad - (minus) update a modifiable field to its next relative value.

Esc

Enter

Abort/Exit - Aborts the current context operation, or exits the current screen. If you have changed settings, you will be asked to confirm the exit. If you are using a serial console, pressing the Esc key causes a delay of several seconds before the takes effect. This is normal system behavior and is not an error.

Execute <item> - Executable items are indicated by highlighted text and a different background color. Press Enter to perform the field's function.

Configuration Utility Screens

SAS BIOS configuration utility screens contain the following areas, starting at the top of the screen:

• Header area: Identifies the utility and version number.

• Menu area: Gives the title of the current screen, and on screens other than the Adapter List screen also identifies the adapter.

• Main area: The main area for presenting data. This area has a cursor for item selection, and horizontal and vertical scroll bars if necessary.

• Footer area: Provides general help text, and lists the available key commands.

Adapter List Screen

When you start drvcfg, the Adapter List appears:

16 Configuring the Controller Offline

The Adapter List screen displays a scrolling list of up to 256 SAS controllers in the system, and provides information about each of them.

Use the arrow keys to select a SAS controller, and then press Enter to view and modify the selected SAS controller's properties.

The status of each adapter may be Enabled or Disabled. You can view and modify the SAS controller settings for adapters in either status. Use the Boot Support setting in the Adapter

Properties screen to change the status of this setting. The EFI Driver must reconnect for a new

Boot Support setting to take effect; this occurs automatically when you exit drvcfg.

The information fields on the Adapter List Screen are as follows:

Adapter Indicates the specific SAS Host Bus Adapter type.

PCI Bus

PCI Dev

Indicates the PCI Bus number assigned by the system BIOS to an adapter (0x00

- 0xFF, 0 - 255 decimal)

Indicates the PCI Device assigned by the system BIOS to an adapter (range

0x00 - 0x1F, 0 - 31 decimal)

PCI Fnc

FW Revision

Status

Indicates the PCI Function assigned by the system BIOS to an adapter (range

0x00 - 0x7, 0 - 7 decimal)

Displays the Fusion MPT firmware version and type (IR or IT)

Indicates whether the adapter is eligible for software control: Enabled,

Disabled, or Error.

Enabled Indicates the EFI driver is controlling the adapter or will attempt to control the adapter upon reload.

Disabled

Error

Indicates the EFI driver is not controlling the adapter or will discontinue control of the adapter upon reload.

Indicates that the EFI driver encountered a problem with the adapter. You can view and modify settings for the adapter but the available information and functionality may be limited.

Adapter Properties Screen

After you select a SAS controller and press Enter, drvcfg scans the SAS controller and its attached devices, and the Adapter Properties screen (similar to the following) appears. Use this screen to view and modify adapter settings.

The drvcfg Utility 17

The information fields on the Adapter Properties screen are as follows:

Adapter

PCI Address

Indicates the specific SAS Host Bus Adapter type.

Displays the PCI address assigned by the system BIOS to the adapter.

• Bus value range 0x00 - 0xFF, 0 - 255 decimal

• Device value range 0x00 - 0x1F, 0 - 31 decimal

• Function range 0x00 - 0x7, 0 - 7 decimal

MPT Firmware Revision

SAS Address

Status

Displays the MPT firmware version and type in the format x.xx.xx.xx-yy

, where x.xx.xx.xx indicates the firmware version and yy indicates the type. In the example screen the firmware version is 1.23.33.00 and the type is IR.

Displays the SAS Address assigned to this adapter.

Indicates whether the adapter is eligible for configuration utility software control or is reserved for control by other software:

Enabled, Disabled, or Error.

Enabled Indicates the EFI driver is controlling the adapter, or will attempt to control the adapter upon reload.

Disabled

Error

Indicates the EFI driver is not controlling the adapter or will discontinue control of the adapter upon reload.

Indicates that the EFI driver encountered a problem with the adapter. You can view and modify settings for the adapter but the available information and functionality may be limited.

Boot Support Indicates whether the adapter is eligible for configuration utility software control, or is reserved for control by other software:

Enabled BIOS & OS, Enabled BIOS Only, Enabled OS Only, or

Disabled.

18 Configuring the Controller Offline

Enabled BIOS & OS

Enabled BIOS Only

Enabled OS Only

Disabled

The SAS controller is controlled by both the BIOS and OS driver

The SAS controller is controlled only by the BIOS. This setting may not be supported by all OS drivers.

For example, it is not possible to disable an adapter in a Windows driver.

SAS controller is controlled only by the OS driver.

SAS controller is not controlled by the BIOS when the SAS controller is loaded. However, the adapter is visible through the Configuration

Protocol.

Changes to the Boot Support setting are reflected in the Status field of the Adapter List menu. However, the new setting does not take effect until you reboot the system.

To access the following additional screens, use the arrow keys to highlight the option and press

Enter

:

RAID Properties. See “ RAID Properties Screens

.”

• SAS Topology. See “

SAS Topology Screen .”

• Advanced Adapter Properties. See

“Advanced Adapter Properties Screen” (page 26) .

RAID Properties Screens

There are four screens within RAID properties, all of which are initially accessed by selecting

RAID Properties

from the Adapter Properties screen. The first screen displayed is the Select

New Array Type

screen:

The drvcfg Utility 19

Select New Array Type Screen

Use the Select New Array Type screen to view an existing array, or create an Integrated Mirror array of two disks with an optional hot spare. See

“Viewing the Properties of an Array” (page 37)

, and

“Adding An Integrated Mirror Volume” (page 33)

.

Create New Array Screen

The Create New Array screen is accessed by pressing Enter on the Create IM Volume field from the Select New Array Type screen.

Use the following steps to create a new array:

1.

Press M to migrate to an IM array. This keeps the existing data, and the disk is synchronized.

2.

Press D to delete all data on all the disks in the array. This overwrites existing data when creating a new IM array, and the disk is not synchronized.

3.

After the volume is configured, press C to create the array. The system prompts you to save changes; if you do so, the array is created. During the creation process, the utility pauses.

You are then taken back to the Adapter Properties screen.

The following are the descriptions for the Create New Array Screen:

Array Type Indicates the type of array being created.

Array Size

Bay

Device Identifier

RAID Disk

Indicates the size of the array in MB.

Displays the bay in which devices are located.

Displays the device identifier.

Specifies the devices (disks) that make up an IM array. If RAID Disk is “Yes,” the device is part of an IM array, if “No,” the device is not part of an IM array. If this field is grayed out, one of the following conditions applies:

• The device does not meet the minimum requirements for use in an IM array.

• The device is not large enough to mirror existing data on the primary drive.

• This disk has been selected as the Hot Spare for the IM array.

Hot Spr

Drive Status

Specifies whether a device is the Hot Spare for an IM array. If Hot

Spr is “Yes,” the device will be used as a Hot Spare for the IM array, if “No,” the device will not be used as a Hot Spare for the IM array.

Only one Hot Spare per IM array is permitted. A Hot Spare is not required in an IM. A Hot Spare can be specified at array creation, or at any time after creation, provided the array is made up of 5 disks or fewer. If this field is grayed out, one of the following conditions applies:

• The device does not meet the minimum requirements for use in an IM array.

• The array already has a Hot Spare.

• The array is made up of the maximum number of devices (6).

• The device isn't large enough to mirror existing data on the primary. The Hot Spare drive must be greater than or equal to the size of any drive in any IM volume.

One of the following will be displayed:

OK Disk is online and fully functional.

Missing Disk is not responding.

Failed Disk has failed.

20 Configuring the Controller Offline

Pred Fail

Size(MB)

Initializing

CfgOffln

User Fail

Offline

Inactive

Not Syncd

Primary

Secondary

Wrg Type

Too Small

Max Dsks

No SMART

Wrg Intfc

Disk is initializing.

Disk is offline at host's request.

Disk is marked failed at host's request.

Disk is offline for some other reason.

Disk has been set inactive.

Data on disk is not synchronized with the rest of the array.

Disk is the primary disk for a 2 disk mirror and is OK.

Disk is the secondary disk for a 2 disk mirror and is OK.

Device is not compatible for use as part of an IM array.

Disk is too small to mirror existing data

Maximum number of disks allowed for this type of Array reached and/or Maximum number of total IM disks on a controller reached

Disk doesn't support SMART, cannot be used in an RAID array

Device interface (SAS) differs from existing IM disks

Indicates whether device SMART is predicting device failure (Yes,

No).

Indicates the size of the device in megabytes. If the device is part of a two-disk array, this field will reflect the size of the array, not the size of the individual disk. If the device is part of a three or more disk array, this field is the size that the disk makes up within the array.

In arrays consisting of different sized disks, excess space on larger disks will be unusable.

View A New Array Screen

The View Array screen is accessed by pressing Enter on the View Existing Array field from the

Select New Array Type screen. The View Array screen enables you to view the current array configuration.

The following screen is accessed by selecting the appropriate field and pressing Enter:

• Manage Array

You can perform the following actions from the View Array screen:

• Press N to view the next array.

• Press C to create a new array.

The following fields of information are available on the View Array screen:

Array Displays the number of this array.

Identifier

Type

Displays the identifier of this array.

Displays the RAID type.

Scan Order

Size (MB)

Status

Displays the scan order of the array.

Displays the size of the array.

Displays the status of the array.

The drvcfg Utility 21

Bay

Device Identifier

RAID Disk

Hot Spr

Drive Status

22 Configuring the Controller Offline

Displays the bay in which devices are located.

Displays the device identifier.

Specifies the devices (disks) that make up an IM array. If RAID Disk is “Yes,” the device is part of an IM array; if “No,” the device is not part of an IM array. If this field is grayed out, one or more of the following conditions applies:

• The device does not meet the minimum requirements for use in an IM array.

• The device is not large enough to mirror existing data on the primary drive.

• This disk has been selected as the Hot Spare for the IM array.

Specifies whether a device is the Hot Spare for an IM array. If Hot

Spr is “Yes,” the device will be used as a Hot Spare for the IM array, if “No,” the device will not be used as a Hot Spare for the IM array.

Only one Hot Spare per IM array is permitted. A Hot Spare is not required in an IM. A Hot Spare can be specified at array creation, or any time after creation, provided the array is made up of 5 disks or fewer. This field is grayed out under the following conditions:

• The device does not meet the minimum requirements for use in an IM array.

• The array already has a Hot Spare.

• The array is made up of the maximum number of devices (6).

• The device isn’t large enough to mirror existing data on the primary. The Hot Spare drive must be greater than or equal to the size of any drive in any IM volume.

One of the following will be displayed:

OK Disk is online and fully functional.

Missing

Failed

Disk is not responding.

Disk has failed.

Initializing

CfgOffln

User Fail

Offline

Inactive

Not Syncd

Disk is initializing.

Disk is offline at host's request.

Disk is marked failed at host's request.

Disk is offline for some other reason.

Primary

Secondary

Wrg Type

Too Small

Max Dsks

No SMART

Disk has been set inactive.

Data on disk is not synchronized with the rest of the array.

Disk is the primary disk for a 2 disk mirror and is OK.

Disk is the secondary disk for a 2 disk mirror and is OK.

Device is not compatible for use as part of an IM array.

Disk is too small to mirror existing data

Maximum number of disks allowed for this type of Array reached and/or Maximum number of total IM disks on a controller reached

Disk doesn't support SMART, cannot be used in an RAID array

Pred Fail

Size(MB)

Wrg Intfc Device interface (SAS) differs from existing IM disks

Indicates whether device SMART is predicting device failure (Yes,

No).

Indicates the size of the device in megabytes (1 megabyte = 1024 x

1024 bytes = 1,048,576 bytes). If the device is part of a two-disk array, this field will reflect the size of the array, not the size of the individual disk. If the device is part of an array of three or more disks, this field is the size that the disk makes up within the array. In arrays consisting of different sized drives, excess space on larger drives will be unusable.

Manage A New Array Screen

Manage Array is accessed by pressing Enter on the Manage Array field from the View Array screen. This screen allows you to manage the current array.

The following actions are performed from the Manage Array screen:

Manage Hot Spare

By pressing Enter on Manage Hot Spare, the utility will display a hot spare management screen that has same layout as the Create New Array screen. This field is grayed out under the following conditions:

1.

The array is inactive.

2.

The array is at its maximum number of devices.

3.

Non-IR firmware is used.

4.

IR is disabled. The array is inactive.

Synchronize Array

Press Enter on Synchronize Array to perform a synchronization of the IM array. You will be prompted to be sure you want to perform this action. Press Y for yes and N for no. This field is grayed out under the following conditions:

1.

The array is inactive.

2.

The array does not need to be resynchronized.

3.

The adapter's MPT Firmware does not support the feature.

4.

Non-IR firmware is used.

5.

IR is disabled. The array is inactive.

Activate Array

Press Enter on Activate Array to perform an activation of an IM array. You will be prompted to be sure you want to perform this action. Press Y for yes and N for no.

Delete Array

Press Enter on Delete Array to perform the deletion of the currently displayed IM array. You will be prompted to be sure you want to perform this action. Press Y for yes and N for no.

Identifier Displays the identifier of this array.

Type

Scan Order

Size (MB)

Status

Displays the RAID type.

Displays the scan order of the array.

Displays the size of this array.

Displays the status of this array.

The drvcfg Utility 23

SAS Topology Screen

SAS Topology is accessed by pressing Enter on SAS Topology from the adapter Properties screen.

This screen presents a view of the adapter's SAS hierarchy, and provides other user functionality.

The following objects along with their significant properties are shown:

• Adapter

• PHYs

• Expanders/Enclosures

• Attached Devices

24 Configuring the Controller Offline

The following screen is accessed from SAS Topology:

• Pressing D from an expanded enclosure accesses the Device Properties screen for the specific device, and turns on the locate LED.

The following actions are performed from SAS Topology:

• The SAS Topology is expanded for display by select an expander/enclosure and pressing

Enter

. This displays all Phys/Devices/Bays. Press Enter again to collapse the expander/enclosure.

• Pressing Enter while on a device activates the locate LED.

• Pressing C clears device mappings for non-present devices.

Device Identifier Indicates the ASCII device identifier string extracted from the device's

Inquiry Data.

Device Info

Neg. Link Speed

Phy. Link Speed

Indicates if a device is SAS, Expander, or Enclosure.

Indicates the negotiated link speed for this Phy or whether it has been disabled.

Indicates the maximum hardware link rate possible for this Phy.

Device Properties Screen

Device Properties is accessed by pressing D from the SAS Topology screen when the cursor is on an expanded enclosure of the Device Identifier field of a device. This screen displays information about a specific device.

The following screens are accessed from Device Properties by selecting the appropriate field and pressing Enter:

• Device Format

• Device Verify

The following actions are performed from Device Properties:

• Press N to cycle to the next device.

• Press P to cycle to the previous device.

Device Identifier Indicates the ASCII device identifier string extracted from the device's

Inquiry Data.

SAS Address Indicates the SAS Address of this device.

Serial Number

Elapsed Time

Percent Complete

Indicates the serial number for this device.

Displays the total time elapsed since Format or Verify Operation started.

Graphical status bar display that indicates the current relative percentage complete of the operation.

Device Format and Device Verify Screens

The Format and Verify screens have similar layout and are accessed by pressing Enter on the appropriate field from the Device Properties screen. These screens include an Elapsed Time and status bar that begin incrementing once the operation is started, enabling the user to determine progress of the operation.

Device Identifier Indicates the ASCII device identifier string extracted from the device's

Inquiry Data.

SAS Address

Serial Number

Elapsed Time

Indicates the SAS Address of this device.

Indicates the serial number for this device.

Displays the total time elapsed since Format or Verify Operation started.

The drvcfg Utility 25

Percent Complete Graphical status bar display that indicates the current relative percentage complete of the operation.

Formatting

On the Device Format screen, if enabled, a low-level formatting on a disk drive is allowed.

Low-level formatting will completely and irreversibly erase all data on the drive. Press F to begin the format

CAUTION:

Once format has begun it cannot be stopped or cancelled

NOTE:

Formatting will default the drive to a 512-byte sector size even if the drive had previously been formatted to another sector size.

Verifying

On the Verify screen you can verify of all sectors on the device, and if needed, reassign defective

Logical Block Addresses (LBAs). Press Enter to start the verification.

Advanced Adapter Properties Screen

To access the Advanced Adapter Properties screen, highlight the Advanced Adapter Properties field on the Adapter Properties Screen and press Enter. A screen similar to the following appears:

Information fields on the Advanced Adapter Properties screen are as follows:

IRQ Indicates the Interrupt Request Line used by the adapter. This is assigned by the system BIOS.

NVM

Chip Revision ID

CHS Mapping

Indicates whether the adapter has nonvolatile memory (NVM), which is used to store configuration settings.

Indicates the revision ID of this adapter.

Specifies how the Cylinder Head Sector (CHS) is mapped on a disk that does not have existing CHS information: SCSI Plug and

Play Mapping, or Alternate CHS Mapping

26 Configuring the Controller Offline

Link Error Settings

SCSI Plug and Play Mapping

Alternate CHS Mapping

Automatically determines the most efficient and compatible settings. This is the default setting.

Uses an alternate and potentially less-efficient mapping system that might be required if a device is moved between adapters from different vendors.

Indicates error conditions: Invalid DWORDs, Loss of DWORDs

Sync, Running Disparity Errors, and PHY REset Errors.

Invalid DWORDs Indicates the number of invalid DWORDs received

(outside of PHY reset sequences) since the last

PHY Link Error reset.

Loss of DWORDs Sync

Running Disparity Errors

Indicates the number of times that DWORD synchronization was lost since the last PHY Link

Error Reset.

Indicates the number of

DWORDs with running disparity errors that have been received (outside of

PHY reset sequences) since the last PHY Link Error reset.

PHY REset Errors Indicates the number of times that the PHY Reset sequence has failed since the last PHY Link Error

Reset.

To access the following additional screens, use the arrow keys to highlight the option and press

Enter

:

Advanced Device Properties. See “ Advanced Device Properties Screen

.”

• Spinup Properties. See

“Spinup Properties Screen” (page 29) .

• PHY Properties. See

“PHY Properties Screen” (page 29) .

To reset all of the settings on the Advanced Adapter Properties screen to their default values, highlight the Restore Defaults field and press Enter.

Advanced Device Properties Screen

To access the Advanced Device Properties, highlight the Advanced Device Properties field on the Advanced Adapter Properties screen and press Enter.

Use the Advanced Device Properties screen to view and modify infrequently accessed device settings.

You can change the values in the following fields on the Advanced Device Properties screen:

Maximum Block IO Devices Specifies the maximum number of devices attached to the adapter that you can nstall a pre-OS IO interface on.

The drvcfg Utility 27

NCQ

IO Timeout for Block Devices

IO Timeout for Block Devices

(Removable)

Native Command Queuing for SATA devices: Enabled or

Disabled.

• Disabled: Default setting.

• Enabled: Not supported at the time of publication.

Specifies the time out value for I/Os to the following devices with non-removable media:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

Specifies the time out value for I/Os to the following devices with removable media:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 05h - CD-ROM

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

IO Timeout for Sequential Devices Specifies the time out value in seconds for “SCSI Device

Type 01h - Sequential Access” devices.

The value range for this field is 0 to 999. A value of 0 specifies no time out.

IO Timeout for Other Devices Specifies the time out value for I/Os to devices other than the following:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 01h - Sequential Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 05h - CD-ROM

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

To toggle between LUN 0 and All, press + or -. LUN 0 scans only LUN 0. All scans all LUNs.

LUNs to Scan for Block Devices

LUNs to Scan for Block Devices

(Removable)

Controls LUN scans for the following devices with non-removable media:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

To toggle between LUN 0 and All, press + or -. LUN 0 scans only LUN 0. All scans all LUNs.

Controls LUN scans for the following devices with removable media:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 05h - CD-ROM

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

28 Configuring the Controller Offline

To toggle between LUN 0 and All, press + or -. LUN 0 scans only LUN 0. All scans all LUNs.

LUNs to Scan for Sequential Devices Controls LUN scans for “SCSI Device Type 01h - Sequential

Access” devices.

LUNs to Scan for Other Devices Controls LUN scans for devices other than the following:

• SCSI Device Type 00h - Direct Access

• SCSI Device Type 01h - Sequential Access

• SCSI Device Type 04h - Write Once

• SCSI Device Type 05h - CD-ROM

• SCSI Device Type 07h - Optical

• SCSI Device Type 0Eh - Simplified Direct Access

To toggle between LUN 0 and All, press + or -. LUN 0 scans only LUN 0. All scans all LUNs.

To set all fields to their default values, highlight the Restore Defaults field and press Enter.

To return to the Advanced Adapter Properties screen, press Esc.

Spinup Properties Screen

To access the Spinup Properties, highlight the Spinup Properties field from the Advanced Adapter

Properties Screen and press Enter.

Use the Spinup Properties Screen to view and modify spinup settings. Spin up occurs when disk drives reach normal rotation speed during system boot. To reduce power requirements and stress on the system backplane, the system inserts a brief delay between drive spin ups.

Direct Attached Spinup Delay

Direct Attached Max Targets

Expander Spinup Delay

Time in seconds between each disk drive spin up. The default value is 3.

Number of disk drives that spin up at the same time. The default value is 1.

Expanders are not supported.

Expander Max Target Devices Expanders are not supported.

To return to the Advanced Adapter Properties screen, press Esc.

PHY Properties Screen

To access the PHY Properties screen, highlight the PHY Properties field on the Advanced adapter

Properties Screen and press Enter.

Use the PHY Properties screen to view and modify PHY settings.

Information fields on the PHY Properties screen are as follows:

PHY

SAS Port

Link Status

Indicates the active PHY number.

Indicates the associated SAS Port (0 to N) as configured on this adapter

Indicates the PHY link status. Possible values are:

• Enabled, Unknown Link Rate

• PHY Disabled

• Enabled, negotiation failed

• Enabled, SATA OOB Complete

• Enabled, 1.5 Gb/s

• Enabled, 3.0 Gb/s

The drvcfg Utility 29

Discovery Status

Device Identifier

Scan Order

Device Information

SAS Address

Link Error Settings

Link Error Count

Threshold Count

Threshold Time

30 Configuring the Controller Offline

A 32 bit hexadecimal that indicates the discovery status for the

PHY or expander. Possible values:

• Discovery completed successfully - 0x00000000

• Loop Detected - 0x00000001

• Unaddressable device exists- 0x00000002

• Multiple Ports - 0x00000004

• Expander Error - 0x00000008

• SMP Timeout - 0x00000010

• Out of route entries - 0x00000020

• SMP Response Index Does Not Exist - 0x00000040

• SMP Response Function Failed - 0x00000080

• SMP CRC error - 0x00000100

Indicates the ASCII device identifier string extracted from the device's inquiry data.

Indicates the scan order for this device. This is equivalent to the

SCSI ID value in parallel SCSI configurations.

Indicates whether a device is SAS.

Indicates the SAS address of the device.

Invalid DWORDs Number of invalid

DWORDs received outside of PHY reset sequences since the last PHY link error reset.

Loss of DWORD Sync

Running Disparity Errors

Number of times that

DWORD synchronization was lost and the link reset sequence occurred since the last PHY link error reset.

Number of dwords with running disparity errors that have been received outside PHY reset sequences since the last

PHY link error reset.

PHY Reset Errors Number of times the PHY reset sequence has failed since the last PHY link error reset.

Error counts stop when they reach the maximum value.

Actual link error count values since the last PHY Link Error Reset.

a

Link error count threshold values. When a link error count exceeds the threshold count within the threshold time, the MPT firmware may reduce the link rate. You can modify the threshold values on the Advanced Adapter Properties screen.

Time, in seconds, over which to apply Threshold Count. When a link error count exceeds the threshold count within the threshold time, the MPT firmware may reduce the link rate. You can modify the threshold values on the Advanced Adapter Properties screen.

To return to the Advanced Adapter Properties screen, press Esc.

To display the next PHY, press N.

To display the previous PHY, press P.

Resetting the Error Counts

To reset the link error counts for this PHY or all PHYs, highlight the Reset Link Error Counts field and press Enter. The following prompt appears:

Are you sure you want to reset Phy error counts?

Reset error counts for this Phy only

Reset error counts for all Phys

Cancel

To perform the reset, highlight an option and press Enter.

Exiting drvcfg

Because some changes only take effect when you exit drvcfg, follow these steps to exit the utility:

1.

From Adapter Properties press Esc to return to the Adapter List.

2.

From the Adapter List, press Esc to exit the utility.

The exit screen shows some options that are grey, indicating they are not available. Only available options are selectable. Your exit choices are as follows:

Cancel Exit

Save changes and reboot

Discard changes and reboot

Exit the Configuration Utility and Reboot

The drvcfg Utility 31

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume

Using drvcfg

This section provides step-by-step procedures for creating, viewing the properties of, and deleting an Integrated Mirror volume using the drvcfg utility. For a detailed discussion of all of the available drvcfg options, see

“The drvcfg Utility” (page 16) .

Determining the Driver ID and Ctrl ID

Before you can create an integrated mirror volume, use the EFI shell commands to find the Driver

ID for the SAS Host Bus Adapter, and the corresponding Ctrl ID. To determine these ID values, follow these steps:

1.

Start the EFI shell, by choosing EFI Shell from the Console menu.

2.

At the Shell> prompt, enter drivers and press Enter:

3.

Find the SAS Host Bus Adapter in the list of drivers, and make a note of the Driver ID from the left column. In this example, the Driver ID is “2C.”

4.

At the Shell> prompt, enter drvcfg and press Enter:

32 Configuring the Controller Offline

5.

Find the SAS Host Bus Adapter’s Driver ID in the list, and make a note of the corresponding

Ctrl ID. In this example, the SAS Host Bus Adapter is Drv[2C], and the Ctrl ID is 2F.

Adding An Integrated Mirror Volume

To add an Integrated Mirror volume, follow these steps:

1.

Start drvcfg, using the Driver ID and Ctrl ID of the SAS Host Bus Adapter (See

“Determining the Driver ID and Ctrl ID” (page 32)

). In this example, the Driver ID is 2C, and the Ctrl ID is 2F:

Shell> drvcfg -s 2C 2F

The Adapter List screen appears:

2.

Select the SAS Host Bus Adapter (SAS1068) and press Enter. The Adapter Properties screen appears:

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg 33

3.

Select RAID Properties and press Enter. The Select New Array Type screen appears:

4.

Select Create IM Volume and press Enter. The Create New Array screen appears:

34 Configuring the Controller Offline

5.

Assign a disk to be the Primary disk in the array. Move the cursor to the RAID Disk column, and then to the row for the disk that will be the Primary; then press Enter. In this example, the disk in Slot Num (or port) 2 has been assigned to be the Primary:

6.

Repeat the process from the previous step to assign another disk as the Secondary; the

Secondary disk will contain the mirrored copy of the data on the Primary disk.

7.

When you have assigned Primary and Secondary disks, press C to create the array. The following screen appears:

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg 35

8.

Press D to overwrite (erase) all of the data on the disks and create a new, empty logical volume with RAID 1 mirroring.

WARNING!

Option M, “Keep existing data and migrate to an IM array,” is not supported.

This function has been disabled in later versions of drvcfg.

WARNING!

If you overwrite the disks with option D and create a new array, all of the data on the disks will be permanently lost. If you are not certain that the disks are empty or that their contents have been backed up, press Esc to cancel the Create New Array process.

Repeat the process when the disk contents have been verified.

When you have chosen an option, the following screen appears:

9.

Select Save changes then exit this menu and press Enter. The array is created.

36 Configuring the Controller Offline

Viewing the Properties of an Array

To view the properties of an existing array volume, follow these steps:

1.

Start drvcfg, using the Driver ID and Ctrl ID of the SAS Host Bus Adapter (See

“Determining the Driver ID and Ctrl ID” (page 32)

). In this example, the Driver ID is 2C, and the Ctrl ID is 2F:

Shell> drvcfg -s 2c 2F

The Adapter List screen appears:

2.

Select the SAS Host Bus Adapter (SAS1068) and press Enter. The Adapter Properties screen appears:

3.

Select RAID Properties and press Enter. The Select New Array Type screen appears:

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg 37

4.

Select View Existing Array and press Enter. The View Array screen displays, showing the total array capacity, and the assignments and status of all disks that are in arrays. In this example, one Integrated Mirror array has been defined:

5.

To change array settings, choose Manage Array and press Enter. To exit drvcfg without making any changes, press Esc.

Deleting an Integrated Mirror Volume

To delete an Integrated Mirror volume, follow these steps:

38 Configuring the Controller Offline

1.

Start drvcfg, using the Driver ID and Ctrl ID of the SAS Host Bus Adapter (See

“Determining the Driver ID and Ctrl ID” (page 32)

). In this example, the Driver ID is 2C, and the Ctrl ID is 2F:

Shell>drvcfg -s 2C 2F

The Adapter List screen appears:

2.

Select the SAS Host Bus Adapter (SAS1068) and press Enter. The Adapter Properties screen appears:

3.

Select RAID Properties and press Enter. The Select New Array Type screen appears:

Example: Adding, Viewing, and Deleting An Integrated Mirror Volume Using drvcfg 39

4.

Select View Existing Array and press Enter. The View Array screen displays, showing the total array capacity, and the assignments and status of all disks that are in arrays. In this example, one Integrated Mirror array has been defined:

5.

Select Manage Array and press Enter. The Manage Array screen appears:

40 Configuring the Controller Offline

6.

Select Delete Array and press Enter. An additional confirmation appears.

WARNING!

If you delete an array, all data on the array is lost.

The cfggen Utility

The cfggen utility is a command line utility that runs in the Linux, EFI, and Windows

Pre-Installation (WinPE) environments. It is a minimally interactive program that you execute from a command line prompt, or a shell script. The results from invoking this utility are communicated through the program status value that is returned when the program exits. Use cfggen to create IM storage configurations on SAS controllers. Some cfggen commands work only with SAS adapters in the EFI environment.

Starting cfggen

To use cfggen, navigate to the directory that contains the utility. To navigate to the directory, follow these steps:

1.

Insert the HP IPF Offline Diagnostic and Utilities CD into the CD drive.

2.

Boot the system to the EFI shell prompt.

3.

From the EFI shell prompt, change to the CD drive.

shell> fs0: fs0:\>

4.

Change to the directory that contains cfggen.efi.

fs0:\> cd \EFI\HP\TOOLS\IO_CARDS\SAS fs0: EFI\HP\TOOLS\IO_CARDS\SAS>

5.

Run cfggen commands from this directory. See “ Using cfggen

.”

Using cfggen

The cfggen utility uses a command line interface. Command syntax is not case sensitive;, you can enter cfggen commands and parameters in uppercase, lowercase, or a mixture of the two.

The following conventions are used in the command descriptions:

• Text in italics must be entered exactly as shown on the command line.

• Text surrounded by <> must be replaced with a required parameter.

The cfggen Utility 41

• Text surrounded by [ ] may be replaced by an optional parameter.

• Parameters surrounded by {} must be entered one or more times, as appropriate for the executed command.

• Do not enter the command line definition characters (<>, [ ], and {}) on the command line.

Syntax: cfggen <controller #> <command> <parameters>

NOTE:

The program name, controller number, command, and parameters fields must be separated by the ASCII space character. The format of the parameters is command specific. The program return value is returned to the user when the program exits. A value of 0 is returned if the command is successful. Otherwise, a value of 1 is returned.

Rules for creating IM volumes and hot spare disks:

The following rules apply when creating IM volumes and hot spare disks:

1.

All disks that are part of an IM volume or a hot spare for an IM volume must be on the same

SAS controller.

2.

IM volumes are supported.

3.

Only two IM volumes (plus a global hot spare) per controller can be created.

4.

An IM array must have exactly two disks.

5.

A hot spare disk cannot be created without at least one IM volume already created.

6.

The utility does not allow adding a hot spare disk of type different from disk types in any of the volume.

7.

With the AUTO command all drives used are the same type as the first available disk found, and the size is limited to the size of the smallest disk.

The cfggen Command Set

Using the CREATE Command

The CREATE command creates IM volumes on the SAS controller. Firmware and hardware limitations for this family of cards limit the number of configurations that are possible.

Syntax cfggen <controller #> create <volume type> <size> [qsync] [noprompt]

Parameters

<volume type>

<size>

[qsync]

[noprompt]

Volume type for the volume to be created. Valid value is IM.

Size of the IM volume in Mbytes or “MAX” for the maximum size available.

Quick synchronization of the volume created.

Eliminates warnings and prompts.

Operation

Once a disk has been added to an IM volume, all of its storage capacity may or may not be used depending on drive capacity and volume capacity. For example, if you add a 36 GB disk drive to a volume that only uses 9 GB of capacity on each disk drive, the remaining 27 GB of capacity on the disk drive is unusable.

The first disk specified on the command line will be assigned as the primary disk drive when creating an IM volume. If the SAS controller is allowed to resync the disk drives, the data on the primary disk drive will be available by accessing the newly created volume.

42 Configuring the Controller Offline

Using the AUTO Command

The AUTO command automatically creates an IM volume on the SAS controllers. The volume will be created with the maximum number of disks available for use in the specified volume type. The main difference from the CREATE command is that with AUTO command user does not specify SCSI ID values for disks to use in the volume. The cfggen utility automatically uses the first disks it finds that are usable in the IM volume. Firmware and hardware limitations for the family of controllers limit the number of configurations that are possible.

Syntax cfggen <controller #> auto <volume type> <size> [qsync] [noprompt]

Parameters

<volume type>

<size>

[qsync]

[noprompt]

Volume type for the volume to be created. Valid value is IM.

Size of the RAID volume in Mbytes or “MAX” for the maximum size available.

Quick synchronization of the volume created

Eliminates warnings and prompts.

Operation

When AUTO creates an IM volume, the first disk found is assigned as the primary disk drive.

If the controller is allowed to resync the disk drives, the data on the primary disk drive is available by accessing the newly created volume. Reply Yes if you want to complete the creation.

HOTSPARE

The HOTSPARE command creates a hot spare disk drive. The hot spare drive will be added to hot spare pool 0.

Syntax cfggen <controller #> HOTSPARE [DELETE] <Encl:Bay>

Parameters

<controller #>

[DELETE]

<Encl>:<Bay>

A SAS controller number between 0 and 255.

Specifies that the hot-spare is to be deleted (Omit the DELETE keyword to specify hot-spare creation).

Enclosure number and Bay number of the disk that is to be configured as the Hot Spare.

Operation

An IM array can contain a total of three disks, including the hot spare. Only one hot spare disk can be created. The capacity of the hot spare disk must be greater than or equal to the capacity of the smallest disk in the logical drive. You can use the

“DISPLAY”

command to verify disk capacity. For more information on disk requirements, see

“Rules for creating IM volumes and hot spare disks:” (page 42)

.

DELETE

The DELETE command sets the controller configuration to factory defaults. This command will also delete any existing IR volumes.

Syntax cfggen <controller #> delete [noprompt]

The cfggen Utility 43

Parameters

<controller #>

[noprompt]

A SAS controller number between 0 and 255.

Eliminates warnings and prompts.

Operation

After entering the DELETE command you will be prompted to be sure if you want to proceed with the command. Answer “yes” if you want to proceed.

DISPLAY

This DISPLAY command displays information about controller configurations: controller type, firmware version, BIOS version, volume information, and physical drive information.

Syntax cfggen <controller #> display [filename]

Parameters

<controller #>

[filename]

A SAS controller number between 0 and 255.

Valid filename to store output of command to a file.

Sample Output

Read configuration has been initiated for controller 0

------------------------------------------------------------------------

Controller information

------------------------------------------------------------------------

Controller type : SAS1068

EFI BSD version : 2.00.09.00

Firmware version : 1.10.01.00

Channel description : 1 Serial Attached SCSI

Initiator ID : 63

Maximum physical devices : 62

Concurrent commands supported : 511

------------------------------------------------------------------------

IR Volume information

------------------------------------------------------------------------

IR volume 1

Volume ID : 2

Status of volume : Okay (OKY)

RAID level : 1

Size (in MB) : 34304

Physical hard disks (Target ID) : 9 1

------------------------------------------------------------------------

Physical device information

------------------------------------------------------------------------

Initiator at ID #63

Target on ID #1

Device is a Hard disk

Enclosure # : 1

Slot # : 8

Target ID : 1

State : Online (ONL)

Size (in MB)/(in sectors) : 34732/71132960

Manufacturer : HP

Model Number : DG036A8B53

Firmware Revision : HPD6

Serial No : 3LC04757000085425VFK

Drive Type : SAS

Target on ID #4

Device is a Hard disk

44 Configuring the Controller Offline

Enclosure # : 1

Slot # : 5

Target ID : 4

State : Ready (RDY)

Size (in MB)/(in sectors) : 70007/143374738

Manufacturer : HP

Model Number : DG072A8B54

Firmware Revision : HPD6

Serial No : 3LB02CXH00008523E83Z

Drive Type : SAS

Target on ID #5

Device is a Hard disk

Enclosure # : 1

Slot # : 4

Target ID : 5

State : Ready (RDY)

Size (in MB)/(in sectors) : 70007/143374738

Manufacturer : HP

Model Number : DG072A8B5C

Firmware Revision : HPD4

Serial No : B062P5B011M00547

Drive Type : SAS

Target on ID #6

Device is a Hard disk

Enclosure # : 1

Slot # : 3

Target ID : 6

State : Ready (RDY)

Size (in MB)/(in sectors) : 70007/143374738

Manufacturer : HP

Model Number : DG072A8B5C

Firmware Revision : HPD4

Serial No : B062P5B011RK0548

Drive Type : SAS

Target on ID #7

Device is a Hard disk

Enclosure # : 1

Slot # : 2

Target ID : 7

State : Ready (RDY)

Size (in MB)/(in sectors) : 70007/143374738

Manufacturer : HP

Model Number : DG072A8B5C

Firmware Revision : HPD4

Serial No : B062P5B011NB0548

Drive Type : SAS

Target on ID #9

Device is a Hard disk

Enclosure # : 1

Slot # : 7

Target ID : 9

State : Online (ONL)

Size (in MB)/(in sectors) : 70007/143374738

Manufacturer : HP

Model Number : DG072A8B5C

Firmware Revision : HPD4

Serial No : B062P5B010R10547

Drive Type : SAS

------------------------------------------------------------------------

Enclosure information

------------------------------------------------------------------------

Enclosure# : 1

Logical ID : 500605B0:0001A950

Numslots : 8

StartSlot : 1

The cfggen Utility 45

Start TargetID : 0

Start Bus : 0

Logical drive status values:

Okay (OKY)

Degraded (DGD)

Inactive (OKY)

Inactive (DGD)

Volume is Active and drives are functioning properly and user data is protected if the current RAID level provides data protection.

Volume is Active and the user's data is not fully protected due to a configuration change or drive failure; a data resync or rebuild may be in progress.

Volume is inactive and drives are functioning properly and user data is protected if the current RAID level provides data protection.

Volume is inactive and the user's data is not fully protected due to a configuration change or drive failure; a data resync or rebuild may be in progress.

Physical device status values are as follows:

Online (ONL)

Hot Spare (HSP)

Ready (RDY)

Available (AVL)

Failed (FLD)

Standby (SBY)

The drive is operational and is part of a logical drive.

The drive is a hot spare that is available for replacing a failed drive in an array.

The drive is ready for use as a normal disk drive or it can be, but has not been, assigned to a disk array or hot spare pool.

The hard disk drive may or may not be ready, and it is not suitable for inclusion in an array or hot spare pool (i.e., it is not spun up, its block size is incorrect, or its media is removable).

Drive was part of a logical drive or was a hot spare drive, and it failed.

It has been taken offline

This status is used to tag all non-hard disk devices.

FORMAT

The FORMAT command performs a low-level format of a disk drive. This operation can only be performed on a physical disk. FORMAT cannot be used on an IR volume or a hot spare.

Syntax cfggen <controller #> format <Encl:Bay> [noprompt]

Parameters

<controller #>

<Encl:Bay>

[noprompt]

A SAS controller number between 0 and 255.

Enclosure number and Bay number that identifying the disk drive that will be formatted.

Eliminates warnings and prompts.

WARNING!

Performing a low-level format on a hard disk drive will result in the destruction of all data stored on that disk drive. The operation cannot and should not be interrupted; doing so may result in irreparable damage to the hard disk drive.

Operation

Unless noprompt is included on the command line, warning messages will be displayed. You will be required to properly answer a series of prompts or the command will be aborted. The answers are case sensitive and must be entered in upper case.

46 Configuring the Controller Offline

This command will not complete and return to a shell prompt until the format operation is complete. Depending on the capacity and model of disk drive, this can take a considerable amount of time.

STATUS

The STATUS command displays the status of any volume synchronization operation that is currently in progress on the controller.

Syntax cfggen <controller #> status

Parameters

<controller #> A SAS controller number between 0 and 255.

Operation

If no volume synchronization is in progress, CFGIR will print a message so indicating before exiting. The STATUS command will add the flag “Inactive” to the Volume State field, if the volume is marked as Inactive by the controller firmware.

Sample Output

The following is an example of the status information returned when a volume resynchronization is in progress.

Background command progress status for controller 0...

IR Volume 1

Current operation : None

Volume ID : 2

Volume status : Enabled

Volume state : Optimal

Physical disk I/Os : Not quiesced

The status fields in the data displayed can take on the following values:

• Current operation - Synchronize or None

• Volume status - Enabled or Disabled

• Volume state - [Inactive] Optimal, Degraded or Failed

• Physical disk I/Os - Quiesced or Not quiesced

ENABLEIR

The ENABLEIR command turns on IR functionality on a SAS controller. The enabling is accomplished by clearing the MPI_IOUNITPAGE1_DISABLE_IR bit in the IO Unit 1 MPT

Configuration Page.

Syntax cfggen <controller #> enableir

Parameters

<controller #> A SAS controller number between 0 and 255.

Operation

If there are any existing IR volumes when this command is run you will be notified via an output message, no action will be taken and cfggen will return SUCCESS. If IR is currently enabled when this command is run cfggen will return SUCCESS.

The cfggen Utility 47

Faulty controller or peripheral hardware (such as cables, disk drives, etc.) will not cause this utility to hang. It will exit with the appropriate return value. If an operation fails, clear the fault condition by whatever means necessary and retry the operation.

DISABLEIR

The DISABLEIR command turns off IR functionality on a SAS controller, by setting the

MPI_IOUNITPAGE1_DISABLE_IR bit in the IO Unit 1 MPT Configuration Page.

Syntax cfggen <controller #> disableir

Parameters

This command does not require <controller #>.

Sample Output

Vendor Device

Index ID ID Bus Device

----- ------ ------ ---------

0 1000h 0054h 14h 08h LSI 1068 SAS Host Adapter

LOCATE

The LOCATE command turns locate LED's on and off.

Syntax cfggen <controller #> locate

Parameters

<controller #> A SAS controller number between 0 and 255.

Updating SAS Controller Firmware Offline

Follow the procedures in this section to update the SAS controller firmware offline. For information on recommended firmware versions, see the SAS Host Bus Adapters Support Matrix at: http://docs.hp.com/en/netcom.html

There are two methods to update the SAS controller firmware offline, depending on the HP-UX and SerialSCSI-00 versions installed on the server:

• In some SerialSCSI-00 bundle versions, the sasd driver updates the adapter firmware when the system boots.

• In later SerialSCSI-00 versions, the firmware is not updated by the driver. Use the sasflash

EFI utility to update adapter firmware offline.

Table 3-2

lists the method you must use to update the adapter firmware for each supported

HP-UX and SerialSCSI-00 bundle version.

Table 3-2 Adapter Firmware Update Methods

HP-UX Version

HP-UX 11i v3

HP-UX 11i v2

SerialSCSI-00 Version

B.11.31.0803 or later

B.11.31.0712 or earlier

B.11.23.0803 or later

B.11.23.0712 or earlier

Adapter Firmware Update Method sasflash.efi

sasd driver sasflash.efi

sasd driver

48 Configuring the Controller Offline

The sasflash.efi utility and firmware images are included on the IPF Offline Diagnostics and

Utilities CD, version 0803 and later. To update the adapter firmware offline, follow the procedures provided with the sasflash utility.

CAUTION: If you have updated the adapter firmware using sasflash, booting a disk with an older version of SerialSCSI-00 (including Ignite-UX) might download an older version of the firmware and EFI driver to all HBAs controlled by SerialSCSI-00 in the system. In this case, use sasflash to reinstall the correct adapter firmware.

For information on how to update SAS controller firmware online, see

“Updating SAS Controller

Firmware Online” (page 64)

.

Updating SAS Controller Firmware Offline 49

50

4 Configuring and Troubleshooting the Controller Online

This chapter describes the online configuration, troubleshooting, and maintenance tools for HP internal SAS controllers. This chapter includes the following topics:

“Introduction” (page 51)

“Troubleshooting sasd” (page 51)

“The sasmgr Command Set” (page 54)

“Using sasmgr: Common Command Examples” (page 57)

“Replacing a Disk Online Using sasmgr replace_tgt or io_redirect_dsf” (page 65)

“Recommendations” (page 67)

“Security Restrictions” (page 68)

Introduction

A systematic approach to troubleshooting helps isolate the problem. If you cannot solve the problem on your own, contact your HP representative.

NOTE:

Before using these troubleshooting steps, you must have installed, configured, and verified the HP 8 Internal Port SAS Controller hardware and software on the host and on any devices.

Troubleshooting sasd

Troubleshooting sasd requires the use of the following two utilities:

• ioscan

• sasmgr

The ioscan Utility

By default, ioscan scans the system and lists all reportable hardware found. The types of hardware reported include processors, memory, interface cards and I/O devices. For HP-UX 11i v2, the ioscan command syntax is as follows:

SYNTAX

/usr/sbin/ioscan [-k|-u] [-e] [-d driver|-C class] [-I instance]

[-H hw_path] [-f[-n ]|-F[-n]] [devfile]

/usr/sbin/ioscan -M driver -H hw_path [-I instance]

/usr/sbin/ioscan -t

For HP-UX 11i v3, the ioscan command syntax is as follows:

SYNTAX

/usr/sbin/ioscan [-N] [-k|-u] [-e] [-d driver | -C class] [-I instance]

[-H hw_path] [ -f[-n] | -F[-n] ] [devfile]

/usr/sbin/ioscan [-b] -M driver -H hw_path [-I instance]

/usr/sbin/ioscan -t

/usr/sbin/ioscan -P property [-d driver | -C class] [-I instance]

[-H hw_path] [devfile]

/usr/sbin/ioscan -m lun [-F] [-d driver | -C class] [-I instance]

[-H lun hw_path] [devfile]

Introduction 51

/usr/sbin/ioscan [-F] -m dsf [devfile]

/usr/sbin/ioscan -m hwpath [-F] [-H hw_path]

/usr/sbin/ioscan -s

/usr/sbin/ioscan -r -H hw_path

/usr/sbin/ioscan -B

/usr/sbin/ioscan -U

/usr/sbin/ioscan -a [-F]

For a complete explanation of ioscan command line options and parameters for the version of

HP-UX that you are using, see the ioscan(1M) manpage.

Displaying Interface and Disk Information

The following example will display information about interface cards which use the sasd driver:

# ioscan -fnkd sasd

Class I H/W Path Driver S/W State H/W Type Description

==================================================================== escsi_ctlr 0 0/4/1/0 sasd CLAIMED INTERFACE HP PCI/PCI-X SAS MPT Adapter

/dev/sasd0

The following example will display information about disk devices:

# ioscan -fnkC disk

Class I H/W Path Driver S/W State H/W Type Descript ion

==================================================================================== disk 0 0/0/2/1.0.16.0.0 sdisk CLAIMED DEVICE TEAC DV-28E-N

/dev/dsk/c0t0d0 /dev/rdsk/c0t0d0 disk 3 0/4/1/0.0.0.2.0 sdisk CLAIMED DEVICE HP DG072A9BB7

/dev/dsk/c1t2d0 /dev/rdsk/c1t2d0 disk 4 0/4/1/0.0.0.3.0 sdisk CLAIMED DEVICE HP DG072A9BB7

/dev/dsk/c1t3d0 /dev/rdsk/c1t3d0 disk 5 0/4/1/0.0.0.4.0 sdisk CLAIMED DEVICE HP DG036A8B5B

/dev/dsk/c1t4d0 /dev/rdsk/c1t4d0 disk 8 0/4/1/0.0.0.7.0 sdisk CLAIMED DEVICE HP DG036A9BB6

/dev/dsk/c1t7d0 /dev/rdsk/c1t7d0

/dev/dsk/c1t7d0s1 /dev/rdsk/c1t7d0s1

/dev/dsk/c1t7d0s2 /dev/rdsk/c1t7d0s2

/dev/dsk/c1t7d0s3 /dev/rdsk/c1t7d0s3 disk 11 0/4/1/0.0.0.10.0 sdisk CLAIMED DEVICE HP IR Volume

/dev/dsk/c1t10d0 /dev/rdsk/c1t10d0

For each hardware module on the system, ioscan displays by default the hardware path to the hardware module, the class of the hardware module, and a brief description. If the device is connected, but not found, then it is in a “no hardware” state. If the device is in a no hardware state, use sasmgr to further check the state of the I/O card; see

“Displaying General Statistics and Information” (page 57)

.

The sasmgr Utility

You can use the sasmgr utility to manage HP-UX Serial Attached SCSI (SAS) mass storage core

I/O controllers. The sasmgr command syntax is as follows:

SYNTAX

Path: /opt/sas/bin

sasmgr [-h][-f] add -D device_file -q raid -q level=raid_level -q

enc_bay=enc:bay[,enc:bay] [-q size=size] [-q rebuild_rate=rate]

sasmgr [-h][-f] add -D device_file -q raid -q spare -q enc_bay=enc:bay

sasmgr [-h][-f] bdr -D device_file -q lun={all | lun_dsf}

52 Configuring and Troubleshooting the Controller Online

sasmgr [-h] clear_stat -D device_file

sasmgr [-h] clear_stat -D device_file -q all

sasmgr [-h] clear_stat -D device_file -q phy={all | phy_id}

sasmgr [-h] clear_stat -D device_file -q phy_in_port={all | phy_id}

sasmgr [-h] clear_stat -D device_file -q target={all | sasaddr}

sasmgr [-h][-f] delete -D device_file -q raid -q raid_vol={rvol_id |

all}

sasmgr [-h][-f] delete -D device_file -q raid -q spare

sasmgr [-h][-f] disable -D device_file

sasmgr [-h][-f] download -D device_file -q downloadfile=filename -q

enc_bay=enc:bay

sasmgr [-h] enable -D device_file

sasmgr [-h] get_info -D device_file

sasmgr [-h] get_info -D device_file -q lun={all | lun_dsf}

sasmgr [-h][-N] get_info -D device_file -q lun=all

sasmgr [-h][-v] get_info -D device_file -q lun={all | lun_dsf} -q

lun_locate

sasmgr [-h][-v][-N] get_info -D device_file -q lun=all -q lun_locate

sasmgr [-h] get_info -D device_file -q pci_id

sasmgr [-h] get_info -D device_file -q phy={all | phy_id}

sasmgr [-h] get_info -D device_file -q phy_in_port={all | phy_id}

sasmgr [-h][-N] get_info -D device_file -q raid

sasmgr [-h] get_info -D device_file -q reg={all | offset} [-q

reg_type={ pci_config | mmio }]

sasmgr [-h] get_info -D device_file -q smp=file_name

sasmgr [-h] get_info -D device_file -q smp_addr

sasmgr [-h] get_info -D device_file -q target={all | sasaddr}

sasmgr [-h] get_info -D device_file -q vpd

sasmgr [-h] get_stat -D device_file

sasmgr [-h] get_stat -D device_file -q phy={all | phy_id}

sasmgr [-h] get_stat -D device_file -q phy_in_port={all | phy_id}

sasmgr [-h] get_stat -D device_file -q target={all | sasaddr}

sasmgr [-h][-f] replace_tgt -D device_file -q old_dev=lun_dsf -q

new_tgt_hwpath=new_hw_path

sasmgr [-h][-f] reset -D device_file

Troubleshooting sasd 53

sasmgr [-h] set_attr -D device_file -q lun=lun_dsf -q locate_led={on |

off}

sasmgr [-h][-f] set_attr -D device_file -q raid -q raid_vol=rvol_id -q

state=vol_state

sasmgr [-h][-f] set_attr -D device_file -q raid -q raid_vol=rvol_id -q

rebuild_rate=rebuild_rate

A -N option has been added to the sasmgr utility for HP-UX 11i v3. For example:

sasmgr -N get_info -D /dev/sasd0 -q raid

When this option is specified for some commands, it enables you to specify the persistent device file as input to a qualifier. For some commands, when this option is specified, the output will display persistent device file information.

If the -N option is not specified, sasmgr will accept and display only legacy device file information. This provides backward compatibility with previous versions of HP-UX. For more information on persistent device files in HP-UX 11i v3, see the intro(7) manpage.

The sasmgr Command Set

A command is defined by a set of qualifiers. Attributes are specified with the -q option. All keywords are case-sensitive. The following commands are recognized by sasmgr.

add

One of the following sets of qualifiers must be specified with the add command:

• raid

• level

• enc_bay

• size

• rebuild_rate

Use this set of qualifiers to create a RAID volume with the specified RAID level, volume size and physical disks. The value specified for the level qualifier determines the RAID level for the volume. For example, -q level=1 specifies that a RAID 1 volume should be created. If the physical disks in a

RAID volume are different sizes, then some disk space will be wasted. Volume expansion is not supported; once a volume has been created, its size cannot be increased. If the size qualifier is not specified, then the volume is created with a maximum possible size based on the size of the physical disks specified.

If the rebuild_rate qualifier is not specified, then the default rebuild rate of 20% will be used for the volume. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning and executes the command. This command requires superuser privileges. See

“Security Restrictions” (page 68)

.

• raid

• spare

• enc_bay

Use this set of qualifiers to add a global spare disk. The global spare disk is used whenever a physical disk in any RAID volume on the controller fails.

The size of the disk specified should be greater than the size of at least one of the physical disks in the volume. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and continues executing the command. This command requires superuser privileges. See

“Security Restrictions” (page 68)

.

54 Configuring and Troubleshooting the Controller Online

bdr clear_stat delete disable download

The following qualifier must be specified with the bdr command:

• lun

- Resets the specified target device. This is a destructive operation.

If the -f option is not specified with this command, sasmgr displays a warning message before continuing. Otherwise, it suppresses the warning message and executes the command.

When the clear_stat command is run without qualifiers, it clears statistics of the controller represented by device_file. The following qualifiers may be specified with the clear_stat command:

• all

- Clears all statistics for the controller, all PHYs, all ports, and all targets.

• phy

- Clears statistics for all PHYs or a specific PHY.

• phy_in_port

- Clears statistics for a port to which the specified PHY belongs to or clears statistics for all ports.

• target

- Clears statistics for a specific target or all targets.

One of the following sets of qualifiers must be specified with the delete command:

• raid

• raid_vol

Use this set of qualifiers to delete the RAID volume given by the volume ID.

(Use the get_info command with the raid qualifier to obtain the volume

ID.) If a volume ID of all is specified, then all RAID volumes will be deleted.

If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and continues executing the command. This command requires superuser privileges. See

“Security Restrictions” (page 68)

.

• raid

• spare

Use this set of qualifiers to delete the controller spare disk. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and continues executing the command. This command requires superuser privileges. See

“Security Restrictions” (page 68)

.

Disables the controller. This is a destructive operation. The controller will go offline, all current I/Os will be aborted, and new I/Os will fail. An enable operation must be performed in order to bring the controller back online. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and executes the command.

Updates the firmware on a SAS controller, enclosure, or SAS disk. You can specify the following qualifiers:

• downloadfile

– The name of the file containing the new firmware.

• enc_bay

– The enclosure and bay of the disk to update the firmware on.

OR ctrl

– The ID of the external enclosure to update the firmware on.

OR device_file

– The device file of the SAS controller to update. This qualifier also requires the use of the hba qualifier. For more information on the use of this command, see

“Updating SAS Controller Firmware

Online” (page 64)

.

The sasmgr Command Set 55

NOTE:

To update SAS controller firmware online, you must be running version 11.31.0909 or higher of the sasd driver. Online SAS controller firmware updates are not supported on systems running HP-UX 11i v2.

If you do not specify the -f option with this command, sasmgr displays a warning message before continuing. Otherwise, it suppresses the warning message and executes the command.

enable get_info get_stat

Enables the controller and brings it back online. This command causes the driver to initialize the controller. Use this command to bring the controller back online after using the disable command.

When the get_info command is run without qualifiers, it returns information about the controller represented by device_file. The following qualifiers may be specified with the get_info command:

• lun

- Shows hardware path and SAS address information for a specific

LUN or all LUNs. If the -N option and the -q lun=all qualifier are specified with this command, then it displays persistent device file information.

• lun_locate

- Shows LUN location information for the LUN specified with the LUN qualifier. If the -N option and the -q lun=all qualifier are specified with this command, then it displays persistent device file information with the LUN location information.

• pci_id

- Shows PCI ID information for the controller.

• phy

- Shows information about all PHYs or a specific PHY.

• phy_in_port

- Shows information about a port to which the specified

PHY belongs or provides information about all ports.

• raid

- Shows RAID configuration information for the controller. If the

-N option is specified with this command, then it displays persistent device file information.

• reg

- Displays the contents of a specific PCI config space or MMIO register or all PCI config spaces or MMIO registers. PCI config space or MMIO register type is specified with the reg_type qualifier. If reg_type is not specified, then the command assumes a default register type of MMIO.

• smp_addr

- Shows the SMP initiator SAS address to send SMP requests.

• target

- Shows information about a specific target or all targets.

• vpd

- Shows vital product data information for the controller.

When the get_stat command is run without qualifiers, it shows statistics about the controller represented by device_file. The following qualifiers may be specified with the get_stat command:

• phy

- Shows statistics for all PHYs or a specific PHY.

• phy_in_port

- Shows statistics for a port to which the specified PHY belongs to or provides statistics for all ports.

• target

- Shows statistics for a specific target or all targets.

replace_tgt

The following qualifiers must be specified with the replace_tgt command:

• old_dev

• new_tgt_hwpath

Allows the lun_dsf specified with old_dev to be associated with a new SAS target, which is specified with the new_tgt_hwpath qualifier. The lun_dsf must be the legacy device file and the new_hw_path must be the legacy hardware path.

56 Configuring and Troubleshooting the Controller Online

reset set_attr

This command is typically intended for replacing a bad drive. This operation must not be used while there are outstanding I/O requests to the lun_dsf or to any LUNs under the new_hw_path. If the -f option is not specified, sasmgr displays a warning message before proceeding. Otherwise, it suppresses the warning message and executes the command.

NOTE: This command does not allow a persistent device file or the new style hardware path to be specified with the old_dev and new_tgt_hwpath qualifiers. For persistent device files, please use the io_redirect_dsf command. See the io_redirect_dsf(1M) manpage for more information.

Resets the controller and performs a complete re-initialization. This is a destructive operation. Some I/Os may be aborted by this command. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and executes the command.

The following qualifiers must be specified with the set_attr command:

• lun

• locate_led

Turns the locate LED for the specified LUN on or off. If it is a RAID device

LUN, then this command turns the LOCATE LED for all the physical disks that are part of the RAID volume on or off.

• raid

• state

• raid_vol

Use this set of qualifiers to change the state of the volume based on the value specified by the state qualifier and the volume specified by raid_vol. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and executes the command.

• raid

• raid_vol

• rebuild_rate

Use this set of qualifiers to change the rebuild rate of the volume specified by raid_vol based on the rate specified by the rebuild_rate. If the -f option is not specified, sasmgr displays a warning message before continuing the command. Otherwise, it suppresses the warning message and executes the command.

Using sasmgr: Common Command Examples

This section contains examples of sasmgr commands which are useful when troubleshooting problems with the Host Bus Adapter.

Displaying General Statistics and Information

The following command will display all PHY statistics of the controller with the device file

/dev/sasd0:

# sasmgr get_info -D /dev/sasd0 -q phy=all

Tue Dec 12 02:44:31 2006

Info for PHY ID : 0

Using sasmgr: Common Command Examples 57

PHY Health : UP

Port SAS Address : 0x500605b00016f700

Attached SAS Address : 0x500000e0126926d2

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

Info for PHY ID : 1

PHY Health : UP

Port SAS Address : 0x500605b00016f701

Attached SAS Address : 0x500000e012691cb2

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

Info for PHY ID : 2

PHY Health : UP

Port SAS Address : 0x500605b00016f702

Attached SAS Address : 0x500000e012691ee2

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

Info for PHY ID : 3

PHY Health : UP

Port SAS Address : 0x500605b00016f703

Attached SAS Address : 0x500000e01268e312

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

Info for PHY ID : 4

PHY Health : UP

Port SAS Address : 0x500605b00016f704

Attached SAS Address : 0x500000e01263fcc2

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

Info for PHY ID : 5

PHY Health : DOWN

Port SAS Address : 0x0

Attached SAS Address : 0x0

Current Link Rate : 1.5 Gbps

Max Link Rate : 1.5 Gbps

Info for PHY ID : 6

PHY Health : DOWN

Port SAS Address : 0x0

Attached SAS Address : 0x0

Current Link Rate : 1.5 Gbps

Max Link Rate : 1.5 Gbps

Info for PHY ID : 7

PHY Health : UP

Port SAS Address : 0x500605b00016f707

Attached SAS Address : 0x500000e01122d7d2

Current Link Rate : 3 Gbps

Max Link Rate : 3 Gbps

The following command will display all RAID volume information for the controller with the device file dev/sasd0:

# sasmgr get_info -D /dev/sasd0 -q raid

Tue Dec 12 02:45:03 2006

---------- PHYSICAL DRIVES ----------

LUN dsf SAS Address Enclosure Bay Size(MB)

/dev/rdsk/c1t2d0 0x500000e012691cb2 1 3 70007

/dev/rdsk/c1t3d0 0x500000e0126926d2 1 4 70007

58 Configuring and Troubleshooting the Controller Online

/dev/rdsk/c1t4d0 0x500000e01122d7d2 1 5 34732

/dev/rdsk/c1t7d0 0x500000e01263fcc2 1 8 34732

---------- LOGICAL DRIVE 4 ----------

Raid Level : RAID 1

Volume sas address : 0x611d224fa01c82

Device Special File : /dev/rdsk/c1t10d0

Raid State : OPTIMAL

Raid Status Flag : ENABLED

Raid Size : 34000

Rebuild Rate : 20.00 %

Rebuild Progress : 100.00 %

Participating Physical Drive(s) :

SAS Address Enc Bay Size(MB) Type State

0x500000e01268e312 1 1 70007 SECONDARY ONLINE

0x500000e012691ee2 1 2 70007 PRIMARY ONLINE

The following command will display the status, driver and firmware version of the controller with the device file /dev/sasd0:

# sasmgr get_info -D /dev/sasd0

Driver Name : sasd

Bundle Version : B.11.23.03

Product Number : 399490-001

Hardware Path : 0/4/1/0

Health of HBA : ONLINE

PCI Vendor ID : 0x1000

PCI Device ID : 0x0054

PCI Subsystem Vendor ID : 0x3228

PCI Subsystem ID : 0x103c

PCI Revision ID : 0x0000

Max. PHYs supported : 8

Max. IO size : 1048576

*********************************************************************

***** HBA Specific information *****

*********************************************************************

HBA state : READY

Driver firmware dump available : NO

Driver firmware dump timestamp : N/A

Firmware Revision : 1.16.0.0

Display the device file assignments for the controller with the device file /dev/sasd0:

# sasmgr get_info -D /dev/sasd0 -q lun=all

LUN dsf Hardware Path SAS Address

------------------------------------------------------------------

/dev/rdsk/c1t10d0 0/4/1/0.0.0.10.0 0x611d224fa01c82

/dev/rdsk/c1t2d0 0/4/1/0.0.0.2.0 0x500000e012691cb2

/dev/rdsk/c1t3d0 0/4/1/0.0.0.3.0 0x500000e0126926d2

/dev/rdsk/c1t4d0 0/4/1/0.0.0.4.0 0x500000e01122d7d2

/dev/rdsk/c1t7d0 0/4/1/0.0.0.7.0 0x500000e01263fcc2

Displaying Information About Error Conditions

The following command will display usage and error statistics for the controller with the device file /dev/sasd0:

# sasmgr get_stat -D /dev/sasd0

Tue Dec 12 02:57:44 2006

General HBA statistics

No. of times HBA came online : 1

Using sasmgr: Common Command Examples 59

Time at which HBA went to online state : Mon Dec 11 19:57:29

No. of times HBA went offline : 0

Time at which HBA went to offline state : N/A

No. of times HBA went to transient state : 1

Time at which HBA went to transient state : Mon Dec 11 19:57:08

No. of times enable was issued by ioctl : 0

No. of times disable was issued by ioctl : 0

No. of times reset was issued by ioctl : 0

ULM IO/TM Statistics

NOTE: IO/TM stats are derived from target stats.

NOTE: Clearing target stats affects IO/TM stats.

No. of High priority IOs from SCSI layer : 0

No. of IOs from SCSI layer succeeded : 71121

No. of IOs from SCSI layer failed : 102

No. of IOs from SCSI layer : 71218

No. of IOs from SCSI layer succeeded : 71121

No. of IOs from SCSI layer failed : 102

No. of IOs from SCSI layer timedout on active q : 0

No. of IOs from SCSI layer implicitly aborted : 0

No. of TMs from SCSI layer : 0

No. of TMs from SCSI layer succeeded : 0

No. of TMs from SCSI layer failed : 0

No. of TMs from SCSI layer timedout on active q : 0

OLAR Statistics

No. of times HBA went to suspended state : 0

Time at which HBA was suspended : N/A

No. of times HBA resumed : 0

No. of times HBA resume failed : 0

No. of times PCI errors were encountered : 0

Seconds since last statistics were reset : 25236

*********************************************************************

***** HBA Specific information *****

*********************************************************************

No. of times Force dump was issued by ioctl : 0

No. of times Save dump was issued by ioctl : 0

Timestamp of last Fatal Error : N/A

No. of fatal errors while in fatal state : 0

No. of fatal errors from IO/TM : 0

No. of fatal errors from HAL : 0

ISR Statistics

No. of Interrupts received : 80420

No. of Interrupts one interval ago : 80418

IO Statistics

NOTE: IO stats are derived from target stats.

NOTE: Clearing target stats affects IO stats.

No. of IOs posted to HAL : 71223

No. of IOs timed-out on ccb_send_list : 0

No. of IOs aborted on ccb_send_list : 0

No. of IOs timed-out on iotm_res_wait_q : 0

No. of IOs aborted on iotm_res_wait_q : 0

No. of IOs failed because target was dead : 0

No. of IOs queued because target was transient : 0

No. of IOs that could not get a SM : 0

No. of IOs that could not be posted to HAL : 0

No. of times DMA setup for an IO failed : 0

No. of IO overruns : 0

No. of IO underruns : 868

60 Configuring and Troubleshooting the Controller Online

No. of IO data length mismatch : 0

TM Statistics

NOTE: TM stats are derived from target stats.

NOTE: Clearing target stats affects TM stats.

No. of TMs posted to HAL : 0

No. of TMs aborted on ccb_send_list : 0

No. of TMs timed-out on iotm_res_wait_q : 0

No. of TMs aborted on iotm_res_wait_q : 0

No. of TMs implicitly aborted : 0

No. of times TM could not get SM : 0

No. of TMs failed because target was dead : 0

No. of TMs queued because target was transient : 0

No. of TMs failed because chip was dead : 0

No. of times TM could not be posted to HAL : 0

HAL Statistics

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 1

PHY online event received count : 0

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 1

PHY online event received count : 0

PHY stale data count : 0

PHY data read again count : 0

PHY Page 0 offline count : 0

PHY offline event received count : 0

PHY online event received count : 1

Diag mode fail count : 0

Target not in cache count : 0

Bad IOC state count : 0

Chip transition fail count : 0

Doorbell interrupt timeout count : 0

Doorbell response timeout count : 0

Using sasmgr: Common Command Examples 61

HAL resource allocation retry count : 0

Flash f/w update count : 0

No resource to ACK count : 0

No resource to process Device event count : 0

No resource to process PHY event count : 0

Reply frame bounds error count : 0

Reply frame offset error count : 0

Stale tag count : 0

Context Reply for non-IO count : 0

Tag bounds check fail count : 0

Heart Beat bad reply status count : 0

Internal reply bad status count : 0

Bad device page 0 status count : 0

Internal request timeout count : 0

No resource for heartbeat count : 0

Discovery error. Loop detected : 0

Discovery error. Unaddressed device found : 0

Discovery error. Duplicate SAS address found : 0

Discovery error. Expander error : 0

Discovery error. SMP timeout : 0

Discovery error. Expander route table OOF entries : 0

Discovery error. Non-existing route table indices : 0

Discovery error. SMP function failed : 0

Discovery error. SMP CRC error : 0

Discovery error. XLE subtractive found : 0

Discovery error. Table to Table : 0

Discovery error. XLE paths found : 0

Discovery error. Max no. of SATA targets reached : 0

No. of Unknown Events received : 0

Probe Statistics

No. of ioscans : 1

No. of ioscan failures : 0

No. of times Chip went offline of ioscans : 0

No. of times Chip went to Trans state : 20

No. of HAL query successes : 0

No. of HAL query failures : 0

No. of times times HAL returned busy : 0

No. of times memory allocation failed : 0

No. of devices that timed out : 0

No. of times Target opens was sent : 5

No. of times open failed : 0

No. of times close was sent : 5

No. of open attempts : 0

No. of times Inquiry was sent : 5

No. of times Inquiry failed : 0

No. of times Report LUN was sent : 0

No. of times Report LUNs failed : 0

Target Statistics

No. of Domain discoveries done : 2

No. of Implicit discoveries done : 0

You can use the following command to trace the origin of a disk problem. The following command will display PHY status and history for the controller with the device file /dev/sasd0. In this example, the field “No. of times PHY went Down” indicates failures on PHY 5 and PHY 6, and the field “Time PHY went Down” lists the time that the problem occurred:

# sasmgr get_stat -D /dev/sasd0 -q phy=all

Tue Dec 12 03:00:02 2006

Statistics for PHY ID : 0

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

62 Configuring and Troubleshooting the Controller Online

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 1

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 2

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 3

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 4

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 5

No. of times PHY came UP : 0

Time PHY came UP : N/A

No. of times PHY went Down : 1

Time PHY went Down : Wed Dec 31 19:00:00

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 6

No. of times PHY came UP : 0

Time PHY came UP : N/A

No. of times PHY went Down : 1

Time PHY went Down : Wed Dec 31 19:00:00

Seconds since PHY statistics was last cleared : 1165910402

Statistics for PHY ID : 7

No. of times PHY came UP : 1

Time PHY came UP : Wed Dec 31 19:00:00

No. of times PHY went Down : 0

Time PHY went Down : N/A

Seconds since PHY statistics was last cleared : 1165910402

*********************************************************************

***** HBA Specific information *****

*********************************************************************

Statistics for PHY ID : 0

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 1

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

Using sasmgr: Common Command Examples 63

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 2

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 3

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 4

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 5

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 6

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Statistics for PHY ID : 7

No. of Invalid Dwords : 0

No. of Running Parity Errors : 0

No. of Loss Dword Syncs : 0

No. of PHY Reset Problems encountered : 0

Deleting the Spare Disk

To delete the Global Hot Spare disk from the controller with the device file /dev/sasd0:

# sasmgr delete -D /dev/sasd0 -q raid -q spare

WARNING: This is a DESTRUCTIVE operation.

This might result in failure of current I/O requests.

Do you want to continue ?(y/n) [n]...y

Spare drive is deleted successfully.

Updating SAS Controller Firmware Online

To update the firmware on a SAS controller online, use this command: sasmgr [-h] [-f] download -D /dev/sasdX -q downloadfile=<fw_image> -q hba

Where: sasdX

The device file for the SAS controller

<fw_image>

The firmware image file to download

If you do not specify the -f option with this command, sasmgr displays a warning message before continuing. Otherwise, it suppresses the warning message and executes the command.

64 Configuring and Troubleshooting the Controller Online

NOTE:

To update SAS controller firmware online, you must be running version 11.31.0909 or higher of the sasd driver. Online SAS controller firmware updates are not supported on systems running HP-UX 11i v2.

For example, to update the firmware of the controller with the device file /dev/sasd0 online with the firmware file sas1068_b0fw.fw: sasmgr download -D /dev/sasd0 -q downloadfile=sas1068_b0fw.fw -q hba

NOTE:

If the firmware is being downgraded to a lower version, an incompatible older version of the firmware may get rejected. This occurs if the downgraded version of firmware is significantly older then the version currently installed on the controller.

Use sasmgr get_info to determine the hardware revision of the controller, in order to select the correct firmware file to download. For example, to determine the hardware revision of the controller with the device file /dev/sasd0:

# sasmgr get_info -D /dev/sasd0 | grep Revision

PCI Revision ID : 0x0001

Hardware Revision ID : B0

Firmware Revision : 1.23.42.0

Performing Other Common Operations

Clear statistics for a port with PHY ID 1 of the controller with the device file /dev/sasd0:

sasmgr clear_stat -D /dev/sasd0 -q phy_in_port=1

Forcefully issue disable request to the controller with the device file /dev/sasd0:

sasmgr -f disable -D /dev/sasd0

Add a RAID volume with size 34000 (MB), level 1 (RAID1), and enc_bay 1:4,1:5 to the controller with the device file /dev/sasd0:

sasmgr add -D /dev/sasd0 -q raid -q level=1 -q size=34000 -q enc_bay=1:4,1:5

Add a spare disk to the controller with the device file /dev/sasd0:

sasmgr add -D /dev/sasd0 -q raid -q spare -q enc_bay=1:8

Delete a RAID volume with volume ID 4 to the controller with the device file /dev/sasd0:

sasmgr delete -D /dev/sasd0 -q raid -q raid_vol=4

Delete the HBA Spare on the controller with the device file /dev/sasd0:

sasmgr delete -D /dev/sasd0 -q raid -q spare

Replacing a Disk Online Using sasmgr replace_tgt or io_redirect_dsf

When you replace a disk, a new Device Special File (DSF) is created for the replacement disk; this can cause data restoration or recovery operations to fail. To avoid this situation, perform an online replacement of the failed disk:

For HP-UX 11i v2, perform an online replacement of the failed disk using the sasmgr command with the replace_tgt qualifier. This enables you to remap the DSF of the failed disk to the replacement disk.

For HP-UX 11i v3, the sasmgr replace_tgt command can be used with legacy DSFs, but it does not support the persistent DSF format. The <lun_dsf> specified with the old_dev qualifier and the <new_hw_path> specified with the new_tgt_hwpath qualifier must still use the legacy device file and the legacy hardware path.

To perform the equivalent operation on HP-UX 11i v3 using a persistent DSF, you must use the new io_redirect_dsf(1M) command. For more details, see the

Replacing a Disk Online Using sasmgr replace_tgt or io_redirect_dsf 65

io_redirect_dsf(1M) manpage. To view the manpage, enter this command: man 1m io_redirect_dsf

WARNING!

If you shut down a server to replace a failed disk offline, the DSF of the failed disk will not be visible in ioscan when the server restarts. The DSF is required by the replace_tgt command to rebuild the array with the new disk.

Before you shut down the server, run ioscan and make note of the DSF information for the failed disk.

WARNING!

The sasmgr replace_tgt and io_redirect_dsf(1M) commands must only be used between identical device types: an IR volume must be replaced by an IR volume, and a non-IR volume must be replaced by a non-IR volume. If you use these commands to remap DSFs for different device types, data loss can occur.

To replace a disk online, follow these steps:

1.

Use ioscan -fnkC disk to display the list of disk devices, and note the DSF of the failed disk:

# ioscan -fnkC disk

Class I H/W Path Driver S/W State H/W Type Descripn

================================================================================ disk 0 0/0/2/1.0.16.0.0 sdisk CLAIMED DEVICE TEAC N

/dev/dsk/c0t0d0 /dev/rdsk/c0t0d0 disk 1 0/4/1/0.0.0.0.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t0d0 /dev/rdsk/c3t0d0 disk 3 0/4/1/0.0.0.2.0 sdisk NO_HW DEVICE HP 4

/dev/dsk/c3t2d0 /dev/rdsk/c3t2d0 disk 4 0/4/1/0.0.0.3.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t3d0 /dev/rdsk/c3t3d0 disk 5 0/4/1/0.0.0.4.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t4d0 /dev/rdsk/c3t4d0 disk 6 0/4/1/0.0.0.5.0 sdisk CLAIMED DEVICE HP e

/dev/dsk/c3t5d0 /dev/rdsk/c3t5d0

/dev/dsk/c3t5d0s1 /dev/rdsk/c3t5d0s1

/dev/dsk/c3t5d0s2 /dev/rdsk/c3t5d0s2

/dev/dsk/c3t5d0s3 /dev/rdsk/c3t5d0s

When the disk is removed, or if it has completely failed, the S/W state will change to NO_HW.

In this example, the failed disk is /dev/dsk/c3t2d0 and its hardware path is

0/4/1/0.0.0.2.0

.

2.

Replace the disk. A new device path and device files are assigned to the replacement disk.

3.

Use ioscan -fnC disk to display the list of disk devices, and make note of the hardware path of the replacement disk:

# ioscan -fnC disk

Class I H/W Path Driver S/W State H/W Type Descripn

================================================================================ disk 0 0/0/2/1.0.16.0.0 sdisk CLAIMED DEVICE TEAC N

/dev/dsk/c0t0d0 /dev/rdsk/c0t0d0 disk 1 0/4/1/0.0.0.0.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t0d0 /dev/rdsk/c3t0d0 disk 2 0/4/1/0.0.0.1.0 sdisk CLAIMED DEVICE HP 4 disk 3 0/4/1/0.0.0.2.0 sdisk NO_HW DEVICE HP 4

/dev/dsk/c3t2d0 /dev/rdsk/c3t2d0 disk 4 0/4/1/0.0.0.3.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t3d0 /dev/rdsk/c3t3d0 disk 5 0/4/1/0.0.0.4.0 sdisk CLAIMED DEVICE HP 4

/dev/dsk/c3t4d0 /dev/rdsk/c3t4d0 disk 6 0/4/1/0.0.0.5.0 sdisk CLAIMED DEVICE HP e

/dev/dsk/c3t5d0 /dev/rdsk/c3t5d0

/dev/dsk/c3t5d0s1 /dev/rdsk/c3t5d0s1

/dev/dsk/c3t5d0s2 /dev/rdsk/c3t5d0s2

/dev/dsk/c3t5d0s3 /dev/rdsk/c3t5d0s

In this example, the hardware path of the new disk is 0/4/1/0.0.0.1.0.

66 Configuring and Troubleshooting the Controller Online

4.

Reassign the original device file to the new I/O path using sasmgr with the replace_tgt qualifier:

# sasmgr replace_tgt -D /dev/sasd0 -q old_tgt=/dev/dsk/c3t2d0 -q new_tgt_hwpath=0/4/1/0.0.0.1.0

WARNING: This is a DESTRUCTIVE operation.

This might result in failure of current I/O requests.

Do you want to continue ?(y/n) [n]...y

LUN has been replaced with new Target.

NOTE:

To perform the equivalent operation using a persistent DSF, you must use the new io_redirect_dsf(1M) command. For more details, see the io_redirect_dsf(1M) manpage. To view the manpage, enter this command: man 1m io_redirect_dsf

NOTE: The sasmgr replace_tgt and io_redirect_dsf(1M) commands only work on devices that have the S/W state NO_HW or CLAIMED.

5.

The S/W state is swapped. Use ioscan to verify that you can access the disk using the original device file:

# ioscan -fnC disk

Class I H/W Path Driver S/W State H/W Type Descripn

================================================================================ disk 0 0/0/2/1.0.16.0.0 sdisk CLAIMED DEVICE TEAC DV-28E-N

/dev/dsk/c0t0d0 /dev/rdsk/c0t0d0 disk 1 0/4/1/0.0.0.0.0 sdisk CLAIMED DEVICE HP DG072A8B54

/dev/dsk/c3t0d0 /dev/rdsk/c3t0d0 disk 2 0/4/1/0.0.0.1.0 sdisk NO_HW DEVICE HP DG072A8B54 disk 3 0/4/1/0.0.0.2.0 sdisk CLAIMED DEVICE HP DG072A8B54

/dev/dsk/c3t2d0 /dev/rdsk/c3t2d0 disk 4 0/4/1/0.0.0.3.0 sdisk CLAIMED DEVICE HP DG072A8B54

/dev/dsk/c3t3d0 /dev/rdsk/c3t3d0 disk 5 0/4/1/0.0.0.4.0 sdisk CLAIMED DEVICE HP DG072A8B54

/dev/dsk/c3t4d0 /dev/rdsk/c3t4d0 disk 6 0/4/1/0.0.0.5.0 sdisk CLAIMED DEVICE HP HP IR Volume

/dev/dsk/c3t5d0 /dev/rdsk/c3t5d0

/dev/dsk/c3t5d0s1 /dev/rdsk/c3t5d0s1

/dev/dsk/c3t5d0s2 /dev/rdsk/c3t5d0s2

/dev/dsk/c3t5d0s3 /dev/rdsk/c3t5d0s3

Recommendations

Updating Physical Disk Firmware

HP recommends that you consider the following when you update the firmware of physical disks attached to the HP 8 Internal Port SAS Controller with sasmgr(1M):

• If you are updating the firmware on more than one disk, do not issue multiple disk firmware download commands on the same command line. Use individual commands for each disk that is to be updated.

• If the disk firmware download to a disk that is part of a RAID volume fails or is terminated, the controller must be reset using the sasmgr(1M) reset command: sasmgr -f reset -D /dev/sasdX

(where X is the instance of the SAS controller).

For example:

# sasmgr -f reset -D /dev/sasd0

Device (/dev/sasd0) has been RESET.

Replacing Physical Disks

HP recommends that you consider the following when you replace spare physical disks in a

RAID volume controlled by the HP 8 Internal Port SAS Controller:

• Before replacing a spare disk, delete it first using sasmgr(1M): sasmgr delete -D /dev/sasdX -q raid -q spare

(where X is the instance of the SAS controller).

Recommendations 67

After the disk is replaced, use sasmgr(1M) to configure the new disk as spare: sasmgr add -D /dev/sasdX -q raid -q spare -q enc_bay=<enc>:<bay>

(where X is the instance of the SAS controller and <enc>:<bay> is the location of the disk to be configured as spare).

• By default, RAID volumes are created with Auto-Configure enabled. If you replace a physical disk which is part of a RAID volume, a re-sync will start automatically and all data on the new disk will be lost. Do not insert a replacement disk unless you are sure that any existing data has been backed up.

Update to the Latest Drivers and Firmware

Several important changes and updates have been released since the introduction of the HP 8

Internal Port SAS Controller. HP recommends that you update to the latest version of the

CommonIO and SerialSCSI-00 bundles. For more information, see the latest HP CommonIO Release

Notes and HP SerialSCSI-00 (sasd) Mass Storage Driver Release Notes, at:

http://docs.hp.com/en/netcom.html

Security Restrictions

sasmgr requires either superuser privilege or DEVOPS, DACREAD, and DACWRITE privileges for RAID configurations.

68 Configuring and Troubleshooting the Controller Online

A Electrostatic Discharge

This appendix discusses ways to prevent damage to your system due to Electrostatic Discharge

(ESD). This appendix addresses the following topics:

“Handling Parts” (page 69)

“Grounding” (page 69)

Handling Parts

To prevent damage to your system, you must take precautions when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor can damage system boards or other static-sensitive devices. This type of damage can reduce the life expectancy of the device.

To prevent electrostatic damage, observe the following precautions:

• Avoid hand contact; transport and store products in static-safe containers.

• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

• Place parts on a grounded surface before removing them from containers.

• Avoid touching pins, leads, or circuitry.

• Always be properly grounded when handling a static-sensitive component or assembly.

Grounding

Use the following grounding methods when handling or installing electrostatic-sensitive parts:

• A wrist strap connected by a ground cord to a grounded workstation or computer chassis.

Wrist straps are flexible straps with a minimum of 1 megohm resistance in the ground cords.

To provide proper ground, wear the strap snug against the skin.

• Heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats. Use conductive field service tools.

• A portable field service kit with a folding static-dissipating work mat.

Handling Parts 69

70

B Specifications

HP 8 Internal Port SAS Controller Specifications

Table B-1 HP 8 Internal Port PCI-X SAS Controller Physical Specifications

Dimensions (excluding bracket) 16.8 x 6.4 x 1.6 cm

(6.6 x 2.5 x 0.6 in )

Data Transfer Method

PCI Bus Speed

PCI Compatibility

64-bit wide, PCI-X 133 MHz (1 GB/s maximum bandwidth)

PCI-X-133 and 3.3 volt PCI compatibility only

PCI-X and 3.3 volt PCI compatibility only

Table B-2 HP 8 Internal Port SAS Controller General Specifications (PCI-X and Embedded)

Disk Drive and Enclosure Protocol Support

Architecture

SAS Connectors

3 Gb/s SAS (Serial Attached SCSI)

64-bit

2 internal SFF8484 x4 Wide SAS Connectors

12 Gb/s per x4 Wide SAS Port (4 x 3 Gbps)

Simultaneous Drive Transfer Ports

Port Transfer Rate

Software-Upgradeable Firmware

Maximum Capacity

Memory Addressing

Logical Drives Supported

RAID Support

2 x4 Wide SAS Connectors

12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)

Yes (4MB flashable ROM)

1.168TB (8 x 146GB SAS Drives)

64-bit, supporting servers with memory greater than 4 GB

Up to 2 Logical Volumes per RAID 1 array

Up to 10 disks total in all RAID volumes

RAID 1 (Mirroring)

HP 8 Internal Port SAS Controller Specifications 71

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
