H8GN User's Manual

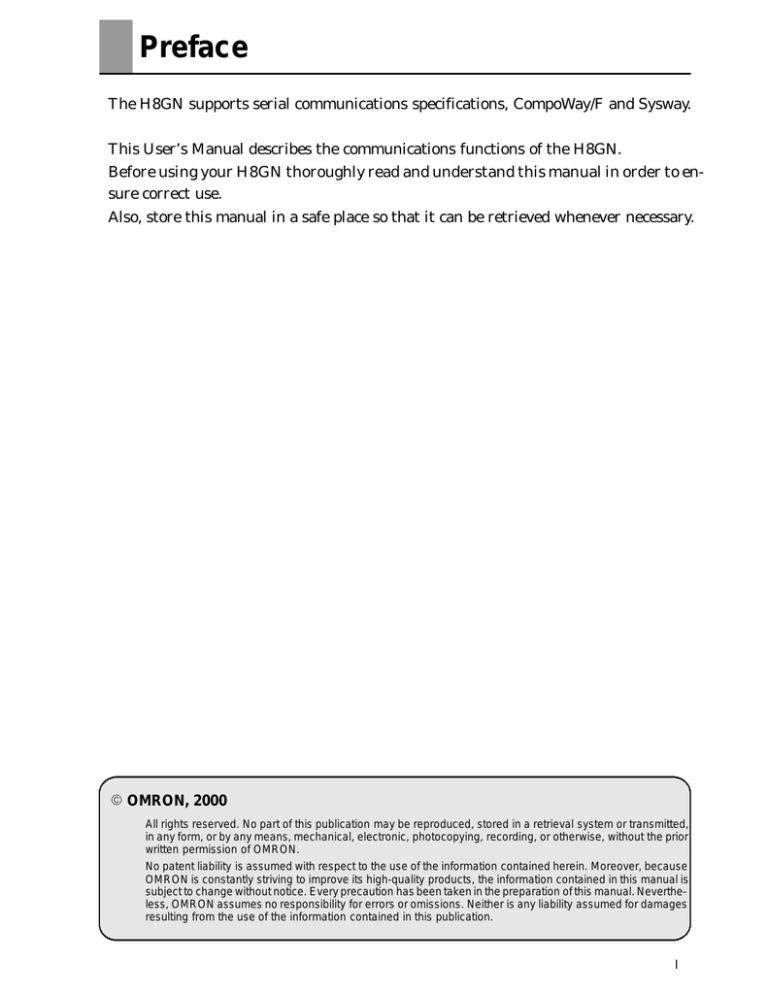

Preface

The H8GN supports serial communications specifications, CompoWay/F and Sysway.

This User’s Manual describes the communications functions of the H8GN.

Before using your H8GN thoroughly read and understand this manual in order to ensure correct use.

Also, store this manual in a safe place so that it can be retrieved whenever necessary.

E

OMRON, 2000

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because

OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

I

II

PRECAUTIONS

When the product is used under the circumstances or environments described in this manual always adhere to the limitations of the rating and functions. Also, for safety, take countermeasures such as fitting fail-safe installations.

DO NOT USE:

• In circumstances or environments that have not been described in this manual.

• For control in nuclear power, railway, aircraft, vehicle, incinerator, medical, entertainment, or safety applications

• Where death or serious property damage may occur, or where extensive safety precautions are required.

SAFETY PRECAUTIONS

J

Safety Signal Words

This manual uses the following signal words to mark safety precautions for the H8GN.

These precautions provide important information for the safe application of the product. You must be sure to follow the instructions provided in all safety precautions.

CAUTION

Indicates information that, if not heeded, could result in relatively serious or minor injury, damage to the product, or faulty operation.

J

Safety Precautions

CAUTION

F

Electric Shock Warning

Tighten the terminal screws properly. Loose screws may cause ignition and malfunction.

Tightening torque :0.5 N¡m max.

Do not operate this product in flammable and explosive gas atmospheres.

The life expectancy of the output relays varies greatly with the switching capacity and other switching conditions. Always use the output relays within their rated load and electrical life expectancy. If an output relay is used beyond its life expectancy, its contacts may become fused or burned.

Never disassemble, repair or modify the product.

Doing so may cause electric shock, fire or malfunction.

Do not allow metal fragments or lead wire scraps to fall inside this products.

These may cause leak of electricity, fire or malfunction.

III

IV

NOTICE

Be sure to observe these precautions to ensure safe use.

(1) When storing the H8GN, make sure that the ambient temperature and humidity are within the rated values. Leave the H8GN at room temperature for at least three hours before using the H8GN if it has been stored at an ambient temperature of -10_C or below.

(2) Do not use the H8GN in the following locations.

• Locations with excessive vibration or shock.

• Locations where the H8GN is exposed to sprayed water or oil.

(3) Do not use the H8GN in dusty environments or expose it to corrosive gases or direct sunlight.

(4) Be sure to use the H8GN according to its rated ambient operating temperature and humidity ranges.

(5) Make sure that the voltage is applied within the specified range. Otherwise the internal elements of the H8GN may be damaged.

(6) When using the H8GN in an area with excess electronic noise, separate the H8GN, wiring, and the equipment which generates the input signals as far as possible from the noise sources. It is also recommended to shield the input signal wiring to prevent electronic interference.

(7) If the H8GN is used in locations with high static electricity, such as sites with pipes transporting molding materials, powders, or liquids, be sure to separate the H8GN from all sources generating static electricity.

(8) Organic solvents (such as paint thinner), as well as very acidic or basic solutions can damage the outer casing of the H8GN.

NOTICE

(1) Do not use the H8GN in the following locations:

• Locations with high humidity that may result in condensation

• Locations with radical temperature changes

(2) Pay the utmost attention not to make mistakes in polarity when wiring the Timer.

(3) Always maintain the power supply voltage within the specifications.

(4) Connect the power supply voltage through a relay or switch in such a way that the voltage reaches a fixed value at once. Otherwise, the H8GN may not be reset or outputs may turn ON.

(5) Be sure that the capacity of the power supply is large enough, otherwise the H8GN may not start due to inrush current (Approx. 15A) that may flow for an instant when the H8GN is turned on.

(6) For the power supply of an input device for the H8GN, use an isolating transformer with the primary and secondary windings mutually isolated and the secondary winding not grounded.

(7) Leaving the H8GN with outputs ON at a high temperature for a long time may hasten the degradation of internal parts (such as electrolytic capacitors). For this reason, by using in combination with relays, avoid situations where outputs are left ON for a long time (e.g. one month or more).

(8) If the watertight rubber packing is not compressed sufficiently, water may penetrate the panel. For this reason, be sure to tighten the reinforcement screws of the Mounting Adapter (Y92F-34).

(9) The output contacts are SPST-NO and SPST-NC. For this reason, be sure not to use these contacts in circuits that will result in 3-point short-circuits (power supply short-circuiting due to arcing).

(10) In counter operation:

• Changing the set value

When changing the set value during operation, the output will turn ON if the set value equals the present value.

• Operation with set value and present value of 0

The output will turn ON if the set value of 0 equals the present value. The output will be OFF while the Reset Key is pressed or the reset input is ON.

(11) In timer operation:

• Changing the set value

When changing the set value during operation, the H8GN operates in the same way as when the present value reached the set value because a constant read-in system is in use. And output may turn

ON depending on the output mode if the set value is changed as follows:

Input mode UP:

Input mode DOWN:

Present value ≧ Set value

Elapsed time ≧ Set value (Present value=0)

Note: When in DOWN mode, the amount set value is changed is added to or subtracted from the present value.

• Operation with set value of 0 a) When the output mode is set to A, B (one-shot output), D, or F, output will turn ON when the start signal is input.

b) When the output mode is set to B (hold output), E, or Z, output will remain OFF even when the start signal is input.

V

VI

(12) To allow for the startup time of peripheral devices (sensors, etc.), the H8GN starts timing operation between 210 to 260 ms after power is turned ON. For this reason, in operations where timing starts from power ON, the time display will actually start from 258 ms. If the set value is 258 ms or less, the time until output turns ON will be a fixed value between 210 and 260. (Normal operation is possible for set value of 259 ms or more.) In applications where a set value of 258 ms or less is required, use start timing with signal input.

Table of Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Precautions

Notice

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

III

IV

V

II

I

CHAPTER 1 ABOUT COMMUNICATIONS METHODS . . . .

1-1

This chapter briefly describes the supported communications methods and how to wire equipment. First-time users should read this chapter without fail to ensure proper installation of the equipment.

1.1 Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications specifications

Transmission procedure

Interface

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2

1-2

1-2

1-3

1-3

1-3

1-4

CHAPTER 2 COMPOWAY/F COMMUNICATIONS

PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . .

Read this chapter if you are to communicate using the CompoWay/F format.

2.1 Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Command frame

Response frame

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications data

Example of end code

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Structure of Command Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PDU structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Area definitions

Type code (variable type)

Addresses

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Number of elements

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Details of Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Read from variable area

Write to variable area

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Read controller attributes

Read controller status

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Echoback test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 Response Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1

2-7

2-7

2-8

2-10

2-11

2-12

2-13

2-15

2-2

2-2

2-3

2-4

2-4

2-5

2-5

2-5

2-5

2-5

2-5

2-6

CHAPTER 3 COMMUNICATIONS DATA . . . . . . . . . . . . . . . .

3-1

This chapter lists the details of each of the communications data in the CompoWay/F communications procedures.

3.1 Variable Area (setup range) List . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Sample Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2

3-6

3-9

APPENDIX

ASCII List

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A-1

A-2

INDEX

CHAPTER 1

ABOUT

COMMUNICATIONS

METHODS

This chapter briefly describes the supported communications methods and how to wire equipment. First-time users should read this chapter without fail to ensure proper installation of the equipment.

1.1 Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications specifications

Transmission procedure

. . . . . . . . . .

. . . . . . . . . . . . . . . .

Interface

Wiring

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications parameters . . . . . . . . . . . .

1-2

1-2

1-2

1-3

1-3

1-3

1-4

--1

1.1 Outline

J

Introduction

The program for the communications functions are created on the host computer, and the H8GN’s parameters are monitored or set from the host computer. Therefore, the description provided here is from the viewpoint of the host computer.

CompoWay/F is OMRON’s standard communications format for general serial communications. This format uses a standard frame format as well as the

FINS* commands which have proven successful in OMRON’s PLCs. Therefore, it can simplify communications between components and the host computer.

* FINS (Factory Interface Network Service)

The FINS protocol provides message communications between controllers in OMRON FA networks.

The H8GN have the following communications functions:

• Reading/writing of parameters

• Operation instructions

• Selection of setup levels

Communications are subject to the following condition:

• Parameters can be written only when the “communications writing” parameter is set to ON (enabled).

J

Communications specifications

Transmission line connection Multiple point

Communications method RS-485 (2-wire, half-duplex)

Synchronization method

Baud rate

*1

Start-stop synchronization

1200, 2400, 4800,

ASCII

9600

(bit /s)

Communication code

Data bits

*1

Stop bits

*1

7

or 8 bits

1 or

2

bits

Error detection

Flow control

Interface

Retry function

Communications buffer

Vertical parity (non,

even

, or odd)

BCC (block check character)

None

RS-485

None

40 byte

*1 Baud rate, data bits, stop bits and vertical parity can each be set independently in the communications setting level. Highlighted characters in the table above indicate defaults.

--2

J

Transmission procedure

Host computer

H8GN

When the host computer transmits a command frame, the H8GN transmits a response frame that corresponds to the command frame. A single response frame is returned for each command frame. The following diagram shows the operation of the command and response frames.

Command frame Command frame

Response frame

Allow a wait time of at least 2 ms until the next command is sent after the host computer receives a response from the H8GN.

J

Interface

Communications with the host computer are carried out through a standard

RS-485 interface.

J

Wiring

• RS-485 connections can be 1 : 1 or 1 : N. A maximum of 32 Units (including the host computer) can be connected in one-to-N systems.

• The total cable length is 500 m max.

• Use a shielded, twisted-pair cable AWG28 or larger for wiring the H8GN.

Communications transceiver

Host computer

RS-485

Abbr

FG

--

+

SG

H8GN

RS-485

Pin No. Abbr

8

7

A(--)

B(+)

TX

RX

6.8V

Shielded cable

A<B: [1] mark

A>B: [0] space

Both ends of the transmission line

(including the host computer) must be specified (by setting terminator ON) as the end node. The total resistance of the terminators must be at least 54Ω.

Terminator

120Ω

(1/2W)

H8GN end node

RS-485

Pin No. Abbr

8

7

A(--)

B(+)

Shielded cable

Use a terminator of resistance

120Ω = (1/2W).

Match the communications specifications of the H8GN and the host computer. If a one-to-N system is being used, be sure that the communications specifications of all devices in the system (except individual unit numbers) are the same.

--3

J

Communications parameters

Parameter

Communications unit No.

Baud rate

Communications data length

Communications stop bit

Communications parity

The H8GNs communications specifications are set in the communications setting level. These parameters are set on the H8GNs front panel.

The following table shows the communications parameters and their setting ranges.

Displayed

Characters

Setting Range Set Value

0 to 99

1.2 / 2.4 / 4.8 / 9.6 (k bit/s)

7 / 8 (bit)

1 / 2

None / even / odd

0,

1

to 99

1.2 / 2.4 / 4.8 /

9.6

(k bit/s)

7

/ 8 (bit)

1 /

2

/ /

Highlighted characters indicate defaults.

F

Communications parameter setup

Before you carry out communications with the H8GN, set up communications unit No., Communication rate and other parameters by carrying out the following procedure.

(1) Hold down the key for at least three seconds to move from the “operation level” to the “initial setting level.”

(2) Press the key for less than one second to move from the “initial setting level” to the “communications setting level.”

(3) Select the parameters as shown below by pressing the

(4) Use the or key.

keys to change the parameter set values.

Communications unit No.

Baud rate

Communications data length

Communications stop bit

Communications parity

H8GN

--4

F

Communications parameter setup

Note that communications parameters are enabled after they have been changed by resetting the controller.

• Communications unit No. (

)

This parameter is for setting the unit No. to each of the H8GN. This unit No.

is set so that the host computer can identify the H8GN when communications are carried out with the host computer. Set a unit No. within the range

0 to 99 for each H8GN connected to the host computer on the network. Default is “1”. When two or more H8GN are used, do not set the same unit No.

Doing so will prevent normal operation.

• Baud rate (

)

This parameter is for setting the baud rate when communicating with the host computer. Set one of “1.2 (1200 bit/s)”, “2.4 (2400 bit/s)”, “4.8 (4800 bit/s)” and “9.6 (9600 bit/s)”.

• Communications data length (

)

This parameter is for setting the communications data length. Set either of

“7 bits” or “8 bits”.

• Communications stop bit (

)

This parameter is for setting the communications stop bit. Set either of “1” or “2”.

• Communications parity (

)

This parameter is for setting the communications parity. Set one of “none”,

“even” or “odd”.

--5

CHAPTER 2

CompoWay/F

COMMUNICATIONS

PROCEDURES

Read this chapter if you are to communicate using the CompoWay/F format.

2.1 Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . .

Command frame

Response frame

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Communications data . . . . . . . . . . . . . . . . . .

Example of end code . . . . . . . . . . . . . . . . . . . .

2.2 Structure of Command Text . . . . . . . . . . . . .

PDU structure . . . . . . . . . . . . . . . . . . . . . . . . .

Area definitions . . . . . . . . . . . . . . . . . . . . . . . .

Type code (variable type) . . . . . . . . . . . . . . .

Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Number of elements . . . . . . . . . . . . . . . . . . . .

List of services . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Details of Services . . . . . . . . . . . . . . . . . . . . . .

Read from variable area . . . . . . . . . . . . . . . .

Write to variable area . . . . . . . . . . . . . . . . . . .

Read controller attributes . . . . . . . . . . . . . . .

Read controller status . . . . . . . . . . . . . . . . . .

Echoback test . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation instructions . . . . . . . . . . . . . . . . . .

2.4 Response Code List . . . . . . . . . . . . . . . . . . . .

2-5

2-5

2-6

2-7

2-7

2-8

2-10

2-11

2-12

2-13

2-15

2-5

2-5

2-5

2-5

2-2

2-2

2-3

2-4

2-4

--1

2.1 Data Format

J

Command frame

Node No.

STX

1 2

Unless otherwise indicated, numbers in this manual are expressed in hexadecimal. Values in double quotation marks, such as “00”, are ASCII.

The number underneath each delimiter in a frame indicates the number of bytes.

Sub-address

0 0

2

Text

SID

0

Command text

1

BCC calculation range

ETX

1

BCC

1

STX

Node number

Sub-address

SID (service ID)

Command text

ETX

BCC

This code (02) indicates the beginning of the communications frame (text).

Always set this character in the first byte.

When STX is received again during reception, reception is carried out again from the point where STX was received.

• This number specifies the transmission’s destination.

• Specify the H8GN’s “Communications unit No.”.

• BCD range “00” to “99” and “XX” can be set.

• Specify “XX” for a broadcast transmission. No response will be returned for broadcast transmissions.

• No responses will be returned from node Nos. set otherwise from the above.

This is not used on the H8GN. Be sure to set the sub-address to “00”.

This is not used on the H8GN. Be sure to set the sub-address to “00”.

Command text area. For details, see “2.2 Structure of Command Text.”

This code (03) indicates the end of the text.

Block Check Character

The BCC result is found by calculating the exclusive OR of the bytes from the node No.

up to ETX.

--2

F

BCC calculation example

The BCC is formed by converting the 8-bit value obtained by converting the exclusive OR of the node No. up to ETX into two ASCII characters, and setting this to the BCC area.

STX Node No.

Sub-address SID Command text

02H 0(30H) 0(30H) 0(30H) 0(30H) 0(30H) 0(30H) 5(35H) 0(30H) 3(33H)

ETX BCC

03H 35H

BCC=30H¨30H¨30H¨30H¨30H¨30H¨35H¨30H¨33H¨03H=35H

Calculation result 35H is set to the BCC area.

The ¨ symbol indicates exclusive OR operation and the H indicates hexadecimal code.

J

Response frame

Node No.

STX

1 2

End code

00

0F

10

11

12

13

14

16

18

Normal completion

FINS command error

Framing error

Overrun error

BCC error

Name

Parity error

Format error

Sub-address error

Frame length error

Sub-address End code Command text BCC

2 2

ETX

1 1

Description

The command ended normally without error.

The specified FINS command could not be executed.

The FINS response code should indicate why the command could not be executed.

The sum total of bits whose received data is “1” does not match the set value of “communications parity.”

Stop bit is “0”.

An attempt was made to transfer new data when the reception data was already full.

The calculated BCC value is different from the received BCC value.

• The command text contains characters other than 0 to 9, and

A to F. This error is not applicable to the echoback test. (For details, see chapters 2.3 “Echoback test.”)

• No SID and command text. Or, no command text

• “MRC/SRC” not included in command text

• Illegal (unsupported) sub-address

• No sub-address, SID and command text

• Sub-address less than two characters, and no SID and command text

The received frame exceeds the fixed (supported) number of bytes.

Error

Detection

Priority

None

8

2

1

3

5

7

6

4

• The end code is returned to received command frames addresses to the self node.

• No response will be returned if all the items in the response frame are incomplete up to the ETX and BCC.

• “Error Detection Priority” indicates the priority when two or more errors occur simultaneously.

--3

J

Communications data

Set (monitor) Value

8 digits (Hex)

Minus Value Decimal point

2’s complement Decimal point is removed and the result is converted to hexadecimal.

Example) 105.0 ! 1050 ! 000041A

J

Example of end code

The following examples show an end code when a command did not end normally.

Example 1) Illegal sub-address, and no SID and command text

Command Format

Node No.

Sub-address BCC

STX 0 A ETX

Response Format

Node No.

STX

Sub-address

0 A

End code

1 6 ETX

BCC

End code is “16” (sub-address error).

This is because a sub-address was received and the sub-address error has a higher error detection priority than the format error.

Example 2) No command text

Command Format

Node No.

Sub-address

STX 0 0

SID

0 ETX

BCC

Response Format

Node No.

STX

Sub-address

0 0

End code is “14” (format error).

Example 3) All node Nos. not provided

Command Format

BCC

STX ETX

End code

1 4

The node No. is lacking one character.

Response Format

No response

Example 4) No sub-address, and illegal BCC

Command Format

Node No.

STX ETX

BCC

Err

ETX

BCC

Response Format

STX

Node No.

Sub-address

0 0

End code

1 3 ETX

Sub-address is “00” and end code is “13” (BCC error).

BCC

--4

2.2 Structure of Command Text

J

PDU structure

An MRC (Main Request Code) and SRC (Sub-Request Code) followed by the various required data is transferred to the command text.

Service request PDU

MRC SRC Data

MRES (Main Response Code) and SRES (Sub-Response Code) are transferred following the above MRC/SRC. Data is then transferred following these MRES and SRES.

Service response PDU (during normal operation)

MRC SRC MRES SRES Data

If the specified command text could not be executed, only the MRC/SRC and MRES/SRES become the target response PDUs.

Service response PDU (at non-execution of specified command text)

MRC SRC MRES SRES

MRES/SRES becomes the response code except when processing ends in “normal completion.”

J

Area definitions

J

Type code

(variable type)

J

J

Addresses

Number of elements

Areas comprise only variable area.

The following defines variable area type codes.

Variable type

C0

C1

C2

C3

Description

R/O (read only) parameter.

Protect level parameter.

Operation and adjustment level parameter.

Initial setting, communications setting and advanced function setting level parameter.

Each of the variable types is appended with an address. Express addresses in

2-byte hexadecimal code.

The number of elements is expressed in 2-byte hexadecimal code. Specify the number of elements within the range “0 to 2”.

For example, when the number of elements is “0002”, specify data for two items from the address.

--5

J

List of services

MRC SRC

01

01

05

06

08

30

01

Name of service

Read from variable area

Process

02 Write to variable area This service writes to variable areas.

03 Read controller attributes

01 Read controller status

01 Echoback test

05 Operation instructions

This service reads from variable areas.

This service reads the model No. and communications buffer size.

This service reads the run status of the controller.

This service carries out the echoback test.

This service carries out reset, communications writing, multi-SP, move to protect level, move to setup area 1 and software reset.

* In a memory error (RAM error) or initial state (until the control starts normaly after the power is turned ON), all commands will not be accepted, and no response will be returned.

The following table summarizes setup areas 0 and 1.

Area Description

Setup area 0 This area groups together the protect, operation and adjustment levels.

Setup area 1 This area groups together the initial setting, communications setting and advanced function setting levels.

--6

2.3 Details of Services

J

Read from variable area

This service reads from variable areas.

Service request PDU

MRC SRC

Variable type

Read start address

Bit position

0 1 0 1

2 2 2

Service response PDU

4

0 0

2

MRC SRC Response code

Number of elements

4

Read data

(for number of elements)

0 1 0 1

2 2 4 0 or 8 or 16

(1) Variable type and read start address

For details on variable types and read start addresses, see “Chapter 3

Communications Data.”

(2) Bit position

Bit accessing is not supported on the H8GN. Fixed to “00”.

(3) Number of elements

Number of elements

Process

0000 Read is not carried out (the service response PDU is not appended with read data), and processing ends in “normal completion.”

0001 to 0002 Read is carried out, and processing ends in “normal completion.”

(4) Response code

At normal completion

Response code

0000

Name

Normal completion

At occurrence of error

Response code

1001

1002

1101

1103

110B

Error name

Command too long

Command too short

Area type error

Start address out-ofrange error

Response too long

1100

2203

Parameter error

Operation error

Description

No errors were found.

Cause

The command is too long.

The command is too short.

The variable type is wrong.

The read start address is out of range.

The number of elements is larger than “0002”.

The bit position is other than

“00”.

CPU or EEPROM error

J

Write to variable area

This service writes to variable areas.

--7

--8

Service request PDU

MRC SRC

Variable type

0 1 0 2

2 2 2

Read start address

4

Service response PDU

MRC SRC Response code

0 1 0 2

2 2 4

Bit position

0 0

2

Number of elements

4

Write data

(for number of elements)

0 or 8 or 16

(1) Variable type and write start address

For details on variable types and write start addresses, see “Chapter

3 Communications Data.”

(2) Bit position

Bit accessing is not supported on the H8GN. Fixed to “00”.

(3) Number of elements

Number of elements

Process

0000 Write is not carried out (the service response PDU is not appended with write data), and processing ends in “normal completion.”

0001 to 0002 Write is carried out, and processing ends in “normal completion.”

(4) Response code

At normal completion

Response code

0000

Name

Normal completion

Description

No errors were found.

At occurrence of error

Response code

1002

1101

1103

1104

Error name

Command too short

Area type error

Start address out-ofrange error

End address out-ofrange error

1003

1100

3003

2203

Cause

The command is too short.

Wrong variable type

Write start address is out of range.

Number of elements/ data mismatch

Parameter error

Read-only data

Operation error

The write end address (write start address + number of elements) exceeds the final address of the variable area.

The number of data does not match the number of elements.

• Bit position is other than “00”.

• Write data is out of setting range.

Variable type “C0” was written to.

• The “communications writing” parameter is set to “OFF” (disabled).

• Writing was carried out on the parameters from setup areas 0 to 1.

• Writing was carried out on a protected parameter other than in the protect level.

• CPU or EEPROM error

--9

J

Read controller attributes

This service reads the model No. and communications buffer size.

Service request PDU

MRC SRC

0 5 0 3

2 2

Service response PDU

MRC SRC Response code

0 5 0 3

2 2 4

Model No.

Communications buffer size

0 0 2 8

4 10

(1) Model No.

The model No. is expressed in 10-byte ASCII code. Empty bytes are space codes.

Example:

The model number for the H8GN is expressed as follows:

H 8 G N -- A D

(2) Communications buffer size

The communications buffer size is expressed in 2-byte hexadecimal code, and read after being converted to 4-byte ASCII code.

Buffer size: 40 bytes (= H’0028)

(3) Response code

At normal completion

Response code

0000

Name

Normal completion

Description

No errors were found.

At occurrence of error

Response code

1001

2203

Name

Command too long

Operation error

Description

The command is too long.

CPU or EEPROM error

--10

J

Read controller status

This service reads the run status of the controller.

Service request PDU

MRC SRC

0 6 0 1

2 2

Service response PDU

MRC SRC Response code

0 6 0 1

2 2 4

(1) Run status

Run status

00

01

Run status

Related information

2 2

Description

Status in which the count (timer) input can be accepted (error not generated when setup area is 0)

Status in which the count (timer) input cannot be accepted (other than above)

(2) Related information

7 6 5 4

0 0 0 0

3

0

2

0

1

0

0 Bit position

PV underflow

(3) Response code

At normal completion

Response code

0000

Name

Normal completion

At occurrence of error

Response code

1001

2203

Name

Command too long

Operation error

Description

No errors were found.

Description

The command is too long.

CPU or EEPROM error

--11

J

Echoback test

This service carries out the echoback test.

Service request PDU

MRC SRC Test data

0 8 0 1

2 2 0 to 23

Service response PDU

MRC SRC Response code

0 8 0 1

2 2

Test data

0 to 23

(1) Test data

Set any test data within the range “0” to “23”.

Set a value for the test data within the ranges shown below according to the communications data length.

Communications data length

8 bits

7 bits

Test data

20 to 7E, A1 to FE converted to ASCII code

20 to 7E converted to ASCII code

(2) Response code

At normal completion

Response code

0000

Name

Normal completion

At occurrence of error

Response code

1001

2203

Name

Command too long

Operation error

Description

No errors were found.

Description

The command is too long.

CPU or EEPROM error

--12

J

Operation instructions

This service carries out reset, communications writing, multi-SP, move to protect level, move to setup area 1 and software reset.

Service request PDU

MRC SRC

Instruction code

3 0 0 5

2 2 2

Related information

2

Service response PDU

MRC SRC Response code

3 0 0 5

2 2 4

(1) Instruction code and related information

Instruction code

00

Description Related information

01

Communications writing

Reset

00: OFF (disabled)

01: ON (enabled)

00: Reset PV

01: Reset totalizing count value

02: Reset PV/totalizing count value

02

06

07

SV-bank

Software reset *

Move to setup area 1

00: Set value 0

01: Set value 1

02: Set value 2

03: Set value 3

00

00

08 Move to protect level 00

* No response will be returned when a software reset is carried out.

(2) Response code

At normal completion

Response code

0000

Name

Normal completion

Description

No errors were found.

At occurrence of error

Response code

1001

1002

1100

2203

Error name

Command too long

Command too short

Parameter error

Operation error

Cause

The command is too long.

The command is too short.

Instruction code and related information are wrong.

• The “communications writing” parameter is set to “OFF” (disabled). However, note that the error is accepted regardless of the “communications writing” parameter setting (ON/OFF).

• The command cannot be processed.

For details, see “(3) Description of operating instructions and precautions” below.

• CPU or EEPROM error

(3) Description of operation instructions and precautions

--13

--14

F

Communications writing

Set the “communications writing” parameter to “ON: enabled” or “OFF: disabled” according to related information. This instruction can be accepted at both setup areas 0 and 1.

F

Reset

The PV and/or total count value is reset according to the related value.

[Reset PV]

Resets the “PV.” This can be accepted only in setup area 0. The “operation error” occurs in the following instance:

• When the reset is issued in “setup area 1”

[Reset totalizing count value]

Resets the “totalizing count value.” This can be accepted only in setup area

0. The “operation error” occurs in the following instances:

• When the reset is issued in “setup area 1”

• When “select function” is set to “timer”

• When “use total counter” is set to “OFF”

[Reset PV/totalizing count value]

Resets the “PV” and the “totalizing count value.” This can be accepted only in setup area 0. The “operation error” occurs in the following instances:

• When the reset is issued in “setup area 1”

• When “select function” is set to “timer”

• When “use total counter” is set to “OFF”

F

SV-bank

Set four set value beforehand in the adjustment level so that you switch to a desired set value. SV-bank can be accepted at both setup areas 0 and 1.

The “operation error” occurs in the following instance:

• When “use SV-bank ” is set to “OFF”

F

Software reset

This instruction resumes processing after the power is turned OFF. This instruction can be accepted at both setup areas 0 and 1. No response will be returned for this operation instruction.

F

Move to setup area 1

This instruction moves to “setup area 1” and can be accepted at both setup areas 0 and 1. However, note that when “initial setup/communications protection” is set to “2”, an “operation error” is generated, and move to setup area 1 is forbidden.

When this move is carried out from setup area 0, the display indicates the

“select function” in the “initial setting level.” When this operation instruction is issued in setup area 1, the display will not change.

F

Move to protect level

This instruction moves to the “protect level” and can be accepted only in setup area 0. When this instruction command is issued in setup area 1, an

“operation error” is generated, and move to setup area 1 is forbidden.

2.4 Response Code List

At normal completion

Response code

0000

Name Description

Error detection priority

None Normal completion

No errors were found.

At occurrence of error

Response code

0401

1001

1002

1101

1103

1104

1003

110B

1100

3003

2203

Name Description

Unsupported command

Command too long

Command too short

The command is too short.

Area type error The variable type is wrong.

Start address out-of-range error

End address out-of-range error

The service function for the relevant command is not supported.

The command is too long.

The read/write start address is out of range.

The write end address (write start address

+ number of elements) exceeds the final address of the variable area.

Number of elements/data mismatch

The number of data does not match the number of elements.

Response too long

The response exceeds the communications buffer size (when larger than number of elements 0002).

Parameter error • The bit position is other than “00”.

• The write data is out of the setting range.

• The instruction code and related information in the operating instruction is wrong.

Read-only error Variable type “C0” was written to.

Operation error

• The “communications writing” parameter is set to “OFF” (disabled).

• Writing was carried out on the parameters from setup areas 0 to 1.

• Writing was carried out on a protected parameter other than in the protect level.

• Processing is not possible by operating instruction.

• CPU or EEPROM error

Error detection priority

1

2

3

4

5

6

7

8

9

10

11

--15

CHAPTER 3

COMMUNICATIONS

DATA

This chapter lists the details of each of the communications data in the

CompoWay/F communications procedures.

3.1 Variable Area (setup range) List

3.2 Status

. . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Sample Program . . . . . . . . . . . . . . . . . . . . . . .

N88Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protocol macro . . . . . . . . . . . . . . . . . . . . . . . .

3-2

3-8

3-9

3-9

3-11

--1

3.1 Variable Area (setup range) List

The following table lists the variable areas. Items expressed in hexadecimal in the “Set (monitor) Value” column are the setting range. Values in parentheses “()” are the actual setting range.

For details of variable areas that are described not in numerical values but by text, refer to the relevant parameter descriptions.

Variable type

C0

C0

Address

0000

0001

C0

C0

C1

C1

C1

C1

0002

0003

0000

0001

0002

0003

Item Set (monitor) Value

Version * Note 1

PV

H’00000100

H’FFFFFC19 to H’0000270F (--999 to 9999)

* Counter

* At PV underflow, lower limit value=H’FFFFFC19 (--999)

H’00000000 to H’0000270F (0 to 9999)

* Time range at timer=other than - -m- -s, - -h- -m

H’00000000 to H’000026E7 (0:00 to 99:59)

* Time range at timer=- -m- -s, - -h- -m

See “3.2. Status.” Status * Note 1

Totalizing count value H’00000000 to H’05F5E0FF (0 to 99999999)

Operation/adjustment protection

H’00000000 (0): No restrictions in operation and adjustment levels

H’00000001 (1): Move to adjustment level restricted

H’00000002 (2): Display and change of only PV/SV parameters enabled

H’00000003 (3): Display of only PV/SV parameters enabled

Initial setting/communications protection

Setting change protection

Reset key protection

H’00000000 (0): Move to initial setting/communications setting level enabled (move to advanced function setting level displayed)

H’00000001 (1): Move to initial setting/communications setting level enabled (move to advanced function setting level not displayed)

H’00000002 (2): Move to initial setting/communications setting level restricted

H’00000000 (0): OFF (changing of setup on controller display enabled)

H’00000001 (1): ON (changing of setup on controller display disabled)

H’00000000 (0): OFF (reset key enabled)

H’00000001 (1): ON (reset key disabled)

Level

Operation

Operation

Protect

--2

Variable type

C2

C2

C2

C2

C2

C2

Address

0000

0001

0002

0003

0004

0005

Set value

Set value 1

Set value 2

Set value 3

Cycle time

Item

Set value 0

Set (monitor) Value

H’00000000 to H’0000270F (0 to 9999)

* Input mode at counter=incremental or decremental

H’FFFFFC19 to H’0000270F (--999 to 9999)

* Input mode at counter=individual or phase different input

H’00000000 to H’0000270F (0 to 9999)

* Time range at timer=other than - -m- -s,

- -h- -m and output mode=A,B,D,E,F

H’00000000 to H’000026E7 (0:00 to 99:59)

* Time range at timer=- -m- -s, - -h- -m and output mode=A,B,D,E,F * Note 2

H’00000000 to H’00000064 (0 to 100)

* Output mode at timer=Z

H’00000000 to H’0000270F (0 to 9999)

* Input mode at counter=incremental or decremental

H’FFFFFC19 to H’0000270F (--999 to 9999)

* Input mode at counter=individual or phase different input

H’00000000 to H’0000270F (0 to 9999)

* Time range at timer=other than - -m- -s,

- -h- -m and output mode=A,B,D,E,F

H’00000000 to H’000026E7 (0:00 to 99:59)

* Time range at timer=- -m- -s, - -h- -m and output mode=A,B,D,E,F * Note 2

H’00000000 to H’00000064 (0 to 100)

* Output mode at timer=Z

Same as set value 0

Same as set value 0

Same as set value 0

H’00000000 to H’0000270F (0 to 9999)

* Time range at timer=other than - -m- -s,

- -h- -m

H’00000000 to H’000026E7 (0:00 to 99:59)

* Time range at timer=- -m- -s, - -h- -m * Note 2

Level

Operation

Adjustment

Operation

* Note 1: This item is not displayed on the controller display.

* Note 2: Even if the set value is within the setting range, the out-of-range error occurs when the 2nd digit (sextal number) is six or above such as 5:60 (H*00000230).

--3

Variable type

C3

Address

0000

C3

C3

C3

C3

C3

C3

C3

C3

0001

0002

0003

0004

0005

0006

0007

0008

Item Set (monitor) Value

Select function

Input mode

Time range

Timer mode

H’00000000(0): Counter

H’00000001(1): Timer

H’00000000(0): Incremental

H’00000001(1): Decremental

H’00000002(2): Individual

H’00000003(3): Phase difference

H’00000000(0): 0.000s to 9.999s

H’00000001(1): 0.00s to 99.99s

H’00000002(2): 0.0s to 999.9s

H’00000003(3): 0s to 9999s

H’00000004(4): 0m0s to 99m59s

H’00000005(5): 0.0m to 999.9m

H’00000006(6): 0h0m to 99h59m

H’00000007(7): 0.0h to 999.9h

H’00000008(8): 0h to 9999h

H’00000000(0): Elapsed time

H’00000001(1): Remainning time

Output mode (counter) H’00000000(0): N

H’00000001(1): F

H’00000002(2): C

H’00000003(3): K

Output mode (timer) H’00000000(0): A

H’00000001(1): B

H’00000002(2): D

H’00000003(3): E

H’00000004(4): F

H’00000005(5): Z

Output time H’00000001 to H’0000270F (0.01 to 99.99) * counter

Counting speed

Input signal width

H’00000000 to H’0000270F (0.00 to 99.99) * timer

H’00000000(0): 30Hz

H’00000001(1): 5kHz

H’00000000(0): 20ms

H’00000001(1): 1ms

Level

Initial setting

--4

Variable type

C3

Address Item Set (monitor) Value Level

C3

C3

C3

C3

C3

C3

C3

0009

000A

000B

Decimal point

Pre-scale value

Input signal edge

H’00000000(0): - - - -

H’00000001(1): - - -.-

H’00000002(2): - -.- -

H’00000003(3): -.- - -

H’00000001 to H’0000270F (0.001 to 9.999)

H’00000000(0): Rise edge

H’00000001(1): Fall edge

H’00000000 to H’00000063 (0 to 99) 000C Communications unit

No. *1

Baud rate *1 000D

000E

000F

0010

Communications data length *1

Communications stop bit *1

H’00000000(0): 1.2

H’00000001(1): 2.4

H’00000002(2): 4.8

H’00000003(3): 9.6

H’00000007(7): 7

H’00000008(8): 8

H’00000001(1): 1

H’00000002(2): 2

Communications parity H’00000000(0): None

H’00000001(1): Even

H’00000002(2): Odd

Initial setting

Communications setting

C3

C3

C3

0011

0012

0013

Use SV-bank H’00000000(0): OFF

H’00000001(1): ON

Use totalizing counter H’00000000(0): OFF

H’00000001(1): ON

Display auto-return time

H’00000000(0): OFF

H’00000001 to H’00000063 (1 to 99)

Advanced function setting

C3 0014 Move-to-protect-level time

H’00000003 to H’0000001E (3 to 30)

* 1: Communications parameters are enabled after they have been changed by turning the power OFF then back ON again.

--5

3.2 Status

The figure below shows the structure of the status data:

15 14 13 12

0 0 0

11

0

10 9 8

0 0 0

7

0

6 5 4 3

0

2 1

0 0

0 Bit position

PV underflow

Spare

Spare

Spare

CP1 (signal) input

CP2 (gate) input

Reset input

Spare

Spare

Spare

Spare

Spare

Output

Spare

Spare

Spare

--6

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

0 0 0 0 0 0 0 0 0 0 0 0 0 0

Bit position

Setup area

Communications writing

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

--7

--8

The following shows the status contents.

Bit Description

0

Not generated

1

Generated

24

25

26

27

19

20

21

22

23

28

29

30

31

12

13

14

15

16

17

18

9

10

7

8

11

5

6

3

4

0

1

2

PV underflow *1

Spare

Spare

Spare

CP1 (signal) input *1

CP2 (gate) input *1

Reset input *1

Spare

Spare

Spare

Spare

Spare

Output *1

Spare

Spare

Spare

Setup area

Communications writing

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

Spare

OFF

OFF

OFF

OFF

Setup area 0

OFF (disabled)

* “Spare” bits are OFF at all times.

*1: The status is as follows when reading is carried out in setup area 1:

⋅ PV underflow: Previous value is held until reset is generated.

⋅ CP1 (signal) input, CP2 (gate) input, reset input: OFF (0)

⋅ Output: OFF (0)

ON

ON

ON

ON

Setup area 1

ON (enabled)

3.3 Sample Program

J

N88Basic

The following sample program displays responses returned from the H8GN on screen when command data is entered from the keyboard.

Enter starting with the unit up to the number of elements as the command data.

This sample program was created using N88BASIC

1000 ’-------------------------------------------------------

1010 ’PROGRAM: H8GN Communication Sample Program (Compo Way/F)

1020 ’VERSION: 1.00

1030 ’(c) Copyright OMRON Corporation 2000

1040 ’All Right Reserved

1050 ’-------------------------------------------------------

1060 ’

1070 ’= Communications port setting (PARITY=EVEN, DATA=7, STOP=2)=”

1080 ’

1090 OPEN ”COM: E73” AS #1

1100 ’

1110 *REPEAT

1120 ’

1130 ’=====Transmission processing==========

1140 ’

1150 ’---------- Entry of send data ----------

1160 INPUT ”SEND DATA:”, SEND$

1170 ’

1180 ’---------- To exit processing if there is no entry ----------

1190 IF SEND$=”” THEN * EXIT

1200 ’

1210 ’---------- Calculation of BCC ----------

1220 BCC=0

1230 SEND$=SEND$+CHR$ (3)

1240 FOR I=1 TO LEN (SEND$)

1250 BCC=BCC XOR ASC (MID$ (SEND$, I, 1))

1260 NEXT I

1270 BCC$=CHR$ (BCC)

1280 ’

1290 ’---------- Transmission ----------

1300 SDATA$=CHR$ (2)+SEND$+BCC$

1310 PRINT #1, SDATA$;

1320 ’

1330 ’=====Reception processing==========

1340 ’

1350 *LOOP0

1360 RDATA$=””

1370 TIMEOUT=0

1380 *LOOP

1390 ’---------- Detection of time--out ----------

1400 TIMEOUT=TIMEOUT+1

1410 IF TIMEOUT>2000 THEN RESP$=”No Response”: GOTO * REND

1420 IF LOC (1)=0 THEN * LOOP

1430 ’

--9

--10

1440 ’----- Identification of end character

(reading is continued if character is not end character)

1450 RDATA$=RDATA$+INPUT$ (LOC (1), #1)

1460 IF LEN (RDATA$)<2 THEN * LOOP

1470 IF MID$ (RDATA$, LEN (RDATA$) --1, 1)<>CHR$ (3) THEN * LOOP

1480 RESP$=MID$ (RDATA$, 2, LEN (RDATA$) --2)

1490 IF RDATA$=SDATA$ THEN * LOOP0

1500 * REND

1510 ’

1520 ’---------- Display receive data ----------

1530 PRINT ”RESPONSE:”; RESP$

1540 GOTO * REPEAT

1550 ’

1560 * EXIT

1570 ’=====End processing==========

1580 CLOSE #1

1590 END

F

Sample operation

Read the PV of unit No.00. (In this example, PV=335.)

RUN

SEND DATA: 000000101C00001000001

RESPONSE: 000000010100000000014F

SEND DATA : [STX] 00 00 0 0101 C0 0001 00 0001 [ETX] [BBC]

Number of elements

Bit position

Read start address

Variable type

MRC/SRC

SID

Sub--address

Node No.

RESPONSE : [STX] 00 00 00 0101 0000 000014F [ETX] [BBC]

Read data

Response code

MRC/SRC

Final code

Sub--address

Node No.

J

Protocol macro

F

What is a “protocol macro?”

The protocol macro function uses the PMCR command in a ladder program to execute a data send/receive sequence (protocol) with various communications devices such as general-purpose components connected to the RS-232C or RS-422A/RS -485 interface to control the device.

Standard system protocol is pre-installed on Serial Communications Board/

Unit for enabling control of OMRON components (e.g. controllers and temperature control units).

For details on protocol macros, refer to the “CS1W-SCB21/41/-SCU21 User’s

Manual” (Cat. No. W336).

Connection

Use port 2 on the Serial Communications Board (CS1W-SCB41) for direct connection to the RS-485.

CPU unit

CS1H

Serial Communications Board

CS1W-SCB41

Port 2

RS-485

Set the TERM switch on the Serial Communications Board to ON and the

WIRE switch to “2”. Attach a terminator to H8GN.

Sample ladder program

Read the PV of H8GN using sequence No. 600 “send/receive with ASCII conversion (response ON)” of the standard system protocol “CompoWay /F Host” built into the Serial Communications Board.

Input condition

000000

“Network communication command executable” flag

A20200

“Protocol macro in progress” flag

191915

“Network communication error” flag

A21900

PMCR

#02E1

#0258

D01000

D01500

FAL(06) 01

Communication port 0

Serial port 2

Destination address E1

(serial communication board)

Sequence No. 0258H (=600)

First word address for transmission data

First word address for reception data

The PV is stored to D01502 and D01503 if the read PV command is set to

D01000 onwards.

If a communications error occurs, execute the FAL command (continue operation and analyze trouble command).

--11

--12

STX

Node

No.

02H ”01”

F

Data transmission word assignment

Subaddress SID MRC

”00” ”0” ”01”

SRC

”01”

Variable type

”C0”

Address

”0001”

Bit position Number of elements EXT BCC

”00” ”0001” 03H

D01000

D01001

D01002

D01003

D01004

D01005

D01006

0007

0001

0101

000C

C000

0100

0001

F

Data reception word assignment

STX

Node

No.

02H ”01”

Subaddress

”00”

End code MRC

”01”

SRC

”01”

Response code

No. of transmission words (D01000 to D01006)

Node No. of H8GN: 1

CompoWay/F command: Variable area read

No. of bytes transmitted: 12

Variable type, read start address, bit position,

Number of elements

Data

Process value

EXT BCC

03H

D01500

D01501

D01502

D01503

0004

Number of reception words (D01500 to D01503)

Response code

Current process value

APPENDIX

ASCII List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A-2

APPENDIX

A--1

ASCII LIST (ANSI X 3.4-1986)

b

8 b

7 b

6

#

Even parity b

5

1

1

1

1

1

1

1

1

0

0

0

0

0

0 b

4

0

0

1

1

0

0

1

1

0

0

1

1

0

0

1

1 b

2

0

0

0

0

1

1

1

1

0

0

1

1

1

1

0

0 b

3

0

0

0

1

0

1

0

1

0

1

0

1

0

1

0

1 b

1

0

1 b

8 b

7 b

6 b

5

0

0

0

0

0

1

0

1

0

A

B

C

D

E

F

8

9

6

7

4

5

2

3

R

0

C

1

ACK

BEL

BS

HT

LF

VT

FF

CR

SO

SI

0

NUL

SOH

STX

ETX

EOT

ENQ

2

SPAC

!

$

%

#

&

*

+

,

(

)

.

-

/

SYN

ETB

CAN

EN

SUB

ESC

FS

GS

RS

US

1

DEL

DC1

DC2

DC3

DC4

NAK

;

:

<

=

>

?

8

9

6

7

4

5

2

3

3

0

1

0

1

1

1

0

0

1

0

1

1

1

0

Z

[

\

]

^

_

X

Y

V

W

T

U

R

S

5

P

Q

J

K

L

M

N

O

H

I

F

G

D

E

B

C

4

@

A

6

|

} z

{ x y v w t u r s

7 p q

~

DEL j k h i l m n o f g d e a b c

1

1

1

A--2

I

A

B

BCC . . . . . . . . . . . . . . . . . . . . . . .

1-2, 2-2, 2-3, 2-4

C

Command frame

Command text

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

Communications data . . . . . . . . . . . . . . .

1-3, 2-2

2-2, 2-5

2-4, 3-1

Communications data length

Communications methods

. . . . . . . . .

. . . . . . . . . . .

1-4, 1-5

1-1, 1-2

Communications parameters

Communications parity

. . . . . . . . . . . . .

. . . . . . . . . . . . .

1-4

1-4, 1-5

Communications specifications

Communications stop bit

. . . . . . . . . . .

. . . . . . . . . . . .

1-2

1-4, 1-5

Communications unit No.

. . . . . . . . . . .

1-4, 1-5

CompoWay/F . . . . . . . . . . . . . . . . . . .

1-2, 2-1, 3-1

D

Data format . . . . . . . . . . . . . . . . . . . . . . . . . . .

Details of services . . . . . . . . . . . . . . . . . . . . . .

2-2

2-7

E

Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Area definitions . . . . . . . . . . . . . . . . . . . . . . . .

ASCII list . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5

2-5

A-2

Echoback test

End code

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

2-6, 2-12

2-3, 2-4

ETX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2, 2-3

F

FINS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2, 2-3

Interface . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2, 1-3

L

2-6

N

Number of elements . . . . . . . . . . . . . . . . . . . .

O

Operation instructions

P

. . . . . . . . . . . . .

2-5

2-6, 2-14

PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5, 2-10

R

List of services . . . . . . . . . . . . . . . . . . . . . . . . .

Read controller attributes . . . . . . . . . .

Read controller status

Read from variable area

. . . . . . . . . . . . .

. . . . . . . . . . . . .

2-6, 2-10

2-6, 2-11

2-6, 2-7

Response code list

Response frame

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

2-15

2-3

S

Sample program

SID

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-9

2-2, 2-4

Status

STX

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6

2-2

T

Transmission procedure . . . . . . . . . . . . . . . . .

1-3

Type code (variable type) . . . . . . . . . . . . . . . .

2-5

V

Variable area (setup range) list . . . . . . . . . . .

3-2

W

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Write to variable area . . . . . . . . . . . . . . .

1-3

2-6, 2-8

A-- 3

H8GN

Revision History

A manual revision code appears as a suffix to the catalog number on the front cover of the manual.

Cat. No. M066-E1-1

Revision code

The following table outlines the change made to the manual during each revision. Page numbers refer to previous version

Revision code Data Revised content

1 June 2000 Original production

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
