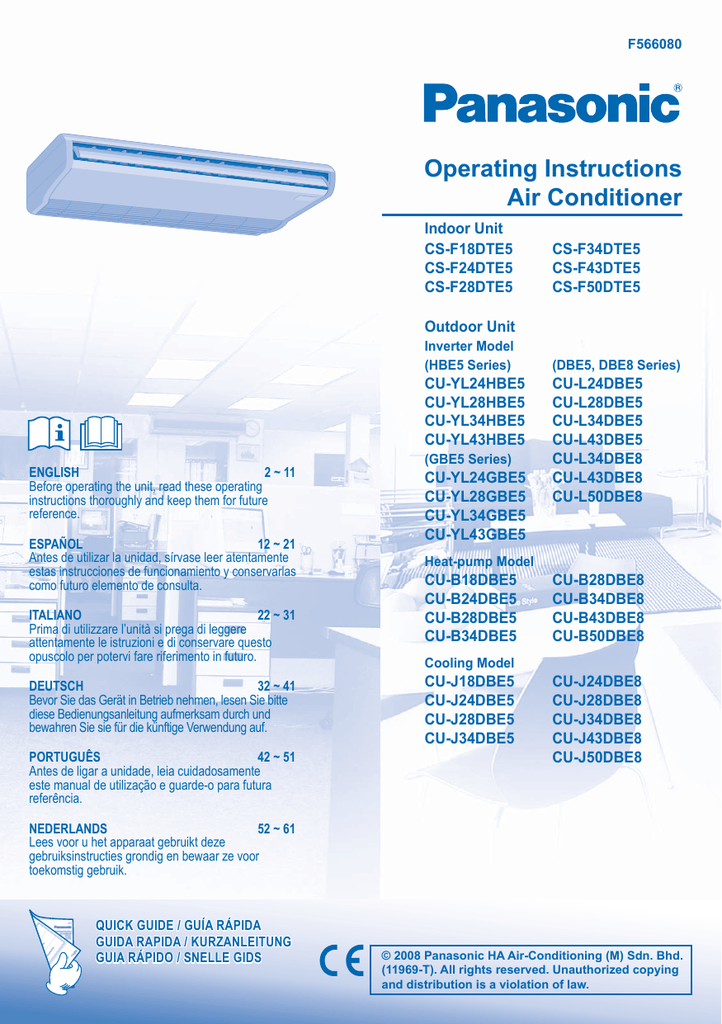

F566080

Operating Instructions

Air Conditioner

Indoor Unit

CS-F18DTE5 CS-F34DTE5

CS-F24DTE5 CS-F43DTE5

CS-F28DTE5 CS-F50DTE5

(HBE5 Series) (DBE5, DBE8 Series)

ENGLISH

Before operating the unit, read these operating

2 ~ 11

instructions thoroughly and keep them for future reference.

ESPAÑOL 12 ~ 21

Antes de utilizar la unidad, sírvase leer atentamente estas instrucciones de funcionamiento y conservarlas como futuro elemento de consulta.

ITALIANO

Prima di utilizzare l’unità si prega di leggere

22 ~ 31

attentamente le istruzioni e di conservare questo opuscolo per potervi fare riferimento in futuro.

DEUTSCH 32 ~ 41

Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese Bedienungsanleitung aufmerksam durch und bewahren Sie sie für die künftige Verwendung auf.

PORTUGUÊS 42 ~ 51

Antes de ligar a unidade, leia cuidadosamente este manual de utilização e guarde-o para futura referência.

NEDERLANDS

Lees voor u het apparaat gebruikt deze gebruiksinstructies grondig en bewaar ze voor toekomstig gebruik.

52 ~ 61

GUIDA RAPIDA / KURZANLEITUNG

GUΙA RÁPIDO / SNELLE GIDS

(GBE5 Series)

CU-L34DBE8

CU-YL34GBE5

CU-YL43GBE5

CU-J18DBE5 CU-J24DBE8

CU-J24DBE5 CU-J28DBE8

CU-J28DBE5 CU-J34DBE8

CU-J34DBE5 CU-J43DBE8

CU-J50DBE8

© 2008 Panasonic HA Air-Conditioning (M) Sdn. Bhd.

(11969-T). All rights reserved. Unauthorized copying and distribution is a violation of law.

2

DEFINITION

The instructions to be followed are classifi ed by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions that are COMPULSORY.

To prevent personal injury, injury to others, or property damage, please observe the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classifi ed as below:

Warning This sign warns of death or serious injury. Caution

This sign warns of injury or damage to property.

Wireless Remote Control

• Do not use rechargeable

(Ni-Cd) batteries.

• Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

• Remove the batteries if the unit is not going to be used for a long period of time.

• New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

Indoor Unit

• Do not install, remove and reinstall the unit by yourself; improper installation will cause leakage, electric shock or fi re. Please consult an authorized dealer or specialist for the installation work.

• Do not insert your fi ngers or other objects into the unit.

• Do not attempt to repair the unit by yourself.

Indoor Unit

• Do not install the unit in a potentially explosive atmosphere.

• Do not wash the unit with water, benzene, thinner or scouring powder.

• Do not use for other purposes such as preservation of food.

• Do not use any combustible equipment in front of the airfl ow outlet.

• Do not expose directly to cold air for a long period.

• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.

• Aerate the room regularly.

Power Supply

• Do not share the same power outlet with other equipment.

• Do not modify power cords.

• Do not use extension cords.

• Do not operate with wet hands.

• Use the specifi ed supply cord.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard.

• This equipment must be earthed and strongly recommended to be installed with Earth Leakage Circuit Breaker

(ELCB) or Residual Current Device

(RCD). Otherwise, it may cause electrical shock or fi re in case of malfunction.

• In case of emergency or abnormal conditions (burnt smell, etc), turn off the power supply, and consult your nearest dealer.

Outdoor Unit

• Do not insert your fi ngers or other objects into the unit, sharp parts may cause injury.

Power Supply

• Switch off the power supply before cleaning or servicing.

• Turn off the power supply if the unit is not used for a long period of time.

• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may want to disconnect it from the power supply. Do not touch the air conditioner during lightning, it may cause electric shock.

Outdoor Unit

• Do not sit or step on the unit, you may fall down accidentally.

• Do not touch the sharp aluminum fi n, sharp parts may cause injury.

• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.

• After long periods of use, make sure the installation rack is not damaged.

Thank you for purchasing

Air Conditioner

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Use this air conditioner under the following temperature range

Model

Inverter

(GBE5, DBE5,

DBE8 Series)

Heat-pump

Cooling

Temperature (°C)

COOLING

HEATING

COOLING

HEATING

COOLING

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Indoor

32

21

27

16

32

21

27

16

32

21

Outdoor

NOTICE: This unit is still able to operate as a cooler with outdoor temperature as low as

-15°C*/ -10°C** in a non-living room, such as a computer room, with a room temperature of 21°C or above, and room humidity up to 45%.

43

-15*

24

-20

43

-10**

24

-10

43

-10**

(CU-YL24HBE5, CU-YL28HBE5, CU-YL34HBE5, CU-YL43HBE5)

Temperature (°C)

COOLING

HEATING

Maximum

Minimum

Maximum

Minimum

Indoor

32

21

27

16

Outdoor

43

-5

24

-15

NOTICE: This unit is still able to operate as a cooler with outdoor temperature as low as -5°C in a non-living room, such as a computer room, with a room temperature of 21°C or above, and room humidity up to 45%.

SAFETY PRECAUTIONS

2

REGULATORY INFORMATION

3

PRODUCT OVERVIEW &

OPERATIONS

(WIRELESS REMOTE CONTROL)

4~5

PRODUCT OVERVIEW &

OPERATIONS

(WIRED REMOTE CONTROL)

6~8

CARE & CLEANING

9

TROUBLESHOOTING

10~11

QUICK GUIDE

BACK COVER

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and

2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

• Do not switch ON the unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit.

• Do not install the unit in oily and smoky areas.

3

4

PRODUCT OVERVIEW & OPERATIONS

(WIRELESS REMOTE CONTROL)

Horizontal airfl ow direction louver Control Panel

POWER

TIMER

FILTER

ECONOMY

AUTO

ODOUR WASH

Ray receiver

Vertical airfl ow direction louver

Remote control display

Air fi lter

AUTO

AIR SW

ING FAN SPEE

D

AUTO

ADDRESS

TIMER

ON

Intake grille

Auto OFF/ON button

• To operate the unit if the wireless remote control is misplaced or malfunctioning.

Action

Press once.

Press and hold until you hear 1 beep, then release.

1. Press and hold until you hear 2 beeps then release.

2. Press the

SET

button for 5 seconds.

Press the button to turn off.

Mode

Auto

Cooling

Heating

Transmitter

Maximum distances: 8m

Remote Control Preparation

1

Press and pull out

2 Insert AAA or R03 batteries

(can be used ~ 1 year)

3

Press CLOCK

4

Set time

5

Confi rm

6

Close the cover

3

6

ECONOMY

OFF/ON

MODE

ODOUR W

AIR SWING

ASH

AUTO

MANU

AL

FILTER RESET

FAN SPEED

SELECT

SET

CLOCK

CANCEL

TIMER

RESET

ADDRES

S

SET

2

1

Inverter / Heat-pump Model

CZ-RL513T

Cooling Model

CZ-RL013T

4

5

OFF/ON

TO TURN ON OR OFF THE

UNIT

POWER

TO SET TEMPERATURE

• Selection range: 16°C ~ 31°C.

MODE

TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects operation mode according to temperature setting, outdoor and room temperature.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up.

(Applicable for Inverter / Heat-pump Model)

FAN mode - To enables air circulation in the room

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation.

• During soft dry operation, the indoor fan operates at a low fan speed.

• The louvers movement might not align with the remote control display.

FAN SPEED

TO SELECT FAN SPEED (3 OPTIONS)

AUTO LOW MEDIUM HIGH

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

• If the operation mode is set to Fan, the fan speed will be fi xed at MEDIUM regardless of the temperature setting.

AIR SWING

AUTO MANUAL

TO ADJUST AIRFLOW

DIRECTION

• Keeps the room ventilated.

AUTO

• Auto Air Swing function optimize room comfort by giving fi ner control over the airfl ow direction.

• The vertical airfl ow louver swings up and down automatically.

• Do not adjust the vertical airfl ow direction louvers by hand.

• Horizontal airfl ow direction louver is manually adjustable.

MANUAL

• There are 4 options for manual vertical airfl ow direction.

• The airfl ow direction can be adjusted as desired by using remote control.

ECONOMY

TO REDUCE POWER

CONSUMPTION

ECONOMY

• Recommend to use when desired room temperature is reached.

• Economy operation can be activated in all modes and can be cancelled by pressing the respective button again.

ODOUR WASH

ODOUR WASH

ODOUR REMOVING

• Applicable for all models.

• Helps to remove unpleasant odour from the surrounding area during operation.

• To enable the odour removing function, press the

ODOUR WASH

once.

• To cancel, press the respective button again.

ODOUR CLEAR

• Applicable for Inverter model only.

• To remove odour and minimize the growth of odour causing moulds in the air conditioner’s interior section.

• To enable this function, press the

ODOUR WASH

for more than

3 seconds.

• The unit will automatically perform Fan and Heating modes for approximately 20 minutes and then stops automatically.

• Recommended to open the windows during this operation.

• To turn ON or OFF the unit at a preset time.

TIMER

SELECT

Select ON or

OFF timer.

Set the time.

• To cancel ON or OFF timer, press

CANCEL

.

SET

Confi rm.

• When ON timer is set, the unit may start early before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control preparation.

• The timer closest to the current time will be activated fi rst.

• If timer is cancelled manually, you can restore the previous setting by pressing

SET

.

• If the main power is switched off for an hour or more, the clock and timer will need to be set again.

ADDRESS

RESET

SET

• To avoid unintentional operation, you can assign a different address to each indoor unit.

• Press repeatedly to select your desired address setting.

Group Address 1 Address 2 Address 3

• By default, ADDRESS 1 is selected. You do not need to change this setting for normal operation.

• If the address is set to GROUP, more than one indoor unit can be operated at the same time.

Press to restore the remote control’s default setting.

Not used in normal operations.

• Set the temperature 1°C higher in cool mode or 2°C lower in heat mode than the desired temperature to achieve a 10% power saving.

• Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

5

PRODUCT OVERVIEW & OPERATIONS

(WIRED REMOTE CONTROL)

Horizontal airfl ow direction louver

Vertical airfl ow direction louver

Air fi lter

Intake grille

6

MON TUE WED THU FRI SAT SUN

ON

FAN SPEED

AUTO

AIR SWING

AUTO 1 23

AUTO

OFF / ON

CZ-RD513C

TIMER/CLOCK

MODE UP SET

FAN

SPEED MODE

TEMP/

A/C No.

UP

SELECT DOWN CANCEL

ECONOMY

AUTO MANUAL DOWN

AIR SWING

CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET

CZ-RD513C

• For normal operation, the buttons are not in use.

VENTILATION

and

TEST RUN

Remote Control Preparation

1

Press SELECT

2

Press to set day

3 Confi rm

4 Repeat steps 2 and 3 to set the current time.

3

2

1

OFF / ON

TO TURN ON OR OFF THE UNIT

UP

DOWN

TO SET TEMPERATURE

• Selection range: 16°C ~ 31°C.

MODE

TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects operation mode according to temperature setting, outdoor and room temperature.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up.

(Applicable for Inverter / Heat-pump Model)

FAN mode - To enables air circulation in the room

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation.

• During soft dry operation, the indoor fan operates at a low fan speed.

• The louvers movement might not align with the remote control display.

FAN

SPEED

TO SELECT FAN SPEED (3 OPTIONS)

AUTO LO MED HI

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

• If the operation mode is set to Fan, the fan speed will be fi xed at MED regardless of the temperature setting.

AUTO MANUAL

TO ADJUST AIRFLOW

DIRECTION

AIR SWING

• Keeps the room ventilated.

AUTO

• Auto Air Swing function optimize room comfort by giving fi ner control over the airfl ow direction.

• The vertical airfl ow louver swings up and down automatically.

• Do not adjust the vertical airfl ow direction louvers by hand.

• Horizontal airfl ow direction louver is manually adjustable.

MANUAL

• There are 4 options for manual vertical airfl ow direction.

• The airfl ow direction can be adjusted as desired by using remote control.

ECONOMY

TO REDUCE POWER CONSUMPTION

• Recommend to use when desired room temperature is reached.

• Economy operation can be activated in all modes and can be cancelled by pressing the respective button again.

ODOUR WASH

ODOUR REMOVING

• Applicable for all models.

• Helps to remove unpleasant odour from the surrounding area during operation.

• To enable the odour removing function, press the

ODOUR WASH

once.

• To cancel, press the respective button again.

ODOUR CLEAR

• Applicable for Inverter model only.

• To remove odour and minimize the growth of odour causing moulds in the air conditioner’s interior section.

• To enable this function, press the

3 seconds.

ODOUR WASH

for more than

• The unit will automatically perform Fan and Heating modes for approximately 20 minutes and then stops automatically.

• Recommended to open the windows during this operation.

• To turn ON or OFF the unit at a preset time.

1

MODE

2

SELECT

Enter daily timer mode.

Select ON or OFF timer.

3

UP

4

SET

DOWN

Set the time.

Confi rm.

• To cancel ON or OFF timer, press

CANCEL

.

• When ON timer is set, the unit may start early before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control preparation.

• The timer closest to the current time will be activated fi rst.

• If timer is cancelled manually, you can restore the previous setting by pressing

SET

.

• If the main power is switched off for an hour or more, the clock and timer will need to be set again.

• Set the temperature 1°C higher in cool mode or 2°C lower in heat mode than the desired temperature to achieve a 10% power saving.

• Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

7

8

MON TUE WED THU FRI SAT SUN

ON

FAN SPEED

AUTO

AIR SWING

AUTO 1 23

AUTO

OFF / ON

CZ-RD513C

TIMER/CLOCK

MODE UP SET

FAN

SPEED MODE

TEMP/

A/C No.

UP

CZ-RD513C

TIMER/CLOCK

MODE

SELECT

SELECT DOWN CANCEL

AUTO MANUAL

DOWN

CHECK ODOUR WASH

ECONOMY

AIR SWING

VENTILATION TEST RUN FILTER RESET

UP

OFF / O

SET

DOWN CANCEL

ECONOMY

CHECK ODOUR WASH VE

Will light up if Timer operation is selected

6 different programs can be set in a day (1 ~ 6)

TIMER

ON

OFF

1 2 3 4 5 6

MON TUE WED THU FRI SAT SUN

Indicate the selected day

Time to be selected (Interval

10 minutes)

OFF-Timer. To automatically switch “OFF” the unit.

ON-Timer. To automatically switch “ON” the unit.

Day to be selected

Change Display

MODE

1. Press weekly timer.

for 3 seconds to change the display to

Select days to run timer

2. Press

SELECT

to enter day setting.

3. Press to select your desired day.

The selected day will be highlighted with .

Press

SET

to deselect or select mark.

Repeat this step includes other day.

Select ON/OFF Timer

4. Press

SELECT

to enter Timer 1.

5. Press to choose ON or OFF.

6. Press

SET

to confi rm the selection.

Select Timer

7. Press to select your desired time.

If you want to set together with your desired

UP temperature, press

DOWN

to select the temperature.

8. Press

SET

to confi rm the setting.

• Repeat steps 5 to 8 to set Timer 2 to 6, or press

CANCEL to cancel the related timers.

• Weekly timer is only applicable for wired remote

MODE control, press for 3 seconds to select daily timer or weekly timer.

• Daily timer and weekly timer could not be set at the same time.

• Promotes energy saving by allowing you to set up to

6 timers in any given day.

• Same timer program cannot be set on the same day.

Check Timer

1. Enter timer mode.

TIMER/CLOCK

MODE UP SET

2. Select the day.

SELECT DOWN CANCEL

ECONOMY

3. The display will show the program for each of the selected day.

Modify Or Add Timer

• Perform check timer operation to select the day.

Repeat steps 4 to 8 to modify existing timer program, or add any new timer program.

Cancel Timer

• Perform the step below to cancel the timer program for a particular day.

1. Enter timer mode.

TIMER/CLOCK

MODE UP SET

2. Select the day.

SELECT DOWN CANCEL

ECONOMY

3. Press to enter day setting.

4. Press to cancel the timer set.

Disable Weekly Timer

• To disable weekly timer setting, press press

CANCEL

.

MODE

, then

Enable Weekly Timer

• To enable previous weekly timer setting, press then press

SET

.

MODE

,

CAUTION

• Switch off the power supply before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent.

• Do not use water hotter than 40°C.

Remove Air Filter

11

Push the knobs in the intake grille in the direction

of the arrow to open the intake grille.

• Clean the fi lter regularly for best performance and to reduce power consumption.

• Please consult your nearest dealer for seasonal inspection.

Air Filter Installation

Knob Intake Grille

Knob

Push

Close

1. Install the air fi lters to the intake grille by the reverse procedures of removal.

2. Close and push the knobs to secure the intake grille.

22

Remove the main air fi lters from the intake grille tabs.

Side air fi lter

Wipe the unit gently with a soft, dry cloth.

2

AIR FILTERS

Vacuum, wash and dry.

1

2

Main air fi lter

1

Tabs

33

Press the side air fi lter tab

1

and

2

in that order to release the side air fi lter.

Air Filter Maintenance

Cleaning is needed when:

FAN SPEED

AUTO

COOL DRY

FILTER

RESET

AIR SWING

AUTO 123

“FILTER RESET” appears on the remote control display.

(For wired remote control)

POWER

TIMER

FILTER

ECONOMY

AUTO

ODOUR WASH

“FILTER” lights up on the indicator display.

(For wireless remote control)

• lt is recommended to clean the air fi lter every 6 weeks.

• After the air fi lter is cleaned, press

FILTER RESET reset.

/

FILTER RESET

to

• Do not operate without an air fi lter.

• Wash/rinse the air fi lter gently with water to avoid damage to the air fi lter surface.

• Do not dry the part with a hair dryer or a stove.

• Replace any damaged air fi lter.

9

10

Mist emerges from indoor unit.

• Condensation effect due to cooling process.

Water fl owing sound during operation.

The room has a peculiar odour.

Indoor fan stops occasionally during automatic fan speed setting.

Operation is delayed a few minutes after restart.

• Refrigerant fl ow inside the unit.

• This may due to damp smell emitted by the wall, carpet, furniture or clothing.

• This helps to remove the surrounding odours.

• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam.

Timer indicator is always on.

Indoor fan stops occasionally during heating operation.

Cracking sound can be heard during operation.

Unit switch to FAN operation and air become humid.

Outdoor unit emits noise during heating operation.

Operation does not stop immediately after pressed the OFF/ON button.

Operation stops occasionally. (“DEFROST” appears on the remote control display)

Airfl ow does not start immediately after operation is started. (“PRE HEAT” appears on the remote control display)

Operation starts after power resumes.

• Condensation or evaporation occurs on pipes.

• The timer setting repeats daily once set.

• To avoid unintended cooling effect.

• Changes of temperature cause the expansion/contraction of the unit.

• This happens when the room temperature reaches the set temperature, operation switches to FAN mode and the humidity increase.

• This is due to changes infl ow of refrigerant gas when operation stops and starts.

• Discharging heat is in process. Operation will stops automatically after approximately 60 seconds.

• The unit is in defrosting mode, and the melted frost is drained from the outdoor unit.

• The unit is warming up to provide warm air.

During dry mode, cold air blow out.

Fan speed change occasionally during heating mode.

Outdoor unit emits steam during heating mode.

Air Swing operation 1, 2, 3 are no variance in angle.

• Auto restart is in function and operates under previous setting.

• The unit is running cooling operation with low fan speed to dehumidify the room.

• The room temperature has reached the remote control setting. When the room temperature drops again, the fan speed will resume to the remote control settings.

• This is due to defrost operation happens at the heat exchanger.

• Only one blowing angle is available for Ceiling model.

Heating/Cooling operation is not working effi ciently.

Heating mode cannot be operated.

Noisy during operation.

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

• Clear any obstruction at the air inlet and air outlet vents.

• The unit is forced to operate at cooling mode only in a non-living room, such as a computer room.

• Check if the unit has been installed at an incline or the intake grille is not closed properly.

• Insert the batteries correctly.

• Replace weak batteries.

Remote control does not work.

(Wireless remote control display is dim or transmission signal is weak.)

The unit does not work.

The unit does not receive the signal from the remote control.

• Check if the circuit breaker is tripped.

• Check if timers have been set.

• Make sure the receiver not obstructed.

• Make sure the address is set correctly.

• Make sure the remote control signal transmission is within the range.

• Certain fl uorescent lights may interfere with signal transmitter. Please consult your nearest dealer.

“ Display on Wired Remote Control.

If the CHECK indicator fl ashes on the wired remote control.

• Turn off the unit.

• Turn on again after 3 minutes.

• If CHECK continues to blink, press

CHECK

for error messages. If problem persist, please consult your nearest authorized dealer.

FOR SEASONAL INSPECTION AFTER EXTENDED

NON-USE

• Checking of remote control batteries (wireless remote control).

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:

Cooling: ≥ 8°C Heating: ≥ 14°C

• Activate heat mode (Inverter/Heat-pump model) or Fan mode (Cooling model) for 2~3 hours to remove moisture left in the internal parts thoroughly.

• Turn off the power supply.

• Remove the remote control batteries (wireless remote control).

TURN OFF POWER SUPPLY then CALL Authorized

Distributor under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

• The odour persists even after odour wash operation is used continuously.

11

QUICK GUIDE/GUÍA RÁPIDA/GUIDA RAPIDA/ QUICK GUIDE/GUÍA RÁPIDA/GUIDA RAPIDA/

KURZANLEITUNG/GUIA RÁPIDO/SNELLE GIDS

WIRELESS REMOTE CONTROL • • CONTROL REMOTO INALÁMBRICO

INFRAROT-FERNBEDIENUNG

1

MODE

AUTO

AIR SWING FAN SPEED

AUTO

ADDRESS

TIMER

ON

Inverter/Heat-pump model

AUTO

DRY COOL

HEAT

FAN

Cooling model

AUTO FAN

DRY COOL

Select the desired mode.

Seleccione el modo deseado.

Selezionare la modalità desiderata.

Wählen Sie die gewünschte Betriebsart aus.

Seleccione o modo de funcionamento pretendido.

Selecteer de gewenste stand.

OFF/ON

2

ECONOMY

MODE

ODOUR WASH

AIR SWING

AUTO MANUAL

FILTER RESET

FAN SPEED

SELECT

CLOCK

TIMER

RESET ADDRESS SET

SET

CANCEL

3

OFF/ON

Start/stop the operation.

Inicie/detenga el funcionamiento.

Avviare/arrestare l’apparecchio.

Schalten Sie das Gerät ein bzw. aus.

Ligue/Desligue a unidade.

Start/stop het apparaat.

Select the desired temperature.

Seleccione la temperature deseada.

Selezionare la temperatura desiderata.

Stellen Sie die gewünschte Temperatur ein.

Programe a temperatura desejada.

Stel de gewenste temperatuur in.

WIRED REMOTE CONTROL • • CONTROL REMOTO CON CABLES

KABELFERNBEDIENUNG

1

OFF / ON

Start/stop the operation.

Inicie/detenga el funcionamiento.

Avviare/arrestare l’apparecchio.

Schalten Sie das Gerät ein bzw. aus.

Ligue/Desligue a unidade.

Start/stop het apparaat.

CZ-RD513C

TIMER/CLOCK

MODE UP

FAN

SPEED MODE

TEMP/

A/C No.

UP

2

3

MODE

MON TUE WED THU FRI SAT SUN

ON

FAN SPEED

AUTO

AIR SWING

AUTO 1 23

AUTO

OFF / ON

SET

Inverter/Heat-pump model

AUTO

DRY

HEAT

COOL FAN

Cooling model

AUTO FAN

DRY COOL

Select the desired mode.

Seleccione el modo deseado.

Selezionare la modalità desiderata.

Wählen Sie die gewünschte Betriebsart aus.

Seleccione o modo de funcionamento pretendido.

Selecteer de gewenste stand.

F566080

SELECT DOWN CANCEL

AUTO MANUAL

DOWN

CHECK ODOUR WASH

ECONOMY

AIR SWING

VENTILATION TEST RUN FILTER RESET

UP

DOWN

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Panasonic Corporation

Website: http://panasonic.net/

Select the desired temperature.

Seleccione la temperature deseada.

Selezionare la temperatura desiderata.

Stellen Sie die gewünschte Temperatur ein.

Programe a temperatura desejada.

Stel de gewenste temperatuur in.
