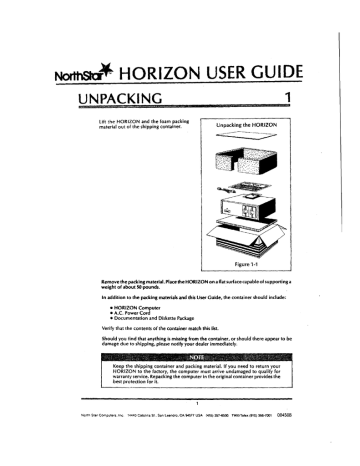

Noñihstaff HORIZON USER GUIDE
UNPACKING 1
Ar Te EEE PE TC TN EEE ET A ER a haa oR SLL Ья
Pr ee Re sere PEL pe be EE AS a EE TR a EE MER A" CO ENEE oa e ALFA
Lift the HORIZON and the foam packing
material out of the shipping container.
Figure 1-1
Remove the packing material. Place the HORIZON on a flat surface capable of supporting a
weight of about 50 pounds. -
In addition to the packing materials and this User Guide, the container should include:
+ HORIZON Computer
® A.C. Power Cord
® Documentation and Diskette Package
Verify that the contents of the container match this list.
Should you find that anything is missing from the container, or should there appear to be
damage due to shipping, please notify your dealer immediately.
Keep the shipping container and packing material. If you need to return your
HORIZON to the factory, the computer must arrive undamaged to qualify for
warranty service. Repacking the computer in the original container provides the
best protection for it.
1
North Star Computers, Inc. 14440 Catalina 5t., San Leandro, CA 94577 USA (415) 357-B500 TWX/Telex (910) 366-7001 004508
re
TA
RE
2.1
2.2
2.3
EE A TE EVE STR
TEA NA sio A ES RO EE ES EE AS EE My sd
INTRODUCTION
The HORIZON is a versatile computer that can form the nucleus of either a single-user or a
multi-user configuration.
If you wish to create a single-user system, you will probably want to connect the HORIZON
to a terminal anda printer. These connections are very simple, and the instructions are given
below.
To incorporate one or more 18Mb hard disks into your computer system, follow the
directions in the North Star HD-18 User/Technical Manual.
To create a HORIZON-based computer system that can serve up to five users, follow the
directions in the North Star TSS-A or TSS-C Multi-User System Operation Manual,
SELECTING A SITE
You can place the HORIZON in almost any convenient location, although the computer
should not be exposed to extremes of temperature or humidity. Dust and dirt can also be
harmful to the HORIZON. In general, an environment that is comfortable for the operatoris
also suitable for the computer.
CONNECTING A TERMINAL TO THE HORIZON
The terminal you select must have an R5-232-C serial interface. Read the
instruction manual provided by the manufacturer to be sure that the terminal is
appropriate and that you observe all necessary precautions in handling it.
Follow the steps specified by the manufacturer to set these stand operating parameters:
9600 Baud
Full Duplex
No Parity
If the terminal cannot be set for 9600 baud, consult the HORIZON Computer System Manual
for instructions,
Position the HORIZON sa the back is facing you. The controls and connectors on the back of
the computer are labelled in Figure 2-1.
Back of the HORIZON
Parallel Output Port
(Hard Disk or Parallel Printer Connector)
Reset Switch >] XN
Power >
On/Off
Switch | |
8
Fuse ter {0 TD FED GET =,
®
NA
Power Parallel Input Left Serial - Right Serial
Cord Port (Hard Disk Input/Output Port Input/Output Port
Receptacle Connector) (Serial Printer Connector} (Terminal Connector)
Figure 2-1
Connect the HORIZON and the terminal before you attach the power cord to the
computer.
Make sure that the power to the terminal is turned off and the power cord is unplugged
from the wall socket.
The terminal is connected to the HORIZON
by an RS-232 cord or cable. The cord or Terminal Cable Options
cable mustend in a“D" shaped connector,
as shown in Figure 2-2.
Figure 2-2
2.4
Press a cable connector carefully over the
right serial port connector on the HORI- Connecting the Terminal Cable
ZON back panel (Fig. 2-3). These connec- to the HORIZON
tors only match one way, so make sure they
are properly aligned.
Figure 2-3
Use the same procedure to connect the other end of this cable to the MAIN or TERMINAL
port on the back of the terminal. Consult the manual for the terminal for the location of the
appropriate port.
CONNECTING A PRINTER TO THE HORIZON
A printer with either an RS-232serial interface or à parallel interface can be connected to the
HORIZON. A serial printer can be placed fifty or more feet away from the computer, while
the cable to a parallel printer can be no more than ten feet long.
Before connecting the printer and the HORIZON, read the instruction manual provided
with the printer. Follow the steps specified by the manufacturer to set these standard
operating parameters:
1200 Baud
Full Duplex
No Parity
If the printer you are using cannot operate at 1200 baud, consult the HORIZON Computer
System Manual for instructions.
Connect the computer and the printer before attaching the power cord to the computer.
Make sure that the power to the printer is turned off and the power cord is unplugged from
the wall socket.
2.4.1
Serial Printer
A serial printer can be connected to the HORIZON by either a flat ribbon cable or a round
cord. The printer cord or cable must end in the same kind of “D” connector shown in Figure
2-2, above.
Take the free end of the printer cable and
press the “D” shaped connector carefully
over the left serial port of the HORIZON
back panel shown in Figure 2-4. These
connectors anly match one way, so make
sure they are properly aligned.
Connecting a Serial Printer
to the HORIZON
Figure 2-4
The HORIZON, terminal, and printer will now be connected as shown in Figure 2-5.
[= = = =
E
ars
207
и
г
Computer System with Serial Printer
4 [
Figure 2-5
2.4.2
Parallel Printer
To connect a parallel printer to the HORI-
ZON requires the DB-232 cable shown in
Figure 2-6. If the appropriate cable is not
available, consult your authorized North
Star Dealer for assistance.
Press one end of the printer cable carefully
over the parallel output connector on the
back of the HORIZON (Fig. 2-7). These
connectors only match ane way, so make
sure they are properly aligned.
Parallel Printer Cable
Figure 2-6
Connecting the Parallel Printer
to the HORIZON
Figure 2-7
Use the same procedure to connect the other end of this cable to the appropriate connector
on the printer. Consult the manual for the printer for the location of this conector.
2.5
Xx
SITUATING THE SYSTEM
After making the necessary connections, turn the HORIZON, the terminal and the printer
around so that the front of the components face you. Position the equipment so that you can
use it conveniently.
It is important to rest the HORIZON and the printer on different surfaces, so that printer
vibration does not affect the computer.
Situate the compter so you have easy access to the floppy disk drive(s) on the front of the
HORIZON, and can reach the power switch and reset switch on the back of the computer.
The HORIZON can be placed horizontally, as shown in Figure 2-8.
Computer System Configuration
Figure 2-8
The computer can also be placed on end, as shown in Figure 2-9. If you choose this
arrangement, note that the disk drive(s) MUST be positioned at the top of the unit, as
indicated.
Alternate System Configuration
Ц
I= Y
| = = = = Го o avel
y
——
+
+
Figure 2-9 ;
2.6
POWERING UP THE COMPUTER SYSTEM
Take the socket end of the power cord
supplied with the HORIZON. Press the
sacket firmly over the three-prong recep-
tacle on the computer’s back panel (Fig.
2-10).
Installing the Power Cord
>
Figure 2-10
The HORIZON operates on the standard electrical power supplied to offices,
schools and homes. The computer MUST BE ELECTRICALLY GROUNDED,
however.
AÍ HORIZON system components mustbe
powered from grounded (3-wire) A.C. out-
lets on the same circuit. Do not use any
plug adapters that eliminate the ground
ine.
Plugging in the HORIZON
)
© jo
=
fé
Figure 2-11
The computer, terminal, printer, and any other peripheral devices you use MUST be
plugged into the same circuit or circuit breaker.
Other electrical equipment (such as copying machines, fluorescent lights or typewriters)
should NOT be plugged into the same circuit. The electrical noise generated by such
equipment can interfere with the proper operation of the computer system.
While a power strip is often convenient when several pieces of equipment are operating as a
system, take care not to overload the circuit. Do not use extension cords to power the
system.
Turn on the power to the computer. The
HORIZON on/off switch is located next to Turning on the HORIZON
the fan on the back panel. To turn the
power on, press the outer edge of the
switch in toward the computer (Fig. 2-12).
>
Figure 2-12
When you turn the power on, the fan begins to whir and the red indicator light over the
NorthStar logo on the front panel is illuminated. |
The floppy disk drive(s) on the HORIZON
are taped closed for shipment. Remove the
tape from the floppy disk drive(s). The
HORIZON may contain just one floppy
disk drive, or it may have two floppy disk
drives, as shown in Figure 2-13.
Untaping the Floppy Disk Drives
Figure 2-13
Another HORIZON configuration includes one floppy disk drive and one Winchester hard
disk drive, as shown in Figure 2-14.
Floppy Disk Drive
Winchester Hard Disk Drive
Figure 2-14
HORIZON with Winchester Hard Disk.
10
3.1 HANDLING FLOPPY DISKETTES
A floppy diskette consists of a very thin
layer of magnetically treated mylar that is Floppy Diskette Features
permanently encased in a plastic jacket.
Label Write
-——Drotect
Notch
Drive
Spindle
Hole
. Plastic
Jacket
Disk Surface
Figure 3-1
Do not touch the mylar surface, as this may damage the diskette.
Fingerprints, scratches, or spills can destroy . .
information stored onthe diskette. If ashes Important Diskette Precautions
or particles land on a diskette they can
interfere with the storage and retrieval of
information. Likewise, if the diskette is
exposed to a magnetic field, its cantents
can be lost. A magnetic field can be gener-
ated by an electric typewriter or a magnetic
paper clip holder, for example. Figure 3-2
provides information on how to handle
your diskettes.
Replace in Jacket
Do Not Bend
Insert Carefully
Never Touch
Diskette Surface
10° С - 52° С
50° Е - 125° Е
Never Expose to
Magnetic Field
DERE
Figure 3-2
11
3.2
Take the system diskette you want to use
and remove it from the protective enve-
lope. Be sure to hold the diskette by the
label or some portion of the plastic jacket,
as shown in Figure 3-3.
Handling a Diskette
Figure 3-3
INSERTING A DISKETTE IN THE HORIZON
You can insert a diskette in the HORIZON with the computer turned on or off. For simplicity,
the following discussion assumes that the power is turned on in both the HORIZON and the
terminal.
Open the floppy disk drive that is closer to the center of the HORIZON by pulling the latch
toward you. The system diskette (such as the HORIZON-Diskette provided with the
computer) is always loaded into this floppy drive, which is either designated as drive #1, or
drive A, depending on the program you are using.
Slide the system diskette into the drive
apening. The diskette should be positioned
as shown in Figure 3-4, with the small
rectangular notch on top and the label
facing toward you.
Inserting a Diskette
Figure 3-4
12
3.4
A
Push the diskette in gently. If you encounter more than slight resistance, puli the diskette
out carefully and start again. The diskette is flexible and you may damage it if you force it into
- the floppy disk drive.
Push the diskette into the drive until you hear a click and feel the diskette hit the back of the
slot. This indicates that the diskette is properly positioned in the disk drive.
With the diskette fully inserted, close the disk drive latch.
‘BOOTING’ THE HORIZON
Press and release the reset switch on the |
back panel of the HORIZON (Fig 3-5). This Booting the HORIZON
is called “booting” the computer, and it
starts the process of transferring the pro-
gram from the diskette into the internal
memory.
/
>
Figure 3-5
When the reset switch is activated, the red indicator light on the floppy disk drive comes on,
the disk drive motor begins to whir, and the program prompt appears on the terminal
screen.
You are now ready to begin work with your HORIZON.
13
3.4
3.5
USING YOUR HORIZON
If your HORIZON has two floppy disk drives, the drive toward the center of the computer
(#1) is used for system diskettes, and the drive toward the outer edge (#2) is used for data
diskettes. Use the same procedure described in Section 3.2 to insert a data diskette in drive
#2,
If your HORIZON contains a Winchester hard disk drive as well as a floppy disk drive, the
hard disk is permanently installed in the computer. You do not interact directly with the hard
disk, as you do with the floppy diskettes.
The hard disk is used for storing programs and data. The floppy diskettes enable you to load
new programs onto the hard disk, and to transfer programs and data between computers.
The floppy diskettes also serve as a backup medium for the hard disk.
Perhaps the single most important part of working with a computer is learning to make
regular backup copies of all your programs and data. Systematic backup is crucial! to guard
against information loss due to operator error, equipment malfunction, or other causes. The
manuals for the programs you use will explain exactly how to back up your diskettes or hard
disk.
ENDING A WORK SESSION
The manual for the program you are running will explain how to exit from that program.
Always wait until the red indicator light on the floppy disk drive has gone out
before removing a diskette from the drive. You may damage the diskette if you
attempt to remove it while the drive is still operating.
Lift the latch on the floppy disk drive and carefully remove the diskette. Replace the diskette
in its protective envelope and store it upright, in an appropriate container.
At the end of the day, turn off the power to the HORIZON.
14
PETER OO oh
MEA EC ENE REA NOTE ETA
LEEN ON TA EEES UTE E TT TA EE A TAREA
The following table will help you to diagnose and remedy problems you may encounter as you work
with the HORIZON.
COMPUTER DOES NOT GO ON WHEN POWER IS TURNED ON. 1
1.1 Fan off and red indicator light over Power cord is not plugged into wall outlet. Plugin
logo off. cord.
Power cord is not firmly connected to computer.
Plug in cord.
Wall outlet is not providing power. Check outlet
with another device; call electrician for service if
necessary.
AC line fuse is blown. Turn power off, unplug
cord, change fuse (next to power cord receptacle).
If second fuse also blows, contact your authorized
North Star dealer for service.
COMPUTER GOES ON, BUT PROGRAM DOES NOT LOAD SUCCESSFULLY 2
2.1 Drive indicator light goes on; motor is Press and release the reset switch again.
audible.
Diskette inserted improperly. Remove diskette
and reinsert it, then press and release reset switch.
Cable connections from HORIZON to terminal
are improper or insecure. Check cannections.
Data diskette inserted instead of system diskette.
Replace diskette.
System diskette damaged. Replace with another
copy of diskette.
If the printer and the terminal use the same
cables, exchange to see if one cable is defective.
continued
15
PROGRAM LOADS AND RUNS, THEN FAILS. 3
3.1 Terminal screen displays orderly error Consult program manual for explanation of mes-
message. sage and procedure for clearing it.
3.2 Screen displays garbled message or Press and release reset switch, Repeat program
random pattern. loading procedure.
Activate reset switch. Remove diskettes. Turn
power off, then on. Repeat loading procedure.
Consult manual for terminal.
Call for service.
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
