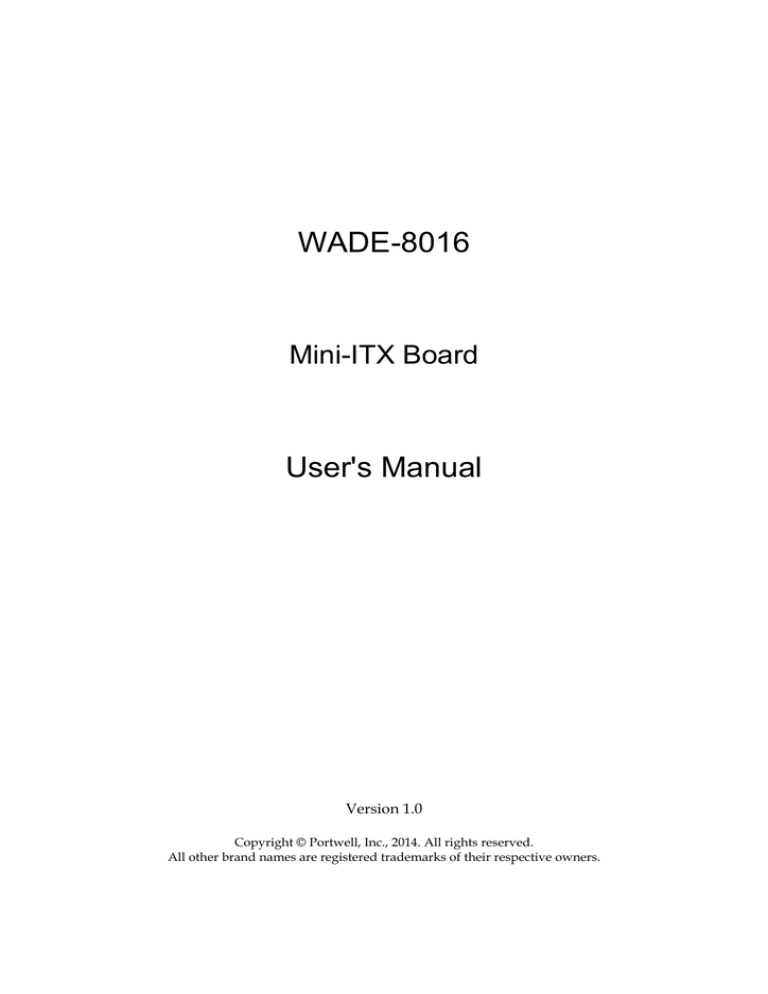

WADE-8016 User's Manual

WADE-8016

Mini-ITX Board

User's Manual

Version 1.0

Copyright © Portwell, Inc., 2014. All rights reserved.

All other brand names are registered trademarks of their respective owners.

Preface

Table of Contents

How to Use This Manual

Chapter 1 System Overview....................................................................................................... 1-1

1.1 Introduction ....................................................................................................... 1-1

1.2 Check List........................................................................................................... 1-2

1.3 Product Specification........................................................................................ 1-2

1.3.1 Mechanical Drawing................................................................................ 1-5

1.4 System Architecture.......................................................................................... 1-6

Chapter 2 Hardware Configuration ........................................................................................... 2-1

2.1 Jumper Setting ................................................................................................... 2-1

Chapter 3 System Installation.................................................................................................... 3-1

3.1 Intel Haswell Processor .................................................................................... 3-1

3.2 Main Memory .................................................................................................... 3-5

3.3 Installing the Mini-ITX Board Computer ...................................................... 3-6

3.3.1 Chipset Component Driver .................................................................... 3-6

3.3.2 Intel Integrated Graphics Controller..................................................... 3-6

3.3.3 On-board Gigabit Ethernet Controller.................................................. 3-6

3.3.4 Realtek ALC892 HD Audio Controller................................................. 3-6

3.4 Clear CMOS Operation .................................................................................... 3-7

3.5 WDT Function ................................................................................................... 3-8

3.6 GPIO.................................................................................................................... 3-9

Chapter 4 BIOS Setup Information............................................................................................ 4-1

4.1 Entering Setup ................................................................................................... 4-1

4.2 Main .................................................................................................................... 4-2

4.3 Configutation..................................................................................................... 4-3

4.4 Boot ................................................................................................................... 4-18

4.5 Security ............................................................................................................. 4-20

4.6 Save & Exit ....................................................................................................... 4-21

Chapter 5 Troubleshooting ........................................................................................................ 5-1

5.1 Hardware Quick Installation..................................................................... 5-1

5.2 FAQ ............................................................................................................... 5-2

Preface

How to Use This Manual

The manual describes how to configure your WADE-8016 system board to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of Mini-ITX Board.

Chapter 1: System Overview.

Presents what you have in the box and give you an overview of the product specifications and basic system architecture for this series model of Mini-ITX Board.

Chapter 2: Hardware Configuration.

Show the definitions and locations of Jumpers and Connectors that you can easily configure your system.

Chapter 3: System Installation.

Describes how to properly mount the CPU, main memory and Compact Flash to get a safe installation and provides a programming guide of Watch Dog Timer function.

Chapter 4: BIOS Setup Information.

Specifies the meaning of each setup parameters, how to get advanced BIOS performance and update new BIOS. In addition, POST checkpoint list will give users some guidelines of trouble-shooting.

Chapter 5: Troubleshooting.

Provide various of useful tips to quickly get

WADE-8016 running with success. As basic hardware installation has been addressed in Chapter 3, this chapter will basically focus on system integration issues, in terms of backplane setup, BIOS setting, and OS diagnostics.

The content of this manual is subject to change without prior notice. These changes will be incorporated in new editions of the document. The vendor may make supplement or change in the products described in this document at any time.

System Overview

Chapter 1

System Overview

1.1 Introduction

Portwell Inc., a world-leading innovator in the Industrial PC (IPC) market and a member of the Intel

®

Embedded and Communications Alliance (Intel ECA), announced today the Portwell WADE-8016 adopting the Mini-ITX form factor. The

WADE-8016 of the Intel platform will provide high performance and flexibility for functional expansion, such as Gaming, Kiosk, DS, Medical, Defense, Industrial automation and control applications.

Haswell is the next major architecture from Intel. The WADE-8016 supports the latest Intel

®

Haswell processors in LGA1150 package which has memory and PCI

Express controller integrated to support 2-channel DDR3 memory and PCI Express

2.0 lanes providing great graphics performance. Intel

®

Haswell processor is one of the most powerful and energy efficient CPU in the world. Portwell have taken advantage of such technology to furnish a series of products that can meet multiple industrial requirements such as cost-effective of CPU performance or industrial systems.

WADE-8016 is based on the Intel

®

Haswell processor and Intel

®

H81 chipset. The

Intel H81 Express Chipset, when combined with a processor from the Intel

®

Dual

Core/Quad Core processor family, delivers smart security, cost saving manageability, and intelligent performance for business platforms. WADE-8016 is the first Portwell off-the-shelf product by Intel

®

H81 Express Chipset, it can be an embedded solution and a good platform for customer to integrate it to the embedded system.

WADE-8016 showcased one of Portwell upcoming motherboard for the Intel

®

Haswell processors. The WADE-8016 is based on the forthcoming Intel H81 chipset and supports the new LGA 1150 socket (socket that will be used by Haswell processors). This board has lots of features, including supports total 2x SATA 3

(SATA 6.0 Gbps) storage specification and supports the latest PCIe 2.0 (one

PCI-Express x16 slot) devices for double speed and bandwidth which enhances system performance, one CF slot on board supports Portwell exclusive CFEX(SATA interface), two long-DIMM memory slot for DDR3 SDRAM up to 16GB, support total

10 USB ports (4x rear IO by USB2.0 / 4x on board by USB2.0 / 4x on board by

USB3.0), VGA / HDMI / DVI and two Gigabit Ethernet.

WADE-8016 User’s Manual 1-1

System Overview

The WADE-8016 package should cover the following basic items

9

One WADE-8016 Mini-ITX Main Board

9 One SATA Cable

9 One I/O Shield bracket

9

One Installation Resources CD-Title

If any of these items is damaged or missing, please contact your vendor and keep all packing materials for future replacement and maintenance. z

Main Processor

-Intel® Dual Core/Quad Core LGA1150 processor

-CPU clock bus: 1333/1600 MHz z

Chipset

-Intel® H81 chipset z

System BIOS

-AMI BIOS z

Main Memory

-Two 240 -pin DDR3 Long-DIMM socket support up to 16GB dual channel

1333/1600 MHz memory z

Expansion Interface

-One PCIex16

-One CFEX (SATA interface) z

SATA Interface

-Two SATA 6Gb ports

-Two SATA 3Gb ports z

Serial Port

-Support total four com ports(one RS232 and one RS232/422/485 on rear

I/O, two RS232 on board header) z

USB Interface

-Support Ten USB (Universal Serial Bus) ports, four on rear I/O(USB2.0) and six on board header(4x USB 2.0 ,2x USB 3.0) for internal devices z

Audio Interface

-Connector for Mic-In, Line-In and Line-Out z

Real Time Clock/Calendar (RTC)

-Support Y2K Real Time Clock/Calendar

WADE-8016 User’s Manual 1-2

System Overview z

Watch Dog Timer

-Support WDT function through software programming for enable/disable and interval setting

-General system reset z

On-board Ethernet LAN

-Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports using Realtek

RTL8111G-CG GbE Ethernet Controller z

High Drive GPIO

-One pin-header for 8 bit GPIO z

System Monitoring Feature

-Monitor system temperature and major power sources. z

Outline Dimension (L x W)

-170mm(6.69’’) x 170mm(6.69’’) z

Power Requirements

CPU +12V



System +12V



System +3.3V



System +5V



System+ Device +5V

1.39

0.67



0.56



1.51



System+ Device +12V



2.79



1.41



USB2.0 Loading Test



4.87~4.94 V/ 530 mA



USB3.0 Loading Test



4.79 V/ 1060 mA



1.53

0.61



0.66



1.71



2.78



2.42



Full Loading

30Min

1.55



0.64



0.67



1.68



2.76



2.48

WADE-8016 User’s Manual 1-3

System Overview z

Configuration

CPU Type

SBC BIOS

Memory

VGA Card

VGA Driver

LAN Card

LAN Driver

LAN Card

LAN Driver

Audio Card

Audio Driver

Chip Driver

USB 3.0 Driver

SATA HDD

CFEX

CDROM

Power Supply

z

Operting Temperature

0 °C ~ 60 °C z

Storage Temperature

-20 ~ 80 °C z

Relative Humidity

0% ~ 90%, non-condensing

Intel® Celeron® CPU G1820 @ 2.70GHz L3: 2MByte

Portwell, Inc. WADE-8016-APK TEST BIOS (40528T00)

WARIS DDR3 UB-DIMM 1333 8GB*2

(Hynix H5TQ4G83MFR)

Onboard Intel® HD Graphics

Intel® HD Graphics Version: 10.18.10.3496

Onboard Realtek RTL8111F PCIe GBE Family Controller

Realtek RTL8111F PCIe GBE Family Controller

Version: 8.20.815.2013

Onboard Realtek RTL8111F PCIe GBE Family

Controller#2

Realtek RTL8111F PCIe GBE Family Controller#2

Version: 8.20.815.2013

Onboard Realtek ALC892 High Definition Audio

Realtek ALC892 High Definition Audio

Version: 6.0.1.7240

Intel® H81 Chipset Device Software Version: 10.0.13

Intel® USB3.0 eXtensible Host Controller

Version:6.2.9200.16384

Seagate ST3500411SV 500GB

WARIS CFEX 8GB

ASUS DRW-24D3ST

HG2-6350P 350W z

Operting Temperature

0 °C ~ 60 °C z

Storage Temperature

-20 ~ 80 °C z

Relative Humidity

0% ~ 90%, non-condensing

WADE-8016 User’s Manual 1-4

System Overview

WADE-8016 User’s Manual 1-5

System Overview

All of details operating relations are shown in WADE-8016 System Block Diagram.

WADE-8016 System Block Diagram

WADE-8016 User’s Manual 1-6

Hardware Configuration

Chapter 2

Hardware Configuration

TThis chapter gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on WADE-8016 are in the proper position. The default settings shipped from factory are marked with an asterisk

(♣).

WADE-8016 User’s Manual 2-1

Hardware Configuration

JP1:Case Open Pin Header

PIN No. Signal Description

1-2 open Disable

1-2 short Enable

JP2: External COM Port 4 (RS-232 Only)

PIN No. Signal Description PIN No. Signal Description

1 DCD#4 2 RXD#4

3 TXD#4

5 GND

4 DTR#4

6 DSR#4

7 RTS#4 8 CTS#4

9 RI#4

JP3: CEEX / SATA Select

PIN No. Signal Description

10 KEY

1-2 short CFEX Enable , SATA J24 Disable

1-2 open SATA J24 Enable , CFEX Disable

JP4: Clear CMOS Select

PIN No. Signal Description

1-2 short Normal

2-3 short Clear CMOS

JP5: Auto Power Button Select

PIN No. Signal Description

1-2 short Enable (AT Mode)

1-2 open Disable (ATX Mode)

JP6: CFEX-SPI / SPI Select

PIN No. Signal Description

1-2 short CFEX-SPI (Boot from J29 SPI ROM)

1-2 open SPI (Boot from U21 EEPROM)

J4: Key Board / Mouse Connector (PS/2)

PIN No. Signal Description PIN No. Signal Description

1 2 KB_DT

5 GND

4 NC

6 GND

7 5VDUAL 8 VKBMS

9 10 KB_CK

WADE-8016 User’s Manual 2-2

Hardware Configuration

J9: SMBus Connector

PIN No. Signal Description PIN No. Signal Description

3 GND

5 +5V

J10: General Purpose I/O Connector

PIN No. Signal Description PIN No. Signal Description

1 GPIO 50 2 GPIO 54

3

5

GPIO 51

GPIO 52

4

6

GPIO 55

GPIO 56

GPIO 57 7 GPIO 53

9 GND

8

J11: External COM Port 3 (RS-232 Only)

PIN No. Signal Description PIN No. Signal Description

1 DCD#3 2 RXD#3

3 TXD#3

5 GND

4 DTR#3

6 DSR#3

7 RTS#3

9 RI#3

8 CTS#3

J12: External USB 3.0 Connector

PIN No. Signal Description PIN No. Signal Description

1 5VDUAL 11

4 GND

7 GND

10 GND

WADE-8016 User’s Manual 2-3

Hardware Configuration

J13: TPM Connector

PIN No. Signal Description PIN No. Signal Description

3 LFRAME# 4 NC

5 PLTRST# 6 +5V

7 LAD3

9 +3.3V

8 LAD2

11 LAD0 12 Ground

13 SMB_CLK 14 SMB_DATA

15 3VSB

17 GND

16 SERIRQ

18 NC

19 NC

J14: 4 Pin ATX Power Connector

20 NC

PIN No. Signal Description PIN No. Signal Description

1 GND 2 GND

3 +12V

J15: CPU Fan Connector

4 +12V

PIN No. Signal Description PIN No. Signal Description

1 GND 2 +12V

3 Fan on/off output

J16: Battery Connector

4 Fan Speed control

PIN No. Signal Description PIN No. Signal Description

1 +3.3V 2 GND

J17: 24 Pin ATX Power Connector

PIN No. Signal Description PIN No. Signal Description

1 +3.3V 2 +3.3V

3 GND

5 GND

4 +5V

6 +5V

8 ATX Power OK 7 GND

9 +5VSB

11 +12V

13 +3.3V

15 GND

17 GND

19 GND

21 +5V

23 +5V

12 +3.3V

14 -12V

16 PS_ON#

18 GND

20 NC

22 +5V

24 GND

WADE-8016 User’s Manual 2-4

Hardware Configuration

J19: Front Pannel Connector

PIN No. Signal Description PIN No. Signal Description

3 PWR_LED(-) 4 NC

13 HDD_LED(+) 14 Rest

15 HDD_LED(-) 16 GND

J20 / J21: USB 2.0 Connector

PIN No. Signal Description PIN No. Signal Description

1 5V Dual 2 5V Dual

3 USB-

5 USB+

4 USB-

6 USB+

8 GND 7 GND

9 NC

J22: System Fan Connector

PIN No. Signal Description PIN No. Signal Description

1 GND 2 +12V

3 Fan on/off output

J3: COM1/COM2 Serial Port Connector ( RS-232 / 422 / 485 )

5

6

7

PIN No Signal Description

RS-232

1

2

3

4

DCD (Data Carrier

Detect)

(COM2)

TX- DATA-

DSR (Data Set Ready) N/C N/C

RXD (Receive Data) TX+ DATA+

RTS (Request to

Send)

N/C N/C

8

TXD (Transmit Data) RX+ N/C

CTS (Clear to Send)

DTR (Data Terminal

Ready)

N/C N/C

RX- N/C

RI (Ring Indicator) N/C N/C

10 N/C

WADE-8016 User’s Manual 2-5

Hardware Configuration

J5: Audio connector

PIN No. Signal Description

Red Mic

Green Line-Out

Blue Line-In

Connector Allocation

I/O peripheral devices are connected to the interface connectors.

Connector Function List

Connector Function Remark

J2

J3

DVI + VGA Connector

COM Port 1 and COM Port 2

J4 Key Board / Mouse Connector (PS/2)

COM1 Only Support

RS-232

COM2 Support

RS-232/422/485

J7

J8

J10

J11

J12

J14

J15

J17

J18

J19

J20

J21

J22

J23

J24

RJ45 (LAN#1) Connector + USB 2.0 Connector

RJ45 (LAN#2) Connector + USB 2.0 Connector

General Purpose Connector

External COM Port 3 Connector

External USB 3.0 Connetor

Only Support RS-232

4 Pin ATX Power Connector

CPU Fan Connector

24 Pin ATX Connector

PCIE X16 Connector

Front Pannel Connector

External USB 2.0 Connetor

External USB 2.0 Connetor

System Fan Connector

SATA Gen2 Connector

SATA Gen2 Connector

Support to PCIE Gen2

(H81 Support Gen2 only)

Support to SATA

Gen2

Support to SATA

Gen2

WADE-8016 User’s Manual 2-6

Hardware Configuration

J25

J26

J27

J28

J29

SATA Gen3 Connector

SATA Gen3 Connector

DDR3 Slot(Channel A)

DDR3 Slot(Channel B)

CFEX Connector

JP1

JP2

JP5

JP6

SW1

U16

U17

U21

Case Open Enable

External COM Port4

Auto Power Button Enable

CFEX-SPI / SPI Switch

ATX Detect &BIOS Recovery Switch

Haswell PCH H81

Haswell CPU Socket

BIOS Socket

Note:

JP3 controll enable the J24 or CFEX

JP6 controll boot from the SPI-ROM or CFEX-SPI ROM

Switch with J29

(CFEX-SATA)

Support to SATA

Gen3

Support to SATA

Gen3

DDR3-1333

(G1820 Support 1333 only)

DDR3-1333 (G1820

Support 1333 only)

Switch with J24

( SATA )

Switch with U21

( SPI )

COM4 Only Support

RS-232

Swith ATX Mode and

AT Mode

Switch with J29

( CFEX-SPI )

WADE-8016 User’s Manual 2-7

System Installation

Chapter 3

System Installation

This chapter provides you with instructions to set up your system. The additional information is enclosed to help you set up onboard PCI device and handle Watch

Dog Timer (WDT) and operation of GPIO in software programming.

3.1

Intel

Haswell Processor

LGA-1155 CPU Socket

In the top, right corner of the CPU Socket is Pin1, and the red two circles are alignment key under the picture.

Alignment key

LGA-1155 CPU

In the top, the Yellow Triangle of the CPU is Pin1.

Notch

Please remember to locate the alignment keys on the CPU socket of the motherboard and the notches on the CPU.

WADE-8016 User’s Manual 3-1

System Installation

LGA-1155 CPU Installation Steps

Before install the CPU, please make sure to turn off the power first!!

1. Open the load lever.

2. Lift the load lever up to fully open

3. Remove the plastic cap on the CPU socket. Before you install the CPU, always cover it to protect the socket pin.

WADE-8016 User’s Manual 3-2

System Installation

4. After confirming the CPU direction for correct mating, put down the CPU in the socket housing frame. Note that alignment keys are matched.

5. Make sure the CPU has been seated well into the socket. If not, take out the

CPU and reinstall.

WADE-8016 User’s Manual 3-3

System Installation

6. Engage the load lever while pressing down lightly onto the load Plate

WADE-8016 User’s Manual 3-4

System Installation

7. Push the CPU socket lever back into its locked position.

8. Please make sure four hooks are in proper position before you install the core

WADE-8016 has two 240 pin DIMM sockets which supports Dual channel

1333/1600 DDR3-SDRAM as main memory, Non-ECC (Error Checking and

Correcting), non-register functions. The maximum memory can be up to 16GB.

Memory clock and related settings can be detected by BIOS via SPD interface.

For system compatibility and stability, do not use memory module without brand. Memory configuration can be set to either one double-sided DIMM in one

DIMM socket or two single-sided DIMM in both sockets.

Beware of the connection and lock integrity from memory module to socket.

Inserting

Improperly it will affect the system reliability.

Note:

To insure the system stability, please do not change any of DRAM parameters in

BIOS setup to modify system the performance without acquired technical information.

WADE-8016 User’s Manual 3-5

System Installation

3.3 Installing the Mini-ITX Board Computer

To install your WADE-8016 into standard chassis or proprietary environment, please perform the following:

Step 1 : Check all jumpers setting on proper position

Step 2 : Install and configure CPU and memory module on right position

Step 3 : Place WADE-8016 into the dedicated position in the system

Step 4 : Attach cables to existing peripheral devices and secure it

WARNING

Please ensure that SBC is properly inserted and fixed by mechanism.

Note:

Please refer to section 3.3.1 to 3.3.4 to install INF/VGA/LAN/Audio drivers.

3.3.1 Chipset Component Driver

WADE-8016 uses Intel Lynx Point. It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for

Windows Operating Systems such as Windows 7, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in WADE-8016 CD-title

3.3.2 Intel Integrated Graphics Controller

WADE-8016 integrated 3D graphics Media Accelerator. WADE-8016 uses Intel

Lynx Point integrated graphic chipset to gain an outstanding graphic performance. WADE-8016 supports VGA, DVI-D, and HDMI display output. It can select two of them to use dual display function. This combination makes

WADE-8016 an excellent piece of multimedia hardware.

Drivers Support

Please find the Graphic drivers in the WADE-8016 CD-title. The driver supports

Windows 7.

3.3.3 On-board Gigabit Ethernet Controller

Drivers Support

Please find Realtek RTL8111G-CG 10/100/1000M LAN driver in /Ethernet directory of WADE-8016 CD-title. The driver supports Windows 7.

3.3.4 Realtek ALC892 HD Audio Controller

Please find Realtek ALC892 (High Definition Audio driver) form WADE-8016

CD-title. The driver supports Windows 7.

WADE-8016 User’s Manual 3-6

System Installation

The following table indicates how to enable/disable Clear CMOS Function hardware circuit by putting jumper in the board.

PIN No.

1-2 short

2-3 short

Signal Description

Normal

Ì

Clear CMOS

WADE-8016 User’s Manual 3-7

System Installation int main ()

{

// Enter Extended Function Mode outp(0x002E, 0x87); outp(0x002E, 0x87);

// Enable Pin 77 as WDTO#

// Select Logic Device 8 outp(0x002E, 0x07); outp(0x002F, 0x08);

// Active Logic Device 8 outp(0x002E, 0x30); outp(0x002F, 0x01);

// Select Count Mode outp(0x002E, 0xF5); outp(0x002F, (inp(0x002F) & 0xF7) | ( 0x00 & 0x08)); //Count-mode Register =

0x00

// Specify Time-out Value outp(0x002E, 0xF6); outp(0x002F, 0x05 );

//Time-out Value Register = 0x05

// Disable WDT reset by keyboard/mouse interrupts outp(0x002E, 0xF7); outp(0x002F, 0x00);

// Exit Extended Function Mode outp(0x002E, 0xAA); return 0;

}

/************************************************

Definitions of Variables:

Value of Count-mode Register:

0x00

0x08

Count down in seconds (Bit3 = 0)

Count down in minutes (Bit3 = 1)

Value of Time-out Value Register

0x00

0x01~0xFF Value for counting down

************************************************/

WADE-8016 User’s Manual 3-8

System Installation

3.6 GPIO

#define EFER 0x2e //Address for Extended Function Enable Register

#define DEVICE_NUM_REG 0x07 //Address for Logic Device Number Register

#define GPIO_LOGIC_NUM 0x08 //Logic device number for GPIO

#define GPIO_BASE_REG 0x30 //Set GPIO

#define GPIO_IO_REG 0xe0 //Address for GPIO I/O Register

#define GPIO_MODE_OUT 0

#define GPIO_DATA_REG 0xe1 //Address for GPIO Data Register

#define MAX_GPIO_NUM 8 int main(){ int pin_num = 5; //select pin number int mode = 0; //select I/O mode int value = 1; //set GPO value int tmp = 1 << pin_num;

(pin 5)

(output)

(high) if(pin_num < 0 || pin_num > MAX_GPIO_NUM || mode < 0 || mode > 1 || value < 0 || value > 1){

-1;

}

//Enter the Extended Function Mode

0x87);

outp(EFER,

//Now set the configuration register outp(EFER, DEVICE_NUM_REG); //Select Logic Device Number

Register is 9 outp(EFER + 1, GPIO_LOGIC_NUM); //device number for GPIO2,3,4,5

outp(EFER, outp(EFER + 1, 0x07); outp(EFER, GPIO_IO_REG); //Select GPIO3 I/O Register outp(EFER + 1,(inp(EFER + 1) & ~tmp) | (tmp * mode));//Set I/O mode, 0:output 1:input

//If mode is GPO, set value if(mode == GPIO_MODE_OUT){ outp(EFER, GPIO_DATA_REG); //Select GPIO3 Data Register outp(EFER + 1,(inp(EFER + 1) & ~tmp) | (tmp * value));//Set GPO value, 0:low 1:high value); printf("GPIO_Pin_Set: Set GPIO(%d) to GPO, Value = %d\n", pin_num,

}

WADE-8016 User’s Manual 3-9

System Installation

else{ printf("GPIO_Pin_Set: Set GPIO(%d) to GPI\n", pin_num);

}

//Exit the Extended Function Mode

0xAA);

return

}

WADE-8016 User’s Manual 3-10

BIOS Setup Information

Chapter 4

BIOS Setup Information

WADE-8016 is equipped with the AMI BIOS stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods. When system is turned on, WADE-8016 communicates with peripheral devices and checks its hardware resources against the configuration information stored in the CMOS memory. If any error is detected, or the CMOS parameters need to be initially defined, the diagnostic program will prompt the user to enter the SETUP program. Some errors are significant enough to abort the start up.

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <Del> key will enter BIOS setup screen.

Press <Del> to enter SETUP

If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously.

Press <F1> to Run General Help or Resume

The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the

Help screen.

WADE-8016 User’s Manual 4-1

BIOS Setup Information

4.2 Main

Use this menu for basic system configurations, such as time, date etc.

System Date

View or set system date

The date format is <Day>, <Month> <Date> <Year>. Use [+] or [-] to configure system Date.

System Time

View or set system time

The time format is <Hour> <Minute> <Second>. Use [+] or [-] to configure system Time.

WADE-8016 User’s Manual 4-2

BIOS Setup Information

4.3 Configutation

Setup Warning:

Setting items on this screen to incorrect values may cause system to malfunction!

CPU Configuration

WADE-8016 User’s Manual 4-3

BIOS Setup Information

Active Processor Cores

Number of cores to enable in each processor package

Choices: All, 1, 2, 3.

Intel Virtualization Technology

When enable, a VWM can utilize the additional hardware capabilities provide by

Vander pool Technology.

Choices: Disable, Enable.

EIST

Disable/Enable Intel Speed Step

Choices: Disable, Enable.

Turbo Mode

Turbo Mode

Choices: Disable, Enable.

CPU C States

Disable or Enable CPU C states

Choices: Disable, Enable.

Chipset Configuration

WADE-8016 User’s Manual 4-4

BIOS Setup Information

High Precision Timer

Enable or disable the High precision Event Timer.

Choices: Disabled, Enabled.

Azalia

Control Detection of the Azalia device.

Choices: Disabled, Enabled.

VT-d

Check to enable VT-d function on MCH.

Choices: Disabled, Enabled.

Port 80h Redirection

[LPC Bus] Forward I/O Port 80 to LPC.

Choices: LPC Bus.

AMT Configuration

Intel AMT

Enable or disable Intel Active Management Technology BIOS Extension.

Choices: Disabled, Enabled.

WADE-8016 User’s Manual 4-5

BIOS Setup Information

Un-Configure ME

OEMFlag Bit 15:Un-Configure ME without password.

Choices: Disabled, Enabled.

Disable ME

Set ME to Soft Temporary Disabled.

Choices: Disabled, Enabled.

Memory Information

WADE-8016 User’s Manual 4-6

BIOS Setup Information

LAN Configuration

Launch PXE OpROM policy

Controls the execution of UEFI and Legacy PXE OpROM

Choices: Disable, UEFI only, Enable.

RTL8111G-CG PCIE LAN Controller #1~#2

Control the PCI Express Root Port

Choices: Disabled, Enabled.

Wake on LAN

Enable or disable the wake on LAN feature

Choices: Disabled, Enabled.

WADE-8016 User’s Manual 4-7

BIOS Setup Information

Graphics Configuration

Primary Display

Select which of IGFX/PEG Graphics device should be Primary Display.

Choices: Auto, IGEX, PEG.

Primary PEG

Select PEG0/PEG1/PEG2/PEG3 Graphics device should be Primary PEG.

Choices: Auto, PEG1, PEG2.

Internal Graphics

Keep IGD enabled based on the setup options.

Choices: Auto, Disable, Enable.

Aperture Size

Select the Aperture Size

Choices: 128MB, 256MB, 512MB.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory sized used by the

Internal Graphic Device

WADE-8016 User’s Manual 4-8

BIOS Setup Information

Choices: 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M,

384M, 416M, 448M, 480M, 512M, 1024M.

DVMT Total Gfx Mem

Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics

Device.

Choices: 128M, 256M, MAX.

Primary IGFX Boot Display

Select the Video Device which will be activated during POST.

Choices: VBIOS Default, VGA, DVI, HDMI.

Secondary IGFX Boot Display

Select secondary display device.

Choices: Disable, DVI, HDMI.

PCI/PCIE Configuration

PCI Latency Timer

Value to be programmed into PCI Latency Timer Register

Choices: 32PCI Bus Clocks, 64PCI Bus Clocks, 96PCI Bus Clocks, 128PCI Bus

Clocks, 160PCI Bus Clocks, 192PCI Bus Clocks, 224PCI Bus Clocks, 248PCI Bus

Clocks.

WADE-8016 User’s Manual 4-9

BIOS Setup Information

PCI Express Settings

Maximum Payload

Ser Maximum Payload of PCI Express Device or allow System BIOS to select the value.

Choices: Auto, 128Bytes, 256Bytes, 521Bytes, 1024Bytes, 2048Bytes, 4096Bytes

Maximum Read Request

Ser Maximum Read Request size of PCI Express Device or allow System BIOS to select the value.

Choices: Auto, 128Bytes, 256Bytes, 521Bytes, 1024Bytes, 2048Bytes, 4096Bytes

CPU PCI Express Configuration

PEG0 – Gen X

Configure PEG0 B0:D0:F0 Gen1-Gen3

Choices: Auto, GEN1, GEN2.

PEG0-ASPM

Control ASPM support for the PEG Device.

Choices: Disable, Auto, ASPM L0s, ASPM L1,ASPM L0sL1.

Enable PEG

Choices: Disable, Enable, Auto

WADE-8016 User’s Manual 4-10

BIOS Setup Information

SATA Configuration

SATA Controller(s)

Choices: Disable, Enable

SATA Mode Selection

Determines how SATA controller(s) operate

Choices: IDE, AHCI

SATA Controller Speed

Indicates the maximum speed the SATA controller can support

Choices: Default, Gen1, Gen2, Gen3

Serial ATA Port 0/1/2/3 Capability

Port 0/1/2/3

Choices: Enable, Disable.

Hot Plug

Designates this port as Hot Pluggable

Choices: Enable, Disable.

WADE-8016 User’s Manual 4-11

BIOS Setup Information

Mechanical Presence Switch

Controls reporting if this port has an Mechanical presence switch.

Choices: Enable, Disable.

External SATA

Choices: Enable, Disable.

SATA Device Type

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Choices: Hard Disk Drive, Solid State Drive.

USB Configuration

USB Configuration settings

Legacy USB Support

Enable legacy USB support.

Choices: Enable, Disable, Auto.

USB3.0 Support

External Enable/disable USB3.0 (XHCI) Controller support

Choices: Enable, Disable

WADE-8016 User’s Manual 4-12

BIOS Setup Information

XHCI Hand-off

Choices: Enable, Disable.

EHCI Hand-off

Choices: Enable, Disable.

USB Mass Storage Drive Support

Choices: Enable, Disable.

PCH USB Configuration

USB Port #0~#9

Disable USB port

Choices: Disable, Enable.

WADE-8016 User’s Manual 4-13

BIOS Setup Information

Power Control Configuration

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep state)

Choices: Disable, Enable.

ACPI Sleep States

Select ACPI sleep state the system will enter when the suspend button is pressed.

Choices: S3 only(suspend to RAM)

Wake system with Fixed Time

Enable or disable system wake on alarm event.

Choices: Disable, Enable.

Wake on Ring

Enable or disable wake on ring from S5.

Choices: Disable, Enable.

WADE-8016 User’s Manual 4-14

BIOS Setup Information

TPM Configuration

Security device support

Enable or disable BIOS support for security device.

Choices: Disable, Enable.

Super IO Configuration

WADE-8016 User’s Manual 4-15

BIOS Setup Information

WDT controller

Enable WDT configuration

Choices: Disable, Enable.

Serial Port #1~#4

Choices: Disable, Enable.

H/W Monitor

Smart system fan function

Choices: Disable, Enable.

System fan mode

Smart fan mode select

Choices: Thermal CruiseTM Mode, Fan Speed CruiseTM Mode

System Target Temp

System fan target temperature range =0~127

System Tolerance Temp

System fan Tolerance temperature range = 0~15

WADE-8016 User’s Manual 4-16

BIOS Setup Information

Smart CPU fan function

Choices: Disable, Enable.

CPU fan Mode

Smart fan mode select

Choices: Thermal CruiseTM Mode, Fan Speed CruiseTM Mode

CPU Target Temp

System fan target temperature range =0~127

CPU Tolerance Temp

System fan Tolerance temperature range = 0~15

Case Open Warning

Support case open warning beep

Choices: Disable, Enable.

Serial Port Console Redirection

Console redirection

Choices: Disable, Enable.

WADE-8016 User’s Manual 4-17

BIOS Setup Information

4.4 Boot

Bootup NumLock State

Select the keyboard numlock state

Choices: On, off

GateA20 Active

UPON REQUEST- GA20 can be disabled using BIOS servies.

Choices: Upon Request, Always

Option ROM Messages

Set display mode for option ROM

Choices: Force BIOS, Keep Current

INT19 Trap Response

Bios reaction on INT19 trapping by option ROM: IMMEDIATE-execute the trap right away; POSTPONED-execute the trap during legacy boot.

Choices: IMMEDIATE, POSTPONED.

Launch Storage OpROM

Control the of storage oprom enable/ disable

Choices: Disable, Enable.

WADE-8016 User’s Manual 4-18

BIOS Setup Information

Full Screen Logo

Enable or disable quiet boot option and full screen logo

Choices: Disable, Enable.

Post Report

Post report support enabled/disabled

Choices: Disable, Enable.

Summary screen

Summary screen support enabled/disabled

Choices: Disable, Enable.

Fast Boot

Enabled or disabled boot with initialization of a minimal set of devices requires to launch active boot option.

Choices: Disable, Enable.

Boot mode select

Select boot mode legacy/UEFI

Choices: Legacy/UEFI

Boot Option #1~#7

Select the system boot order

Choices: Hard Disk, CD/DVD, USB Hard Disk, USB CD/DVD, USB Key, USB

WADE-8016 User’s Manual 4-19

BIOS Setup Information

4.5 Security

Administrator Password

Set administrator password

User password

WADE-8016 User’s Manual 4-20

BIOS Setup Information

4.6 Save & Exit

Save Changes and reset

Reset the system after saving the changes

Disable changes and reset

Reset system setup without saving any changes

Restore defaults

Restore/load default values for all the setup option

WADE-8016 User’s Manual 4-21

Troubleshooting

Chapter 5

Troubleshooting

This chapter provides a few useful tips to quickly get WADE-8016 running with success. As basic hardware installation has been addressed in Chapter 2, this chapter will primarily focus on system integration issues, in terms of BIOS setting, and OS diagnostics.

5.1 Hardware Quick Installation

ATX Power Setting

Unlike other Mini-ITX board computer, WADE-8016 supports ATX only. Therefore, there is no other setting that really needs to be set up. However, there are only two connectors that must be connected—J17 (24pins ATX Power Connector) Fighre.

It is assumed that users have correctly adopted modules and connected all the devices cables required before turning on ATX power. 240-pin DDR3 Memory, keyboard, mouse, SATA hard disk, VGA connector, power cable of the device, ATX accessories are good examples that deserve attention. With no assurance of properly and correctly accommodating these modules and devices, it is very possible to encounter system failures that result in malfunction of any device.

To make sure that you have a successful start with WADE-8016, it is recommended, when going with the boot-up sequence, to hit “Del” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.

WADE-8016 User’s Manual 5-1

Troubleshooting

Loading the default optimal setting

When prompted with the main setup menu, please scroll down to “Load Setup

Defaults”, press “Enter” and select “Y” to load in default optimal BIOS setup. This will force your BIOS setting back to the initial factory configuration. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any time when system appears to be unstable in boot up sequence.

5.2 FAQ

System: SBC keeps beeping, and no screen has shown.

Solution: In fact, each beep sound represents different definition of error message.

Please refer to table as following.

Question: I forget my password of system BIOS, what am I supposed to do?

Answer: You can simply short 2-3 pins on JP4 to clean your password.

Note:

Please visit our technical web site at http://www.portwell.com.tw

For additional technical information, which is not covered in this manual, you can mail to [email protected]

or you can also ,ail to our sales, they will be very delighted to forward them to us.

WADE-8016 User’s Manual 5-2

Troubleshooting

System memory address map

Each on-board device in the system is assigned a set of memory addresses, which also can be identical of the device. The following table lists the system memory address used for your reference.

Memory Area Size Description

0000 - 003F

0040 - 004F

0050 - 006F

0070 – 0E2E

0E2F – 12BE

12BF – 9D7F

1K

0.3K

0.5K

54K

18K

555K

Interrupt Area

BIOS Data Area

System Data

DOS

Program Area

Available】

First Meg -- Conventional memory end at 630K --

9D80 – 9EFF

9F00 – 9FFF

6K

4K

Extended BIOS Area

Unused

A000 – AFFF

B000 – B7FF

64K

32K

VGA Graphics

Unused

B800 – BFFF

C000 – CEBF

CEC0 -EFFF

32K

59K

133K

VGA Text

Video ROM

Unused

HMA 64K First 64K Extended

Interrupt Request Lines (IRQ)

Peripheral devices can use interrupt request line s to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

IRQ#

IRQ 0

Current Use

System ROM

Default Use

System Timer

IRQ 1

IRQ 2

IRQ 3

IRQ 4

System ROM

Unassigned】

System ROM

NEWMOUSE

Keyboard Event

Usable IRQ

COM2

COM1

IRQ 5

IRQ 6

IRQ 7

IRQ 8

IRQ 9

IRQ 10

Unassigned】

System ROM

Unassigned】

System ROM

Unassigned】

Unassigned】

Usable IRQ

Diskette Event

Usable IRQ

Real-Time Clock

Usable IRQ

Usable IRQ

WADE-8016 User’s Manual 5-3

Troubleshooting

IRQ 11

IRQ 12

IRQ 13

IRQ 14

IRQ 15

Video ROM

NEWMOUSE

System ROM

System ROM

Unassigned】

Usable IRQ

IBM Mouse Event

Coprocessor Error

Hard Disk Event

Usable IRQ

WADE-8016 User’s Manual 5-4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
