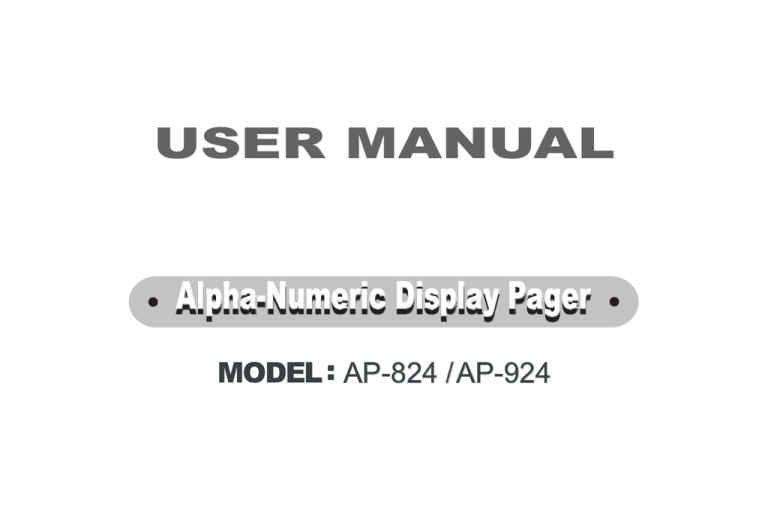

USER MANUAL
Alpha-Numeric Display Pager
MODEL : AP-824 / AP-924
CONTENTS
Reading a Message .............................
Locking Message ................................
Unlocking Message ..............................
Deleting ................................................
Deleting All ............................................
Moving to memo ....................................
Setting Alert ...........................................
Pager Off ...............................................
Setting Alarm .........................................
Setting Time And Date ..........................
Setting Scroll .........................................
Reading The Mail Drop .........................
Moving The Icon ...................................
Reading The Personal Message ...........
Reading The Full Message ...................
Backlighting / Duplicate .........................
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CONTENTS
Control Buttons ............................. 1
Features and Functions ................ 2-3
LCD Display ................................. 4
Function Operation ....................... 5-20
Control Buttons
MODEL:Ap824
MODEL:Ap924
Read button
- to read message
- to turn on back-light
- to turn on power
- to activate the function
Function Button
Read Button
Select Button
Select button
- to move the cursor
- to read message by
cycles
Function button
- to display the function
menu
- to adjust the time and date
change
- to enable the function
mode
Control buttons
Function Button
Read Button
Select Button
1
2.Features and Functions
84 English Alpha Character Memory
Display Black Light
16 Memory Slots + Message Full 10 sets
Personal Message Memory : 10 sets
Mail Drop : 10 sets
Time .Month. Date. Year Display
User Selectable 12 / 24 Hour Clock
Message-In Time Indication
Incomplete Massage-In Indication
Manual On / Off operation
Unread Message Indicator
Duplicate Message Indicator
Message Lock
All or Individual Message Delete
Features and Function
d
d
d
d
d
d
d
d
d
d
d
d
d
d
2
Reminder Alerts
Message Full Indication
Message Full Auto Storage
Message Auto Storage to Mail Drop ( User selectable )
Display Out Of Service Area
Display 5 Daily Alarms Sets
4 Beep Alerts / Silent Vibration / 8 Musical / Sleep Mode
Mail Drop Alerts
Remain In Memory While Re-place Battery
Features and Function
d
d
d
d
d
d
d
d
d
3
LCD Display
Message Status Symbols
Function Menu Symbols
POWER ON
MESSAGE IN MEMORY
UP OR ESCAPE
MUSIC ALERT / BEEP ALERT
MESSAGE SELECTING
SET ALERT
ALARM
MESSAGE LOCK IN MEMORY
PAGER OFF
AUTO SCROLL
MESSAGE LOCK SELECTING
SET ALARM
OUT OF RANGE
PERSONAL MESSAGE
SET TIME
BATTERY CAPACITY
FULL MESSAGE
SET SCROLL
MESSAGE FULL
PERSONAL MESSAGE SELECTING
LOCK MESSAGE
FULL MESSAGE SELECTING
UNLOCK MESSAGE
MAILDROP IN MEMORY
DELETE
MAILDROP SELECTING
DELETE ALL
MAILDROP
MOVE TO MEMO
LCD Display
Pager Status Symbols
ERROR MESSAGE
DUPLICATE MESSAGE
4
Receiving And Reading Your Message
F
F
F
j
If you have sat " Auto Scroll " , your pager will scroll through
your message , screen by screen automatically .
Reading Your Message
F
A flashing symbol indicates you
have a message has not been
read Press
, to select the
message you want to read. The
symbol indicates the location of
the message. .
Press
, to display your
message.
Press
once, to view the next
screen.
Press
once, to view the next
message.
5
Locking Messages
Press
, to move the cursor to
the desired flashing symbol. .
F
Press
, press
once to select
the desired message to lock.
F
Press
F
The symbol
is displayed ,
indicating the status of the
message in memory.
, to lock the message. .
Locking Message
F
6
Unlocking Messages
Press
, to move the cursor to
select the message to unlock.
F
Press
, then , press
once,
to " MESSAGE UNLOCK " Mode.
F
Press
, to unlock the message.
Unlocking Message
F
7
Deleting Messages
Press
, to move the cursor to
select the message you desire.
F
Press
, press
once , to
display " DELETE " Mode.
F
When " DELETE MESSAGE ? " is
displayed on the screen , press
to delete the message.
Deleting Message
F
8
Deleting All Messages
( All unlocked and read messages )
Press
, press
again , to "
DELETE ALL " Mode .
F
When " DELETE ALL ? " is
displayed , Press
,all unlocked
and read messages are now
deleted.
Deleting All Message
F
9
Moving Message To Memo
Press
, to move the cursor to
the desired storing message.
F
Press
, and press
once, to
move to " Move To Memo "
F
Press
, to move the flashing
icon message automatically into
your personal mail .
Moving Message To Memo
F
10
Setting The Alert
Press , then , press
once to
display " SET ALERT " Mode .
F
Press , to enable or disable the
alarm .
F
Press , to move the cursor to the
desired alarm mode .( Alert /
Musical / Vibration / Sleep are
optional )
F
Press , to move to the cursor to
the desired tone or music .
F
Press
setting the alert is
completed.
Setting The Alert
F
11
Turning Your Pager Off
Press
, then , press
again
to " PAGER OFF " mode.
F
Press
, till " PAGER OFF ? "
appears on the screen.
F
Press
F
After turning your pager off , the
screen is empty.
F
Press
on.
, to turn the pager off .
, to turn the pager power
Setting The Pager Off
F
12
Setting The Alarm ( 5 alarms )
F
F
F
Setting The Alarm
F
Press
, then , press
to
"SET ALARM "Mode.
Press
, to enable or disable
the alarm.
Press
, to move the cursor to
set the alarm status either alarm
enabled , alarm disabled or set
time.
Press
setting the alarm is
completed.
13
Setting The Time And Date
Press , then , press
once until
"SET TIME " Mode is displayed.
F
F
Press , to enable set time. .
Press
, to move the cursor to the
hour / minute digit .Then , press ,
to adjust each set of digits :
AM/ PM/24 hr / month / day.
F
Press
to activate the time and
date change.
Setting The Time And Date
F
14
Setting Scroll
Press
, then , press
SCROLL " Mode .
, to " SET
F
Press
, to enable scroll
automatically.
F
When "SET SCROLL " displays
SPEED : X ( manual scroll ) , ▂ (
slow ) , ▂ ▂ ( medium ) , ▂ ▂ ▂
(fast ).
F
Press
, receive the confirmation
of the request .
F
Press
to activate the function.. .
:
Setting Scroll
F
15
Reading Mail Drop
.Press
twice , to move the
flashing icon in the second row.
F
.Press
, to read message or
press
, to move the icon to the
desired message .
j
The features allows 15 sets Mail
Drop
Reading Maildrop
F
16
Moving the icon
Press
, the screen shows " UP
OR ESCAPE ".
F
Press once, the flashing icon
can be move to the top row or the
second row.
F
Press , the pager returns to
standby mode.
Moving the icon
F
17
F
Press
, to move the flashing
icon to the symbol.
F
Press
F
When the symbol is shown in
the top left-hand corner of the
display , indicates the message
status as a personal message.
, to read message.
Reading Personal Message
Reading Personal Message
18
Reading Full Message
Press
, to move the flashing
icon to the
symbol.
F
Press
F
When the
symbol is shown
in the top left-hand corner of the
display , indicates the message
status as a full message.
, to read message.
Reading Full Message
F
19
Backlighting
Duplicate Message
The pager automatically covers by the latest messages if
it is received the same message.
Backlight/Duplicate
You can manually activate the backlight at any time by pressing
and holding for three seconds . If no other buttons are
pressed, the backlight automatically turns off when the pager
returns to the standby mode .
20
