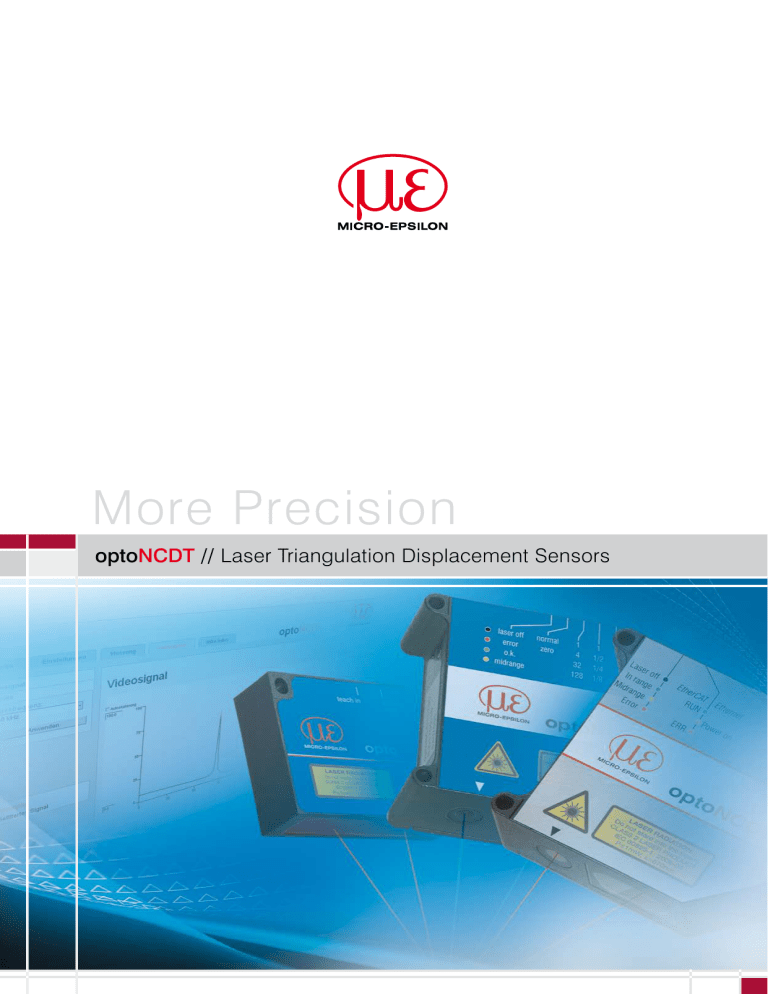

Precision - Micro
More Precision
optoNCDT // Laser Triangulation Displacement Sensors
2
optoNCDT Laser triangulation sensors
optoNCDT
- Non-contact and wear-free
- Large stand off
- Tiny measuring spot for small targets
- High speed measurement
- High precision
- Almost all targets can be measured
The optoNCDT product group represents
the highest precision in laser-based optical
displacement and position measurement.
Laser-based optical displacement sensors
measure from a large distance to the target
using a very small spot which enables measurements on the very small parts. The large
measurement distance in turn enables measurements to be taken against difficult target
surfaces such as hot metals.
The non-contact principle enables wear-free
measurements as the sensors are not subject
to any physical contact with the target.
Furthermore, the laser triangulation principle
is ideal for very fast measurements with high
accuracy and resolution.
Leadership in laser displacement
measurement
Micro-Epsilon has a long-standing success
of developing laser displacement sensors.
Already a pioneer in the field of CCD sensors,
Micro-Epsilon has continually raised the bar
in industrial laser displacement measurement.
The current optoNCDT range now offers
numerous series, each of which is amongst
the best in its class.
CCD-array
with RTSC
Multi-lens
optics
Laserdiode
Filter
Start of measuring range
Measuring range
End of measuring range
Measurement principle: Laser triangulation
Laser triangulation sensors operate with a laser diode which projects a visible light spot
onto the surface of the measurement target.
The light reflected from the spot is imaged by
an optical receiving system onto a positionsensitive element. If the light spot changes
its position, this change is imaged on the receiving element and evaluated. With the 16x0
Series an analogue PSD module is used as
the position-sensitive measuring element,
whereas with the remaining sensors CMOS
elements and CCD elements are used.
LASER RADIATION
Do not stare into the beam
CLASS 2 LASER PRODUCT
IEC 60825-1: 2008-05
P≤1mW; λ=670nm
IEC - Standard
optoNCDT sensors use a semiconductor laser
with a wavelength of 670nm (visible/red). The
maximum optical output power is 1mW. The
sensor is classified as laser class II. A warning
sign is attached to the sensor housing. The
optoNCDT 1700BL uses a semiconductor laser with a wavelength of 405nm.
3
General information
page 4 - 7
optoNCDT Laser triangulation sensors
ƒƒAdvantages and special features
ƒƒTypical applications
High Performance
with integrated Controller
page 16 - 17
Series 1700BL /2300BL
ƒƒRanges 2 - 1000mm
ƒƒResolution from 0.03µm
ƒƒSuitable for red glowing metals,
silicon and organic matters
Highest Precision Sensors
page 18 - 19
Series 2300
ƒƒRanges 2 - 200mm
ƒƒResolution from 0.03µm
ƒƒUnmatched accuracy
ƒƒMeasuring rate up to 49kHz
page 20 - 23
Large Stand Off
page 24 - 29
Series 1710-50 / 1710-1000 / 2310
ƒƒRanges 10 - 1000mm
ƒƒResolution from 0.5µm
ƒƒLarge stand off
Series 1700LL / 2300LL
ƒƒRanges 2 - 50mm
ƒƒLL option for metallic
or rough surfaces
Blue Laser Technology
page 8 - 15
Series 1302 / 1402 / 1402(025) / 1402SC
ƒƒRanges 5 - 600mm
ƒƒResolution from 1µm
ƒƒFor tiny installation rooms
Series 1700
ƒƒRanges 2 - 750mm
ƒƒResolution from 0.025µm
ƒƒNo external controller
Laser Sensors for shiny metallic and rough Surfaces
Compact & Low Cost
page 30 - 33
High Speed PSD Sensors
Series 1610 / 1630
ƒƒRanges 4 - 100mm
ƒƒResolution from 0.2μm
ƒƒUp to 100kHz true analogue
frequency response
page 34 - 35
4
Advantages and special features
Designed for industrial applications
The sensors in the optoNCDT product range are designed for industrial applications. Due to
their robust construction and user friendly technical features, they achieve precise measurement
results even in harsh ambient conditions. Each series is available in a number of measurement
ranges, covering one of the widest laser measurement product ranges in the market.
Analogue and digital output types
The optoNCDT sensors are equipped with a
number of outputs to fulfil many industrial user
requirements. Both analogue and digital interfaces are available, to maximise flexibility of
sensor integration to your existing production
environments. Sensors with USB interfaces
can be configured using an external PC and
software supplied as standard.
Compact with integrated controller
Despite their very compact dimensions, Series 1302, 1402, 1700, 1700LL and 2300 have
a fully integrated controller. As a result, simple,
rapid installation and wiring is possible. The
sensors can be integrated easily into the tightest installation space.
optoNCDT
Adjustable filter functions
A number of filters are available in order to obtain optimum results for each application: sliding mean, recursive mean and median. The
filters are applied directly to the measurement
results inside the controller before output.
[available for all series except 16x0]
High measuring rate
High measuring rates are required for fast
moving targets or measurements on difficult
surfaces. Sensors in the 2300 Series achieve
a measuring rate of up to 49 kHz. The highspeed 16x0 Series achieves measuring rates
of up to 100kHz (-3dB).
Certified quality: Calibration certificate
To document the performance capability of
the optoNCDT sensors, each sensor is calibrated before delivery and supplied with its
own calibration certificate. This document is
supplied with the sensor and is used as proof
to the achieved measurement precision.
[available for all series except 1302]
Cables suitable for drag chain systems
All sensor cables for optoNCDT sensors are
rated for use in drag chains and are therefore
suitable for various fields of applications. For
integration with robot systems, robot-compatible cables for the 1302, 1402, 1700, 1700LL
and 2300 Series can be supplied as an option.
A world first: Real Time Surface Compensation (RTSC)
Through the unique RTSC function, the
amount of reflection from the target surface
is compensated during continuous exposure and in real-time. The exposure time or the
amount of light produced by the laser is optimally matched to the reflection characteristics
of the target surface. Unique to Micro-Epsilon
sensors, this innovative real-time control always achieves optimum results, even with
rapidly changing surface types.
Original
with filter (N=128)
Vibration measurement with sliding mean
Original
with filter (N=9)
Profile measurement with median
Comparison: optoNCDT with RTSC and
conventional sensor
y (mm)
correct measurement
t
optoNCDT with RTSC real-time control
y (mm)
Standard, commercially-available laser triangulation sensors normally operate with a time-shift
control, which builds on previous measurement cycles. In this case, the amount of reflection from
previous measurements is used to derive the degree of reflection for the next measurement. With
changing or textured surfaces the measurement results therefore deviate noticeably from the
actual measurement value, whereas optoNCDT is controlled in real time and as such, is adjusted
to the optimum reflection conditions without needing to apply averaging filters.
[available for 1710-50, 2210 and for all series except 1302, 1402, 16x0]
measurement error
t
Conventional laser sensors with time-shift control - noticeable errors
in measurement during change of surface conditions.
5
Measurement with multiple sensors
For many applications, it is necessary to measure or acquire data simultaneously using multiple
sensors. The following range of functions are available to support synchronised measurements.
Genuine synchronisation of two sensors
A „true synchronous“ measurement is required to precisely acquire moving or oscillating objects
during thickness or differential measurements. In this case, one optoNCDT acts as the master,
which provides the corresponding cycle pulse for the second sensor (slave). This function facilitates the genuine synchronous pulsing of two sensors.
[available for 1710-50, 2210 for all series 1700 and 2300]
optoNCDT on trimming systems of saw mills
Synchronisiation at thickness measurements of two sensors
Sensor 1
Sensor 1
td
real thickness
Sensor 2
Sensor 2
error
t
t
Genuine synchronisation during thickness
measurement using two optoNCDT sensors
with simultaneous data acquisition
Conventional laser sensor with usual
time offset erroneous measurement
IF2008 Interface Card for synchronous data acquisition
The IF2008 Interface Card is designed for the data acquisition of up to eight sensors (6x digital,
2x analogue) and two encoder. This enables the simultaneous evaluation of multiple signals.
Here, the sensors can be located opposite one another, e.g. for thickness measurement, or
mounted in one plane, e.g. for differential height measurement. The interface card reads out
the data from all the connected devices simultaneously and passes them to an external PC for
further processing.
Whereas the simultaneous measurement method is intended for opaque targets, alternating
synchronisation, which prevents possible interference, can be set up for transparent objects.
[technical data on page 34]
Profile measurement of marine propellers
optoNCDT on robots in car production
CSP 2008: Controller for up to six sensors
The CSP2008 controller can be used to process between two and six digital or analogue
input signals (2 x internal plus 4 x external
via EtherCAT modules from Beckhoff of almost all Micro-Epsilon displacement sensors.
EtherCAT can also be used as an external interface for connecting further sensors and I/O
modules. The controller has a high luminance
display so that measured values can be easily
read, even from a long distance.
[technical data on page 35]
Strip thickness measurement with two sensors
digital
averaging
analog
M1
processing
output
averaging
M2
limits
switch
signals
trigger
synch
Thickness measurement with 2 optoNCDT laser sensors
High speed measurement of black rubber
6
Typical applications
optoNCDT
Measurement of automotive parts
On the machined surfaces of metal products,
optoNCDT sensors are used for quality assurance. Here, roundness, concentricity, eccentricity and deflection can be acquired.
Distance of vehicle to road surface
In road tests, pitching and rolling movements,
spring compression during braking and other
quantities are measured with optoNCDT sensors. optoNCDT is particularly suitable here
due to its compact construction and the possibility of powering the sensor from the vehicle
power supply. For these applications, special
models with increased resistance to extraneous light and vibration are available.
Shape conformance on aluminum wheels
After casting, aluminum wheels are measured for a range of properties, e.g. hub depth,
roundness and bulging.
Deflection
Black rubber, an extremely difficult material
to measure, is already measured directly after the calender with optoNCDT sensors. The
sensors provide an error-free production of
the rubber web.
Car Body positioning in production lines
For automated processing of car bodies or
vehicles, an exact determination of the position relative to the processing tool is necessary
(drilling, punching, fitting, subassemblies).
With its Real Time Surface Compensation, the
optoNCDT sensor is ideally suited to the highprecision acquisition of sprayed surfaces.
Synchronous thickness measurement
optoNCDT sensors are ideally suited to the thickness measurement of a variety of (web) materials. Due to the high measuring rate and the possibility of synchronising multiple sensors, even
moving and oscillating targets can be reliably acquired.
7
Dimension measurement
in wood production
optoNCDT sensors are used in woodworking
plants to ensure the dimensional conformance of the work pieces. Here, both treated
and untreated pieces are acquired.
Flatness measurement of IC pins
To achieve the best quality during board assembly, all IC pins must lie in one plane. In
modern automatic placement systems, the
ICs are measured directly before placement.
The tiny light spot diameters enable the measurement of the smallest pin geometries.
optoNCDT LL series - Anti speckle sensor
The distance information for the triangulation principle is obtained via the reflection of the laser beam. Thereby, surface roughness in the sub-micrometre range causes interference in the
laser spot, whereby false measurement results can be obtained.
This physical effect is particularly predominant in shiny, highly
polished objects and cannot be avoided using currently available products on the market. The optoNCDT LL also makes reliable
measurements on shiny metallic objects thanks to a small laser
line. The oval point-shaped laser beam has now been widened
using a special cylindrical lens and projected onto the target.
The light spot is absorbed by a receiving array and evaluated.
As the light spot is averaged using a special software algorithm,
interference is completely filtered out.
Another application area for the optoNCDT LL is structured
surfaces, where the distance and not the structure itself needs to be measured. The distance
information is not influenced by the structure of the surface but instead provides a constantly
reliable value of the distance from the target. The optoNCDT LL sensors have the advantages of
the integrated controller, thus making mounting of the sensor in confined spaces, or on robots
much more practical.
Contour measurement
During the production of ceramic catalytic
converters for the automotive industry the billets are measured for roundness and diameter at multiple radial tracks for classification.
Using the IF2008 interface card, the encoder
and sensor signals are synchronised and
mapped to obtain precise profile.
Low cost sensors with analogue outputs
optoNCDT 1302
Four models with measuring ranges
from 20mm to 200mm
Ideal for OEM
applications
312Hz
375Hz
1000Hz
Analog
Digital
Trigger
TeachIn
Measuring rate
up to 750Hz
Analogue (U/I)
and digital output
Trigger input
and teach-in
High flex cables for
dragchain or robot use
optoNCDT 1302
connection,
rotatable
M12x1
20
14
48
65
The miniaturised optoNCDT 1302 is a lowcost laser sensor for common measuring
tasks. The extremely small design facilitates
its integration even in areas with limited space.
Despite the small dimensions, the 1302 series
provides precise measurement results and is
suitable for machine integration and automation technology.
2 mounting holes
ø4.3/5.8
50
40
A
B
α
ϕ
ε
A
B
20
30.0
31.2
27.9
25.8
24.2
18.2
50
45.0
25.1
19.6
16.9
28.9
21.1
100
50.0
23.1
14.4
11.3
30.1
21.3
200
60.0
20.1
9.4
6.8
30.8
22.0
laser beam
57
65
ε
80
ϕ
α
4
16
Start of measuring range (SMR)
SMR
Measuring range (MR)
MR
12
ø6
5
8
(Dimensions in mm, not to scale)
9
Model
Measuring range
Start of measuring range
SMR
Midrange
End of measuring range
ILD 1302-20
ILD 1302-50
ILD 1302-100
ILD 1302-200
20mm
50mm
100mm
200mm
30mm
45mm
50mm
60mm
MR
40mm
70mm
100mm
160mm
EMR
50mm
95mm
150mm
260mm
40µm
100µm
200µm
400µm
20µm
40µm
50µm
100µm
Linearity
±0.2 % FSO
Resolution
averaged
with averaging
factor 64
4µm
dynamic
750Hz
10µm
10µm
0.02 % FSO
25µm
0.05 % FSO
Measuring rate
750Hz
Light source
semiconductor laser <1mW, 670nm (red)
Laser safety class
class 2 IEC 60825-1 : 2008-05
Spot diameter
SMR
210µm
1100µm
1400µm
2300µm
MR
530µm
110µm
130µm
2200µm
EMR
830µm
1100µm
1400µm
2100µm
Protection class
IP 67
Vibration
15g / 10Hz…1kHz
Shock
15g / 6ms (IEC 68-2-29)
Weight (without cable)
approx. 83g
Temperature stability
0.03 % FSO/°C
0.08 % FSO/°C
Operating temperature
0…+50°C
Storage temperature
-20...+70°C
analogue
Output
4...20mA (1...5V with cable PC 1402-3/U)
digital
Control I/O
RS422
1x open collector output (switching output, switch, error); 1x input (teach in, trigger); 1x laser on/off
Power supply
11...30VDC, 24VDC / 50mA
Controller
integrated signal processor
Electromagnetic compatibility (EMC)
EN 61326-1:2006 / EN 55011 Class B (Interface emission)
EN 61326-1:2006 / EN 61000-4-2:1995 + A1:1998 + A2:2001 (Interference resistance)
FSO = Full scale output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range; MR = Midrange; EMR = End of measuring range
Connector axial
Ø15
45.4
1
9
8
12-pin-connector
(view on solder termination side of male inserts)
Pin
Description
10
12
7
6
5
2
3
11
4
colour PC1402-x/I
3
RS422 Rx+
serial input
green
4
RS422 Rx-
serial input
yellow
5
RS422 Tx+
serial output
grey
6
RS422 Tx-
serial output
pink
7
+U B
11-30VDC type 24V
red
8
Laser off
switch input
9
Teach in
switch input
violet
10
Error
switch output
brown
11
I OUT
4 ... 20mA
white
12
GND
supply and signal ground
blue
1/2
n.c.
black
The cable screen is connected with the sensor housing. The interface and power supply cable are robot rated and UL certfied. At one end there is a 12pin M12 connector,
the other end is open.
Compact sensor with analogue & digital outputs
optoNCDT 1402
Nine models with measuring
ranges from 5mm to 600mm
Ideal for OEM applications
312Hz
375Hz
1000Hz
Analog
Digital
Adjustable measuring rate
up to 1.5kHz
Analogue (U/I)
and digital output
Trigger
TeachIn
Trigger input
and teach-in
Finside
ilter
Adjustable filter functions
Peak selection (firmware)
High flex cables for
dragchain or robot use
Calibration certificate
included
optoNCDT 1402
connection,
rotatable
M12x1
20
14
48
65
The miniature optoNCDT 1402 series is the
leading sensor in this price/ performance
category. The compact construction enables
integration inside small areas. The optoNCDT
1402 series is ideally suited for integration into
machines and automation applications.
2 mounting holes
ø4.3/5.8
50
40
A
B
SMR
α
ϕ
ε
A
57
65
B
5
20.0
33.5
35.5
37.1
18.9
13.2
10
20.0
33.5
32.9
32.4
19.1
13.2
20
30.0
31.2
27.9
25.8
24.2
18.2
50
45.0
25.1
19.6
16.9
28.9
21.1
100
50.0
23.1
14.4
11.3
30.1
21.3
200
60.0
20.1
9.4
6.8
30.8
22.0
250VT
100.0
14.7
7.6
5.5
33.9
26.2
600
200.0
9.7
4.3
3
41.6
33.7
ε
80
ϕ
α
Measuring range (MR)
MR
4
16
Start of measuring range (SMR)
laser beam
12
ø6
5
10
(Dimensions in mm, not to scale)
11
ILD
1402-5
Model
Measuring range
ILD
1402-10
ILD
1402-20
ILD
1402-50
ILD
1402-100
ILD
1402-200
ILD
1402-250VT
ILD
1402-400
ILD
1402-600
5mm
10mm
20mm
50mm
100mm
200mm
250mm
400mm
600mm
Start of measuring range
SMR
20mm
20mm
30mm
45mm
50mm
60mm
100mm
200mm
200mm
Midrange
MMR
22.5mm
25mm
40mm
70mm
100mm
160mm
225mm
400mm
500mm
End of measuring range
EMR
25mm
30mm
50mm
95mm
150mm
260mm
350mm
600 mm
800mm
5...9µm
5...18µm
7...36µm
averaged with
averaging
factor 64
0.6µm
1µm
2µm
dynamic
1.5 kHz
1...3µm
Linearity 1)
12...90µm 20...180µm 40...360µm
50...1200µm
≤0.18% FSO
Resolution 2)
120...2000µm 120...3000µm
≤0.5% FSO
5µm
10µm
13µm
32µm
80µm
80µm
80...480µm
80...600µm
0.01% FSO
2...5µm
5...10µm
6...25µm
12...50µm 13...100µm
32...300µm
0.02...0.05% FSO
Measuring rate, programmable
0.02...0.12% FSO
1.5kHz; 1kHz; 750Hz; 375Hz; 50Hz
Light source
semiconductor laser <1mW, 670nm (red)
Laser safety class
Spot diameter
class 2 IEC 60825-1 : 2008-05
SMR
110µm
110µm
210µm
1100µm
1400µm
2300µm
5000µm
2.6 x 5mm
2.6 x 5mm
MMR
380µm
650µm
530µm
110µm
130µm
2200µm
5000µm
2.6 x 5mm
2.6 x 5mm
EMR
650µm
1200µm
830µm
1100µm
1400µm
2100µm
5000µm
2.6 x 5mm
2.6 x 5mm
Protection class
IP 67
Vibration
15g / 10Hz … 1kHz
Shock
20g / 10Hz…1kHz
15g / 10Hz…1kHz
15g / 6ms (IEC 68-2-29)
Weight (without cable)
appr. 83g
Temperature stability
appr. 130g
0.03 % FSO/°C
0.08 % FSO/°C
Operation temperature
0 …+50°C
Storage temperature
-20 ... +70°C
analogue
Output
4 ... 20mA (1 ... 5V with cable PC 1402-3/U); free scalable within the nominal range
digital
Control I/O
RS422 / 14bit
1x open collector output (switching output, switch, error); 1x input (teach in, trigger); 1x laser on/off
Supply
11 ... 30VDC, 24VDC / 50mA
Controller
integrated signal processor
Software
free setup and aquisition tool + SDK (software development kit)
Electromagnetic compatibility (EMC)
EN 61326-1:2006 / EN 55011 Class B (Interface emission)
EN 61326-1:2006 / EN 61000-4-2:1995 + A1:1998 + A2:2001 (Interference resistance)
FSO = Full scale output All specifications apply for a diffusely reflecting matt white ceramic target
1)
values apply for 0 - 30% FSO and 30 - 100 % FSO 2) resolution digital output 14bit
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
1
9
8
Connector axial
Ø15
45.4
12-pin-connector
(view on solder termination side of male inserts)
Pin
3
RS422 Rx+
10
12
7
6
5
4
Description
colour PC1402-x/I
serial input
green
yellow
4
RS422 Rx-
serial input
5
RS422 Tx+
serial output
grey
6
RS422 Tx-
serial output
pink
7
+U B
11-30DV 24V MP
8
Laser off
switch input
black
9
Teach in
switch input
violet
red
10
Error
switch output
brown
11
I OUT
4 ... 20mA
white
12
GND
supply and signal ground
blue
1/2
n.c.
2
3
11
The cable screen is connected with the sensor housing. The interface and power
supply cable are robot rated and UL certfied. At one end there is a 12pin M12
connector, the other end is open.
Compact sensor with analogue output and RS232
optoNCDT 1402(025)
1401
Compatible with
optoNCDT 1401
Eight models with measuring
ranges from 5mm to 600mm
312Hz
375Hz
1000Hz
Analog
Digital
Adjustable measuring rate
up to 1.5kHz
Analogue (U/I)
and digital output
Trigger
TeachIn
Trigger input
and teach-in
Finside
ilter
Adjustable filter functions
Peak selection (firmware)
High flex cables for
drag chain or robot use
Calibration certificate
included
optoNCDT 1402(025)
65
4
57
20
40
The optoNCDT 1402(025) has been designed as a drop in replacement for the former
opto­NCDT 1401 series. Similar to the former
sensor, this series has a 7 pin connecter and
RS232 or analogue outputs as standard (user
selectable).
The mating electrical connector is included in
the scope of supply.
50
A
16
B
ø8
5
ø6
MR
SMR
α
ϕ
ε
A
B
5
20.0
33.5
35.5
37.1
18.9
13.2
10
20.0
33.5
32.9
32.4
19.1
13.2
20
30.0
31.2
27.9
25.8
24.2
18.2
50
45.0
25.1
19.6
16.9
28.9
21.1
100
50.0
23.1
14.4
11.3
30.1
21.3
200
60.0
20.1
9.4
6.8
30.8
22.0
400
200.0
9.7
5.3
3.8
41.4
33.7
600
200.0
9.7
4.3
3
41.6
33.7
Start of measuring range (SMR)
mounting holes
2 x ø 4,3/5,8
Measuring range (MR)
12
(Dimensions in mm, not to scale)
10
13
ILD
ILD
ILD
ILD
ILD
ILD
ILD
ILD
1402-5(025) 1402-10(025) 1402-20(025) 1402-50(025) 1402-100(025) 1402-200(025) 1402-400(025) 1402-600(025)
Model
Measuring range
5mm
10mm
20mm
50mm
100mm
200mm
400mm
600mm
Start of measuring range
SMR
20mm
20mm
30mm
45mm
50mm
60mm
200mm
200mm
Midrange
MMR
22.5mm
25mm
40mm
70mm
100mm
160mm
400mm
500mm
End of measuring range
EMR
25mm
30mm
50mm
95mm
150mm
260mm
600mm
800mm
5...9µm
5...18µm
7...36µm
12...90µm
20...180µm
40...360µm
Linearity 1)
120...1200µm 120...3000µm
≤0.18% FSO
Resolution 2)
averaged with
averaging
factor 64
0.6µm
dynamic
1.5 kHz
1...3µm
1µm
2µm
≤0.5% FSO
5µm
10µm
13µm
80µm
80µm
13...100µm
80...480µm
80...600µm
0,01% FSO.
2...5µm
5...10µm
6...25µm
12...50µm
0.02...0.05% FSO
Measuring rate, programmable
0.02...0.12% FSO
1.5kHz; 1kHz; 750Hz; 375Hz; 50Hz
Light source
semiconductor laser <1mW, 670nm (red)
Laser safety class
Spot diameter
class 2 IEC 60825-1 : 2008-05
SMR
110µm
110µm
210µm
1100µm
1400µm
2300µm
2.6 x 5mm
2.6 x 5mm
MMR
380µm
650µm
530µm
110µm
130µm
2200µm
2.6 x 5mm
2.6 x 5mm
EMR
650µm
1200µm
830µm
1100µm
1400µm
2100µm
2.6 x 5mm
2.6 x 5mm
Protection class
IP 67
Vibration
15g / 10Hz … 1kHz
Shock
15g / 6ms (IEC 68-2-29)
Weight (without cable)
appr. 83g
Operation temperature
0 …+50°C
Storage temperature
Measurement output
appr. 130g
-20 ... +70°C
analogue
4 ... 20mA (1 ... 5V with cable PC 1401-3/U); free scalable within the nominal range
digital
Control I/O
RS232 / 14bit
1x open collector output (switching output, switch, error); 1x input (teach in, trigger); 1x laser on/off
Supply
11 ... 30VDC, 24VDC / 50mA
Controller
integrated signal processor
Software
free setup and aquisition tool + SDK (software development kit)
Electromagnetic compatibility (EMC)
EN 61326-1:2006 / EN 55011 Class B (Interface emission)
EN 61326-1:2006 / EN 61000-4-2:1995 + A1:1998 + A2:2001 (Interference resistance)
FSO = Full scale output All specifications apply for a diffusely reflecting matt white ceramic target
1)
values apply for 0 - 30% FSO and 30 - 100 % FSO 2) resolution digital output 14bit
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
Connector axial (included)
ø 14
M9.0 x 0,5
7-pin-connector
(view on solder termination
side of male inserts)
3
4
5
2
6
1
7
Pin connection current/RS232 7x1x0.14
~40
Pin
Description
1
Error
2
Laser on/off
3
RX232
4
TX232
5
4 ... 20 mA
6
GND
7
Supply 11 ... 30 VDC
Compact sensor with stainless steel housing IP69K
14
optoNCDT 1402SC
Eight models with measuring
ranges from 5mm to 600mm
Ideal for OEM applications
312Hz
375Hz
1000Hz
Analog
Digital
Adjustable measuring rate
up to 1.5kHz
Analogue (U/I)
and digital output
Trigger
Trigger input
Finside
ilter
Adjustable filter functions
Peak selection (firmware)
Telemetry qualified
by low power consumption
IP69K
optoNCDT 1402SC
M12x1
20
14
48
2 mounting holes
ø4.3/5.
50
40
A
B
57
65
ε
80
ϕ
MR
SMR
α
ϕ
ε
A
B
5
20.0
33.5
35.5
37.1
18.9
13.2
10
20.0
33.5
32.9
32.4
19.1
13.2
20
30.0
31.2
27.9
25.8
24.2
18.2
50
45.0
25.1
19.6
16.9
28.9
21.1
100
50.0
23.1
14.4
11.3
30.1
21.3
200
60.0
20.1
9.4
6.8
30.8
22.0
250VT
100.0
14.7
7.6
5.5
33.9
26.2
600
200.0
9.7
4.3
3
41.6
33.7
Measuring range (MR)
α
4
16
Start of measuring range (SMR)
laser beam
12
ø6
5
The optoNCDT 1402SC sensor is protected
to IP69K and is available in all measuring
ranges between 5mm and 600mm. Due to
its very robust design, the sensor is suitable for the food industry, outdoor use or for
demanding process manufacturing applications. The housing for this model comprises
V4A steel and complies with all food industry
requirements. In this version, the sensor is
resistant to high pressure jet washing and to
aggressive cleaning detergents and disinfection agents, including hydrogen peroxide and
other alkaline-based cleaning materials and
cleaning materials that contain chlorine. The
sensor electronics are similar to those used
by the optoNCDT 1402 standard model.
Protection class IP69K for
harsh environments
(Dimensions in mm, not to scale)
15
ILD
1402-5SC
Model
Measuring range
ILD
1402-10SC
ILD
1402-20SC
ILD
1402-50SC
ILD
1402-100SC
ILD
1402-200SC
ILD
1402-600SC
5mm
10mm
20mm
50mm
100mm
200mm
600mm
Start of measuring range
SMR
20mm
20mm
30mm
45mm
50mm
60mm
200mm
Midrange
MMR
22.5mm
25mm
40mm
70mm
100mm
160mm
500mm
End of measuring range
EMR
25mm
30mm
50mm
95mm
150mm
260mm
800mm
5...9µm
5...18µm
7...36µm
12...90µm
20...180µm
40...360µm
120...3000µm
Linearity 1)
≤0.18% FSO
Resolution 2)
averaged with
averaging
factor 64
0.6µm
dynamic
1.5 kHz
1...3µm
1µm
2µm
5µm
10µm
13µm
12...50µm
13...100µm
80µm
0.01% FSO
2...5µm
5...10µm
6...25µm
0.02...0.05% FSO
Measuring rate, programmable
80...600µm
0.02...0.12% FSO
1.5kHz; 1kHz; 750Hz; 375Hz; 50Hz
Light source
semiconductor laser <1mW, 670nm (red)
Laser safety class
Spot diameter
≤0.5% FSO
class 2 IEC 60825-1 : 2008-05
SMR
110µm
110µm
210µm
1100µm
1400µm
2300µm
2.6 x 5mm
MMR
380µm
650µm
530µm
110µm
130µm
2200µm
2.6 x 5mm
EMR
650µm
1200µm
830µm
1100µm
1400µm
2100µm
2.6 x 5mm
Protection class
IP 69 K
Vibration
15g / 10Hz … 1kHz
Shock
20g / 10Hz…1kHz
15g / 6ms (IEC 68-2-29)
Weight (without cable)
appr. 173g
Temperature stability
0.03 % FSO/°C
Operation temperature
0 …+50°C
Storage temperature
-20 ... +70°C
analogue
Output
0.08 % FSO/°C
4 ... 20mA (1 ... 5V with cable PC 1402SC-3/U); free scalable within the nominal range
digital
Control I/O
RS422 / 14bit
1x open collector output (switching output, switch, error); 1x input (trigger)
Supply
11 ... 30VDC, 24VDC / 50mA
Controller
integrated signal processor
Software
free setup and aquisition tool + SDK (software development kit)
Electromagnetic compatibility (EMC)
EN 61326-1:2006 / EN 55011 Class B (Interface emission)
EN 61326-1:2006 / EN 61000-4-2:1995 + A1:1998 + A2:2001 (Interference resistance)
FSO = Full scale output All specifications apply for a diffusely reflecting matt white ceramic target
1)
values apply for 0 - 30% FSO and 30 - 100 % FSO 2) resolution digital output 14bit
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
2
3
1
Connector axial
Ø15
45.5
8-pin-connector
6
Pin
Description
colour
1
I OUT
white
2
Error
brown
3
RS422 Rx+
green
4
RS422 Rx–
yellow
5
RS422 Tx+
grey
6
RS422 Tx–
pink
7
GND
blue
+U B
red
8
8
7
Laser off
Teach in
4
5
Sensor with integrated controller for industrial applications
16
optoNCDT 1700
Eleven models with measuring
ranges from 2mm to 1000mm
Real Time Surface Compensation
312Hz
375Hz
1000Hz
Analog
Digital
Adjustable measuring rate
up to 2.5kHz
Analogue (U/I)
and digital output
Finside
ilter
Adjustable filter functions
(firmware)
High flex cables for
dragchain or robot use
Calibration certificate
included
Adjustable limit switches
As well as for precise measurement, the
optoNCDT 1700 sensors are also used for
tolerance or limit monitoring. Two switching
points are available which can be configured
and adjusted via the remote software (USB
connection). The switching hysteresis can
also be individually adjusted for each limit
point.
The benchmark
in laser triangulation sensors
The optoNCDT 1700 series is truly a world
leading laser displacement sensor. Featuring
Real Time Surface Compensation (RTSC),
remote software programming and excellent
linearity & resolution the optoNCDT 1700 is
difficult to match at this price level. Integrated
conditioning electronics allows the sensor to
have a very unique and compact design.
optoNCDT 1700 (40/500/750mm)
150
140
130
97
3x Mounting holes
ø4.5 mm
3x Mounting
holes
ø4.5 mm
67
75
18.5
75
37.5
A
70
80
B
ϕ
ø5
Start of measuring
range
MR
ε
15
α
ϕ
End of measuring
range
A
B
44.8°
25.8
16.8
10
30
34.3°
35.2°
35.6°
28.7
20.5
20
40
28.8°
27.5°
26.7°
30.1
22.0
50
45
26.5°
23.0°
18.3°
31.5
22.5
70
19.0°
15.4°
10.9°
32.6
24.1
200
70
19.0°
9.78°
6.97°
33.1
24.1
250VT
70
19.0°
8.4°
6.0°
33.5
24.1
40
175
22.1°
21.9°
21.8°
101
86
500
200
19.3°
9.8°
7.0°
101
85
750
200
19.3°
7.7°
5.0°
101
85
Article Number: 0323272
~50
17.5
35
36.1
ε
40°
Connector (sensor side)
End of measuring
range
30
15
13.2
24.2
12
17.5
ϕ
35°
Start of measuring
range
MR
ε
15
α
24
100
B
5
α
A
40
4
ø8
13.4
SMR
SMR
ø4
SMR
2
31
(Dimensions in mm, not to scale. All CAD files are available online.)
75
Connector (sensor cable)
Article Number: 0323243
~15
89
80
MR
ø15
optoNCDT 1700 (2/10/20/50/100/200/250VTmm)
Adjustable exposure time/measuring rate
For poor reflecting targets, the measuring rate
can be reduced to enable a longer exposure time. The set measurement rate always
remains constant so that with closed-loop
control the system response time is always
the same.
~51
14-pin-connector
(Pin side female cable
connector or solder-pin
side male cable connector)
17
ILD
1700-2
ILD
1700-10
ILD
1700-20
Measuring range
2mm
10mm
Start of measuring range
24mm
30mm
Midrange
25mm
End of measuring range
26mm
2µm
Model
Linearity
FSO
Resolution
(at 2.5kHz without averaging)
ILD
1700-40
ILD
1700-50
20mm
40mm
50mm
100mm
40mm
175mm
45mm
70mm
35mm
50mm
195mm
70mm
40mm
60mm
215mm
95mm
8µm
16µm
32µm
40µm
80µm
≤0.1%
0.1µm
ILD
1700-250VT
ILD
1700-500
ILD
1700-750
200mm
250mm
500mm
750mm
70mm
70mm
200mm
200mm
120mm
170mm
195mm
450mm
575mm
170mm
270mm
320mm
700mm
950mm
≤0.08%
0.5µm
1.5µm
Measuring rate
4µm
3µm
6µm
200µm
630µm
400µm
750µm
≤0.1%
≤0.25%
≤0.08%
≤0.1%
12µm
50µm
30µm
50µm
2.5kHz / 1.25kHz / 625Hz / 312.5Hz (adjustable)
Light source
semiconductor laser <1mW, 670nm (red)
Permissable ambient light (at 2.5kHz)
10,000lx
Laser safety class
15,000lx
10,000lx
class 2 acc. DIN EN 60825-1 : 2008-05
Spot diameter
SMR
80µm
MMR
35µm
EMR
80µm
110µm
320µm
230µm
50µm
45µm
210µm
110µm
320µm
230µm
0.025%
FSO/°C
Temperature stability1)
570µm
740µm
1300µm
1500µm
1500µm
1500µm
55µm
60µm
1300µm
1500µm
1500µm
1500µm
570µm
700µm
1300µm
1500µm
1500µm
1500µm
0.01 % FSO/°C
Operation temperature
0 ...+50°C
Storage temperature
Output
ILD
ILD
1700-100 1700-200
0.025%
FSO/°C
0.01 %
FSO/°C
0 ...+55°C
0 ...+50°C
-20 ... +70°C
measurements
selectable: 4 ... 20mA / 0 ... 10V / RS 422 / USB (optional with cable PC1700-3/USB)
switching outputs
1 x error or 2 x limit (each pogrammable)
Switch Input
laser ON-OFF / zero
Operation
via touch screen on sensor or via PC with ILD 1700 tool
Power supply
24VDC (11 ... 30VDC), max. 150mA
Electromagnetic compatibility (EMC)
EN 61000-6-3 EN 61000-6-2
Sensor cable length (with connector)
0.25m (integrated cable with connector) option: 3m or 10m
Synchronisation
possible for simultaneous or alternating measurements
Protection class
IP 65
Vibration
2g / 20 ... 500Hz
Shock
Weight (with 0.25m cable)
15g / 6ms
~ 550g
~ 600g
FSO = Full Scale Output All specifications apply for a diffusely reflecting white ceramic target
1)
based on digital output
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
Custom Sensor Modifications
For applications where the above standard sensors do not meet
your requirements, it may be possible to supply asensor with
modified specification. Please contact us for further information.
Options
ƒƒNon standard measuring range and stand off
ƒƒCustom housing or mounting geometry
ƒƒNon standard signal interfaces
ƒƒSpecial cable length of electrical connector
ƒƒ90° beam deflection
ƒƒVacuum suitability
ƒƒReduced mass
ƒƒIncreased shock and vibration resistance
~ 550g
~ 600g
Extreme dynamic laser sensor with integrated controller
18
optoNCDT 2300
Eight models with measuring
ranges from 2 to 200mm
312Hz
375Hz
1000Hz
Adjustable measuring rate
up to 49.02kHz
Ethernet / EtherCAT / RS422
Analogue ouput via C-Box
INTER
FACE
Advanced
Real Time Surface Compensation
Calibration certificate
included
Measurement of
diffuse and specular surfaces
Thickness measurement of
transparent materials
Configuration via Web-Interface
The optoNCDT 2300 is the latest high-end
model of laser triangulation sensors from
Micro-Epsilon. The new series offers an adjustable measuring rate up to 49.02 kHz. An
impressive and worldwide unique fact regarding this sensor class is that the complete
electronics has already been integrated in the
compact sensor..
optoNCDT
optoNCDT
2300-2
2300-2
... 2300-100
... 2300-100
The new A-RTSC (Advanced Real-Time-Surface-Compensation) is a further development
of the proven RTSC. Therefore, a more precise real-time surface compensation during
the measuring process is ensured due to an
increased dynamic range.
By means of the software, the threshold of the
areas for compensation can be set easily.
The data are output via Ethernet, EtherCAT or
RS422. The complete sensor configuration is
effected via a comfortably designed web interface.
The optoNCDT 2300 is especially used in the
case of fast measurements such as vibration
monitoring or measurements against challenging surfaces.
optoNCDT
optoNCDT
2300-2
2300-2
... 2300-20
... 2300-20
Diffuse Diffuse
reflection
reflection
optoNCDT 2300-40 / 2300-200
Direct reflection
Direct reflection
150
4
44.5
30
97
89
140
30
97
89
4.5
4.5
4
3x mounting
holes
ø4.5mm
75
4.5
Y2
70
80
33.5 75
67
33.5
40
48
48
2
α
SMR
α
ϕ
15
Start of
measuring range
MR
ε
5
ø5
Limits for
Limits
free for free
space space
MB (dir.R)
4
MR
Keep this
Keep
areathis
freearea
from
free from
other light
other
sources
light sources
and/or and/or
their reflections
2 their reflections
91.6
2
α
End of measuring
range
MR
SMR
Y
2
24
1.5
5
24
3.5
MR
SMR + 0.5 MR
α
10
30
6.5
2
25
20.5 °
17.5
35
Y
10
13.5
MB (dir.R)
Limits for
Limits
free for free
space space
10
13.5
Mounting
Mounting
holes holes
ø4.5 forø4.5
M4 screws
for M4 screws
0.5
SMR +
Laser Laser
7
.5 MR
48
0
SMR +
10 48
13.5
Mounting
Mounting
holes holes
ø4.5 forø4.5
M4 screws
for M4 screws
7
7 7
15
15
4
75
67
67
10
13.5
MR
SMR
4
33.5
67
75
33.5
4
SMR
MR
75
4
130
97
89
18.5
97
89
20
40
10.0
5
26.5
20 °
MB
α
ϕ
ε
50
45
23.0
10
35
17.5 °
40
22.1 °
21.9 °
21.8 °
100
70
33.5
20
50
13.8 °
200
25.1 °
16.7 °
13.1 °
19
Model
Measuring range 1)
ILD 2300-2
ILD 2300-5
ILD 2300-10
ILD 2300-20
ILD 2300-40
ILD 2300-50 ILD 2300-100 ILD 2300-200
2 (2) mm
5 (2) mm
10 (5) mm
20 (10) mm
40 (20) mm
50 (25) mm
100 (50) mm
200 (100) mm
45 (70) mm
70 (120) mm
130 (230) mm
Start of measuring
range
SMR
24 (24) mm
24 (24) mm
30 (35) mm
40 (50) mm
175 (195) mm
Midrange
MMR
25 (25) mm
26.5 (25) mm
35 (37.5) mm
50 (55) mm
195 (205) mm 70 (82.5) mm 120 (145) mm 230 (280) mm
End of measuring
range
EMR
26 (26) mm
29 (26) mm
40 (40) mm
60 (60) mm
215 (215) mm
95 (95) mm
170 (170)
mm
330 (330) mm
0.6µm
1.5 µm
2µm
4µm
12µm
10µm
20µm
60µm
Linearity
≤±0.03% FSO
0.03µm
Resolution (20kHz)
0.08µm
≤±0.02% FSO
0.15µm
0.3µm
0.6µm
0.8µm
≤±0.03% FSO
1.5µm
3µm
adjustable via software 49.02 / 30 / 20 / 10 / 5 / 2.5 / 1.5kHz (49.02kHz with reduced measuring range)
Permissable ambient light
10,000…40,000lx
SMR
55 x 85µm
70 x 80µm
75 x 85µm
140 x 200µm
255 x 350µm
350µm
1300µm
MMR
23 x 23µm
30 x 30µm
32 x 45µm
46 x 45µm
70 x 70µm
130µm
1300µm
EMR
35 x 85µm
70 x 80µm
110 x 160µm
140 x 200µm
255 x 350µm
350µm
1300µm
Light source
semiconductor laser <1mW / 670nm (red)
Protection class
IP 65
Operation temperature
0 ... +50°C
Storage temperature
-20 ... +70°C
Ethernet / EtherCAT
RS422
analogue ouput via CSP2008
Inputs / Outputs
Inputs
Laser on/off; synchronization / trigger input
Power supply
24 Vdc (11…30V); PV < 3W
LED
Sensor cable
≤±0.02% FSO
0.0015% FSO
Measuring rate
Spot diameter
≤±0.03% FSO
Status / Power / Ethernet / EtherCAT
standard
0.25m (with cable connector)
option
3 / 6 / 9m with Sub D 15 pin connector
EN 61326-1: 2006-10
DIN EN 55011: 2007-11 (group 1. class B)
EN 61 000-6-2: 2006-03
Electromagnetic compatibility
(EMC)
Vibration
2g / 20 ... 500Hz
Shock
15g / 6ms / 3 axes
FSO = Full Scale Output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
1)
Numbers in brackets refer to full measurement rate 49.02 kHz
ILD 2300-2
Start of measuring range
Measuring range up to 30 kHz measuring rate
ILD 2300-10
Measuring range 49.02 kHz measuring rate
ILD 2300-20
ILD 2300-50
ILD 2300-100
ILD 2300-200
50 mm
100 mm
150 mm
200 mm
250 mm
300 mm
Sensor with laserline for shiny metallic and rough surfaces
optoNCDT 1700LL
Laser Line averages across shiny
metallic or structured surfaces
Compact design with integrated
controller
Real Time Surface Compensation
312Hz
375Hz
1000Hz
Analog
Digital
Finside
ilter
Adjustable measuring rate
up to 2.5kHz
Analogue (U/I)
and digital output
Adjustable filter functions
(firmware)
High flex cables for
dragchain or robot use
Calibration certificate
included
optoNCDT 1700LL (2/10/20/50mm)
97
89
80
SMR
α
ϕ
ε
A
B
2
24
35°
40°
44.8°
25.8
16.8
10
30
34.3°
35.2°
35.6°
28.7
20.5
20
40
28.8°
27.5°
26.7°
30.1
22.0
50
45
26.5°
23.0°
18.3°
31.5
22.5
75
67
3x Mounting
holes ø4.5mm
MR
A
37.5
B
SMR
ø8
15
4
ø4
13.4
α
ϕ
ε
Start of measuring
range
Connector (sensor side)
Article Number: 0323243
ø15
MR
End of measuring
range
~50
Connector (sensor cable)
24.2
36.1
(Dimensions in mm, not to scale. All CAD files are available online.)
~15
30
Article Number: 0323272
15
The optoNCDT 1700LL is designed for measurements on shiny and rough surfaces where high accuracy is required. The optoNCDT
1700LL provides precision accuracy with an
integrated controller. The laser spot is optically
enlarged to make an oval point thus reducing
the physical interference making measurements on rough surfaces considerably easier
to perform. The 1700LL offers high precision
and flexibility with a compact sensor size.
13.2
20
~51
21
ILD1700-2LL
ILD 1700-10LL
ILD 1700-20LL
ILD 1700-50LL
Measuring range
Model
2mm
10mm
20mm
50mm
Start of measuring range
24mm
30mm
40mm
45mm
Midrange
25mm
35mm
50mm
70mm
End of measuring range
26mm
40mm
60mm
95mm
2µm
8µm
16µm
40µm
Linearity
FSO
Resolution 1) (at 2.5kHz without averaging)
≤0.1%
≤0.08%
0.1µm
0.5µm
Measuring rate
Light source
3µm
semiconductor laser <1mW, 670nm (red)
Permissable ambient light
at 2.5kHz
10,000lx
Laser safety class
class 2 acc. DIN EN 60825-1 : 2008-05
Spot diameter
SMR
85 x 240µm
120 x 405µm
185 x 485µm
350 x 320µm
MMR
24 x 280µm
35 x 585µm
55 x 700µm
70 x 960µm
64 x 400µm
125 x 835µm
195 x 1200µm
300 x 1940µm
EMR
0.025% FSO/°C
Temperature stability 2)
0.01 % FSO/°C
Operation temperature
0 ...+50°C
Storage temperature
Output
1.5µm
2.5kHz / 1.25kHz / 625Hz / 312.5Hz (adjustable)
-20 ... +70°C
measurements
selectable: 4 ... 20mA / 0 ... 10V / RS 422 / USB (optional with cable PC1700-3/USB)
switching outputs
1 x error or 2 x limit (each pogrammable)
Switch Input
Operation
laser ON-OFF / zero
via touch screen on sensor or via PC with ILD 1700 tool
Power supply
24VDC (11 ... 30VDC), max. 150mA
Electromagnetic compatibility (EMC)
EN 61000-6-3 EN 61000-6-2
Sensor cable length (with connector)
0.25m (integrated cable with connector) option: 3m or 10m
Synchronisation
possible for simultaneous or alternating measurements
Protection class
IP 65
Vibration
Shock
Weight (with 0.25m cable)
FSO = Full Scale Output All specifications apply for a diffusely reflecting white ceramic target
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
1) for measurements against high glossy surfaces (targets), resolution depends on the material
2) based on digital output
Custom Sensor Modifications
For applications where the above standard sensors do not meet
your requirements, it may be possible to supply a sensor with
modified specification. Please contact us for further information.
Options
ƒƒNon standard measuring range and stand off
ƒƒCustom housing or mounting geometry
ƒƒNon standard signal interfaces
ƒƒSpecial cable length of electrical connector
ƒƒ90° beam deflection
ƒƒVacuum suitability
ƒƒReduced mass
ƒƒIncreased shock and vibration resistance
2g / 20 ... 500Hz
15g / 6ms
~ 550g
Sensor with laserline for metallic shiny surfaces
optoNCDT 2300LL
Laser Line averages across shiny
metallic or structured surfaces
Four models with measuring ranges
from 2mm to 50mm
312Hz
375Hz
1000Hz
INTER
FACE
Adjustable measuring rate
up to 49.02kHz
Ethernet / EtherCAT / RS422
Analogue ouput via C-Box
Advanced
Real-Time-Surface-Compensation
Calibration certificate included
Configuration via Web-Interface
optoNCDT 2300LL
30
97
89
33.5
67
4.5
Mounting holes
ø4.5 for M4 screws
4
75
4
MBA
The optoNCDT 2300LL series use a very small
laser line instead of the common laser spots.
Due to this laser line, the optoNCDT 2300LL is
very well suited for precise distance and displacement measurement on glossy, porous or
rough surfaces. Due to the high measurement
rate of up to 49kHz it is possible to reliably
apply the sensor in fast processes. The data
are output via Ethernet, EtherCAT or RS422.
The complete sensor configuration is effected
via a comfortably designed web interface.
48
10
13.5
15
Laser
Limits for free
space
MB
22
Y
Keep this area free from
other light sources and/or
their reflections
2
MB
MBA
Y
2
24
1.5
10
30
6.5
20
40
10.0
50
45
23.0
7
7
23
Modell
Measuring range 1)
ILD 2300-2LL
ILD 2300-10LL
ILD 2300-20LL
ILD 2300-50LL
2 (2) mm
10 (5) mm
20 (10) mm
50 (25) mm
40 (50) mm
45 (70) mm
Start of measuring range
SMR
24 (24) mm
30 (35) mm
Midrange
MMR
25 (25) mm
35 (37,5) mm
50 (55) mm
70 (82,5) mm
End of measuring range
EMR
26 (26) mm
40 (40) mm
60 (60) mm
95 (95) mm
0.6µm
2µm
4µm
10µm
Linearity
≤±0.03% FSO
≤±0.02% FSO
0.03µm
Resolution (20kHz)
0.15µm
0.3µm
Measuring rate
adjustable via software 49.02 / 30 / 20 / 10 / 5 / 2.5 / 1.5kHz (49.02kHz with reduced measuring range)
Permissable ambient light
10,000…40,000lx
Spot diameter
SMR
85 x 240μm
120 x 405μm
185 x 485μm
350 x 320μm
MMR
24 x 280μm
35 x 585μm
55 x 700μm
70 x 960μm
EMR
64 x 400μm
125 x 835μm
195 x 1200μm
300 x 1940μm
Light source
laser diode (670nm) class 2
Protection class
IP 65
Operation temperature
0 ... +50°C
Storage temperature
-20 ... +70°C
Ethernet / EtherCAT
RS422
analogue ouput via CSP2008
Inputs / Outputs
Inputs
laser on/off; synchronization / trigger input
Power supply
24Vdc (11…30V); PV < 3W
LED
Sensor cable
0.8µm
0.0015% FSO
status / power / Ethernet / EtherCAT
standard
0.25m (with cable connector)
option
Electromagnetic compatibility (EMC)
3 / 6 / 9m with Sub D 15 pin connector
EN 61326-1: 2006-10
DIN EN 55011: 2007-11 (group 1. class B)
EN 61 000-6-2: 2006-03
Vibration
Shock
FSO = Full Scale Output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
1)
Numbers in brackets refer to full measurement rate 49.02kHz
2g / 20 ... 500Hz
15g / 6ms / 3 axes
Short measurement ranges at long stand off distances
optoNCDT 1710-50
High accuracy and
long standoff distances
Measurement rate
up to 10kHz
Real Time Surface Compensation
Analog
Digital
Finside
ilter
Analogue
and digital output
Adjustable filter functions
(firmware)
Calibration certificate
included
optoNCDT 1710-50 (50mm)
Window laser (ø 12.5) ø 5 free
24
48
Window cmos (ø 35.5) ø 30 free
39
14
147
Mounting holes ø 6
61
73
83
90
In contrast to conventional laser sensors, the
Long-Range series allows accurate measurements to be taken at much longer stand off
distances than normal. This is an important
advantage, especially if the sensor cannot be
mounted close to the target due to the environment the target is within. The long stand
off is particularly useful if you need to look
through a window at a target in a pressure
chamber or similar vessel. A special CCD line
and the Real Time Surface Compensation
enable the sensor to be used even on changing surfaces.
95
190
195
550
24
(Dimensions in mm, not to scale.)
Measuring range 50
25
Model
ILD 1710-50
Measuring range
50mm
Start of measuring range
550mm
Midrange
575mm
End of measuring range
600mm
50µm
Linearity
≤0.1% FSO
5µm
Resolution
0.01% FSO (at 2.5kHz without averaging)
Measuring rate
2.5kHz / 1.25kHz / 625Hz / 312.5Hz (adjustable)
Permissable ambient light
10,000lx
Spot diameter
SMR
400 x 500µm
MMR
400 x 500µm
EMR
Light source
400 x 500µm
semiconductor laser <1mW, 670nm (red)
Laser safety class
class 2 IEC 60825-1 : 2008-05
Protection class
IP 65
Temperature stability
0.01 % FSO/°C
Operation temperature
0 ... 50°C
Storage temperature
-20 ... 70°C
analogue
Output
digital
switching outputs
4 ... 20mA (0 ... 10V)
RS 422 / USB (optional with cable PC1700-3/USB)
1 x error or 2 x limit (each pogrammable)
Switch Input
Operation
laser ON-OFF / zero
via touch screen on sensor or via PC with ILD 1700 tool
Power supply
24VDC (11 ... 30VDC), max. 150mA
Sensor cable length
Synchronisation
standard: 0.25m - integrated
possible for simultaneous or alternating measurements
Electromagnetic compatibility (EMC)
EN 50081-1 and EN 50082-2
Vibration
2g / 20 ... 500Hz
Shock
15g / 6ms
Weight
~800g
FSO = Full Scale Output; All specifications apply for a diffusely reflecting matt white ceramic target;
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
Custom Sensor Modifications
For applications where the above standard sensors do not meet your requirements,
it may be possible to supply a sensor with modified specification.
Please contact us for further information.
Options
ƒƒNon standard measuring range and stand off
ƒƒCustom housing or mounting geometry
ƒƒMeasuring rate 2.5 / 5 / 10 / 20kHz
ƒƒNon standard signal interfaces
ƒƒSpecial cable length of electrical connector
ƒƒVacuum suitability
ƒƒReduced mass
ƒƒIncreased shock and vibration resistance
Short measurement ranges at long stand off distances
optoNCDT 2310
High accuracy and
long standoff distances
Three models with measuring
ranges from 10mm to 50mm
312Hz
375Hz
1000Hz
INTER
FACE
Adjustable measuring rate
up to 49.02kHz
Ethernet / Ethercat / RS422
Analogue ouput via C-Box
Advanced
Real-Time-Surface-Compensation
Calibration certificate
included
Thickness measurement of
transparent materials
Configuration via Web-Interface
optoNCDT 2310-10/2310-20
In contrast to conventional laser sensors, the
Long-Range series optoNCDT 2310 allows
accurate measurements to be taken at much
longer stand off distances than normal.
Window laser (ø 12.5) ø 5 free
140
130
75
48
24
18.5
3x Mounting
holes ø4.5mm
14
147
70
80
39
91.6
40
5
ø5
The Real Time Surface Compensation enable the sensor to be used even on changing
surfaces.
3x Mounting holes
ø6
61
73
83
90
SMR
15
95
190
195
MR
(Dimensions in mm, not to scale.)
MR 50
550
17.5
This is an important advantage, especially if
the sensor cannot be mounted close to the
target due to the environment the target is
within. The long stand off is particularly useful if you need to look through a window at a
target in a pressure chamber or similar vessel.
optoNCDT 2310-50
Window cmos (ø 35.5) ø 30 free
150
35
26
27
Model
Measuring range
ILD 2310-10
ILD 2310-20
ILD 2310-50
10 (5) mm
20 (10) mm
50 (25) mm
Start of measuring range
SMR
95 (100) mm
90 (100) mm
550 (575) mm
Midrange
MMR
100 (102.5) mm
100 (105) mm
575 (587.5) mm
End of measuring range
EMR
105 (105) mm
110 (110) mm
600 (600) mm
Linearity
Resolution
Measuring rate
3µm
6µm
50µm
≤±0.03% FSO
≤±0.03% FSO
≤± 0.1% FSO
0,5µm
1µm
7.5µm
0.005% FSO
0.005% FSO
(at 10kHz without averaging)
0.015% FSO
adjustable via software 49.02 / 30 / 20 / 10 / 5 / 2.5 / 1.5kHz (49.02kHz with reduced measuring range)
Permissable ambient light
Spot diameter
10,000…40,000lx
SMR
400 x 500µm
200µm
400 ... 500µm
MMR
400 x 500µm
60µm
400 ... 500µm
EMR
400 x 500µm
200µm
400 ... 500µm
Light source
laser diode (670nm) class 2
Protection class
IP 65
Operation temperature
0 ... +50°C
Storage temperature
-20 ... +70°C
Ethernet / EtherCAT
RS422
analogue ouput via CSP2008 / C-Box
Inputs / Outputs
Inputs
laser on/off; synchronization / trigger input
Power supply
24Vdc (11…30V); PV < 3W
LED
status / power / Ethernet / EtherCAT
Sensor cable
Electromagnetic compatibility (EMC)
standard: 0.25 m - integrated
EN 61326-1: 2006-10
DIN EN 55011: 2007-11 (group 1. class B)
EN 61 000-6-2: 2006-03
Vibration
Shock
FSO = Full Scale Output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
Custom Sensor Modifications
For applications where the above standard sensors do not meet your requirements,
it may be possible to supply a sensor with modified specification.
Please contact us for further information.
Options
ƒƒNon standard measuring range and stand off
ƒƒCustom housing or mounting geometry
ƒƒMeasuring rate 2.5 / 5 / 10 / 20kHz
ƒƒNon standard signal interfaces
ƒƒSpecial cable length of electrical connector
ƒƒVacuum suitability
ƒƒReduced mass
ƒƒIncreased shock and vibration resistance
2g / 20 ... 500Hz
15g / 6ms / 3 axes
Intelligent laser sensor with 1,000mm measuring range
optoNCDT 1710-1000
High accuracy and
long standoff distances
Model with measuring range
up to 1000mm
312Hz
375Hz
1000Hz
Adjustable measuring rate
up to 2.5kHz
Real Time Surface Compensation
Analog
Digital
Analogue (U/I)
and digital output
Finside
ilter
Adjustable filter functions
(firmware)
Calibration certificate
included
optoNCDT 1710-1000
operator panel
85
95
190
200
47
6)
5
61
71
73
83
24
48
ø9
24
5
ø 32
field of view - keep free
connector
cable
0.25m
(4.2°)
(6.3°)
(8.3°)
(4.65°)
(7.45°)
145
M 1:2
ø9
The optoNCDT 1710-1000 laser sensors
are unrivalled in measurement performance
worldwide. The sensor can measure over a
working range of 1,000mm. The start of measurement is 1,000mm from the sensor body
which means that objects upto 2m in distance
can be measured. The controller is integrated
into the housing of the sensor which means
that external electronic processing is not required. The sensor operates with automatic,
real time surface compensation, RTSC which
auto adapts the laser intensity to the surface
being measured. Additionally built in, programmable limit switch give the sensor further
integration flexibility.
(ø
28
SMR =1000
MR= 1000
29
Model
ILD1710-1000
Measuring range
1000mm
Start of measuring range
1000mm
Midrange
1500mm
End of measuring range
2000mm
Linearity
≤ ±0.1% FSO
±1mm
100μm
Resolution (at 2.5kHz without averaging)
Measuring rate
2.5kHz / 1.25kHz / 625Hz / 312.5Hz (adjustable)
Light source
semiconductor laser <1mW, 670nm (red)
Permissable ambient light
at 2.5kHz
10,000lx
Laser safety class
class 2 IEC 60825-1 : 2008-05
Spot diameter
SMR
2.5…5mm
MMR
2.5…5mm
EMR
2.5…5mm
Temperature stability
0.01% FSO/°C
Operation temperature
0 … 50°C
Storage temperature
Output
-20 ... +70°C
measurements
switchable: 4 ... 20mA / 0 ... 10V / RS 422 / USB (optional via cable PC1700-3/USB)
switching outputs
1 x error or 2x limit values (configurable)
Switching input
Operation
Laser ON-OFF / Zero
via keypad directly on the sensor and/or via PC with ILD1700 Tool
Power supply
24VDC (11 … 30 VDC), max. 150mA
Electromagnetic compatibility (EMC)
EN 61000-6-3 and EN 61000-6-2
Sensor cable
standard 0.25m integrated
Synchronisation
possible for simultaneous or alternating measurements
Protection class
IP 65
Vibration
2g / 20 … 500Hz
Shock
15g / 6ms
Weight
~ 0.8kg
FSO = Full Scale Output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range; MMR = Midrange; EMR = End of measuring range;
BLUE LASER triangulation sensor
30
optoNCDT 1700BL
optoNCDT 1700BL (20/200 mm)
97
3x Mounting
holes
ø4.5 mm
89
80
Six models with measuring ranges
from 20 to 1000mm
Blue Laser Technology
(Blue violet laser diode 405nm)
67
75
37.5
A
B
Real Time Surface Compensation
ø8
4
ø4
Adjustable
13.4 measuring rate
15
up to 2.5kHz
Start of
312Hz
375Hz
measuring
1000Hz
range
Analog
D
Analogue (U/I)
and digital output
Measuring
igital
range
Finside
ilter
Adjustable filter functions
(firmware)
13.2
High flex cables for dragchain
or robot use
optoNCDT 1700BL (20/200 mm)
18.5 18.5
67
75
15
22.0
85
15
48
24
70
80
17.5 17.5
~50
B
147
14
ø5
147
15
14
~50
Measuring
12
17.5
3x Mounting holes ø6
61
73
83
90
35
15
70
80
Connector (sensor side)
ø12.5
Measuring
range
30
Connector (sensor side)
5
Connector (sensor side)
17.5
35
13.2
75
Connector (sensor range
cable)
Connector (sensor cable)
~51
~51
75
Start
Measuring
range
75
ø12.5
A
39
5
35
35
ø35.5
measuring
range
36.1
31
~15 ~15
101ø8
15
95
48
200
15
24
85
B
ø5
Start of
measuring
ø5
Start
rangeof
measuring
range 3x Mounting holes ø6
48
25.1
101
17.5
optoNCDT
ø35.5 1710 (50/1000 mm)
24
35.4
200
B
70
80
100
A
61
73
83
90
40
40
30
18.5
30.1
3x Mounting
holes
ø4.5 mm
optoNCDT
1710 (50/1000 mm)
12
5
40
B
A
31
75
ø5
A
14
147
190
195
30
36.1
3x Mounting
holes
3x Mounting
ø4.5
mm
holes
ø4.5 mm
ø15 ø15
B
75
67
75
4
4
15
15
70
80
A
SMR
31
24.2
13.4
150
140
130
39Start of
Measuring
range
15
ø8
3x Mounting holes ø6
61
73
83
90
Start of
measuring
range
Measuring
750
range
13.4
ø4
ø8
13.4
5
ø4
500
B
A
B
ø4
24.2
40
B
4
37.5
A
39
ø12.5
75
Measuring
range
Measuring
range
13.2 13.2
18.5
67
75
MR of
Start
measuring
20
range
200
140
150
130
140
130
ø35.5
24.2 (500/750
36.1
optoNCDT 1700BL
mm)
3x Mounting
holes
ø4.5 mm
40
89
80
Start of
measuring
Start
of
range
measuring
range
Measuring
range
Measuring
range
3x Mounting
holes
ø4.5 mm
optoNCDT 1700BL (20/200 mm)
97
A
15
75
1700BL
(500/750 mm)
optoNCDT 1710optoNCDT
(50/1000 mm)
150
3x Mounting
holes
3x Mounting
ø4.5
mm
holes
ø4.5 mm
89
97
80
89
80
36.1
optoNCDT 1700BL (500/750 mm)
optoNCDT 1700BL
(20/200 mm)
97
37.5 37.5
In numerous applications, blue Laser sensors
are clearly superior to the standard sensors
with a red laser diode. During measurements
on metals, particularly on red glowing metals and organic matters such as wood, skin,
foodstuffs, veneers etc., the wavelength of the
blue laser offers significant benefits.
In contrast to the red laser, the blue laser light
does not penetrate the measuring object due
to the reduced wavelength.
The blue laser generates a minimal laser point
on the surface and therefore offers stable and
precise results on measuring objects which
optoNCDT 1700BL (500/750 mm)
are usually considered to be critical.
The sensors are equipped
with re-designed
150
high-end lenses, a 140
new intelligent laser control
130
and evaluation algorithms.
30
15
Calibration certificate
included
24.2
31
optoNCDT 1700BL (500/750 mm)
150
140
130
75
3x Mounting
holes
ø4.5 mm
ILD
1700-20BL
ILD
1700-200BL
ILD
1700-500BL
ILD
1700-750BL
Measuring range
20mm
200mm
500mm
Start of measuring range
40mm
100mm
200mm
50mm
200mm
60mm
16µm
70
80
18.5
Model
A
End of measuring Brange
ø5
Linearity
Start of
measuring
range
12
17.5
≤±0.08%
5
40
Midrange
15
FSO
1,5µm
Resolution (at 2.5kHz without averaging)
Measuring rate
ILD
1710-50BL
ILD
1710-1000BL
750mm
50mm
1000mm
200mm
550mm
1000mm
450mm
575mm
575mm
1500mm
300mm
700mm
950mm
600mm
2000mm
200µm
400µm
750µm
50µm
±1mm
≤±0.1% FSO
≤±0.08% FSO
≤±0.1% FSO
≤±0.1% FSO
≤±0.1% FSO
12µm
30µm
50µm
5µm
100µm
2.5kHz / 1.25kHz / 625Hz / 312.5Hz (adjustable)
Measuring
Light
rangesource
semiconductor laser <1 mW, 405nm (blue violet)
10,000lx
Permissable ambient light (at 2.5 kHz)
class 2 IEC 60825-1 : 2008-05
17.5
35
Laser safety class
NCDT 1700BL (500/750 mm)
NCDT 1700BL
(500/750
mm)
150
Spot
diameter
SMR
320µm
1300µm
1500µm
1500µm
400x500µm
2.5…5mm
MMR
45µm
1300µm
1500µm
1500µm
400x500µm
2.5…5mm
320µm
1300µm
1500µm
1500µm
400x500µm
2.5…5mm
0.01% FSO/°C
0 ... +50 °C
ø15
-20 ... +70 °C
selectable: 4 ... 20mA / 0 ... 10V / RS 422 / USB (option with cable PC1700-3/USB)
switching outputs
1 x error or 2 x limit (each pogrammable)
measurements
70
80
Output
A
B input
Switch
~50
70
80
18.5 18.5
31
75
140
150
EMR
130
140
75
3x
1) Mounting
Temperature
stability
130
holes
ø4.5
mm
75 temperature
3x
Mounting
Operation
holes
Connector (sensor side)
Storage temperatureø4.5 mm
Laser ON-OFF / Zero
A
Operation
B
easuring
range
easuring
range
5
ø5
via touch screen on sensor or via PC with ILD 1700 tool
12
15
17.5
Connector
(sensor cable)
Power supply
ø5
24VDC (11 ... 30VDC), max. 150mA
5
12
Sensor cable15length (with connector)17.5
standard 0.25m integrated / optional: extension 3m or 10m
~15
Start of
easuring
range
Start
of
easuring
range
Synchronisation
~51
possible for simultaneous or alternating measurements
Protection class
IP 65
Vibration
2g / 20 ... 500Hz
Shock
15g / 6ms
31
75
Connector (sensor side)
Connector (sensor side)
~50
ø15 ø15
31
17.5 17.5
Weight (with 25cm cable)
~ 550g
~ 550g
~ 600g
FSO = Full scale output All specifications apply for a diffusely reflecting matt white ceramic target
1)
based
75to digital output ; SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
~50
Connector (sensor cable)
~15 ~15
Connector (sensor cable)
~51
~51
~ 600g
~ 800g
~ 800g
BLUE LASER triangulation sensor
32
optoNCDT 2300BL
Three models with measuring
ranges from 2mm to 50mm
Blue Laser Technology
(Blue violet laser diode 405nm)
312Hz
375Hz
1000Hz
INTER
FACE
Adjustable measuring rate
up to 49.02kHz
Ethernet / Ethercat / RS422
Analogue ouput via C-Box
Advanced
Real-Time-Surface-Compensation
Calibration certificate
included
Measurement of
diffuse and specular surfaces
Configuration via Web-Interface
optoNCDT 2310-50BL
Blue Laser sensors belonging to the series
optoNCDT 2300BL are designed for fast distance, displacement and position measurement on red-glowing metals. The blue-violet
laser offers decisive advantages. Even in the
case of measurements being effected on organic matters such as veneers, wood, or skin,
the blue laser makes an important contribution regarding precision. While allowing more
stability, the blue laser light does not penetrate the measuring object due to the reduced
blue-violet laser.
48
24
30
95
97
89
4.5
190
195
4.5
Y
2
4
48
550
10
13.5
Limits for free
space
Keep this area free from
other light sources and/or
their reflections
2
α
MR
SMR
Y
MR
SMR + 0.5 MR
α
2
24
1.5
2
25
20.5°
5
24
3.5
5
26.5
20°
(Dimensions in mm, not to scale.)
MR 50
Limits for free
space
7
MB (dir.R)
Laser
7
.5 MR
15
0
SMR +
4
Mounting holes
ø4.5 for M4 screws
48
10
13.5
MR
SMR
Mounting holes
ø4.5 for M4 screws
33.5
33.5
75
67
67
4
75
3x Mounting holes ø6
Direct reflection
97
89
14
147
optoNCDT 2300-2BL / 2300-5BL
Diffuse reflection
4
39
61
73
83
90
optoNCDT 2300-2BL / 2300-5BL
Window laser (ø 12.5) ø 5 free
Window cmos (ø 35.5) ø 30 free
33
Model
Measuring range 1)
ILD 2300-2 BL
ILD 2300-5 BL
ILD 2310-50 BL
2 (2) mm
5 (2) mm
50 (25) mm
Start of measuring range
SMR
24 (24) mm
24 (24) mm
550 (575) mm
Midrange
MMR
25 (25) mm
26.5 (25) mm
575 (587.5) mm
End of measuring range
EMR
26 (26) mm
29 (26) mm
600 (600) mm
0.6µm
Linearity
1.5µm
≤±0.03% FSO
0.03 µm
Resolution (20kHz)
0.08µm
0.0015% FSO
Measuring rate
semiconductor laser<1 mW, 405 nm (blue violet)
Permissable ambient light
10,000 lx
SMR
70 x 80µm
400 ... 500µm
20 x 20µm
20 x 20µm
400 ... 500µm
EMR
80 x 100µm
200 x 400µm
400 ... 500µm
IP 65
Operation temperature
0 ... +50°C
Storage temperature
-20 ... +70°C
Ethernet / EtherCAT
RS422
analogue ouput via CSP2008 / C-Box
Inputs / Outputs
Inputs
Laser on/off; synchronization / trigger input
Power supply
24 Vdc (11…30V); PV < 3W
LED
Status / Power / Ethernet / EtherCAT
standard
0.25m (with cable connector)
option
3 / 6 / 9m with Sub D 15 pin connector
EN 61326-1: 2006-10
DIN EN 55011: 2007-11 (group 1. class B)
EN 61 000-6-2: 2006-03
Electromagnetic compatibility (EMC)
Vibration
2g / 20 ... 500Hz
Shock
Weight (with 25cm cable)
200 x 200µm
MMR
Protection class
Sensor cable
7.5µm
0.015% FSO
adjustable via software 49.02 / 30 / 20 / 10 / 5 / 2.5 / 1.5kHz (49.02kHz with reduced measuring range)
Light source
Spot diameter
40µm
≤±0.08% FSO
15g / 6ms / 3 axes
550g
FSO = Full Scale Output All specifications apply for a diffusely reflecting matt white ceramic target
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
1)
Numbers in brackets refer to full measurement rate 49.02 kHz
550g
~ 800g
The high speed true analogue laser sensor
optoNCDT 1610 / 1630
9 models with measuring ranges
from 4mm to 100mm
Sensor head and
separate controller
Up to 100kHz (-3dB) true analogue
frequency response
Analogue outputs (U/I)
Ethernet
INTER
FACE
Controller
102
92
4
74
64
ø 4.4
ø8
27.5
Status LED
LAN connector
optoNCDT 1610/1630 (4/10/20mm)
optoNCDT 1610/1630 (50/100mm)
100
40
8.5
4
17.2
M4
M4
30
42
50
72
8.5
M4
M4
A
4
8.5
M4
20
42
50
20
A
46
15
9.5
21
SMR
30
MR
SMR
The true analogue optoNCDT 1610 / 1630 is
ideal for high speed measurements such as
vibration amplitude, impact and drop tests.
The 100kHz (-3dB) frequency response is
available for all the measurement ranges from
4mm to 100mm.
The controller is equipped with both analogue
(current, voltage) and Ethernet interfaces.
MR
34
MR
SMR
A
4
22
15
10
40
13.6
20
55
20.5
50
115
26.6
100
170
25.8
35
Model
LD 1610-4
LD 1610-10
LD 1610-20
LD 1610-50
Measuring range
4mm
10mm
20mm
50mm
100mm
Start of measuring range
22mm
40mm
55mm
115mm
170mm
8µm
20µm
40µm
100µm
200µm
65µm
Linearity
LD 1610-100
≤0.2 % FSO
Resolution (dynamic1))
2.6µm
6.5µm
13.0µm
32.5µm
Resolution (static2))
0.2µm
0.5µm
1µm
2.5µm
6µm
Spot diameter
0.3mm
0.6mm
0.9mm
1.5mm
1.5mm
Frequency response
10kHz (-3dB)
Light source
laser, wavelength 670nm, red
Laser safety class
class 2
Vibration
10 g ... 1kHz (sensor, 20g option)
Operation temperature
0° ... +50°C
Storage temperature
-20° ... +70°C
Further measuring ranges on request
1)
Measurement on white target with 10kHz
Model
Measurement on white target with 20Hz
2)
LD 1630-4
LD 1630-10
LD 1630-20
Measuring range
4mm
10mm
20mm
50mm
Start of measuring range
22mm
12µm
40mm
30µm
55mm
60µm
115mm
150µm
7µm
17.5µm
35µm
50µm
Resolution (static2))
0.4µm
1µm
2µm
7.5µm
Spot diameter
0.3mm
0.6mm
0.9mm
1.5mm
Linearity
Resolution (dynamic1))
Frequency response
≤±0.3 % FSO
100kHz (-3dB)
Light source
laser, wavelength 670nm, red
Laser safety class
class 2
Vibration
5g ... 1kHz (sensor, 20g option)
Operation temperature
0° ... +40°C
Storage temperature
-30° ... +75°C
Further measuring ranges on request
1)
Measurement on white target with 100kHz
2)
Measurement on white target with 230Hz
Controller
displacement
±10V (option 0 ... 10V / 0 ... 5V); 4 ... 20mA
impedance
Analogue output
appr. 0 Ohm (10mA max.) tilt
with 30° object inclination (axis A): appr. 0.5% (white target)
cut off frequency
DC ... 10kHz / 100kHz
temperature drift
0.02 % °C FSO
intensitiy
Digital ouput
Switching outputs
Ethernet (optional)
Ambient light
Life time
Isolation voltage Humidity
factory default IP 192.168.122.245 (frequency response 1 - 30kHz)
MIN
+24V when distance < MIN, LED yellow
OK
+24V when distance > MIN and < MAX, LED green MAX
Error
Switching hysteresis
0V ... 10V
TCP /IP
+24V when distance > MAX, LED orange +24 V, LED red
appr. 0.5 % FSO
20,000 LUX
50,000h laser diode
200V DC, 0V
up to 90% RH
Protection class
sensor: IP 64, controller: IP 40
Power supply
+24V DC / 200mA (10 ... 30V)
Connector
25 pin Sub D male connector Cable length (standard)
2m
LD 1630-50
36
Accessories
optoNCDT
Accessories for all optoNCDT Series
Accessories optoNCDT1700/1700LL/1700BL
Power supply
ƒƒPS 2020 (Power Supply 24 V / 2,5 A, Input 100 - 240 VAC,
output 24 VDC / 2.5 A, for snap in mounting on DIN 50022 rail)
Supply and output cable (drag chain rated)
ƒƒPC 1700-3 (3m)
ƒƒPC 1700-10 (10m)
ƒƒPC 1700-10/3/IF2008 (10m, for use with interface card IF2008)
ƒƒPC 1700-3/T (3m, for use with trigger box)
ƒƒPC 1700-10/T (10m, for use with trigger box)
ƒƒPC 1700-3/USB (3m, with USB-RS422-converter, power supply
90 ... 230 VAC)
Controller
ƒƒCSP 2008 (controller for processing of multiple sensor signals;
analogue and digital interfaces)
Interface card
ƒƒIF2008 (Interface card for individual signal processing;
analogue and digital interfaces)
Converter
ƒƒIF2004/USB 4 Channel RS422/USB Converter
Accessories optoNCDT 1302/1402/1402SC
Supply and output cable, rated for moving cable tracks
(also available in 90° version)
ƒƒPC 1402-3/I (3m, output 4 ... 20mA)
ƒƒPC 1402-6/I (6m, output 4 ... 20mA)
ƒƒPC 1402-3/U (3m, with integral resistance, output 1 ... 5VDC)
ƒƒPC 1402-6/U (6m, with integral resistance, output 1 ... 5VDC)
ƒƒPC1402-3/IF2008 (3m, supply and output cable)
ƒƒPC 1402-3/USB (3m, supply and output cable)
ƒƒPC1401/1402-0.2 (0.2m, adapter cable 12-pin to 7-pin)
ƒƒPC 1402-3/CSP (3m, required for CSP 2008, optoNCDT 1402 only)
Supply and output cable, robot rated
(available in 90° version)
ƒƒPCR 1402-3/I (3m)
ƒƒPCR 1402-6/I (6m)
ƒƒPCR 1402-8/I (8m)
Supply and output cable 1402SC
ƒƒPC1402SC-3/I (3m, output 4...20 mA)
ƒƒPC1402SC-8/I (8m, output 4...20 mA)
ƒƒPC1402SC-10/I (10m, output 4...20 mA)
ƒƒPC1402SC-3/U (3m, output 1...5 V)
ƒƒPC1402SC-6/U (6m, output 1...5 V)
ƒƒPC1402SCT-3/I (3m, output 4...20 mA)
ƒƒPC1402SC-12/IF2008 (12m, supply and output cable)
Protective housing
ƒƒSGH ILD 1402(01)
ƒƒSGHF ILD 1402(01)
Accessories optoNCDT 1610 / 1630
Supply and output cable
ƒƒPC 1605-3 (3m)
ƒƒPC 1605-6 (6m)
ƒƒPC 1607-5/BNC (5m, BNC connector)
Supply and output cable (robot rated)
ƒƒPCR 1700-5 (5m)
ƒƒPCR 1700-10 (10m)
Protective housing
ƒƒSGH (size S and M)
ƒƒSGHF (size S and M)
Accessories optoNCDT 1710-50 / 2210
Supply and output cable (drag chain rated)
ƒƒPC 1800-3 (3m)
ƒƒPC 1800-8 (8m)
ƒƒPC2200-3/10/RS485 (3m, RS 485 for use with interface card IF2008)
ƒƒPC 2200-3/3/RS422 (3m, for IF2008/RS422/USB-converter)
Sensor cable extension (drag chain rated)
ƒƒCE 1800-3 (3m)
ƒƒCE 1800-8 (8m)
Accessories optoNCDT 2300
Supply and output cable
ƒƒPC2300-0,5Y (Connecting cable to PC or SPS; for operation a
PC2300-3/SUB-D will be required)
ƒƒPC2300-3/SUB-D (3m; for operation a PC2300-0,5Y will be required)
ƒƒPC2300-3/CSP (3m, connecting cable ILD2300 and CSP2008)
ƒƒPC2300-10/CSP (10m, connecting cable ILD2300 and CSP2008)
ƒƒPC2300-15/CSP (15m, connecting cable ILD2300 and CSP2008)
ƒƒPC2300-3/IF2008 (3m, interface and supply cable)
ƒƒPC2300-3/OE (3m)
ƒƒPC2300-6/OE (6m)
ƒƒPC2300-9/OE (9m)
ƒƒPC2300-15/OE (15m)
Protective housing
ƒƒSGH (size S and M)
ƒƒSGHF (size S and M)
37
Setup and configuration software
ILD Tools is the software included for easy sensor configuration. All the
settings can be implemented conveniently via a Windows user interface
on the PC. The sensor parameters are sent to the sensor via the serial
port and can also be saved if required. ILD Tools also includes a module which can display and save measurement results. The link to the
PC is made via the sensor cable with a USB converter. [available for all
series except 16x0]
Driver support for customer software
For the optoNCDT sensors documented DLL drivers are available free
of charge, which enables easy integration of the sensors into existing
software. Software download free of charge from www.micro-epsilon.
com/download
Protective housing for harsh environment
To protect the laser sensors in extreme environments individual protective housings are available for all sensor models. Three options for the
protective housing are offered.
Option SGH:
Completely enclosed housing with an integrated front window, where
the sensor measures through the window. The water resistant housing
provides protection against solvents and detergents.
Option SGHF:
The SGHF version offers optimum protection for the sensor with integrated compressed air cooling and provides protection against fluids.
SGH ILD 1402(01) & SGHF ILD 1402(01)
for optoNCDT 1402(025)
SGx ILD size S (140x140x71mm)
for optoNCDT 1700 / 2300
dimensions 97x75mm
SGx ILD size M (140x180x71mm)
for optoNCDT 1700 / 2300
dimensions 150x80mm
38
Accessories
optoNCDT
IF2008 - PCI interface card
The IF 2008 interface card is designed for installation in PCs and enables the synchronous capture of 4 digital sensor signals and 2 encoders.
The absolutely synchronous data acquisition plays an important role
particularly for planarity or thickness measurement tasks. The data are
stored in a FIFO memory in order to enable resource-saving processing in the PC in blocks.
Particular Benefits
ƒƒ4x digital signals and two encoders with basic printed circuit board
ƒƒAdditional expansion board for a total of 6x digital signals,
2x encoder and 2x analogue signals and 8x I/O Signals
ƒƒFIFO data memory
ƒƒSynchronous data acquisition
IF2008E - Expansion board
The IF 2008E expansion board is designed for installation in PCs and
enables the synchronous capture of 2 digital sensor signals and 2 encoders as well as 8 I/O-Signals. The expansion board is connected to
the basis board IF2008. The absolutely synchronous data acquisition
plays an important role particularly for planarity or thickness measurement tasks.
Particular Benefits
ƒƒTwo digital signals, two analogue signals and 8 I/O signals
ƒƒOverall with IF2008: 6 digital signals, 2 encoders and 2 analogue
signals and 8 I/O Signals
ƒƒFIFO data memory
ƒƒSynchronous data acquisition
IF2004/USB 4 Channel RS422/USB Converter
The RS422/USB converter is used for transforming digital signals from
up to 4 ILD sensors into USB data signals. Equipped with 4 trigger
inputs and 1 trigger output additional USB converters can be adapted.
Particular Benefits
ƒƒ4x digital signals via RS422
ƒƒ4 trigger inputs, 1 trigger output
ƒƒSynchronous data aquisition
ƒƒUSB interface
C-Box controller for up to 2 displacement signals
The C-Box is a compact controller for the digital-to-analogue conversion of a digital sensor signal and for the evaluation of two digital sensor signals. The output occurs via parameterisable analogue output,
Ethernet, RS422 or USB. Besides the averaging and statistics function
the measurement of thickness, average, step or tilting is possible. The
C-Box may be used with ILD2300 and IFC2451/2471. The digital-toanalogue conversion happens with 16 Bit and 70 kHz maximum.
Interface card IF2008, IF2008E
for individual signal processing
39
CSP2008 - Universal controller for up to six sensor signals
The controller CSP2008 has been designed to process 2 to 6 both optical and other sensors from Micro-Epsilon (6 digital or 4 analogue input
signals max., 2x internal + 4x external via EtherCAT modules from the
company Beckhoff. EtherCAT is intended as external bus for connecting further sensors and I/O modules. The controller is equipped with a
display offering multicolour backlighting which changes its color in the
case of exceeding the limit value while a signal is displayed.
Features
ƒƒReal-time processing of input and output signals at up to 100kHz
(user selectable)
ƒƒUnique user interface for the configuration of the controller via Ethernet on a PC or laptop. All user selectable functions of the controller
and the measured values can be viewed, displayed and stored in
real time via your own web browser without installing any 3rd part
software
ƒƒSimple sensor connection with automatic sensor recognition, configuration of the sensor using buttons and display on controller or via
web browser
ƒƒModular system upgradable with additional I/O modules for customer-specific requirements. The internal communication between I/O
components using EtherCAT connection
(CSP 2008 acts as master)
ƒƒExtremely flexible and powerful functionality; function modules can
be combined in many ways.
ƒƒSimple mounting using DIN rail TS 35
System setup
146
3.3
Universal controller with DIN rail TS 35
(dimensions not to scale)
Beckhoff modules for extended inputs / outputs
EK1100, EtherCat bus coupler
EL4102, Analogue output terminal 0 V bis +10 V, 2 channels (16 Bit), EtherCAT
EL4132, Analogue output terminal -10 V bis +10 V, 2 channels (16 Bit), EtherCAT
EL4024, Analogue output terminal 4 ... 20 mA, 4 channels (12 Bit), EtherCAT
EL2002, Digital output terminal, 24 VDC/ 0,5 A, 2 channels, EtherCAT
EL2002, Digital output terminal, 24 VDC/ 0,5 A, 2 channels, EtherCAT
EL2004, Digital output terminal, 24 VDC/ 0,5 A, 4 channels, EtherCAT
EL3142, Analogue input terminal 0 ... 20 mA, 2 channels (16 Bit), EtherCAT
EL3162, Analogue input terminal 0 ... 10 V, 2 channels (16 Bit), EtherCAT
EL1002, Digital input terminal 24 VDC/3 ms, 2 channels, EtherCAT
EL1012, Digital input terminal 24 VDC/10 µs, 2 channels, EtherCAT
EL1014, Digital input terminal 24 VDC/10 µs, 4 channels, EtherCAT
EL1104, Digital input terminal 24 VDC/3 ms, 4 channels, EtherCAT
EL5101, Incremental encoder interface, RS485 differential inputs, EtherCAT
EK1122, 2-Port EtherCAT junction
RS422 extension terminal
35
96.8
103.1
45.2
Sensors via RS422
optoNCDT 1302
optoNCDT 1402
optoNCDT 1700
optoNCDT 2300
optoCONTROL 2500
optoCONTROL 2600
confocalDT 2451/2471
57.9
69.1
Modifications reserved / Y9761188-H051114GKE
High performance sensors made by Micro-Epsilon
Sensors and systems for displacement
and position
Sensors and measurement devices for
non-contact temperature measurement
2D/3D profile sensors (laser scanner)
Optical micrometers, fibre
optic sensors and fibre optics
Colour recognition sensors, LED analyzers
and colour online spectrometer
Measurement and inspection systems
MICRO-EPSILON Headquarters
Koenigbacher Str. 15 ∙ 94496 Ortenburg / Germany
Tel. +49 (0) 8542 / 168-0 ∙ Fax +49 (0) 8542 / 168-90
[email protected] ∙ www.micro-epsilon.com
Micro-Epsilon UK Ltd.
No.1 Shorelines Building · Shore Road · Birkenhead · CH41 1AU
Phone +44 (0) 151 355 6070 · Fax +44 (0) 151 355 6075
[email protected] · www.micro-epsilon.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
