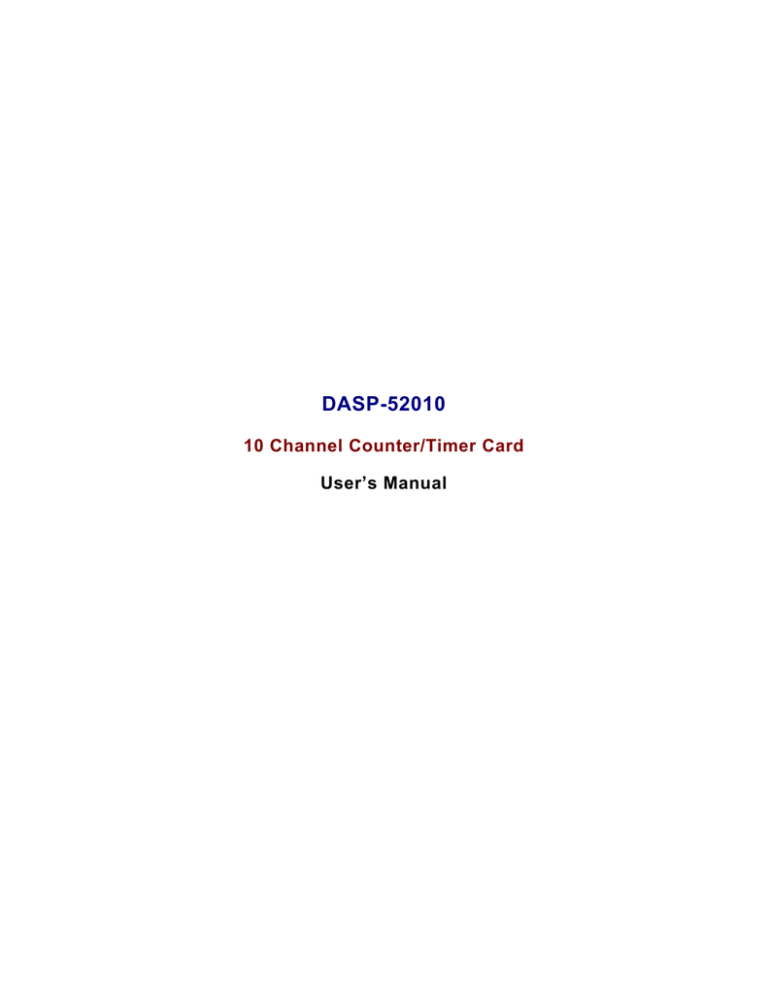

DASP-52010

10 Channel Counter/Timer Card

User’s Manual

Disclaimers

The information in this manual has been carefully checked and is believed to be accurate. AXIOMTEK Co., Ltd. assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

AXIOMTEK assumes no responsibility for any inaccuracies that may be contained in this document. AXIOMTEK makes no commitment to update or to keep current the information contained in this manual.

AXIOMTEK reserves the right to make improvements to this document and/or product at any time and without notice.

No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AXIOMTEK Co., Ltd.

©Copyright 2004 by Axiomtek Co., Ltd.

All rights reserved.

December 2004, Version A1

Printed in Taiwan

ii

Table of Contents

Chapter 1 Introduction ...................... 1

1.1

Features ............................................................. 2

1.2

Specifications ...................................................... 2

1.3

Accessories......................................................... 5

Chapter 2 Hardware Installation......... 7

2.1

Board Layout....................................................... 7

2.2

Signal Connections.............................................. 8

2.3 Jumper Setting .................................................. 12

2.4 Timer/Counter and DI/DO Circuits and Wiring .... 13

2.5 Quick setup and test .......................................... 17

Chapter 3 Register Structure and

Format ........................... 29

3.1

Overview ........................................................... 29

3.2

I/O Register Map ............................................... 30

Chapter 4 Applications ..................... 37

4.1

Wire Configuration............................................. 37

4.2

Rate Generator ................................................. 38

4.3

PWM Output...................................................... 39

4.4

Square Wave Generator .................................... 40

4.5

32 bits Real-Time Clock..................................... 41

4.6

Frequency Measurement ................................... 42

4.7

Event Counter ................................................... 44

iii

4.8

Pulse Width Measurement ................................. 46

Appendix A Dimension of DASP-52010 and Accessories .............. 47

iv

DASP-52010 Card User’s Manual

C h a p t e r 1

Introduction

The DASP-52010 is a PCI-bus, eight 16-bit two cascaded 32-bit timer/counter card. It supports 16 general purpose digital I/O channels, making it suitable for frequency measurement, event counting, time-delay, and pulse generation applications.

Board Identification- Serial Number on EEPROM

The DASP stores the serial number of each DASP in the EEPROM before shipping. The PCI scan utility can scan all the DASP and show users the serial number of each DASP, helping the user to easily identify and access each card during hardware configuration and software programming.

Easy to troubleshoot hardware resource- PCI Scan Utility

DASP-52010 Card User’s Manual

The PCI scan utility can scan all the DASP products within the system, and can show users all system resources, such as serial numbers,

IRQ, and I/O addresses. This lets users clearly see through and immediately know whether all DASPs are working normally, decreasing the time of searching confirmation.

1.1 Features

8 independent 16-bit timer/counter

2 cascade 32-bit timer/counter

8 TTL level D/I & D/O

Jumper selectable interrupt source

Software selectable interrupt source

4 interrupt source- 2 counter & 2 D/I

2 on-board internal clock source

8 external clock source & 8 external gate control signal

Windows® 98/NT/2000/XP and Labview 6.0/7.0 driver supported.

Complete sample program- VB, VC, BCB, Delphi

1.2 Specifications

Digital Inputs

Input channels: 16 (clock/gate control)

Input type: TTL level

Input voltage:

Low -0.5 ~ 0.8V

High 2.0 ~ 5.2V

Interrupt source: COUT5, COUT7, COUT11, EXT_CLK9 /

2

Introduction

DASP-52010 Card User’s Manual

DI11

Load current: -0.45mA to +70£gA

Digital Outputs

Output channels: 8

Input type: TTL level

Input voltage:

Low -0.5 ~ 0.8V

High 2.0 ~ 5.2V

Sink source: +64mA

Source current: -15mA

DASP-52010 Card User’s Manual

Timer/Counter

Channels: 8 16-bit independent & 2 32-bit cascaded

Type: TTL level

Programmable clock: 0.5MHz, 1MHz, 2MHz, 4MHz

Programmable counter mode: 12

Max. frequency: 10 HMz

Time based: internal / external clock

General environment

I/O connector type: 37-pin D-sub female

Power consumption:

+5V/500mA (typical),

+5V/600mA (max.)

Operation temperature: 0 ~ 60°C

Storage temperature: -20 to 70°C

Humidity: 0 to 90% non-condensing

Dimensions: 185mm x 122mm

4

Introduction

DASP-52010 Card User’s Manual

1.3 Accessories

To make the DASP-52010 functionality complete, we carry a versatility of accessories for different user requirements in the following items:

Wiring Cable

CB-89037-2: 37-pin female D-sub type cable with 2m length

CB-89037-5: 37-pin female D-sub type cable with 5m length

The shielded D-sub cable with 2m and 5m are designed for the

DASP-52010 I/O connector, respectively.

Terminal Block

TB-88037: D-sub 37P female terminal block with DIN-rail mounting

The terminal block is directly connected to I/O connector of the

DASP-52010.

DASP-52010 Card User’s Manual

This page does not contain any information.

6

Introduction

DASP-52010 Card User’s Manual

C h a p t e r 2

Hardware Installation

CN1

JP1

U1 U7

U12

8254

U3

U4

U5

U2

U8

CPLD

RP1

CON2

JP2

1

2

3

U6

OSC

JP3

1

2

3

U10

U11

PCI Bridge

U13

8254

U14

U15

U16

8254

U17

8254

U18

U19

U20

Figure 2-1: Board layout for the DASP-52010

Hardware Installation

7

DASP-52010 Card User’s Manual

Signal Connection Descriptions

CON1

DI/O

DASP-52010

CB-89037-2

CB-89037-5

TB-88037

Figure 2-2: Signal connections for the DASP-52010

Referring to Figure 2-2, the accessories of the DASP-52010 are depicted in figure 2-3 and described as below.

CON1: The I/O connector CON1 on the DASP-52010 is a

37-pin D-sub female connector for digital input signals. CON1 enables you to connect to accessories, the terminal block TB-88037, with the shielded D-sub cable CB-89037-2 or CB-89037-5.

Digital Input Connector CON1

CON1

DASP-52010 Card User’s Manual

CB-89037

Hardware Installation

9

DASP-52010 Card User’s Manual

TB-88037

Figure 2-3: DIO signal connections for the DASP-52010

DASP-52010 Card User’s Manual

The pin assignment of CON1 of DASP-52010 is listed as follows.

D-Sub 37-pin Connector for DASP-52010 CON1

Description Pin

Ground 20

EXT_GATE0 / DI4 21

EXT_GATE1 / DI5

COUT1

EXT_GATE2 / DI6

EXT_GATE3 / DI7

22

23

24

25

COUT3 26

EXT_GATE6 / DI12 27

EXT_GATE7 / DI13 28

COUT7 29

EXT_GATE8 / DI14 30

EXT_GATE9 / DI15 31

COUT9 32

COUT11 33

DO1 34

DO3 35

DO5 36

DO7 37

Pin Description

2

3

4

5

6

EXT_CLK0 / DI0

COUT0

EXT_CLK1 / DI1

EXT_CLK2 / DI2

COUT2

7

8

EXT_CLK3 / DI3

EXT_CLK6 / DI8

9 COUT6

10 EXT_CLK7 / DI9

11 EXT_CLK8 / DI10

12 COUT8

13 EXT_CLK9 / DI11

19 +5V

EXT_CLKn: external clock source for counter n

EXT_GATEn: external gate control signal for counter n

COUTn: output of timer/counter n

DOn: digital output channel n

DIn: digital input channel n

All signals are TTL compatible.

Hardware Installation

11

DASP-52010 Card User’s Manual

2.3 Jumper Setting

2.3.1 JP1 Interrupt Source Selection

There are four signals can be used as interrupt sources: COUT5,

COUT7, COUT11, EXT_CLK9/DI11

1 7

2

JP1

8

Jumper

JP1

COUT5 COUT7 COUT11

1-2 3-4 5-6

2.3.2 JP3 PCI Bus Interrupt Setting

JP3

1

2

3

Jumper

LINTi1 (Default) LINTi2

JP3 1-2 2-3

2

3

1

JP3

ECLK9/DI11

7-8

DASP-52010 Card User’s Manual

2.4 Timer/Counter and DI/DO Circuits and

Wiring

The internal clock source, internal timer/counter functional block diagrams of DASP-52010 are depicted as in figure 2-4 ~ figure 2-6.

The digital input and digital output wirings are depicted as in figure 2-7 to figure 2-8 respectively.

2.4.1 On-board Clock Sources

Figure 2-4: Block diagram of internal clock source for the

DASP-52010

The DASP-52010 has 2 on-board internal clock sources

SYS_CLOCK0 and SYS_CLOCK1. SYS_CLOCK0 may be software programmable to 4MHz or 2MHz. SYS_CLOCK1 may be software programmable to 1MHz or 0.5MHz.

2.4.2 Counter Architecture

The DASP-52010 has four 82c54 chips on board. It offers 8 independent 16 bits timers/counters and 2 cascaded 32 bits timers/counters. 2 on-board software programmable internal clock sources provide 4MHz/2MHz and 1MHz/0.5MHz clock signal for

Hardware Installation

13

DASP-52010 Card User’s Manual

system time base. 8 external clock sources (may be used as general purpose digital input) and 8 external gate control signals (may be used as general purpose digital input) are contained and can assemble to realize specific applications as shown in figure 2-5.

8254 Chip 0 8254 Chip 1

CLK0

GATE0

CLK1

GATE1

CLK2

GATE2

CLK OUT

Counter0

GATE

CLK OUT

Counter1

GATE

CLK OUT

Counter2

GATE

COUT0

CLK3

GATE3

SYS_CLOCK

COUT1

0

High

COUT2

High

CLK OUT

Counter3

GATE

CLK OUT

Counter4

GATE

CLK OUT

Counter5

GATE

COUT3

COUT5

8254 Chip 2

8254 Chip 3

CLK6

GATE6

CLK7

GATE7

CLK8

GATE8

CLK OUT

Counter6

GATE

CLK OUT

Counter7

GATE

COUT6

CLK9

GATE9

COUT7

SYS_CLOCK

0

High

CLK OUT

Counter9

GATE

CLK OUT

Counter10

GATE

COUT9

CLK OUT

Counter8

GATE

COUT8

High

CLK OUT

Counter11

GATE

COUT11

Figure 2-5: Block diagram of internal clock source for the

DASP-52010

8 independent 16 bits timer/counter + 2 cascaded 32 bits timer/counter

DASP-52010 Card User’s Manual

82c54 chip 0 counter 0 + counter 1 + counter 2

82c54 chip 1 counter 3 + counter 4 + counter 5

82c54 chip 2 counter 6 + counter 7 + counter 8

82c54 chip 3 counter 9 + counter 10 + counter 11

8 independent 16 bits timer/counter counter 0, 1, 2, 3,

6, 7, 8, 9

2 cascaded 32 bits timer/counter counter 4+5, counter

10+11

CLK 0,1,2,3,6,7,8,9 refer to I/O Base Address + 6

GATE 0,1,2,3,6,7,8,9 refer to I/O Base Address + 5

Clock1 refer to I/O Base Address + 4

COUT 0,1,2,3,6,7,8,9 refer to I/O Base Address + 6

GATE 4,5,10,11 always High

CLK 4,10 always connect to Sys_Cock0

OUT4 connect to CLK5, OUT10 connect to CLK11

2.4.3 Counter Output Inverter

For convenience using, every COUT wire to connector could be software programmable cascaded an inverter.

CLK0

GATE0

CLK OUT

Counter0

GATE

COUT0 from 8254

COUT0 to

Connector

Figure 2-6: Block diagram of software programmable cascaded an

inverter for the DASP-52010

Hardware Installation

15

DASP-52010 Card User’s Manual

2.4.4 Timer/Counter and DIO wrring

All the I/O signals of DASP-52010 are in TTL level. The I/O wiring of

DASP-52010 for both general DIO usage and timer/counter I/O usage are sketched in figure 2-7 and figure 2-8.

MCU

+5V

+5V

DI+

GND

TTL

Device

Figure 2-7: Digital input wiring diagram for the DASP-52010

+5V

+5V

DO0

GND

TTL

Device

Figure 2-8: Digital output wiring diagram for the DASP-52010

DASP-52010 Card User’s Manual

2.5 Quick setup and test

To install a new DASP-52010 into an IBM PC compatible computer, at first, power-off the PC and open its chassis, then plug the

DASP-52010 into a PCI slot of mother-board. Please ensure that (the

BIOS setting of) your PC has released enough IRQ resources for PCI devices. Do not share the same IRQ of DASP-52010 with other devices. The DASP-52010 is a plug and play device for MS Windows, and the OS will detect your DASP-52010 after you power on the PC.

The detail of driver and software installation is described in software manual of DASP-52010.

After the hardware and software installation, user can emulate and test DASP-52010 step by step as follows.

1. To perform a full functional test of DASP-52010, we can route the input and output signals of DASP-52010 as in figure 2-9. And then, by following the DASP-52010 test branch of the ToolWorkShop which will fully test all the on-board timer/counter devices of the

DASP-52010 as descried in the following paragraphs.

Hardware Installation

17

DASP-52010 Card User’s Manual

Rate Output

Frequency Input

Event Source

Event Trigger

32 bits Timer

PCB's GND

EXT_CLK0/DI0

COUT0

EXT_CLK1/DI1

EXT_CLK2/DI2

COUT2

EXT_CLK3/DI3

EXT_CLK6/DI8

COUT6

EXT_CLK7/DI9

EXT_CLK8/DI10

COUT8

EXT_CLK9/DI11

COUT5

DO0

DO2

DO4

DO6

PCB's +5V Output

10

11

12

7

8

9

3

4

5

6

1

2

13

14

15

16

17

18

19

32

33

34

29

30

31

35

36

37

20

21

22

23

24

25

26

27

28

PCB's GND

EXT_GATE0/DI4

EXT_GATE1/DI5

COUT1

EXT_GATE2/DI6

EXT_GATE3/DI7

COUT3

EXT_GATE6/DI12

EXT_GATE7/DI3

COUT7

EXT_GATE8/DI4

EXT_GATE9/DI15

COUT19

COUT11

DO1

DO3

DO5

DO7

PWM Output

Square Wave

Output

Pulse Source

32 bits Timer

Figure 2-9: I/O wiring diagram for DASP-52010 full function test (refer to pin assignment of CON 1 of the DASP-52010)

2. Launch the ‘PCI Configuration Utility’ of DASP-52010 to ensure that the resource of DASP-52010 is properly dispatched by the

OS. Press the scan button in the toolbar of the ‘PCI Configuration

Utility’ to find the installed DASP-52010, and then check the resource list as show in figure 2-10.

DASP-52010 Card User’s Manual

Figure 2-10: Scan DASP-52010 with PCI configuration Utility and check the dispatched resource

Check the dispatched resource of DASP-52010, take care the IRQ resource especially.

Hardware Installation

19

DASP-52010 Card User’s Manual

3. Exit the ‘PCI Configuration Utility’ and launch the ‘ToolWorkShop’ for DASP-52010. As shown in figure 2-11.

Figure 2-11:

1 launch ToolWorkShop, 2 Select board test

DASP-52010 Card User’s Manual

4. Perform Timer/Counter and DIO test of DASP-52010 as shown in figure 2-11

3~9.

Figure 2-12:

3 Select test target: DASP52010

Hardware Installation

21

DASP-52010 Card User’s Manual

Figure 2-13:

4 Check device information and press ‘Enable’ button to

load DASP-52010 library

DASP-52010 Card User’s Manual

Figure 2-14:

5 Perform digital input/output test by set the DO port

value and read back the DI port value of DASP-52010

Hardware Installation

23

DASP-52010 Card User’s Manual

Figure 2-15:

6 Perform 8254 chip 0 test of DASP-52010: Rate

Generator & PWM output.

System clock 0 and counter 0 are used to perform a rate generator.

DO 0 (pin 15) is wired to EXT_GATE0 (pin 21, external gate control of counter 0) to serve as the start/stop control of the rate generator. Filed

Value 0’ is used to keep the user specified frequency divider of the rate generator. A pulse train with frequency of (System clock 0 frequency) / (frequency divider) is available in COUT0 (pin 3).

System clock 1, counter 1 and counter 2 are used to perform a PWM output. The counter 2 serves as the PWM time base and the counter

1 produces PWM waveform. Filed ‘Value 1’ is used to keep the user specified duty cycle of the PWM output.

DASP-52010 Card User’s Manual

Figure 2-16:

7 Perform 8254 chip 1 test of DASP-52010: Square

wave output

In the 8254 chip1 test branch, the Filed ‘Value 3’ is used to keep the user specified frequency divider of the square wave and the system clock 0 is used to produce the base frequency of the square wave. In real-time clock application, counter 4 and counter 5 are cascaded to perform a 32-bit counter for counting the system clock pulse number and than sever as a 32-bit timer interrupt source for host program.

Hardware Installation

25

DASP-52010 Card User’s Manual

Figure 2-17:

8 Perform 8254 chip 2 test of DASP-52010: Frequency

measurement & Event counting.

Counter 6 and Counter 7 of DASP-52010 are tested by a frequency measurement experiment. Counter 7 is configured as a reference time base for the measurement and Counter 6 is used to count the external measured signal period base on the reference time interval.

Counter 8 is configured simply to serve as an event count to count the external event (pulse).

DASP-52010 Card User’s Manual

Figure 2-18:

9 Perform 8254 chip 3 test of DASP-52010: Pulse width

measurement.

Counter 8 is tested by a pulse-width measurement experiment. The gate-control of Counter 8 is wired direct to an external pulse source.

When the pulse turn to on and enable the gate-control of the timer,

Counter 8 is initiated to counting base on rate of the System Clock 0 of DASP-52010 until the pulse turn off again. The pulse-width of the external pulse is then obtained according to the contents of Counter 8 and the period of System Clock 0.

Hardware Installation

27

DASP-52010 Card User’s Manual

5. Before exiting ‘ToolWorkShop’, press ‘Release’ button to release

DASP-52010 library.

All the details of DASP-52010 application used in these test branches are described in Chapter 4.

DASP-52010 Card User’s Manual

C h a p t e r 3

Register Structure and Format

3.1 Overview

The DASP-52010 board occupies 25 consecutive I/O address. The address of each register is defined as the board’s base address plus an offset. The I/O registers and their corresponding functions are listed in the followings.

Address Read

Base + 0x0

Base + 0x1

Base + 0x2

Base + 0x3

Active 82c54 Counter 0

Active 82c54 Counter 1

Active 82c54 Counter 2

Reserved

Base + 0x4

Base + 0x5

Digital Input Channel 0-7 or

External GATE 0-3, CLK 0-3

Write

Active 82c54 Counter 0

Active 82c54 Counter 1

Active 82c54 Counter 2

Active 82c54 Counter

Control Word

Select SYS_CLOCK0, 1 source and 82c54 Chip

0/1/2/3, Active CLKn setting

Selected 82c54 GATEn

Source

Base + 0x6

Base + 0x7

Base + 0x8

Digital Input Channel 8-15 or External GATE 6-9, CLK

6-9

Reserved

Device Label

Reserved

Base + 0x9 Reserved

Base + 0xA Reserved

Base + 0xB Reserved

Base + 0xC Reserved

Base + 0xD Reserved

Base + 0xE Reserved

Base + 0xF Reserved

Base + 0x10 Reserved

Select 82c54 CLKn Source

Digital Output Channel 0-7

Counter Output Inverter

Control Word Low Byte

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Counter Output Inverter

Control Word High Byte and

Interrupt Control Word

Register Structure and Format

29

DASP-52010 Card User’s Manual

Address Read

Base + 0x11 Reserved

Base + 0x12 Reserved

Base + 0x13 Reserved

Base + 0x14 Reserved

Base + 0x15 Reserved

Base + 0x16 Reserved

Base + 0x17 Reserved

Base + 0x18 Reserved

Write

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Clear Interrupt Status

3.2 I/O Register Map

3.2.1 Read/Write 82c54 Counter (Base Address + Offset

0x00-02)

D7 D6 D5 D4 D3 D2 D1 D0

8 bit Counter Data (D0-D7)

3.2.2 Write 82c54 Counter Control Word (Base Address +

Offset 0x03)

D7 D6 D5 D4 D3 D2 D1 D0

8 bit Counter Data (D0-D7)

3.2.3 Write 82c54 Chip 1/2/3/4 and SYS_CLOCK Source

Selection (Base Address + Offset 0x04)

D7 D6 D5 D4 D3 D2 D1 D0

ClkSel1 ClkSel0 X ActClk ChpSel1 ChpSel0

Only one 82c54 is selected to access at a moment.

ChpSel1 ChpSel0

0 0

0 1

1 0

1 1

Only one CLK set (4 82c54 CLK Source) is selected to be switched at a moment.

30

Register Structure and Format

DASP-52010 Card User’s Manual

ActClk

0

1

Active CLK 0-3 Source

Active CLK 6-9 Source

0

1

SYS_CLOCK0 = 2MHz

SYS_CLOCK0 = 4MHz

X: Reserved bit.

0

1

SYS_CLOCK1 = 0.5MHz

SYS_CLOCK1 = 1MHz

3.2.4 Read External Gate Control Signals 0-3 and Clock

Sources 0-3/ Digital Input Channel 0 to 7 (Base

Address + Offset 0x04)

D7 D6 D5 D4 D3

EXT_

GATE3/

DI7

EXT_

GATE2/

DI6

EXT_

GATE1/

DI5

EXT_

GATE0/

DI4

EXT_

CLK3/

DI3

D2

EXT_

CLK2/

DI2

D1

EXT_

CLK1/

DI1

D0

EXT_

CLK0/

DI0

3.2.5 Write 82c54 GATEn Source Selection (Base Address

+ Offset 0x05

D7 D6 D5 D4 D3 D2 D1 D0

GATE7 GATE6 GATE5 GATE4 GATE3 GATE2 GATE1 GATE0

GATEn = 0: GATEn switch to external gate input pin (EGATEn)

GATEn = 1: GATEn switch to OUT of counter n-1 (COUTn-1)

Note: GATE0 can switch to COUT3, GATE6 can switch to COUT9.

Register Structure and Format

31

DASP-52010 Card User’s Manual

3.2.6 Read External Gate Control Signals 6-9 and Clock

Sources 6-9/ Digital Input Channel 8 to 15 (Base

Address + Offset 0x05)

D7 D6 D5 D4 D3

EXT_

GATE9/

DI15

EXT_

GATE8/

DI14

EXT_

GATE7/

DI13

EXT_

GATE6/

DI12

EXT_

CLK9/

DI11

D2

EXT_

CLK8/

DI10

D1

EXT_

CLK7/

DI9

D0

EXT_

CLK6/

DI8

3.2.7 Write 82c54 CLKn Source Selection (Base Address +

Offset 0x06)

When Base + 4, D2 = 0:

D7 D6 D5 D4 D3 D2 D1 D0

CLK3-1 CLK3-0 CLK2-1 CLK2-0 CLK1-1 CLK1-0 CLK0-1 CLK0-0

SYS_CLOCK0 SYS_CLOCK1 COUTn-1 ECLKn

CLK0-1 = 0, CLK0-0 = 0 SYS_CLOCK0

CLK0-1 = 0, CLK0-0 = 1

SYS_CLOCK1

CLK0-1 = 1, CLK0-0 = 0

ECLK0 CLK0-1 = 1, CLK0-0 = 1

CLK1-1 = 0, CLK1-0 = 0 SYS_CLOCK0

CLK1-1 = 0, CLK1-0 = 1

SYS_CLOCK1

CLK1-1 = 1, CLK1-0 = 0

CLK1-1 = 1, CLK1-0 = 1

CLK2-1 = 0, CLK2-0 = 0 SYS_CLOCK0

ECLK1

CLK2-1 = 0, CLK2-0 = 1

SYS_CLOCK1

CLK2-1 = 1, CLK2-0 = 0

CLK2-1 = 1, CLK2-0 = 1

CLK3-1 = 0, CLK3-0 = 0 SYS_CLOCK0

CLK3-1 = 0, CLK3-0 = 1

SYS_CLOCK1

CLK3-1 = 1, CLK3-0 = 0

CLK3-1 = 1, CLK3-0 = 1

ECLK2

ECLK3

32

Register Structure and Format

DASP-52010 Card User’s Manual

When Base + 4, D2 = 1:

D7 D6 D5 D4 D3 D2 D1 D0

CLK7-1 CLK7-0 CLK6-1 CLK6-0 CLK5-1 CLK5-0 CLK4-1 CLK4-0

SYS_CLOCK0 SYS_CLOCK1 COUTn-1 ECLKn

CLK4-1 = 0, CLK4-0 = 0

SYS_CLOCK0

CLK4-1 = 0, CLK4-0 = 1 SYS_CLOCK1

CLK4-1 = 1, CLK4-0 = 0

ECLK6 CLK4-1 = 1, CLK4-0 = 1

CLK5-1 = 0, CLK5-0 = 0

SYS_CLOCK0

CLK5-1 = 0, CLK5-0 = 1 SYS_CLOCK1

CLK5-1 = 1, CLK5-0 = 0

CLK5-1 = 1, CLK5-0 = 1

CLK6-1 = 0, CLK6-0 = 0

SYS_CLOCK0

ECLK7

CLK6-1 = 0, CLK6-0 = 1 SYS_CLOCK1

CLK6-1 = 1, CLK6-0 = 0

CLK6-1 = 1, CLK6-0 = 1

CLK7-1 = 0, CLK7-0 = 0

SYS_CLOCK0

CLK7-1 = 0, CLK7-0 = 1 SYS_CLOCK1

CLK7-1 = 1, CLK7-0 = 0

CLK7-1 = 1, CLK7-0 = 1

ECLK8

ECLK9

3.2.8 Write Digital Output Channel 0-7 (Base Address +

Offset 0x07)

D7 D6 D5 D4 D3 D2 D1 D0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

3.2.9 Read Device Label (Base Address + Offset 0x07)

D7 D6 D5 D4 D3

Device Label: 0x0e

D2 D1 D0

Register Structure and Format

33

DASP-52010 Card User’s Manual

3.2.10 Write Counter Output Inverter Control Word Low

Byte (Base Address + Offset 0x08)

D7 D6 D5 D4

INV7 INV6 INV5 X

D3 D2 D1 D0

INV3 INV2 INV1 INV0

INVn = 0: COUTn switch to normal output level (Default after software installed).

INVn = 1: COUTn cascade to an inverter.

X: Reserved bit

3.2.11 Write Counter Output Inverter Control Word Low

Byte and Interrupt Control (Base Address + Offset

0x10)

D7 D6

EnINT NeglINT

D5 D4 D3 D2 D1 D0

INVn = 0: COUTn switch to normal output level (Default after software installed).

INVn = 1: COUTn cascade to an inverter.

NeglINT = 0: Interrupt line output high active.

NeglINT = 1: Interrupt line output low active (Default after software installed).

EnINT = 0: Disable interrupt (Default after software installed).

EnINT = 1: Enable interrupt.

X: Reserved bit

34

Register Structure and Format

DASP-52010 Card User’s Manual

3.2.12 Write Clear Interrupt Status (Base Address + Offset

D7

0x18)

D6 D5 D4 D3 D2 D1

Write any Value to Clear Interrupt Status

D0

Register Structure and Format

35

DASP-52010 Card User’s Manual

This page does not contain any information.

36

Register Structure and Format

DASP-52010 Card User’s Manual

C h a p t e r 4

Applications

This chapter shows seven typical DASP-52010 application examples:

1. Pulse Output: a. Rate/ Pulse Generator b. PWM Output c. Square Wave Generator

2. 32bits Real-Time Clock

3. Frequency Measurement

4. Event Counter

5. Pulse Width Measurement

Wire configuration for application sample code is given below.

Applications 37

DASP-52010 Card User’s Manual

Application

Demo

Rate Output

Frequency Input

Event Source

Event Trigger

32 bits Timer

PCB's GND

EXT_CLK0/DI0

COUT0

EXT_CLK1/DI1

EXT_CLK2/DI2

COUT2

EXT_CLK3/DI3

EXT_CLK6/DI8

COUT6

EXT_CLK7/DI9

EXT_CLK8/DI10

COUT8

EXT_CLK9/DI11

COUT5

DO0

DO2

DO4

DO6

PCB's +5V Output

17

18

19

14

15

16

11

12

13

8

9

10

6

7

4

5

1

2

3

29

30

31

32

26

27

28

23

24

25

20

21

22

33

34

35

36

37

PCB's GND

EXT_GATE0/DI4

EXT_GATE1/DI5

COUT1

EXT_GATE2/DI6

EXT_GATE3/DI7

COUT3

EXT_GATE6/DI12

EXT_GATE7/DI3

COUT7

EXT_GATE8/DI4

EXT_GATE9/DI15

COUT19

COUT11

DO1

DO3

DO5

DO7

CN1

D-Sub 37 pin

PW M Output

Square W ave

Output

Pulse Source

32 bits Timer

You can use DASP-52010 counters for a rate generator, a frequency generator or a frequency division.

Example: 500 KHz Rate Generator

We select Counter0 to this application.

Step 1: Use DO0 to enable and pause Counter0. Wire DO0 (Pin

15) to EXT_GATE0 (Pin 21) on the connector. Connect

COUT0 (Pin 3) to your external device.

Step 2: Write 0 to DO0.

Step 3: Configure SYS_CLOCK0 to 2 MHz.

Step 4: Configure Counter0 to EXT_GATE0, SYS_CLOCK0 and

38

Applications

DASP-52010 Card User’s Manual

MODE2.

Step 5: Write count value 4 to Counte0.

2 MHz/4 = 500 KHz

Step 6: Write 1 to DO0.

2 MHz

SYS_CLOCK0

C

G

Counter 0

O

COUT0

External

Device

DO0 EXT_GATE0

Every counter is 16 bits. In mode2, valid count value from 2 to 65536

(count value 0 equal to 65536). If want a large count value to get a low frequency rate, you can cascade two or more counters.

You can use two counters to provide a simple PWM (Pulse Width

Modulation) output.

Example: PWM Output

We select Counter1 and Counter2 to this application. Counter1 for PWM Output, Counter2 for PWM time base.

Step 1: Use DO2 to enable Counter2. Wire DO2 (Pin 16) to

EXT_GATE2 (Pin 24) on the connector. Connect COUT1

(Pin 23) to your external device. Connect COUT2 (Pin 6) to EXT_GATE1 (Pin 22).

Register Structure and Format

39

DASP-52010 Card User’s Manual

Step 2: Write 0 to DO2.

Step 3: Configure SYS_CLOCK1 to 0.5 MHz.

Step 4: Configure Counter1 to EXT_GATE1, SYS_CLOCK1 and

MODE1. Configure Counter2 to EXT_GATE2,

SYS_CLOCK1 and MODE2.

Step 5: Write count value 100 to Counte2, 50 to Counte1.

Duty Cycle: 50/100 = 50%

Step 6: Write 1 to DO2.

SYS_CLOCK0

0.5 MHz

EXT_GATE1

C

Counter 1

O

G

COUT1

External

Device

DO2

SYS_CLOCK0

0.5 MHz

EXT_GATE2

C

Counter 2

O

G

COUT2

4.4 Square Wave Generator

You can use DASP-52010 counters to generate a square wave output for a rate generator, a frequency generator or a frequency division.

Example: 500 KHz Square Wave Generator

We select Counter3 to this application.

Step 1: Use DO3 to enable and pause Counter3. Wire DO3 (Pin

35) to EXT_GATE3 (Pin 25) on the connector. Connect

40

Applications

DASP-52010 Card User’s Manual

COUT3 (Pin 26) to your external device.

Step 2: Write 0 to DO3.

Step 3: Configure SYS_CLOCK0 to 2 MHz.

Step 4: Configure Counter0 to EXT_GATE3, SYS_CLOCK0 and

MODE3.

Step 5: Write count value 4 to Counte3.

2 MHz/4 = 500 KHz

Step 6: Write 1 to DO3.

2 MHz

SYS_CLOCK0

C

G

Counter 3

O

COUT3

External

Device

DO3

EXT_GATE3

Every counter is 16 bits. In mode3, valid count value from 2 to 65536

(count value 0 equal to 65536) and must be even counts. If want a large count value to get a low frequency rate, you can cascade two or more counters.

4.5 32 bits Real-Time Clock

DASP-52010 has two 32 bits cascaded timers, counting interval from

1 micro seconds to 2147.48 seconds per tick.

Example: 5 ms RTC Timer Interrupt

We select Counter4, Counter5 to this application.

Register Structure and Format

41

DASP-52010 Card User’s Manual

Step 1: Set interrupt source jumper in COUT5 and set IRQ jumper to an unused IRQ number. Connect COUT5 (Pin

14) to your external device if necessary.

Step 2: Configure SYS_CLOCK0 to 2 MHz.

Step 3: Configure Counter4, Counter5 to MODE2.

Step 4: Set ISR to IRQn.

Step 5: Write count value 100 to Counte4 and Counter5.

1/2 MHz ×100 ×100 = 5 ms

Step 6: When program ending, unset ISR.

Wired to

SYS_CLOCK0 on-board

Wired to High on-board

2 MHz

C

Counter 4

O

G

Wired to Counter5

Clock Source on-board

C

G

Counter 5

O

COUT5

External

Device

Wired to High on-board

The gate and clock source could set 0 in DLL driver, it is no effect. in

Counter4 ,5, 10, 11.

You can use two counters to make a roughly frequency measurement.

Example: Frequency Measurement

We select Counter6 and Counter7 to this application, Counter6

42

Applications

DASP-52010 Card User’s Manual

for frequency counter, Counter7 for time base.

Step 1: Use DO6 to enable Counter7. Wire DO6 (Pin 18) to

EXT_GATE7 (Pin 28) on the connector. Wire COUT7

(Pin 29) to EXT_GATE6 (Pin 27) and wire COUT7 (Pin

29) to DI9 (Pin 10). Connect frequency source be measured to EXT_CLK6 (Pin 8)

Step 2: Configure COUT7 cascaded to an inverter, write 1 to

DO6.

Step 3: Configure SYS_CLOCK1 to 0.5 MHz.

Step 4: Configure Counter6 to EXT_GATE6, EXT_CLK6 and

MODE2. Configure Counter7 to EXT_GATE7,

SYS_CLOCK1 and MODE0.

Step 5: Write count value 49999 to Counte7, 65535 to Counter6.

Time Base: 1/0.5 MHz * (49999 + 1) = 100 ms = 0.1 s

Step 6: Polling DI9 until 100 ms be accomplished.

Step 7: Read in the Counter6 count value.

Frequency = (65535 – Counter6 Value + 1) / 0.1

Register Structure and Format

43

DASP-52010 Card User’s Manual

Frequency Input EXT_CLK6

EXT_GATE6

C

G

Counter 6

DO6

SYS_CLOCK0

0.5 MHz

EXT_GATE7

C

Counter 7

O

G

COUT7

In this example, time base is 100 ms. A proper frequency be measured should faster than 100 KHz (10 ms).

DI9

You can use DASP-52010 counters to count changes of external signals.

Example: Even Counter

We select Counter8 to this application.

Step 1: Use DO7 to enable and pause Counter0. Wire DO7 (Pin

37) to EXT_GATE8 (Pin 30) on the connector. Connect

EXT_CLK8 (Pin 11) to your event source, COUT8 (Pin 12) to your external device if necessary.

Step 2: Write 0 to DO7.

Step 3: Configure Counter8 to EXT_GATE8, EXT_CLK8 and

MODE0.

Step 4: Write count value 65535 to Counter8.

Step 5: Write 1 to DO0.

44

Applications

DASP-52010 Card User’s Manual

Step 6: When event happening Counter8 will count down

Event Happen Times = 65535 – Counter8 Count

Value + 1

Event Source

DO7

EXT_CLK8

EXT_GATE8

C

Counter 8

O

G

COUT8

External

Device

If need event alarm, you can write a specific count value into

Counter8, connect COUT8 to your external device or set ISR to

COUT8. When Counter8 count down to 0, COUT8 will change to high and trigger an interrupt signal.

Register Structure and Format

45

DASP-52010 Card User’s Manual

4.8 Pulse Width Measurement

You can use counter to make a roughly pulse width measurement.

Example: Pulse Width Measurement

We select Counter9 to this application.

Step 1: Connect pulse source to EXT_GATE9 (Pin 31) and DI11

(Pin 13).

Step 2: Configure SYS_CLOCK0 to 4 MHz.

Step 3: Configure Counter9 to EXT_GATE90, SYS_CLOCK0 and

MODE2.

Step 4: Write count value 65535 to Counte9.

Step 5: Polling DI11, if DI11 change to low, read in Counter9 count value.

Pulse Width = (65535 – Counter9 Count Value + 1) /4 MHz

Pulse Source

SYS_CLOCK0

EXT_GATE9

4 MHz

C

Counter 9

G

DI11

In this example, Max. width be measured should short than 16.38 ms.

46

Applications

DASP-52010 Card User’s Manual

Appendix A

Dimension of DASP-52010 and

Accessories

DASP-52010

CN1

JP1

U1 U7

U12

8254

U3

U4

U5

U2

U8

CPLD

JP2

1

2

3

RP1

CON2

U6

OSC

JP3

1

2

3

U10

U11

PCI Bridge

U13

8254

U14

U15

U16

8254

U17

8254

U18

U19

U20

185

TB-88037

Dimension of DASP-52010 and Accessories

47

DASP-52010 Card User’s Manual

52

112

48

Dimension of DASP-52010 and Accessories

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
