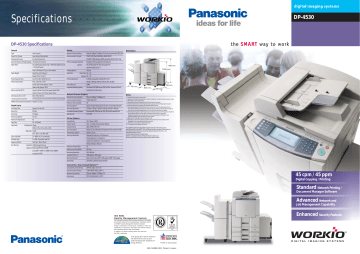

DP-4530 Specifications
Semi Console
Network Printer Interface
Ethernet 10Base-T/100Base-TX, Bi-directional Parallel (IEEE1284)
Copy/Print Process
Laser Indirect Electrostatic
Communication Protocol
TCP/IP (LPD, [Port9100/RAW], SNMP, DHCP)
Developing Process
Dry Dual Component
Printer Language (standard)
Panasonic Printing System for Windows®
Automatic Document Feeder Capacity 70 sheets (A4, 75 g/m2)
IPX/SPX*4 (NDS, Bindery, NDPS) AppleTalk (PS), IPP (PCL, PS)
Std. 1,550 (Large-capacity tray) + 550-sheet paper tray unit
+ 50-sheet bypass
Paper Feed
Paper Weight
PCL 5e Emulation®*5, PCL 6 Emulation®*5
1169 mm
Adobe® PostScript3®™*6
Max. 6,250 sheets (75 g/m2) with option
Printing Speed*2
Paper Tray: 60 to 90 g/m2
Paper Size
1005 mm
45 ppm
Paper Tray: A3 – A5
Bypass: 55 to 133 g/m2
Bypass: A3 – A5
Power Requirements
AC 220 V-240 V, 50/60 Hz, 6.5 A
Power Consumption
Max.: Less than 1.5 kW
Power saver mode: Approx. 170 W
Printer Memory
Sleep mode: Approx. 20 W
Compatible Operating Systems
Windows® XP/2000/Server 2003, 98, Me, Windows NT® 4.0,
Warm-up Time (20 ºC)
Approx. 180 sec. (from Main power switch ON)
Approx. 30 sec. (from Power saver mode)
Dimensions (W x D x H)*1
600 x 758 x 900 mm
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight (Excluding optional equipment)*1Approx. 131.5 kg
Digital Copier
Printing Resolution
1,200 dpi equivalent x 600 dpi (PCL, PS),
600 dpi x 600 dpi, 300 dpi x 300 dpi (PCL, PS, GDI)
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
Maximum Scanning Size
Scanning Speed*7
Approx. 45 opm (Originals per minutes - A4 portrait with ADF)
Approx. 4.5 sec. (A4)
Scanning Resolution
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
600 dpi
Compatible Operating Systems
Windows®XP/2000/Server 2003, 98, Me, WindowsNT®4.0
Grey Scale
256 steps
Data Format
Multi Copy Speed*2
45 cpm
Maximum Original Size
Copy Size
A3– A5 (fixed)
200%, 173%, 141%, 122%, 115%
87%, 82%, 71%, 58%, 50%
Zoom (variable)
25~400% (in 1% increments)
Multiple Copy
1 to 999, Automatic reset to 1
Exposure Control
Text, Text / Photo, Photo
Sort Memory
Standard 32MB (Image Memory)
Optional Base Image Memory (32MB)
plus 16MB*3 / 64MB*3 / 128MB*3 (Max. 160MB)
and optional HDD
758 mm
600 mm
MacOS 8.6-10.3 (PS only)*6
Network Scanner (Option)
First Copy Time
Copy Ratio
750 mm
G3 Fax (Option)
ITU-T Group 3, ECM
Modem Speed
33.6 - 2.4 kbps with automatic fallback
Coding Scheme
Scanning Speed*7
Approx. 0.7 sec. (A4 portrait in Standard or Fine mode with ADF)
Transmission Speed*8
Approx. 2.9 sec.
Scanning Resolution
Standard: 8 dots/mm x 3.85 lines/mm
Fine: 8 dots/mm x 7.7lines/mm
290 mm
Dimensions and weight are approximate.
Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
Not available in certain destinations.
Compatible with Novell Netware® 3/4/5/6 and Novell Directory Services®.
Printer Controller Module or Multi-Page Description Language Controller Module option required.
Multi-Page Description Language Controller Module option required.
Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*8 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*9 Based on ITU-T Image No.1 scanned in Standard mode.
*10 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*11 This function is not available in certain destinations.
*12 T.37 Internet Fax only supports TIFF format.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
WORKiO™ is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Super Fine: 16 dots/mm x 15.4 lines/mm
600 dpi: 600 dpi x 600 dpi
Maximum Original Size
Effective Scanning Width
292 mm
Recording Resolution
600 x 600 dpi
Standard Memory*9
3MB (Approx. 180 pages)
Optional Memory*9
Base memory plus 4MB*3 (320 pages) / 8MB*3 (640 pages)
Speed Dials
200 (Max. 1,000 with optional HDD)
Internet Fax / Scan-to-Email (Option)*10
Compatibility (Internet Fax)
IETF RFC 2305, ITU-T T.37
Communication Protocol
Network Connectivity
Ethernet 10Base-T/100Base-TX
Data Format
TIFF-FX (Profile S/F/J), PDF*12
45 cpm / 45 ppm
Digital Copying / Printing
Standard Network Printing /
Document Manager Software
Advanced Network and
Job Management Capability
Enhanced Security Features
ISO 9001
Quality Management System
Our business processes which produce document, information
and network products, from manufacturing to marketing, conform
to ISO9001 Quality Management Systems standard.
Design, development, manufacture, installation, repair and
maintenance of document, information and network products,
their associated devices and consumables.
In addition, the plants outside Japan have acquired
ISO 9001 certification.
As an Energy Star® Partner, Panasonic
has determined that this product
meets the Energy Star® Guidelines for
energy efficiency.
Printed on recycled paper
MG-C459EE 0503 Printed in Japan
WORKiO Keystone of Your Document Infrastructure
Featuring incredible networking capabilities and ease of operation, this high-performance platform
offers versatile copying, network printing, and network scanning and distribution solutions for total document processing and management needs. With enhanced security functions, the DP-4530 gives you
even more reasons to choose WORKiO.
WORKiO DP-4530 integrates total document workflow from digital copying, network printing and network
scanning to fax and email distribution in a single space-saving console. Ready to connect to your LAN
right out of the box, the DP-4530 immediately brings the efficiency and productivity of digital imaging
to every desktop. For walk-up users, the revolutionary visual user interface virtually eliminates complexity
and gives new meaning to “user-friendly”. The rugged design and the host of service-friendly features
set new standards for WORKiO reliability. Every aspect of the DP-4530’s design, from key components
with extended life, to its energy-conscious design contributes to lower TCO as well as an economical
work environment. In addition, features like the seamless document routing system, file format flexibility
and expanded IPX/SPX compatibility make the DP-4530 the ultimate digital hub for your workplace.
The Panasonic WORKiO DP-4530 is a complete solution and is
WORKiO – the Copying Solution
The DP-4530’s optional 40GB HDD
provides these additional functions:
high-speed A3-class copying
From routine copying of notes for a small audience,
to the production of bound multi-page reports for
an entire department,WORKiO DP-4530 can handle
everything from the easiest job to the most complex
high-volume job at a blazing speed of up to 45
A4-size copies per minute. Responding to the
demand for large-size document copying, A3-size
paper handling is standard.
high-quality image reproduction
capacity that grows with
your needs
• Concurrent Copy up to 12 Copy Jobs
Speed never comes at the expense of quality
• Tandem Copy – Copy the same job on 2 DP-4530’s
with WORKiO. The ultra-fine toner/carrier particles
WORKiO DP-4530 is ready to
meet the needs of most highvolume work environments. The
standard huge capacity of 2,150
sheets is realized by a 1,550sheet large-capacity tray, a 550sheet paper tray and a 50-sheet
bypass tray. However, if more
capacity is required,the addition
of two optional 550-sheet trays
and a 3,000-sheet cassette can
raise capacity to a maximum
6,250 sheets.
• Remote Copy – Send your copy job to another WORKiO*1
and image stabilising technology ensure 600 x 600
• Security Print – Password protect documents so they don’t
print until you are at the machine
dpi resolution and 256-level grey scale to produce
Meet the Friendliest Face in the Office
Designed to let even a first-time user take full advantage of the
many digital copying conveniences, the WORKiO DP-4530 GUI
sets a new standard in ease of operation.The left-to-right menu
arrangement follows the natural flow of work and takes the
complexity out of setting the most challenging copy jobs. The
spacious layout of the large touch-screen panel displays the settings with easy-to-understand graphics to speed identification
and selection.
• Mailbox Print – Send many jobs to the WORKiO and
print them when you get there
Image Enhancement
A picture is worth a thousand words and the WORKiO
DP-4530 makes sure the image
quality delivers full value by
faithfully copying every graphic
nuance and the smallest text in
clear detail.
copies with high legibility and clear sharp images
at high speed across multiple generations.
• Print Spooling – Takes many jobs in freeing up your
workstation faster
• Up to 1000 One-Touch Address*2 with Fax or Internet Fax option
• Accounting Software option compatibility
• PostScript resident font storage with PostScript option
Simple, easy to follow steps for Booklet Making
innovative interface
Step 1:
network-enhanced functionality
Engineered from the ground up for ease of use, this platform also saves time in job setting through an
double-side copying for
double savings
innovative and friendly GUI. The intuitive tabbed interface on the extra-large half-VGA LCD display (640 x
240 pixels) gives users quick access to basic copying functions and leads the user through advanced set-
Built-in duplex unit enables
copying on both sides of each
sheet for higher productivity
and economy. Used in combination with the Automatic
Document Feeder, users can
exploit the advantages of highspeed duplex copying.
tings such as image rotation and finishing options. Prior to job execution, a graphical confirmation of the
original versus the final job setting is provided in effort to prevent costly copying errors. While the WORKiO
Setting naturally begins with the left tab
“Basic” menu. Select “Proof Set” to obtain one
sample set to check all job settings before
committing to a mass copying job. You can
choose to be informed when the job is done by
pressing the “Completion Notice” button on
the bottom left of the screen.
DP-4530 is completing a large-volume job, the user can attend to other priorities and a completion notice
will be sent directly to their PC when their copy job is finished.
versatility and convenience
In digital copying versatility, the WORKiO DP-4530 is unsurpassed with features like a built-in duplex unit
Connectivity may not seem important in copy mode until you explore how the inherent networkability of
the WORKiO DP-4530 enables enhanced capabilities such as Tandem Copy*1, Remote Copy*1 and even copy
job completion notices.
Meeting Room
Step 2:
Tandem Copy*
and high-speed automatic document feeder. Conveniences like Double Exposure, Digital SkyShot, N-in-1
For extra-large jobs with tight deadlines, Tandem Copy lets you
harness the power of multiple WORKiO platforms to work jointly
on a single job.
Copy, Zoom and Image Rotation introduce users to new flexibility in digital
copying, while Sort Copy electronically collates copies as shifted and rotated
sets, saving valuable time, while increasing productivity.
Double Exposure
Remote Copy*1
With remote copy, a copy job can be sent to another networked
WORKiO platform on another floor or in a different department.
WORKiO Original
By selecting the Double Exposure function located on the control
panel,users can make quality copies of double-sided documents
on a single sheet of paper without the black borders, even if the
platen cover is open. This is especially convenient for copying
small double-sided originals such as ID and insurance cards,
cheques, and receipts.
Original Scanning Area
First Pass – Image #1
The next tab “2-sided/orig.->copy” offers a
variety of choices that use built-in duplex.Each
is represented by text and easy-to-understand
graphics, choose “Booklet”.
Two Images Combined
Onto a Single Sheet
With Double Exposure
Original Scanning Area
Second Pass – Image #2
*1 Tandem/Remote Copy functions are applicable only between
the DP-6030/4530/3530 and other DP-6030/4530/3530/
*1 Hard Disk Drive Unit is required.
Step 3:
complete from start to finish
The final step of manually “finishing”copies as stapled or bound sets is very time-consuming. The addition
of the optional stapling, punching and saddle-stitching finishing modules automates this process and
makes your WORKiO DP-4530 a complete document solution from start to finish. Always visible on the
Finishing the Job
Zoom Copy
N-in-1 copy
Using the easy-to-understand interface, copying multiple originals on a single sheet is very simple; accelerating document production while saving paper.
Featuring easy automatic presets and manual control in 1%
steps, WORKiO DP-4530 makes enlargement and reduction of
copies easy, fast and flexible.
The “Job Setting” summary function is visible on the right side of
the interface and it lets the user confirm settings and easily go
back to make changes. As soon as the job starts, the user can
return to their desk and take care of other business until the
WORKiO DP-4530 sends a job completion notice directly to their
Select sorting/finishing options and pick up your collated sets of
copies. With optional finishing modules, sets are automatically
stapled or saddle-stitched or hole-punched for ring binding.
right side of the interface, the Job Setting window provides an easy-to-see, easy-to-navigate graphical list
of all user settings, enabling confirmation of “finish” or any other settings beforehand.
WORKiO – the Printing Solution
handy status monitor
Up to 45-ppm network printing plus A3-output capability
Equipped with 10Base-T/100Base-TX network connectivity as a standard feature, network-ready WORKiO
A visual Status Monitor lets users check the current status of the WORKiO DP-4530 without leaving their
DP-4530 gives all PCs on your LAN access to a super-fast speed of up to 45-ppm (A4-size) printing. Custom
desks. If toner is low or the paper bin needs to be refilled, users know immediately and can respond quickly,
LSIs and a high-performance microprocessor makes sure that quality is not compromised even at this
avoiding costly downtime.
high speed. Effortlessly meeting heavy volume needs with total reliability, this A3-class platform further
true system integration
enhances productivity with a built-in automatic duplex unit.
* The optional Plain Stand, System Console 1 or System Console 2 is required for copying/printing with A3, B4/Foolscap paper size.
For today’s networked business environment,WORKiO responds with advanced features that explore the
Status Monitor Utility
With this convenient utility,
users can easily monitor
the status of the WORKiO
DP-4530 including toner
and paper supply.
Step 1:
Print *2
Print *1
beyond stand-alone printer performance
leveraging your network with connectivity
Built to measure up to the tough day-to-day high-volume
demands of the busiest environments, the durable printer
engine pumps out high-quality prints at up to 45 ppm – more
than triple the speed of most single-function office printers. In
addition, its A3-size output capability is uncommon in standard
PC printers.
WORKiO is about sharing networked resources and multiplying
their effectiveness. With the standard 10Base-T/100Base-TX
Ethernet interface, the DP-4530 immediately enables all networked PCs to access the power and performance of network
printing from the desktop. A parallel interface is also included
for direct connection to a dedicated PC.
Select the paper size in the
WORKiO printer driver menu.
full potential of network connectivity. By connecting the DP-4530 to a sophisticated enterprise console
system, WORKiO’s Console Management System can help preempt issues that diminish productivity.
e rp
r ise
co n s o l e s
ys t
systematic issue identification and resolution
print data storage box
Mail Box or Security Box space on the optional hard disk can be
assigned to a maximum of 100 users for storage of printing
data inside the WORKiO DP-4530. Data is sent from the user‘s
PC to the Mail/Security Box and can be printed at a later date.
The security of 8-digit User IDs and 4-digit passwords is available
to protect sensitive documents.
Enterprise console systems help maintain peak system performance and availability while reducing support costs in a corporate
computing environment. Incorporating MetaConsole™ technology licensed from Netaphor™ Software, WORKiO can be set
up as a device that can be managed by popular Enterprise
Console Systems such as HP OpenView™,IBM Tivoli™ Enterprise,
and Microsoft® Management Console (MMC).
*MetaConsoleTM is a trademark of NetaphorTM Software Inc.
*TivoliTM is a trademark of IBM Corporation.
*Microsoft® Management Console is a registered trademark
of Microsoft Corporation.
Step 1:
*1 Optional PCL Printer Controller Module is required.
*2 Optional Multi-Page Description Language Controller Module
is required.
*OpenView is a trademark of Hewlet-Packard
“smart” economy and efficiency
friendly graphical drivers
The optional hard disk drive unit enables document storage in mailboxes that can be password protected for
Easy-to-install graphical printer drivers empower users with full control of versatile printing functions
right from the desktop. From the intuitive tabbed interface to on-screen graphical preview of job settings,
everything is designed to maximize ease of use and eliminate costly errors.
Step 2:
Enter your User ID under the “Mail Box”
Step 2:
Select from a range of laboursaving finishing options.
secure printing. A security function can be added that overwrites “0” data after print data is output from
the hard disk*. Intelligent Job Control Management is another important benefit of the new WORKiO
series. The enhanced GUI lets users view the print queue and approximate job times as well as delete individual print or copy jobs if necessary. The administrator can monitor the device status such as the job
Step 3: After sending the job to the printer, the DP-4530 sends
quality in detail
True 600 x 600 dpi resolution is more than enough image quality for professional-quality documents.
However the DP-4530 raises the bar with Panasonic’s Image Enhancement Technology and produces
queue as well as set up or configure the system via a network. The easy-to-install optional Network
a Completion Notice to the user notifying them that their job is
finished, eliminating wasted trips to check the machines status
especially when the print job queue is full.
Accounting Software can provide detailed usage logs by individual users and departments.
Select “Mailbox” to gain access to your
personalized disk space
Step 3:
quality equivalent up to 1,200 dpi for even smoother gradations, sharper details, and superb photos and
multi-level security
graphics. Small text is easily legible even against background graphics. In addition to standard Windows
hard disk data deletion* – A welcome security function that erases data on a hard disk by overwriting it
GDI printing, WORKiO DP-4530 offers optional modules and drivers to expand printing versatility with
with zero data or random numbers. It can also erase all hard disk data when the computer is discarded.
PCL and PostScript capabilities.
This prevents the leakage of information and eliminates worries about data that would otherwise be left
behind speed and quality
600 dpi
1200 dpi equivalent x 600 dpi
Powered by a high-performance
microprocessor and customdeveloped LSIs, the improved
imaging processing speed and
quality ensures high-speed printing of crisp high-quality images.
Select the desired job run and press “Print”.
on hard disks.
mailbox – Users can send print jobs to be stored in the WORKiO mailbox. Then whenever they want to
print them, for example, at a later time to keep them from being output together with other people’s
Enhanced hard disk erasing
jobs, the DP-4530 will print them all at once.
WORKiO gives you choices, letting the user decide on how
securely they want their data to be kept, or deleted.
secure mailbox – Sensitive “eyes only” documents can be temporarily stored in the secure mailbox. Users
enter their ID and passwords to safely print out the documents at any time they choose.
* These functions require the optional hard disk unit and memory board.
improving images pixel by pixel
Panasonic’s Image Enhancement Technology makes a visible
difference in every print. By producing images with the equivalent of twice the number of dots per inch of a 600 dpi printer,
WORKiO DP-4530 gives documents smoother curves,
diagonals and banding-free gradations.
*Consult with your dealer or sales company in order to use these functions effectively.
Copy / Print / Fax / Scan
Daily over-write
with “zero”s or
random numbers.
network accounting software
The optional Network Accounting Software can collect and tabulate log information data such as number of
prints, copies and faxes that has accumulated in the DP-4530.This is useful for obtaining data from a variety
Complete erasure
when discarding
the machine.
of analysis and period totals for each job or output tabulations by department and user.
WORKiO – the Scanning & Document Distribution Solution
Document Distribution System*
high-speed network scanning
Document Distribution System (DDS)
*Optional Network Scanner Module is required.
DDS is a powerful tool that lets users create distribution jobs and routing menus for fast, precisely targeted,
WORKiO DP-4530 is also a high-speed scanning solution. Equipped with an inverting ADF unit (70-page
Distribution System
capacity), it can automatically perform double-side scanning of documents as large as A3 size. Thanks to
automatic distribution. Once workflow routines have been defined, DDS will automatically route and distribute scanned documents, inbound faxes and internet faxes, greatly simplifying repetitive distribution tasks.
the high-resolution scanning at 600 x 600 dpi with 256 grayscale halftone using error diffusion technology,
The routing menus in the WORKiO control panel are easy to understand and navigate. DDS also offers
clear crisp image quality is achieved.
Web Client
versatile image processing, including auto rotation, skew correction, noise reduction, automatic or manual
file naming and OCR text extraction. In addition, users can store and view documents in secure Web folders,
with sensitive information archived by sender, recipient, inbound routing and inbound address.
Mail Client
network scanning versatility
Panasonic-DMS Client
Mail Client
fast faxing
When the optional Network Scanning Module is
combined with the WORKiO’s built-in network
connectivity, the DP-4530 becomes a powerful
high-speed network scanner that revolutionizes
Transform the WORKiO DP-4530 into a high-performance fax station. The optional fax communication kit
adds fast 33.6 kbps Super G3 fax with JBIG compression capability accelerated by 0.7-sec “Quick Scanning”
for shorter prep time and Quick Memory Transmission. High 600 x 600 dpi communication resolution pre-
document distribution. Instead of copying docu-
serves the high scanning resolution of WORKiO for accurate reproduction at the destination. One of the
ments and hand delivering them to individuals,
Powerful distribution options at your fingertips
smart features of the DP-4530 is a function that automatically switches to fax mode by determining that
network scanning and the intuitive WORKiO inter-
Friendly WORKiO GUI guides users through every step of the scanning and document distribution process. For example, even after
pressing start,the interface keeps the user informed of the scanning
progress with an animated graphic.
a telephone number is being entered when a number over 6 digits is keypad in.
face make it easy to send scanned documents to
an FTP server or a PC on the LAN. The “File
internet faxing
Naming” feature gives you the freedom to assign
With the Internet Fax / Email option, the DP-4530
a name to scanned files right at the platform for
can be set up to scan documents as TIFF images or
easy identification.
Web Folder View
High-speed network scanner
email attachments. For example, with the “Send-to-
Broad OS compatibility ensures that LAN clients using Windows
XP/Server 2003/2000/98/Me and even Windows NT take advantage of the versatile “Push-type” network scanning capability.
*To open the TIFF or PDF file, Panasonic Document Management
System software and/or Adobe® Reader™ are required.
PDF files allowing the user to transmit them as
Email” feature, scanned documents can be directly
Email Client
sent from the WORKiO DP-4530 to other Internet
File naming
For more convenient file management, WORKiO gives you the
freedom to name data files. Using the Soft Keyboard with the
QWERTY layout, name entry is easy!
Fax-capable*1*2 platforms or even multiple email
The Fax capable clients
clients anywhere in the world. Simultaneous distri-
The WORKiO DP-4530 can be set up to scan images in standard TIFF or the popular PDF format and transmit them as
email attachments.
bution of the same document to multiple email
clients and G3 fax terminals is easy using the “Mixed
Broadcast”feature and convenient fax/email utilities
like the WORKiO Address Book.
desktop document management
*1 In the case of the Send-to-Email transmission at 600 dpi and/or A3
documents, reception may not be possible in some instances due to
reception-side function.
*2 Receiving data from Internet Fax only supports TIFF-FX format.
WORKiO not only gets documents into the digital flow faster with its high-speed scanning, it also provides
Document Manager software for efficient management, editing and sharing of scanned documents. For
very large-scale document management based on a client-server model, the optional DD Server System
takes your business another step closer towards realizing paperless document management is possible.
gateway to “paperless” productivity
One-Touch Document Routing
Scanned Document Management
When a scanned document arrives, Document Manager
notifies the user and automatically opens it. Image Viewer
enables the user to easily view,annotate or attach memos to
the file.With the simple “drag and drop” operation, users can
manage and edit documents right from their desktop, and
even share them with other PCs.
WORKiO’s Address Book allows registration of up to 1,000
addresses”3, Fax numbers and email addresses. In addition, network addresses can be registered easily by using the “soft” keyboard,and a handy utility supports easy creation of standardized
email headers.
*3 Optional Hard Disk Drive Unit is required.
WORKiO’s Internet Fax / Email option also provides
Panafax Desktop
the platform with a fax / email gateway function.
Incoming faxes*3 can be automatically routed to
the designated recipient’s email inbox where the
attached image file can be easily opened and
viewed with a standard image viewer such as
“Imaging for Windows”. The optional fax communication kit and Panafax Desktop software allows
users to send documents directly from their PC via
the LAN and WORKiO gateway to G3 fax machines
around the world.*4
*3 Fax Communication Board is required.
*4 Internet Fax/E-mail Module is required.
Panafax Desktop Software
PC Fax lets users send documents from their PCs directly to fax
machines, eliminating the step of printing a hard copy and then
running it through the fax machine. The PC Fax capability can save
valuable time,labour,and paper.
WORKiO – the Reliable Solution
Options & Expandability
The WORKiO DP-4530 offers a wide range of options to build a custom configuration that
Service Friendly
the solution you can depend on
Reliability has always been WORKiO’s number one priority, especially in the case of a multifunction digital
precisely matches your current needs and can be easily upgraded as your business grows.
Full-front access is one of the distinctive design features of
WORKiO's "service-friendly" concept.
hub because downtime can be very costly. Every aspect of the WORKiO DP-4530, from its extra rugged
chassis and high-reliability copier/ printer engine, to the long service life of the drum and other periodically
replaced parts, is engineered to last.
Fax / Send-to-Email (Internet Fax) Options
4MB Flash Memory / 8MB Flash Memory
Flash Memory
(Not available in certain destinations)
Image Memory Options
16MB / 64MB / 128 MB
DA-SM16B / DA-SM64B / DA-SM28B (Not available in certain destinations)
Remote Maintenance System
ning out of toner or by providing an early warning notice regarding mechanical failures by automatically
reporting the machines status directly to a service centre. Our remote maintenance system is also
supported by a Remote Diagnostic System that can take advantage of the WORKiO DP-4530’s connectivity
Fax Communication Board
G3 Fax
“Check & Call*”can prevent costly downtime caused by issues that sometimes get over looked such as run1-Bin SaddleStitch Finisher
Changing the toner bottle is as easy as opening the front
panel door.
Send-to-Email (Internet Fax)
Paper Exit Options
via a telephone line or via the internet. This feature enables technicians to quickly trouble-shoot and
Internet Fax / E-Mail Module
provide solutions.
Punch Unit
Printer / Network Printer Options
“Check & Call”
To prevent interruptions in productivity,our
convenient “Check and Call”system enables
service centres to stay on top of your printers status and performance. For example,
the built-in automatic report function lets
us know when toner is running low or if
mechanical failures require attention.
PM Timing
PCL Printer
Software / Hard Disk
Low Toner
Accounting System
Hard Disk Drive Unit
Service Centre
Mechanical Problem
Controller Module
Supply Sales
Monthly / Periodic Report
* Optional Fax Communication Board or
Internet Fax/E-Mail Module is required.
The toner bottle swings out of the way and the entire printer
engine slides out for easy access. Servicing core components and
addressing mechanical failures has never been easier.
2-Bin Finisher
PS Printer
Accounting Software
GDI IPX / SPX Printer
Controller Module
(Hard Disk Drive Unit is required)
GDI IPX / SPX Printer
DD Server System
Network Scanner Options
DD Server Software
Punch Unit
Network Scanner
Module for Document
Distribution System
The environmentally friendly design is not just good corporate citizenship, it also makes good business
Panasonic Document
Distribution System
Distribution System
sense. The Energy Star-compliant WORKiO DP-4530 contributes to lower TCO because it uses very little ener-
and the work environment is also quieter and cleaner thanks to reduced noise and ozone emissions.
Network Scanner Module
(Network Scanner Module option or
Network Scanner Module for Document
Distribution System is required)
environmentally friendly
gy and significantly reduces power when in idle mode. In sleep mode, energy needs drop to virtually nothing
Multi Page Description
Language Controller
(Network Scanner Module for
Document Distribution System
is required)*1*2
Paper Feed Options
2-Paper Tray Configuration
3-Paper Tray Configuration
4-Paper Tray Configuration
Plain Stand*3
(For certain
destinations only)
System Console 1*3
System Console 2*3
*1 If the distribution of G3 Fax data is necessary, Fax Communication Board (DA-FG600) and Internet Fax / E-Mail Module (DA-NF600) are required.
*2 If the distribution of Internet Fax data is necessary, Internet Fax / E-Mail Module (DA-NF600) is required.
*3 The optional Plain Stand (DA-D351), System Console 1 (DA-DS603) or System Console 2 (DA-DS604) is required for copying/printing with A3,B4/Foolscap paper size.
3000-Sheet Tray
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
