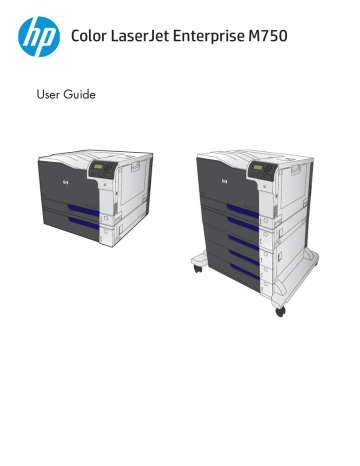

Color LaserJet Enterprise M750

User Guide

HP Color LaserJet Enterprise M750

Printer Series

User Guide

Copyright and License

© 2013 Copyright Hewlett-Packard

Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: D3L08–90907

Edition 1, 10/2013

Trademark Credits

Java™ is a US trademark of Sun

Microsystems, Inc.

Microsoft®, Windows®, Windows® XP, and

Windows Vista® are U.S. registered trademarks of Microsoft Corporation.

ENERGY STAR ® and the ENERGY STAR mark are registered U.S. marks.

®

Conventions used in this guide

TIP: Tips provide helpful hints or shortcuts.

NOTE: Notes provide important information to explain a concept or to complete a task.

CAUTION: Cautions indicate procedures that you should follow to avoid losing data or damaging the product.

WARNING! Warnings alert you to specific procedures that you should follow to avoid personal injury, catastrophic loss of data, or extensive damage to the product.

ENWW iii

iv Conventions used in this guide ENWW

Table of contents

1 Product basics .................................................................................................................................................. 1

Product comparison ............................................................................................................................. 2

Supported operating systems ............................................................................................................... 3

Serial number and model number location ........................................................................................... 4

Control panel layout ............................................................................................................................. 5

Product hardware setup and software installation ................................................................................ 6

2 Control panel menus ......................................................................................................................................... 7

Navigate the Administration menu ....................................................................................................... 8

Print information pages ........................................................................................................................ 9

Print the menu map ............................................................................................................. 9

Print the configuration report ............................................................................................... 9

3 Paper and print media ..................................................................................................................................... 11

Understand paper use ........................................................................................................................ 12

Special paper guidelines .................................................................................................... 12

Change the printer driver to match the paper type and size .............................................................. 14

Supported paper sizes ....................................................................................................................... 15

Supported paper sizes for duplex printing ......................................................................... 17

Supported paper types and tray capacity ........................................................................................... 18

Load paper trays ................................................................................................................................ 19

Load Tray 1 ........................................................................................................................ 19

Load Tray 2, Tray 3, and optional Trays 4, 5, and 6 with standard-size paper .................. 20

Load Tray 2, Tray 3, and optional Trays 4, 5, and 6 with custom-size paper .................... 22

Tray and bin capacity ......................................................................................................... 23

Paper orientation for loading trays ..................................................................................... 24

Paper orientation for loading Tray 1 .................................................................. 25

Paper orientation for loading Tray 2, Tray 3, or optional Trays 4, 5, and 6 ....... 27

Configure trays ................................................................................................................................... 28

Configure a tray when loading paper ................................................................................. 28

Configure a tray to match print job settings ....................................................................... 28

ENWW v

vi

Configure a tray from the control panel ............................................................................. 28

Automatic paper sensing (auto-sense mode) .................................................................... 29

Auto-sense settings ........................................................................................... 29

Select the paper by source, type, or size ........................................................................... 29

Source ............................................................................................................... 29

Type and Size ................................................................................................... 29

4 Print tasks ....................................................................................................................................................... 31

Supported print drivers (Windows) ..................................................................................................... 32

HP Universal Print Driver (UPD) ........................................................................................ 32

UPD installation modes ..................................................................................... 33

Print tasks (Windows) ......................................................................................................................... 34

Use a printing shortcut (Windows) ..................................................................................... 34

Create printing shortcuts (Windows) .................................................................................. 36

Automatically print on both sides (Windows) ..................................................................... 39

Manually print on both sides (Windows) ............................................................................ 41

Print multiple pages per sheet (Windows) ......................................................................... 43

Select the page orientation (Windows) .............................................................................. 45

Select the paper type (Windows) ....................................................................................... 47

Print the first or last page on different paper (Windows) .................................................... 50

Scale a document to fit page size (Windows) .................................................................... 53

Create a booklet (Windows) .............................................................................................. 55

Print tasks (Mac OS X) ....................................................................................................................... 57

Use a printing preset (Mac OS X) ...................................................................................... 57

Create a printing preset (Mac OS X) ................................................................................. 57

Automatically print on both sides (Mac OS X) ................................................................... 57

Manually print on both sides (Mac OS X) .......................................................................... 57

Print multiple pages per sheet (Mac OS X) ....................................................................... 58

Select the page orientation (Mac OS X) ............................................................................ 58

Select the paper type (Mac OS X) ..................................................................................... 58

Print a cover page (Mac OS X) .......................................................................................... 58

Scale a document to fit page size (Mac OS X) .................................................................. 59

Create a booklet (Mac OS X) ............................................................................................. 59

Additional print tasks (Windows) ........................................................................................................ 60

Cancel a print job (Windows) ............................................................................................. 60

Select the paper size (Windows) ....................................................................................... 60

Select a custom paper size (Windows) .............................................................................. 61

Print watermarks (Windows) .............................................................................................. 61

Additional print tasks (Mac OS X) ...................................................................................................... 62

Cancel a print job (Mac OS X) ........................................................................................... 62

Select the paper size (Mac OS X) ..................................................................................... 62

ENWW

Select a custom paper size (Mac OS X) ............................................................................ 62

Print watermarks (Mac OS X) ............................................................................................ 62

Store print jobs on the product ........................................................................................................... 64

Create a stored job (Windows) .......................................................................................... 64

Create a stored job (Mac OS X) ........................................................................................ 66

Print a stored job ................................................................................................................ 67

Delete a stored job ............................................................................................................. 67

Add a job-separator page (Windows) ................................................................................................. 68

Mobile printing .................................................................................................................................... 69

HP ePrint ........................................................................................................................... 69

HP ePrint software ............................................................................................................. 69

AirPrint ............................................................................................................................... 70

5 Color ............................................................................................................................................................... 71

Adjust color ......................................................................................................................................... 72

Automatic ........................................................................................................................... 72

Print in Grayscale .............................................................................................................. 72

Manual color adjustment .................................................................................................... 73

Manual color options ......................................................................................... 73

Use the HP EasyColor option ............................................................................................ 74

Change the color options (Windows) ................................................................................................. 75

Change the color theme for a print job (Windows) ............................................................................. 76

Change the color options (Mac OS X) ................................................................................................ 77

Match colors ....................................................................................................................................... 78

Sample book color matching ............................................................................................. 78

Print color samples ............................................................................................................ 78

PANTONE® color matching .............................................................................................. 79

6 Manage and maintain ..................................................................................................................................... 81

HP Embedded Web Server ................................................................................................................ 82

How to access the HP Embedded Web Server (EWS) ..................................................... 82

HP Utility for Mac OS X ...................................................................................................................... 83

Open HP Utility .................................................................................................................. 83

HP Utility features .............................................................................................................. 83

Use HP Web Jetadmin software ........................................................................................................ 85

Manage supplies and accessories ..................................................................................................... 86

Print when a cartridge is at estimated end of life ............................................................... 86

Supplies messages ........................................................................................... 86

Enable or disable the Very Low Settings options from the control panel .......... 86

Manage print cartridges ..................................................................................................... 87

Toner cartridge storage ..................................................................................... 87

ENWW vii

HP policy on non-HP supplies ........................................................................... 87

HP anticounterfeit Web site ............................................................................... 87

Recycle supplies ............................................................................................... 87

Data stored on the toner cartridge .................................................................... 87

Replacement instructions .................................................................................................. 88

Replace print cartridges .................................................................................... 88

Replace the toner collection unit ....................................................................... 91

Clean the product ............................................................................................................................... 93

Clean the paper path ......................................................................................................... 93

Software and firmware updates .......................................................................................................... 94

7 Solve problems ............................................................................................................................................... 95

Self help ............................................................................................................................................. 96

Solve general problems ...................................................................................................................... 97

Troubleshooting checklist .................................................................................................. 97

Factors that affect product performance ............................................................................ 98

Interpret control-panel messages ....................................................................................................... 99

Control-panel message types ............................................................................................ 99

Control-panel messages .................................................................................................... 99

Supplies status messages ................................................................................................. 99

Clear jams ........................................................................................................................................ 106

Prevent jams .................................................................................................................... 106

Jam locations ................................................................................................................... 107

Clear jams in Tray 1 ......................................................................................................... 108

Clear jams from Tray 2, Tray 3, or an optional tray ......................................................... 110

Clear jams in the upper right door ................................................................................... 111

Clear jams in the lower right door .................................................................................... 113

Clear jams in the output bin area ..................................................................................... 114

Appendix A Supplies and accessories ............................................................................................................. 115

Order parts, accessories, and supplies ............................................................................................ 116

Part numbers .................................................................................................................................... 117

Accessories ..................................................................................................................... 117

Print cartridges ................................................................................................................. 117

Cables and interfaces ...................................................................................................... 117

Maintenance kits .............................................................................................................. 117

Index ................................................................................................................................................................. 119

viii ENWW

1 Product basics

Product comparison

Supported operating systems

Serial number and model number location

Control panel layout

Product hardware setup and software installation

ENWW 1

Product comparison

Model

HP Color LaserJet M750n

HP Color LaserJet M750dn

HP Color LaserJet M750xh

Features

100-sheet multipurpose input tray (Tray 1)

250-sheet input tray (Tray 2)

500-sheet input tray (Tray 3)

300-sheet, face-down output bin

Hi-Speed USB 2.0 port

HP Jetdirect embedded print server for connecting to a 10/100/1000Base-TX network

1 gigabyte (GB) of random access memory (RAM)

USB port on the control panel for walk-up printing

100-sheet multipurpose input tray (Tray 1)

250-sheet input tray (Tray 2)

500-sheet input tray (Tray 3)

300-sheet, face-down output bin

Hi-Speed USB 2.0 port

HP Jetdirect embedded print server for connecting to a 10/100/1000Base-TX network

1 GB of RAM

USB port on the control panel for walk-up printing

Automatic two-sided printing

100-sheet multipurpose input tray (Tray 1)

250-sheet input tray (Tray 2)

500-sheet input tray (Tray 3)

HP 3x500-sheet paper feeder (Trays 4, 5, and 6)

300-sheet, face-down output bin

Hi-Speed USB 2.0 port

HP Jetdirect embedded print server for connecting to a 10/100/1000Base-TX network

1 GB of RAM

USB port on the control panel for walk-up printing

Automatic two-sided printing

HP Encrypted High Performance Hard Disk

2 Chapter 1 Product basics ENWW

Supported operating systems

IMPORTANT: The list of supported operating systems applies to the Windows PCL 6, UPD PCL 6,

UPD PCL 5, UPD PS, and Mac print drivers and to the in-box software installation CD. For a current list of supported operating systems, go to www.hp.com/support/colorljM855 for HP's all-inclusive help for your product. If you are located outside the US, go to www.hp.com/support, select a country/ region, and then click Drivers & Software. Enter a product name or number. In the Download Options area, click Drivers, Software & Firmware. Click the operating system version, and then click the

Download button.

Mac installer software is not included on the CD. The CD provides steps to download the Mac installer software from www.hp.com.Some Mac products no longer include an internal drive to install new software from CDs. If you do not have an external Apple USB SuperDrive, the steps to download the Mac installer software are as follows: Go to www.hp.com/support, select the country/region, and then click Drivers & Software. Enter a product name or number. In the Download Options area, click

Drivers, Software & Firmware. Click the operating system version, and then click the Download button.

Windows XP SP3 or later, 32-bit and 64-bit.

NOTE: The software installer does not support the 64-bit version, but the print driver supports it.

NOTE: Microsoft retired mainstream support for Windows XP in April 2009. HP will continue to provide best-effort support for the discontinued XP operating system.

Microsoft retired mainstream support for Windows XP in April 2009. HP will continue to provide besteffort support for the discontinued XP operating system.

Windows Vista, 32-bit and 64-bit NOTE: Windows Vista Starter is not supported by the software installer or the print driver.

Windows 7, 32-bit and 64-bit

Windows 8, 32-bit and 64-bit

NOTE: UPD PCL 5 is not supported for Windows 8.

Windows 2003 Server SP2 or later, 32-bit and 64-bit

NOTE: The software installer does not support the 64-bit version, but the print driver supports it.

NOTE: Microsoft retired mainstream support for Windows Server 2003 in July 2010. HP will continue to provide best-effort support for the discontinued Server 2003 operating system.

Windows Server 2008, 32-bit and 64-bit

Windows Server 2008 R2, 64-bit

Windows Server 2012, 64-bit

NOTE: UPD PCL 5 is not supported for Windows Server 2012.

Mac OS X 10.6, 10.7 Lion, and 10.8 Mountain Lion

The HP Software Installer CD installs the HP PCL 6 discrete driver for Windows operating systems along with other optional software.

ENWW Supported operating systems 3

Serial number and model number location

The model number and serial number are listed on an identification label located on the left side of the product. The serial number contains information about the country/region of origin, the product

Model name

HP Color LaserJet M750n

HP Color LaserJet M750dn

HP Color LaserJet M750xh

Model number

D3L08A

D3L09A

D3L10A

4 Chapter 1 Product basics ENWW

Control panel layout

The control panel includes a color, graphical and text display, job-control buttons, and three lightemitting diode (LED) status lights.

1

5

6

7

3

4

1

2

11

8

9

2 3

10 9 8

Control panel display

Help button

4

5

6

7

OK button

Up arrow button

Down arrow button

Back arrow button

Home button

Stop button

Attention light

Shows status information, menus, help information, and error messages.

Provides detailed information, including animations, about product messages or menus.

Makes selections and resumes printing after continuable errors.

Navigates menus and text, and increases the values of numerical items in the display.

Navigates menus and text, and decreases the values of numerical items in the display.

Navigates backward in nested menus.

Opens and closes the menu structure.

Halts the current job, presents a choice to resume or cancel the current job, clears paper from the product, and clears any continuable errors that are associated with the halted job. If the product is not printing a job,

The Attention light indicates that the product has a condition that requires intervention. Examples include an empty paper tray or an error message on the display.

The Data light indicates that the product is receiving data.

Data light

10 The Ready light indicates that the product is ready to begin processing any job.

11

Ready light

Walk-up USB port Connect a USB flash drive for walk-up printing.

NOTE: To enable and use the walk-up USB port, see the online user guide at www.hp.com/support/colorljM750 .

ENWW Control panel layout 5

Product hardware setup and software installation

For basic setup instructions, see the Hardware Installation Guide that came with the product. For additional instructions, go to HP support on the Web.

In the US, go to www.hp.com/support/colorljM750 for HP's all-inclusive help for your product.

Outside the US, follow these steps:

1. Go to www.hp.com/support .

2. Select your country/region.

3. Click Product Support & Troubleshooting.

4. Enter the product name, and then select Search.

Select your product to find the following support:

Install and configure

Learn and use

Solve problems

Download software updates

Join support forums

Find warranty and regulatory information

6 Chapter 1 Product basics ENWW

2 Control panel menus

Navigate the Administration menu

Print information pages

ENWW 7

Navigate the Administration menu

The Administration menu has several sub-menus, which are listed when you select the menu and then press the OK button. To return to the previous level, press the Back button.

1. At the control panel, press the Home button .

2. Use the arrow buttons to navigate to the Administration menu, and then press the OK button.

NOTE: You can perform basic product setup by using the Administration menu. Use the HP

Embedded Web Server for more advanced product setup. To open the HP Embedded Web Server, enter the product IP address or host name in the address bar of a Web browser.

8 Chapter 2 Control panel menus ENWW

Print information pages

Information pages provide details about the product and its current configuration. Use the following procedures to print commonly used information pages:

Print the menu map

The menu map report presents the entire structure of the Administration menu so you can identify how to navigate to any option.

1. At the control panel, press the Home button .

2. Open the following menus:

Administration

Reports

Configuration/Status Pages

3. Select the Administration Menu Map item.

4. Select the print item.

5. Press the OK button to print the page.

Print the configuration report

The configuration report lists the current product settings and installed options. Use this report to find the product IP address or host name, the current firmware version, and information about network protocols.

1. At the control panel, press the Home button .

2. Open the following menus:

Administration

Reports

Configuration/Status Pages

3. Select the Configuration Pages item.

4. Press the OK button to print the report. The report consists of several pages.

NOTE: The product IP address or host name is listed on the Jetdirect Page.

ENWW Print information pages 9

10 Chapter 2 Control panel menus ENWW

3 Paper and print media

Understand paper use

Change the printer driver to match the paper type and size

Supported paper sizes

Supported paper types and tray capacity

Load paper trays

Configure trays

ENWW 11

Understand paper use

This product supports a variety of paper and other print media in accordance with the guidelines in this user guide. Paper or print media that does not meet these guidelines might cause poor print quality, increased jams, and premature wear on the product.

For best results, use only HP-brand paper and print media designed for laser printers or multiuse. Do not use paper or print media made for inkjet printers. Hewlett-Packard Company cannot recommend the use of other brands of media because HP cannot control their quality.

It is possible for paper to meet all of the guidelines in this user guide and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and/or humidity

CAUTION: Using paper or print media that does not meet Hewlett-Packard's specifications might cause problems for the product, requiring repair. This repair is not covered by the Hewlett-Packard warranty or service agreements.

Special paper guidelines

This product supports printing on special media. Use the following guidelines to obtain satisfactory results. When using special paper or print media, be sure to set the type and size in the printer driver

CAUTION: HP LaserJet products use fusers to bond dry toner particles to the paper in very precise dots. HP laser paper is designed to withstand this extreme heat. Using inkjet paper could damage the product.

Media type

Envelopes

Labels

Transparencies

Letterhead or preprinted forms

Do

Store envelopes flat.

Use envelopes where the seam extends all the way to the corner of the envelope.

Use peel-off adhesive strips that are approved for use in laser printers.

Use only labels that have no exposed backing between them.

Use labels that lie flat.

Use only full sheets of labels.

Use only transparencies that are approved for use in color laser printers.

Place transparencies on a flat surface after removing them from the product.

Use only letterhead or forms approved for use in laser printers.

Do not

Do not use envelopes that are wrinkled, nicked, stuck together, or otherwise damaged.

Do not use envelopes that have clasps, snaps, windows, or coated linings.

Do not use self-stick adhesives or other synthetic materials.

Do not use labels that have wrinkles or bubbles, or are damaged.

Do not print partial sheets of labels.

Do not use transparent print media not approved for laser printers.

Do not use raised or metallic letterhead.

12 Chapter 3 Paper and print media ENWW

Media type

Heavy paper

Glossy or coated paper

Do

Use only heavy paper that is approved for use in laser printers and meets the weight specifications for this product.

Use only glossy or coated paper that is approved for use in laser printers.

Do not

Do not use paper that is heavier than the recommended media specification for this product unless it is HP paper that has been approved for use in this product.

Do not use glossy or coated paper designed for use in inkjet products.

ENWW Understand paper use 13

Change the printer driver to match the paper type and size

Change the paper size and type (Windows)

1. On the File menu in the software program, click Print.

2. Select the product, and then click the Properties or Preferences button.

3. Click the Paper/Quality tab.

4. Select a size from the Paper size drop-down list.

5. Select a paper type from the Paper type drop-down list.

6. Click the OK button.

Change the paper size and type (Mac)

1. On the File menu in the software program, click the Print option.

2. In the Copies & Pages menu, click the Page Setup button.

3. Select a size from the Paper Size drop-down list, and then click the OK button.

4. Open the Finishing menu.

5. Select a type from the Media-type drop-down list.

6. Click the Print button.

14 Chapter 3 Paper and print media ENWW

Supported paper sizes

This product supports a number of paper sizes, and it adapts to various media.

NOTE: To obtain best print results, select the appropriate paper size and type in your print driver before printing.

Table 3-1 Supported paper and print media sizes

Size Dimensions Tray 1 Tray 2 Tray 3, optional trays 4, 5, and 6

Letter

1

216 x 279 mm (8.5 x 11 in)

Legal 216 x 356 mm (8.5 x 14 in)

A4

1

RA4

SRA4

Executive

A3

A5

A6

B4 (JIS)

B5 (JIS)

B6 (JIS)

8k

210 x 297 mm (8.27 x 11.69 in)

215 x 305 mm (8.47 x 12 in)

225 x 320 mm (8.86 x 12.2 in)

184 x 267 mm (7.25 x 10.5 in)

297 x 420 mm (11.69 x 16.54 in)

148 x 210 mm (5.83 x 8.27 in)

105 x 148 mm (4.13 x 5.83 in)

257 x 364 mm (10.12 x 14.33 in)

182 x 257 mm (7.17 x 10.12 in)

128 x 182 mm (5.04 x 7.17 in)

270 x 390 mm (10.6 x 15.4 in)

260 x 368 mm (10.2 x 14.5 in)

16k

273 x 394 mm (10.75 x 15.5 in)

184 x 260 mm (7.24 x 10.24 in)

195 x 270 mm (7.68 x 10.63 in)

197 x 273 mm (7.75 x 10.75 in)

8.5 x 13 (Folio) 216 x 330 mm (8.5 x 13 in)

Index card

76 x 127 mm (3 x 5 in)

3

101.6 x 152 mm (4 x 6 in)

127 x 177.8 mm (5 x 7 in)

127 x 203 mm (5 x 8 in)

2

ENWW Supported paper sizes 15

Table 3-1 Supported paper and print media sizes (continued)

Size

Statement

10 x 15 cm

Dimensions

139.7 x 216 mm (5.5 x 8.5 in)

100 x 150 mm (3.9 x 5.9 in)

Tray 1 Tray 2 Tray 3, optional trays 4, 5, and 6

11 x 17

(Tabloid)

279 x 432 mm (11 x 17 in)

12 x 18 (Arch 305 x 457 mm (12 x 18 in)

B)

RA3 305 x 430 mm (12 x 16.9 in)

SRA3 320 x 450 mm (12.6 x 17.7 in)

1

2

3

Custom Minimum: 76 x 127 mm (3 x 5 in)

Maximum: 312/320 x 470 mm (12.25/12.6 x 18.5 in)

3

Minimum: 148 x 182 mm (5.8 x 7.1 in)

Maximum: 297 x 432 mm (11.7 x 17 in)

Minimum: 210 x 148 mm (8.3 x 5.8 in)

Maximum: 297 x 432 mm (11.7 x 17 in)

These sizes can be loaded in a rotated orientation in Tray 2, Tray 3, and optional Trays 4, 5, and 6.

A5 size is supported for Tray 3 only, as a custom size, with the long edge feeding into the product first. A5 size is not supported for two-sided (duplex) printing from Tray 3.

Custom media width is limited to 312 mm (12.25 in). However, SRA3, which is 320 mm (12.6 in) wide, is supported. The maximum printable image is 302 mm wide. With the required blank 5 mm margins on each side for printing, any media

Table 3-2 Supported envelopes and postcards

Size Dimensions

Envelope #9 98.4 x 225.4 mm (3.9 x 8.9 in)

Envelope #10

Envelope DL

Envelope C5

Envelope C6

105 x 241 mm (4.13 x 9.5 in)

110 x 220 mm (4.33 x 8.66 in)

162 x 229 mm (6.4 x 9 in)

114 x 162 mm (4.5 x 6.4 in)

Envelope B5

Envelope

Monarch

Postcard

176 x 250 mm (6.9 x 9.8 in)

98 x 191 mm (3.9 x 7.5 in)

100 x 148 mm (3.94 x 5.83 in)

Double postcard 148 x 200 mm (5.83 x 7.87 in)

Tray 1 Tray 2

16 Chapter 3 Paper and print media ENWW

Supported paper sizes for duplex printing

Minimum: 148 x 182 mm (5.8 x 7.1 in)

Maximum: 312/320 x 457 mm (12.3/12.6 x 18 in)

NOTE: Custom media width is limited to 312 mm (12.25 in). However, SRA3, which is 320 mm

(12.6 in) wide, is supported. The maximum printable image is 302 mm wide. With the required blank 5 mm margins on each side for printing, any media wider than 312 mm will have its image centered and limited to 302 mm wide.

NOTE: For automatic duplexing, do not load paper that is heavier than 120 g/m manual duplexing to print on heavier paper.

2

(32-lb bond). Use

ENWW Supported paper sizes 17

Supported paper types and tray capacity

Media type

Paper, including the following types:

Plain

Letterhead

Color

Preprinted

Prepunched

Recycled

Heavy paper

Cover paper

Glossy paper

Photo paper

Dimensions

1

Tray 1 minimum: 76 x 127 mm

(3 x 5 in)

Tray 1 maximum: 320 x 470 mm

(12.6 x 18.5 in)

Tray 2 minimum: 148 x 182 mm

(5.8 x 7.1 in)

Weight

60 to 105 g/m

2

(16 to 28 lb)

Trays 3-6 minimum: 210 x

148 mm (8.3 x 5.8 in)

Trays 2-6 maximum: 297 x

432 mm (11.7 x 17 in)

Same as for paper

Same as for paper

Same as for paper

Capacity

2

Tray 1: up to 100 sheets of 75 g/ m

2

(20 lb bond)

Tray 2: up to 250 sheets of 75 g/ m 2 (20 lb bond)

Trays 3-6: up to 500 sheets of

75 g/m 2 (20 lb bond)

Tray 1: up to 220 g/m 2 (58 lb)

Tray 1: up to 10 mm (0.4 in)

Trays 2-6: up to 120 g/m

2

(32 lb)

Tray 2: up to 25 mm (0.98 in) stack height

Trays 3-6: up to 53 mm (2.1 in) stack height

Tray 1: up to 220 g/m 2 (58 lb)

Tray 1: up to 10 mm (0.4 in)

Trays 2-6: up to 120 g/m 2 (32 lb)

Tray 2: up to 25 mm (0.98 in) stack height

Trays 3-6: up to 53 mm (2.1 in) stack height

Tray 1: up to 220 g/m 2 (58 lb)

Tray 1: up to 10 mm (0.4 in)

Trays 2-6: up to 160 g/m 2 (43 lb)

Tray 2: up to 25 mm (0.98 in) stack height

Transparencies

Labels

3

A4 or Letter

A4 or Letter

Thickness: 0.12 to 0.13 mm (4.7 to 5.1 mils)

Trays 3-6: up to 53 mm (2.1 in) stack height

Tray 1: up to 10 mm (0.4 in)

Thickness: up to 0.23 mm

(9 mils)

Tray 1: up to 10 mm (0.4 in)

Up to 90 g/m 2 (24 lb)

Tray 1: up to 10 envelopes Envelopes

COM 10

Monarch

DL

C5

B5

Postcards or index cards

1

2

3

76 x 127 mm (3 x 5 in) Tray 1: up to 10 mm (0.4 in)

The product supports a wide range of standard and custom sizes of print media. Check the printer driver for supported sizes.

Capacity can vary depending on media weight and thickness, and environmental conditions.

Smoothness: 100 to 250 (Sheffield)

18 Chapter 3 Paper and print media ENWW

Load paper trays

Load Tray 1

1. Open Tray 1.

2. Pull out the tray extension to support the paper.

3. Load paper in the tray.

ENWW Load paper trays 19

4.

Make sure the stack fits under the tabs on the guides and does not exceed the load-level indicators.

5. Adjust the side guides so that they lightly touch the paper stack but do not bend it.

Load Tray 2, Tray 3, and optional Trays 4, 5, and 6 with standard-size paper

1.

Open the tray.

NOTE: Do not open the tray while it is in use.

20 Chapter 3 Paper and print media ENWW

2.

Adjust the paper-length and paper-width guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used.

3.

Load paper into the tray. Check the paper to verify the guides lightly touch the stack, but do not bend it.

NOTE: To prevent jams, do not overfill the tray. Be sure the top of the stack is below the tray full indicator.

NOTE: If the tray is not adjusted correctly, an error message might appear during printing or the paper might jam.

4.

Close the tray.

5.

The control panel shows the tray’s paper type and size. If the configuration is not correct, follow the instructions on the control panel to change the size or type.

ENWW Load paper trays 21

Load Tray 2, Tray 3, and optional Trays 4, 5, and 6 with custom-size paper

1.

Open the tray.

2.

Adjust the paper-length and paper-width guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used.

3.

Load paper into the tray. Check the paper to verify the guides lightly touch the stack, but do not bend it.

22 Chapter 3 Paper and print media ENWW

4. Close the tray.

5.

The control panel prompts you to set the paper size and type. Select the Custom setting, and then configure the X and Y dimensions of the custom paper size.

NOTE: See the label in the paper tray, or the following illustration, to determine the X and Y dimensions.

Tray and bin capacity

Tray or bin

Tray 1

Paper type

Paper

Envelopes

Labels

Transparencies

Glossy paper

Specifications

Range:

60 g/m

2

(16 lb) bond to 220 g/m

(58 lb) bond

2

Quantity

Maximum stack height: 10 mm

(0.39 in)

Equivalent to 100 sheets of 75 g/m

2

(20 lb) bond

Up to 10 envelopes

Less than 60 g/m

90 g/m

2

2 (16 lb) bond to

(24 lb) bond

Maximum 0.102 mm (0.004 in) thick

Minimum 0.102 mm (0.004 in) thick

Range:

105 g/m 2 lb) bond

(28 lb) bond to 220 g/m 2 (58

Maximum stack height: 10 mm

(0.39 in)

Maximum stack height: 10 mm

(0.39 in)

Up to 50 sheets

Maximum stack height: 10 mm (0.39 in)

Up to 50 sheets

ENWW Load paper trays 23

Tray or bin

Tray 2

1

Paper type

Paper

Transparencies

Glossy paper

Specifications

Range:

60 g/m 2 (16 lb) bond to 220 g/m

(59 lb) bond

2

Minimum 0.102 mm (0.004 in) thick

Range:

Quantity

Maximum stack height: 25 mm (.98 in)

Equivalent to 250 sheets of 75 g/m 2

(20 lb) bond

Maximum stack height: 25 mm (.98 in)

Maximum stack height: 25 mm (.98 in)

Tray 3 and optional Trays 4, 5, and 6

1

Paper

Transparencies

Glossy paper

105 g/m 2 (28 lb) bond to 220 g/m 2

(58 lb) bond

Range:

60 g/m 2 (16 lb) bond to 220 g/m

(59 lb) bond

2

Minimum 0.102 mm (0.004 in) thick

Range:

Equivalent to 500 sheets of 75 g/m

2

(20 lb) bond

Maximum stack height: 53 mm (2.1 in)

Maximum stack height: 53 mm (2.1 in)

Maximum stack height: 53 mm (2.1 in)

Output bin

1

105 g/m 2 (28 lb) bond to 220 g/m 2

(58 lb) bond

Paper

Up to 300 sheets of 75 g/m

2

(20 lb) bond

Trays 2, 3, 4, 5, and 6 can print on bond paper heavier than 220 g/m 2 guarantee results.

(59 lb) in some circumstances, but HP does not

Paper orientation for loading trays

If you are using paper that requires a specific orientation, load it according to the information in the following tables.

NOTE: The Alternative Letterhead Mode and Image Rotation settings affect the way you load letterhead or preprinted paper. The following information depicts the default setting.

24 Chapter 3 Paper and print media ENWW

Paper orientation for loading Tray 1

Paper type

Preprinted or letterhead

Image orientation

Portrait

Duplex mode

1-sided printing

How to load paper

Face down

Top edge toward the back of the product

Automatic 2-sided printing Face up

Top edge toward the back of the product

Landscape 1-sided printing Face down

Top edge toward the back of the product

Automatic 2-sided printing Face up

Top edge toward the back of the product

ENWW Load paper trays 25

Paper type

Prepunched

Image orientation

Portrait or landscape

Duplex mode

1- or 2-sided printing

How to load paper

Face down

Holes toward the right side of the tray

Envelopes Short edge of the envelope feeding into the product

1-sided printing Face down

Top edge toward the back of the product

26 Chapter 3 Paper and print media ENWW

Paper orientation for loading Tray 2, Tray 3, or optional Trays 4, 5, and 6

Paper type

Preprinted or letterhead

Image orientation

Portrait

Duplex mode

1-sided printing

How to load paper

Face up

Top edge at the back of the tray

Automatic 2-sided printing Face down

Top edge at the back of the tray

Prepunched

Landscape 1-sided printing Face up

Top edge toward the right side of the tray

Portrait

Automatic 2-sided printing Face down

Top edge toward the right side of the tray

1-sided printing Face up

Holes toward the left side of the tray

Automatic 2-sided printing Face down

Holes toward the right side of the tray

ENWW Load paper trays 27

Configure trays

The product automatically prompts you to configure a tray for type and size in the following situations:

When you load paper into the tray

When you specify a particular tray or media type for a print job through the printer driver or a software program and the tray is not configured to match the print-job’s settings

NOTE: The prompt does not appear if you are printing from Tray 1, and it is configured for the Any

Size and Any Type settings. In this situation, if the print job does not specify a tray, the product prints from Tray 1, even if the paper size and type settings in the print job do not match the paper loaded in

Tray 1.

Configure a tray when loading paper

1.

Load paper in the tray. Close the tray if you are using Tray 2, 3, 4, 5, or 6.

2.

The tray configuration message appears.

3.

Press the OK button to accept the size and type, or press Modify and choose a different paper size or paper type.

4.

To modify the tray size configuration, press the down arrow to highlight the correct size, and then press the OK button.

5.

To modify the tray type configuration, press the down arrow to highlight the correct type, and then press the OK button.

Configure a tray to match print job settings

1.

In the software program, specify the source tray, the paper size, and the paper type.

2.

Send the job to the product.

If the tray needs to be configured, the tray configuration message appears.

3.

Load the tray with the specified type and size of paper, and then close the tray.

4.

When the size and type confirmation messages appear, press the OK button to confirm the paper size and type.

Configure a tray from the control panel

You can also configure the trays for type and size without a prompt from the product.

1.

Press the Home button .

2.

Open the following menu:

Trays

3.

Press the down arrow to highlight the size or type setting for the desired tray, and then press the OK button.

4.

Press the up arrow or the down arrow to highlight the size or type. If you select a custom size, select the unit of measure, and then set the X dimension and the Y dimension.

28 Chapter 3 Paper and print media ENWW

5.

Press the OK button to save your selection.

6.

Press the Home button to exit the menus.

Automatic paper sensing (auto-sense mode)

The automatic media type sensor functions when that tray is configured to the Any Type or plain type setting. It also functions when the Print Mode setting for that tray is set to the Auto Sense Mode option.

After it has picked up paper from the tray, the product can detect overhead transparencies, paper weight, and gloss level.

For more control, a specific type must be selected in the job or configured in a tray.

Auto-sense settings

Full sensing (Tray 1 only)

Expanded sensing

Transparency only

For each sheet of paper that it picks up from the tray, the product detects light paper, plain paper, heavy paper, glossy paper, tough paper, and transparencies. light paper, plain paper, heavy paper, glossy paper, tough paper, and transparencies. The product assumes the rest of the pages are of the same type.

The product distinguishes between transparencies and non-transparencies.

Select the paper by source, type, or size

In the Microsoft Windows operating system, three settings affect how the printer driver tries to pull media when you send a print job. Source, Type, and Size settings appear in the Page Setup, Print,

Preferences, or Print Properties dialog boxes in most software programs. Unless you change these settings, the product automatically selects a tray using the default settings.

Source

the product begins printing. tray that is configured for a type or size that does not match your print job, the product prompts you to load the tray with the type or size of paper for your print job before printing it. When you load the tray,

Type and Size

Printing by type or size causes the product to pull from the tray that is loaded with the correct type and size of paper.

Selecting paper by type rather than source helps protect special paper from accidental use.

Using the wrong setting might result in unsatisfactory print quality. Always print by type for special print media, such as labels or transparencies.

Print by type or size for envelopes, if possible.

ENWW Configure trays 29

To print by type or size, select the type or size from the Page Setup dialog box, the Print dialog box, the Preferences dialog box, or the Print Properties dialog box, depending on the software program.

If you often print on a certain type or size of paper, configure a tray for that type or size. Then, when you select that type or size as you print a job, the product automatically pulls paper from

30 Chapter 3 Paper and print media ENWW

4 Print tasks

Supported print drivers (Windows)

Print tasks (Windows)

Print tasks (Mac OS X)

Additional print tasks (Windows)

Additional print tasks (Mac OS X)

Store print jobs on the product

Add a job-separator page (Windows)

Mobile printing

ENWW 31

Supported print drivers (Windows)

Print drivers provide access to the product features and allow the computer to communicate with the product (using a printer language). The following print drivers are available at www.hp.com/support/ colorljM750 .

HP PCL 6 driver

HP UPD PS driver

HP UPD PCL 5

HP UPD PCL 6

Provided as the default driver on the in-box CD. This driver is automatically installed unless you select a different one.

Recommended for all Windows environments

Provides the overall best speed, print quality, and product-feature support for most users

Developed to align with the Windows Graphic Device Interface (GDI) for the best speed in Windows environments

Might not be fully compatible with third-party and custom software programs that are based on PCL 5

● Recommended for printing with Adobe

®

software programs or with other highly graphics-intensive software programs

Provides support for printing from postscript emulation needs, or for postscript flash font support

Recommended for general office printing in Windows environments

Compatible with previous PCL versions and older HP LaserJet products

The best choice for printing from third-party or custom software programs

The best choice when operating with mixed environments, which require the product to be set to PCL 5 (UNIX, Linux, mainframe)

Designed for use in corporate Windows environments to provide a single driver for use with multiple product models

Preferred when printing to multiple product models from a mobile Windows computer

Recommended for printing in all Windows environments

Provides the overall best speed, print quality, and printer feature support for most users

Developed to align with Windows Graphic Device Interface (GDI) for best speed in Windows environments

Might not be fully compatible with third-party and custom software programs that are based on PCL 5

HP Universal Print Driver (UPD)

built on proven HP print driver technology and has been tested thoroughly and used with many to virtually any HP LaserJet product, from any location, without downloading separate drivers. It is software programs. It is a powerful solution that performs consistently over time.

The HP UPD communicates directly with each HP product, gathers configuration information, and then customizes the user interface to show the product’s unique, available features. It automatically

32 Chapter 4 Print tasks ENWW

enables features that are available for the product, such as two-sided printing and stapling, so you do not need to enable them manually.

For more information, go to www.hp.com/go/upd .

UPD installation modes

Traditional mode

Dynamic mode

To use this mode, download UPD from the Internet. Go to www.hp.com/go/ upd .

Use this mode if you are installing the driver for a single computer.

It operates with a specific product.

If you use this mode, you must install UPD separately for each computer and for each product.

To use this mode, download UPD from the Internet. Go to www.hp.com/go/ upd .

Dynamic mode allows you to use a single driver installation, so you can discover and print to HP products in any location.

Use this mode if you are installing UPD for a workgroup.

ENWW Supported print drivers (Windows) 33

Print tasks (Windows)

Use a printing shortcut (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Printing Shortcuts tab.

34 Chapter 4 Print tasks ENWW

4.

Select one of the shortcuts. Click the OK button to close the Document Properties dialog box.

NOTE: When you select a shortcut, the corresponding settings change on the other tabs in the print driver.

5. In the Print dialog box, click the OK button to print the job.

ENWW Print tasks (Windows) 35

Create printing shortcuts (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Printing Shortcuts tab.

4.

Select an existing shortcut as a base.

NOTE: Always select a shortcut before adjusting any of the settings on the right side of the screen. If you adjust the settings and then select a shortcut, all your adjustments are lost.

36 Chapter 4 Print tasks ENWW

5. Select the print options for the new shortcut.

6. Click the Save As button.

ENWW Print tasks (Windows) 37

7. Enter a name for the shortcut, and then click the OK button.

8.

Click the OK button to close the Document

Properties dialog box. In the Print dialog box, click the OK button to print the job.

38 Chapter 4 Print tasks ENWW

Automatically print on both sides (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Finishing tab.

ENWW Print tasks (Windows) 39

4.

Select the Print on both sides check box.

Click the OK button to close the Document

Properties dialog box.

5. In the Print dialog box, click the OK button to print the job.

40 Chapter 4 Print tasks ENWW

Manually print on both sides (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Finishing tab.

4.

Select the Print on both sides (manually) check box. Click the OK button to print the first side of the job.

ENWW Print tasks (Windows) 41

5.

Retrieve the printed stack from the output bin, and place it with the printed-side facing up in

Tray 1.

6. If prompted, touch the appropriate control panel button to continue.

42 Chapter 4 Print tasks ENWW

Print multiple pages per sheet (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Finishing tab.

4. Select the number of pages per sheet from the Pages per sheet drop-down list.

ENWW Print tasks (Windows) 43

5.

Select the correct Print page borders, Page order, and Orientation options. Click the OK button to close the Document Properties dialog box.

6. In the Print dialog box, click the OK button to print the job.

44 Chapter 4 Print tasks ENWW

Select the page orientation (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Finishing tab.

ENWW Print tasks (Windows) 45

4.

In the Orientation area, select the Portrait or

Landscape option.

To print the page image upside down, select the Rotate by 180 degrees option.

Click the OK button to close the Document

Properties dialog box.

5. In the Print dialog box, click the OK button to print the job.

46 Chapter 4 Print tasks ENWW

Select the paper type (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Paper/Quality tab.

4. From the Paper type drop-down list, click the

More... option.

ENWW Print tasks (Windows) 47

5. Expand the list of Type is: options.

6. Expand the category of paper types that best describes your paper.

48 Chapter 4 Print tasks ENWW

7. Select the option for the type of paper you are using, and click the OK button.

8.

Click the OK button to close the Document

Properties dialog box. In the Print dialog box, click the OK button to print the job.

ENWW Print tasks (Windows) 49

Print the first or last page on different paper (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Paper/Quality tab.

4.

In the Special pages area, click the Print pages on different paper option, and then click the Settings button.

50 Chapter 4 Print tasks ENWW

5. In the Pages in document area, select either the First or Last option.

6.

Select the correct options from the Paper source and Paper type drop-down lists. Click the Add button.

7. If you are printing both the first and last pages on different paper, repeat steps 5 and 6, selecting the options for the other page.

ENWW Print tasks (Windows) 51

8. Click the OK button.

9.

Click the OK button to close the Document

Properties dialog box. In the Print dialog box, click the OK button to print the job.

52 Chapter 4 Print tasks ENWW

Scale a document to fit page size (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Effects tab.

ENWW Print tasks (Windows) 53

4.

Select the Print document on option, and then select a size from the drop-down list.

Click the OK button to close the Document

Properties dialog box.

5. In the Print dialog box, click the OK button to print the job.

54 Chapter 4 Print tasks ENWW

Create a booklet (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Finishing tab.

4. Select the Print on both sides check box.

ENWW Print tasks (Windows) 55

5.

In the Booklet layout drop-down list, click the

Left binding or Right binding option. The

Pages per sheet option automatically changes to 2 pages per sheet.

Click the OK button to close the Document

Properties dialog box.

6. In the Print dialog box, click the OK button to print the job.

56 Chapter 4 Print tasks ENWW

Print tasks (Mac OS X)

Use a printing preset (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

In the Presets menu, select the printing preset.

4.

Click the Print button.

NOTE: To use print-driver default settings, select the standard option.

Create a printing preset (Mac OS X)

Use printing presets to save the current print settings for reuse.

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then open a menu for which you want to change the print settings.

4.

For each menu, select the print settings that you want to save for reuse.

5.

In the Presets menu, click the Save As... option, and enter a name for the preset.

6.

Click the OK button.

Automatically print on both sides (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Layout menu.

4.

Select a binding option from the Two-Sided drop-down list.

5.

Click the Print button.

Manually print on both sides (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select this product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Manual Duplex menu.

4.

Click the Manual Duplex box, and select a binding option.

5.

Click the Print button.

6.

Go to the product, and remove any blank paper that is in Tray 1.

ENWW Print tasks (Mac OS X) 57

7.

Retrieve the printed stack from the output bin and place it with the printed-side facing up in the input tray.

8.

If prompted, touch the appropriate control panel button to continue.

Print multiple pages per sheet (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Layout menu.

4.

From the Pages per Sheet drop-down list, select the number of pages that you want to print on each sheet.

5.

In the Layout Direction area, select the order and placement of the pages on the sheet.

6.

From the Border menu, select the type of border to print around each page on the sheet.

7.

Click the Print button.

Select the page orientation (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

In the Copies & Pages menu, click the Page Setup button.

4.

Click the icon that represents the page orientation that you want to use, and then click the OK button.

5.

Click the Print button.

Select the paper type (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Finishing menu.

4.

Select a type from the Media-type drop-down list.

5.

Click the Print button.

Print a cover page (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Cover Page menu.

58 Chapter 4 Print tasks ENWW

4.

Select where to print the cover page. Click either the Before Document button or the After

Document button.

5.

In the Cover Page Type menu, select the message that you want to print on the cover page.

NOTE: To print a blank cover page, select the standard option from the Cover Page Type menu.

6.

Click the Print button.

Scale a document to fit page size (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Paper Handling menu.

4.

In the Destination Paper Size area, click the Scale to fit paper size box, and then select the size from the drop-down list.

5.

Click the Print button.

Create a booklet (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Layout menu.

4.

Select a binding option from the Two-Sided drop-down list.

5.

Open the menus drop-down list, and then click the Booklet Printing menu.

6.

Click the Format Output As Booklet box, and select a binding option.

7.

Select the paper size.

8.

Click the Print button.

ENWW Print tasks (Mac OS X) 59

Additional print tasks (Windows)

Cancel a print job (Windows)

NOTE: If the print job is too far into the printing process, you might not have the option to cancel it.

1.

If the print job is currently printing, cancel it from the product control panel by following this procedure: a.

From the Home screen on the product control panel, touch the Stop button. The product pauses the job, and the Job Status screen opens. b.

From the list on the touchscreen, touch the print job you want to cancel, and then touch the

Cancel Job button. c.

The product prompts you to confirm the cancellation. Touch the Yes button.

2.

You can also cancel a print job from a software program or a print queue.

Software program: Typically, a dialog box appears briefly on the computer screen, allowing you to cancel the print job.

Windows print queue: If a print job is waiting in a print queue (computer memory) or print spooler, delete the job there.

Windows XP, Server 2003, or Server 2008: Click Start, click Settings, and then click

Printers and Faxes. Double-click the product icon to open the window, right-click the print job that you want to cancel, and then click Cancel.

Windows Vista: Click the Windows icon in the lower left corner of the screen, click

Settings, and then click Printers. Double-click the product icon to open the window,

Windows 7: Click the Windows icon in the lower left corner of the screen, and then click Devices and Printers. Double-click the product icon to open the window, right-

◦ open desktop. Right-click the small window that displays in the lower-left corner.

Select Control Panel. Under Hardware and Sound select View devices and printers.

Double-click the product icon to open the window, right-click the print job that you want to cancel, and then click Cancel. If the print queue does not open directly, then under

Printer Actions click See what's printing.

Select the paper size (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the Properties or Preferences button.

3.

Click the Paper/Quality tab.

4.

Select a size from the Paper size drop-down list.

5.

Click the OK button.

6.

In the Print dialog box, click the OK button to print the job.

60 Chapter 4 Print tasks ENWW

Select a custom paper size (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the Properties or Preferences button.

3.

Click the Paper/Quality tab.

4.

Click the Custom button.

5.

Type a name for the custom size and specify the dimensions.

The width is the short edge of the paper.

The length is the long edge of the paper.

6.

Click the Save button, and then click the Close button.

7.

Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button to print the job.

Print watermarks (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the Properties or Preferences button.

3.

Click the Effects tab.

4.

Select a watermark from the Watermarks drop-down list.

Or, to add a new watermark to the list, click the Edit button. Specify the settings for the watermark, and then click the OK button.

5.

To print the watermark on the first page only, select the First page only check box. Otherwise, the watermark is printed on each page.

6.

Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button to print the job.

ENWW Additional print tasks (Windows) 61

Additional print tasks (Mac OS X)

Cancel a print job (Mac OS X)

NOTE: If the print job is too far into the printing process, you might not have the option to cancel it.

1.

If the print job is currently printing, cancel it from the product control panel by following this procedure: a.

From the Home screen on the product control panel, touch the Stop button. The product pauses the job, and the Job Status screen opens. b.

From the list on the touchscreen, touch the print job you want to cancel, and then touch the

Cancel Job button. c.

The product prompts you to confirm the cancellation. Touch the Yes button.

2.

You can also cancel a print job from a software program or a print queue.

Software program: Typically, a dialog box appears briefly on the computer screen, allowing you to cancel the print job.

Mac print queue: Open the print queue by double-clicking the product icon in the dock.

Highlight the print job, and then click Delete.

Select the paper size (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

In the Copies & Pages menu, click the Page Setup button.

4.

Select a size from the Paper Size drop-down list, and then click the OK button.

5.

Click the Print button.

Select a custom paper size (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

In the Copies & Pages menu, click the Page Setup button.

4.

From the Paper Size drop-down list, select the Manage Custom Sizes option.

5.

Specify the dimensions for the page size, and then click the OK button.

6.

Click the OK button to close the Page Setup dialog.

7.

Click the Print button.

Print watermarks (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

62 Chapter 4 Print tasks ENWW

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Watermarks menu.

4.

From the Mode menu, select the Watermark option.

5.

From the Pages drop-down list, select whether to print the watermark on all pages or on the first page only.

6.

From the Text drop-down list, select one of the standard messages, or select the Custom option and type a new message in the box.

7.

Select options for the remaining settings.

8.

Click the Print button.

ENWW Additional print tasks (Mac OS X) 63

Store print jobs on the product

Create a stored job (Windows)

You can store jobs on the product so you can print them at any time.

1.

From the software program, select the Print option.

2.

Select the product, and then click the

Properties or Preferences button.

3. Click the Job Storage tab.

64 Chapter 4 Print tasks ENWW

4. Select a Job Storage Mode option.

Proof and Hold: Print and proof one copy of a job and then print more copies.

● you request it at the product control panel. For this job-storage mode, you can select one of the Make Job Private/

Secure options. If you assign a personal identification number (PIN) to the job, you must provide the required PIN at the control panel. If you encrypt the job, you must provide the required password at the control panel.

Quick Copy: Print the requested number of copies of a job and then store a copy of the job in the product memory so you can print it again later.

Stored Job: Store a job on the product and allow other users to print the job at any time. For this job-storage mode, you can select one of the Make Job Private/

Secure options. If you assign a personal identification number (PIN) to the job, the person who prints the job must provide the required PIN at the control panel. If you encrypt the job, the person who prints password at the control panel.

ENWW Store print jobs on the product 65

5.

To use a custom user name or job name, click the Custom button, and then enter the user name or the job name.

Select which option to use if another stored job already has that name:

Use Job Name + (1-99): Append a unique number to the end of the job name.

Replace Existing File: Overwrite the existing stored job with the new one.

6.

Click the OK button to close the Document

Properties dialog box. In the Print dialog box, click the OK button to print the job.

Create a stored job (Mac OS X)

You can store jobs on the product so you can print them at any time.

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Job Storage menu.

4.

In the Mode drop-down list, select the type of stored job.

Proof and Hold: Print and proof one copy of a job and then print more copies.

Personal Job: The job does not print until you request it at the product control panel. If you assign a personal identification number (PIN) to the job, you must provide the required PIN at the control panel.

66 Chapter 4 Print tasks ENWW

Quick Copy: Print the requested number of copies of a job and then store a copy of the job in the product memory so you can print it again later.

Stored Job: Store a job on the product and allow other users to print the job at any time. If you assign a personal identification number (PIN) to the job, the person who prints the job

5.

To use a custom user name or job name, click the Custom button, and then enter the user name or the job name.

Select which option to use if another stored job already has that name.

Use Job Name + (1 - 99)

Replace Existing File

Append a unique number to the end of the job name.

Overwrite the existing stored job with the new one.

6.

If you selected the Stored Job or Personal Job option in step 3, you can protect the job with a

PIN. Type a 4-digit number in the Use PIN to Print field. When other people attempt to print this job, the product prompts them to enter this PIN number.

7.

Click the Print button to process the job.

Print a stored job

Use the following procedure to print a job that is stored in the product memory.

1.

On the product control panel, press the Home button.

2.

Highlight the Retrieve from Device Memory item, and then press the OK button.

3.

Highlight the name of the folder where the job is stored, and then press the OK button.

4.

Highlight the name of the job, and then press the OK button. If the job is private or encrypted, enter the PIN or password.

5.

Adjust the number of copies, and then press the OK button to print the job.

Delete a stored job

When you send a stored job to the product memory, the product overwrites any previous jobs with the same user and job name. If a job is not already stored under the same user and job name, and the product needs additional space, the product might delete other stored jobs starting with the oldest.

You can change the number of jobs that the product can store from the General Settings menu on the product control panel.

Use this procedure to delete a job that is stored in the product memory.

1.

On the product control panel, press the Home button.

2.

Highlight the Retrieve from Device Memory option, and then press the OK button.

3.

Select the name of the folder where the job is stored.

4.

Select the name of the job, and then press the OK button

5.

If the job is private or encrypted, enter the PIN or the password, and then press the OK button.

6.

Highlight the Delete option, and then press the OK button.

ENWW Store print jobs on the product 67

Add a job-separator page (Windows)

The product can insert a blank page at the beginning of each print job to make sorting jobs easier.

NOTE: The following procedure turns on this setting for all print jobs.

1.

Windows XP, Windows Server 2003, and Windows Server 2008 (using the default Start menu view): Click Start, and then click Printers and Faxes.

Windows XP, Windows Server 2003, and Windows Server 2008 (using the Classic Start menu view): Click Start, click Settings, and then click Printers.

Windows Vista: Click the Windows icon in the lower-left corner of the screen, click Control Panel, and then click Printers.

Windows 7: Click the Windows icon in the lower-left corner of the screen, and then click Devices and Printers.

Windows 8, Server 2012: Scroll to the bottom left corner of the open desktop. Right-click the small window that displays in the lower-left corner. Select Control Panel. Under Hardware and

2.

Right-click the driver icon, and then select Properties or Printer properties.

3.

Click the Device Settings tab.

4.

Expand the Installable Options list.

5.

In the Job Separator drop-down list, select the Enabled option.

6.

Click the OK button.

68 Chapter 4 Print tasks ENWW

Mobile printing

HP offers multiple Mobile and ePrint solutions to enable wireless printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To determine the best choice for your needs, go to www.hp.com/go/LaserJetMobilePrinting

HP ePrint

Use HP ePrint to print documents by sending them as an email attachment to the product's email address from any email enabled device.

NOTE: The product might require a firmware update to use this feature.

To use HP ePrint, the product must meet these requirements:

The product must be connected to a wired or wireless network and have Internet access.

HP Web Services must be enabled on the product, and the product must be registered with

HP Connected.

1.

Type the product IP address into the address line of a Web browser to open the

HP Embedded Web Server.

2.

Click the HP Web Services tab.

3.

Select the option to enable Web Services.

NOTE: Enabling Web Services might take several minutes.

4.

Go to www.hpconnected.com

to create an HP ePrint account and complete the setup process.

For more information, go to www.hp.com/go/support to review additional support information for your product.

HP ePrint software

The HP ePrint software makes it easy to print from a desktop or laptop computer to any HP ePrintcapable product. After installing the software, open the Print option from within your application, and then select HP ePrint from the installed printers list. This software makes it easy to find HP ePrintyour desk or in a remote location, such as a branch office or across the globe.

For Windows, the HP ePrint software also supports traditional direct IP printing to local network printers on the network (LAN or WAN) to supported PostScript® products.

Go to www.hp.com/go/eprintsoftware for drivers and information.

NOTE: The HP ePrint software is a PDF workflow utility for Mac, and is not technically a print driver.

HP ePrint software for Mac supports print paths only through HP Connected and does not support direct IP printing to local network printers.

ENWW Mobile printing 69

AirPrint

Direct printing using Apple’s AirPrint is supported for iOS 4.2 or later. Use AirPrint to print directly to the product from an iPad, iPhone (3GS or later), or iPod touch (third generation or later) in the following applications:

Mail

Photos

Safari

● iBooks

Select third-party applications

For more information about using AirPrint and about which HP products are compatible with AirPrint, go to www.hp.com/go/airprint .

NOTE: AirPrint does not support USB connections.

70 Chapter 4 Print tasks ENWW

5 Color

Adjust color

Change the color options (Windows)

Change the color theme for a print job (Windows)

Change the color options (Mac OS X)

Match colors

ENWW 71

Adjust color

Manage color by changing the settings on the Color tab (Windows) or the Color Options or Color/

Quality Options menu (Mac) in the printer driver.

Automatic

Setting color options to the default or Automatic setting typically produces the best possible print quality for color documents. The default or Automatic color adjustment option optimizes the neutralgray color treatment, halftones, and edge enhancements for each element in a document. For more information, see the printer driver online Help.

Print in Grayscale

Select the Print in Grayscale option (Windows) or the Print Color as Gray option (Mac) from the printer driver to print a color document in black and white. This option is useful for printing color documents that will be photocopied or faxed. The product uses the monochrome mode, which reduces use of the color cartridges.

72 Chapter 5 Color ENWW

Manual color adjustment

Manually set the color options to adjust the neutral-gray color treatment, halftones, and edge enhancements for text, graphics, and photographs. To open the manual color adjustment options, follow one of these procedures:

● button, and then click the Settings button.

Mac: Open the Advanced menu, or select the appropriate tab with the Color/Quality Options tab.

Click the HP EasyColor check box to clear it, and then enable the manual settings.

Manual color options

Use manual color options to adjust the Neutral Grays, Halftone, and Edge Control options for text, graphics, and photographs.

Table 5-1 Manual color options

Setting description

Halftone

Halftone options affect the color output resolution and clarity.

Setting options

Smooth provides better results for large, solid-filled print areas and enhances photographs by smoothing color gradations.

Select this option when uniform and smooth area fills are the top priority.

Neutral Grays

Detail is useful for text and graphics that require sharp distinctions among lines or colors, or images that contain a pattern or a high level of detail. Select this option when sharp edges and details are the top priority.

Black Only generates neutral colors (grays and black) by using only black toner. This guarantees neutral colors without a color cast. This setting is best for documents and grayscale viewgraphs.

The Neutral Grays setting determines the method for creating gray colors used in text, graphics, and photographs.

4-Color generates neutral colors (grays and black) by combining all four toner colors. This method produces smoother gradients

Edge Control

The Edge Control setting determines how edges are rendered. Edge control has two components: adaptive halftoning and trapping. Adaptive halftoning increases edge sharpness. Trapping reduces the effect of color-plane misregistration by overlapping the edges of adjacent objects slightly.

Maximum is the most aggressive trapping setting. Adaptive halftoning is on.

Normal sets trapping at a medium level. Adaptive halftoning is on.

Light sets trapping at a minimal level. Adaptive halftoning is on.

Off turns off both trapping and adaptive halftoning.

ENWW Adjust color 73

Use the HP EasyColor option

If you are using the HP PCL 6 printer driver for Windows, the HP EasyColor technology automatically improves mixed-content documents that are printed from Microsoft Office programs. This technology scans documents and automatically adjusts photographic images in .JPEG or .PNG format.

HP EasyColor technology enhances the entire image at one time, rather than dividing it into several pieces, which results in improved color consistency, sharper details, and faster printing.

If you are using the HP Postscript printer driver for Mac, HP EasyColor technology scans all documents and automatically adjusts all photographic images with the same improved photographic results.

In the following example, the images on the left were created without using the HP EasyColor option.

The images on the right show the enhancements that result from using the HP EasyColor option.

The HP EasyColor option is enabled by default in both the HP PCL 6 printer driver and the HP Mac

Postscript printer driver, so you do not need to make manual color adjustments. To disable the option so you can manually adjust the color settings, open the Color tab in the Windows driver or the Color/

Quality Options tab in the Mac driver, and then click the HP EasyColor check box to clear it.

74 Chapter 5 Color ENWW

Change the color options (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the Properties or Preferences button.

3.

Click the Color tab.

4.

Select the HP EasyColor check box to clear it.

5.

Click the Automatic or Manual setting.

Automatic setting: Select this setting for most color print jobs

Manual setting: Select this setting to adjust the color settings independently from other settings. Click the Settings button to open the manual color-adjusment window.

NOTE: Changing color settings manually can impact output. HP recommends that only color graphics experts change these settings.

6.

Click the Print in Grayscale option to print a color document in black and shades of gray. Use this option to print color documents for photocopying or faxing. Also use this option to print draft copies or to save color toner.

7.

Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button to print the job.

ENWW Change the color options (Windows) 75

Change the color theme for a print job (Windows)

1.

From the software program, select the Print option.

2.

Select the product, and then click the Properties or Preferences button.

3.

Click the Color tab.

4.

Select the HP EasyColor check box to clear it.

5.

Select a color theme from the Color Themes drop-down list.

Default (sRGB): This theme sets the product to print RGB data in raw device mode. When using this theme, manage color in the software program or in the operating system for correct rendering.

Vivid (sRGB): The product increases the color saturation in the midtones. Use this theme when printing business graphics.

Photo (sRGB): The product interprets RGB color as if it were printed as a photograph using a digital mini lab. The product renders deeper, more saturated colors differently than with the Default (sRBG) theme. Use this theme when printing photos.

Photo (Adobe RGB 1998): Use this theme with printing digital photos that use the

AdobeRGB color space rather than sRGB. Turn off color management in the software program when using this theme.

None: No color theme is used.

Custom Profile: Select this option to use a custom input profile to accurately control color output (for example, to emulate a specific HP Color LaserJet product). Download custom profiles from www.hp.com

.

6.

Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button to print the job.

76 Chapter 5 Color ENWW

Change the color options (Mac OS X)

1.

Click the File menu, and then click the Print option.

2.

In the Printer menu, select the product.

3.

By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Color Options menu.

4.

Click the HP EasyColor check box to clear it.

5.

Open the Advanced settings.

6.

Adjust the individual settings for text, graphics, and photographs.

7.

Click the Print button.

ENWW Change the color options (Mac OS X) 77

Match colors

The process of matching product output color to a computer screen is quite complex because printers and computer monitors use different methods of producing color. Monitors display colors by light pixels using an RGB (red, green, blue) color process, but printers magenta, yellow, and black) process. print colors using a CMYK (cyan,

Several factors can influence the ability to match printed colors to those on a monitor. These factors include:

Paper

Printer colorants (inks or toners for example)

Printing process (inkjet, press, or laser technology for example)

Overhead lighting

Personal differences in perception of color

Software programs

Print drivers

Computer operating system

Monitors and monitor settings

Video cards and drivers

Operating environment (humidity for example)

For most situations, the best method for matching colors on the screen to the printed page is to print sRGB colors.

Sample book color matching

The process for matching product output to preprinted sample books and standard color references is complex. In general, you can obtain a reasonably good match to a sample book if the inks used to create the sample book are cyan, magenta, yellow, and black. These are usually referred to as process color sample books.

Some sample books are created from spot colors. Spot colors are specially created colorants. Many of these spot colors are outside of the range of the product. Most spot color sample books have

Most process sample books will state which process standards were used to print the sample book.

In most cases they will be SWOP, EURO, or DIC. To get optimal color matching to the process sample book, select the corresponding ink emulation from the product menu. If you cannot identify

Print color samples

To use the color samples, select the color sample that is the closest match to the desired color. Use the sample’s color value in the software program to describe the object you wish to match. Printed colors vary depending on the paper type and the software program.

Use the following procedure to print color samples at the product using the control panel:

78 Chapter 5 Color ENWW

1.

From the Home screen on the product control panel, scroll to and touch the Administration button.

2.

Open the following menus:

Reports

Other Pages

3. Select either the RGB Samples or the CMYK Samples option, and touch the OK button.

PANTONE® color matching

PANTONE has multiple color matching systems. PANTONE MATCHING SYSTEM® is very popular and uses solid inks to generate a wide range of color hues and tints.

NOTE: PANTONE Colors generated might not match PANTONE-identified standards. Consult current PANTONE Publications for accurate color.

ENWW Match colors 79

80 Chapter 5 Color ENWW

6 Manage and maintain

HP Embedded Web Server

HP Utility for Mac OS X

Use HP Web Jetadmin software

Manage supplies and accessories

Clean the product

Software and firmware updates

ENWW 81

HP Embedded Web Server

Use the HP Embedded Web Server to manage printing functions from your computer instead of the product control panel.

View product status information

Determine the remaining life for all supplies and order new ones

View and change tray configurations

View and change the product control-panel menu configuration

View and print internal pages

Receive notification of product and supplies events

View and change network configuration

The HP Embedded Web Server works when the product is connected to an IP-based network. The

HP Embedded Web Server does not support IPX-based product connections. You do not have to

When the product is connected to the network, the HP Embedded Web Server is automatically available.

NOTE: The HP Embedded Web Server is not accessible beyond the network firewall.

How to access the HP Embedded Web Server (EWS)

1.

From the Home screen on the product control panel, touch the Network button to display the

IP address or host name.

2.

Open a Web browser, and in the address line, type the IP address or host name exactly as it displays on the product control panel. Press the Enter key on the computer keyboard. The EWS opens.

To use the HP Embedded Web Server, your browser must meet the following requirements:

Windows: Microsoft Internet Explorer 5.01 or later or Netscape 6.2 or later

Mac OS X: Safari or Firefox using Bonjour or an IP address

Linux: Netscape Navigator only

HP-UX 10 and HP-UX 11: Netscape Navigator 4.7

82 Chapter 6 Manage and maintain ENWW

HP Utility for Mac OS X

Use the HP Utility for Mac OS X to check product status or to view or change product settings from your computer.

You can use the HP Utility when the product is connected with a USB cable or is connected to a TCP/

IP-based network.

Open HP Utility

From the Finder, click Applications, click Hewlett-Packard, and then click HP Utility.

If HP Utility is not included in the Utilities list, use the following procedure to open it:

1.

At the computer, open the Apple menu, click the System Preferences menu, and then click the Print & Fax icon or the Print & Scan icon.

2.

Select the product in the left side of the window.

3.

Click the Options & Supplies button.

4.

Click the Utility tab.

5.

Click the Open Printer Utility button.

HP Utility features

The HP Utility toolbar is at the top of every page. It includes these items:

Devices: Click this button to show or hide Mac products found by the HP Utility in the Printers pane at the left side of the screen.

All Settings: Click this button to return to the HP Utility main page.

Applications: Click this button to manage which HP tools or utilities appear in the Dock.

HP Support: Click this button to open a browser and go to the HP support Web site for the product.

Supplies: Click this button to open the HP SureSupply Web site.

Registration: Click this button to open the HP registration Web site.

Recycling: Click this button to open the HP Planet Partners Recycling Program Web site.

HP Utility consists of pages that you open by clicking in the All Settings list. The following table describes the tasks that you can perform with HP Utility.

Menu

Information and Support

Item

Supplies Status

Device Information

File Upload

Upload Fonts

HP Connected

Description

Shows the product supplies status and provides links for ordering supplies online.

Shows information about the currently selected product.

Transfers files from the computer to the product.

Transfers font files from the computer to the product.

Accesses the HP Connected Web site.

ENWW HP Utility for Mac OS X 83

Menu

Printer Settings

Item

Update Firmware

Commands

Supplies Management

Trays Configuration

Output Devices

Duplex Mode

Protect Direct Ports

Stored Jobs

Network Settings

Additional Settings

Description

Transfers a firmware update file to the product.

NOTE: This option is available only after you open the View menu and select the Show Advanced Options item.

Sends special characters or print commands to the product after the print job.

NOTE: This option is available only after you open the View menu and select the Show Advanced Options item.

Configures how the product should behave when supplies are nearing the end of their estimated life.

Changes the default tray settings.

Manages settings for optional output accessories.

Turns on the automatic two-sided printing mode.

Disables printing over USB or parallel ports.

Manages print jobs that are stored on the product hard disk.

Configures the network settings, such as the IPv4 and IPv6 settings.

Provides access to the HP Embedded Web Server.

84 Chapter 6 Manage and maintain ENWW

Use HP Web Jetadmin software

HP Web Jetadmin is an award-winning, industry-leading tool for efficiently managing a wide variety of networked HP products, including printers, multifunction products, and digital senders. This single solution allows you to remotely install, monitor, maintain, troubleshoot, and secure your printing and imaging environment — ultimately increasing business productivity by helping you save time, control costs, and protect your investment.

HP Web Jetadmin upgrades are periodically made available to provide support for specific product features. Go to www.hp.com/go/webjetadmin and click the Self Help and Documentation link to learn more about upgrades.

ENWW Use HP Web Jetadmin software 85

Manage supplies and accessories

Print when a cartridge is at estimated end of life

Supplies messages

<Color> <Supply> Low—where <Color> is the color of the supply, and <Supply> is the type of supply. The product indicates when a supply level is low. The actual print cartridge life remaining can vary, but the supply does not need to be replaced now. Consider having a replacement only when <Color> <Supply> Very Low is set to Stop . cartridge available to install when the print quality is no longer acceptable. This alert appears

<Color> <Supply> Very Low. The product indicates when a supply level is very low. The actual print cartridge life remaining can vary. Consider having a replacement cartridge available to install when the print quality is no longer acceptable. Once an HP supply has reached very low,

Print-quality problems can occur when using a supply that is at its estimated end of life. The print cartridge does not need to be replaced at this point in time unless the print quality is no longer acceptable.

Enable or disable the Very Low Settings options from the control panel

when you install a new cartridge.

1.

At the product control panel, press the Home button .

2.

Open the following menus:

Administration

Manage Supplies

Supply Settings

Black Cartridge or Color Cartridges

Very Low Settings

3.

Select one of the following options:

Select the Continue option to set the product to alert you that the cartridge is very low, but to continue printing.

NOTE: Using the Continue option allows printing beyond Very Low without customer interaction and can result in unsatisfactory print quality.

Select the Stop option to set the product to stop printing (including printing faxes) until you replace the cartridge.

Select the Prompt to continue option to set the product to stop printing (including printing faxes) and prompt you to replace the cartridge. You can acknowledge the prompt and

If you select the Stop

Very Low threshold. When you replace the cartridge, the product automatically resumes printing.

86 Chapter 6 Manage and maintain ENWW

Once an HP supply has reached Very Low, the HP Premium Protection Warranty on that supply has ended.

Manage print cartridges

Toner cartridge storage

Do not remove the toner cartridge from its package until you are ready to use it.

CAUTION: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes.

HP policy on non-HP supplies

Hewlett-Packard Company cannot recommend the use of non-HP toner cartridges, either new or remanufactured.

NOTE: For HP printer products, the use of a non-HP toner cartridge or a refilled toner cartridge does not affect either the warranty to the customer or any HP support contract with the customer.

However, if product failure or damage is attributable to the use of a non-HP toner cartridge or refilled toner cartridge, HP will charge its standard time and materials charges to service the product for the particular failure or damage.

HP anticounterfeit Web site

Go to www.hp.com/go/anticounterfeit when you install an HP toner cartridge and the control-panel message says the cartridge is non-HP. HP will help determine if the cartridge is genuine and take steps to resolve the problem.

Your toner cartridge might not be a genuine HP toner cartridge if you notice the following:

The supplies status page indicates that a non-HP supply is installed.

You are experiencing a high number of problems with the cartridge.

The cartridge does not look like it usually does (for example, the packaging differs from

HP packaging).

Recycle supplies

To recycle a genuine HP toner cartridge, place the used cartridge in the box in which the new cartridge arrived. Use the enclosed return label to send the used supply to HP for recycling. For complete information, see the recycling guide that is included with each new HP supply item.

Data stored on the toner cartridge

The HP toner cartridges used with this product contain a memory chip that assists in the operation of the product.

In addition, this memory chip collects a limited set of information about the usage of the product, which might include the following: the date when the toner cartridge was first installed, the date when the toner cartridge was last used, the number of pages printed using the toner cartridge, the page coverage, the printing modes used, any printing errors that might have occurred, and the product model. This information helps HP design future products to meet our customers' printing needs.

The data collected from the toner cartridge memory chip does not contain information that can be used to identify a customer or user of the toner cartridge or their product.

ENWW Manage supplies and accessories 87

HP collects a sampling of the memory chips from toner cartridges returned to HP's free return and recycling program (HP Planet Partners: www.hp.com/recycle ). The memory chips from this sampling

Any third party possessing the toner cartridge might have access to the anonymous information on the memory chip.

Replacement instructions

Replace print cartridges

The product uses four colors and has a different print cartridge for each color: black (K), magenta (M), cyan (C), and yellow (Y).

CAUTION: If toner gets on clothing, wipe it off with a dry cloth and wash the clothes in cold water.

Hot water sets toner into fabric.

NOTE: Information about recycling used print cartridges is on the print-cartridge box.

1. Open the front door. Make sure that the door is completely open.

2. Grasp the handle of the used print cartridge and pull out to remove.

3.

Store the used print cartridge in a protective bag. Information about recycling used print cartridges is on the print-cartridge box.

88 Chapter 6 Manage and maintain ENWW

4.

Remove the new print cartridge from its protective bag.

NOTE: Be careful not to damage the memory tag on the print cartridge.

5.

Grasp both sides of the print cartridge and distribute the toner by gently rocking the print cartridge.

6.

Remove the orange protective cover from the print cartridge.

CAUTION: Avoid prolonged exposure to light.

CAUTION: Do not touch the green roller.

Doing so can damage the cartridge.

ENWW Manage supplies and accessories 89

7.

Align the print cartridge with its slot and insert the print cartridge until it clicks into place.

NOTE: The print cartridges go in at a slight angle.

8. Close the front door.

90 Chapter 6 Manage and maintain ENWW

Replace the toner collection unit

Replace the toner collection unit when the control panel prompts you.

NOTE: The toner collection unit is designed for a single use. Do not attempt to empty the toner collection unit and reuse it. Doing so could lead to toner being spilled inside the product, which could result in reduced print quality. After use, return the toner collection unit to HP’s Planet Partners program for recycling.

1. Open the rear door.

2. Grasp the top of the toner collection unit and remove it from the product.

ENWW Manage supplies and accessories 91

3. Place the attached cap over the opening at the top of the unit.

4.

Remove the new toner collection unit from its packaging.

5.

Insert the new unit into the product.

6.

Close the rear door.

To recycle the used toner collection unit, follow the instructions included with the new toner collection unit.

92 Chapter 6 Manage and maintain ENWW

Clean the product

Over time, particles of toner and paper accumulate inside the product. This can cause print-quality problems during printing. Cleaning the product eliminates or reduces these problems.

Clean the paper path and print-cartridge areas every time that you change the print cartridge or whenever print-quality problems occur. As much as possible, keep the product free from dust and debris.

To clean the product exterior, use a soft, water-moistened cloth.

Clean the paper path

1.

At the product control panel, press the Home button .

2.

Open the following menus:

Device Maintenance

Calibration/Cleaning

3.

Press the down arrow to highlight the Print Cleaning Page menu item, and then press the button.

OK

4.

Completion of the cleaning process depends on the product model:

Non-duplex models: After the first side prints, reload the page into Tray 1 according the instructions, and then press the OK button. After the second side prints, the task is complete. Discard the printed page.

Duplex models: After both sides print, the task is complete. Discard the printed page.

ENWW Clean the product 93

Software and firmware updates

HP regularly updates features that are available in the product firmware. To take advantage of the most current features, update the product firmware. Download the most recent firmware update file from the Web:

In the US, go to www.hp.com/support/colorljM750 . Click Drivers & Software.

Outside the US, go to www.hp.com/support

Software. Enter the product name (for example, “LaserJet M575”), and then select Search.

94 Chapter 6 Manage and maintain ENWW

7 Solve problems

Self help

Solve general problems

Interpret control-panel messages

Clear jams

ENWW 95

Self help

In addition to the information in this guide, other sources are available that provide helpful information.

Control panel help The control panel has built-in help that guides you through several tasks, such as replacing print cartridges and clearing jams.

96 Chapter 7 Solve problems ENWW

Solve general problems

If the product is not responding correctly, complete the steps in the following checklist, in order. If the product does not pass a step, follow the corresponding troubleshooting suggestions. If a step resolves the problem, you can stop without performing the other steps on the checklist.

Troubleshooting checklist

1.

Make sure the product Ready light is on. If no lights are on, complete these steps: a.

Check the power-cable connections. b.

Check that the power is turned on. c.

Make sure that the line voltage is correct for the product power configuration. (See the label that is on the back of the product for voltage requirements.) If you are using a power strip and its voltage is not within specifications, plug the product directly into the wall. If it is already plugged into the wall, try a different outlet. d.

If none of these measures restores power, contact HP Customer Care.

2.

Check the cabling. a.

Check the cable connection between the product and the computer or network port. Make sure that the connection is secure. b.

Make sure that the cable itself is not faulty by using a different cable, if possible. c.

Check the network connection.

3.

Check to see if any messages appear on the control-panel display. If any error messages appear, see

Interpret control-panel messages on page 99 .

4.

Ensure that the paper that you are using meets specifications.

5.

Print a configuration page. See Print information pages on page 9

a network, an HP Jetdirect page also prints.

. If the product is connected to a.

If the pages do not print, check that at least one tray contains paper. b.

If the page jams in the product, see

Clear jams on page 106 .

6.

If the configuration page prints, check the following items: a.

If the page does not print correctly, the problem is with the product hardware. Contact

HP Customer Care. b.

If the page prints correctly, then the product hardware is working. The problem is with the computer you are using, with the printer driver, or with the program.

7.

Select one of the following options:

Windows: Click Start, click Settings, and then click Printers or Printers and Faxes. Double-click the name of the product.

-or-

Mac OS X: Open the Printer Setup Utility or the Print & Fax list, and double-click the line for the product.

ENWW Solve general problems 97

8.

Verify that you have installed the printer driver for this product. Check the program to make sure that you are using the printer driver for this product.

9.

Print a short document from a different program that has worked in the past. If this solution works, then the problem is with the program you are using. If this solution does not work (the a.

Try printing the job from another computer that has the product software installed. b.

If you connected the product to the network, connect the product directly to a computer with a USB cable. Redirect the product to the correct port, or reinstall the software, selecting the new connection type that you are using.

Factors that affect product performance

Several factors affect the time it takes to print a job:

Maximum product speed, measured in pages per minute (ppm)

The use of special paper (such as transparencies, heavy paper, and custom-size paper)

Product processing and download time

The complexity and size of graphics

The speed of the computer you are using

The USB connection

The printer I/O configuration

The network operating system and configuration (if applicable)

The printer driver that you are using

98 Chapter 7 Solve problems ENWW

Interpret control-panel messages

Control-panel message types

Four types of control-panel messages can indicate the status of or problems with the product.

Message type

Status messages

Warning messages

Error messages

Critical-error messages

Description

Status messages reflect the current state of the product. They inform you of normal product operation and require no interaction to clear them. They change as the state of the product changes. Whenever the product is ready, not busy, and has no pending warning messages, the

Ready status message appears if the product is online.

Warning messages inform you of data and print errors. These messages typically alternate with the

Ready or status messages and remain until you press the OK button. Some warning messages are clearable. If the Clearable Warnings menu in the Display Settings menu is set to the Job option, the next print job clears these messages.

Error messages communicate that some action must be performed, such as adding paper or clearing a jam.

Some error messages are auto-continuable. If the Continuable Events menu in the Display Settings menu is set to the Auto-Continue option, the product continues normal operation after an autocontinuable error message appears for 10 seconds.

NOTE: Pressing any button during the 10-second auto-continuable error message overrides the auto-continue feature, and the button function takes precedence. For example, pressing the Stop button pauses printing and offers the option to cancel the print job.

Critical error messages inform you of a product failure. You can clear some of these messages by turning the product off and then on. These messages are not affected by the Auto-Continue setting.

If a critical error persists, service is required.

Control-panel messages

The product provides robust control panel messaging. When a message appears on the control panel, follow the on-screen instructions to resolve the issue. If the product displays an “Error” or

“Attention” message, and no steps are shown to resolve the issue, turn the product off then on.

Contact HP support if you continue to experience issues with the product.

For additional information on a variety of topics, press the Help button on the control panel.

Supplies status messages

The following table contains important information about supplies status messages.

ENWW Interpret control-panel messages 99

Table 7-1 Supplies status messages

Control panel message

10.XX.YY Supply memory error

Black Cartridge low

Black Cartridge very low

Cyan cartridge low

Description Recommended action

The product cannot read or write to at least Reinstall the print cartridge, or install a new one print cartridge memory chip or a memory chip is missing from a print cartridge. print cartridge.

XX values

00 = Memory chip memory error

10 = Memory chip missing

YY values

00 = Black

01 = Cyan

02 = Magenta

03 = Yellow

The print cartridge is nearing the estimated end of its useful life.

The product indicates when the print cartridge level is low. The actual print cartridge life remaining can vary. Consider having a replacement cartridge available to install when the print quality is no longer acceptable. The print cartridge does not need to be replaced now.

The print cartridge is at the estimated end of its useful life.

Print quality might decrease. Replace the print cartridge when the print quality becomes unacceptable.

To ensure optimal print quality, HP recommends replacing the print cartridge at this point. You do not need to replace the print cartridge at this time unless the print quality is no longer acceptable. The actual print cartridge life can vary.

The print cartridge is nearing the estimated end of its useful life.

Once an HP print cartridge has reached the very low threshold, the HP Premium

Protection Warranty on that print cartridge has ended. All print defects or print cartridge failures incurred when an HP print cartridge is used in “continue in very low” mode will not be considered to be defects in materials or workmanship in the print cartridge under the HP Print Cartridge Warranty Statement.

The product indicates when the print cartridge level is low. The actual print cartridge life remaining can vary. Consider having a replacement cartridge available to install when the print quality is no longer acceptable. The print cartridge does not need to be replaced now.

100 Chapter 7 Solve problems ENWW

Table 7-1 Supplies status messages (continued)

Control panel message

Cyan cartridge very low

Description Recommended action

The print cartridge is at the estimated end of its useful life.

Print quality might decrease. Replace the print cartridge when the print quality becomes unacceptable.

To ensure optimal print quality, HP recommends replacing the print cartridge at this point. You do not need to replace the print cartridge at this time unless the print quality is no longer acceptable. The actual print cartridge life can vary.

Fuser Kit low

Fuser Kit very low

Incompatible <color> cartridge

Incompatible fuser

Incompatible supplies

Incompatible Toner Collection Unit

Once an HP print cartridge has reached the very low threshold, the HP Premium

Protection Warranty on that print cartridge has ended. All print defects or print cartridge failures incurred when an HP print cartridge is used in “continue in very low” mode will not be considered to be defects in materials or workmanship in the print cartridge under the HP Print Cartridge Warranty Statement.

If print quality is no longer acceptable, replace the fuser kit. Instructions are included with the fuser kit.

The fuser kit is low. The actual supply life remaining might vary. Consider having a replacement fuser kit available to install when print quality is no longer acceptable.

You do not need to replace the fuser kit at this time unless print quality is no longer acceptable.

The fuser kit is very low. The actual supply life remaining might vary. You do not need to replace the fuser kit at this time unless print quality is no longer acceptable. After an HP supply has reached the very low threshold, the HP Premium Protection

Warranty for that supply has ended.

The indicated color print cartridge is not compatible with this product.

The fuser is not compatible with this product.

If print quality is no longer acceptable, replace the fuser kit. Instructions are included with the fuser kit.

Replace the print cartridge with one that is designed for this product.

CAUTION: The fuser can be hot while the product is in use. Wait for the fuser to cool before handling it.

1.

Open the right door.

2.

Remove the incompatible fuser.

3.

Install the correct fuser.

Print cartridges or other supply items are installed that were not designed for this product. The product cannot print with these supplies installed.

4.

Close the right door.

Install supplies that are designed for this product.

The toner collection unit is incompatible with 1. Open the rear door. this product.

2.

Remove the incompatible toner collection unit.

3.

Install the correct toner collection unit.

4.

Close the rear door.

ENWW Interpret control-panel messages 101

Table 7-1 Supplies status messages (continued)

Control panel message

Incompatible transfer unit

Magenta cartridge low

Magenta cartridge very low

Replace black cartridge

Replace fuser kit

Description

The transfer unit is incompatible with this product.

Recommended action

1. Open the right door.

2. Remove the incompatible transfer unit.

3. Install the correct transfer unit.

The print cartridge is nearing the estimated end of its useful life.

4. Close the right door.

The product indicates when the print cartridge level is low. The actual print cartridge life remaining can vary. Consider having a replacement cartridge available to install when the print quality is no longer acceptable. The print cartridge does not need to be replaced now.

The print cartridge is at the estimated end of its useful life.

Print quality might decrease. Replace the print cartridge when the print quality becomes unacceptable.

To ensure optimal print quality, HP recommends replacing the print cartridge at this point. You do not need to replace the print cartridge at this time unless the print quality is no longer acceptable. The actual print cartridge life can vary.

Once an HP print cartridge has reached the very low threshold, the HP Premium

Protection Warranty on that print cartridge has ended. All print defects or print cartridge failures incurred when an HP print cartridge is used in “continue in very low” mode will not be considered to be defects in materials or workmanship in the print cartridge under the HP Print Cartridge Warranty Statement.

Replace the specified color cartridge. This alert appears only if the product is configured to stop when the print cartridge reaches the very low threshold. The product indicates when a supply level is at its estimated end of life. The actual life remaining might be different than the estimation. Have a replacement supply available to install when print quality is no longer acceptable. The supply does not need to be replaced now unless the print quality is no longer acceptable. After an HP supply has reached its approximated end of life, the HP Premium Protection Warranty on that supply ends.

Or, configure the product to continue printing by using the Manage Supplies menu.

The product indicates when the fuser kit is at its estimated end of life. The actual life remaining might be different than the estimation. Have a replacement fuser kit available to install when print quality is no longer acceptable. The fuser kit does not need to be replaced now unless the print quality is no longer acceptable. After the fuser kit reaches its approximated end of life, the HP Premium Protection Warranty on that fuser kit ends.

CAUTION: The fuser can be hot while the product is in use. Wait for the fuser to cool before handling it.

1.

3.

Open the right door.

2. Grasp the blue handles on both sides of the fuser and pull straight out to remove it.

Install the new fuser.

4. Close the right door.

102 Chapter 7 Solve problems ENWW

Table 7-1 Supplies status messages (continued)

Control panel message

Replace supplies

Replace toner collection unit

Replace transfer kit

Supplies in wrong position

Description Recommended action

This alert appears only if the product is configured to stop when the print cartridges reach the "very low" threshold. Two or more supplies are at the estimated end of life.

The actual life remaining might be different than the estimation. Consider having replacement supplies available to install when print quality is no longer acceptable.

The supply does not need to be replaced now unless the print quality is no longer acceptable. After an HP supply has reached its approximated end of life, the HP

Premium Protection Warranty on that supply ends.

Replace the necessary supplies.

Or, configure the product to continue printing by using the Manage Supplies menu.

The product indicates when a toner collection unit is full and needs to be replaced. Continuing to print without replacing the toner collection unit might cause product damage, toner spill, or other error conditions. Have a replacement toner collection unit available to install. After a toner collection unit has become full, the

HP Premium Protection Warranty on that toner collection unit ends.

Replace the toner collection unit.

The product indicates when a transfer kit is at its estimated end of life. The actual life remaining might be different than the estimation. Have a replacement transfer kit available to install when print quality is no longer acceptable. The transfer kit does not need to be replaced now unless the print quality is no longer acceptable. After a transfer kit has reached its approximated end of life, the HP Premium Protection

Warranty on that transfer kit ends.

Replace the transfer kit. Instructions are included with the transfer kit.

Two or more print-cartridge slots contain the wrong color print cartridge.

Install the correct color cartridge in each slot.

Supplies low be installed in this order:

Yellow

Magenta

Cyan

Black

This message appears when at least two supplies have reached the low threshold.

The actual supply life remaining might vary.

Identify which supplies are low. You do not need to replace the supplies at this time unless print quality is no longer acceptable.

After an HP supply has reached the very low threshold, the HP Premium Protection

Warranty for that supply has ended.

To continue printing in color, either replace the supply or reconfigure the product by using the Manage Supplies menu on the control panel.

ENWW Interpret control-panel messages 103

Table 7-1 Supplies status messages (continued)

Control panel message

Supplies very low

Toner Collection Unit Almost Full

Transfer kit low

Transfer kit very low

Unsupported supply installed

Used supply in use

Wrong cartridge in <color> slot

Description Recommended action

This message appears when at least two supplies have reached the very low threshold. Identify which supplies are low.

To continue printing in color, either replace the supply or reconfigure the product by

The actual supply life remaining might vary. control panel. using the Manage Supplies menu on the

You do not need to replace the supplies at this time unless print quality is no longer acceptable. After an HP supply has reached the very low threshold, the HP Premium

Protection Warranty for that supply has ended.

The toner collection unit is almost full. This No action is necessary to continue. condition is equivalent to the supply life being low. The actual supply life can vary.

You do not need to replace the toner collection unit at this time.

This message appears when the transfer kit reaches the low threshold. The actual supply life remaining might vary. You do not need to replace the transfer kit at this time unless print quality is no longer acceptable.

This message appears when the transfer kit has reached the very low threshold. The actual supply life remaining might vary. You do not need to replace the supplies at this time unless print quality is no longer acceptable. After an HP supply has reached the very low threshold, the HP Premium

Protection Warranty for that supply has ended.

No action is necessary to continue. If the print quality is no longer acceptable, replace the transfer kit. Instructions are included with the new transfer kit.

To continue printing, either replace the transfer kit or reconfigure the product to continue printing by using the Manage

Supplies menu on the control panel.

One of the print cartridges is for a different

HP product.

One of the print cartridges has been previously used.

If print quality is no longer acceptable, replace the print cartridge.

If you believe you purchased a genuine HP supply, go to www.hp.com/go/ anticounterfeit .

The indicated slot for a print cartridge contains a cartridge that is not the correct

Remove the print cartridge from that slot, and install a cartridge that is the correct color. From left to right, the print cartridges color. should be installed in this order:

Yellow

Magenta

Cyan

Black

104 Chapter 7 Solve problems ENWW

Table 7-1 Supplies status messages (continued)

Control panel message

Yellow cartridge low

Yellow cartridge very low

Description

The print cartridge is nearing the estimated end of its useful life.

Recommended action

The product indicates when the print cartridge level is low. The actual print cartridge life remaining can vary. Consider having a replacement cartridge available to install when the print quality is no longer acceptable. The print cartridge does not need to be replaced now.

The print cartridge is at the estimated end of its useful life.

Print quality might decrease. Replace the print cartridge when the print quality becomes unacceptable.

To ensure optimal print quality, HP recommends replacing the print cartridge at this point. You do not need to replace the print cartridge at this time unless the print quality is no longer acceptable. The actual print cartridge life can vary.

Once an HP print cartridge has reached the very low threshold, the HP Premium

Protection Warranty on that print cartridge has ended. All print defects or print cartridge failures incurred when an HP print cartridge is used in “continue in very low” mode will not be considered to be defects in materials or workmanship in the print cartridge under the HP Print Cartridge Warranty Statement.

ENWW Interpret control-panel messages 105

Clear jams

Prevent jams

Common causes of jams

1

Cause

The paper length and width guides are not adjusted correctly.

The media does not meet specifications.

Solution

Adjust the guides so they are against the paper stack.

You are using media that has already passed through a printer or copier.

An input tray is loaded incorrectly.

The media is skewed.

The media is binding or sticking together.

The media is removed before it settles into the output bin.

The paper is too heavy.

Use only media that meets HP specifications. See

Paper and print media on page 11 .

Do not use media that has been previously printed on or copied.

Remove any excess media from the input tray. Make sure that the stack is below the maximum stack height mark in the

tray. See Load paper trays on page 19

.

The input-tray guides are not adjusted correctly. Adjust them so they hold the stack firmly in place without bending it.

Remove the media, flex it, rotate it 180 degrees, or flip it over. Reload the media into the input tray.

NOTE: Do not fan paper. Fanning can create static electricity, which can cause paper to stick together.

Wait until the page completely settles in the output bin before removing it.

Do not use paper that exceeds the supported weights for the input tray. See

Supported paper types and tray capacity on page 18 .

The media is in poor condition.

The internal rollers from the tray are not picking up the media.

Do not use paper that exceeds the supported weight for automatic duplex printing. See

Supported paper sizes for duplex printing on page 17

.

Replace the media.

Remove the top sheet of media. If the media is too heavy, it might not be picked from the tray. See

.

Supported paper

The media has rough or jagged edges.

The media is perforated or embossed.

Replace the media.

Perforated or embossed media does not separate easily.

Load sheets one at a time.

1

Paper was not stored correctly. original packaging in a controlled environment.

If the product continues to jam, contact HP Customer Support or your authorized HP service provider.

106 Chapter 7 Solve problems ENWW

Jam locations

Use this illustration to identify locations of jams. In addition, instructions appear on the control panel to direct you to the location of jammed paper and how to clear it.

NOTE: Internal areas of the product that might need to be opened to clear jams have green handles or green labels.

Figure 7-1 Jam locations

1

2

3

4

5

6

1

2

3

4

5

6

Output bin

Upper right door

Tray 1 area

Tray 2, Tray 3, and optional Trays 4, 5, and 6

Middle right door

Lower right door

WARNING! To avoid electrical shock, remove any necklaces, bracelets, or other metal items before reaching into the inside of the product.

ENWW Clear jams 107

Clear jams in Tray 1

1.

If jammed paper is visible in Tray 1, clear the jam by gently pulling the paper straight out.

Touch the OK button to clear the message.

2.

If you cannot remove the paper, or if no jammed paper is visible in Tray 1, close Tray

1 and open the upper right door.

108 Chapter 7 Solve problems ENWW

3. Gently pull the paper out of the pick up area.

4. Close the upper right door.

ENWW Clear jams 109

Clear jams from Tray 2, Tray 3, or an optional tray

CAUTION: Opening a tray when paper is jammed can cause the paper to tear and leave pieces of paper in the tray, which might cause another jam. Be sure to clear jams before opening the tray.

1.

Open the tray and make sure that the paper is stacked correctly. Remove any jammed or damaged sheets of paper. To access jammed paper from the tray cavity, remove the tray from the product.

2. Close the tray.

3.

If the jam is in Tray 3, you also can open the door on the right side of the tray, remove and jammed paper, and then close the door.

110 Chapter 7 Solve problems ENWW

Clear jams in the upper right door

CAUTION: The fuser can be hot while the product is in use. Wait for the fuser to cool before handling it.

1.

Open the upper right door.

2.

Gently pull the paper out of the pickup area.

3.

If paper is visible entering the bottom of the fuser, gently pull downward to remove it.

CAUTION: Do not touch the transfer roller

(callout 1). Contaminants on the roller can affect print quality.

ENWW

1

Clear jams 111

4.

Paper could be jammed inside the fuser where it would not be visible. Open the fuser jam access door. If paper is jammed inside the fuser, gently pull it straight up to remove it. If the paper tears, remove all paper fragments.

CAUTION: Even if the body of the fuser has cooled, the rollers that are inside could still be hot. Do not touch the fuser rollers until they

If no paper is found but the product still reports a jam, remove the fuser to check for jammed paper inside the fuser cavity.

Remove any paper, and then reinstall the fuser.

NOTE: Make sure that the fuser is reinstalled correctly before closing the upper right door.

5.

Close the upper right door.

112 Chapter 7 Solve problems ENWW

Clear jams in the lower right door

1. Open the lower right door.

2. If paper is visible, gently pull the jammed paper up or down to remove it.

3. Close the lower right door.

ENWW Clear jams 113

Clear jams in the output bin area

1.

If paper is visible from the output bin, grasp the leading edge and remove it.

114 Chapter 7 Solve problems ENWW

A Supplies and accessories

Order parts, accessories, and supplies

Part numbers

ENWW 115

Order parts, accessories, and supplies

Order supplies and paper

Order genuine HP parts or accessories

Order through service or support providers

Order using HP software www.hp.com/go/suresupply www.hp.com/buy/parts

Contact an HP-authorized service or support provider.

SureSupply Web site, which provides options for purchasing

Original HP supplies.

116 Appendix A Supplies and accessories ENWW

Part numbers

Ordering information and availability might change during the life of the product.

Accessories

Item

HP Color LaserJet 1 x 500 Paper

Feeder

HP Color LaserJet 3 x 500 Paper

Feeder and stand

Description

500-sheet paper tray

Part number

CE860A

1500-sheet paper tray. Contains three

500-sheet trays.

CE725A

Print cartridges

Item

Description

1

HP Color LaserJet black print cartridge Black cartridge

HP Color LaserJet cyan print cartridge Cyan cartridge

HP Color LaserJet yellow print cartridge Yellow cartridge

1

HP Color LaserJet magenta print cartridge

Magenta cartridge

For more information, go to www.hp.com/go/learnaboutsupplies .

Cables and interfaces

Item

Wireless Print Server

USB cable

Part number

CE270A

CE271A

CE272A

CE273A

Description Part number

HP Jetdirect 2700w USB Wireless Print

Server

J8026A

2-meter standard USB-compatible device connector

C6518A

Maintenance kits

Item

Fuser kit

Transfer kit

Toner Collection Unit

Description

110 Volt replacement fuser

220 Volt replacement fuser

Replacement transfer belt, transfer roller unit, 9 feed rollers for Trays 2-6, and 6 pickup rollers for Trays 1-6.

Receptacle for toner that has not fused to the paper.

Part number

CE977A

CE978A

CE516A

CE980A

ENWW Part numbers 117

118 Appendix A Supplies and accessories ENWW

Index

A accessories

ordering 116

part numbers 117

Administration menu, control

panel 8

AirPrint 70

anticounterfeit supplies 87

Attention light

locating 5

automatic paper sensing 29

B bins, output

capacity 23

blank pages

placing between print jobs 68

Bonjour

identifying 82

booklets

creating (Windows) 55

printing (Mac) 59

browser requirements

HP embedded Web Server 82

buttons, control panel

locating 5

C cable, USB

part number 117

canceling a print request (Mac OS

X) 62

canceling a print request

(Windows) 60

cartridges

non-HP 87 recycling 87 storage 87

cartridges, print

part numbers 117

replacing 88

cautions iii

cleaning

product 93

color

adjusting 73

Edge Control 73 halftone options 73

manage 71

managing 72

match 78

Neutral Grays 73

Pantone® matching 79

print color samples 78

print in grayscale 72

printed vs. monitor 78 sample book matching 78

using 71

color options

HP EasyColor (Windows) 74

setting (Mac) 77

color theme

changing, Windows 76

configurations, models 2

control panel

Administration menu 8

buttons 5

cleaning page, printing 93

lights 5

messages, numerical list 100

messages, types of 99

controlling print jobs 29

conventions, document iii

counterfeit supplies 87

cover pages printing on different paper

(Windows) 50

D

Data light

locating 5

deleting

stored jobs 67

document conventions iii

double-sided printing

Mac 57

double-sided printing (duplexing)

loading paper 24

drivers

changing paper sizes 60

changing paper types and

sizes 14

presets (Mac) 57 settings (Mac) 57

universal 32

duplex printing

Mac 57

duplex printing (double-sided)

loading paper 24

settings (Windows) 39

supported paper sizes 17

duplexing

manually (Mac) 57

manually (Windows) 41

E

Edge Control 73

Embedded Web Server (EWS)

features 82 network connection 82

envelope sizes

supported 15

envelopes

loading in Tray 1 19

loading orientation 24

error messages

control panel 99

numerical list 100

types of 99

Explorer, versions supported

HP Embedded Web Server

82

F

features 2

file upload, Mac 83

firmware

update, Mac 84

first page printing on different paper fonts

(Windows) 50

upload, Mac 83

fraud Web site 87

fuser

jams 111

fuser kit

part number 117

G graphical and text display, control

panel 5

grayscale printing 72

H

Home button 5

HP Easy Color

disabling 74 using 74

HP Embedded Web Server (EWS)

features 82 network connection 82

HP ePrint 69

HP ePrint software 69

HP fraud Web site 87

HP Universal Print Driver 32

HP Utility 83

HP Utility for Mac

Bonjour 83 features 83

HP Utility, Mac 83

HP Web Jetadmin 85

I information pages

printing or viewing 9

installing

print cartridges 88

toner collection unit 91

Internet Explorer, versions supported

HP Embedded Web Server

82

J jams

common causes of 106

fuser 111

locations 107

lower right door 113

output bin 114

Tray 1 108

Tray 2 110

Tray 3 110

Tray 4 110

Tray 4, 5, or 6 113

Tray 5 110

Tray 6 110

upper right door 111

Jetadmin, HP Web 85

job storage

Mac settings 66

job-separator pages 68

jobs, stored

creating (Windows) 64

deleting 67 printing 67

K keys, control panel

locating 5

L labels

printing (Windows) 47

landscape orientation

changing (Mac) 58

selecting, Windows 45

last page printing on different paper

(Windows) 50

lights

control panel 5

loading

Tray 1 19

Tray 2 20, 22

Tray 3 20, 22

Tray 4, 5, and 6 20, 22

loading paper 19

lower right door

jams 113

M

Mac changing paper types and

sizes 14

driver settings 57

Mac driver settings

Job Storage 66

Macintosh

HP Utility 83

manual duplex

Mac 57

Windows 41

media 11

supported sizes 15

memory

included 2

supply errors 100

memory chip, toner cartridge

description 87

memory tag

locating 89

menus, control panel

Administration 8

messages

numerical list 100

types of 99

model number

location 4

models, features 2

multiple pages per sheet

printing (Mac) 58

printing (Windows) 43

N

Netscape Navigator, versions supported

HP embedded Web Server 82

networks

HP Web Jetadmin 85

print servers included 2

Neutral Grays 73

non-HP supplies 87

notes iii

O ordering

part numbers for 117

supplies and accessories 116

orientation

changing (Mac) 58

paper, while loading 24

selecting, Windows 45

output bin

jams 114

P page orientation

changing (Mac) 58

page sizes scaling documents to fit

(Mac) 59

scaling documents to fit

(Windows) 53

pages per sheet

selecting (Mac) 58

selecting (Windows) 43

paper covers, using different paper

50

first and last pages, using

different paper 50

load 19

loading orientation 24

paper jams

common causes of 106

locations 107

paper path

cleaning 93

paper size

changing 14, 60

paper sizes

selecting (Mac) 62

selecting custom sizes (Mac)

62

selecting custom sizes

(Windows) 61

supported 15

supported for duplex 17

paper type

selecting (Windows) 47

paper types

changing 14

selecting (Mac) 58

supported 18

paper, covers

printing (Mac) 58

paper, ordering 116

part numbers

list of 117 print cartridges 117

PCL drivers

universal 32

portrait orientation

changing (Mac) 58

selecting, Windows 45

power

troubleshooting 97

presets (Mac) 57

print cartridge

managing 86

print cartridges

part numbers 117

replacing 88

print drivers

supported 32

print drivers (Mac)

settings 57

print media

loading in Tray 1 19

print on both sides

Mac 57

Windows 41

print tasks 31

printing

settings (Mac) 57

stored jobs 67

printing on both sides

settings (Windows) 39

problem-solving

messages, types of 99

product info 1

R

Ready light

locating 5

recycling supplies 87

resize documents

Mac 59

Windows 53

S scale documents

Mac 59

Windows 53

self help

accessing 96

serial number

location 4

settings

driver presets (Mac) 57

shortcuts (Windows)

creating 36

using 34

software

HP Utility 83

special media

guidelines 12

special paper

guidelines 12

printing (Windows) 47

special paper for covers

printing (Mac) 58

status

HP Utility, Mac 83

messages, types of 99

Stop button 5

stopping a print request (Mac OS

X) 62

stopping a print request

(Windows) 60

storage, job

Mac settings 66

stored jobs

creating (Mac) 66

creating (Windows) 64

deleting 67 printing 67

storing

toner cartridges 87

storing jobs

with Windows 64

supplies

counterfeit 87

memory errors 100

non-HP 87

ordering 116

part numbers 117

recycling 87

replacing 88

status, viewing with HP Utility

for Mac 83

supported paper 15

system requirements

HP Embedded Web Server

82

T

tips iii

toner cartridges

memory chips 87 non-HP 87 recycling 87 storage 87

toner collection unit

replacing 91

transfer kit

part number 117

transparencies

automatic sensing 29

printing (Windows) 47

trapping 73

Tray 1

automatic paper sensing 29

capacity 23

jams 108

Tray 2

capacity 24

jams 110

trays

capacity 23

configure 28

included 2

load 19

paper orientation 24

troubleshooting

checklist 97

control panel messages 99

error messages, numerical

list 100

two-sided printing

settings (Windows) 39

U

universal print driver 32

upper right door

jams 111

W

warnings iii

watermarks

printing (Mac) 62

printing (Windows) 61

Web browser requirements

HP Embedded Web Server

82

Web sites

fraud reports 87

HP Web Jetadmin,

downloading 85

universal print driver 32

Windows changing paper types and

sizes 14

universal print driver 32

Windows print drivers

supported 32

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
