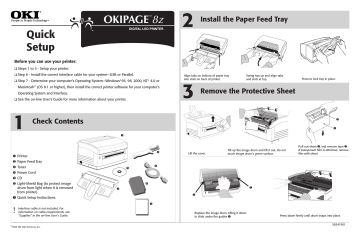

Quick
Setup
Install the Paper Feed Tray
Before you can use your printer:
q Steps 1 to 5 - Setup your printer.
q Step 6 - Install the correct Interface cable for your system—USB or Parallel.
q Step 7 - Determine your computer’s Operating System—Windows 95, 98, 2000, NT
®
®
4.0 or
Macintosh® (OS 8.1 or higher), then install the correct printer software for your computer’s
Operating System and Interface.
q See the on-line User’s Guide for more information about your printer.
1
Align tabs on bottom of paper tray
into slots on back of printer.
3
Swing tray up and align tabs
and slots at top.
Press to lock tray in place.
Remove the Protective Sheet
➋
Check Contents
➊
➊
➌
Ê Printer
Ë Paper Feed Tray
Ì Toner
Í Power Cord
Î CD
Ï Light-Shield Bag (to protect image
drum from light when it is removed
from printer)
Lift the cover.
Tilt up the image drum and lift it out. Do not
touch image drum’s green surface.
Pull out sheet ➊, and remove tape ➋.
If transparent film is attached, remove
film with sheet.
➍
➎
➏
➊
➋
➊
➐ Quick Setup Instructions
➐
!
©
Interface cable is not included. For
information on cable requirements, see
“Supplies” in the on-line User’s Guide.
2000 Oki Data Americas, Inc.
Replace the image drum, tilting it down
to slide under the guides ➊.
Press down firmly until drum snaps into place.
58341901
4
Install Toner
➊
Lift out toner well cover and discard.
5
Unwrap toner cartridge. Shake
side to side to distribute toner.
With label up, place left side
under tab ➊, lower into the
toner well.
Push lock lever down towards rear.
Insert a stack of paper. (max. 100 sheets, 20 lb.)
Adjust the right guide gently against the paper.
Make sure power is off.
Connect to Your Computer
Connecting to a USB Port
Connecting to a Parallel Port
For Windows 98/2000 and Macintosh Computers with a USB
port. Requires USB cable.
Requires IEEE 1284-compliant bi-directional parallel cable.
1
Connect the USB cable to the computer’s USB port.
2
Connect the other end of the USB cable to the printer’s USB
port.
2 Connect the parallel cable to the computer’s parallel port.
Secure the screws.
3
Close the cover.
Insert Paper
Adjust left guide for paper size.
6
Pulling firmly, remove
tape from bottom.
Go to Step 7, Install the Printer Software.
1 Make sure the computer and printer are turned off.
3 Connect the other end of the cable to the printer’s parallel
port. Secure it with the wire clips.
4 Go to Step 7, Install the Printer Software.
Plug the power cord into the printer and into a
grounded electrical outlet.
