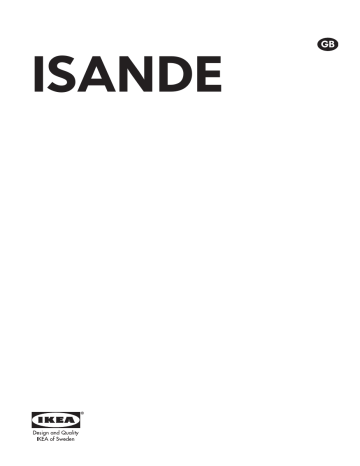

isande

ISANDE

GB

ENGLISH

Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.

ENGLISH

4

ENGLISH 4

Contents

Safety information

Safety instructions

Installation

Product description

Operation

First use

Daily use

7

9

4

5

10

13

14

Hints and tips

Care and cleaning

Troubleshooting

Technical data

ENVIRONMENTAL CONCERNS

IKEA GUARANTEE

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children shall not carry out cleaning and user maintenance of the appliance without supervision.

Keep all packaging away from children and dispose of it appropriately.

General Safety

This appliance is intended to be used in household and similar applications such as:

17

18

19

23

24

24

ENGLISH 5

Farm houses; staff kitchen areas in shops, offices and other working environments

By clients in hotels, motels, bed and breakfast and other residential type environments

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not use water spray and steam to clean the appliance.

Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.

• Do not install or use a damaged appliance.

• Follow the installation instruction supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Make sure the air can circulate around the appliance.

• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

ENGLISH 6

• Do not install the appliance close to radiators or cookers, ovens or hobs.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too cold, such as the construction appendices, garages or wine cellars.

• When you move the appliance, lift it by the front edge to avoid scratching the floor.

• The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the

Authorised Service Centre or an electrician to change the electrical components.

• The mains cable must stay below the level of the mains plug.

• Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

Warning! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrigerant circuit. It contains isobutane

(R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

• Do not let hot items to touch the plastic parts of the appliance.

• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.

• Do not store flammable gas and liquid in the appliance.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the compressor or the condenser. They are hot.

• Do not remove or touch items from the freezer compartment if your hands are wet or damp.

• Do not freeze again food that has been thawed.

• Obey the storage instructions on the packaging of frozen food.

Internal light

• The type of lamp used for this appliance is not suitable for household room illumination

ENGLISH 7

Care and cleaning

Warning! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

Warning! Risk of injury or suffocation.

Installation

Warning! Refer to Safety chapters.

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc.

Make sure that air can circulate freely around the back of the cabinet.

Positioning

This appliance should be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children and pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation materials of this appliance are ozonefriendly.

• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

Climate class

SN

N

ST

T

Ambient temperature

+10°C to + 32°C

+16°C to + 32°C

+16°C to + 38°C

+16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service

Centre.

ENGLISH 8

Electrical Connection

Caution! Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Warning! This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

The wires in the mains lead are coloured in accordance with the following code:

A B

C

D

E

• A - green and yellow: Earth

• C - brown: Live

• D - blue: Neutral

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

1. Connect the wire coloured green and yellow to the terminal marked either with the letter “E“ or by the earth symbol

or coloured green and yellow.

2. Connect the wire coloured blue to the terminal either marked with the letter

“N“ or coloured black.

3. Connect the wire coloured brown to the terminal either marked with the “L“ or coloured red.

4. Check that no cut, or stray strands of wire is present and the cord clamp (E) is secure over the outer sheath.

Make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

5. Switch on the appliance.

The appliance is supplied with a 13 amp fuse (B). In the event of having to change the fuse in the plug supplied, a 13 amp

ASTA approved (BS 1362) fuse must be used.

Warning! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely.

ENGLISH

Product description

Product overview

1 2 3 4

12

11

10

9

1

Fan - cooling

2

Control unit

3

LED lamp

4

Bottle rack

5

Dairy compartment with lid

6

Door balconies

7

Vegetable drawers

8

Bottle balcony with holder

9

Freezer drawers

5

6

7

8

10

Freezing drawer

11

Rating plate

12

Glass shelves

Least cold zone

Intermediate temperature zone

Coldest zone

9

ENGLISH 10

Operation

Control panel

1

A++

8 7

1 Display

2

Freezer temperature warmer button

3

Freezer temperature colder button

4

OK button

5 Function button

6 5 4 3 2

6 Fridge temperature warmer button

7

Fridge temperature colder button

8

ON/OFF switch

Display

A B C D E F

Off min

L K J I

G

H

Switching on

Connect the mains plug to the power socket

1. Press the ON/OFF if the display is off.

The temperature indicators show the set default temperature.

A. Fridge compartment indicator

B. Fridge temperature indicator and timer indicator

C. Fridge Off indicator

D. Shopping function

E. Vacation function

F. Fast Freezing function

G. Freezer temperature indicator

H. Freezer compartment indicator

I. Alarm indicator

J. Child Lock function

K. Drinks Chill function

L. Fan cooling

2. The alarm buzzer may sound after a few seconds.

To reset the alarm refer to "High temperature alarm".

If "DEMO" appears on the display, the appliance is in demonstration mode.

Refer to "Troubleshooting...".

ENGLISH 11

To select a different set temperature refer to

"Temperature regulation".

Switching off

Press ON/OFF for 3 seconds.

The display switches off.

To disconnect the appliance from the power, disconnect the mains plug from the power socket.

Switching on the fridge

1. Press the fridge temperature regulator button.

Or:

1. Press the Function button until the corresponding icon appears.

The fridge Off indicator flashes.

2. Press the OK button to confirm.

3. The fridge Off indicator goes off.

To select a different set temperature refer to

"Temperature regulation".

Switching off the fridge

1. Press the Function button until the corresponding icon appears

The fridge Off indicator and the fridge compartment indicator flash.

The fridge temperature indicator shows dashes.

2. Press the OK button to confirm.

The fridge Off indicator is shown.

Temperature regulation

1. The set temperature of the fridge may be adjusted by pressing the temperature button.

Default temperature:

• +5°C for the fridge

The temperature indicator shows the set temperature.

The temperature of the fridge compartment may vary between more or less +2°C and

+8°C.

2. The set temperature of the freezer may be adjusted by pressing the temperature button.

Default temperature:

• -18°C for the freezer

The temperature indicator shows the set temperature.

The temperature of the freezer compartment may vary between more or less -15°C and -24°C.

The set temperature will be reached within 24 hours. After a power failure the set temperature remains stored.

Functions menu

Each time OK is pressed, the following functions can be activated:

• Shopping function

• Vacation function

• Fast Freezing function

• Drinks Chill function

• Child Lock function

• Fan-cooling function

• no symbol: normal operation

You can turn on any function at any time and turn the function off by pressing OK several times until no icon appears.

Shopping function

If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the Shopping function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator.

The Shopping function shuts off automatically after approximately 6 hours.

1. Press Function until the corresponding icon appears.

ENGLISH 12

The Shopping indicator flashes.

2. Press OK to confirm.

The Shopping indicator is shown.

To switch off the function before its automatic end repeat the procedure until

The Shopping indicator goes off.

The function switches off by selecting a different fridge set temperature.

Vacation function

This function allows you to keep the refrigerator closed and empty during a long holiday period without the formation of a bad smell.

The fridge compartment must be empty with Vacation function on.

1. Press Function until the corresponding icon appears.

The Vacation indicator flashes. The fridge temperature indicator shows the set temperature.

2. Press OK to confirm.

The Vacation indicator is shown.

To switch off the function repeat the procedure until the Vacation indicator goes off.

The function switches off by selecting a different fridge set temperature.

Fast Freezing function

To freeze fresh foods, you will need to activate the Fast Freezing function.

1. Press OK (several times if necessary) until the corresponding icon appears.

The Fast Freezing indicator flashes.

2. Press OK to confirm.

The Fast Freezing indicator is shown.

This function stops automatically after 52 hours.

To switch off the function before its automatic end:

Press the OK in order to select another function, or press the OK until you can see none of the special icons.

Child Lock function

Activate the Child Lock function to lock the buttons from unintentional operation.

1. Press OK (several times if necessary) until the corresponding icon appears.

The Child Lock indicator flashes.

2. Press OK to confirm.

The Child Lock indicator is shown.

To deactivate the Child Lock function, repeat the procedure until the Child Lock indicator goes off.

Drinks Chill function

The Drinks Chill function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down a mixture for a certain period of time, or when a reminder is needed in order not to forget bottles placed in the freezer for fast cooling.

1. Press OK repeatedly until the Drinks

Chill icon appears.

The Timer shows the set value (30 minutes).

2. Press the Temperature button to change the Timer set value from 1 to 90 minutes.

The Timer indicator is shown (min).

At the end of the countdown the Drinks Chill icon flashes and an audible alarm sounds.

At that time, remove the products that were put into the appliance to cool down, and press the OK to switch off the sound and terminate the function.

To change the time during the countdown or at the end, press the Temperature button.

ENGLISH 13

To deactivate the function at any time during the countdown, repeat the procedure until the Drinks Chill icon turns off.

Fan cooling

The refrigerator compartment is equipped with a device that allows for a rapid cooling of foods and more uniform temperature in the compartment.

The activation of the fan cooling function increases the energy consumption.

1. Press OK (several times if necessary) until the corresponding icon appears.

The fan indicator flashes for a few seconds.

2. Press OK to confirm.

The fan indicator is shown.

To switch off the function repeat the procedure until the fan indicator goes off.

If the function is activated automatically, the fan indicator is not shown (refer to 'Daily Use').

High temperature alarm

An increase in the temperature in the freezer compartment (for example due to

First use

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

an earlier power failure or door is open) is indicated by:

• flashing the alarm and freezer temperature indicators;

• sounding of buzzer.

To reset the alarm press any button.

The buzzer switches off.

The freezer temperature indicator shows the highest temperature reached for a few seconds. Then show again the set temperature.

The alarm indicator continues to flash until the normal conditions are restored, then it goes off.

Door open alarm

An acoustic alarm will sound if the door is left open for approximately 5 minutes. The door open alarm conditions are indicated by:

• flashing alarm indicator;

• acoustic buzzer.

When normal conditions are restored (door closed), the alarm will stop. During the alarm, the buzzer can be switched off by pressing any button.

Caution! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

ENGLISH

Daily use

Warning! Refer to Safety chapters.

Accessories

Egg tray

14

x1

The walls of the refrigerator are equipped with a series of runners so that the safety glass shelves can be positioned as desired.

Caution! Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Bottle rack

Place the bottles (with the opening facing front) in the pre-positioned rack.

Ice trays x2

Freezer blocks x2

If the rack is positioned horizontally, place only closed bottles.

Movable shelves

This bottle rack can be tilted to store unsealed bottles. To obtain this result, place front hooks of the rack one level higher than the rear hooks.

ENGLISH

Positioning the door balconies Fan cooling

15

To permit storage of food packages of various sizes, the door balconies can be placed at different heights.

To make these adjustments proceed as follows: gradually pull upwards the balcony until it comes free, then reposition as desired.

Vegetable Drawers

Fruit and vegetables should be placed in these drawers (see the picture).

This device activates by itself when needed, for example for a quick temperature recovering after door opening or when the ambient temperature is high.

Allows you to switch on the device manually when needed (refer to "Fan-cooling function").

The device stops when the door is open and restarts immediately after the door closing.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Fast

Freezing function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the top compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the fridge.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

ENGLISH 16

After 24 hours, when the freezing process is completed, deactivate the Fast Freezing function (see "Fast Freezing function").

Freezing Calendar

1-2

3-6

3-4

10-12

3-6

10-12

3-6

10-12

3-6

10-12

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least

12 hours on the Fast Freezing setting.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under

"Rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one tray for the production of ice-cubes.

1. Fill the tray with water.

2. Put the tray in the freezer compartment

Caution! Do not use metallic instruments to remove the tray from the freezer.

Freezer Blocks

Two freezer blocks are supplied in the freezer; this increase the length of time for which food will keep in the event of a power failure or breakdown.

ENGLISH 17

Hints and tips

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.

• A whirring and pulsating sound from the compressor when refrigerant is pumped.

• A sudden cracking noise from inside appliance caused by thermic dilatation

(a natural and not dangerous physical phenomenon).

• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If foreseen, do not remove the cold accumulators from the freezer basket.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.

• Cooked foods, cold dishes: cover and place on any shelf.

• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.

• Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.

• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hours is shown on the rating plate;

• the freezing process takes 24 hours no further food to be frozen should be added during this period;

• freeze only top quality, fresh and thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

ENGLISH 18

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

Care and cleaning

Warning! Refer to Safety chapters.

General warnings

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

Caution! Do not pull, move or damage any pipes and/or cables inside the cabinet.

Caution! Take care of not to damage the cooling system.

Caution! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

• not open the door frequently or leave it open longer than absolutely necessary;

• once defrosted, food deteriorates rapidly and cannot be refrozen;

• do not exceed the storage period indicated by the food manufacturer.

1. Clean the inside and accessories with lukewarm water and some neutral soap.

2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush.

This operation will improve the performance of the appliance and save electricity consumption.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

ENGLISH 19

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Defrosting the freezer

The freezer compartment is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls nor on the foods.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

Troubleshooting

1. Disconnect the appliance from electricity supply.

2. Remove all food.

3. Clean the appliance and all accessories.

4. Leave the door/doors open to prevent unpleasant smells.

Warning! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

Warning! Refer to Safety chapters.

What to do if...

Problem

The appliance does not operate.

The appliance does not operate.

The appliance does not operate.

The appliance is noisy.

Audible or visual alarm is on.

Possible cause

The appliance is switched off.

The mains plug is not connected to the mains socket correctly.

There is no voltage in the mains socket.

Solution

Switch on the appliance.

Connect the mains plug to the mains socket correctly.

The appliance is not supported properly.

The cabinet has been recently switched on or the temperature is still too high.

Connect a different electrical appliance to the mains socket.

Contact a qualified electrician.

Check if the appliance stands stable.

Refer to "Door Open Alarm".

ENGLISH 20

Problem

Audible or visual alarm is on.

Audible or visual alarm is on.

Audible or visual alarm is on.

A square symbol is shown instead of numbers on the temperature display.

The lamp does not work.

The lamp does not work.

The compressor operates continually.

The compressor operates continually.

The compressor operates continually.

The compressor operates continually.

The compressor operates continually.

The compressor operates continually.

The compressor operates continually.

Possible cause

The cabinet has been recently switched on or the temperature is still too high.

The door is left open.

Solution

Refer to "High Temperature

Alarm".

Close the door.

The temperature in the appliance is too high.

Temperature sensor problem.

Contact a qualified electrician or contact the nearest Authorised Service Centre.

Contact the nearest Authorised Service Centre (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible).

Close and open the door.

The lamp is in stand-by mode.

The lamp is defective.

Contact the nearest Authorised Service Centre.

Refer to "Operation" chapter.

Temperature is set incorrectly.

Many food products were inserted at the same time.

The room temperature is too high.

Food products placed in the appliance were too warm.

The door is not closed correctly.

The Fast Freezing function is switched on.

The Shopping is switched on.

Wait a few hours and then check the temperature again.

Refer to climate class chart on the rating plate.

Allow food products to cool to room temperature before storing.

Refer to "Closing the door".

Refer to "Fast Freezing function".

Refer to "Shopping ".

ENGLISH 21

Problem

The compressor does not start immediately after pressing Fast Freezing, or after the change of the temperature.

The compressor does not start immediately after pressing Shopping, or after the change of the temperature.

Possible cause

This is normal, no error has occurred.

This is normal, no error has occurred.

Water flows inside the refrigerator.

Water flows on the floor.

Food products prevent water from flowing into the water collector.

The melting water outlet is not connected to the evaporative tray above the compressor.

Temperature cannot be set.

The Shopping is switched on.

Solution

The compressor starts after some time.

The compressor starts after some time.

Make sure that food products do not touch the rear plate.

Attach the melting water outlet to the evaporative tray.

Temperature cannot be set.

DEMO appears on the display.

The temperature in the appliance is too low/too high.

The temperature in the appliance is too low/too high.

The Fast Freezing function is switched on.

The appliance is in demonstration mode.

The temperature regulator is not set correctly.

The door is not closed correctly.

Switch off Shopping manually, or wait until the function resets automatically to set the temperature. Refer to " Shopping".

Switch off Fast Freezing function manually, or wait until the function resets automatically to set the temperature. Refer to "Fast Freezing function".

Keep the OK pressed for approximately 10 seconds until a long sound is heard and display shuts off for a short time.

Set a higher/lower temperature.

Refer to "Closing the door".

ENGLISH 22

Problem

The temperature in the appliance is too low/too high.

Possible cause

The food products temperature is too high.

The temperature in the appliance is too low/too high.

The temperature in the appliance is too low/too high.

The temperature in the appliance is too low/too high.

The temperature in the appliance is too low/too high.

Many food products were inserted at the same time.

The door has been opened too often.

The Fast Freezing function is switched on.

The Shopping is switched on.

The temperature in the appliance is too low/too high.

There is too much condensed water on the rear wall of the refrigerator.

There is no cold air circulation in the appliance.

Door was opened too frequently.

There is too much condensed water on the rear wall of the refrigerator.

Door was not closed completely.

There is too much condensed water on the rear wall of the refrigerator.

Stored food was not wrapped.

Door does not open easily.

You attempted to re-open the door immediately after closing.

Solution

Let the food products temperature decrease to room temperature before storage.

Insert less food products at the same time.

Open the door only if necessary.

Refer to "Fast Freezing function".

Refer to "Shopping".

Make sure that there is cold air circulation in the appliance.

Open the door only when necessary.

Make sure the door is closed completely.

Wrap food in suitable packaging before storing it in the appliance.

Wait a few seconds between closing and re-opening of the door.

If your appliance is still not working properly after making the above checks, contact the

Authorised Service Centre. You can find the list at the end of this manual.

Replacing the lamp

The appliance is equipped with a longlife

LED interior light.

Only service is allowed to replace the lighting device. Contact your Authorised

Service Centre.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to the assembly instructions.

3. If necessary, replace the defective door gaskets. Contact the Authorised Service

Centre.

ENGLISH

Technical data

Technical data

Product category

Appliance Type

Product dimensions

Height

Width

Depth

Net volume

Fridge

Freezer

Defrost system

Fridge

Freezer

Star rating

Rising time

Freezing capacity

Energy consumption

Noise level

Energy class

Voltage

Frequency

The technical information is situated in the rating plate on the internal left side of the appliance and in the energy label.

Refrigerator - Freezer

1772 mm

540 mm

549 mm

192 Litre

61 Litre auto auto

21 hours

10 kg/24h

0,625 kWh/24h

39 dB (A)

A++

230 - 240 V

50 Hz

23

ENGLISH 24

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol .

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol

with the household waste. Return the product to your local recycling facility or contact your municipal office.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance,

Which appliances are not covered by the

IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline

“What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr.

99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole

ENGLISH 25

discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

• Repairs caused by installation which is faulty or not according to specification.

• The use of the appliance in a nondomestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport.

However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance.

However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation

Area of validity

For appliances which are purchased in one

EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;

ENGLISH 26

• the Assembly Instructions and User

Manual Safety Information;

The dedicated After Sales Service for

IKEA appliances:

Please do not hesitate to contact IKEA After

Sales Service to:

1. make a service request under this guarantee;

2. ask for clarification on installation of the

IKEA appliance in the dedicated IKEA kitchen furniture. The service won’t provide clarifications related to:

• the overall IKEA kitchen installation;

• connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

3. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the

Assembly Instructions and/or the User

Manual section of this booklet before contacting us.

How to reach us if You need our service

In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) for the appliance of which you need our assistance.

SAVE THE SALES RECEIPT! It is

Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do You need extra help?

For any additional questions not related to

After Sales of your appliances, please contact our nearest IKEA store call centre.

We recommend you read the appliance documentation carefully before contacting us.

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

27

C o u n t r y

België

B e l g i q u e

България

Česká republika

P h o n e n u m b e

070 246016

00359888164080

0035924274080

246 019721 r

T a

C a l l F e e

Binnenlandse gesprekskosten ir f d e s a p p e l s n a it o n a u x

Такса за повикване от страната

Cena za místní hovor

8 tot 20 Weekdagen

8

O p e n

à 2 0 i n g it m e

.

E n s e m a i n e

Danmark 70 15 09 09 Landstakst

От 9 до 18 ч в работни дни

8 až 20 v pracovních dnech man. - fre. 09.00 - 20.00

lør. 09.00 - 16.00

1 søndag pr. måned, normalt første søndag i måneden

Deutschland

Ελλάδα

España

France

Hrvatska

Ireland

Ísland

Italia

Κυπρος

Lietuva

Schweiz

S u i s s e

Svizzera

Slovensko

+49 1806 33 45

32*

211 176 8276

91 1875537

0170 36 02 05

* 0,20 €/Verbindung aus dem Festnetz max. 0,60 €/Verbindung aus dem Mobilfunknetz

Υπεραστική κλήση

Tarifa de llamadas nacionales

Tarif des appels nationaux

00385 1 6323 339

0 14845915

5880503

02 00620818

22 030 529

5 230 06 99

Magyarország 061 998 0549

Nederland

0900 235 45 32 en/of

0900 BEL IKEA

N o r g e 8 1 5 2 2 0 5 2

Österreich

Polska

Portugal

România

Россия

Suomi

Sverige

Türkiye

Україна

S l o v e n ji a

С р б и ј а

0810 300486

012 297 8787

211557985

021 211 08 88

Belföldi díjszabás

15 cent/min., starttarief 4.54 cent en gebruikelijke belkosten

T a k s t i n n l a n d max. 10 Cent/min.

Stawka wg taryfy krajowej

Chamada Nacional

Tarif apel naţional

8 495 6662929 Действующие телефонные тарифы

031 5500 324

(02) 3300 2554

030 6005203

0775 700 500

212 244 0769

044 586 2078

United Kingdom 020 3347 0044

Trošak poziva 27 lipa po minuti

National call rate

Innanlandsgjald fyrir síma

Tariffa applicata alle chiamate nazionali

Υπεραστική κλήση

Nacionalinių pokalbių tarifai

Tarif für Anrufe im Bundesgebiet

T a ir f d e s a p p e l s n a it o n a u x

Tariffa applicata alle chiamate nazionali

Cena vnútroštátneho hovoru

Lankapuhelinverkosta

0,0835 €/puhelu + 0,032 €/min

Matkapuhelinverkosta 0,192 €/min lokalsamtal (lokal taxa)

Ulusal arama ücreti

Міжміськи дзвінки платні

National call rate w w w i.

k e a .

c o m w w w i.

k e a .

c o m

Werktags von 8.00 bis 20.00

8 έως 20 κατά τις εργάσιμες ημέρες

De 8 a 20 en días laborables

9 à 21. En semaine radnim danom od ponedjeljka do petka od 08:00 do 16:00

8 till 20 Weekdays

9 til 18. Virka daga dalle 8 alle 20 nei giorni feriali

8 έως 20 κατά τις εργάσιμες ημέρες

Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00

Pnkt.: 8:00 - 12:00, 12:45 - 15:45

Hétköznap 8 és 10 óra között ma - vr 08.00 - 20.00, zat 09.00 - 20.00

(zondag gesloten)

8 it l 2 0 u k e d a g e r

Mo - Fr 8.00 - 20.00 Uhr

Od 8 do 20 w dni robocze

9 às 21. Dias de Semana

*excepto feriados

8 - 20 în zilele lucrătoare с 8 до 20 по рабочим дням

Время московское

8 bis 20 Werktage

8 à 2 0 .

E n s e m a i n e dalle 8 alle 20 nei giorni feriali

8 až 20 v pracovných dňoch arkipäivisin 8.00 - 20.00 mån-fre 8.30 - 20.00

lör-sön 9.30 - 18.00

Hafta içi saat 09:00’dan 18:00’a kadar

9 - 21 В робочі дні

9 till 21. Weekdays

*

© Inter IKEA Systems B.V. 2016

21552

AA-1082351-3

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
