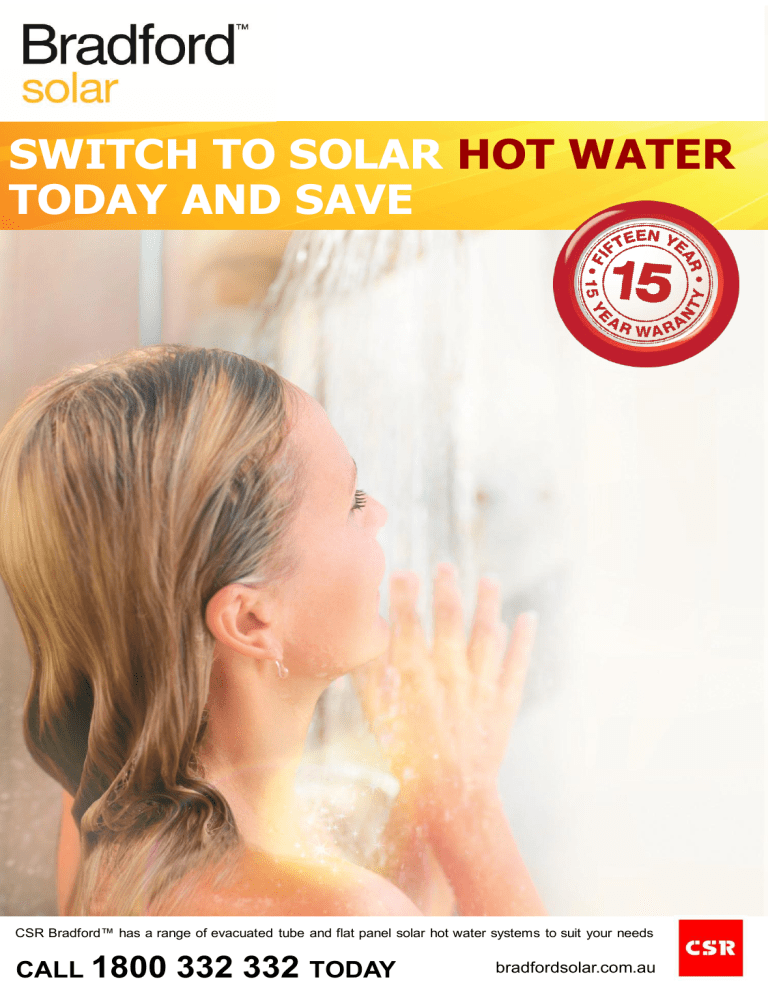

SWITCH TO SOLAR HOT WATER
TODAY AND SAVE
CSR Bradford™ has a range of evacuated tube and flat panel solar hot water systems to suit your needs
CALL 1800
332 332 TODAY
bradfordsolar.com.au
EVACUATED TUBE
leading the way
CSR Bradford™ have a range
of solar hot water systems that
use advanced evacuated glass
tube technology to capture the
sun’s thermal energy.
The result is a solar hot water
system that delivers an
improved energy efficiency of
up to 90%. This effectively
reduced households CO²
emissions by up to 4 Tonnes
per year, the equivalent of
taking a car off the road.
CSR Bradford™ solar hot
water systems are not only
designed to provide superior
performance but will also look
great and add value to your
home while saving you money
on your hot water heating bill.
*15 year warranty
on major
components only
(manifolds,
evacuated tubes,
tanks and frames)
Terms and
Conditions apply.
See owners
manual for details.
next generation
solar hot water
The CSR Bradford™ evacuated
tube solar hot water system
combines high efficiency solar
thermal collectors with a stainless
steel storage tank. The result is a
solar hot water system that
delivers exceptional heating
efficiency and outstanding
durability.
The evacuated tubes, mounting
frame, manifold and stainless
steel tank have a 15 year
warranty* and are designed with
Australia’s extreme climate in
mind, offering frost resistance to
minus -15ºC.
Available with energy efficient
mid-mounted electric element
booster you will have hot water
available all year round. The
systems also qualify for STCs
(small scale technology
certificates) providing a rebate for
your solar hot water investment
with CSR Bradford™.
how it works
2
solar hot water systems
STC ZONES Australia
(small scale technology certificates)
Solar hot water systems detailed below are listed under the manufacturer name ‘Hills Solar’
in the register of solar water heaters on the clean energy regulator website www.cleanenergyregulator.gov.au/Hot-Water-Systems/eligible-swhs
THE RIGHT SYSTEM
STC
ZONE 3
STC
ZONE 4
22 x evacuated tubes, 240L stainless steel tank,
electric booster, MID -mount element, 3.6kW,
solar controller/pump kit, RMC valve install kit
20
18
30 x evacuated tubes, 320L stainless steel tank,
electric booster, MID -mount element, 3.6kW,
solar controller/pump kit, RMC valve install kit
31
Model #
System Description
HSS-240M-ET22
HSS-320M-ET30
Hot Water
Consumption
27
VEECS 42
THE RIGHT WARRANTY
Domestic use warranty period
Component Part
Part
Labour
Hot water tank (stainless steel)
15 years
3 years
Evacuated tubes, manifold and stainless steel mounting frame
15 years
1 year
Solar controller, Grundfos pump and sensor leads
1 year*
1 year
Electric heating element and thermostat
1 year*
1 year
RMC valve kit supplied with solar hot water system
1 years
1 year
*15 year warranty on major components only (manifolds, evacuated tubes, tanks and frames) Terms and Conditions apply. See owners manual for details.
THE RIGHT SPECIFICATIONS
Measurement
Number of evacuated tubes per collector panel
Weight (incl. standard frame/tubes/manifold)
Height of collector (including manifold)
Width of collector
Distance between Inlet and Outlet Ports
Collector header pipe outer diameter
Collector piping connections
Surface area of collector
Absorber area of collector
Aperture area of collector
Water capacity of manifold
Weight of low pitched roof frame
Operating positive pressure max.
Weight of A-frame (for flat roofs)
Collector frame material
Material selective absorber layer
bradfordsolar.com.au
22 evacuated tube system
30 evacuated tube system
22
82kg
2000mm
1845mm
1920mm
30
110kg
2000mm
2485mm
2560mm
20mm
½”
3.69m2
1.76m2
2.086m2
1260ml
10.5kg
4.97m2
2.40m2
2.844m2
1770ml
11.1kg
1000kPa
11.5kg
12.1kg
Stainless steel 304-2B
Stainless steel, copper, aluminium nitrite (triple layer)
3
FLAT PANEL
advanced solar
thermal technology
Using advanced technology and
innovative design, the CSR
Bradford™ flat panel solar hot water
system delivers performance
efficiencies that exceed those of
comparable flat panel solar hot
water systems.
The flat panel solar hot water
system uses single sheet sun
selective panels which increase
absorption and reduce heat loss.
high performance
solar hot water
The CSR Bradford™ flat panel solar hot water system is designed
to provide superior solar hot water performance, saving up to 85%
of your annual hot water energy costs.
There are10 copper risers in each panel to maximise the heat
exchange process. The panels use a sun-selective absorber titan
coating to ensure high solar absorbency. High density thermal
insulation in the panels maximises heat retention.
The systems is an attractive slimline panel design which looks
great and adds value to your home. The light weight roof panels
mean no need for roof structure reinforcement and the groundmounted tanks eliminate unsightly tanks on your roof.
The solar panels are a unique single
piece base construction and are
laser welded for optimal heat
transfer. High-density thermal
insulation is used inside the solar
panels to minimise heat loss.
how it works
4
solar hot water systems
STC ZONES Australia
(small scale technology certificates)
Solar hot water systems detailed below are listed under the manufacturer name ‘Hills Solar’
in the register of solar water heaters on the clean energy regulator website www.cleanenergyregulator.gov.au/Hot-Water-Systems/eligible-swhs
THE RIGHT SYSTEM
Hot Water
Consumption
STC
ZONE 3
Model #
System Description
HSS-240M-FP2
2 x flat panels, 240L stainless steel tank, electric
booster, MID -mount element, 3.6kW, solar
controller/pump kit, RMC valve install kit
38
HSS-320M-FP2
2 x flat panels, 320L stainless steel tank, electric
booster, MID -mount element, 3.6kW, solar
controller/pump kit, RMC valve install kit
37
STC
ZONE 4
33
32
VEECS 43
THE RIGHT WARRANTY
Domestic use warranty period
Component Part
Part
Labour
Hot water tank (stainless steel )
15 years
3 years
Flat panels and aluminium mounting frame
7 years
1 year
Solar controller, Grundfos pump and sensor leads
1 year*
1 year
Electric heating element and thermostat
1 year*
1 year
RMC valve kit supplied with solar hot water system
1 years
1 year
*15 year warranty on stainless steel tanks. 7 year warranty on panels. Terms and Conditions apply. See owners manual for deta ils.
THE RIGHT SPECIFICATIONS
Measurement
Number of risers per panel
Total panel area
Surface area of panel (absorber)
Water in panel
Dimensions of panel Length x Height x Width
Weight of panel (without water)
Total weight of panel (with water)
Operating positive pressure max.
Absorber material
Absorber Coefficient
Radiation Coefficient
Header pipe outer diameter
Frame on panel
Seals on panel
Insulation in panel
Trough of panel
bradfordsolar.com.au
2 flat panel system
20
4.042
3.62m 2
3500ml
4020mm x 2020mm x 220mm
76kg
80kg
1000kPa
Sun-Selective, metal sheet, titan coating (high absorbency, low radiation, max energy retention)
95%  2%
5%  2%
22mm
Electrostatically painted aluminium frame
UV proofed, solar rubber seal
60mm thick Rock Wool insulation in base and side walls of panel
External one piece navel grade aluminium alloy trough
5
HOT WATER TANKS
and solar controller/pump and valve kits
THE RIGHT SPECIFICATIONS
stainless steel
hot water tank
Strong and reliable, electric boosted stainless
steel storage tanks are manufactured to
Australian Standards AS1056.1 and AS3142.
The tank uses 316 marine grade stainless
steel inner vessel and has mild steel outer
casing. The tank is insulated with high density
CFC-free polyurethane. Coloured ports &
3.6kW mid-mount element.
Measurement
Diameter (mm)
Height (mm)
Tank capacity (L)
Net weight (kg)
Weight when full of water (kg)
Tank wall thickness (mm)
Element rating (if installed)
PTR valve pressure limit (kPa)
PTR valve temperature limit (°C)
PTR max energy release rate (kW)
Cold water inlet (from base, mm)
Flow line to collector (from base, mm)
Return line from collector (from base, mm)
PTR valve height from base (mm)
Electric boost tank hot water outlet (mm)
Gas boost tank hot water outlet (mm)
Sensor well (from base, mm)
240L
320L
540
1720
240L
62kg
302kg
1.6
3.6kW
850
99°C
10
125
1535
185
1535
1535
185
600
1920
320L
72kg
392kg
1.6
3.6kW
850
99°C
10
125
1720
185
1720
1720
185
THE RIGHT SPECIFICATIONS
solar controller and pump
valve installation kit (RMC)
valve components supplied with each solar hot water system include;
The solar controller/pump unit can be
mounted onto the side of the tank using
self-tapping screws.
Freeze protection is incorporated into
the solar hot water systems. When the
temperature in the manifold or flat panel
drops to 4°C, the pump is turned on and
when the manifold or flat panel
temperature rises to 6°C, the pump is
turned off.
RMC™ Auto Air Vent
RMC™ HeatGuard™ Ultra
AVHTS-15, air and vacuum relief
valve (240ºC)
High performance tempering valve 15mm
(1/2”) compression fitting, nuts, olives and
insulation included (Solar Rated)
RMC™ Trio Valve
6
NRI50S – non-return isolating
valve with strainer
RMC™ P&T Relief Valve
HT505 – HT55 850 kPa ½” BSP
RMC™ Pressure
Limiting Valve
PSL50 500kPA ½” BSP
THE SOLAR HOT WATER SOLUTION
household electricity use
The pie chart below shows the average energy use in an Australian home.* To save energy
costs, start by focussing on the largest energy users – this includes hot water heating.
the solar solution
save money & the environment
In addition to the
economic advantages,
solar hot water systems
provide significant
environmental benefits
with reduced energy
use translating to a
reduction in
greenhouse gas
emissions.
In the search for
more cost effective
and environmentally
sustainable energy
sources, solar hot
water provides the
perfect solution.
Up to 25% of most
Australian
households’
electricity use is for
heating hot water.
By installing a solar
hot water system,
households can
reduce their annual
hot water heating
costs by up to 90%.
*SOURCE: Government of South Australia, Energy Audit
report, Data based on Baseline Energy Estimates 2008.
The ability to save
money and save the
environment makes
solar heated hot water
the right choice for your
family and the
environment.
considerations for selecting solar hot water
purchase and installation costs
While solar hot water heaters are more expensive to buy and
install vs. electrical tank hot water heaters, you will save money
on hot water heating costs over the long term. Your solar hot
water system investment will pay for itself in the first 3 to 5 years.
capacity
Medium and large tank capacities are available. The larger the
tank, the more solar heated water than can be stored. Consider
the space you have available and your budget.
environment and rebates
Powered by renewable energy, solar hot water heaters reduce
electricity consumption. STC (small scale technology
certificates) offer you a rebate for installing solar hot water.
CSR Bradford™
Locked Bag 1345 North Ryde BC NSW 1670
CSR Bradford™ is a business division
of CSR Building Products Limited ABN 90 000 001 276
bradfordsolar.com.au
7
ENJOY THE BEST IN
SOLAR HOT WATER
WITH CSR BRADFORD
TM
BE
SOLAR
SMART
AND
SAVE
1800 332 332
bradfordsolar.com.au
1300 306 556
1300 850 305
1300 369 448
1300 666 437
1800 332 332
gyprock.com.au
bradfordinsulation.com.au
hebel.com.au
monier.com.au
bradfordenergysolutions.com.au
1300 712 155
131 579
1300 858 674
1300 236 468
viridianglass.com.au
pghbricks.com.au
edmonds.com.au
cedmintel.com.au
BHW BRO 003 - CSR Bradford solar hot water consumer brochure v3.0 (Sept2013)
1800 633 826
CSR Building Products Limited
Triniti 3, 39 Delhi Road
North Ryde NSW
csr.com.au
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
