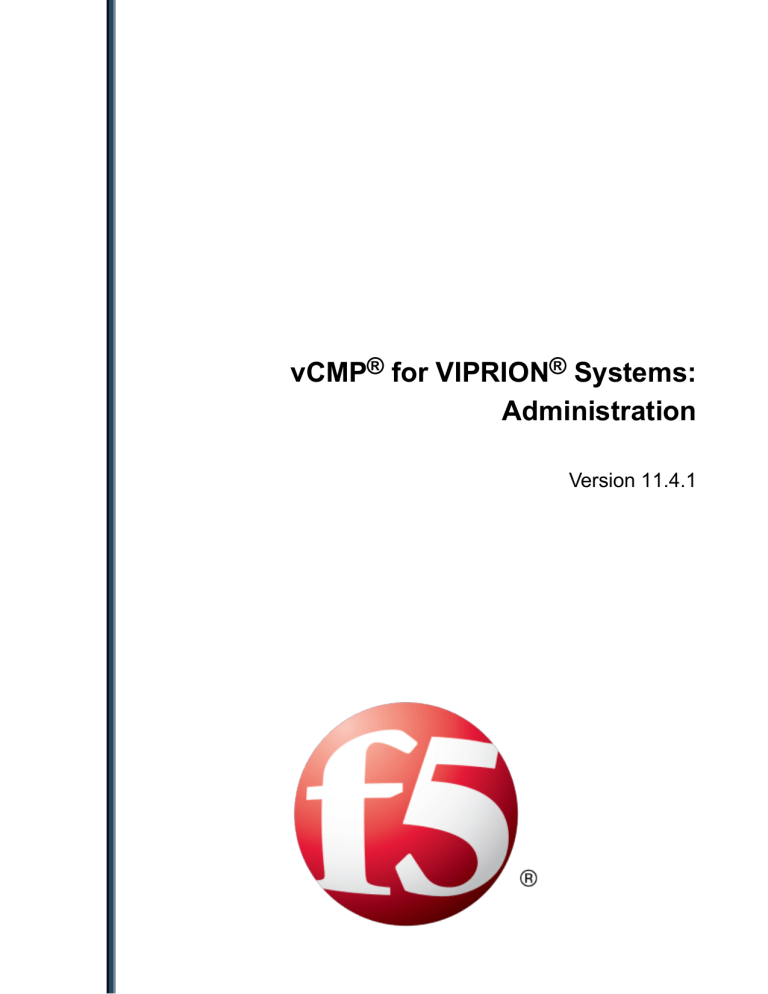

vCMP® for VIPRION® Systems:
Administration
Version 11.4.1
Table of Contents
Table of Contents
Legal Notices.....................................................................................................7
Acknowledgments.............................................................................................9
Chapter 1: Introduction to the vCMP System........................................................................13
What is vCMP?................................................................................................................14
Other vCMP system components....................................................................................15
Network isolation..............................................................................................................15
About vCMP system administration.................................................................................16
Supported BIG-IP system versions..................................................................................16
BIG-IP license considerations for vCMP..........................................................................16
vCMP provisioning...........................................................................................................17
Chapter 2: Flexible Resource Allocation...............................................................................19
What is flexible resource allocation?................................................................................20
Resource allocation planning...........................................................................................20
Prerequisite hardware considerations...................................................................20
Understanding guest resource requirements........................................................20
About core allocation for a guest...........................................................................21
Formula for host memory allocation to a guest.....................................................21
About slot assignment for a guest.........................................................................22
About single-core guests.......................................................................................22
Resource allocation results...................................................................................23
Scalability considerations.................................................................................................24
About initial slot assignment..................................................................................24
About changing slot assignments..........................................................................25
Effect of blade removal on a guest........................................................................25
Effect of blade re-insertion on a guest...................................................................26
About SSL and compression hardware............................................................................26
Guest states and resource allocation...............................................................................26
Chapter 3: Deployment Examples..........................................................................................29
A single-slot LTM guest on a standalone system.............................................................30
Dual-slot LTM guest within a device group.......................................................................30
Multiple guests on multiple slots in device groups...........................................................31
Chapter 4: Network Considerations.......................................................................................33
About management network modes for a vCMP guest....................................................34
About Layer2/Layer3 network configuration.....................................................................34
Management IP addresses for a guest............................................................................35
3
Table of Contents
About the VLAN publishing strategy................................................................................36
Overview of VLAN subscription.............................................................................36
About VLANs with identical tags and different names...........................................37
About VLANs with identical names and different tags...........................................38
Solution for tag discrepancy between host and guest VLANs...............................39
Interface assignment for vCMP guests............................................................................41
Chapter 5: Device Service Clustering for vCMP Systems...................................................43
Overview: Device service clustering for vCMP systems..................................................44
Required IP addresses for DSC configuration.................................................................44
Failover methods for vCMP guests..................................................................................45
About HA groups for vCMP systems................................................................................45
About connection mirroring for vCMP systems................................................................46
Chapter 6: Initial vCMP Configuration Tasks........................................................................47
vCMP application volume management...........................................................................48
Viewing disk space allocation for a vCMP application volume..............................48
Modifying disk space allocation for a vCMP application volume...........................48
Host configuration............................................................................................................49
Accessing the vCMP host.....................................................................................49
Provisioning the vCMP feature..............................................................................49
Creating a vCMP guest.........................................................................................50
Setting a vCMP guest to the Deployed state.........................................................52
Guest configuration..........................................................................................................52
Provisioning BIG-IP modules within a guest.........................................................53
Specifying cluster member IP addresses for a guest............................................53
Creating a self IP address within a vCMP guest...................................................54
Next steps.............................................................................................................54
Configuration results........................................................................................................54
Chapter 7: Managing vCMP Virtual Disks.............................................................................57
Overview: Managing virtual disks....................................................................................58
About virtual disk allocation...................................................................................58
About virtual disk images......................................................................................58
About virtual disk detachment and re-attachment.................................................58
About virtual disk migration...................................................................................59
Detaching virtual disks from a vCMP guest.....................................................................59
Viewing virtual disks not attached to a vCMP guest........................................................60
Attaching a detached virtual disk to a vCMP guest..........................................................60
Deleting a virtual disk from the BIG-IP system................................................................60
Chapter 8: Understanding Clusters.......................................................................................63
Overview: Managing a vCMP cluster...............................................................................64
4
Table of Contents
Viewing cluster properties................................................................................................64
Cluster properties..................................................................................................64
Viewing cluster member properties..................................................................................64
Cluster member properties....................................................................................65
Enabling and disabling cluster members.........................................................................65
Changing a cluster-related management IP address.......................................................66
Cluster-related IP addresses.................................................................................66
Chapter 9: Viewing vCMP Statistics.......................................................................................67
Overview: Viewing vCMP statistics..................................................................................68
Viewing virtual disk statistics............................................................................................68
Viewing vCMP guest statistics with the BIG-IP Configuration utility................................68
Viewing disk usage statistics............................................................................................69
Appendix A: Best Practices.....................................................................................................71
vCMP best practices........................................................................................................72
Appendix B: Calculation for Maximum Core Allocation.......................................................73
Calculation for determining maximum core allocation......................................................74
5
Table of Contents
6
Legal Notices
Publication Date
This document was published on June 25, 2015.
Publication Number
MAN-0376-06
Copyright
Copyright © 2013-2015, F5 Networks, Inc. All rights reserved.
F5 Networks, Inc. (F5) believes the information it furnishes to be accurate and reliable. However, F5 assumes
no responsibility for the use of this information, nor any infringement of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent,
copyright, or other intellectual property right of F5 except as specifically described by applicable user
licenses. F5 reserves the right to change specifications at any time without notice.
Trademarks
AAM, Access Policy Manager, Advanced Client Authentication, Advanced Firewall Manager, Advanced
Routing, AFM, APM, Application Acceleration Manager, Application Security Manager, ARX, AskF5,
ASM, BIG-IP, BIG-IQ, Cloud Extender, CloudFucious, Cloud Manager, Clustered Multiprocessing, CMP,
COHESION, Data Manager, DevCentral, DevCentral [DESIGN], DNS Express, DSC, DSI, Edge Client,
Edge Gateway, Edge Portal, ELEVATE, EM, Enterprise Manager, ENGAGE, F5, F5 [DESIGN], F5 Certified
[DESIGN], F5 Networks, Fast Application Proxy, Fast Cache, FirePass, Global Traffic Manager, GTM,
GUARDIAN, iApps, IBR, Intelligent Browser Referencing, Intelligent Compression, IPv6 Gateway,
iControl, iHealth, iQuery, iRules, iRules OnDemand, iSession, L7 Rate Shaping, LC, Link Controller, Local
Traffic Manager, LTM, LineRate, LineRate Systems [DESIGN], LROS, Message Security Manager, MSM,
OneConnect, Packet Velocity, PEM, Policy Enforcement Manager, Protocol Security Manager, PSM, Real
Traffic Policy Builder, ScaleN, Signalling Delivery Controller, SDC, SSL Acceleration, StrongBox, SuperVIP,
SYN Check, TCP Express, TDR, TMOS, Traffic Management Operating System, Traffix Systems, Traffix
Systems (DESIGN), Transparent Data Reduction, UNITY, VAULT, VIPRION, vCMP, VE F5 [DESIGN],
Virtual Clustered Multiprocessing, WA, WAN Optimization Manager, WebAccelerator, WOM, and
ZoneRunner, are trademarks or service marks of F5 Networks, Inc., in the U.S. and other countries, and
may not be used without F5's express written consent.
All other product and company names herein may be trademarks of their respective owners.
Patents
This product may be protected by one or more patents indicated at:
http://www.f5.com/about/guidelines-policies/patents
Acknowledgments
This product includes software developed by Bill Paul.
This product includes software developed by Jonathan Stone.
This product includes software developed by Manuel Bouyer.
This product includes software developed by Paul Richards.
This product includes software developed by the NetBSD Foundation, Inc. and its contributors.
This product includes software developed by the Politecnico di Torino, and its contributors.
This product includes software developed by the Swedish Institute of Computer Science and its contributors.
This product includes software developed by the University of California, Berkeley and its contributors.
This product includes software developed by the Computer Systems Engineering Group at the Lawrence
Berkeley Laboratory.
This product includes software developed by Christopher G. Demetriou for the NetBSD Project.
This product includes software developed by Adam Glass.
This product includes software developed by Christian E. Hopps.
This product includes software developed by Dean Huxley.
This product includes software developed by John Kohl.
This product includes software developed by Paul Kranenburg.
This product includes software developed by Terrence R. Lambert.
This product includes software developed by Philip A. Nelson.
This product includes software developed by Herb Peyerl.
This product includes software developed by Jochen Pohl for the NetBSD Project.
This product includes software developed by Chris Provenzano.
This product includes software developed by Theo de Raadt.
This product includes software developed by David Muir Sharnoff.
This product includes software developed by SigmaSoft, Th. Lockert.
This product includes software developed for the NetBSD Project by Jason R. Thorpe.
This product includes software developed by Jason R. Thorpe for And Communications, http://www.and.com.
This product includes software developed for the NetBSD Project by Frank Van der Linden.
This product includes software developed for the NetBSD Project by John M. Vinopal.
This product includes software developed by Christos Zoulas.
This product includes software developed by the University of Vermont and State Agricultural College and
Garrett A. Wollman.
This product includes software developed by Balazs Scheidler ([email protected]), which is protected under
the GNU Public License.
This product includes software developed by Niels Mueller ([email protected]), which is protected under
the GNU Public License.
Acknowledgments
In the following statement, This software refers to the Mitsumi CD-ROM driver: This software was developed
by Holger Veit and Brian Moore for use with 386BSD and similar operating systems. Similar operating
systems includes mainly non-profit oriented systems for research and education, including but not restricted
to NetBSD, FreeBSD, Mach (by CMU).
This product includes software developed by the Apache Group for use in the Apache HTTP server project
(http://www.apache.org/).
This product includes software licensed from Richard H. Porter under the GNU Library General Public
License (© 1998, Red Hat Software), www.gnu.org/copyleft/lgpl.html.
This product includes the standard version of Perl software licensed under the Perl Artistic License (© 1997,
1998 Tom Christiansen and Nathan Torkington). All rights reserved. You may find the most current standard
version of Perl at http://www.perl.com.
This product includes software developed by Jared Minch.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
This product includes cryptographic software written by Eric Young ([email protected]).
This product contains software based on oprofile, which is protected under the GNU Public License.
This product includes RRDtool software developed by Tobi Oetiker (http://www.rrdtool.com/index.html)
and licensed under the GNU General Public License.
This product contains software licensed from Dr. Brian Gladman under the GNU General Public License
(GPL).
This product includes software developed by the Apache Software Foundation (http://www.apache.org/).
This product includes Hypersonic SQL.
This product contains software developed by the Regents of the University of California, Sun Microsystems,
Inc., Scriptics Corporation, and others.
This product includes software developed by the Internet Software Consortium.
This product includes software developed by Nominum, Inc. (http://www.nominum.com).
This product contains software developed by Broadcom Corporation, which is protected under the GNU
Public License.
This product contains software developed by MaxMind LLC, and is protected under the GNU Lesser General
Public License, as published by the Free Software Foundation.
This product includes Intel QuickAssist kernel module, library, and headers software licensed under the
GNU General Public License (GPL).
This product includes software licensed from Gerald Combs ([email protected]) under the GNU General
Public License as published by the Free Software Foundation; either version 2 of the License, or any later
version. Copyright ©1998 Gerald Combs.
This product includes software developed by Thomas Williams and Colin Kelley. Copyright ©1986 - 1993,
1998, 2004, 2007
Permission to use, copy, and distribute this software and its documentation for any purpose with or without
fee is hereby granted, provided that the above copyright notice appear in all copies and that both that
copyright notice and this permission notice appear in supporting documentation. Permission to modify the
software is granted, but not the right to distribute the complete modified source code. Modifications are to
be distributed as patches to the released version. Permission to distribute binaries produced by compiling
modified sources is granted, provided you
1. distribute the corresponding source modifications from the released version in the form of a patch file
along with the binaries,
10
vCMP® for VIPRION® Systems: Administration
2. add special version identification to distinguish your version in addition to the base release version
number,
3. provide your name and address as the primary contact for the support of your modified version, and
4. retain our contact information in regard to use of the base software.
Permission to distribute the released version of the source code along with corresponding source modifications
in the form of a patch file is granted with same provisions 2 through 4 for binary distributions. This software
is provided "as is" without express or implied warranty to the extent permitted by applicable law.
This product contains software developed by Google, Inc. Copyright ©2011 Google, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions
of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
11
Chapter
1
Introduction to the vCMP System
•
•
•
•
•
•
•
What is vCMP?
Other vCMP system components
Network isolation
About vCMP system administration
Supported BIG-IP system versions
BIG-IP license considerations for vCMP
vCMP provisioning
Introduction to the vCMP System
What is vCMP?
Virtual Clustered Multiprocessing™ (vCMP®) is a feature of the BIG-IP® system that allows you to provision
and manage multiple, hosted instances of the BIG-IP software on a single hardware platform. A vCMP
hypervisor allocates a dedicated amount of CPU, memory, and storage to each BIG-IP instance. As a vCMP
system administrator, you can create BIG-IP instances and then delegate the management of the BIG-IP
software within each instance to individual administrators.
A key part of the vCMP system is its built-in flexible resource allocation feature. With flexible resource
allocation, you can instruct the hypervisor to allocate a different amount of resource, in the form of cores,
to each BIG-IP instance, according to the particular needs of that instance. Each core that the hypervisor
allocates contains a fixed portion of system CPU and memory.
Furthermore, whenever you add blades to the VIPRION® cluster, properly-configured BIG-IP instances
can take advantage of those additional CPU and memory resources without traffic interruption.
At a high level, the vCMP system includes two main components:
vCMP host
The vCMP host is the system-wide hypervisor that makes it possible for you to create and view BIG-IP
instances, known as guests. Through the vCMP host, you can also perform tasks such as creating trunks
and VLANs, and managing guest properties. For each guest, the vCMP host allocates system resources,
such as CPU and memory, according to the particular resource needs of the guest.
vCMP guests
A vCMP guest is an instance of the BIG-IP software that you create on the vCMP system for the purpose
of provisioning one or more BIG-IP® modules to process application traffic. A guest consists of a TMOS®
instance, plus one or more BIG-IP modules. Each guest has its own share of hardware resources that
the vCMP host allocates to the guest, as well as its own management IP addresses, self IP addresses,
virtual servers, and so on. In this way, each guest effectively functions as its own multi-blade VIPRION®
cluster, configured to receive and process application traffic with no knowledge of other guests on the
system. Furthermore, each guest can use TMOS® features such as route domains and administrative
partitions to create its own multi-tenant configuration. Each guest requires its own guest administrator
to provision, configure, and manage BIG-IP modules within the guest. The maximum number of guests
that a fully-populated chassis can support varies by chassis and blade platform.
This illustration shows a basic vCMP system with a host and four guests. Note that each guest has a different
set of modules provisioned, depending on the guest's particular traffic requirements.
Figure 1: Example of a four-guest vCMP system
14
vCMP® for VIPRION® Systems: Administration
Other vCMP system components
In addition to the host and guests, the vCMP® system includes these components:
Virtual machine
A virtual machine (VM) is an instance of a guest that resides on a slot and functions as a member of the
guest's virtual cluster. This illustration shows a system with guests, each with one or more VMs.
Figure 2: Guest VMs as cluster members
Virtual disk
A virtual disk is the portion of disk space on a slot that the system allocates to a guest VM. For example,
if a guest spans three slots, the system creates three virtual disks for that guest, one for each blade on
which the guest is provisioned. Each virtual disk is implemented as an image file with an .img extension,
such as guest_A.img.
Virtual slot
A virtual slot is the portion of a slot that the host has allocated to a specific guest.
Core
A core is a portion of a blade's CPU and memory that the vCMP host allocates to a guest. The amount
of CPU and memory that a core provides varies by blade platform.
Network isolation
The vCMP® system separates the data plane network from the management network. That is, the host
operates with the hardware switch fabric to control the guest data plane traffic. Each slot in the chassis has
its own network interface for data plane traffic that is separate from the management network. This separation
of the data plane network from the management network provides true multi-tenancy by ensuring that traffic
for a guest remains separate from all other guest traffic on the system.
The following illustration shows the separation of the data plane network from the management network.
15
Introduction to the vCMP System
Figure 3: Isolation of the data plane network from the management network
About vCMP system administration
Administering a vCMP® system requires two distinct types of administrators: a vCMP host administrator
who manages the host to create trunks and VLANs, create guests, and allocate resources to those guests,
and a vCMP guest administrator who provisions and configures BIG-IP modules within a specific guest.
On a vCMP system, the administrative user accounts, roles, and associated access control mechanisms of
a vCMP host are separate from those of the guests. This prevents a user from accessing the host or other
guests on the system, thereby ensuring the separation of administrative tasks across the vCMP deployment.
After you initially set up the vCMP host, you will have a standalone, multi-tenant vCMP system with some
number of guests defined. A guest administrator will then be ready to provision and configure the BIG-IP
modules within a guest to process application traffic.
Optionally, if the host administrator has set up a second system with equivalent guests, a guest administrator
can configure high availability for any two equivalent guests.
Supported BIG-IP system versions
On a vCMP® system, the host and the guests can run any combination of BIG-IP® 11.x software. For
example, in a three-guest configuration, the host can run version 11.2.1, while guests run 11.2.0, 11.3.0,
and 11.4.1. With this type of version support, you can run multiple versions of the BIG-IP software
simultaneously for testing, migration staging, or environment consolidation.
An exception to this is the B4300 blade platform, which requires the host and guests to run version 11.2 or
higher.
For information on the specific host-guest combinations that vCMP supports, see the vCMP® host and
supported guest version matrix on the AskF5™ Knowledge Base at http://support.f5.com.
BIG-IP license considerations for vCMP
The BIG-IP® system license authorizes you to provision the vCMP® feature and create guests with one or
more BIG-IP system modules provisioned. Note the following considerations:
16
vCMP® for VIPRION® Systems: Administration
•
•
•
Each guest inherits the license of the vCMP host.
The host license must include all BIG-IP modules that are to be provisioned across all guest instances.
Examples of BIG-IP modules are BIG-IP Local Traffic Manager™ and BIG-IP Global Traffic Manager™.
The license allows you to deploy the maximum number of guests that the specific blade platform allows.
You activate the BIG-IP system license when you initially set up the vCMP host.
vCMP provisioning
To enable the vCMP® feature, you perform two levels of provisioning. First, you provision the vCMP feature
as a whole. When you do this, the BIG-IP® system, by default, dedicates most of the disk space to running
the vCMP feature, and in the process, creates the host portion of the vCMP system. Second, once you have
configured the host to create the guests, each guest administrator logs in to the relevant guest and provisions
the required BIG-IP modules. In this way, each guest can run a different combination of modules. For
example, one guest can run BIG-IP® Local Traffic Manager™ (LTM®) only, while a second guest can run
LTM® and BIG-IP ASM™.
Important: Once you provision the vCMP feature, you cannot provision any BIG-IP modules, such as
BIG-IP LTM, on the vCMP host. Moreover, if any BIG-IP modules are already provisioned on the system
before you provision the vCMP feature, those modules are de-provisioned when you provision the vCMP
feature. This, in turn, interrupts any application traffic currently being processed.
Note: The reserved disk space protects against any possible resizing of the file system.
17
Chapter
2
Flexible Resource Allocation
•
•
•
•
•
What is flexible resource allocation?
Resource allocation planning
Scalability considerations
About SSL and compression hardware
Guest states and resource allocation
Flexible Resource Allocation
What is flexible resource allocation?
Flexible resource allocation is a built-in vCMP® feature that allows vCMP host administrators to optimize
the use of available system resources. Flexible resource allocation gives you the ability to configure the
host to assign a different amount of CPU and memory to each guest, based on the traffic processing and
memory needs of the specific BIG-IP® modules provisioned within a guest.
Each blade provides CPU and memory in the form of cores. When you create each guest, you specify the
number of logical cores that you want the host to allocate to the guest, and you identify the specific slots
that you want the host to assign to the guest. Through flexible core allocation, you can customize CPU and
memory allocation in granular ways that meet the specific resource needs of each guest.
Resource allocation planning
To determine the resource allocation that you need to configure for each guest, you must know the resource
capacity of your blade model and the total memory requirement for each guest. You can then calculate the
number of cores required for each guest based on the memory requirement and the slot assignments you
want to configure for each guest.
Prerequisite hardware considerations
Blade models vary in terms of how many cores the blade provides and how much memory each core contains.
Also variable is the maximum number of guests that each blade model supports. For example, a single
B2100 blade provides eight cores and approximately 3 gigabytes (GB) of memory per core, and supports
a maximum of four guests.
Before you can determine the number of cores to allocate to a guest and the number of slots to assign to a
guest, you should understand:
•
•
•
The total number of cores that the blade model provides
The amount of memory that each blade model provides
The maximum number of guests that the blade model supports
By understanding these metrics, you ensure that the total amount of resource you allocate to guests is aligned
with the amount of resource that your blade model supports.
For specific information on the resources that each blade model provides, see the vCMP® guest memory/CPU
core allocation matrix on the AskF5™ Knowledge Base at http://support.f5.com.
Understanding guest resource requirements
Before you create vCMP® guests and allocate system resources to them, you need to determine the specific
CPU and memory needs of each guest. You can then decide how many cores to allocate and slots to assign
to a guest, factoring in the resource capacity of your blade model.
To determine the CPU and memory resource needs, you must know:
•
•
20
The number of guests you need to create
The specific BIG-IP® modules you need to provision within each guest
vCMP® for VIPRION® Systems: Administration
•
The combined memory requirement of all BIG-IP modules within each guest
About core allocation for a guest
When you create a guest on the vCMP® system, you must specify the total number of cores that you want
the host to allocate to the guest based on the guest's total resource needs. Each core provides some amount
of CPU and a fixed amount of memory. You should therefore specify enough cores to satisfy the combined
memory requirements of all BIG-IP® modules that you provision within the guest. When you deploy the
guest, the host allocates this number of cores to every slot on which the guest runs, regardless of the number
of slots you have assigned to the guest.
It is important to understand that the total amount of memory available to a guest is only as much as the
host has allocated to each slot. If you instruct the host to allocate a total of two cores per slot for the guest
(for example, 6 GB of memory depending on blade model) and you configure the guest to run on four slots,
the host does not aggregate the 6 GB of memory on each slot to provide 24 GB of memory for the guest.
Instead, the guest still has a total of 6 GB of memory available. This is because blades in a chassis operate
as a cluster of independent devices, which ensures that if the number of blades for the guest is reduced for
any reason, the remaining blades still have the required memory available to process the guest traffic.
Formula for host memory allocation to a guest
You can use a formula to confirm that the cores you plan to allocate to a specific guest are sufficient, given
the guest's total memory requirements:
(total_GB_memory_per_blade - 3 GB) x (cores_per_slot_per_guest / total_cores_per_blade) =
amount of guest memory allocation from host
Important: For metrics on memory and CPU support per blade model, refer to the vCMP® guest
memory/CPU allocation matrix at http://support.f5.com.
The variables in this formula are defined as follows:
total_GB_memory_per_blade
The total amount of memory in gigabytes that your specific blade model provides (for all guests
combined).
cores_per_slot_per_guest
The estimated number of cores needed to provide the total amount of memory that the guest requires.
total_cores_per_blade
The total number of cores that your specific blade model provides (for all guests combined).
For example, if you have a VIPRION® 2150 blade, which provides approximately 32 GB memory through
a maximum of eight cores, and you estimate that the guest will need two cores to satisfy the guest's total
memory requirement of 8 GB, the formula looks as follows:
(32 GB - 3 GB) x (2 cores / 8 cores) = 7.25 GB memory that the host will allocate to the
guest per slot
In this case, the formula shows that two cores will not provide sufficient memory for the guest. If you specify
four cores per slot instead of two, the formula shows that the guest will have sufficient memory:
(32 GB - 3 GB) x (4 cores / 8 cores) = 14.5 GB memory that the host will allocate to the guest
per slot
21
Flexible Resource Allocation
Note that except for single-core guests, the host always allocates cores in increments of two . For example,
for B2150 blade models, the host allocates cores in increments of 2, 4, and 8.
Once you use this formula for each of the guests you plan to create on a slot, you can create your guests so
that the combined memory allocation for all guests on a slot does not exceed the total amount of memory
that the blade model provides.
About slot assignment for a guest
On the vCMP® system, the host assigns some number of slots to each guest based on information you
provide when you initially create the guest. The key information that you provide for slot assignment is the
maximum and minimum number of slots that a host can allocate to the guest, as well as the specific slots
on which the guest is allowed to run. With this information, the host determines the number of slots and
the specific slot numbers to assign to each guest.
As a best practice, you should configure every guest so that the guest can span all slots in the cluster whenever
possible. The more slots that the host can assign to a guest, the lighter the load is on each blade (that is, the
fewer the number of connections that each blade must process for that guest).
Note: In device service clustering (DSC®) configurations, all guests in the device group must have the same
core allocation and module provisioning, and the guests must match with respect to number of slots and
the exact slot numbers. Also, each guest in the device group must run on the same blade and chassis models.
About single-core guests
On platforms with hard drives, the vCMP® host always allocates cores on a slot for a guest in increments
of two cores. In the case of blades with solid-state drives, however, the host can allocate a single core to a
guest, but only for a guest that requires one core only; the host never allocates any other odd number of
cores per slot for a guest (such as three, five, or seven cores).
The illustration shows a possible configuration where the host has allocated a single core to one of the
guests.
22
vCMP® for VIPRION® Systems: Administration
Figure 4: A vCMP configuration with a single-core guest
Because a single-core guest has a relatively small amount of CPU and memory allocated to it, F5 Networks
supports only these products or product combinations for a single-core guest:
•
•
•
BIG-IP® Local Traffic Manager™ (LTM®) only
BIG-IP® Local Traffic Manager™ (LTM®) and BIG-IP® Global Traffic Manager™ (GTM™) only
BIG-IP® Global Traffic Manager™ (GTM™) standalone only
Resource allocation results
This illustration shows an example of a system with three guests that the vCMP® host has distributed across
slots in varying ways. The way that the host distributes the guests depends on the way you configured guest
properties when you initially created each guest.
23
Flexible Resource Allocation
Figure 5: Three guests with varying amounts of core allocation and slot assignment
This illustration shows three guests configured on the system. For blade model B2100, which provides
approximately 2 GB of memory per core:
•
•
•
The blue guest is configured with two cores per slot, providing a total memory allocation of four GB
per slot for the guest (2 cores x 2 GB). The guest spans four slots.
The red guest is configured with two cores per slot, providing a total memory allocation of four GB per
slot for the guest (2 cores x 2 GB). The guest spans two slots.
The green guest is configured with four cores per slot, providing a total memory allocation of eight GB
per slot for the guest (4 cores x 2 GB). The guest spans two slots.
Important: For an individual guest, the number of cores allocated to one (not all) of the guest's slots
determines the guest's total memory allocation.
Scalability considerations
When managing a guest's slot assignment, or when removing a blade from a slot assigned to a guest, there
are a few key concepts to consider.
About initial slot assignment
When you create a vCMP® guest, the number of slots that you initially allow the guest to run on determines
the maximum total resource allocation possible for that guest, even if you add blades later. For example, in
a four-slot VIPRION® chassis that contains two blades, if you allow a guest to run on two slots only and
you later add a third blade, the guest continues to run on two slots and does not automatically expand to
acquire additional resource from the third blade. However, if you initially allow the guest to run on all slots
in the cluster, the guest will initially run on the two existing blades but will expand to run on the third slot,
acquiring additional traffic processing capacity, if you add another blade.
Because each connection causes some amount of memory use, the fewer the connections that the blade is
processing, the lower the percentage of memory that is used on the blade compared to the total amount of
24
vCMP® for VIPRION® Systems: Administration
memory allocated on that slot for the guest. Configuring each guest to span as many slots as possible reduces
the chance that memory use will exceed the available memory on a blade when that blade must suddenly
process additional connections.
If you do not follow the best practice of instructing the host to assign as many slots as possible for a guest,
you should at least allow the guest to run on enough slots to account for an increase in load per blade if the
number of blades is reduced for any reason.
In general, F5 Networks strongly recommends that when you create a guest, you assign the maximum
number of available slots to the guest to ensure that as few additional connections as possible are redistributed
to each blade, therefore resulting in as little increase in memory use on each blade as possible.
About changing slot assignments
At any time, you can intentionally increase or decrease the number of slots a guest runs on explicitly by
re-configuring the number of slots that you initially assigned to the guest. Note that you can do this while
a guest is processing traffic, to either increase the guest's resource allocation or to reclaim host resources.
When you increase the number of slots that a guest is assigned to, the host attempts to assign the guest to
those additional slots. The host first chooses those slots with the greatest number of available cores. The
change is accepted as long as the guest is still assigned to at least as many slots as dictated by its Minimum
Number of Slotsvalue. If the additional number of slots specified is not currently available, the host waits
until those additional slots become available and then assigns the guest to these slots until the guest is
assigned to the desired total number of slots. If the guest is currently in a deployed state, VMs are
automatically created on the additional slots.
When you decrease the number of slots that a guest is assigned to, the host removes the guest from the most
populated slots until the guest is assigned to the correct number of slots. The guest's VMs on the removed
slots are deleted, although the virtual disks remain on those slots for reassignment later to another guest.
Note that the number of slots that you assign to a guest can never be less than the minimum number of slots
configured for that guest.
Effect of blade removal on a guest
If a blade suddenly becomes unavailable, the total traffic processing resource for guests on that blade is
reduced and the host must redistribute the load on that slot to the remaining assigned slots. This increases
the number of connections that each remaining blade must process.
Fortunately, there is no reduction in memory allocation, given that when you create a guest, you instruct
the host to allocate the full amount of required memory for that guest to every slot in the guest's cluster
(through the guest's Cores per Slot property). However, each connection causes some amount of memory
use, which means that when a blade becomes unavailable and the host redistributes its connections to other
blades, the percentage of memory use on these remaining blades increases. In some cases, the increased
memory use could exceed the amount of memory allocated to each of those slots.
For example, if a guest spans three slots which process 1,000,000 connections combined, each slot is
processing a third of the connections to the guest. If one of the blades becomes unavailable, reducing the
guest's cluster to two slots, then the two remaining blades must each process half of the guest's connections
(500,000), resulting in a memory use per slot that could be higher than what is allocated for that slot.
Assigning as many slots as possible to each guest reduces this risk.
25
Flexible Resource Allocation
Effect of blade re-insertion on a guest
When you remove a blade from the chassis, the host remembers which guests were allocated to that slot. If
you then re-insert a blade into that slot, the host automatically allocates cores from that blade to the guests
that were previously assigned to that slot.
Whenever the host assigns guests to a newly-inserted blade, those guests that are below their Minimum
Number of Slots threshold are given priority; that is, the host assigns those guests to the slot before guests
that are already assigned to at least as many slots as their Minimum Number of Slots value. Note that this
is the only time when a guest is allowed to be assigned to fewer slots than specified by its Minimum Number
of Slots value.
About SSL and compression hardware
On systems that include SSL and compression hardware processors, the vCMP® feature shares these hardware
resources among all guests on the system, in a round robin fashion.
When sharing SSL hardware, if all guests are using similar-sized keys, then each guest receives an equal
share of the SSL resource. Also, if any guests are not using SSL keys, then other guests can take advantage
of the extra SSL resource.
Guest states and resource allocation
As a vCMP® host administrator, you can control when the system allocates or de-allocates system resources
to a guest. You can do this at any time, by setting a guest to one of three states: Configured, Provisioned,
or Deployed. These states affect resource allocation in these ways:
Configured
This is the initial (and default) state for a newly-created guest. In this state, the guest is not running, and
no resources are allocated. If you change a guest from another state to the Configured state, the vCMP
host does not delete any virtual disks that were previously attached to that guest; instead, the guest's
virtual disks persist on the system. The host does, however, automatically de-allocate other resources
such as CPU and memory. When the guest is in the Configured state, you cannot configure the BIG-IP®
modules that are licensed to run within the guest; instead, you must set the guest to the Deployed state
to provision and configure the BIG-IP modules within the guest.
Provisioned
When you change a guest state from Configured to Provisioned, the vCMP host allocates system resources
to the guest (CPU, memory, and any unallocated virtual disks). If the guest is new, the host creates new
virtual disks for the guest and installs the selected ISO image on them. A guest does not run while in
the Provisioned state. When you change a guest from Deployed to Provisioned, the host shuts down the
guest but retains its current resource allocation.
Deployed
When you change a guest to the Deployed state, the vCMP host activates the guest virtual machines
(VMs), and the guest administrator can then provision and configure the BIG-IP modules within the
guest. For a guest in this state, the vCMP host starts and maintains a VM on each slot for which the
guest has resources allocated. If you are a host administrator and you reconfigure the properties of a
26
vCMP® for VIPRION® Systems: Administration
guest after its initial deployment, the host immediately propagates the changes to all of the guest VMs
and also propagates the list of allowed VLANs.
27
Chapter
3
Deployment Examples
•
•
•
A single-slot LTM guest on a standalone
system
Dual-slot LTM guest within a device group
Multiple guests on multiple slots in device
groups
Deployment Examples
A single-slot LTM guest on a standalone system
The simplest example of the deployment of a vCMP® system is a standalone system configured with one
guest that is provisioned to run BIG-IP® Local Traffic Manager™ (LTM®) on a single slot in the VIPRION®
cluster.
The following illustration depicts a single-slot, two-core LTM guest on a standalone VIPRION chassis.
Figure 6: Single-slot guest on a standalone VIPRION system
Dual-slot LTM guest within a device group
If you have a redundant system consisting of two VIPRION® chassis, you can deploy a vCMP® guest on
each chassis, where each guest is provisioned to run BIG-IP® Local Traffic Manager™ (LTM®) on two slots
in the VIPRION cluster.
With this configuration, the host has allocated twice the amount of CPU and memory to the BIG-IP Local
Traffic Manager (LTM) module than a configuration where the BIG-IP LTM module is assigned to a single
slot only. By putting both guests in a BIG-IP Sync-Failover device group, you are assured that when failover
occurs, the LTM guest can continue processing application traffic.
Note: For best results, particularly when connection mirroring is enabled, configure the two guests so that
the number of slots, the slot numbers, and the amount of core allocation for the two guests match.
The following illustration depicts the deployment of LTM within a two-slot, four-core guest on each
VIPRION chassis in a two-member device group.
30
vCMP® for VIPRION® Systems: Administration
Figure 7: Dual-slot guests in a device group
Multiple guests on multiple slots in device groups
A common use of a vCMP® system is to create a redundant system configuration with multiple guests,
where each guest contains a different set of BIG-IP® modules, with varying amounts of system resource
allocated to each guest. In this case, the system is in a redundant configuration consisting of two separate
VIPRION® systems. For each guest, you can create an equivalent peer guest on the other VIPRION system
and create a BIG-IP Sync-Failover device group with the two equivalent guests as members. If failover
occurs, the equivalent guest on the peer system can assume the processing of the guest's application traffic.
The following illustration depicts the deployment of BIG-IP guests on multiple populated slots, on two
VIPRION chassis. The illustration shows that each guest has an equivalent guest on a peer chassis and that
each pair of equivalent guests comprises a separate device group, resulting in a total of three device groups.
Figure 8: Multiple guests in device groups
31
Chapter
4
Network Considerations
•
•
•
•
•
About management network modes for a
vCMP guest
About Layer2/Layer3 network configuration
Management IP addresses for a guest
About the VLAN publishing strategy
Interface assignment for vCMP guests
Network Considerations
About management network modes for a vCMP guest
As a vCMP host administrator, you can configure each vCMP® guest to operate in one of two modes:
Bridged or Isolated. The mode you choose specifies whether the guest is bridged to or isolated from the
vCMP host's management network. F5 Networks recommends that you configure all vCMP guests to run
in Bridged mode, unless you have a specific business or security requirement that requires Isolated mode.
About the Bridged network mode
Bridged mode is the default network mode for a vCMP guest. This mode bridges the guest's virtual
management interface to the physical management port of the blade on which the guest virtual machine
(VM) is running. Typically, you configure a guest's management port to be on the same IP network as the
host's management port, with a gateway identical to the host's management gateway. This allows you to
make TCP connections (for SSH, HTTP, and so on) easily from either the host or the external network to
the guest, or from the guest to the host or external network. Although the guest and the host share the host's
Ethernet interface, the guest appears as a separate device on the local network, with its own MAC address
and IP address.
About the Isolated network mode
Isolated mode isolates the guest from the management network. A guest in Isolated mode cannot communicate
with other guests on the system. Also, the only way that the vCMP host can access the console of a guest
that is in Isolated mode is through the console port (using the vConsole utility) or through a self IP address
on the guest that allows traffic.
Note: Although a guest in Isolated mode is inaccessible through its management interface, guest
administrators can configure self IP addresses, routes, access control, and port lockdown settings appropriate
to the environment to achieve their individual connectivity goals.
Other considerations
If the guest is in a Deployed state:
•
•
Setting the network mode from Bridged to Isolated mode causes the vCMP host to disconnect the guest's
management interface from its bridged management network, which in turn disconnects the guest's VMs
from the physical management network.
Setting the network mode from Isolated to Bridged mode causes the vCMP host to dynamically add the
guest's management interface to the bridged management network. This immediately connects all of the
guest's VMs to the physical management network.
Changing the network mode while the guest is in the Configured or Provisioned state has no immediate
effect.
About Layer2/Layer3 network configuration
On a vCMP system, you must configure BIG-IP® Layer 2 objects, such as trunks and VLANs, on the vCMP
host and then selectively decide which of these objects you want each guest to inherit. Typically, to ensure
that each guest's data plane traffic is securely isolated from other guests, the host administrator creates a
separate VLAN for each guest to use. Other objects such as self IP addresses, virtual servers, pools, and
profiles are configured on the guest by each guest administrator. With this separation of Layer 2 from Layer
34
vCMP® for VIPRION® Systems: Administration
3 objects, application traffic is targeted directly to the relevant guest, further allowing each guest to function
as a fully-independent BIG-IP® device.
The following illustration shows the separation of Layer 2 objects from higher-layer objects on the vCMP
system:
Figure 9: Isolation of network objects on the vCMP system
Management IP addresses for a guest
When a system administrator initially configured the VIPRION system, the administrator specified a primary
cluster management IP address for the system as a whole, as well as a separate management IP address for
each slot in the VIPRION cluster. On a vCMP system, because each guest functions like an independent
VIPRION cluster, a vCMP host or guest administrator assigns a similar set of IP addresses for each guest:
A cluster IP address
This is the unique IP address that a host administrator assigns to a guest during guest creation. The
cluster IP address is the management IP address that a guest administrator uses to log in to a guest to
provision, configure, and manage BIG-IP®modules. This IP address is required for each guest.
One or more cluster member IP addresses
These are unique IP addresses that a guest administrator assigns to the virtual machines (VMs) in the
guest's cluster, for high-availability purposes. For example, if a guest on a four-slot system is configured
to run on four slots, then the guest administrator must create an IP address for each of those four slots.
These addresses are management addresses, and although optional for a standalone system, these
addresses are required for a device service clustering (DSC®) configuration. In this case, a second set
of unique cluster member IP addresses must be configured on the peer system. These IP addresses are
the addresses that the guest administrator will specify when configuring failover for each guest that is
a member of a Sync-Failover device group.
As an example, suppose you have a pair of VIPRION 2400 chassis, where the two guests on one chassis
also reside on the other chassis to form a redundant configuration. In this case, as host administrator, you
must assign a total of four cluster IP addresses (one per guest for four guests).
If each guest spans four slots, then each guest administrator must then assign four cluster member IP
addresses per guest per chassis, for a total of eight. The result is a total of 20 unique vCMP-related
management IP addresses for the full redundant pair of chassis containing two guests per chassis (four
cluster IP addresses and 16 cluster member IP addresses).
35
Network Considerations
Important: F5 Networks recommends that you assign a cluster member IP address to every slot in the
guest's cluster, even for slots not assigned to the guest. This simplifies the task of assigning slots to a guest
later if you need to do so.
About the VLAN publishing strategy
For both host and guest administrators, it is important to understand certain concepts about VLAN
configuration on a vCMP® system:
•
•
VLAN subscription from host to guest
System behavior when a host and a guest VLAN have duplicate names or tags
Overview of VLAN subscription
As a vCMP® host administrator, when you create or modify a guest, you typically publish one or more
host-based VLANs to the guest. When you publish a host-based VLAN to a guest, you are granting a
subscription to the guest for use of that VLAN configuration, with the VLAN's underlying Layer 2 resources.
When you publish a VLAN to a guest, if there is no existing VLAN within the guest with the same name
or tag as the host-based VLAN, the vCMP system automatically creates, on the guest, a configuration for
the published VLAN.
If you modify a guest's properties to remove a VLAN publication from a guest, you are removing the guest's
subscription to that host-based VLAN. However, the actual VLAN configuration that the host created within
the guest during initial VLAN publication to the guest remains there for the guest to use. In this case, any
changes that a host administrator might make to that VLAN are not propagated to the guest.
In general, VLANs that appear within a guest can be either host-based VLANs currently published to the
guest, host-based VLANs that were once but are no longer published to the guest, or VLANs that the guest
administrator manually created within the guest.
This example shows the effect of publishing a host-based VLAN to, and then deleting the VLAN from, a
guest that initially had no VLANs.
# Within guest G1, show that the guest has no VLANs configured:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
# From the host, publish VLAN v1024 to guest G1:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans add {
v1024 }
# Within guest G1, list all VLANs:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
net vlan v1024 {
if-index 96
tag 1024
}
# On the host, delete the host-based VLAN publication from guest G1:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans del {
v1024 }
36
vCMP® for VIPRION® Systems: Administration
# Notice that the host-based VLAN still exists within the guest:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
vlan v1024 {
if-index 96
tag 1024
}
About VLANs with identical tags and different names
Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already
created, or later creates, a VLAN with a different name but the same VLAN tag. In this case, the guest
VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe
to), but it is the guest VLAN that is used.
Whenever host and guest VLANs have different names but the same tags, traffic flows successfully across
the host from the guest because the VLAN tag alignment is correct. That is, when the tags match, the
underlying Layer 2 infrastructure of the VLANs matches, thereby enabling the host to reach the guest.
The example here shows the tmsh command sequence for creating two separate VLANs with different
names and the same tag, and the resulting successful traffic flow.
# On the host, create a VLAN with a unique name but with a tag matching that of a guest VLAN
VLAN_A:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_B tag 1000
# On the host, publish the host VLAN to the guest:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans
add { VLAN_B }
# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published
from the host:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
net vlan VLAN_A {
if-index 192
tag 1000
}
# On the guest, create a self IP address for VLAN_A:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A
# On the host, delete the self IP address on VLAN_A (this VLAN also exists on the guest) and
re-create the self IP address on VLAN_B (this VLAN has the same tag as VLAN_A):
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh delete net self 10.1.1.2/24
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan
VLAN_B
# From the host, open a connection to the guest, and notice that because the two VLANs have
the same tags, the connection succeeds:
[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1
PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.
64 bytes from 10.1.1.1: icmp_seq=1 ttl=255 time=3.35 ms
64 bytes from 10.1.1.1: icmp_seq=2 ttl=255 time=0.989 ms
37
Network Considerations
--- 10.1.1.1 ping statistics --2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.989/2.170/3.352/1.182 ms
About VLANs with identical names and different tags
Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already
created, or later creates, a VLAN with the same name but with a different VLAN tag. In this case, the guest
VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe
to), but it is the guest VLAN that is used.
Whenever host and guest VLANs have the same names but different tags, traffic cannot flow between the
identically-named VLANs at Layer 2. That is, when the tags do not match, the underlying Layer 2
infrastructure of the VLANs does not match, thereby preventing the host from reaching the guest.
The example here shows the tmsh command sequence for creating two separate VLANs with the same
names and different tags, and the resulting traffic flow issue.
# While logged into the guest, create a VLAN:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1000
# Show that no VLANs exist on the host:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
[[email protected]_210:/S1-green-P:Active:Standalone] config #
# On the host, create a VLAN with the same name as the guest VLAN but with a unique tag on
the host:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1001
# Publish the host VLAN to the guest:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans
add { VLAN_A }
# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published
from the host:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
net vlan VLAN_A {
if-index 192
tag 1000
}
# Within the guest, create a self IP address for the VLAN:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A
# On the host, create a self IP address for the identically-named VLAN:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan
VLAN_A
# From the host, open a connection to the guest, and notice that because the two VLANs have
different tags, the connection fails:
[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1
PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.
From 10.1.1.2 icmp_seq=1 Destination Host Unreachable
From 10.1.1.2 icmp_seq=2 Destination Host Unreachable
38
vCMP® for VIPRION® Systems: Administration
--- 10.1.1.1 ping statistics --2 packets transmitted, 0 received, +2 errors, 100% packet loss, time 3000ms
pipe 2
Solution for tag discrepancy between host and guest VLANs
When a host-based VLAN and a guest-created VLAN have identical names but different VLAN tags, traffic
flow at Layer 2 is impeded between host and guest. Fortunately, you can resolve this issue by performing
these tasks, in the sequence shown:
•
•
•
•
•
Within the guest, delete the relevant VLAN from within the guest.
On the host, remove the VLAN publication from the guest.
On the host, modify the tag of the host-based VLAN.
On the host, publish the VLAN to the guest.
Within the guest, view the VLAN from within the guest.
Deleting the VLAN within the guest
You use this task when you want to delete a VLAN from within a vCMP® guest. One reason for deleting a
VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and a host VLAN.
Important: To perform this task, you must be logged in to the relevant vCMP guest.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
2. In the Name column, locate the name of the VLAN for which you want to change the partition, and to
the left of the name, select the check box and click Delete.
The system prompts you to confirm the delete action.
3. Click Delete.
After performing this task, you no longer see the VLAN name in the list of VLANs on the guest.
Removing the VLAN publication on the guest
You perform this task when you want to remove a VLAN subscription on a particular guest. One reason
for deleting a VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and
a host VLAN.
Important: To perform this task, you must be logged in to the vCMP host.
1. On the Main tab, click vCMP > Guest List.
2. In the Name column, click the name of the guest that you want to modify.
This displays the configured properties of the guest.
3. For the VLAN List setting, select the relevant VLAN name from the Selected list, and use the Move
button to move the name to the Available list.
4. Click Update.
39
Network Considerations
Modifying the tag of the host-based VLAN
You perform this task to change a VLAN tag on a vCMP® host to ensure that the tag matches that of a
VLAN on a guest.
Important: To perform this task, you must be logged in to the vCMP host.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
2. In the Name column, click the relevant VLAN name.
This displays the properties of the VLAN.
3. In the Tag field, type the same tag that was assigned to the VLAN you previously deleted.
4. If the host and guest VLANs have an optional customer tag, type the same customer tag that was assigned
to the VLAN you previously deleted.
5. Click Update.
Publishing the VLAN to the guest
You perform this task when you want to publish a host-based VLAN to a particular guest.
Important: To perform this task, you must be logged in to the vCMP® host.
1. On the Main tab, click vCMP > Guest List.
2. In the Name column, click the name of the guest that you want to modify.
This displays the configured properties of the guest.
3. For the VLAN List setting, select the relevant VLAN name from the Available list, and use the Move
button to move the name to the Selected list.
4. Click Update.
After performing this task, the guest can use the selected host-based VLAN.
Viewing the new VLAN within the guest
You perform this task to verify that the VLAN that the host published to a guest appears on the guest, with
the correct tag.
Important: To perform this task, you must be logged in to the relevant vCMP® guest.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
2. In the Name column, click the name of the VLAN that the host published to the guest.
3. In the Tag field, verify that the correct tag is shown.
4. Click Cancel.
After you perform this task, you can see that the VLAN which the host published to the guest has appeared
on the guest, with the correct tag.
40
vCMP® for VIPRION® Systems: Administration
Interface assignment for vCMP guests
The virtualized nature of vCMP® guests abstracts many underlying hardware dependencies, which means
that there is no direct relationship between guest interfaces and the physical interfaces assigned to VLANs
on the vCMP host.
Rather than configuring any interfaces on a guest, a guest administrator simply creates a self IP address
within the guest, specifying one of the VLANs that the host administrator previously configured on the host
and assigned to the guest during guest creation.
As host administrator, if you want to limit the guest to using specific physical interfaces, you simply change
the physical interface assignments on the VLANs that you assign to that guest.
41
Chapter
5
Device Service Clustering for vCMP Systems
•
•
•
•
•
Overview: Device service clustering for
vCMP systems
Required IP addresses for DSC configuration
Failover methods for vCMP guests
About HA groups for vCMP systems
About connection mirroring for vCMP
systems
Device Service Clustering for vCMP Systems
Overview: Device service clustering for vCMP systems
One of the tasks of a vCMP® guest administrator is to configure device service clustering (DSC®). Using
DSC, a guest administrator can implement config sync, failover, and mirroring across two or more chassis.
Configuring DSC is the same on a vCMP system as on non-virtualized systems, except that the members
of a device group are virtual devices (guests) rather than physical devices.
When configuring DSC, a guest administrator creates a device group that consists of vCMP guests as
members, where each member is deployed on a separate chassis.
For example, for a pair of chassis with three guests each, you can create three separate Sync-Failover device
groups in an active-standby configuration. Each device group has two members:
•
•
•
guest_A on chassis_1 and guest_A on chassis_2
guest_B on chassis_1 and guest_B on chassis_2
guest_C on chassis_1 and guest_C on chassis_2
Creating a device group that consists of guests on separate chassis ensures that if a chassis goes out of
service, any active traffic groups on a guest can fail over to a device group member on another chassis.
This illustration shows this DSC configuration. The illustration shows two four-slot chassis, with three
guests on each chassis. Each guest and its equivalent guest on the other chassis form a separate Sync-Failover
device group.
Figure 10: vCMP guests forming three device groups across two chassis
Required IP addresses for DSC configuration
This table describes the types of IP addresses that a guest administrator specifies when configuring device
service clustering (DSC®) on a vCMP® system.
44
vCMP® for VIPRION® Systems: Administration
Table 1: Required IP addresses for DSC configuration on a vCMP system
Configuration IP addresses required
feature
Device trust
The cluster IP address that the vCMP host administrator assigned to the guest during
guest creation.
Config sync
Any non-floating self IP address on the guest that is associated with an internal VLAN
on the host.
Failover
•
•
Connection
mirroring
Recommended: A unicast non-floating self IP address on the guest that is associated
with an internal VLAN on the host (preferably VLAN HA), as well as a multicast
address.
Alternate to a multicast address: The guest-unique cluster member IP addresses
assigned to all slots in the guest's cluster.
For both the primary and the secondary IP addresses, a non-floating self IP address on
the guest that is associated with an internal VLAN on the host. The secondary address
is optional.
Failover methods for vCMP guests
Each traffic group in a device service clustering (DSC®) device group has a property known as a failover
method. The failover method dictates the way that the system chooses a target device for failover. Available
failover methods that the user can choose from are: load-aware failover, an ordered list, and an HA group.
The specific core allocation and slot assignments for a guest in a Sync-Failover device group determine the
particular failover method that is appropriate for a DSC traffic group within the guest:
•
•
Guests in a device group that are identical in terms of core allocation and slot assignment are considered
to be homogeneous guests. In this case, an ordered list would be an appropriate failover method, since
relative capacity is equal among all guests.
Guests in a device group that differ from one another in terms of core allocation and slot assignments
are considered to be heterogeneous guests. In this case, load-aware failover is an appropriate failover
method because the guest administrator can define a relative capacity and relative traffic load for each
guest. For example, an eight-core, four-slot guest has a relative capacity that is twice that of a four-core,
two-slot guest.
An additional type of failover method is an HA group, which applies to both homogeneous and heterogeneous
guests.
About HA groups for vCMP systems
For failover configuration, an alternative to using load-aware failover or an ordered list is to use HA groups.
An HA group is a set of trunks, pools, or clusters (or any combination of these) that a guest administrator
creates and associates with a traffic group. The most common reason to use HA groups is to ensure that
failover is triggered when some number of trunk members become unavailable.
The BIG-IP® system uses an HA group to calculate an overall health score for a guest. The guest that has
the best overall score at any given time becomes or remains the active guest. With an HA group, the system
45
Device Service Clustering for vCMP Systems
triggers failover of a traffic group based on changes to trunk, pool, or cluster health instead of on system,
gateway, or VLAN failure.
Because trunks are never synchronized between guests, the number of trunk members associated with an
HA group often differs between guests on separate devices whenever a trunk loses or gains members.
About connection mirroring for vCMP systems
Connection mirroring is a device service clustering (DSC®) feature that allows a device to mirror its
connection and persistence information to another device. Connection mirroring prevents interruption in
service during failover. On a vCMP® system, the devices that mirror their connections to each other are
virtual devices (vCMP guests).
Important: Within a Sync-Failover device group, a guest can only mirror its connections to one other
guest. The two guests, as mirrored peers, must each reside on a separate chassis with the same number of
slots assigned, on the same slot numbers, and with the same number of cores per slot.
46
Chapter
6
Initial vCMP Configuration Tasks
•
•
•
•
vCMP application volume management
Host configuration
Guest configuration
Configuration results
Initial vCMP Configuration Tasks
vCMP application volume management
The BIG-IP® system allocates all but 30 gigabytes of the total disk space to the vCMP® application volume.
Known as the reserve disk space, the remaining 30 gigabytes of disk space are left available for other uses,
such as for installing additional versions of the BIG-IP system in the future. The vCMP disk space allocation,
as well as the creation of the reserve disk space, occurs when you initially provision the vCMP feature as
part of vCMP host configuration.
If you want the system to reserve more than the standard 30 gigabytes of disk space for non-vCMP uses,
you must do this prior to provisioning the vCMP feature. Adjusting the reserved disk space after you have
provisioned the vCMP feature can produce unwanted results.
Important: When increasing the reserve disk space for additional BIG-IP installations, the recommended
amount of space to reserve is 8 gigabytes per installation.
Viewing disk space allocation for a vCMP application volume
Using this procedure, you can view the amount of disk space, in megabytes, that the system has allocated
to a vCMP application volume.
1. In the URL field, type the management IP address that you previously assigned to the chassis.
https://<ip_address>
The browser displays the login screen for the BIG-IP Configuration utility.
2. On the Main tab, click System > Disk Management.
The display shows the logical disks and application volumes from the perspective of the vCMP host.
3. Click the logical disk for which you want to reserve disk space.
An example of a logical disk is HD1.
4. On the menu bar, click Image List if displayed.
The screen displays a list of the installed images on the system.
5. If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.
6. In the Contained Application Volumes area of the screen, in the Volume column, locate the vCMP
application volume.
7. In the Size (MB) column, view the size of the application volume, in megabytes.
Modifying disk space allocation for a vCMP application volume
When you provision the BIG-IP system for vCMP, the BIG-IP system dedicates all but 30 gigabytes of disk
space to running the vCMP feature. (The 30 gigabytes of reserved disk space protects against any possible
resizing of the file system.) Before provisioning the vCMP feature, you can reserve additional space for a
logical disk. Use this procedure if you decide that you need to change the amount of disk space (in megabytes)
that the system allocates to a vCMP application volume.
1. In the URL field, type the management IP address that you previously assigned to the chassis.
https://<ip_address>
The browser displays the login screen for the BIG-IP Configuration utility.
48
vCMP® for VIPRION® Systems: Administration
2. On the Main tab, click System > Disk Management.
The display shows the logical disks and application volumes from the perspective of the vCMP host.
3. Click the logical disk for which you want to reserve disk space.
An example of a logical disk is HD1.
4. On the menu bar, click Image List if displayed.
The screen displays a list of the installed images on the system.
5. If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.
6. In the Reserved (MB) field, increase the amount of disk space that you want to reserve for the logical
disk.
The more space your reserve, the less disk space is available for the vCMP application volume.
7. Click Update.
Host configuration
As a vCMP® host administrator, you have the important task of initially planning the amount of total system
CPU and memory that you want the vCMP host to allocate to each guest. This decision is based on the
resource needs of the particular BIG-IP® modules that guest administrators intend to provision within each
guest, as well as the maximum system resource limits for the relevant hardware platform. Thoughtful
resource allocation planning prior to creating the guests ensures optimal performance of each guest. Once
you have determined the resource allocation requirements for the guests, you are ready to configure the
host. For more information on determining the resource needs of each guest, see Flexible Resource Allocation.
Overall, your primary duties are to provision the vCMP feature and to create and manage guests, ensuring
that the proper system resources are allocated to those guests.
Task list
Accessing the vCMP host
Before accessing the vCMP® host, verify that you have created a primary cluster management IP address.
For information on creating this address, see the guide titled VIPRION® Systems: Configuration.
Performing this task allows you to access the vCMP host. Primary reasons to access the host are to create
and manage vCMP® guests, manage virtual disks, and view or manage host and guest properties. You can
also view host and guest statistics.
1. From a system on the external network, display a browser window.
2. In the URL field, type the primary cluster management IP address for the chassis, as follows:
https://<ip_address>
The browser displays the login screen for the BIG-IP® Configuration utility.
Provisioning the vCMP feature
Before performing this task, ensure that the amount of reserve disk space that the provisioning process
creates is sufficient. Attempting to adjust the reserve disk space after you have provisioned the vCMP®
feature produces unwanted results.
49
Initial vCMP Configuration Tasks
Performing this task creates the vCMP host (the hypervisor) and dedicates most of the system resources to
running vCMP.
Warning: If the system currently contains any BIG-IP® module configuration data, this data will be deleted
when you provision the vCMP feature.
1.
2.
3.
4.
On the Main tab, click System > Resource Provisioning.
Verify that all BIG-IP modules are set to None.
From the vCMP list, select Dedicated.
Click Update.
After provisioning the vCMP feature, the system reboots TMOS® and prompts you to log in again. This
action logs you in to the vCMP host, thereby allowing you to create guests and perform other host
configuration tasks.
Creating a vCMP guest
Before creating a guest on the system, verify that you have configured the base network on the VIPRION®
system to create any necessary trunks, as well as VLANs for guests to use when processing application
traffic.
You create a guest when you want to create an instance of the BIG-IP software for the purpose of running
one or more BIG-IP® modules to process application traffic. For example, you can create a guest that runs
BIG-IP® Local Traffic Manager™ and BIG-IP® Global Traffic Manager™. When creating a guest, you specify
the number of logical cores per slot that you want the vCMP host to allocate to each guest, as well as the
specific slots that you want the host to assign to the guest.
Note: When creating a guest, if you see an error message such as Insufficient disk space on
/shared/vmdisks. Need 24354M additional space., you must delete existing unattached
virtual disks until you have freed up that amount of disk space.
Important: If you are planning to add this guest to a Sync-Failover device group and to enable connection
mirroring with a guest on another chassis, you must ensure that the two guests are configured identically
with respect to slot assignment and core allocation. That is, the number of cores, the number of slots, and
even the slot numbers on which the guests reside must be the same. Therefore, you must ensure that on each
guest of the mirrored pair, the values match for the Cores per Slot, Number of Slots, Minimum Number
of Slots, and Allowed Slots settings.
1. Use a browser to log in to the VIPRION® chassis, using the primary cluster management IP address.
This logs you in to the vCMP® host.
2.
3.
4.
5.
6.
On the Main tab, click vCMP > Guest List.
Click Create.
From the Properties list, select Advanced.
In the Name field, type a name for the guest.
In the Host Name field, type a fully-qualified domain name (FQDN) name for the guest.
If you leave this field blank, the system assigns the name localhost.localdomain.
7. From the Cores Per Slot list, select the total number of logical cores that the guest needs, based on the
guest's memory requirements.
The value you select causes the host to assign that number of cores to each slot on which the guest is
deployed. The host normally allocates cores per slot in increments of two (two, four, six, and so on).
50
vCMP® for VIPRION® Systems: Administration
Important: Cores for a multi-slot guest do not aggregate to provide a total amount of memory for the
guest. Therefore, you must choose a Cores per Slot value that satisfies the full memory requirement of
the guest. After you finish creating the guest, the host allocates this amount of memory to each slot to
which you assigned the guest. This ensures that the memory is suffcient for each guest if any blade
becomes unavailable. For blade platforms with solid-state drives, you can allocate a minimum of one
core per guest instead of two. For metrics on memory and CPU support per blade model, see the vCMP®
guest memory/CPU allocation matrix at http://support.f5.com.
8. From the Number of Slots list, select the maximum number of slots that you want the host to assign to
the guest.
Note that the more slots you assign to a guest, the higher the traffic processing capacity of the guest.
Also note that although you can create a guest to run on the total number of physical slots in the
VIPRION® cluster, the host creates the guest virtual machines (VMs) on populated slots only.
Important: Adding slots to a guest does not increase the amount of memory available to the guest.
9. From the Minimum Number of Slots list, select the minimum number of chassis slots that must be
available for this guest to deploy.
Important: The minimum number of slots you specify must not exceed the maximum number of slots
you specified. Also, if fewer than the minimum number of slots is available, then the assignment process
fails.
10. From the Allowed Slots list, select the specific slots that you want the host to assign to the guest and
then use the Move button to move the slot number to the Selected field.
When you specify allowed slots for a guest, the guest runs on one or more of those slots only and no
others throughout the lifetime of the guest. Note that the number of slots in the Allowed Slots list must
equal or exceed the number specified in the Minimum Number of Slots list.
For example, if you create a guest to run on two slots, you can specify that the host choose any two slots
of slots 1, 3, 5, and 8. (Slot assignment does not need to be contiguous.) The assignment algorithm within
the vCMP system tends to (but does not always) assign guests to the least-populated slots allowed (that
is, those allowed slots with the most cores available). In this example, if slots 3 and 5 have the most
available cores, then the host might assign the guest to those slots instead of to slots 1 and 8.
Important: If you want to allow the guest to run on any of the slots in the chassis, select all slot numbers.
11. From the Management Network list, retain the value Bridged, or select Isolated.
The recommended value is Bridged.
12. For the IP Address setting, fill in the required information:
a) In the IP Address field, type a unique management IP address that you want to assign to the guest.
You use this IP address to access the guest when you want to manage the BIG-IP modules running
within the guest.
b) In the Network Mask field, type the network mask for the management IP address.
c) In the Management Route field, type a gateway address for the management IP address.
13. From the Initial Image list, select an ISO image file for installing TMOS® software onto the guest's
virtual disk.
14. In the Virtual Disk list, retain the default value of None.
Note that if an unattached virtual disk file with that default name already exists, the system displays a
message, and you must manually attach the virtual disk. You can do this using the tmsh command line
51
Initial vCMP Configuration Tasks
interface, or use the Configuration utility to view and select from a list of available unattached virtual
disks.
The BIG-IP system creates a virtual disk with a default name (the guest name plus the string .img, such
as guestA.img).
15. For the VLAN List setting, select both an internal and an external VLAN name from the Available list,
and use the Move button to move the VLAN names to the Selected list.
The VLANs in the Available list are part of the vCMP host configuration.
After you create the guest, the guest can use the selected VLANs to process application traffic.
16. From the Requested State list, select Provisioned.
After the guest is provisioned, the host allocates all necessary resources to the guest, such as cores and
virtual disk.
17. Click Finish.
The system installs the selected ISO image onto the guest's virtual disk and displays a status bar to show
the progress of the resource allocation.
After you perform this task, the system installs the selected ISO image onto the guest's virtual disk. When
this process is complete, you can set the guest to the Deployed state.
Setting a vCMP guest to the Deployed state
Setting a guest to the Deployed state enables a guest administrator to then provision and configure the
BIG-IP® modules within the guest.
1.
2.
3.
4.
5.
Ensure that you are logged in to the vCMP host.
On the Main tab, click vCMP > Guest List.
In the Name column, click the name of the vCMP guest that you want to deploy.
From the Requested State list, select Deployed.
Click Update.
After moving a vCMP® guest to the Deployed state, a guest administrator can provision and configure the
BIG-IP modules within the guest so that the guest can begin processing application traffic.
Guest configuration
The primary duties of a vCMP® guest administrator are to provision BIG-IP® modules within the guest,
configure the correct management IP addresses for the slots pertaining to the guest, and configure any self
IP addresses that the guest needs for processing application traffic. The guest administrator must also
configure all BIG-IP modules, such as creating virtual servers and load balancing pools within BIG-IP Local
Traffic Manager™ (LTM®).
Optionally, a guest administrator who wants a redundant system configuration can create a device group
with the peer guests as members.
52
vCMP® for VIPRION® Systems: Administration
Task list
Provisioning BIG-IP modules within a guest
Before a guest administrator can access a guest to provision licensed BIG-IP® modules, the vCMP® guest
must be in the Deployed state.
To run BIG-IP modules within a guest, the guest administrator must first provision them. For example, a
guest administrator for guestA who wants to run LTM® and GTM™ must log into guestA and provision
the LTM and GTM modules.
Note: This procedure applies to guests in Bridged mode only. Guests in Isolated mode can be accessed
using vconsole and tmsh only.
1. Open a browser, and in the URL field, specify the management IP address that the host administrator
assigned to the guest.
2. At the login prompt, type the default user name admin, and password admin, and click Log in.
The Setup utility screen opens.
3. Click Next.
This displays the Resource Provisioning screen.
4. For each licensed BIG-IP module in the list, select the check box and select Minimal, Nominal, or
Dedicated.
5. Click Next.
This displays the Certificate Properties screen.
6. Click Next.
This displays some general properties of the guest.
7. Click Next.
This displays the screen for specifying the guest's cluster member IP addresses.
8. Click Next.
9. Click Finished.
Specifying cluster member IP addresses for a guest
For each vCMP® guest, the guest administrator needs to create a unique set of management IP addresses
that correspond to the slots of the VIPRION® cluster. Creating these addresses ensures that if a blade becomes
unavailable, the administrator can log in to another blade to access the guest.
1. On the Setup utility screen for resource provisioning, in the Cluster Member IP Address area, type a
management IP address for each slot in the VIPRION chassis, regardless of how many blades are installed
or how many slots are assigned to the guest.
Each IP address must be on the same subnet as the management IP address that the host administrator
assigned to the guest (displayed).
2. Click Next.
3. Click Finished.
After performing this task, a guest administrator can log in to a specific slot for a guest if blade availability
becomes compromised.
53
Initial vCMP Configuration Tasks
Creating a self IP address within a vCMP guest
A guest administrator creates a self IP address within a vCMP® guest as a way to provide a hop for application
traffic. On a standalone system, the self IP address that a guest administrator creates is a static (non-floating)
IP address. Note that the administrator does not need to create VLANs within the guest; instead, the VLANs
available for assigning to a self IP address are VLANs that a host administrator previously created on the
vCMP host.
1. On the Main tab of the BIG-IP Configuration utility, click Network > Self IPs.
The Self IPs screen opens.
2. Click Create.
The New Self IP screen opens.
3. In the Name field, type a unique name for the self IP.
4. In the IP Address field, type an IPv4 or IPv6 address.
This IP address should represent the address space of the VLAN that you specify with the VLAN/Tunnel
setting.
5. In the Netmask field, type the network mask for the specified IP address.
6. From the VLAN/Tunnel list, select the VLAN to associate with this self IP address.
•
•
On the internal network, select the VLAN that is associated with an internal interface or trunk.
On the external network, select the VLAN that is associated with an external interface or trunk.
The VLANs in the list are VLANs that the host administrator previously created on the vCMP host.
7. From the Port Lockdown list, select Allow Default.
8. Click Finished.
The screen refreshes, and displays the new self IP address in the list.
After creating a self IP address, the BIG-IP system can send and receive traffic through the specified VLAN.
Next steps
After all guests are in the Deployed state, each individual guest administrator can configure the appropriate
BIG-IP modules for processing application traffic. For example, a guest administrator can use BIG-IP®
Local Traffic Manager™ (LTM®) to create a standard virtual server and a load-balancing pool. Optionally,
if guest redundancy is required, a guest administrator can set up device service clustering (DSC®).
Configuration results
After you and all guest administrators have completed the initial configuration tasks, you should have a
VIPRION®system provisioned for vCMP, with one or more guests ready to process application traffic.
When logged in to the vCMP® host, you can see the VLANs and trunks configured on the VIPRION system,
as well as all of the guests that you created, along with their virtual disks. When using the BIG-IP
Configuration utility, you can also display a graphical view of the number of cores that the host allocated
to each guest and on which slots.
54
vCMP® for VIPRION® Systems: Administration
Note: This graphical view shows the number of physical cores, rather than logical cores, allocated to a
guest. For example, if you assigned four logical cores per slot to the guest during guest creation, the
graphical view shows two physical cores per slot.
You can also view the current load on a specific guest in terms of throughput, as well as CPU, memory,
and disk usage.
When logged in to a guest, the guest administrator can see one or more BIG-IP® modules provisioned and
configured within the guest to process application traffic. If the guest administrator configured device service
clustering (DSC®), the guest is a member of a device group.
55
Chapter
7
Managing vCMP Virtual Disks
•
•
•
•
•
Overview: Managing virtual disks
Detaching virtual disks from a vCMP guest
Viewing virtual disks not attached to a vCMP
guest
Attaching a detached virtual disk to a vCMP
guest
Deleting a virtual disk from the BIG-IP
system
Managing vCMP Virtual Disks
Overview: Managing virtual disks
A virtual disk is the portion of disk space on a slot that the system has allocated to a guest. For example, if
a guest spans three slots, the system creates three virtual disks for that guest, one for each guest. Each virtual
disk is implemented as an image file with an .img extension, such as guest_A.img.
The vCMP® system automatically creates a virtual disk when you create a vCMP guest. However, after you
have created and deployed all guests, you can manage the virtual disks on the system as a way to optimize
performance. You must be logged into the vCMP host to manage virtual disks on the system.
About virtual disk allocation
For each slot that you assign to a guest, the host allocates a fixed amount of disk space (typically 100
gigabytes) for that guest virtual machine (VM). This amount of disk space remains fixed regardless of the
number of cores per slot that you configure for that guest. For example, a slot with two cores allocated to
guest_A provides the same amount of available disk space for the guest as a slot with four cores allocated
to that guest.
Note that you cannot explicitly create virtual disks; instead, the BIG-IP® system creates virtual disks when
you create the guest.
About virtual disk images
A virtual disk is in the form of an image that resides in the /shared/vmdisks directory on each physical
blade. The default file name that the BIG-IP® system initially assigns to a virtual disk is the guest name
plus a .img extension (for example, guestA.img). You identify and manage virtual disks on the system
using these file names.
A copy of the virtual disk image for a guest resides on each slot pertaining to that guest (either a single slot
or all slots, depending on the guest configuration).
About virtual disk detachment and re-attachment
When a vCMP® guest has no virtual disk and moves from the Configured state to the Provisioned state, the
system creates a virtual disk and attaches the disk to the guest. This attachment ensures that only that guest
can use the virtual disk. A guest can have only one virtual disk attached to it at any one time.
A virtual disk can become unattached from a guest when you perform one of these actions:
Action
Result
Delete a guest
The system retains the virtual disk on the system for future use.
Change the Virtual Disk property of The system retains the virtual disks on the system for future use.
the guest to None
Change the state of the guest from
Provisioned or Deployed to
Configured.
58
The system retains the virtual disks on the system for future use.
vCMP® for VIPRION® Systems: Administration
Action
Result
Reboot the system
The system deletes all guests, detaches and retains their virtual
disks, re-creates the guests, and then re-attaches the virtual disks
to their associated guests.
Re-activate the vCMP license on the The system deletes all guests, detaches and retains their virtual
system
disks, re-creates the guests, and then re-attaches the virtual disks
to their associated guests.
You can attach an existing, unattached virtual disk to a new guest that you create. Attaching an existing
virtual disk to a newly-created guest saves the BIG-IP® system from having to create a new virtual disk for
the guest.
Note: A guest must be in the Configured state before you can explicitly detach a virtual disk from a guest.
About virtual disk migration
In some cases, the virtual disk for a guest migrates automatically from one slot to other slots, or from multiple
slots to one slot. You do not need to explicitly manage this migration.
Virtual disk migration occurs when you change the state of a single-slot guest from Provisioned to Configured,
and then back to Provisioned. In this case, the system moves the guest to a new slot, copying the virtual
disk also.
Detaching virtual disks from a vCMP guest
Before you can detach a virtual disk from a guest, you must be logged into the vCMP host. Also, you must
change the Requested State property on the guest to Configured.
You can detach a virtual disk from the guest, but retain the virtual disk on the BIG-IP® system so that you
can attach it to another guest later.
Important: Unattached virtual disks consume disk space on the system. To prevent unattached virtual disks
from depleting available disk space, routinely monitor the number of unattached virtual disks that exist on
the system.
1.
2.
3.
4.
5.
6.
On the Main tab, click vCMP > Guest List.
In the Name column, locate the relevant guest name, and to the left of the name, select the check box.
Click the Configured button.
In the Name column, click the guest name.
From the Virtual Disk list, select the default value, None.
Click Update.
The vCMP guest no longer has any virtual disk attached to it.
59
Managing vCMP Virtual Disks
Viewing virtual disks not attached to a vCMP guest
Before you can view unattached virtual disks, you must be logged into the vCMP host.
You can view virtual disks that are not attached to a vCMP® guest so that you can monitor virtual disks that
might be unused but still consuming disk space.
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Virtual Disk List area of the screen.
3. To the right of the list of virtual disk names, note any disks that do not have any guest names associated
with them. These disks are unattached.
Attaching a detached virtual disk to a vCMP guest
Before you begin this task, ensure that:
•
•
•
You are logged into the vCMP® host.
The guest to which you are attaching the virtual disk is in the Configured state.
The virtual disk is not currently be attached to another guest.
It is possible for a virtual disk to become detached from a vCMP guest. A disk that is no longer attached to
a guest is known as an unattached virtual disk.
You can attach an unattached virtual disk to another guest either when you create the guest or when you
modify the Virtual Disk property of a guest.
1.
2.
3.
4.
On the Main tab, click vCMP > Guest List.
In the Name column, click the name of the vCMP guest that you want to view.
From the Properties list, select Advanced.
From the Virtual Disk list, select a file name.
The guest uses the newly-selected virtual disk when being deployed.
5. Click Update.
Deleting a virtual disk from the BIG-IP system
Before deleting a virtual disk, ensure that you are logged into the vCMP host.
Using the BIG-IP® Configuration utility, you can delete a virtual disk from the system.
Important: This is the only way to delete a virtual disk from the system. If you delete the associated guest
instead, the system retains the virtual disk for re-use by another guest later.
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Virtual Disk List area of the screen.
3. In the Name column, locate the name of the virtual disk that you want to delete.
60
vCMP® for VIPRION® Systems: Administration
4. To the left of the virtual disk name, select the check box.
5. Click Delete.
The system prompts you to confirm the delete action.
6. Click Delete.
61
Chapter
8
Understanding Clusters
•
•
•
•
•
Overview: Managing a vCMP cluster
Viewing cluster properties
Viewing cluster member properties
Enabling and disabling cluster members
Changing a cluster-related management IP
address
Understanding Clusters
Overview: Managing a vCMP cluster
One of the tasks that a guest administrator performs is managing the VIPRION® cluster for a guest.
Viewing cluster properties
A guest administrator can use this task to view the properties of the guest's cluster.
1. Open a browser, and in the URL field, specify the management IP address that the host administrator
assigned to the guest.
2. On the Main tab, click System > Clusters.
The Cluster screen opens, showing the properties of the cluster, and listing the cluster members.
Cluster properties
The Cluster screen displays the properties of the cluster.
Property
Description
Name
Displays the name of the cluster.
Cluster IP Address
Displays the IP address assigned to the cluster. Click
this IP address to change it.
Network Mask
Displays the network mask for the cluster IP address.
Primary Member
Displays the number of the slot that holds the primary
blade in the cluster.
Software Version
Displays the version number of the BIG-IP® software
that is running on the cluster.
Software Build
Displays the build number of the BIG-IP software
that is running on the cluster.
Hotfix Build
Displays the build number of any BIG-IP software
hotfix that is running on the cluster.
Chassis 400-level BOM
Displays the bill-of-materials (BOM) number for the
chassis.
Status
Displays an icon and descriptive text that indicates
whether there are sufficient available members of
the cluster.
Viewing cluster member properties
A guest administrator can use this task to view the properties of the guest's cluster members.
64
vCMP® for VIPRION® Systems: Administration
1. Open a browser, and in the URL field, specify the management IP address that the host administrator
assigned to the guest.
2. On the Main tab, click System > Clusters.
The Cluster screen opens, showing the properties of the cluster, and listing the cluster members.
3. To display the properties for one cluster member, click the slot number of that member.
The Cluster Member properties screen opens, showing the properties of that member.
Cluster member properties
In addition to displaying the properties of the cluster, the Cluster screen also lists information about members
of the cluster. The table lists the information associated with each cluster member.
Property
Description
Status
The Status column indicates whether the cluster
member is available or unavailable.
Slot
The Slot column indicates the number of the slot.
Click this number to display the properties of that
cluster member.
Blade serial number
The Blade Serial Number column displays the serial
number for the blade currently in that slot.
Enabled
The Enabled column indicates whether that cluster
member is currently enabled.
Primary
The Primary column indicates whether that cluster
member is currently the primary slot.
HA State
The HA State column indicates whether the cluster
member is used in a redundant system configuration
for high availability.
Enabling and disabling cluster members
To gracefully drain the connections from a cluster member before a blade goes out of service, a guest
administrator can mark that cluster member disabled. When the blade has been returned to service, the guest
administrator must enable the blade again.
1. Use a browser and the cluster management IP address of the vCMP® host to log in to the vCMP host
(hypervisor) and access the BIG-IP® Configuration utility.
2. On the Main tab, click System > Clusters.
The Cluster screen opens, showing the properties of the cluster, and listing the cluster members.
3. Locate the cluster member you want to enable or disable, and select the box to the left of the Status icon.
4. Click Enable or Disable/Yield.
65
Understanding Clusters
Changing a cluster-related management IP address
A guest administrator can perform this task to change one or more management IP addresses for a vCMP®
guest cluster.
1. Use a browser and the cluster IP address for the vCMP® guest to log in and access the BIG-IP®
Configuration utility.
2. On the Main tab, click System > Clusters.
The Cluster screen opens, showing the properties of the cluster, and listing the cluster members.
3. On the menu bar, click Management IP Address.
The Management IP Address screen opens.
4. Locate the specific management IP address or cluster member IP address that you want to change, and
type the new IP address.
5. Click Update.
The specific management IP address or cluster member IP address that you edited is changed. You can now
use that new address to access the cluster.
Cluster-related IP addresses
The cluster-related addresses that you can modify are defined in the table.
66
Setting Type
Setting
Description
Cluster IP address
IP Address
Specifies the management IP address that you want to
assign to the guest cluster. This IP address is used to
access the guest, as well as to function as an identifier
for the peer guest in a device service clustering (DSC®)
configuration.
Cluster IP address
Network Mask
Specifies the network mask for the cluster IP address.
Cluster IP address
Management Route Specifies the gateway for the cluster IP address.
Typically, this is the default route.
Cluster Member IP
Address
Slot 1 IP Address
Specifies the management IP address associated with
slot 1 of the cluster. You can also set this value to None.
Cluster Member IP
Address
Slot 2 IP Address
Specifies the management IP address associated with
slot 2 of the cluster. You can also set this value to None.
Cluster Member IP
Address
Slot 3 IP Address
Specifies the management IP address associated with
slot 3 of the cluster. You can also set this value to None.
Cluster Member IP
Address
Slot 4 IP Address
Specifies the management IP address associated with
slot 4 of the cluster. You can also set this value to None.
Chapter
9
Viewing vCMP Statistics
•
•
•
•
Overview: Viewing vCMP statistics
Viewing virtual disk statistics
Viewing vCMP guest statistics with the
BIG-IP Configuration utility
Viewing disk usage statistics
Viewing vCMP Statistics
Overview: Viewing vCMP statistics
With vCMP® initial setup successfully completed to process application traffic, you will likely want to
analyze your vCMP statistics to better manage performance.
Viewing virtual disk statistics
Using the BIG-IP® Configuration utility, you can view information about the virtual disks that are currently
allocated to vCMP® guests:
•
•
•
•
The virtual disk names
The slot number corresponding to each virtual disk image
The size in gigabytes of each virtual disk
The name of the guest to which each virtual disk is currently allocated
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Virtual Disk List area of the screen.
The following table shows sample statistics for three separate virtual disks.
Virtual Disk Name Slot ID
Operating System Status
Disk use
GuestA.img
1
TMOS
Ready
64.4G
GuestB.img
1
Unknown
Unknown
64.4G
GuestC.img
1
TMOS
Ready
64.4G
Viewing vCMP guest statistics with the BIG-IP Configuration utility
Before viewing guest statistics, you must be logged in to the vCMP host.
Using the BIG-IP® Configuration utility, you can list the names of, and information about, the vCMP®
guests that are currently on the system.
1. Log out of the guest.
2. On an external system, open a browser window and access the vCMP host, using the vCMP host's
management IP address.
3. Using your user credentials, log in to the BIG-IP Configuration utility.
4. On the Main tab, click vCMP.
The system displays a list of vCMP guest names, as well as this information:
•
•
•
68
The state configured for the guest
The slot numbers on which the guest is running or slated to run
The guest's management IP address and netmask
vCMP® for VIPRION® Systems: Administration
Viewing disk usage statistics
Using the BIG-IP® Configuration utility, you can view information about the vCMP® disk usage:
•
•
•
•
•
Disk name
The slot numbers corresponding to the disk name
The number of virtual disks
The total vCMP application volume size, in gigabytes
The available vCMP application volume size, in gigabytes
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Disk Usage area of the screen.
The following table shows sample statistics.
Disk
Slot ID
Number of Virtual Total Volume Size Available Volume
Disks
(GB)
Size (GB)
HD1
2
1
84
14
69
Appendix
A
Best Practices
•
vCMP best practices
Best Practices
vCMP best practices
F5 Networks makes the following recommendations for managing a vCMP® system.
Category
®
Recommendation
vCMP disk
management
Ensure that you allocate enough disk space for other installation slots for the
vCMP host before you provision the vCMP feature.
Network setup
Before setting up a vCMP system, verify that each slot's management interface
is physically wired to an external bridge.
Slot assignment to
guests
Whenever possible, configure a guest to run on more slots than are actually
populated with blades. The result is an automatic expansion of the guest cluster
when you insert an additional blade.
Virtual disk
management
To prevent unattached virtual disks from consuming disk space over time,
consider deleting unwanted virtual disks from the system. Otherwise, previously
provisioned virtual disks remain on disk after their associated vCMP guest
configurations have been deleted.
Protection from
To protect a guest from performance degradation if a blade failure occurs,
performance degradation configure high availability if possible. You do this by setting up device service
clustering (DSC®). For a standalone vCMP system, consider deploying guests
with sufficient cores and slots to ensure that a single blade failure does not result
in unacceptable service degradation.
72
Appendix
B
Calculation for Maximum Core Allocation
•
Calculation for determining maximum core
allocation
Calculation for Maximum Core Allocation
Calculation for determining maximum core allocation
When you are creating a vCMP® guest and allocating cores to that guest, the BIG-IP Configuration utility
assists you by displaying only valid amounts of cores in the Cores per Slot setting. For example, for a
chassis with B2100 blades, the BIG-IP Configuration utility displays Cores per Slot values of 2, 4, 6, and
8, because these are the only valid choices for that blade platform. Some users, however, might want more
detailed information about these selections to enhance their own understanding of core allocation on the
vCMP system.
The total number of cores that you can allocate to all vCMP® guests (combined) on a blade depends on the
number of physical cores that a single physical processor contains on a particular blade platform. For
example, on a blade platform with hyper-threading support, each physical core represents two logical cores.
Consequently, a blade platform with two physical processors, each with six physical cores (that is, 12 cores),
has a total of 24 logical cores that the host can allocate for that slot. This illustration shows an example of
the relationship of physical processors to logical cores.
Figure 11: Relationship of physical processors to logical cores
In addition to the total number of logical cores available for allocation on that slot, there is a maximum
number of logical cores that the host can allocate to an individual guest on that slot. This number is restricted
to the number of physical cores per physical processor, which means that you cannot allocate additional
logical cores to a guest VM from any other processor on the blade. Therefore, if you know the number of
physical cores per physical processor on your blade platform, you can use this simple calculation to understand
the maximum number of logical cores that you can allocate to a guest on a slot:
Number of physical cores per physical processor * Number of cores per physical core = Maximum
number of logical cores per guest
For example, if a blade platform has six physical cores per physical processor, and the number of cores per
physical core is 2, then the maximum number of logical cores per guest on that slot is 12 (6 * 2 = 12).
74
Index
Index
A
access control
administrative 16
administrator tasks 16, 49, 52
allocation
for vCMP application volume 48
audience 16
B
BIG-IP instances 14
BIG-IP modules
and guest states 26
and memory allocation 21
provisioning 16–17
provisioning within guests 53
BIG-IP software
versions supported 16
blade insertion
and slot allocation 26
blade platforms
physical vs. logical cores 74
blade reduction
effects of 22
blade removal
effect on resource allocation 24
effects of 25
Bridged mode
described 34
setting 50
bridges
and management interfaces 72
C
cluster IP address
modifying 66
cluster management IP addresses
configuring 49
cluster member IP addresses
specifying 53
cluster member properties
described 65
viewing 64
cluster members
enabling and disabling 65
cluster properties
described 64
viewing 64
cluster-related IP addresses
described 66
clusters 64
components 15
config sync
for vCMP systems 44
config sync IP addresses 44
configuration data
and vCMP provisioning 49
configuration results 54
Configured state
and disk attachment 58
described 26
connection mirroring
on vCMP systems 46
connections
and blade removal 25
and memory use 22
control plane 15
core allocation
about 20
based on blade model 20
configuring 50
determining 21
explained 23
on solid-state platforms 22
core distribution
across slots 23
cores
as system resource 20
defined 15
for resource allocation 20
cores per platform
calculating 74
CPU allocation
based on blade model 20
CPU cores
and guest states 26
CPU resources
allocating 20
custom resource allocation
defined 20
D
data plane
vs. management network 15
Deployed guest state
purpose of 52
Deployed state
described 26
next steps 54
device groups
for vCMP systems 44
device trust IP addresses 44
disk space
and vCMP application volume 48
and vCMP provisioning 49
consuming 72
insufficient 50
modifying and viewing 48
reserving 14, 17, 72
disk space allocation
about 58
75
Index
disk space and viewing
modifying 48
disk usage 69
dual-slot guests
example of 30
E
Ethernet connection
sharing 34
F
failover
for vCMP systems 44–46
failover IP addresses 44
flexible resource allocation
defined 20
floating IP addresses
configuring 49
front-panel management port 34
G
guest administrators
about 16
duties of 16
guest administrator tasks 52
guest failover 46
guest IP addresses
configuring 50
guest-related tasks 52
guest resource allocation
determining 21
guests
about 14
and licensing 16
and management network 34
and resource requirements 20
and virtual disks 58
configuring BIG-IP modules on 54
configuring for LTM 68
creating 50
provisioning BIG-IP modules for 53
setting to Deployed state 52
guest states
and virtual disk migration 59
configuring 50
described 26
guest-to-external-network communication 34
guest-to-guest communication 34
guest-to-host TCP connections 34
guest-to-vCMP host communication 34
guest traffic load
viewing 54
guest VLANs
removing subscription from host 39
76
H
HA groups
for vCMP systems 45
hardware resources
sharing for SSL and compression 26
high availability
about 16
for vCMP systems 44
host
about 14
accessing 49
and licensing 16
host administrators
about 16
host administrator tasks 49
host VLANs
publishing to guests 40
hypervisor
accessing 49
See host. 14
I
instances, BIG-IP 14
IP addresses
for DSC 44
ISO images
and guest states 26
installing 50
Isolated mode
described 34
setting 50
L
Layer 2/Layer 3 configuration 34
licensing
and guests 16
M
MAC addresses 34
management gateways 34
management interfaces
bridging 34
on guests 15
wiring 72
management IP addresses
64
configuring 49
for guests 35, 53
management network
and guests 34
vs. data plane network 15
management network mode
setting 50
management ports 34
memory allocation
about 20
about calculating 21
and blade removal 25
Index
memory allocation (continued)
based on blade model 20
configuring 50
determining 21
memory use
and connections 22
mirroring
on vCMP systems 46
mirroring IP addresses 44
modes
of guests 34
module configuration 54
multiple-slot guests
example of 31
multi-tenancy 14
N
network, See management network
network configuration
host vs. guest 34
network isolation 15
network modes
changing 34
described 34
P
performance degradation
preventing 72
pool availability
and vCMP guests 45
pools
for BIG-IP modules 52, 54
Provisioned state
described 26
provisioning
and reserve disk space 48
for vCMP feature 49
provisioning process 17
R
redundancy
for vCMP systems 44
resource allocation
and guest states 26
based on blade model 20
defined 20
determining 21
explained 23
forms of 20
on solid-state platforms 22
resource requirements
understanding 20
resources
allocating 17
self IP addresses
creating for VLANs 54
for BIG-IP modules 52
single-core guests
and solid-state platforms 22
single slot guests
example of 30
single-slot guests
considerations for 23
size
of vCMP application volume 48
slot assignment
24
about changing 25
and scalability 24
best practice for 72
for guests 22
slots
and virtual disk migration 59
assigning to guests 23, 50
