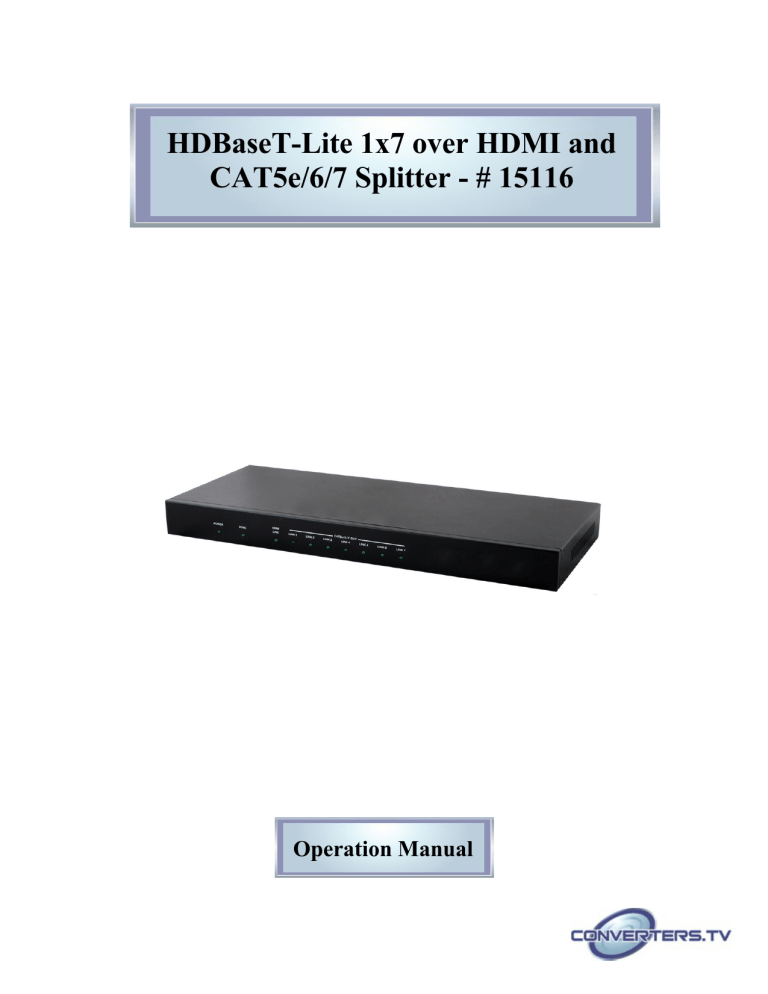

HDBaseT-Lite 1x7 over HDMI and
CAT5e/6/7 Splitter - # 15116
Operation Manual
Introduction
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single
HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and
includes a simultaneous HDMI bypass output. It supports resolutions up to
1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats
(such as LPCM 7.1CH, Dol-by TrueHD, Dolby Digital Plus and DTS-HD).
The HDMI bypass output can be connected to an HDMI display or cascaded
to another splitter. The CAT5e/6/7 outputs can be connected to CAT5e/6/7
to HDMI Receivers to extend the operating distance up to 60 meters with
Power Over Cable feature.
Applications
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
Features
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
•
•
•
•
Simultaneous HDMI and CAT5e/6/7 outputs
Supports one HDTV and seven CAT5e/6/7 outputs
Supports data rate from 250Mbps up to 3Gbps
Supports wide range of PC resolutions from VGA to WUXGA and
HDTV resolutions up to 4Kx2K ([email protected]/25/30Hz & 50/60
YUV_420 and [email protected] & 50/60 YUV_420).
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz sample rate)
• Supports distances up to 60 meters through CAT5e/6/7 cables
• Supports selection of Standard or TV EDID settings
• Supports Power over Cable (PoC) feature
• Supports USB service port
• Supports Bidirectional IR control
• The 3D signal display follow by display TV’s EDID
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specification.
2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
3. The PoC function is designed for powering compatible Receiver
units only non-PoC Receivers will need their own power supply.
Receivers of another brand may not be compatible
System
Requirements
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
Operation
Controls and
Functions
Front Panel
1. POWER LED:
Once the power supply is connected the LED will illuminate.
2. SYNC:
This LED will illuminate when the HDMI input port connected to an active
source.
3. HDMI LINK:
This LED will illuminate when HDMI output is connected to TV or display
monitor.
4. LINK 1~7:
The link LED will illuminate when both the input source and output display
signals are connected through CAT cable.
Rear Panel
1. HDMI IN:
Connect with source equipment such as DVD/Blu-ray or PS3 player.
2. HDMI OUT:
Connect to HDMI display for instant image display or cascade with another
family type Transmitter.
3. CAT5e/6/7 OUT 1~7:
Connect these ports to CAT5e/6/7 to HDMI Receivers with CAT5e/6/7 cable
to extend the signal up to 60m.
4. IR IN:
Connect with IR Extender to receive IR signal from Transmitter side and
blast out at Receiver side. Ensure that remote controller being used is within
the direct line-of-sight of the IR Extender.
5. IR OUT:
Connect with IR Blaster to blast out the IR signal received from the Receiver
side. Place the IR Blaster in direct line-of-sight of the equipment to be
controlled
6. EDID STD/TV:
The default factory setting is on STD, leave as it is when the display is
properly. When in TV mode the unit will detect the 1st CAT5e/6/7 output’s
EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to
other output ports. If the 1st CAT5e/6/7 output is without a 4Kx2K's EDID the
unit will detect all output's EDID and send out the signal that all outputs can
accept.
This device obtain the last memory function therefore, the device will use the
last output port 1's EDID when output port 1 is not connected to a display
after power cycling or switching in between the EDID setting.
Switch to STD to use build-in EDID if the display has problem.
STD EDID’s video at [email protected] and audio at LPCM 2CH.
7. SERVICE:
This slot is reserved for factory service only.
8. DC 24V:
Plug the 24V DC power supply into the unit and connect the adaptor to an
AC outlet.
IR Cable Pin
Assignment
Specifications
Video Bandwidth
Input ports
Output ports
Resolution
HDMI Input & Output
Cable Distance
CAT5e/6/7 Output
Cable Distance
IR Frequency
Power Supply
340Mbps/10.2Gbps
1 x HDMI, 1 x IR IN,
1 x USB (Service only)
1 x HDMI, 1 x IR OUT,
7 x CAT5e/6/7
Up to 4Kx2K ([email protected]/25/30Hz &
50/60 YUV 420/[email protected] & 50/60
YUV 420)
Up to [email protected] 8/12-bit
Up to 60m
30~50kHz
24V / 2.7A DC (US/EU standards, CE/FCC/
UL certified)
Dimensions
Weight
Chassis Material
Silkscreen Color
ESD Protection
Operating Temperature
Storage Temperature
Relative Humidity
Power Consumption
432mm(W) x 174 mm(D) x 44 mm(H)/
Jacks Excluded
432mm(W) x 179 mm(D) x 49 mm(H)/
Jacks Included
2126 g
Metal
Black
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
0°C ~ 40°C
-20 ̊C ~ 60 ̊C / -4 ̊F ~ 140 ̊F
20 ~ 90% RH (non-condensing)
62.7W
Connection
Diagram
CAT5e/6/7 Cable
Specification
Cable
Type
Range Pixel clock Video Data Supported Video
rate
CAT5e/6/7 60 m
CAT6/7
Rate
<=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36
(HD Video)
bits, 3D (data rates
lower than 5.3 Gbps
or below 225MHz
TMDS clock)
40 m
>225 MHz
> 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
60 m
>225 MHz
> 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
