Canon 1070C001-3-KIT Specification

Canon 1070C001-3-KIT Specification

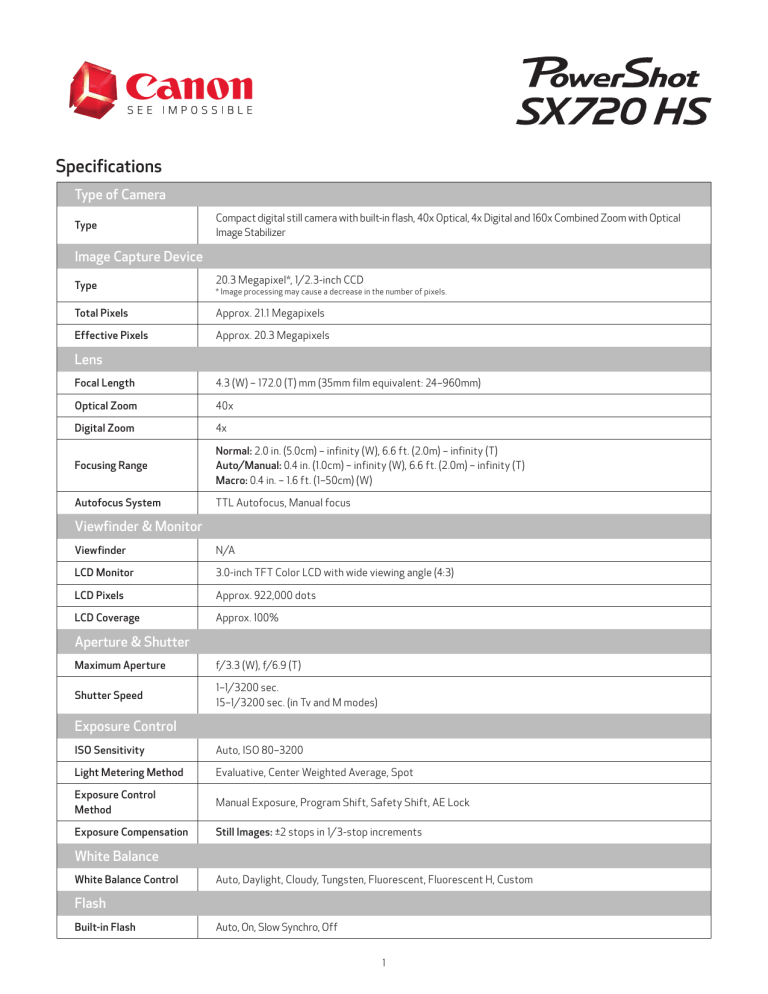

Specifications
Type of Camera
Type
Compact digital still camera with built-in flash, 40x Optical, 4x Digital and 160x Combined Zoom with Optical
Image Stabilizer
Image Capture Device
Type
20.3 Megapixel*, 1/2.3-inch CCD
Total Pixels
Approx. 21.1 Megapixels
Effective Pixels
Approx. 20.3 Megapixels
* Image processing may cause a decrease in the number of pixels.
Lens
Focal Length
4.3 (W) – 172.0 (T) mm (35mm film equivalent: 24–960mm)
Optical Zoom
40x
Digital Zoom
4x
Focusing Range
Normal: 2.0 in. (5.0cm) – infinity (W), 6.6 ft. (2.0m) – infinity (T)
Auto/Manual: 0.4 in. (1.0cm) – infinity (W), 6.6 ft. (2.0m) – infinity (T)
Macro: 0.4 in. – 1.6 ft. (1–50cm) (W)
Autofocus System
TTL Autofocus, Manual focus
Viewfinder & Monitor
Viewfinder
N/A
LCD Monitor
3.0-inch TFT Color LCD with wide viewing angle (4:3)
LCD Pixels
Approx. 922,000 dots
LCD Coverage
Approx. 100%
Aperture & Shutter
Maximum Aperture
f/3.3 (W), f/6.9 (T)
Shutter Speed
1–1/3200 sec.
15–1/3200 sec. (in Tv and M modes)
Exposure Control
ISO Sensitivity
Auto, ISO 80–3200
Light Metering Method
Evaluative, Center Weighted Average, Spot
Exposure Control
Method
Manual Exposure, Program Shift, Safety Shift, AE Lock
Exposure Compensation
Still Images: ±2 stops in 1/3-stop increments
White Balance
White Balance Control
Auto, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
Flash
Built-in Flash
Auto, On, Slow Synchro, Off
1
Flash Range
1.6–13.0 ft. (W), 6.6 ft. (T)
50.0cm – 4.0m (W), 2.0m (T)
Flash Exposure
Compensation
±2 stops in 1/3-stop increments
Shooting Specifications
Shooting Modes
M, Av, Tv, P, Live View Control, Hybrid Auto, Auto, Creative Shot, Sports, Portrait, Smile, Wink Self-Timer,
Face Self-Timer, Handheld Night Scene, Low Light, Fish-eye Effect, Miniature Effect, Toy Camera Effect,
Soft Focus, Monochrome, Super Vivid, Poster Effect, Fireworks, Standard (Movie), Short Clip, iFrame
Movie
My Colors
My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid
Blue, Vivid Green, Vivid Red, Custom Color
Self Timer
Off / 2 sec. / 10 sec. / Custom
Wireless Control
Built-in Wi-Fi® and NFC
Continuous Shooting
Normal Continuous Shooting in Auto/P modes: Approx. 5.9 shots/sec.
Continuous Shooting AF in P mode: Approx. 4.6 shots/sec.
Continuous Shooting LV in P mode: Approx. 4.6 shots/sec.
• Under lighting conditions where flash does not fire automatically.
• Excluding RAW and RAW+JPEG.
• Until memory card becomes full.
Image Storage
Storage Media
SD/SDHC/SDXC and UHS-I Memory Cards
File Format
Design rule for Camera File system (DCF) compliant; DPOF (Version 1.1) compatible
Image Compression
Superfine / Fine
JPEG Compression Mode
Still Image: Exif. 2.3 (JPEG)
Video: MP4 (Image: MPEG-4 AVC/H.264; Audio: MPEG-4 AAC-LC (Stereo))
Number of Recording
Pixels
Still Images:
1) 16:9 – Large: 5184 x 2912; Medium 1: 3648 x 2048; Medium 2: 1920 x 1080; Small: 640 x 360
2) 3:2 – Large: 5184 x 3456; Medium 1: 3648 x 2432; Medium 2: 2048 x 1368; Small: 640 x 424
3) 4:3 – Large: 5184 x 3888; Medium 1: 3648 x 2736; Medium 2: 2048 x 1536; Medium: 2592 x 1944; Small:
640 x 480
4) 1:1 – Large: 3888 x 3888; Medium 1: 2736 x 2736; Medium 2: 1536 x 1536; Small: 480 x 480
Videos:
Full HD 1920 x 1280: 59.94 fps / 29.97 fps
HD 1280 x 720: 29.97 fps
640 x 480: 29.97 fps
Approx. Number of Shots Recordable to 16GB Memory Card
16:9
Large
Medium 1 (M1)
Medium 2 (M2)
Medium
Small
3:2
4:3
1:1
SF
2358
1991
1766
2347
F
3950
3350
2980
3950
SF
4717
3982
3546
4717
F
7965
6656
5925
7837
SF
13497
10563
9344
12459
F
24296
18689
16755
22087
F
–
–
10798
–
SF
69418
60741
53992
69418
F
97186
80988
80988
97186
Note: SF=Superfine, F=Fine
2
Total Movie Time Recordable to Memory Card
• The values in the table are based on Canon measurement conditions and may change depending on the subject, memory card and camera
settings.
• After Low-level formatting.
Shooting Mode
Pixels
Frame Rate/
Video System
Recording Time
per 16 GB Memory Card
(Approx.)
Single Clip
Recording Time
(Approx.) *1
Movie Size
(KB/sec.)
59.94 fps
59 min. 30 sec.
29 min. 59 sec.
4288
29.97 fps
1 hr. 26 min. 5 sec.
29 min. 59 sec.
2945
29.97 fps
4 hr. 5 min. 15 sec.
29 min. 59 sec.
992
29.97 fps
10 hr. 22 min. 35 sec.
1 hr.
382
Full HD
(1920 x 1080)
Standard (Movie)
HD
(1280 x 720)
VGA
(640 x 480)
Video
Recording
Bit Rate
Approx. 35
Mbps
Approx. 24
Mbps
Approx. 8
Mbps
Approx. 3
Mbps
* 1 Using an SD Speed Class 10 / UHS-I compatible memory card
• Recording stops automatically once the file size reaches 4 GB or the memory card becomes full.
• Recording may stop unexpectedly if a memory card with a low Speed Class is used.
Playback Specifications
Playback Modes File
Smart Shuffle, Group Playback, List/Play Digest Movies, Story Highlights, Print, Protect, Favorites, Erase,
Slideshow, Rotate, Album Playback, Play Creative Shot Movies, Short Clip Mix, i-Contrast, Resize, Cropping,
Red-Eye Correction, My Colors, Face ID Info, Photobook Set-up, Image Transition Effect, Index Effect, Scroll
Display, Group Images, Auto Rotate, Resume
Interfaces
Video Out
HDMI (Type D)
Audio Out
Stereo
Other
Hi-Speed USB (Micro); direct connection to Canon SELPHY, PIXMA Photo Printers & PictBridge
compatible printers
Power Supply
Power Source
Shooting Capacity
Battery Pack NB-13L
Approx. 250 shots
Approx. 355 shots in ECO Mode
Video Recording Time: Approx. 50 min.
Playback Time
Approx. 5 hr.
Physical Specifications
Operating Temperature
32–104°F/0–40°C
Operating Humidity
10–90%
Dimensions (W x H x D)
4.32 x 2.51 x 1.41 in. / 109.7 x 63.8 x 35.7mm
Weight
9.52 oz. / 270g (CIPA standard)
8.64 oz. / 245g (Body only)
3
