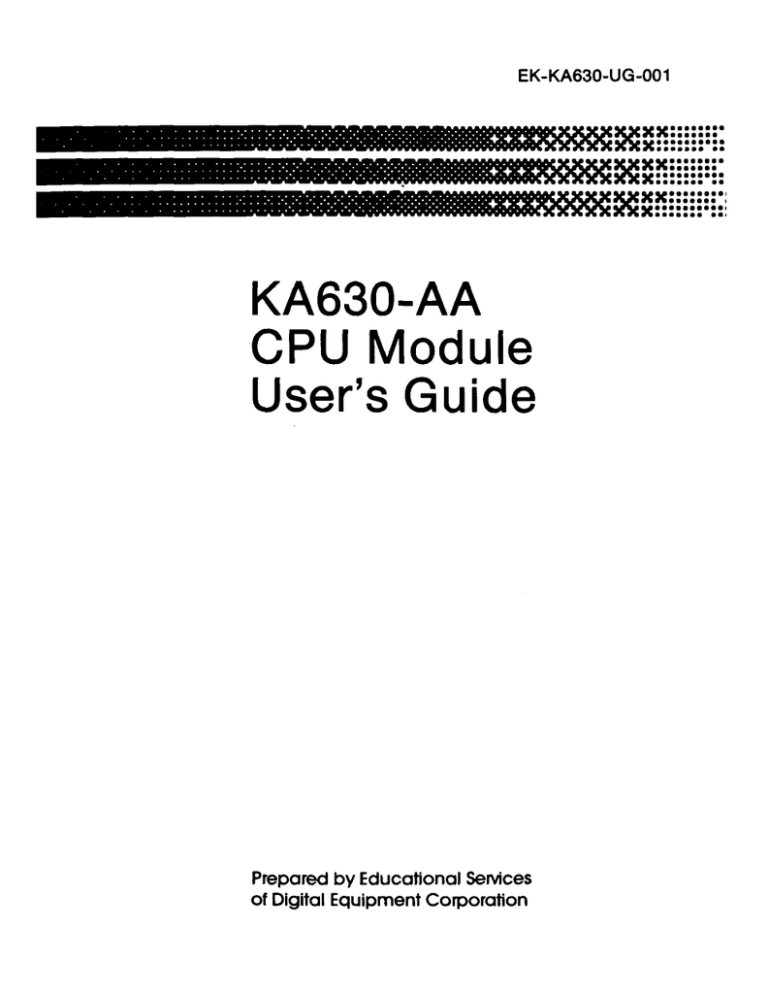

KA630-AA CPU Module User's Guide

KA630-AA CPU Module User's Guide
EK-KA630-UG-001
KA630-AA
CPU Module
User's Guide
Prepared by Educational Services
of Digital Equipment Corporation
lst Edition, February 1986
(© Digital Equipment Corporation 1986.
A
All Rights Reserved.
The material in this document is for informational purposes and is
subject to change without notice; it should not be construed as a
commitment by Digital Equipment Corporation. Digital Equipment
Corporation assumes no responsibility for any errors that may
appear in this document.
FCC Notice: This equipment generates, uses, and may emit radio
frequency energy. The equipment has been type tested and found to
comply with the limits for a Class A computing device pursuant to
Subpart J of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such radio frequency interference
when operated in a commercial environment. Operation of this
equipment in a residential area may cause interference in which
case the user at his own expense may be required to take measures
to correct the interference.
Printed in U.S.A.
The manuscript for this book was created on a VAX-11/780 system
running WPS-PLUS. The book was produced by Educational Services
Development and Publishing in Marlboro, MA.
Motorola is a registered trademark of Motorola, Inc.
The following are trademarks of Digital Equipment Corporation:
MASSBUS RSTS
OMNIBUS RSX
05/8 RT
PDP UNIBUS
PDT VAX
DECwriter P/0S VAXstation
DIBOL Professional VMS
IAS Q-Bus VT
LSI-11 Rainbow Work Processor
CONTENTS
Page
PREFACE
CHAPTER 1 OVERVIEW
INTRODUCTION. ..ñ.eoocovcoocooseracaooasedoadooacoaroaracaaro
MicroVAX 78032 MICROPROCESSOR CHIP...q..wococcoocsovaoooo
MicroVAX 78132 FRU CHIPossn000000000000000000000008
MicroVAX INTERFACE GATE ARPAYoc0000 000000 0000000008
LOCAL MEMOR Ye00000000000 000000000 000000000000000000
64 KBYTE BOOT AND DIAGNOSTIC RO Mo cc0.0.00000000000 0000
CONSOLE SERIAL LINE UNIT (SLU) 00000000000 0000000008
Q22-BUS INTERFACE oc00000000000.0000000000000000000008
KA630-AA OPERATION MODE Scc00000000000000000000000001-
0 KA630-AA SPECIFICATIONSoc0c00000000000000000000000000l-
l-
1-
l-
1-
1-
l-
l-
1-
bt pt bd pt ft ft ft fd pd fs
+ = a. т > + > . à a
- 19 JOAN SUN =
D O UN wwwwwhk
CHAPTER 2 INSTALLATION
INTRODUCTION 00000000 0000000000000000000000020000002-
KA630-AA CONNECTOR Sro00000000 000 000000000000000000002-
Memory Expansion Connector (Jl).......0.0.00000000002-
Configuration and Display Connector (J2).........2-
Console SLU Connector (J3)..0.0000000000 0000000000827
KAG3OCNF CONFIGURATION BOARD....osecocoooccococoocoaooo
CK-KA630-A CPU DISTRIBUTION PANEL INSERT...eoscoccoo
Time-Of-Year (TOY) Clock BBU...ecssecssccsocoocoscooeorco
COMPATIBLE SYSTEM ENCLOSURES..eq.csosecoccoocooaroare2
* 0 + a e e. e e
A Le > WIN N NN и
в ее
WKN —
| |
на LO O UT UTN N=
V NN NNNNNN
.
+!
| PND
i
CHAPTER 3 BOOTING AND CONSOLE PROGRAM INTERFACE
INTRODUCTION, ..eoocsscccaooaoroocoocororadanacoacocaco
POWER-UP..oeocooccacoodocccconooococorooocaoooreanva:eaco
Power-Up Mode...ecx.excwosomevccocccoccocoocoooooroooooo
Power Stabilization and ROM ChecksumM....osscscceooo
Console Program Initialization.....eececsocovrosccorvo
Battery Backup CheCk...eoscoocoroocoscorororeccoco
InterProcessor Communication Register
(IPCR) TeStoo000000000000000000000000000000000000
Determining the Console Terminal Type............3-
el Alternate Console Device Hardware
Determination....eeceescosccsscocoorcceooscosoccooooe JD
.2 Console Terminal DeterminatioN.................3-6
о т.е Фе фе
Ww Www Www
| 1 1 1 VU 100
Uri Un On WW Wo
Ww WW Cad Cal WW WW
aN Na UT E» WN
iii
Contents
.
~J
Console Message Language CheCk.....wosesocscacccoacoo 36
ENTRY/DISPATCH..... .0 0.0.0.0 .0000 00000000002 000000000037
DIAGNOSTIC Sa 00000000. 00000000000 00060006000 06060000000003-8
RESTART..eocaccccoaaoodonaosoorsoocoaro0o ona aenecdaocecocaooo. IB
BOOTSTRA Pass 00000 000000000000 00000000 00080600002200803-10
Primary Bootstrap Program (VMB).............s...3-12
Bootstrap DeviCES....0.0000000000000000000000003-13
Bootstrap Command Flocsss00000 000 0000000200000 314
Booting from Disk...........……............-14
Booting from Tape....cosecosceccococooscococoroooo 317
Booting from PROM....0000000 00000000 0000000020003-127
Booting from DEONA 000000000000 000000080002000223-19
Booting an Auxiliary ProceSSOL........0..0..0...,3-19
Secondary Bootstrap Program...esesosocorsocoocoo. 3-20
CONSOLE 1/0 MODE (SYSTEM HALTED)...oeocsscocooocoooao 322
Console Control CharaCtefS.........0.0.0.0..........3-22
Console Command SyntäX.....0.0..000u00000000000000003-24
References to Processor Registers and Memory....3-24
Console CommandS....00.00000 00000000 00000020000003-725
Binary Load and Unload (X)..eocrocosooccosoooe 3725
BOOt..0coeocacoocooocoooroococoacccoreoaacareares. 3720
Comment (!)J..eooooosoocorcsooocoocoorocaoocoocoooe 327
Continue.....oocerceccocosccsorccoooooaroooeece. 3727
Deposit....eco.eoocroscrcccooceoororarcaooacocoreoeIT27
EXamine...c_.occorseeooroorcorsadcocavorerooresoae 3729
Find..ecroooscoorcecscooroocorcacarecacaorocacooaoeIT30
INnitialiZze.0.0.0.0.0000000000000 02 0000000000000 3-31
Haltosso0000000000000000000000000000000000000003731
Repeat.o00000000000000000000000000000000050000.3-3]1
Start. ocococococcccorooacareroorancconocaacoccocoo 3732
Test..c.cococscccoororocoooccocarancococoreoaaoo. 3732
UNjJaM. 0..0.00.0000000 000000000009 0000008000000000003-32
Console Errors and Error MesSaQeS.....0.0.00000000.3-32
Halts and Halt MessagesS...c_eresccosccoocoroooooo 3732
CONSOLE 1/0 MODE (SYSTEM RUNNING)..eooooocoooooooo 3735
. a » . . +» . . . . e . * *
00 JJ 1 JJ 4777 7 7 ON ON NON ON ON ON ON ON ON US UN
. . . + e » . . +
BD 2 2 > HH
. . + . . . .
=> CN UI WN
a
Oy UT Es» Le» Ls E NA WN
+ . + * . *
. + * » + *
“ + * + +
нон НН К 00 =) С Сл ВБ UNE
wWNHO ,
YU wWwWww ww www www www twwWw www www ww www www ww
CHAPTER 4 ARCHITECTURE
INTRODUCTION. .eoocsorococcoserxcardeoacococoasaroaecreoo
PROCESSOR STATÉE..escososcaocdcocoasoorceoooacaonaoaocco
General Purpose RedgisterS....ocosrosococococcoroooe
Processor Status Longword...escssrcososoccoccorreoo
Processor RegisterS.....ooeccoccsooccooccooardaveo
INSTRUCTION SET...Q.oscocococarcororoccoacoroocconro
EXCEPTIONS AND INTERRUPTS..ecsccsaosooccoooarveaoooodcorco
1 InterrupftSe.c00000000 0000000000 00.00 0000000002. 00000
2 EXcCeptiONS...0.0000000000.000000.0.0.0.0.0.0.0.048000.00.0.00000
3 Machine Check Parameter S.....0.0.0.0000..0.0000.00 00...
4
5
e + + e a e +
ФФ ©
с) Ко
4-
4-
4-
4-
4-
4-
4-
4-
4-
4-
4-
Halt ConditioONS. 0040000000000 00000 00000000040 00000
System Control BlOCK....0.0.00000 0000000000000... 4-1
HARDWARE DETECTED ERROR Socc00400000000000000000.00004-12
1 Nonexistent Memory ErrorS....eocoosceocaccaacacooe. 4-12
2 Parity Error Detection. ....oecoeosocccoococcoocaresooo = 13
3 Interrupt Vector TimeoutS.....ooscoocoococoooooo 0-13
4 No Sack TimeOUt Ssc00000000000000000000000000000004-14
Фе.
O D 0 JO Où Un WH HH
* ®
LL E E E EL LE A >
UT UI UT UI UT ds > abd BWNNNDND
iv
N >
® .
nN +
WN HH
" e 8 e e + e + # фт ее
UN > о 5 (6) К) =
*
* +
. +#
La 60 ©) К ВО ВО В ВО Вю №
" . e. . . 9
Oh UN ds WN ++
E EEES E EP E ELLE LEE ES EEES LS E DA
+ +
Nb
pe jus > > E > > jus ft pos ed bd dd HH PP HO OO WD WD LO KO KO XD D CO Œ © 00 CO CO —) СЛ ON ON
п № но ны нон НН оны нон он) НН НЫ © © © © © © ж : e + . .
.
--
4.12.2
4.13
4.13.1
4.13.2
4.13.2.1
4.13.2.2
4.13.2.3
4.13.2.4
4.13.3
4.14
4.14.1
4.14.2
Contents
LATENC Yo0 00000000. 00000000000000000000006000000000024-14
Interrupt LatenCY......000000000000..0000000000.0.4-14
DMA LatenCYo..00.00000000000000000000000000000.0.4-14
SYSTEM IDENTIFICATION REGISTER (SID)...ocococooooco. 4715
MEMORY MANAGEMENT...q.ooocoscoocorecocoooconaacooceos. 2106
Physical and Virtual Address Space..............4-16
Memory Management Control Registers.............4-16
System Space Address Translation................4-17
Process Space Address Translation...............#17
PO Region Address Translation.....+.+.…..….......4-17
Pl Region Address Translation.........…........4-20
Page Table Entry....csoococsnrocccocsorocorcorooneoo 4-22
KA630-AA MEMORY SYSTEM..0.0000000000000000000000000.04-21
Local Memory Mapping Register Format............4-21
Mapping Register Addresses (2008XXXX Hex).......4-22
Q22-Bus Map Operation......+....…......……........#-23
Memory System [email protected]>...........4-24
Memory System Error Register (20080004 Hex)...4-24
CPU Error Address Redgister....cse..eoccccoooooo, 0-27
DMA Error Address Redgister....escseoscoosccccooso:. 4 - 28
Memory System Operation....ccececcosoceoccoocoooos 4728
KA630-AA BOOT AND DIAGNOSTIC FACILITY.....+........4-30
Boot and Diagnostic Register.....cececeossccccoooo.4-30
ROM MemOrYasoc0000 0000000000 000000000000000000.0.4-32
ROM SOCKET Soc000000000000600000000000000000000.0.4-32
ROM Address SpaCeG...0.0..0000000000000000000000.4-32
KAC30-AA Console Program Operation. ....ceoc.cs.. 04-33
KAG30-AA TOY CLOCK...oscocscosccsocooccoscoreaooaacooos 2-34
Battery Backed-Up Watch ChipP....eosocsscoccooooooo, 0-34
Watch Chip RegisterS....co.eocccoocoorooresoocooo.0-34
TOY Data RegiSteFrS.........0...................4-34
Control and Status Register Arc.....0.00000000.0.4-36
Control and Status Register B....coeoccoocooooo 2-36
Control and Status Register C..oesccococococaooo 4-37
Control and Status Register D...qocosoccsosaooo 0-37
RAM Memory....ooseoococoresocorearcoreacanaccasneooe 2738
Power-Up.....eecsooocooroodcocecroracoocoooaacaaoaeo e 4 = 38
Valid RAM and Time....o-ececsncsvosccocrceocooooooo 1738
Invalid RAM and Time....cecocseecsccssacccocooooo o 4 — 38
INTERVAL TIMER...eqococossoocccoconorcareoacacaceoaosoo,. 1740
Interval Clock Control and Status
Register (ICCS)..eoooccoooocorooceroccccaoocesreo. 4-40
Interval Timer Operation.....woocsecssccococscococooooo 9740
CONSOLE SLU.........0u00000e vec 000000200000 000000 8-40
Console Functionality....csoosocscoccocorsoooooooooo 2-40
Console RegisSterS.......0..0.0.00.00....0...0...0.00.0.0..4-41
Console Receiver CSR (IPR 32)....cereoccocsooooo 2-41
Console Receiver Data Buffer (IPR 33).........4-41
Console Transmitter CSR (IPR 34)...e ro.cococo..4-44
Console Transmitter Data Buffer (IPR 35)......4-45
Break Response.....eoceomccosoccecoccocororooneo. 2-45
022-BUS CONTROL.....e.ceococsococorsocccarcarencaresceA-45
Bus Initialize Register (IPR 55)................#45
Multilevel Interrupts....ecooceroscoroccoccoonoeo 4-45
Contents
CHAPTER 5
о eo с © ФФ. # + 8 à
BUNNNNVNNSNNNNH
т eo 8 s + » + в
O 3 A AU à UN 1H
®
--
UT UT UT UT UT UT UT UN UN UN UN UN UN
APPENDIX A
APPENDIX B
Figure No.
1-1
1-2
1-3
1-4
2-1
2-2
2-3
2-4
2-5
2-6
2-7
3-1
3-2
3-3
3-4
3-5
3-6
3-7
vi
Interprocessor Communications Facility..........4-46
Interprocessor Communication Register.........4-46
Interprocessor Doorbelil Interrupts............4-48
MULTIPROCESSOR CONSIDERATIONS...eossscccoooaaooooo, 4 - 4 8
Auxiliary/Arbiter Differences...o.comrrevovocore4-48
Multiprocessor Features... .eeoeososcosorccoooooo, 0-49
KA630-AA Based Multiprocessor Systems...........4-49
PDP-11 Based Multiprocessor Systems.............4-50
DIAGNOSTICS
INTRODUCTION.........000000o000 0060000 00000000000a00Û7)
FUNCTIONAL DESCRIPTION....ococosorcoocrecooroscacoaooo9D])
IPCR Test....ooocooocoocacoreroocarocacorcaceoacaeo.DT2
Memory Data TesSt...oesesoseorcscescoosocrococsereoreacooe9DT2
Memory Address TeSt.....000.0.00000000000000000000205-2
022-Bus Mapping Registers TeSt...e..occoccoaocoreoe9—3
MicroVAX CPU Chip Test.....eocorcoocoocororoeooooo 93
Software Interrupts and TrapS...soecoccosrccoosorooo.eD—4
System Interrupts and Data Paths...oocwosecoccocoo93
Console Test.....oooocooocccaocoooooroocarocaoeeD
Console Program/ROM Diagnostic InterfaCce......e.0.05-
ERROR OUTPUT. ...oscooooocsororoccraconooocerveaaredaneoD”
KA6G30-AA LED DISPLAY, ..o.ooccocoococsorooaccosresdoreooo 97
ANA MN D
Q22-BUS SPECIFICATION
ACRONYMS
FIGURES
Title Page
KA630-AA (MicroVAX 630) CPU Module. ©... 06. 80. 6.8 .1-
MS630 Memory Modules....._ecoccocccocascorroroasecocecadl
KA630-AA Block DiagraM...ecscocrscoccorscorercocorceccel
MicroVAX II System Level Block Diagram....osecccocel
KA630-AA Pin and LED Orientation...oocosceocoocaaooo2
КАбЗОСМЕ Configuration Board.......000000 000000002002
KAG630CNF J2 and J3 Pin OrientatioN..........0.00.00.00.00002
2
KAG3OCNF Jl and J4 Pin OrientatiON. 0. ...0000000000002
CK-KA630-A Distribution Panel Insert... ооововооо
CK-KA630-A Connectors (Front View).....ooscorcoccoe2-
CK-KAG30-A Connectors (Rear View)....oconccooccore2
Console Memory Map After Initialization............3-4
RPB Format....oceoccsoossecscososcoeooseoococorcoocoaoces, 39
Bootblock FOrMat....00000000000000000000000000000003-16
PROM Bootstrap Memory Format (Signature Block)....3-18
Extended ВРВ........... sauces 000000000000 00000 3-20
Secondary Bootstrap Argument LiSt.................3-21
Secondary Bootstrap Memory MaüPp.....0...0..00000000003-721
© © О ON OV ON + ON Ut a: я
= |—
Contents
4-1 Processor Status Longword (PSL).....0..0.000000.000000,4-3
4-2 Interrupt RegisterS....cscecseccssococoscoroccccoocoresooo.Á 7
4-3 Machine Check ParameterSs......0...0..0.0.0.0.0............4-B
4-4 System Control Block Base Register (SCBB).........4-10
4-5 System Identification Register (SID)....,..........4-15
4-6 Virtual Address SpaCe.....00.00.00000.0000000900000000004-16
4-7 Physical Address Spacée....ecsssercccoocorveccoccoco.A 16
4-8 Memory Management (Mapping) Enable Register
(МАРЕМ). . 5 5. оо оозчоооввеоововевововововевоевововаевов за 4 = 17
4-9 Translation Buffer Invalidate Single Register
(TBIS)..eonocococacrocaooccaaoconescaocconeoaoaoaaes 4 = ] 7
4-10 Translation Buffer Invalidate All Register
(TBIlA) 000000000 0000000000000 000600 0000000200000000004-17
4-11 System Space Virtual to Physical Address
Translation. .00.000000000000000000000060000000054000004-18
4-12 PO Virtual to Physical Address Translation........4-19
4-13 Pl Virtual to Physical Address Translation........4-20
4-14 Page Table Entry (PTE)......….+….0…….............#2i
4-15 Mapping [email protected] 0000000000 00000000000000004-22
4-16 022-Bus to Local Memory Physical Address
Translation. .0.0.0.000000000000000 00002 00000000000000.04-24
4-17 Memory System Error Register (MSER).....….….......4-25
4-18 CPU Error Address Register (CEAR)...c.oeoconcoccoco: 4-27
4-19 DMA Error Address Register (DEAR)...ocscooccooocosos 4728
4-20 Boot and Diagnostic Register (BDR)....ocscocorcooos 4-32
4-21 Control and Status Register A (CSR A).............4-36
4-22 Control and Status Register B (CSR B)......+.+..+.02.4-36
4-23 Control and Status Register D (CSR D).......0.00...4-37
4-24 Console Program Mailbox (CPMBX)........…..........#38
4-25 Interval Clock Control and Status Register
(ICCS)......0+.1..u00000 0002000400 00800 00% 000000004740
4-26 Console Receiver CSR...eqcocococoooodanaocacacarvcorer.Á—Á2
4-27 Console Receiver Data Buffer........….............#43
4-28 Console Transmitter CORuvevoooosccosnsonsccsonnssesesd—44
4-29 Interprocessor Communication Register (IPCR)......4-46
TABLES
Table No. Title Page
1-1 MS630 Memory Module VariantS......................o.l—4
1-2 Electrical SpecificatioNnS.....,.......0..............l—ß8
1-3 Environmental SpecificatiONS.........0.............sl1-8
2-1 Memory Expansion Connector (J1) Pinouts............2-2
2-2 Configuration and Display Connector (J2) Pinouts...2-3
2-3 Console SLU Connector (J3) PinoutS....eoeosoceccoscooroo275
2-4 KA630CNF Switch SelectiONS......000000000000000000002-7
2-5 KA630CNF Connector and SwitCheS.....0...0.0..0000.00..0.002-78
3-1 Power-Up Mode S..2..0.0000000000 00000000000 0000000000003-73
3-2 Additional Language Selections (VCBOl Only)........3-7
3-3 Console Entry Decision Table.....eoeococccoosoccosoooo37
3-4 VMB Register Usage.....ooocscorereccecovececcaceac. 322
vii
Contents
Bi BB bs BB BD BD BW WW
{
H HO OAI ONU AS Со) ВО но) С Л
viii
VMB Bootstrap Command FlaQS.......0.00.0.0.00.0.00000000.3-15
Console Error MessageS....secsesccoccccorervoccdoooo 3733
KAG630-AA Halt MesSSageS...000000000000000000000000= 3-34
Processor Status Longword Description. .............4-2
Processor Register SuMMaArY.......00.00.000000000.000000. 4-4
System Control Block ForMät........0.0.0..0...0.0..00000.4-10
System Identification Register Format.............4-15
Memory Register Format.....coecoocscococccooocooeooe 8-22
Mapping Register AddressesS.....cecr.eoocoroersocooooo 9-23
Memory System Error Register ForMat...............4-25
Boot and Diagnostic Register ForMat...............4-31
Watch Chip RegisStefS.....0.00.0000.00.0.0.0.0.0.000.0.0.00..00. 4-35
Time-of-Year Data Register [email protected]
Console Program Mailbox ForMät.............000000.0.04-39
SLU Console RegisterS...scscorcssccosccoocararecooo. 41
Console Receiver CSR Format....eseesosccocorceooacaree 8-42
Console Receiver Data Buffer ForMat...............4-43
Console Transmitter CSR FOrMät.s.......0.......0000.004-44
Interprocessor Communication Register Format......4-47
Diagnostic TestS....._eseoocsocsccnesccoooocceaoencacero DT?
KAG30-AA LED Interpretation. ....ecsoccoscoccoroecoceoeD7
PREFACE
This manual is intended for the design engineer or applications
programmer who is familiar with Digital's extended LSI-11 bus
(022-Bus) and the VAX instruction set. This manual is divided into
the following chapters:
1 OVERVIEW -- Introduces the KA630-4A MicroVAX CPU module and
MS630 memory modules, including module features and
specifications.
2 INSTALLATION -- Describes the installation of the KA630-AA and
MS630 modules in Q22-Bus backplanes and system enclosures.
3 BOOTING AND CONSOLE PROGRAM INTERFACE -- Describes the console
program, device booting sequence and console commands.
4 ARCHITECTURE -- Provides a description of KA630-AA registers,
instruction set and memory.
5 DIAGNOSTICS -- Describes the KA630-AA boot diagnostics.
CONVENTIONS
The following chart lists the conventions used in this manual.
Convention Meaning
<mm:nn> Read as "mm through nn," it indicates a bit field
or a set of lines or signals. For example,
A <17:00> is the mnemonic device that stands for
address lines 17 through 00.
<CR> A label enclosed by angle brackets represents a key
(usually a control or special character key) on the
keyboard (in this case, the carriage return).
NOTE Contains general information.
CAUTION Contains information to prevent damage to
equipment.
XX Boldface capital Xs indicate variables.
ix
Preface
RELATED DOCUMENTS
The following is a list of related documentation.
Microcomputer Interfaces Handbook EB-20175-20
Microcomputers and Memories Handbook EB-18451-20
VAX Architecture Handbook EB-19580-20
VAX-11 Architecture Reference Manual EK-VAXAR-RM
You can order these documents from:
Digital Equipment Corporation
Accessories and Supplies Group
P. O. Box CS2008
Nashua, NH 03061
Attention: Documentation Products
CHAPTER 1
OVERVIEW
1.1 INTRODUCTION
The KA630-AA (Figure 1-1) is a quad-height VAX processor module
for the 022-Bus (extended LSI-11 bus). It is designed for use in
high speed, real-time applications and for multiuser, multitasking
environments. It can be configured as an arbiter or auxiliary CPU.
The major components of the KA630-AA are described in the
following paragraphs.
J1 J2 J3
ROM
LOW
BYTE
ROM
HIGH
BYTE
BAW
В ОТ
ROWD ROW C ROW B ROW A
Figure 1-1 KA630-AA (MicroVAX 630) CPU Module
Overview
1.2 MicroVAX 78032 MICROPROCESSOR CHIP
The MicroVAX 78032 (referred to as the MicroVAX CPU chip in this
manual) is a 32-bit virtual memory microprocessor packaged in a
68-pin ZMOS (double metal NMOS) chip. It requires no special clock
generator or support chips. At its maximum frequency, the MicroVAX
CPU chip achieves a 200 ns microcycle and a 400 ns I/O (memory)
cycle. The MicroVAX CPU chip contains a 32-bit extension of the
industry standard microprocessor interface.
The MicroVAX CPU chip includes a VAX compatible, demand-paged
Memory Management Unit (MMU). This MMU provides direct access to
four gigabytes (2**32) of virtual memory and one gigabyte (2**30)
of physical memory. Virtual mapping of system space addresses is
accomplished through single level page tables. Virtual mapping of
process space addresses is accomplished through double level page
tables.
The MicroVAX CPU chip provides the following subset of the VAX
data types.
Byte
Word
Longword
Quadword
Character string
Variable length bit field
The MicroVAX 78132 Floating Point Unit (FPU) chip (referred to as
the MicroVAX FPU chip in this manual) provides support for
F_floating, D floating and G_floating data types. Support for the
remaining VAX data types can be provided by macrocode emulation.
The MicroVAX CPU chip provides the following subset of the МАХ
instruction set.
Integer arithmetic and logical
Address
Variable length bit field
Control
Procedure call
Miscellaneous
Queue
Character string moves (MOVC3 and MOVCS)
Operating system support
The MicroVAX CPU chip provides microcode assistance for the
emulation of the remaining VAX instructions: character string,
decimal string, EDIT Packed to Character string (EDITPC) and
Cyclic Redundancy Check (CRC). Support for floating data types and
instructions is provided by the MicroVAX FPU chip (Section 1.3).
Overview
1.3 MicroVAX 78132 PPU CHIP
The MiCroVAX FPU chip supports D floating, F floating and
G floating data types and instructions. It does not support
H floating data types or instructions. H floating data types can
be provided by macrocode emulation. a
1.4 MicroVAX INTERFACE GATE ARRAY
The MicroVAX interface gate array consists of two custom Large
Scale Integration (LSI) chips. The gate array includes the
following features.
e Provides interface between the MicroVAX CPU and FPU chips
and module logic
e Provides signals to the KA630-AA LEDs indicating console
and diagnostic boot state
e Decodes signals from the KA630-AA connector J2 to
determine module characteristics
e Contains a local decoder and address latch, for use by
the memory subsystem and other KA630-AA logic elements
1.5 LOCAL MEMORY
The KA630-AA CPU contains 1 Mbyte of on-board local memory, and
supports one or two MS630 memory expansion modules (Figure 1-2)
for a maximum of 9 Mbytes of local memory. The KA630-AA
communicates with MS630 memory modules through the CD interconnect
of a system backplane and through a 50-conductor cable included
with each memory module. MS630 memory modules are available in
three variants (Table 1-1), all populated with 256 K RAM chips.
The KA630-AA provides byte parity generation and checking for all
local memory. The memory mapping procedure is described in
Chapter 4.
1.6 64 KBYTE BOOT AND DIAGNOSTIC ROM
The KA630-AA boot and diagnostic ROM provides power-up
diagnostics, boot programs for standard devices, and a subset of
the VAX console program. The power-up diagnostics, booting
procedure and console program are described in Chapter 3.
1.7 CONSOLE SERIAL LINE UNIT (SLU)
The console SLU, described in Chapter 2, is accessed by the
processor using four VAX Internal Processor Registers (IPRs), and
features externally selectable baud rates. The IPRs are described
in Chapter 4.
Qverview
MS630-BA (2 MBYTE) MS630-BB (4 MBYTE)
MS630-AA (1 MBYTE)
Figure 1-2 MS630 Memory Modules
Table 1-1 MS630 Memory Module Variants
Storage Module Module Current at
Variant (Mbytes) Height Number +5 Vdc (Max)
MS630-AA 1 Dual M7607-AA 1.0 A
MS630-BA 2 Quad M7608-AA 1.3 A
MS630-BB 4 Quad M7608-BA 1.8 A
Overview
1.8 Q22-BUS INTERFACE
The Q22-Bus interface provides the following features.
e Block mode and single transfer Direct Memory Access (DMA)
e 0Q22-Bus I/O map, which allows DMA devices to access local
memory through a 4 Mbyte window divided into 8192
independent pages
e Q22-Bus interrupt requests BIRQ7 through 4 (when
configured as an arbiter CPU)
e 240 Q termination
Figure 1-3 is a block diagram of the KA630-AA. Figure 1-4 is a
system level block diagram.
Ji J2 J3
| 50-PIN CONNECTOR | | LEDs | | 20-PIN CONNECTOR | | 10pm CONNECTOR |
9-15 A
ue |
0-15
ARRAY ST 0-15
a PARITY | CONSOLE
TRANSCEIVER =
ó MicroVAX us
wn GATE К
Г 2-9.18 13 ARRAY 16-21 | = 0-7
| < "= o
« N TOY
- «С wv
ON-BOARD | o ZN ue 2
MEMORY «= = 3°73] 022-8US 21 |£
> MAP © w
wi 3 0-15
Г = ul
= x ROM
5 o
= | ó S
5 rene 2
2 BIN microvax 3
Ww Icro т
© LT RE y ve x
Q < CHIP
o
x Zz
$ < 2-15
-1
Lil +
= 5
x MicroVAX
N < EPU
$ CHIP
2
[memory INTERCONNECT] | Q22-BUS INTERFACE |
ROW D AND C OF BACKPLANE
ROW B AND À OF BACKPLANE
MA-0 186-0001
Figure 1-3 KA630-AA Block Diagram
Overview
CPU REAR 1/0
DISTRIBUTION INSERT ,
CONSOLE
SO-PIN CABLE
MicroVAX LOCAL MEMORY INTERCONNECT (32-BIT DATA)
> a X
LOCAL
CPU/FPU MEMORY
EXPANSION EXPANSION
MEMORY MEMORY
ARRAY ARRAY
Q22-
BUS
MAP
Qz22-
INTERFAC
o
r----- - 6 —о-о-о- — —
| 2
' Y
|
i
|
| BACKPLANE
ee mm em or mm a a = fem En —
[7
SERIAL
LINE
CONTROLLER
1/0 DISTRIBUTION
INSERT
Le
REMOTE TERMINAL LOCAL TERMINALS PRINTER
“01000079 5
Figure 1-4 MicroVAX II System Level Block Diagram
NETWORK OTHER
INTERFACE Q22-BUS
CONTROLLER OPTIONS
— — — — — Em — — = = === === = — — = == —— o eam — 2 == me aww mA em mm
Overview
TN 7
|
|
|
|
|
|
|
mm mmm mfr mm mm рр = — =
5 BPOK, BDCOK,
+ BEVENT
a *
|
ALT
|
RESTARTI
ENABLE |
DISK TAPE POWER
| CONTROLLER CONTROLLER SUPPLY
RESTART |
READY |
> |
o
te © |
2 o
— J uu
E
" h
RD WRT D
PRO RDY
MASS STORAGE SIGNAL
AC POWER
==
DISK DRIVE NO. O DISK DRIVE NO. 1 DISK DRIVE NO. 2 TAPE DRIVE
Figure 1-4 (Cont)
<= Eo A
мА 0196-0029 &
Overview
1.9 KA630-AA OPERATION MODES
When configured as an arbiter CPU, the KA630-AA must be installed
in the first slot of a (Q22-Bus backplane containing the CD
interconnect. It arbitrates bus mastership and fields 022-Bus
interrupt requests BIRQ7 through 4. It also responds to interrupt
requests from its own interval timer, console SLU ard
interprocessor doorbell. The interprocessor doorbell provides a
means for auxiliary CPUs to request control of the 022-Bus.
When configured as an auxiliary CPU, the KA630-AA can be installed
in any backplane slot containing the CD interconnect. The arbiter
may be a Q22-Bus PDP-11 CPU or another KA630-AA. The auxiliary
KA630-AA requests bus mastership to access the Q022-Bus. It does
not field Q22-Bus interrupt requests, but can respond to interrupt
requests from its own interval timer, console SLU and
interprocessor doorbell,
1.10 KAC30-AA SPECIFICATIONS
The KA630-AA CPU module electrical and environmental
specifications are listed in Tables 1-2 and 1-3, respectively.
Table 1-2 Electrical Specifications
Maximum Currents Q22-Bus Loads
Module
Height +5 Vdc +12 Vdc AC DC
Quad 6.2 À 0.14 A 2.7 1.0
Table 1-3 Environmental Specifications
Specification Range
Ambient storage temperature -40 to +65°C (-40 to +149°F)
Operating temperature (CPU
mounted in an enclosure):
150 ft/min air flow 5 to 40°C (41 to 104°F)
250 ft/min air flow 5 to 50°C (41 to 122°F)
Relative humidity:
Storage 10 to 90% noncondensing, altitude
to 9.1 km (50,000 ft). Derate
maximum temperature by 1 C for each
1000 м (1 ft for each 1000 ft) of
altitude.
Operating 10% to 90% noncondensing
CHAPTER 2
INSTALLATION
2.1 INTRODUCTION
This chapter contains information required to install the KA630-AA
in a system. It describes the following.
e KA630-AA connectors
e Configuration board
e CPU distribution panel
e Compatible system enclosures
2.2 KA630-AA CONNECTORS
The KA630-AA communicates with local memory, the console device,
and the 022-Bus through three J connectors and through its four
module fingers. The user can configure the KA630-AA through a CPU
distribution panel insert or a configuration board. The slot
pinouts on the fingers of the KA630-AA are listed in Appendix A.
The KA630-AA has three connectors (Figure 2-1), J1 through J3.
9 1 19 1 49 1
ИО [ИИ еее CEE
0 2 20 2 | 8421 50 2
DC OK
J3 J2 J1
LEDs
MA-17280
Figure 2-1 KA630-AA Pin and LED Orientation
Installation
2.2.1 Memory Expansion Connector (J1)
The 50-pin memory expansion connector provides the interface
between the KA630-AA and MS630 memory modules installed in the CD
rows of slots 2 and 3 of a Q22-Bus backplane containing the CD
interconnect. Table 2-1 lists Jl pinouts. The memory expansion
connector contains the following control, data and ground signals.
e BUFENL <01:00> (2 pins)
e BDIRTL (1 pin)
e PE <03:00> (4 pins)
e MD <31:00> (memory data lines -- 32 pins)
e GND (ground -- 11 pins)
2.2.2 Configuration and Display Connector (J2)
The KA630-AA has no jumper or switch settings to change or set.
Module configuration is done using switches on the CPU
distribution panel insert or the KA630CNF configuration board. The
20-pin configuration and display connector is connected to the
inside of the CPU distribution panel insert by a 20-conductor
cable, or directly to connector J2 of the KA630CNF configuration
board. Table 2-2 lists J2 pinouts.
Table 2-1 Memory Expansion Connector (J1) Pinouts
Pin Mnemonic Pin Mnemonic
01 GND 26 GND
02 MDO 27 PEL3
03 MDI 28 BUFENL O
04 MD2 29 MD15
05 MD3 30 GND
06 GND 31 GND
07 MDS 32 PEL?
08 MD4 33 MD17
09 MD7 34 MD18
10 MD6 35 MD19
11 MDS 36 MD20
12 MD8 37 MD21
13 GND 38 GND
14 MD10 39 MD23
15 MD11 40 MD22
16 MD12 41 MD25
17 MD13 42 MD24
18 MD14 43 MD27
19 PELO 44 MD26
20 GND 45 GND
21 BDIRTL 46 MD28
22 MD16 47 MD29
23 BUFENL 1 48 MD30
24 PEL1 49 MD31
25 GND 50 GND
Installation
Table 2-2 Configuration and Display Connector (J2) Pinouts*
Pin Mnemonic Meaning
01 GND Ground,
02 GND Ground.
03 GND Ground.
04 CPU CDO L CPU Code <01:00>. This 2-bit code can be
05 CPU CD1 L configured only by using switches 7 and 8 on
the KA630CNF configuration board. (See Table
2-4.) It determines whether the KA630-AA is
configured as the arbiter or as one of three
auxiliaries.
CPU Code <01:00> Configuration
00 Arbiter
01 Auxiliary 1
10 Auxiliary 2
11 Auxiliary 3
CPU Code <01:00> is read by software from the
BDR.
If the CPU distribution panel insert is used,
no connections are made to pins 4 and 5. In
that case, signal levels are negated by
pull-up resistors on the KA630-AA, making it
the arbiter CPU.
06 GND Ground.
07 DSPL 00 L Display Register Bits <03:00>. When asserted
08 DSPL O1 L each of these four output signals lights a
09 DSPL 02 L corresponding LED on the module. DSPL <03:00>
11 DSPL 03 L are asserted (low) by power-up and by the
negation of DC OK. They are updated by boot
and diagnostic programs from the BDR.
10 BTRY VCC Battery backup voltage for TOY clock.
12 GND Ground.
13 BDG CDO L Boot and Diagnostic Code <01:00>. This 2-bit
14 BDG CD1 L code indicates power-up mode, and is read by
14 BDG CD1 L software from the BDR.
Installation
Table 2-2
(Cont)
Configuration and Display Connector (J2) Pinouts*
Pin
15
16
17
18
19
20
Mnemonic
HLT ENB L
GND
CSBR 02 L
CSBR 01 L
CSBR 00 L
+5 V
Meaning
Halt Enable. This input signal controls the
response to an external halt condition, If HLT
ENB is asserted (low), then the KA630-AA halts
and enters the console program if any of the
following occur.
e The program executes a halt instruction in
kernel mode.
e The console detects a break character.
e The KA630-AA is configured as an arbiter
CPU and the 022-Bus halt line is asserted.
e The KA630-AA is configured as an auxiliary
CPU and the interprocessor communication
register AUX HLT bit is set.
If HLT ENB is negated (high), then the halt
line and break character are ignored and the
ROM program responds to a halt instruction by
restarting or rebooting the system. If HLT ENB
is negated and the KA630-AA is configured as
an auxiliary CPU, then the ROM program
responds to assertion of the ICR AUX HLT bit
by rebooting. HLT ENB is read by software
from the BDR.
Ground.
Console Baud Rate <02:00>. These three bits
are configured by using either the baud rate
select switch on the CK-KA630-A distribution
panel, or switches 2, 3 and 4 of the KA6 30CNF
configuration board.
Fused +5 volts.
* The
KA630-AA module has 10 K pull-up resistors for the 8 input
signals (pins 4 through 5, 13 through 15 and 17 through 19).
Installation
2.2.3 Console SLU Connector (J3)
The 10-pin console SLU connector provides the connection between
the KA630-AA and the console terminal. It is connected to the
inside of the CPU distribution panel by a l0-conductor cable, or
directly to connector J3 of the KA630CNF configuration board. A
cable from the outside of the distribution panel or Jl of the
KA630CNF provides the external connection to the console terminal.
Table 2-3 lists J3 pinouts.
Table 2-3 Console SLU Connector (J3) Pinouts
pin Mnemonic Meaning
01 EIA signal out.
02 GND Ground.
03 SLU OUT L Console SLU output from the KA630-AA.
04 GND Ground.
05 GND Ground.
06 Key (no pin).
07 SLU IN + Console SLU differential inputs to the
08 SLU IN - KA630-AA.
09 GND Ground.
10 +12 V Fused +12 volts.
2.3 KA630CNF CONFIGURATION BOARD
A KA630CNF (H3263-00) configuration board (Figures 2-2, 2-3, 2-4)
is provided with each KA630-AA. The KA630CNF plugs directly into
connectors J2 and J3 on the KA630-AA. It allows the user to
configure the KA630-AA by setting the 10 switches on SW] as listed
in Table 2-4.
Connector Jl is used to connect a cable to the console SLU.
Connector J4 is for a Battery Backup Unit (BBU). The J4 pin
closest to connector Jl is the positive pin.
Table 2-5 lists the pins on the KA630-AA J2 and J3, and the
corresponding KA630CNF connectors and switches on SWl. Note that
connectors J2 and J3 both have more connectors than there are pins
on the corresponding KA630-AA connector. The two left and two
right side connectors on J2 and J3 of the KA630CNF are unused.
Switches 1 through 8 on SWl set values that enable or disable
halts; and determine CPU operation mode, power-up mode, and
console baud rate. SW1 switches 9 and 10 connect transmit and
receive lines as required for normal operation or loopback
testing.
Installation
J3 J2
\ TOP VIEW /
O TITITTT [III
BANANA
Or o
7 /
MR-14505
J1 Ja
SIDE VIEW
ceo | 0000000000
+. 123456789 10
C
Figure 2-2 KA630CNF Configuration Board
1
9 1 9 1
2 2 1 2
0 0
J2 33
MA-17781
Figure 2-3
KA630CNF J2 and J3 Pin Orientation
+} HE LI LILILENLLL
+ —
J1 J4 Sw1
MA-17282
Figure 2-4 KAG3OCNF Jl and J4 Pin Orientation
Installation
Table 2-4 KA630CNF Switch Selections
Switch/Setting Mode/Function
1 Halt Mode
off Disabled
on Enabled
2 3 4 Console Baud Rate
off Off Off 300
On off off 600
off On Off 1,200
On on Off 2,400
Off Off On 4,800
on Off On 9,600
Off On on 19,200
on On On 38,400
5 6 9 10 Power-Up Mode
off Off On Off Normal operation. Transmit line
connected. Receive line connected.
On Off On off Language inquiry mode. Transmit line
connected. Receive line connected.
off On Off on Loopback test mode (maintenance).
Transmit line connected to receive
line and console.
on on Оп Off Manufacturing use only. Bypasses
memory test.
Note: Other settings for switches 5, 6, 9 and 10 should not be
used.
7 8 CPU Operation Mode
Off Off Arbiter
On Off Auxiliary 1
Off On Auxiliary 2
On On
Auxiliary 3
Table 2-5 KA630CNF Connector and Switches
CPU CNF CPU CNF
J2 CNF J2 CNF SW1 J4 J3 CNF J3 CNF SW1 Jl
Pin Mnemonic Connector Switch Pin | Pin Mnemonic Connector Switch Pin
1 1
2 2
1 GND 3 1 EIA OUT 3
2 GND 4 2 GND 4 2, 4, 5,
3 GND 5 3 SLU OUT L 5 10 3
4 CPU CDO L 6 7 4 GND 6 2, 4, 5,
5 CPU CD1 L 7 8 5 GND 7 2, 4, 5,
6 GND 8 6 Key (no pin) 8
7 DSPL 00 L 9 7 SLU IN + 9 7
8 DSPL 01 L 10 8 SLU IN - 10 9
9 DSPL 02 L 11 9 GND 11 2, 4, 5,
10 BTRY VCC 12 1* 10 +12 V 12 10
11 DSPL 03 L 13 13
12 GND 14 14
13 BDG CDO L' 15 5
14 BDG CDl L 16 6
15 HLT ENB L 17 1
16 GND 18
17 CSBR 02 L 19 2
18 CSBR Ol L 20 3
19 CSBR 00 L 21 4
20 +5 V 22
23
24
* +10 V from
BBU to TOY clock chip on CPU
UOTICTIEISUIL
Installation
2.4 CK-KA630-A CPU DISTRIBUTION PANEL INSERT
When the KA630-AA is installed in a MicroVAX II system, the
CK-KA630-A CPU distribution panel insert (Figures 2-5, 2-6, 2-7)
in the rear I/O distribution panel is used to select configuration
settings. The KA630-AA can only function as an arbiter when it is
connected to the CK-KA630-A.
The CK-KA630-A is available in two variants: the CK-KA630-AB and
CK-KA630-AF. The difference is in the cable length for the J2 and
J3 cables. The CK-KA630-AB is used in Digital BA23-A and BAl23-A
enclosures. The CK-KA630-AF is used in the H9642 and BAll-S
enclosures,
2.4.1 Time-Of-Year (TOY) Clock BBU
The CK-KA630-A also contains a BBU for the TOY clock chip. The BBU
is located on the back of the CK-KA6G30-A. It consists of three
nickel-cadmium batteries connected in series for a combined
voltage оЁ 3.75 Мас. The minimum required voltage is 3.6 Vdc. The
BBU provides power for the TOY clock chip when power is not
supplied to the KA630-AA from the system power supply. The BBU
recharges when dc power is applied to the KA630-AA. In addition to
the time-of-year data, the TOY clock contains four Control and
Status Registers (CSRs) and 50 bytes of RAM used by the console
program (described in Chapter 3) to store information required to
restart the processor following a halt. The TOY clock chip and
four CSRs are described in detail in Chapter 4.
Meter AN Е e 7)
=) Tip
MR- 17217
Figure 2-5 CK-KA630-A Distribution Panel Insert
Installation
HALTS ENABLED
|
LL LANGUAGE INQUIRY MODE
LL LOOPBACK TEST MODE
OUTSIDE
Figure 2-6
TO CPU
MODULE J2
Figure 2-7
HALTS DISABLED
HEX
|” DISPLAY
NORMAL OPERATION
CONNECTOR
|,” FOR CONSOLE
TERMINAL
MA-14503
CK-KA630-A Connectors (Front View)
m
BATTERY
BACKUP
UNIT
A
INSIDE
ME- 14504
CK-KA6G30-A Connectors (Rear View)
2.5
Installation
COMPATIBLE SYSTEM ENCLOSURES
The KA630-AA is compatible with the following Digital enclosures.
BA11-S
BA23-A
BAl23-A
The BAll1-S contains a 4 row X 9 slot backplane with
22-bit addressing on slots A/B. The C/D rows contain
the CD interconnect. The backplane can contain up to
nine dual-height or nine quad-height modules.
Dimensions are 13.2 X 48.3 X 57.8 cm (5.2 X 19 X 22.7
in). The power supply includes a master console and
provides 36 A at +5 V and 5 A at +12 V.
The BA23-A contains a 4 row X 8 slot 22-bit address
backplane. Slots 1 through 3 provide 22-bit addressing
on the A/B rows and the CD interconnect on the C/D
rows. Slots 4 through 8 provide 22-bit addressing on
both the A/B and C/D rows. Up to 8 quad-height, or 3
quad-height and 10 dual-height modules can be mounted.
The BA23-A has mounting space for 2 13.2 cm (5.25 in)
mass storage devices. The power supply includes a
master console and provides 36 A at +5 V and 7 A at
+12 V.
The BA23-A is also available in an H9642 cabinet,
which provides 8 additional backplane slots and space
for 2 26.5 cm (10.5 in) mass storage devices.
The BAl123-A contains a 4 row X 12 slot 22-bit address
backplane. Slots 1 through 4 provide 22-bit addressing
on the A/B rows and the CD interconnect on the C/D
rows. Slots 5 through 12 provide 22-bit addressing on
both the А/В and C/D rows. The BAl123~A has mounting
space for 5 13.2 cm (5.25 in) mass storage devices.
The power supply includes a master console and 2
regulators that provide 36 A at +5 V and 7 A at +12 V
per regulator. Total power from each regulator must
not exceed 230 W.
CHAPTER 3
BOOTING AND CONSOLE PROGRAM INTERFACE
3.1 INTRODUCTION
This chapter describes the KA630-AA console program and booting
sequence. The console program, in conjunction with the KA630-AA
hardware, gains control whenever the KA630-AA halts. For the
KA630-AA, halting means only that control is transferred to this
program, not that the processor stops executing instructions.
The console program is located in ROM on the KA630-AA. The ROM
address range is located in the KA630-AA local I/O space. The
console program uses the KA630-AA LEDs and console terminal output
to communicate diagnostic progress and error reports to the user.
In order for the console program to operate, the processor must be
functioning at a level able to execute instructions from the
console program ROM.
The console program provides the following services.
e Automatic restart or bootstrap following processor halts
or initíal power-up
e Interactive command language allowing the user to examine
and alter the state of the processor
e Diagnostic tests executed on power-up that perform checks
on the CPU, memory system and Q22-Bus I/O map
e Support of a video or hard-copy terminal as the console
terminal
Users are not assumed to speak English. The console program can
output console messages in 11 languages. If there is no language
specified when the system powers up, the console program prompts
the user for a language. The user language is then recorded (CPMBX
<07:04>) in battery backed up RAM on the TOY clock chip. The
preferred language is thus retained when the system is turned Off.
Booting and Console Program Interface
The KA630-AA decodes the ROM addresses so that the same ROM
appears more than once in the address space. The console program
is written in position-independent code so that it can be executed
from any address range. The KA630-AA uses this feature to
selectively enable and disable the external halt circuitry. If the
console program is executing in the first address range (20040000
to 2004FFFF hex), external halt conditions are ignored. If the
console program is executing in the second address range (20050000
to 2005FFFF hex), external halt conditions are honored, the
console program halts, and immediately starts again (at its
beginning) to process the halt. The console program normally
executes from the first address range, while the diagnostics
software normally executes from the second address range.
A console terminal is not required for operation, but halts should
not be enabled on a system not having a console terminal.
The console program is divided into the following major sections.
Power-up
Entry/dispatch
Diagnostics
Restart
Bootstrap
Console I/O mode (system halted)
Console I/O mode (system running)
The console program receives control whenever the processor halts,
which occurs as a result of any of the following conditions.
Power-up
External halt signal
Execution of a halt instruction
Serious system error
When any halt occurs, the processor performs the following.
e Switches to physical addressing
e Saves the Program Counter (PC), Processor Status Longword
(PSL), and Interrupt Stack Pointer (ISP) internally
e Encodes and saves the condition that caused the halt in a
halt code
e Branches to the start of the console program ROM
If the DC OK signal is present, the hex value F is displayed on
the KA630-AA LEDs. Upon entry, the console program outputs the hex
value E to the console LEDs, indicating that at least one
instruction has been executed. It then loops until Boot and
Diagnostic Register (BDR) bit 15 (PWR OK) is set, indicating that
power is stable,
Booting and Console Program Interface
The console program then checks bits <14:08> in IPR 43, noting if
the halt is a power-up halt. If it is a power-up halt, the console
program begins the power-up sequence described in Section 3.2, If
the halt is the result of a condition other than power-up, control
passes to the entry and dispatch code described in Section 3.3.
At power-up, the console initializes the KA630-AA by performing a
variety of operations unique to the power-up process.
3.2.1 Power-Up Mode
At power-up, BDR <10:09> is interpreted as a power-up mode field
(Table 3-1). Several power-up operations are dependent on the
power-up mode.
Table 3-1 Power-Up Modes
Mode Language Prompt Diagnostics
0 Prompt for language only if Run full diagnostics.
TOY battery backup failed.
1 Prompt for language on every Run full diagnostics.
power-up.
2 Set language to English. Run console terminal
loopback tests.
3 Set language to English. Run abbreviated
diagnostics.
3.2.2 Power Stabilization and ROM Checksum
The console program outputs the hex value D to the LEDs,
indicating that the power stabilization wait is over. It then
calculates a checksum of the console program ROM and checks it
against the valid checksum stored in the ROM itself. If the
computed checksum differs from the stored checksum, the console
Program hangs in a loop. If the checksum is the same, the power-up
code proceeds to the next step.
3.2.3 Console Program Initialization
The next step of the power-up initialization is location and
initialization of the memory needed for the console program
itself. The hex value C is output to the LEDs at the beginning of
this step.
During this step, the console ROM code searches top-down through
available memory for a contiguous block to be used by the console
Program for writeable storage. This block consists of two pages
for the console's direct use and additional pages for use to store
a bitmap of available memory. The amount of memory allocated to
e bitmap varies according to the amount of memory available.
Booting and Console Program Interface
Following initialization, memory appears as shown in Figure 3-1.
The console program memory is used by the console program for its
stack and other data structures.
The bitmap is filled in at a later time with a map of valid memory
pages by the power-up memory diagnostics. This bitmap is passed to
the bootstrap as a map of valid memory. Beginning from the base of
the bitmap, the first bit corresponds to the first page of low
memory, the second bit to the second page, and so on. If the bit
is set, the page is good; if the bit is clear, the page failed the
memory test. The bitmap does not map itself or any other memory
that follows it in the console program.
Since system software is expected to use only pages marked as good
in the bitmap, it is not expected to modify the bitmap or the
console program memory. However, the console program memory pages
and the bitmap are checksummed by the console program to guard
against accidental modification by system software.
If the console program cannot locate enough memory for its own use
and for the bitmap, it hangs. Following initialization of its
memory, the console program clears the following Console Program
Mailbox (CPMBX) register bits.
e <01:00> -- Processor halt action
e 2 —- "Bootstrap in progress" flag
e 3 -- "Restart in progress" flag
000000
LOW
MEMORY | THIS MEMORY IS NOT TESTED DURING
CONSOLE INITIALIZATION. IT 15 TESTED LATER
. 8Y THE POWER-UP MEMORY DIAGNOSTICS.
MEMORY SET BY THE MEMORY DIAGNOSTICS TO MAP
BITMAP ALL GOOD LOW MEMORY.
CONSOLE
MEMORY USED BY THE CONSOLE PROGRAM.
HIGH
MEMORY | BAD MEMORY SKIPPED OVER DURING CONSOLE
MEMORY INITIALIZATION.
XX0000
MK 15786
Figure 3-1 Console Memory Map After Initialization
Booting and Console Program Interface
3.2.4 Battery Backup Check
The console program then checks the TOY clock to determine if the
battery backup has failed. If this has happened, time-of-year data
has been lost along with the contents of all the TOY clock RAM. If
the battery backup has failed, the console program performs the
following steps.
e Stops the TOY clock
e Zeros the time and all TOY RAM
e Initializes the four TOY clock CSRs
The operating system must check TOY clock CSR B and determine if
the clock is stopped to know if the TOY clock contains a valid
time. No change is made to the LEDs during this operation.
3.2.5 InterProcessor Communication Register (IPCR) Test
Next, the IPCR is tested. The hex value B is output to the LEDs
during this test. The test determines whether the Q22-Bus is
arbitrating properly. If the CPU module is not arbitrating, the
console program hangs at this point.
3.2.6 Determining the Console Terminal Type
3.2.6.1 Alternate Console Device Hardware Determination -- If the
processor is an arbiter, the console program next checks for
the presence of a VCBO1 or VCB0O2 as the console device. If
the KA630-AA is an auxiliary processor, this test is skipped. The
hex value A is output to the LEDs during the test.
VCBO1 and VCB02 alternate console devices are determined by
testing for the presence of the CSR address first at 20001E92 hex
(for VCBO1), and then at 20001F00 hex (for VCB02). If there is no
response at either location, the console program assumes that
alternate console devices are not present and moves to the console
terminal determination code (Section 3.2.6.2).
If a VCBOl or VCBO2 video subsystem is detected, it is initialized
and a short diagnostic is executed. If the initialization and
diagnostics succeed, the console uses the VCBOl or VCBO2 as the
console terminal, skips the next step and moves directly to the
console message language check (Section 3.2.7). If either the
initialization or the diagnostic fails, the system hangs at this
point.
Booting and Console Program Interface
3.2.6.2 Console Terminal Determination -- When VCB0Ol or VCBO2
alternate console devices are not detected, it is assumed that a
normal console terminal is connected to the console port, or that
no terminal is connected. The console program then attempts to
determine the type of terminal connected. This information is used
when in console 1/0 mode to govern how command line editing is
performed. The console program sends the console port a device
attribute request escape sequence. If the device responds with a
recognizable response, the terminal is classified as a video
terminal. The terminal must respond in 1 second to the device
query. When there is no response or the response is not
recognized, the test is repeated twice, If the device still does
not respond or the response is not recognized, the terminal is
classified as a hard-copy terminal. Terminal response is
recognized in either 8- or 7-bit mode.
The information obtained in this procedure is also used to
determine if the terminal supports the Digital Multinational
Character Set (MCS). The console program assumes that all new
terminals (VT200 series and beyond) support MCS. If the terminal
does not support MCS, CPMBX <07:04> is set to 2, selecting English
as the console display language. The value 9 is output to the LEDs
during this test.
3.2.7 Console Message Language Check
The console next outputs the value 8 to the LEDs and then
determines the appropriate language to use for all console
messages. The console language is stored in CPMBX <07:04>. The
algorithm used to determine the language follows.
l. If power-up mode (Table 3-1) is 2 or 3, set the console
language to English and exit.
2. If power-up mode is 1 and the terminal supports MCS, or
if the value of CPMBX <07:04> is 0, solicit the language
from the user. If the user does not respond within 30
seconds, set the language to English (mode 2) and exit.
Note that when the terminal is queried, if it is not recognized as
one that supports MCS, CPMBX <07:04> is set to 2, forcing English
as the console language. English messages use the 7-bit subset of
MCS. If a loss of power to the TOY clock chip is detected, the
contents of the TOY RAM are zeroed. This means that step 2 above
causes the user to be prompted for language if the terminal
supports the MCS.
3-6
Booting and Console Program Interface
If the console program determines that a vCBOl vídeo display
system is being used as the console, a step in addition to
selecting one of the languages is required. The VCBOl display
system uses the DEC LK201 keyboard, which comes in 16 national
variants (Table 3-2). The keyboard variant cannot be determined by
querying the keyboard itself; it must be determined either from
the language selected or by means of an additional menu selection.
If French, German or English is selected, the keyboard variant is
ambiguous and the additional menu is displayed. The user is
prompted to specify which national keyboard variant is in use. If
the user does not respond in 30 seconds, the last selection is
assumed.
3.3 ENTRY/DISPATCH
Following the determination of the console language on power-up,
or directly on entry from any other halt condition, the console
dispatches to the appropriate code to service the halt.
To determine what action to take, the console program examines the
halt error code (IPR 43 <14:08>), the halt enable bit (BDR 14),
and the processor halt action (CPMBX <01:00>). It then acts in
accordance with the decision table shown in Table 3-3.
Table 3-2 Additional Language Selections (VCBOl Only)
ROM Language
Selected/
Additional
Selections French German English
1 Canada Germany/Austria United Kingdom
2 France/Belgium Switzerland United States/
Canada
3 Switzerland
Table 3-3 Console Entry Decision Table*
Halt Processor
Enable Power-Up Halt Action
(BDR 14) Halt (CPMBX <01:00>) Functions
T T X Diagnostics, halt.
T F 0 Halt.
F T X Diagnostics, bootstrap, halt.
F F 0 Restart, bootstrap, halt.
X F 1 Restart, halt.
X F 2 Bootstrap, halt.
X F 3 Halt.
*T = true, F = false, X = condition of the bit(s) does not
matter.
Booting and Console Program Interface
If a power-up halt (second column) is true, it is one in which the
halt error code contained in IPR 43 <14:08> equals 3. When the
processor halt action is 1, 2 or 3, the condition of BDR bit 14 is
ignored. When the processor halt action is 0, the action is
determined by the condition of HLT ENB (BDR bit 14). Multiple
actions mean that the first action is taken, and if and only if it
fails, the next action is taken. Diagnostics are an exception. If
diagnostics fail, the console program hangs without attempting to
bootstrap the processor. If they succeed, then the next action is
taken.
Note that because the KA630-AA does not support battery backup for
main memory, it examines the halt code and does not attempt to
perform restart operations following power-up.
3.4 DIAGNOSTICS
On power-up, the console outputs the message "Performing normal
diagnostic tests of system" to the console terminal. The
Entry/Dispatch code dispatches the diagnostics to check the
processor and memory before proceeding. As each test in the
diagnostics is run, it is output to the console terminal, causing
a "countdown" to be displayed on the processor LEDs.
The first diagnostic LED code is 8. Executing the diagnostics
continues the LED countdown. The diagnostic codes are listed in
Chapter 5.
At the conclusion of all tests, the message "Tests successfully
completed” is output to the console terminal. If a diagnostic test
detects a fatal error, an error message is displayed on the
console, along with a summary message indicating that continued
operation is not possible. The console program then hangs there,
leaving the test code on the LEDs. If halts are disabled, the only
way to clear the system is to turn it Off and then On again. If
halts are enabled, the system can be cleared by manually halting
it, causing it to enter console command mode. Additional
information on the diagnostics is located in Chapter 5.
3.5 RESTART
The console can restart a halted operating system. To do so, the
console searches system memory for the Restart Parameter Block
(RPB, Figure 13-2), a page-aligned control block created for this
purpose by the operating system. If a valid RPB is found, the
console restarts the operating system at an address specified in
the RPB.
3-8
Booting and Console Program Interface
PHYSICAL ADDRESS OF THE RPB :RPB
PHYSICAL ADDRESS OF THE RESTART ROUTINE
CHECKSUM OF THE FIRST 31 LONGWORDS Of THE RESTART ROUTINE
SOFTWARE RESTART iN PROGRESS FLAG (BIT 0)
MA. 15787?
Figure 3-2 RPB Format
The console uses the following seguence to find an RPB:
1. Searches for a page of memory that contains its address
in the first longword. If none is found, the search for
an RPB fails.
2. Reads the second longword in the page (the physical
address of the restart routine). If it is not a valid
physical address, or if it is 0, the console program
returns to step 1. The check for 0 is necessary to ensure
that a page of 0s does not pass the test for a valid RPB.
3. Calculates the 32-bit 2's complement sum (ignoring
overflows) of the first 31 1longwords of the restart
routine. If the sum does not match the third longword of
the RPB, the console program returns to step 1. If the
sum does match, a valid RPB exists and has been found.
The same algorithm is used for both arbiter and auxiliary
processors.
The console keeps a "Restart in progress" flag in CPMBX bit 3,
which it uses to avoid repeated attempts to restart a failing
operating system. An additional "Restart in progress" flag may be
maintained by software in the RPB.
The console uses the following sequence to restart the operating
system:
1. Checks the "Restart in progress" flag in CPMBX bit 3. If
it is set, restart fails.
2. Prints the message "Restarting the operating system" on
the console terminal.
3. Sets CPMBX bit 3.
4. Looks for an RPB left in memory by the operating system.
If none is found, restart fails.
Booting and Console Program Interface
5. Reads the software "Restart in progress” flag from bit 0
of the fourth longword of the RPB, If it is set, restart
fails.
6. Loads the Stack Pointer (SP) with the address of the RPB
plus 512 bytes.
7. Loads the Argument Pointer (AP) with the halt code (IPR
43 <14:08>).
8. Displays 0 on the console LEDs,
9. Starts the processor at the restart address, which is
read from the second longword in the RPB.
If restart fails, the console program prints "Attempt to restart
operating system failed" on the console terminal. If the restart
is successful, the operating system must clear CPMBX bit 3.
3.6 BOOTSTRAP
The console program can load and start (bootstrap) an operating
system. To do so, it performs the following steps:
1. Searches for a 64 Kbyte segment of correctly functioning
system memory.
2. Sets SP equal to the base address of the segment plus 512
bytes.
3. Copies the primary bootstrap, called Virtual Memory
Bootstrap (VMB), from the console program ROM to the
segment starting at the location specified by the SP.
4. Branches to the first location in VMB, which then loads
and starts the operating system.
To prevent a situation in which the console program repeatedly
tries and fails to bootstrap the operating system, the console
program maintains a "Bootstrap in progress" flag in CPMBX bit 2.
The console uses the following sequence to bootstrap the operating
system:
1. . Begins at step 4, if the bootstrap is the result of a
console Bootstrap command.
2. Checks the "Bootstrap in progress" flag in CPMBX bit 2.
If it is set, the bootstrap fails.
3. Prints the message "Starting the operating system" on the
console terminal.
4. Sets CPMBX bit 1.
Booting and Console Program Interface
Locates a page-aligned, 64 Kbyte segment of good memory.
If such a segment cannot be found, the bootstrap fails.
Initializes the 0Q22-Bus 1/0 map. The main function of
this initialization is to preset the arbiter processor
1/0 map so that all unoccupied pages of the Q22-Bus are
mapped to the corresponding pages in the first 4 Mbytes
of local memory. This is a MicroVAX I compatibility
feature, and is not done for auxiliary processors. Any
auxiliary 022-Bus 1/0 mapping must be coordinated with
all other processors, so that all auxiliary processor 1/0
map registers are marked invalid. The bitmap is rebuilt
during boot, as follows,
a. Turn on IPCR bit 8, the halt flag.
b. Disable the I/0 map by clearing IPCR bit 5.
c. If the KA630-AA is an arbiter processor, do the
following for each I/O map register:
(1) Set the map register address bits to map the
022-Bus page to the corresponding local memory
page.
(2) If the corresponding Q22-Bus page is unoccupied,
turn on the valid bit.
(3) If the page is occupied, turn off the valid bit.
If the KA630-AA is an auxiliary processor, turn off
the valid bit in all map registers.
de. Enable the I/O map by setting IPCR bit 5.
e. If the KA630-AA is an auxiliary processor, loop
until IPCR bit 8 is cleared.
(Note that steps a. and e. are present to perform a
secondary function while the 022-Bus I/O map is
initialized, namely, to synchronize an auxiliary
processor with its bootstrap host.)
Loads the general registers for VMB as shown in Table
3-4 .
Copies VMB from the console ROM to an address 512 bytes
past the base of the good segment.
Invokes VMB, If VMB fails, the bootstrap fails.
Booting and Console Program Interface
Table 3-4 VMB Register Usage
Register Description
RO ASCII device name (from Bootstrap command) or 0
R1 Contents of BDR
R2 Memory bitmap size in bytes
R3 Address of memory bitmap
R4 Unused
RS Software boot control flags
(from Bootstrap command only)
R10 Halt PC value
R11 Halt PSL value
AP Halt code (argument pointer)
SP 512 bytes past base of 64 Kbytes of good memory
(stack pointer)
If bootstrap fails, the console prints "Attempt to start operating
system failed" on the console terminal.
If the bootstrap is successful, the operating system must clear
the "Bootstrap" and "Restart in progress" flags in CPMBX <03:02>,
and clear the LED display by depositing a value of 0 in BDR
<03:00>.
3.6.1 Primary Bootstrap Program (VMB)
VMB is the KA630-AA primary bootstrap. It is executed as the first
part of a two-part system bootstrap operation. VMB contains the
code that executes the following operations.
e Initialization of System Control Block (SCB)
e Initialization of an extended RPB
e Initialization of a Page Frame Number (PFN) bitmap and
the relevant extended RPB fields
e Selection of a bootstrap device
e Performance of a Files-11 0052, boot block, ROM, or
down-line load of the secondary bootstrap
Booting and Console Program Interface
The secondary bootstrap continues the bootstrap operation. For
KAG30-AA systems, primary bootstrap operations are defined by VMB,
and secondary bootstrap operations are defined by the operating
system being booted.
VMB finds the bootstrap device in one of three ways.
1.
If the bootstrap is the result of a console Bootstrap
command and a device name is specified in the command,
that device is searched for the secondary bootstrap.
If the bootstrap is not the result of a console Bootstrap
command or if no device name is specified, VMB searches
the following devices, in the order shown.
a. A bootable removable disk
b. A bootable fixed disk
с. TK50 tape unit
d, MRV11 PROM
e. DEQNA, for a down-line bootstrap
If the bootstrap is the result of a halt with CPMBX
<01:00> equal to 2, that is, a request from the operating
system to reboot the system, the device used previously
to bootstrap the operating system is used (as well as the
same command flags).
When a VMB attempt fails, the console program halts.
3.6.1.1
Bootstrap Devices -- The following bootstrap devices are
supported by the console program,
RQDX2, RODX3, KDA, and RC25 MSCP disk controllers. VMB
can boot from any disk unit supported by an MSCP disk
controller. Units supported by RQDX2 and RODX3 are RX50,
RD51, RD52 and RD53. Units supported by KDA are RA63 and
RAS1. The unit supported by the KLESI is the RC25. The
Bootstrap command designation for these units is DUAO,
DUAl, etc. The first controller must be configured at
Q22-Bus address 17772150 (octal) and interrupt vector 154
(octal). Additional controllers are located in floating
CSR and vector space.
DEQNA Ethernet adapter. This controller connects to an
Ethernet cable. The Bootstrap command designation for
this device is XQAO0. The controller must be configured at
Q22-Bus address 17774440 (octal) and vector 124 (octal,
for one unit or the first unit).
MRV11 Programmable Read-Only Memory (PROM) board. The
Bootstrap command designation is PRAO.
TMSCP tape controller. The Bootstrap command designation
is MUAO. The TQKS50 controller must be configured at
022-Bus address 17774500 (octal).
Booting and Console Program Interface
3.6.1.2 Bootstrap Command Fl ~- When a bootstrap is invoked using
the Bootstrap command, the user can specify several Bootstrap
command flags by bit encoding the flags in a flag word specified
with the /R5: qualifier. These command flags are described in
Table 3-5.
3.6.1.3 Booting from Disk -- For VMB to boot using an MSCP disk
controller, the first controller must be configured at 17772150
(octal) and subsequent controllers must be configured in their
appropriate floating CSRs and vectors. When VMB determines that a
controller is present, it searches for an accessible unit attached
to the controller that has a removable volume. The search is made
in order of increasing unit number (DUAO, DUAl, etc.). If it finds
such a unit with a removable volume, VMB proceeds as described
below. If it finds no such volume, it searches the same controller
again, but this time checking for nonremovable volumes, If by this
time no accessible volume is found, it checks for the next
controller and repeats the process. If no more controllers are
found, the disk boot fails.
If an accessible volume is located, VMB then determines if it is a
Files-11 volume. If it is, it searches the volume for file
[SYSO0.SYSEXE] SYSBOOT.EXE, which contains the secondary bootstrap.
If this file is found, VMB loads and executes it (performs a
secondary bootstrap).
If the volume is not a Files-1] volume, VMB then checks logical
block 0 of the volume for a valid bootblock (Figure 3-3). If the
bootblock is a valid bootblock, VMB loads and executes the
secondary bootstrap specified in the bootblock. If there is no
valid bootblock present, the search resumes for the next
accessible volume,
Note that the bootstrap process can be altered by Bootstrap
command flags, as described in Table 3-5.
Table 3-5
Booting and Console Program Interface
VMB Bootstrap Command Flags
Bit
Number (s)
value
(Hex)
Flag Word
Description
00
03
04
06
08
09
<31:28>
00000001
00000008
00000010
00000040
00000100
00000200
X0000000
Conversation
Bootblock
Diagnostic
Header
Solicit
Halt
Topsys
Conversational bootstrap.
Secondary bootstrap from
bootblock. When this bit is
set, VMB reads logical block
number 0 of the boot device
and tests it for conformance
with the bootblock format.
If in conformance, the block
is executed to continue the
bootstrap. No attempt to
perform a Files-11 bootstrap
is made.
Diagnostic bootstrap. When
this bit is set the
secondary bootstrap is file
{(SYS0.SYSMAINT]DIAGBOOT.EXE.
Image header. If this bit is
not set, VMB transfers
control to the first
location of the secondary
bootstrap. If this bit is
set, VMB transfers control
to the address specified by
the file's image header.
File name Solicit. When this
bit 15 set, VMB prompts the
operator for the name of the
secondary bootstrap file.
Halt before transfer. When
this bit is set, VMB halts
before transferring control
to the secondary bootstrap.
X can be any value from O
through F (hex). This flag
changes the top level
directory name for system
disks with multiple
operating systems. For
example, if X = 1, the top
level directory name is
[SYSl....].
Booting
BB +
BB +
BB +
BB +
BB +
BB +
BB +
BB +
BB +
BB +
BB + O
BB + 2*N
+0:
+4;
+8:
+12:
+16:
+20:
(2*n) + 0:
(2*n) + 1:
(2*n) + 2:
(2*n) + 3:
(2*n) + 4:
(2*n) + 5:
and Console Program Interface
1 N ANY VALUE
LOW LBN HIGH LBN
CHECK BYTE K 0 18 {НЕХ}
ANY VALUE 1 OR 81 о
SIZE IN BLOCKS OF THE IMAGE
LOAD OFFSET FROM DEFAULT LOAD ADDRESS
OFFSET INTO IMAGE TO START EXECUTION
SUM OF PREVIOUS THREE LONGWORDS
MR-15775
Figure 3-3 Bootblock Format
These two bytes can have any value.
This value is the word offset from the start of
the bootblock to the identification area
described below.
This byte must be 1.
This longword contains the logical block number
(word swapped) of the secondary image.
This byte defines the expected instruction set.
(18 hex = VAX instruction set.)
This byte defines the expected controller type.
(0 = unknown.)
This byte defines the file structure on the
volume. It may be any value.
This byte must be the 1's complement of the sum
of the previous three bytes.
This byte must be 0.
This byte must be 1 or 81 (hex). This byte
defines the version number of the format
standard and the type of disk. The version is
1; the high bit is 0 for single-sided, 1 for
double-sided volumes.
Booting and Console Program Interface
BB + (2*n) + 6: These two bytes may be any value, but generally
they are 0.
BB + (2*n) + 8: This entry is a longword containing the size
(in blocks) of the secondary bootstrap image.
BB + (2*n) + 12: This entry is a longword containing a load
offset (usually 0) from the default load
address of the secondary bootstrap.
BB + (2*n) + 16: This entry is a longword containing the byte
offset into the secondary bootstrap where
execution is to begin.
BB + (2*n) + 20: This entry is a longword containing the sum of
the previous three longwords.
3.6.1.4 Booting from Tape -- If no bootable disk is found, VMB
attempts to bootstrap from a TK50 tape.
If a TK50 is present, VMB determines if a tape is loaded and if
the unit is on-line. If so, VMB rewinds the tape and searches for
the file TAPEBOOT.EXE. (The user may specify an alternative file
name by setting the Solicit bit ín the software command register.)
If this file is found, VMB loads and executes it. Normally this
file would contain a program to load an operating system from tape
onto a system disk.
If a user has both disks and tape and a disk is bootable, to boot
from tape the user must either take all bootable disks off-line,
or explicitly boot the TKS50 using the console Bootstrap command.
3.6.1.5 Booting from PROM -- If neither disk nor tape is
bootable, VMB checks for a PROM bootstrap. To locate a PROM
bootstrap, VMB searches the Q22-Bus address range from high to low
addresses by page, looking for readable memory. If the first six
longwords of any such page contain a valid PROM signature block
(Figure 3-4), VMB passes control directly to the bootstrap code in
the PROM. It does not copy the PROM code to local memory for
execution, as it does for all other secondary bootstraps.
Note that while defined as an MRV1l PROM or equivalent bootstrap,
VMB does not actually require that the signature block or the
bootstrap code be in PROM. The signature block or bootstrap code
may be in ROM, nonvolatile RAM, or it could be loaded into another
KA630-AA's RAM and mapped to the Q22-Bus.
Booting
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
and Console Program Interface
RB:
+4:
+8:
+12;
+16:
+20:
Figure 3-4
+
0:
12:
16:
20:
СНЕСК ВУТЕ ANY VALUE o
18 (НЕХ)
ANY VALUE 1 о
SIZE OF PROM IN PAGES
MUST BE ZERO
OFFSET INTO PROM TO START EXECUTION
SUM OF PREVIOUS THREE LONGWORDS
MA 5776
PROM Bootstrap Memory Format (Signature Block)
This byte must be 18 (hex).
This byte must be 0.
This byte may be any value.
This byte must be the 1's complement of the sum
of the previous three bytes.
This byte must be 0.
This byte must be 1.
These two bytes may be any value.
This longword contains the size (in pages) of
the PROM.
This longword must be 0.
This longword contains the byte offset into the
PROM where execution is to begin.
This entry is a longword containing the sum of
the previous three longwords.
Booting and Console Program Interface
3.6.1.6 Booting from DEQNA -- If no other bootstrap device 15
found, VMB attempts to bootstrap from the DEQNA Ethernet
controller. In this case, the secondary bootstrap is down-line
loaded from a host on the Ethernet, using DeCnet low-level
Maintenance Operation Protocol (MOP) Version 3.0. The DEQNA module
must be configured at Q22-Bus address 17774440 (octal).
The down-line load process consists of the following steps:
l. VMB performs local testing of the DEQNA. If the tests
fail, the bootstrap attempt fails and the three LEDs on
the DEQNA are set according to the problem detected. The
LED settings and their interpretations are as follows.
e 3 LEDs on: DEQNA initialization failure
e 2 LEDs on: internal loopback failure
e 1 LED on: external loopback failure
2. VMB transmits a program request MOP message over the
Ethernet. The message destination is the load assistant
multicast address AB-00-00-01-00-00. The message source
address is the DEQNA station address (from DEQNA PROM).
The MOP program type is operating system.
3. VMB waits approximately 30 seconds to receive a response.
If it does not receive a response, it retransmits the
request every 30 seconds for a total of 2 minutes. If a
response is not received in two minutes, the bootstrap
fails.
4. VMB accepts MOP load messages and loads the data into
memory, terminating when the final message is received as
indicated in the MOP message protocol. If the interval
between load messages exceeds 30 seconds, VMB restarts
the DEQNA bootstrap at step 2.
3.6.1.7 Booting an Auxiliary Processor -- VMB bootstraps an
auxiliary processor by using the ROM bootstrap protocol. Refer to
the Q22-Bus initialization algorithm in Section 3.6.
Note that whenever the console program is entered, it turns off
IPCR bit 8, Steps 1 and 5 ensure that an auxiliary processor loops
until some other processor clears IPCR bit 8. When another
processor -- the bootstrap host, clears IPCR bit 8, the auxiliary
proceeds with the bootstrap. This synchronization gives the
arbiter processor control over the bootstrapping of all auxiliary
processors.
Booting and Console Program Interface
An auxiliary processor cannot directly bootstrap itself from any
of the normal bootstrap devices, so VMB on an auxiliary checks
only for the ROM bootstrap described above. The ROM bootstrap may
be either a block of nonvolatile memory on the Q22-Bus, or the
bootstrap host can construct an equivalent bootstrap in RAM. In
either case, the auxiliary does not proceed with the bootstrap
until the bootstrap host clears IPCR bit 8. The bootstrap host, in
turn, should not clear the auxiliary IPCR bit 8 unless IPCR bit 5
is clear.
3.6.2 Secondary Bootstrap Program
The secondary bootstrap program is invoked as the second part of a
system bootstrap. Following successful execution of the primary
bootstrap, the secondary bootstrap has either been loaded into
memory or located in ROM. It is the responsibility of the
secondary bootstrap to complete the bootstrap of the processor.
VMB calls the secondary bootstrap with the processor in the
following state.
e The processor is running in kernel mode on the interrupt
stack at IPL 31 (hex).
e R11 contains the base address of the extended RPB (Figure
3-5) created by VMB.
OFFSET (HEX):
00: ADDRESS OF THE EXTENDED RPB
04: 0
08: 0
OC. 0
10: PC AT RESTART/HALT
14: PSL AT RESTART/HALT
18: HALT CODE
1C: VMB INPUT REGISTER RO
20: VME INPUT REGISTER R1
24: VMB INPUT REGISTER R2
28: VMB INPUT REGISTER R3
2C: VMB INPUT REGISTER R4
30: VMB INPUT REGISTER R5
34: TWO LONGWORDS RESERVED
aC: DISK BLOCK ADDRESS OF SECONDARY BOOTSTRAP
40: SIZE OF SECONDARY BOOTSTRAP FILE IN BLOCKS
44: DESCRIPTOR OF PFN BITMAP (TWO LONGWORDS)
48. NUMBER OF GOOD PHYSICAL PAGES
ac: RESERVED
50: PHYSICAL CSR ADDRESS OF 800T DEVICE
54: FOUR LONGWORDS RESERVED
68: SECONDARY BOOTSTRAP FILE NAME (40 CHARACTERS)
a0: EIGHT LONGWORDS RESERVED
BO SYSTEM CONTROL BLOCK BASE ADDRESS
MP 5784
Figure 3-5 Extended RPB
Booting and Console Program Interface
AP contains the address of the
argument list (Figure 3-6).
secondary bootstrap
SP contains the address of the top of the stack plus 4,
which is also the address of the beginning of the
secondary bootstrap (Figure 3-7).
System Control Block Base (SCBB, an internal processor
register) contains the address of the SCB created by VMB,
Note that the
first four longwords of the VMB-created, extended
RPB would not be recognized as a valid RPB by the console restart
up to the secondary bootstrap or the operating
system itself to complete the RPB if automatic restart is desired.
algorithm, It is
(AP)+00: 12
(AP)+04: RESERVED
{AP}+OB: RESERVED
(AP}+12: LOWEST VALID PFN
{AP}+16: HIGHEST VALID PFN
(AP)+24: PEN MAP SIZE IN BYTES
{AP}+28: ADDRESS OF PFN BITMAP
¡AP)+32: RESERVED
(АР\+36: RESERVED
(AP)-+40: PROCESSOR ID {87???}
[API+44: RESERVED
(API+48: RESERVED
MA-15788
Figure 3-6 Secondary Bootstrap Argument List
R11: EXTENDED RPB BUILT BY VMB
+ 200 (HEX): VMB
+ TBS (HEX): 2-PAGE SCB USED BY VMB :SCBB
+ TBS (HEX): 8 PAGE PFN BITMAP
+ TBS (НЕХ); 4-PAGE STACK FOR SECONDARY BOOTSTRAP
+ TBS (HEX): SECONDARY BOOTSTRAP SP
+ 10000 (HEX): MA 18783
Figure 3-7 Secondary Bootstrap Memory Map
Booting and Console Program Interface
3.7 CONSOLE 1/0 MODE (SYSTEM HALTED)
When the KA630-AA is halted, the operator controls the system
through the console terminal using the console command language.
The console terminal is in console 1/0 mode. The console prompts
the operator for input with the string >>>.
3.7.1 Console Control Characters
In console 1/0 mode, several keys have special functions. Note
that the control characters are typed by pressing the character
key while holding down the Control key (<CTRL>).
e <CR> -- The carriage return ends a command line. No
action is taken on a command until after it is terminated
by pressing the Carriage Return key. A null line
terminated by a carriage return is treated as a valid,
null command. No action is taken, and the console
reprompts for input. Carriage return is echoed as
carriage return, line feed.
e <Rubout> -- Pressing the Rubout key deletes the
previously typed character. What appears on the console
terminal depends on whether the terminal is a video or
hard-copy terminal.
On hard-copy terminals, when <Rubout> is pressed, the
console echoes with a backslash (VW), followed by the
character being deleted. If the operator types additional
rub-outs, the additional characters deleted are echoed.
When the operator types a nonrub-out character, the
console echoes another backslash, followed by the
character typed. The result is to echo the characters
deleted, surrounding them with backslashes. For example:
The operator types: EXAMI;E <Rubout> <Rubout> NE <CR>
The console echoes: EXAMI;E\E\;\NE <CR>
The console sees the command line: EXAMINE <CR>
On video terminals, when <Rubout> is pressed, the
previous character is erased from the screen and the
cursor is restored to its previous position.
The console does not delete characters past the beginning
of a command line. If the operator types more rub-outs
than there are characters on the line, the extra rub-outs
are ignored. If a rub-out is typed on a blank line, it is
ignored.
e <CTRL> U -- The console echoes U <CR>, and deletes the
entire line. If <CTRL> U is typed on an empty line, it is
echoed, and otherwise ignored. The console prompts for
another command.
Booting and Console Program Interface
e <CTRL> S -- This stops output to the console terminal
until <CTRL> Q is typed. <CTRL> S and <CTRL> Q are not
echoed. <CTRL> C, <CTRL> O, and <Break> also clear <CTRL>
5.
e <CTRL> Q -- This resumes output to the console terminal.
Additional <CTRL> Os are ignored. <CTRL> S and <CTRL> ©
are not echoed.
e <CTRL> O -- The console throws away transmissions to the
console terminal until the next <CTRL> O is entered.
<CTRL> O is echoed as O <CR> when it disables output, but
is not echoed when it reenables output. Output is
reenabled if the console prints an error message, or if
it prompts for a command from the terminal. Displaying a
Repeat command does not reenable output. When output is
reenabled for reading a command, the console prompt
is displayed. Output is also enabled by entering program
1/0 mode, by <Break> and by <CTRL> C. <CTRL> 0 clears
<CTRL> S.
e <CTRL> В -- This causes the console to echo <CR> <LF>
followed by the current command line. This function can
be used to improve the readability of a command line that
has been heavily edited.
e <CTRL> C -- The console echoes C and aborts processing a
command. <CTRL> C has no effect as part of a binary load
data stream. <CTRL> © clears <CTRL> S, and reenables
output stopped by <CTRL> O. When <CTRL> C is typed as
part of a command line, the console deletes the line as
it does with <CTRL> U.
e <Break> -- If the console is in console 1/0 mode, <Break>
is equivalent to <CTRL> C, but is not echoed at all. If
the console is in program I/O mode and halt is disabled,
<Break> is ignored. If the console is in program I/O mode
and halt is not disabled, <Break> causes the processor to
halt and enter console I/O mode.
If an unrecognized control character is typed, it is echoed as a
caret (^) followed by the ASCII code character plus 64. A control
character here, means a character with an ASCII code less than 32
decimal [CO], or between 128 and 159 decimal [C1]. For example,
BEL (ASCII code 7) is echoed as “G, since capital G is ASCII code
7 + 64 = 71. When a control character is deleted by rubout, it is
echoed the same way. After echoing the control character, the
console processes it like a normal character. Unless the control
character is part of a comment, the command is invalid, and the
console responds with an error message.
Booting and Console Program Interface
3.7.2 Console Command Syntax
The console accepts commands up to 80 characters long. Longer
commands are responded to with an error message. The count does
not include rub-outs, rubbed out characters, or the terminating
carriage return.
Commands may be abbreviated. Abbreviations are formed by dropping
characters from the end of a keyword. All commands are recognized
from their first character.
Multiple adjacent spaces and tabs are treated as a single space by
the console. Leading and trailing spaces and tabs are ignored.
Command qualifiers can appear after the command keyword, or after
any symbol or number in the command.
All numbers (addresses, data, counts) are in hexadecimal. (Note,
though, that symbolic register names include decimal digits.) Hex
digits are 0 through 9, and A through F. The console does not
distinguish between upper and lower case either in hex numbers (A
through F) or in commands. Both are accepted.
3.7.3 References to Processor Registers and Memory
The KA630-AA console is implemented by macrocode executing from
ROM. For this reason, the actual processor registers cannot be
modified by the command interpreter. When console 1/0 mode is
entered, the console saves the processor registers in a scratch
page and all command references to them are directed to the
corresponding scratch page locations, not to the registers
themselves. When the console reenters program mode, the saved
registers are restored and any changes then become operative.
References to processor memory are handled normally except where
noted below.
Generally, a free page on the interrupt stack is used for the
scratch page, so the console does not modify the machine state. If
a free page on the interrupt stack cannot be located, the console
program uses the last valid page in contiguous physical memory and
the original machine state is lost. This should occur only on
power-up.
References to the console scratch page by Examine and Deposit
commands must be qualified by the /U qualifier. Access is
primarily to simplify debugging of the console program. The binary
load and unload commands cannot reference the console scratch
page.
Booting and Console Program Interface
3.7.4 fonsole Commands
3.7.4.1 Binary Load and Unload (X)
Command Syntax:
X <address> <count> <CR> <checksum>
The X command is for use by automatic systems communicating with
the console. It is not intended for use by operators. The console
loads or unloads (that is, writes to memory, or reads from memory)
the specified number of data bytes, starting at the specified
address.
If bit 31 of the count is clear, data is to be received by the
console, and deposited into memory. If bit 31 of the count is set,
data is to be read from memory and sent by the console. The
remaining bits in the count are a positive number indicating the
number of bytes to load or unload.
The console accepts the command upon receiving the carriage
return. The next byte the console receives is the command
checksum, which is not echoed. The command checksum is verified by
adding all command characters, including the checksum, (but not
including the terminating carriage return or rub-outs or
characters deleted by rub out), into an 8-bit register initially
set to zero. If no errors occur, the result is zero. If the
command checksum is correct, the console responds with the input
prompt and either sends data to the requester or prepares to
receive data. If the command checksum is in error, the console
responds with an error message. The intent is to prevent
inadvertent operator entry into a mode where the console is
accepting characters from the keyboard as data, with no escape
sequence possible.
If bit 31 of the count is clear (binary load commands), the
console responds with the input prompt, then accepts the specified
number of data bytes for depositing to memory, and an additional
byte of received data checksum. The data is verified by adding all
data characters and the checksum character into an 8-bit register
initially set to zero. If the final contents of the register is
nonzero, the data or checksum are in error, and the console
responds with an error message.
If bit 31 of the count is set (binary unload commands), the
console responds with the input prompt, followed by the specified
number of bytes of binary data. As each byte is sent it is added
to a checksum register initially set to zero. At the end of the
transmission, the 2's complement of the low byte of the register
1s sent.
Booting and Console Program Interface
If the data checksum is incorrect on a load, or if memory errors
or line errors occur during the transmission of data, the entire
transmission is completed, and then the console issues an error
message. If an error occurs during loading, the contents of the
memory being loaded are unpredictable.
Echo is suppressed during the receiving of the data string and
checksums.
It is possible to control the console using the console control
characters (<CTRL> CC, <CTRL> S, <CTRL> O, etc.) during binary
unload commands. It is not possible during binary load commands,
as all received characters are valid binary data.
Data being loaded with a binary load command must be received by
the console at a rate of at least one byte per second. The command
checksum that precedes the data must be received by the console
within 10 seconds of the <CR> that terminates the command line.
The data checksum must be received within 10 seconds of the last
data byte. If any of these timing requirements are not met, the
console aborts the transmission by issuing an error message and
prompting for input.
The entire command, including the checksum, may be sent to the
console as a single burst of characters at the console's specified
character rate. The console is able to receive at least 4 Kbytes
of data in a single X command.
3.7.4.2 Boot
Command Syntax:
BOOT [<qualifier list>] [<device>]
The device specification is of the format ddcu, where dd is a
two-letter device mnemonic, ¢ is an optional one-digit controller
number, and u is a one-digit unit number.
The console initializes the processor and starts VMB running. VMB
boots the operating system from the specified device. The default
bootstrap device is determined as described in Section 3.6.
Qualifier:
e /R5:<data> -- After initializing the processor and before
starting VMB, R5 is loaded with the specified data. This
allows a console user to pass a parameter to VMB. (To
remain compatible with previous processors, /<data> is
also recognized and has the same result.)
Booting and Console Program Interface
3.7.4.3 Comment (1!)
Command Syntax:
! <comment>
The comment command is ignored. It is used to annotate console I/O
command sequences,
3.7.4.4 Continue
Command Syntax:
CONTINUE
The processor begins instruction execution at the address
currently contained in the program counter, Processor
initialization is not performed. The console enters program I/O
mode.
3.7.4.5 Deposit
Command Syntax:
DEPOSIT (<qualifier list>] <address> <data>
This command deposits the data into the address specified. If no
address space or data size qualifiers are specified, the defaults
are the last address space and data size used in a Deposit or
Examine command. After processor initialization, the default
address space is physical memory, the default data size is long,
and the default address is zero.
If the specified data is too large to fit in the data size to be
deposited, the console ignores the command and issues an error
response. If the specified data is smaller than the data size to
be deposited, it is extended on the left with zeros.
The address may also be one of the following symbolic addresses:
e PSL —- The processor status longword. No address space
qualifier is legal. When PSL is examined, the address
space is identified as M (machine dependent).
e PC -- The program counter (general register 15). The
address space is set to /G.
e SP —- The stack pointer (general register 14). The
address space is /G.
3-27
Booting and Console Program Interface
Rn -- General register n. The register number is in
decimal. The address space is /G. For example:
D R5 1234 is equivalent to D/G 5 1234.
D R10 6FF00 is equivalent to D/G A 6FF00.
+ -- The location immediately following the last location
referenced in an Examine or Deposit command. For
references to physical or virtual memory spaces, the
location referenced is the last address plus the size of
the last reference (1 for byte, 2 for word, 4 for
longword). For other address spaces, the address is the
last address referenced plus one.
- -- The location immediately preceding the last location
referenced in an Examine or Deposit command. For
references to physical or virtual memory spaces, the
location referenced is the last address minus the size of
this reference (1 for byte, 2 for word, 4 for longword).
For other address spaces, the address is the last address
referenced minus one.
* -- The location last referenced in an Examine or
Deposit command.
e -- The location addressed by the last location
referenced ín an Examine or Deposit command.
Qualifiers:
/B -- The data size is byte.
/W -- The data size is word.
/L -- The data size is longword.
/V -- The address space is virtual memory. All access and
protection checking occurs. If the access would not be
allowed to a program running with the current PSL, the
console issues an error message. Virtual space Deposits
cause PTE bit M to be set. If memory mapping is not
enabled, virtual addresses are equal to physical
addresses,
/P -- The address space is physical memory.
/I -- The address space is internal processor registers.
These are the registers addressed by the MTPR and MFPR
instructions.
/G -- The address space is the general register set, RO
through PC.
Booting and Console Program Interface
e /U -- Access to console program memory is allowed. This
qualifier also disables virtual address protection
checks.
e /N:<count> -- The address is the first of a range. The
console deposits to the first address, then to the
specified number of succeeding addresses. Even if the
address is the symbolic address '-', the succeeding
addresses are at larger addresses. The symbolic address
specifies only the starting address, not the direction of
succession. For repeated references to preceding
addresses, use Repeat Deposit - <data>.
NOTE
Only memory may be accessed as bytes or
words. General registers, the PSL and
IPRs must be accessed using the longword
reference. This means that the /B and /W
qualifiers may not be used with the /I
and /G qualifiers,
For example:
D/P/B/N:1FF 0 0 Clears the first 512 bytes of physical
memory.
D/V/L/N:3 1234 5 Deposits 5 into four longwords starting
at virtual address 1234,
D/N:8 RO FFFFFFFF Loads general registers RO through RS
D/N:200 - O Starting at previous address, clears 513
bytes.
If conflicting address space or data sizes are specified, the
console ignores the command and issues an error response.
3.7.4.6 Examine
Command Syntax:
EXAMINE [<qualifier list>] [<address>]
Examines the contents of the specified address. If no address is
specified, '+' is assumed, The address may also be one of the
symbolic addresses described under Section 3.7.4.5, Deposit.
Qualifiers:
The same qualifiers used with Examine may be used with
Deposit,
Booting and Console Program Interface
Response:
<tab> <address space identifier> <address> <tab> <data>
The address space identifier can be:
e P -- Physical memory. Note that when virtual memory 15
examined, the address space and address in the response
are the translated physical address.
e G -- General register.
e I -- Internal processor register.
e M -- Machine dependent address (used only for display of
the PSL).
3.7.4.7 Find
Command Syntax:
FIND f<qualifier list>]
The console searches main memory starting at address zero for a
page-aligned, 64 Kbyte segment of good memory, or an RPB. If the
segment or block is found, its address plus 512 bytes is left in
SP. If the segment or block is not found an error message is
issued, and the contents of SP are unpredictable. If no qualifier
is specified, /RPB is assumed. |
Qualifiers:
e /Memory -- Searches memory for a page-aligned segment of
good memory, 64 Kbytes in length. The search includes a
read/write test of memory and leaves the contents of
memory unpredictable,
e /RPB -- Searches memory for a restart parameter block.
The search leaves the contents of memory unchanged.
Booting and Console Program Interface
3.7.4.8 Initialize
Command Syntax:
INITIALIZE
A processor initialization is performed. The following registers
are set (all values are hexadecimal):
PSL 041F0000
IPL 1F
ASTLVL 4
SISR 0
ICCS 0
RXCS 0
TXCS 80
MAPEN 0
—
All other registers are unpredictable.
The previous console reference defaults (the defaults used to fill
in unsupplied qualifiers for Deposit and Examine commands) are set
to physical address, longword size and address 0.
3.7.4.9 Halt
Command Syntax:
HALT
The Halt command has no effect; the processor is already halted
when in console I/O mode,
3.7.4.10 Repeat
Command Syntax:
REPEAT <command>
The console repeatedly displays and executes the specified
command. The repeating is stopped by typing <CTRL> C. Any valid
Console command may be specified for the command with the
exception of Repeat.
3-31
Booting and Console Program Interface
3.7.4.11 Start
Command Syntax:
START [<address>]
The console starts instruction execution at the specified address.
If no address is given, the current PC is used. If no qualifier is
present, macroinstruction execution is started. If memory mapping
is enabled, macroinstructions are executed from virtual memory.
The Start command is equivalent to a Deposit to PC, followed by a
Continue. No Initialize is performed.
3.7.4.12 Test
Command Syntax:
TEST [<test number>]
The console invokes a diagnostic test program denoted by <test
number>. Valid test numbers are 3 through 7 and B. If no test
number is supplied, no test is performed.
3.7.4.13 Unjam
Command Syntax:
An I/0 bus reset is performed.
3.7.5 Console Errors and Error Messages
Some console commands result in errors. For example, if a memory
error occurs as the result of a console command, the console
responds with an error message. The error messages are listed in
Table 3-6.
3.7.6 Halts and Halt Messages
Whenever the processor halts, the console prints the halt code,
error message, and the hex value contained in the program counter.
For example:
06 HLT INST
PC = 800050D3
The halt code is passed to the operating system on a restart. The
halt messages are listed in Table 3-7.
Booting and Console Program Interface
Table 3-6 Console Error Messages
Halt
Code Message Explanation
FNF VMB could not find the secondary bootstrap
file.
16 ILL REF The requested reference would violate
virtual memory protection, the address is
not mapped, the reference is invalid in the
specified address space, or the value is
invalid in the specified destination.
17 ILL CMD The command string cannot be parsed.
18 INV DGT A number has an invalid digit.
19 LTL The command was too large for the console
to buffer. The message is fssued only after
the console receives the terminating
carriage return.
1A ILL ADR The address specified falls outside the
limits of the address space.
1B VAL TOO LRG The value specified does not fit in the
destination.
1C SW CONF Switch conflict. For example, two different
data sizes are specified with an Examine
command.
1D UNK SW The switch is unrecognized.
1Е ОМК SYM The symbolic address in an Examine or
Deposit command is unrecognized.
1F CHKSM The command or data checksum of an X
command is incorrect.
20 HLTED The operator entered a Halt command.
21 FND ERR A Find command failed either to find the
RPB or 64 Kbytes of good memory.
22 TMOUT During an X command, data failed to arrive
in the time expected.
23 MEM ERR Parity error detected.
Booting and Console Program Interface
Table 3-7 KA630~-AA Halt Messages
Halt
Code Message Explanation
02 EXT HLT <Break> was typed on the console, QBINIT or
QBHALT was asserted.
04 ISP ERR In attempting to push state onto the
interrupt stack during an interrupt or
exception, the processor discovered that
the interrupt stack was mapped No Access or
Not Valid.
05 DBL ERR The processor attempted to report a machine
check to the operating system, and a second
machine check occurred.
06 HLT INST The processor executed a halt instruction
in kernel mode.
07 SCB ERR3 The vector had bits <01:00> equal to 3.
08 SCB ERR2 The vector had bits <01:00> equal to 2.
OA CHM FR ISTK A change mode instruction was executed when
PSL bit IS was set.
0B CHM TO ISTK The exception vector for a change mode had
bit 0 set.
oc SCB_RD ERR A hard memory error occurred while the
processor was trying to read an exception
or interrupt vector.
10 MCHK AV An access violation or an invalid
translation occurred during machine check
exception processing.
11 KSP AV An access violation or an invalid
translation occurred during processing of
an invalid kernel stack pointer exception.
3-34
Booting and Console Program Interface
3.8 CONSOLE 1/0 MODE (SYSTEM RUNNING)
When the processor is not executing instructions from the console
program ROM, it is in program I/O mode, in which all terminal
interaction is handled by the operating system. In program 1/0
mode, the console terminal behaves like any other operating system
terminal. If halts are disabled, break is ignored. If halts are
enabled, break causes the processor to halt, that is, to enter
console 1/0 mode,
On successful power-up, the first line of the console display
identifies the processor and version number (XX) of the console
program ROM. The next line explains that the system is performing
normal tests. The countdown sequence assures the user that the
system is progressing through its tests, and documents which tests
are executed. When diagnostics are complete, the console notifies
the user that the tests completed successfully. The "Loading
system software" message indicates the beginning of the bootstrap
sequence. The execution of the bootstrap sequence causes the
remaining digits of the countdown to be displayed. Because
successful completion of a bootstrap occurs in the context of the
operating system bootstrapped, a confirming message indicating
that the system power-up has completed can only be issued by the
bootstrapped operating system.
When fatal problems are detected by the diagnostics, the countdown
sequence is interrupted and a diagnostic message is displayed. The
diagnostic message is composed of a question mark, ‘a subtest code
number, and up to three parameters for use by diagnostic
personnel. More than one such error message is possible, but
unlikely. The summary message that follows indicates that the test
failed and that normal operation is not possible. The console
program then hangs.
Catastrophic errors are errors of such severe magnitude that the
program cannot continue. When a catastrophic error is detected,
the program attempts to display an error message on the console
terminal. Following that attempt, the processor goes into an
infinite loop at IPL 31 (there is no halt state for MicroVAX). An
example of catastrophic error is when the console program is
unable to locate any working memory.
Booting and Console Program Interface
It is possible to bypass all diagnostic tasks. This may be done by
enabling halts and by manually halting the processor following
power-up or reset, The diagnostics are then halted and the
processor enters console I/O mode. This option allows a field
service engineer to bypass a failing test and enter console 1/0
mode, where the console commands can be used to further diagnose
the problem.
As part of each diagnostic subtest, a test code is displayed on
the console and on the LEDs, making it possible to monitor the
progress of the diagnostics. The two display mechanisms use
unrelated logic, providing a high probability that at least one is
currently operative. If a hard error is detected by a test, a
diagnostic message is displayed on the console. If a catastrophic
error occurs, it may not be possible to display a diagnostic
message on the console, but the most recent test code is left on
the LEDs.
The following significant console features are omitted by the
KA630-AA console program.
e Microstep command -- Not supported by the MicroVAX CPU
chip.
e Load command -- No console storage device is supported.
e Set command -- No set options are defined.
e Next command -- Not supported by the MicroVAX CPU chip.
e € command -- No console storage device is supported.
The console supports the Digital MCS. This support extends to
displaying foreign language messages with MCS, accepting and
echoing MCS characters, and accepting a device attributes report
(the console queries the terminal to determine if it is a CRT)
using the Cl control characters of MCS. However, all console
commands must be entered using the American National Standards
Institute (ANSI) subset.
If the terminal does not support MCS, the console uses English
message texts.
The console program uses four characters that are national
replacement characters, the caret (°), the backslash (\) and the
right and left square brackets ([ 1). The caret is used by the
console to denote control characters. The backslash is used to
delimit text deletions when editing console input. The square
brackets are used to denote directory specifications when the user
directs the bootstrap to solicit a secondary bootstrap file name.
No provision is made for terminals that replace any of these
characters.
CHAPTER 4
ARCHITECTURE
4.1 INTRODUCTION
This chapter contains a list of the data types, instruction groups
and processor registers implemented by the KA630-AA. Register
structures and formats, as well as MicroVAX memory management, are
also described.
4.2 PROCESSOR STATE
The processor state is stored in processor registers, rather than
in memory. This section describes the processor registers, the
general purpose register set, and the Processor Status Longword
(PSL). Nonprivileged software can access the general purpose
register set and the Processor Status Word (PSW, bits <15:00>
within the PSL). The processor registers and bits <31:16> of the
PSL can only be accessed by privileged software, using the Move To
Processor Register (MTPR) and Move From Processor Register (MFPR)
instructions.
4.2.1 General Purpose Registers /
There are 16 general purpose registers, RO through R15. The bits
of a register are numbered from right to left, 0 through 31.
The following registers are defined by the VAX architecture.
e R15 is the Program Counter (PC). The PC contains the
address of the next instruction byte of the program.
e R14 is the Stack Pointer (SP). The SP contains the
address of the top of the processor-defined stack.
e R13 is the current Frame Pointer (FP). The VAX procedure
call convention builds a data structure on the stack
called a stack frame. The FP contains the address of the
base of the stack frame.
e R12 is the Argument Pointer (AP). The VAX procedure call
convention uses a data structure termed an argument list.
The AP contains the address of the base of this data
structure,
4.2.2 Processor Status Longword
The PSL (Table 4-1, Figure 4-1) determines the execution state of
the processor at any time.
4-1
Architecture
Table 4-1 Processor Status Longword Description
Bit(s) Mnemonic Name/Meaning
31 CM Compatibility Mode.* This bit always reads
as 0. Loading a 1 into this bit has no
effect.
30 TP Trace Pending.
<29:28> Must Be Zero.
27 FPD First Part Done.
26 IS Interrupt Stack.
<25:24> CUR Current Mode.
<23:22> PRV Previous Mode.
21 Must Be Zero.
<20:16> IPL Interrupt Priority Level.
<15:08> Must Be Zero.
07 DV Decimal Overflow Trap Enable. This
read/write bit has no effect on MicroVAX
hardware. It can be used by macrocode that
emulates VAX decimal instructions.
06 FU Floating Underflow Fault Enable.
05 IV Integer Overflow Trap Enable,
04 T Trace Trap Enable.
03 N Negative Condition Code.
02 2 Zero Condition Code.
ol Vv Overflow Condition Code.
00 C Carry Condition Code.
* Note that compatibility mode instructions can be emulated by
macrocode.
Since the emulation software runs in native mode, the
CM bit is never actually set.
4.2.3
Architecture
313029282726252423222120 1615 080706050403020100
1 rrr "e : T4 1-19
IPL MBZ TINIZIVIC
1 LL EL 1.31
TP FPD | CUR MBZ FU
MOD
CM MBZ 15 PRV Dv IV
MOD
Figure 4-1 Processor Status Longword (PSL)
Processor Registers
The processor registers can be accessed through the MFPR and MTPR
privileged instructions. Each of the processor registers listed in
Table 4-2 falls into one of the following numbered categories,
l.
VAX processor registers implemented as described in the
VAX Architecture Reference Manual (EK-VAXAR-RM). These
registers are implemented by the MicroVAX CPU chip.
VAX processor registers implemented external to the
MicroVAX CPU chip by the KA630-AA logic.
Processor registers read as 0, no operation (NOP) on
write,
Processor registers implemented by MicroVAX CPU chip
uniquely (that is, registers not described in the VAX
Architecture Reference Manual).
Processor register access not allowed. Attempted access
results in reserved operand fault.
Architecture
Table 4-2 Processor Register Summary
Number Register Name Mnemonic Type Category*
0 Kernel Stack Pointer KSP R/W 1
1 Executive Stack Pointer ESP R/W 1
2 Supervisor Stack Pointer SSP R/W 1
3 User Stack Pointer usp R/W 1
4 Interrupt Stack Pointer ISP R/W 1
5 Reserved 5
6 Reserved 5
7 Reserved 5
8 PO Base Register POBR R/W 1
9 PO Length Register POLR R/W 1
10 Pl Base Register P1BR R/W 1
11 Pl Length Register P1LR R/W 1
12 System Base Register SBR R/W 1
13 System Length Register SLR R/W 1
14 Reserved 5
15 Reserved 5
16 Process Control Block Base PCBB R/W 1
17 System Control Block Base SCBB R/W 1
18 Interrupt Priority Level IPL R/W 1R
19 AST Level ASTLVL R/W 1R
20 Software Interrupt Request SIRR W 1
21 Software Interrupt Summary SISR R/W 1R
22 Interprocessor Interrupt IPIR R/W 5
23 CMI Error Register CMIERR R/W 5
24 Interval Clock Control/Status ICCS R/W 4R
25 Next Interval Count Register NICR W 3
26 Interval Count Register ICR R 3
27 TOY Register TODR R/W 3
28 Console Storage Receiver Status CSRS R/W 3
29 Console Storage Receiver Data CSRD R 3
30 Console Storage Transmit Status CSTS R/W 3
31 Console Storage Transmit Data CSTD W 3
32 Console Receiver Control/Status RXCS R/W 2R
33 Console Receiver Data Buffer RXDB R 2R
34 Console Transmit Control/Status TXCS R/W 2R
35 Console Transmit Data Buffer TXDB W 2R
36 Translation Buffer Disable TBDR R/W 3
37 Cache Disable Register CADR R/W 3
38 Machine Check Error Summary MCESR R/W 3
39 Cache Error Register CAER R/W 3
40 Accelerator Control/Status ACCS R/W 5
41 Console Saved ISP SAVISP R/W 4
42 Console Saved PC SAVPC R/W 4
43 Console Saved PSL SAVPSL R/W 4
44 WCS Address WCSA R/W 5
Architecture
Table 4-2 Processor Register Summary (Cont)
Number Register Name Mnemonic Type Category*
45 WCS Data WCSB R/W 5
46 Reserved 5
47 Reserved 5
48 SBI Fault/Status SBIFS R/W 3
49 SBI Silo SBIS R 3
50 SBI Silo Comparator SBISC R/W 3
51 SBI Maintenance SBIMT R/W 3
52 SBI Error Register SBIER R/W 3
53 SBI Timeout Address Register SBITA R 3
54 SBI Quadword Clear SBIQC W 3
55 1/0 Bus Reset TORESET VW 2
56 Memory Management Enable MAPEN R/W 1
57 TB Invalidate All TBIA W 1
58 TB Invalidate Single TBIS W 1
59 Translation Buffer Data TBDATA R/W 3
60 Microprogram Break MBRK R/W 3
61 Performance Monitor Enable PMR R/W 3
62 System Identification SID R 1
63 Translation Buffer Check TBCHK W 1
64--127 Reserved 5
* An following the category number indicates that the register
is cleared by power-up and by the negation of DC OK.
4.3
The
the
INSTRUCTION SET
The MicroVAX CPU chip implements all instructions in the following
VAX instruction groups.
Integer arithmetic and logical
Addre
Varia
Contr
Proce
Misce
Queue
ss
ble length bit field
ol
dure call
llaneous
Character string moves (MOVC3 and MOVCS)
Opera
MiCroVAX CPU
Character string moves (except MOVC3 and MOVCS5)
ting system support
Decimal string
CRC
Edit
chip provides special microcode "hooks” to aid
emulation of the following instruction groups by macrocode.
Architecture
The following instruction groups are implemented by the MicroVAX
FPU chip.
e F_floating
o G_floating
e D floating
The following instruction groups are not implemented, but may be
emulated by macrocode.
e H_floating
e Octaword
e Compatibility mode instructions
4.4 EXCEPTIONS AND INTERRUPTS
Both exceptions and interrupts divert execution from the normal
flow of control. An exception is typically handled by the current
process (for example, an arithmetic overflow), while an interrupt
typically transfers control outside the process (for example, an
interrupt from an external hardware device).
4.4.1 Interrupts
The MicroVAX architecture specifies 31 interrupt priority levels
(IPLs), as follows.
IPL Condition
Nonmaskable HALT L asserted
1F Unused
1E PWRFL L asserted
19--1D Unused
18 Unused
17 BIRQ7 L asserted
16 Interval timer interrupt, BIRQ6 L asserted
15 BIRQ5 L asserted
14 Console terminal interrupts, interprocessor
doorbell, or BIRQ4 L asserted
10--13 Unused
01--0F Software interrupt request
The Q22-Bus requests of levels 4 through 7 set IPL equal to 17,
since the 022-Bus has only one grant line. The single grant does
not differentiate between the different request levels and grants
the first requesting device it finds. The IPL is set to 14 after a
console terminal or interprocessor doorbell interrupt. It is set
to 16 after an interval timer interrupt.
When the KA630-AA is configured as an auxiliary CPU it ignores
BIRQ7 through 4 interrupt requests, but does respond to IPL 14
requests from its own console SLU and from its interprocessor
doorbell (in that order of priority). It also responds to
interrupt requests from its own interval timer.
The interrupt system is controlled by the IPL register (IPL
corresponds to PSL <20:16>.), the Software Interrupt Request
Register (SIRR), and the Software Interrupt Summary Register
(SISR), all shown in Figure 4-2.
4-6
Architecture
31
0504 00
EN! LU
IGNORED, RETURNS O
ЕЕ оон LLL
PSL<20:16>] IPL
a 0403 00
rT TTT TT TT IT TT TT TT TT TT TT I TTT oT]
IGNORED REQUEST] :SIRR
LL gr grrr EE
31 1615 00
TT A US AU NUS OU UL SU AO AJA TL LON UT
PENDING SOFTWARE INTERRUPTS :SISR
LILIA + ld dd | (FIEIDPICIB AS 8 7/65,473721
MBZ
MR. 15779
Figure 4-2 Interrupt Registers
4.4.2 Exceptions
The MicroVAX architecture recognizes six classes of exceptions, as
follows.
Exception Class
Arithmetic trap/fault
Memory management
Operand reference
Instruction execution
Tracing
System failure
Instances
Integer overflow trap
Integer divide by zero trap
Subscript range trap
Floating overflow fault
Floating divide by zero fault
Floating underflow fault
Access control violation fault
Translation not valid fault
Reserved addressing mode fault
Reserved operand fault or abort
Reserved/privileged instr. fault
Emulated instruction fault
Extended function fault
Breakpoint fault
Trace trap
Memory read error abort
Memory write error abort
Kernel stack not valid abort
Interrupt stack not valid abort
Machine check abort
Architecture
4.4.3 Machine Check Parameters
In response to a machine check, the parameters shown in Figure 4-3
are pushed onto the stack.
BYTE COUNT (0000000C HEX)
MACHINE CHECK CODE
MOST RECENT VIRTUAL ADDRESS
INTERNAL STATE INFORMATION
PC
PSL
SP
MAR 15781
Figure 4-3 Machine Check Parameters
Machine check code (hex):
Impossible microcode state (FSD)
Impossible microcode state (SSD)
Undefined FPU error code 0
Undefined FPU error code 7
Undefined memory management status (TB miss)
Undefined memory management status (M = 0)
Process PTE address in PO space
Process PTE address in Pl space
Undefined interrupt ID code
Read bus error, VAP is virtual address
Read bus error, VAP is physical address
Write bus error, VAP is virtual address
Write bus error, VAP is physical address
DO JO U WN
"WW WIM
80
81
82
83
Most recent virtual address:
<31:00> = Current contents of VAP register
Internal state information:
<28:24> = Current contents of ATDL register
<23:20> = Current contents of STATE <03:00>
<19:16> = Current contents of ALU condition codes
l4 = Current contents of VAX restart bit
<07:00> = PC increment at the time of the exception (reported as
zero if FPD set in saved PSL)
PC: <31:00> = PC at the start of the current instructions
PSL: <31:00> = Current contents of PSL
Architecture
4.4.4 Halt Conditions
If the hardware or kernel software environment becomes severely
corrupted, the chip may be unable to continue normal processing.
In this case, the chip passes control to recovery code (the
console program described in Chapter 3) beginning at physical
address 20040000 (hex). The previous state of the machine is
stored in temporary registers that are read as processor registers
using the MFPR instruction. The previous state of the machine is
as follows.
1. IPR 42 contains the saved PC.
2. IPR 43 contains the saved PSL, the saved memory
management (MAPping) ENable bit (MAPEN) and the error
code.
а, IPR console.psl bits <31:16> and <07:00> contain the
saved PSL,
b. IPR console.psl bit 15 contains the saved MAPEN bit.
с, IPR console.psl bits <14:08> contain the error code,
3. IPR 41 contains the previous interrupt stack pointer.
NOTE
There are severe restrictions on using
these saved values. For example, they
must be accessed before executing
instructions that use the registers for
temporary storage.
The halt process sets the state of the chip, as follows.
PSL = 041F0000 (hex)
PC = 20040000 (hex)
MAPEN = 0
ASTLVL = Unchanged (set to 4 by power-up)
SISR = Unchanged (cleared by power-up)
The error codes that indicate the reason for the halt are as
follows.
Error Code Condition
2 Assertion of external halt
3 Initial power-up
4 Interrupt stack not valid during exception
5 Machine check during machine check or kernel stack
not valid exception
6 Halt instruction executed in kernel mode
7 SCB vector bits <01:00> = 11
8 SCB vector bits <01:00> = 10
A CHMx executed while on interrupt stack
1 ACV or TNV during machine check exception
ACV or TNV during kernel stack not valid exception
4-9
Architecture
4.4.5 System Control Block
The SCB consists of two pages that contain the vectors for
servicing interrupts and exceptions. The SCB is pointed to by the
SCBB (Figure 4-4). The KA630-AA uses SCB device vector 204 (nex)
for the interprocessor doorbell interrupt. The SCB format is
described in Table 4-3.
31 302928272625242322 212019 18 17 16 15 14 13 12 11 10090807 О605 0403020100
FT {ITT IT JT ITT TT TIT TTT TI rT ITT IT TIT TTT
MBZ PHYSICAL LONGWORD ADDRESS OF PCB MBZ :5CB8
LULA eb redder erg reed ttr]
Figure 4-4 System Control Block Base Register (SCBB)
Table 4-3 System Control Block Format
Number of
vector Name Type Parameters Notes
00 Unused
04 Machine Check Abort
08 Kernel Stack Abort 0 Serviced on
Not Valid interrupt
stack, IPL is
raised to 1F
oC Power Fail Interrupt 0 IPL is raised
| to lE
10 Reserved/ Fault 0
Privileged
Instruction
14 Extended Fault 0 XFC
Instruction instruction
18 Reserved Operand Fault/ 0 Not always
Abort recoverable
1C Reserved Fault 0
Addressing Mode
20 Access Control Fault 2 Parameters are
Violation virtual
address,
status code
Architecture
Table 4-3 System Control Block Format (Cont)
Number of
Vector Name Type Parameters Notes
24 Translation Fault 2 Parameters
Not Valid are virtual
address,
status code
28 Trace Pending Fault 0
2C Breakpoint Fault 0
Instruction
30 Unused Compatibility
mode in VAX
34 Arithmetic Trap/ 1 Parameter is
Fault type code
38--3C Unused
40 CHMK Trap 1 Parameter is
operand word
44 CHME Trap 1 Parameter is
operand word
48 CHMS Trap 1 Parameter is
operand word
4C CHMU Trap 1 Parameter is
operand word
50--5C Unused
60--80 Unused
84 Software Level 1 Interrupt 0
88 Software Level 2 Interrupt 0 Ordinarily
used for AST
delivery
8C Software Level 3 Interrupt 0 Ordinarily
used for
process
scheduling
90--BC Software Levels Interrupt O
4 through 15
Architecture
Table 4-3 System Control Block Format (Cont)
Number of
Vector Name Type Parameters Notes
co Interval Timer Interrupt 0 IPL is 16
(INTTIM L)
C4 Unused
C8 Emulation Start Fault 10 Same mode
exception;
FPD = 0;
parameters are
opcode, PC,
specifiers
CC Emulation Fault 0 Same mode
Continue exception;
FPD = 1; no
parameters
DO--F4 Unused
F8 Console Receive Interrupt 0 IPL is 14
FC Console Transmit Interrupt 0 IPL is 14
100--1FC Adapter Vectors Interrupt 0 Not used by
KA630-AA
200--3FC Device Vectors Interrupt © Correspond to
bus vectors
000 -- lFC;
KAG30-AA
appends the
assertion of
bit 9
4.5 HARDWARE DETECTED ERRORS
The KA630-AA detects certain error conditions during program
execution, These conditions and the resultant actions are
described below.
4.5.1 Nonexistent Memory Errors
If the processor attempts a read or write to a nonexistent address
in local memory or 1/0 space, then a nonexistent memory error
occurs.
If the processor attempts a read or write (by asserting BDIN or
BDOUT) to a device on the Q22-Bus, and if BRPLY is not asserted by
that device within 10 ps, a bus timeout error occurs. This results
in a machine check abort and trap through vector 4.
Architecture
4.5.2 Parity Error Detection
Parity errors can be detected during read operations from local
memory address space, Q22-Bus memory address space and Q22-Bus 1/0
page address space.
Memory System Error Register (MSER) bit 0 enables parity error
detection for all reads from local memory, whether it is accessed
through local memory address space or through the Q22-Bus memory
address space (through the bus map). MSER bit 0 has no effect on
parity error detection for reads from external Q22-Bus memory or
Q22-Bus devices.
During read operations from the local memory address space, parity
is checked only for those bytes designated by the processor as
Byte Mask signals (BM, <03:00>). Because the MicroVAX chip must
receive a stable ERRor signal (ERR) at least 150 ns before it
requires stable data, performance considerations dictate that
parity errors occurring during reads from local memory address
space do not cause ERR assertion during the cycle for which the
parity error was detected. Instead, the KA630-AA asserts ERR for
the next cycle, and if that cycle was a prefetch read cycle, for
the cycle after that as well.
When a parity error occurs during a local memory access through
local memory address space, the processor is allowed to complete
that cycle and may execute an instruction that alters the
processor's internal state. However, the processor recognizes a
machine check and traps through vector 4 when it attempts the next
external cycle.
During read operations from Q22-Bus space (including the access of
local memory through the Q22-Bus map), a parity error is detected
if both BDAL bits 17 and 16 are asserted. ERR is then asserted.
When the processor reads local memory from the Q22-Bus memory
space, parity is checked on both bytes of each word accessed, even
if the processor only requested a single byte.
When ERR is asserted, the processor responds as follows.
e For nonprefetch reads, the processor recognizes a machine
check and traps through vector 4.
e For prefetch operations, the processor aborts the
prefetch cycle and performs a nonprefetch read if an
instruction fetch is required from that location.
4.5.3 Interrupt Vector Timeouts
An interrupt vector timeout occurs when BRPLY L is not asserted by
a device within 10 ps after an interrupt is acknowledged (BIAK L)
by the processor. The ERR is asserted. The processor aborts the
interrupt cycle and continues as though the interrupt request did
not occur.
Architecture
4.5.4 No Sack Timeouts
A No Sack timeout occurs when a device does not assert BSACK L
within 10 us after it has been granted bus mastership (received
BDMG L). The KA630-AA continues as though the DMA request did not
occur.
4.6 LATENCY
4.6.1 Interrupt Latency
Interrupt latency is defined as the time between receiving an
interrupt request (BIRQ L) and acknowledging the request (BIAK L).
Interrupt latency can be divided into the following three
segments,
e The length of time the processor runs at an interrupt
priority level that masks out the interrupt. This time
period is highly software dependent.
e The length of time the processor takes to execute the
last instruction after the interrupt.
e The length of time it takes the KA630-AA to gain bus
mastership. Because the arbiter KA630-AA is the highest
priority DMA device, this period is equal to the time
required for the previous bus master to finish its data
transfer(s) and relinquish the bus. (This represents a
change from the traditional priority structure where DMA
devices have a higher priority than either CPU fetches or
interrupts.) Eight block mode transfers typically require
about 5 ps. The KA630-AA asserts DMA when it needs the
bus, limiting a block mode device to no more than eight
additional transfers. A nonexistent memory timeout
typically requires 10 to 15 us.
4.6.2 DMA Latency
DMA latency is defined as the time between receiving a DMA request
(BDMR L) and granting the request (BDMG L). This calculation is
made assuming that the DMA request occurs while the CPU has
control of the bus, and that there are no conflicting DMA
requests, The result of this calculation is the CPU-induced
latency. The DMA latency seen by any device is a combination of
the CPU-induced latency and the latency induced by other DMA
devices.
The CPU-induced DMA latency is the time required to complete the
longest CPU operation that retains control of the bus. The longest
KA630-AA operation that retains control of the bus is a 32-bit
read-lock/write-unlock to non-block-mode memory.
When a CPU that is the lowest priority device relinquishes control
of the bus, it does not regain control of the bus until all DMA
requests have been honored. Thus, two high bandwidth devices could
exchange control of the bus, effectively locking out the CPU until
one of them has completed its set of transfers.
Architecture
The arbiter KA630-AA CPU is the highest priority bus device in the
system. After it has relinquished control of the bus, it can
regain control of the bus during the next bus arbitration.
System level DMA latency calculations must take into account the
fact that the arbiter KA630-AA can request the bus as the highest
priority bus device.
4.7 SYSTEM IDENTIFICATION REGISTER (SID)
The read-only SID (Figure 4-5 and Table 4-4), processor register
62, is implemented by the MicroVAX CPU chip. On the KA630-AA, and
on all other processors that use the MicroVAX CPU chip, the SID
always reads 00080000.
The KA630-AA implements a 32-bit System Identification Extension
register (SIE) at physical location 20040004. This 32-bit register
exists within the KA630-AA console program ROM.
31 2423 1514 00
ТТТ ТТТ ТИТ
SYSCODE VERSION RESERVED
cpp tip beer rev beg pa pend
Figure 4-5 System Identification Register (SID)
Table 4-4 System Identification Register Format
Bits Mnemonic Name/Meaning
<31:24> SYSCODE System Code. This field reads as 1 for the
<23:16> Version number of console program ROM.
<15:00> Reserved.
Architecture
4.8 MEMORY MANAGEMENT
4.8.1 Physical and Virtual Address Space
The virtual address space is four gigabytes (2**32), as shown in
Figure 4-6. The physical address space is one gigabyte (2**30), as
shown in Figure 4-7,
4.8.2 Memory Management Control Registers
Memory management is controlled by three processor registers:
MAPEN, Translation Buffer Invalidate Single (TBIS), and
Translation Buffer Invalidate All (TBIA). MAPEN contains one bit,
0, as shown in Figure 4-8.
Translation buffer invalidation is controlled by TBIS (Figure 4-9)
and TBIA (Figure 4-10). Writing a virtual address into TBIS
invalidates any entry that maps that virtual address. Writing a 0
into TBIA invalidates the entire translation buffer,
00000000
MEMORY
SPACE
1FFFFFFF
20000000
1/0
SPACE
3FFFFFFF
MR-15932
Figure 4-6 Virtual Address Space
00000000 THE PO LENGTH REGISTER (POLR)
SPECIFIES THE LENGTH OF THAT
PO REGION IN PAGES.
REGION TU
| PO REGION GROWTH DIRECTION
3FFFFFFF
40000000
P1 REGION GROWTH DIRECTION
P1
REGION THE P1 LENGTH REGISTER (P1LA)
SPECIFIES THE LENGTH OF THAT
7FFFFFFF REGION IN PAGES (2**21-P1LR).
80000000 THE SYSTEM LENGTH REGISTER
(SLR) SPECIFIES THE LENGTH
SYSTEM OF THAT REGION IN PAGES.
REGION
SYSTEM REGION GROWTH DIRECTION
BFFFFFFF
C0000000
RESERVED
REGION
FFFFFFFF
мА. ! 5933
Figure 4-7 Physical Address Space
Architecture
3 020100
rrTrrrrryrrvrrrvrryrtrT iTrTTiITUri YT Ere] yg
MBZ M | :MAPEN
Про
Figure 4-8 Memory Management (Mapping) Enable Register (MAPEN)
3
1 0
RRE RRE RR ERRE
VIRTUAL ADDRESS :TBIS
1 4 4 6 4 rv deer re ta eee irk A O
Figure 4-9 Translation Buffer Invalidate Single Register (TBIS)
3
1 0
TT TT ITT TIT TTT TT TTT IT TTI TT IT TT I ITT]
MBZ "TBiA
Larter errr pager yee LU LE
Figure 4-10 Translation Buffer Invalidate All Register (TBIA)
4.8.3 System Space Address Translation
A virtual address with bits <31:30> = 2 is an address in the
system virtual address space. Refer to Figure 4-11.
System virtual address space is mapped by the System Page Table
(SPT), which is defined by the System Base Register (SBR) and the
System Length Register (SLR). The SBR contains the physical
address of the SPT. The SLR contains the size of the SPT in
longwords, that is, the number of Page Table Entries (PTEs). The
PTE addressed by the SBR maps the first page of system virtual
address space, that is, virtual byte address 80000000 (hex).
4.8.4 Process Space Address Translation
A virtual address with bit 31 = 0 is an address in the process
virtual address space. Process space is divided into two equally
sized, separately mapped regions. If virtual address bit 30 = 0,
the address is in region PO. If virtual address bit 30 = 1, the
address is in region Pl.
4.8.4.1 PO Region Address Translation -- Refer to Figure 4-12.
The PO region of the address space is mapped by the PO Page Table
(POPT), which is defined by the PO Base Register (POBR) and the PO
Length Register (POLR). The POBR contains the system virtual
address of the POPT. The POLR contains the size of the POPT in
longwords, that is, the number of PTEs. The PTE addressed by the
POBR maps the first page of the PO region of the virtual address
space, that is, virtual byte address 0.
Architecture
2
1 trrrrrrr rT ry rT PT TTT TT TTT RTT ri
MB2 PHYSICAL LONGWORD ADDRESS OF SPT MBZ | :SBR
4.1 L EL LLILILLLITZILIL LL IN IZ Aa a A SU LL
2
1
—
— M3 RJ
ESTE E ERROR EE Y PET
MBZ LENGTH OF SPT IN LONGWORDS :SLA
LL. L L LI CLILLLIU LL LELILLLELL E E LIA 1118
332
1 0 9 98 0
TY TT TT TIT TT TT TT TT TTT TTT ТТТ
2 ВУТЕ
SVA:
[SYSTEM VIRTUAL {| |1} (| ||| iLL 1 400
ADDRESS) EXTRACT AND
3 212 CHECK LENGTH
1 312 2/10
TIT JT TT TT [TJ TTT TT TT TIT TT rT TT TT rrr rr rl T
0 0
а) Li {11111114 1A LU LA |
ADD
ТТТ ТТТ! ТТ 1
SBR: PHYSICAL BASE ADDRESS OF SPT 0
Ll bred rrr rrr rrr srr rt LE
YIELDS
ТТТ ТГ T
PHYSICAL ADDRESS OF PTE о
1111} 111 |1!!! 11| Е) | 5 4 + 1° 1 | | |
33 2 2 FETCH
10 10 0
ТТТ ТТ ГПТТТ ТТТ
PTE: |1 PFN
11 A RE e E EE
CHECK ACCESS THIS ACCESS CHECK
2 IN CURRENT MODE 1
9 als 0
PHYSICAL ADDRESS EEE RRE RR REE Tor RR RRA
OF DATA:
L LLILCLLIL IN LL LILTITL II IL LLLLLO=OZ QA
мя ' 5937
Figure 4-11 System Space Virtual to Physical
Address Translation
Architecture
rl I TRETEN FH vol
MBZ SYSTEM VIRTUAL LONGWORD ADDRESS OF POPT MBZ | :POBR
1.1 LL AL LLNLEEAAE kw LLE E LL tl Li
3 22
21 0
TT TT ITT TT TTT TT IT TTT rT TTT ITT I TT TT]
MBZ LENGTH OF POPT IN LONGWORDS -POLR
LEA EA ESE ENANA EAN e
332
103 9 8 0
ГТГ! ТТТ!
PVA: 0 BYTE
(PROCESS VIRTUAL E-L ELLLLILIZLLILIELIIELAD AGN LM
ADDRESS) EXTRACT AND
3 2|2 CHECK LENGTH
1 32 2110
T1171 tr Ty v1 +17 Py Tr E117 0 1TT1T TTT 0D FIT
0 0
оао а
ADD
TT III»
POBR: VIRTUAL BASE ADDRESS OF POPT 0
Lit tis ttre rrr terry read
YIELDS
rT rT IT TT TT TT ITT IT TTT TT Tyr rT rrr IrrrT Tt
VIRTUAL ADDRESS OF PTE 0
Le ree E
FETCH BY SYSTEM SPACE
TRANSLATION ALGORITHM,
INCLUDING LENGTH AND
33 2 2
10 © ¢ KERNEL MODE ACCESS CHECKS. 0
ТУТ!
РТЕ: |1 | PFN
LIU LU tbe eer petrol
CHECK ACCESS THIS ACCESS CHECK
2 IN CURRENT MODE y
9 als 0
PHYSICAL ADDRESS ГП ТТТТ ТТТ ТТТ ТТТ
OF DATA:
Lt tre terre pete ere bra trl
MAR 15938
Figure 4-12 PO Virtual to Physical Address Translation
Architecture
4.8.4.2 Pl Region Address Translation -- Refer to Figure 4-13.
The Pl region of the address space is mapped by the Pl Page Table
(P1PT), which is defined by the Pl Base Register (P1BR) and the Pl
Length Register (PlLR). Because Pl space grows toward smaller
addresses, and because a consistent hardware interpretation of the
base and length registers is desirable, P1BR and PlLR describe the
portion of Pl space that is not accessible. Note that PILR
contains the number of nonexistent PTEs. P1lBR contains the virtual
address of what would be the PTE for the first page of Pl, that
is, virtual byte address 40000000 (hex). The address in PIBR is
not necessarily a valid physical address, but all the addresses of
PTEs must be valid physical addresses,
1 2 10
ГТГ ТТТ ТТТ
MBZ VIRTUAL LONGWORD ADDRESS OF P1PT MBZ | :P1BR
E ÍA ЕДЕ ааа |)
3 2 2
1 21 0
TIT IT TTT TTT TTT IT TT ITT ITT TTI TT TTI TIT TT
MBZ LENGTH OF P1PT IN LONGWORDS ¡PILAR
LL rt rit be tren net by Letty
3 3 2
103 9 8 0
ТТТ ТТ
PVA: ! BYTE
(PROCESS VIRTUAL fbr AAA EA AAA
ADDRESS) EXTRACT AND
3 212 CHECK LENGTH
1 312 2110
ER I A OR BR |
о 0
ооо
ADD
ГУТ ТМ ТТТ!
Р1 ВВ: VIRTUAL BASE ADDRESS OF P1PT о
ааа A
YIELDS
TTTTTTTTTTTTTTTTTTTTTTTTTTTTT
VIRTUAL ADDRESS OF PTE 0
ANA NN ANNA AAA AAA A LU
FETCH BY SYSTEM SPACE
TRANSLATION ALGORITHM,
INCLUDING LENGTH AND
33 2 2 KERNEL MODE ACCESS CHECKS.
10 10 О
TT TT TT ITT TTT 7 TT 1 TT TTT IT TT TTT TT TTI rT
PTE: } 1 PFN
LL tt rte eb rer tenet rere rt rer
CHECK ACCESS THIS ACCESS CHECK
2 IN CURRENT MODE |
9 als 0
EI
PHYSICAL ADDRESS ТТ ТТТ!!!
F DATA:
OF DATA 1 I I A OL AAA AAA E
MR 15939
Figure 4-13 Pl Virtual to Physical Address Translation
Architecture
4.8.5 Page Table Entry
The format of a valid PTE is shown in Figure 4-14, where:
у = Valid bit (must be set)
PROT = Protection code
M = Modify bit
OWN = Owner bits
PFN = Page frame number,
If bit 31 (the V bit) is clear, the format of the remaining bits
is not examined by the hardware.
33 22222222
10 76643210 0
Г ТТТ
vl prot Imlobwn 0 РЕМ PTE
| | | ] 1 1 E AAA AAA EA AU
Figure 4-14 Page Table Entry (PTE)
4.9 KA630-AA MEMORY SYSTEM
The KA630-AA memory system consists of the local memory and a
Q22-Bus map that allows Q22-Bus master devices to access this
local memory. The memory system also includes two registers that
are used primarily for diagnostic purposes. The KA630-AA supports
up to 9 Mbytes of local memory. The KA630-AA typically accesses
this memory directly, through physical addresses 00000000 to
OOFFFFFF. Any Q22-Bus master device, including the KA630-AA, can
access this memory indirectly through the Q22-Bus map. Mapping can
be independently enabled and disabled for each page.
The KA630-AA accesses the Q22-Bus memory address space through
physical addresses 30000000 to 303FFFFF. It accesses the Q22-Bus
I/O space through physical addresses 20000000 to 20001FFF.
4.9.1 Local Memory Mapping Register Format
The 022-Bus map contains 8192 mapping registers. Each of these
mapping registers is a 32-bit longword with the format shown in
Figure 4-15 and Table 4-5, and each one can map a page (512 bytes)
of Q22-Bus space into a selected page of local memory.
Each mapping register is located on a longword boundary and must
be written using longword instructions. Byte and word instructions
can only load these registers with undefined data.
Architecture
3 3 11
10 5 4 0
TT TT TT PTT TT 17 T7171 PU ETTTTTT
V A23-A09
J VT AN LLL ILL AA 1 à 4
Figure 4-15 Mapping Register
Table 4-5 Memory Register Format
Bit(s) Mnemonic Name/Meaning
31 Vv Valid. When a mapping register is selected
by a Q22-Bus address, the valid bit
determines whether the Q22-Bus map is
enabled for that address. If the valid bit
is set, the map is enabled. If the valid
bit is clear, the map is disabled and the
KA630-AA does not respond to that address.
<30:15> Unused. These bits always read as 0.
<14:00> A23--A09 Address bits <23:09>. When a mapping
register is selected by a Q22-Bus address,
and if that register's valid bit is set,
then these 15 bits are used as local memory
address bits 23 through 9. Q22-Bus address
bits 8 through 0 are used as local memory
address bits 8 through O.
4.9.2 Mapping Register Addresses (2008XXXX Hex)
The mapping registers (Table 4-6) are located within the local
register space at physical addresses 20088000 through 2008FFFC.
They can only be accessed from the processor.
The physical address of each register was chosen so that register
address bits <14:02> are identical to Q22-Bus address bits <21:09>
of the page they map.
Architecture
power-up,
bits, are
undefined.
022-Bus mapping registers, including the valid
External access to local memory is disabled
Table 4-6 Mapping Register Addresses
Register Q22-Bus Addresses Q22-Bus Addresses
Address Mapped (Hex) Mapped (Octal)
20088000 000000--0001FF 00000000--00000777
20088004 000200--0003FF 00001000--00001777
20088008 000400--0005FF 00002000--00002777
2008800C 000600--0007FF 00003000--00003777
20088010 000800--0009FF 00004000--00004777
20088014 000A00--000BFF 00005000--00005777
20088018 000C00--000DFF 00006000--00006777
2008801C 000E00--000FFF 00007000--00007777
2008FFFO 3FF800--3FF9FF 17774000--17774777
2008FFF4 3FFA00--3FFBFF 17775000--17775777
2008FFF8 3FFC00--3FFDFF 17776000--17776777
2008FFFC 3FFE00--3FFFFF 17776000--17777777
4.9.3 Q22-Bus Map Operation
as long as the IPCR LM EAE bit is cleared.
After completing the ROM diagnostics that are part of its console
program, an arbiter KA630-AA enables the mapping registers to map
sufficient local memory space to boot the system, and then sets
the LM EAE bit. When the operating system gains control, it may
either invalidate or reassign various pages, as required.
Upon completion, the ROM programs in an auxiliary KA630-AA clear
all mapping register valid bits, and then set the LM EAE bit.
The 022-Bus map monitors each Q22-Bus cycle and responds if the
following three conditions are met:
1. The IPCR LM EAE bit is set.
2. The valid bit of the selected mapping register is set.
3. For read operations, the mapping register must have
mapped into existent local memory. (During write
operations, the response depends only on conditions 1 and
2 because the KA630-AA returns Q22-Bus BRPLY before
checking for existent local memory.)
Architecture
2
1 9 8 0
022-BUS ADDRESS FTI TTT TT TT TTI TT I TT TT]
BYTE
di ALLA a a
EXTRACT AND
USE TO SELECT
MAPPING REGISTER
SELECTED MAPPING REGISTER:
33 11
10 5 4
PERRERA PTT TT TT TT
\
pratt reba rtrd
2 Ÿ
3 9°8 o"
F TT TTT TT TTT TTT TT TTT TTT
PHYSICAL ADDRESS OF LOCAL MEMORY
LLL LA AA AA A E RE
MA-15947
Figure 4-16 Q22-Bus to Local Memory Physical
Address Translation
The translation from Q22-Bus address to local memory physical
address is shown in Figure 4-16.
4.9.4 Memory System Registers
The three registers associated with the memory system are located
in the local register 1/0 address space and can only be accessed
by the on-board processor. Software uses the MSER to monitor
parity and nonexistent memory errors, and to control parity
generation and checking for the local memory. The CPU Error
Address Register (CEAR) contains the address of the page in local
memory that caused a parity error during an access by the on-board
CPU. The DMA Error Address Register (DEAR) contains the address of
the page in local memory that caused a parity error during an
access by an external device.
4.9.4.1 Memory System Error Register (20080004 Hex) -- The MSER
(Figure 4-17, Table 4-7) is located in the local register 1/0
address space at physical address 20080004. It can only be
accessed by the on-board processor.
MSER bits <07:05> and 3 indicate the status of machine check traps
through SCB vector 4. MSER bit 4 is set if an external Q22-Bus
device receives a parity error while reading KA630-AA local
memory.
Architecture
1
09876543210
—
TTTTTTTTTETTTTTTT T1
UNUSED, RETURNS O 0
Pore rte re ra red Ld
MEM CD!
MEM CDO
CPU NXM
CPU LPE
CPU QPE
CMA ОРЕ
MS LEB
WRW PAR
PAR ENB
MA-+5943
Figure 4-17 Memory System Error Register (MSER)
Table 4-7 Memory System Error Register Format
Bit(s)
Mnemonic Name/Meaning
<31:10>
09
08
07
Unused. Reads as 0.
MEM CD] Memory Code <01:00>. When one of the two CPU
MEM CDO parity error bits (MSER <06:05>) is set, the
two read-only MEM CD bits are loaded with a
2-bit code indicating the source of the parity
error, as follows.
MEM CD <09:08> Source
00 Q22-Bus memory or device
01 KA630-AA on-board memory
10 Memory expansion module 1
11 Memory expansion module 2
A second parity error does not update this
code unless software has cleared the CPU
parity error bits. MEM CD1 and MEM CDO are
cleared by power-up, by the negation of DC OK,
and by writes to the BIR.
CPU NXM CPU Nonexistent Memory Error. This bit is set
by any CPU nonprefetch read or write operation
that references nonexistent memory, causing a
trap through SCB vector 4. Writing a 1 to this
bit clears it; writing a 0 to this bit has no
effect. CPU NXM is cleared by power-up, by the
negation of DC OK, and by writes to the BIR.
Architecture
Bit(s)
06
05
04
Table 4-7
Mnemonic
CPU LPE
CPU QPE
DMA QPE
Memory System Error Register Format (Cont)
Name/Meaning
CPU Local Address Space Parity Error. If
parity error detection is enabled (MSER bit 0
set), then CPU LPE is set by any CPU read
access (prefetch or nonprefetch) to local
memory address space that causes a parity
error. The processor does not receive an error
indication on that cycle. The next MicroVAX
cycle is aborted, causing a trap through SCB
vector 4. Writing a 1 to this bit clears it;
writing a 0 has no effect. CPU LPE is cleared
by power-up, by the negation of DC OK, and by
writes to the BIR.
Only those memory bytes selected by processor
outputs BM <03:00> can cause a CPU LPE parity
error. Because the fetch that caused the
parity error is not aborted, it could be
difficult for software to determine the result
of the error. For this reason, parity errors
that set this bit are generally treated as
fatal errors.
CPU Q22-Bus Address Space Parity Error. CPU
QPE is set by any CPU nonprefetch read access
to the 022-Bus address space that results in a
parity error causing a CPU trap through SCB
vector 4. If the CPU is accessing local memory
through the (022-Bus map, parity detection is
enabled only if MSER bit 0 is set. If the CPU
is accessing the Q022-Bus, parity detection is
enabled or disabled at the external Q22-Bus
memory or device. Writing a 1 to this bit
clears it; writing a 0 to this bit has no
effect. CPU QPE is cleared by power-up, by the
negation of DC OK, and by writes to the BIR.
DMA 022-Bus Address Space Parity Error. If
parity error detection is enabled (MSER bit 0
set), then DMA QPE is set by any external read
access to KA630-AA local memory that results
in a parity error. This type of parity error
does not cause the CPU trap through SCB vector
4. (The DMA device typically interrupts with
an error indication.) Writing a 1 to this bit
clears it; writing a © to this bit has no
effect. DMA QPE is cleared by power-up, by the
negation of DC OK, and by writes to the BIR.
Architecture
Memory System Error Register Format (Cont)
Name/Meaning
Table 4-7
Bit(s) Mnemonic
03 MS LEB
02
01 WRW PAR
00 PAR ENB
4.9.4.2 CPU Error
Memory System Lost Error Bit. This bit is set
by an operation that sets MSER bit 6 or bit 5
after one or both of those bits has already
been set. Writing a 1 to this bit clears it;
writing a 0 to this bit has no effect. MS LEB
is cleared by power-up, by the negation of
DC OK, and by writes to the BIR.
Unused. Read as Os.
Write Wrong Parity. If this read/write bit is
set, and either the CPU or a DMA device writes
to local memory, then wrong parity is written
into the parity bits of the RAMs, If this bit
is clear, correct parity is written. WRW PAR
is cleared by power-up, by the negation of
DC OK, and by writes to the BIR.
Parity Enable. If this read/write bit is set,
local memory parity error detection is
enabled. If this bit is clear, parity errors
are ignored during all CPU and DMA reads from
local memory. PAR ENB is cleared by power-up,
by the negation of DC OK, and by writes to the
BIR.
PAR ENB controls parity detection for all CPU
reads from local memory, including accesses
through the Q22-Bus map. PAR ENB has no effect
on CPU reads from external Q22-Bus memory.
Address Register -- The CEAR (Figure 4-18) is
located in the local register 1/0 address space at physical
address 20080008.
It can only be accessed by the on-board
processor and contains valid information only when either MSER bit
6 (CPU LPE) or MSER bit 5 (CPU QPE) is set.
31
UNUSED, RETURNS O LOCAL MEMORY
ADDRESS BITS <23:09>
Figure 4-18
MEA- 15944
CPU Error Address Register (CEAR)
Architecture
The CEAR contains the address of the page in local memory that
caused a parity error during an access by the on-board CPU. The
contents of this register are latched when either MSER bit 6 or
MSER bit 5 is set. Additional local memory parity errors have no
effect on the CEAR until software clears MSER <06:05>.
Local memory address bits <23:09> are loaded into CEAR bits
<14:00>. CEAR bits <31:15> always read as O.
4.9.4.3 DMA Error Address Register -- The DEAR (Figure 4-19) is
located in the local register 1/0 address space at physical
address 2008000C. It can only be accessed by the on-board
processor and contains valid information only when MSER bit 4 (DMA
QPE) is set.
The DEAR contains the address of the page in local memory that
caused a parity error during an access by an external device. The
contents of this register are latched when MSER bit 4 is set.
Additional local memory parity errors have no effect on the DEAR
until software clears MSER bit 4.
Local memory address bits <23:09> are loaded into DEAR bits
<14:00>. DEAR bits <31:15> always read as 0.
31 15 14 0
LOCAL MEMORY
N
UNUSED, RETURNS O ADDRESS BITS <23-09>
MA-15945
Figure 4-19 DMA Error Address Register (DEAR)
4.9.5 Memory System Operation
The KA630-AA memory system can perform the following data transfer
and memory refresh cycles.
e MicroVAX accesses local memory directly.
e MicroVAX accesses local memory through Q22-Bus map.
e MicroVAX accesses on-board registers in the local or
022-Bus I/O address space.
e MicroVAX accesses Q22-Bus memory or registers.
e External Q22-Bus device accesses local memory through
022-Bus map.
e External Q22-Bus device accesses the KA630-AA IPCR in the
Q22-Bus 1/0 space.
e KA630-AA performs memory refresh cycle,
Architecture
NOTE
The KA630-AA does not require access to
the memory system when it accesses
internal processor registers (including
those implemented external to the
MicroVAX CPU chip).
Access to the local memory data/address paths and control of the
Q22-Bus are arbitrated independently. An external device can gain
control of the 022-Bus -and access a KA630-AA register (in the
Q22-Bus address space) while the MicroVAX CPU chip is accessing
local memory. When an external device accesses KA630-AA local
memory, MicroVAX cycles are not interrupted until the Q22-Bus map
has decoded the local memory address.
When the local memory is between cycles, it continually decodes
the address on the MicroVAX address/data lines. When it receives a
refresh or external device request, it switches off the MicroVAX
address/data lines and monitors the address lines from the refresh
logic or from the Q22-Bus map.
When the local memory is between cycles, the arbitrator for the
local memory responds to requests in the following order of
priority:
1. MicroVAX request
2. External device request
3. Refresh request
When the local memory is completing a cycle, the arbitrator for
the local memory responds to requests in the following order of
priority:
l. External device request
2. Refresh request
3. MicroVAX request
The local memory cycle time is 400 ns for all read, write or
refresh cycles.
The MicroVAX must have control of the Q22-Bus before it can carry
out the following actions.
Perform any read-lock cycle
Access local memory through the Q22-Bus map
Access the IPCR or one of the Q22-Bus ,map registers
Perform Q22-Bus cycles
On an arbiter KA630-AA, which contains the Q22-Bus arbitrator, the
MicroVAX has control of the Q22-Bus except when the KA630-AA has
granted an external DMA request. An auxiliary KA630-AA can gain
control of the Q22-Bus only by posting a DMA request.
4-29
Architecture
The MicroVAX accesses Q22-Bus memory and registers by using the
following Q22-Bus cycles.
e DATa-Out-Byte (DATOB) for 8-bit writes
e DATa-In (DATI) for 16-bit reads (nonlocked)
e DATa-Out (DATO) for l6-bit writes
e DATa Block In (DATBI) for 32-bit reads (nonlocked)
e DATa Block Out (DATBO) for 32-bit writes
e DATI followed by DATO for a l6-bit read-lock followed by
a 16-bit write-unlock
e DATBI followed by DATBO for a 32-bit read-lock followed
by a 32-bit write-unlock
When performing 32-bit reads from non-block-mode memory, two
successive DATI cycles are substituted for the DATBI cycle. When
performing 32-bit writes to non-block-mode memory, the two
successive DATO cycles are substitued for the DATBO cycle. The
same substitutions are made for the 32-bit read-lock followed by a
32-bit write-unlock. In all three cases, the KA630-~-AA retains
control of the bus between successive DATI and/or DATO cycles.
When the processor reads a byte from the Q22-Bus, the KA630-AA
performs a DATI cycle with address bit 0 correctly reflecting the
byte address.
4.10 KA630-AA BOOT AND DIAGNOSTIC FACILITY
The KA630-AA boot and diagnostic facility features one 16-bit
register and two 28-pin ROM sockets for 16, 32 or 64 Kbytes of
read-only memory. The ROM memory is located on consecutive word
boundaries and may be accessed through longword, word or byte
references.
The KA630-AA populates each of the two ROM sockets with 32 K Y 8
bytes of ROM (or EPROM). These two ROMs contain the 64 Kbyte
console program. If these ROMs are replaced for special
applications, the new ROM must contain some version of the console
program.
4.10.1 Boot and Diagnostic Register
The 16-bit BDR (Table 4-8, Figure 4-20) is located at physical
address 20080000. It can be accessed by KA630-AA software, but not
by external Q22-Bus devices. The BDR allows the boot and
diagnostic ROM programs to read various KA630-AA configuration
bits and to load the 4-bit error display.
Table 4-8
Architecture
Boot and Diagnostic Register Format
Bit(s) Mnemonic
Name/Meaning
15 PWR OK
14 HLT ENB
<13:12>
11 CPU CD]
10 CPU CDO
09 BDG CDI
08 BDG CDO
<07:04>
03 DSPL 03
02 DSPL 02
01 DSPL 01
00 DSPL 00
Power OK. This read-only bit is set if the
Q22-Bus BP OK signal is asserted and clear if
BP OK is negated.
Halt Enable. This read-only bit reflects the
status of external connector pin 15. The set
condition of this signal enables the various
external halts. Also, following the execution
of a halt instruction in kernel mode, the
KA630-AA ROM program reads the HLT ENB bit to
decide whether to enter the console program
(HLT ENB set) or to restart the operating
system (HLT ENS clear).
Unused. Always reads as 0.
CPU Code <01:00>. These two read-only bits
originate from connector pins 4 and 5. They
indicate whether the KA630-AA is configured as
the arbiter or as one of the three
auxiliaries, as follows.
CPU CD <11:10> Configuration
00 Arbiter
01 Auxiliary 1
10 Auxiliary 2
11 Auxiliary 3
Boot and Diagnostic Code <01:00>, This 2-bit
read-only code reflects the status of
configuration and display connector pins
<14:13>.
Unused. Always reads as 0.
Display <03:00>. These four write-only bits
update an external LED display. Writing a l to
a bit lights the corresponding LED; writing a
0 to a bit turns its LED off. The display bits
are set (all LEDs are lit) by power-up and by
the negation of DC OK.
Architecture
i 1 I 1
1 1 | 1 |
PWR OK Ш
HLT ENB
CPU CDI
CPU CDO
BDG CD1
BOG CDO
DSPL 03
DSPL 02
DSPL 01
DSPL 00
MA-15945
Figure 4-20 Boot and Diagnostic Register (BDR)
4.10.2 ROM Memory
4.10.2.1 ROM Sockets -- The two ROM sockets are compatible with 8,
16 and 32 K X 8 byte ROMs. A machine-inserted jumper selects the
pin 27 input to be either +5 V (for 8 and 16 K parts) or ROM
address bit 14 (for 32 K parts).
The KA630-AA is shipped with 32 K X 8 byte ROMs, and with the
jumper in the address bit 14 position.
4.10.2.2 ROM Address Space -- The entire boot and diagnostic ROM
can be read from either the 64 Kbyte halt mode ROM space or the 64
Kbyte run mode ROM space. Writes to either of these address spaces
result in a nonexistent memory trap.
Any I-Stream read from the halt mode ROM space places the KA630-AA
in halt mode. The front panel Run light is off and the halt input
to the MicroVAX CPU chip is disabled.
Any I-Stream read that does not access the halt mode ROM space,
including reads from the run mode ROM space, places the KA630-AA
in run mode. The front panel Run light is lit and the halt input
to the MicroVAX CPU chip is reenabled.
Writes and D-Stream reads to any address space have no effect on
run mode/halt mode status.
Architecture
I-Stream reads include all instruction fetches (except when the
MicroVAX CPU chip retries a fetch following a nonexistent memory
or parity error) and certain character string data fetches (again,
except for those retries that follow an error). All reads that are
not I-Stream reads are D-Stream reads. When running in halt mode,
the ROM programs cannot use character string instructions to fetch
data from outside the halt mode ROM address space.
When in halt mode, the KA630-AA always responds to the full 64
Kbyte halt mode ROM space (hex addresses 20040000 through
2004FFFE). When the KA630-AA contains 16 Kbytes of ROM memory, it
appears four times, once within each 16 Kbytes of halt mode ROM
space. When the KA630-AA contains 32 Kbytes of ROM memory, it
appears twice, once within each 32 Kbytes of ROM space.
When in run mode, the KA630-AA always responds to the full 64
Kbyte run mode ROM space (hex addresses 20050000 through
2005FFFF). When the KA630-AA contains 16 Kbytes of ROM memory, it
appears four times within the run mode ROM space. When the
KA630-AA contains 32 Kbytes of ROM memory, it appears two times
within the ROM memory space. Note that the run mode ROM space
accesses the same ROM code as the halt mode ROM space.
4.10.2.3 KA630-AA Console Program Operation -- The console program
is entered by transferring program control to location 20040000.
There are various halt conditions that cause the MicroVAX to
transfer program control to location 20040000. These conditions
include the kernel mode halt instruction, assertion of the
external halt input to the MicroVAX CPU chip, and certain fatal
machine checks. When DC OK has been negated, either at power-up or
by reboot, the combined assertion of DC OK and P OK initiates
program execution at location 20040000.
The KA630-AA console program provides the following services.
e Automatic restart or bootstrap following processor halts
or initial power-up
e Interactive command language allowing the user to examine
and alter the state of the processor
e Diagnostic tests executed on power-up that check the CPU,
the memory system and the Q22-Bus map
e Support of video or hard-copy console terminals, as well
as support of VCBOl-based bitmapped terminals
The KA630-AA console program is described in detail in Chapter 3.
Architecture
4.11 KA630-AA TOY CLOCK
4.11.1 Battery Backed-Up Watch Chip
The KA630-AA contains a Motorola* MC146818 CMOS watch chip and
battery backup circuitry that are connected to three batteries
mounted on the CPU distribution panel through KA630-AA connector
J2. The battery backup for this chip is specified to be greater
than 240 hours when using three nickel~cadmium batteries in
series.
The operating system software must fetch the correct time from
this chip whenever power is restored to the system. If the power
was Off long enough for the battery voltage to go below
specification, or if the battery was temporarily disconnected
while the system power was Off, the time in the watch chip is
undefined. If the operating system detects a cleared Valid RAM and
Time bit (VRT, in watch chip register CSR D), it must prompt the
system operator for the time, and then load this time into the
watch chip.
Although the MicroVAX interval timer interrupts have a resolution
of 10 ms, the watch chip only has a resolution of seconds.
Therefore, the time resolution is as follows.
e While under full power supply -- 10 ms
e After power-down for less than 240 hours (while watch
chip is powered by battery) -- 1 second
4.11.2 Watch Chip Registers
The watch chip contains 64 8-bit registers (Table 4-9). Ten of
these registers contain time of day data and 4 are CSRs. The
remaining 50 provide 50 bytes of battery backed-up RAM. They are
addressed from a base address of 200B8000, as described in the
following sections.
Even though the addressing is on word boundaries, the TOY data and
RAM locations are loaded into or read out of the chip a byte at a
time.
4.11.2.1 TOY Data Registers -- Software reads the TOY data
registers (Table 4-10) only after reading a cleared Update In
Progress bit (UIP, CSR A bit 7) and only when all interrupts are
disabled. (This assures that reading of the registers is not
delayed beyond the time for which they are valid.) When the UIP
bit is clear, the contents of these registers is guaranteed to be
stable for at least 244 us.
Software loads the TOY data registers only after setting the SET
bit (SET, CSR B bit 7). After loading the correct time and date
into the TOY data registers, software loads 20 (hex) into CSR A
and then clears SET by loading 6 into CSR B.
* Motorola is a registered trademark of Motorola, Inc.
Table 4-9
Architecture
Watch Chip Registers
Address Offset
Number Function From Base Address Comments
0 Seconds 00 Used on reads only
1 Second alarm 02 Not used
2 Minutes 04 Loaded and read
3 Minute alarm 06 Not used
4 Hours 08 Loaded and read
5 Hour alarm OA Not used
6 Day of week OC Not used
7 Date of month OE Loaded and read
8 Month 10 Loaded and read
9 Year 12 Loaded to produce
28th or 29th day Feb.
(not read by VMS)
10 CSR A 14 Loaded and read
11 CSR B 16 Loaded and read
12 CSR C 18 Not used
13 CSR D 1A Read-only
14 lst byte of RAM 1C
. Uses assigned by the
. ROM code
63 50th byte of RAM 7E
Table 4-10 Time-of-Year Data Register Addresses
Decimal Hexadecimal
Address Units Range Range
200B8000 Seconds 0--59 00--38B
20088004 Minutes 0--59 00--3B
200B8008 Hours 0-- 23 00--17
200B800E Day of month 1--31 0l--1F
200B8010 Month 1--12 01--0C
200B8012 Year 0--99 00--63
Architecture
4.11.2.2 Control and Status Register A -- CSR A (Figure 4-21)
contains the UIP, the divider selection bits (DV <02:00>), and the
rate selection bits (RS <03:00>).
The UIP is a read-only bit that is set when there is an update in
progress within the chip. This bit must be read prior to reading
the time. If the UIP is a 1, an update is in progress and the time
registers are undefined. If the UIP is a 0, there are at least 244
us available prior to the next update cycle. If interrupts are
disabled, the time required to read the 5 time registers does not
exceed 40 us.
CSR A is undefined after battery power has been lost. Whenever the
operating system software loads the TOY data registers, it must
also load 20 (hex) into CSR A. Setting DV <02:00> = 2 sets up the
timer for operation with the 32.768 kHz oscillator. Setting RS
<03:00> = 0 disables the unused interrupt and square wave outputs
from the chip.
CSR A is not affected by the chip going into or out of the normal
BBU mode, as long as the battery voltage remains within
specification.
4.11.2.3 Control and Status Register В ~~ CSR B (Figure 4-22)
contains four bits that enable functions not used in the KA630-AA
design, SET, and three bits that control timer format and
operation.
SET is a read-write bit used to enable and disable clock
operation. When written with a 0, the internal time updates occur
every second. When written with a 1, the updates are disabled so
that the program may load the TOY data registers, This bit must be
set prior to setting the time. If the chip is in the middle of an
update, setting this bit aborts the update.
7 6 5 4 3 2 1 о
uip | DV2 | DVI | DVO | RS3 | RS2 | RS1 | RSO
(0) | {1} | (0) | (©) | (©) | (©) | (0)
ME 15947
Figure 4-21 Control and Status Register A (CSR A)
7 6 5 4 3 2 1 0
SET PIE AIE | UIE |¡SQWEÍ DM [24/12] DSE
(0) | (0) | (© | (0) | (1) | 41} | (OÙ
[ТЕТ РТ
Figure 4-22 Control and Status Register B (CSR B)
Architecture
periodic Interrupt Enable (PIE), Alarm Interrupt Enable (AIE),
Update ended Interrupt Enable (UIE) and SQuare-Wave Enable (SQWE)
are not used.
pata Mode (DM) is a read-write bit that controls whether the time
and date registers use binary or Binary Coded Decimal (BCD)
formats. This bit is loaded with a 1 to select binary format.
24/12 is a read-write bit that controls whether the hour register
operates in 24- or 12-hour mode. This bit is loaded with a 1 to
select 24-hour mode.
Daylight Saving Enable (DSE) is a read-write bit that enables or
disables special daylight saving time changes for the last Sunday
in April and the last Sunday in October. This bit is loaded with a
0 to disable this function.
CSR B is undefined after battery power has been lost. Whenever the
operating system software loads the TOY data registers, it must
restart the timer by loading 6 (hex) into CSR B. Loading 6 into
CSR B clears SET, and correctly loads the DM, 24/12 and DSE bits.
CSR B is not affected by the chip going into or out of the normal
BBU mode, as long as the battery voltage remains within
specification.
4.11.2.4 Control and Status Register C -- This register is not
used.
4.11.2.5 Control and Status Register D -- CSR D (Figure 4-23) is a
read-only register that contains the VRT. The remaining seven bits
always read as Os.
The VRT is read by software, before reading the time registers, to
verify the validity of the time. If the battery voltage goes below
specification while in BBU mode, this bit is reset to 0 by the
hardware sensing circuitry during power-up, indicating that the
time registers are undefined. If the VRT is 0, the time registers
must be updated immediately. VRT is automatically set to 1 when
CSR D is read, indicating that the chip contains a valid time
setting.
If battery voltages are removed and then restored during
power-down, KA630-AA logic guarantees that VRT = 0.
7 6 5 4 3 2 1 0
1 "7 T T
VRT READ AS ZEROS
} | La 1 |
Figure 4-23 Control and Status Register D (CSR D)
Architecture
4.11.2.6 RAM Memory -- The 50 bytes of RAM memory are used by the
KA630-AA console program to store information required to restart
the machine following a halt. Halts transfer program control to
location 20040000 (hex). One of these RAM locations -- CPMBX, is
used for communication between the operating system and the
console program.
The CPMBX (Figure 4-24, Table 4-11) contains the console message
text language, "Restart in Progress" and "Bootstrap in Progress"
flags, and the processor halt action. The CPMBX is TOY register
14. Its address is 200B801C.
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
I i 1 | Г Ï Ï I | Ï I
LNG RIP BIP HLT
| L | | | | | L 1 | _ ACT
MR-0286-0266
Figure 4-24 Console Program Mailbox (CPMBX)
4.11.3 Power-Up
Following a power-up, the KA6G30-AA console program reads the VRT
bit in CSR D. If this bit is set, the RAM and time data are valid.
If this bit is clear, RAM and time data are invalid, and the
console program disables the clock by setting CSR B SET.
When the operating system gains control of the machine, it checks
CSR B SET. If that bit is set, the operating system must request
the correct time of year from the operator.
4.11.3.1 Valid RAM and Time -- If the VRT is set, RAM and time
data are valid. The operating system reads the UIP in CSR A
to assure that an update is not in progress. If this bit is read
as 1, the watch chip is doing an update and the data is invalid
until the update is complete. The maximum time for the update is
1.984 ms.
If the UIP is read as 0, the clock registers can be read by the
operating system. The operating system reformats the time into a
32-bit count and loads it into the memory location that contains
the time of day count during system operation.
4.11.3.2 Invalid RAM and Time -- If the VRT is clear, RAM and time
data are invalid. The operating system stops timer operation by
setting CSR B bit 7 (SET), and then requests the time of year from
the operator. After loading the correct time and date into the TOY
data registers, the operating system loads 10 (hex) into CSR A and
then clears SET by loading 6 into CSR B.
The operating system also reformats the time into a 32-bit count,
and loads it into the memory location that contains the time of
day count during system operation.
Architecture
Table 4-11 Console Program Mailbox Format
Bit(s) Mnemonic Name/Meaning
<07:04> LNG Console Message Text Language. This field
controls the output of message texts to the
console terminal. When set to 0, the console
program prompts the user to set the field on
power-up. Other settings are as follows.
Setting National Variant
1 German
2 English
3 Spanish
4 French
5 Italian
6 Danish
7 Dutch
8 Finnish
9 Norwegian
10 Swedish
11 Portuguese
03 RIP If set, a restart attempt is in progress. This
flag must be «cleared by the operating system
when the restart succeeds.
02 BIP If set, a bootstrap attempt is in progress.
This flag must be cleared by the operating
system when the bootstrap succeeds.
<01:00> HLT ACT Processor Halt Action. This field is used to
control the automatic restart/bootstrap
procedure. This mailbox allows operating system
software to override the BDR HLT ENB field.
Both bits are cleared on power-up and when the
console program exits. The bits may be set as
follows.
HLT ACT <01:00> Action
00 Use HLT ENB (BDR <14>) to
determine action.
01 Restart, if that fails, halt.
10 Reboot, if that fails, halt,
11 Halt.
Architecture
4.12 INTERVAL TIMER
The KA630-AA interval timer is contained within the MicroVAX CPU
chip. When it is enabled, the interval timer posts an interrupt
request every 10 ms.
4.12.1 Interval Clock Control and Status Register (ICCS)
The ICCS (Figure 4-25) is accessed as IPR 24. ICCS implementation
is unique to the MicroVAX CPU chip and consists of a minimal
interval timer control.
ICCS bit 6 (IE) is a read-write bit that enables and disables the
interval timer interrupts. When this bit is set, an interval timer
interrupt is requested every 10 ms. When ICCS bit 6 is clear,
interval timer interrupts are disabled. ICCS bit 6 is cleared by
power-up and by the negation of DC OK.
4.12.2 Interval Timer Operation
When ICCS bit 6 is set, the interval timer posts an interrupt
request every 10 ms. The interval timer is the highest priority
device at IPL 16 (hex). The interrupt vector for the interval
timer is CO (hex).
3
1 765 0
МТТ I
UNUSED, RETURNS О 000000
LLL LLL AALLLEL2LULY* LL ILwLLLLLLLLLUALYAUy LL LH
INTERRUPT ENABLE (It)
MR-15950
Figure 4-25 Interval Clock Control and Status Register (ICCS)
4.13 CONSOLE SLU
4.13.1 Console Functionality
The console serial line provides the KA630-AA processor with a
full-duplex serial interface for the console terminal, It provides
an RS-423-A EIA interface that is also RS-232-C compatible.
The serial data format of the console SLU contains 8-bit data, no
parity, and one stop bit. The interrupt vectors of the console SLU
are F8 (hex) for the receiver and FC (hex) for the transmitter.
Its IPL is described in Section 4.4.1.
Architecture
The receive and transmit baud rates are always identical and are
determined by the Baud Rate Select signals (BRS <02:00> L), which
are received from an external 8-position switch through a
connector mounted at the top of the module.
The baud rate is selected as follows.
BRSO?2 L BRSOl L BRSOO L Baud Rate
H H H 300
H H L 600
H L H 1,200
H L L 2,400
L H H 4,800
L H L 9,600
L L H 19,200
L L L 38,400
4.13.2 Console Registers
There are four registers (Table 4-12) associated with the console
SLU. They are accessed through IPRs 32 to 35 (decimal).
Table 4-12 SLU Console Registers
Number Mnemonic Register Name
32 RXCS Console Receiver Control/Status
33 RXDB Console Receiver Data Buffer
34 TXCS Console Transmit Control/Status
35 TXDB Console Transmit Data Buffer
4.13.2.1 Console Receiver CSR (IPR 32) -- The contents of the
console receiver CSR are shown in Figure 4-26 and Table 4-13.
4.13.2.2 Console Receiver Data Buffer (IPR 33) -- The contents of
the console receiver data buffer are shown in Figure 4-27 and
Table 4-14.
NOTE
Error conditions remain present until
the next character is received, at which
point the error bits are updated. The
error bits are cleared by power-up and
by the negation of DC OK.
Architecture
3
1114
1 210 8765 0
PRETTY Pa 11T
UNUSED. RETURNS © 000 00000
EEE ww E UA 11 LAA
RCV ACT
RX DONE
RX IE
MA 1594
Figure 4-26 Console Receiver CSR
Table 4-13 Console Receiver CSR Format
Bit(s) Mnemonic Name/Meaning
<31:12>
11 RCV ACT
<10:08>
07 RX DONE
06 RX IE
<05:00>
Unused. Read as Os.
Receiver Active. This read-only bit is set at
the center of the start bit of the serial
input data, and is cleared at the expected
center (per DLART timing) of the stop bit at
the end of the serial data. RX DONE is set
one bit time after RCV ACT clears.
Unused. Read as 0s.
Receiver Done. This read-only bit is set when
an entire character has been received and is
ready to be read from the RBUF register. This
bit is automatically cleared when RBUF is
read. It is also cleared by power-up, by the
negation of DC OK, and by writes to the BIR.
Receiver Interrupt Enable. This read/write
bit is cleared by power-up, by the negation
of DC OK, and by writes to the BIR. If RX
DONE and RX IE are both set, a program
interrupt is requested.
Unused. Read as 05.
—
Architecture
PEUT TTTT TT TT ТТ TT TU
UNUSED. RETURNS 0 0] lo O о
LALALA Lil La AL
ERR
OVR ERR ———
FRM ERR
RCV BRK
RECEIVED DATA BITS
MR. 15952
Figure 4-27 Console Receiver Data Buffer
Table 4-14
Console Receiver Data Buffer Format
Bit(s) Mnemonic
Name/Meaning
<31:16>
15 ERR
14 OVR ERR
13 FRM ERR
12
11 RCV BRK
<10:08>
<07:00>
Unused. Always read as 0.
Error. This read-only bit is set if RBUF bit
14 or 13 is set. ERR is clear if these two
bits are clear. This bit cannot generate a
program interrupt.
Overrun Error. This read-only bit is set if a
previously received character was not read
before being overwritten by the present
character,
Framing Error. This read-only bit is set if
the present character has no valid stop bit.
Unused. This bit always reads as 0.
Received Break. This read-only bit is set at
the end of a received character for which the
serial data input remained in the space
condition for all 11 bit times. RCV BRK then
remains set until the serial data input
returns to the mark condition. RCV BRK is
also cleared by power-up and by the negation
of DC OK.
Unused. These bits always read as 0.
Received Data Bits. These read-only bits
contain the last received character.
Architecture
4.13.2.3 Console
Transmitter CSR (IPR 34) -- The contents of the
console transmitter CSR are shown in Figure 4-28 and Table 4-15.
3
1
8765 3210
rT Tr ITT ITT TTT rT TT TT TT TT TTT] TT
UNUSED. RETURNS 0 o 00| lo
ра ll
TX RDY
TX IE
MAINT
XMIT BRK
MA-15953
Figure 4-28 Console Transmitter CSR
Table
Console Transmitter CSR Format
Bit(s) Mnemonic
Name/Meaning
<31:08>
07 TX RDY
06 TX IE
<05:03>
02 MAINT
01
00 XMIT BRK
Unused. Read as 05.
Transmitter Ready. This read-only bit is
clear when XBUF is loaded and sets when XBUF
can receive another character. XMT RDY is set
by power-up, by the negation of DC OK, and by
writes to the BIR.
Transmitter Interrupt Enable. This read/write
bit is cleared by power-up, by the negation
of DC OK, and by writes to the BIR. If both
TX RDY and TX IE are set, a program interrupt
is requested.
Unused. Read as Os.
Maintenance. This read/write bit is used to
facilitate a maintenance self-test. When
MAINT is set, the external serial input is
disconnected and the serial output is used as
the serial input. This bit {15 cleared by
power-up, by the negation of DC OK, and by
writes to the BIR.
Unused. Read as O0.
Transmit Break. When this read/write bit is
set, the serial output is forced to the space
condition. XMIT BRK is cleared by power-up,
by the negation of DC OK, and by writes to
the BIR.
Architecture
4.13.2.4 Console Transmitter Data Buffer (IPR 35) -- XBUF bits
<31:08> are not used. XBUF bits <07:00> are write-only bits used
to load the transmitted character.
4.13.3 Break Response
The KA630-AA console SLU may be configured either to perform a
halt operation or to have no response when a break condition is
received. A halt operation causes the processor to transfer
program control to ROM location 20040000 (hex).
The halt on break option is enabled if the connector HLT ENB
signal is asserted.
The DLART recognizes a break condition at the end of a received
character for which the serial data input remained in the space
condition for all 11 bit times. The break recognition line remains
asserted until software reads the RBUF.
4.14 Q22-BUS CONTROL
4.14.1 Bus Initialize Register (IPR 55)
The BIR is accessed as IPR 55 (decimal). On an arbiter KA630-AA,
writing to this register asserts the Q22-Bus BINIT signal for
10 us (+ 20%) and clears all on-board register bits that are
specified to clear on writes to the BIR. On an auxiliary KA630-AA,
writing to this register does not assert the Q22-Bus BINIT signal,
but it does clear all on-board register bits specified to clear on
writes to the BIR. For either configuration (arbiter or
auxiliary), this register always reads as 0.
NOTE
An auxiliary KA630-AA module receives
BINIT from the 022-Bus and uses that
signal to initialize the MicroVAX CPU
chip, and to clear all internal register
bits that are specified to clear on the
negation of DC OK. Stated another way,
the assertion of the 022-Bus BINIT
signal has the same effect as the
negation of DC OK on auxiliary modules.
4.14.2 Multilevel Interrupts
When the KA630-AA is configured as the arbiter CPU, it responds to
interrupt requests BIRQ7 through 4 with the standard Q22-Bus
interrupt acknowledge protocol (DIN followed by IAK). The console
SLU and the interprocessor doorbell can request interrupts at
BIRQ4 and have priority over all Q22-Bus BIRQ4 interrupt requests.
After responding to any interrupt request BIRQ7 through 4, the
KA630-AA sets the processor priority to IPL 17. All BIRQ7 through
4 interrupt requests are disabled unless software lowers the
processor priority.
Architecture
When the KA630-AA is configured as an auxiliary, it does not
respond to interrupt requests from the Q22-Bus. However, it does
respond to the BIRQ4 interrupt requests from its console SLU and
interprocessor doorbell.
Interrupt requests from the KA630-AA interval timer are handled
internally by the MicroVAX CPU chip. Interval timer interrupt
requests have a higher priority than BIRQ6 interrupt requests.
After responding to an interval timer interrupt request, the
MicroVAX CPU chip sets the processor priority to IPL 16. Thus,
BIRQ7 interrupt requests remain enabled.
4.14.3 Interprocessor Communications Facility
The KA630-AA interprocessor communication facility allows other
processors on the system to request program interrupts from the
KA630-AA without using the Q22-Bus interrupt request lines. It
also controls external access to local memory by means of the
022-Bus map, and allows other processors to halt an auxiliary
CPU.
4.14.3.1 Interprocessor Communication Register -- The IPCR (Figure
4-29, Table 4-16) resides in the Q22-Bus I/O page address space
and can be accessed by any device that can become Q22-Bus master,
including the KA630-AA itself. The IPCR is byte accessible,
meaning that a write-byte instruction can write to either the low
or high byte without affecting the other byte.
The 1/0 page address of the IPCR varies with the four
configurations of arbiter and auxiliary KA630-AA, as follows.
Hex 32-Bit Octal 22-Bit
Address Address Register
20001F40 17777500 IPCR (Arbiter CPU)
20001F42 17777502 IPCR (Auxiliary 1)
20001F44 17777504 IPCR (Auxiliary 2)
20001F46 17777506 IPCR (Auxiliary 3)
1 1 1 1 1 1
5 4 3 2 1 о 9 8 7 6 5 4 3 2 1 0
1 1 i I 1 1 1 I
о © о о 0 o 0 о о о o
} | i 1 1 } } ]
DMA QPE Ñ
AUX HLT
DBI IE
LM EAE
DBI RQ
AR 145944
Figure 4-29 Interprocessor Communication Register (IPCR)
Table 4-16
Bit(s) Mnemonic
15 DMA QPE
<14:09>
08 AUX HLT
07
06 DBI IE
05 LM EAE
<04:01>
00 DBI RQ
Architecture
Interprocessor Communication Register Format
Name/Meaning
DMA (022-Bus Address Space Parity Error. This
read-only bit is set if MSER bit 4 (DMA QPE)
is set. The DMA OPE bit indicates that a
parity error occurred when an external device
(or CPU) was accessing the KA630-AA local
memory.
Unused. Read as 0s.
Auxiliary Halt. On an auxiliary KA630-AA, AUX
HLT is a read/write bit. When set, typically
by the arbiter CPU, it causes the on-board
CPU to transfer program control to the halt
mode ROM code. On an arbiter KA630-AA, AUX
HLT is a read-only bit that always reads as
0. It has no effect on arbiter CPU operation.
Unused. Read as O0.
Doorbell Interrupt Enable. This bit, when
set, enables interprocessor doorbell
interrupt requests through IPCR bit 0. When
the on-board CPU is Q22-Bus master, DBI IE is
a read/write bit. When an external device (or
CPU) is bus master, DBI IE is a read-only
bit. DBI IE is cleared by power-up, by the
negation of DC OK, and by writes to the BIR.
Local Memory External Access Enable, This
bit, when set, enables external access to
local memory (by means of the Q22-Bus map).
When the on-board CPU is Q22-Bus master, LM
EAE is a read/write bit. When an external
device (or CPU) is bus master, LM EAE is a
read-only bit. LM EAE is is cleared by
power-up and by the negation of DC OK.
Unused. Read as 05.
Doorbell Interrupt Request. If IPCR bit 6
(DBI IE) is set, writing a 1 to DBI RQ sets
DBI RQ, thus requesting a doorbell interrupt.
If IPCR bit 6 is clear, writing a 1 to DBI RQ
has no effect. Writing a 0 to DBI RQ has no
effect. DBI RQ is cleared when the CPU grants
the doorbell interrupt request. DBI RQ is
held clear whenever DBI IE is clear.
Architecture
4.14.3.2 Interprocessor Doorbell Interrupts ~- If the IPCR DBI IE
bit
is
set, any 022-Bus master can request an interprocessor
doorbell interrupt by writing a 1 into IPCR bit OC.
The
4.15
4.15.1}
When
interprocessor doorbell interrupt vector is 204 (hex). Its
interrupt priority is described in Section 4.4.1.
NOTE
Following an interprocessor doorbell
interrupt, the KA630-AA sets the IPL =
14. The IPL is set = 17 for external
Q22-Bus BIRQ4 interrupts.
MULTIPROCESSOR CONSIDERATIONS
Auxiliary/Arbiter Differences
KA630-AA is configured as an auxiliary, its operation
differs from operation as an arbiter in several important areas:
1.
The arbiter KA630-AA arbitrates bus mastership per the
022-Bus DMA protocol. The arbitration logic is disabled
on an auxiliary KA630-AA.
Both the arbiter and auxiliary KA630-AA request bus
mastership using the 022-Bus DMA request protocol, as
follows.
a. They both assert BDMR on the Q22-Bus,
b. The arbiter KA630-AA receives DMGI from its
arbitration logic. The auxiliary receives DMGI from
its Q22-Bus BDMGI pin.
с. Only the auxiliary KA630-AA actually asserts BSACK on
the 022-Bus.
The arbiter KA630-AA asserts the Q22-Bus BINIT signal
when DC OK is negated and when its CPU software writes to
its BIR. The auxiliary KA630-AA never asserts Q22-Bus
BINIT, but receives BINIT and uses it to initialize the
MicroVAX CPU chip and to clear all internal registers
that are specified to clear on the negation of DC OK.
The physical address of the IPCR is different for each of
the four KA630-AA arbiter/auxiliary configurations.
An auxiliary KA630-AA can be halted by setting bit 8 (AUX
HLT) of its IPCR. On an arbiter KA630-AA, this feature is
disabled and AUX HLT is a read-only bit that always reads
as 0.
Architecture
6. The CPU halts are controlled by the external connector
HLT ENB input. However, the external halts that are
affected differ somewhat for the arbiter and auxiliary
KA630-AA modules.
7. Each arbiter or auxiliary KA630-AA module can field
interrupt requests from its interval timer, from its
console device, and from its interprocessor doorbell.
Only the arbiter KA630-AA can field interrupts from
Q22-Bus interrupt request lines BIRQ7 through 4.
8. The arbiter asserts BIAKO to the Q22-Bus when it responds
to a 022-Bus interrupt request. The auxiliary asserts
BIAKO to the 022-Bus when it receives the assertion of
BIAKI from the Q22-Bus.
9. Although both arbiter and auxiliary KA630-AA modules
contain the same TOY clock and battery backup circuitry,
it is assumed that the auxiliary will be configured
without batteries and that its clock will never actually
be enabled.
4.15.2 Multiprocessor Features
The following features have been added to the KA630-AA to allow
its use in multiprocessor systems. |
e A 2-bit code, received at the external connector, allows
the KA630-AA module to be configured as the arbiter or as
one of three auxiliaries.
e The IPCR provides a mechanism for interprocessor
interrupts, for enabling and disabling external access to
local memory, and for flagging local memory parity errors
caused by external references. On auxiliary KA630-AA
modules, it also provides a mechanism for halting the
CPU.
4.15.3 KA630-AA Based Multiprocessor Systems
The KA630-AA multiprocessor features were designed for use in a
message passing environment similar to the System Communications
Architecture (SCA) that is currently layered on the CI port
architecture.
Each KA630-AA processor in a system fetches instructions and data
primarily from its own local memory. The various processors
communicate by way of message queues stored in local memory that
has been mapped to the 022-Bus address space. Typically, the
processors use the interprocessor doorbell feature to interrupt
each other after placing a message in an empty queue.
Architecture
In most systems, all 022-Bus devices would be under the direct
control of the arbiter processor, which fields all interrupts.
When a disk controller is under the direct control of the arbiter
CPU, the arbiter must set up the transfer of program and data
information between the corresponding disks and the auxiliary
processors. The auxiliary processor is responsible for setting up
its own Q22-Bus map to point to the local memory space that is a
target of that transfer.
Following a power-up or system restart, the auxiliary CPU runs its
self-test diagnostics, clears the valid bits in its Q22-Bus map
mapping registers, enters halt mode ROM space, and then sets its
own IPCR bits 8 (AUX HLT) and <06:05> (DBI IE and LM EAE). The
arbiter CPU waits for the auxiliary's LM EAE bit to set and then
boots the auxiliary CPU by loading the appropriate programs and
data into the arbiter's own local memory. These programs and data
are mapped to an assigned Q22-Bus address space through the
022-Bus map. The arbiter then clears the auxiliary's AUX HLT bit.
The auxiliary CPU, still in halt mode ROM space, waits for its AUX
HLT bit to clear and then begins auxiliary execution at a
specified location in the Q22-Bus address space (referencing local
memory in the arbiter).
4.15.4 PDP-11 Based Multiprocessor Systems
Up to three auxiliary KA630-AA modules can be added to a KDF11-B
or KDJ11-B based Q22-Bus system. Operation of a PDP-11 based
system is similar to that of a KA630-AA based system. However, the
following issues must be addressed.
e When a PDP-11 processor is arbiter, its "local" memory is
actually 022-Bus memory. This appears to present no
special problems. A portion of the Q22-Bus memory address
space must be reserved for mapping the auxiliary KA630-AA
modules' local memory.
e Since the PDP-11 processor does not contain an IPCR, an
external device must be added that allows the auxiliary
KA630-AA modules to interrupt the processor. Since the
KA630-AA console program does not interrupt the arbiter
CPU, the auxiliary KA630-AA modules do not require
modification if this external device is not compatible
with the KA630-AA IPCR.
CHAPTER 5
DIAGNOSTICS
5.1 INTRODUCTION
The diagnostics test the basic functionality of an arbiter
KA630-AA. The KA630-AA diagnostics operate in the following two
modes.
o Power-up mode
e Console I/O mode
In power-up mode, the diagnostics, in conjunction with the boot
program, test the KA630-AA's ability to load and run a typical
operating system or diagnostic supervisor. Seven diagnostic tests
are performed. They cover CPU functionality, system pathing and
memory. The boot program tests the Q22-Bus interface.
In console I/0 mode, each of the seven tests can be selected using
the Test command. Before each test is executed, its test number is
output by the console program to the LEDs on the KA630-AA and to
the console terminal. This provides an external indication of
testing progress, so that a loss of control may be traced to the
failing test.
The diagnostics are located in the console program ROM on the
KA630-AA. They do not test all the functional areas of the
KA630-AA. The areas not tested are as follows.
TOY clock
Bus reset register (IPR 55)
Console saved ISP (IPR 41)
Console saved PC (IPR 42)
Console saved ISL (IPR 43)
ASTLVL register (IPR 19)
DMA related circuitry
Category 3 registers
5.2 FUNCTIONAL DESCRIPTION
The KA630-AA diagnostics include seven tests that are run in a
sequence designed to localize failures. The tests run from 8 to 3
(rest 3 covering two functional areas), and are described in Table
Diagnostics
Table 5-1 Diagnostic Tests
Test Coverage Error Type*
8 IPCR (no interrupts) F
7 Memory data F, H
6 Memory address F
5 Q22-Bus mapping registers (no interrupts), F
MSER and CEAR (no wrong parity)
4 CPU chip C, F
3 Interrupts and traps С, F
TOY
MSER
CEAR
Q22-Bus
Interval timer
Console
* C (Catastrophic) -- The state of KA630-AA is unpredictable.
F (Fatal) -- KA630-AA cannot operate, but console commands can
be used.
H (Hard) -- Memory error.
5.2.1 IPCR Test
This test reads the IPCR. No interrupts are generated. No traps
should occur. An IPCR test checks the interprocessor communication
register and interprocessor doorbell interrupt.
5.2.2 Memory Data Test
This test checks all the memory for shorted and stuck conditions,
and builds a memory bitmap. This bitmap does not include the VMB
map or the console program scratch pages. The memory data test is
executed with PAR ENB set. Therefore, MSER and CEAR are checked
for 0.
A fatal error exists when 64 Kbytes of contiguous memory are not
found within the first 4 Mbytes of local memory.
5.2.3 Memory Address Test
This test checks every cell of the memory to be sure each address
is unique.
Diagnostics
5.2.4 Q022~-Bus Mapping Registers Test
This test checks Q22-Bus mapping registers for shorted and stuck
bits.
5.2.5 MicroVAX CPU Chip Test
This test checks data paths between the console program ROM and
MicroVAX CPU chip. Since it is a basic path for the diagnostics,
the test assumes that only the MicroVAX CPU chip can malfunction.
The following checks are performed:
l. Checks general registers and bits <07:04> of PSL for
shorted and stuck bits.
2. Executes a limited set of instructions. This set includes
all instructions in all modes that are necessary to load
software, plus all instructions that are used in the ROM
diagnostic. This forces a functional check of bits
<03:00> of PSL as well.
3. Checks Process Control Block Base (PCBB); kernel,
executive, supervisor, and user stack pointers; and TBIS
for shorted and stuck bits.
4. Checks TBIA for a O0.
5. Checks SBR, POBR, and PCBB bits <01:00> for a 0, <29:02>
for shorted and stuck bits, and <31:30> for a proper
state,
6. Checks SLR, POLR, and PlLR bits <31:22> for a 0, and
<21:00> for shorted and stuck bits.
7. Checks MAPEN bit 0 for O.
8. Checks PIBR bits <01:00> for 0s, and <31:02> for shorted
and stuck bits.
9. Checks SCBB bits 31, 30, and <08:00> for 0s, and <29:09>
for shorted and stuck bits.
10. Checks the MMU.
11. Checks the FPU.
Diagnostics
5.2.6 Software Interrupts and Traps
This group consists of data path tests between the ROM and
MicroVAX CPU chip. It checks exceptions and software interrupts,
The following algorithm is used:
1. Ensure that SISR is a 0.
2. Walk through SIRR bits <03:00> and check SISR bits
<16:01>.
3. Decrease IPL to 10 (hex) using bits <04:00>, and compare
to PSL bits <20:16>.
4, Drop IPL to 1 (hex) and start responding to the software
interrupts,
5. Increase IPL to 1E (hex).
6. Check traps by violating limits of SLR, POLR and P1LR.
7. Drop mode to executive, check PSL bits <25:22> and check
protection trap.
8. Drop mode to supervisor, check PSL bits <25:22> and check
protection trap.
9. Drop mode to user, check PSL bits <25:22> and check
protection trap.
5.2.7 System Interrupts and Data Paths
These tests verify system interrupts as well as several processor
board data paths. They check the TOY register, interval timer,
CEAR and MSER.
The following tests are performed:
1. Check BDR bits <13:11> and <07:04> for 0, bit 15 for 1
and bits <03:00> for proper code.
2. Check interval timer,
3. Map two pages of good memory into Q22-Bus map registers.
4, Check CEAR for 0.
5. Check MSER for 0, and set PAR ENB bit 0.
6. Write data into good pages of memory. Read it locally. No
trap should occur.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
5.2.7.1
Diagnostics
Set WRW bit 1. Write data into good pages.
Read data locally. Since wrong parity was used, the test
traps through vector 4 of the SCB.
Check bits <09:03> of MSER for proper code.
Check bits <14:00> of CEAR for proper error address.
Clear bits <01:00> of MSER.
Write data to memory through Q22-Bus.
Read data from memory locally. No trap should occur.
Read data from memory through Q22-Bus.
Ser MSER bits <01:00>, WRW and PAR ENB. Write data
through Q22-Bus.
Read data from memory locally. Since wrong parity was
used, the test traps through vector 4 of the SCB.
Check bits <09:03> of MSER for proper code.
Check bits <14:00> of CEAR for proper error address.
Check bit 15 of IPCR.
Write data to memory through Q22-Bus.
Read data from memory through Q22-Bus. Since wrong parity
was used, the test traps through vector 4 of the SCB.
Check bits <09:03> of MSER for proper code.
Check bits <14:00> of CEAR for proper error address.
Check bit 15 of IPCR.
Write data into nonexistent I/O register and trap.
Console Test -- The diagnostic sets maintenance bit 2 of
the console transmitter CSR, and outputs four null characters.
This test checks the following.
Receiver and transmitter interrupts
Receiver Done and Active bits
Receiver buffer Error and Overrun Error flags
Diagnostics
5.2.8 Console Program/ROM Diagnostic Interface
In either power-up or console 1/0 mode, the console program
invokes one test at a time. Each test number is displayed on the
LEDs and the console terminal. No carriage returns are output as
part of the code display, so if all tests complete normally, the
string 8...7...6...5...4...3... is seen on the console terminal.
If the diagnostic detects a catastrophic or fatal error, it passes
the status and error number to the console program immediately,
and no further testing is done. If hard (memory) errors are
detected, the diagnostic passes the status and number of bad pages
to the console program only at the end of the test.
At the end of the test, the diagnostic passes status to the
console program. This way Repeat Test (an optional specifier) can
be easily implemented. Before each test, the diagnostic sets the
"Test in Progress" safeguard flag.
NOTE
Test commands may include a read/write
test of memory that leaves memory
contents in an unpredictable state. The
RPB may be lost. In this case, the
system must be rebooted to restore the
RPB.
5.3 ERROR OUTPUT
If a diagnostic detects a catastrophic or fatal error, it passes
the status and error number to the console program, and no further
testing is done. Neither text nor error messages are printed by
the diagnostic program. All text and error messages are printed by
the console in the appropriate language.
5.4 KA630-AA LED DISPLAY
There are four red LEDs on the KA630-AA. These four LEDs,
interpreted as a 4-bit hexadecimal digit, are described in Table
5-2. All LED codes are displayed during power-up. A problem is
indicated only if the CPU stops at a particular LED code.
An LED 15 illuminated if its control bit in the ВОВ is 1, and is
not illuminated if its control bit is 0.
It is possible for privileged code to output to the LEDs when the
processor is in program mode. Because this may cause confusion in
the interpretation of the LEDs, this use of the LEDs is
discouraged.
When executing the power-up sequence, the codes 9 through 0 are
also output to the console terminal,
Diagnostics
Table 5-2 KA630-AA LED Interpretation
Code Activity Exit Criteria
F Electrical power-up. MicroVAX starts execution
from console program ROM.
E Wait for PWR OK. BDR bit 15 set.
D Perform ROM checksum and TOY Test success,
RAM tests.*
С Initialize console program Console memory and bitmap
memory. initialized, registers
saved.
B Run IPCR tests.* Test success.
A Test for and check VCBO] VCBOl operational or not
video console display, if present.
present.*
9 Perform console port tests and Console terminal type
terminal identification.* determined.
8 Query console language, * Exits power-up
then enter console command automatically, otherwise
mode. exits on console Continue,
Start, Boot or Test
commands.
7 Run memory pattern tests.+ At least 64 Kbytes of
contiguous good memory
found.
6 Run memory address tests.* All address tests passed.
5 Run 1/0 map tests.* Test success.
4 Run CPU tests, * Test success.
3 Run interrupt tests.* Test success.
2 Search for bootstrap device.+ Valid bootstrap device
located.
1 Load bootstrap.+ Bootstrap successfully
loaded.
0 Program mode.
Not applicable.
* Performed only on power-up entry into
console program,
+ Performed on power-up entry and on operator-requested bootstrap.
$+ Performed only during bootstrap.
APPENDIX A
Q22-BUS SPECIFICATION
A.1 GENERAL DESCRIPTION
The Q22-Bus, also known as the extended LSI-11 Bus, is the low-end
member of Digital's bus family. All of Digital's microcomputers,
such as the MicroVAX I, MicroVAX II, and MicroPDP-ll, use the
Q22-Bus.
The 022-Bus consists of 42 bidirectional and 2 unidirectional
signal lines. These form the lines along which the processor,
memory, and I/O devices communicate with each other.
Addresses, data, and control information are sent along these
signal lines, some of which contain time-multiplexed information.
The lines are divided as follows.
e Sixteen multiplexed data/address lines -- BDAL<15:00>
e Two multiplexed address/parity lines -- BDAL<17:16>
e Four extended address lines -- BDAL<21:18>
e Six data transfer control lines -- BBS7, BDIN, BDOUT,
BRPLY, BSYNC, BWTBT
e Six system control lines -- BHALT, BREF, BEVNT, BINIT,
BDCOK, BPOK
e Ten interrupt control and direct memory access control
lines —- BIAKO, BIAKI, BIRQ4, BIRQ5, BIRQ6, BIRQ7, BDMGO,
BDMR, BSACK, BDMGI
In addition, a number of power, ground, and space lines are
defined for the bus. Refer to Table A-1 for a detailed description
of these lines.
The discussion in this Appendix applies to the general 22-bit
physical address capability. All modules used with the KA630-A CPU
module must use 22-bit addressing.
Most Q22-Bus signals are bidirectional and use terminations for a
negated (high) signal level. Devices connect to these lines via
high-impedance bus receivers and open collector drivers. The
asserted state is produced when a bus driver asserts the line low.
Q22-Bus Specification
Although bidirectional lines are electrically bidirectional (any
point along the line can be driven or received), certain lines are
functionally unidirectional. These lines communicate to or from a
bus master (or signal source), but not both. Interrupt acknowledge
(BIAK) and direct memory access grant (BDMG) signals are
physically unidirectional in a daisy-chain fashion. These signals
originate at the processor output signal pins. Each is received on
device input pins (BIAKI or BDMGI) and is conditionally
retransmitted via device output pins (BIAKO or BDMGO). These
signals are received from higher-priority devices and are
retransmitted to lower-priority devices along the bus,
establishing the position-dependent priority scheme.
A.l.1 Master/Slave Relationship
Communication between devices on the bus is asynchronous. A
master/slave relationship exists throughout each bus transaction.
Only one device has control of the bus at any one time. This
controlling device is termed the bus master, or arbiter. The
master device controls the bus when communicating with another
device on the bus, termed the slave.
The bus master (typically the processor or a DMA device) initiates
a bus transaction. The slave device responds by acknowledging the
transaction in progress and by receiving data from, or
transmitting data to, the bus master. Q22-Bus control signals
transmitted or received by the bus master or bus slave device must
complete the sequence according to bus protocol.
The processor controls bus arbitration, that is, which device
becomes bus master at any given time. A typical example of this
relationship is a disk drive, as master, transferring data to
memory as slave. Communication on the Q22-Bus is interlocked so
that, for certain control signals issued by the master device,
there must be a response from the slave in order to complete the
transfer. It is the master/slave signal protocol that makes the
022-Bus asynchronous. The asynchronous operation precludes the
need for synchronizing with, and waiting for, clock pulses,
Since bus cycle completion by the bus master requires response
from the slave device, each bus master must include a timeout
error circuit that aborts the bus cycle if the slave does not
respond to the bus transaction within 10 us. The actual time
before a timeout error occurs must be longer than the reply time
of the slowest peripheral or memory device on the bus.
A.2 022-BUS SIGNAL ASSIGNMENTS
Table A-1 lists the signal assignments for the data/address,
control, power/ground, and spare functions of the Q22-Bus.
Q22-Bus Specification
Table A-1
Signal Assignments
Name
Pin Assignment
DATA AND ADDRESS
BDALO AU2
BDAL1 AV2
BDAL2 BE2
BDAL3 BF2
BDAL4 BH?
BDAL5 BJ2
BDAL6 BK2
BDAL7 BL2
BDAL8 BM2
BDAL9 BN2
BDALIO BP2
BDAL11 BR2
BDAL12 BS2
BDAL13 BT2
BDAL14 BU2
BDAL15 BV2
BDAL16 AC1
BDAL17 AD1
BDAL18 BC1l
BDAL19 BD1
BDAL20 BEl
BDAL21 BFi
CONTROL
Data Control
BDOUT AE2
BRPLY AF2
BDIN AH2
BSYNC AJ2
BWTBT AK2
BBS? AP2
Interrupt Control
BIRQ7 BPl
BIRQ6 АВ1
BIRQS AAl
BIRQ4 AL2
BIAKO AN2
BIAKI AM2
DMA Control
BDMR ANI
BSACK BN1
BDMGO AS2
BMDGI AR2
022-Bus Specification
Table A-1 Signal Assignments (Cont)
Name Pin Assignment
System Control
BHALT АР]
BREF ARl
BEVNT BR1
BINIT AT2
BDCOK BAl
BPOK BBl
POWER AND GROUND
+5B (battery) or AS1
+12B (battery)
+12B BS1
+5B AVl
+5 AA2
+5 BA2
+5 BVl
+12 AD?
+12 BD2
+12 AB2
-12 AB2
-12 BB2
GND AC2
GND AJl
GND АМ}
GND АТ]
GND BC2
GND BJ1
GND BM1
GND Вт!
SPARES
SSparel AE]
SSpare3 AH]
SSpare8 BHl
SSpare2 АЕ}
MSpareA АК}
MSpareB ALl
MSpareB BK1
MSpareB BLI
PSparel AUl
ASpare2 BUl
Q22-Bus Specification
A.3 DATA TRANSFER BUS CYCLES
Data transfer bus cycles are listed and defined in Table A-2.
These bus cycles, executed by bus master devices, transfer 32-bit
words or B8-bit bytes to or from slave devices. In block mode,
multiple words may be transferred to sequential word addresses,
starting from a single bus address. The bus signals listed in
Table A-3 are used in the data transfer operations described in
Table A-2.
Table A-2 Data Transfer Operations
Bus Cycle Function (with Respect
Mnemonic Description to the Bus Master)
DATI Data word input Read
DATO Data word output Write
DATOB Data byte output Write-byte
DATIO Data word input/output Read-modify-write
DATIOB Data word input/byte output Read-modify-write byte
DATBI Data block input Read block
DATBO Data block output Write block
Table A-3 Bus Signals for Data Transfers
Mnemonic Description Function
BDAL<21:00> L 22 Data/address lines BDAL<15:00> L are used for
word and byte transfers.
BDAL<17:16> L are used for
extended addressing,
memory parity error (16),
and memory parity error
enable (17), functions.
BDAL<21:18> L are used for
extended addressing beyond
256 Kbytes.
BSYNC L Bus cycle control Indicates bus transaction
in progress.
BDIN L Data input indicator Strobe signals.
BDOUT L Data output indicator Strobe signals.
BRPLY L Slave's acknowledge of Strobe signals.
bus cycle
BWTBT L Write/byte control Control signals.
BBS? 1/0 device select Indicates address is in
the I/0 page.
0Q22-Bus Specification
Data transfer bus cycles can be reduced to five basic types: DATI,
DATO (B), DATIO(B), DATBI, and DATBO. These transactions occur
between the bus master and one slave device selected during the
addressing portion of the bus cycle.
A.3.1 Bus Cycle Protocol
Before initiating a bus cycle, the previous bus transaction must
have been completed (BSYNC L negated) and the device must become
bus master. The bus cycle can be divided into two parts: an
addressing portion, and a data transfer portion. During the
addressing portion, the bus master outputs the address for the
desired slave device, memory location, or device register. The
selected slave device responds by latching the address bits and
holding this condition for the duration of the bus cycle until
BSYNC L becomes negated. During the data transfer portion, the
actual data transfer occurs.
A.3.2 Device Addressing
The device addressing portion of a data transfer bus cycle
comprises an address setup and deskew time, and an address hold
and deskew time. During the address setup and deskew time, the bus
master does the following.
e Asserts BDAL<21:00> L with the desired slave device
address bits
e Asserts BBS7 L if a device in the I/O page is being
addressed
e Asserts BWTBT L if the cycle is a DATO (B) or DATBO bus
cycle
During this time, the address, BBS7 L, and BWTBT L signals are
asserted at the slave bus receiver for at least 75 ns before BSYNC
goes active. Devices in the I/0 page ignore the 9 high-order
address bits BDAL<21:13>, and instead, decode BBS7 L along with
the 13 low-order address bits. An active BWTBT L signal during
address setup time indicates that a DATO(B) or DATBO operation
follows, while an inactive BWTBT L indicates a DATI, DATBI, or
DATIO (B) operation.
The address hold and deskew time begins after BSYNC L is asserted.
The slave device uses the active BSYNC L bus received output to
clock BDAL address bits, BBS7 L, and BWTBT L into its internal
logic. BDAL<21:00> L, BBS7 L, and BWTBT L remain active for 25 ns
(minimum) after BSYNC L bus receiver goes active. BSYNC L remains
active for the duration of the bus cycle.
Memory and peripheral devices are addressed similarly, except for
the way the slave device responds to BBS7 L. Addressed peripheral
devices must not decode address bits on BDAL<21:13> L. Addressed
peripheral devices may respond to a bus cycle when BBS7 L is
asserted (low) during the addressing portion of the cycle. When
asserted, BBS7 L indicates that the device address resides in the
Q22-Bus Specification
1/0 page (the upper 4 K address space). Memory devices generally
do not respond to addresses in the I/O page; however, some system
applications may permit memory to reside in the 1/0 page for use
as DMA buffers, read-only memory bootstraps, diagnostics, etc.
DATI -- ‘The DATI bus cycle, shown in Figure A-1, is a read
operation. During DATI, data is input to the bus master. Data
consists of 16-bit word transfers over the bus. During the data
transfer portion of the DATI bus cycle, the bus master asserts
BDIN L 100 ns (minimum) after BSYNC L is asserted. The slave
device responds to BDIN L active as follows.
e Asserts BRPLY L 0 ns (minimum) (8 ns maximum to avoid bus
timeout) after receiving BDIN L, and 125 ns (maximum)
before BDAL bus driver data bits are valid.
e Asserts BDAL<21L00> L with the addressed data and error
information 0 ns (minimum) after receiving BDIN, and 125
ns (maximum) after assertion of BRPLY.
BUS MASTER SLAVE
{PROCESSOR OR DEVICE) (MEMORY OR DEVICE}
ADDRESS DEVICE MEMORY
* ASSERT BDAL <21:00> L WITH
ADDRESS AND
* ASSERT BBS7 IF THE ADDRESS
IS IN THE 1/0 PAGE
eo ASSERT BSYNC L
—
DECODE ADDRESS
* STORE“DEVICE SELECTED”
OPERATION
a —
REQUEST DATA
* REMOVE THE ADORESS FROM
BDAL <21:00> L AND
NEGATE BBS7 L
eo ASSERT BDIN L
—
INPUT DATA
* PLACE DATA ON BDAL < 15:00> L
a
MM —
TERMINATE INPUT TRANSFER
* ACCEPT DATA AND RESPONDO
BY NEGATING BDIN L
—
—
TERMINATE BUS CYCLE OPERATION COMPLETED
* NEGATE BSYNC L -— * NEGATE BRPLY L MA-6028
Figure A-1 DATI Bus Cycle
Q22-Bus Specification
When the bus master receives BRPLY L, it does the following.
e Waits at least 200 ns deskew time and then accepts input
data at BDAL<17:00> L bus receivers. BDAL <17:16> L are
used for transmitting parity errors to the master.
e Negates BDIN L 200 ns (minimum) to 2 us (maximum) after
BRPLY L goes active,
The slave device responds to BDIN L negation by negating BRPLY L
and removing read data from BDAL bus drivers. BRPLY L must be
negated 100 ns (maximum) prior to removal of read data. The bus
master responds to the negated BRPLY L by negating BSYNC L.
Conditions for the next BSYNC L assertion are as follows.
e BSYNC L must remain negated for 200 ns (minimum).
e BSYNC L must not become asserted within 300 ns of previous
BRPLY L negation.
Figure A-2 shows DATI bus cycle timing.
NOTE
Continuous assertion of BSYNC L retains
control of the bus by the bus master,
and the previously addressed slave
device remains selected. This is done
for DATIO(B) bus cycles where DATO or
DATOB follows a DATI without BSYNC L
negation and a second device addressing
operation. Also, a slow slave device can
hold off data transfers to itself by
keeping BRPLY L asserted, which causes
the master to keep BSYNC L asserted.
DATO(B) -- DATO(B), shown in Figure A-3, is a write operation.
Data is transferred in 32-bit words (DATO) or 8-bit bytes (DATOB)
from the bus master to the slave device. The data transfer output
can occur after the addressing portion of a bus cycle when BWTBT L
has been asserted by the bus master, or immediately following an
input transfer part of a DATIO(B) bus cycle.
The data transfer portion of a DATO(B) bus cycle comprises a data
setup and deskew time and a data hold and deskew time.
During the data setup and deskew time, the bus master outputs the
data on BDAL<15:00> L at least 100 ns after BSYNC L assertion.
BWTBT L remains negated for the length of the bus cycle. If the
transfer is a byte transfer, BWTBT L remains asserted. If it is
the output of a DATIOB, BWTBT L becomes asserted and lasts the
duration of the bus cycle.
022-Bus Specification
T/RDAL (4 T ADDR (4) X R DATA X (41
100 NS 200 NS и
| NS oi MINIMUM MAXIMUM
T SYNC MINIMUM 200 NS MINIMUM
CLOCK DATA
100 NS MINIMUM — | hs———200 NS MINIMUM 200 NS
8 „5 MAXIMUM ae— MINIMUM —e
T DIN 7
300 NS MINIMUM—————
A RPLY
150 NS
q MINIMUM — [e100 NS MINIMUM
T 857 (4) X (4)
T WTBT (4) A (4j
TIMING AT MASTER DEVICE
R/T DAL 14) R ADDR X (4) X T DATA X {4}
| M
25 NS 100 NS MAXIMUM
~ INIMUM *—125 NS MAXIMUM E 0 NS MINIMUM
R SYNC И ons I \ /
MINIMUM
le— 75 NS A
200 NS MINIMUM 150 NS
MINIMUM No MIMIMUM
\ 300 NS MINIMUM ———
A
R DIN
TAPLY
18— 75 NS MINIMUM
Ba 25 NS MINIMUM
RWTBT (4) A (4)
TIMING AT SLAVE DEVICE
NOTES
1. TIMING SHOWN AT MASTER AND SLAVE DEVICE 3. BUS DRIVER OUTPUT AND BUS RECEIVER INPUT
BUS DRIVER INPUTS AND BUS RECEIVER QUTPUTS SIGNAL NAMES INCLUDE A “8B” PREFIX.
2 SIGNAL NAME PREFIXES ARE DEFINED BELOW 4 DON'T CARE CONDITION
T = BUS DRIVER INPUT
R = BUS RECEIVER OUTPUT
мя 6037
Figure A-2 DATI Bus Cycle Timing
022-Bus Specification
BUS MASTER SLAVE
(PROCESSOR OR DEVICE) (MEMORY OR DEVICE)
ADDRESS DEVICE/MEMORY
ASSERT BDAL <21:00> L WITH
ADDRESS AND
ASSERT B8S7 L IF ADDRESS IS
IN THE 1/0 PAGE
ASSERT BWTBT L (WRITE
CYCLE)
e ASSERT BSYNC L —
—— a
—
— —
DECODE ADDRESS
[à [x] LE
__—* STORE “DEVICE SELECTED
7 OPERATION
—
—
—
OUTPUT DATA “
e REMOVE THE ADDRESS FROM
BDAL <21:00> L AND NEGATE BBS7 L
* NEGATE BWTBT L UNLESS DATOB
* PLACE DATA ON BDAL < 15:00> L
ASSERT BDOUT L
—
— —
TAKE DATA
* RECEIVE DATA FROM BDAL
LINES
0 — —— * ASSERT BAPLY L
pe
«а —
TERMINATE OUTPUT TRANSFER
* NEGATE 8DOUT L (AND BWTBT L
IF A DATOB BUS CYCLE)
e REMOVE DATA FROM BDAL<15:00> L
—
— —
OPERATION COMPLETED
————] NEGATE BRPLY L
Ja
me
TERMINATE BUS CYCLE a
e NEGATE BSYNC L
мя 6029
Figure A-3 DATO or DATOB Bus Cycle
Q22~Bus Specification
During a byte transfer, BDAL<00> L selects the high or low byte.
This occurs while in the addressing portion of the cycle. If
asserted, the high byte (BDAL<15:08> L) is selected; otherwise,
the low byte (BDAL<K07:00> L) is selected. An asserted BDAL 16 L at
this time forces a parity error to be written into memory if the
memory is a parity-type memory. BDAL 17 L is not used for write
operations. The bus master asserts BDOUT L at least 100 ns after
BDAL and BDWTBT L bus drivers are stable. The slave device
responds by asserting BRPLY L within 10 us to avoid bus timeout.
This completes the data setup and deskew time.
During the data hold and deskew time, the bus master receives
BRPLY L and negates BDOUT L, which must remain asserted for at
least 150 ns from the receipt of BRPLY L before being negated by
the bus master. BDAL<17:00> L bus drivers remain asserted for at
least 100 ns after BDOUT L negation. The bus master then negates
BDAL inputs.
During this time, the slave device senses BDOUT L negation. The
data is accepted and the slave device negates BRPLY L. The bus
master responds by negating BSYNC L. However, the processor does
not negate BSYNC L for at least 175 ns after negating BDOUT L.
This completes the DATO(B) bus cycle. Before the next cycle, BSYNC
L must remain unasserted for at least 200 ns. Figure A~4 shows
DATO (B) bus cycle timing.
DAITO(B) -- The protocol for a DATIO(B) bus cycle is identical to
the addressing and data transfer portions of the DATI and DATO (B)
bus cycles, and is shown in Figure A-5. After addressing the
device, a DATI cycle is performed as explained earlier; however,
BSYNC L is not negated. BSYNC L remains active for an output word
or byte transfer [DATO(B)]. The bus master maintains at least 200
ns between BRPLY L negation during the DATI cycle and BDOUT L
assertion. The cycle is terminated when the bus master negates
BSYNC L, as described for DATO(B). Figure A-6 illustrates DATIOQ (B)
bus cycle timing.
Q22-Bus Specification
Po NS MINIMUM
T DAL Da T ADDR X T DATA X (4)
| 150 NS в | 100 NS
1 MINIMUM
SNA 00 NS MINIMUM
T SYNC / \ /
8 uS oy 175 NS e— 200 NS MINIMUM——es
M
MAX IMU MINIMUM
T DOUT /
| 300 NS MINIMUM —Ñ a
150 NS MINIMUM — a
R RPLY y
— pe NS MINIMUM
T 8S7 (4) X (4)
— —150 NS MINIMUM
TWTBT {4) \ ASSERTION = BYTE Da (4)
10NS — DE MINIMUM —J 100 NS lL
MINIMUM MINIMUM
TIMING AT MASTER DEVICE
R DAL (4) X R ADDR X A DATA X (4)
—. 25 NS MINIMUM —* bu NS MINIMUM
R SYNC 7 \
| 100 NS MINIMUM ele 100 NS MINIMUM am
75 NS +
MINIMUM
150 NS
MINIMUM — AERA.
75 NS
‘ MINIMUM lt
R BS7 (4) X X a
R DOUT
T APLY MINIMUM
25 NS MINIMUM + L — pi NS MINIMUM
RWTBT (4) \ / ASSERTION = BYTE X (4)
75NS 4 le NS MINIMUM
MINIMUM
TIMING AT SLAVE DEVICE
NOTES
1 TIMING SHOWN AT MASTER AND SLAVE DEVICE 3. BUS DRIVER QUTPUT AND BUS RECEIVER INPUT
BUS DRIVER INPUTS AND BUS RECEIVER QUTPUTS. SIGNAL NAMES INCLUDE A "B” PREFIX
2 SIGNAL NAME PREFIXES ARE DEFINED BELOW 4. DON'T CARE CONDITION.
T = BUS DRIVER INPUT
R = BUS RECEIVER OUTPUT
мия 1179
Figure A-4 DATO or DATOB Bus Cycle Timing
A-12
Q22-Bus Specification
BUS MASTER SLAVE
(PROCESSOR OR DEVICE) {MEMORY OR DEVICE)
ADDRESS DEVICE/MEMORY
e ASSERT BDAL <21:00> L WITH
ADDRESS
e ASSERT BBS7 L IF THE
ADDRESS IS IN THE 1/0 PAGE
e ASSERT BSYNCL
7° DECODE ADDRESS
e STORE “DEVICE SELECTED”
_ OPERATION
a —— —
REQUEST DATA
e REMOVE THE ADDRESS FROM
BDAL <21:00> L
e ASSERT BDIN L —
TTT INPUT DATA
e PLACE DATA ON BDAL <15:00> L
e ASSERT BRPLY L
TERMINATE INPUT TRANSFER «
e ACCEPT DATA AND RESPOND BY
TERMINATING BDIN L
— — — _
_
COMPLETE INPUT TRANSFER
e REMOVE DATA
e NEGATE BRPLY L
a — —
OUTPUT DATA
e PLACE OUTPUT DATA ON BDAL <15:00> L
e (ASSERT BWTBT L IF AN OUTPUT
BYTE TRANSFER)
e ASSERT BDOUTL
=
—
TAKE DATA
e RECEIVE DATA FROM BDAL LINES
e ASSERT BRPLY L
a— -
a” -—
TERMINATE OUTPUT TRANSFER
e REMOVE DATA FROM BDAL LINES
e NEGATE BDOUT L
— — — —_
—
OPERATION COMPLETED
e NEGATE BRPLY L
— —
- — —
TERMINATE BUS CYCLE
e NEGATE BSYNCL
(AND BWTBT LIFIN
A DATIOB BUS CYCLE]
MA-6030
Figure A-5 DATIO or DATIOB Bus Cycle
Q22-Bus Sp
ecification
| 150 NS MINIMUM
[+ 0 NS MINIMUM
—
100 NS | I
MINIMUM ге | — 200 NS MAXIMUM | — lw NS MINIMUM
T SYNC
100 NS MINIMUM MMM"
he 200 № 200 №
T DOUT MINIMUM MINIMUM —
\_
e 200 №5
MINIMUM q
T DIN /
300 NS
\ / MINIMUM
R RPLY F
\_
ме
150 №5
MINIMUM
T 857
De
fii
T WTBT ON
ме 100 NS MINIMUM
100 NS MINIMUM-—-——=
Y
ASSERTION = BYTE
Y (4)
p— 150 NS MINIMUM
TIMING AT MASTER DEVICE
RT/DAL (4) XR ADDR X (4) X T DATA X (4) X R DATA X (4)
25 NS Ва
ha
MINIMUM | | — 25 NS MINIMUM
R SYNC у —.l 100 NS
MAXIMUM
100 NS
не 75 NS MINIMUM 25 NS MINIMUM I TP] MINIMUM
—el 125 NS 150NS e
R DOUT MAXIMUM ON MINIMUM
18-150 NS MINIMUM -—
R DIN Вх
150 № 300 №
) MINIMUM / MINIMUM ”
я N N
— jé 75 NS MINIMUM
В 657 X X
|
R WTBT ON
ме 75 NS MINIMUM
мн 25 NS MINIMUM
(4)
y
ASSERTION = BYTE
= NS MINIMUM
X
(4)
NOTES
t TIMING SHOWN AT REQUESTING DEVICE
BUS DRIVER INPUTS AND BUS RECEIVER QUTPUTS
2. SIGNAL NAME PREFIXES ARE DEFINED BELOW:
25 NS MINIMUM
T= BUS DRIVER INPUT
R= BUS RECEIVER QUTPUT
Figure A-6
TIMING AT SLAVE DEVICE
DATIO or
4 DON'T CARE CONDITION.
3. BUS DRIVER OUTPUT AND BUS RECEIVER INPUT
SIGNAL NAMES INCLUDE A “B” PREFIX.
мя 6036
DATIOB Bus Cycle Timing
Q22-Bus Specification
A.4 DIRECT MEMORY ACCESS
The direct memory access (DMA) capability allows direct data
transfer between I/O devices and memory. This is useful when using
mass storage devices (for example, disks) that move large blocks
of data to and from memory. A DMA device needs to know only the
starting address in memory, the starting address in mass storage,
the length of the transfer, and whether the operation is read or
write. When this information is available, the DMA device can
transfer data directly to or from memory. Since most DMA devices
must perform data transfers in rapid succession or lose data, DMA
devices are provided the highest priority.
DMA is accomplished after the processor (normally bus master) has
passed bus mastership to the highest-priority DMA device that is
requesting the bus. The processor arbitrates all requests and
grants the bus to the DMA device electrically closest to it. A DMA
device remains bus master until it relinquishes its mastership.
The following control signals are used during bus arbitration,
BDMGI L DMA grant input
BDMGO L DMA grant output
BDMR L DMA request line
BSACK L Bus grant acknowledge
A.4.1 DMA Protocol
A DMA transaction can be divided into three phases:
1. Bus mastership acquisition phase
2. Data transfer phase
3. Bus mastership relinquishment phase.
During the bus mastership acquisition phase, a DMA device requests
the bus by asserting BDMR L. The processor arbitrates the request
and initiates the transfer of bus mastership by asserting BDMGO L.
The maximum time between BDMR L assertion and BDMGO L assertion is
DMA latency. This time is processor-dependent. BDMGO L/BDMGI L is
one signal that is daisy-chained through each module in the
backplane. It is driven out of the processor on the BDMGO L pin,
enters each module on the BDMGI L pin, and exits on the BDMGO L
pin. This signal passes through the modules in descending order of
priority until it is stopped by the requesting device. The
requesting device blocks the output of BMDGO L and asserts BSACK
L. If BDMR L is continuously asserted, the bus hangs.
During the data transfer phase, the DMA device continues asserting
BSACK L. The actual data transfer is performed as described
earlier.
The DMA device can assert BSYNC L for a data transfer 250 ns
(minimum) after ¡it received BDMGI L and its BSYNC L bus receiver
becomes negated.
Q22-Bus Specification
During the bus mastership relinquishment phase, the DMA device
gives up the bus by negating BSACK L. This occurs after completing
(or aborting) the last data transfer cycle (BRPLY L negated).
BSACK L may be negated up to a maximum of 300 ns before negating
BSYNC L. Figure A-7 shows the DMA protocol, and Figure A-8 shows
DMA request/grant timing.
NOTE
If multiple data transfers are performed
during this phase, consideration must be
given to the use of the bus for other
System functions, such as memory refresh
(if required).
KDJ11-A PROCESSOR BUS MASTER
(MEMORY IS SLAVE) (CONTROLLER)
REQUEST BUS
— — ® ASSERT BDMR L
—
—
GRANT BUS CONTROL —
e NEARTHEENDOFTHE e- —
CURRENT BUS CYCLE
(BRPLY L IS NEGATED),
ASSERT BDMGO L AND < — _
INHIBIT NEW PROCESSOR —
GENERATED BYSNC L FOR — ACKNOWLEDGE BUS
THE DURATION OF THE —e MASTERSHIP
DMA OPERATION. e RECEIVE BOMG
— * WAIT FOR NEGATION OF
_— BSYNC L AND BRPLY L
_ ® ASSERT BSACK L
TERMINATE GRANT — ® NEGATE BOMR L
SEQUENCE
® NEGATE BDMGO L AND
WAIT FOR DMA OPERATION — —
TO BE COMPLETED =
~~ a EXECUTE A DMA DATA
TRANSFER
© ADDRESS MEMORY AND
TRANSFER UP TO 4 WORDS
OF DATA AS DESCRIBED
FOR DATI. OR DATO BUS
CYCLES
— * RELEASE THE BUS BY
> — TERMINATING BSACK L
— (NO SOONER THAN
— NEGATION OF LAST BRPLY L)
RESUME PROCESSOR — AND BSYNC L
OPERATION a
* ENABLE PROCESSOR-
GENERATED BSYNC L
{PROCESSOR IS BUS WAIT 4 4S OR UNTIL
MASTER) OR ISSUE ANOTHER FIFO TRANSFER
ANOTHER GRANT IF BOMR IS PENDING BEFORE
L IS ASSERTED REQUESTING BUS AGAIN.
MA 6031
Figure A-7 DMA Protocol
Q22-Bus Specification
SECOND
REQUEST
— he— DMA LATENCY
—_ NIE
T OMA / И 7 a / J 7 /
—— La NS MINIMUM
у — — 2 “VD
R DMG
T SACK N
250 NS MINIMUM — 8m e — Г о MAXIMUM
R/T SYNC NNN NN
| Le 250 NS MINIMUM ONS MINIMUM y |
300 NS MINIMUM
ree NAAN NN / \
_ — one MINIMUM > oo NS MAXIMUM
0 NS MINIMUM
T DAL À ADDR X DATA \
{ALSQ 857,
WTBT, REF)
NOTES:
1. TIMING SHOWN AT REQUESTING DEVICE BUS DRIVER 3. BUS DRIVER OUTPUT AND BUS RECEIVER INPUT
INPUTS AND BUS RECEIVER QUTPUTS. SIGNAL NAMES INCLUDE A “B” PREFIX.
2. SIGNAL NAME PREFIXES ARE DEFINED BELOW:
T= BUS DRIVER INPUT
R = BUS RECEIVER QUTPUT
мя 3690
Figure A-8 DMA Request/Grant Timing
A.4.2 Block Mode DMA
For increased throughput, block mode DMA may be implemented on a
device for use with memories that support this type of transfer.
In a block mode transaction, the starting memory address is
asserted, followed by data for that address, and data for
consecutive addresses.
By eliminating the
the transfer rate is almost
cycles are described below.
doubled.
assertion of the address for each data word,
The DATBI and DATBO bus
Q22-Bus Specification
A.4.2.1 DATBI —- The device addressing portion of the cycle is
the same as described earlier for other bus cycles. (See Figure
A-9.) The bus master gates BDAL<21:00>, BBS7, and the negation of
BWTBT onto the bus.
The master asserts the first BDIN 100 ns after BSYNC, and asserts
BBS7 a maximum of 50 ns after asserting BDIN for the first time.
BBS7 is a request to the slave for a block mode transfer. BBS7
remains asserted until a maximum of 50 ns after the assertion of
BDIN for the last time. BBS7 may be gated as soon as the
conditions for asserting BDIN are met.
The slave asserts BRPLY a minimum of 0 ns (8 ns maximum to avoid
bus timeout) after receiving BDIN. It asserts BREF concurrently
with BRPLY if it is a block mode device capable of supporting
another BDIN after the current one. The slave gates BDAL<15:00>
onto the bus 0 ns (minimum) after the assertion of BDIN, and 125
ns (maximum) after the assertion of BRPLY.
The master receives the stable data from 200 ns (maximum) after
the assertion of BRPLY until 20 ns (minimum) after the negation of
BDIN. It negates BDIN 200 ns (minimum) after the assertion of
BRPLY.
The slave negates BRPLY 0 ns (minimum) after the negation of BDIN,
If BBS7 and BREF are both asserted when BRPLY is negated, the
slave prepares for another BDIN cycle. BBS7 is stable from 125 ns
after BDIN is asserted until 150 ns after BRPLY is negated. The
master asserts BDIN 150 ns (minimum) after BRPLY is negated, and
the cycle 1s continued as before. (BBS7 remains asserted and the
slave responds to BDIN with BRPLY and BREF.) BREF is stable from
75 ns after BRPLY is asserted until 20 ns (minimum) after BDIN is
negated.
If BBS7 and BREF are not both asserted when BRPLY is negated, the
slave removes the data from the bus 0 ns (minimum) and 100 ns
(maximum) after negating BRPLY. The master negates BSYNC 250 ns
(minimum) after the assertion of the last BRPLY, and O ns
(minimum) after the negation of that BRPLY.
A.4.2.2 DATBO -- The device addressing portion of the cycle is
the same as shown in Figure A-10. The bus master gates
BDAL<21:00>, BBS7, and the assertion of BWTBT onto the bus.
A minimum of 100 ns after BSYNC is asserted, data on BDAL<K15:00>
and the negated BWTBT are put onto the bus. The master then
asserts BDOUT a minimum of 100 ns after gating the data.
The slave receives stable data and BWTBT from 25 ns (minimum)
before the assertion of BDOUT to 25 ns (minimum) after the
negation of BDOUT. The slave asserts BRPLY 0 ns (minimum) after
receiving BDOUT. It also asserts BREF concurrently with BRPLY if
it is a block mode device capable of supporting another BDOUT
after the current one.
SIGNALS AT BUS MASTER
T8S7
XXXXX | R DATA
200°
T ADDRESS
150
R/T DAL
0
100
T SYNC
T DIN
R RPLY
R REF
Q22-Bus Specification
XXXXX
200"
R DATA
=
je
TIMES ARE MIN. EXCEPT WHERE “*" DENOTES MAX.
Figure A-9
SIGNALS AT BUS MASTER
T BS7
7
MA-15966
DATBI Bus Cycle Timing
T DAL ADDRESS DATA
150 | 100
[100+
qd
T SYNC [ 100» Г
— 150 150
ee 150+ ч-175 ~sfa— 200 —>
T DOUT 1
1 | 2 a | u se) le 14
R RPLY 17 —>
R REF | || |
h——
TIMES ARE MIN. EXCEPT WHERE ‘’*’’ DENOTES MAX.
Figure A-10
MA-15967
DATBO Bus Cycle Timing
A-19
Q22-Bus Specification
The master negates BDOUT 150 ns (minimum) after the assertion of
BRPLY. If BREF was asserted when BDOUT was negated, and the master
wants to transmit more data in this block mode cycle, the new data
is gated onto the bus 100 ns (minimum) after BDOUT is negated.
BREF is stable from 75 ns (maximum) after BRPLY is asserted until
20 ns (minimum) after BDOUT is negated. The master asserts BDOUT
100 ns (minimum) after gating new data onto the bus and 150 ns
minimum after BRPLY negates. The cycle continues as before.
If BREF was not asserted when BDOUT was negated, or if the bus
master does not want to transmit more data in this cycle, the
master removes data from the bus 100 ns (minimum) after negating
BDOUT. The slave negates BRPLY 0 ns (minimum) after negating
BDOUT. The bus master negates BSYNC 175 ns (minimum) after
negating BDOUT, and 0 ns (minimum) after the negation of BRPLY.
A.4.3 DMA Guidelines
l. Systems with memory refresh over the bus must not include
devices that perform more than one transfer per
acquisition.
2. Bus masters that do not use block mode are limited to four
DATI, four DATO, or two DATIO transfers per acquisition.
3. Block mode bus masters that do not monitor BDMR are
limited to eight transfers per acquisition.
4. If BDMR is not asserted after the seventh transfer, block
mode bus masters that do monitor BDMR may continue making
transfers until the bus slave fails to assert BREF, or
until they reach the total maximum of 16 transfers.
Otherwise, they stop after eight transfers.
A.5 INTERRUPTS
The interrupt capability of the 022-Bus allows an I/O device to
temporarily suspend (interrupt) current program execution and
divert processor operation to service the requesting device. The
processor inputs a vector from the device to start the service
routine (handler). Like the device register address, hardware
fixes the device vector at locations within a designated range
below location 001000. The vector indicates the first of a pair of
addresses. The processor reads the contents of the first address,
the starting address of the interrupt handler. The contents of the
second address is a new processor status word (PS).
The new PS can raise the interrupt priority level, thereby
preventing lower-level interrupts from breaking into the current
interrupt service routine. Control is returned to the interrupted
program when the interrupt handler is ended. The original
interrupted program's address (PC) and its associated PS are
stored on a stack. The original PC and PS are restored by a return
from interrupt (RTI or RTT) instruction at the end of the handler.
The use of the stack and the Q22-Bus interrupt scheme can allow
interrupts to occur within interrupts (nested interrupts),
depending on the PS.
A-20
Q22-Bus Specification
Interrupts can be caused by 022-Bus options or the MicroVAX CPU.
Those interrupts that originate from within the processor are
called "traps". Traps are caused by programming errors, hardware
errors, special instructions, and maintenance features.
The following are Q22-Bus signals used in interrupt transactions.
BIRQ4 L Interrupt request priority level 4
BIRQS L Interrupt request priority level 5
BIRQ6 L Interrupt request priority level 6
BIRQ7 L Interrupt request priority level 7
BIAKI L Interrupt acknowledge input
BIAKO L Interrupt acknowledge output
BDAL<21:00> Data/address lines
BDIN L Data input strobe
BRPLY L Reply
A.5.1 Device Priority
The Q22-Bus supports the following two methods of device priority.
1. Distributed Arbitration -- Priority levels are implemented
on the hardware. When devices of equal priority level
request an interrupt, priority is given to the device
electrically closest to the processor.
2. Position-Defined Arbitration -- Priority is determined
solely by electrical position on the bus. The closer a
device is to the processor, the higher its priority is.
A.5.2 Interrupt Protocol
Interrupt protocol on the Q22-Bus has three phases: the interrupt
request phase, interrupt acknowledge and priority arbitration
phase, and interrupt vector transfer phase. Figure А-11 shows the
interrupt request/acknowledge sequence.
The interrupt request phase begins when a device meets its
specific conditions for interrupt requests. For example, the
device is ready, done, or an error has occurred. The interrupt
enable bit in a device status register must be set. The device
then initiates the interrupt by asserting the interrupt request
line(s). BIRQ4 L is the lowest hardware priority level and is
asserted for all interrupt requests for compatibility with
previous Q22 processors. The level at which a device is configured
must also be asserted. A special case exists for level 7 devices
that must also assert level 6. For an explanation, refer to the
discussion below on arbitration involving the 4-level scheme,
Interrupt Level Lines Asserted by Device
4 BIRQ4 L
5 BIRQ4 L, BIRQS L
° BIRQ4 L, BIRQ6 L
BIRQ4 L, BIRQ6 L, BIRQ7 L
Q22-Bus Specification
PROCESSOR DEVICE
INITIATE REQUEST
— € ASSERT BIRQ L
ee TT
TT
STROBE INTERRUPTS o
e ASSERT BOIN L — —
—— =
—
| RECEIVE BDIN L
e STORE “INTERRUPT SENDING”
| IN DEVICE
GRANT REQUEST
® PAUSE AND ASSERT BIAKO L ~—__
——— —
——d —
>
RECEIVE BIAKI L
e RECEIVE BIAKI L AND INHIBIT
BIAKO L
e PLACE VECTOR ON BDAL < 15:00 > ||
e ASSERT BRPLY L
_— © NEGATE BIRQL
a —
Jnl
«а
RECEIVE VECTOR AND
TERMINATE REQUEST
e INPUT VECTOR ADDRESS
e NEGATE BDIN L AND BIAKO L
—]][
—
COMPLETE VECTOR TRANSFER
e REMOVE VECTOR FROM BDAL BUS
_ —— -® NEGATE BRPLY L
„о
es —
a
PROCESS THE INTERRUPT
e SAVE INTERRUPTED PROGRAM
PC AND PS ON STACK
e LOAD NEW PC AND PS FROM
VECTOR ADDRESSED LOCATION
e EXECUTE INTERRUPT SERVICE
ROUTINE FOR THE DEVICE
MR-1182
Figure A-11 Interrupt Request/Acknowledge Sequence
022-Bus Specification
The interrupt request line remains asserted until the request is
acknowledged.
During the interrupt acknowledge and priority arbitration phase,
the LSI-11/23 processor acknowledges interrupts under the
following conditions.
1. The device interrupt priority is higher than the current
PS<7:5>.
2. The processor has completed instruction execution and no
additional bus cycles are pending.
The processor acknowledges the interrupt request by asserting BDIN
L, and 150 ns (minimum) later asserting BIAKO L. The device
electrically closest to the processor receives the acknowledge on
its BIAKI L bus receiver,
At this point, the two types of arbitration must be discussed
separately. If the device that receives the acknowledge uses the
4-level interrupt scheme, it reacts as follows.
1. If not requesting an interrupt, the device asserts BIAKO L
and the acknowledge propagates to the next device on the
bus.
2. If the device is requesting an interrupt, it must check
that no higher-level device is currently requesting an
interrupt. This is done by monitoring higher-level request
lines.The table below lists the lines that need to be
monitored by devices at each priority level.
In addition to asserting levels 7 and 4, level 7 devices must
drive level 6. This is done to simplify the monitoring and
arbitration by level 4 and 5 devices. In this protocol, level 4
and 5 devices need not monitor level 7 because level 7 devices
assert level 6. Level 4 and 5 devices become aware of a level 7
request because they monitor the level 6 request. This protocol
has been optimized for level 4, 5, and 6 devices, since level 7
devices are very seldom necessary.
Device Priority Level Line(s) Monitored
4 BIROS, BIRQ6
5 BIRQ6
° BIRQ7
Q22-Bus Specification
3. If no higher-level device is requesting an interrupt, the
acknowledge is blocked by the device. (BIAKO L is not
asserted.) Arbitration logic within the device uses the
leading edge of BDIN L to clock a flip-flop that blocks
BIAKO L. Arbitration is won, and the interrupt vector
transfer phase begins.
4. If a higher-level request line is active, the device
disqualifies itself and asserts BIAKO L to propagate the
acknowledge to the next device along the bus.
Signal timing must be considered carefully when implementing
4-level interrupts. See Figure A-1212.
If a single-level interrupt device receives the acknowledge, it
reacts as follows.
1. If not requesting an interrupt, the device asserts BIAKO L
and the acknowledge propagates to the next device on the
bus.
INTERRUPT LATENCY
| MINUS SERVICE TIME
TIRO
150 NS MINIMUM M al —
R DIN /
В ТАК! и
T RPLY |
125 № MAXIMUM —s] ha— ha-100 NS MAXIMUM
T DAL (4) X VECTOR X (4)
RSYNC (UNASSERTED)
В 857 (UNASSERTED)
NOTES:
1. TIMING SHOWN AT REQUESTING DEVICE BUS DRIVER 3. BUS DRIVER OUTPUT AND BUS RECEIVER INPUT
INPUTS AND BUS RECEIVER OUTPUTS, SIGNAL NAMES INCLUDE A "8" PREFIX.
2 SIGNAL NAME PREFIXES ARE DEFINED BELOW 4. DON'T CARE CONDITION
T = BUS DRIVER INPUT
R= BUS RECEIVER OUTPUT
wR 1183
Figure A-12 Interrupt Protocol Timing
022-Bus Specification
2. If the device was requesting an interrupt, the acknowledge
is blocked using the leading edge of BDIN L, and
arbitration is won. The interrupt vector transfer phase
begins.
The interrupt vector transfer phase is enabled by BDIN L and BIAKI
L. The device responds by asserting BRPLY L and its BDAL<15:00> L
bus driver inputs with the vector address bits. The BDAL bus
driver inputs must be stable within 125 ns (maximum) after BRPLY L
is asserted. The processor then inputs the vector address and
negates BDIN L and BIAKO L. The device then negates BRPLY L and
100 ns (maximum) later removes the vector address bits. The
processor then enters the device's service routine.
NOTE
Propagation delay from BIAKI L to BIAKO
L must not be greater than 500 ns per
Q22-Bus slot.
The device must assert BRPLY L within 10
us (maximum) after the processor asserts
BIAKI L.
A.5.3 - Q22-Bus 4-Level Interrupt Configurations
If you have high-speed peripherals and desire better software
performance, you can use the 4-level interrupt scheme. Both
position-independent and position-dependent configurations can be
used with the 4-level interrupt scheme.
Figure A-13 shows the position-independent configuration. This
allows peripheral devices that use the 4-level interrupt scheme to
be placed in the backplane in any order. These devices must send
out interrupt requests and monitor higher-level request lines as
described. The level 4 request is always asserted from a
requesting device regardless of priority. If two or more devices
of equally high priority request an interrupt, the device
physically closest to the processor wins arbitration. Devices that
use the single-level interrupt scheme must be modified, or placed
at the end of the bus, for arbitration to function properly.
Figure A-14 shows the position-dependent configuration. This
configuration is simpler to implement. A constraint is that
peripheral devices must be inserted with the highest-priority
device located closest to the processor, and the remaining devices
placed in the backplane in decreasing order of priority (with the
lowest-priority devices farthest from the processor). With this
configuration, each device has to assert only its own level and
level 4. Monitoring higher-level request lines is unnecessary.
Arbitration is achieved through the physical positioning of each
device on the bus. Single-level interrupt devices on level 4
should be positioned last on the bus.
9T-Y
BIAK (INTERRUPT ACKNOWLEDGE) LEVEL 4 [BIAK | LEVEL6 |giak | LEVELS | BIAK LEVEL 7
KDJ11 DEVICE ®1 DEVICE ®1 DEVICE "| DEVICE
|
BIRQ 4 (LEVEL 4 INTERRUPT REQUEST) | q q )
BIRQS (LEVEL 5 INTERRUPT REQUEST)
BIRQ 6 (LEVEL 6 INTERRUPT REQUEST) y
BIRQ 7 (LEVEL 7 INTERRUPT REQUEST) y
MR -2B888
Figure A-13 Position-Independent Configuration
BIAK (INTERRUPT ACKNOWLEDGE) LEVEL 7 | BIAK LEVEL 6 | BIAK | LEVELS | BIAK LEVEL 4
KDJ11 DEVICE DEVICE DEVICE DEVICE
BIRQ 4 {LEVEL 4 INTERRUPT REQUEST)
BIRQS5S (LEVEL 5 INTERRUPT REQUEST)
BIRQ 6 (LEVEL 6 INTERRUPT REQUEST)
BIRQ 7 (LEVEL 7 INTERRUPT REQUEST)
Y
Figure A-14
Position-Dependent Configuration
MA -2889
uoTIESTITOads sng-220
Q22-Bus Specification
A.6 CONTROL FUNCTIONS
The following Q22-Bus signals provide control functions.
BREF L Memory refresh (also block mode DMA)
BHALT L Processor halt
BINIT L Initialize
BPOK H Power OK
BDCOK H DC power OK
A.6.1 Memory Refresh
If BREF is asserted during the address portion of a bus data
transfer cycle, it causes all dynamic MOS memories to be addressed
simultaneously. The sequence of addresses required for refreshing
the memories is determined by the specific requirements for each
memory. The complete memory refresh cycle consists of a series of
refresh bus transactions. A new address is used for each
transaction. A complete memory refresh cycle must be completed
within 1 or 2 ms. Multiple data transfers by DMA devices must be
avoided since they could delay memory refresh cycles. This type of
refresh is done only for memories that do not perform on-board
refresh.
A.6.2 Halt
Assertion of BHALT L for at least 25 ns interrupts the processor,
which stops program execution and forces the processor
unconditionally into console I/O mode.
A.6.3 Initialization
Devices along the bus are initialized when BINIT L is asserted.
The processor can assert BINIT L as a result of executing a reset
instruction as part of a power-up or power-down sequence. BINIT L
is asserted for approximately 10 us when reset is executed.
A.6.4 Power Status
Power status protocol is controlled by two signals, BPOK H and
BDCOK H. These signals are driven by an external device (usually
the power supply).
A.6.5 BDCOK H
When asserted, this indicates that dc power has been stable for at
least 3 ms. Once asserted, this line remains asserted until the
power fails, It indicates that only 5 us of dc power reserve
remains.
A.6.6 BPOK H
When asserted, this indicates there is at least an 8 ms reserve of
dc power, and that BDCOK H has been asserted for at least 70 ms.
Once BPOK has been asserted, it must remain asserted for at least
3 ms. The negation of this line, the first event in the power-fail
sequence, indicates that power is failing and that only 4 ms of dc
power reserve remains.
Q22-Bus Specification
A.6.7 Power-Up/Down Protocol
Power-up protocol begins when the power supply applies power with
BDCOK H negated. This forces the processor to assert BINIT L. When
the de voltages are stable, the power supply or other external
device asserts BDCOK H. The processor responds by clearing the PS,
floating point status register (FPS), and floating point exception
register (FEC). BINIT L is asserted for 12.6 us, and then negated
for 110 us. The processor continues to test for BPOK H until it is
asserted. The power supply asserts BPIK H 70 ms (minimum) after
BDCOK H is asserted. The processor then performs its power-up
sequence. Normal power must be maintained at least 3.0 ms before a
power-down sequence can begin.
A power-down sequence begins when the power supply negates BPOK H.
When the current instruction is completed, the processor traps to
a power-down routine at location 24. The end of the routine is
terminated with a halt instruction to avoid any possible memory
corruption as the dc voltages decay.
When the
BPOK H
power-up
L, and
processor executes
signal. If BPOK
the halt instruction, it tests the
H is negated, the processor enters the
sequence, It clears internal registers, generates BINIT
continues to check for the assertion of BPOK H. If it is
asserted and dc voltages are still stable, the processor performs
the rest of the power-up sequence, Figure A-15 shows
power-up/power-down timing.
8-20 yS
— po NS MINIMUM
BINIT L \ | | / À /
e MINIMUM 3 MS — Ts |
MAXIMUM MAXIMUM
8 POK H |
70 MS | 4 MS 70 MS
* MINIMUM [T MINIMUM 7 MINIMUM
BDCOK H | À
— he— 3 MS MINIMUM — Sus
MINIMUM |
DC POWER \/
POWER UP NORMAL POWER-DOWN POWER UP NORMAL
SEQUENCE POWER SEQUENCE SEQUENCE POWER
NOTE.
ONCE A POWER-DOWN SEQUENCE IS STARTED.
IT MUST BE COMPLETED BEFORE A POWER-UP
SEQUENCE IS STARTED.
мя 6037
Figure A-15 Power-Up/Power-Down Timing
022-Bus Specification
A.7 Q22-BUS ELECTRICAL CHARACTERISTICS
SIGNAL LEVEL SPECIFICATION
Input Logic Levels:
TTL Logical Low 0.8 Vdc (maximum)
TTL Logical High 2.0 Vdc (minimum)
Output Logic Levels:
TTL Logical Low 0.4 Vdc (maximum)
TTL Logical High 2.4 Vdc (minimum)
A.7.1 Load Definition
AC loads make up the maximum capacitance allowed per signal line
to ground. A unit load is defined as 9.35 pF of capacitance. DC
loads are defined as maximum current allowed with a signal line
driver asserted or unasserted. A unit load is defined as 210 pA in
the unasserted state,
A.7.2 120-Ohm Q22-Bus
The electrical conductors interconnecting the bus device slots are
treated as transmission lines, A uniform transmission line,
terminated in its characteristic impedance, propagates an
electrical signal without reflections. Since bus drivers,
receivers, and wiring connected to the bus have finite resistance
and nonzero reactance, the transmission line impedance is not
uniform, and introduces distortions into pulses propagated along
it. Passive components of the 022-Bus (such as wiring, cabling,
and etched signal conductors) are designed to have a nominal
characteristic impedance of 120 ohms.
The maximum length of interconnecting cable, excluding wiring
within the backplane, is limited to 4.88 m (16 ft).
A.7.3 Bus Drivers
Devices driving the 120-ohm 022-Bus must have open collector
outputs and meet the following specifications.
DC SPECIFICATIONS
Output low voltage when sinking 70 mA of current: 0.7 V
(maximum).
Output high leakage current when connected to 3.8 Vdc: 25 uA
(even if no power is applied, except for BDCOK H and BPOK H).
These conditions must be met at worst-case supply temperature,
and input signal levels.
Q22-Bus Specification
AC SPECIFICATIONS
Bus driver output pin capacitance load: Not to exceed 10 pF.
Propagation delay: Not to exceed 35 ns.
Skew (difference in propagation time between slowest and
fastest gate): Not to exceed 25 ns.
Rise/fall times: Transition time (from 10% to 90% for positive
transition, 90% to 10% for negative transition) must be no
faster than 10 ns.
A.7.4 Bus Receivers
Devices that receive signals from the 120-ohm 022-Bus must meet
the following requirements,
DC SPECIFICATIONS
Input low voltage (maximum): 1.3 V.
Input high voltage (minimum): 1.7 V.
Maximum input current when connected to 3.8 Vdc: 80 uA (even
if no power is applied).
These specifications must be met at worst-case supply
voltage, temperature, and output signal conditions.
AC SPECIFICATIONS
Bus receiver input pin capacitance load: Not to exceed 10 pF.
Propagation delay: Not to exceed 35 ns.
Skew (difference in propagation time between slowest and
fastest gate): Not to exceed 25 ns.
A.7.5 Bus Termination
The 120-ohm Q22-Bus must be terminated at each end by an
appropriate terminator, as shown in Figure A-16. This is to be
done as a voltage divider with its Thevenin equivalent equal to
120 ohms and 3.4 V (nominal), This type of termination is provided
by an REV1l-A refresh/boot/terminator, BDV11-AA, KPV11-B, TEV1l,
or by certain backplanes and expansion cards.
022-Bus Specification
+5 V +5 V
178 92 330 2
120 2 250 Y
BUS LINE BUS LINE
TERMINATION TERMINATION
383 680 Q
1%
a - MA-6033
Figure A-16 Bus Line Terminations
Each of the several 022-Bus lines (all signals whose mnemonics
start with the letter B) must see an equivalent network with the
following characteristics at each end of the bus.
Input impedance 120 ohm +5%, -15%
(with respect to ground)
Open circuit voltage 3.4 Vdc +5%
Capacitance load Not to exceed 30 pF
NOTE
The resistive termination may be
provided by the combination of two
modules. (The processor module supplies
220 ohms to ground. This, in parallel
with another 220-ohm card, provides 120
ohms.) Both terminators must reside
physically within the same backplane.
A.7.6 Bus Interconnecting Wiring
A.7.6.1 Backplane Wiring ~- The wiring that connects all device
interface slots on the Q22-bus must meet the following
specifications.
1. The conductors must be arranged so that each line exhibits
a characteristic impedance of 120 ohms (measured with
respect to the bus common return).
2. Crosstalk between any two lines must be no greater than 5
percent. Note that worst-case crosstalk is manifested by
simultaneously driving all but one signal line and
measuring the effect on the undriven line.
Q22-Bus Specification
3. DC resistance of the signal path, as measured between the
near-end terminator and the far-end terminator module
(including all intervening connectors, cables, backplane
wiring, connector-module etch, etc.) must not exceed 20
ohms.
4. DC resistance of the common return path, as measured
between the near-end terminator and the far-end terminator
module (including all intervening connectors, cables,
backplane wiring, connector-module etch, etc.) must not
exceed an equivalent of 2 ohms per signal path. Thus, the
composite signal return path dc resistance must not exceed
2 ohms divided by 40 bus lines, or 50 milliohms. Note that
although this common return path is nominally at ground
potential, the conductance must be part of the bus wiring.
The specified low impedance return path must be provided
by the bus wiring as distinguished from the common system
or power ground path.
A.7.6.2 Intra-Backplane Bus Wiring -- The wiring that connects
the bus connector slots within one contiguous backplane is part of
the overall bus transmission line. Owing to implementation
constraints, the nominal characteristic impedance of 120 ohms may
not be achievable. Distributed wiring capacitance in excess of the
amount required to achieve the nominal 120-ohm impedance may not
exceed 60 pF per signal line per backplane.
A.7.6.3 Power and Ground -- Each bus interface slot has connector
pins assigned for the following de voltages. The maximum allowable
current per pin is 1.5 A. +5 Vdc must be regulated to 5 percent
with a maximum ripple of 100 mV pp. +12 Vdc must be regulated to 3
percent with a maximum ripple of 200 mV pp.
e +5 Vdc -- Three pins (4.5 A maximum per bus device slot)
e +12 Vdc -- Two pins (3.0 A maximum per bus device slot)
e Ground -- Eight pins (shared by power return and signal
return)
NOTE
Power is not bussed between backplanes
on any interconnecting bus cables.
A.8 SYSTEM CONFIGURATIONS
Q22-Bus systems can be divided into two types:
« Systems containing one backplane
2. Systems containing multiple backplanes
Before
Q22-Bus Specification
configuring any system, three characteristics for each
module in the system must be known:
Power
Power consumption -— +5 Vdc and +12 Vdc current
requirements,
AC bus loading -- The amount of capacitance a module
presents to a bus signal line. AC loading is expressed in
terms of ac loads, where one ac load equals 9.35 pF of
capacitance.
DC bus loading -- The amount of dc leakage current a
module presents to a bus signal when the line is high
(undriven). DC loading is expressed in terms of dc loads,
where one dc load equals 210 uA (nominal).
consumption, ac loading, and dc loading specifications for
each module are included in the Microcomputer Interface Handbook.
NOTE
The ас and dc loads and the power
consumption of the processor module,
terminator module, and backplane must be
included in determining the total
loading of a backplane.
Rules for configuring single-backplane systems:
1.
When using a processor with 220-ohm termination, the bus
can accommodate modules that have up to 20 ac loads
(total) before additional termination is required. (See
Figure A-17.) If more than 20 ac loads are included, the
other end. of the bus must be terminated with 120 ohms, and
then up to 35 ac loads may be present.
Lo BACKPLANE WIRE . |
Г 35.6 CM (14 IN) MAXIMUM
{
LL |
ОМЕ ОМЕ ОМЕ | OPTIONAL
250 UNIT UNIT UNIT 120 Q
LOAD LOAD LOAD
+ +
3.4 V ‘к — 4 3.4 у
= 35 AC LOADS L
= 20 DC LOADS -
PROCESSOR TERM
MA-6034
Figure A-17 Single-Backplane Configuration
022-Bus Specification
2. With 120-ohm processor termination, up to 35 ac loads can
be used without additional termination. If 120-ohm bus
termination is added, up to 45 ac loads can be configured
in the backplane.
3. The bus can accommodate modules up to 20 dc loads (total).
4. The bus signal lines on the backplane can be up to 35.6 cm
(14 in) long.
Rules for configuring multiple-backplane systems:
1. Figure A-18 shows that up to three backplanes may make up
the system.
2. The signal lines on each backplane can be up to 25.4 cm
(10 in) long.
3. Each backplane can accommodate modules that have up to 22
ac loads (total). Unused ac loads from one backplane may
not be added to another backplane if the second backplane
loading will exceed 22 ac loads. It is desirable to load
backplanes equally, or with the highest ac loads in the
first and second backplanes.
4. DC loading of all modules in all backplanes cannot exceed
20 loads (total).
5. Both ends of the bus must be terminated with 120 ohms.
This means the first and last backplanes must have an
impedance of 120 ohms. To achieve this, each backplane may
be lumped together as a single point. The resistive
termination may be provided by a combination of two
modules in the backplane - the processor providing 220
ohms to ground in parallel with an expansion paddle card
providing 250 ohms to give the needed 120-ohm termination.
Alternately, a processor with 120-ohm termination would
need no additional termination on the paddle card to
attain 120 ohms in the first box. The 120-ohm termination
in the last box can be provided in two ways: the
termination resistors may reside either on the expansion
paddle card, or on a bus termination card (such as the
BDV11).
6. The cable(s) connecting the first two backplanes is (are)
61 см (2 ft) or more in length.
7. The cable(s) connecting the second backplane to the third
backplane is (are) 122 cm (4 ft) longer or shorter than
the cable(s) connecting the first and second backplanes.-
8. The combined length of both cables cannot exceed 4.68 m
(16 ft).
9. The cables used must have a characteristic impedance of
120 ohms.
Q22-Bus Specification
| BACKPLANE WIRE >|
[e 35.6 CM (14 IN) MAX 3
— 6 | CABLE
ONE ONE
250 UNIT UNIT
LOAD LOAD
+
3.4 V ` — /
20 AC LOADS MAX
PROCESSOR
BACKPLANE WIRE -
k— “25.4 CM (10 IN) MAX
Ea
ONE ONE
UNIT UNIT
LOAD LOAD
ADDITIONAL 20 AC LOADS MAX
CABLES AND
BACKPLANE | BACKPLANE WIRE
25.4 CM {10 IN} MAX ‚ |
(LC
L |
ONE ONE
1200 UNIT UNIT
34V LOAD LOAD
CABLE/ N ,
TERM У
20 AC LOADS MAX
NOTES:
1. TWO CABLES (MAX) 4.88 M (16 FT) (MAX)
TOTAL LENGTH.
2. 20 DC LOADS TOTAL (MAX).
MA-6035
Figure A-18 Multiple-Backplane Configuration
Q22-Bus Specification
A.8.1 Power Supply Loading
Total power requirements for each backplane can be determined by
obtaining the total power requirements for each module in the
backplane. Obtain separate totals for +5 V and +12 V power. Power
requirements for each module are specified in the Microcomputer
Interfaces Handbook.
When distributing power in multiple-backplane systems, do not
attempt to distribute power via the Q22-Bus cables. Provide
separate, appropriate power wiring from each power supply to each
backplane. Each power supply should be capable of asserting BPOK H
and BDCOK H signals according to bus protocol; this is required if
automatic power-fail/restart programs are implemented, or ¡if
specific peripherals require an orderly power-down halt sequence.
The proper use of BPOK H and BDCOK H signals is strongly
recommended.
A.9 MODULE CONTACT FINGER IDENTIFICATION
Digital's plug-in modules all use the same contact finger (pin)
identification system. A typical pin is shown in Figure A-19.
The 022-Bus is based on the use of quad-height modules that plug
into a 2-slot bus connector. Each slot contains 36 lines (18 lines
on both the component side and the solder side of the circuit
board).
Slots, row A, and row B include a numeric identifier for the side
of the module. The component side is designated side 1, the solder
side is designated side 2, as shown in Figure A-20. Letters
ranging from A through V (excluding G, I, O, and Q) identify a
particular pin on a side of a slot. Table A-4 lists and identifies
the bus pins of the quad-height module. A bus pin identifier
ending with a 1 is found on the component side of the board, while
a bus pin identifier ending with a 2 is found on the solder side
of the board.
The positioning notch between the two rows of pins mates with a
protrusion on the connector block for correct module positioning.
BE2
MODULE SIDE
SLOT (ROW) IDENTIFIER IDENTIFIER
“SLOT 8" “SIDE 2” (SOLDER
SIDE)
PIN IDENTIFIER
“PIN E”
MR-16553
Figure A-19 Typical Pin Identification System
Q22-Bus Specification
a te a LU
Tow Soest
_ ç ce.
na * E
В - : Ne > Ke +
e w
- «2 * 1m 4, o
т E. —
. oz “Es un
ss VX, E ©
. А 2;
+ > = a. (N uJ
+ Le wl o
L- © . Te su o
rn ксо fi , «+ — ©
LA - + eh Tr ww
© 6 Ce wt N
+ e e a e
Y ‹ eE, MOL Y oy
La вех € E
TE
ue чтоб мне се v
tu г. : ras ‚
An A A or. - % ' a
o Tee a Y To a * Lt.
Lo = er ou A +,
== Ni © oe - Saa и
OT 2-6
a
- = => ‘
FA Ww À te
el EN Se “= tx". > +, +, O, Su
5° > Же o wv oa, uy ' +
3 = -
NN Y
e > re E, RN и \2
<
ROW A
ROW B
> — pu — — т +
= < > < «С
2/3 </ / 4 / © 8 / VAL
yd MN,
/ - >
Se Al > Ae 3 DO
707
/
/ Fe N
| ae Е
O 7700 LI AP 5
let ; Vi ve 7—7 ro "E
.
7 o 0 o 0 PE 0
В 7. ATS BV; vv =
ROWC
ROW D
мя .5456
>
°/
LU UU MIA
/ 0 ; / 3 IZA
—-Height Module Contact Finger Identification
Quad
Figure A-20
A-37
Q22-Bus Specification
Bus Pin
AAl
ABl
ACl
ADl
AE]
AFl
AHl
AJl
AKl
AL]
Table A-4
Mnemonic(s)
BIRQS L
BIRQ6 L
BDALI6 L
BDAL17 L
SSPAREl
(alternate +5B)
SSPARE2
SSPARE 3
SRUN
GND
MSPAREA
MSPAREB
Bus Pin Identifiers
Description
Interrupt request priority level 5.
Interrupt request priority level 6.
Extended address bit during addressing
protocol; memory error data line during
data transfer protocol.
Extended address bit during addressing
protocol; memory error logic enable
during data transfer protocol.
Special Spare -- Not assigned or bussed
in Digital's cable or backplane
assemblies; available for user
connection. Optionally, this pin may be
used for +5 V battery (+5 B) backup
power to keep critical circuits alive
during power failures. A jumper is
required on Q22-Bus options to open
(disconnect) the +5 B circuit in systems
that use this line as SSPAREl.
Special Spare -- Not assigned or bussed
in Digital's cable or backplane
assemblies; available for user
interconnection. In the highest-priority
device slot, the processor may use this
pin for a signal to indicate its RUN
state.
Special Spare -- Not assigned or bussed
simultaneously in Digital's cable or
backplane assemblies; available for user
interconnection. An alternate SRUN
signal may be connected in the
highest-priority set.
Ground -- System signal ground and dc
return.
Maintenance Spare -- Normally connected
together on the backplane at each option
location (not a bussed connection).
Maintenance Spare -- Normally connected
together on the backplane at each option
location (not a bussed connection).
Q22~Bus Specification
Table A-4
Bus Pín Identifiers (Cont)
Bus Pin
Mnemonic (s)
Description
AM1
AN1
APl
AR]
GND
BDMR L
BHALT L
BREF L
Ground -- System signal ground and dc
return.
Direct Memory Access (DMA) Request -- A
device asserts this signal to request
bus mastership. The processor arbitrates
bus mastership between itself and all
DMA devices on the bus. If the processor
is not bus master (it has completed a
bus cycle and BSYNC L is not being
asserted by the processor), it grants
bus mastership to the requesting device
by asserting BDMGO L. The device
responds by negating BDMR L and
asserting BSACK L.
Processor Halt -- When BHALT L is
asserted for at least 25 us, the
processor services the halt interrupt
and responds by halting normal program
execution. External interrupts are
ignored but memory refresh interrupts in
Q22 are enabled if W4 on the M7264 and
M7264-YA processor modules is removed
and DMA request/grant sequences are
enabled. The processor executes the ODT
microcode, and the console device
operation is invoked.
Memory Refresh -- Asserted by a DMA
device. This signal forces all dynamic
MOS memory units requiring bus refresh
signals to be activated for each BSYNC
L/BDIN L bus transaction. It is also
used as a control signal for block mode
DMA.
CAUTION:
The user must avoid multiple DMA data
transfers (burst or "hot" mode) that
could delay refresh operation if using
DMA refresh. Complete refresh cycles
must occur once every 1.6 ms if
required.
Q22-Bus Specification
Table A-4
Bus Pin Identifiers (Cont)
Bus Pin
Mnemonic(s)
Description
А51
АТ1
AUl
AV]
BAl
BBl
BC1
BD1
BEl
BFl
+12 B or +5 B
GND
PSPARE 1
+5 B
BDCOK H
BPOK H
SSPARE4
BDAL18 L
(22-bit only)
SSPARES
BDAL19 L
(22-bit only)
SSPARE6
BDAL20 L
SSPARE7
BDAL21 L
+12 Vdc or +5 V battery backup power to
keep critical circuits alive during
power failures. This signal is not
bussed to BS1 in all of Digital's
backplanes. A jumper is required on all
Q22-Bus options to open (disconnect) the
backup circuit from the bus in systems
that use this line at the alternate
voltage.
Ground -- System signal ground and dc
return.
Spare -- Not assigned; customer usage
not recommended. Prevents damage when
modules are inserted upside down.
+5 V Battery Power -- Secondary +5 V
power connection. Battery power can be
used with certain devices.
DC Power OK -- A power supply-generated
signal that is asserted when the
available de voltage is sufficient to
sustain reliable system operation.
Power OK -- Asserted by the power supply
70 ms after BDCOK is negated when ac
power drops below the value required to
sustain power (approximately 75% of
nominal). When negated during processor
operation, a power-fail trap sequence is
initiated.
Special Spare in the Q22-Bus -- Not
assigned. Bussed in 22-bit cable and
backplane assemblies; available for user
interconnection.
CAUTION:
These pins may be used by manufacturing
as test points in some options.
In the Q22-Bus, these bussed address
lines are address lines <21:18>;
currently not used during data time.
In the 022-Bus, these bussed address
lines are address lines <21:18>;
currently not used during data time.
Q22-Bus Specification
Table A-4
Bus Pin Identifiers (Cont)
Bus Pin
Mnemonic (s)
Description
BH1
BJ1
BK1
BL1
BM1
BN1
BPl
BR1
BS1
BT1
BUl
BVl
AA2
SSPARES
GND
MSPAREB
MSPAREB
GND
BSACK L
BIRQ7 L
BEVNT L
+12 B
GND
PSPARE2
+5
+5
Special Spare -- Not assigned or bussed
in Digital's cable and backplane
assemblies; available for user
interconnection.
Ground -- System signal ground and de
return,
Maintenance Spare -- Normally connected
together on the backplane at each option
location (not a bussed connection).
Ground -- System signal ground and dc
return.
This signal is asserted by a DMA device
in response to the processor's BDMGO L
signal, indicating that the DMA device
is bus master.
Interrupt request priority level 7.
External Event Interrupt Request -- When
asserted, the processor responds by
entering a service routine via vector
address 1008. A typical use of this
signal is as a line-time clock
interrupt.
+12 vdc battery backup power (not bussed
to AS] in all of Digital's backplanes).
Ground -- System signal ground and de
return.
Power Spare 2 -- Not assigned a
function; not recommended for use. If a
module is using -12 Y (on pin AB2), and
if the module is accidentally inserted
upside down in the backplane, -12 Vdc
appears on pin BUl.,
+5 V Power -- Normal +5 Vdc system
power,
+5 V Power -- “Normal +5 Vdc system
power.
A-41
022-Bus Specification
Bus Pin
AB?
AC2
AD2
AE2
AF2
AH?
Table A-4
Mnemonic(s)
-12
GND
+12
BDOUT L
BRPLY L
BDIN L
Bus Pin Identifiers (Cont)
Description
-12 М Power -- -12 Vdc power for
(optional) devices requiring this
voltage.
NOTE:
Each Q22-Bus module that requires
negative voltages contains an inverter
circuit that generates the required
voltage(s). Therefore, -12 V power is
not required with Digital's options.
Ground -- System signal ground and dc
return.
+12 V Power -- +12 Vdc system power.
Data Output -- When asserted, BDOUT
implies that valid data is available on
BDAL<0:15> L and that an output
transfer, with respect to the bus master
device, is taking place. BDOUT L is
deskewed with respect to data on the
bus. The slave device responding to the
BDOUT L signal must assert BRPLY L to
complete the transfer.
Reply -- BRPLY L is asserted in response
to BDIN L or BDOUT L and during ТАК
transactions. It is generated by a slave
device to indicate that it has placed
its data on the BDAL bus or that it has
accepted output data from the bus.
Data Input -- BDIN L is used for two
types of bus operations:
When asserted during BSYNC L time, BDIN
L implies an input transfer with respect
to the current bus master, and requires
a response (BRPLY L). BDIN L is asserted
when the master device is ready to
accept data from a slave device.
When asserted without BSYNC LL. it
indicates that an interrupt operation 1s
occurring. The master device must deskew
input data from BRPLY L.
A-42
Q22-Bus Specification
Table A-4
Bus Pin Identifiers (Cont)
Bus Pin
Mnemonic (s)
Description
AJ?
AK2
AL2
АМ2
AN2
BSYNC L
BWTBT L
BIRQ4 L
BIAKI L
BIAKO L
Synchronize -- BSYNC VL is asserted by
the bus master device to indicate that
it has placed an address on BDAL<0:17>
L. The transfer is in process until
BSYNC L is negated.
Write/Byte -- BWTBT L is used in two
ways to control a bus cycle:
It is asserted at the leading edge of
BSYNC L to indicate that an output
sequence (DATO or DATOB), rather than an
input sequence, is to follow.
It is asserted during BDOUT L, in a
DATOB bus cycle, for byte addressing.
Interrupt Request Priority Level 4 -- A
level 4 device asserts this signal when
its interrupt enable and interrupt
request flips-flops are set. If the PS
word bit 7 is 0, the processor responds
by acknowledging the request by
asserting BDIN L and BIAKO L.
Interrupt Acknowledge -- In accordance
with interrupt protocol, the processor
asserts BIAKO L to acknowledge receipt
of an interrupt. The bus transmits this
to BIAKI L of the device electrically
closest to the processor. This device
accepts the interrupt acknowledge under
two conditions: 1.) the device requested
the bus by asserting BIRQXL, and 2.) the
device has the highest-priority
interrupt request on the bus at that
time.
If these conditions are not met, the
device asserts BIAKO L to the next
device on the bus. This process
continues in a daisy-chain fashion until
the device with the highest-interrupt
priority receives the interrupt
acknowledge signal.
Q22-Bus Specification
Bus Pin
Table A-4
Mnemonic (s)
Bus Pin Identifiers (Cont)
Description
AP2
AR2
AS2
AT2
AU2
AV?
BBS7 L
BDMGI L
BDMGO L
BINIT L
BDALO L
BDALI L
Bank 7 Select -- The bus master asserts
this signal to reference the I/O page
(including that portion of the I/O page
reserved for nonexistent memory). The
address in BDAL<0:12> L when BBS7 L is
asserted is the address within the I/O
page.
Direct Memory Access Grant -- The bus
arbitrator asserts this signal to grant
bus mastership to a requesting device,
according to bus mastership protocol.
The signal is passed in a daisy-chain
from the arbitrator (as BDMGO L) through
the bus to BDMGI L of the next priority
device (the device electrically closest
on the bus). This device accepts the
grant only if it requested to be bus
master (by a BDMR L). If not, the device
passes the grant (asserts BDMGO L) to
the next device on the bus. This process
continues until the requesting device
acknowledges the grant.
CAUTION:
DMA device transfers must not interfere
with the memory refresh cycle.
Initialize -- This signal is used for
system reset. All devices on the bus are
to return to a known, initial state;
that is, registers are reset to zero,
and logic is reset to state 0.
Exceptions should be completely
documented in programming and
engineering specifications for the
device.
Data/Address lines -- These two lines
are part of the l6-line data/address bus
over which address and data information
are communicated. Address information is
first placed on the bus by the bus
master device. The same device then
either receives input data from, or
outputs data to, the addressed slave
device or memory over the same bus
lines.
Q22-Bus Specification
Table A-4 Bus Pin Identifiers (Cont)
Bus Pin Mnemonic (s) Description
BA2 +5 +5 V Power -- Normal +5 Vdc system
power.
BB2 -12 -12 у Power (voltage normally not
supplied) - -12 Vdc power for
(optional) devices requiring this
voltage.
BC2 GND Ground -- System signal ground and dc
return.
BD2 +12 +12 V Power -- +12 V system power.
BE2 BDAL2 L Data/Address Lines -- These 14 lines are
BF2 BDAL3 L part of the 16-line data/address bus.
BH2 BDAL4 L
BJ? BDALS L
BK2 BDAL6 L
BL2 BDAL7 L
BM2 BDALS L
BN2 BDAL9 L
BP? BDALIO L
BR2 BDALI11 L
BS? BDAL12 L
BT2 BDAL13 L
BU2 BDAL14 L
BV2 BDALI15 L
A-45
APPENDIX B
ACRONYMS
AIE --
ANSI -
Alarm Interrupt Enable
American National Standards Institute
AP -- Argument Pointer
ASTLVL
BBU --
BCD --
BDR --
=- Asynchronous System Trap LeVel
Battery Backup Unit
Binary Coded Decimal
Boot and Diagnostic Register
BM -- Byte Mask
BRS --
Baud Rate Select signals
CEAR -- CPU Error Address Register
CPMBX -- Console Program MailBoX
CRC --
CSR --
Cyclic Redundancy Check
Control and Status Register
DEAR -- DMA Error Address Register
DM -- Data Mode
DMA --
DSE --
EDITPC
EIA --
ERR --
Direct Memory Access
Daylight Saving Enable
-- EDIT Packed to Character string
Electronic Industries Association
ERRor signal
FP -- Frame Pointer
FPU --
Floating Point Unit
Acronyms
ICCS -- Interval Clock Control and Status register
IPCR -- InterProcessor Communication Register
IPL -- Interrupt Priority Level
IPR -- Internal Processor Register
ISP -- Interrupt Stack Pointer
LSI -- Large Scale Integration
MAPEN -- memory management (MAPping) ENable register
MBZ -- Must Be Zero
MCS -- Multinational Character Set
MEPR -- Move From Processor Register
MMU -- Memory Management Unit
MOP -- Maintenance Operation Protocol
MSER -- Memory System Error Register
MTPR -- Move To Processor Register
POBR -- PO (P zero) Base Register
PIBR -- Pl Base Register
PC -- Program Counter
PIE -- Periodic Interrupt Enable
POLR -- PO (P zero) Length Register
P1LR -- Pl Length Register
POPT -- PO (P zero) Page Table
P1PT -- Pl Page Table
PROM -- Programmable Read-Only Memory
PSL -- Processor Status Longword
PSW -- Processor Status Word
PTE -- Page Table Entry
RPB -- Restart Parameter Block
Acronyms
SBR -- System Base Register
SCA -- System Communications Architecture
SCB -- System Control Block
SCBB -- System Control Block Base
SID -- System IDentification register
SIE -- System Identification Extension
SIRR -- Software Interrupt Request Register
SISR -- Software Interrupt Summary Register
SLR -- System Length Register
SLU -- Serial Line Unit
SP -- Stack Pointer
SPT -- System Page Table
SQWE -- SQuare-Wave Enable
TBIA -- Translation Buffer Invalidate All
TBIS -- Translation Buffer Invalidate Single
TOY -- Time-of-Year
UIE -- Update Interrupt Enable
UIP -- Update in Progress bit
VRT -- Valid RAM and Time bit
VMB -- Virtual Memory Bootstrap
INDEX
Address space
halt mode, 4-43
run mode, 4-43
Address translation
PO region, 4-17
Pl region, 4-20
process space, 4-17
Arbiter mode, 1-8, 4-48
Argument pointer (AP), 4-1
Auxiliary mode, 1-8, 4-48
Battery backup unit (BBU), 2-9
console program check of, 3-5
Boot and diagnostic register
(BDR), 4-30
Boot command flags, 3-15
Bootstrap, 3-10, 3-36
auxiliary processor, 3-19
command, 3-14
from DEQNA, 3-19
from disk, 3-14
from PROM, 3-17
from tape, 3-17
order of devices, 3-13
secondary, 3-13, 3-20
sequence, 3-10
supported devices, 3-13
Catastrophic error, 3-35
CD interconnect, 1-3
CK-KA630-A insert, 2-9
€ command, 3-36
Configuration board, 2-5
Connector pinouts
Jl, 2-2
J2, 2-3
J3, 2-5
Console commands
€, 3-36
binary load and unload, 3-25
boot, 3-26
comment, 3-27
continue, 3-27
deposit, 3-27
examine, 3-29
find, 3-30
halt, 3-31
initialize, 3-31
load, 3-26
microstep, 3-36
next, 3-36
repeat, 3-31
set, 3-36
start, 3-32
test, 3-32
unjam, 3-32
Console command syntax, 3-24
Console control characters
break, 3-23
carriage return, 3-22
control C, 3-23
control O, 3-23
control Q, 3-23
control R, 3-23
control U, 3-22
rubout, 3-22
Console error messages, 3-33
Console 1/0 mode, 3-22, 3-35,
5-1
Console languages, 3-6
Console program, 3-1, 4-33
bitmap, 3-4
initialization, 3-3
power-up modes, 3-3
Index-1
Index
Console program mailbox
(CPMBX), 3-4, 3-7, 4-39
Console serial line unit (SLU),
4-40
Console terminal type, 3-5
Control and status register
A, 4-36
B, 4-36
C, 4-37
D, 4-37
CPU error address register,
4-27
CPU panel insert, 2-9
Current frame pointer, 4-1
D-stream, 4-32
Data types
supported, 1-2
DMA error address register,
4-28
DMA latency, 4-14
Enclosures
compatible, 2-11
Entry/dispatch, 3-7
Error
catastrophic, 3-35
hardware, 4-12
nonexistent memory, 4-12
parity, 4-12
Error messages, 3-33
Error register
CPU, 4-27
DMA, 4-28
memory, 4-24
Exceptions, 4-16
Gate array, 1-3
Halt, 2-4, 3-1, 3-2, 3-7, 3-22
conditions, 4-9
error codes, 4-9
messages, 3-34
on break, 4-45
Hardware errors, 4-12
HLT ENB, 2-4, 4-31
I-stream, 4-32
Instruction set, 1-2, 4-5
Interprocessor doorbell, 4-6
Interrupt latency, 4-14
Interrupt priority registers,
4-6, 4-7
Interrupt vector timeouts, 4-13
Index-2
Interrupts, 4-6
Interval timer, 4-40, 4-46
Jl connector pinouts, 2-2
J2 connector pinouts, 2-3
J3 connector pinouts, 2-5
KA630-AA CPU module
arbiter mode, 1-8, 4-48
auxiliary mode, 1-8, 4-48
connectors, 2-1
KA630CNF configuration board,
2-5
Language selections
LK201 keyboard, 3-7
Languages, 3-1
Latency, 4-14
LED error codes
3, 5-7
A)
un
{
N
©
“
W tw toh th in
'
NV N GG LG UT UT 6) D NV NN
Cc
-
Wt Lo GL
summary, 5-7
Load command, 3-36
Local memory, 1-3
M7607-AA, 1-3
M7608-AA, 1-3
Machine check parameters, 4-8
Mailbox
See Console program mailbox
Mapping registers, 4-21, 4-22
Memory
data transfer cycle, 4-28
management, 4-16
management control registers,
4-16
operation, 4-28
refresh cycle, 4-28
registers, 4-22, 4-24
Memory management enable
(MAPEN), 4-16
Messages
halt, 3-34
Microstep command, 3-36
MicroVAX 78032 microprocessor
chip, 1-2
MicroVAX CPU chip, 1-2
MicroVAX interface gate array,
1-3
MS630 memory, 1-4
Multilevel interrupts, 4-45
Multiprocessing, 4-48
features, 4-49
Multiprocessor based systems
PDP-11, 4-49
Multinational character set
(MCS), 3-6, 3-36
Next command, 3-36
No Sack timeouts, 4-14
Nonexistent memory errors,
4-12
On-board memory, 1-3
PO region address translation,
4-17
Pl region address translation,
4-20
Page table entry (PTE), 4-17,
4-21
Parity errors, 4-12
Physical address space, 4-16
Power-up mode, 5-1
Primary bootstrap, 3-12
Process space address
translation, 4-17
Processor registers, 3-24
categories, 4-3
list, 4-4
summary, 4-4
Processor state, 4-1
Processor status longword
(PSL), 4-2
Processor status word (PSW),
4-1
Program counter (PC), 4-1
Q22-Bus, 3-5, 4-21, 4-23
cycle, 4-23
initialize, 3-11
map, 4-23
Index
RAM memory, 4-38
Registers
console, 4-41
control and status A, 4-36
control and status B, 4-36
control and status C, 4-37
control and status D, 4-37
general purpose, 4-1
interprocessor communication,
4-46
mapping, 4-21
memory, 4-24
memory management control,
4-16
memory management enable,
4-16
processor, 4-3
system identification (SID),
4-15
time-of-year, 4-34, 4-35
watch chip, 4-34
Restart, 3-8
Restart parameter block (RPB),
3-8, 3-20
format, 3-9
ROM address space, 4-32
ROM memory, 4-32
Run mode, 4-33
Secondary bootstrap, 3-20
Serial line unit (SLU), 4-40
Set command, 3-36
Specifications
KA630-AA, 1-8
Stack pointer, 4-1
System base register (SBR),
4-17
System control block (SCB),
-10
. System identification
register (SID), 4-15
System length register (SLR),
4-17
System page table (SPT), 4-17
System space address
translation, 4-17
Index-3
Index
Test
hattery backup unit (BBU),
3-5
interprocessor communication
register (IPCR), 3-5
Q22-Bus, 3-5
VCBOl/VCB02, 3-5
Time-of-year (TOY)
BBU, 2-9, 4-34
clock, 3-5, 4-34
registers, 4-35
Timeouts, 4-13
Translation buffer invalidate
all (TBIA), 4-16
Translation buffer invalidate
single (TBIS), 4-16
VCBO1/VCBO2 console
hardware, 3-5
Virtual address space, 4-16
Virtual memory bootstrap (VME),
3-12
registers, 3-12
Index-4
