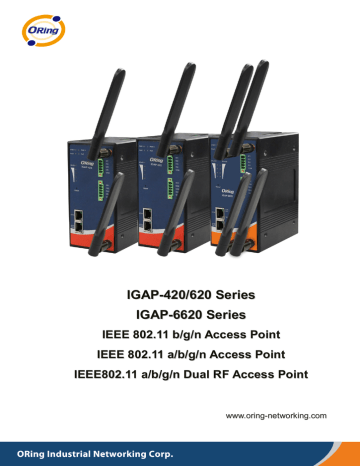

I
I
G A P
-
4 2 0 /
/
6 2 0 S e r r i i e s
I
I
G A P
-
6 6 2 0 S e r r i i e s
I
I
E E E 8 0 2 .
.
1 1 b /
/ g /
/ n A c c e s s P o i i n t t
I
I
E E E 8 0 2 .
.
1 1 a /
/ b /
/ g /
/ n A c c e s s P o i i n t t
I
I
E E E 8 0 2 .
.
1 1 a /
/ b /
/ g /
/ n D u a l l
R F A c c e s s
P o i i n t t
U s e r r
’
’ s M a n u a
w
l l
.
o r r i i n g n e t t w o r k i i n g .
.
c o m
V e r r s i i o n
1 .
.
0
N o v ,
,
2 0 1 2
COPYRIGHT NOTICE
Copyright © 2011 ORing Industrial Networking Corp.
All rights reserved.
No part of this publication may be reproduced in any form without the prior written consent of
ORing Industrial Networking Corp.
TRADEMARKS
is a registered trademark of ORing Industrial Networking Corp.
All other trademarks belong to their respective owners.
REGULATORY COMPLIANCE STATEMENT
Product(s) associated with this publication complies/comply with all applicable regulations.
Please refer to the Technical Specifications section for more details.
WARRANTY
ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. This warranty does not cover product modifications or repairs done by persons other than ORing-approved personnel, and this warranty does not apply to ORing products that are misused, abused, improperly installed, or damaged by accidents.
Please refer to the Technical Specifications section for the actual warranty period(s) of the product(s) associated with this publication.
DISCLAIMER
Information in this publication is intended to be accurate. ORing shall not be responsible for its use or infringements on third-parties as a result of its use. There may occasionally be unintentional errors on this publication. ORing reserves the right to revise the contents of this publication without notice.
CONTACT INFORMATION
ORing Industrial Networking Corp.
3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Tel: +886-2-2218-1066 // Fax: +886-2-2218-1014
Website: www.oring-networking.com
Technical Support
E-mail: [email protected]
Sales Contact
E-mail: [email protected]
(Headquarters) [email protected]
(China)
Table of Content
Getting to Know Your Access Point ............................................................ 1
IAP-420/620/6620 Series
User’s Manual
G
etting to Know Your Access Point
1.1 About the ORing Access Point
IGAP-420/620/6620 is reliable IEEE802.11b/g/n;
IEEE802.11 a/b/g/n WLAN with 2 ports LAN Access Point.
It can be configured to operate in AP/Client/Bridge/AP-Client mode. You can configure IGAP-420/620/6620 by Window
Utility or WEB interfaces via LAN port or WLAN interface.
IGAP-420/620/6620 provides dual Ethernet ports, so you can use Daisy Chain to reduce the usage of Ethernet switch ports.
Therefore, IGAP-420/620/6620 is one of the best communication solutions for wireless application.
1.2 Software Features
High Speed Air Connectivity: WLAN interface support up to 300Mbps link speed connection
Highly Security Capability: WEP/WPA/WPA2/Radius/TKIP supported
Support AP/Client/Bridge/AP-Client Mode
Switch Mode Supported: Daisy Chain support to reduce usage of switch ports
Secured Management by HTTPS
Event Warning by Syslog, Email, SNMP Trap, Relay
1.3 Hardware Features
Redundant Power Inputs: Dual 12~48 VDC
10/100/1000 Base-T(X) Ethernet port
Casing: IP-30
Dimensions(W x D x H) : 74.3(W) x 109.2(D) x 153.6(H) mm
Operating Temperature: -10 to 60 o
C
Storage Temperature: -40 to 85 o
C
Operating Humidity: 5% to 95%, non-condensing
1 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
H
ardware Installation
2.1 Installation device on Din-Rail
Each device has a DIN-Rail kit on rear panel. The DIN-Rail kit helps device to fix on the
DIN-Rail.
Step 1: Slant the router and mount the metal spring to DIN-Rail.
Step 2: Push the device toward the DIN-
Rail until you heard a “click” sound.
ORing Industrial Networking Corp. 2
IGAP-420/620/6620 Series
User’s Manual
2.2 Wall Mounting Installation
Each device has another installation method to fix it. A wall mount panel can be found in the package. The following steps show how to mount the device on the wall:
Step 1: Remove DIN-Rail kit.
Step 2: Use 6 screws that can be found in the package to combine the wall mount panel.
Just like the picture shows below:
The screws specification shows in the following two pictures. In order to prevent the
3 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual device from any damage, the screws should not larger than the size that used in it.
Pozidrive
Step 3: Mount the combined device on the wall.
ORing Industrial Networking Corp. 4
IGAP-420/620/6620 Series
User’s Manual
H
ardware Overview
3.1 Front Panel
The following table describes the labels that stick on the IGAP-420/620/6620.
Port
10/100/1000 Base-T(X)
fast Ethernet ports
Description
10/100/1000 Base-T(X) fast Ethernet ports support auto-negotiation.
Default Setting : auto speed
Relay Output
Relay output to carry capacity of 3A at 24VDC
Redundant power inputs Dual Power Inputs. 12~48 VDC
DIDO
4 digital input / 4 digital output
5 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
IGAP-420/620 IGAP-420+/620+
ORing Industrial Networking Corp. 6
IGAP-420/620/6620 Series
User’s Manual
1. 2.4/5GHz antenna with typical 2 dBi antenna for 5GHz and 2.4GHz.
2. LED for PWR1 and system status. When the PWR1 links, the green LED will be light on.
3. LED for PWR2 and system status. When the PWR2 links, the green LED will be light on.
4. LED for Ethernet port1 status.
5. LED for Ethernet port2 status.
6. LED for WLAN link status.
7. LED for Fault Relay. When the fault occurs, the red LED will be light on.
8. Power Input port
9. Ethernet port1 connector
10. Ethernet port2 connector
11. Digital input
12. Digital output
13. Reset button
14. LED for P.O.E Status (IGAP-420+/620+)
7 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
IGAP-6620 IGAP-6620+
ORing Industrial Networking Corp. 8
IGAP-420/620/6620 Series
User’s Manual
1. 2.4/5GHz antenna with typical 2 dBi antenna for 5GHz and 2.4GHz.
2. LED for PWR1 and system status. When the PWR1 links, the green LED will be light on.
3. LED for PWR2 and system status. When the PWR2 links, the green LED will be light on.
4. LED for Ethernet port1 status.
5. LED for Ethernet port2 status.
6. LED for WLAN frequency using.
7. LED for Fault Relay. When the fault occurs, the red LED will be light on.
8. Power Input port
9. Ethernet port1 connector
10. Ethernet port2 connector
11. Digital input
12. Digital output
13. Reset button
14. LED for P.O.E Status (IGAP-6620+)
3.2 Front Panel LEDs
LED
PWR1
PWR2
Color
Green
Green
Green/Amber
ETH1
Green
ETH2
WLAN
2.4GHz
5GHz
Fault
Green/Amber
Green
Green
Green
Green
Red
Status Description
Green On DC power 1 activated.
Green On
DC power 2 activated.
On
On
Blinking
On
On
Blinking
On
Port link up at 10Mbps /1000Mbps.
Port link up at 100Mbps.
Data transmitted.
Port link up at 10Mbps/1000Mbps.
Port link up at 100Mbps.
Data transmitted.
WLAN activated.
Blinking
On
On
On
WLAN Data transmitted.
In using
In using
Fault relay. Power failure or Port down/fail.
9 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
C
ables and
A
ntenna
4.1 Ethernet Cables
The IGAP-420/620/6620 WLAN AP has two 10/100/1000 Base-T(X) Ethernet ports.
According to the link type, the AP use CAT 3, 4, 5,5e,6 UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications
Cable Type Max. Length
10Base-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100Base-T(X) Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000Base-T(X) Cat 5e,6 UTP 100 m (328 ft)
Connector
RJ45
RJ45
RJ45
4.2 Wireless Antenna
2.4GHz/5GHz antenna is used for IGAP-420/620/6620 and connected with a reversed SMA connector. External RF cable and antenna also can be applied with this connector.
ORing Industrial Networking Corp. 10
IGAP-420/620/6620 Series
User’s Manual
M
anagement Interface
5.1 Explore IGAP-420/620/6620
5.1.1 Open-Vision_Commander
IGAP-420/620/6620 can also be configure through Oring
’s window utility Open-Vision
Step 1: Open the commander and click “Discover”, the AP devices will show on the list.
Step 2: Choose your access point, and it will show the AP function tree. Simultaneity, you can login and then set the AP.
User interface of commander
11 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
5.2 UPnP Equipment
Step 1: To check whether the UPnP UI of the computer is connected to the
IGAP-420/620/6620, go to Control Panel > Add or Remove Programs > Windows
Components Wizard > Networking Servers > UPnP User Interface and pitch on the
UPnP User Interface.
UPnP configuration page
Step 2: At the right-below corner of the computer, you will find a sign of the UPnP equipment.
ORing Industrial Networking Corp. 12
IGAP-420/620/6620 Series
User’s Manual
Step 3: Click the sign of the UPnP equipment, then you will find the UPnP equipment in the network neighborhood.
Step 4: Right click the UPnP equipment to choose “Properties”, it will show as the following pictures:
Step 5: Right click the UPnP equipment or double click the UPnP equipment to transfer; it will go to the web page.
5.3 Configuration by Web Browser
This section introduces the configuration by Web browser.
5.4 About Web-Based Management
An embedded HTML web site resides in flash memory in the system. It contains advanced management features and allows you to manage the AP from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.
The Web-Based Management function supports Internet Explorer 5.0 or later. It is based on Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen.
Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need to explicitly modify
13 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual the browser setting in order to enable Java Applets to use network ports.
Through the front section’s information, you will see as follows, enter your user name
(admin) and your password (admin), and then click OK to continue.
Login screen
For security reasons, we strongly suggest you change the password. Click on
Administrator Password and modify the password.
5.5 Main Interface
The Home screen will appear.
Please click “Run Wizard” to go to the Home > Setup
Wizard page to quick install the AP.
ORing Industrial Networking Corp. 14
IGAP-420/620/6620 Series
User’s Manual
5.5.1 Overview
System Info
Main interface
System Info
Lan Info
Lan Info
15 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
Wireless Info
5.5.2 Basic Setting
System Info Setting
Wireless Info
System Info Setting interface
The following table describes the labels in this screen.
Label
Device Name
Device Location
Device Description
Description
Define Device Name
Define Device Location
Define Device Description
ORing Industrial Networking Corp. 16
Lan Setting
IGAP-420/620/6620 Series
User’s Manual
Lan Setting interface
The following table describes the labels in this screen.
Label Description
Obtain an IP address
automatically
Use the following IP
address
Select this option if you would like to obtain an IP address automatically assigned by DHCP server in your network
Select this option if you are manually assigning an IP address.
IP Address: There is a default IP address in the AP, and you can
input a new IP address.
Obtain DNS server address
Subnet Mask: 255.255.255.0 is the default Subnet Mask. All
devices on the network must have the same subnet mask to communicate on the network.
Default Gateway: Enter the IP address of the router in your
network.
This option is selected by DHCP server.
17 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
automatically
Use the following
DNS server addresses
This option is selected by manually set
Preferred DNS: There is a default DNS server, and you can input
another new DNS server.
Alternate DNS: There is a default DNS server, and you can input
another new DNS server.
Web Protocol
Port
Corresponding to the Web protocol, there is a default port (HTTP:
80, HTTPS: 443). And you can enter another number which should be in range of 1-65535.
Web Access Control
Choose the checkbox of the Wired and Wireless; you can visit the
DHCP Server
web page through the mode you choose.
Enable or Disable the DHCP Server function. Enable
– the AP will be the DHCP server on your local network
Start IP Address
Choose on the protocol for web. The default value is HTTP, if you want the web pages’ security is better, choose the HTTPS protocol.
Maximum Number of
IPs
Lease Time (Hour)
The dynamic IP assign range. Low IP address is the beginning of the dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 to 192.168.1.200. 192.168.1.100 will be the Start IP address.
The dynamic IP assign range. High IP address is the end of the dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 to 192.168.1.200. 100 will be entering into textbox.
It is the time period that system will reset the dynamic IP assignment to ensure the dynamic IP will not been occupied for a long time or th e server doesn’t know that the dynamic IP is idle.
ORing Industrial Networking Corp. 18
Time Setting
IGAP-420/620/6620 Series
User’s Manual
Time setting interface
The following table describes the labels in this screen.
Label
NTP
Description
Enable or disable NTP function to get the time from the NTP server.
NTP Server 1
NTP Server 2
Time Zone
Synchronize
Local Date
Local Time
The initial choice about NTP Server.
The second choice about NTP Server.
Select the time zone manually
Set the time, and the AP’s time synchronize with the NTP Server at the time
Set local date manually.
Set local time manually.
Get Current Date &
Click this button, you can set the time from browser.
Time from Browser
19 ORing Industrial Networking Corp.
DIDO
IGAP-420/620/6620 Series
User’s Manual
DIDO setting interface
5.5.3 Wireless Setting
AP Mode
This mode provides Access Point services for other wireless clients.
AP mode setting interface
The following table describes the labels in this screen.
Label Description
SSID
Service Set Identifier Default is the default setting. The SSID is a unique name that identifies a network. All devices on the network must share the same SSID name in order to communicate on the network. If you change the SSID from the
ORing Industrial Networking Corp. 20
IGAP-420/620/6620 Series
User’s Manual
Channel
Master Mode
Security options
default setting, input your new SSID name in this field.
Channel 6 is the default channel, input a new number if you want to change the default setting. All devices on the network must be set to the same channel to communicate on the network.
Enable / disable Master mode
Select the type of security for your wireless network at Security
Type:
None: Select for no security.
WEP: Select for security WEP.
WPA/WPA2-Personal (per share key): Select for security
WPA-PSK or WPA2-PSK without a RADIUS server.
WPA/WPA2-Enterprice: Select for WPA or WPA2 (Wi-Fi
Protected Access) authentication in conjunction with a RADIUS server.
802.1x: Authentication through RADIUS server
Security Type
– None
No security protection on your wireless LAN access.
21 ORing Industrial Networking Corp.
Security Type
– WEP
IGAP-420/620/6620 Series
User’s Manual
WEP setting interface
1. Security Type: Select WEP
2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption.
3. Key Type: Select ASCII or Hex key type.
4. Default Key Index: Select one of the keys to be the active key.
5. Key 1-4: Input up to four encryption keys.
ASCII (American Standard Code for Information Interchange) is a code for representing
English letters as numbers from 0-127. Hex digits consist of the numbers 0-9 and the letters A-F.
ORing Industrial Networking Corp. 22
IGAP-420/620/6620 Series
User’s Manual
Security Type
–WPA/WPA2-Personal (per share key)
WPA/WPA2-Personal setting interface
1. Security Type: Select WPA/WPA2-Personal.
2. Encryption Type: Select TKIP or AES encryption.
3. Share Key: Enter your password. The password can be between 8 and 64 characters.
23 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
Security Type
–WPA/WPA2-Enterprice
WPA/WPA2-Enterprice setting interface
1. Security Type: Select WPA/WPA2-Enterprice
2. Radius Server IP: Enter the IP address of the RADIUS Server.
3. Port: Enter the RADIUS port (1812 is default).
4. Shared Secret: Enter the RADIUS password or key.
ORing Industrial Networking Corp. 24
Security Type
– 802.1x
IGAP-420/620/6620 Series
User’s Manual
802.1x setting interface
1. Security Type: Select 802.1x
2. Radius Server IP: Enter the IP address of the RADIUS Server.
3. Port: Enter the RADIUS port (1812 is default).
4. Shared Secret: Enter the RADIUS password or key.
25 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
RADIUS (Remote Authentication Dial-in User Service) is the industrial standard
agreement, and it is used to provide an identify verification. The Radius customer (is usually a dial-in server, VPN server or wireless point) send your proof and the conjunction parameter to the Radius server by Radius news. The Radius server validates the request of the Radius customer, and return Radius news to back.
Radius server validates your proof, also carry on the authorization. So the Radius server received by ISA server responded (point out the customer carries proof to be not granted) and it means that the Radius server did not authorize you to carry. Even if the proof has already passed an identify verification, the ISA server may also refuse you to carry a claim according to the authorization strategy of the Radius server.
The principle of the Radius server shows in the following pictures:
ORing Industrial Networking Corp. 26
IGAP-420/620/6620 Series
User’s Manual
AP-Client Mode
This mode provides a 1-to-N MAC address mapping mechanism such that multiple stations behind the AP can transparently connect to the other AP even they didn't support WDS.
AP-Client setting interface
The following table describes the labels in this screen.
Label Description
SSID
Channel
Master Mode
Security options
Service Set Identifier Default is the default setting. The SSID is a unique name that identifies a network. All devices on the network must share the same SSID name in order to communicate on the network. If you change the SSID from the default setting, input your new SSID name in this field.
Channel 6 is the default channel, input a new number if you want to change the default setting. All devices on the network must be set to the same channel to communicate on the network.(
wireless channel must be the same with the other device in group
)
Enable / disable master mode
Select the type of security for your wireless network at Security
27 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
Type:
None: Select for no security.
WEP: Select for security WEP.
WPA/WPA2-Personal (per share key): Select for security
WPA-PSK or WPA2-PSK without a RADIUS server.
Peer AP SSID
Peer AP BSSID
Enter the other AP which used for AP mode.
Fill the Peer AP BSSID (Wireless MAC address) limit client target
Slave Mode
Site Scan
Security Type
Enable / disable Slave mode
You can scan the APs which used for AP mode in the certainty area
Set the same security with the AP which you want to connect,
AP-client mode only supports WEP and WPA/WPA2 Personal.
Client Mode
In this mode the AP functions as a wireless client to connect to other AP, thus provides transparent connection between Ethernet & Wireless port. This mode provides no Access
Point services but with 802.1X supported.
Client mode setting interface
The following table describes the labels in this screen.
Label
Peer AP SSID
Description
Enter the other AP which used for AP mode.
Peer AP BSSID
Site Scan
Slave Mode
Security Type
Fill the Peer AP BSSID (Wireless MAC address) limit client target
You can scan the APs which used for AP mode in the certainty area
Enable / disable Slave mode
Set the same security with the AP which you want to connect.
ORing Industrial Networking Corp. 28
IGAP-420/620/6620 Series
User’s Manual
Bridge Mode
This mode provides Static LAN-to-LAN Bridging functionality. The static LAN-to-LAN bridging function is supported through Wireless Distribution System (WDS), this mode only support
802.11b/g.
Bridge mode setting interface
This type of wireless link is established between two IEEE 802.11 access points.
Wireless packets transmitted along the WDS link comply with the IEEE 802.11 WDS
(Wireless Distribution System) format at the link layer.
Point-to-Point WDS Link
The following table describes the labels in this screen.
29 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
Label Description
WDS Mode
This mode provides Static LAN-to-LAN Bridging functionality. The static LAN-to-LAN bridging function is supported through Wireless
Distribution System (WDS).
Peer MAC Address
Set the Mac address of other access point(s). Simultaneity, choose on “Enable”.
SSID(only Repeater
mode support)
Service Set Identifier Default is the default setting. The SSID is a unique name that identifies a network. All devices on the network must share the same SSID name in order to communicate on the network. If you change the SSID from the default setting, input your new SSID name in this field.
Channel
Channel 6 is the default channel, input a new number if you want to change the default setting. All devices on the network must be set to the same channel to communicate on the network. (
wireless channel must be the same with the other device in group
)
Select the type of security for your wireless network at Security
Type:
Security options
None: Select for no security.
WEP: Select for security WEP.
WPA/WPA2-Personal (per share key): Select for security
WPA-PSK or WPA2-PSK without a RADIUS server.
First of all, if APs link with WDS mode, it should obey the following rules:
1. LAN IP Address should set different IP in the same network.
2.
All AP’s DHCP Server should set shutdown.
3. WDS should set Enable.
4. Each AP should h ave the same setting except ‘Peer Mac Address’ set to the other’s
Mac address
5. At wireless web setting Security and Channel should be the same,
6.
AP’s distance should be limited within a certainty area.
ORing Industrial Networking Corp. 30
WDS
–Bridge Mode
IGAP-420/620/6620 Series
User’s Manual
WDS-Bridge mode setting interface
The peer WDS APs are according to the MAC address listed in "Peer Mac Address" fields.
The working principle of Bridge Mode as follows:
In the figure, the AP behaves as a standard bridge that forwards traffic between WDS links
(links that connect to other AP/wireless bridges) and an Ethernet port. As a standard bridge, the AP learns MAC addresses of up to 64 wireless or 128 total wired and wireless network devices, which are connected to their respective Ethernet ports to limit the amount of data to be forwarded. Only data destined for stations which are known to reside on the peer Ethernet
31 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual link, multicast data or data with unknown destinations need to be forwarded to the peer AP via the WDS link.
WDS
–Repeater Mode
WDS-Repeater mode setting interface
The peer WDS APs are according to the MAC address listed in "Peer Mac Address" fields.
The working principle of Repeater Mode as follows:
LAN LAN
WDS WDS
In the figure, Repeater is used to extend the range of the wireless infrastructure by
ORing Industrial Networking Corp. 32
IGAP-420/620/6620 Series
User’s Manual forwarding traffic between associated wireless stations and another repeater or AP connected to the wired LAN.
Wireless Options
Wireless options interface
The following table describes the labels in this screen.
Label
Radio Button
Beacon Interval
Description
Enable or Disable Wireless function
DTIM Interval
Fragmentation
Threshold
The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the AP to synchronize the wireless network. 50 is recommended in poor reception.
The default value is 1. This value, between 1 and 255 milliseconds, indicates the interval of the Delivery Traffic
Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the AP has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages.
This value should remain at its default setting of 2346. The range is 256-2346 bytes. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you
33 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
RTS Threshold
Wireless Network
Mode
Preamble
experience a high packet error rate, you may slightly increase the
Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor modifications of this value are recommended.
This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset RTS threshold size, the
RTS/CTS mechanism will not be enabled. The AP sends
Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an
RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.
You can select 802.11 b/g/n wireless mode mix or single
Values are Long and Short, default value is Long. If your wireless device supports the short preamble and you are having trouble getting it to communicate with other 802.11b devices, make sure that it is set to use the long preamble
ORing Industrial Networking Corp. 34
IGAP-420/620/6620 Series
User’s Manual
Extra parameters for Client Mode(X-Roaming)
X-Roaming setting interface
The following table describes the labels in this screen
Label
Roaming
Description
Disable: Disable X-Roaming protocol.
X-roaming: Enable X-Roaming protocol
Scan channel
Channel Select
Sensitivity
Scan interval
All: scan all support channel
Manual: only scan
“channel select” value
Assign the roaming channel value
Set the signal sensitivity
Set the scan interval
35 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
5.5.4 Advanced Setting
Filters
Use Advanced Setting > MAC Filters to allow or deny wireless clients, by their MAC addresses, from accessing the IGAP-420/620. You can manually add a MAC address or select the MAC address from Connected Clients that are currently connected to the
AP.
Filters setting interface
The following table describes the labels in this screen.
Label Description
MAC Filter
MAC Filter List
Connected Clients
Enable or disable the function of MAC filter. MAC address allowed or denied option is selected by you.
This list will display the MAC addresses that are in the selected filter.
This list will display the wireless MAC addresses that linked with
AP.
MAC Address
Apply
MAC addresses need to be added to or clear from MAC filter list.
Click Apply to set the configurations.
ORing Industrial Networking Corp. 36
IGAP-420/620/6620 Series
User’s Manual
Misc. Settings
Misc. setting interface
The following table describes the labels in this screen.
Label
UPnP
LLDP Protocol
Spanning Tree
Protocol
Description
Enable or disable UPnP function
Enable or disable LLDP function
Enable or disable STP function
37 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
5.5.5 Even Warning Settings
When the AP event triggered, the notification procedure will be performed according to the type of the event.
System Log
System Log setting interface
ORing Industrial Networking Corp. 38
IGAP-420/620/6620 Series
User’s Manual
The following table describes the labels in this screen.
Label Description
Syslog Server IP
Syslog Server Port
Not only the syslog keeps the logs locally, it can also log to remote server. Specify the IP of remote server. Leave it blank to disable logging remotely.
Specify the port of remote logging. Default port is 514.
39 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
E-Mail setting interface
ORing Industrial Networking Corp. 40
IGAP-420/620/6620 Series
User’s Manual
The following table describes the labels in this screen.
Label Description
SMTP Server
Server Port
E-mail Address 1-4
Simple Message Transfer Protocol, enter the backup host to use if primary host is unavailable while sending mail by SMTP server.
Specify the port where MTA can be contacted via SMTP server.
Inputs specify the destination mail address.
41 ORing Industrial Networking Corp.
SNMP
IGAP-420/620/6620 Series
User’s Manual
SNMP setting interface
ORing Industrial Networking Corp. 42
IGAP-420/620/6620 Series
User’s Manual
The following table describes the labels in this screen.
Label Description
SNMP Agent
SNMP Trap Server
1-4
Community
SNMP (Simple Network Management Protocol) Agent is a service program that runs on the access point. The agent provides management information to the NMS by keeping track of various operational aspects of the AP system. Turn on to open this service and off to shutdown it.
Specify the IP of trap server, which is the address to which it will send traps AP generates.
Community is essentially password to establish trust between managers and agents. Normally "public" is used for read-write community.
SysLocation
SysContact
Specify sysLocation string.
Specify sysContact string.
Relay
Relay setting interface
43 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
5.5.6 System status
Client status
This page of the list displays the Mac Address of the wireless clients connected.
DHCP Clients List
List the devices on your network that are receiving dynamic IP addresses from the
IGAP-420/620.
Traffic/Port Status
This page displays the network traffic statistics for both received and transmitted packets through the Ethernet port and wireless connections associated with the AP.
Simultaneity, the traffic counter will reset by the device rebooting.
ORing Industrial Networking Corp. 44
IGAP-420/620/6620 Series
User’s Manual
System Log
The system log tracks the important events and setting changes of the AP. If the AP is rebooted, the logs are automatically cleared.
Click the button 'Refresh' to refresh the page; Click the button 'Clear' to clear log entries.
5.5.7 Administrator
Password
In this page, you can change the username and password. The new password must be typed twice to confirm (the default Name and Password is “admin” and “”).
Password setting interface
The following table describes the labels in this screen.
Label
Old Name
Description
This field displays the old login name. It's read only. The default value of login name is "admin".
Old Password
New Name
Before making a new setting, you should provide the old password for a verify check. Acceptable inputs of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. The factory default value of login password is null.
Enter a new login name. Acceptable inputs of this field contains
45 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
New Password
Confirm New
Password
Configuration
'0-9', 'a-z', 'A-Z' and must be between 1 to 15 characters in length.
This field cannot accept null input.
Enter a new login password. Acceptable inputs of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length.
Retype the password to confirm it. Acceptable inputs of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length.
The following table describes the labels in this screen.
Label Description
Download
configuration
The current system settings can be saved as a file onto the local hard drive.
Upload configuration
The saved file or any other saved setting file can be uploaded
Restore Default
Settings
back on the AP. To reload a system settings file, click on
Browse to browse the local hard drive and locate the system file
to be used. Click Upload when you have selected the file to be loaded back onto the AP.
You may also reset the IGAP-420 / 420+ ; IGAP-620/620+ back to factory settings by clicking on Restore Default Settings. Make sure to save the unit’s settings before clicking on this button.
You will lose your current settings when you click this button.
ORing Industrial Networking Corp. 46
Firmware Upgrade
IGAP-420/620/6620 Series
User’s Manual
New firmware may provide better performance, bug fixes or more functions. To upgrade, you need a firmware file correspond to this AP model. It will take several minutes to upload and upgrade the firmware. After the upgrade is done successfully, the access point will reboot and get revalidated.
Notice: DO NOT POWER OFF THE AP OR PRESS THE RESET BUTTON WHILE THE
FIRMWARE IS BEING UPGRADED.
Load Factory Default
You may also reset the IGAP-420/620 back to factory settings by clicking on Restore
Default Settings
. Make sure to save the unit’s settings before clicking on this button. You will lose your current settings when you click this button.
Restart
If you want restart the access point through the Warm Reset, click Restart Now to restart the AP.
47 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
T
echnical
S
pecifications
LAN Interface
Ethernet Ports
Protocols
2 x 10/100/1000Base-T(X), Auto MDI/MDI-X
IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB
II, HTTPS, SNMPV1/V2, Trap, Private MIB
WLAN Interface
Operating Mode
Antenna and Connector
Radio Frequency Type
Modulation
Frequency Band
Transmission Rate
Transmit Power
Receiver Sensitivity
Encryption Security
AP/ Client /Bridge/ AP-Client
2 antennas with 2dBi for 5GHz and 2.4GHz in reverse SMA connector
DSSS, OFDM
IEEE802.11b: CCK/DQPSK/DBPSK
IEEE802.11a/g: OFDM
IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM
America / FCC : 2.412~2.462 GHz (11 channels)
5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels )
Europe CE / ETSI : 2.412~2.472 Ghz (13 channels)
5.180~5.240 GHz (4 channels)
802.11b: 1/2/5.5/11 Mbps
802.11a/g: 6/9/12/18/24/36/48/54 Mbps
802.11n(40MHz): UP to 300 Mbps
802.11a: 12dBm ± 1.5dBm@54Mbps(IGAP-620/6620)
802.11b: 17dBm ± 1.5dBm@11Mbps
802.11g: 16dBm ± 1.5dBm@54Mbps
802.11gn HT20: 15dBm ± 1.5dBm @MCS7
802.11gn HT40: 14dBm ± 1.5dBm @MCS7
802.11an HT20: 12dBm ± 1.5dBm @MCS7(IGAP-620/6620)
802.11an HT40: 11dBm ± 1.5dBm @MCS7(IGAP-620/6620)
802.11a : -76dBm ± 2dBm@54Mbps(IGAP-620)
802.11b : -85dBm ± 2dBm@11Mbps
802.11g : -76dBm ± 2dBm@54Mbps
802.11gn HT20:-75dBm ± 2dBm@MCS7
802.11gn HT40:-72dBm ± 2dBm@MCS7
802.11an HT20:-74dBm ± 2dBm@MCS7(IGAP-620)
802.11an HT40:-71dBm ± 2dBm@MCS7(IGAP-620)
WEP: (64-bit, 128-bit key supported)
WPA/WPA2:802.11i (WEP and AES encryption)
ORing Industrial Networking Corp. 48
IGAP-420/620/6620 Series
User’s Manual
WPA-PSK (256-bit key pre-shared key supported)
TKIP encryption
Wireless Security
LED Indicators
SSID broadcast disable
3 x LEDs, PWR1(2)(PoE) / Ready:
1) Red On: Power is on and booting up.
2) Green On: Power is on and functioning normally.
2 x LEDs, ETH1(2)
Speed: Green for port Link at 1000Mbps
Amber for port Link at 100Mbps.
Off for port Link at 10Mbps
WLAN Link/ACT:
Green for WLAN
Fault indicator:
Red On: Ethernet link down or power down
Power Requirements
Power Input Voltage Dual DC inputs. 12~48VDC on 6-pin terminal block
Reverse Polarity Protection Present
8.3 Watts Power Consumption
Environmental
Operating Temperature
Storage Temperature
Operating Humidity
-10 to 60 o
C
-40 to 85 o
C
5% to 95%, non-condensing
Mechanical
Dimensions(W x D x H)
Casing
74.3(W) x 109.2(D) x 153.6(H) mm
(2.93 x 4.3 x 6.05 inch.)
IP-30 protection
Regulatory Approvals
EMI
EMS
Shock
Free Fall
Vibration
Rail Traffic
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4
(EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
49 ORing Industrial Networking Corp.
IGAP-420/620/6620 Series
User’s Manual
Compliance
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF exposure warning: The equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device should be operated with minimum distance 20cm between the device and all persons.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur:
“Appareils Numériques,” NMB-003 édictée par l’Industrie.
ORing Industrial Networking Corp. 50
IGAP-420/620/6620 Series
User’s Manual
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut causer d'interférences,et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer fonctionnement du dispositif.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
Afin de réduire les interférences radio potentielles pour les autres utilisateurs, le type d'antenne et son gain doivent être choisie que la puissance isotrope rayonnée équivalente
(PIRE) est pas plus que celle premise pour une communication réussie
RF exposure warning: The equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF
établies pour un incontrôlés environnement. L'antenne (s) utilisée pour ce transmetteur ne doit pas être co-localisés ou fonctionner en conjonction avec toute autre antenne ou transmetteur.
51 ORing Industrial Networking Corp.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
Frequently Answers and Questions
What is the ORiNG IGAP-6620 Series?
How can I configure the IGAP-6620 Series?
What operation modes does the IGAP-6620 Series support?
What are the software features of the IGAP-6620 Series?
What are the hardware features of the IGAP-6620 Series?
advertisement
Table of contents
- 6 Getting to Know Your Access Point
- 6 About the ORing Access Point
- 6 Software Features
- 6 Hardware Features
- 7 Hardware Installation
- 7 Installation device on Din-Rail
- 8 Wall Mounting Installation
- 10 Hardware Overview
- 10 Front Panel
- 14 Front Panel LEDs
- 15 Ethernet Cables
- 15 Wireless Antenna
- 16 Management Interface
- 16 Explore IGAP
- 16 Open-Vision_Commander
- 17 UPnP Equipment
- 18 Configuration by Web Browser
- 18 About Web-Based Management
- 19 Main Interface
- 20 Overview
- 20 System Info
- 20 Lan Info
- 21 Wireless Info
- 21 Basic Setting
- 21 System Info Setting
- 22 Lan Setting
- 24 Time Setting
- 25 Wireless Setting
- 25 AP Mode
- 32 AP-Client Mode
- 33 Client Mode
- 34 Bridge Mode
- 38 Wireless Options
- 40 Extra parameters for Client Mode(X-Roaming)
- 41 Advanced Setting
- 41 Filters
- 42 Misc. Settings
- 43 Even Warning Settings
- 43 System Log
- 45 E-Mail
- 48 Relay
- 49 System status
- 49 Client status
- 49 DHCP Clients List
- 49 Traffic/Port Status
- 50 System Log
- 50 Administrator
- 50 Password
- 51 Configuration
- 52 Firmware Upgrade
- 52 Load Factory Default
- 52 Restart
- 53 Technical Specifications
