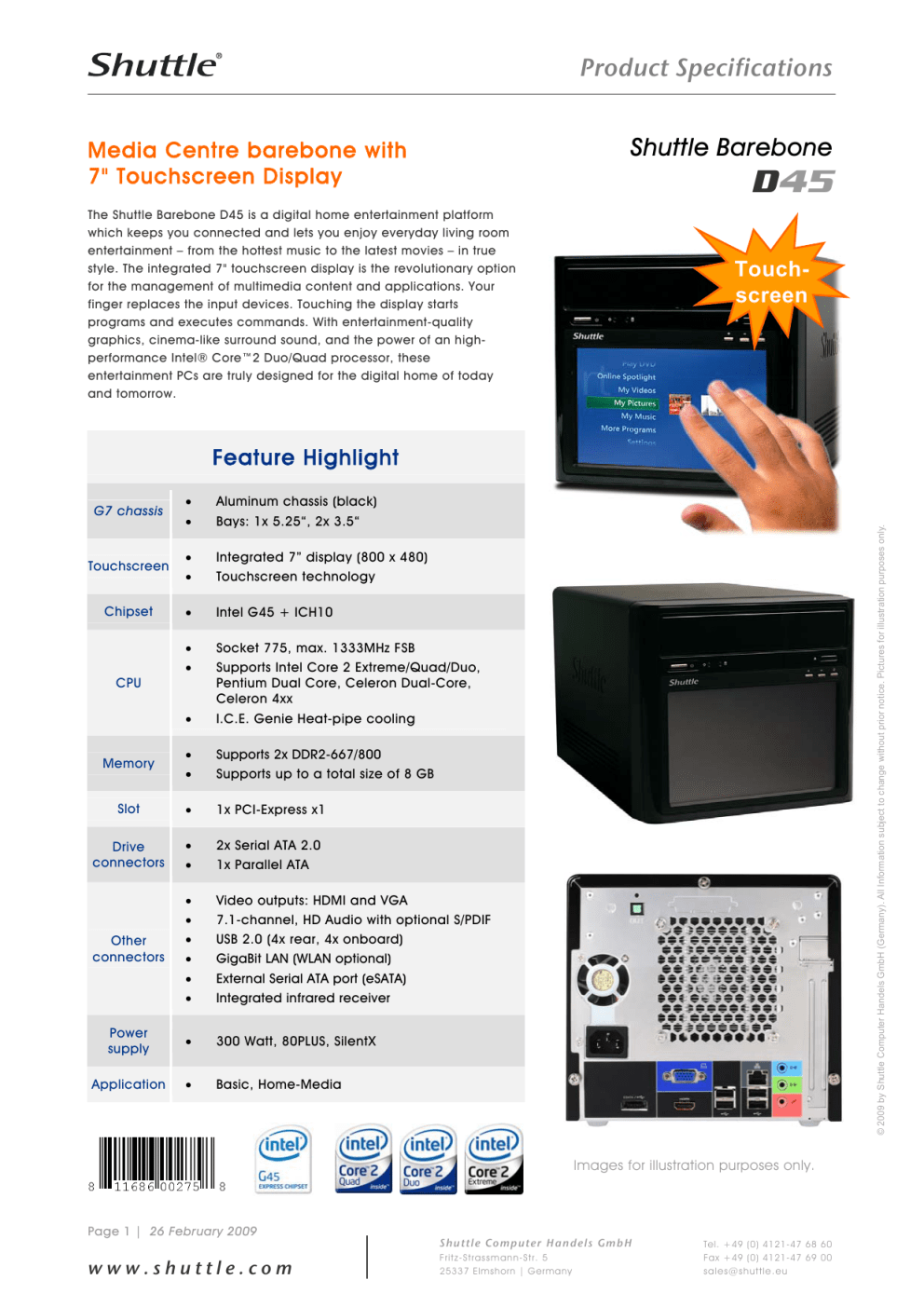

Shuttle XPC Barebone D45

Product Specifications
Shuttle Barebone
Media Centre barebone with
7" Touchscreen Display
D45
The Shuttle Barebone D45 is a digital home entertainment platform
which keeps you connected and lets you enjoy everyday living room
entertainment – from the hottest music to the latest movies – in true
style. The integrated 7" touchscreen display is the revolutionary option
for the management of multimedia content and applications. Your
finger replaces the input devices. Touching the display starts
programs and executes commands. With entertainment-quality
graphics, cinema-like surround sound, and the power of an highperformance Intel® Core™2 Duo/Quad processor, these
entertainment PCs are truly designed for the digital home of today
and tomorrow.
Touchscreen
G7 chassis
•
•
Aluminum chassis (black)
Bays: 1x 5.25“, 2x 3.5“
Touchscreen
•
•
Integrated 7” display (800 x 480)
Touchscreen technology
Chipset
•
Intel G45 + ICH10
•
•
•
Socket 775, max. 1333MHz FSB
Supports Intel Core 2 Extreme/Quad/Duo,
Pentium Dual Core, Celeron Dual-Core,
Celeron 4xx
I.C.E. Genie Heat-pipe cooling
Memory
•
•
Supports 2x DDR2-667/800
Supports up to a total size of 8 GB
Slot
•
1x PCI-Express x1
Drive
connectors
•
•
2x Serial ATA 2.0
1x Parallel ATA
Other
connectors
•
•
•
•
•
•
Video outputs: HDMI and VGA
7.1-channel, HD Audio with optional S/PDIF
USB 2.0 (4x rear, 4x onboard)
GigaBit LAN (WLAN optional)
External Serial ATA port (eSATA)
Integrated infrared receiver
Power
supply
•
300 Watt, 80PLUS, SilentX
Application
•
Basic, Home-Media
CPU
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Feature Highlight
Images for illustration purposes only.
Page 1 | 26 February 2009
www.shuttle.com
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
Product Specifications
Shuttle Barebone D45 – Special Product Features
Touchscreen
The touchscreen is one of the easiest PC interfaces to use, making it
the interface of choice for a wide variety of applications to improve
human-computer interaction. It can help make any information more
easily accessible by allowing users to navigate by simply touching the
display screen. When used in conjunction with software such as onscreen keyboards, or other assistive technology, it can help make
computing resources more available to both, experienced and novice
users. A PC system with touchscreen can even do without a physical
keyboard and mouse and all their wires.
Connect it to a big screen for an unsurpassed entertainment
experience right out of the box. Then enjoy the sheer convenience of
having two screens. Easily search for a movie on the integrated display
without interrupting what’s playing on the big screen. Even checking
email just got easier – there’s no need to minimize your media player
just to see your inbox anymore.
Supports Intel Core 2 Duo at 1333MHz FSB and 8 GB RAM
Based on the Intel G31 chipset, the Shuttle D45 supports Intels
performance-packed and energy-efficient Intel® Core™2 Duo/Quad
processors with 45nm technology. In addition, this platform can be
configured with up to 8GB of DDR2-800 memory for getting amazing
responsiveness for multimedia or complex applications.
Integrated Cooling Engine (I.C.E.)
Shuttle's XPCs offer the power of a desktop PC in a form factor onethird the size. In order to ensure proper airflow inside a smaller unit,
more advanced cooling technologies have been developed and
implemented in the Shuttle XPC. Shuttle's industry-leading I.C.E.
heatpipe technology delivers efficient cooling and is exceptionally
quiet.
Built-in Intel GMA X4500HD Graphics Engine
DVI-to-HDMI adapter cable included
Page 2 | 26 February 2009
www.shuttle.com
The next-generation Intel® Graphics Media Accelerator X4500HD
(Intel® GMA X4500HD) includes built-in support for full 1080p highdefinition video playback, including Blu-ray disc movies. This powerful
video engine provides users with a rich, new media experience to
deliver smooth HD playback without the need for add-in video cards or
decoders. Intel® GMA X4500HD comes with Intel® Clear Video
Technology, a combination of video processing hardware and
software technologies designed to enhance the visual experience. In
addition to video, the optimized 3D graphics engine supports DirectX
10, Shader Model 4.0 and OpenGL 2.0 and delivers the performance
and compatibility you need for entertaining, everyday gameplay for
the most popular game titles.
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Supports Dual Display
Product Specifications
Finest cinematic surround sound experience
What would a home theater be without booming, immersive 7.1
channel surround sound? Experience state-of-the-art sound quality
provided by Dolby® Digital Live and DTS® Connect functionality.
External Serial ATA
The External SATA interface provides up to 6 times faster access to
external storage solutions than USB 2.0 or Firewire.
PCIe x1 Expansion Slot
The PCI Express x1 slot enables the user to expand this system for
various applications. For example, you can set up a video surveillance
system by adding a frame grabber card or you can add a TV tuner
card to watch TV with a media center application.
Breathtaking Windows Aero™ 3D visual interface and a host of
groundbreaking new features, Windows® Vista™ Premium promises to
deliver a streamlined computing experience designed to
fundamentally change how users view, find and organize their digital
information.
80 PLUS® Certified Power Supplies
The 80 PLUS® performance specification requires power supplies in
computers and servers to be 80% or greater energy-efficient. The
Shuttle Barebone D45 features a powerful 300W power supply with 80
PLUS® validation as standard.
New Era of All-Solid Capacitor Shuttle Mainboards
By using all-solid capacitors Shuttle mainboards provide industry
leading stability, reliability and longevity for PC gaming and
entertainment systems. The average lifespan for a solid capacitor is
more than six times greater than the more common and less expensive
electrolytic capacitors.
Shuttle XPC Accessory
Shuttle offers a wide variety of accessories for XPC barebones and
complete systems such as WLAN modules or expansion kits. The XPC
carrying bag is also a popular accessory - it is the ideal solution for
LAN party gamers and business people, who need to transport their
XPC.
Page 3 | 26 February 2009
www.shuttle.com
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Supports Windows Vista Premium
Product Specifications
Shuttle Barebone D45 – Specifications
Integrated
7" Display
Touchscreen
Optional
Remote
Control
Active area: 152.4 x 91.44 mm (7 inch)
Resolution: 800x480 pixels
Color depth: 262144 (18 bits)
Backlight unit: High power LED
OSD (On Screen Display): 3 Buttons
Touchscreen function support fingertip input
Electric capacity solution
Optional: Shuttle Media Center Infrared Remote Control (RC12)
Mainboard
Mainboard FG45, proprietary Shuttle form factor
Chipset: Intel G45 Express + ICH10
Dimensions: 25.4 x 18.5 cm
Power Supply
SilentX 300 Watt mini power supply unit (PC60)
Input voltage range: 100~240V
Connectors: 20-pin ATX, 4-pin ATX12V
Dimensions: 190 (L) x 82 (W) x 43 (H) mm
EMI certified: FCC, CE, CCC
Safety certified: TÜV, UL, CB, CCC, CSA, NEMKO
Active PFC (Power Factor Correction)
Green: 80PLUS Bronze compliant
Processor
Support
Sockel 775 unterstützt Intel Core 2 Quad/Extreme/Duo,
Pentium Dual-Core, Celeron Dual-Core und Celeron 4xx
Unterstützt 800, 1066 oder 1333MHz Front Side Bus
Unterstützt Prozessoren mit 65nm und 45nm Fertigungstechnologie.
Detailierte Informationen über kompatible Prozessoren finden Sie in der Support-Liste.
Processor
Cooling
Shuttle I.C.E. (Integrated Cooling Engine)
advanced I.C.E. Heatpipe technology, linear controlled 92mm fan
SilentX cooling and noise reduction technology with Active Airflow
Memory
Support
2 x 240 pin slots, supports Dual Channel
supports DDR2-667/800 SDRAM memory
up to a total size of 8 GB, max. 4 GB per DIMM
Page 4 | 26 February 2009
www.shuttle.com
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Chassis
G7-type aluminum chassis, black color
Storage bays: 2x 3.5" internal, 1 x 5.25" external
Dimensions: 30.5 x 20 x 18.5 cm (LWH) = 11.3 litres
Weight: 3.1 kg net, 3.2 kg gross
Expansion
Slots
1 x PCI-Express x1
Integrated
Graphics
Next-generation Intel® Graphics Media Accelerator (GMA) X4500HD
with 400 MHz core frequency
Maximum dynamic shared memory: 1 GB
Supports all HD formats including 720p, 1080i and 1080p
Supports HD-DVD / Blu-Ray with VC-1, MPEG2, and AVC hardware decoder
Intel® Clear Video Technology enhance the visual experience
Supports DirectX 10, Shader Model 4.0 and OpenGL 2.1
Supports Triple-Display mode with VGA, DVI and internal touchscreen.
Note: external PCIe x1 graphics cannot work concurrently with the integrated graphics
device.
Analog VGA D-Sub output:
- 350 MHz / 24-bit RAMDAC
- Supports up to 2048x1536 resolution @ 75 Hz refresh
Digital HDMI output:
- Supports up to 2048x1536 resolution @ 60 Hz
- Supports HDTV at 1400x1050 resolution @ 85 Hz
- Supports HDCP (High-bandwith Digital Content Protection)
- HDMI also transmits digital S/PDIF audio signals
- HDMI-to-DVI adapter included
Triple Display Support: in addition to the integrated display you
can connect two external displayls (VGA and HDMI/DVI).
7.1-channel
Audio
High-Definition Audio with VIA Vinyl™ VT1708B Codec
Supports Dolby® Digital Live! and DTS™ Connect (Digital Theater Systems)
Three analog audio connectors (3.5mm) at the Back-Panel:
1) Front Line out (head phone)
2) Rear Surround line-out (shared with microphone input)
3) Center line-out (shared with Line in)
Optional Digital S/PDIF output (optical) supports 7.1 channel audio
Gigabit-LAN
Controller
Realtek RTL8111CEthernet network controller (Gigabit)
Supports 100 / 1.000 MBit/s operation
Supports Wake-on-LAN (WOL)
Drive
connectors
2x Serial-ATA II, 3 Gbit/s (300 MB/s) bandwidth
1x External Serial ATA (eSATA)
1x IDE ATA 100 drives
Front panel
devices
Power button
Power LED
HDD LED
7" Touchscreen Display
3 buttons for OSD (On-Screen-Display settings for 7" display)
Eject button for the optical drive
Page 5 | 26 February 2009
www.shuttle.com
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Product Specifications
Back panel
connectors
HDMI output (Digital Video & Audio, supports HDCP, DVI via adapter)
VGA output (D-sub, analog video out)
4x USB 2.0
GigaBit LAN (RJ45)
External Serial ATA Hotplug (eSATA)
Audio Front Line out (head phone)
Auido Rear Surround line-out (shared with microphone input)
Audio Center line-out (shared with Line in)
Optional optical S/PDIF output supports 7.1 digital audio
Perforation for optional Parallel port (LPT)
Perforation for optional Wireless LAN module
Other
connectors
2x fan connectors (3 pin and 4 pin header)
4x USB 2.0 (two 2x5 pin header)
CIR (1x3 pin header)
Clear CMOS header
Parallel port header
Optional
Accessories
Wireless LAN module and antenna (PN20)
Multimedia Remote Control (RC12)
Parallel port (PC8)
Accessories
Multilanguage Quick Installation Guide
Driver CDROM for Windows XP/Vista 32/64-bit
IDE and Serial ATA cable
Power cord
Front feet
Screws
Model comparison
Chipset
Shuttle Barebone
Shuttle Barebone
D10
D45
Intel G31 + ICH7
Intel G45 + ICH10
CPU Support
Socket 775, TDP max. 65W
Socket 775, TDP max. 130W
Memory
2 slots
max. 2x 2 GB DDR-667/800
2 slots
max. 2x 4 GB DDR-667/800
VGA (supports Dual Display in
clone mode)
HDMI + VGA (supports Triple
Display in extended mode)
5.1 analog
5.1 analog and
7.1 digital via S/PDIF / HDMI
Supports Dolby® Digital Live!
and DTS™ Connect
4x USB, PS/2, Seriell, LAN
4x USB, eSATA, LAN
100W
300W, 80PLUS, SilentX
Video outputs
Audio
Other connectors
Power supply
Page 6 | 26 February 2009
www.shuttle.com
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Product Specifications
Product Specifications
Shuttle Barebone D45 – Connectors
Rear View
Mainboard
Backpanel connectors
Front Audio
Audio Chip
PCIe x1
Fan
LAN Chip
Battery
2x USB
2x USB
Clear CMOS
BIOS Chip
ICH7
Southbridge
2x SATA
PATA (IDE)
7” LCD DVI
Page 7 | 26 February 2009
www.shuttle.com
PS/2 Ports
S/PDIF I/O
Parallel Port
I/O Controller
Front View
1 Power button
2 Infrared receiver
3 Power LED
4 Hard disk LED
5 7” Touchscreen
6 3 On-Screen-Display buttons
7 5.25” bay for optical drive
8 Eject button for optical drive
Rear View
1 AC Power Plug
Socket 775
2 External Serial ATA (eSATA)
3 Sub-D VGA connector
4 HDMI digital video out
5 4x USB 2.0 ports
6 Gigabit LAN port
7 Microphone input
Intel G31
8 Audio Line output
Northbridge
9 Audio Line input
10 PCI Express x1 slot
ATX power
11 Optional WLAN (PN20)
2x DIMM (DDR2)
11 S/PDIF digital audio output
ATX power
13 Optional parallel port (PC8)
7” LCD power
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
[email protected]
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Front View

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
