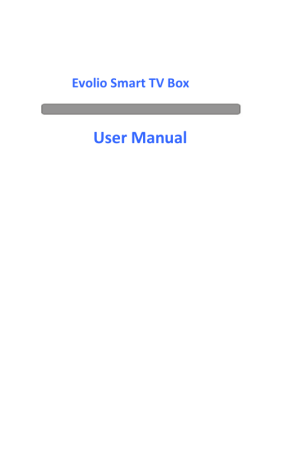

Evolio Smart TV Box

User Manual

EVOLIO SMART TV BOX User

Manual

FCC Information and Copyright

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

The symbol means that the unit complies with

European safety and electrical interference directives.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.

The content of this user manual is subject to be changed without notice and we will not be responsible for any mistakes found in this manual. All the brand and product names are trademarks of their respective.

i

EVOLIO SMART TV BOX User

Manual

Safety Precautions

1. Don

’t use the TV box near water.

2. Clean only with a dry cloth.

3. Don

’t block any of the ventilation openings, install according to the manufacturer

’s instructions.

4. Don

’t install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat.

5. Don

’t defeat the safety purpose of the polarized or grounding - type plug. When the provided plug does not fit into your AC power outlet, consult an electrician for replacement of the obsolete outlet.

6. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

7. Only use attachments/accessories specified by the manufacturer.

8. Unplug this apparatus during lightning storms or unused for long periods of time.

9. Refer all servicing to qualified service personnel.

Servicing is required when the unit has been damaged in any way.

Accessories

AC adapter/Power cable

Remote control

TV Box

User Manual

ii

EVOLIO SMART TV BOX User

Manual

Contents

FCC INFORMATION AND COPYRIGHT ............................. I

SAFETY PRECAUTIONS .................................................. II

CONTENTS ...................................................................... III

CHAPTER 1 BASICS ...................................................... 1

P

ARTS AND

C

ONTROL

............................................................... 1

R

EMOTE

C

ONTROL

................................................................... 1

P

OWER SUPPLY

......................................................................... 5

C

ONNECTIONS

.......................................................................... 5

T

RANSFERRING

C

ONTENTS

....................................................... 6

H

OME SCREEN

.......................................................................... 8

M

AIN MENU

............................................................................. 8

B

UTTONS

........................... E

RROR

!

B

OOKMARK NOT DEFINED

.

O

NSCREEN KEYBOARD

............................................................. 9

CHAPTER 2 GETTING STARTED ................................ 16

W

EB BROWSER

....................................................................... 11

W

ATCHING

V

IDEOS

................................................................ 12

P

LAYING

M

USIC

..................................................................... 15

V

IEWING PHOTOS

................................................................... 17

S

HARE

C

ENTER

.................. E

RROR

!

B

OOKMARK NOT DEFINED

.

F

ILE

E

XPLORER

................. E

RROR

!

B

OOKMARK NOT DEFINED

.

M

ANAGING THIRD PARTY APPLICATIONS

................................ 19

CHAPTER 3 SETTINGS ................................................ 37

iii

EVOLIO SMART TV BOX User

Manual

W

IRELESS

&

NETWORKS

........................................................ 21

S

OUND

................................................................................... 22

D

ISPLAY

................................................................................. 22

S

CREEN

.................................................................................. 22

S

TORAGE

................................................................................ 22

A

PPS

...................................................................................... 22

S

ECURITY

............................................................................... 22

L

ANGUAGE

& I

NPUT

............................................................... 23

B

ACKUP

&

RESET

................................................................... 23

A

DD ACCOUNT

....................................................................... 23

D

ATE

& T

IME

.......................................................................... 23

A

CCESSIBILITY

....................................................................... 23

D

EVELOPER OPTIONS

.............................................................. 23

A

BOUT

D

EVICE

...................................................................... 23

CHAPTER 4 TROUBLESHOOTING .............................. 40

CHAPTER 5 APPENDIX ............................................... 41

U

PGRADING FIRMWARE

..... E

RROR

!

B

OOKMARK NOT DEFINED

.

M

AINTENANCE

....................................................................... 25

P

RODUCT

S

PECIFICATIONS

..................................................... 25

D

ISPOSAL AND

R

ECYCLING

I

NFORMATION

............................. 26

iv

Chapter 1 Basics

EVOLIO SMART TV BOX is a smart TV box based on

Android v4.2.2 operating system. It supports HDTV, network function, and third party software. User can get access to over 450,000 apps, share and enjoy TV shows, movies, music and much more.

Parts and Control

1. DC-In jack

– for connecting power cable to power adapter.

2. LAN port

to connect Ethernet network via RJ45 cable.

3. HDMI port

– to connect HDTV via HDMI cable.

4. USB jack

– for connecting with external USB device.

5. AV jack

– to connect TV/monitor via AV cable.

1

Chapter 1 Basics

6. Standby button

– Press to go to standby or wake-up mode.

7. IR window

–To receive IR signal from IR remote control.

8Memory card slot

– supports SD card

9Status indicator

– blue light for working mode, red light for standby mode.

Remote Control

2

Chapter 1 Basics

STANDBY button

– press to go to standby/wake-up mode

SUB MENU button

– press to display the option menu

SETUP button

– press to enter into settings

PG.UP/DN button

– press to go to previous/next song/video

HOME button

– press to return to home screen

Exit button

– return button, to return the previous screen

Skip button

– press to fast rewind/ fast forward

Zoom button

– press to Zoom in/out

Repeat button

– press to set repeat mode

MUTE button

– press to mute the TV box.

TV OUT button

– press to select TV out mode.

AUDIO button

– press to select Audio mode.

SUBTITLE button

– press to change subtitle.

3

Chapter 1 Basics

BACKSPACE button

– press to delete a character

OK button

– press to confirm the selection

Directional buttons

– press to move the cursor left/right/up/down.

INFO button

– press to display the media file information.

PLAY/PAUSE button

– press to play or pause the playback

Volume button

– press to increase or decrease the volume.

STOP button

– press to stop the playback

APP button

– press to display the main menu

GOTO button

– press to go to the desired playback

Using the remote control

Remove the plastic sheet before using the remote control.

To use the remote control, point the remote control at the IR window located on the unit and press the buttons.

The recommended effective distance for remote operation is about 5 meters.

4

Chapter 1 Basics

Battery Replacement

When the battery become weak, the operating distance is greatly reduced and you will need to replace them.

1. Take out the Lithium battery at the bottom of the unit cover.

2. Insert a new identical Lithium battery.

Note: you can also use the wireless remote control with mouse and keyboard (not included) for quick operation and more control on TV screen.

Power supply

Using the AC adapter

The supplied 5V/2A adapter operates on AC 100-240V,

50/60HZ.

Connect the AC adapter to DC-in jack, and then plug the AC adapter into AC outlet.

Note: While the AC adapter is connected and the unit is on standby, power will still be consumed.

Connections

Connecting to HDTV using HDMI cable

1. Use the HDMI cable to connect the TV box to the

HDTV.

2. Use the AC adapter to connect a suitable wall outlet.

3. Turn on your HDTV.

Connecting to a TV using AV cable

5

Chapter 1 Basics

1. Use the AV cable to connect the unit to TV/Monitor.

2. Use the AC adapter to connect a suitable wall outlet.

3. Turn on your TV.

Connecting to the internet

Wi-Fi connection: if the unit detects Wi-Fi signal, in

Settings < Wi-Fi to set (See page 37) .

LAN connection: connect RJ45 cable, in Settings <

Wireless and network< More < Ethernet to set.

Transferring Contents

From USB Device

The TV box supports USB Mass Storage Device function.

To import contents (video, audio, photo etc) into the

TV box, insert the USB device.

Upon successful connection to TV box, go to [File

Explorer], click to open.

From memory card

This unit supports SD card up to 32 GB

To insert a Memory card

Insert the card correctly with its label facing up until it clicks into the place. You may damage the card and the

TV box if SD card is not inserted correctly.

6

Chapter 1 Basics

To remove SD card, push the card once again until it clicks.

When a SD card is inserted in or ejected from the TV box, it may take few seconds for the TV box to update the content.

Please avoid inserting or ejecting SD card when other operation is running as this may cause the system hang.

Do not remove the card if the content inside the card is being played. This will halt the operation of the TV box and cause the TV box to restart.

7

Chapter 1 Basics

Home screen

When the TV box is turned on, it will enter into the Home screen.

Use the Directional buttons and press OK button or use Wireless Mouse key to press any icon on the home screen to get started.

Press anytime to return to the Home screen.

Uninstalling the apps

Long press on the desired applications icon to show an option menu, select Uninstall (The apps in

APP”  “All” can

’t be uninstalled.).

Setting wallpaper for home screen

Go to the photo folder, then press the desired picture (full screen mode), then Press Set picture as

wallpaper.

Main menu

All application icons are on the Main menu.

On home screen, press the App button on the remote control or on TV screen to show the Main menu.

The Apps main menu is made into a series of categories.

Press

All to show all the applications,

Press

Ungrouped to enter the ungrouped applications list.

Use the Directional buttons and press OK button or use

8

Chapter 1 Basics

Wireless Mouse key to press an desired application icon to launch the application.

Press on remote control or return to home screen.

on TV screen to

Adding icons on category

You can add shortcuts or widgets to the media category.

On Home screen, press the Apps icon

Ungrouped to show all the applications ungrouped, long press on the desired applications icon to show an option menu, select Move to.

Moving icons

Long press on the desired applications icon of the media category to show an option menu, select move to.

Uninstalling the apps

Long press on the desired applications icon to show an option menu, select Uninstall (The apps in

APP”  “All” can

’t be uninstalled.).

Onscreen keyboard

Use the onscreen keyboard to enter text, such as web addresses.

Press on the text field to bring up the keyboard.

Uppercase key Backspace key

Enter key Input options

9

Chapter 1 Basics

Numeric/punctuation/symbol key

10

Chapter 2 Getting Started

Web browser

View a webpage

From Home screen or APPS, press the Browser

icon to open web browser.

On address bar, type the web address and press  or

OK button on the remote control to open the webpage.

Press the link on the webpage to open a new webpage.

Use the Directional buttons to scroll around the webpage.

To return to the previous page, press the Exit or ESC button.

Add bookmark

Press bookmark.

to add the current visited webpage as

Bookmarks List

Press to show bookmarks list, press a bookmark to open the webpage.

Touch and hold the bookmark to display the option menu for bookmark.

History

Access to view history lists. To remove these lists, press Menu then select Clear history.

Settings

11

Chapter 2 Getting Started

Press to use more available function, including

Privacy & security, Accessibility and so on.

Refresh/Stop

Press to refresh on the current page, press X to stop loading the current page.

Forward

Press ←/→ go to previous/next webpage screen.

Using the option menu

Press Menu to display the browser option menu. Press on the desired item to use webpage viewing control.

Watching Videos

Playing videos

On the

Home

screen or APPS, press

VideoVideo folder to open video player.

Drag up and down to scroll through the file list.

Press to select a video file for playback.

Press and hold on the selected video file to delete it.

12

Chapter 2 Getting Started

Controlling Video Playback

When playing video, press Menu button on the remote control to pop up control toolbar.

Play or Pause a video

Play previous/next video

Fast rewind or fast forward

Press

Press

/

/

Press and hold

.

.

/

Skip to any point in a video

Adjust the volume level.

.

Press anywhere or drag the playhead on the progress bar.

Press / or use the buttons on the side of TB2004A.

Adjust brightness screen

Press

13

.

Chapter 2 Getting Started

Adjust the screen size: screen,16:9,4:3 full

Press .

Display video playback menu

Return to the video browser screen

Press

Press .

.

Notices

By default, the bookmark will be added automatically, it allows you to continue playing from the bookmark when you open the video file next time.

Video player supports subtitle file, please load the subtitle file to be displayed on the current video, unless the subtitle is integrated into the video itself.

The TV box supports subtitle of sub, ssa, srt, lrc format,encoded in UTF8 format.

The file name of the subtitle must be identical to that of the video file. The subtitle will be loaded automatically during video playback.

14

Chapter 2 Getting Started

Playing Music

About music library

On the Home screen or APPS, press Music icon to enter into music library.

Sorting by artist Sorting by album

All songs Sorting by Playlist

Return to Now playing screen

Playing songs

1. In music library, press on a desired tab to enter song

15

Chapter 2 Getting Started

list.

2. Press the Directional-up/down button to scroll the song list.

3. Press the desired songs to start playing.

Note: If you want to exit music mode, press to pause, then press Return button or

Controlling Song Playback

.

Pause or play songs.

Press / or press on the remote control.

Stop playback music

Display the music playback menu

Press control.

on the remote

Play previous or next song. level.

Display the current song list

Set shuffle mode

Press

/

remote control.

Press . on the

Fast rewind or fast

Press

/ remote control.

Adjust the volume on the

Press the volume buttons on the remote control.

Press .

Set Repeat mode

Press .

Press Menu button

.

16

Chapter 2 Getting Started

Add the current playing song to playlist

To return to the

Media Library

Press MenuAdd to

playlist.

Press the Return button

.

Using the playlist

Use the playlist to manage the songs in the library

Creating a new playlist

In the music playback screen, press New, and enter the name for the new playlist, then press

Save.

Adding the current song into playlist

In the music playback screen, press .

Press on a desired playlist, then the current song has been added into the selected playlist.

Viewing photos

On the Home screen or APPS, press

Gallery

Photo folder to view photos.

Thumbnail View

17

Chapter 2 Getting Started

Thumbnail view displays the catalog as a table of thumbnail images in adjustable sizes.

Press to start photo slide show, press anywhere on the screen to stop the slide show.

Press on the desired photo to full screen view.

Press and hold the desired photo to select it and press again to deselect.

In thumbnail view mode, press option menu.

to use the

Select item: select multiple photos

Group by : sort the photo list

To delete photo files, press and hold the desired photo, or press  Select item to select the photo to be deleted, then press .

In full screen mode, press view mode.

18

to return to thumbnail

Chapter 2 Getting Started

Start to view photo

Press on the screen to show / hide the control bar.

View the previous / next photo.

Zoom in or zoom out

Press

Directional-right/left button

Press the Zoom button on the remote control.

Edit the picture Press

 Edit

Set the photo as wallpaper Press  Set

Picture as wallpapter.

Share the photo with others.

Return to thumbnail mode.

Press .

Press the Return button.

Managing third party applications

This unit support third party applications (such as Game applications, etc.), you can install or uninstall applications for the system.

Download and install the application.

1. Download the desired applications into your computer.

19

Chapter 2 Getting Started

2. Copy the downloaded applications to the unit via USB device (you can also download the desired applications from the browser in your device.).

Note: The system only supports XXX.apk format applications to be installed.

3. From Main menu, press

SettingsSecurityunknown source.

4. In file explorer, find the directory where the application is placed to press to start the installation.

5. After finishing the installation, you will see the

Applications on the Main menu.

Uninstall application

1. From the Main menu, then press Settings Apps.

2. Press the application you desire to uninstall, then press

Uninstall.

Note:The default applications can’t be uninstalled from the unit.

20

Chapter 3 Settings

From Home screen or Main menu, press Settings tab

Settings icon, then press the desired items to be configured to start the Setting.

Wireless & networks

The Wi-Fi settings allow you manage networks, such as turn Wi-Fi on and join Wi-Fi networks.

Turn on Wi-Fi: From Home screen, choose Settings

Wireless & networksWi-Fi, and press the other end next to

OFF”. Then “ON” will appear when you have turned on the Wi-Fi.

Join a Wi-Fi network: From the detected network list, select a network, if necessary, enter a password and press "Connect" to save the settings for the encrypted connection and connect to Wi-Fi. (Networks that require a password appear with a lock icon).

Select

show advanced option” to show more network control options.

If more than one previously used network is in range,EVOLIO SMART TV BOX joins the one last used.

When EVOLIO SMART TV BOX is connected to a Wi-Fi network, the

Wi-Fi icon at the bottom of the screen shows connection strength.

Press Ethernet to use Ethernet network, then configure the Ethernet settings, such as static IP settings etc..

Press More to use more wireless network control including VPN, PPPOE settings, Portable hotspot, Mobile

21

Chapter 3 Settings

networks.

Sharing a Data Connection as a Portable Wi-Fi

Hotspot

1. From home screen or Main menu, press Settings

More portable hotspot.

2. If you select Portable Wi-Fi hotspot to share a data connection, you can press Set up Wi-Fi hotspot to configure portable Wi-Fi hotspots.

Sound

Customize the sound settings, including Volumes,

Default notification, Click sounds, Screen lock sound and

Audio output mode.

Display

Customize the display settings, including the setting for

Font size, and so on.

Screen

Customize the screen settings, including screen Scale,

Output interface, HDMI mode.

Storage

View the memory status of SD card and internal storage,

USB device, enable media scanning feature.

Apps

Allows you to manage the applications sorted by download, On SD card, Running and All.

Security

Allows you to set Device administration and Credential storage.

22

Chapter 3 Settings

Language & Input

Set region and language, text input methods.

Backup & reset

Allows you to backup account, app data, Wi-Fi passwords, and other settings to Google servers.

Additionally, this item helps restore the EVOLIO SMART

TV BOX system to factory settings.

Add account

Add an account of Email or google to let you access all your stuff( photo etc.) from EVOLIO SMART TV BOX .

Date& Time

Set date, time, time zone and display format.

Accessibility

Allows you to install web scripts, set large text, touch and hold delay and so on.

Developer options

Helps you manage the EVOLIO SMART TV BOX system, such as USB debugging, Development device ID, Allow mock locations, HDCP checking and so on.

About Device

Display the information about EVOLIO SMART TV BOX, such as legal information, model number, firmware version, Build number and so on.

23

Chapter 4 Troubleshooting

Power on the TV box, but TV detects no signal

Make sure the HDMI /AV cable is securely connected firmly. Make sure the TV is selected for the correct

HDMI/AV port.

Can

’t power on the TV box

Make sure the power adapter is correctly plugged, if the unit is powered on, the status indicator at the front panel will lights in red.

Can

’t connect to Wi-Fi or Ethernet network

Make sure you have connected to Wi-Fi network or

Ethernet network, check whether the network has been successfully encrypted password.

TV display is not in full screen size

Please check the display settings.

24

Chapter 5 Appendix

Maintenance

If TV box does get wet, turn off TV box immediately.

Wait for TV box to dry completely before turning on again.

Clean the unit with a soft and dry cloth; be careful not to wipe it with anything abrasive.

Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. Do n’t use compressed air to remove dust.

If TV box needs service, please consult the authorized dealer through the contact information provided in the warranty card. Faulty service may void the warranty.

Product Specifications

System Properties

Operating System: Android 4.2.2

Processor: A20

Architecture: ARM Cortex-A7, Dual-Core

Speed: 1.2GHz

RAM Memory: DDR3 1G

Storage memory

Built in memory: 4GB

Supports SD card: up to 32GB

Media File Format supported

Audio: MP3, WMA, AAC, WAV, OGG

Photo: JPG, BMP, GIF, PNG

Video: MKV/ISO/VOB/RMVB/Divx

25

Chapter 5 Appendix

Connectivity

Data transfer: USB 2.0 High Speed

Audio: phone jack (L/R Stereo audio ),SPDIF,HDMI1.4

LAN : RJ45 (10/100MB)

Wireless connectivity

Wi-Fi : Built-in, 802.11b/g/n

Power supply

DC 5.0V, 2.0A

Physical properties

Dimension:160*145*33mm

Weight:171G

※ Design and specifications are subject to change without prior notice.

Disposal and Recycling Information

Your TV box must be disposed of properly according to local laws and regulations. When your TV box reaches its end of life, contact your local authorities to learn about recycling options.

Because the remote control contains a battery, it must be disposed of separately from household waste.

Battery Replacement:

The battery in remote control should be replaced only by an authorized service provider.

This symbol on the product or in the instruction means that your electrical or electric equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU, For more information,

26

Chapter 5 Appendix

please contact the local authority or your retailer where you purchased the product.

27

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
