S964A Product Information

S964A Product Information
Surface Treatment
Colour
Size
Type
Resolution
Colours
Pixel Pitch
Contrast Ratio
Brightness
Horizontal Viewing Angle
Vertical Viewing Angle
Response Time
Horizontal Scan
Vertical Refresh
Modes and Timing Compatibility

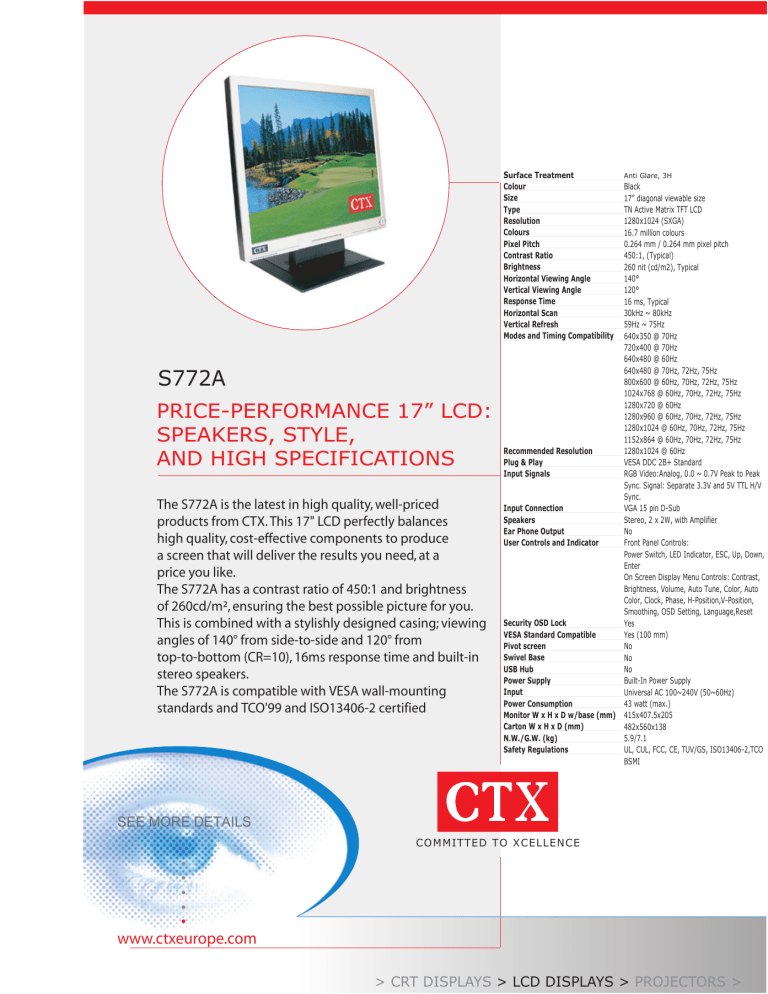

S772A
PRICE-PERFORMANCE 17” LCD:
SPEAKERS, STYLE,
AND HIGH SPECIFICATIONS
The S772A is the latest in high quality, well-priced
products from CTX. This 17" LCD perfectly balances
high quality, cost-effective components to produce
a screen that will deliver the results you need, at a
price you like.
The S772A has a contrast ratio of 450:1 and brightness
of 260cd/m², ensuring the best possible picture for you.
This is combined with a stylishly designed casing; viewing
angles of 140° from side-to-side and 120° from
top-to-bottom (CR=10), 16ms response time and built-in
stereo speakers.
The S772A is compatible with VESA wall-mounting
standards and TCO'99 and ISO13406-2 certified
Anti Glare, 3H
Black
17” diagonal viewable size
TN Active Matrix TFT LCD
1280x1024 (SXGA)
16.7 million colours
0.264 mm / 0.264 mm pixel pitch
450:1, (Typical)
260 nit (cd/m2), Typical
140°
120°
16 ms, Typical
30kHz ~ 80kHz
59Hz ~ 75Hz
640x350 @ 70Hz
720x400 @ 70Hz
640x480 @ 60Hz
640x480 @ 70Hz, 72Hz, 75Hz
800x600 @ 60Hz, 70Hz, 72Hz, 75Hz
1024x768 @ 60Hz, 70Hz, 72Hz, 75Hz
1280x720 @ 60Hz
1280x960 @ 60Hz, 70Hz, 72Hz, 75Hz
1280x1024 @ 60Hz, 70Hz, 72Hz, 75Hz
1152x864 @ 60Hz, 70Hz, 72Hz, 75Hz
Recommended Resolution
1280x1024 @ 60Hz
Plug & Play
VESA DDC 2B+ Standard
Input Signals
RGB Video:Analog, 0.0 ~ 0.7V Peak to Peak
Sync. Signal: Separate 3.3V and 5V TTL H/V
Sync.
Input Connection
VGA 15 pin D-Sub
Speakers
Stereo, 2 x 2W, with Amplifier
Ear Phone Output
No
User Controls and Indicator
Front Panel Controls:
Power Switch, LED Indicator, ESC, Up, Down,
Enter
On Screen Display Menu Controls: Contrast,
Brightness, Volume, Auto Tune, Color, Auto
Color, Clock, Phase, H-Position,V-Position,
Smoothing, OSD Setting, Language,Reset
Security OSD Lock
Yes
VESA Standard Compatible
Yes (100 mm)
Pivot screen
No
Swivel Base
No
USB Hub
No
Power Supply
Built-In Power Supply
Input
Universal AC 100~240V (50~60Hz)
Power Consumption
43 watt (max.)
Monitor W x H x D w/base (mm) 415x407.5x205
Carton W x H x D (mm)
482x560x138
N.W./G.W. (kg)
5.9/7.1
Safety Regulations
UL, CUL, FCC, CE, TUV/GS, ISO13406-2,TCO
BSMI
SEE MORE DETAILS
COMMITTED TO XCELLENC E
• • • • •
www.ctxeurope.com
