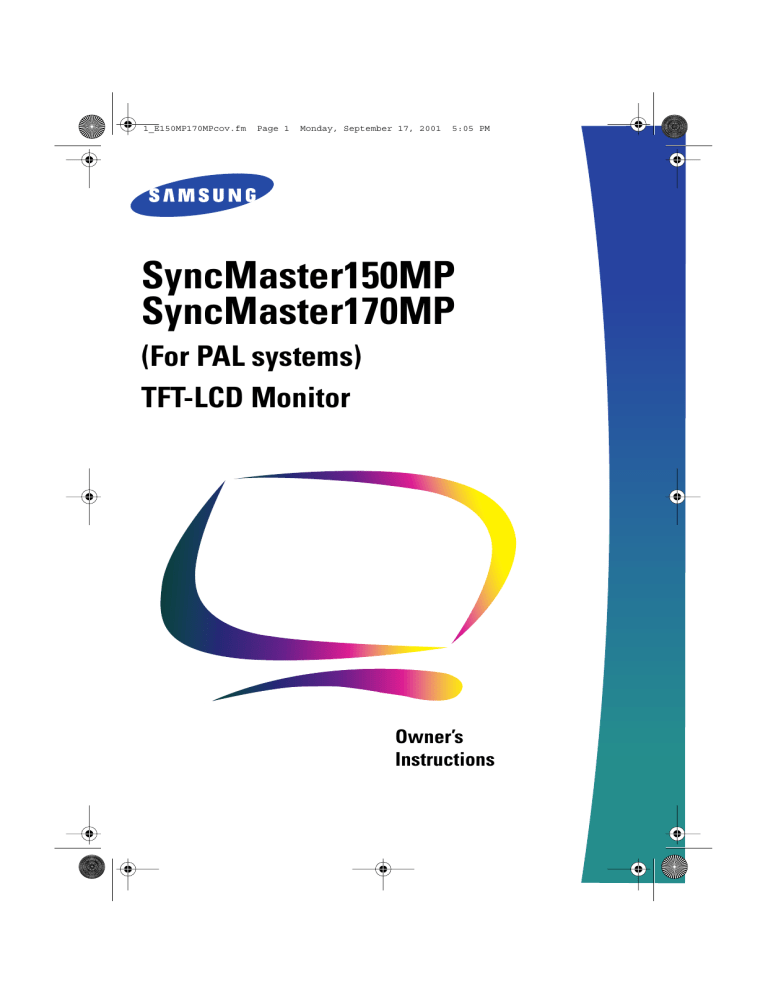

1_E150MP170MPcov.fm
Page 1
Monday, September 17, 2001
5:05 PM
SyncMaster150MP
SyncMaster170MP
(For PAL systems)
TFT-LCD Monitor
Owner’s
Instructions
1_E150MP170MPcov.fm
Page 2
Monday, September 17, 2001
5:05 PM
For Better Display
1. Adjust computer resolution and screen injection rate (refresh rate) in control panel of
computer as described below to enjoy the best quality of picture. You can have an uneven
quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.
• Resolution: 15” 1024 x 768
• Vertical frequency (refresh rate): 60 Hz
17” 1280 x 1024
2. TFT LCD panel manufactured by using advanced semiconductor technology with precision
of 99.999% above is used for this product. But the pixels of RED, GREEN, BLUE and
WHITE color seem to be bright sometimes or some of black pixels could be seen. This is
not from bad quality and you can use it without uneasiness.
• For example, the no. of TFT LCD pixels that is contained in this product are
2,359,296 (15”), 3,932,160 (17”).
3. When you clean the monitor and the panel outside, please apply the recommended small
amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced
but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.
4. If you are not satisfied with the quality of picture, you can get better quality of picture by
executing "auto adjustment function" in display screen that is appeared as window
termination button is pressed. If there's still noise after automatic adjustment, use FINE/
COARSE adjustment function.
Information in this document is subject to change without notice.
© 2001 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
The Samsung logo and SyncMaster are registered trademarks of Samsung Electronics Co., Ltd.;
Microsoft, Windows® and Windows® NT are registered trademarks of Microsoft Corporation; VESA,
DPMS and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR
name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an
ENERGY STAR Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY
STAR guidelines for energy efficiency. All other product names mentioned herein may be the trademarks
or registered trademarks of their respective owners.
Portu-
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unpacking Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting up Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up an Ergonomic Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Monitor Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Workstation Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Viewing Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the Video Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Self-Test Feature Check (STFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warm-up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Direct-Access Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
OSD Lock/Unlock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ON-Screen Display (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
OSD Functions and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
By Remote-Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Display Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing VESA Compliant Mounting Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Wall Mount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Retractable Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance of Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Attaching a Wall or Arm Mounting Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside back cover
Customer Service / Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Français
Table of Contents
English
3:55 PM
Deutsch
Wednesday, September 19, 2001
Español
Page 1
Italiano
2_E150MP170MPtoc.fm
English
1
3_E150MP170MPsaf.fm
Page 2
Wednesday, September 19, 2001
3:57 PM
Safety Instructions
1
2
3
4
5
Before connecting the AC power cord to the DC adapter outlet, make sure the voltage
designation of the DC adapter corresponds to the local electrical supply.
Never insert anything metallic into the cabinet openings of the liquid cristal display (LCD)
monitor; doing so may create the danger of electric shock.
To avoid electric shock, never touch the inside of the LCD monitor. Only a qualified
technician should open the case of the LCD monitor.
Never use your LCD monitor if the power cord has been damaged. Do not allow anything to
rest on the power cord, and keep the cord away from areas where people can trip over it.
Be sure to hold the plug, not the cord, when disconnecting the LCD monitor from an
electric socket.
6
Openings in the LCD monitor cabinet are provided for ventilation. To prevent overheating,
these openings should not be blocked or covered. Also, avoid using the LCD monitor on a
bed, sofa, rug, or other soft surface. Doing so may block the ventilation openings in the
bottom of the cabinet. If you put the LCD monitor in a bookcase or some other enclosed
space, be sure to provide adequate ventilation.
Put your LCD monitor in a location with low humidity and a minimum of dust.
7
8
9
10
11
12
13
14
Do not expose the LCD monitor to rain or use it near water (in kitchens, near swimming
pools, etc.). If the LCD monitor accidentally gets wet, unplug it and contact an authorized
dealer immediately. You can clean the LCD monitor with a damp cloth when necessary, but
be sure to unplug the LCD monitor first.
Place the LCD monitor on a solid surface and treat it carefully. The screen is made of thin
glass with a plastic front surface and can be damaged if dropped, hit or scratched. Do not
clean the front panel with keton-type materials (e.g., acetone), ethyl alcohol, toluene, ethyl
acid, methyl, or chloride – these may damage the panel.
Locate your LCD monitor near an easily accessible AC outlet.
If your LCD monitor does not operate normally – in particular, if there are any unusual
sounds or smells coming from it – unplug it immediately and contact an authorized dealer
or service center.
High temperature can cause problems. Don’t use your LCD monitor in direct sunlight, and
keep it away from heaters, stoves, fireplaces, and other sources of heat.
Unplug the LCD monitor when it is going to be left unused for an extended period of time.
Unplug your LCD monitor from the AC outlet before any service.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
English
2
4_E150MP170MPbody.fm
Page 3
Wednesday, September 19, 2001
2:54 PM
Unpacking Your Monitor
Please make sure the following items are included with your monitor. If any items are missing,
contact your dealer.
Installation CD
(Not available in all locations)
Power Cord
15-pin D-Sub Signal Cable
Warranty Card
(Not available in all locations)
DC Adapter
SyncMaster 150MP
PC V1 V2 TV
Manual
Source
PIP
Exit
Menu
Batteries
(AAA x 2)
VOL
Monitor
1
Scart Jack
CH
2
Stereo-RCA Cable
(option)
3
6
4
5
7
8
9
Display
0
Pre.CH
Stereo-Stereo Cable
Remote Controller
English
3
PAL-NTSC Connector
(option)
4_E150MP170MPbody.fm
Page 4
Wednesday, September 19, 2001
2:54 PM
Setting up Your LCD Monitor
Setting up an Ergonomic Workstation
Consider the advice given below before you install your monitor.
Monitor location
Choose a position that exposes your monitor to the least reflection from lights or windows,
usually at a right angle to any window.
Workstation height
Place your LCD monitor so that the top of the screen is slightly below your eye level when you
are comfortably seated.
Viewing angle
Tilt the screen until you feel comfortable working with your monitor.
Figure 1. Tilt the screen
Kensington Security Slot
This monitor offers you the opportunity to secure your monitor using a Kensington-type security device. Kensington lock is not included. Refer to your locking device documentation for installation instructions.
Figure 2. Kensington-type security slot location
English
4
4_E150MP170MPbody.fm
Page 5
Wednesday, September 19, 2001
2:54 PM
Setting up Your LCD Monitor
Connecting Your LCD Monitor
IN
1
2
3
4
OUT
5
6
7
DVD or VCR
Figure 3. Cable connections
1
Connect the power cord to the DC adapter and connect the adapter jack to the DC12V
power port on the back of your monitor.
2
3
4
Connect the signal cable to the video port on your computer.
Connect the RCA cable or S-VHS cable to your DVD, VCR or camcoder.
(RCA cable and S-VHS cable not included)
Connect the audio sources(computer, DVD, VCR or Camcoder) to proper Audio input
ports(Ain(L), Ain(R) or Ain(stereo)).
5
6
7
8
9
If necessary, install the video driver for the monitor. (See “Installing the video driver”
on page 6)
10
After your monitor has been fully installed successfully, run Auto-Adjustment.
(See page12)
Connect your external audio system to the Line-out port.
Connect your headphone to the Headphone-out port.
Connect antenna or CATV cable to “Antenna” port.
Turn on both your computer and the monitor.
English
5
4_E150MP170MPbody.fm
Page 6
Wednesday, September 19, 2001
2:54 PM
Setting up Your LCD Monitor
Plug and Play
The adoption of the new VESA® Plug and Play solution eliminates complicated and time consuming setup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. Your PC system can easily identify and configure itself
for use with your display. This monitor automatically tells the PC system its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the PC system can
automatically configure itself to use the flat panel display. If your PC system needs a video
driver, follow the instructions given below according to the operating system your computer
uses.
Installing the Video Driver
The CD that accompanies this product contains the necessary drivers for installing your monitor. Please refer to the driver installation instructions included with your CD package for more
information.
Self-Test Feature Check (STFC)
Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. Make sure that PC is selected as a primary source by checking if the source indicator
LED labeled “PC” is on. If your monitor and computer are properly connected but the monitor screen
remains dark and the power indicator is blinking, run the monitor self-test by following the steps
given below:
Power Indicator
Figure 4. Power Indicator
1
2
3
Turn off both your computer and the monitor.
Unplug the video cable from the back of the computer.
Turn on the monitor.
English
6
4_E150MP170MPbody.fm
Page 7
Wednesday, September 19, 2001
2:54 PM
Setting up Your LCD Monitor
If the monitor is functioning properly, you will see a white box with a large blue oval Samsung
logo and an error messsage “Check Signal Cable.” in red color.
Check Signal Cable
Figure 5. Monitor self-test screen
This box also appears during normal operation if the video cable becomes disconnected or
damaged.
4
Turn off your monitor and reconnect the video cable; then turn on both your computer and
the monitor.
If your monitor screen remains blank after following the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Getting Help
If your monitor does not display an image, check your cable connections and refer to
"Troubleshooting" on page 22. If you experience difficulties with the quality of the displayed
image, run Auto Adjustment (see page 12) and refer to "Adjusting Your LCD Monitor" on page
8 or "Troubleshooting" on page 22.
Warm-up Time
All LCD monitors need time to become thermally stable whenever you turn on the monitor after letting the monitor be turned off for a couple of hours. Therefore, to achieve more accurate
adjustments for parameters, allow the LCD monitor to warm (be on) for at least 20 minutes
before making any screen adjustments.
English
7
4_E150MP170MPbody.fm
Page 8
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
User Controls
Your LCD monitor allows you to easily adjust the characteristics of the image being displayed.
All of these adjustments are made using the control buttons on the front of the monitor. While
you use these buttons to adjust the controls, an on-screen menu shows you their numeric
values as they change.
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
VOL
* 17" : SyncMaster 170MP
Figure 6. User control locations
No.
Name
Description
■
1
Source
■
■
2
PIP
■
■
■
3
Exit
■
■
4
Menu
Power
Activates PIP(Picture-in-Picture) window
directly.
PIP to Fullscreen video.
PIP off.
Exits from menus and sub-menus.
Exits from the OSD system.
Turns the PIP off.
■
Opens the OSD and selects the highlighted
function.
■
Turns ON/OFF the monitor.
Indicates the status of the monitor.
-Green : Normal Operation.
-Amber : Power Saving Mode or Disconnected
Signal Cable.
■
5
Selects Video source.
Four source indicator LEDs on the left of the
control button indicate currently active Video
source.
English
8
4_E150MP170MPbody.fm
Page 9
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
No.
Name
Description
■
Moves the selector up or down on the OSD.
■
Increases or decreases the channel number.
■
Moves the selector left or right on the OSD.
Increases or decreases the values of the
selected function.
6
- CH +
■
7
- VOL +
■
Increases or decreases the level of audio
volume.
Automatic Save
Whenever you open the on-screen menu and allow an adjustment window to remain active
for about 3 seconds without pressing other buttons, the monitor automatically saves any
adjustment you have made. These changes are saved into a user area in the monitor.
The monitor can save adjustments for up to 5 user modes. It has 9 for 150MP (11 for 170MP )
factory preset or preload modes, one for each signal frequency as listed in table 7 on page 28.
If you have made no adjustments, the on-screen menu disappears and the monitor does not
save anything.
English
9
4_E150MP170MPbody.fm
Page 10
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Direct-Access Features
While you are watching full screen TV or in PIP mode
P_
Program
Valid only after performing "Channel auto program".
When OSD is not on the screen, push the "
" or
" " button to select program channel number.
1
Push the "
number.
2
Push the " " button to increase the
channel number.
" button to decrease channel
When OSD is not on the screen, push the "
" " button to adjust volume.
Volume
50
1
2
Push the "
volume.
Push the "
volume.
" or
" button to decrease the
" button to increase the
OSD Lock/Unlock
This function allows you to secure the current settings so that they cannot be inadvertently
changed, while still allowing you to adjust the Brightness, Contrast, Channel, and Volume.
You can unlock the OSD controls at any time by using the same procedure.
With the OSD screen off, push and hold the Menu button for at least 5 seconds to lock or
unlock the controls. When locked, a 'LOCKED!' message will be displayed along the bottom of
each OSD menu except for these screens :
• Brightness
• Contrast
• Channel
• Volume
English
10
4_E150MP170MPbody.fm
Page 11
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
ON-Screen Display(OSD)
Function icons
AUTO
AUTO ADJUSTMENT
Function name
Setting bar
Tool Tip
Auto Adjustment
Press Menu Key
Figure 7. On-Screen Display(OSD)
Accessing the menu system
1
2
3
4
5
With the OSD off, push the Menu button to display the main OSD menu.
Use the "
" buttons to move from one function to another. As you move
from one icon to another, the function name changes to reflect the function or group of
functions represented by that icon. See Table 1 starting on the next page to view a
complete list of all of the functions available for the monitor.
Press the Menu button once to activate the highlighted function, then follow the Tool
Tips to select the function and adjust the value.
Use " " and " " buttons to select the sub-menu, and press the Menu button once
to activate the selected sub-menu.
After selecting a function, use the "
" and "
" buttons to make necessary
adjustments. The setting bar moves and the numeric value indicator changes to reflect
your adjustments.
NOTE: The numeric value indicator is provided as a point of reference only and has
nothing to do with a real measurement.
6
Push the Exit button a couple of times to return to the main menu to select another
function or to exit from the OSD.
English
11
4_E150MP170MPbody.fm
Page 12
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
OSD functions and adjustments
Table 1. Screen controls
Icon
Menus and
Sub-menus
Function Descriptions
Auto Adjustment
"Auto adjustment" allows the monitor to self-adjust to
the incoming video signal. The values of fine, coarse
and position are adjusted automatically.
AUTO
Contrast
SyncMaster 150MP
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
SyncMaster 150MP
VOL
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
VOL
Brightness
SyncMaster 150MP
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
SyncMaster 150MP
VOL
PC V1 V2 TV
Image Lock
Source
PIP
Exit
Menu
CH
VOL
Image Lock is used to fine tune and get the best image
by removing noises that creates unstable images with
jitters and shimmers.
English
12
4_E150MP170MPbody.fm
Page 13
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
■
■
Fine
Coarse
The Fine and Coarse adjustments allow you to fine tune
the image quality of your monitor to your preference.
Use the "
" and " " buttons to remove any noise.
If satisfactory results are not obtained using the Fine
adjustment, use the Coarse adjustment and then use
Fine again.
This function may change the width of the image. Use
the H-Position menu to center the image on the screen.
When Fine value is wrong.
When Coarse value is wrong.
■
Information
Display current display mode.
■
Reset
Image lock and position parameters are replaced with the
factory default values.
H-Position
SyncMaster 150MP
SyncMaster 150MP
PC V1 V2 TV
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
Source
PIP
Exit
Menu
CH
VOL
Source
PIP
Exit
Menu
CH
VOL
VOL
V-Position
SyncMaster 150MP
PC V1 V2 TV
Source
PIP
Exit
Menu
CH
SyncMaster 150MP
VOL
PC V1 V2 TV
English
13
4_E150MP170MPbody.fm
Page 14
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
Color
The tone of color can be changed from redish white to
bluish white. The individual color components are also
user customizable.
■
Mode1
Redish white.
■
Mode2
Plain white.
■
Mode3
Bluish white.
■
User Mode
User customizable.
■
Reset
Color parameters are replaced with the factory default
values.
PIP(Picture-inPicture)
When external A/V devices such as VCR, DVD or
RF(TV)cable are connected to the monitor, PIP allows
you to watch video from such devices in a small window
super-imposed on pc video signal.
■
Size
Resize PIP window.
■
Position
Change PIP window position.
TV Setup
■
*Channel system
The channel system can be set in several different ways.
Select a channel system that is being used in your region.
(See "PAL broadcasting systems" on page 29)
CCIR
AUSTRALIA
Upon selecting a channel system, you will be asked if
you want to perform "Channel auto program ". Select
"OK " to perform the "Channel auto program " or select
"Cancel" to select different channel system.
* According to our R&D Lab test result, "Channel auto program" usually takes around 8 minutes to scan 70 channels. The scanning can be longer or shorter depending on the number of
channels .
English
14
4_E150MP170MPbody.fm
Page 15
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
■
Manual Tune
Due to the weak signals or a wrong antenna
configuration, some of the channels may not be tuned
correctly or there could be a mismatch of the channel
number between a Real channel and a Program channel.
Use this menu to fine tune and perform necessary
corrective actions.
• Program : Program numbers are given in a
sequential manner based on the search order of
Channel Auto Program.
• Channel: Channel numbers are given according to
the CCIR or Australia standard channel table.
• Save
- Use
buttons to fine tune the picture quality
and then select "Save"menu. Now press "Menu"
button to save the fine tuned channel.
• Add
- Use this function to add a real channel.
- Use
buttons to select a desired channel and
then select "Add" menu. Now press "Menu" button
to add the channel.
• Cancel
- Use this menu to undo the current job.
■
Stereo System
• In most of the cases, stereo system is automatically
detected. But, in case you are experiencing audio
problem, use this menu to manually select the stereo
system. Currently selected stereo system is
highlighted and you can change the stereo system
manually. Use
buttons to select a stereo system.
B/G
B/G
I
D/K
English
15
A2
NICAM
NICAM
NICAM
4_E150MP170MPbody.fm
Page 16
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
■
Channel Sort
Channel order can be re-arranged by this menu. If you
want to place P5 before P2, see the example below.
Example) from : P5
to : P2
Before: P1
P2
New:
[ P1
P1
P5
P2
P3
P4
P5
P2
P3
P3
P4
P4 ]
P5
■
Store
Select "store" menu to save the adjustment.
■
Channel Delete
Select a channel you wish to delete by using the " From"
menu, them select "Channel Delete" to delete the
selected channel.
Video Control
This funtion is active if you select an input source other
than PC.(DVD,VCR,TV)
■
Contrast
Adjust the contrast of video or TV without affecting PC
RGB’s contrast.
■
Brightness
Adjust the brightness of video or TV without affecting
PC RGB’s brightness.
■
Sharpness
Adjust the sharpness of video or TV image.
■
Color
Change the richness of color.
English
16
4_E150MP170MPbody.fm
Page 17
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
Audio Control
The monitor has a built-in high fidelity stereo audio
amplifier. The audio circuit processes audio signal from
various external input sources such as DVD, VCR, TV or
PC.
■
Source Select
Selects a sound source from PC, DVD, VCR or TV.
■
Bass
Bass: Emphasize low frequency audio.
■
Treble
Treble: Emphasize high frequency audio.
■
Speaker mute
Mutes the sound temporarily.
NOTE: Mute is released when you change channel,
adjust volume, activate PIP or access MTS menu via
either the monitor or the remote controller.
Image Size
The size of the image being displayed can be handled
in several different ways.
■
Expand1
Resize the image to fill the whole screen.
(applicable to PC RGB only : 150MP)
(applicable to both PC RGB and video : 170MP)
■
Expand2
Expand images keeping the original aspect ratio.
(applicable to PC RGB only : 150MP)
(applicable to both PC RGB and video : 170MP)
■
Normal
Display the incoming image as it is.
(applicable to PC RGB only : 150MP)
(applicable to both PC RGB and video : 170MP)
■
Zoom
The image can be magnified up to 64 times larger than
the original image. The enlarged image can also be
panned.
■
Pan
Move the zoomed image horizontally and vertically.
English
17
4_E150MP170MPbody.fm
Page 18
Wednesday, September 19, 2001
2:54 PM
Adjusting Your LCD Monitor
Table 1. Screen controls (Continued)
Function Descriptions
Menus and
Sub-menus
Icon
Image Effect
Timer
OSD Control
Image being displayed can be made softer or sharper.
• Sharpen more
• Sharpen
• Medium
• Soften
• Soften more
The monitor system will turn off automatically if one of
three time intervals is selected.
30 min.
60 min.
120 min.
OSD language and appearence can be changed.
■
Language
English
Deutsch
Español
Français
Italiano
Svenska
■
Position
Move the OSD Window to the vertical and horizontal
direction.
■
Halftone
Change the opaqueness of the background of the OSD.
■
Duration
The number of seconds that the OSD will remain visible
before disappearing.
■
Beep
Enables or Disables the sound generated when you
touch the control buttons.
English
18
4_E150MP170MPbody.fm
Page 19
Wednesday, September 19, 2001
2:54 PM
Appendix
By Remote-Control
Source
• PC
• V1
• V2
• TV
Power
On/Off
PIP
• PIP on
• Full screen
Turn on the OSD
PIP Off
• PIP
PC
• Full(PIP)
PC
PIP Position
Display setup information
(Channel,Stereo/Mono/Dual)
Turn off the OSD, PIP
1
2
3
4
5
6
7
8
9
Display
0
Pre.CH
Numeric keypads for
direct channel access.
Previous channel
Sound mute
Channel search
Caption
Volume
Channel
MTS-mode (USA)
or S-mode (Europe)
English
19
4_E150MP170MPbody.fm
Page 20
Wednesday, September 19, 2001
2:54 PM
Appendix
■
Features that can only be accessed via remote controller
Display
Shows a current channel number and an audio type on the upper right
corner of the screen.
P12
Stereo
MTS/S-Mode
You can set the audio mode by using this button. When you press this
button, current audio mode is displayed on the lower left corner of the screen
Stereo
Note) SyncMaster150/170MP have an automatic stereo detection
feature. Thus, depending on the types of audio, the monitor
automatically changes their audio mode from Mono to Stereo or vice
versa.
Audio Type
FM Stereo
MTS/S-Mode
Mono
Mono
Stereo
Mono
Stereo
Dual
Dual1
Dual2
Mono
Mono
Stereo
Mono
Dual
Mono Dual1 Dual2
Default
Automatic Change
NICAM
Dual1
Automatic Change
English
20
Stereo
Dual1
4_E150MP170MPbody.fm
Page 21
Wednesday, September 19, 2001
2:54 PM
Appendix
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a
certain period of time. The available modes are “On”, “Standby”, “Sleep”, and “Deep Sleep”.
PowerSaver operates with a VESA DPMS compliant video card installed in your computer. You
use a software utility installed on your computer to set up this feature. See Table 2 below for
details.
Table 2. Power-saving modes
Power-Saving Function mode (EPA/NUTEK)
State
Normal
Operation
Standby Mode
Sleep Mode
Position A1
Deep Sleep Mode
Position A2
Horizontal Sync
Vertical Sync
Video
Active
Active
Active
Inactive
Active
Blanked
Active
Inactive
Blanked
Inactive
Inactive
Blanked
Power
Indicator
Green
Amber
Amber Blinking Amber Blinking
(0.5 sec interval) (1 sec interval)
Power
Consumption
150MP :
33W (Max.)
170MP :
52W (Max.)
Less than 3W
Less than 3W
Less than 3W
NOTE: This monitor automatically returns to normal operation when horizontal and vertical
sync return. This occurs when you move the computer’s mouse or press a key on the
keyboard.
This monitor is EPA ENERGY STAR® compliant and NUTEK compliant when used with a
computer equipped with VESA DPMS functionality.
For energy conservation, turn your monitor OFF when you are not using it or when leaving it
unattended for long periods.
English
21
4_E150MP170MPbody.fm
Page 22
Wednesday, September 19, 2001
2:54 PM
Appendix
Troubleshooting
If you have a problem setting up or using your LCD monitor, you may be able to solve it
yourself. Before contacting customer service, try the suggested actions that are appropriate
to your problem.
Table 3. Troubleshooting – Image
What you see...
Suggested Actions
Reference
Screen is blank and
power indicator is off
■
Ensure that the power cord is
firmly connected and the LCD
monitor is on.
Connecting your LCD
monitor, page 5.
“ Check Signal Cable”
message
■
Ensure that the signal cable is
firmly connected to the PC or
video sources.
Ensure that the PC or video
sources are turned on.
Connecting your LCD
monitor, page 5.
Check the maximum resolution
and the frequency of the video
adaptor.
Compare these values with the
data in the Display Modes
Timing Chart.
Display Modes, page 28.
■
“Sync. Out of Range”
message
■
■
The image is too light
or too dark
■
Adjust the Brightness and
Contrast.
Brightness, page 12.
Contrast, page 12.
Horizontal bars appear
to flicker, jitter or
shimmer on the image
■
Adjust the Fine function.
Image Lock, Fine,
page 12 ~13.
Vertical bars appear to
flicker, jitter or
shimmer on the image.
■
Adjust the Coarse function and
then adjust the Fine function.
Image Lock, Coarse,
page 12~13.
Image Lock, Fine,
page 12~13.
English
22
4_E150MP170MPbody.fm
Page 23
Wednesday, September 19, 2001
2:54 PM
Appendix
Table 3. Troubleshooting – Image (Continued)
What you see...
Suggested Actions
Screen is blank and
power indicator light is
steady amber or blinks
every 0.5 or 1 seconds
■
Image is not stable and
may appear to vibrate
Reference
The monitor is using its power
management system.
Move the computer’s mouse or
press a key on the keyboard
Power Saver, page 21.
■
Check that the display
resolution and frequency from
your PC or video board is an
available mode for your monitor.
On your computer check: Control
Panel, Display, Settings
Display Modes, page 28.
■
If the setting is not correct, use
your computer utility program to
change the display settings.
Installing the Video Driver,
page 6.
■
NOTE: Your monitor supports multiscan display functions within
the following frequency domain:
■
Horizontal frequency:
150MP : 30 kHz – 69 kHz
170MP : 30 kHz – 81kHz
■
Vertical frequency:
56 Hz – 85 Hz
■
Maximum refresh rate:
150MP: 1024 x 768 @ 85 Hz
170MP: 1280 x 1024 @ 76Hz
Image is not centered
on the screen.
■
Adjust the horizontal and
vertical position.
H-Position, page 13.
V-Position, page 13.
You need the monitor
driver software
■
Download the driver from WWW
pages:
http://samsungelectronics.com/
support/downloads/monitor/
index.html
English
23
4_E150MP170MPbody.fm
Page 24
Wednesday, September 19, 2001
2:54 PM
Appendix
Table 4. Troubleshooting – Audio and TV
Problem
No sound
Suggested Actions
Reference
■
Ensure that the audio cable is firmly
connected to both the audio-in port
on your monitor and the audio–out
port on your sound card.
Connecting your LCD
Monitor, page 5.
■
Check the volume level
Audio Controls, page 17.
■
Check the volume level
Audio Controls, page 17.
■
If the volume is still too low after
turning the control to its maximum,
check the volume control on the
computer sound card or software
program.
Refer to your computer,
sound card or software
documentation.
Sound is too high
pitched or too
low pitched
■
Adjust the Treble and Bass to
appropriate level.
Audio Controls, page 17.
TV signal is not
received
■
Check “Channel system” and make
sure you choose the correct channel
system.
Select “Channel auto program” to
configure the channel system
automatically.
See "PAL broadcasting
systems" on page 29.
Sound level is
too low
■
English
24
4_E150MP170MPbody.fm
Page 25
Wednesday, September 19, 2001
2:54 PM
Appendix
Specifications
Table 5. Technical and environmental specifications
150MP
Panel
* Frequency
Size
Display Size
Type
Pixel pitch
Viewing Angle
170MP
15.0” Diagonal
304.1 (H) x 228.1 (V) mm
a-si TFT active matrix
0.297 (H) x 0.297 (V) mm
17.0” Diagonal
338 (H) x 270 (V) mm
a-si TFT active matrix
0.264 (H) x 0.264 (V) mm
70/70/60/60 (L/R/U/D)
80/80/80/80 (L/R/U/D)
(Depending on the panel
manufacturer, the viewing
angle may be different
from this spec.)
(Depending on the panel
manufacturer, the viewing
angle may be different from
this spec.)
Horizontal
Vertical
30 – 69 kHz
56 – 85 Hz
Display color
16,777,216 colors
30 – 81 kHz
56 – 85 Hz (~XGA)
60 – 76 Hz (SXGA)
16,777,216 colors
Display
Resolution
Optimum Mode 1024 x 768 @ 60 Hz
Maximum Mode 1024 x 768 @ 85 Hz
Input Signal
Sync.
1280 x 1024 @ 60 Hz
1280 x 1024 @ 76 Hz
H/V Separate, TTL, P. or N.
H/V Composite, TTL, P. or N.
Sync-on-green 0.3 Vp-p, N.
0.7 Vp-p @ 75 ohm
Video signal
TV, Video
Color system
Sound system
Video format
PAL
B/G, D/K, I
CVBS, S-VHS
Video
Color system
PAL/NTSC
Power Supply Input
Output
AC 100-240 Vrms (50 ~ 60Hz) AC 100-240 Vrms (50 ~ 60Hz)
DC 12V/4.5A
DC 12V/3A
* Referring to Standard signal modes, page 28.
English
25
4_E150MP170MPbody.fm
Page 26
Wednesday, September 19, 2001
2:54 PM
Appendix
Table 5. Technical and environmental specifications
150MP
Power
Consumption
Maximum
Power Saving
Dimensions/
Weight
Unit (WxHxD) :
Monitor body
170MP
33 W
<3 W
52 W
<3W
15.0 x 15.0 x 2.2 inch / 9.7 lbs
(382 x 380 x 57 mm / 4.4 kg )
17.6 x 17.2 x 2.48 inch / 14.3 lbs
(448 x 438 x 63 mm / 6.5 kg)
With stand
15.0 x 15.0 x 6.0 inch / 9.7 lbs
(382 x 380 x 153 mm / 4.4 kg)
17.6 x 17.2 x 8.15 inch / 14.3 lbs
(448 x 438 x 207 mm / 6.5 kg)
When folded
15.0 x 17.7 x 2.4 inch / 9.7 lbs
(382 x 450 x 61 mm / 4.4 kg)
17.6 x 20.5 x 2.75 inch / 14.3 lbs
(448 x 522 x 70 mm / 6.5 kg)
Carton
19.1 x 20.5 x 8.0 inch / 15.4 lbs
(486 x 522 x 203 mm / 7.0 kg)
22.5 x 24.8 x 7.95 inch / 20.9 lbs
(572 x 632 x 202 mm / 9.5 kg)
Environmental Operating
Considerations Temperature
Operating
Humidity
Storage
Temperature
Storage
Humidity
Audio
Audio Input 1
Characteristics Audio Input 2
Line-out
(Audio out)
Headphone out
Frequency
Response
50 ˚F to 104 ˚F (10 ˚C to 40 ˚C)
10% to 80%
13 ˚F to 113 ˚F (-25 ˚C to 45 ˚C)
5% to 95%
RCA Jack Red(R) White(L), 0.5Vrms (-9dB)
3.5ø Stereo Jack, 0.5Vrms (-9dB)
3.5ø Stereo Jack, 0.7Vrms (-7dB)
Max. 10mW Output (3.5ø Stereo Jack 32Ω)
RF: 80Hz - 15kHz (at- 3dB)
A/V: 80Hz - 20kHz (at - 3dB)
English
26
4_E150MP170MPbody.fm
Page 27
Wednesday, September 19, 2001
2:54 PM
Appendix
Pin Assignments
Table 6. 15 pin D-sub connector
Pin
Separate H/V
Composite H/V
Sync-on-green
1
Red
Red
Red
2
Green
Green
Green + H/V Sync
3
Blue
Blue
Blue
4
GND
GND
GND
5
GND (DDC Return)
GND (DDC Return)
GND (DDC Return)
6
GND-Red
GND-Red
GND-Red
7
GND-Green
GND-Green
GND-Green
8
GND-Blue
GND-Blue
GND-Blue
9
No Connection
No Connection
Not used
10
GND-Sync/Self Test
GND-Sync/Self Test
GND-Sync/Self Test
11
GND
GND
GND
12
DDC _SDA
DDC _SDA
DDC _SDA
13
H_Sync
H/V Sync
Not used
14
V_ Sync
Not used
Not used
15
DDC _SCL
DDC _SCL
DDC _SCL
English
27
4_E150MP170MPbody.fm
Page 28
Wednesday, September 19, 2001
2:54 PM
Appendix
Display Modes
If the signal from the system equals to the standard signal mode, the screen is adiusted
automatically. If the signal from the system doesn’t equal to the standard signal mode, adjust
the mode with refering to the Videocard user guide because the screen might not display or
only the power LED might be on. For the display modes listed below, the screen image has
been optimized during manufacture.
Table 7. Preset timing modes
Mode
VGA
SVGA
XGA
SXGA
(170MP only)
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
720 x 400
31.469
70.087
28.322
–/+
640 x 480
31.469
59.940
25.175
–/–
640 x 480
37.500
75.000
31.500
–/–
640 x 480
43.269
85.008
36.000
–/–
800 x 600
46.875
75.000
49.500
+/+
800 x 600
53.674
85.061
56.250
+/+
1024 x 768
48.363
60.004
65.000
–/–
1024 x 768
60.023
75.029
78.750
+/+
1024 x 768
68.677
84.997
94.500
+/+
1280 x 1024
63.981
60.020
108.000
+,–/+,–
1280 x 1024
79.976
75.025
135.000
+/+
English
28
Pixel Clock
Sync Polarity
Frequency
(H/V)
(MHz)
4_E150MP170MPbody.fm
Page 29
Wednesday, September 19, 2001
2:54 PM
Appendix
Table 8. PAL Broadcasting Systems
Model Color Sound Stereo
Name System System System
A2
150MP
170MP
PAL
B/G
I
Channel
System
CCIR
Countries
Germany,Austria,Swiss,Netherlands,
AUSTRALIA Australia
NICAM
CCIR
Sweden,Spain,Denmark,Norway,
Finland,Belgium,Iceland,Portugal,
Malaysia,Singapore,Thailand
Unknown
CCIR
India,Israel,Kuwait,Jordan,Yugoslavia
NICAM
CCIR
UK,Hongkong
English
29
4_E150MP170MPbody.fm
Page 30
Wednesday, September 19, 2001
2:54 PM
Appendix
Installing VESA compliant mounting devices
Refer to page 32 to fold the base.
Rear cover
mounting pad
Mounting
Align the mounting interface pad with the holes in the rear cover mounting pad and secure it
with the four screws that came with the arm-type base, wall mount hanger or other bases.
Wall Mount Instructions
The following instructions apply to a hollow sheet-rock wall only Tools/Hardware
needed - Philips screwdriver, four toggle bolts, 5/8in dia. Drill bit and drill. Contact Ergotron at
(800) 888-8458 to purchase the triple pivot direct mount adapter and wall mount bracket kit.
• 150MP (15") : No. 47 - 007 - 099 (Pivot direct mount adapter)
No. 97 - 101 - 003 (Wall mount bracket kit)
• 170MP (17") : No. 47 - 007 - 099 - 02 (Pivot direct mount adapter)
No. 97 - 101 - 003 - 00 (Wall mount bracket kit)
Align the wall mount bracket on the wall at the desired height, making sure that the bracket
will be mounted between the wall studs. Mark the four corner openings and drill four 5/8-dia.
holes.
Assemble the wall mount kit according to the instructions provided with it.
Securely attach Ergotron’s flat panel, triple pivot direct mount adapter to the back of the
monitor using the four 4mm, .7 pitch x 10mm screws provided with the arm.
Secure the assembly to the wall using four 3/16 by 3-inch long toggle bolts.
English
30
4_E150MP170MPbody.fm
Page 31
Wednesday, September 19, 2001
2:54 PM
Appendix
Retractable Stand
15
NOTE: *Please pull the rear retractable part of the stand when you tilt the monitor to
the backward direction to give more stability. The maximum tilt angle is 15
degree to the backward direction. Please do not tilt the monitor other than
specified range. Excessive force to tilt the monitor other than specified
range may give permanent damage to the mechanical part of the
stand.
Maintenance of Your LCD monitor
WARNING: To avoid risk of electric shock, do not disassemble the monitor cabinet (except
for gaining access to the cable connectors as described on page 5). Users cannot service the
monitor. User maintenance is restricted to cleaning as explained below:
Unplug the monitor from the power outlet before cleaning.
To clean your flat panel display screen, lightly dampen a soft, clean cloth with
■
water or mild detergent. If possible, use a special screen cleaning tissue or
solution suitable for the antistatic coating.
■
To clean the monitor cabinet, use a cloth lightly dampened with a mild detergent.
■
Never use flammable cleaning material to clean your LCD monitor or any other
electrical apparatus.
English
31
4_E150MP170MPbody.fm
Page 32
Wednesday, September 19, 2001
2:54 PM
Appendix
Attaching a wall or Arm mounting device
The monitor supports VESA mounting standard for use with various VESA mounting devices.
To install any VESA mounting device, please follow the instructions given.
1
2
4
5
3
6
1
Lay the LCD monitor face-down on a flat surface with a cushion or other soft materials
to protect the screen.
2
3
4
Remove the connector cover
5
6
7
Connect any cable you removed at step 3.
Remove any cable connected on the monitor.
Press “FOLD” button on the stand and tilt the monitor backward until the stand in
up -right position.
Place the connector cover removed at step 2.
Now you are ready to install Wall/Arm mounting device depending on your
applications.
English
32
5_E150MP170MPix.fm
Page 33
Wednesday, September 19, 2001
4:02 PM
Index
A
OSD Lock/Unlock 10
OSD Control 18
Audio control 17
Automatic Save 9
Auto adjustment 12
P
PAL-NTSC connector 3
PAL Broadcasting System 29
Pan 17
Pin Assignments 27
PIP 8, 14
Plug and Play 6
Power 8
Power Indicator 6
Power-saving modes 21
Program 10
B
Bass 17
Beep 18
Brightness 12
C
Cable connections 5
CH 9
Channel 10
Channel Sort 16
Coarse 13
Color 14
Contrast 12
R
Remote Controller 3, 19
Reset 13
D
S
DC adapter 3
Display Modes 28
Duration 18
S-VHS Cable 3
Safety Instructions 2
Scart Jack 3
Screen controls 12
Self-test feature check 6
Sharpness 16
Size 14
Source 8, 17
Speaker mute 17
Stereo-RCA Cable 3
Stereo System 15
Store 16
E
Exit 8
F
Fine 13
Function icons 11
H
Halftone 18
H-position 13
T
I
Tilt the screen 4
Timer 18
Treble 17
Troubleshooting 22
TV Setup 14
Image lock 12
Image effect 18
Image size 17
Information 13
Installation CD 3
U
K
User control locations 8
User mode 14
Kensington security slot 4
L
V
Language 18
Video Control 16
VOL 9
Volume 10
V-position 13
M
Manual Tune 15
Menu 8
MTS/S-Mode 20
Z
O
Zoom 17
ON-Screen Display 11
English
33
User Instructions
The Federal Communications Commission Radio
Frequency Interference Statement includes the following
warning:
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television receptions, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and
receiver.
■ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV
technician for help.
User Information
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
If necessary, consult your dealer or an experienced radio/
television technician for additional suggestions. You may
find the booklet called How to Identify and Resolve Radio/
TV Interference Problems helpful. This booklet was
prepared by the Federal Communications Commission. It is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock Number 004-000-00345-4.
Warning
User must use shielded signal interface cables to maintain
FCC compliance for the product.
Declaration of conformity for products
Marked with FCC Logo
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
85 West Tasman Drive
San Jose, CA 95134 USA
Tel) 408-544-5124
Fax) 408-544-5191
Provided with this monitor is a detachable power supply
cord with IEC320 style terminations. It may be suitable for
connection to any UL Listed personal computer with similar
configuration. Before making the connection, make sure
the voltage rating of the computer convenience outlet is
the same as the monitor and that the ampere rating of the
computer convenience outlet is equal to or exceeds the
monitor voltage rating.
For 120 Volt applications, use only UL Listed detachable
power cord with NEMA configuration 5-15P type (parallel
blades) plug cap. For 240 Volt applications use only UL
Listed Detachable power supply cord with NEMA
configuration 6-15P type (tandem blades) plug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment Regulations
of ICES-003.
Cet appareil Numérique de classe B respecte toutes les
exigences du Règlemont ICES-003 sur les équipements
produisant des interférences au Canada.
Español
FCC Information
Français
Regulatory Information
English
2:53 PM
Deutsch
Wednesday, September 19, 2001
MPR II Compliance
This monitor complies with SWEDAC(MPR II)
recommendations for reduced electric and magnetic fields.
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC), (92/31/EEC), (93/68/EEC) and the
Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the
following European Norms:
■ EN55022 (CISPR 22) – Radio Frequency Interference
■ EN50082-1 : 1992 – Electromagnetic Immunity
■ EN60555-2 (IEC555-2) – Power Line Harmonics
■ EN60555-3 (IEC555-3) – Voltage Fluctuations
■ EN60950 (IEC950) – Product Safety.
Italiano
Page 0
Portuguese
6_E150MP170MPreg.fm
7_E150MPBk.fm
Page 1
Monday, September 17, 2001
U.S.A.:
Samsung Electronics America (SEA)
400 Valley Road, Suite 201
Mt. Arlington, NJ 07856
Tel.: 1-800-SAMSUNG (1-800-726-7864)
CANADA:
Samsung Electronics Canada Inc.
7037 Financial Drive
Mississauga, Ontario L5N 6R3
Tel.: 1-800-SAMSUNG (1-800-726-7864)
Fax.: (905) 542-1199
GERMANY:
Samsung Electronics GmbH
Samsung-Haus, Am Kronberger Hang 6
65824 Schwalbach/Ts.
Tel. 49 (0180) 5121213 *
Fax. 49 (0180) 5121214 *
*DM 0,24/Min.
AUSTRALIA:
Samsung Electronics Australia Pty Ltd.
Unit G, 10-16 South Street,
Rydalmere, N.S.W. 2116
P.O. BOX 368
Tel.: (02) 638 5200
ITALIA:
Samsung Electronics Italia SpA
Via C. Donat Cattin,
5-20063 Cernusco sul Naviglio (Mi)
Tel.: 167-010740
PANAMA:
Servicios Samsung (Zona Libre), S.A.
50 and 61 Streets Sta, Cecilia
Bdl. Don Camilo, Panama City
Tel.: (507) 264-0195 or 269-5571
Fax: (507) 269-5568
MEXICO:
Samsung Electronics Mexico S.A. de C.V.
Saturno 44 Col. Nva. Industrial Vallejo
Del. Gustavo A. Madero C.P. 07700
Mexico D.F.
Tel. 5747-5100
RFC: SEM950215S98
5:06 PM
ESPAÑA:
Samsung Electrónics Comercial Ibérica, S.A. Ciencies, 5565 (Polígono Pedrosa) 08908 Hospitalet de Llobregat
(Barcelona)
Tel.: (93) 261 67 00
Fax.: (93) 261 67 50
UK:
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel.: (0181) 391 0168
Fax.: (0181) 397 9949
<European Service Center & National Service>
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel.: (01952) 292 262
Fax.: (01952) 292 033
THAILAND:
Samsung Service Center
729-729/1 JSP Tower Rachadapisek RD.,
Bangpongpang, Yannawa, Bangkok 10120
Tel: (662) 2954508-14
Fax: (662) 2954267
SOUTH AFRICA:
Samsung Electronics South Africa
Somerset Office Park 5 Libertas Road
Bryanston, South Africa
Tel: (27)-11-463-5678
Fax: (27)-11-463-5215
BRASIL:
Samsung Eletrônica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303-2º Andar
Chácara Sto. Antônio • cep: 04719-040
São Paulo • SP
Tel.: (011) 541-8500
Fax: (011) 523-3995, 522-0726
SWEDEN:
Samsung Electronics Svenska, AB
Box 713, S-194 27 Upplands Vasby
Tel: (468) 590-966-00
Fax: (468) 590-966-50
IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.
SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO
DEL. GUSTAVO A. MADERO C.P. 07700
MEXICO D.F.
TEL. 5747-5100
RFC: SEM950215S98
EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
JOONG-ANG DAILY NEWS BLDG.
7 SOON-WHA-DONG CHUNG-KU,
C.P.O BOX 2775, 1144 SEOUL, KOREA
“As an ENERGYSTAR® Partner, SAMSUNG has
determined that this product meets the
ENERGYSTAR® guidelines for energy efficiency.”
P/N : BN68-00123D-05
Printed on recyclable paper
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
