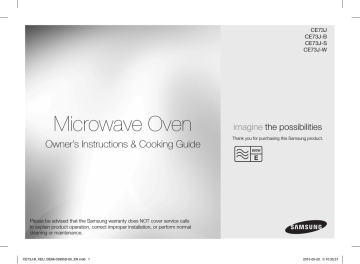

CE73J
CE73J-B
CE73J-S
CE73J-W
Microwave Oven
Owner’s Instructions & Cooking Guide
imagine the possibilities
Thank you for purchasing this Samsung product.
Please be advised that the Samsung warranty does NOT cover service calls
to explain product operation, correct improper installation, or perform normal
cleaning or maintenance.
CE73J-B_XEU_DE68-03995D-00_EN.indd 1
2015-05-20 �� 10:35:21
contents
safety information
Safety information.............................................................................................2
Quick look-up guide........................................................................................13
Oven features..................................................................................................14
Oven.............................................................................................................14
Control panel.................................................................................................15
Accessories...................................................................................................15
Oven use..........................................................................................................16
How a microwave oven works.......................................................................16
Checking that your oven is operating correctly...............................................16
Setting the time.............................................................................................16
Setting the energy save mode.......................................................................17
Cooking/Reheating........................................................................................17
Power levels..................................................................................................18
Stopping the cooking....................................................................................18
Using the keep warm feature.........................................................................18
Using the keep warm settings.......................................................................19
Using the auto reheat feature.........................................................................19
Auto reheat settings......................................................................................20
Using the auto cook feature...........................................................................20
Auto cook settings........................................................................................21
Using light meal feature.................................................................................22
Light meal settings........................................................................................22
Using the power defrost feature.....................................................................23
The power defrost settings............................................................................23
Fast preheating the oven...............................................................................24
Cooking by convection..................................................................................25
Choosing the accessories.............................................................................26
Grilling...........................................................................................................26
Combining microwaves and the grill..............................................................26
Combining microwaves and convection........................................................27
Safety-locking your microwave oven..............................................................27
Switching the beeper off................................................................................28
Multistage cooking........................................................................................28
Cookware guide..............................................................................................29
Cooking guide.................................................................................................30
Troubleshooting and information codes........................................................38
Troubleshooting.............................................................................................38
Information codes..........................................................................................42
Technical specifications..................................................................................43
USING THIS INSTRUCTION BOOKLET
You have just purchased a SAMSUNG microwave oven. Your Owner’s
Instructions contains valuable information on cooking with your microwave
oven:
• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Warning; Fire hazard
Warning; Hot surface
Warning; Electricity
Warning; Explosive material
Do NOT attempt.
Do NOT touch.
Do NOT disassemble.
Follow directions explicitly.
Unplug the power plug from
the wall socket.
Make sure the machine is
grounded to prevent electric
shock.
Call the service center for
help.
Note
Important
English - 2
CE73J-B_XEU_DE68-03995D-00_EN.indd 2
2015-05-20 �� 10:35:23
WARNING (Microwave function only)
WARNING: If the door or door seals
are damaged, the oven must not be
operated until it has been repaired by a
competent person.
WARNING: It is hazardous for anyone
other than a competent person to carry
out any service or repair operation that
involves the removal of a cover which
gives protection against exposure to
microwave energy.
This appliance is intended to be used in
household only.
WARNING: Only allow children to use
the oven without supervision when
adequate instructions have been given
so that the child is able to use the oven
in a safe way and understands the
hazards of improper use.
WARNING: This appliance can be
used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made by
children unless they are aged from 8
years and above and supervised.
Only use utensils that are suitable for use
in microwave ovens.
When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
The microwave oven is intended for
heating food and beverages. Drying of
food or clothing and heating of warming
pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition
or fire.
01 SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE.
Make sure that these safety precautions are
obeyed at all times.
Before using the oven, confirm that the
following instructions are followed.
English - 3
CE73J-B_XEU_DE68-03995D-00_EN.indd 3
2015-05-20 �� 10:35:23
If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
WARNING: Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken
when handling the container.
WARNING: The contents of feeding
bottles and baby food jars shall be
stirred or shaken and the temperature
checked before consumption, in order to
avoid burns.
Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
The oven should be cleaned regularly
and any food deposits removed.
Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely affect
the life of the appliance and possibly
result in a hazardous situation.
The appliance is not intended for
installing in road vehicles, caravans and
similar vehicles etc.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
WARNING: Liquids and other foods
must not be heated in sealed containers
since they are liable to explode.
The appliance should not be cleaned
with a water jet.
This oven should be positioned proper
direction and height permitting easy
access to cavity and control area.
Before using the your oven first time,
oven should be operated with the water
during 10 minute and then used.
English - 4
CE73J-B_XEU_DE68-03995D-00_EN.indd 4
2015-05-20 �� 10:35:23
WARNING
(Oven function only) - Optional
WARNING: When the appliance is
operated in the combination mode,
children should only use the oven
under adult supervision due to the
temperatures generated.
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
WARNING: Accessible parts may
become hot during use. Young children
should be kept away.
A steam cleaner is not to be used.
01 SAFETY INFORMATION
WARNING: Ensure that the appliance is
switched off before replacing the lamp to
avoid the possibility of electric shock.
WARNING: The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements.
Children less than 8 years of age shall
be kept away unless continuously
supervised.
The temperature of accessible surfaces
may be high when the appliance is
operating.
The door or the outer surface may get
hot when the appliance is operating.
Keep the appliance and its cord out of
reach of children less than 8 years.
If the oven generates a strange noise,
a burning smell, or smoke is emitted,
unplug the power plug immediately and
contact your nearest service center.
The microwave oven has to be
positioned so that plug is accessible.
The microwave oven is intended to be
used on the counter or counter top use
only, the microwave oven shall not be
placed in a cabinet.
English - 5
CE73J-B_XEU_DE68-03995D-00_EN.indd 5
2015-05-20 �� 10:35:23
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass since they can scratch the
surface, which may result in shattering of
the glass.
Appliances are not intended to be
operated by means of an external timer
or separate remote-control system.
This product is a Group 2 Class B ISM
equipment. The definition of group 2 which
contains all ISM equipment in which radiofrequency energy is intentionally generated and/
or used in the form of electromagnetic radiation
for the treatment of material, and EDM and arc
welding equipment.
For Class B equipment is equipment suitable
for use in domestic establishments and in
establishments directly connected to a low
voltage power supply network which supplies
buildings used for domestic purposes.
INSTALLING YOUR MICROWAVE OVEN
Place the oven on a flat level surface 85 cm
above the floor. The surface should be strong
enough to safety bear the weight of the oven.
cm
10 cm
1.When you install your oven, make 20above
behind
sure there is adequate ventilation
for your oven by leaving at least
10 cm on
10 cm (4 inches) of space behind 85thecmfloorof the side
and, on the sides of the oven and
20 cm (8 inches) of space above.
2.Remove all packing materials inside the oven.
3.Install the roller ring and turntable. Check that
the turntable rotates freely.
(Turntable type model only)
4.This microwave oven has to be positioned so
that plug is accessible.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
English - 6
CE73J-B_XEU_DE68-03995D-00_EN.indd 6
2015-05-20 �� 10:35:23
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven
should be cleaned regularly to prevent grease and
food particles from building up:
• Inside and outside surfaces
• Door and door seals
• Turntable and Roller rings
(Turntable type model only)
ALWAYS ensure that the door seals are clean
and the door closes properly.
Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance
and possibly result in a hazardous situation.
1.Clean the outside surfaces with a soft cloth and
warm, soapy water. Rinse and dry.
2.Remove any splashes or stains on the inside
surfaces of oven with a soapy cloth. Rinse and
dry.
3.To loosen hardened food particles and remove
smells, place a cup of diluted lemon juice in
the oven and heat for ten minutes at maximum
power.
4.Wash the dishwasher-safe plate whenever
necessary.
DO NOT spill water in the vents. NEVER use
any abrasive products or chemical solvents.
Take particular care when cleaning the door
seals to ensure that no particles:
• Accumulate
• Prevent the door from closing correctly
Clean the microwave oven cavity right after
each use with a mild detergent solution, but let
the microwave oven cool down before cleaning
in order to avoid injury.
01 SAFETY INFORMATION
or similarly qualified persons in order to avoid a
hazard.
For your personal safety, plug the cable into a
proper AC earthed socket.
Do not install the microwave oven in
hot or damp surroundings like next to a
traditional oven or radiator. The power supply
specifications of the oven must be respected
and any extension cable used must be of the
same standard as the power cable supplied
with the oven. Wipe the interior and the door
seal with a damp cloth before using your
microwave oven for the first time.
English - 7
CE73J-B_XEU_DE68-03995D-00_EN.indd 7
2015-05-20 �� 10:35:23
When cleaning the upper part inside
the cavity, it will be convenient to
turn heater downward by 45° and
clean it. (Swing heater model only)
STORING AND REPAIRING YOUR
MICROWAVE OVEN
A few simple precautions should be taken when
storing or having your microwave oven serviced.
The oven must not be used if the door or door
seals are damaged:
• Broken hinge
• Deteriorated seals
• Distorted or bent oven casing
Only a qualified microwave service technician
should perform repair.
NEVER remove the outer casing from the
oven. If the oven is faulty and needs servicing
or you are in doubt about its condition:
• Unplug it from the wall socket
• Contact the nearest after-sales service
centre
If you wish to store your oven away
temporarily, choose a dry, dustfree place.
Reason : Dust and damp may adversely affect
the working parts in the oven.
This microwave oven is not intended for
commercial use.
The Light bulb should not be replaced in
person for safety reasons.
Please contact nearest authorised Samsung
customer care centre to arrange for a qualified
engineer to replace the bulb.
WARNING
Only qualified staff should be allowed to modify or
repair the appliance.
Do not heat liquids and other food in sealed
containers for microwave function.
For your safety, do not use high-pressure water
cleaners or steam jet cleaners.
Do not install this appliance; near heater,
inflammable material; in a humid, oily or dusty
location, in a location exposed to direct sunlight and
water or where gas may leak; on un level ground.
This appliance must be properly grounded in
accordance with local and national codes.
Remove all foreign substances such as dust or
water from the power plug terminals and contact
points using a dry cloth on a regular basis.
Do not pull or excessively bend or place heavy
objecton the power cord.
In the event of a gas leak (such as propane gas, LP
gas, etc.), ventilate immediately without touching the
power plug.
Do not touch the power plug with wet hands.
English - 8
CE73J-B_XEU_DE68-03995D-00_EN.indd 8
2015-05-20 �� 10:35:25
Do not turn the appliance off by unplugging the
power plug while an operation is in progress.
Do not store flammable materials in the oven. Take
special care when heating dishes or drinks that
contain alcohol as alcohol vapours may contact a
hot part of the oven.
Keep children away from the door when opening or
closing it as they may bump themselves on the door
or catch their fingers in the door.
Do not apply excessive pressure or impact to the
appliance.
WARNING: Microwave heating of beverages can
result in delayed eruptive boiling,therefore care must
be taken when handling the container; To prevent
this situation ALWAYS allow a standing time of at
least 20 seconds after the oven has been switched
off so that the temperature can equalize. Stir during
heating, if necessary, and ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID
instructions:
Do not place the oven over a fragile object such as a
sink or glass object.
Do not use benzene, thinner, alcohol, steam cleaner
or high pressure cleaner to clean the appliance.
Ensure that the power voltage, frequency and
current are the same as those of the product
specifications.
01 SAFETY INFORMATION
Do not insert fingers or foreign substances, If any
foreign substance such as water has entered the
appliance, unplug the power plug and contact your
nearest service centre.
• Immerse the scalded area in cold water for at
least 10 minutes.
• Cover with a clean, dry dressing.
• Do not apply any creams, oils or lotions.
Plug the power plug into the wall socket firmly. Do
not use a multiple plug adapter, an extension cord or
an electric transformer.
Do not hook the power cord on a metal object,
insert the power cord between the objects or behind
the oven.
Do not put the tray or rack in water shortly after cooking
because it may cause breakage or damage of the tray
or rack.
Do not use a damaged power plug, damaged power
cord or loose wall socket. When the power plug
or power cord is damaged, contact your nearest
service centre.
Do not operate the microwave oven for deep fat frying
because the oil temperature cannot be controlled. This
could result in a sudden boil over of the hot liquid.
Do not pour or directly spray water onto the oven.
CAUTION
Do not place objects on the oven, inside or on the
door of the oven.
Only use utensils that are suitable for use in
microwave ovens; DO NOT use any metallic
containers, Dinnerware with gold or silver trimmings,
Skewers, forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and
may damage the oven.
Do not spray volatile material such as insecticide
onto the surface of the oven.
English - 9
CE73J-B_XEU_DE68-03995D-00_EN.indd 9
2015-05-20 �� 10:35:26
Do not use your microwave oven to dry papers or
clothes.
Use shorter times for smaller amounts of food to
prevent overheating and burning food.
Do not immerse the power cable or power plug in
water and keep the power cable away from heat.
Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since they
may explode, even after microwave heating has
ended; Also do not heat airtight or vacuum-sealed
bottles, jars, containers, nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper.
They may catch fire as hot air escapes from the
oven. The oven may also overheat and switch itself
off automatically, and will remain off until it cools
sufficiently.
Always use oven mitts when removing a dish from
the oven to avoid unintentional burns.
Stir liquids halfway during heating or after heating
ends and allow the liquid stand at least 20 seconds
after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening
the door to avoid getting scalded by escaping hot air
or steam.
Do not operate the microwave oven when it is
empty. The microwave oven will automatically
shut down for 30 minutes for safety purposes. We
recommend placing a glass of water inside the oven
at all times to absorb microwave energy in case the
microwave oven is started accidentally.
Take care when connecting other electrical
appliances to sockets near the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY. (MICROWAVE FUNCTION ONLY)
Failure to observe the following safety precautions may result in harmful exposure
to microwave energy.
(a) Under no circumstances should any attempt be made to operate the
oven with the door open or to tamper with the safety interlocks (door
latches) or to insert anything into the safety interlock holes.
(b)Do NOT place any object between the oven door and front face or
allow food or cleaner residues to accumulate on sealing surfaces.
Ensure that the door and door sealing surfaces are kept clean by
wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been
repaired by a qualified microwave service technician trained by the
manufacturer. It is particularly important that the oven door closes
properly and that there is no damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d)The oven should not be adjusted or repaired by anyone other than
a properly qualified microwave service technician trained by the
manufacturer.
Samsung will charge a repair fee for replacing an accessory or repairing
a cosmetic defect if the damage to the unit and/or damage to or loss of
the accessory was caused by the customer. Items this stipulation covers
include:
(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control
Panel.
(b)A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.
Install the oven in compliance with the clearances
stated in this manual.
(See installing your microwave oven.)
English - 10
CE73J-B_XEU_DE68-03995D-00_EN.indd 10
2015-05-20 �� 10:35:27
INSTALLATION & WIRING INSTRUCTIONS
IMPORTANT NOTE :
The mains lead on this equipment is supplied with a moulded plug
incorporating a fuse.
The value of the fuse is indicated on the pin face of the plug and, if it
requires replacing, a fuse approved to BS1363 of the same rating must be
used.
Never use the plug with the fuse cover omitted if the cover is detachable. If
a replacement fuse cover is required, it must be of the same colour as the
pin face of the plug.
Replacement covers are available from your Dealer. If the fitted plug is not
suitable for the power points in your house or the cable is not long enough
to reach a power point, you should obtain a suitable safety approved
extension lead or consult your Dealer for assistance. However, if there is no
alternative to cutting off the plug, remove the fuse and then safely dispose
of the plug. Do not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
01 SAFETY INFORMATION
• Use this appliance only for its intended purpose as described in this
instruction manual. Warnings and Important Safety Instructions in this
manual do not cover all possible conditions and situations that may
occur. It is your responsibility to use common sense, caution, and
care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models,
the characteristics of your microwave oven may differ slightly from
those described in this manual and not all warning signs may be
applicable. If you have any questions or concerns, contact your
nearest service centre or find help and information online at www.
samsung.com.
• This microwave oven is supposed for heating food. It is intended for
domestic home-use only. Do not heat any type of textiles or cushions
filled with grains, which could cause burns and fire. The manufacturer
cannot be held liable for damage caused by improper or incorrect
use of the appliance.
• Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possible result in a hazardous situation.
WIRING INSTRUCTIONS
WARNING THIS APPLIANCE MUST BE EARTHED.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
This appliance must be earthed. In the event of an electrical short circuit,
earthing reduces the risk of electric shock providing an escape wire for the
electric current. The appliance is equipped with a mains lead which includes
an earth wire for connecting to the earth terminal of your mains plug. The
plug must be plugged into a socket that is properly installed and earthed.
The wires in this mains lead are coloured in accordance with the
following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings indentifying the terminals in your
plug, proceed as follows.
Connect the green and yellow wire to the terminal in the plug marked with
the letter E or the earth symbol ( ) or coloured green or green-and-yellow.
English - 11
CE73J-B_XEU_DE68-03995D-00_EN.indd 11
2015-05-20 �� 10:35:27
Connect the blue wire to the terminal marked with the letter N or coloured
black.
Consult a qualified electrician or service technician if in doubt about any
of these instructions.
The manufacturer of this oven will not accept any liability for damage to
persons or material for non observance of these requirements.
There are no user-serviceable parts inside the oven and if the mains
lead of this appliance is damaged, it must only be replaced by qualified
service personnel approved by the manufacturer because special tools
are required.
WARNING
WARNING
WARNING : Ensure that the plug and
power cord are not damaged before use.
If you have any reason to remove the
moulded plug from this appliance,
immediately remove the fuse and dispose
of the plug.
Do not connect the plug to a mains socket
under any circumstances as there is a
danger of electric shock.
COOKING INSTRUCTIONS ON FOOD PACKAGING
Microwave Symbols
On the front of your oven there is a microwave oven symbol, as shown
below.
This symbol has been introduced for your benefit when cooking or
reheating packaged food.
Packaged food is also, increasingly, using a microwave symbol similar to
the one below. When you see this
Symbol on food packaging, the cooking instructions are based on either the
IEC Power Output Rating, or the Reheating Categories A, B, C, D or E.
CIRCUITS : Your microwave oven should
be operated on a separate circuit from
other appliances. Failure to do this may
cause the circuit breaker to trip, the fuse
to blow, or the food to cook more slowly.
English - 12
CE73J-B_XEU_DE68-03995D-00_EN.indd 12
2015-05-20 �� 10:35:27
COOKING INSTRUCTIONS
The IEC Power Output rating is an internationally standardised rating, so all
microwave manufacturers now use the same method of measuring power
output.
If food packaging gives cooking instructions based on IEC Power ratings,
set cooking times according to the IEC Power of your oven.
For example :
If the heating instructions are 3 minutes on HIGH for a D category oven,
then you will need to set your timer for less than 3 minutes on HIGH for the
CE73J** (E category).
Always remember that cooking instructions are intended only as a
guide. If you have followed the instructions and the food is still not
piping hot throughout, simply return it to the oven and cook it until it is.
If you want to cook some food.
1. Press the Microwave (
) button.
2. Press the Microwave ( ) button until the
appropriate power lever (100 - 800 W).
3. Select the cooking time by pressing the 10 min,
1 min and 10 sec buttons as required. (Max 99 min)
02 QUICK LOOK-UP GUIDE
For example :
If the cooking instructions are based on a 650 W oven, then you will need
to reduce some cooking time for the CE73J** (800 W).
Ready meals are now very convenient and popular. These are meals which
are already prepared and cooked by the food manufacturer, and then
frozen, chilled or vacuum sealed for long life.
Increasingly, heating times for such ready meals are being based on the
Heating Categories A, B, C, D and E.
On this instance, simply match the heating category of your oven to the
instructions on the food package, and set your timer accordingly.
quick look-up guide
4. Press the START ( ) button.
Result :
Cooking starts.
When cooking has finished, the oven will
beep and flash “0” four times. The oven
will then beep one time per minute.
English - 13
CE73J-B_XEU_DE68-03995D-00_EN.indd 13
2015-05-20 �� 10:35:28
oven features
If you want to Power Defrost some food.
1. Place the frozen food in the oven.
Press the Power Defrost ( ) button.
OVEN
1
2
4
3
5
2. Select the food category by pressing the Power
Defrost ( ) button, until the desired food category is
selected. (Refer to 23)
3. Select the weight by pressing the Down (
Up ( ) buttons as required.
) and
4. Press the START ( ) button.
Result:
 Defrosting begins.
 The oven beeps through defrosting
to remind you to turn the food over.
5. Press the START ( ) button again to finish
defrosting.
Result:
When cooking has finished, the oven
will beep and flash “0” four times.
The oven will then beep one time per minute.
6
7
8
1. DOOR HANDLE
2. VENTILATION HOLES
3.GRILL
4.LIGHT
5.DISPLAY
6. DOOR LATCHES
9
10
11
12
7.DOOR
8. TURNTABLE
9. COUPLER
10.ROLLER RING
11. SAFETY INTERLOCK HOLES
12. CONTROL PANEL
English - 14
CE73J-B_XEU_DE68-03995D-00_EN.indd 14
2015-05-20 �� 10:35:29
CONTROL PANEL
ACCESSORIES
Depending on the model that you have purchased, you are supplied with
several accessories that can be used in a variety of ways.
1. Roller ring, to be placed in the centre of the oven.
1
2
10
3
11
4
13
5
15
2.Turntable, to be placed on the roller ring with the
centre fitting to the coupler.
12
Purpose : The turntable serves as the main
cooking surface; it can be easily
removed for cleaning.
14
16
6
3. High rack, Low rack, to be placed on the turntable.
Purpose : The metal racks can be used to cook
two dishes at the same time. A small
dish may be placed on the turntable and
a second dish on the rack. The metal
racks can be used in grill, convection
and combination cooking.
7
8
17
18
1.
2.
3.
4.
5.
6.
7.
8.
9.
DISPLAY
POWER DEFROST BUTTON
AUTO REHEAT BUTTON
MICROWAVE BUTTON
MICROWAVE+GRILL
(COMBI) BUTTON
TIME SETTING BUTTON
DOWN ( )/UP ( ) BUTTON
(Cook time, Weight and serving
size)
STOP/CANCEL BUTTON
CLOCK SETTING BUTTON
CE73J-B_XEU_DE68-03995D-00_EN.indd 15
03 OVEN FEATURES
Purpose : The roller ring supports the turntable.
9
10.KEEP WARM BUTTON
11. LIGHT MEAL BUTTON
12. AUTO COOK BUTTON
13. CONVECTION BUTTON
14. GRILL BUTTON
15. FAST PREHEAT BUTTON
16. MICROWAVE+CONVECTION
(COMBI) BUTTON
17. START BUTTON
18. ECO BUTTON
English - 15
2015-05-20 �� 10:35:30
oven use
CHECKING THAT YOUR OVEN IS OPERATING CORRECTLY
HOW A MICROWAVE OVEN WORKS
Microwaves are high-frequency electromagnetic waves; the energy released
enables food to be cooked or reheated without changing either the form or
the colour.
You can use your microwave oven to:
• Defrost
• Reheat
• Cook
The following simple procedure enables you to check that your oven is
working correctly at all times.
First, place a bowl of water on the turntable. Then, close the door.
1. Press the Microwave ( ) button and set the time
to 4-5 minutes by pressing the 1 min button the
appropriate number of times.
2. Press the START ( ) button.
Result :
Cooking Principle
1. The microwaves generated by the magnetron reflected at cavity and are
distributed uniformly as the food rotates on the turntable. The food is
thus cooked evenly.
2. The microwaves are absorbed by the food up to
a depth of about 1 inch (2.5 cm). Cooking then
continues as the heat is dissipated within the food.
The oven heats the water for 4 to 5
minutes. The water should then be
boiling.
The oven must be plugged into an appropriate wall socket. The
turntable must be in position in the oven. If a power level other than the
maximum is used, the water takes longer to boil.
SETTING THE TIME
Your microwave oven has an inbuilt clock. When power is supplied, “:0”,
“88:88” or “12:00” is automatically displayed on the display.
Please set the current time. The time can be displayed in either the 24- hour
or 12-hour notation. You must set the clock:
3. Cooking times vary according to the container used
and the properties of the food:
• Quantity and density
• Water content
• Initial temperature (refrigerated or not)
• When you first install your microwave oven
As the centre of the food is cooked by heat dissipation, cooking continues
even when you have taken the food out of the oven.
• After a power failure
Standing times specified in recipes and in this booklet must therefore be
respected to ensure:
• Even cooking of the food right to the centre
• The same temperature throughout the food
Do not forget to reset the clock when you switch to and from summer
and winter time.
English - 16
CE73J-B_XEU_DE68-03995D-00_EN.indd 16
2015-05-20 �� 10:35:30
1. To display the time in the...
COOKING/REHEATING
24-hour notation
12-hour notation
Press the Clock ( ) button once or twice.
The following procedure explains how to cook or reheat food.
Always check your cooking settings before leaving the oven unattended.
First, place the food in the centre of the turntable. Then, close the door
) and Up (
1. Press the Microwave (
) buttons to set the
Result :
) button.
The following indications are displayed:
04 OVEN USE
2. Press the Down (
hour.
(microwave mode)
2. Select the appropriate power level by pressing the
Microwave ( ) button again until the corresponding
output power is displayed. Refer to the power level
table below for further details.
3. Press the Clock ( ) button.
4. Press the Down (
minute.
) and Up (
3. Set the cooking time by pressing the 10 min, 1 min
and 10 sec buttons.
) buttons to set the
Result:
4. Press the START ( ) button.
5. When the right time is displayed, press the Clock
( ) button to start the clock.
Result:
The cooking time is displayed.
Result :
The time is displayed whenever you
are not using the microwave oven.
SETTING THE ENERGY SAVE MODE
The oven light comes on and the
turntable starts rotating. Cooking starts
and when it has finished:
• The oven will beep and flash “0” four times.
The oven will then beep one time per minute.
The oven has an energy save mode. This facility saves electricity when the
oven is not in use.
• Press the ECO (
) button.
• To remove energy save mode, open the door
and then display shows current time. The oven
is ready for use.
Auto energy saving function
If you do not select any function when appliance is in the middle of
setting or operating with temporary stop condition, function is canceled
and clock will be displayed after 25 minutes.
Oven Lamp will be turned off after 5 minutes with door open condition.
English - 17
CE73J-B_XEU_DE68-03995D-00_EN.indd 17
2015-05-20 �� 10:35:31
POWER LEVELS
STOPPING THE COOKING
You can choose among the power levels and temperature below.
Output
Power level
MWO
GRILL
CONVECTION
HIGH
800 W
-
-
MEDIUM HIGH
600 W
-
-
MEDIUM
450 W
-
-
MEDIUM LOW
300 W
-
-
DEFROST ( )
180 W
-
-
LOW/KEEP WARM
100 W
-
-
GRILL
COMBI (
)
-
1100 W
-
600 W
450 W
300 W
1100 W
-
-
-
MAX: 1700 W
-
MAX: 1700 W
( 200 - 40 °C )
CONVECTION
COMBI I (
)
600 W
450 W
300 W
180 W
100 W
The cooking times given in recipes and in this booklet correspond to the
specific power level indicated.
If you select a...
Then the cooking time must be...
Higher power level
Decreased
Lower power level
Increased
You can stop cooking at any time so that you can:
• Check the food
• Turn the food over or stir it
• Leave it to stand
To stop the
cooking...
Then...
Temporarily
Open the door.
Result:
Cooking stops.
To resume cooking, close the door again and
press
the START ( ) button.
Completely
Press the STOP/CANCEL ( ) button.
Result:
Cooking stops.
If you wish to cancel the cooking settings, press
the STOP/CANCEL ( ) button again.
USING THE KEEP WARM FEATURE
Place the food in the centre of the turntable and close the door.
1. Press the Keep Warm (
) button.
2. Press the Keep Warm ( ) button once or twice to
set the temperature. (Temperature : 70, 60 °C)
3. Set the keep warm time by pressing the 10 min,
1 min and 10 sec buttons.
Result:
The keep warm time is displayed.
English - 18
CE73J-B_XEU_DE68-03995D-00_EN.indd 18
2015-05-20 �� 10:35:32
USING THE AUTO REHEAT FEATURE
4. Press the START ( ) button.
The max keep warm time is 90 mins.
Result :
The Auto Reheat feature has four pre-programmed cooking time.
You do not need to set either the cooking times or the power level.
You can adjust the number of servings by pressing the Down ( ) and
Up ( ) buttons.
First, place the food in the centre of the turntable and close the door.
When keep warm time has finished, the
oven will beep and flash “0” four times.
The oven will then beep one time per minute.
The following table presents 2 items. It contains food & beverage, bread &
pastries. The convection heater operates only and it will cycle on and off to
keep food warm. Use oven gloves while taking out!
Item
1. Food & Beverage
(70 °C)
1. Select the type of food that you are cooking by
pressing the Auto Reheat ( ) button once or more
times.
Example & Recommendations
Food
Roast meat, chicken, gratin, pizza,
potatoes and plated meal.
Drink
Water, milk and coffee.
2. Bread & pastries (60 °C)
04 OVEN USE
USING THE KEEP WARM SETTINGS
2. Select the size of the serving by pressing the
Down ( ) and Up ( ) buttons. (Refer to the
table on the side).
Bread, toast, rolls, muffins and cake.
Cup and ovenware.
Distribute the crockery over the whole
area of turn table.
Do not overload the oven. (Maximum load
5 kg)
3. Press the START ( ) button.
Result :
Do not use this function to reheat cold foods.This programmes are for
keeping food warm that has just been cooked.
Cooking starts. When it has finished.
1) The oven beeps four times.
2) The end reminder signal will beep
3 times (once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
Do not recommend food being kept warm for too long (more than
1 hour), as it will continue to cook. Warm food spoils more quickly.
Cover liquids and foods which are high moisture contents. But if you
want to keep crisp roast or fried foods, do not cover it.
English - 19
CE73J-B_XEU_DE68-03995D-00_EN.indd 19
2015-05-20 �� 10:35:33
AUTO REHEAT SETTINGS
USING THE AUTO COOK FEATURE
The following table presents the various Auto Reheat Programmes,
quantities, standing times and appropriate recommendations. Programmes
no 1 and 2 are running with microwave energy only. Programmes no 3
is running with a combination of microwave and grill. Programme no 4 is
running with a combination of microwaves and convection.
The Auto Cook feature has five pre-programmed cooking times. You do not
need to set either the cooking times or the power level. You can adjust the
number of servings by pressing the Down ( ) and Up ( ) buttons.
First, place the food in the centre of the turntable and close the door.
Standing
Serving
Code/Food
time
Recommendations
Size
(min.)
1. Chilled
300-350 g
3
Put on a ceramic plate and
Ready400-450 g
cover with microwave cling
Meal/Plated
film. This programme is
Meal
suitable for meals consisting
of 3 components (e.g. meat
with sauce, vegetables and a
side dish like potatoes, rice or
pasta).
2. Chilled
200-250 g
2-3
Pour into a deep ceramic soup
Soup/
300-350 g
plate or bowl and cover with
Sauce
400-450 g
plastic lid during heating. Stir
500-550 g
the soup, as soon as the oven
beeps (oven keeps operating
and is stopped, when you open
the door). Stir carefully before
and after standing time.
3. Frozen
300-350 g
Place frozen lasagne (-18 °C) in
Lasagne
400-450 g
a suitable sized flameproof dish
on the low rack.
4. Frozen
Bread Rolls
100-150 g
(2pcs)
200-250 g
(4pcs)
3-5
1. Select the type of food that you are cooking by
pressing the Auto Cook ( ) button once or more
times.
2. Select the size of the serving by pressing the
Down ( ) and Up ( ) buttons. (Refer to the
table on the side).
3. Press the START ( ) button.
Result :
Cooking starts. When it has finished.
1) The oven beeps four times.
2) The end reminder signal will beep
3 times (once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
Put 2 to 4 frozen bread rolls
(-18 °C) in a circle on the
low rack. This programme is
suitable for small frozen bakery
products as bread rolls, ciabatta
rolls and small baguettes.
English - 20
CE73J-B_XEU_DE68-03995D-00_EN.indd 20
2015-05-20 �� 10:35:34
AUTO COOK SETTINGS
The following table presents the various Auto Cook Programmes,
quantities, standing times and appropriate recommendations. Programmes
no 1 and 2 are running with microwave energy only. Programmes no 3 and
4 are running with a combination of microwaves and grill. Programme no 5
is running with a combination of microwaves and convection.
Serving
Size
1. Fresh
Vegetables
200-250 g
300-350 g
400-450 g
500-550 g
2. Peeled/
Boiled
Potatoes
300-350 g
400-450 g
500-550 g
Standing
Time
Recommendations
(min.)
3
Weigh the vegetables after
washing, cleaning and cutting
into similar size. Put them into
a glass bowl with lid. Add 30
ml (2 tablespoons) water when
cooking for 200-250 g, add 45
ml (3 tablespoons) for 300-350
g/400-450 g and add 60-75
ml (4-5 tablespoons) for 500550 g. Stir after cooking. When
cooking higher quantities stir
once during cooking.
3
Weigh the potatoes after
peeling, washing and cutting
into a similar size. Put them
into a glass bowl with lid.
Add 45 ml (3 tablespoons)
water when cooking 300-350
g/400-450 g, add 60 ml (4
tablespoons) for cooking 500550 g.
Serving
Size
04 OVEN USE
Code/Food
Standing
Time
Recommendations
(min.)
3. Roast Fish 200-300 g
3
Brush skin of whole fish with
(1-2 fish)
oil and add herbs and spices.
400-500 g
Put fish side by side, head to
(2 fish)
tail on the high rack. Turn over,
as soon as the beep sounds.
Press the start button again.
This programme is suitable for
whole fish such as trout, perch
or mackerel.
4. Chicken
200-300 g
3
Brush the chicken pieces with
Pieces
(1pc)
oil and spice them with pepper,
salt and paprika. Put them in a
400-500 g
circle on the high rack with the
(2pcs)
skin-side down. Turn over, as
soon as the beep sounds.
5. Roast
900-1000 g
5-10
Brush the beef/ lamb with
Beef/
1100-1200 g
oil and spices (pepper only,
Roast
salt should be added after
Lamb
roasting). Put it on the low rack
with the fat-side down. Turn
over, when the oven beeps.
After roasting and during
standing time it should be
wrapped in aluminium foil.
Code/Food
English - 21
CE73J-B_XEU_DE68-03995D-00_EN.indd 21
2015-05-20 �� 10:35:34
USING LIGHT MEAL FEATURE
Light Meal feature has 4 pre-programmed cooking time. You do not need to
set either the cooking times or the power level. First, place the food in the
centre of the turntable and close the door.
Open the door. Place the food in the centre of the turntable. Close the door.
1. Select the type of food that you are cooking by
pressing Light Meal ( ) button once or more times.
2. Select the size of the serving by pressing the
Down ( ) and Up ( ) buttons. (Refer to the
table on the side)
Code/Food
1. Drinks
Coffee, milk,
tea, water
(roomtemperature)
150 ml
(1 cup)
250 ml
(1 mug)
2. Frozen Cake
100-200 g
200-300 g
400-500 g
600-700 g
3. Muffins
200-250 g
300-350 g
4. Croissants
150-250 g
250-350 g
3. Press the START ( ) button.
Result :
Serving
Size
Cooking starts. When it has finished:
1) The oven beeps four times.
2) The end reminder signal will beep
3 times. (once every minute)
3) The current time is displayed again.
Use only recipients that are microwave-safe.
LIGHT MEAL SETTINGS
The following table presents Auto Programmes for Reheat of drinks
and defrosting, warming frozen cake, baking muffins and croissants. It
contains its quantities, standing times and appropriate recommendations.
Programme no 1 is running with microwave energy only and programme no
2 with a combination of microwaves and convection. Programmes 3 and 4
are running with forced air convection.
Standing
Time
Recommendations
(min.)
1-2
Pour the liquid into ceramic
cups and reheat uncovered.
Place cup (150 ml) or mug
(250 ml) in the centre of the
turntable. After reheat leave to
stand in the microwave oven.
Stir drinks before and after
standing time. Be careful while
taking the cups out (see safety
instructions for liquids).
5-25
Put frozen cake (-18 °C) in
the middle, put frozen cake
pieces in a circle on low
rack. Set rack on turntable.
By the help of convection
the cake will be warmed and
crisp up. This programme is
suitable for cake (round) and
cake pieces, such as fruit
cake with crumble topping,
streusel cake or cake with
poppy seeds. It is not suitable
for cake with cream filling and
cake with chocolate topping.
5
Pour dough into 8 paper cups
(8 x 30 g for 200-250 g or 8
x 40 g for 300-350 g setting).
Place paper cups on low rack
and set rack on turntable.
5
Prepare croissants according
to food manufacturer from
fresh dough. Put croissants
on baking paper on low rack.
The first setting is for small
croissants, the second setting
is for normal sized croissants.
English - 22
CE73J-B_XEU_DE68-03995D-00_EN.indd 22
2015-05-20 �� 10:35:35
USING THE POWER DEFROST FEATURE
THE POWER DEFROST SETTINGS
The Power Defrost feature enables you to defrost meat, poultry, fish, bread/
cake and fruits. The defrost time and power level are set automatically.
You simply select the programme and the weight.
The following table presents the various Power Defrost programmes,
quantities, standing times and appropriate recommendations. Remove all
kind of package material before defrosting.
Place meat, poultry and fish on a flat glass plate or on a ceramic plate,
arrange bread and cake on kitchen paper.
Use only dishes that are microwave-safe.
1. Press the Power Defrost ( ) button.
Result :
Code
The following indication is displayed:
(Power Defrost).
2. Select the type of food that you are cooking by
pressing the Power Defrost ( ) button. Refer to the
table on the following page for a description of the
various preprogrammed settings.
3. Select the food weight by pressing the Down (
and Up ( ) buttons.
1
Meat
2
Poultry
3
Fish
)
4. Press the START ( ) button.
Result :
 Defrosting begins.
 The oven beeps through defrosting
to remind you to turn the food over.
5. Press the START ( ) again to finish defrosting.
Result :
Food
Standing
time
Recommendations
(min.)
200-1500 g
20-90
Shield the edges with
aluminium foil. Turn the meat
over, when the oven beeps.
This programme is suitable
for beef, lamb, pork, steaks,
chops, minced meat.
200-1500 g
20-90
Shield the leg and wing tips
with aluminium foil. Turn the
poultry over, when the oven
beeps. This programme is
suitable for whole chicken as
well as for chicken portions.
200-1500 g
20-80
Shield the tail of a whole
fish with aluminium foil. Turn
the fish over, when the oven
beeps. This programme is
suitable for whole fishes as
well as for fish fillets.
(continued)
Serving
size
04 OVEN USE
First, place the frozen food in the centre of the turntable and close the door.
When cooking has finished, the oven will
beep and flash “0” four times. The oven
will then beep one time per minute.
You can also defrost food manually. To do so, select the microwave
cooking/reheating function with a power level of 180 W. Refer to the
section entitled “Cooking/Reheating” on page 17 for further details.
English - 23
CE73J-B_XEU_DE68-03995D-00_EN.indd 23
2015-05-20 �� 10:35:36
Standing
time
Recommendations
(min.)
4
Bread/ 125-1000 g
10-60
Put bread horizontally on a
Cake
piece of kitchen paper and
turn over, as soon as the
oven beeps. Place cake on a
ceramic plate and if possible,
turn over, as soon as the
oven beeps. Oven keeps
operating and is stopped,
when you open the door.)
This programme is suitable
for all kinds of bread, sliced
or whole, as well as for bread
rolls and baguettes. Arrange
bread rolls in a circle. This
programme is suitable for all
kinds of yeast cake, biscuit,
cheese cake and puff pastry.
It is not suitable for short/
crust pastry, fruit and cream
cakes as well as for cake with
chocolate topping.
5
Fruit
100-600 g
5-20
Spread fruits evenly into a flat
glass dish. This programme is
suitable for all kind of fruits.
Select the Manual Defrosting function with a power level of 180 W if you
want to defrost food manually. For further details on manual defrosting
and defrosting time, refer to the page 34.
Code
Food
Serving
size
FAST PREHEATING THE OVEN
For convection cooking, it is recommended that you preheat the oven to
the appropriate temperature before placing the food in the oven.
When the oven reaches the requested temperature, it is maintained for
approximately 10 minutes; it is then switched off automatically.
1. Press the Fast Preheat ( ) button.
Result :
The following indications are displayed:
Heat
Then change to
200 °C (Temperature).
2. Press the Fast Preheat ( ) button one or more
times to set the temperature.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
3. Press the START ( ) button.
Result :
The oven is preheated to the requested
temperature.
• The display times are 8 seconds
for the selected cooking mode and 2 seconds for the
preset temperature in sequence.
Ex) In fast preheat mode at 200 °C
(displayed for 8 seconds)
(displayed for 2 seconds)
• Upon arrival at the preset temperature, the oven beeps
6 times and the temperature is kept for 10 minutes.
• After 10 minutes, the beeps 4 times and the operation
stops.
In case the inner temperature has reached the preset temperature, the
beeps 6 times when temperature and the preset temperature is kept for
10 minutes.
English - 24
CE73J-B_XEU_DE68-03995D-00_EN.indd 24
If you would like to know the current temperature of oven cavity, press
Fast Preheat ( ) button.
2015-05-20 �� 10:35:37
COOKING BY CONVECTION
4. Press the START ( ) button.
The convection mode enables you to cook food in the same way as in
a traditional oven. The microwave mode is not used. You can set the
temperature, as required, in a range varying from 40 °C to 200 °C in eight
preset levels. The maximum cooking time is 60 minutes.
Result :
Open the door and place the recipient on the low rack and set on turntable.
1. Press the Convection ( ) button.
Result :
The following indications are displayed:
(convection mode).
200 °C
(displayed for 8 seconds)
(displayed for 2 seconds)
• When cooking has finished, the oven will beep and flash
“0” four times. The oven will then beep one time per
minute.
04 OVEN USE
If you wish to Fast Preheat the oven, see the left side.
• Always use oven gloves when touching the recipients in the oven,
as they will be very hot.
• You can get better cooking and browning, if you use the low rack.
Cooking starts:
• The display times are 8 seconds
for the preset cooking time and
2 seconds for the preset temperature in sequence.
Ex) 30 minutes of cooking time at 200 °C
If you would like to know the current temperature of oven cavity, press
Fast Preheat ( ) button.
(temperature).
2. Press the Convection ( ) button once or more
times to set the temperature.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
3. Select the cooking time by pressing the 10 min,
1 min and 10 sec buttons.
Be careful, Grill heater may work intermittently while the convection
mode is operating.
English - 25
CE73J-B_XEU_DE68-03995D-00_EN.indd 25
2015-05-20 �� 10:35:38
CHOOSING THE ACCESSORIES
COMBINING MICROWAVES AND THE GRILL
Traditional convection cooking does require cookware.
You should, however, use only cookware that you would
use in your normal oven. Microwave-safe containers
are not usually suitable for convection cooking; don’t
use plastic containers, dishes,paper cups, towels, etc.
If you wish to select a combined cooking mode (microwave and grill or
convection), use only recipients that are microwave-safe and oven-proof.
You can also combine microwave cooking with the grill, to cook quickly and
brown at the same time.
ALWAYS use microwave-safe and oven-proof cookware. Glass or
ceramic dishes are ideal as they allow the microwaves to penetrate the
food evenly.
ALWAYS use oven gloves when touching the recipients in the oven, as
they will be very hot.
For further details on suitable cookware and utensils, refer to the
Cookware Guide on page 29.
You can improve cooking and grilling, if you use the high rack.
GRILLING
The grill enables you to heat and brown food quickly, without using
microwaves.
• Always use oven gloves when touching the recipients in the oven,
as they will be very hot.
• You can get better cooking and grilling results, if you use the high
rack.
1. Open the door and place the food on the rack.
2. Press the Grill ( ) button.
Result:
The following indications are displayed:
(grill mode)
• You cannot set the temperature of
the grill.
3. Set the grilling time by pressing the 10 min, 1 min
and 10 sec buttons.
• The maximum grilling time is
60 minutes.
Open the door. Place the food on the rack best suited to the type of food to
be cooked. Place the rack on the turntable. Close the door.
1. Press the Microwave+Grill (
Result :
) button.
The following indications are displayed:
600 W
(microwave & grill combi
mode)
(output power)
2. Select the appropriate power level by pressing the
Microwave+Grill (
) button until the corresponding
output power is displayed (300-600 W).
3. Set the cooking time by pressing the 10 min, 1 min
and 10 sec buttons.
4. Press the START ( ) button.
Result :
4. Press the START ( ) button.
Result :
Grilling starts:
• When cooking has finished, the
oven will beep and flash “0” four
times. The oven will then beep one time per minute.
Cooking starts:
• Combination cooking starts.
• When cooking has finished, the
oven will beep and flash “0” four
times. The oven will then beep one
time per minute.
English - 26
CE73J-B_XEU_DE68-03995D-00_EN.indd 26
2015-05-20 �� 10:35:39
COMBINING MICROWAVES AND CONVECTION
ALWAYS use microwave-safe and oven-proof cookware. Glass or
ceramic dishes are ideal as they allow the microwaves to penetrate the
food evenly.
ALWAYS use oven gloves when touching the recipients in the oven, as
they will be very hot.
4. Set the appropriate power level by pressing
the Microwave+Conv. (
) button until the
corresponding output power is displayed (600, 450,
300, 180, 100 W).
5. Press the START ( ) button.
Result :
• Combination cooking starts.
• The oven is heated to the required
temperature and then microwave
cooking continues until the cooking time is over.
• The display times are 8 seconds for the preset cooking
time and 2 seconds for the preset temperature in
sequence.
Ex) 30 minutes of cooking time at 200 °C
Open the door. Place the food on the turntable or on the low rack
which should then be placed on the turntable. Close the door. You can
get better cooking and browning, if you use the low rack.
1. Press the Microwave+Conv. (
) button.
Result :
The following indications are displayed:
(microwave & convection
combi mode)
200 °C 200 °C (temperature)
2. Select the temperature by pressing the
Microwave+Conv. (
) button.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
3. Set the cooking time by pressing the 10 min, 1 min
and 10 sec buttons.
(displayed for 8 seconds)
04 OVEN USE
Combination cooking uses both microwave energy and convection heating.
No preheating is required as the microwave energy is immediately available.
Many foods can be cooked in combination mode, particularly:
• Roast meats and poultry
• Pies and cakes
• Egg and cheese dishes
(displayed for 2 seconds)
• When cooking has finished, the oven will beep and flash
“0” four times. The oven will then beep one time per
minute.
If you would like to know the current temperature of the oven cavity,
press the Fast Preheat ( ) button.
SAFETY-LOCKING YOUR MICROWAVE OVEN
Your microwave oven is fitted with a special Child Safety programme, which
enables the oven to be “locked” so that children or anyone unfamiliar with it
cannot operate it accidentally.
The oven can be locked at any time.
1. Press the Grill ( ) and Microwave+Conv. (
)
buttons at the same time(about three second).
Result:
• The oven is locked.
• The follow indication is display “L”.
2. To unlock the oven, press the Grill ( ) and
Microwave+Conv. (
) buttons again at the same
time (about three second).
Result:
English - 27
CE73J-B_XEU_DE68-03995D-00_EN.indd 27
The oven can be used normally.
2015-05-20 �� 10:35:40
SWITCHING THE BEEPER OFF
3. Set the weight by pressing the Down ( ) and
Up ( ) buttons the appropriate number of times
(1500 g in the example).
You can switch the beeper off whenever you want.
1. Press the Fast Preheat ( ) and Microwave+Grill
(
) buttons at the same time (about one
second).
Result:
4. Press the Microwave (
2. To switch the beeper back on, press the Fast
Preheat ( ) and Microwave+Grill (
) buttons
again at the same time (about one second).
Result:
) button.
The oven does not beep to indicate the end of a function.
5. Set the microwave power level by pressing the
Microwave ( ) button to select the appropriate
Power Level (450 W in the example).
The oven operates normally.
MULTISTAGE COOKING
Your microwave oven can be programmed to cook food in up to three
stages (the Convection, Microwave+Convection and Fast Preheat mode
can not be used in Multistage cooking). Example: You wish to Power
defrost food and cook it without having to reset the oven after each stage.
You can thus defrost and cook a 1.5 kg chicken in three stages:
If you want to cook some food
• Defrosting
• Microwave cooking for 25 minutes
• Grill for 10 minutes
Defrosting must be the first stage. Combination and Grill can only be
used once during the remaining two stages, However microwave can
be used twice(at two different power levels).
1. Press the Power Defrost ( ) button.
2. Select the type of food that you are cooking by
pressing the Power Defrost ( ) button.
(Refer to 23 page)
6. Set the cooking time by 10 min, 1 min and 10 sec
buttons. (30 minutes in the example)
7. Press the Grill (
) button.
8. Pressing the 10 min, 1 min and 10 sec buttons
appropriate number of times (15 minutes in the
example).
9. Press the START ( ) button.
Result :
Cooking starts.
When cooking has finished, the oven will
beep and flash “0” four times. The oven
will then beep one time per minute.
English - 28
CE73J-B_XEU_DE68-03995D-00_EN.indd 28
2015-05-20 �� 10:35:40
cookware guide
Cookware
Cookware
MicrowaveSafe
Aluminium foil
✓✗
Browning plate
✓
China and
earthenware
✓
Comments
Can be used in small quantities
to protect areas against
overcooking. Arcing can occur
if the foil is too close to the oven
wall or if too much foil is used
Do not preheat for more than
eight minutes.
Porcelain, pottery, glazed
earthenware and bone china
are usually suitable, unless
decorated with a metal trim.
Some frozen foods are
packaged in these dishes.
Disposable polyester
cardboard dishes
Fast-food packaging
✓
• Polystyrene cups
containers
✓
• Paper bags or
newspaperr
✗
Can be used to warm food.
Overheating may cause the
polystyrene to melt.
May catch fire.
• Recycled paper or
metal trims
✗
May cause arcing.
MicrowaveSafe
Comments
Glassware
• Oven-to-table ware
✓
• Fine glassware
✓
• Glass jars
✓
Can be used, unless decorated
with a metal trim.
Can be used to warm foods or
liquids. Delicate glass may break
or crack if heated suddenly.
Must remove the lid. Suitable for
warming only.
Metal
• Dishes
✗
• Freezer bag twist ties
✗
May cause arcing or fire.
Paper
• Plates, cups, napkins
and Kitchen paper
✓
• Recycled paper
✗
05 COOKWARE GUIDE
To cook food in the microwave oven, the microwaves must be able to
penetrate the food, without being reflected or absorbed by the dish used.
Care must therefore be taken when choosing the cookware. If the
cookware is marked microwave-safe, you do not need to worry.
The following table lists various types of cookware and indicates whether
and how they should be used in a microwave oven.
For short cooking times and
warming. Also to absorb excess
moisture.
May cause arcing.
Plastic
• Containers
✓
• Cling film
✓
• Freezer bags
Wax or grease-proof
paper
✓
: Recommended
✓✗
✓
✓✗
Particularly if heat-resistant
thermoplastic. Some other
plastics may warp or discolour
at high temperatures.
Do not use Melamine plastic.
Can be used to retain moisture.
Should not touch the food. Take
care when removing the film as
hot steam will escape.
Only if boilable or oven-proof.
Should not be airtight. Prick with
a fork, if necessary.
Can be used to retain moisture
and prevent spattering.
: Use Caution ✗
: Unsafe
English - 29
CE73J-B_XEU_DE68-03995D-00_EN.indd 29
2015-05-20 �� 10:35:40
cooking guide
MICROWAVES
Microwave energy actually penetrates food, attracted and absorbed by its
water, fat and sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid
movement of these molecules creates friction and the resulting heat cooks
the food.
COOKING
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum
efficiency. Microwaves are reflected by metal, such as stainless steel,
aluminium and copper, but they can penetrate through ceramic, glass,
porcelain and plastic as well as paper and wood. So food must never be
cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or
frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces,
custard, soups, steamed puddings, preserves, and chutneys can also be
cooked in a microwave oven. Generally speaking, microwave cooking is
ideal for any food that would normally be prepared on a hob. Melting butter
or chocolate, for example (see the chapter with tips, techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water
rises as steam and contributes to cooking process.
Food can be covered in different ways: e.g. with a ceramic plate, plastic
cover or microwave suitable cling film.
Cooking Guide for frozen vegetables
Use a suitable glass pyrex bowl with lid. Cook covered for the minimum
time – see table. Continue cooking to get the result you prefer.
Stir twice during cooking and once after cooking. Add salt, herbs or butter
after cooking. Cover during standing time.
Time
Standing time
(min.)
(min.)
Spinach
150 g
600 W
5-6
2-3
Instructions
Add 15 ml (1 tablespoon) cold water.
Broccoli
300 g
600 W
9-10
2-3
Instructions
Add 30 ml (2 tbsp.) cold water.
Peas
300 g
600 W
7-8
2-3
Instructions
Add 15 ml (1 tbsp.) cold water.
Green Beans
300 g
600 W
8-9
2-3
Instructions
Add 30 ml (2 tbsp.) cold water.
Mixed Vegetables
300 g
600 W
7½-8 ½
2-3
(carrots/peas/
Instructions
corn)
Add 15 ml (1 tbsp.) cold water.
Mixed Vegetables
300 g
600 W
8-9
2-3
(Chinese style)
Instructions
Add 15 ml (1 tbsp.) cold water.
Food
Portion
Power
Standing times
After cooking is over food the standing time is important to allow the
temperature to even out within the food.
English - 30
CE73J-B_XEU_DE68-03995D-00_EN.indd 30
2015-05-20 �� 10:35:40
Standing
time
(min.)
3
Portion
Time
(min.)
250 g
500 g
4 -5
7-8
Brussels
Sprouts
Carrots
250 g
6-7
3
250 g
4½-5½
3
Cauliflower
250 g
500 g
5-6
8-9
3
Courgettes
250 g
3-4
3
Egg Plants
250 g
3½-4
3
Leeks
250 g
4½-5
3
Food
Broccoli
Standing
time
(min.)
3
Food
Portion
Time
(min.)
Mushrooms
125 g
250 g
1½-2
3-3½
Onions
250 g
5½-6
3
Pepper
250 g
4½-5
3
Potatoes
250 g
500 g
4-5
7½-8½
3
Turnip
Cabbage
250 g
5½-6
3
Instructions
Prepare even sized florets.
Arrange the stems to the
centre.
Add 60-75 ml (5-6 tbsp.)
water.
Cut carrots into even sized
slices.
Prepare even sized florets.
Cut big florets into halves.
Arrange stems to the
centre.
Cut courgettes into slices.
Add 30 ml (2 tbsp.) water
or a knob of butter. Cook
until just tender.
Cut egg plants into small
slices and sprinkle with
1 tablespoon lemon juice.
Cut leeks into thick slices.
Instructions
Prepare small whole or
sliced mushrooms. Do not
add any water. Sprinkle
with lemon juice. Spice
with salt and pepper. Drain
before serving.
Cut onions into slices or
halves. Add only 15 ml
(1 tbsp.) water.
Cut pepper into small
slices.
Weigh the peeled
potatoes and cut them
into similar sized halves or
quarters.
Cut turnip cabbage into
small cubes.
06 COOKING GUIDE
Cooking Guide for fresh vegetables
Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water
(2-3 tbsp.) for every 250 g unless another water quantity is recommended
– see table. Cook covered for the minimum time – see table. Continue
cooking to get the result you prefer. Stir once during and once after
cooking. Add salt, herbs or butter after cooking.
Cover during a standing time of 3 minutes.
Hint :
Cut the fresh vegetables into even sized pieces. The
smaller they are cut, the quicker they will cook.
All fresh vegetables should be cooked using full microwave power (800 W).
English - 31
CE73J-B_XEU_DE68-03995D-00_EN.indd 31
2015-05-20 �� 10:35:41
REHEATING
Cooking Guide for rice and pasta
Rice :
Use a large glass pyrex bowl with lid – rice doubles in
volume during cooking. Cook covered. After the cooking
time is over, stir before standing time and salt or add herbs
and butter.
Remark: the rice may not have absorbed all water after the
cooking time is finished.
Pasta :
Use a large glass pyrex bowl. Add boiling water, a pinch of
salt and stir well. Cook uncovered.
Stir occasionally during and after cooking. Cover during
standing time and drain thoroughly afterwards.
Food
Portion Power
Time
(min.)
Standing
time
Instructions
(min.)
5
Add 500 ml
cold water.
5
Add 500 ml
cold water.
5
Add 500 ml
cold water.
White Rice
(parboiled)
Brown Rice
(parboiled)
Mixed Rice
(rice + wild
rice)
Basmati Rice
(Indian style)
250 g
800 W
16-18
250 g
800 W
21-23
250 g
800 W
17-19
250g
800 W
12-14
2
Pasta
250 g
800 W
10-12
5
Add 500 ml
cold water.
Cook
uncovered.
Add 1000 ml
cold water.
Cook
uncovered.
Your microwave oven will reheat food in a fraction of the time that
conventional ovens hobs normally take.
Use the power levels and reheating times in the following chart as a guide.
The times in the chart consider liquids with a room temperature of about
+18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.
Arranging and covering
Avoid reheating large items such as joint of meat – they tend to overcook
and dry out before the centre is piping hot. Reheating small pieces will be
more successful.
Power levels and stirring
Some foods can be reheated using 800 W power while others should be
reheated using 600 W, 450 W or even 300 W.
Check the tables for guidance. In general, it is better to reheat food using a
lower power level, if the food is delicate, in large quantities, or if it is likely to
heat up very quickly (mince pies, for example).
Stir well or turn food over during reheating for best results. When possible,
stir again before serving.
Take particular care when heating liquids and baby foods. To prevent
eruptive boiling of liquids and possible scalding, stir before, during and
after heating. Keep them in the microwave oven during standing time. We
recommend putting a plastic spoon or glass stick into the liquids. Avoid
overheating (and therefore spoiling) the food.
It is preferable to underestimate cooking time and add extra heating time, if
necessary.
Heating and standing times
When reheating food for the first time, it is helpful to make a note of the time
taken – for future reference.
Always make sure that the reheated food is piping hot throughout.
Allow food to stand for a short time after reheating - to let the temperature
even out.
The recommended standing time after reheating is 2-4 minutes, unless
another time is recommended in the chart..
Take particular care when heating liquids and baby food. See also the
chapter with the safety precautions.
English - 32
CE73J-B_XEU_DE68-03995D-00_EN.indd 32
2015-05-20 �� 10:35:41
Reheating liquids
Always allow a standing time of at least 20 seconds after the oven has been
switched off to allow the temperature to even out. Stir during heating, if
necessary, and ALWAYS stir after heating. To prevent eruptive boiling and
possible scalding, you should put a spoon or glass stick into the beverages
and stir before, during and after heating.
Food
Stew
(chilled)
BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir
well after reheating! Let stand for 2-3 minutes before serving. Stir again
and check the temperature. Recommended serving temperature: between
30-40 °C.
BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered.
Never heat a baby’s bottle with teat on, as the bottle may explode if
overheated. Shake well before standing time and again before serving !
Always carefully check the temperature of baby milk or food before giving it
to the baby. Recommended serving temperature: ca. 37 °C.
REMARK: Baby food particularly needs to be checked carefully before
serving to prevent burns. Use the power levels and times in the next table
as a guide lines for reheating.
Pasta with
sauce
(chilled)
Filled pasta
with sauce
(chilled)
Plated meal
(chilled)
Reheating liquids and food
Use the power levels and times in this table as a guide lines for reheating.
Food
Drinks
(coffee, tea
and water)
Soup
(chilled)
Time
Standing
(min.)
time (min.)
150 ml (1 cup)
800 W
1-1½
1-2
250 ml (1 mug)
2-2½
Instructions
Pour into ceramic cup or mug and reheat uncovered: Put
cup or mug in the centre of turntable. Keep in microwave
oven during standing time and stir well.
250-350 g
800 W
3-4
2-3
Instructions
Pour into a deep ceramic plate or deep ceramic bowl.
Cover with plastic lid. Stir well after reheating. Stir again
before serving.
Portion
Power
Power
06 COOKING GUIDE
REHEATING BABY FOOD
Time
Standing
(min.)
time (min.)
350 g
600 W
4½-5½
2-3
Instructions
Put stew in a deep ceramic plate. Cover with plastic
lid. Stir occasionally during reheating and again before
standing and serving.
350 g
600 W
4-5
3
Instructions
Put pasta (e.g. spaghetti or egg noodles) on a flat
ceramic plate. Cover with microwave cling film. Stir before
serving.
350 g
600 W
5-6
3
Instructions
Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic
plate. Cover with plastic lid. Stir occasionally during
reheating and again before standing and serving.
350 g
600 W
5½-6½
3
450 g
6½-7½
Instructions
Plate a meal of 2-3 chilled components on a ceramic
dish. Cover with microwave cling-film.
Portion
Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.
Food
Baby food
(vegetables +
meat)
Portion
Power
190 g
600 W
Time
Standing time
(min.)
2-3
30 sec.
Instructions
Empty into ceramic deep plate. Cook covered. Stir after
cooking time. Stand for 2-3 minutes. Before serving, stir
well and check the temperature carefully.
(continued)
English - 33
CE73J-B_XEU_DE68-03995D-00_EN.indd 33
2015-05-20 �� 10:35:41
Food
Portion
Power
Time
Standing time
(min.)
2-3
Baby porridge
190 g
600 W
20 sec.
(grain + milk +
Instructions
fruit)
Empty into ceramic deep plate. Cook covered. Stir after
cooking time. Stand for 2-3 minutes. Before serving, stir
well and check the temperature carefully.
Baby milk
100 ml
300 W
30-40 sec.
2-3
200 ml
1 min. to 1
min. 10 sec.
Instructions
Stir or shake well and pour into a sterilized glass bottle.
Place into the centre of turn-table. Cook uncovered.
Shake well and stand for at least 3 minutes. Before
serving, shake well and check the temperature carefully.
DEFROSTING
Microwaves are an excellent way of defrosting frozen food. Microwaves
gently defrost frozen food in a short period of time. This can be of great
advantage, if unexpected guests suddenly show up.
Frozen poultry must be thoroughly thawed before cooking. Remove any
metal ties and take it out of any wrapping to allow thawed liquid to drain
away.
Put the frozen food on a dish without cover. Turn over half way, drain off any
liquid and remove any giblets as soon as possible.
Check the food occasionally to make sure that it does not feel warm.
If smaller and thinner parts of the frozen food start to warm up, they can be
shield by wrapping very small strips of aluminium foil around them during
defrosting.
Should poultry start to warm up on the outer surface, stop thawing and
allow it to stand for 20 minutes before continuing.
Leave the fish, meat and poultry to stand in order to complete defrosting.
The standing time for complete defrosting will vary depending on the
quantity defrosted. Please refer to the table below.
Hint :
Flat food defrosts better than thick and smaller quantities
need less time than bigger ones. Remember this hint while
freezing and defrosting food.
For defrosting of frozen food with a temperature of about -18 to -20 °C, use
the following table as a guide.
All frozen food should be defrosted using defrosting power level (180 W).
Food
Meat
Minced beef
Pork steaks
Poultry
Chicken
pieces
Whole chicken
Fish
Fish fillets/
Whole fish
Portion
Time (min.)
Standing time
(min.)
250 g
500 g
250 g
5-6
15-30
10-12
5-7
Instructions
Place the meat on a flat ceramic plate. Shield thinner
edges with aluminium foil. Turn over after half of
defrosting time!
500 g (2 pcs)
12-14
15-60
1200 g
28-32
Instructions
First, put chicken pieces first skin-side down, whole
chicken first breast-side-down on a flat ceramic plate.
Shield the thinner parts like wings and ends with
aluminium foil. Turn over after half of defrosting time!
200 g
400 g
5-7
10-25
10-12
Instructions
Put frozen fish in the middle of a flat ceramic plate.
Arrange the thinner parts under the thicker parts. Shield
narrow ends of fillets and tail of whole fish With aluminium
foil. Turn over after half of defrosting time!
English - 34
CE73J-B_XEU_DE68-03995D-00_EN.indd 34
2015-05-20 �� 10:35:41
Food
Fruits
Berries
Portion
Time (min.)
the turntable is rotating. Due to the rotation of the turntable, the food browns
evenly. Three combination modes are available with this model: 600 W + Grill,
450 W + Grill and 300 W + Grill.
Standing time
(min.)
Cookware for cooking with microwave + grill: Please use cookware
300 g
that microwaves can pass through. Cookware should be flameproof. Do not
use metal cookware with combination mode. Do not use any type of plastic
cookware, as it can melt.
Food suitable for microwave + grill cooking: Food suitable for combination
Bread
Bread rolls
2 pcs
1-1½
5-20
(each ca. 50 g)
4 pcs
2½-3
Toast/
250 g
4-4½
Sandwich
German bread
500 g
8-10
(wheat+rye
Instructions
flour)
Arrange rolls in a circle or bread horizontally on kitchen
paper in the middle of turntable. Turn over after half of
defrosting time!
mode cooking include all kinds of cooked food which need reheating and
browning (e.g. baked pasta), as well as foods which require a short cooking time
to brown the top of the food. Also, this mode can be used for thick food portions
that benefit from a browned and crispy top (e.g. chicken pieces, turning them
over half way through cooking). Please refer to the grill table for further details.
Important remark: Whenever the combination mode (microwave + grill) is
06 COOKING GUIDE
5-7
5-10
Instructions
Spread fruit on a flat, round glass dish (with a large
diameter).
used, the food should be placed on the high rack, unless another instruction is
recommended. Please refer to the instructions in the following chart.
The food must be turned over, if it is to be browned on both sides.
GRILL
The grill-heating element is located underneath the ceiling of the cavity. It
operates while the door is closed and the turntable is rotating. The turntable’s
rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes
will make the food brown more quickly.
Cookware for grilling: Should be flameproof and may include metal. Do not
use any type of plastic cookware, as it can melt.
Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon
and gammon rashers, thin fish portions, sandwiches and all kinds of toast with
toppings.
Grill Guide
Preheat the grill with the grill-function for 3-4 minutes.
Use the power levels and times in this table as guide lines for grilling. Use
oven gloves when taking out.
Fresh
food
Toast
Slices
Grilled
Tomatoes
Important remark: Whenever the grill only mode is used, please remember
that food must be placed on the high rack, unless another instruction is
recommended.
MICROWAVE + GRILL
Portion
Power
4 pcs
(each 25 g)
Grill only
1st side
time (min.)
2-3
2nd side
time (min.)
2-3
Instructions
Put the toast slices side by side on the rack.
400 g
300 W + Grill
5-6
(2 pcs)
Instructions
Cut tomatoes into halves. Put some cheese on top. Arrange
in a circle in a flat glass pyrex dish. Place it on the high rack.
Stand for 2-3 minutes.
(continued)
This cooking mode combines the radiant heat that is coming from the grill with
the speed of microwave cooking. It operates only while the door is closed and
English - 35
CE73J-B_XEU_DE68-03995D-00_EN.indd 35
2015-05-20 �� 10:35:41
Fresh
food
TomatoCheese
Toast
Toast
Hawaii
(ham,
pineapple,
cheese
slices)
Baked
Potatoes
Portion
Power
4 pcs
(300 g)
300 W + Grill
1st side
time (min.)
6-7
2nd side
time (min.)
-
Instructions
Toast the bread slices first. Put the toast with topping on the
high rack. Stand for 2-3 minutes.
4 pcs
300 W + Grill
5-6
(500 g)
Instructions
Toast the bread slices first. Put the toast with topping on the
high rack. Stand for 2-3 minutes.
500 g
600 W + Grill
8-10
Instructions
Cut potatoes into halves. Put them in a circle on the high
rack with the cut side to the grill.
Gratin
450 g
450 W + Grill
10-12
Potatoes/
Instructions
Vegetables Put the fresh gratin into a small glass pyrex dish. Put the dish
(chilled)
on the high rack. After cooking stand for 2-3 minutes.
Baked
2 apples
300 W + Grill
7-8
Apples
(ca.400 g)
Instructions
Core the apples and fill them with raisins and jam. Put some
almond slices on top. Put apples on a flat glass pyrex dish.
Place the dish directly on the low rack.
Chicken
500 g
300 W + Grill
12-14
8-10
Pieces
(2 pcs)
Instructions
Brush chicken pieces with oil and spices. Put them in a circle
on the high rack. After grilling stand for 2-3 minutes.
Beef
400 g
Grill only
12-15
10-13
Steaks
(2 pcs)
(medium)
Instructions
Brush the beef steaks with oil. Lay them in a circle on the
high rack. After grilling stand for 2-3 minutes.
Fresh
food
Roast Fish
1st side
2nd side
time (min.)
time (min.)
400-500 g
300 W + Grill
5-7
5½-6½
Instructions
Brush skin of whole fish with oil and add herbs and spices.
Put two fish side by side (head to tail) on the high rack. After
grilling stand for 2-3 minutes.
Portion
Power
CONVECTION
Cooking with convection is the traditional and well known method of
cooking food in a traditional oven with hot air.
The convection heat is emitted by the heating element at the rear and top
heating element, while the fan is circulating the hot air evenly.
Cookware for convection cooking:
All conventional ovenproof cookware, baking tins and sheets – anything you
would normally use in a traditional convection oven – can be used.
Food suitable for convection cooking:
All biscuits, individual scones, rolls and cakes should be made by this mode
as well as rich fruit cakes, choux pastry and soufflés.
MICROWAVES +CONVECTION
This mode combines the microwave energy with the hot air and is therefore
reducing the cooking time while giving the food a brown and crispy surface.
Cooking with convection is the traditional and well known method of
cooking food in an oven with hot air circulated by a fan on the back-wall.
Cookware for cooking with microwaves + convection:
Should be able to let the microwaves pass through. Should be ovenproof
(like glass, pottery or china without metal trims); similar to the cookware
described under MW + Grill.
Food suitable for microwave + convection cooking:
All kinds of meats and poultry as well as casseroles and gratin dishes,
sponge cakes and light fruit cakes, pies and crumbles, roast vegetables,
scones and breads.
English - 36
CE73J-B_XEU_DE68-03995D-00_EN.indd 36
2015-05-20 �� 10:35:41
Convection Guide for fresh and frozen food
Preheat the convection with the fast pre-heat function to the desired
temperature. Always use the low rack when cooking with convection or
combined microwave plus convection mode. This is oven is suitable for
baking on one level. Use the power levels and times in this table as guide
lines for convection cooking. Use oven gloves when taking out.
06 COOKING GUIDE
Fresh food
Portion
Power
Time
PIZZA
300-400 g
450 W + 200 °C
11-14
Frozen
Instructions
Pizza
Place the pizza on the low rack. After baking stand for
(Ready
2-3 minutes.
Baked)
PASTA
400 g
1st stage:
1st stage: 22-25
450 W + 200 °C
Frozen
Lasagne
2nd stage:
2nd stage: 3-5
Only grill
Instructions
Put into a suitable sized glass pyrex dish or leave in
the original packaging (take care that this is suitable for
microwaves and oven heat). Put frozen lasagne on the low
rack. After cooking stand for 2-3 minutes.
MEAT
1000-1200 g
600 W + 160 °C
1st side: 15-20
Roast Beef/
2nd side: 10-13
Roast Lamb
Instructions
(Medium)
Brush beef/ lamb with oil and spice it with pepper, salt
and paprika. Put it on the low rack, first with the fat side
down. After cooking wrap in aluminium foil and stand for
10–15minutes.
Roast
1100-1300 g
450 W + 200 °C
1st side : 20-25
Chicken
2nd side: 18-23
Fresh food
Portion
Power
Time
BREAD
4-5 pcs (250 g)
100 W + 180 °C
9-11
Frozen
Instructions
Bread Rolls Put bread rolls in a circle on the low rack. Stand 3-5
minutes.
Garlic Bread
200 g (1 pc)
100 W + 200 °C
10-12
(chilled, preInstructions
baked)
Put the chilled baguette on baking paper on the low rack.
After baking stand for 2-3 minutes.
CAKE
500 g
Only 180 °C
40-45
Marble
Instructions
Cake (fresh Put the fresh dough in a small rectangular black metal
dough)
baking dish (length 20 cm). Put the dish on the low rack.
After baking stand for 5-10 minutes.
Mini Muffins
8 x 30 g
Only 180 °C
17-23
(fresh
(200-250 g)
dough)
Instructions
Fill the fresh dough evenly in paper cups for muffins.
Put the cups on the low rack. After baking stand for 5
minutes.
Frozen Puff
250-300 g
Only 180 °C
23-28
pastries,
Instructions
filled
Put the pastry snacks on the low rack.
Frozen
500 g
180 W + 160 °C
12-15
Cake
Instructions
Put the frozen cake directly on the low rack.
After defrost and warming keep standing for 15-20 minutes.
Instructions
Brush chicken with oil and spices. Put chicken first breast
side down, second side breast side up on the low rack.
Put a flameproof glass dish below rack on turntable.After
cooking stand for 5 minutes.
English - 37
CE73J-B_XEU_DE68-03995D-00_EN.indd 37
2015-05-20 �� 10:35:41
SPECIAL HINTS
troubleshooting and information codes
MELTING BUTTER
Put 50 g butter into a small deep glass dish. Cover with plastic lid.
Heat for 30-40 seconds using 800 W, until butter is melted.
TROUBLESHOOTING
If you have any of the problems listed below try the solutions given.
MELTING CHOCOLATE
Put 100 g chocolate into a small deep glass dish.
Heat for 3-5 minutes, using 450 W until chocolate is melted.
Stir once or twice during melting. Use oven gloves while taking out!
Problem
Cause
Action
General
The buttons
cannot be
pressed
properly.
MELTING CRYSTALLIZED HONEY
Put 20 g crystallized honey into a small deep glass dish.
Heat for 20-30 seconds using 300 W, until honey is melted.
MELTING GELATINE
Lay dry gelatine sheets (10 g) for 5 minutes into cold water.
Put drained gelatine into a small glass pyrex bowl.
Heat for 1 minute using 300 W. Stir after melting.
COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)
Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold
water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using
800 W, until glaze/icing is transparent. Stir twice during cooking.
COOKING JAM
Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex
bowl with lid. Add 300 g preserving sugar and stir well.
Cook covered for 10-12 minutes using 800 W.
Stir several times during cooking. Empty directly into small jam glasses with
twist-off lids. Stand on lid for 5 minutes.
COOKING PUDDING/ CUSTARD
Mix pudding powder with sugar and milk (500 ml) by following the
manufacturers instructions and stir well. Use a suitable sized glass pyrex
bowl with lid. Cook covered for 6½ to 7½ minutes using 800 W.
Stir several times well during cooking.
The time is not
displayed.
The oven does
not work.
The oven
stops while in
operation.
Foreign matter may be
caught between the
buttons.
Remove the foreign
matter and try again.
For touch models:
Moisture is on the
exterior.
Wipe the moisture from
the exterior.
Child lock is activated.
Deactivate Child lock.
Power is not supplied.
Make sure power is
supplied.
The Eco (power-saving)
function is set.
Turn off the Eco function.
Power is not supplied.
Make sure power is
supplied.
The door is open.
Close the door and try
again.
The door open safety
mechanisms are covered
in foreign matter.
Remove the foreign
matter and try again.
The user has opened the
door to turn food over.
After turning over the
food, press the START
button again to start
operation.
BROWNING ALMOND SLICES
Spread 30 g sliced almonds evenly on a medium sized ceramic plate.
Stir several times during browning for 3½ to 4½ minutes using 600 W.
Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!
English - 38
CE73J-B_XEU_DE68-03995D-00_EN.indd 38
2015-05-20 �� 10:35:41
Problem
The power
turns off during
operation.
Cause
Action
Problem
Cause
Action
After cooking for an
extended period of time,
let the oven cool.
The door cannot
be opened
properly.
Food residue is stuck
between the door and
oven interior.
Clean the oven and then
open the door.
The cooling fan is not
working.
Listen for the sound of
the cooling fan.
The oven does
not heat.
Trying to operate the oven
without food inside.
Put food in the oven.
The oven may not work,
too much food is being
cooked, or improper
cookware is being used.
There is not sufficient
ventilation space for the
oven.
There are intake/exhaust
outlets on the front and
rear of the oven for
ventilation. Keep the gaps
specified in the product
installation guide.
Put one cup of water in a
microwave-safe container
and run the microwave
for 1-2 minutes to check
whether the water is
heated. Reduce the
amount of food and start
the function again. Use a
cooking container with a
flat bottom.
Several power plugs are
being used in the same
socket.
Designate only one
socket to be used for the
oven.
Heating is weak
or slow.
The oven may not work,
too much food is being
cooked, or improper
cookware is being used.
There is no
power to the
oven.
Power is not supplied.
Make sure power is
supplied.
There is a
popping
sound during
operation, and
the oven doesn't
work.
Cooking sealed food or
using a container with a
lid may causes popping
sounds.
Do not use sealed
containers as they may
burst during cooking
due to expansion of the
contents.
Put one cup of water in a
microwave-safe container
and run the microwave
for 1-2 minutes to check
whether the water is
heated. Reduce the
amount of food and start
the function again. Use a
cooking container with a
flat bottom.
The warm
function does
not work.
The oven
exterior is too
hot during
operation.
There is not sufficient
ventilation space for the
oven.
There are intake/exhaust
outlets on the front and
rear of the oven for
ventilation. Keep the gaps
specified in the product
installation guide.
The oven may not work,
too much food is being
cooked, or improper
cookware is being used.
Put one cup of water in a
microwave-safe container
and run the microwave
for 1-2 minutes to check
whether the water is
heated. Reduce the
amount of food and start
the function again. Use a
cooking container with a
flat bottom.
Objects are on top of the
oven.
Remove all objects on the
top of the oven.
07 TROUBLESHOOTING AND INFORMATION CODES
The oven has been
cooking for an extended
period of time.
(continued)
English - 39
CE73J-B_XEU_DE68-03995D-00_EN.indd 39
2015-05-20 �� 10:35:42
Problem
The thaw
function does
not work.
The interior light
is dim or does
not turn on.
Cause
The oven may not work,
too much food is being
cooked, or improper
cookware is being used.
The door has been left
open for a long time.
Action
Problem
Put one cup of water in a
microwave-safe container
and run the microwave
for 1-2 minutes to check
whether the water is
heated. Reduce the
amount of food and start
the function again. Use a
cooking container with a
flat bottom.
There is
electricity
coming from the
oven.
The power or power
socket is not properly
grounded.
Make sure the power
and power socket are
properly grounded.
There is water
dripping.
There may be water or
steam in some cases
depending on the food.
This is not an oven
malfunction.
Let the oven cool and
then wipe with a dry dish
towel.
There is steam
through a crack
in the door.
There may be water or
steam in some cases
depending on the food.
This is not an oven
malfunction.
Let the oven cool and
then wipe with a dry dish
towel.
There is water
left in the oven.
There may be water or
steam in some cases
depending on the food.
This is not an oven
malfunction.
Let the oven cool and
then wipe with a dry dish
towel.
The brightness
inside the oven
varies.
Brightness changes
depending on power
output changes
according to function.
Power output changes
during cooking are not
malfunctions. This is not
an oven malfunction.
Cooking is
finished, but the
cooling fan is
still running.
To ventilate the oven, the
cooling fan continues to
run for about 3 minutes
after cooking is complete.
This is not an oven
malfunction.
Pressing the
START button
operates the
oven.
This happens when the
oven was not operating.
The microwave oven
is designed to operate
by pressing the START
button when it was not
operating.
The interior light may
automatically turn off when
the Eco function operates.
Close and reopen the
door or press the STOP/
CANCEL button.
The interior light is
covered by foreign matter.
Clean the inside of the
oven and check again.
A beeping
sound occurs
during cooking.
If the Auto Cook function
is being used, this
beeping sound means it's
time to turn over the food
during thawing.
After turning over the
food, press the START
button again to restart
operation.
The oven is not
level.
The oven is installed on
an uneven surface.
Make sure the oven is
installed on flat, stable
surface.
There are sparks
during cooking.
Metal containers are used
during the oven/thawing
functions.
Do not use metal
containers.
When power
is connected,
the oven
immediately
starts to work.
The door is not properly
closed.
Close the door and check
again.
Cause
Action
English - 40
CE73J-B_XEU_DE68-03995D-00_EN.indd 40
2015-05-20 �� 10:35:42
Problem
Cause
Action
Problem
Turntable
Action
There is no roller ring,
or the roller ring is not
properly in place.
Install the roller ring and
then try again.
The turn table
drags while
turning.
The roller ring is not
properly in place, there
is too much food, or the
container is too large and
touches the inside of the
microwave.
Adjust the amount of
food and do not use
containers that are too
large.
The turn table
rattles while
turning and is
noisy.
Food residue is stuck to
the bottom of the oven.
Remove any food residue
stuck to the bottom of
the oven.
During initial operation,
smoke may come from
the heating elements
when you first use the
oven.
This is not a malfunction,
and if you run the oven
2-3 times, it should stop.
Food is on the heating
elements.
Let the oven cool
and then remove the
food from the heating
elements.
Grill
Food is too close to the
grill.
Put the food a suitable
distance away while
cooking.
Food is not properly
prepared and/or
arranged.
Make sure food is
properly prepared and
arranged.
The oven does
not heat.
The door is open.
Close the door and try
again.
Smoke comes
out during
preheating.
During initial operation,
smoke may come from
the heating elements
when you first use the
oven.
This is not a malfunction,
and if you run the oven
2-3 times, it should stop.
Food is on the heating
elements.
Let the oven cool
and then remove the
food from the heating
elements.
There is a
burning or
plastic smell
when using the
oven.
Plastic or non heatresistant cookware is
used.
Use glass cookware
suitable for high
temperatures.
There is a bad
smell coming
from inside the
oven.
Food residue or plastic
has melted and stuck to
the interior.
Use the steam function
and then wipe with a dry
cloth.
You can put a lemon slice
inside and run the oven
to remove the odour
more quickly.
07 TROUBLESHOOTING AND INFORMATION CODES
While turning,
the turntable
comes out of
place or stops
turning.
Smoke comes
out during
operation.
Cause
Oven
(continued)
English - 41
CE73J-B_XEU_DE68-03995D-00_EN.indd 41
2015-05-20 �� 10:35:42
Problem
The oven
does not cook
properly.
INFORMATION CODES
Cause
Action
The oven door is
frequently opened during
cooking.
Do not frequently open
the door unless you
are cooking things that
need to be turned. If you
open the door often, the
interior temperature will
be lowered and this may
affect the results of your
cooking.
The oven controls are not
correctly set.
Correctly set the oven
controls and try again.
The grill or other
accessories are not
correctly inserted.
Correctly insert the
accessories.
The wrong type or size of
cookware is used.
Reset the oven controls
or use suitable cookware
with flat bottoms.
Code
SE
E-24
Problem
Solution
Key pad is pressed for
10 seconds.
Press STOP/CANCEL
button and unplug out of wall
socket. And re-connect after
5 seconds.
The “E-24” message is
automatically activated
prior to the microwave oven
overheating.
Should the “E-24” message
be activated, then depress the
STOP/CANCEL key to utilize
the initialization mode.
If the above guidelines do not enable you to solve the problem, then
contact your local SAMSUNG customer service centre.
Please have the following information read.
• The model and serial numbers, normally printed on the rear of the
oven
• Your warranty details
• A clear description of the problem
Then contact your local dealer or SAMSUNG aftersales service.
English - 42
CE73J-B_XEU_DE68-03995D-00_EN.indd 42
2015-05-20 �� 10:35:42
technical specifications
memo
SAMSUNG strives to improve its products at all times. Both the design
specifications and these user instructions are thus subject to change
without notice.
CE73J, CE73J-B, CE73J-S, CE73J-W
Power source
230 V ~ 50 Hz AC
Power consumption
Maximum power
Microwave
Grill (heating element)
Convection (heating element)
2350 W
1200 W
1100 W
Max. 1700 W
Output power
100 W / 800 W - 6 levels (IEC-705)
- 240 V : 800 W
- 230 V : 750 W
Operating frequency
2450 MHz
Magnetron
OM75P(31)
Cooling method
Cooling fan motor
Dimensions (W x H x D)
Outside (Include Handle)
Oven cavity
489 x 282 x 444 mm
330 x 211 x 309 mm
Volume
21L
Weight
Net
15 kg approx.
08 TECHNICAL SPECIFICATIONS
Model
English - 43
CE73J-B_XEU_DE68-03995D-00_EN.indd 43
2015-05-20 �� 10:35:42
QUESTIONS OR COMMENTS
COUNTRY
CALL
AUSTRIA
0800-SAMSUNG (0800-7267864)
[Only for Premium HA] 0800-366661
[Only for Dealers] 0810-112233
BELGIUM
02-201-24-18
DENMARK
70 70 19 70
OR VISIT US ONLINE AT
www.samsung.com/at/support
www.samsung.com/be/support (Dutch)
www.samsung.com/be_fr/support (French)
www.samsung.com/dk/support
FINLAND
030-6227 515
www.samsung.com/fi/support
FRANCE
01 48 63 00 00
www.samsung.com/fr/support
0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/Anruf)
www.samsung.com/de/support
GERMANY
ITALIA
800-SAMSUNG (800.7267864)
CYPRUS
8009 4000 only from landline, toll free
GREECE
80111-SAMSUNG (80111 726 7864) only from land line
(+30) 210 6897691 from mobile and land line
LUXEMBURG
NETHERLANDS
NORWAY
PORTUGAL
SPAIN
SWEDEN
SWITZERLAND
UK
EIRE
261 03 710
www.samsung.com/it/support
www.samsung.com/gr/support
www.samsung.com/support
0900-SAMSUNG (0900-7267864) (€ 0,10/Min)
www.samsung.com/nl/support
815 56480
www.samsung.com/no/support
808 20 7267
www.samsung.com/pt/support
0034902172678
www.samsung.com/es/support
0771 726 7864 (0771-SAMSUNG)
www.samsung.com/se/support
0800 726 78 64 (0800-SAMSUNG)
www.samsung.com/ch/support (German)
www.samsung.com/ch_fr/support (French)
0330 SAMSUNG (7267864)
www.samsung.com/uk/support
0818 717100
www.samsung.com/ie/support
DE68-03995D-00
CE73J-B_XEU_DE68-03995D-00_EN.indd 44
2015-05-20 �� 10:35:42
