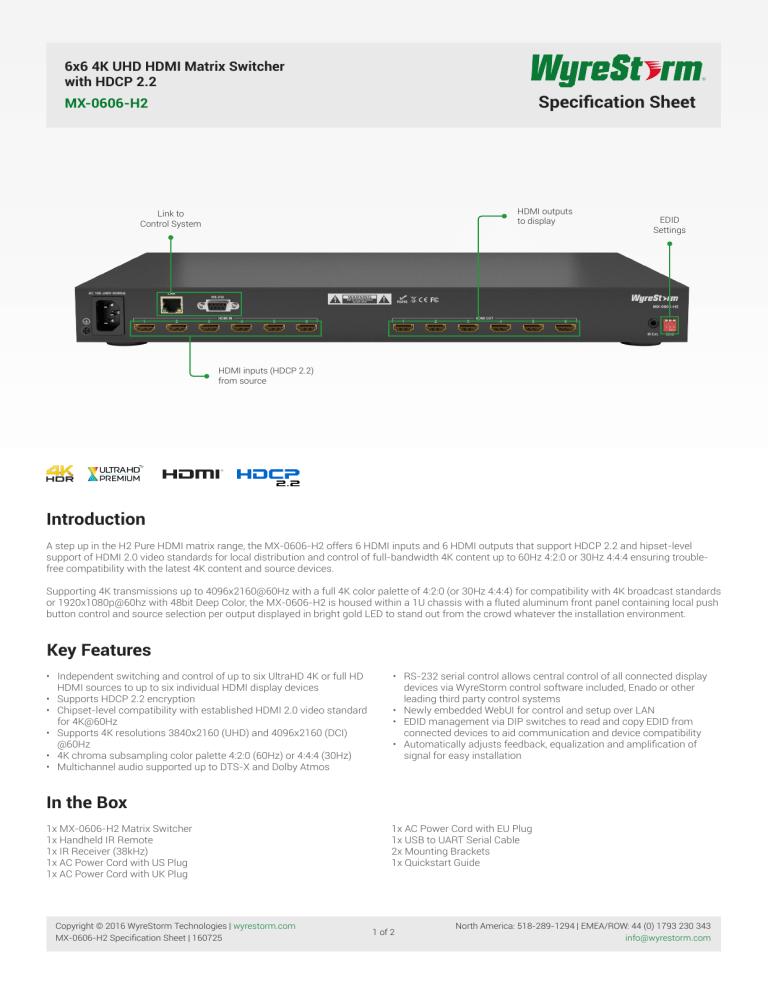

Specification Sheet In the Box Introduction Key Features
6x6 4K UHD HDMI Matrix Switcher
with HDCP 2.2
Specification Sheet
MX-0606-H2
HDMI outputs
to display
Link to
Control System
EDID
Settings
HDMI inputs (HDCP 2.2)
from source
Introduction
A step up in the H2 Pure HDMI matrix range, the MX-0606-H2 offers 6 HDMI inputs and 6 HDMI outputs that support HDCP 2.2 and hipset-level
support of HDMI 2.0 video standards for local distribution and control of full-bandwidth 4K content up to 60Hz 4:2:0 or 30Hz 4:4:4 ensuring troublefree compatibility with the latest 4K content and source devices.
Supporting 4K transmissions up to [email protected] with a full 4K color palette of 4:2:0 (or 30Hz 4:4:4) for compatibility with 4K broadcast standards
or [email protected] with 48bit Deep Color, the MX-0606-H2 is housed within a 1U chassis with a fluted aluminum front panel containing local push
button control and source selection per output displayed in bright gold LED to stand out from the crowd whatever the installation environment.
Key Features
• Independent switching and control of up to six UltraHD 4K or full HD
HDMI sources to up to six individual HDMI display devices
• Supports HDCP 2.2 encryption
• Chipset-level compatibility with established HDMI 2.0 video standard
for [email protected]
• Supports 4K resolutions 3840x2160 (UHD) and 4096x2160 (DCI)
@60Hz
• 4K chroma subsampling color palette 4:2:0 (60Hz) or 4:4:4 (30Hz)
• Multichannel audio supported up to DTS-X and Dolby Atmos
• RS-232 serial control allows central control of all connected display
devices via WyreStorm control software included, Enado or other
leading third party control systems
• Newly embedded WebUI for control and setup over LAN
• EDID management via DIP switches to read and copy EDID from
connected devices to aid communication and device compatibility
• Automatically adjusts feedback, equalization and amplification of
signal for easy installation
In the Box
1x MX-0606-H2 Matrix Switcher
1x Handheld IR Remote
1x IR Receiver (38kHz)
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
MX-0606-H2 Specification Sheet | 160725
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x Mounting Brackets
1x Quickstart Guide
1 of 2
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
Specifications
Audio and Video
Inputs
6x HDMI 19-pin type A female
Outputs
6x HDMI 19-pin type A female
Audio Formats
2ch PCM | Up to DTS-X and Dolby Atmos
Video Resolution (Max)
1920x1080 @24/25/30/60Hz 48bit (15m/50ft)
3840x2160p @24/25/30Hz 4:4:4 24bit (7m/23ft)
3840x2160p @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft)
4096x2160p @60Hz 24bit 4:2:0 (7m/23ft)
Color Depth
1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit per channel BT.2020
Maximum Pixel Clock
600MHz
Communication and Control
HDMI
HDCP 2.2 Compliant | EDID | DVI/D with adapter (not included)
RS-232
1x 9-pin DB9 Female | Control of Matrix functions | Telnet commands supported
Ethernet
1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating: Built-in Web UI | IP Control
IR
1x Front Panel IR Sensor | Handheld IR Remote Included
Front Panel
Navigation buttons for source and display selection.
Power
Dimensions and Weight
Power Supply (Internal)
100~240V AC 50/60Hz
Height
43.5mm/1.72in
Max Power Consumption
28W
Width
440mm/17.33in
Depth
300mm/11.82in
3.94kg/8.69lbs
Environmental
Operating Temperature
32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Weight
Storage Temperature
-4°F ~ 140°F (-20°C ~ 70°C)
10% ~ 90%, non-condensing
Safety and Emission
Maximum BTU
95.53 BTU/hr
Regulatory
CE | FCC | RoHS
KEY
HDMI
HDBaseT / Ethernet
IR / RS-232
Power
LAN
Cat5/5e/6
AC Mains
HDMI from
source
UHD Source
HDMI from
source
RS-232 to Control System
HDMI to
display
HDMI to
display
UHD Source
UHD Display
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
MX-0606-H2 Specification Sheet | 160725
2 of 2
UHD Display
IR Receiver
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
