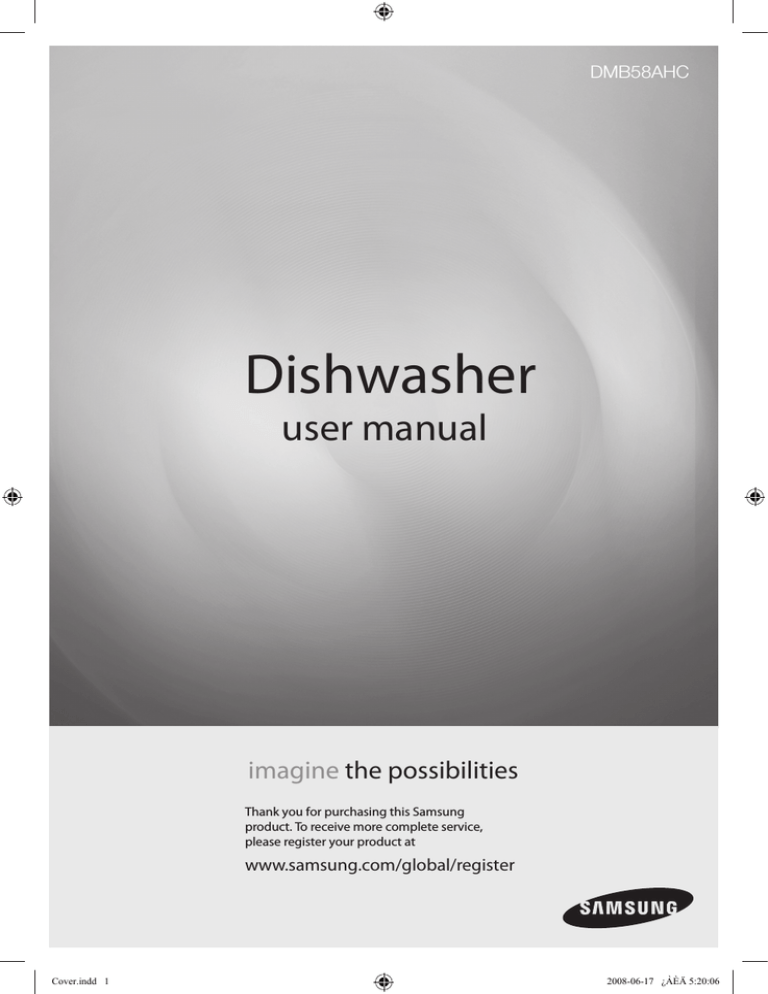

DMB58AHC
Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung
product. To receive more complete service,
please register your product at
www.samsung.com/global/register
Cover.indd 1
2008-06-17 ¿ÀÈÄ 5:20:06
2
EN
CONTENTS
1/ FOR THE USER’S ATTENTION
• Safety instructions ______________________________________
• Protection of the environment ____________________________
• Economical, environmentally friendly washing ________________
2/ DESCRIPTION OF YOUR APPLIANCE
• General presentation of the dishwasher ____________________
• Presentation of the control panel __________________________
3/ INFORMATION
• The water hardness______________________________________
4/ ACTIONS BEFORE FIRST USE
• Measure the water hardness and select the detergent ________
• Hardness table__________________________________________
5/ DETERGENT PRODUCTS AND SETTING THE WATER SOFTENER
• For traditional products __________________________________
• For multi-purpose products ________________________________
6/ LOADING THE REGENERATING SALT __________________________
7/ LOADING THE RINSING PRODUCT ____________________________
8/ YOUR DISHWASHER’S EQUIPMENT
• The lower basket ________________________________________
• The upper basket________________________________________
• The cutlery basket ______________________________________
9/ THE DISHWASHER’S SAFETY SYSTEMS________________________
10/ WASHING PROGRAMMES __________________________________
11/ PROGRAMMING __________________________________________
12/ CLEANING YOUR APPLIANCE
• Cleaning the waste filters ________________________________
13/ IF OPERATING ANOMALIES OCCUR __________________________
14/ AFTER-SALES SERVICE ____________________________________
15/ INDICATIONS FOR THE TESTING LABORATORIES ______________
3
4
4
5
6
7
8
9
9
10
10
12
13
14
15
16
17
18
20
22
24
29
30
EN
1/ FOR THE USER’S ATTENTION
• Children’s safety
Important :
— This appliance is not intended for use by
young children or infirm persons unless they
have been adequately supervised by a responsible person to ensure that they can use the
appliance safely.
— This appliance must only be used by adults.
Ensure that children do not touch it and do not
use it as a toy. Ensure that they do not operate
the appliance’s controls.
— Keep young children away from the appliance when it is operating.
— Detergents contain irritant and abrasive substances. These products can have caustic
effects on the eyes, the mouth or the throat.
They can be extremely dangerous if ingested.
Avoid any contact with the skin and the eyes.
Ensure that the appliance’s detergent container is empty at the end of the washing cycle.
— Place detergents out of children’s reach and
do not put any detergent in the machine until
just before you start the washing programme.
— The water in your dishwasher is not drinking
water; this is why children must not go near
the appliance when its door is open.
— Do not let your children play or sit on the
door when it is open.
— Once you have unpacked your appliance,
place the packaging out of children’s reach.
— Keep all the packaging materials (e.g. plastic
bags, polystyrene, etc.) out of children’s reach
because they can be dangerous for children
(ie. risk of suffocation).
Keep this user’s manual with your appliance. If the appliance is sold or transferred to
someone else, ensure that the manual is with
it. Please take note of these instructions
before installing and using your appliance.
They have been drawn up for your own and
other people’s safety.
• SAFETY INSTRUCTIONS
• Installation
— When you receive your appliance, unpack it
or have it unpacked immediately. Check that it
has not suffered any damage during transport.
Express any reservations in writing on the
delivery note, of which you keep a copy. Never
connect up a damaged machine. If your appliance is damaged, please contact your dealer.
— Before proceeding to connect up your
machine, please refer to the instructions in
your Installation Guide.
— Your dishwasher must be kept disconnected
from the mains supply throughout the whole
of the installation process.
— The electrical connection details on your
appliance’s description plate must comply
with those for the mains supply.
— The socket must still be accessible once
your appliance has been installed.
— Do not alter or attempt to alter the appliance’s characteristics. This could put you at
risk.
— If your installation has to be altered, only
entrust the electrical and plumbing work to a
qualified electrician or plumber respectively.
— Your appliance is designed for normal
domestic use. Do not use it for industrial or
commercial purposes or for any other purpose
than that for which it has been designed.
— The dishwasher’s walls must not be pierced
under any circumstances.
• Use
— This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
— When machine is running, do not open door.
This may provoke steam leakage or splattering
of water.
4
EN
1/ FOR THE USER’S ATTENTION
— Only use products specially designed for your dishwasher (water softening salt, detergent and
rinsing products).
— As far as possible, avoid opening the dishwasher’s door when it is operating, and in particular
during the heating phases, because scalding steam may escape or you may be splashed with hot
water. The machine is fitted
with a safety system that immediately blocks the dishwasher’s operation if the door is opened.
— Never use chemical solvents in your appliance because these could cause an explosion.
— Always close your appliance’s door after loading or removing your items.
— Do not lean or sit on your appliance’s door when it is open.
— You are strongly advised to disconnect the machine after use and turn off the water supply.
— Unplug your machine before carrying out any technical work on it.
— Avoid placing your machine immediately next to a cooking or heating appliance to prevent any
risk of heat damage;
— Do not place any items in your machine, which are not certified as dishwasher safe.
— If you have removed an item before the end of the washing programme, it is important to rinse it
carefully to remove any residual washing products.
— If your appliance breaks down, never attempt to repair it yourself. Any repairs made by non-qualified personnel can cause significant damage or lack of control.
— The machine complies with applicable safety regulations. Any repairs should be carried out by
qualified technicians. Repairs or changes that do not conform may be dangerous for the users. In
case of replacement, only use original parts.
— If the machine malfunctions due to other causes than those mentioned in this booklet, disconnect
the machine (remove the plug) or break the circuit concerned and contact after-sales service.
• ENVIRONMENTAL PROTECTION
This appliance’s packaging material is recyclable. Help recycle it and protect the environment by
dropping it off in the municipal receptacles provided for this purpose.
Your appliance also contains a great amount of recyclable material. It is marked with this
label to indicate that in countries that are a members of the European Union the used
appliances should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance
with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your
town hall or your retailer for the used appliance collection points closest to your home.
We thank you doing your part to protect the environment.
• ECONOMICAL, ENVIRONMENTALLY FRIENDLY WASHING
— Remove any food residue from your crockery (bones, pips, etc.)
— Do not pre-wash your items by hand (useless waste of water).
— Utilise your dishwasher’s capabilities to the full for an economical, environmentally friendly wash.
— Always select a washing programme suitable for the crockery type and how dirty they are.
— Avoid overdosing with detergent, regenerating salt and rinsing liquid. Follow the recommendations in this guide (pages 11-12-13) and the instructions on the product packs.
— Ensure that the water softener is correctly set (see page 10).
5
EN
2/ DESCRIPTION OF YOUR APPLIANCE
• GENERAL PRESENTATION OF THE DISHWASHER
B
C
D
E
F
G
H
I
J
Fig. 01
A
A
Control panel
F
Regenerating salt tank
B
Upper basket
G
Waste filter
C
Washing products dispenser
H
Main filter
D
Anti-blocking gauge wire
I
Rinsing product dispenser
E
Lower sprinkler arm
J
Description plate (After-Sales Ref)
Ces valeurs se réfèrent :
- à des conditions normales d’utilisation avec des produits séparés (détergents, sel, produit de rinçage).
: d’utilisation de produits multifonction seulement.
- à desAdvice
conditions
This user’s
is applicable
to several
There
slight
differences
Elles peuvent
varierguide
en fonction
de la charge,
de la models.
température
demay
l’eau,bedusome
réglage
de l’adoucisseur,
in
details and
the equipment
between
your appliance
and the descriptions provided here.
dethe
la présence
de produit
de rinçage
et la tension
de l’alimentation.
6
EN
2/ DESCRIPTION OF YOUR APPLIANCE
• PRESENTATION OF THE CONTROL PANEL
Fig. 02
A
B
A Power:
Press this button to start your dishwasher :
the screen lights up.
E
C
D E
F
Delayed programme start
Press this button to delay the programme by 1
to 12 hours.
B SCS: “Système Controle Salissure”
This exclusive concept gives a direct access to
3 types of dishes only, but offers a large
choice of programs by adjustment of your
dirty mark level estimation. (See 10 / Washing
programmes).
F
Start/Cancel: Briefly press this button
to start your programme.
If you make an error, to cancel a selection or
cancel a programme while it is running, hold
down this button for 3 seconds.
The indicator lights:
Salt:
C
Choosing a programme: briefly
press one button or the other in succession to
select your programme.
lit; indicates lack of regenerating salt.
Rinsing liquid:
lit; indicates lack of rinsing product.
D
washing product:
Menu:
lit; indicates that your dishwasher is set to use
“2, 3 4-in-1” pellets.
• Set the water softerner.
(See 5/ Detergent products and setting the
water softener).
- Activate or deactivate use of “regenerating
salt”, “rinsing product” or “4-in-1” (depending
on the water softener setting on the next page).
• Setting the audible signal.
(See 11/ Programming).
In progress
lit; indicates that your programme is running.
End :
lit; indicates that your programme has finished
Advice:
A short audible signal (beep) confirm the button’s selection, except for the “Power” button.
(See 10/ Washing Programmes).
7
EN
3/ INFORMATIONS
Important:
For impeccable results, preferably
use a combination of traditional products:
① Washing detergent to clean the
For your dishwasher to provide impeccable washing and drying results with no
marks, you must set it correctly using the
water softening system, which uses regenerating salt.
crockery perfectly (powder, liquid or standard tablets).
② Regenerating salt to enable your dishwasher’s water softener to operate correctly.
• THE WATER HARDNESS
• Lime:
rainwater filtering through the
ground picks up mineral salts; some minerals
are found in solid form commonly termed
lime. This reduces the washing detergent’s
performance, furs up the dishwasher and leaves white marks on the crockery.
The more lime there is in the water, the more the
water is called “hard”.
③ Rinsing liquid to assist drying and to
eliminate marks from water droplets.
Important:
Never use washing-up liquid.
Use the most suitable products for the level of
water hardness in your town.
There are several types of products; how to
choose:
For ease of use and only in certain
water hardness conditions < 25°F,
multi-purpose products may make the
use of rinsing liquid or salt unnecessary.
• “Two-in-one” products contain
detergents, rinsing liquid or an agent acting
as the salt.
• “Three-in-one” products contain
detergents, rinsing liquid and an agent acting
as the salt.
• “Four-in-one” products also
contain additives that prevent wear on poor
quality glasses and /or prevent the risks of
the stainless steel corroding.
Important:
Follow the instructions for using the
multi-purpose product and the recommendations on the pack.
NB:
If in any doubt, please contact the
detergent manufacturer if the crockery is
very wet at the end of the programme or if
chalky deposits appear.
8
EN
4/ ACTIONS BEFORE FIRST USE
• MEASURE THE WATER HARDNESS AND SELECT THE TYPE OF DETERGENT: TRADITIONAL OR MULTI-PURPOSE
First of all, in one simple action, you can test the lime content in your water using the testing strip
supplied with your dishwasher or you can contact your local water utility to find out how hard your
water is.
— Turn on the tap and let the water run for a few minutes.
— Fill a glass with water.
— Take the testing strip out of its casing and immerse it for 3 seconds.
— Wait 1 minute, shake the strip and look at the colours to find out how hard your water is.
• HARDNESS TABLE
Test strip
> 70°F
10-18°F
18-25°F
25-40°F
40-55°F
55-70°F
Very hard
Slightly hard Slightly hard
Hard
Hard
Hard
Essential if Essential if
Optional using traditional using traditional Mandatory Mandatory Mandatory Mandatory
products
products
Hardness
Water
Water softening and use
of salt
0-10°F
Soft
Possible use of
traditional products ➊
➊
or ➋
or
+
or
Use only of
traditional products ➊
+
R
or
Multi-purpose
or
+
➋
➊ Traditional products:
P : Powder detergent or L : Liquid detergent or
+ S : Regenerating Salt + R : Rinsing product
➋ Multi-purpose products:
Multi-purpose tablets
9
single tablet
+
R
EN
5/ DETERGENT PRODUCTS AND SETTING THE WATER SOFTENER
• FOR TRADITIONAL PRODUCTS
• Your appliance must be specially set to use traditional products.
• Proceed as follows to adjust the water softener
on the control panel:
— Access setting mode by holding down the “Menu” button.
— The screen displays “SEt” to indicate that you are in Setting
mode.
— To adjust and alter the setting to suit the water hardness,
keep on briefly pressing one of the
keys or the other. The screen shows you the setting H0,
H1 , H2 etc...
— The setting is validated automatically after 10 seconds if the “Menu” button in not pressed again.
Testing strip
Hardness
0-10°F
Traditional
product
H0
10-18°F
HI
25-40°F
18-25°F
H2
40-55°F
H3
55-70°F
H4
> 70°F
H5
H6
Factory setting: H4.
Important:
It is very important to set your water softener correctly.
- If the setting is too low, there is a risk of chalky marks
- If the setting is too high, there is the risk of the glasses becoming cloudy
If you move house, re-adjust the setting on your water softener.
• Traditional tablets
Place tablets that are not multi-purpose in the external compartment (Fig 04)
or, for optimum operation, pull out the distributor’s drawer and lay the tablet there. (Fig 05)
• Powder or liquid in the distributor’s drawer (Fig 03)
Fill at least up to the minimum mark for slightly dirty crockery and up to the maximum mark for dirty
crockery. If the crockery is very dirty or for programmes with pre-wash, we recommend that you
add 5g of detergent (a dessertspoonful) to the tub in accordance with the programmes table.
Important:
Keep these products in a dry place, out of children’s reach.
Only use products specially designed for dishwashers.
Fig. 03
Fig. 04
Fig. 05
10
EN
5/ DETERGENT PRODUCTS AND SETTING THE WATER SOFTENER
• FOR MULTI-PURPOSE PRODUCTS:
OPTION
• Your appliance can be specially set to use multi-purpose if the water hardness is < 25°F.
Advice:
To provide better coverage of the wide range of multi-purpose products available, your
dishwasher’s “4-in-1” option has two possible settings, accessible via the “Menu” button.
“Extra Dry” improves the drying results in the event of reduced performance from the “2-in-1”, “3-in-1”
or “4-in-1” types of multi-purpose product.
“Sparkling Clean” enables you to prioritise the sparkle of your crockery whatever the type of
multi-purpose product used.
• Proceed as follows to adjust the water softener on the control panel:
— Access setting mode by holding down the “Menu”” button.
— The screen displays “SEt” to indicate that you are in
Setting mode.
— To use multi-purpose tablets, you must select setting H0
or HI or H2 depending on the water hardness.
To do this, keep on briefly pressing one or other of the
setting.
• Proceed to set the
keys until you reach the desired
option, if necessary
(Light unlit) : deactivates the “Multi-purpose products” option.
- Extra Dry “4-in-1” light constantly lit.
- Sparkling Clean “4-in-1” light flashing.
— The setting is validated automatically after 10 seconds if the “Menu”” button in not pressed again.
Testing strip
Hardness
Multi-purpose
products Function Deactivated
Multi-purpose
products Extra Dry
Multi-purpose
products Sparkling Clean
0-10°F
10-18°F
18-25°F
H0
HI
H2
H0
HI
H2
H0
HI
H2
Important :
The multi-purpose products setting enables you to deactivate the rinsing and salt warning
lights only on H0 and “4-in-1”.
• Loading multi-purpose tablets
To make loading the detergent easier, the distributor is located on the front of the upper basket; it
is compatible with all the products recommended for your dishwasher.
• Place the tablet in the external compartment (Fig 04 on previous page) or
or, for optimum operation, pull out the distributor’s drawer and lay the tablet there. (Fig 05 on previous page).
- Close the distributor.
11
EN
6/ LOADING THE REGENERATING SALT
• Loading the regenerating salt
(Fig. 06)
Important :
Only use special dishwasher regenerating salt. Do not use table salt or any type
of cooking salt: this could damage your
appliance’s water softener.
A
SE
L
A Unscrew and remove the stopper on the
salt tank.
B Fill the tank with regenerating salt specially designed for dishwashers.
C Use the funnel supplied with your dishwasher. The first time, top up with water up
to the rim of the tank.
B
EAU
• Regenerating salt indicator :
This illuminates when salt must be added.
After the tank has been filled with regenerating salt, the indicator light may remain lit until
the salt has dissolved sufficiently, usually after
one cycle (of if the tank has not been filled
completely; for example, when first putting the
machine into service using the sample).
This can be deactivated as indicated in the
paragraph “For multi-purpose products” setting table.
C
Fig. 06
Important :
If the salt overflows when filling the
tank, to avoid oxidization of the tub it is
advisable to remove the salt crystals or to
run a Soaking programme.
12
EN
7/ LOADING THE RINSING PRODUCT
• The rinsing product (Fig. 07)
Important:
Use a special dishwasher rinsing product;
this will give you dry, sparkling crockery.
A
A B Before switching on the appliance, fill
the rinsing product container until the level is
flush with the top of the setting lever.
Adjust, if necessary; the original setting is 2. If
you experience poor drying or residual marks
after a few cycles, increase the setting by turning
the lever (fig 07 C : marking 3 to increase it)
• Checking the level of rinsing liquid
:
This lights when rinsing liquid must be added.
It can be deactivated as shown in the paragraph “For multi-purpose products” setting
table.
3
12
B
Important:
If any rinsing liquid overflows onto the
door when filling the container, sponge away
the excess to avoid foam forming.
3
12
C
Fig. 07
13
Adjustment lever
EN
8/ YOUR DISHWASHER’S EQUIPMENT
Very important :
Items not suitable for washing in a dishwasher
- Wooden cutting boards,
- Stainless steel utensils or plastic utensils that are not heat-resistant,
- Copper or pewter items,
- Glued crockery and cutlery,
- Cutlery with wooden, horn or mother-of-pearl handles,
- Antique or hand-painted porcelain.
When purchasing crockery, glasses or cutlery, ensure that it is dishwasher-safe.
• THE LOWER BASKET
Arrange your items so that the water can circulate freely and spray over all the utensils.
Place large diameter dishes and pans at the
sides.
Do not intersperse, jam together or superimpose flat plates and concave dishes (Fig. 08).
The folding spikes make it easier to arrange
your large dishes (Fig. 09) (depending on the
model).
Advice :
When you re-insert the lower basket,
ensure that nothing catches on the upper
basket’s gauge wire to avoid blocking the
rotor.
Fig. 08
Unloading your items
First of all empty the lower basket to avoid
drips from the upper basket falling onto the
lower basket.
Fig. 09
14
EN
8/ YOUR DISHWASHER’S EQUIPMENT
• THE UPPER BASKET
This basket is particularly designed to take:
glasses, cups, ramekins, small salad bowls,
bowls, saucers, etc...
Arrange your items methodically to save on
space (arranging glasses, cups or bowls
together, etc.)
You can also arrange cups, ladles, etc. on the
retractable supports (Fig. 10)
Advice :
Position the cavities of glasses, cups
or bowls facing downwards.
Cutlery basket
Fig. 10
• Adjusting the height of the upper
basket (depending on the model)
For large dishes to be loaded in the lower basket, the upper basket must be set in to high
position. This can be done with the basket
fully loaded (Fig. 11)
① Setting in HIGH POSITION :
Gently raise your basket on each side until it
engages.
Fig. 11
② Setting in LOW POSITION :
Raise your basket completely on both sides to
unlock it and then lower it to the low position.
Important :
Check that the two slides are set to the
same height and the basket is horizontal.
15
EN
8/ YOUR DISHWASHER’S EQUIPMENT
• THE CUTLERY BASKET
The cutlery basket slides to allow for modulable loading.
It can be placed anywhere in the lower basket.
You can therefore make a variety of loads
depending on the items (Fig. 12).
If your cutlery items or your dishes are too
large, alter the height setting for the upper
basket (if it can be adjusted, depending on the
model).
Fig. 12
Movable grills are available for if you wish to
load your cutlery in an orderly manner (Fig.
13).
For optimum washing and drying, use these
separation grills partially or totally.
Point the handles on the cutlery downwards.
Important :
For safety reasons, we recommend
that you place knives with pointed ends with
the point facing downwards in the cutlery
basket (to avoid the risk of an accident).
Long-bladed knives and other sharp kitchen
utensils must be placed flat in the upper basket.
Fig. 13
Avoid washing cutlery with horn handles in
your dishwasher.
Separate silverware from other metals using
the separation grill.
16
EN
9/ THE DISHWASHER’S SAFETY SYSTEMS
• Anti-overflow system
This system automatically activates the drain pump if the water level in the tub reaches an abnormal height.
• Anti-leak system
This system interrupts the water supply if a leak is detected under the appliance.
• Total safety
This supply pipe is fitted with a device to cut off the water supply directly at the tap if there is a leak.
• If an anomaly occurs
The “End” light flashes rapidly.
The screen shows the anomaly code: please refer to the table on page 24.
17
EN
10/ WASHING PROGRAMMES
• PROGRAMMES TABLE
Type of items:
- porcelain, pans,
cutlery, glasses,
etc.
Quantity, type and
amount of food
residue.
Resistant
Mixed
Delicate
Very dirty
large dishes and
pans, with baked on
residue, grease,
cooked cheese,
sauce, etc.
Normally dirty, i.e. a
normal amount of
sticky and greasy
residue.
For glasses and
delicate crockery
Meaning a smaller
quantity of not very
sticky residues.
Soil
Soil
SCS
SCS
Soil
SCS
Programmes
Programme
sequence
Intensiv
Normal
Glasses
Hot pre-wash
Pre-wash
Washing at 70°C
Washing at 60°C
Washing at 45°C
Rinse
Rinse
Rinse
Hot rinse
Hot rinse
Hot rinse
As an indication
only:
Drying
by condenser
Drying
by condenser
Drying
by condenser
Duration in min
Water (L)
Energy (Kwh)
120’ - 140’
17 - 19
1,7 - 1,8
90’ - 120’
17 - 19
1,5 - 1,6
60’ - 75’
16
0,95
These values refer:
- to normal usage conditions with separated products (detergents, salt, rinsing product).
- only to multifunction product usage conditions
They may vary depending on the load, the water temperature, the softener setting, the presence of rinsing product and the supply voltage.
18
EN
10/ WASHING PROGRAMMES
Mixed
Mixed
Mixed
Mixed
Automatic
detection of the
amount of residue.
Optimises the
results and
prioritises
energy savings.
Normally dirty
Washing at low temperature,
economical and particularly
suitable for
compact –
enzymatic
detergents
Very short 30-minute
wash
specially designed
for a small amount
of daily items with a
limited amount of
non-greasy residue,
not dried on
Very short cycle
(with no
detergent) for rinsing and
re-dampening the
items while
waiting for a wash
expected the following day or even the
day after
Soak
Rapid
Pre-wash
Washing at 55/65°C
Cold pre-wash
Washing at 50°C
Washing at 45°C
Rinse
Rinse
Hot rinse
Hot rinse 60°C
Drying
by condenser
Drying
by condenser
Short drying cycle,
not fan assisted
100’ - 130’
17 - 21
1,4 - 1,6
170’
12
1,05
Rinse
Hot rinse
30’
11
0,8
19
15’
4,5
0,02
EN
11/ PROGRAMMING
Fig. 02
A
B
C
D E
Advice :
F
Consult the Programmes table on the preceding pages to determine the programme you
need for the type of items, the quantity and the amount of food residue.
• Immediate programme start
Programme length
Power” A , to switch on your appliance
Press “P
and select your programme by pressing one
button
.
Remaining time for
programme
— When a programme is selected, the associated light illuminates.
Press “Start/Cancel” F , the “In progress”
light illuminates. Close the door and the programme starts.
End of programme
A short audible signal (beep) confirm the button’s selection, except for the “Power” button.
• Delayed programme start
Delay your programme by 1 to 12 hours by
keeping on briefly pressing, or holding down,
the “Delayed Start” E button, as you prefer.
Confirm by pressing “Start/Cancel”.
The screen counts down the hours until the
programme starts.
Waiting for delayed start
Programme length
Remaining time for
programme
End of programme
20
EN
11/ PROGRAMMING
• Cancelling a programme
Cancel” F button for a few seconds.
Hold down the “Start/C
• Stopping the appliance
When the programme has finished, press the “Power” button A .
• Setting the audible signal
The setting enables you to activate or de-activate the beep at the end of the programme.
— Access the setting by holding down “Set” juntil you hear a double audible signal (long beep). Select
your preference by pressing the “Delayed Start” button E :
- Beep activated : an audible signal is heard and the “End” light flashes. The screen shows B I P .
- Beep de-activated : no audible signal and the “End” light is unlit.
The setting is confirmed automatically after approximately 10 seconds.
• L’OPTION “SCS” SYSTEME CONTROLE SALISSURE
B
This option is available for all « Intensiv » « Normal » « Glasses » programs.
Press SCS key to adjust the program according to dirty
mark of your dishes :
- Very Soil (++), or Soil for “Intensiv”
- Very Soil (++), or Not very Soil (-- ) for “Normal”
- Soil or Not very Soil (-- ) for “Glasses” program.
21
Soil
SCS
EN
12/ CLEANING YOUR APPLIANCE
• CLEANING THE WASTE FILTERS
➀
The filtration system consists of several
elements:
A - The waste filter.
B - The large main filter.
C - The micro filter.
B
A
The filters are located in the centre of the tub
and must be washed regularly to obtain opti mum washing results.
C
➁
• Actions :
➀ Before removing the filters, remove any
waste on the large main filter B with a
sponge so that the waste does not block the
sprinkler arms. Orient the rotor as shown in
the drawing. (Fig. 14)
➁ Loosen the waste filter a quarter of a turn
and then remove it A .
③ Remove the main filter B .
④ Remove the micro filter screen
A
③
B
C.
④
⑤ Carefully clean filters A ,
B and C
under running water. (Fig. 15)
Fig. 14
Reinstallation:
⑤
Proceed in reverse order, inserting filters C
and B and then A .
Important :
A
Remember to lock the waste filter in A
place by pushing it in fully and turning it a
quarter turn.
Fig. 15
22
C
B
C
EN
12/ CLEANING YOUR APPLIANCE
• Periodically :
Every 3 or 4 months, in order to remove any deposits, run a special maintenance programme, without any items in the machine, using a commercially available special dishwasher cleaning product.
Important :
Keep this product out of children’s reach..
• Prolonged stoppage
Clean your dishwasher completely and then unplug it from the electricity supply and close the water
tap. Protect your machine from potential frosts
Advice :
Do not use abrasive powders, metal sponges and alcohol-based or thinner-based products. Use a cloth or a sponge.
If you are moving house, run a soaking programme first of all, in order to avoid any water escaping.
23
EN
13/ IF OPERATING ANOMALIES OCCUR
• SUMMARY OF THE FAULTS
d01: water supply fault (tap)
d07: overflow / anti-leak fault
d02: draining fault
d08: sprinkling distribution fault
d03: heating fault
d11: pressure sensor fault
d04: temperature fault
d12: filling fault (water inlet detection system)
d05: fault – motor under load
d13: overheating fault
d06: fault - motor overload
d14 : installation fault : (incorrect drainage
connection or inadequate flow rate and tap).
Tip:
If one of the above faults occurs and you need to call a repair man, remember to tell him
the message displayed (d01, d02..) as this information will help him.
• BEFORE CALLING FOR SERVICE
Problem
Possible Causes
What to do?
The door falls heavily when - Door springs not tensioned
- Tighten the two tensioning
opened (integratable model)
enough to compensate for the screws accessible in the botweight of the panel.
tom section above the front
feet.
The door does not stay horizontal - Door springs tensioned too
- Loosen the two tensioning
when open or returns too quickly much.
screws accessible in the bot(integratable model)
tom section above the front
feet.
- Fit a temporary wooden panel
- No wooden panel.
on the appliance and adjust
the springs.
The door catches when closing - Appliance not stable
- Door not centred on the tub
- Adjust the feet.
- Re-centre by adjusting the
rear feet.
The upper basket does not stay - Poor manipulation (the basket - Act more progressively (see
in the high position
is being pulled upwards too
instructions), one side and
quickly)
then the other.
Small leak around or under the - Leak from the tap.
appliance (move the appliance
- Leak from the appliance.
to locate the leak)
(Cf. table fault d07).
Small leak at the door
- Check that a seal is fitted and
retighten the nut.
- Close the water tap and call a
technician.
- Appliance not stable or not level - Adjust the feet.
- Door not centred on the tub. - Re-centre by adjusting the rear
feet.
24
EN
13/ IF OPERATING ANOMALIES OCCUR
• THE INDICATOR LIGHTS
Problem
The salt light does not go out
Possible Causes
What to do ?
- No salt or an insufficient quan- - Refill the tank and wait for the
tity of salt in the tank to trigger cycle to end. If you have soft
the float.
water that requires no salt, the
light is constantly lit.
The lights all light up one after - Wrong programme.
the other
- Cancel the current programming by holding down the Start
button for 3 seconds and then
re-programme.
A light flashes and the
programme does not start
- Reposition the selector on a
programme.
- Programme selector wrongly
positioned (between two notches)
• RELATING TO PROGRAMMING, DISPLAY
Problem
The cycle lasts too long
Possible Causes
What to do ?
- lThe energy-saving programmes last longer because the
agitation and drying times are
longer to compensate for the
lower washing and drying temperatures
- Use these programmes preferably at night when it is not so
important how long the programme lasts or when it ends.
The appliance trips the circuit - Insufficient amperage to sup- - Check the socket’s amperage
breaker
(10A minimum) and the
ply all the appliances being
meter’s capacity.
operated simultaneously.
- Internal fault in the appliance. - Call a technician.
The appliance does not start
- No mains power to the socket. - Check the socket and the fuse
- Tap closed. (Cf. table fault d01). - Check the tap is open.
- Check the hose line is OK.
- Selection error or programme
- Cancel by holding down Start
lock.
for 3” and re-programme.
- Start button pressed too long
- Just press Start briefly to start
(>2”).
the programme.
- Appliance in Safety mode (anti- Call a technician.
leak).(Cf. table fault d07).
25
EN
13/ IF OPERATING ANOMALIES OCCUR
Problem
The appliance will not restart
The appliance does not drain
(Cf. table fault d02).
The appliance will no longer
function (see table, fault 14).
Possible Causes
What to do?
- Door opened during a
washing cycle.
- Wait for the time delay to end
(controlled internally by the
appliance).
- The cover has not been remo- - Remove the cover.
ved from the sink’s U-bend.
- Drain hose kinked.
- Check the drain hose line
behind the machine is OK.
- Filters totally blocked.
- Remove and clean the filters
and the drain.
- Pump blocked.
- Initiate a Soaking programme
If the fault persists, call a technician.
- installation of non-compliant drai- - adhere to the drainage tube
nage system: drainage too low
installation dimensions.
down or pipe pushed too far in.
- siphoning: the appliance is
emptying as the same time as
it is filling up.
• POOR WASHING RESULTS
Problem
Possible Causes
What to do?
Food traces and deposits in the - Items poorly arranged (mas- - Arrange the items properly.
glasses
ked by another larger item or
Use the most appropriate
situated underneath it, items
areas and accessories for each
nested or jammed together).
type of item (see instructions).
- Upper spray arm blocked by - Check that the spray arm
cutlery or a dish etc.
rotates freely. Set the basket in
the high position if necessary.
- Check the filter’s facing and that
- Filter poorly locked and lifting the filter is locked in place (push
it in fully, turning it to the right).
during washing.
- Remove all the filters and clean
them (in warm water), including
- Micro filter screen clogged.
the micro filter’s screen (once
a month).
- Remove the spray arm by turn- One or more holes in the spray ing the lever a quarter of a turn
and clean it under the tap (do
arm blocked.
not use any tool that could
damage the holes). Re-install
the spray arm.
Traces of grease
- Detergent dose too low; ineffi- - Increase the dose; try another
cient detergent; stale product. detergent.
- Inappropriate programme
- Select a programme with a
(temperature too low; duration higher temperature.
too short).
26
EN
13/ IF OPERATING ANOMALIES OCCUR
• POOR WASHING RESULTS...
White marks
(identify what type)
- Chalky film (removable with - Check that there is salt in the
vinegar).
tank (light unlit = OK).
- Check the water hardness at
the tap and that the water softener is set correctly. Adjust it
to a higher level if necessary.
- Water too hard for using a “4in-1” detergent without the
- Traces of salt (items have a addition of salt.
- Check that the stopper on the
salty taste).
salt container is closed correctly.
White marks
(identify what type)
- Glass cloudy because water - Check the water hardness at
too soft (cannot be removed). the tap and that the water softener is set correctly. Some
detergents in pellet form are
more aggressive to glasses
and decorations (change the
product and use a protective
product if necessary).
Coloured marks (tea, wine, cof- - Items poorly arranged
- Turn the cavities in the items
fee)
- Detergent dose too low ; inef- towards the jets.
ficient detergent
- Increase the dose; try another
- Programme temperature too
detergent.
low.
- Select a more suitable programme with a higher temperature.
- If you use a multifunction
- Use the “4-in-1” option.
product.
(depending on the model).
Streaks or dried droplets on - Lack or insufficient amount of - Check the indicator light and
glasses
rinsing product.
fill the tank completely. Adjust
the dispensing unit to a higher
position if necessary.
- Rinsing product out-of-date or - Use a recent product (a good
inefficient.
product dilutes easily and
foams in cold water).
- If you use a multifunction
- Use the “4-in-1” option with a
product.
setting prioritizing drying
(parametering from the menu depending on the model).
Dried-on marks on glasses,
- If you use a multifunction
- Use the “4-in-1” option with a
dullness
setting prioritizing brilliance
product.
(parametering from the menu depending on the model).
27
EN
13/ IF OPERATING ANOMALIES OCCUR
• POOR OPERATION
Problem
Possible Causes
What to do ?
Constant filling
- (Cf. table fault d12). Drain hole - Drain wand fallen on the floor.
situated too low for the
appliance.
A lot of waste on the large filter - The filters and drain outlets are - Remove and clean the filters
blocked with too much and the bottom of the drain
at the end of the cycle.
residue.
outlets. Remove large residue
from the plates before putting
them in the machine.
Traces of rust on stainless steel - Quality of the stainless steel - Use “special dishwasher-safe”
not dishwasher-safe (knives in cutlery.
- Check that the stopper on the
particular)
salt container is closed correctly.
• POOR DRYING RESULTS
Problem
Possible Causes
What to do?
A lot of droplets on the glasses. - Lack or insufficient amount of - Check the indicator light and
rinsing product.
fill the tank completely.
- The dose has not been distrib- - If the tank is not empty after
uted.
approximately 60 washings,
call a technician.
- Positioning of the items.
- To alleviate the phenomenon,
arrange the items to restrict
water retention as much as
possible. Leave the door ajar
for a few minutes, if possible
Droplets on plastic items, Tefal - These insulating items have a - Arrange them preferably in the
coatings, etc.
low calorific mass.
upper basket.
Poorer drying on rapid
programmes
- On rapid programmes, the drying - Select a rapid programme
temperature and drying period are carefully or leave the door ajar
reduced to cut down the duration for a few minutes.
of the cycle as much as possible.
Condensation on the wall of the - Condensation may form on the
inside door or the tub.
walls, particularly after the
appliance has cooled down
(sound insulation increases the
phenomenon)
28
EN
14/ AFTER-SALES SERVICE
• INTERVENTION WORK
Any intervention work on your appliance must
be performed by a qualified professional
approved by the manufacturer. When you call,
please mention the full reference for your
appliance (model, type and serial number).
This information is shown on the description
plate (see Fig. 16)
ORIGINAL PARTS
When maintenance is being carried out, ask
for only certified original spare parts to be
used.
Fig. 16
29
EN
15/ INDICATIONS FOR THE TESTING LABORATORIES
• Details common to all models
— Washing capacity - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 standard place settings
— Arrangement of the items - - - - - - - - - - - - - - - - - - - - - - - - - - - - Figs. A-B-C; see next page
— Loading as per the indications on next page, without side shelves
or stemmed glass support, and 5 cup/saucer supports
(4 for12 saucers & 1 for 2 cups)
— Setting for upper basket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Low position
— Adjusting the water softener - - - - - - - - - - - - - - - - - - - - - - - - - - H2
For detailed information on the comparison tests regarding the level of soiling, the types of
crockery and cutlery, etc., contact the equipment manufacturer before commencing the tests.
• Tests to Standard EN 50242:
— Recommended programme - - - - - - - - - - - - - - - - - - - - - - - - - - — Dosage of detergent - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
“Eco”
30g of detergent B
• Tests according to the mixed IEC 436/DIN 44990 method:
— Recommended programme - - - - - - - - - - - - - - - - - - - - - - - - - - — Dosage of detergent - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
“Normal (SCS Soil)”
5 + 25g of detergent C
NB: When conducting tests using a multi-function tablet: H0 or H1 or H2
- Check that the water softener is correctly set for the water hardness
— Pull out the detergent distribution drawer and place the tablet in the interior compartment.
• Measuring the noise level in accordance with Standard EN60704-2-3:
— Align the plinth on the housing unit with the door panel.
30
EN
15/ INDICATIONS FOR THE TESTING LABORATORIES
A
B
1
NOK
NOK
2
3
4
OK
5
6
7
8
3 32
31
8 8
8 8
8 8
1
1
1
1
1
1
33 3333 2 33 3
222
1 8 8 8
6
6
8 8 8 5
444
3 4 4 4 44 4
11
C
7
2
2
2
2
2
111
22
444
Cover.indd 2
B7814A-10/08-1/2
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care centre.
2008-06-17 ¿ÀÈÄ 5:20:06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
