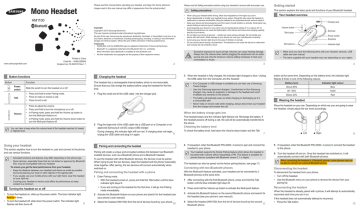

Samsung BHM1100 User manual

Samsung BHM1100 User manual
Please read this manual before operating your headset, and keep it for future reference.
Images used in this user manual may differ in appearance from the actual product.
Please read all Safety precautions before using your headset to ensure safe and proper use.
Copyright
Copyright © 2010 Samsung Electronics
This user manual is protected under international copyright laws.
No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by
any means, electronic or mechanical, including photocopying, recording, or storing in any information
storage and retrieval system, without the prior written permission of Samsung Electronics.
Trademarks
• SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics.
• Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide.
More information about Bluetooth is available at www.bluetooth.com.
• All other trademarks and copyrights are the property of their respective owners.
www.samsungmobile.com
Printed in China
Code No. : GH68-29809S
England non TA 09/2010 Rev.1.1
Button functions
Button
This headset has a rechargeable internal battery which is non-removable.
Ensure that you fully charge the battery before using the headset for the first
time.
Function
Slide the switch to turn the headset on or off.
Talk
• Press and hold to enter Pairing mode.
• Press to make or answer a call.
• Press to end a call.
Volume
• Press to adjust the volume.
• Press and hold to turn the microphone on or off.
• In Pairing mode, press and hold the Volume up button to
turn the Multi-point feature on.
• In Pairing mode, press and hold the Volume down button to
turn the Multi-point feature off.
1 Plug the small end of the USB cable into the charger jack.
You can hear a beep when the volume level of the headset reaches it’s lowest
or highest level.
5
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
•• Activated functions and features may differ depending on the phone type.
•• Some devices, especially those that are not tested or approved by Bluetooth
SIG, may be incompatible with your headset.
To ensure you get the best performance from your headset.
•• Keep the distance between your headset and device as small as possible
and avoid placing your body or other objects in the signals path.
•• If you usually use your mobile phone with your right hand, wear the headset
on your right ear.
•• Covering your headset or device could effect its performance so keep
contact to a minimum
Turning the headset on or off
• To turn the headset on, slide up the power switch. The blue indicator light
flashes 4 times.
• To turn the headset off, slide down the power switch. The indicator light
9
flashes red then turns off.
• When using your headset while driving, follow local regulations in the region you are in.
• Never disassemble or modify your headset for any reason. Doing this may cause the headset to
malfunction or become combustible. Bring the headset to an authorised service centre to repair it.
• Keep your device and all accessories out of the reach of small children or animals. Small parts may
cause choking or serious injury if swallowed.
• Avoid exposing your device to very cold or very hot temperatures (below 0° C or above 45° C).
Extreme temperatures can cause the deformation of the device and reduce the charging capacity
and life of your device.
• Do not allow your device to get wet — liquids can cause serious damage. Do not handle your
device with wet hands. Water damage to your device can void your manufacturer’s warranty.
• Avoid using your device’s light close to the eyes of children or animals.
• Do not use the device during a thunderstorm. Thunderstorms can cause the device to malfunction
and increase the risk of electric shock.
xcessive exposure to sound at high volumes can cause hearing damage.
E
Always turn the volume down before plugging the earphones into an audio
source and use only the minimum volume setting necessary to hear your
conversation or music.
2
Charging the headset
Power
switch
This section explains the basic parts and functions of your Bluetooth headset.
Safety precautions
HM1100
Getting started
Your headset overview
Charger jack
Volume button
Earhook
Talk button
Power switch
Earpiece
Microphone
Indicator light
•• Make sure you have the following items with your headset: earhook, USB
cable and user manual.
•• The items supplied with your headset may vary depending on your region.
3
3When the headset is fully charged, the indicator light changes to blue. Unplug
the USB cable from the Computer and the headset.
•• If no Computer or USB charger is available you can also use a Samsung
Travel charger.
•• Use only Samsung-approved chargers. Unauthorised or Non-Samsung
chargers may cause an explosion or damage to the headset and could
invalidate any warranty on the product.
•• The battery will gradually wear out while charging or discharging as it is
a consumable part.
•• Never make or receive calls while charging, always disconnect your headset
from the charger and answer the call.
4
button at the same time. Depending on the battery level, the indicator light
flashes 5 times in one of the following colours:
Battery level
Indicator light colour
Above 80%
Blue
80 ~20%
Violet
Below 20%
Red
Wearing the headset
Place the headset on your ear. Depending on which ear you are going to wear
the headset, simply adjust the ear hook accordingly.
When the battery charge gets low
2 Plug the large end of the USB cable into a USB port on a Computer or an approved Samsung 5 volt DC output USB charger.
During charging, the indicator light will turn red. If charging does not begin,
6
unplug the USB cable and plug it in again.
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetooth
enabled devices, such as a Bluetooth phone and a Bluetooth headset.
The headset beeps and the indicator light flashes red. Recharge the battery. If
the headset powers off during a call, the call will be automatically transferred to
the phone.
Checking the battery level
To check the battery level, hold down the Volume down button and the Talk
4 If requested, enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the
headset to your phone.
Your headset supports the Simple Pairing feature which allows the headset to
be paired with a phone without requesting a PIN. This feature is available for
phones that are compliant with Bluetooth version 2.1 or higher.
To use the headset with other Bluetooth devices, the devices must be paired.
When trying to pair the two devices, keep the headset and the phone reasonably
close together. After pairing, the two devices will connect automatically when
switched on.
The headset can also be paired via the Active pairing feature, see page 13.
Pairing and connecting the headset with a phone
With the Multi-point feature activated, your headset can be connected to 2
Bluetooth phones at the same time.
1 Enter Pairing mode.
• With the headset turned on, press and hold the Talk button until the blue
indicator light stays lit.
• If you are turning on the headset for the first time, it will go into Pairing
mode immediately.
7
Connecting with two Bluetooth phones
▲ Left
▲ Right
5 If requested, enter the Bluetooth PIN (0000, 4 zeros) to connect the headset
to the phone.
6 Turn the headset off and on. Once the headset has switched on, it will
automatically connect with both Bluetooth phones.
When connecting the headset to 2 Bluetooth phones, some phones may not
be able to connect as a second Bluetooth phone.
Disconnecting the headset
1 After connecting with the first Bluetooth phone, press and hold the Talk
button until the blue indicator light stays lit.
To disconnect the headset from your phone,
• Turn off the headset.
• Use the Bluetooth menu on your phone to remove the device from your
pairing list.
2 Press and hold the Volume up button to activate the Multi-point feature.
Reconnecting the headset
2 Activate the Bluetooth feature on your phone and search for the headset (see
your phone’s user manual).
3 Activate the Bluetooth feature on the second Bluetooth phone and search for
the headset (see your phone’s user manual).
3 Select the headset (HM1100) from the list of devices found by your phone.
10
4 Select the headset (HM1100) from the list of devices found by the second
11
Bluetooth phone.
8
When the headset is already paired with a phone, it will attempt to automatically
reconnect each time you turn it on.
If the headset does not automatically attempt to reconnect,
• Press the Talk button.
12
• Use the Bluetooth menu on your phone.
If the Multi-point feature is deactivated, your headset will only re-connect with
the primary or first phone. To turn Multi-point feature on or off, see page 5.
Pairing via the Active pairing feature
•• The Bluetooth phone you want to connect with must not be paired with
other devices. If the phone is already connected to another device, end the
connection and restart the Active pairing feature.
•• This feature may not be available on some PDA’s.
Using call functions
With the Active pairing feature, your headset can automatically search for a
Bluetooth phone and try to make a connection with it.
Making a call
1 Turn on the headset.
Redialling the latest number
2 Press and hold the Talk button to enter Pairing mode.
Press the Talk button to redial the latest number on the most recently connected
phone.
Answering a second call
• Press the Talk button to end the first call and answer a second call on the
same phone when you hear call waiting tones.
• Press and hold the Talk button to place the first call on hold and answer a
second call of the same phone when you hear call waiting tones.
• To switch between the current call and the held call, press and hold the Talk
button.
This function is only available when using the Hands-Free profile. For more
information, see your phone’s user manual.
(Applicable in the European Union and other European countries with
separate collection systems)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable) should
not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and
recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not
be mixed with other commercial wastes for disposal.
21
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone
is turned off, the headset beeps at regular intervals. Press and hold the Volume
up or down button again to turn the microphone back on.
Press and hold the Talk button to reject a call when a call comes in.
Press the Talk button to transfer a call from the phone to the headset.
If you receive two calls at the same time on two paired phones, you can only
reject the first or primary phones call.
Press and hold the Talkn button to place the current call on hold.
Appliances such as cordless phones and wireless
networking equipment may cause interference, which
usually sounds like static. To reduce any interference,
keep the headset away from other devices that use or
produce radio waves.
Will my headset
interfere with my
car's electronics,
radio, or computer?
Your headset produces significantly less power than a
typical mobile phone. It also only emits signals that are
in compliance with the international Bluetooth standard.
Therefore, you should not expect any interference with
standard consumer-grade electronics equipment.
This function is only available when using the Hands-Free profile. For more
information, see your phone’s user manual.
15
Why do I hear an
Adjust the headset volume, or move to another area and
echo while on a call? try again.
How do I clean my
headset?
Wipe it with a soft dry cloth.
The headset does
not fully charge.
The headset and the travel adapter may not have been
connected properly.
Separate the headset from the travel adapter, reconnect,
and charge the headset.
I cannot use all the
Available features may vary depending on the connected
features described in device. If your headset is connected to two devices at
the manual.
once, some features may be unavailable.
18
16
Warranty and parts replacement
Can other Bluetooth When you pair your headset to your Bluetooth phone,
phone users hear my you are creating a private link between only these two
conversation?
Bluetooth devices. The wireless Bluetooth technology
used in your headset is not easily monitored by
third parties because Bluetooth wireless signals are
significantly lower in radio frequency power than those
produced by a typical mobile phone.
Frequently asked questions
Why do I hear static
or interference while
on a call?
Placing a call on hold
This function is only available when using the Hands-Free profile. For more
information, see your phone’s user manual.
Appendix
Your headset will work with devices that support
your headset's Bluetooth version and profiles.
For specifications, see page 23.
Transferring a call from the phone to the headset
Rejecting a call
14
Will my headset
work with laptops,
PCs, and PDAs?
Adjusting the volume
Muting the microphone
Press the Talk button to end a call
Correct disposal of batteries in this product
(Waste Electrical & Electronic Equipment)
Press the Volume up or down button to adjust the volume.
For some phones, pressing the Talk button opens the call log list. Press the
Talk button again to dial the selected number.
This function is only available when using the Hands-Free profile. For more
information, see your phone’s user manual.
17
Correct disposal of this product
Answering a call
Ending a call
Press the Talk button twice to redial the latest number on a second phone,
see page 11.
Answering a new call on a second phone
• Press the Talk button to end the first call and answer the call on the second
phone when you hear call waiting tones.
• Press and hold the Talk button to place the first call on hold and answer the
call on the second phone when you hear call waiting tones.
• To switch between the current call and the held call, press and hold the Talk
button.
You can use the following functions during a call.
If you receive two calls at the same time on two paired phones, you can only
answer the first or primary phones call.
This feature is available for mobile phones, but the phone’s Bluetooth visibility
option must be set to on.
•• Ensure the phone you wish to connect to is within range of the headset.
Place the headset and phone close to each other to avoid pairing with other
devices.
13
Options available during a call
Press and hold the Talk button and say a name. You can dial a number only on
the primary or first phone.
Press the Talk button to answer a call when you hear incoming call tones.
Available call functions may vary from phone to phone.
3 Press and hold the Talk button until the violet indicator light turns on.
The headset will switch to Active Pairing mode, search for a Bluetooth phone
within range, and attempt to pair with it.
Dialling a number by voice
Samsung warrants this product as free of defects in material, design and workmanship
for the period of one year from the original date of purchase.*
If during the period of warranty this product proves defective under normal use and
service you should return the product to the retailer from whom it was originally
purchased or qualified service centre. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or replacement of the unit
under warranty.
• The warranty is limited to the original purchaser.
• A copy of your receipt or other proof of purchase is required for a proper warranty
service.
• The warranty is void if the product label is removed, or if the product has been
subject to physical abuse, improper installation, modification, or repair by
unauthorised third parties.
• Specifically exempt from any warranty are limited-life consumable components
such as batteries and other accessories.
• Samsung will not assume any responsibility for any loss or damage incurred in
shipping. All repair work on Samsung products by unauthorised third parties voids
any warranty.
19
20
* Depending on your region, the length of warranty may vary.
Specifications
(Applicable in the European Union and other European countries with
separate battery return systems)
This marking on the battery, manual or packaging indicates that the
batteries in this product should not be disposed of with other household waste at
the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference
levels in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
Item
Specifications and description
Bluetooth version
2.1+EDR
Support profile
Headset Profile, Hands-Free Profile
Operating range
Up to 33 feet (10 metres)
Standby time
Up to 330 hours*
Talk time
Up to 14 hours*
Charging time
Approximately 2 hours*
Declaration of Conformity (R&TTE)
We,
Samsung Electronics
declare under our sole responsibility that the product
Bluetooth Headset : HM1100
to which this declaration relates, is in conformity with the following standards and/or other normative documents.
SAFETY EN 60950- 1 : 2006+A11:2009
EMC N 301 489- 01 V1.8.1 (04-2008)
E
EN 301 489- 17 V2.1.1 (05-2009)
RADIO EN 300 328 V1.7.1 (10-2006)
We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in
conformity to all the essential requirements of Directive 1999/5/EC.
which will be made available upon request.
* Depending on the phone type and usage, the actual time may vary.
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK*
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
2010.07.28
(place and date of issue)
Joong-Hoon Choi / Lab Manager
(name and signature of authorised person)
* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the
warranty card or contact the retailer where you purchased your product.
22
23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
