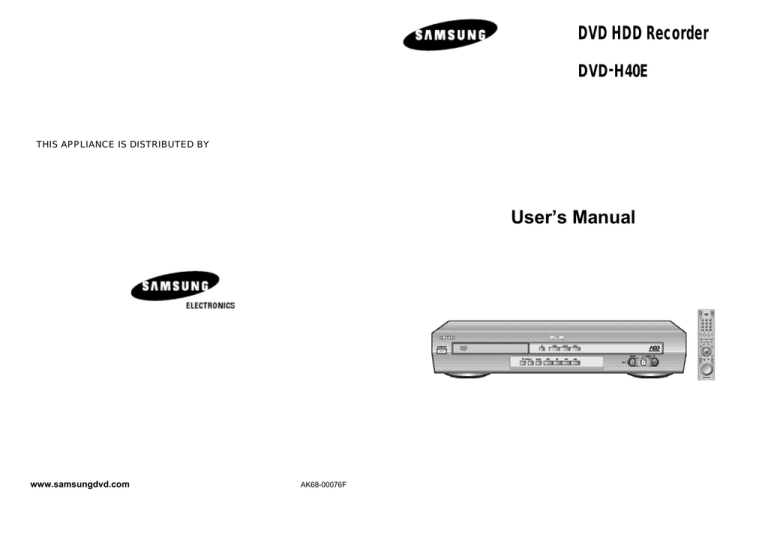

DVD HDD Recorder
DVD-H40E
THIS APPLIANCE IS DISTRIBUTED BY
User’s Manual
www.samsungdvd.com
AK68-00076F
Safety Instructions
The following illustrations represent precautions.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION. TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER. NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
DANGER
This symbol is intended to alert you to the presence of
dangerous voltage within the product.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
DO NOT OPEN THE DHR. Refer to service personnel.
IMPORTANT NOTE
The mains lead on this equipment is supplied with a mould plug
incorporating a fuse. The value of the fuse is indicated on the
pin face of the plug. If it requires replacing, a fuse approved to
BS1362 of the same rating must be used.
CAUTION
This symbol is intended to alert you to the presence of
important instructions accompanying the product.
Never use the plug with the fuse cover omitted if the cover is
detachable. If a replacement fuse cover is required, it must be
of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your
house or the cable is not long enough to reach a power point,
you should obtain a suitable safety approved extension lead or
consult your dealer for assistance.
However, if there is no alternative to cutting off the plug,
remove the fuse and then safely dispose of the plug.
Do not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
Do NOT expose the D H R t o
extreme temperature conditions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the D H R t o
direct sunlight.
Do NOT expose the D H R t o
any liquids.
Do NOT place any objects on
the DHR or remote control.
During a storm and/or lightning, unplug the DHR from the
mains jack and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code: BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows: The wire coloured BLUE must be connected to the terminal
marked with the letter N or coloured BLUE or BLACK. The wire
coloured BROWN must be connected to the terminal marked
with the letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE LETTER
E OR BY THE EARTH SYMBOL
, OR COLOURED
GREEN OR GREEN AND YELLOW.
2
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
3
Key features of DVD-H40E
1. Digital Video Recording.
2. Recorded Program List.
3. Highlight Play.
4. Editing Recorded Video.
5. DVD, CD, VCD, MP3, Photo CD Play.
6. Digital Audio Juke Box.
7. Family Photo Album.
8. Connection with DVC, VCR or STB.
1. Digital Video Recording
“ Instant recording ” of TV program by pushing one button.
Unlike VCR, it provides consumer to record TV program instantly by touching record button on the remote.
“ Live TV Pause ” guarantees consumer not to miss a single
TV scene.
This function allows consumer who is watching TV program
to work on other stuffs without missing a single scene.
“ High Quality Video recording ” from TV DVD (VCD), DVC and
STB to HDD.
It supports 3 video recording modes at the different bit rates such as SQ (2Mbps / 40h), HQ (4Mbps / 20h)
and SHQ (6Mbps / 13 hours). It can be stored up to 500 Clips.
Key features of DVD-H40E (cont.)
2. Recorded Program List
• If customer record the video program, “ Program List ” will be generated automatically for easy
understanding of the recorded program.
• This program list includes “Title Name”, “Date” and “Length”. Title name can be changed by the
“Title Insert Function”. Date and length information are automatically generated.
Thumbnail picture of the
first clip will be displayed.
Every necessary keys for operating
the current menu screen are also
arranged in this bottom area with
icons and instructions.
3. Highlight Play
• At the program list, if you push “ P – List ” button on the remote, you can preview the highlight of selected
video program like as you can see in the start part of the movie for introducing the next coming movie.
“ Live TV Control ” allows you to go back in time axes and experience what you missed on the live TV
broadcasting.
Simply press the Pause button ( II ) when you leave and when you return, DVD-H40 will instantly replay
what you missed while you were away.
Playback
for 5 sec
Jump
Repeat highlight playback
4. Editing the Recorded Video Program
• Samsung DVD-H40 will offer the fun to generate his own video program by himself.
• User can combine 2 or more video programs as a one video program.
shows the selected file information
4
5
Key features of DVD-H40E (cont.)
Key features of DVD-H40E (cont.)
4. Editing the Recorded Video Program
6. Digital Audio Jukebox
• DVD-H40 can divide selected video program as 2 or more programs.
1. playing picture ( I frame )
2. FPS, RPS, pause keys
can be used
< start position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(White -> Blue)
• “Juke box” enables consumer to enjoy thousands of music in HDD without replacing Audio CD every time.
DVD-H40 allows MP3 music from CD to be downloaded into HDD as many as consumer wants.
( Max. capacity of HDD for MP3 : 10GB)
Indicates selected file
< end position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(Blue->White)
3. Create sub-picture
divided
File
Current
position
White bar
File length
• DVD-H40 can delete unnecessary video programs.
• Even partial deletion of selected video program is possible.
• If user include his/her favorite photos in the same music folder, then user can enjoy the music slide show
also.
Selected file enter key, then display
pop-up menu for delete option
5. DVD, CD, VCD, MP3, Photo CD Play
• DVD-H40 can play many kinds of discs like as DVD, Audio CD, Video CD, MP3 (CD-R/RW), Photo CD
(Kodak), CD-G, etc.
6
• At the edit mode, user can generate his/her own music folder like as “CLASSIC”, “JAZZ”, “POP SONG” and
so on.
7
Key features of DVD-H40E (cont.)
Key features of DVD-H40E (cont.)
• Editing function enables you to select, delete, move or rename your favorite images or photo and
make your own directory.
7. Family Photo Album
• Enjoy JPEG Images from CD or HDD with easy & user friendly GUI.
Up to 10,000 JPEG images (Standard file size 100kbyte) can be saved and edited in HDD.
It supports Kodak Photo CD format.
Page indicates number of
pages of thumbnails
8 Thumbnails per page
Selected photo is
highlighted for enlargement.
“Enter” on remote control
enlarges photo to full
screen
Navigate between
thumbnails using remote
control directional
buttons
Indicates selected file
Date show when the
selected photo was taken
Limited to 20 string
• User can easily select the photos what he wants to copy from CD to HDD at the below GUI screen.
• “Viewing Individual Photo”
Indicates selected file
8. Connection to DVC or DSC
• “Slide Show”
• Connecting DSC or DVC through A/V Input port enables to enjoy and edit those video programs simply
through TV screen.
Store /Edit in HDD
Time setting range
3 sec ~ 10 sec
Pushed “enter” key, then pop-up menu will be display.
After delay time setting, started slide show.
8
Image from
DVC or DSC
Enjoy through TV
9
Contents
Contents (cont.)
SETUP DHR(DVD HDD Recorder)
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corpration and other rights owners. Use of this copyright protection
technology must by authorized by Macrovision Corporized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
Digital Recorder
Watch the recorded program in HDD
Set the parental lock
Change the lock password
Edit the recorded program in HDD(Combine)
Edit the recorded program in HDD(Divide)
Edit the recorded program in HDD(Delete)
Edit the recorded program in HDD(Partial Delete)
Record TV program(Timer program setting)
Record TV program(Videp Plus)
Recording Television Broadcast
Record TV program (One Touch Recording)
INTRODUCTION
Disc Type and Characteristics
MP3 Play (CD-R MP3 disc requirements)
Front View of the DHR(DVD HDD Recorder)
Rear View of the DHR(DVD HDD Recorder)
Display Indicators
Accessaries
Infrared Remote Control
Inserting Batteries in the Remote Control
Deciding How to Connect DHR(DVD HDD Recorder)
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
Connecting DHR(DVD HDD Recorder) to the TV using the SCART Cable
Connecting DHR(DVD HDD Recorder) to a Satellite Receiver or Other Equipment
Using the TV Button on the Remote Control
Basic Connections/Auto Setup
DVD/HDD View
Basic DVD Playback
Basic TV Tuner Operations
Playing a Disc
12
13
14
14
15
15
16
17
18
19
19
20
21
22
23
23
24
25
34
35
36
37
38
39
40
41
42
43
44
DVD player
Disc Copy
Preset of DVD language
Set the parental lock
Change the lock password
Using the Disc/Title Menu
3D Sound Function
Selecting the Audio Language
Selecting the Subtitle Language
Using the Display Function
Special Playback Features
A-B Repeat
Using the Zoom (DVD/VCD)
Changing the Camera Angle
Using the Bookmark Function (DVD/VCD)
46
47
48
49
50
50
51
51
52
53
54
55
55
56
Juke Box
View the MP3 file list in HDD/CD
Edit the MP3 file in HDD
Copy MP3 file from CD to HDD
58
59
60
Photo Album
View the JPEG file list in HDD/CD
Edit the JPEG file in HDD
Copy JPEG file from CD to HDD
SET-UP
Change set language
Set the TV channel
Set the clock
Set the time-shift buffering time
Set the output audio options
Set the display options
HDD Format
10
27
28
29
29
30
31
32
62
63
64
OTHERS
Technical Specifications
65
Problems and Solutions
66
11
Disc Type and Characteristics
MP3 Play (CD-R MP3 disc requirements)
This DHR player is capable of playing the following types of discs
with the corresponding logos :
Disc Types
(Logos)
Recording Disc Size
Types
DVD
12 Cm
Audio
+
Video
8 Cm
VIDEO-CD
12 Cm
Max.
Playing
Time(files)
Characteristics
Single-sided
240 min.
Double-sided
480 min.
Single-sided
80 min.
Double-sided
160 min.
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
• Various screen and audio
functions can be easily selected
through the on-screen menu.
74 min.
• Video with CD sound, VHS
quality & MPEG-1 compression
technology.
Audio
+
Video
8 Cm
AUDIO-CD
20 min.
12 Cm
74 min.
8 Cm
20 min.
12 Cm
WAV: 74min
MP3: about 150
JPG: up to file
size
Audio
CD-R
Audio
+
Video
8 Cm
CD-RW
12 Cm
Audio
+
Video
8 Cm
➢
* Discs which cannot be played with this player:
• DVD-ROM
• DVD-RAM
• CD-ROM
• CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
12
When playing CD-R/RW discs, please follow the recommendations below:
WAV: 20min
MP3: about 60
JPG: up to file
size
WAV: 74min
MP3: about 150
JPG: up to file
size
WAV: 20min
MP3: about 60
JPG: up to file
size
• An LP is recorded as an analog
signal with more distortion. CD
is recorded as a Digital Signal
with better audio quality, less
distortion and less deterioration
of audio quality over time.
• Your MP3 files should be ISO 9660 or JOLIET format.
ISO 9660 format and JOLIET MP3 files are compatible with Microsoft's DOS and Windows, and with
Apple's Mac. These two formats are the most widely used.
• When naming your MP3 files do not exceed 15 characters, and place ".mp3" as the file extension.
General name format of: Title.mp3. When composing your title, make sure that you use 15 characters or
less.
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.
Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at
least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely
give better sound quality. Conversely, files with sampling rates below 128 Kbps will not be played
properly.
• Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the
following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark
of The SDMI Foundation). You cannot copy such files.
Disc Markings
~
• Permanent data storage
- cannot be erased or over written.
• Storing music, images, photos.
PAL
NTSC
• Record and rewrite up to 1000
times and can be read
indefinitely
* Ability to play back may depend on recording
conditions:
• DVD-R, +R
• CD-RW
• DVD+RW, -RW
• Photo CD : JPG file
• Playback Region Number
Both the DHR player and the discs are coded by region.
These regional codes must match in order for the disc to play. If the codes do not match,
the disk will not be played.
The Region Number for this player is described on the rear panel of the player.
• PAL colour system in U.K, France, Germany, Australia, etc.
• NTSC broadcast system in USA,
Canada, Japan, South Korea, etc.
• Dolby Digital disc
STEREO
DIGITAL
SOUND
• Stereo disc
• Digital Audio disc
• DTS disc
13
Front View of the DHR(DVD HDD Recorder)
Display Indicators
1
STANDBY/ON
BUTTON
DVD DECK
OPEN/CLOSE
BUTTON
COPY BUTTON
DVD SELECT
BUTTON
2
3
11
13
12
6
7
8
FRONT PANEL
DISPLAY
10
CHANNEL BUTTONS
STOP
BUTTON
PLAY/PAUSE
BUTTON
5
HDD SELECT
BUTTON
9
RECORD
BUTTON
4
AUX AUDIO L, R
INPUT JACK
F.F /SKIP NEXT
BUTTON
REW /SKIP BACK
BUTTON
AUX VIDEO
INPUT JACK
1
2
3
4
5
6
7
8
9
Rear View of the DHR(DVD HDD Recorder)
14
14
15
17
16
DVD Deck mode indicator
Disc type indicator
JPEG file indicator
MP3 file indicator
The time, current position, time remaining or
current status is displayed
A Timer Recording is programmed or in progress.
STEREO indicator
HDD mode indicator
DVD disc is active
11
12
13
14
15
16
17
A DVD with a DTS soundtrack is loaded
LPCM type indicator
Dolby digital indicator
NICAM is active
Recording Quality indicator
VPS/PDC indicator
HDD is active
10 3D Sound is active
AUDIO L, R IN
JACKS
AERIAL IN
CONNECTOR
AV2 (DEC./EXT.) SCART
(EURO-21) JACK
DIGITAL AUDIO OUT
JACK (OPTICAL)
S-VIDEO IN
JACK
Accessaries
DIGITAL AUDIO OUT
JACK (COAXIAL)
You have just purchased a SAMSUNG DHR.
Together with your DHR, you will find the following accessaries in the box.
REMOTE CONTROL
& BATTERIES
S-VIDEO OUT
JACK
OUT TO TV
CONNECTOR
14
AV1 (EURO AV) IN/OUT
SCART (EURO-21) JACK
AUDIO & VIDEO
CABLE
USER’S
MANUAL
SCART CABLE
S-VIDEO CABLE
COAXIAL CABLE
VIDEO OUT2
JACK
AUDIO L, R OUT2
JACKS
15
Infrared Remote Control
1
STANDBY/ON button
2
ZOOM/TV MUTE button
3
0~9 button
4
3D button
5
VOLUME +/ - button
6
INPUT SELECT button
7
DVD button
8
REVERSE PICTURE SEARCH/SKIP
PREVIOUS button
9
STOP button
Inserting Batteries in the Remote Control
1
17
2
18
4
19
11 CLEAR button
5
20
12 ENTER/DIRECTION button
6
21
7
22
23
24
25
26
27
13 RECORD button
15 DISC MENU button
16 SUBTITLE/TIMER button
17 OPEN/CLOSE button
18 TV/DHR button
◆ Purchase the DHR
◆ Find that the remote control is no longer working
correctly
1
Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2
Insert two AA, R6 or equivalent batteries, taking care to respect the
polarities:
◆
+ on the battery with + on the remote control
◆
– on the battery with – on the remote control
3
Replace the cover by aligning it with the base of the remote control
and pushing it back into place.
3
10 MENU button
14 TITLE/SPEED button
You must insert or replace the batteries in the remote control when
you:
8
9
10
11
➢
Do not mix different battery types (manganese and alkaline
for example).
19 REPEAT A-B button
20 PROGRAM button
12
21 TEXT button
22 TV button
23 HDD button
13
28
24 FORWARD PICTURE SEARCH/
SKIP NEXT button
14
15
29
30
16
31
25 PLAY/PAUSE button
26 DISPLAY button
27 PLAY LIST button
28 RETURN button
32
29 MARK button
30 ANGLE button
31 AUDIO button
32 JOG/SHUTTLE
16
17
Deciding How to Connect DHR(DVD HDD Recorder)
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
To receive television programs a signal must be received from one
of the following sources:
You must take into account various factors when connecting audio or video systems:
◆ Types of connectors available on your systems
◆ Systems connected permanently to the DHR (satellite receiver for example) or temporarily
(camcorder for example)
Your DHR is equipped with the following connectors.
Connector
Location
AV1 (EURO AV) Rear
Type
SCART
Direction
In/Out
Recommended Use
◆ Television
➢
◆
◆
◆
◆
An outdoor aerial
An indoor aerial
A cable television network
A satellite receiver
Make sure that both the television and the DHR are
switched off before connecting the cables.
1
Remove the aerial or network input cable from the television.
2
Connect this cable to the 75Ω coaxial jack marked
rear of your DHR.
3
Plug the coaxial cable supplied into the
4
Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
on the
2
TV
AV2
Rear
SCART
In/Out
◆ Satellite receiver
◆ CANAL/DECODER
◆ Other VCR/DVD
Audio input
Rear
Audio RCA
In
◆ Audio in for S-VIDEO
S-VIDEO
input
Rear
S-JACK
In
◆ S-Video in
Audio output
Rear
Audio RCA
Out
◆ LINE Audio out
VIDEO output
Rear
RCA
Out
◆ LINE Video out
5
jack on your DHR.
3
4
To obtain better quality pictures and sound on your television, you
can also connect your DHR to the television via the RCA cable
(see section below) if your television is equipped with this type of
connection.
Connecting DHR(DVD HDD Recorder) to the TV using the SCART Cable
Aerial
TV
S-VIDEO
output
Rear
S-JACK
Out
◆ S-Video out
2
Digital AUDIO
output
Rear
Optical
Out
3
◆ Digital Audio out
SCART Cable
Coaxial
OUT TO TV
Rear
IN FROM ANT. Rear
75 Ω
Coaxial
75 Ω
Coaxial
RF coaxial cable
Out
In
◆ Television
◆ Aerial
◆ Cable television network
◆ Satellite receiver
☛
Whenever you connect an audio or video system to your DHR,
ensure that all elements are switched off.
Refer to the documentation supplied with your equipment for detailed
connection instructions and associated safety precautions.
18
You can connect your DHR to the television using the SCART cable if the appropriate input is available
on the television. You thus:
◆ Obtain better quality sound and pictures
◆ Simplify the setting up procedure of your DHR
➢
◆ Regardless of the type of connection chosen, you must always connect the coaxial cable
supplied. Otherwise, no picture will be visible on the screen when the DHR is switched off.
◆ Make sure that both the television and the DHR are switched off before connecting the cables.
1
2
3
Connect the coaxial cable as indicated in the above section.
Connect one end of the SCART cable to the AV1 (EURO AV) jack on the rear of the DHR.
Plug the other end into the appropriate connector on the television.
19
Connecting DHR(DVD HDD Recorder) to a Satellite Receiver or Other Equipment
You can connect your DHR to a Satellite receiver or other DHR using the SCART cable if the appropriate
outputs are available on the equipment chosen. The following illustrations give a few examples of the
connection possibilities.
Using the TV Button on the Remote Control
Your DHR remote control will work with Samsung televisions and
compatible brands.
To determine whether your television is compatible, follow the instructions
below.
1
Switch your television on.
2
Point the remote control towards the television.
3
Hold down the TV button and enter the two-figure code corresponding
to the brand of your television, by pressing the appropriate
numeric buttons.
1. AV2 IN: By means of 21-pin Scart Cable
Plug the SCART Cable with satellite receiver or other equipment into the AV2 (DEC./EXT.) jack on the rear of theDHR.
After making this connection, select the source by pressing the INPUT SEL. button for the AV2 input sources.
2. By means of RF Coaxial Cable
3
After making this connection, you must preset the station received through the satellite tuner.
RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the DHR,
e.g. re-adjust to channel 39.
Brand
SAMSUNG
AKAI
GRUNDIG
LOEWE
PANASONIC
Aerial
Satellite Receiver or other Equipment
Aerial Connector
Codes
01 to 06
09, 23
09, 17, 21
02
08, 23 to 27
Brand
Codes
PHILIPS
SABA
SONY
THOMSON
TOSHIBA
02, 20, 22
13, 14, 22 to 24
15, 16
13, 14, 24
07, 16 to 19, 21
• If your television is compatible with the remote control, it will be
switched off. It is now programmed to operate with the remote control.
1
2
➢
◆ If several codes are indicated for your television brand,
try each one in turn until you find one that works.
◆ When you change the batteries in the remote control,
you must reprogram the code, following the same procedure.
SCART Cable
RF coaxial cable
You can control the television using the following buttons.
Button
Function
STANDBY/ON
Used to switch the television on and off.
INPUT SEL.
Used to select an external source.
VOL. + or -
Used to adjust the volume of the television.
PROG. Up or Down
Used to select the required channel.
TV MUTE
Used to toggle the sound on and off.
➢
20
The various functions will not necessarily work on all
televisions. If you encounter problems, operate the
television directly.
21
Basic Connections/Auto Setup
In this section, you will connect the DHR to your television and run
Auto Setup, which automatically searches for channels and sets the
DVD/HDD View
The DHR uses one set of controls to operate DVD & HDD. The
following buttons are helpful in successfully controlling each one.
player’s internal clock.
1
1
from antenna
or cable
1
2
2
Connect the RF antenna cable from your indoor/outdoor antenna
or cable wall outlet to the IN(FROM ANT.) jack on the rear panel
of the DHR
2
Press the DVD button on the remote control or on the front
panel when you want to control the DVD deck.
• The DVD indicator will light on the Front Panel Display to show
that the DVD deck is selected.
3
Press again the HDD button on the remote control or on the
front panel when you want to control the HDD.
• The HDD indicator will light on the Front Panel Display to show
that the HDD is selected.
Choose one of the following methods to connect the DHR to
your TV:
RF Connection:
Connect the supplied RF antenna cable from the OUT(TO TV) jack
on the rear panel of the DHR to your television’s Antenna Input.
To TV’s
Antenna Input
Line Connection:
Connect an RCA-type audio/video cable(red, white, yellow) from
the LINE OUT jacks on the rear panel of the DHR to your television’s
Line In jacks.
Use red for right audio, white for left audio, and yellow for video.
3
➢
3
DVD INITIAL SCREEN
1
3
HDD INITIAL SCREEN
LOADING
AV1
2
It is recommended that you use the Line Connection
if your TV is equipped with RCA jacks.
Connect the DHR power cord to a standard 220~240V/50Hz
wall outlet. Then power is automatically turned on.
• Don’t press any buttons on the DHR or remote during auto setup.
“AUTO” blinks while the DHR runs an auto setup procedure, where
it will automatically search for all active channels and set the clock.
• When Auto setting has been completed, the front panel displays
the current time.
• If Auto Clock set is unable to find the current time,
you can set the clock manually;See page 29.
4
Press the STANDBY/ON button on your TV.
5
Set TV to Channel 21~69 or AV.
Be sure to use the same channel you selected.
➢
Press the STANDBY/ON button on the remote control or the front
panel to turn on the DHR.
◆ Even if you plan to use the S-Video Output, you MUST
connect the DHR to your television with either the
standard RF or the AV Out connection.
This enables you to operate the DHR setup menu.
Basic DVD Playback
Follow these instructions to playback a DVD.
1
Open disc drawer.
• Press the Open/Close button on the remote control or front panel.
1
2
Insert disc.
• Place the disc in the drawer with the label side of the disc facing
up. If the disc has two sides, orient the disc with the desired label
facing up.
3
3
Close disc drawer.
• Press the Open/Close button on the remote control or front panel
to close the disc drawer.
4
Press the II(Play/Pause) button on the remote control or front
panel.
• Many discs will begin playback automatically when the disc drawer
closes.
• If the DVD has a disc menu, or more than one title, the disc menu
may appear.
5
4
Additional DVD options.
• See pages 45~56.
22
23
Basic TV Tuner Operations
1
Playing a Disc
1
Press the PROG.
buttons.
• Press to change to the next or previous channel.
1
Press the OPEN/CLOSE button.
• The STANDBY indicator light is on and the tray opens.
2
Press the 0~9 buttons.
• Press to select channels directly.
2
Place a disc gently into the tray with the disc’s label facing up.
3
Press the PLAY/PAUSE button to start play.
• When a conventional Audio CD (CDDA) is inserted, it is
automatically played back as the File List is displayed on the
screen. For MP3 or Photo CDs, a desired file must be selected
for playback once the File List is displayed on the screen.
4
Press the STOP button to stop play.
3
➢
1
Press the DISPLAY button.
• Display the channel’s information you are watching.
◆ When you press the TV/DHR button, you will be
taken directly to the screen of the AV device
connected to the AV2.
➢
2
◆ When you stop disc play, the player remembers where
you stopped, so when you press PLAY again, it will
pick up where you left off (unless the disc is
removed, the STOP button is pressed twice or the
player is unplugged.). This function works only when
playing DVD video.
3
◆ To listen to the next song, press and briefly hold down
the Forward ( ) button.
◆ If there are more than 8 files on the disc, press the
Previous or
Next button to view additional pages in
units of 8 contiguous files.
3
4
24
25
Set-Up
Change set language
You can setup about special functions of
DHR.
Change set language
You can select Menu language.
You can select menu language.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Language using
buttons.
4
Select language you want to change using
buttons,
then press the ENTER or buttons.
• Main menu language would be changed to selected language.
see page 27
Set the TV channel
You can set air/cable TV channel in manual or automatically.
see page 28
Set-Up
buttons, then press the ENTER or
buttons, then press the ENTER or
Set the clock
You can adjust clock on front panel display.
see page 29
Set the time-shift buffering time
You can select buffer time for time shift feature
see page 29
Set the output audio option
You can select audio option depends on audio system you have.
see page 30
Set the display option
You can select display option fit to your taste.
see page 31
HDD Format
You can erase all data or change system format in HDD.
see page 32
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
26
27
Set-Up
Set the TV channel
Set-Up
Set the clock
You can set air/cable TV channel in manual or automatically.
You can adjust present time and see it thru front panel display.
Also you can add or remove channels.
To use timer recording, you have to set the clock.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Channel using
buttons.
4
See below submenu setup.
Select mode using
buttons, then press the ENTER or
buttons.
buttons, then press the ENTER or
buttons, then press the ENTER or
Auto Set-up
• The DHR will automatically search for all available
channels in the selected Tuner Band.
This procedure may take a few minutes to complete.
• When finished, the lowest channel found will be displayed.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Clock Setting using
or buttons.
buttons, then press the ENTER
4
Select Manual Clock using
ENTER button.
buttons, then press the
5
Adjust present time using
ENTER button.
buttons, then press the
➢
Manual Set-up
• Search & setup individual channel option in manual
• Set channels using
or 0~9 buttons, then press the
ENTER button to save.
buttons, then press the ENTER or
◆ Follow this information if you have chosen manual
clock. Auto Clock is a function that plucks time
information from the TV signal and automatically
synchronizes the clock based on that information.
This function may not work depending on the
broadcast region. This function cannot be used if a
broadcast signal is not received by the antenna.
Set the time-shift buffering time
Set-Up
You never miss live TV programs. DHR memorizes live TV
programs for 30 min up to 2 hours.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Buffer Time using
or buttons.
4
Select hours using
buttons, then press the ENTER or
buttons.
• Over the selected buffer time, erased from starting scene of buffer.
•The shorter buffer time will be helpful to save HDD’s recording
space
•The default buffer time is 1 hour.
buttons, then press the ENTER or
Output CH
• Select output channel to TV tuner.(21 ~ 69CH)
• Set out channel to TV using
buttons, then press the
ENTER button.
• Make sure connect RF coaxial cable between DHR and TV.
➢
buttons, then press the ENTER
◆ Press the Return button to move to the start buffered
position.
It can be taken a few seconds when the buffer time is changed.
28
29
Set-Up
Set the output audio options
You can optimize audio status depends on your audio system.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Audio Options using
ENTER or buttons.
4
See below audio output setup. Select mode using
then press the ENTER or buttons.
buttons, then press the ENTER or
buttons, then press the
buttons,
Set-Up
Set the display options
You can adjust TV display status.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Display Options using
or buttons.
4
Select option to change using
ENTER.
buttons, then press the ENTER or
buttons, then press the ENTER
or
buttons, then press the
Dolby D-out
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• Dolby Digital : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
• Be sure to select the correct digital output or no audio will
be heard.
Aspect ratio
OSD Message
• 4:3 PS (Pan-Scan) : Select this for conventional size
TVs when you want to see the central portion of the
16:9 screen.(Extreme left and right side of movie
picture will be cut off.)
• 4:3 LB (Letter Box) : Select when you want to see total
16:9 ratio screen DVD supplies, even though you have
a TV with 4:3 ratio screen. Black bars will appear at the
top and bottom of the screen.
• 16:9 Wide :You can view the full 16:9 picture on your
widescreen TV.
• On : Displays playing status icon or message
on screen.
• Off : Not displays playing status icon or message
on screen.
D-Compression
Front Display
Video Out
• This feature compresses the dynamic range (quietest
sound to loudest sound) of a disc’s soundtrack. For
example, action scenes might be loud, while whispered
dialog is quiet. The Dynamic Compression feature evens
out the range of the volume by making loud sounds
quieter and soft sounds louder.
• Off : To select normal dynamic range.
• On : To select compressed dynamic range.
• On : Turn on display panel all the time.
• Off : Turn off display panel all the time.
• RGB
• Video
• S-Video
MPEG 2 D-out
• This feature supports only disc encoding to MPEG Audio.
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• MPEG 2 : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
DTS
• Off : Does not output digital signal.
• On : Outputs DTS bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
Color System
• PAL : Make sure select PAL when you watch
PAL program.
• SECAM : Make sure sulect SECAM when you
watch SECAM program.
30
31
Set-Up
HDD Format
You can erase all data in HDD.
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
4
Digital Recorder
It has a 40Giga Byte large quantity HDD(Hard Disk Drive).
So you can edit saved programs and record in digital
format(MPEG2).
buttons, then press the ENTER or
Select HDD Format using
or buttons.
Watch the recorded program in HDD
buttons, then press the ENTER
Select Format option using
buttons, then press the ENTER
button.
• Option 1 : 40Hours recording (SQ Standard)
250 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
• Option 2 : 30Hours recording (SQ Standard)
2500 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
5
Select Yes, then press the ENTER button.
• Some options you already setup can be initialized.
6
The power will be turned off automatically after formatting the
HDD.
It shows you recorded program list.
see page 34
Set the parental lock
You can lock adult or violent programs for children.
see page 35~36
Edit the recorded program in HDD
You can combine, divide, delete or partial delete saved programs.
see page 37~40
Record TV program
You can record TV programs by timer recording function or VideoPlus.
see page 41~44
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
32
33
Watch the recorded program in HDD Digital Recorder
It shows recorded data and you can make it play.
It prevents children from watching adult or violent programs.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Program List , then press the ENTER or
4
Select program to see using
buttons, then press the ENTER
button.
• The Selected program starts to play, then go back to the Program
list after end of playback.
• Press the Stop button during playback, then go back to the Program
list .
• Highlight play
Select program, then press the P-LIST button. The selected program
will be played for 5 seconds in every 5 minutes length.
5
➢
➢
Digital Recorder
Set the parental lock
buttons.
buttons.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Parental Lock using
or buttons.
4
Enter a 4-digit password using the 0-9 buttons on the remote
control.
• Write your password down, and keep it in safe place in case you
need it to change your setting later.
• Initial password is set as 1111 .
5
Select Lock Setting, then press the ENTER button.
6
Select programs to lock using
buttons, then press or
button.
• Lock icon is displayed.
• The locked program is not displayed in Program list .
• You must release the locked program first to watch it again.
7
Press Return or Menu button to save lock setting.
Press Text button to change title.
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu mode.
◆ Press the P-LIST button to see program list in direct digest
mode. (See the key-Feature part page 5)
Virtual keyboard
• Select character using
buttons, then press the ENTER
button.
• Move cursor to the bottom right corner, then select OK and
press the ENTER or RETURN button to save.
➢
buttons.
buttons, then press the ENTER
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu mode.
◆ This password is for HDD only and is different from the
DVD password setting.
◆ See the page 66 when you forget the password.
• This is the picture that appears in the program list when the
TEXT key is pressed.
34
35
Change the lock password
Digital Recorder
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
buttons, then press the ENTER
3
Select Edit using
buttons.
Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set as 1111 .
4
Select Combine, then press the ENTER or
5
Select a program to combine using
buttons, then press
the ENTER button.
• Selected programs are displayed at below window.
• Up to 6 programs can be selected.
• The same program can not be selected.
6
Select Execute using
7
Press the ENTER button.
• If you would like to combine selected programs, select Yes and
press the ENTER button.
• Selected programs combine to one program.
• The combined program’s initial name is “New”.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Parental Lock using
or buttons.
4
Digital Recorder
You can combine several programs to one, so play programs
continuously.
You can change password in Parental Lock menu.
buttons.
5
Select Change Password using
ENTER or buttons.
6
Enter new 4-digit password using the 0-9 buttons on the remote
control.
7
Enter the new password again to confirm.
➢
Edit the recorded program in HDD(Combine)
buttons, then press the
If you press RETURN button, then change password procedure
is cancelled.
➢
buttons.
buttons, then press the ENTER or
buttons.
button.
◆ If you would like to cancel the Combine, select No using
buttons and press the ENTER button.
◆ If you would like to erase the selected scene, press clear button,
then the last selected scene will be erased
◆ Only final combined file is saved & displayed in program list.
The original files will be erased.
Original file
A
B
After combine
A
B
C
C
◆ Live TV control will be stopped at the Edit mode.
◆ The combine operation cannot be performed between files
whose recording qualities (SQ, HQ, or SHQ) are not the
same.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
36
37
Edit the recorded program in HDD(Divide) Digital Recorder
You can divide a program to several parts and save.
Edit the recorded program in HDD(Delete)
Digital Recorder
You can delete recorded programs.
This is used to delete unwanted files to free up more space.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Edit using
buttons.
buttons.
buttons, then press the ENTER or
4
Select Divide using
buttons.
5
Select a program to divide using
buttons, then press
the ENTER button.
• Selected program is played and playback progress bar is displayed
at below.
buttons, then press the ENTER or
6
Search parts you want to divide using
ll (Play/Pause) buttons.
7
Press the ENTER button at start & end position to divide.
• Press ll (Play/Pause) button to search in normal speed.
• Press
(REW), (FF) buttons to search in fast.
• Press ll (Play/Pause) button at start or end position, then press
the ENTER button in pause mode.
• The selected part would be changed from white to blue color,
and the first scene of part is displayed at bottom.
8
➢
(REW),
(FF),
You can divide a program to several parts by repeat step 7.
• Up to 6 parts can be selected.
• The divided program’s initial name is “New”.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Edit using
4
Select Delete using
buttons.
5
Select a program to delete using
ENTER or buttons.
6
Select Yes to delete the program using
7
Selected program is deleted.
➢
buttons.
buttons, then press the ENTER or
buttons.
buttons, then press the ENTER or
buttons, then press the
buttons.
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu scene.
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ After divided, A’. B. C file will be saved and displayed in
Program list.
◆ A’ means a program combined with the remainder except
selected parts in original file.
◆ The file name of A’ is assigned to the original file name(the
name of program A), B and C are placed its name as “New”,
respectively.
White : Unselected part
Blue : Selected part
Red : Current playback position
Original file
Divide to parts
A
A’
B
A’
C
A’
After divided, New A’, B, C files will be existed
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ Make sure select the END point before move down to the
Execute.
38
39
Edit the recorded program in HDD(Partial Delete)
Digital Recorder
You can delete parts you want to skip like commercial.
Make sure present time is set.
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
buttons.
3
Select Edit using
buttons.
4
Select Partial Delete using
ENTER or buttons.
5
Select a program to delete using
the ENTER or buttons.
buttons, then press
6
Search parts you want to delete using
/Pause) buttons.
(REW),
7
Press the ENTER button at start & end position to delete.
• The selected part would be changed from white to blue
color, and the first scene of blue part is displayed at bottom.
8
You can delete part of program by repeat step 7.
• Up to 6 parts can be selected.
buttons, then press the ENTER or
buttons, then press the
Original file
Delete parts
After delete
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Recording using
or buttons.
4
Select Timer Recording, then press the ENTER button.
• If clock was not set, then the pop-up menu is displayed. Set the
present time using
buttons, then it goes back to Timer
recoding menu automatically.
5
ENTER specific data to record using
buttons.
• Press the ENTER button to change or enter data.
• Press clear button to delete programmed schedule.
B
A’
C
6
Turn off the power after finishing the timer recording.
buttons.
buttons, then press the ENTER
(FF), ll (Play
A
A’
Digital Recorder
You can record TV programs in the HDD.
1
➢
Record TV program(Timer program setting)
A’
A’
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ Make sure select the END point before move down to the
Execute.
➢
◆ See to page 43 to select recording quality(Speed).
◆ If the current time is set, you can directly move the Timer
Program mode by pressing the TIMER button on the
remote control.
White : Unselected part
Blue : Selected part
Red : Current playback position
40
41
Record TV program(VideoPlus)
Digital Recorder
You can record TV programs using VideoPlus function.
42
Digital Recorder
You can save watching TV program or DVD title in HDD.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or
3
Select Recording using
or buttons.
4
Select VideoPlus, then press the ENTER or
5
Enter the program’s VideoPlus code to record, then press
ENTER button.
• Refer to TV program guide magazine to find VideoPlus.
• Make sure set Prog. when you use VideoPlus menu at the first
time.
6
Turn off the power after finishing the timer recording.
➢
Recording Television Broadcast
1
Press the REC button to save current watching TV program
or DVD title.
2
REC icon is displayed on the screen.
• Recording contents will be saved automatically.
You can check saved programs in program list.
1
buttons.
buttons, then press the ENTER
buttons.
3
Press the ■ (STOP) button to finish recording.
4
Press Speed button to adjust recording quality. The higher
quality is needed more space in HDD.
• Change the recording quality before recording.
After starting record, you can not change quality.
SQ : Standard Quality (2Mbps/40Hr)
HQ : High Quality (4Mbps/20Hr)
SHQ : Super High Quality (6Mbps/13Hr)
4
3
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu scene.
◆ Press Clear button to delete programmed schedule at Timer
Recording menu.
◆ If the current time is set, you can directly move the Timer
Program mode by pressing the TIMER button on the remote
control.
43
Record TV program (One Touch Recording)
Digital Recorder
Your DHR stops automatically after the requested length of time.
3
3
1
Switch on the television.
2
To monitor the programme being recorded, select the
television channel reserved for use with your DHR
(or the AV input if used).
3
3
4
Select:
• The station to be recorded using the PROG ( or ) buttons
or
• The AV1, AV2 or AUX source using the INPUT SEL. button for a
satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
4
Hold the REC button ( ● ) down for a while to start recording.
Result: The record indicator appears on the television screen.
5
Press the REC button ( ● ) several times to increase the
recording time:
• From 30 min. to 8 hours
6
If you wish to cancel the recording before the end, press
STANDBY/ON.
DVD player
You can setup DVD title's language and rate.
Disc Language
You can select DVD title's menu language.
see page 47
Audio Language
You can select DVD title's audio language.
see page 47
Subtitle
You can select DVD title's subtitle language.
see page 47
Parental Lock
You can lock adult or violent DVD titles for children.
see page 48~49
➢
The language change functions support only to
multi-language menu included DVD titles.
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
44
45
DVD player
Disc Copy
You can copy DVD title to HDD.
Copy protected DVD titles will not be copied.
2
1
Insert DVD title to copy and change to DVD mode using
DVD button on the remote control or DVD button on the
front panel.
2
Press the Copy button on the front panel or the REC button on
the remote control.
3
Press the ■ (STOP) button to finish copy.
DVD player
Preset of DVD language
You can select language of DVD title's menu, audio, subtitle.
1
Press the MENU button.
2
Select DVD Player using
or buttons.
3
Select submenu you want to change using
then press the ENTER or buttons.
buttons, then press the ENTER
buttons,
2
➢
◆ After end of copy, “program”(file name) is created
automatically.
◆ Copy protected titles can not be copied.
Disc language
DVD title's menu language selection.
Audio language
DVD title's audio language selection.
Sub-Title
DVD title's subtitle language selection.
After 2 hours and 30 minutes copying, it stops automatically.
4
➢
46
Select language using
button.
buttons, then press the ENTER
◆ Press the RETURN button to go back the previous menu.
◆ Press the MENU button to close menu scene.
47
DVD player
Set the parental lock
You can adjust DVD title's rating for children.
1
Press the MENU button.
2
Select DVD Player using
or buttons.
3
Select Parental Lock using
or buttons.
4
Enter a 4-digit password using the 0-9 buttons on remote control,
then press the ENTER button.
• Write your password down, and keep it in safe place in case you need
it to change your setting later.
• Initial password is set as 1111 .
Select Lock setting using
or buttons.
5
6
buttons, then press the ENTER
DVD player
Change the lock password
You can change password in Parental Lock menu.
1
Press the MENU button.
2
Select DVD Player, then press the ENTER or
3
Select Parental Lock using
button.
4
Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set to 1111 .
5
Select Change Password using
ENTER or buttons.
6
Enter new 4-digit password using the 0-9 buttons on the remote
control.
7
Enter the new password again to confirm.
buttons, then press the ENTER
buttons.
buttons, then press the ENTER
buttons, then press the
buttons, then press the ENTER
Adjust rate using
buttons, then press the ENTER button.
• If you adjust rating up to 6 level, upper 7, 8 level titles are not played.
• The higher level is the closer to adult or violent titles.
➢
◆ If you press RETURN button, then change password
procedure is cancelled.
◆ This password is for DVD only and is different from
the HDD password setting.
➢
◆ This function supports only to DVD title's included
r a t i n g information.
◆ This password is for DVD only and is different from
the HDD password setting.
◆ See the page 66 when you forget the password.
48
49
Using the Disc/Title Menu
DVD player
Many DVDs feature their own menu system, where you can select
Titles, Chapters, Audio Tracks, Subtitles, and special disc features,
such as movie trailers, and information on the cast. Use these
buttons to make selections in the Disc menus.
1
2
Press the DISC MENU button to access DVD's disc menu.
• Move to DVD's disc menu.
1
2
Press the TITLE button to access DVD's title menu.
• Move to DVD's title menu.
Selecting the Audio Language
DVD player
You can select a desired language quickly and easily with the AUDIO
button.
1
Press the AUDIO button.
2
Select the desired language on DVD using
3
Select audio output mode(Stereo, Right, Left) on VCD/CD using
buttons.
➢
buttons.
• This function depends on what languages are encoded
on the disc and may not work with all DVDs.
1
DVD
• How to have the same audio language comes up whenever
you play DVD titles ; See “Disc Language/Audio Language
/Sub-Title” on page 47.
VCD/CD
3D Sound Function
DVD player
3D Audio is an enhanced audio mode that creates the illusion of
Surround Sound with only two speakers.
1
1
2
Selecting the Subtitle Language
DVD player
You can select a desired subtitle quickly and easily with the
subtitle button.
During playback of a disc, press the 3D button on the remote
control.
1
Press the SUBTITLE button.
Press the 3D button to set 3D SOUND On/Off.
2
Select the desired subtitle language using
3
Select subtitle On/Off using
buttons.
1
buttons.
➢ • This function depends on what languages are encoded on
the disc and may not work with all DVDs.
• How to make the same audio language comes up
whenever you play DVD titles ;See “Disc Language/Audio
Language/Sub-Title" on page 47.
* If DVD titles have own languages, default disc’s language
comes out.
50
51
DVD player
Using the Display Function
1
Press the Display button during DVD playing.
During DVD/CD playback you can select from the following
special playback options. To resume normal playback, press the
(PLAY/PAUSE) button.
2
Select submenu to change using
using
buttons.
Pause
You check DVD title's status or select options.
1
➢
buttons, then change option
• If you would like to save changes or escape menu, press
the Return or Display buttons again.
• The display submenu can be changed if you use VCD
using.
Title
2
Display current playback title's status
and move to a title
DVD player
Special Playback Features
Press the
ll
ll (PLAY/PAUSE) button on the remote control during playback.
• The picture will Pause and the audio will mute.
• To resume playback, press the ll (PLAY/PAUSE) button.
• If the player is left in Pause mode for 5 minutes, it will play automatically.
Frame Search (Step)
While in Pause mode, roll the jog on the remote control to forward/backward
one frame at a time.
• Audio is muted during Frame search mode.
• Press ll (PLAY/PAUSE) to resume normal playback.
Forward/Backward Chapter Search
Chapter
Display current playback chapter's
status and move to a chapter
Time
Display current playback time
Enter time using 0~9 buttons to more the
scene, then press the ENTER button.
Audio
Display current audio language and
change another
While a CD or DVD disc is in Play mode, press and hold the Skip
Forward/Backward ( /
) buttons on the remote control or front panel
to jump forward and backward through disc chapters/tracks.
• Skip Forward will jump to the next chapter/track.
• Skip Back will jump to the beginning of the current chapter/track.
• Press the Skip Back button again to jump to the beginning of the previous
chapter/track.
Forward/Backward Picture Search
While a disc is in Play mode, press and the Forward/Backward ( /
buttons on the remote control or front panel to visually search
forward/backward at 2X - 4X - 8X - 16X - 32X - 64X - 128X speed.
Press ll (PLAY/PAUSE) button to resume normal speed.
)
Slow Motion
During playback, press the ll (PLAY/PAUSE) button to Pause the image.
Then use the Search Forward ( ) to play in slow motion at variable speeds.
Subtitle
Display current subtitle language and
change another
• Each press increases the slow motion speed playback to 1/8, 1/4
or 1/2 of normal speed.
• Audio is muted during slow motion playback.
• Press the ll (PLAY/PAUSE) button to resume normal playback.
Stop/Resume
Angle
Change scene angles
This function supports only multi-angle
scene included DVD titles.
• Press the ■ (Stop) button ONCE to stop playback. Press
ll(PLAY/PAUSE) button to resume the current stop position.
• Press the ■ (Stop) button TWICE to completely stop playback.
The next time you press the ll(PLAY/PAUSE) button, the disc will
start from the beginning.
Repeat
Repeat title or chapter
52
53
DVD player
A-B Repeat
The A-B Repeat function allows you to repeat any segment of a
DVD or CD. Simply mark the beginning point (A) and the ending
point (B) of the segment you want to review.
1
1
Press the REPEAT A-B button at starting position.
•“A” will be selected when A-B repeat is selected.
“B” will be selected after pressing the REPEAT A-B button.
2
Repeat from "A" to "B".
3
Press the REPEAT A-B button again to cancel A-B repeat.
DVD player
Using the Zoom (DVD/VCD)
Zooms the scene to see more specific.
1
Press the Zoom button during playback or Pause mode.
2
Select part of screen to zoom using
press the ENTER button.
• DVD : Normal/1.5X/2X/4X
• VCD : Normal/1.5X/2X/4X
3
buttons, then
1
Press the ENTER button.
• During DVD play : press ENTER to zoom in1.5X/2X/4X/2X/1.5X/
Normal in order.
• During VCD play, press ENTER to zoom in 1.5X/2X/1.5X/Normal
in order.
Changing the Camera Angle
DVD player
When a DVD contains multiple angles of a particular scene,
you can use the Angle function.
Press the ANGLE button to see if an ANGLE (
) mark is
present at the upper right hand corner of the screen.
54
1
Press the Angle button when an angle icon is shown at the upper
right hand corner, then angle selection icon will be appeared
at the upper left hand corner.
2
Select desired screen angle using
3
To turn off the display, press the ANGLE button again.
1
buttons.
55
Using the Bookmark Function (DVD/VCD)
DVD player
The Bookmark function lets you select parts of a DVD or VCD
(MENU OFF mode) so that you can quickly find the section at a later
time.
1
Juke Box
You can play MP3 files in HDD.
You also make your own play-list or edit MP3 files easily.
1
Press the Mark button during playback.
View the MP3 file list in HDD
2
Mark desired scene using the Enter button.
• You can mark up to 3 scenes.
see page 58
3
Press the Mark button again to turn off menu.
Edit the MP3 file in HDD
Press the Mark button to recall marked scenes, then select a
scene(1, 2, or 3) using
, ll buttons.
• The marked scene will be played.
You can move, copy, save, or delete files and also change file
name in HDD.
4
5
Delete Mark Number Select a mark number to delete using
buttons, then press the Clear button.
You can display saved MP3 files list in HDD and play.
see page 59
View the MP3 file list in CD
You can display MP3 files list in CD and play.
➢
see page 58
◆ When in VCD 2.0 mode(Menu On mode), this
function does not work.
◆ The Bookmark function may not work depends on
disc.
Copy MP3 file from CD to HDD
You can copy MP3 files from CD to HDD.
see page 60
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
56
57
Juke Box
View the MP3 file list in HDD/CD
You can display files on screen and play.
• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of
HDD PlayList.
1
Press the MENU button.
2
Select Juke Box using
buttons.
3
Select HDD Playlist using
or buttons.
4
Select Folder or file using
buttons, then press the ENTER
button.
• Press the ENTER button again to cancel file selection.
➢
5
6
Edit the MP3 file in HDD
You can move, save, or delete files and also change file name in
HDD.
1
Press the MENU button.
2
Select Juke Box using
buttons.
buttons, then press the ENTER or
3
Select HDD Edit using
buttons.
buttons, then press the ENTER or
4
Select folder or file using
buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
• If you select folder, then it shows you included files in the folder.
5
Move to the right side edit menu using
buttons, then edit
selected files using
, ENTER buttons.
6
In case of move :
Select folder to move using
buttons, then press the ENTER
button.
Select Execute using
buttons, then press the ENTER button.
buttons, then press the ENTER or
buttons, then press the ENTER
If you select folder, then it shows you included files in folder.
Press the P-LIST button.
• The selected files are displayed in selected order and play the
first file.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
Select Repeat All using
buttons, then press the ENTER
button.
• The selected MP3 files will be played continuously.
Select Slide Show using
buttons, then press the ENTER
button.
• The JPEG files will be displayed as a slide show during MP3
playing if JPEG files are in the same folder.
• Press the DISPLAY button to make full screen slideshow.
➢
Juke Box
In case of making new folder :
1. Select Make New Folder using
buttons, then press the
ENTER button.
2. Enter a new folder name using
, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
Press ■ button to Stop or to select other file.
Select All
Select all files
Clear All
Unselect all files
Move file
Move files to another folder
And after move, existed file would
be deleted.
Delete file
Delete files
Make Folder
Make new folder
➢
58
You can make new folder only in the Root.
Rename
Change file or folder name
Enter the new file or folder
using
, ENTER buttons.
Delete Folder
Delete folder
59
Juke Box
Copy MP3 file from CD to HDD
You can copy MP3 files from CD to HDD.
Photo Album
You can display JPEG files in CD or HDD and make your own
Photo Album or edit JPEG files easily.
1
Press the MENU button.
2
Select Juke Box using
buttons.
buttons, then press the ENTER or
3
Select Copy MP3 CD to HDD using
ENTER or buttons.
4
Select folder or files to copy from CD to HDD using
buttons, then press the ENTER button.
• Press the ENTER button again to cancel file selection.
➢
5
buttons, then press the
View the JPEG file list in HDD
You can display up to 8 JPEG files on a screen with thumbnail size
or one JPEG file on a screen with full size. Also you can display
JPEG files continuously thru slideshow function.
see page 62
Edit the JPEG file in HDD
• If you would like to choose all files in folder, move to Select
All using
buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
Select Copy to HDD using
button.
You can move, copy, save, or delete files and also change file
name in HDD.
see page 63
buttons, then press the ENTER
View the JPEG file list in CD
You can display JPEG files list in CD and display on screen.
Up to 200 files can be copied at once.
see page 62
Copy JPEG file from CD to HDD
You can copy JPEG files from CD to HDD.
see page 64
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
60
61
Photo Album
View the JPEG file list in HDD/CD
You can display files on screen and play.
• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of HDD
playlist.
1
Press the MENU button.
2
Select Photo Album using
or buttons.
buttons, then press the ENTER
Select HDD Playlist using
or buttons.
buttons, then press the ENTER
3
4
➢
5
➢
Select Folder or file using
buttons, then press the ENTER
button.
• You can preview the selected file at the right side window.
• Press the ENTER button again to cancel file selection.
If you select folder, then it shows you included file’s folder.
Press the P-LIST button.
• 8 files are display.
Edit the JPEG file in HDD
Photo Album
You can edit saved JPEG files in HDD.
1
Press the MENU button.
2
Select Photo Album using
or buttons.
3
Select HDD Edit using
buttons.
4
Select folder or file using
buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
➢
buttons, then press the ENTER
buttons, then press the ENTER or
If you select folder, then it shows you included files in the folder.
5
Move to the right side edit menu using
buttons, then edit
selected files using
, ENTER buttons.
6
In case of move :
Select Execute using
buttons, then press the ENTER button.
◆ Select Next using
buttons, then press the Enter
button to see the next 8 files.
◆ Select Previous using
buttons, then press the Enter
button to see the previous 8 files.
6
Select file to see using
buttons, then press the ENTER button.
• You can enlarge it to full screen size.
7
Select Slideshow using
button.
8
Select interval using
buttons, then press the ENTER button.
• Interval is from 3 sec to 10 sec.
9
Slide Show will be started for all JPEG files in playlist on the
screen with full size.
➢
◆ Press
In case of making new folder :
1. Select Make New Folder using
buttons, then press the
ENTER button.
2. Enter a new folder name using
, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
buttons, then press the ENTER
buttons to rotate pictures.
Select All
Select all files
Clear All
Unselect all files
Move file
Move files to another folder
And after move, existed file would
be deleted.
Delete file
Delete files
◆ Press the ZOOM button to change picture scale.
(Scale : 25%, 50%, 100%, 150%, 200%)
Press the ENTER button to change scale.
Make Folder
Make new folder
➢
You can make new folder only in the Root.
Rename
Change file or folder name
Enter the new file or folder
using
, ENTER buttons.
Delete Folder
Delete folder
62
63
Photo Album
Copy JPEG file from CD to HDD
Technical Specifications
You can copy JPEG files from CD to HDD.
1
Press the MENU button.
2
Select Photo Album using
or buttons.
3
Select Copy Photo CD to HDD using
the ENTER or buttons.
4
Select files to copy from CD to HDD using
press the ENTER button.
• Press ENTER button to cancel file selection.
➢
5
buttons, then press the ENTER
buttons, then press
220 - 240V~, 50Hz
Power consumption
33 Watts
Weight
4.5 Kg
Size
430mm X 360mm X 70mm
Operating ambient temperature
+5°C ~ +35°C
Installation conditions
Operation position : Horizontal,
Video (Rear)
Euro Scart Jack 1 : 1.0Vp-p (unbalanced) 75Ω
Audio (Rear)
Euro Scart Jack 1 : -8dBm, 47KΩ unbalanced
Video (Rear)
Euro Scart Jack 2 : 1.0Vp-p (unbalanced) 75Ω
Audio (Rear)
Euro Scart Jack 2 : -8dBm, 47KΩ unbalanced
Video (Rear)
S-Video
Audio (Rear)
for S-Video using
Video (Front)
RCA Jack
Relative humidity : Below 75%
buttons, then
• If you would like to choose all files in folder, move to Select
All using
buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
Select Copy to HDD using
button.
General
Rated voltage
Input
buttons, then press the ENTER
Up to 200 files can be copied at once.
Output
Audio (Front)
RCA Jack
RF out
UHF 21-69 (Initial CH60)
Audio
RCA Jack, Euro Scart Jack
Audio
Digital audio out (OPTICAL, COAXIAL)
Video
RCA Jack, Euro Scart Jack
Video
S-Video
RGB : Euro Scart Jack
HDD
CODEC Format
MPEG II
REC Speed
SQ(2Mbps), HQ(4Mbps), SHQ(6Mbps)
Color system
PAL, SECAM for Video signal output
Tuning system
I
Video S/N
Above 43dB (standard recording)
Resolution
Above 350 lines (standard recording)
Audio S/N
Above 70dB (standard recording)
Audio frequency characteristics
20Hz - 20KHz
Disc
DVD, CD (12cm), CD (8cm), VIDEO-CD (12cm)
DVD
64
CD-R (12cm), CD-RW (12cm)
Audio S/N
95dB
Audio dynamic range
105dB
65
Problems and Solutions
1. No power
- Check that the power plug is connected to a wall outlet.
- Have you pressed the STANDBY/ON button?
2. When the power is turned on, the logo is displayed for some time before the picture appears.
- The DHR has a built-in hard disk drive (HDD). Because of the time required to initialize the hard disk
drive, the logo will be displayed on the screen for about 15 seconds after power-on.
3. The television programme was not recorded
- Check the DHR aerial connections.
- Is the DHR tuner properly set?
- Check the HDD’s free space.
4. Timer recording was unsuccessful
- Was the STANDBY/ON button pressed to activate the timer?
- Re-check the recording start/stop time setting.
- If there was a power failure or interruption during timer recording, the recording will have been
cancelled.
5. The picture is paused or an earlier broadcast than the current time is showing.
- The DHR has the Time Shift function (see page 29) so that you can pause the incoming broadcast signal
and resume watching the program later.
- Press the PLAY/PAUSE ( ll ) button while watching a TV broadcast to pause the picture.
To resume viewing the broadcast, press the ll button again.
- If you press the
button to watch the broadcast in real-time, the picture will be fast forwarded until
incoming live broadcast is reached and played back at normal speed again.
Problems and Solutions (cont.)
10. Disc does not play
- Ensure that the disc is installed with label side facing up.
- Check the region number of the DVD.
- This player cannot play some kinds of discs. (See page 12)
11. The
icon appear or screen.
- The features or action cannot be completed at this because;
(1) The DVD’s software restricts it.
(2) The DVD’s software doesn’t support the feature (e.g., angles).
(3) The feature is not available at the moment.
(4) You’re requested a title or chapter number or search time that is out of range.
12. Playback mode differs from the Setup menu selection.
- Some of the function selected in the Setup Menu may not work properly if the disc is not encoded with
the corresponding function.
13. The screen ratio cannot be changed.
- The screen ratio is fixed on your DVDs. (See page 31)
14. No audio.
- Make sure you have selected the correct Digital Output in the Audio Option Menu. (See page 30)
15. If you experience other problems.
- Go the contents and find the section of the instruction book that contains the explanations regarding the
current problem, and follow the procedure once again.
- Turn the power off and on again.
- If the problem still cannot be solved, please contact your nearest authorized service center.
6. The picture is played back at 2X speed in the reverse direction while watching a broadcast.
- The DHR has the Time-Shift function that allows you to instantly replay certain scenes from the current
television programming. You can watch the program starting from as far back into the program as the
time set in the Setup.
- Press the
button to play back at 2X speed in the reverse direction during the reception of a TV
program.
7. The Copy key is pressed, but does not respond.
- The copy function will only work with DVDs, but if they contain a copy-protection signal the copy
operation cannot be performed.
- Discs other than DVDs, such as VCDs and CDs, cannot be copied.
8. The recorded video signals cannot be combined.
- The Combine operation is possible only on the files with the same record speed.
That is, it doesn't work if one file is in SHQ mode and the other is in HQ mode.
9. I have forgotten the password.
- In the DVD mode, while "NO DISC" is displayed, press and hold down both the ■ and ll buttons on the
front panel at the same time for over 5 seconds to initialize the password to "1111".
- The password will be initialized to default, but the user setup will remain the same.
66
67
1. The warranty is only valid if, when warranty service is required,
the warranty card is fully and properly completed and is
presented with the original invoice or sales slip or confirmation,
and the serial number on the product has not been defaced.
2. Samsung’s obligations are limited to the repair or, at its
discretion, replacement of the product or the defective part.
3. Warranty repairs must be carried out by Authorized Samsung
Dealers or Authorized Service Centres. No re-imbursement
will be made for repairs carried out by non Samsung Dealers
and, any such repair work and damage to the products caused
by such repair work will not be covered by this warranty.
■ WARRANTY CONDITIONS
Samsung Electronics (U.K.) Ltd.,
Euro Service Centre, Stafford Park 12,
TELFORD, Shropshire TF3 3BJ,
Tel: 0870 242 0303, Fax: 01952 207 117
This Samsung product is warranted for the period of twelve (12)
months from the original date of purchase, against defective
materials and workmanship. In the event that warranty service is
required, you should return the product to the retailer from whom
it was purchased.
However, Samsung Authorized Dealers and Authorized Service
Centres in other EC Countries will comply with the warranty on
the terms issued to purchasers in the country concerned. In case
of difficulty, details of our Authorized Service Centres are
available from:
ELEC
SAMSUNG ELECTRONICS (U.K.) LTD.
4. This product is not considered to be defective in materials nor
workmanship by reason that it requires adaptation in order to
conform to national or local technical or safety standards in
force in any Country other than the one for which the product
was originally designed and manufactured. This warranty will
not cover, and no re-imbursement will be made for such
adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or replacement
of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the
product.
c) Misuse, including the failure to use this product for its
normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God,
War, Public Disturbances, incorrect mains voltage, improper
ventilation or any other cause beyond the control of
Samsung.
6. This warranty is valid for any person who legally acquired
possession of the product during the warranty period.
7. The consumers statutory rights in any applicable national
legislation whether against the retailer arising from the
purchase contract or otherwise are not affected by this
warranty. Unless there is national legislation to the contrary,
the rights under this warranty are the consumers sole rights
and Samsung, its subsidiaries and distributors shall not be
liable for indirect or consequential loss or any damage to
records, compact discs, videos or audio taper or any other
related equipment or material.
REPUBLIC OF
IRELAND
Please ensure the form above is completed at the time of purchase and
present it to the dealer to quality for guarantee service,
otherwise your guarantee may be affected.
UNITED KINGDOM
CAUTION
CUSTOMER'S SIGNATURE
DEALER’S ADDRESS
Handlendesadress, Forhandleradresse, Dirección de negociante, Dirección del vendedor. Endereco de vendedor,
Adresse des Händlers, Adres van handelaar, Adresse du marchand, Dieuvqunsh tou katasthmatoı, Asiakkaan nimi,
Forhandlerens adresse, Handlarens adress
DEALER’S TEL. NO.
Handlendestelesonnummer, Forhandlertelefonnummer, No. de Tel. de negociante, No. de Tel. del vendedor,
Número de telefone de vendedor, Telefonnummer des Handlers, Telefoon nummer van handelaar, Numéro tél´phone du
marchand, il numero di telefono del commeciante, Ariqmovı thlefwvnou tou katasthvmatoı, Myyjän osoite, Forhandlerens
tel.nr., Handlarens telefonnr.
DEALER’S NAME
Handlendesnavn, Forhandler, Nombre de negociante, Nombre del vendedor, Nome de vendedor, Name des Händlers,
Naam van handelaar, Nom du marchand, il nome del commerciante, Onoma tou katasthvmatoı, Jalleenmyyjan, Forhandler,
Aterforsaljare
CUSTOMER’S ADDRESS
Kundeasdress, Kundeadresse, Dirección de client, Direccion del cliente, Endereco de cliente, Adresse des Kunden,
Adres van klant, adresse du client, L’indrizzo del cliente. Dieuvqunsh tou agopasthv, Ostopäivä, Kundens adresse,
Customer’s address
CUSTOMER’S TEL. NO.
Kundesadress, Kundetelefonnummer, No. de Tel. de client, No. de Tel del cliente, Número de telefone de cliente,
Telefonnummer des Kunden, Telefoon nummer van klant, Numéro de téléphone du client, il numero de telefono del client ,
Ariqmovı thlefwvnou tou agorasthv, Myyjän puh.nro, Kundens telefonnr, Kundens telefonnr.
CUSTOMER’S NAME
Kundesnavn, Kundenavn, Nombre de cliente, Nombrre del cliente, Nome de cliente, Name des Kunden,
Naam van klant, Nom du client, il nome del clinte, Onomatepwvnumo tou agopasthv, Sarjanro, Kundens navn, Kundens namn
DATE OF PURCHASE
Kóbetid, Købsadato, Fecha de compra, Data de compra, Kaufdatum, Datum van aankoop, Date d’achat,
La data d’acquisto, Hmeromhniva agoravı agorasthv, Asiakkaan osoite, Salgsdato, Inköpsdatumv
SERIAL NO.
Serienummer, No. de serie, Número serial, Seriennummer, Serie nummer, Numéro de série,
II numero di matricola, Ariqmovı kataskeuhvı, Malli, Serienummer., Serienr
MODEL NAME
Modelnavn, Nombre de modelo, Nombre del modelo, Nome de modelo, Modellbezeichnung, Modelnaam,
Nom du modèle, II nome di modello, Montevlo proi>ovntoı, Asiakkaan puh.nro, Modelnaven, Modell
WARRANTY CARD
DEALER'S STAMP & SIGNATURE
TAKUU
ΕΓΓΥΗΣΗ
GARANTIA
GARANTIE
GARANTÍA
GARANTI
GARANZIA
GUARANTEE
ELECTRONICS
SAMSUNG EUROPEAN BLOC WARRANTY
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
