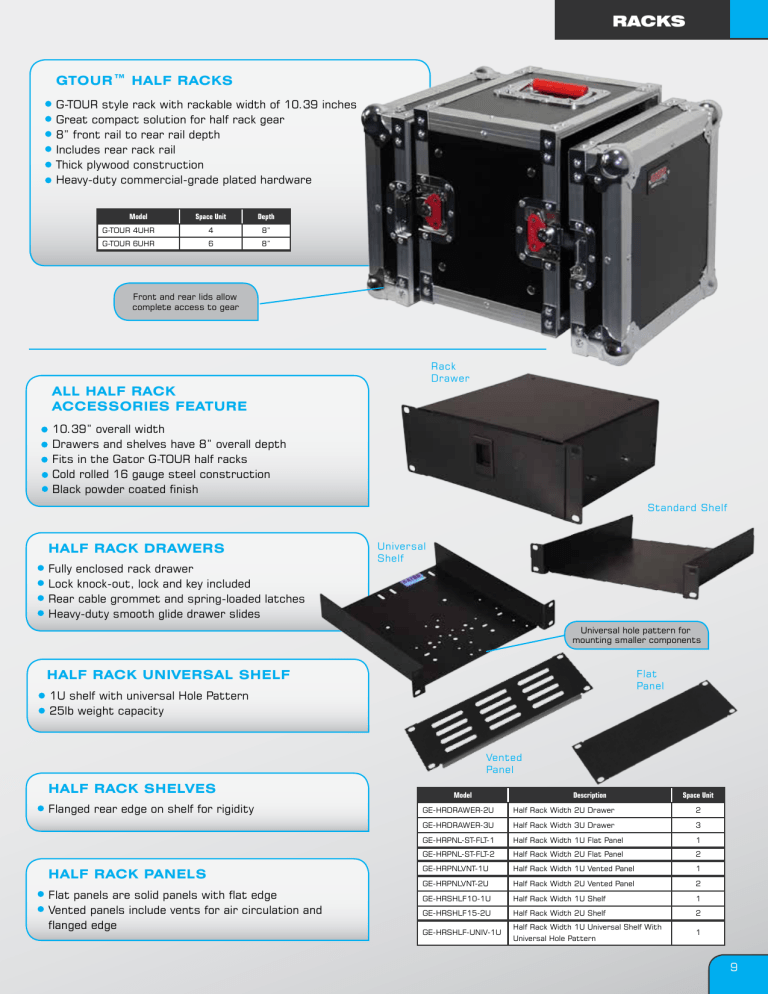

RACKS
GTOUR ™ HALF RACKS
G-TOUR style rack with rackable width of 10.39 inches
Great compact solution for half rack gear
8” front rail to rear rail depth
Includes rear rack rail
Thick plywood construction
Heavy-duty commercial-grade plated hardware
Model
Space Unit
Depth
G-TOUR 4UHR
4
8”
G-TOUR 6UHR
6
8”
Front and rear lids allow
complete access to gear
Rack
Drawer
ALL HALF RACK
ACCESSORIES FEATURE
10.39” overall width
Drawers and shelves have 8” overall depth
Fits in the Gator G-TOUR half racks
Cold rolled 16 gauge steel construction
Black powder coated finish
Standard Shelf
HALF RACK DRAWERS
Fully enclosed rack drawer
Lock knock-out, lock and key included
Rear cable grommet and spring-loaded latches
Heavy-duty smooth glide drawer slides
Universal
Shelf
Universal hole pattern for
mounting smaller components
HALF RACK UNIVERSAL SHELF
Flat
Panel
1U shelf with universal Hole Pattern
25lb weight capacity
Vented
Panel
HALF RACK SHELVES
Flanged rear edge on shelf for rigidity
HALF RACK PANELS
Flat panels are solid panels with flat edge
Vented panels include vents for air circulation and
flanged edge
Model
Description
Space Unit
GE-HRDRAWER-2U
Half Rack Width 2U Drawer
2
GE-HRDRAWER-3U
Half Rack Width 3U Drawer
3
GE-HRPNL-ST-FLT-1
Half Rack Width 1U Flat Panel
1
GE-HRPNL-ST-FLT-2
Half Rack Width 2U Flat Panel
2
GE-HRPNLVNT-1U
Half Rack Width 1U Vented Panel
1
GE-HRPNLVNT-2U
Half Rack Width 2U Vented Panel
2
GE-HRSHLF10-1U
Half Rack Width 1U Shelf
1
GE-HRSHLF15-2U
Half Rack Width 2U Shelf
2
GE-HRSHLF-UNIV-1U
Half Rack Width 1U Universal Shelf With
Universal Hole Pattern
1
9
