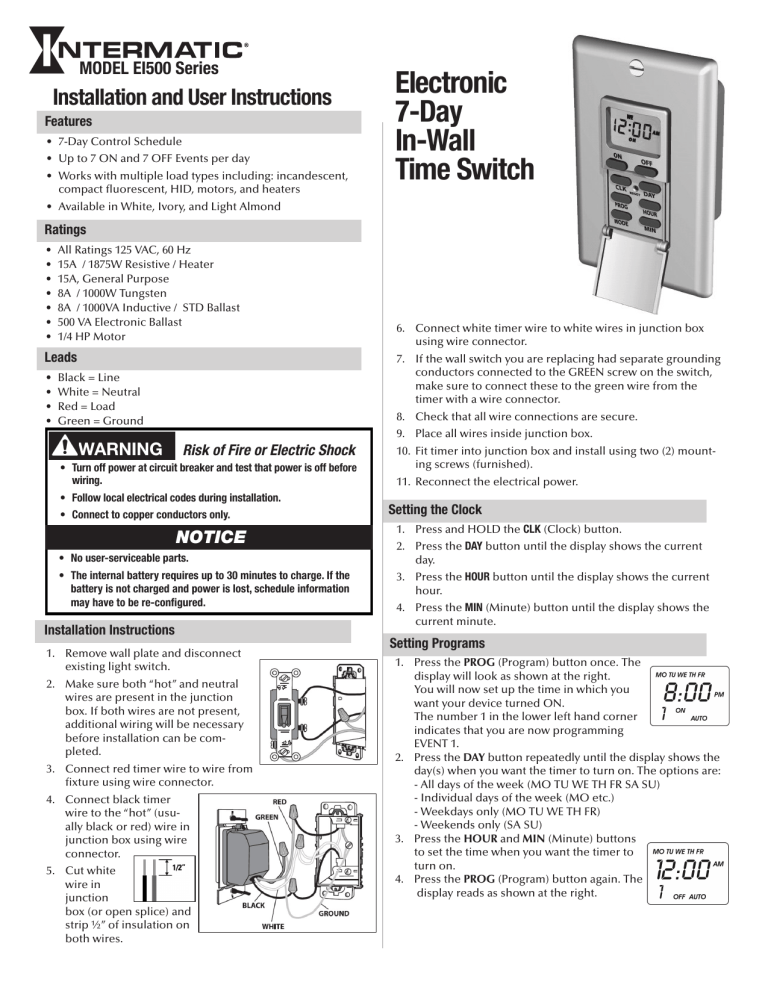

Electronic 7-Day In-Wall Time Switch
MODEL EI500 Series
Installation and User Instructions
Features
• 7-Day Control Schedule
• Up to 7 ON and 7 OFF Events per day
• Works with multiple load types including: incandescent,
compact fluorescent, HID, motors, and heaters
Electronic
7-Day
In-Wall
Time Switch
• Available in White, Ivory, and Light Almond
Ratings
•
•
•
•
•
•
•
All Ratings 125 VAC, 60 Hz
15A / 1875W Resistive / Heater
15A, General Purpose
8A / 1000W Tungsten
8A / 1000VA Inductive / STD Ballast
500 VA Electronic Ballast
1/4 HP Motor
Leads
•
•
•
•
7. If the wall switch you are replacing had separate grounding
conductors connected to the GREEN screw on the switch,
make sure to connect these to the green wire from the
timer with a wire connector.
Black = Line
White = Neutral
Red = Load
Green = Ground
WARNING
6. Connect white timer wire to white wires in junction box
using wire connector.
8. Check that all wire connections are secure.
9. Place all wires inside junction box.
Risk of Fire or Electric Shock
• Turn off power at circuit breaker and test that power is off before
wiring.
• Follow local electrical codes during installation.
• Connect to copper conductors only.
NOTICE
10. Fit timer into junction box and install using two (2) mounting screws (furnished).
11. Reconnect the electrical power.
Setting the Clock
1. Press and HOLD the CLK (Clock) button.
• No user-serviceable parts.
2. Press the DAY button until the display shows the current
day.
• The internal battery requires up to 30 minutes to charge. If the
battery is not charged and power is lost, schedule information
may have to be re-configured.
3. Press the HOUR button until the display shows the current
hour.
Installation Instructions
1. Remove wall plate and disconnect
existing light switch.
2. Make sure both “hot” and neutral
wires are present in the junction
box. If both wires are not present,
additional wiring will be necessary
before installation can be completed.
3. Connect red timer wire to wire from
fixture using wire connector.
4. Connect black timer
wire to the “hot” (usually black or red) wire in
junction box using wire
connector.
5. Cut white
wire in
junction
box (or open splice) and
strip ½” of insulation on
both wires.
4. Press the MIN (Minute) button until the display shows the
current minute.
Setting Programs
1.
2.
3.
4.
Press the PROG (Program) button once. The display will look as shown at the right.
You will now set up the time in which you want your device turned ON.
The number 1 in the lower left hand corner indicates that you are now programming EVENT 1.
Press the DAY button repeatedly until the display shows the day(s) when you want the timer to turn on. The options are:
- All days of the week (MO TU WE TH FR SA SU)
- Individual days of the week (MO etc.)
- Weekdays only (MO TU WE TH FR)
- Weekends only (SA SU)
Press the HOUR and MIN (Minute) buttons
to set the time when you want the timer to
turn on.
Press the PROG (Program) button again. The
display reads as shown at the right.
5. Repeat Steps 2-3 to set the OFF time for Event 1.
• You can repeat the ON and OFF programming procedures
outlined above for up to 7 events, as needed.
• Do not set ON / OFF events within 30 minutes or less from
one another if you are going to use the timer in the Random
Mode. The Random Mode interval is ± 15 minutes from the
programmed times, and programs set too close together
may overlap one another.
6. When programming is complete, press the CLK (Clock)
button to display the current time.
Reviewing Events Programmed
1. In the current time display, press the PROG (Program) button repeatedly to check your settings.
2. When finished, press the CLK (Clock) button to return the
display to the time of day.
Clearing (Deleting) an Event
1. Press the PROG (Program) button as many times as necessary to locate the setting you want to clear.
2. Press and hold the MODE button.
3. Press the PROG button to clear the setting.
4. When finished, press the CLK (Clock) button to return the
display to the time of day.
Operating the Time Switch
Press the MODE button repeatedly to set the timer to Automatic,
Random or Manual mode.
NOTE: For the time switch to run programmed events, it
must be set to “AUTO” or “RDM” (Random) mode.
NOTE: After setting events, the timer may turn on the load
if you press the MODE button.
• AUTO — runs all events automatically, according to the
schedule you have set. The word “AUTO” appears in the
display.
• RDM (Random) — runs all events in a RANDOM mode. This
is a security feature in which ON and OFF times randomly
differ ± 15 minutes from the programmed times, creating
a more “lived-in” look. The word “RDM” appears in the
display.
NOTE: DO NOT set the ON / OFF events within 30
Minutes or less from one another if you are going to use
this timer in the RANDOM MODE. The RANDOM MODE
is ± 15 minutes of programmed times and may overlap
one another, causing the timer to possibly not work as
desired.
• MANUAL — turns ON and OFF only when the user presses
the ON or OFF button. The display is blank, showing neither
RDM or AUTO.
Overriding Timer Settings
The ON or OFF buttons override the current programmed
events.
To override the current program (either ON or OFF), press the
ON or OFF button.
NOTE: If the timer is not in “Manual” mode, it will obey the
next programmed event. This allows the user to manually
turn a light on and allow the program to shut the light back
off at a preset time.
Resetting the Timer
In case of an operational failure of the timer, press the RESET
button to clear all settings and restart.
LIMITED ONE-YEAR WARRANTY
If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at
its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply
to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the
product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product,such as surface and/or weathering, as this
is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim
online at www.intermatic.com.
This warranty is made by: Intermatic Incorporated, Customer Service 7777 Winn Rd., Spring Grove, Illinois 60081-9698. For warranty service go to:
http://www.Intermatic.com or call 815-675-7000.
INTERMATIC INCORPORATED, SPRING GROVE, ILLINOIS 60081-9698
Printed in China
158--01466
