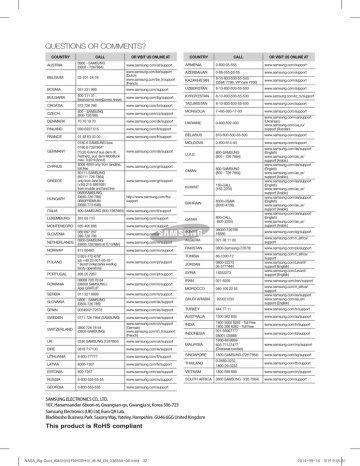

QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
COUNTRY
CALL
OR VISIT US ONLINE AT
AUSTRIA
0800 - SAMSUNG
(0800 - 7267864)
www.samsung.com/at/support
ARMENIA
0-800-05-555
www.samsung.com/support
0-88-555-55-55
www.samsung.com/support
02-201-24-18
www.samsung.com/be/support
(Dutch)
www.samsung.com/be_fr/support
(French)
AZERBAIJAN
BELGIUM
KAZAKHSTAN
8-10-800-500-55-500
(GSM: 7799, VIP care 7700)
www.samsung.com/support
8-10-800-500-55-500
www.samsung.com/support
BOSNIA
051 331 999
www.samsung.com/support
UZBEKISTAN
BULGARIA
800 111 31 ,
Безплатна телефонна линия
www.samsung.com/bg/support
KYRGYZSTAN
8-10-800-500-55-500
www.samsung.com/kz_ru/support
CROATIA
072 726 786
www.samsung.com/hr/support
TADJIKISTAN
8-10-800-500-55-500
www.samsung.com/support
CZECH
800 - SAMSUNG
(800-726786)
www.samsung.com/cz/support
MONGOLIA
7-495-363-17-00
www.samsung.com/support
DENMARK
70 70 19 70
www.samsung.com/dk/support
UKRAINE
0-800-502-000
FINLAND
030-6227 515
www.samsung.com/fi/support
www.samsung.com/ua/support
(Ukrainian)
www.samsung.com/ua_ru/
support (Russian)
FRANCE
01 48 63 00 00
www.samsung.com/fr/support
BELARUS
810-800-500-55-500
www.samsung.com/support
MOLDOVA
0-800-614-40
www.samsung.com/support
U.A.E
800-SAMSUNG
(800 - 726 7864)
OMAN
800-SAMSUNG
(800 - 726 7864)
KUWAIT
183-CALL
(183-2255)
BAHRAIN
8000-GSAM
(8000-4726)
QATAR
800-CALL
(800-2255)
EGYPT
08000-726786
16580
www.samsung.com/eg/support
ALGERIA
021 36 11 00
www.samsung.com/n_africa/
support
PAKISTAN
0800-Samsung (72678) www.samsung.com/pk/support
TUNISIA
80-1000-12 JORDAN
0800-22273
06 5777444
SYRIA
18252273
IRAN
021-8255
MOROCCO
080 100 22 55
SAUDI ARABIA
920021230
GERMANY
CYPRUS
GREECE
HUNGARY
0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt.
Festnetz, aus dem Mobilfunk
max. 0,60 €/Anruf)
8009 4000 only from landline,
toll free
80111-SAMSUNG
(80111 726 7864)
only from land line
(+30) 210 6897691
from mobile and land line
0680SAMSUNG
(0680-726-786)
0680PREMIUM
(0680-773-648)
www.samsung.com/de/support
www.samsung.com/gr/support
www.samsung.com/gr/support
http://www.samsung.com/hu/
support
ITALIA
800-SAMSUNG (800.7267864) www.samsung.com/it/support
LUXEMBURG
261 03 710
www.samsung.com/support
MONTENEGRO
020 405 888
www.samsung.com/support
SLOVENIA
NETHERLANDS
NORWAY
080 697 267
090 726 786
0900-SAMSUNG
(0900-7267864) (€ 0,10/Min)
815 56480
www.samsung.com/si
www.samsung.com/nl/support
www.samsung.com/no/support
www.samsung.com/ae/support
(English)
www.samsung.com/ae_ar/
support (Arabic)
www.samsung.com/ae/support
(English)
www.samsung.com/ae_ar/
support (Arabic)
www.samsung.com/ae/support
(English)
www.samsung.com/ae_ar/
support (Arabic)
www.samsung.com/ae/support
(English)
www.samsung.com/ae_ar/
support (Arabic)
www.samsung.com/ae/support
(English)
www.samsung.com/ae_ar/
support (Arabic)
www.samsung.com/n_africa/
support
www.samsung.com/Levant/
support (English)
www.samsung.com/Levant/
support (English)
POLAND
0 801-172-678*
lub +48 22 607-93-33 *
* (koszt połączenia według
taryfy operatora)
www.samsung.com/pl/support
PORTUGAL
808 20 7267
www.samsung.com/pt/support
ROMANIA
08008 726 78 64
(08008 SAMSUNG )
Apel GRATUIT
www.samsung.com/ro/support
SERBIA
011 321 6899
www.samsung.com/rs/support
SLOVAKIA
0800 - SAMSUNG
(0800-726 786)
www.samsung.com/sk/support
SPAIN
0034902172678
www.samsung.com/es/support
TURKEY
444 77 11
www.samsung.com/tr/support
SWEDEN
0771 726 7864 (SAMSUNG)
www.samsung.com/se/support
AUSTRALIA
1300 362 603
www.samsung.com/au/support
0800 726 78 64
(0800-SAMSUNG)
INDIA
SWITZERLAND
www.samsung.com/ch/support
(German)
www.samsung.com/ch_fr/support
(French)
UK
0330 SAMSUNG (7267864)
www.samsung.com/uk/support
EIRE
0818 717100
www.samsung.com/ie/support
LITHUANIA
8-800-77777
www.samsung.com/lt/support
SINGAPORE
1800-SAMSUNG (726-7864)
www.samsung.com/sg/support
0-2689-3232,
1800-29-3232
www.samsung.com/th/support
INDONESIA
MALAYSIA
1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
021-56997777
08001128888
1800-88-9999
603-77137477
(Overseas contact)
www.samsung.com/iran/support
www.samsung.com/n_africa/
support
www.samsung.com/sa/support
www.samsung.com/sa_en/
support (English)
www.samsung.com/in/support
www.samsung.com/id/support
www.samsung.com/my/support
LATVIA
8000-7267
www.samsung.com/lv/support
THAILAND
ESTONIA
800-7267
www.samsung.com/ee/support
VIETNAM
1800 588 889
www.samsung.com/vn/support
RUSSIA
8-800-555-55-55
www.samsung.com/ru/support
SOUTH AFRICA
0860 SAMSUNG (726 7864)
www.samsung.com/support
GEORGIA
0-800-555-555
www.samsung.com/support
SAMSUNG ELECTRONICS CO., LTD.
107, Hanamsandan 6beon-ro, Gwangsan-gu, Gwangju-si, Korea 506-723
Samsung Electronics (UK) Ltd, Euro QA Lab.
Blackbushe Business Park. Saxony Way, Yateley, Hampshire. GU46 6GG United Kingdom
This product is RoHS compliant
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 32
2014-09-16 오전 9:05:51
Duct Type Series
BIG duct : AMFNHDEH
Air Conditioner
user manual
This manual is made with 100% recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
EN ES FR IT PT DE EL NL PL HU RU DB68-03655A-06
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 33
2014-09-16 오전 9:05:51
features of your new
air conditioner
• Cool Summer Offer
On those hot sweltering summer days and long restless nights, there is no better escape
from the heat than the cool comforts of home. Your new air conditioner brings an end to
exhausting hot summer days and lets you rest. This summer, beat the heat with your own
air conditioner.
• Cost Efficient System
Your new air conditioner not only provides maximum cooling power in the summer, but can
also be an efficient heating method in the winter with the advanced “Heat pump” system.
This technology is up to 300% more efficient than electrical heating, so you can further
reduce its running cost. Now, meet year-round needs with one air conditioner.
• Flexible installation
Duct type air conditioner is designed to be slimmer and offers different solutions for any
shape room allowing for specific air flow requirements. Also, the air intake can be set up on
either the bottom or rear of the unit, so there is more flexibility in installation.
For easy future reference write the model and serial number
down. You will find your model number on the right side of
the air conditioner.
Model #
Serial #
02_ features
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 2
2014-09-16 오전 9:05:33
safety information
WARNING
CAUTION
ENGLISH
Before using your new air conditioner, please read this manual thoroughly to ensure
that you know how to safely and efficiently operate the extensive features and functions
of your new appliance.
Because the following operating instructions cover various models, the characteristics of
your air conditioner may differ slightly from those described in this manual. If you have
any questions, call your nearest contact center or find help and information online at
www.samsung.com.
Important safety symbols and precautions:
Hazards or unsafe practices that may result in severe personal injury
or death.
Hazards or unsafe practices that may result in minor personal injury
or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
FOR INSTALLATION
WARNING
Use the power line with the power specifications of the product or higher and
use the power line for this appliance only. In addition, do not use an extension
line.
XExtending
X
the power line may result in electric shock or fire.
XDo
X not use an electric transformer. It may result in electric shock or fire.
XIfXthe voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a qualified technician
or service company.
XFailing
X
to do so may result in electric shock, fire, explosion, problems with the
product, or injury.
safety information _03
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 3
2014-09-16 오전 9:05:34
safety information
FOR INSTALLATION
WARNING
Install a switch and circuit breaker dedicated to the air conditioner.
XFailing
X
to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is not
exposed.
XFailing
X
to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do not install
this appliance in a humid, oily or dusty location, in a location exposed to direct
sunlight and water (rain drops). Do not install this appliance in a location where
gas may leak.
XThis
X may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
XIfXthe outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
XFailure
X
to do so may result in electric shock, fire, an explosion, or other problems
with the product.
XNever
X plug the power cord into a socket that is not grounded correctly and make
sure that it is in accordance with local and national codes.
FOR INSTALLATION
CAUTION
Install your appliance on a level and hard floor that can support its weight.
XFailing
X
to do so may result in abnormal vibrations, noise, or problems with the
product.
Install the draining hose properly so that water is drained correctly.
XFailing
X
to do so may result in water overflowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose so
that draining is performed correctly.
XThe
X water generated during the heating operation by the outdoor unit may
overflow and result in property damage. In particular, in winter, if a block of ice
falls, it may result in injury, death or property damage.
04_ safety information
NASA_Big [email protected]@@FNHDEH@_IB,IM_EN_03655A-06.indd 4
2014-09-16 오전 9:05:34
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service center.
FOR POWER SUPPLY
CAUTION
ENGLISH
Do not pull or excessively bend the power line. Do not twist or tie the power
line. Do not hook the power line over a metal object, place a heavy object on
the power line, insert the power line between objects, or push the power line
into the space behind the appliance.
XThis
X may result in electric shock or fire.
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
XFailing
X
to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service center.
XFailing
X
to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, unplug
the power plug immediately and contact your nearest service center.
XFailing
X
to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance or
power line.
XDo
X not use a ventilating fan.
XA
Xspark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
XFailing
X
to do so may result in problems with the product, water leakage, electric
shock, or fire.
XA
Xdelivery service for the product is not provided. If you reinstall the product in
another location, additional construction expenses and an installation fee will be
charged.
XEspecially,
X
when you wish to install the product in an unusual location such as
in an industrial area or near the seaside where it is exposed to the salt in the air,
please contact your nearest service center.
safety information _05
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 5
2014-09-16 오전 9:05:34
safety information
FOR USING
WARNING
Do not touch the circuit breaker with wet hands.
XThis
X may result in electric shock.
Do not strike or pull the air conditioner with excessive force.
XThis
X may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows children to climb onto
the machine.
XThis
X may result in children seriously injuring themselves.
Do not turn the air conditioner off with the circuit breaker while it is operating.
XTurning
X
the air conditioner off and then on again with the circuit breaker may
cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well out of the
reach of children, as packaging materials can be dangerous to children.
XIfXa child places a bag over its head, it may result in suffocation.
Do not insert your fingers or foreign substances into the outlet when the air
conditioner is operating or the air flow blade is closing.
XTake
X special care that children do not injure themselves by inserting their fingers
into the product.
Do not touch the air flow blade with your hands or fingers during the heating
operation.
XThis
X may result in electric shock or burns.
Do not insert your fingers or foreign substances into the air inlet/outlet of the
air conditioner.
XTake
X special care that children do not injure themselves by inserting their fingers
into the product.
Do not use this air conditioner for long periods of time in badly ventilated
locations or near infirm people.
XSince
X this may be dangerous due to a lack of oxygen, Open a window at least
once an hour.
06_ safety information
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 6
2014-09-16 오전 9:05:34
FOR USING
WARNING
FOR USING
ENGLISH
If any foreign substance such as water has entered the appliance, cut the power
by unplugging the power plug and turning the circuit breaker off and then
contact your nearest service center.
XFailing
X
to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
XDo
X not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
XFailing
X
to do so may result in electric shock, fire, problems with the product, or
injury.
CAUTION
Do not place objects or devices under the indoor unit.
XWater
X dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least once
a year.
XFailing
X
to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
Do not stand on top of the appliance or place objects (such as laundry, lighted
candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the
appliance.
XThis
X may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
XThis
X may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
XAs
X well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not drink the water from the air conditioner.
XThe
X water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not disassemble
the remote controller.
Do not touch the pipes connected with the product.
XThis
X may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food, animals,
plants or cosmetics, or for any other unusual purposes.
XThis
X may result in property damage.
safety information _07
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 7
2014-09-16 오전 9:05:34
safety information
FOR USING
CAUTION
Avoid directly exposing humans, animals or plants from the air flow from the air
conditioner for long periods of time.
XThis
X may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner, alcohol or acetone to clean the appliance.
XThis
X may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the air conditioner from
the wall socket and wait until the fan stops.
XFailing
X
to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor unit
since it has sharp edges.
XTo
X avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner by yourself.
XFor
X cleaning inside the appliance, contact your nearest service center.
XWhen
X cleaning the internal filter, refer to the descriptions in the ‘Cleaning and
maintaining the air conditioner’ section.
XFailure
X
to do may result in damage, electric shock or fire.
08_ safety information
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 8
2014-09-16 오전 9:05:34
contents
VIEWING YOUR AIR CONDITIONER
USING YOUR AIR CONDITIONER
11
CLEANING AND MAINTAINING
THE AIR CONDITIONER
12
APPENDIX
14
INSTALLING YOUR AIR CONDITIONER
16
ENGLISH
10
10 Big duct type
11 Tips on using your air conditioner
12 Maintaining your air conditioner
12
Periodical checks
13Internal protections via the unit control
system
14 Troubleshooting
15 Operation ranges
15 Model specification (Weight and dimension)
16 Installation part
This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC), the Electromagnetic
Compatibility Directive (2004/108/EC) and the Machinery Directive (2006/42/EC) of the European Union.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and
how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
contents _09
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 9
2014-09-16 오전 9:05:34
viewing your air conditioner
Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air
conditioner and stay cool or warm with optimal efficiency.
Please read the user manual to get started and to make the best use of the air conditioner.
BIG DUCT TYPE
Air Outlet
Air intake
Your air conditioner may look slightly different from the illustration shown above depending
on your model.
10_ viewing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 10
2014-09-16 오전 9:05:35
using your air conditioner
TIPS ON USING YOUR AIR CONDITIONER
Here are some tips that you would follow when using your air conditioner.
RECOMMENDATION
Cooling
• If current outside temperatures are much higher than the selected indoor
temperature, it may take time to bring the inner temperature to the desired
coolness.
• Avoid drastically turning down the temperature.
Energy is wasted and the room does not cool faster.
Heating
• Since the air conditioner heats the room by taking heat energy
from outdoor air, the heating capacity may decrease when outdoor
temperatures are extremely low. If you feel the air conditioner insufficiently
heats, using an additional heating appliance in combination with the air
conditioner is recommended.
Frost & De-ice
• When the air conditioner runs in Heat mode, due to temperature difference
between the unit and the outside air, frost will form.
If this happens:
- The air conditioner stops heating.
-The air conditioner will operate automatically in De-ice mode for
10 minutes.
- The steam produced on the outdoor unit in De-ice mode is safe.
No intervention is required; after about 10 minutes, the air conditioner
operates again normally.
ENGLISH
TOPIC
The unit will not operate when it starts to de-ice.
Fan
• Fan may not operate for about 3~5 minutes at the beginning to prevent
any cold blasts while the air conditioner is warming up.
High indoor/outdoor
temperatures
• If both indoor and outdoor temperatures are high and the air conditioner is
running in Heat mode, the outdoor unit’s fan and compressor may stop at
times. This is normal; wait until the air conditioner turns on again.
Power failure
• If a power failure occurs during the operation of the air conditioner, the
operating immediately stops and unit will be off. When power returns, the
air conditioner will run automatically.
Protection mechanism
• If the air conditioner has just been turned on after operation stops or being
plugged in, cool/warm air does not come out for 3 minutes to protect the
compressor of the outdoor unit.
using your air conditioner _11
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 11
2014-09-16 오전 9:05:35
cleaning and maintaining the
air conditioner
MAINTAINING YOUR AIR CONDITIONER
If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in
best condition.
1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect
the power plug. There may be internal damage if moisture is left in components.
2. Before using the air conditioner again, dry the inner components of the air conditioner again
by running in Fan mode for 3 to 4 hours. This helps remove odors which may have generated
from dampness.
Periodical checks
Refer to the following chart to maintain the air conditioner properly.
Type
Description
Clean the air filter (1)
Indoor unit
Monthly
Every 4
months

Clean the condensate drain pan (2)

Thoroughly clean the heat exchanger (2)

Clean the condensate drain pipe (2)

Replace the remote control batteries (1)
Clean the heat exchanger on the outside of
the unit (2)
Outdoor unit
Once a
year


Clean the heat exchanger on the inside of
the unit (2)

Clean the electric components with jets of
air (2)

Verify that all the electric components are
firmly tightened (2)

Clean the fan (2)

Verify that all the fan assembly is firmly
tightened (2)

Clean the condensate drain pan (2)

The checks and maintenance operations described are essential to guarantee the
efficiency of the air conditioner. The frequency of these operations varies according to the
characteristics of the area, the amount of dust, etc.
(1) T
he described operations should be performed more frequently if the area of installation
is very dusty.
(2) T
hese operations must always be performed by qualified personnel. For more detailed
information, see the Installation Manual.
12_ using your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 12
2014-09-16 오전 9:05:35
Internal protections via the unit control system
This internal protection operates if an internal fault occurs in the air conditioner.
Type
Description
The internal fan will be off to against cold air when the heat pump is
heating.
De-ice cycle
The internal fan will be off to against cold air when the heat pump is
heating.
Anti-protection of
internal battery
The compressor will be off to protect internal battery when the air conditioner operates in Cool mode.
Protect compressor
The air conditioner does not start operating immediately to protect the
compressor of the outdoor unit after it has been started.
ENGLISH
Against cold air
If the heat pump is operating in Heat mode, De-ice cycle is actuated to remove frost from
an outdoor unit that may have deposited at low temperatures.
The internal fan is switched off automatically and restarted only after the de-ice cycle is
completed.
using your air conditioner _13
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 13
2014-09-16 오전 9:05:35
appendix
TROUBLESHOOTING
Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary
expenses.
PROBLEM
SOLUTION
The air conditioner does not
operate immediately after it
has been restarted.
• Because of the protective mechanism, the appliance does not start operating
immediately to keep the unit from overloading.
The air conditioner will start in 3 minutes.
The air conditioner does not
work at all.
• Check that the power plug is properly connected. Insert the power plug into the
wall socket correctly.
• Check if the circuit breaker is switched off.
• Check if there is a power failure.
• Check your fuse. Make sure it is not blown out.
The temperature does not
change.
• Check if you selected Fan mode.
Press the Mode button on the remote control to select another mode.
The cool (warm) air does
not come out of the air
conditioner.
• Check if the set temperature is higher (lower) than the current temperature. Press
the Temperature button on the remote control to change the set temperature.
Press the Temperature button to decrease or increase the temperature.
• Check if the air filter is blocked by dirt. Clean the air filter every two weeks.
• Check if the air conditioner has just been turned on. If so, wait 3 minutes. Cool air
does not come out to protect the compressor of the outdoor unit.
• Check if the air conditioner is installed in a place with a direct exposure to sunlight.
Hang curtains on windows to boost cooling efficiency.
• Check if the cover or any obstacle is not near the outdoor unit.
• Check if the refrigerant pipe is too long.
• Check if the air conditioner is only available in Cool mode.
• Check if the remote control is only available for cooling model.
The fan speed does not
change.
• Check if you selected Auto or Dry mode.
The air conditioner automatically adjusts the fan speed to Auto in Auto/Dry mode.
Timer function does not set.
• Check if you press the Power button on the remote control after you have set the time.
Odors permeate in the room
during operation.
• Check if the appliance is running in a smoky area or if there is a smell entering from
outside. Operate the air conditioner in Fan mode or open the windows to air out the
room.
The air conditioner makes a
bubbling sound.
• A bubbling sound may be heard when the refrigerant is circulating through the
compressor. Let the air conditioner operate in a selected mode.
• When you press the Power button on the remote control, noise may be heard from
the drain pump inside the air conditioner.
Water is dripping from the
air flow blades.
• Check if the air conditioner has been cooling for an extended period of time with
the air flow blades pointed downwards. Condensation may generate due to the
difference in temperature.
Remote control is not
working.
• Check if your batteries are depleted.
• Make sure batteries are correctly installed.
• Make sure nothing is blocking your remote control sensor.
• Check that there are strong lighting apparatus near the air conditioner. Strong light
which comes from fluorescent bulbs or neon signs may interrupt the electric waves.
The air conditioner does not
turn on or off with the wired
remote control.
• Check if you set the wired remote control for group control.
The wired remote control
does not operate.
• Check if TEST indicator is displayed on the wired remote control. If so, turn off the
unit and switch off the circuit breaker. Call your nearest contact center.
The indicators of the digital
display flashes.
• Press the Power button on the remote control to turn the unit off and switch the
circuit breaker off. Then, switch it on again.
14_ appendix
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 14
2014-09-16 오전 9:05:35
OPERATION RANGES
The table below indicates the temperature and humidity ranges the air conditioner can be operated within.
Refer to the table for efficient use.
OPERATIONAL TEMPERATURE
MODE
INDOOR
OUTDOOR
IF OUT OF CONDITIONS
Condensation may occur on
the indoor unit with risk to have
either water blow off or drops on
the floor.
COOLING
18˚C to 32˚C
-5˚C to 48˚C
80% or less
HEATING
27˚C or less
-20˚C to 24˚C
-
Internal protection triggers and
the air conditioner will stop.
-
Condensation may occur on
the indoor unit with risk to have
either water blow off or drops on
the floor.
DRYING
18˚C to 32˚C
-5˚C to 48˚C
ENGLISH
INDOOR HUMIDITY
The standardized temperature for heating is 7˚C. If the outdoor temperature drops to 0˚C or below,
the heating capacity can be reduced depending on the temperature condition.
If the cooling operation is used at over 32˚C(indoor temperature), it does not cool at its full capacity.
MODEL SPECIFICATION (WEIGHT AND DIMENSION)
Type
Model
Net weight
Net dimension (W×D×H)
Indoor unit
(NASA)
AM220FNHDEH/EU
89.0 kg
1240×1040×470 mm
AM280FNHDEH/EU
89.0 kg
1240×1040×470 mm
appendix _15
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 15
2014-09-16 오전 9:05:35
5. Hang the indoor unit to the suspension bolts between two nuts.
Piping must be laid and connected inside the
Note
Installation Part
ceiling when suspending the unit. If the ceiling is
already constructed, lay the piping into
position for connection to the unit before
placing the unit inside the ceiling.
6. Screw the nuts to suspend the unit.
Indoor Unit Installation
7. Adjust level of the unit by using measurement plate for all 4 sides.
It is recommended to install the Y-joint before installing the
indoor unit.
Note
1. Place the pattern sheet on the ceiling at the spot where you
want to install the indoor unit.
Note
For proper drainage of condensate, give a 1° slant
to the left or right side of the unit which will be
connected with the drain hose, as shown in the
figure. Make a tilt when you wish to install the drain
pump, too.
Since the diagram is made of paper, it may shrink
or stretch slightly due to temperature or humidity.
For this reason, before drilling the holes maintain
the correct dimensions between the markings.
1°
Drain hose port
Performing Leak Test & Insulation
2. Insert bolt anchors, use existing ceiling supports or
construct a suitable support as shown in figure.
Concrete
Insert
Hole in anchor
Hole in plug
Suspension bolt(Φ9.52 or M10)
Leak test
LEAK TEST WITH NITROGEN(before opening valves)
In order to detect basic refrigerant leaks, before recreating
the vacuum and recirculating the R-410A, it’s responsible of
installer to pressurize the whole system with nitrogen(using a
pressure regulator) at a pressure above 4.1MPa(gauge).
LEAK TEST WITH R-410A(after opening valves)
Before opening valves, discharge all the nitrogen into the
system and create vacuum. After opening valves check leaks
using a leak detector for refrigerant R-410A.
3. Install the suspension bolts depending on the ceiling type.
 Ensure that the ceiling is strong enough to
Leak check
support the weight of the indoor unit.
Before hanging the unit, test the strength
of each attached suspension bolt.
 If the length of suspension bolt is more than
1.5m, it is required to prevent vibration.
 If this is not possible, create an opening on
the false ceiling in order to be able to use it to
perform the required operations on the indoor
unit.
Ceiling support
Discharge all the nitrogen to create a vacuum and
charge the system.
Insulation
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
4. Screw eight nuts to the suspension bolts making space for
hanging the indoor unit.
You must install the suspension bolts more than
four when installing the indoor unit.
Rubber
1. To avoid condensation problems, place T13.0 or thicker
Acrylonitrile Butadien Rubber separately around each
refrigerant pipe.
Note
Always make the seam of pipes face upwards.
No gap
NBR(T13.0 or thicker)
16_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 16
2014-09-16 오전 9:05:36
2. Wind insulating tape around the pipes and drain hose
avoiding to compress the insulation too much.
Insulation cover pipe
Insulation pipe
Drain pipe and Drain Hose Installation
1. Install the drain hose as short as possible.
Note
 Give a 10mm slant to the drain hose for proper
drainage of condensate.
Indoor unit
 Secure the drain hose with the cable-tie not to
Must fit tightly against
body without any gap.
be separated from the unit.
The drain pump connection port is used when
using a drain pump.
Be sure to overlap
the insulation
3. Finish wrapping insulating tape around the rest of the
pipes leading to the outdoor unit.
Clamp
Insulation
2. Insulate the drain hose and then fix it as a picture.
Note
All refrigerant connection must be accessible, in order
to permit either unit maintenance or removing it
completely.
Flexible hose
ENGLISH
4. The pipes and electrical cables connecting the indoor
unit with the outdoor unit must be fixed to the wall with
suitable ducts.
Cable-tie
 Assemble flexible hose with clamps between
indoor unit and drain pipe.
 Flexible hose clamps should be assembled
tightly to prevent being loosen. If it is loosen,
it may cause water drops.
5. Select the insulation of the refrigerant pipe.
Insulate the gas side and liquid side pipe referring to the
thickness according to the pipe size.
 Indoor temperature of 30°C and humidity of 85% is the standard condition.
If install in a high humidity condition,use one grade thicker
insulator by referring to the table below.
If installing in an unfavorable conditions,use thicker one.
Insulator’s heat-resistance temperature should be more than
120°C.
Insulation Type(Heating/Cooling)
Pipe
Pipe size
Liquid Φ6.35~Φ9.52
pipe Φ12.7~Φ50.80
Φ6.35
Φ9.52
Φ12.70
Φ15.88
Φ19.05
Φ22.23
Gas
Pipe
Φ25.40
Φ28.58
Φ31.75
Φ38.10
Φ44.45
Standard
High humidity
[30°C,85%]
[30°C,over 85%]
EPDM,NBR
9t
←
13t
←
13t
19t
Φ50.80
25t
19t
Remarks
Internal temperature
is higher than 120°C
32t
25t
38t
Install the insulation not to get wider and use
the adhesives on the connection part of it to
prevent moisture from entering.
Wind the refrigerant pipe with insulation tape
if it is exposed to outside sunlight.
Install the refrigerant pipe respecting that the
insulation does not get thinner on the bent part
or hanger of pipe.
Add the additional insulation if the insulation
plate gets thinner.
Hanger
Additional insulation
a
a×3
Refrigerant pipe insulation
installing your air conditioner _17
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 17
2014-09-16 오전 9:05:37
Wiring Work
Drainpipe Connection
Without the drain pump
1. Install horizontal drainpipe with a slope of 1/100 or more and
fix it by hanger space of 1.0~1.5m.
2. Install U-trap at the end of the drainpipe to prevent a nasty
smell to reach the indoor unit.
3. Do not install the drainpipe to upward position.
It may cause water flow back to the unit.
1~1.5m
Hanger
H≥
50mm
1H
2
Drain Pipe
Cleaning hole
Power and communication cable connection
1. Before wiring work, you must turn off all power source.
2. Indoor unit power should be supplied through the
breaker(ELCB or MCCB+ELB) separated by the outdoor
power.
ELCB: Earth Leakage Circuit Breaker
MCCB:Molded Case Circuit Breaker
ELB:Earth Leakage Breaker
3. The power cable should be used only copper wires.
4. Connect the power cable{1(L), 2(N)} among the units within
maximum length and communication cable(F1, F2) each.
5. Connect F3, F4(for communication) when installing the
wired remote Control.
Outdoor
Unit
Ceiling Horizontal drainpipe
more than 1/100 slope
Wired Remote
Control
220-240V~
MCCB+
ELB
With the drain pump
or
ELCB
1. The drain pipe should be installed within 300mm to 550mm
from the flexible hose and then lift down 20mm or more.
Indoor Unit 1 Indoor Unit 2
2. Install horizontal drainpipe with a slope of 1/100 or more
and fix it by hanger space of 1.0~1.5m.
WARNING
Power off before connecting any wires;
Indoor PBA will be damaged while V1,V2,F3,F4 short each other.
3 Install the air vent in the horizontal drainpipe to prevent
water flow back to the indoor unit.
Note
You may not need to install it if there were proper
slope in the horizontal drainpipe.
Indoor Unit 3
h ELCB : Essential Installation
Selecting compressed ring terminal
Silver solder
4 The flexible hose should not be installed upward position,
it may cause water flow back to the indoor unit.
Air vent
200mm
or more
300mm or less
20mm
or more
Within
330mm
Flexible hose
Ceiling
1~1.5m
B
D
d1
E F L
d2
t
Nominal Nominal
dimensions dimensions Standard
Standard
Standard
Standard
for cable for screw dimension Allowance dimension Allowance dimension Allowance Min. Min. Max. dimension Allowance Min.
(mm)
(mm)
(mm)
(mm)
(mm2)
(mm)
(mm)
(mm)
(mm)
(mm)
Hanger
1.5
Horizontal drainpipe
more than 1/100 slope
2.5
4
Centralized Drainage
4
4
4
4
6.6
8
6.6
8.5
4
9.5
±0.2
3.4
±0.2
4.2
±0.2
5.6
+0.3
-0.2
+0.3
-0.2
+0.3
-0.2
1.7
±0.2 4.1 6 16
4.3
2.3
±0.2
6 6 17.5
4.3
3.4
±0.2
6 5 20
4.3
+0.2
0.7
0
+0.2
0.8
0
+0.2
0.9
0
Specification of electronic wire
Without the drain pump
1. Install horizontal drainpipe with a slope of 1/100 or more and
Power supply
MCCB
ELB or ELCB
Power
cable
Earth
cable
Communication
cable
2. Install U-trap at the end of the drainpipe to prevent a nasty
Max : 242V
Min : 198V
XA
X A, 30mmA
0.1 s
2.5mm2
2.5mm2
0.75~1.5mm2
fix it by hanger space of 1.0~1.5m.
100mm or more
smell to reach the indoor unit.
 Decide the capacity of ELCB(or MCCB+ELB) by below formula.
Power supply cords of parts of appliances for outdoor use shall not be lighter
than polychloroprene sheathed flexible cord. (Code designation IEC:60245 IEC
57 / CENELEC: H05RN-F or IEC:60245 IEC 66 / CENELEC: H07RN-F)
Ceiling
Horizontal drain
pipe more than 1/100 slope
The capacity of ELCB(or MCCB+ELB) X [A] = 1.25 X 1.1 X ∑Ai
1. Install main air vent at the front of the farthest indoor unit from
T X : The capacity of ELCB(or MCCB+ELB).
T ∑Ai : Sum of Rating currents of each indoor unit.
T R efer to each installation manual about the rating current of indoor unit.
2. You may need to install individual air vent to prevent water
Decide the power cable specification and maximum length
within 10% power drop among indoor units.
With the drain pump
the main drain when installed indoor units are more than 3.
flow back at the top of each indoor unit drainpipe.
1~1.5m
Hanger
Main air vent
Individual
air vent
330mm
or less
Main drainpipe
Centralized horizontal drainpipe
(more than 1/100 slope)
18_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 18
n
Coef×35.6×Lk×ik
k=1
1000×Ak
∑(
)<
10% of input
voltage[V]
T Coef: 1.55
T L k : Distance among each indoor unit[m],
Ak: Power cable specification[mm2], ik : Running current of each unit[A]
hRun transmission wiring between the indoor and outdoor units through a
conduit to protect against external forces, and feed the conduit through
the wall together with refrigerant piping.
2014-09-16 오전 9:05:38
Setting an indoor unit address and installation option
Set the indoor unit address and installation option with remote controller option.
Set the each option separately since you cannot set the ADDRESS setting and indoor unit installation setting option at the same
time. You need to set twice when setting indoor unit address and installation option.
The procedure of option setting
ENGLISH
Option setting mode
Entering mode for
option setting
Mode change
High Temp Button
High Fan Button
Low Temp Button
Low Fan Button
Step 1. Entering mode to set option
1. Remove batteries from the remote controller.
2. Insert batteries and enter the option setting mode while pressing High Temp button and Low Temp button.
3.
Check if you have entered the option setting status.
Step 2. The procedure of option setting
After entering the option setting status, select the option as listed below.
Option setting is available from SEG1 to SEG 24
 SEG1, SEG7, SEG13, SEG19 are not set as page option.
 Set the SEG2~SEG6, SEG8~SEG12 as ON status and SEG14~18, SEG20~24 as OFF status.
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0
X
X
X
X
X
1
X
X
X
X
On(SEG1~12)
Off(SEG13~24)
X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
2
X
X
X
X
X
3
X
X
X
X
X
installing your air conditioner _19
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 19
2014-09-16 오전 9:05:39
Setting an indoor unit address and installation option(Continued)
Option setting
1. Setting SEG2, SEG3 option
Press Low Fan button(∨) to enter SEG2 value.
Press High Fan button(∧) to enter SEG3 value.
Each time you press the button,   …  will be selected in rotation.
Status
SEG2
SEG3
SEG4
SEG5
SEG6
SEG8
SEG9
SEG10
SEG11
SEG12
SEG14
SEG15
2. Setting Cool mode
Press Mode button to be changed to Cool mode in the ON status.
3. Setting SEG4, SEG5 option
Press Low Fan button(∨) to enter SEG4 value.
Press High Fan button(∧) to enter SEG5 value.
Each time you press the button,   …  will be selected in rotation.
4. Setting Dry mode
Press Mode button to be changed to DRY mode in the ON status.
5. Setting SEG6, SEG8 option
Press Low Fan button(∨) to enter SEG6 value.
Press High Fan button(∧) to enter SEG8 value.
Each time you press the button,   …  will be selected in rotation.
6. Setting Fan mode
Press Mode button to be changed to FAN mode in the ON status.
7. Setting SEG9, SEG10 option
Press Low Fan button(∨) to enter SEG9 value.
Press High Fan button(∧) to enter SEG10 value.
Each time you press the button,   …  will be selected in rotation.
8. Setting Heat mode
Press Mode button to be changed to HEAT mode in the ON status.
9. Setting SEG11, SEG12 option
Press Low Fan button(∨) to enter SEG11 value.
Press High Fan button(∧) to enter SEG12 value.
Each time you press the button,   …  will be selected in rotation.
10. Setting Auto mode
Press Mode button to be changed to AUTO mode in the OFF status.
11. Setting SEG14, SEG15 option
Press Low Fan button(∨) to enter SEG14 value.
Press High Fan button(∧) to enter SEG15 value.
Each time you press the button,   …  will be selected in rotation.
20_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 20
2014-09-16 오전 9:05:42
Option setting
Status
12. Setting Cool mode
Press Mode button to be change to Cool mode in the OFF status.
SEG16
SEG17
SEG18
SEG20
SEG21
SEG22
SEG23
SEG24
ENGLISH
13. Setting SEG16, SEG17 option
Press Low Fan button(∨) to enter SEG16 value.
Press High Fan button(∧) to enter SEG17 value.
Each time you press the button,   …  will be selected in rotation.
14. Setting Dry mode
Press Mode button to be change to Dry mode in the OFF status.
15. Setting SEG18, SEG20 option
Press Low Fan button(∨) to enter SEG18 value.
Press High Fan button(∧) to enter SEG20 value.
Each time you press the button,   …  will be selected in rotation.
16. Setting Fan mode
Press Mode button to be change to Fan mode in the OFF status.
17. Setting SEG21, SEG22 option
Press Low Fan button(∨) to enter SEG21 value.
Press High Fan button(∧) to enter SEG22 value.
Each time you press the button,   …  will be selected in rotation.
18. Setting Heat mode
Press Mode button to be change to HEAT mode in the OFF status.
19. Setting SEG23, SEG24 mode
Press Low Fan button(∨) to enter SEG23 value.
Press High Fan button(∧) to enter SEG24 value.
Each time you press the button,   …  will be selected in rotation.
Step 3. Check the option you have set
After setting option, press
button to check whether the option code you input is correct or not.









Step 4. Input option
Press operation button
with the direction of remote control for set.
For the correct option setting, you must input the option twice.
Step 5. Check operation
1. Reset the indoor unit by pressing the RESET button of indoor unit or outdoor unit.
2. Take the batteries out of the remote controller and insert them again and then press the operation button.
installing your air conditioner _21
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 21
2014-09-16 오전 9:05:46
Setting an indoor unit address and installation option(Continued)
Setting an indoor unit address (MAIN/RMC)
1. Check whether power is supplied or not.
- When the indoor unit is not plugged in, there should be additional power
supply in the indoor unit.
Indoor Unit
1(L)
2(N)
2. The panel(display) should be connected to an indoor unit to receive option.
3. Before installing the indoor unit, assign an address to the indoor unit according
F2
F1
to the air conditioning system plan.
4. Assign an indoor unit address by wireless remote controller.
- The initial setting status of indoor unit ADDRESS(MAIN/RMC) is “0A0000-100000-200000-300000”.
Option No. : 0AXXXX-1XXXXX-2XXXXX-3XXXXX
Option
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
Explanation
PAGE
MODE
Setting Main address
100-digit of indoor
unit address
10-digit of indoor unit
The unit digit of an
indoor unit
Indication Details
Remote
Controller
Display
Indication Details Indication
Indication
and Details
0
Option
SEG7
Explanation
PAGE
Details
Indication
Details
0
No Main
address
1
Main
address
setting
mode
A
SEG8
SEG9
Indication
Details
Indication
Details
0~9
100-digit
0~9
10-digit
SEG10
Setting RMC address
0~9
A unit
digit
SEG11
SEG12
Group channel(*16)
Group address
Remote
Controller
Display
Indication Details
Indication
and Details
-
Indication
Details
0
No RMC
address
1
RMC
address
setting
mode
1
-
Indication
Details
RMC1
0~F
Indication Details
RMC2
0~F
When “A”~”F” is entered to SEG5~6, the indoor unit MAIN ADDRESS is not changed.
If you set the SEG 3 as 0, the indoor unit will maintain the previous MAIN ADDRESS even if you input the option value of SEG5~6.
If you set the SEG 9 as 0, the indoor unit will maintain previous RMC ADDRESS even if you input the option value of SEG11~12.
 You cannot set SEG11 and SEG12 as F value at the same time.
22_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 22
2014-09-16 오전 9:05:47
Setting an indoor unit installation option (suitable for the condition of each installation location)
1. Check whether power is supplied or not.
- When the indoor unit is not plugged in, there should be additional power
supply in the indoor unit.
Indoor Unit
1(L)
2(N)
2. The panel(display) should be connected to an indoor unit to receive option.
ENGLISH
3. Set the installation option according to the installation condition of an air F2
F1
conditioner.
- The default setting of an indoor unit installation option is
“020010-100000- 200000-300000”.
- Individual control of a remote controller(SEG20) is the function that controls an
indoor unit individually when there is more than one indoor unit.
4. Set the indoor unit option by wireless remote controller.
 02 series installation option
SEG1
SEG2
SEG3
SEG5
SEG6
Central control
FAN RPM
compensation
SEG9
SEG4
External room
temperature sensor
/ Minimizing fan
operation when
thermostat is off
SEG10
0
2
-
SEG7
SEG8
SEG11
SEG12
1
Drain pump
Hot water heater
-
EEV Step when
heating stops
-
SEG13
SEG14
SEG16
SEG17
SEG18
2
External control
S-Plasma ion
Buzzer
Number of hours using
filter
SEG19
SEG20
SEG15
External control output
/ External heater On or
Off signal
SEG21
SEG22
SEG23
SEG24
EEV Step of
stopped unit during
oil return/defrost
mode
Motion detect sensor
-
Heating setting
Individual control of a
compensation /
remote controller
Removing condensated
water in heating mode
3
1WAY/2WAY/4WAY MODEL : Drain pump(SEG8) will be set to ‘USE + 3minute delay’ even if the drain pump is set to 0.
1 WAY/2WAY/4WAY,DUCT MODEL : Number of hours using filter(SEG18) will be set to ‘1000hour’ even if the SEG18 is set to
except for 2 or 6.
When setting the option other than above SEG values, the option will be set as “0”.
 SEG5 central control option is basically set as 1 (Use), so you don’t need to set the central control option additionally.
However, if the central control is not connected but it doesn’t indicate an error message, you need to set the central control
option as 0 (Disuse) to exclude the indoor unit from the central control.
 The output of hot water heater in SEG9 is generated from the hot coil part of the terminal board in duct models.
* T he output of hot coil terminal is AC 220 V / 230 V
(The same as Indoor Unit’s input Power)
F1
F2
COM1
V1
V2
(+)
(-)
F3
F4
COM2
OUTDOOR
Wire Remote
DC 12 V
COMMUNICATION
Controller
1(L) 2(N) 1
L
2
N
AC
POWER
HOT
COIL
 The external output of SEG15 is generated by MIM-B14 connection. (Refer to the manual of MIM-B14.)
installing your air conditioner _23
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 23
2014-09-16 오전 9:05:47
Setting an indoor unit address and installation option(Continued)
 02 series installation option(Detailed)
Option No. : 02XXXX-1XXXXX-2XXXXX-3XXXXX
Option
SEG1
SEG2
SEG3
Explanation
PAGE
MODE
Use of robot cleaning
SEG4
SEG5
Use of external room temperature sensor /
Minimizing fan operation when thermostat Use of central control
is off
SEG6
FAN RPM compensation
Remote
Controller
Display
Indication Details Indication
Details
Indication
and Details
0
2
Indication
Details
0
Disuse
1
Use
Details
Minimizing
Use of
fan operation
Indication External room
Indication
when
temperature
thermostat
sensor
is off
0
Disuse
Disuse
0
Option
SEG7
SEG8
SEG9
Explanation
PAGE
Use of drain pump
Use of hot water heater
1
Use
2
3
Disuse
Use
SEG10
Details
Indication
Details
Disuse
0
Disuse
RPM
compensation
1
Disuse
(*1)
Use
Use (*1)
1
Use
2
SEG11
EEV Step when
heating stops
High ceiling KIT
SEG12
Remote
Controller
Display
Indication Details Indication
Indication
and Details
Details
Indication
Details
0
Disuse
0
Disuse
1
Use
1
Use
2
-
3
Use (*2)
Option
SEG13
When an
indoor unit
stops, drain
pump will
operate for
3min.
SEG14
Explanation
PAGE
Use of external control
1
2
Indication
Details
Indication
0
Details Indication
Default
value
Details
(*2)
Noise
decreasing
setting
1
SEG15
SEG16
SEG17
SEG18
Setting the output of external
control/External heater On/Off signal
S-Plasma ion
Buzzer control
Number of hours
using filter
Remote
Controller
Display
Indication Details Indication
0
Indication
and Details
1
2
2
3
Details
Disuse
ON/OFF
control
OFF control
Window
ON/OFF
control
Details
Setting the
External
Indication output of
Indication
heater On/
external
Off signal
control
0
Thermo on
0
1
Operation on
-
2
-
Use (*3)
3
-
Use (*3)
1
Details
Indication
Details
Indication
Details
Disuse
0
Use buzzer
2
1000 Hour
Use
1
Disuse
buzzer
6
2000 Hour
24_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 24
2014-09-16 오전 9:05:48
Option
SEG19
SEG20
SEG21
Explanation
PAGE
Individual control of a
remote controller
Heating setting compensation / Removing
condensated water in heating mode
SEG22
EEV Step of stopped
unit during oil return /
defrost mode
SEG23
SEG24
Motion detect sensor
-
ENGLISH
Remote
Controller
Display
Details
Indication
Details
Indication
0 or 1
Indication and
Details
Removing
Indication Heating Setting Condensated Indication Details
Compensation Water in Heating
Mode
Default (*4)
0
Disuse
Default
channel 1
0
value
1
2 °C
Disuse
Details
Indication
Details
0
Disuse
Turn out in 30min.
without motion
Turn out in 60min.
without motion
Turn out in 120min.
without motion
Turn out in 180min.
without motion
Turn out in 30min.
without motion or
*advanced function
Turn out in 60min.
without motion or
*advanced function
Turn out in 120min.
without motion or
*advanced function
Turn out in 180min.
without motion or
*advanced function
1
2
channel 2
2
5 °C
Disuse
2
3
channel 3
3
Default (*4)
Use (*5)
3
4
2 °C
Use (*5)
4
3
1
4
channel 4
5
5 °C
Oil return
or Noise
decreasing
in defrost
mode
5
6
Use (*5)
7
8
* Advanced function: Controlling cooling/heating current or power saving with motion detect.
(*1)
inimizing fan operation when thermostat is off
M
- Fan operates for 20 seconds at an interval of 5 minutes in heat mode.
(*2)
1: Fan is turned on continually when the hot water heater is turned on,
3: Fan is turned off when the hot water heater is turned on with cooling only indoor unit
Cooling only indoor unit: To use this option, install the Mode Select switch (MCM-C200) on the outdoor unit and fix it as cool mode.
(*3)
When the following 2 or 3 is used as external heater On/Off signal, the signal for monitoring external contact control will not be output.
2: Fan is turned on continually when the external heater is turned on,
3: Fan is turned off when the external heater is turned on with cooling only indoor unit
Cooling only indoor unit: To use this option, install the Mode Select switch (MCM-C200) on the outdoor unit and fix it as cool mode.
❋❋ If Fan is set to off for cooling only indoor unit by setting the SEG9=3 or SEG15=3, you need to use an external sensor or wired remote controller
sensor to detect indoor temperature exactly.
(*4)
Default setting value
- 4Way Cassette, Mini 4Way Cassette: 5 °C
- Other indoor units: 2 °C
installing your air conditioner _25
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 25
2014-09-16 오전 9:05:49
Setting an indoor unit address and installation option(Continued)
(*5)
T his function can be applied to 4 Way Cassette and Mini 4 Way Cassette only. If the air conditioner operates the heating mode immediately after
finishing the cooling mode, the condensated water in the drain pan becomes water vapor by the heat of the indoor unit heat exchanger. Since the
water vapor might be condensed on the indoor unit, which may fall into a living space, use this function to get rid of the water vapor out of the
indoor unit by operating the fan (for maximum 20 minutes) even when the indoor unit is turned off after cooling mode is turned to heating mode .
Do not install the electronic heater in the flow channel of the indoor unit fan.
Electronic heater should not
be installed.
Discharge side
Suction side
Air Flow
Duct Indoor unit
 05 series installation option
SEG1
SEG2
SEG3
5
Use of Auto Change
Over for HR only in
Auto mode
SEG7
SEG8
SEG9
1
(When setting SEG3)
Standard for mode
change
Cooling → Heating
SEG13
SEG14
SEG15
2
-
SEG19
3
0
SEG4
SEG5
(When setting SEG3)
(When setting SEG3)
Standard heating temp. Standard cooling temp.
Offset
Offset
SEG10
SEG6
(When setting SEG3)
Standard for mode
change
Heating → Cooling
SEG11
SEG12
-
-
SEG16
SEG17
SEG18
-
-
-
Control variables when
using hot water / external
heater
SEG20
SEG21
SEG22
SEG23
SEG24
-
-
-
-
-
Compensation option
(When setting SEG3)
for Long pipe or height
Time required for mode
difference between
change
indoor units
26_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 26
2014-09-16 오전 9:05:49
 05 series installation option(Detailed)
Option No. : 05XXXX-1XXXXX-2XXXXX-3XXXXX
SEG1
SEG2
SEG3
Explanation
PAGE
MODE
SEG4
SEG5
SEG6
setting SEG3)
Use of Auto Change (When setting SEG3) (When setting SEG3) (When
Standard for mode
Over for HR only in Standard heating temp. Standard cooling temp.
change
Auto mode
Offset
Offset
Heating → Cooling
Remote
Controller
Display
Indication
Indication
and Details
Details
Indication
0
Details
Indication
Details
Indication
Details
Indication
Details
Indication
Details
0
Follow
product
option
0
0 °C
0
0 °C
0
1 °C
Use Auto
Change
Over for
HR only
1
2
3
4
5
6
7
0.5 °C
1 °C
1.5 °C
2 °C
2.5 °C
3 °C
3.5 °C
1
2
3
4
5
6
7
0.5 °C
1 °C
1.5 °C
2 °C
2.5 °C
3 °C
3.5 °C
1
2
3
4
5
6
7
1.5 °C
2 °C
2.5 °C
3 °C
3.5 °C
4 °C
4.5 °C
5
1
Option
SEG7
SEG8
SEG9
Explanation
PAGE
(When setting SEG3)
Standard for
mode change
Cooling → Heating
SEG10
SEG11
ENGLISH
Option
SEG12
Compensation option
(When setting SEG3) for
Long pipe or height
Time required
diffference between
for mode change
indoor units
Remote
Controller
Display
Indication
Indication
and Details
Details
1
Indication
Details
Indication
Details
0
1 °C
0
5 min.
1
1.5 °C
1
7 min.
2
2 °C
2
9 min.
3
2.5 °C
3
11 min.
4
3 °C
4
13 min.
5
3.5 °C
5
15 min.
6
4 °C
6
20 min.
7
4.5 °C
7
30 min.
Indication
Details
0
Use default
value
1
1) Height
difference1)
is more
than 30m
or
2) Distance2)
is longer
than 110m
2
1) Height
difference1)
is 15~30m
or
2) Distance2)
is 50~110m
installing your air conditioner _27
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 27
2014-09-16 오전 9:05:50
Setting an indoor unit address and installation option(Continued)
Option
SEG13
SEG14
SEG15
SEG16
SEG18 3)
SEG17
Control variables when using hot water / external
heater
Explanation
Remote Controller
Display
Details
Indication
Indication and
Details
2
1)
Set temp. for
heater On/Off
Delay time for
heater On
0
At the same time
as thermo on
No delay
1
At the same time
as thermo on
10 minutes
2
At the same time
as thermo on
20 minutes
3
1.5 °C
No delay
4
1.5 °C
10 minutes
5
1.5 °C
20 minutes
6
3.0 °C
No delay
7
3.0 °C
10 minutes
8
3.0 °C
20 minutes
9
4.5 °C
No delay
A
4.5 °C
10 minutes
B
4.5 °C
20 minutes
C
6.0 °C
No delay
D
6.0 °C
10 minutes
E
6.0 °C
20 minutes
Height difference : T he difference of the height between the corresponding indoor uint and the indoor unit installed at the lowest place.
For example, When the indoor unit is installed 40m higher than the indoor unit installed at the lowest place, select
the option "1".
2)
Distance : T he difference between the pipe length of the indoor unit istalled at farthest place from an outdoor unit and the pipe length
of the corresponding indoor unit from an outdoor unit.
For example, when the farthest pipe length is 100m and the corresponding indoor unit is 40 m away from an outdoor unit,
select the option "2". (100 - 40 = 60 m)
3)
Heater operation when the SEG9 of 02 series installation option is set to using hot water heater or when SEG15 is set to using external heater
e.g. 1) Setting 02 series SEG9 =”1” / Setting 05 series SEG18 = “0”: Hot water heater is turned on at the same time as the heating thermostat is
on, and turned off when the heating thermostat is off.
e.g. 2) Setting 02 series SEG15 =”2” / Setting 05 series SEG18 =”A”:
Room temp. ≤ set temp. + f(heating compensation temp.)
- External heater is turned on when the temperature is maintained as 4.5 °C for 10 minutes.
Room temp. > set temp. + f(heating compensation temp.)
- External heater is turned off when the temperature is maintained as 4.5 °C + 1 °C (1 °C is the Hysteresis for On/Off selection.]
28_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 28
2014-09-16 오전 9:05:50
SEG 3, 4, 5, 6, 8, 9 additional information
Heating Thermo On
Heating Thermo Off
Cooling Thermo On
ENGLISH
Cooling Thermo Off
When the SEG 3 is set as "1" and follow Auto Change Over for HR only operation, it will operate as follows.
Standard temp. for
Heating → Cooling
Temp.
c
b
Standard temp.
for Cooling
Ts
B
A
Set temp.
for Auto mode
C
D
a
Standard temp.
for Heating
d
Standard temp.
for Cooling →
Heating
A : Set with SEG4(˚C)
B : Set with SEG5(˚C)
C : Set with SEG6(˚C)
D : Set with SEG8(˚C)
Cooling/Heating mode can be changed when Thermo Off status is maintained during the time with SEG9.
installing your air conditioner _29
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 29
2014-09-16 오전 9:05:50
Setting an indoor unit address and installation option(Continued)
Changing a particular option
You can change each digit of set option.
Option
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
Explanation
PAGE
MODE
The option mode
you want to change
The tens’ digit of an
option SEG you will
change
The unit digit of an
option SEG you will
change
The changed value
Indication
Indication
Indication
Details
Indication
Details
0~9
The
changed
value
0~F
Remote
Controller
Display
Indication
Indication
and Details
Note
Details
Indication
0
Details
Option
mode
D
Details
1~6
Tens’ digit
of SEG
Details
0~9
Unit digit of
SEG
• When changing a digit of an indoor unit address setting option, set the SEG3 as ‘A’.
•When changing a digit of indoor unit installation option, set the SEG3 as ‘2’.
Ex) When setting the ‘buzzer control’ into disuse status.
Option
SEG1
SEG2
Explanation
PAGE
MODE
Indication
0
D
SEG3
SEG4
SEG5
SEG6
The tens’ digit of an The unit digit of an
The option mode
option SEG you will option SEG you will The changed value
you want to change
change
change
2
1
7
1
30_ installing your air conditioner
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 30
2014-09-16 오전 9:05:51
Setting temperature control of discharge air
1. Use of “Temperature control of discharge air” or target temperature of discharge air in cooling/heating can be set with the service
mode of a wired remote controller. (Refer to the installation manual of a wired remote controller.)
2. When using temperature control of discharge air, thermo on/off of Indoor unit is decided by set room temperature and room
temperature, and the temperature of discharge air is adjusted to meet the target temperature of discharge air in thermostat On
section.
temperature due to external conditions or protective control of the outdoor unit.
❋❋ Temperature control of discharge air can be set with DMS as well.
ENGLISH
3. When using temperature control of discharge air, the temperature of discharge air cannot always be adjusted to the target
installing your air conditioner _31
NASA_Big [email protected]@@[email protected]_IB,IM_EN_03655A-06.indd 31
2014-09-16 오전 9:05:51
