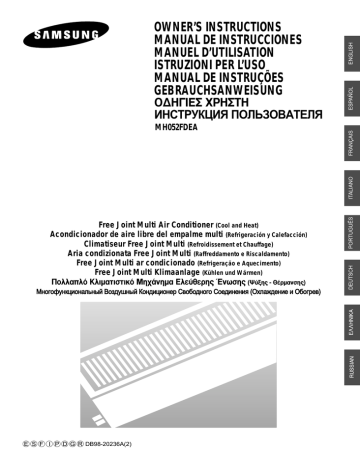

MH052FDEA
ESPAÑOL
√¢∏°π∂™ Ã∏™∆∏
àçëíêìäñàü èéãúáéÇÄíÖãü
FRANÇAIS
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
E S F I P D G R DB98-20236A(2)
Register your product at www.samsung.com/global/register
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING
DURING
OPERATION
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
◆ Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆ Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆ Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆ Do not place any obstacles in front of the unit.
◆ Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆ Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆ If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆ When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
DISPOSING OF THE UNIT
◆ Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆ When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆ Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
OTHERS
◆ Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆ The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆ Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
E-2
ENGLISH
Contents
◆ PREPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 8
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
◆ RECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . .
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . .
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . .
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . .
11
12
13
14
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
E-3
View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Indoor Unit
Air
outlet
Air filter
E-4
Air
inlet
ENGLISH
Outdoor Unit
Air Inlet (Rear)
Air Outlet
Connection Valve
Note
◆ If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the
heat exchanger with water when it becomes dirty. However, be careful when you wash the
surface of the heat exchanger because it is very sharp.
E-5
Wireless Remote Controller-Buttons and Display
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
Operating mode
Temperature setting
Mode selection button
Temperature adjustment
buttons
Filter Reset button
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Fan speed adjustment
button
Swing button (Not operated)
On Timer button
Off Timer button
Battery discharge indicator
On/Off & Timer
Set/Cancel button
Note
E-6
◆ After cleaning the air filter, press the
button.
◆ Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the
button.
The Receiver & Display Unit
ENGLISH
The Receiver & Display unit is an optional accessory and it is installed on the wall.
To use the receiver & display unit, refer to an appropriate manual.
Concealed Type
Filter sign indicator
Fan indicator
Timer indicator
Remote control sensor
On/Off indicator(Blue) &
Removing frost
indicator(Red)
Standard Type
Removing frost indicator
Filter sign indicator
Remote control sensor
On/Off indicator
Fan indicator
On/Off button
Timer indicator
E-7
Wired Remote Controller-Buttons and Display
To use the wired remote controller, refer to an appropriate manual.
Operating mode
Removing frost indicator
Centralized controller indicator
(In case of installing the Centralized controller)
Communication
error indicator
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On Timer setting
Off Timer setting
Test indicator
On/Off button
Temperature adjustment
buttons
On Timer button
On/Off indicator
Timer Set/Cancel button
Swing button
(Not operated)
Fan speed
adjustment button
Test button
Filter Reset button
Mode selection button
Note
E-8
◆ The
button is for your installation specialist. You must NOT press it.
◆ After cleaning the air filter, press the
button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to page 13.
◆ Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the
button.
Centralized Controller
ENGLISH
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
Front View
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
Note
◆ The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
Side View
Operating Mode Switch
COOL
AUTO
HEAT
Note
◆ Choose the appropriate operating mode with the Operating Mode Switch
that enables the user to choose between the Cool/Auto/Heat mode.
E-9
Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
Operating mode
Removing frost indicator
Centralized controller indicator
Communication
error indicator
Temperature setting
Fan speed
Room number display
Air flow direction
Test indicator
Filter Sign indicator
On/Off & Timer
Set/Cancel button
On/Off indicator
Temperature adjustment
buttons
Fan speed adjustment
button
Indoor unit
selection button
Swing button
Test button
Filter Reset button
Mode selection button
Note
E-10
◆
button is for your installation specialist. You must NOT press it.
◆ After cleaning the air filter, press the
button. Then the wired remote controller will
display the FILTER SIGN indicator when the time to clean the air filter.
ENGLISH
Operating Recommendations
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic
Recommendation
Heating
performances
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Frost
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for 5 to
10 minutes.
No intervention is required ; after about 10 minutes, the air
conditioner operates again normally.
High indoor
and outdoor
temperatures
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
Power failure
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
E-11
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at...
Then...
High temperature
The automatic protection feature may be
triggered and the air conditioner stopped.
Low temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
High humidity levels
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
Mode
Outdoor Temperature
Indoor Temperature
Heating
-15°C to 24°C approx.
27°C or less
Cooling
15°C to 43°C approx.
21°C to 32°C approx.
Drying
15°C to 43°C approx.
21°C to 32°C approx.
❇
E-12
Indoor Humidity
80% or less
-
The standardized temperature for heating is 7°C. If the outdoor
temperature drops to 0°C or below, the heating capacity can be
reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature) then,
it does not cool at its full capacity.
Cleaning Your Air Conditioner
ENGLISH
✴✴052/070✴✴
For the best use of your air conditioner, you must clean it every
2 weeks regularly to remove the dust that accumulates on the air filter.
IMPORTANT
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
1
Turn the levers to the right or left not to prevent pulling out the air filter.
2
Pull out the air filter.
3
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4
Dry the air filter.
5
When you have finished, insert the filter into the unit.
6
Return the levers.
Note
◆ After cleaning the air conditioner, press the
button.
Wired Remote Controller
Wireless Remote Controller
E-13
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
Problem
The air conditioner does not
operate at all
◆ Check that the breaker used for the air conditioner is switched on.
Wired Remote Controller
The air conditioner does not
operate with the remote
controller
◆
is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wired Remote Controller
When turning on/off the air
conditioner, it is not turned
On/Off immediately.
◆ In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wireless Remote Controller
The air conditioner does not
operate with the remote
controller
◆ Check that there are no obstacles between you and the remote
control sensor.
◆ Check the wireless remote controller batteries.
◆ Check that you are close enough to the remote control sensor.
(7 metres/ yards or less).
Wireless Remote Controller
No beep is heard when you
press
(On/Off) on the
remote controller
The air conditioner does
not cool or heat
◆ Check that you are pointing the remote controller at the remote
control sensor of the receiver & display unit.
◆ Replace the remote controller batteries if necessary.
◆ Check that the correct operating mode has been selected.
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard; refer to page 13
for cleaning instructions.
◆ Check that there is no obstacle in front of the outdoor unit.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
E-14
◆ Check that the required temperature has been set correctly.
◆ Increase the fan speed.
ENGLISH
Memo
E-15
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O:
ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ:
ELECTRONICS
Download PDF

advertising
