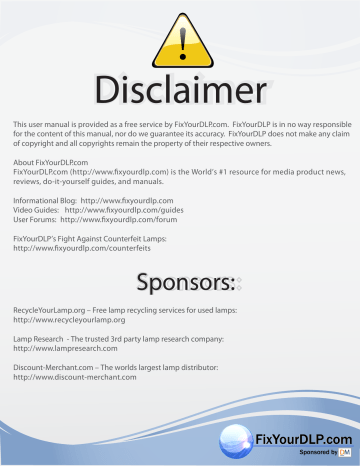

This user manual is provided as a free service by FixYourDLP.com. FixYourDLP is in no way responsible for the content of this manual, nor do we guarantee its accuracy. FixYourDLP does not make any claim of copyright and all copyrights remain the property of their respective owners.

About FixYourDLP.com

FixYourDLP.com (http://www.fixyourdlp.com) is the World’s #1 resource for media product news, reviews, do-it-yourself guides, and manuals.

Informational Blog: http://www.fixyourdlp.com

Video Guides: http://www.fixyourdlp.com/guides

User Forums: http://www.fixyourdlp.com/forum

FixYourDLP’s Fight Against Counterfeit Lamps: http://www.fixyourdlp.com/counterfeits

RecycleYourLamp.org – Free lamp recycling services for used lamps: http://www.recycleyourlamp.org

Lamp Research - The trusted 3rd party lamp research company: http://www.lampresearch.com

Discount-Merchant.com – The worlds largest lamp distributor: http://www.discount-merchant.com

Sponsored by

D M

To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly.

The images here are for reference only, and are not applicable in all cases (or countries).

Failure to follow the instructions marked with this symbol may cause personal injury or even fatality.

Failure to follow the instructions marked with this symbol may cause personal injury or damage to the product or property.

| Power Related | Installation Related | Cleaning and Use Related |

Insert the power plug firmly so that it does not come loose. z

When the connection is not firm, it may cause a fire.

Do not use loose power outlets or damaged power cables. z

There is a danger of electric shock or fire.

Under no circumstances touch the power plug with wet hands. z

There is a danger of electric shock.

Do not plug multiple devices into a single wall outlet.

z

There is a danger of fire.

THE

Do not bend the power cord excessively or place heavy objects on it.

z

There is a danger of electric shock or fire.

AND

from other devices before moving it. z

Moving the product without disconnecting the power cord may damage the power cord and cause electric shock or fire.

To disconnect the apparatus from the mains, the plug must be pulled out from the

mains socket, therefore the mains plug shall be readily operable.

z

There is a danger of electric shock or fire.

Always unplug the unit by holding the power plug. Pulling the power cable may damage the inside of it.

z

There is a danger of fire.

Unplug the power plug before cleaning the product. z

There is a danger of electric shock or fire.

| Power Related | Installation Related | Cleaning and Use Related |

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES

AWAY FROM THIS PRODUCT AT ALL TIMES.

z

There is a danger of fire.

When installing the product in a cabinet or on a shelf, make sure the front end of the base does not protrude. z

Dropping the product may damage it or cause injury.

Keep the power cord away from heaters. z

The coating of the power cord may melt and cause electric shock or fire.

Do not install the product in locations exposed to oil, smoke, moisture or water

THE

(rainwater), or in a vehicle.

TRUSTED SOURCE FOR PROJECTOR LAMPS

Do not install the product in locations with poor ventilation such as a bookshelf, closet, etc.

z

An increase in the internal temperature may cause a fire.

Do not install on an unstable location, or on a stand smaller than the product. z

If the product falls it may harm children. Install on a flat and stable location as the front part is heavy.

In case of thunder/lightning, disconnect the power cord from the wall outlet.

z

There is a danger of electric shock or fire.

Make sure the product's vents are not blocked by a table cloth or curtain. z

An increase in the internal temperature may cause a fire.

Place the product on the ground carefully. z

Doing so may cause damage or injury.

Do not drop the product while carrying it. z

Doing so may cause damage or injury.

Keep the product out of children’s reach. z

If the product falls it may cause harm to children. Install on a flat and stable location as the front part is heavy.

| Power Related | Installation Related | Cleaning and Use Related |

THE TRUSTED SOURCE FOR PROJECTOR LAMPS

Do not insert any metal such as chopsticks, wires, gimlets, or inflammable objects such as paper into the vents, the PC/COMPOSITE port, the Power port or the Battery port.

z

This may cause electric shock or fire.

If water or an alien substance enters the product, turn the product off, disconnect the power cord from a wall outlet and contact a Service Center .

Do not disassemble, or attempt to fix or modify the product. z

When the product requires repairs, contact a Service Center .

Do not use or keep the product near flammable sprays or other such substances.

z

There is a danger of fire or explosion.

Do not place containers with water, vases, drinks, chemicals, small metal parts or heavy objects on the product. z

If water enters the product, it may cause electric shock, or fire and when heavy objects fall, it may cause injury.

Do not let children place objects such as toys or cookies on the product.

z

If a child tries to reach for any of these objects, the product may fall and cause harm.

Do not look directly at the light of the lamp nor project the picture onto eyes. z

This is dangerous especially for children.

When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children. z

If swallowed, see a doctor immediately.

If the product emits smoke, unusual noise, or there is a burning smell,disconnect the power plug immediately, and contact a Service Center . z

There is a danger of electric shock or fire.

THE AND

If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly. z

There is a danger of electric shock or fire.

Ask a Service Center to clean the product internally at least once a year. (Charged) z

Dust which has accumulated in the interior over an extended period of time may cause fire or a malfunction.

When cleaning the product, disconnect the power cord and wipe the product using a soft dry cloth.

z

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

When not using the product for an extended period of time, disconnect the power plug. z

Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, leading to electric shock or fire.

Do not install the product in places with heavy dust, chemical substances, high or low temperatures, high humidity, or where it will be operated for a long period continuously etc.

If the product is dropped or the casing is damaged, turn the product off and unplug the power cord.

z

This may cause electric shock or fire. Contact a Service Center .

Take care not to lose the lens cover of the product. z

This may damage the lens.

When replacing batteries, place the batteries in the correct +/- polarity position as indicated on battery holder. z

Incorrect polarity may cause a battery to break or leak and could lead to fire, injury, or contamination (damage).

Use only specified standard batteries. Do not use new and used batteries together.

z

Incorrect polarity may cause a battery to break or leak and could lead to fire, injury, or contamination (damage).

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

| Product Features | Product Views | Remote Control | Product Specifications |

Optical engine adopting advanced DLP technology

- A full 1920x1080 HD panel has been adapted.

- A 6 segment color wheel has been used to implement optimal colors.

- 300W Lamp designed to improve luminance

Vivid colors

- Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that meet broadcasting standards on video production.

Minimized fan noise and light leakage

- The airflow and fan installation structure are optimized to minimize fan noise and beam leakage.

Various Input Ports

- Abundant input terminals are available, such as the two HDMI (supporting HDCP) terminals and the two component terminals, etc., to enhance connectivity with peripheral devices.

User adjustments

- This unit allows adjustment of each input port.

- The unit has a reference pattern that can be used for positioning and adjustment.

- For the user's convenience in dark surroundings, a backlight for the remote control is provided.

| Product Features | Product Views | Remote Control | Product Specifications |

TRUSTED SOURCE FOR PROJECTOR LAMPS

Front/Upper Side

1. Indicators 7. Zoom Knob

- STAND BY (Blue LED)

※ Refer to the LED Indications .

- TEMP (Red LED)

- LAMP (Blue LED)

Used to enlarge or reduce image size.

8. POWER(

) Button

Used to turn the projector on or off.

2. Focus Ring

Used for Focus Adjustment.

9. SOURCE Button

Used to select input signals from the external sources.

3. Lens

10.MENU Button

4. Lens Position Moving Dial

※ Refer to Adjusting the Lens Position

Moving Dial .

You can adjust screen images up and down within the lens range.

Use this button to enter or exit a menu or to move forward in a menu.

11.Select and Move Button(

5. Remote Control Signal Receiver

6. Adjustable Feet

You can adjust the screen position by moving up and down the adjustable feet. within a menu.

/

Use this button to move to or select an item

)

The buttons on the top of the projector are touch buttons.

Touch them lightly with your fingers to use them.

Package Contents

Quick Installation Guide

Warranty

(Not available in all locations)

User Manual CD

Power Cable Remote Control/ 2 Batteries

LED Indications

●:Light is On ◐:Light is Blinking ○:Light is Off

TEMP LAMP STAND BY Information

○ ○ ●

Cleaning Cloth

If you press the POWER button on the remote control or projector, the screen appears within 30 seconds.

○ ● ●

○ ◐ ●

The projector is in normal operating condition.

This state appears when the projector is preparing an operation after the POWER button on the projector or the remote control has been pressed.

The POWER button is pressed to turn off the projector, and the cooling system is in operation to cool off inside of the projector. (Lasts for about 1 minute and 30 seconds)

Refer to Action 1 below if the cooling fan inside the projector is not in normal operation condition.

Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed properly.

Power is turned off automatically when temperature inside of the projector goes beyond the control limit. Refer to Action 3.

A problem has occurred when operating the DDP IC in the product. Refer to Action 4.

A problem has occurred with the operation of the lamp. Refer to Action 5.

The lifetime of the lamp has expired. Refer to Action 6.

The memory in the product is not operating normally. Contact a service center .

The power for the product is not operating normally. Contact a service center .

◐ ● ◐

A problem has occurred when operating the color wheel in the product. Refer to Action

4.

Clearing Indicator Problems

Classification State

When the cooling fan system is not in normal Action 1

THE

Action 2

When the lamp cover protecting the lamp unit is not properly closed or the sensor system is not in normal operating condition.

Measures

If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center .

ACCESSORIES

Check whether the screws at the bottom side of the projector are fastened correctly. If they are abnormally fastened, contact your product distributor or service center .

Adjust the installation state of your projector by referring to the

Action 3

Action 4

Action 5

When temperature inside of the projector becomes too high.

The lamp is malfunctioning after abnormal power off or restarting right after turning off the projector.

installation precautions listed above. Cool down your projector sufficiently and then operate it again. If the same problem occurs continually, contact your product distributor or service center .

When the DDP IC or color wheel fails to operate.

Disconnect and reconnect the power cord and start the projector again. If the same symptom still occurs, contact your product distributor or service center .

Turn the power off, wait for a sufficient amount of cooling time and then turn the power on for operations. If the same problem occurs continually, contact your product distributor or service center .

Action 6

When the screen becomes darker

Check the lamp usage time on the Information Display screen. If you need to replace the lamp, contact your product distributor or service center .

This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise, which does not affect the product performance. No exchange or refund for the noise concern.

Rear Side

1. PC IN Input port 5. RS-232C port

(For service input terminals)

2. COMPONENT IN Input port

6. VIDEO IN Input port

3. S-VIDEO IN Input port

THE

4. POWER Input port

7. Remote Control Signal Receiver

TRUSTED SOURCE FOR PROJECTOR LAMPS

8. HDMI IN 2, HDMI 1/DVI IN Input port

AND

| Product Features | Product Views | Remote Control | Product Specifications |

1.

ON ( ) Button

2.

COMP1 Button

3.

VIDEO Button

4.

S-VIDEO Button

5.

PC Button

6.

MENU Button

7.

Move (▲ ▼ ◀ ▶)/ENTER Button

8.

INFO Button

9.

P.SIZE Button

10.

STILL Button

11.

P.MODE Button

12.

OFF ( ) Button

13.

LIGHT ( ) Button

14.

HDMI1 Button

15.

HDMI2 Button

16.

COMP2 Button

17.

RETURN Button

18.

EXIT Button

19.

D.BLACK Button

20.

USER Button

21.

INSTALL Button

1.

ON ( )

Used to turn on the projector.

2.

COMP1

Used to switch to COMPONENT 1 Mode.

3. VIDEO

Used to switch to Video Mode.

4.

S-VIDEO

Used to switch to S-VIDEO Mode.

5.

PC

Used to switch to PC Mode.

6.

MENU

Used to display Menu Screen.

THE

7.

Used to move to or select each menu item.

8.

INFO

Used to check source signals, picture setup, PC screen adjustment and lamp lifespan.

9.

P.SIZE

Used to adjust the size of picture screen.

10.

STILL

Used to see still images.

11.

P.MODE

Used to select Picture Mode.

12.

OFF ( )

Used to turn off the projector.

13.

LIGHT ( )

Used to operate remote control in dark room.

14.

HDMI1

Used to switch to HDMI 1 Mode.

15.

HDMI2

Used to switch to HDMI 2 Mode.

16.

COMP2

Used to switch to COMPONENT 2 Mode.

17.

RETURN

Returns to the previous menu.

18.

EXIT

Used to make Menu Screen disappear.

19.

D.BLACK

Alter the screen brightness and contrast by adjusting the iris in the optical system.

20.

USER

Used to select Picture User Adjust Mode.

21.

INSTALL

Used to flip or reverse the projected image.

| Product Features | Product Views | Remote Control | Product Specifications |

Design and specifications of the product may be modified without prior notice for better performance.

Specifications

Model SP-A800B

Size 24.1 mm / 0.9 inch

Panel Resolution

Manufacturer

Type

1920 x 1080

Texas Instrument

300 W UHP

Lamp Life Time 2000 Hrs

Manufacturer Philips

Color 62.2 M (1920 x 1080 x 3 x 10 bit)

TRUSTED SOURCE FOR PROJECTOR LAMPS

Resolution resolution

1920 x 1080 @ 60 Hz

Maximum

1920 x 1200 resolution

Input video signal

Input synchronization signal

Maximum Pixel Clock

Video, S-Video, Component, Analog PC, HDMI

Seperate H/V sync, TTL

162 MHz

Diagonal screen size

Projection Range

Power

Power

Consumption

Voltage

Noise

1016 mm ~ 7620 mm (16:9, Diagonal)

1.5 m ~ 14 m

Less than 410 W

Dimensions

110/220 Vac +/-10 %, 50/60 Hz +/-3 Hz

Theater : 24dB, Bright : 30dB

431.3 mm(W) x 468.5 mm(D) x 198.8 mm(H)

17.0 inch(W) x 18.4 inch(D) x 7.8 inch(H)

Weight

Key Features

Brightness

Contrast

9.8 Kg / 21.6 lb

1,000 ANSI

10000:1 (Full On / Off)

Keystone Vertical

Operating

Temperature 50 °F ~ 104 °F (10 °C ~ 40 °C),

Humidity (10 % ~ 80 %)

User

Environment

Temperature and Humidity

Storage

Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C) ,

Humidity (5 % ~ 95 %)

This Class B equipment is designed for home and office use. The equipment has been registered regarding

EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less electromagnetic waves than class A.

The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other visual display elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel manufacturer have a rigid, bad pixel identification and limitation procedure in place and products will not exceed the maximum number of bad pixels set by our standards. Rarely, non-displayable pixels may exist, however it does not affect the picture quality nor the lifespan of the product.

Supported Display Mode

Input Source

PC, DVI

PC

PC, DVI

PC

PC, DVI

PC

PC, DVI

PC

Resolution

(HxV)

640x350

640x400

640x480

720x400

800x600

Total

Resolution

800x449

832x445

832x445

800x525

800x525

816x500

832x520

840x500

832x509

900x449

1024x625

1056x628

1040x625

1040x666

1056x625

1048x631

1088x517

31.5

35.0

37.9

37.5

43.3

31.5

35.2

37.9

43.8

Horizontal Sync

Frequency

[kHz]

31.5

polarity

37.9

37.9

31.5

P

P

N

N

48.1

46.9

53.7

31.0

P

P

P

P

P

P

N

N

N

N

N

N

N

60.0

70.0

72.8

75.0

85.0

70.1

56.3

60.3

70.0

Vertical Sync

Frequency

[Hz]

70.1

polarity

85.1

85.1

59.9

N

N

P

N

72.2

75.0

85.1

60.0

P

P

P

P

P

P

N

P

N

N

N

N

N

Pixel

Frequency

[MHz]

36.0

28.3

36.0

40.0

45.5

50.0

49.5

56.3

33.8

25.2

31.5

31.5

25.2

25.2

28.6

31.5

31.5

848x480

PC, DVI

THE

1024x768

1344x806

1328x806

1360x801

48.4

56.5

57.7

N

N

N

60.0

70.1

72.0

N

N

N

65.0

78.4

1152x864

1312x800

1376x808

1520x897

1536x900

1536x901

1600x900

60.0

68.7

53.8

63.0

64.9

67.5

N

N

P

P

N

P

75.0

85.0

60.0

70.0

72.0

75.0

P

N

P

P

N

P

78.8

94.5

81.8

96.8

99.6

108.0

Sync Type

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

ACCESSORIES

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

PC

PC, DVI

PC

PC, DVI

PC, HDMI(DVI)

HDMI

Component

1280x720

1280x768

1280x960

1280x1024

1360x768

1400x1050

1440x900

1600x1200

1920x1080

1920x1200

720x480

720x576

1280x720

1920x1080

1920x1080i

1920x1080

720x480i

720x576i

720x480

720x576

1280x720

1920x1080

1920x1080i

1688x1066

1728x1072

1792x795

1864x1089

1896x1099

1904x934

1936x942

1952x948

2160x1250

2080x1111

2080x1235

858x525

858x525

864x625

1664x748

1696x750

1696x751

1696x755

1664x798

1696x805

1712x809

1800x1000

1728x999

1728x1001

1728x1005

1728x1011

1688x1066

1728x1066

1728x1067

1980x750

1650x750

1650x750

2640x1125

2200x1125

2200x1125

2640x1125

2200x1125

2200x1125

858x525

858x525

864x625

858x525

858x525

864x625

1980x750

1650x750

1650x750

2640x1125

2200x1125

2200x1125

2640x1125

2200x1125

80.4

75.0

66.6

74.0

31.5

31.5

31.3

80.0

91.1

47.7

65.3

82.3

55.9

70.6

69.9

72.1

75.2

85.9

64.0

74.6

76.8

44.8

52.5

54.1

56.5

47.8

60.3

68.6

60.0

15.7

15.8

15.6

31.5

31.5

31.3

37.5

45.0

45.0

28.1

33.7

33.8

56.3

67.4

37.5

45.0

45.0

28.1

33.7

33.8

56.3

67.4

67.5

N

N

N

P

P

N

P

N

N

N

P

N

P

P

P

N

N

N

P

N

N

N

N

N

N

P

N

N

N

P

P

N

P

N

N

N

N

N

P

P

P

P

P

P

P

P

P

P

P

P

P

P

84.8

60.0

59.9

60.0

59.9

60.0

50.0

75.0

85.0

60.0

60.0

74.9

59.9

75.0

70.0

72.0

74.9

85.0

60.0

70.0

72.0

59.9

70.0

72.0

74.0

59.9

74.9

84.8

60.0

59.9

60.0

50.0

59.9

60.0

50.0

50.0

59.9

60.0

50.0

59.9

60.0

50.0

59.9

50.0

59.9

60.0

50.0

59.9

60.0

50.0

59.9

60.0

N

N

N

N

N

P

P

P

P

P

P

P

P

P

P

N

N

P

P

P

N

P

P

P

P

P

P

N

N

P

P

N

P

N

N

N

N

N

P

P

P

P

P

P

P

P

P

P

P

P

P

P

157.0

162.0

138.5

154.0

27.0

27.0

27.0

135.0

157.5

85.5

121.8

156.0

106.5

136.8

120.8

124.5

130.0

148.5

108.5

128.9

132.8

74.5

89.0

91.7

95.8

79.5

102.3

117.5

108.0

13.5

13.5

13.5

27.0

27.0

27.0

74.3

74.2

74.3

74.3

74.2

74.3

74.3

74.2

74.3

148.5

148.4

148.5

74.3

74.2

74.3

148.5

148.4

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

SOY

SOY

SOY

SOY

SOY

SOY

SOY

SOY

SOY

SOY

SOY

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

Sep.

1920x1080

THE

720x480i

2200x1125

858x525

858x525

67.5

15.7

15.8

P

N

N

60.0

59.9

60.0

P

N

N

148.5

AND

13.5

SOY

ACCESSORIES

SOY

720x576i 864x625 15.6

N 50.0

N 13.5

SOY

Size Support Mode

O : Size & Overscan can be configured, x : Size & Overscan cannot be configured, △: Size can be configured

Source Picture Size

Input Type Mode 16:9 Zoom1 Zoom2 4:3

HDMI

HD

1080p

1080i

720p

576p

480p

SD

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

HD

576i

480i

1080p

1080i

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

Component

Video &

S- Video

SD

SD

720p

576p

480p

576i

480i

576i

480i

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

PC

HD

SD

PC

1080p

1080i

720p

576p

480p

576i

480i

16:9 Mode

4:3 Mode

△ x x x x x x x x x x x x x x x x x x

Position Moving Support Mode

Overscan : Off

Input

HDMI

Source

Type

HD

SD

PC

HD

Mode

1080p

1080i

720p

576p

640 x 480p

720 x 480p

576i

480i

1280 x 1024/60

1024 x 768/60

800 x 600/60

720 x 400/70

640 x 350/70

1080p

1080i

720p

576p x

O x x x x x

O

O x x x x x

16:9 x x x x

O x x x x x

O

O x x x x x

4:3 x x x

Picture Position (H/V)

Zoom 1 Zoom 2

O

O

O

O

O

O

O

O

O

O

O

O

O

O x

O x x

O x x

O

O

O

O

O

O x

O x x

O x x

Component

THE

SD

480p

480i x x x x x x

O

O

O

O

O

O

AND

576i x x O O x x

Video &

SD x

S-Video

480i x x O O x x

O x x x x x

Wide fit

O

O

O x x x x

O

O x

Overscan : On

Input

Source

Type Mode 16:9 4:3

Picture Position (H/V)

Zoom 1 Zoom 2 Wide fit x x x x x x x x x x x x x

O x x

O

O x x

Wide fit

O

O

O x x

HDMI

Component

Video &

S- Video

PC

HD

SD

DVI

HD

SD

SD

HD

SD

PC

720p

576p

480p

576i

480i

576i

480i

1080p

1080i

720p

576p

480p

576i

480i

16:9 Mode

4:3 Mode

1080p

1080i

720p

576p

640 x 480p

720 x 480p

576i

480i

1280 x 1024/60

1024 x 768/60

800 x 600/60

720 x 400/70

640 x 350/70

1080p

1080i x x

O

O

O

O

O

O

O x x

O

O

O

O

O

O

O x x x x x x x x x x x x x x x

O

O

O

O

O

O

O x x

O

O

O

O

O

O

O x x x x x x x x x x x x x x x

O

O x x

O

O

O

O

O

O

O

O

O

O

O

O x x x x x

O

O

O

O

O

O

O

O x x

O

O x x

O

O

O

O

O

O

O

O

O

O

O

O x x x x x

O

O

O

O

O

O

O

O x x

O

O x x

O

O

O x x x x

O x x

O

O x x x x x x x x x

O

O

O x

| Basic Settings | Connecting the Power | Connecting to video equipment |

Installing the Projector

Install the projector so that the beam from the projector is perpendicular to the screen.

Place the projector so that the lens is at the center of the screen.

If the screen is not vertically installed, the picture on the screen may not be a rectangle.

Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be displayed clearly.

When installing the screen in a bright surrounding, use curtains.

You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling.

( To view the installation position settings )

To view the picture when installing the projector behind the screen,

Install a semi-transparent screen.

Select Menu > Setup > Install > Rear-Floor

To view the picture when installing the projector in the front of the screen,

Install the projector at the side where you are watching the screen.

Select Menu > Setup > Install > Front-Floor

Zoom and Focus Adjustment

Zoom Knob Focus Ring

You can adjust the size of image within zoom range by manipulating the

Zoom Knob.

Focus the picture on the screen using the Focus Ring.

If your product is installed at a location out of the specified projection distance (refer to Screen Size and Projection Distance ), the focus cannot be adjusted correctly.

Leveling with Adjustable Feet

For level placing of the projector, adjust the Adjustable Feet of the projector.

You may adjust the level of the projector up to 3 degrees.

Depending on the position of the projector, Keystone distortion of image may appear.

Adjusting the Lens Position Moving Dial

Move the picture projected on the screen up and down within the lens range by turning the Lens Shift Dial on the top side of the projector with your fingers.

THE AND

Screen Size and Projection Distance

Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.

Screen size

(M:inch)

80

90

100

110

40

50

60

70

120

130

140

150

200

210

220

230

160

170

180

190

240

250

300

Horizental

(X:mm)

886

1107

1328

1550

1771

1992

2214

2435

2657

2878

3099

3321

3542

3763

3985

4206

4428

4649

4870

5092

5313

5535

6641

Vertical(Y:mm) Min(Z:mm)

1992

2117

2241

2366

2491

2615

2740

2864

2989

3113

3736

996

1121

1245

1370

498

623

747

872

1494

1619

1743

1868

7934.3

8430.2

8926

9421.9

9917.8

10413.7

10909.6

11405.5

11901.4

12397.3

14876.7

1983.6

2479.5

2975.3

3471.2

3967.1

4463

4958.9

5454.8

5950.7

6446.6

6942.5

7438.4

Max(Z:mm)

6092.4

6473.2

6853.9

7234.7

7615.5

7996.3

8377

8757.8

9138.6

9519.3

11423.2

1523.1

1903.9

2284.6

2665.4

3046.2

3427

3807.7

4188.5

4569.3

4950.1

5330.8

5711.6

Offset (Y':mm)

249

262

274

286

199

212

224

237

299

311

374

100

112

125

137

50

62

75

87

149

162

174

187

This projector is designed to show images optimally on a 100 ~ 120 inch sized screen.

A. Screen

Z: Throw Distance

Y': Distance from Lens Center to Image Bottom

1.

Click the right mouse button on the Windows wallpaper and click on [Properties].

<Display Properties> tab will appear.

2.

Click on [Settings] tab and set the <Screen resolution> by referring to <Resolution> described in the display mode table supported by this projector.

You do not have to change <Color quality> setup.

3.

Press the [Advanced] button.

Another property window will appear.

4.

Click on [Monitor] tab and set the <Screen refresh rate> by referring to <Vertical Frequency> described in the display mode table supported by this projector.

Set up both the vertical and horizontal frequency instead of

<Screen refresh rate>.

5.

Click the [OK] button to close the window, and click the

[OK] button of the <Display Properties> window to close the window.

The computer might begin restart automatically.

6.

Shut down the PC and connect to the projector.

TRUSTED SOURCE FOR PROJECTOR LAMPS

Process might vary depending on the type of computers or Windows versions.

(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)

This appliance supports up to 32 bits per pixel in Color quality when it is used as a PC monitor.

Projected images may differ from the monitor depending on monitor manufacture or Windows versions.

If a belt is shown or an abnormal signal occurs on the projector when your PC is turned off or disconnected, switch

to “Video” mode using the [VIDEO] buttons or check whether your PC is connected correctly.

When connecting the projector to PC, check that PC setup complies to display settings supported by this projector.

If not, there may be signal problems.

| Basic Settings | Connecting the Power | Connecting to video equipment |

1. Rear of Projector

Plug the power cord into the power terminal on the rear side of the projector.

| Basic Settings | Connecting the Power | Connecting to video equipment |

Connecting to VCR/Camcorder/Cable Box

Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of video equipment using the video cable.

- If the video equipment has S-VIDEO OUT port, connect it to [S-VIDEO IN] input port of the projector.

Using the S-VIDEO connection, provides a higher visual quality.

When finishing connecting the devices, connect the power of the projector and the VCR.

Using the Projector

Turn on the projector and press the [Video] button to select <Video>.

Connect the projector and the video equipment via <S-Video> cable and press the [S-VIDEO] button to select S-Video.

When Composite Mode is not available, check the video cables are in place.

Check that the projector and the video equipment are turned off before connecting cables.

This projector does not support sound. (Separate audio system is needed for sound.)

Connecting to DVD

Connect the [COMPONENT IN 1 (Y/P

B

/ P

R

)] or [COMPONENT IN 2 (Y/P

B

/ P

R

)] input port at the back of the projector to the Component port at the back of the DVD with the component cable.

When the connection is finished, connect the power of your projector and DVD (or the device connected to the digital output terminal).

Using the Projector

Turn on the projector and press the [COMP1] button to select <Component 1>.

Press the [COMP2] button to select <Component 2> if [COMPONENT IN 2] is connected.

When Component Mode is not available, check that the component cables are in place.

Component Ports are marked as (Y/P

B

/P

R

), (Y, B-Y, R-Y) or (Y, Cb, Cr) depending on the manufacturer.

Connecting to the Digital TV Receiver

Connect antenna cable to antenna signal input terminal of the receiver.

Connect the COMPONENT 1 [COMPONENT IN 1 (Y/P

B

/ P

R

)] or [COMPONENT IN 2 (Y/P

B

/ P

R

)] input port at the back of the projector to the Component port at the back of the digital broadcast receiver with the component cable.

- If the digital broadcast receiver provides a PC output port, you can connect a digital broadcast receiver using the [PC

IN] input port of the projector.

When finish connecting the devices, connect the power of the projector and the DTV receiver.

Using the Projector

Turn on the projector and press the [COMP1] button to select <Component 1>.

When connecting the projector and digital broadcasting receiver using a D-SUB cable, select [PC] by pressing <PC> on the remote control.

Press the [COMP2] button to select <Component 2> if [COMPONENT IN 2] is connected.

When Component Mode is not available, check that the component cables are in place.

- If the receiver is connected to [PC] port, press the [PC] button to select respectively.

Component Ports are marked as (Y/P

B

/P

R

), (Y, B-Y, R-Y) or (Y, Cb, Cr) depending on the manufacturer.

Connecting to PC

Connect [PC IN] port on the rear side of the projector to the monitor output port of PC using PC video cable.

When connections are all completed, connect both power codes of the projector and the PC.

This product supports plug and play and therefore, if you use Window XP you do not need to setup the driver on your PC.

Using the Projector

Turn on the projector and press the [PC] button to select <PC>.

If PC Mode is not available, check PC video cable is in place.

Turn on the PC and set the PC Environment when necessary.

Adjust the screen.(

Auto Adjustment )

Sound comes out from PC speakers.

Connecting to HDMI/DVI

- Connecting using a HDMI/DVI cable

Connect the [HDMI 1/DVI IN] terminal on the back of the projector and the DVI output terminal of the digital output device using a HDMI/DVI cable.

- Connecting using a HDMI cable

Connect the [HDMI 1/DVI IN] or [HDMI IN 2] terminal on the back of the projector and the HDMI output terminal of the digital output device using a HDMI cable.

When the connection is finished, connect the power of your projector and DVD (or the device connected to the digital output terminal).

Using the Projector

Turn on the projector and press the [HDMI1] button to select <HDMI 1>.

Press the [HDMI2] button to select <HDMI 2> if [HDMI2] is connected.

If “HDMI” mode cannot be selected, check whether the HDMI cable is connected correctly.

| Input | Picture | Setup | Option |

* Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment

Source List

Edit Name

Description

You can select a device connected to the projector to display.

1) Component 1

2) Component 2

3) S-Video

4) Video

5) PC

6) HDMI 1

7) HDMI 2

You can edit the names of devices connected to the projector.

1) Component 1

2) Component 2

3) S-Video

4) Video

5) PC

6) HDMI 1

7) HDMI 2

Play/Stop

| Input | Picture | Setup | Option |

* Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment

Mode

Description

Select a screen state which is customized to your projector or change the screen mode as required.

1) Mode

- Dynamic

Select this if you want the screen quality to be clearer than standard screen quality.

- Standard

You can comfortably view the projection screen if the surrounding is somewhat bright.

- Movie1, Movie2

Select this if your surroundings are dark. This saves energy and reduces eye fatigue.

- User1, User2, User3

Select this if you want to view the screen in your customized screen mode.

2) Contrast : Used to adjust the contrast between the object and the background.

3) Brightness : Used to adjust brightness of the entire picture.

4) Sharpness : Used to adjust the outlines of the object sharper or less sharp.

▶ [PC] mode is not supported.

5) Color : Used to adjust color lighter or deeper.

6) Tint : Used to obtain more natural color of objects using Green or Red enhancement.

▶ You can only adjust Tint in [S-Video] and [Video] modes.

Play/Stop

Mode

Contrast

Brightness

Sharpness

Color

Tint

7) Color Temperature : You can change tint of the entire screen to suit your needs.

- 5500K : Used to deliver optimal image quality for black-and-white films. Color

THE

temperature of the picture mode of Movie2 is set to 5500K.

Movie1 when it is manufactured, and may deliver the most precise tint.

Temperature

- 8000K : The color temperature appropriate to quite bright places and saved in

Dynamic Picture Mode. The sharpness and brightness are emphasized.

- 9300K : The color temperature appropriate to very bright places such as a shop.

1) Color Temperature 5) R-Offset

R-Gain

G-Gain

B-Gain

R-Offset

G-Offset

B-Offset

2) R-Gain

3) G-Gain

4) B-Gain

6) G-Offset

7) B-Offset

Size

8) Gamma : An image compensation function that controls the settings according to the video properties.

- Film : Picture Adjustment Film gamma.

- Video : The Gamma mode normal that matches a TV screen.

- Graphic : The Gamma mode that matches a PC screen.

Gamma

9) DynamicBlack™ : Adjusts the brightness and contrast of the screen by adjusting the tightening thread in the optical system.

- Off : You can view the screen where the brightness is emphasized by opening the tightening thread fully.

- Light : The tightening thread is opened less than in the Off state and more than in the Middle and Deep states. The contrast is more emphasized than in the Off state.

- Middle : The tightening thread is opened less than in the Light state and more than in the Deep state. The brightness is more emphasized than in the Deep state.

- Deep : You can view the screen where the contrast is emphasized by closing the tightening thread fully.

- Auto : You can view a more dynamic screen as the input screens are adjusted automatically.

10) Save : Used to save custom picture settings.

Dynamic

Black™

Save

11) Reset : Restores the mode settings to the factory defaults.

Reset

You can select a screen size according to the type of scene.

▶ Refer to "Size Support Mode" .

1) 16 : 9

2) Zoom1

3) Zoom2

4) Wide Fit

5) 4 : 3

Position

Digital NR

Adjust the screen position if are not aligned.

▶ Refer to "Position Moving Support Mode" .

When a dotted line is displayed or the screen trembles, you can view picture in better visual quality by enabling Noise Reduction.

▶ You can only enable the Digital NR in [Video], [S-Video] and [Component 1, 2] modes.

Black Level Using the Black Level function, you can set the light level of the darkest portion of the video signal so that you can clearly see dark areas on the screen.

1) 0 IRE : Sets the light level of the darkest portion of the video signal to low. If the setting does not match the input signal, the dark screen looks milky-white.

2) 7.5 IRE : Sets the light level of the darkest portion of the video signal to high. If the setting does not match the input signal, the dark screen is saturated and may

TRUSTED SOURCE FOR PROJECTOR LAMPS

Color Pattern You can filter the color of the entire screen according to your taste.

1) Off : Shows the picture in the original color.

2) Monochrome : Shows the picture in black and white color by filtering out all color signals.

3) Red : Shows the picture in red by filtering out the green and blue color signals.

Overscan

1080P/24fps

Mode

Film Mode

4) Green : Shows the picture in green by filtering out the red and blue color signals.

5) Blue : Shows the picture in blue by filtering out the red and green color signals.

Using this function, you can cut the edge of the picture when unnecessary information, images or noise on the edge of the picture.

▶ Refer to "Size Support Mode" .

1) Off

2) On

This function displays the full [email protected] native HD signals which have 24 frames per second with minimal scene distortions, as in a movie. Though the difference is small, this function implements the highest screen quality.

▶ You can adjust 1080P/24 Frame mode in [HDMI 1] and [HDMI 2] modes only.

1) Off : Displays scenes where 24 frames are lengthened to 60 frames. Because of this process, irregular scenes may be generated.

2) On : Displays scenes where 24 frames are lengthened to 48 frames. All scenes are displayed regularly without any irregular scenes.

Using this function, you can set the display mode optimized for playing movies when watching a movie. Film Mode provides optimal display settings for movies.

▶ Film Mode is only supported for [Video], [S-Video] and [Component 1, 2](480i,576i).

1) Off

2) On

| Input | Picture | Setup | Option |

THE

Screen

Adjustment

Install

* Click the Play(

Description

)/Stop(

To support possible deficiencies in the installation location, you can invert the projected images vertically/horizontally.

1) Front-Floor : Normal Image

ACCESSORIES

Play/Stop

Light Setting

Test Pattern

PC

2) Front-Ceiling : Horizontally Reversed Image

3) Rear-Floor : Vertically Reversed Image

4) Rear-Ceiling : Horizontal/Vertical Reversed Image

Used to set the image brightness by adjusting the amount of light generated by the lamp.

1) Theater : Using this function, you can adjust the light level of the lamp so that you can comfortably watch pictures on the screen even when watching under dark conditions. It also lowers power consumption and extends the life of the lamp.

2) Bright : Used to enhance the brightness in relatively bright ambient light. Since this mode increases the light level of the lamp, you may experience more noise which is produced when the projector is cooled down.

Theater

Bright

Generated by the projector itself. Utilized as installation basis for installation of the projector.

1) Crosshatch : You can check whether the picture is distorted or not.

2) Screen Size : You can refer to picture format sizes such as 1.33 : 1 or 1.78 : 1.

3) Color Standard : You can view the difference by changing the Color Standard to

SMPTE_D/HD/EBU.

4) Red : Red Screen, only for color adjustment.

5) Green : Green Screen, only for color adjustment.

6) Blue : Blue Screen, only for color adjustment.

7) White : White Screen, only for color adjustment.

8) 6500K_White : White Screen, shows brightest white color possible.

▶ The Crosshatch and Screen Size patterns of this projector are provided by JKP (JK

Production).

▶ The Red/Green/Blue colors of the test patterns are only for the color adjustment procedures, and may not comply with the actual colors displayed during video playback.

Eliminates or reduces noise that causes unstable screen quality, such as screen trembling. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.

1) Auto Adjustment : Used to adjust frequency and phase of PC screen automatically.

2) Coarse : Used to adjust frequency when vertical lines appear on PC screen.

3) Fine : Used to fine tune the PC screen.

4) Zoom : Used to extend PC screen from the center.

5) Reset : Using this function, you can reset the PC menu settings to the factory default settings.

Only activated in the PC environment.

Crosshatch

Screen Size

Color

Standard

Red

Green

Blue

White

6500K_White

Auto

Adjustment

Coarse

Fine

Zoom

Reset

Color Standard You may adjust the color standard to suit the color standard of the input signal.

1) SMPTE_C : Standardized for Video Equipment by the Society of Motion Picture and Television Engineers

2) HD : High Definition, 1125 scan lines, standard definition TV submitted to the

ITU-R by U.S., Japan and Canada, in 1986.

3) EBU : Regulations and standards for European Broadcasting Production and

THE

Technology, standardized by the European Broadcasting Union.

Using this function, you can reset various settings to the factory default settings.

AND

| Input | Picture | Setup | Option |

* Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment language

Description

You can select the language used for the menu screen.

Play/Stop

Menu Position

Menu

Translucency

Menu Display

Time

You can move Menu Position to up/down/left/right.

You can set the translucency of menu.

1) Opaque

2) High

3) Medium

4) Low

You can set the display time of the menu.

1) 5 sec 5) 90 sec

2) 10 sec 6) 120 sec

3) 30 sec

4) 60 sec

7) Stay On

LED Indicator

THE

You can enable or disable the operating LED's on the product.

TRUSTED SOURCE FOR PROJECTOR LAMPS

1) Off : This mode disables the operating LED. However, the light will light up

AND

regardless of the LED setting when the power is turned on or off or when the projector is in an abnormal state.

2) On : This mode enables the operating LED so that it can display the current operating state of the projector.

Light Effect You can turn the LED indicators on your projector on or off according to your

Blue screen

Information requirements.

1) Off : LED will not come on.

2) In Standby : Turns the LED on in standby mode.

3) In Watching TV : Turns the LED on while watching TV.

4) Always : LED will come on after you turn the TV off.

Appears as an ellipse at the top at the back of your projector.

The Blue screen function causes the screen to change to the Blue screen if there is no signal input from the external device connected to your projector.

1) Off

2) On

You can check external source signals, picture setup, PC picture adjustment and lamp use time.

| Before Contacting Service Personnel |

Installation and Connection

Symptoms

No Power.

I want to install my projector to the ceiling.

External Source is not selected.

Troubleshooting z

Check the power cable connections. z

The ceiling installation support is sold separately. Contact your local product distributor. z

Be sure that the connection cable (video) is properly connected to the proper port. Unless they are connected properly, the device is not available.

Menu and Remote Control

Symptoms

Remote control does not work.

I cannot select a menu.

Screen and External Source

Symptoms

Cannot see picture images.

Poor color.

Images are not clear.

THE

Strange noise.

The operating LED is lit up.

Lines appear on screen.

No external device screen is displayed.

Troubleshooting z z z z z z

Be sure that the proper external source is selected.

Check the battery of your remote control. If its size is incorrect, replace it with the recommended battery size. Check whether the polarity of the installed battery is correct.

Check whether your remote control is at a right angle and at the correct distance. Remove any obstacles between your remote control and the product.

Direct lighting of 3-way light bulbs or other lighting device on the remote sensor of the projector may affect the sensitivity and cause the remote control to malfunction.

Check if the remote control battery is empty.

Check whether the LED indicator on the top of the projector is turned on. z

Check if the menu is displayed in gray. A gray-colored menu is unavailable.

Troubleshooting z z z z z

Be sure that the power cord of the projector is in place.

Be sure that the proper input source is selected.

Check that the connectors are properly connected to the ports at the back of the projector.

Check the Remote Control batteries.

Be sure that the <Color>, <Brightness> settings are not at their lower limit. z

Adjust the <Tint> and <Contrast>. z z z

Adjust the focus.

ACCESSORIES

If a strange sound continues, contact our service center .

AND

z

Refer to Corrective Actions According to LED Indications . z

Because noise may occur when using your PC, adjust the frequency of the screen. z

Check the operating status for the external device and check whether the

Only blue screen appears.

Screen appears in black and white or odd color./ screen is too dark or bright.

adjustment items, such as the Brightness and the Contrast have been changed correctly in the <Mode> command screen of the Projector menu. z

Be sure to properly connect the external devices. Check the connection cables again. z z

As mentioned above, check the adjustment items such as the Brightness,

Contrast and Color in the menu.

If you want to restore various settings to their factory defaults, run <Factory

Default>from the menu.

| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |

To clean the exterior and lens of the projector

Clean the projector using a soft dry cloth.

Do not clean the projector with flammable substances such as benzene, thinners or a wet cloth, as these may cause problems.

Do not touch the projector with a nail or any other sharp objects, as this may scratch the surface.

To clean the interior of the projector

For cleaning the interior of the projector, ask your

Service Center or a distributor. (Charged)

Contact your distributor or a Service Center if dust or other substances are inside the projector.

Lamp Replacement

Cautions on Lamp Replacement

The projector lamp is an expendable supply. For best operating performance, replace the lamp according to the usage time. You can view the lamp usage time in the Information Display (INFO button).

Use the recommended lamp when replacing. Lamp specifications are defined in the user’s manual. Replace with the same model provided with the projector.

- Lamp Model Name : LAMP-MERCVRY-Philips

- Lamp Manufacture : Philips Lighting

- Lamp Life Time : 2000Hrs

THE

Check that the power cord is unplugged before replacing lamps.

Even after the power cord has been disconnected, the lamp will be hot. Allow it to cool down for at least 1 hour before changing the lamp.

The lamp is located at the left rear of your projector.

Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface.

Do not leave the old lamp near inflammables or in reach of children. There is a danger of burn or injury.

Remove dirts or foreign materials around or inside the lamp unit using a proper vacuum device.

When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, it may affect the screen quality and shorten its lifetime.

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED

OR DISPOSED OF ACCORDING TO LOCAL STATE OR FEDERAL LAWS.

For details see lamprecycle. org, eiae.org, or call 1-800-Samsung

Lamp Replacement Procedure

The lamp is very hot and operates with a high voltage. Allow it to cool down for at least 1 hour after disconnecting the power cord before changing the lamp.

The lamp is located at the left rear of your projector. Place your projector so that its left side is visible and then remove the screws on the lamp cover.

* Be careful your projector does not fall.

Open the cover by holding down

(A) in the figure and pulling (B).

Remove the screws (A) in the figure and then hold and open

(B).

Remove the screws as shown in the figure.

As shown in the figure, lift up the lamp handles holding them and pull the lamp.

Assembling a new lamp is in the reverse order of the disassembly.

| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |

If you have any questions or comments relating to Samsung products, please contact a SAMSUNG customer care center.

North America

CANADA

MEXICO

1-800-SAMSUNG (726-7864)

01-800-SAMSUNG (726-7864) http://www.samsung.com/ca http://www.samsung.com/mx

Latin America

ARGENTINE

BRAZIL

CHILE

COLOMBIA

COSTA RICA

ECUADOR

EL SALVADOR

GUATEMALA

JAMAICA

PANAMA

PUERTO RICO

REP. DOMINICA

TRINIDAD & TOBAGO

VENEZUELA

AUSTRIA

BELGIUM

CZECH REPUBLIC

DENMARK

FINLAND

FRANCE

GERMANY

HUNGARY

ITALIA

LUXEMBURG

NETHERLANDS

NORWAY

POLAND

PORTUGAL

REPUBLIC OF IRELAND

THE

SPAIN

SWEDEN

SWITZERLAND

U.K

0800-333-3733

0800-124-421

4004-0000

800-SAMSUNG(726-7864)

01-8000112112

0-800-507-7267

1-800-10-7267

800-6225

1-800-299-0013

1-800-234-7267

800-7267

1-800-682-3180

1-800-751-2676

1-800-SAMSUNG(726-7864)

0-800-100-5303

Europe

0800-SAMSUNG(726-7864)

0032 (0)2 201 24 18

844 000 844 http://www.samsung.com/ar http://www.samsung.com/br http://www.samsung.com/cl http://www.samsung.com.co

http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/at http://www.samsung.com/be http://www.samsung.com/cz

70 70 19 70

030-6227 515

3260 SAMSUNG(726-7864)

08 25 08 65 65( € 0,15/Min)

01805-SAMSUNG(726-7864) (

€ 0,14/Min)

06-80-SAMSUNG (726-7864)

800-SAMSUNG (726-7864)

0035 (0)2 261 03 710

0900 SAMSUNG(726-7864) ( € 0,10/Min)

815-56 480

0 801 801 881

022-607-93-33

80 8 200 128 http://www.samsung.com/dk http://www.samsung.com/fi http://www.samsung.com/fr http://www.samsung.com/de http://www.samsung.com/hu http://www.samsung.com/it http://www.samsung.com/be http://www.samsung.com/nl http://www.samsung.com/no http://www.samsung.com/pl http://www.samsung.com/pt

0818 717 100

0800-SAMSUNG (726-7864) http://www.samsung.com/ie

AND

902 10 11 30 http://www.samsung.com/es

0771-400 200

0800-SAMSUNG(726-7864)

0870-SAMSUNG (726-7864) http://www.samsung.com/se http://www.samsung.com/ch http://www.samsung.com/uk

ESTONIA

LATVIA

LITHUANIA

KAZAKHSTAN

KYRGYZSTAN

RUSSIA

UKRAINE

UZBEKISTAN

800-7267

800-7267

8-800-77777

8-10-800-500-55-500

00-800-500-55-500

8-800-555-55-55

8-800-502-0000

8-800-120-0-400

CIS http://www.samsung.ee

http://www.samsung.com/lv http://www.samsung.lt

http://www.samsung.kz

http://www.samsung.ru

http://www.samsung.ua

http://www.samsung.uz

AUSTRALIA

CHINA

HONG KONG

INDIA

INDONESIA

JAPAN

MALAYSIA

NEW ZEALAND

PHILIPPINES

SINGAPORE

THAILAND

TAIWAN

VIETNAM

Asia Pacific

1300 362 603

800-810-5858

010-6475 1880

3698-4698

3030 8282

1800 110011

0800-112-8888

0120-327-527

1800-88-9999

0800SAMSUNG (726-7864)

1800-10-SAMSUNG (726-7864)

1800-SAMSUNG (726-7864)

1800-29-3232

02-689-3232

0800-329-999

1 800 588 889 http://www.samsung.com/au http://www.samsung.com.cn

http://www.samsung.com/hk http://www.samsung.com/in http://www.samsung.com/id http://www.samsung.com/jp http://www.samsung.com/my http://www.samsung.com/nz http://www.samsung.com/ph http://www.samsung.com/sg http://www.samsung.com/th http://www.samsung.com/tw http://www.samsung.com/vn

SOUTH AFRICA

TURKEY

Middle East & Africa

0860-SAMSUNG (726-7864)

444 77 11 http://www.samsung.com/za http://www.samsung.com/tr

U.A.E

800-SAMSUNG (726-7864)

8000-4726 http://www.samsung.com/mea

THE

| Other | Authority |

Glossary

Analog Broadcast

An existing broadcasting signal transmitted by a broadcasting station in accordance with the NTSC standard.

ANTENNA IN Port

This is the port for connecting a TV aerial using a coaxial cable. It is generally used to watch public broadcast programs.

AV Receiver

An AV Receiver provides a number of input and output interfaces for audio and video so as to enable the user to connect and use various input and output devices.

Backlight Remote Control

The buttons on the Backlight Remote Control are lit up so that users can easily press buttons on the remote control even when it is dark.

Black Level

Black Level sets the light level of the darkest portion of the video signal to match that of the display's black level capability so that users can clearly view dark visuals. If the setting does not match the input signal, the dark screen is saturated and may not display properly or the dark screen looks milky-white.

Cable Broadcast

Cable Broadcast broadcasts programs via cable instead of radio waves. To view cable broadcasts, you have to subscribe to your local cable broadcast service provider and install an additional receiver.

Color Standard

A pre-determined default color standard determined by the broadcasting standard of the corresponding country or area.

Color Temperature

Color temperature is a simplified way to characterize the spectral properties of a light source. A low color temperature implies a warmer (more yellow/red) light while a high color temperature implies a colder (more blue) light.

COMPOSITE IN Port

A COMPOSITE IN Port is a general video input port (yellow). Both chrominance and luminance are transmitted on the same 75-ohm cable.

Component Port (Green, Blue, Red)

The Component Port separately transmits the luminance signal and provides the best quality among all video connection types.

Digital Broadcast

Digital Broadcast is a television broadcasting signal digitized and transmitted according to the United States terrestrial digital broadcast specifications, or ATSC.

DVD (Digital Versatile Disc)

DVD is a large capacity media disk that can save multimedia content such as video, games, audio applications, etc. using MPEG-2 video compression technology on a CD size disc.

DLP (Digital Light Processing)

DLP is a digital display technology using a DMD panel developed by TI (Texas Instruments) of the United States.

DLP HD2, DC2, DC3

This is a grade of DMD panel.

DMD (Digital Micromirror Device)

A DMD panel is an implementation of DLP technology. It consists of microscopic mirrors where each mirror represents a pixel.

External Input

External Input is connecting video devices such as a VCR, camcorder, DTV receiver, DVD, etc. to the projector as a video source.

Gamma Mode

TRUSTED SOURCE FOR PROJECTOR LAMPS

so that the video signal can be clearly displayed on a digital display device.

AND

Overscan

Overscan cuts the edge of the picture when there is unnecessary information, images or noise at the edge of the picture. For extremely poor video signals, some unnecessary video signals may be displayed on the screen.

RS-232C Port (Service Input Port)

This port is provided for service purposes. This port provides data communication in accordance with the RS-232C

communication standard.

S-Video IN Port

This is called super video. S-Video is a type of video signal which has the video brightness and color signal separated in order to provide a better image quality.

Satellite Broadcast

Satellite Broadcast broadcasts programs via satellite so that the program can be viewed in all area in a high visual and sound quality. Approximately 100 channels including public broadcast channels are provided. To view satellite broadcasts, you have to install an additional receiver.

5x Speed, 6 Segment Color Wheel

This is an optical part that decomposes white rays

| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |

Information in this document is subject to change without notice. ⓒ 2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This user manual is provided as a free service by FixYourDLP.com. FixYourDLP is in no way responsible for the content of this manual, nor do we guarantee its accuracy. FixYourDLP does not make any claim of copyright and all copyrights remain the property of their respective owners.

About FixYourDLP.com

FixYourDLP.com (http://www.fixyourdlp.com) is the World’s #1 resource for media product news, reviews, do-it-yourself guides, and manuals.

Informational Blog: http://www.fixyourdlp.com

Video Guides: http://www.fixyourdlp.com/guides

User Forums: http://www.fixyourdlp.com/forum

FixYourDLP’s Fight Against Counterfeit Lamps: http://www.fixyourdlp.com/counterfeits

RecycleYourLamp.org – Free lamp recycling services for used lamps: http://www.recycleyourlamp.org

Lamp Research - The trusted 3rd party lamp research company: http://www.lampresearch.com

Discount-Merchant.com – The worlds largest lamp distributor: http://www.discount-merchant.com

Sponsored by

D M

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
