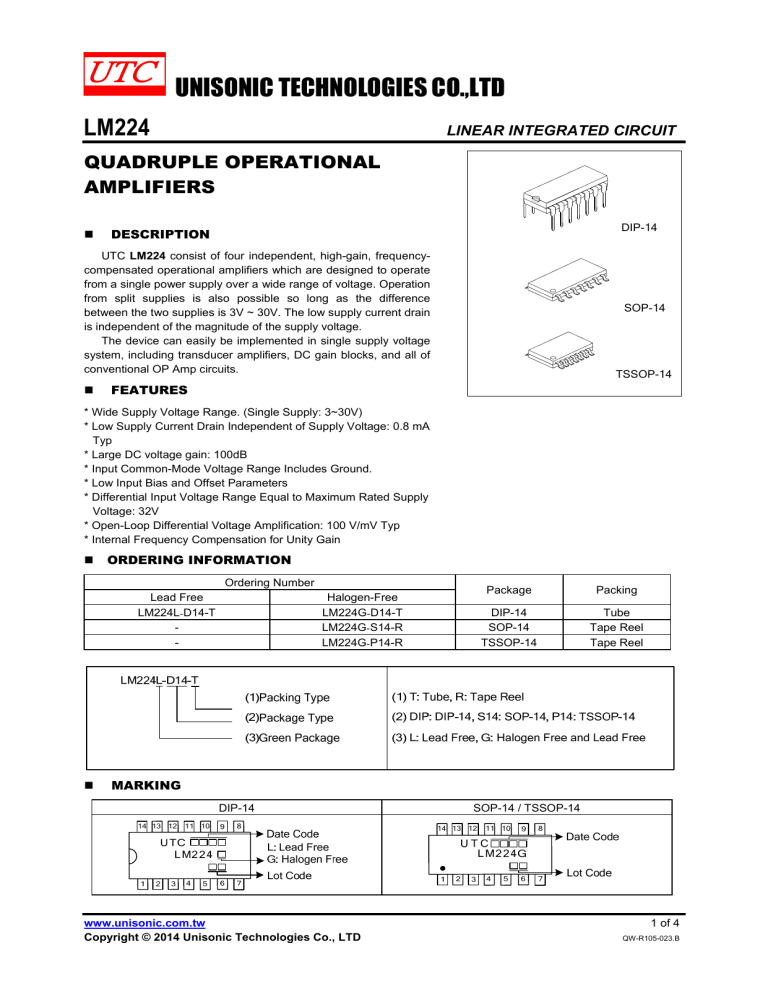

UNISONIC TECHNOLOGIES CO.,LTD
LM224
LINEAR INTEGRATED CIRCUIT
QUADRUPLE OPERATIONAL
AMPLIFIERS

DIP-14
DESCRIPTION
UTC LM224 consist of four independent, high-gain, frequencycompensated operational amplifiers which are designed to operate
from a single power supply over a wide range of voltage. Operation
from split supplies is also possible so long as the difference
between the two supplies is 3V ~ 30V. The low supply current drain
is independent of the magnitude of the supply voltage.
The device can easily be implemented in single supply voltage
system, including transducer amplifiers, DC gain blocks, and all of
conventional OP Amp circuits.

SOP-14
TSSOP-14
FEATURES
* Wide Supply Voltage Range. (Single Supply: 3~30V)
* Low Supply Current Drain Independent of Supply Voltage: 0.8 mA
Typ
* Large DC voltage gain: 100dB
* Input Common-Mode Voltage Range Includes Ground.
* Low Input Bias and Offset Parameters
* Differential Input Voltage Range Equal to Maximum Rated Supply
Voltage: 32V
* Open-Loop Differential Voltage Amplification: 100 V/mV Typ
* Internal Frequency Compensation for Unity Gain

ORDERING INFORMATION
Ordering Number
Lead Free
LM224L-D14-T
-

Halogen-Free
LM224G-D14-T
LM224G-S14-R
LM224G-P14-R
Package
Packing
DIP-14
SOP-14
TSSOP-14
Tube
Tape Reel
Tape Reel
MARKING
DIP-14
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., LTD
SOP-14 / TSSOP-14
1 of 4
QW-R105-023.B
LM224

LINEAR INTEGRATED CIRCUIT
PIN CONFIGURATION
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R105-023.B
LM224
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage (Note 1)
VCC
32
V
Differential Input voltage (Note 2)
VI(DIFF)
± 32
V
Input Voltage
VIN
-0.3 ~ +32
V
Output Short Circuit (one amplifier) to Ground
Continuous
(TA ≤25°C, VCC ≤15V) (Note 3)
Power Dissipation(TA=25°C)
PD
900
mW
TOPR
Operation Temperature (Note 4)
-25 ~ +85
°C
Storage Temperature
TSTG
-40 ~ +150
°C
Notes: 1. All voltage values(except differential voltages and VCC specified for the measurement of IIN(OS) are with
respect to the network GND.
2. Differential voltages are at IN+ with respect to IN-.
3. Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
4. The device is guaranteed to meet performance specification within 0°C ~70°C operating temperature
range and assured by design from –25°C ~+85°C.

THERMAL DATA
PARAMETER
SYMBOL
Thermal Resistance Junction-Ambient

SOP-14
DIP-14
TSSOP-14
θJA
RATINGS
86
80
113
UNIT
°C/W
ELECTRICAL CHARACTERISTICS (VCC=5V, unless otherwise specified, VCC=30V for testing only.)
PARAMETER
SYMBOL TA (°C)
25
Input Offset Voltage
VIN(OS)
-25~85
25
Input Offset Current
IIN(OS)
-25~85
25
Input Bias Current
IB
-25~85
25
Input Common-mode Voltage
VICR
Range
-25~85
25
High
VOH
Output Voltage Level
-25~85
Low
Large Signal Current Gain
VOL
GV
Common-mode Rejection Ratio CMRR
Supply Voltage Rejection Ratio
SVR
(∆VCC/∆VIO)
Crosstalk Attenuation
VO1/VO2
Output Current
IOUT
TEST CONDITIONS*
VCC=5V to 30V,
VIC=VICR(min), VOUT=1.4V
VOUT=1.4V
VOUT=1.4V
VCC=5V to 30V
RL=2kΩ
VCC=30V, RL=2kΩ
VCC=30V, RL≥10kΩ
-25~85 RL ≤ 10kΩ
25
VCC=15V, VOUT=1V ~ 11V
-25~85 RL≥2kΩ
25
VIC=VICR(min)
25
25
25
-25~85
25
-25~85
25
25
MIN
0~(VCC-1.5)
0~(VCC-2)
VCC-1.5
26
27
50
25
70
65
f =1kHz ~ 20 kHz
VCC=15V, VID=1V, VOUT=0
VCC=15V, VID=-1V, VOUT=15V
UNIT
mV
nA
nA
V
V
28
5
100
20
mV
V/mV
80
dB
100
dB
120
-30
dB
20
-60
mA
30
µA
± 40 ± 60 mA
0.7 1.2
Supply Current (four amplifiers)
ICC
mA
1.4
3
Note: All characteristics are measured under open-loop conditions with zero common-mode input voltage.
Short-circuit Output Current
IOS
VID=-1V, VOUT=200mV
VCC=5V, VOUT=0, GND at -5V
VOUT=2.5V, RL=∞
-25~85
VCC=30V, VOUT=0.5VCC, RL=∞
-20
-10
10
5
12
TYP MAX
3
5
7
2
30
100
-20 -150
-300
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R105-023.B
LM224

LINEAR INTEGRATED CIRCUIT
SCHEMATIC DIAGRAM(One Section Only)
VCC
~
~ 6-μA
Current
Regulator
~ 6-μA
Current
Regulator
~ 100-μA
Current
Regulator
OUT
ININ+
~ 50-μA
Current
Regulator
GND
To Other
Amplifiers
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
