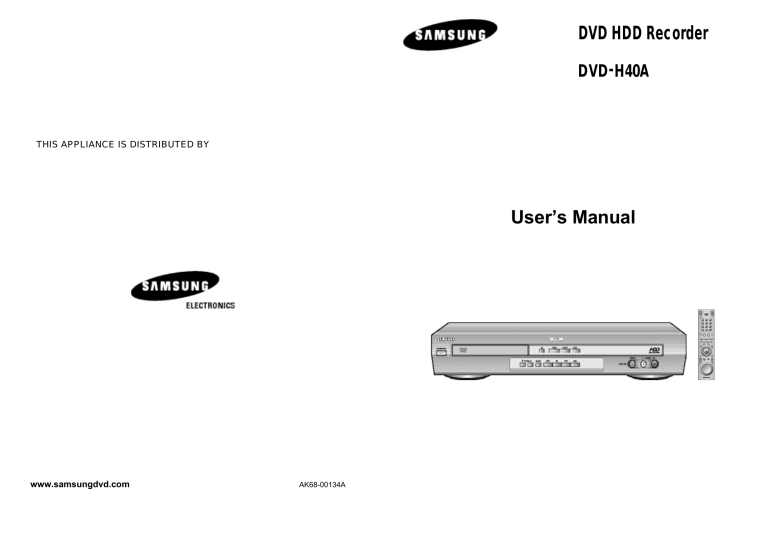

THIS APPLIANCE IS DISTRIBUTED BY

DVD HDD Recorder

DVD-H40A

User’s Manual

www.samsungdvd.com

AK68-00134A

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE REAR COVER. NO USER

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN

OPEN AND INTERLOCKS DEFEATED,

AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION:

TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

Safety Instructions

The following illustrations represent precautions.

The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.

DO NOT OPEN THE

DHR.

Refer to service personnel.

Do NOT expose the D H R t o extreme temperature conditions (below 5°C and above

40°C) or to extreme humidity conditions (less than 10% and more than 75%).

Do NOT expose the D H R t o direct sunlight.

Do NOT expose the D H R t o any liquids.

Do NOT place any objects on the D H R or remote control.

During a storm and/or lightning, unplug the D H R from the mains jack and aerial.

If the remote control is not used for a long period of time, remove the batteries and store it in a cool, dry place.

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL

ENVIRONMENTS

2 3

Key features of DVD-H40A

1. Digital Video Recording.

2. Recorded Program List.

3. Highlight Play.

4. Editing Recorded Video.

5. DVD, CD, VCD, MP3, Photo CD Play.

6. Digital Audio Juke Box.

7. Family Photo Album.

8. Connection with DVC, VCR or STB.

1. Digital Video Recording

“ Instant recording ” of TV program by pushing one button.

Unlike VCR, it provides consumer to record TV program instantly by touching record button on the remote.

“ Live TV Pause ” guarantees consumer not to miss a single

TV scene.

This function allows consumer who is watching TV program to work on other stuffs without missing a single scene.

“ High Quality Video recording ” from TV DVD (VCD), DVC and

STB to HDD.

It supports 3 video recording modes at the different bit rates such as SQ (2Mbps / 40h), HQ (4Mbps / 20h) and SHQ (6Mbps / 13 hours). It can be stored up to 500 Clips.

“ Live TV Control ” allows you to go back in time axes and experience what you missed on the live TV broadcasting.

Simply press the Pause button ( II ) when you leave and when you return, DVD-H40 will instantly replay what you missed while you were away.

Key features of DVD-H40A

(cont.)

2. Recorded Program List

• If customer record the video program, “ Program List ” will be generated automatically for easy understanding of the recorded program.

• This program list includes “Title Name”, “Date” and “Length”. Title name can be changed by the

“Title Insert Function”.

Thumbnail picture of the first clip will be displayed.

Every necessary keys for operating the current menu screen are also arranged in this bottom area with icons and instructions.

3. Highlight Play

• At the program list, if you push “ P – List ” button on the remote, you can preview the highlight of selected video program like as you can see in the start part of the movie for introducing the next coming movie.

Playback for 5 sec

Jump Repeat highlight playback

4. Editing the Recorded Video Program

• Samsung DVD-H40 will offer the fun to generate his own video program by himself.

• User can combine 2 or more video programs as a one video program.

shows the selected file information

4 5

Key features of DVD-H40A

(cont.)

Key features of DVD-H40A

(cont.)

4. Editing the Recorded Video Program

• DVD-H40 can divide selected video program as 2 or more programs.

< start position >

1. Pressing enter button, then division will start

2. Color will be changed.

(White -> Blue)

< end position >

1. Pressing enter button, then division will start

2. Color will be changed.

(Blue->White)

3. Create sub-picture

1. playing picture ( I frame )

2. FPS, RPS, pause keys can be used divided

File

Current position

White bar

File length

• DVD-H40 can delete unnecessary video programs.

• Even partial deletion of selected video program is possible.

Selected file enter key, then display pop-up menu for delete option

6. Digital Audio Jukebox

“Juke box” enables consumer to enjoy thousands of music in HDD without replacing Audio CD every time.

DVD-H40 allows MP3 music from CD to be downloaded into HDD as many as consumer wants.

( Max. capacity of HDD for MP3 : 10GB)

Indicates selected file

• If user include his/her favorite photos in the same music folder, then user can enjoy the music slide show also.

5. DVD, CD, VCD, MP3, Photo CD Play

• DVD-H40 can play many kinds of discs like as DVD, Audio CD, Video CD, MP3 (CD-R/RW), Photo CD

(Kodak), CD-G, etc.

• At the edit mode, user can generate his/her own music folder like as “CLASSIC”, “JAZZ”, “POP SONG” and so on.

6 7

Key features of DVD-H40A

(cont.)

7. Family Photo Album

Enjoy JPEG Images from CD or HDD with easy & user friendly GUI.

Up to 10,000 JPEG images (Standard file size 100kbyte) can be saved and edited in HDD.

It supports Kodak Photo CD format.

Page indicates number of pages of thumbnails

8 Thumbnails per page

Navigate between thumbnails using remote control directional buttons

Limited to 20 string

Selected photo is highlighted for enlargement.

“Enter” on remote control enlarges photo to full screen

Date show when the selected photo was taken

“Viewing Individual Photo”

Key features of DVD-H40A

(cont.)

Editing function enables you to select, clear, delete, move or rename your favorite images or photo

and make your own directory.

Indicates selected file

User can easily select the photos what he wants to copy from CD to HDD at the below GUI screen.

Indicates selected file

“Slide Show”

Pushed “enter” key, then pop-up menu will be display.

After delay time setting, started slide show.

8

Time setting range

3 sec ~ 10 sec

8. Connection to DVC or DSC

Connecting DSC or DVC through A/V Input port enables to enjoy and edit those video programs simply through TV screen.

Store /Edit in HDD

Image from

DVC or DSC

Enjoy through TV

9

Contents

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corpration and other rights owners. Use of this copyright protection technology must by authorized by Macrovision Corporized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

INTRODUCTION

Disc Type and Characteristics

MP3 Play (CD-R MP3 disc requirements)

Front View of the DHR(DVD HDD Recorder)

Rear View of the DHR(DVD HDD Recorder)

Display Indicators

Accessaries

Infrared Remote Control

Inserting Batteries in the Remote Control

Deciding How to Connect DHR(DVD HDD Recorder)

Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable

Connecting DHR(DVD HDD Recorder) to the TV using the RCA Cable

Connecting Other Equipment to Your DHR

Using the TV Button on the Remote Control

Basic Connections/Auto Setup

DVD/HDD View

Basic DVD Playback

Basic TV Tuner Operations

Playing a Disc

19

19

20

21

15

16

17

18

22

23

23

24

25

12

13

14

14

15

SET-UP

Change set language

Set the TV channel

Set the clock

Set the time-shift buffering time

Set the output audio options

Set the display options

HDD Format

29

30

31

32

27

28

29

10

Contents

(cont.)

SETUP DHR(DVD HDD Recorder)

Digital Recorder

Watch the recorded program in HDD

Set the parental lock

Change the lock password

Edit the recorded program in HDD(Combine)

Edit the recorded program in HDD(Divide)

Edit the recorded program in HDD(Delete)

Edit the recorded program in HDD(Partial Delete)

Record TV program(Timer program setting)

Recording Television Broadcast

Record TV program (One Touch Recording)

DVD player

Disc Copy

Preset of DVD language

Set the parental lock

Change the lock password

Using the Disc/Title Menu

3D Sound Function

Selecting the Audio Language

Selecting the Subtitle Language

Using the Display Function

Special Playback Features

A-B Repeat

Using the Zoom (DVD/VCD)

Changing the Camera Angle

Using the Bookmark Function (DVD/VCD)

Juke Box

View the MP3 file list in HDD/CD

Edit the MP3 file in HDD

Copy MP3 file from CD to HDD

Photo Album

View the JPEG file list in HDD/CD

Edit the JPEG file in HDD

Copy JPEG file from CD to HDD

OTHERS

Technical Specifications

Problems and Solutions

34

35

36

37

38

39

40

41

42

43

49

50

50

51

52

53

54

54

55

45

46

47

48

49

57

58

59

61

62

63

64

65

11

Disc Type and Characteristics

This

DHR

player is capable of playing the following types of discs with the corresponding logos :

Disc Types

(Logos)

DVD

Recording

Types

Audio

+

Video

Disc Size

12 Cm

8 Cm

Max.

Playing

Time(files)

Single-sided

240 min.

Double-sided

480 min.

Single-sided

80 min.

Double-sided

160 min.

Characteristics

• DVD contains excellent s o u n d and video due to Dolby Digital and MPEG-2 system.

• Various screen and audio functions can be easily selected through the on-screen menu.

VIDEO-CD

12 Cm

74 min.

Audio

+

Video

• Video with CD sound, VHS quality & MPEG-1 compression technology.

8 Cm

20 min.

AUDIO-CD

CD-R

CD-RW

Audio

Audio

+

Video

Audio

+

Video

* Discs which cannot be played with this player:

DVD-ROM

DVD-RAM

CD-ROM

CDI

CDV

HD layer of super Audio CD

CDGs play audio only, not graphics.

12 Cm

8 Cm

12 Cm

8 Cm

12 Cm

8 Cm

74 min.

20 min.

• An LP is recorded as an analog signal with more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

W A V: 74min

M P 3: about 150

JPG: up to file size

W A V: 20min

M P 3: about 60

JPG: up to file size

W A V: 74min

M P 3: about 150

JPG: up to file size

W A V: 20min

M P 3: about 60

JPG: up to file size

• Permanent data storage

- cannot be erased or over written.

• Storing music, images, photos.

• Record and rewrite up to 1000 times and can be read indefinitely

* Ability to play back may depend on recording conditions:

DVD-R, +R

DVD+RW, -RW

CD-RW

Photo CD : JPG file

12

MP3 Play (CD-R MP3 disc re q u i re m e n t s )

When playing CD-R/RW discs, please follow the recommendations below:

• Your MP3 files should be ISO 9660 or JOLIET format.

ISO 9660 format and JOLIET MP3 files are compatible with Microsoft's DOS and Windows, and with

Apple's Mac. These two formats are the most widely used.

• When naming your MP3 files do not exceed 15 characters, and place ".mp3" as the file extension.

General name format of: Title.mp3. When composing your title, make sure that you use 15 characters or less.

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.

Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with sampling rates below 128 Kbps will not be played properly.

• Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media T M (registered trade mark of Microsoft Inc) and SDMI T M (registered trade mark of The SDMI Foundation). You cannot copy such files.

Disc Markings

~

• Playback Region Number

Both the DHR player and the discs are coded by region.

These regional codes must match in order for the disc to play. If the codes do not match, the disk will not be played.

The Region Number for this player is described on the rear panel of the player.

PAL

• PAL colour system in U.K, France, Germany, Australia, etc.

N T S C

• NTSC broadcast system in USA,

Canada, Japan, South Korea, etc.

• Dolby Digital disc

STEREO

• Stereo disc

DIGITAL

SOUND

• Digital Audio disc

• DTS disc

13

Front View of the DHR(DVD HDD Recorder)

STANDBY/ON

BUTTON

DVD DECK

OPEN/CLOSE

BUTTON

COPY BUTTON

DVD SELECT

BUTTON

HDD SELECT

BUTTON

FRONT PANEL

DISPLAY

CHANNEL BUTTONS

RECORD

BUTTON

STOP

BUTTON

F.F /SKIP NEXT

BUTTON

PLAY/PAUSE

BUTTON

REW /SKIP BACK

BUTTON

AUDIO L, R

INPUT2 JACK

VIDEO

INPUT2 JACK

Rear View of the DHR(DVD HDD Recorder)

RF ANTENNA

INPUT

AUDIO IN1

JACK

VIDEO IN1

JACK

AUDIO L, R

INJACKS

COMPONENT

VIDEO OUT JACKS

S-VIDEO IN

JACK

DIGITAL AUDIO OUT

JACK (OPTICAL)

DIGITAL AUDIO OUT

JACK (COAXIAL)

14

RF OUT TO

TV

VIDEO OUT1

JACK

AUDIO OUT1

JACKS

S-VIDEO OUT

JACK

VIDEO OUT2

JACK

AUDIO L, R OUT2

JACKS

Display Indicators

1 2 3 4 5 6 7 8

9 11 13 14

10 12

14 15 16

1

DVD Deck mode indicator

2

Disc type indicator

3

JPEG file indicator

4

MP3 file indicator

5

The time, current position, time remaining or current status is displayed

6

A Timer Recording is programmed or in progress.

7

STEREO indicator

8

HDD mode indicator

9

DVD disc is active

10 3D Sound is active

11 A DVD with a DTS soundtrack is loaded

12 LPCM type indicator

13 Dolby digital indicator

14 NICAM is active

15 Recording Quality indicator

16 HDD is active

Accessaries

You have just purchased a SAMSUNG

DHR

.

Together with your

DHR

, you will find the following accessaries in the box.

REMOTE CONTROL

& BATTERIES

AUDIO & VIDEO

CABLE

USER’S

MANUAL

S-VIDEO CABLE COAXIAL CABLE

15

Infrared Remote Control

1

STANDBY/ON button

2

ZOOM/TV MUTE button

3

0~9 button

4

3D button

5

VOLUME +/ - button

6

INPUT SELECT button

7

DVD button

8

REVERSE PICTURE SEARCH/SKIP

PREVIOUS button

9

STOP button

10 MENU button

11 CLEAR button

12 ENTER/DIRECTION button

13 RECORD button

14 TITLE/SPEED button

15 DISC MENU button

16 SUBTITLE/TIMER button

17 OPEN/CLOSE button

18 TV/DHR button (not used)

19 REPEAT A-B button

20 PROGRAM button

21 TEXT button

22 TV button

23 HDD button

24 FORWARD PICTURE SEARCH/

SKIP NEXT button

25 PLAY/PAUSE button

26 DISPLAY button

27 PLAY LIST button

28 RETURN button

29 MARK button

30 ANGLE button

31 AUDIO button

32 JOG/SHUTTLE

3

13

14

15

16

7

8

9

10

11

12

4

5

6

1

2

16

17

18

28

29

30

31

32

19

20

21

22

23

24

25

26

27

Inserting Batteries in the Remote Control

You must insert or replace the batteries in the remote control when you:

Purchase the

DHR

Find that the remote control is no longer working correctly

1

Push the tab in the direction of the arrow to release the battery compartment cover on the rear of the remote control.

2

Insert two AA, R6 or equivalent batteries, taking care to respect the polarities:

+ on the battery with + on the remote control

– on the battery with – on the remote control

3

Replace the cover by aligning it with the base of the remote control and pushing it back into place.

Do not mix different battery types (manganese and alkaline for example).

17

Deciding How to Connect DHR(DVD HDD Recorder)

You must take into account various factors when connecting audio or video systems:

Types of connectors available on your systems

Systems connected permanently to the

(camcorder for example)

DHR

(satellite receiver for example) or temporarily

Your

DHR

is equipped with the following connectors.

Connector

LINE

Location Type

Rear/Front Audio/Video RCA

Direction

In/Out

Recommended Use

Television

Other VCR/DVD

Satellite receiver

AUDIO input Rear Audio RCA In

Audio In for S-VIDEO

COMPONENT output

Rear RCA Out

COMPONENT out

S-VIDEO input/output

Rear

Digital AUDIO output

Rear

S-JACK In/Out

S-Video in/out

Optical coaxial

Out

Digital Audio out

OUT TO TV Rear 75

Coaxial

Out

Television

IN FROM ANT.

Rear 75

Coaxial

In

Aerial

Cable television network

Satellite receiver

Whenever you connect an audio or video system to your

DHR

, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment for detailed connection instructions and associated safety precautions.

Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable

To receive television programs a signal must be received from one of the following sources:

An outdoor aerial

An indoor aerial

A cable television network

A satellite receiver

Make sure that both the television and the

DHR

are switched off before connecting the cables.

1

Remove the aerial or network input cable from the television.

2

Connect this cable to the 75

coaxial socket marked IN (PROM

ANT.) on the rear of your DHR.

3

Plug the coaxial cable supplied into the socket marked OUT (TO TV) on your DHR.

4

Plug the other end of the coaxial cable into the connector previously used for the aerial on the television.

5

To obtain better quality pictures and sound on your television, you can also connect your DHR to the television via the RCA cable

(see section below) if your television is equipped with this type of connection.

TV

4

2

Connecting DHR(DVD HDD Recorder) to the TV using the RCA Cable

3

Aerial

TV

3

2

RF coaxial cable

You can connect your

DHR

to the television using the RCA cable if the appropriate input is available on the television. You thus:

Obtain better quality sound and pictures

Simplify the setting up procedure of your

DHR

◆ Regardless of the type of connection chosen, you must always connect the coaxial cable supplied. Otherwise, no picture will be visible on the screen when the

DHR

is switched off.

Make sure that both the television and the

D H R

are switched o f f before connecting the cables.

1

Connect the coaxial cable as indicated in the above section.

2

Connect one end of the RCA Audio/Video cable to the Video output and Audio L, R output socket on the rear of the DHR.

3

Plug the other end into the appropriate connector on the television.

19 18

Connecting Other Equipment to Your DHR

You can connect other audio and/or video equipment to your

DHR

in different ways.

The following illustrations give a few examples of the connection possibilities.

The RCA input/output connectors on the rear of the

DHR

are used for equipment, such as camcorders, VCRs or sound systems.

Camcorder

REAR OF THE DHR

VCR/DVD

Sound system

Using the TV Button on the Remote Control

Your

DHR

remote control will work with Samsung televisions and compatible brands.

To determine whether your television is compatible, follow the instructions below.

1

Switch your television on.

2

Point the remote control towards the television.

3

Hold down the TV button and enter the two-figure code corresponding to the brand of your television, by pressing the appropriate numeric buttons.

Brand Codes

SAMSUNG

AKAI

GRUNDIG

LOEWE

01 to 06

09, 23

09, 17, 21

02

PANASONIC 08, 23 to 27

Brand Codes

PHILIPS

SABA

02, 20, 22

13, 14, 22 to 24

SONY 15, 16

THOMSON 13, 14, 24

TOSHIBA 07, 16 to 19, 21

• If your television is compatible with the remote control, it will be switched off. It is now programmed to operate with the remote control.

If several codes are indicated for your television brand, try each one in turn until you find one that works.

When you change the batteries in the remote control, you must reprogram the code, following the same procedure.

You can control the television using the following buttons.

Button Function

STANDBY/ON

INPUT SEL.

Used to switch the television on and off.

Used to select an external source.

VOL. + or Used to adjust the volume of the television.

PROG. Up or Down Used to select the required channel.

TV MUTE Used to toggle the sound on and off.

The various functions will not necessarily work on all televisions. If you encounter problems, operate the television directly.

3

20 21

Basic Connections/Auto Setup

from antenna or cable

2

To TV’s

Antenna Input

1

3

In this section, you will connect the

DHR

to your television and run

Auto Setup, which automatically searches for channels and sets the player’s internal clock.

1

Connect the RF antenna cable from your indoor/outdoor antenna or cable wall outlet to the IN(FROM ANT.) jack on the rear panel of the

DHR

.

2

Choose one of the following methods to connect the

DHR to your TV:

RF Connection:

Connect the supplied RF antenna cable from the OUT(TO TV) jack on the rear panel of the

D H R

to your television’s Antenna Input.

Line Connection:

Connect an RCA-type audio/video cable(red, white, yellow) from the LINE OUT jacks on the rear panel of the

D H R

to your television’s

Line In jacks.

Use red for right audio, white for left audio, and yellow for video.

It is recommended that you use the Line Connection if your TV is equipped with RCA jacks.

3

Connect the

DHR power cord to a standard 220~240V/50Hz wall outlet. Then power is automatically turned on.

• Don’t press any buttons on the DHR or remote during auto setup.

“AUTO” blinks while the DHR runs an auto setup procedure, where it will automatically search for all active channels.

4

Press the STANDBY/ON button on your TV.

5

Set TV to Channel 21~69 or AV.

Be sure to use the same channel you selected.

Even if you plan to use the S-Video Output, you MUST connect the

DHR

to your television with either the standard RF or the AV Out connection.

This enables you to operate the

DHR

setup menu.

DVD/HDD View

The

DHR

uses one set of controls to operate DVD & HDD. The following buttons are helpful in successfully controlling each one.

1

Press the STANDBY/ON button on the remote control or the front panel to turn on the

DHR

.

2

Press the DVD button on the remote control or on the front panel when you want to control the DVD deck.

• The DVD indicator will light on the Front Panel Display to show that the DVD deck is selected.

3

Press again the HDD button on the remote control or on the front panel when you want to control the HDD.

• The HDD indicator will light on the Front Panel Display to show that the HDD is selected.

DVD INITIAL SCREEN

LOADING

HDD INITIAL SCREEN

LINE1

1

2

3

Basic DVD Playback

Follow these instructions to playback a DVD.

1

Open disc drawer.

• Press the Open/Close button on the remote control or front panel.

2

Insert disc.

• Place the disc in the drawer with the label side of the disc facing up. If the disc has two sides, orient the disc with the desired label facing up.

3

Close disc drawer.

• Press the Open/Close button on the remote control or front panel to close the disc drawer.

4

Press the II(Play/Pause) button on the remote control or front panel.

• Many discs will begin playback automatically when the disc drawer closes.

• If the DVD has a disc menu, or more than one title, the disc menu may appear.

5

Additional DVD options.

• See pages 44~55.

4

3

1

22 23

24

Basic TV Tuner Operations

1

1

Press the PROG. buttons.

• Press to change to the next or previous channel.

2

Press the 0~9 buttons.

• Press to select channels directly.

3

Press the DISPLAY button.

• Display the channel’s information you are watching.

When you press the TV/DHR button, you will be taken directly to the screen of the AV device connected to the LINE2.

2

Playing a Disc

1

Press the OPEN/CLOSE button.

• The STANDBY indicator light is on and the tray opens.

2

Place a disc gently into the tray with the disc’s label facing up.

3

Press the PLAY/PAUSE button to start play.

• When a conventional Audio CD (CDDA) is inserted, it is automatically played back as the File List is displayed on the screen. For MP3 or Photo CDs, a desired file must be selected for playback once the File List is displayed on the screen.

4

Press the STOP button to stop play.

When you stop disc play, the player remembers where you stopped, so when you press PLAY again, it will pick up where you left off (unless the disc is removed, the STOP button is pressed twice or the player is unplugged.). This function works only when playing DVD video.

To listen to the next song, press and briefly hold down the Forward

( )

button.

If there are more than 8 files on the disc, press the

Previous or Next button to view additional pages in units of 8 contiguous files.

3

1

4

3

25

Set-Up

You can setup about special functions of

DHR

.

Change set language

You can select set language.

see page 27

Set the TV channel

You can set air/cable TV channel in manual or automatically.

see page 28

Set the clock

You can adjust clock on front panel display.

see page 29

Set the time-shift buffering time

You can select buffer time for time shift feature

see page 29

Set the output audio option

You can select audio option depends on audio system you have.

see page 30

Set the display option

You can select display option fit to your taste.

see page 31

HDD Format

You can erase all data or change system format in HDD.

see page 32

Turn the power off and on again when the DHR works abnormal by sudden power off, plug off or not supported files, broken files in HDD.

– Abnormal working case : no key input except Standby/On button, flickering display panel.

– Supported files in DHR : MP3, JPG.

Change set language

You can select set language.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Language using buttons, then press the ENTER or buttons.

4

Select language you want to change using buttons, then press the ENTER or buttons.

• Set language would be changed to selected language.

Set-Up

26 27

28

Set the TV channel

Set-Up

You can set air/cable TV channel in manual or automatically.

Also you can add or remove channels.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Channel using buttons, then press the ENTER or buttons.

4

See below submenu setup.

Select mode using buttons, then press the ENTER or buttons.

Auto Set-up

• The DHR will automatically search for all available channels in the selected Tuner Band.

This procedure may take a few minutes to complete.

• When finished, the lowest channel found will be displayed.

Manual Set-up

• Search & setup individual channel option in manual

• Set channels using

ENTER button to save.

or 0~9 buttons, then press the

Set the clock

You can adjust present time and see it thru front panel display.

To use timer recording, you have to set the clock.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Clock Setting using buttons, then press the ENTER or buttons.

4

Adjust present time using

ENTER button.

buttons, then press the

Set-Up

Output CH

• Select output channel to TV tuner. (21 ~ 69CH)

• Set out channel to TV using buttons, then press the

ENTER button.

• Make sure connect RF coaxial cable between DHR and TV.

TV System

• Select system to TV out

• Set TV system using buttons, then press the ENTER button.

Set the time-shift buffering time

You never miss live TV programs.

DHR

memorizes live TV programs for 30 min up to 2 hours.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Buffer Time using buttons, then press the ENTER or buttons.

4

Select hours using buttons, then press the ENTER or buttons.

• Over the selected buffer time, erased from starting scene of buffer.

•The shorter buffer time will be helpful to save HDD’s recording space

•The default buffer time is 1 hour.

Press the Return button to move to the start buffered position.

It can be taken a few seconds when the buffer time is changed.

Set-Up

29

Set the output audio options

Set-Up

You can optimize audio status depends on your audio system.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Audio Options using buttons, then press the

ENTER or buttons.

4

See below audio output setup. Select mode using b u t t o n s , then press the ENTER or buttons.

Dolby D-out

• PCM : Converts to PCM(2CH) audio. Select PCM when using the analog audio outputs.

• Dolby Digital : Converts to Dolby Digital Bitstream(5.1CH).

Select Bitstream when using the digital audio output.

• Be sure to select the correct digital output or no audio will be heard.

MPEG 2 D-out

• This feature supports only disc encoding to MPEG Audio.

• PCM : Converts to PCM(2CH) audio. Select PCM when using the analog audio outputs.

• MPEG 2 : Converts to Dolby Digital Bitstream(5.1CH).

Select Bitstream when using the digital audio output.

DTS

• Off : Does not output digital signal.

• On : Outputs DTS bitstream via digital output only.

Select DTS when connecting to a DTS Decoder.

D-Compression

• This feature compresses the dynamic range (quietest sound to loudest sound) of a disc’s soundtrack. For example, action scenes might be loud, while whispered dialog is quiet. The Dynamic Compression feature evens out the range of the volume by making loud sounds quieter and soft sounds louder.

• Off : To select normal dynamic range.

• On : To select compressed dynamic range.

Set the display options

You can adjust TV display status.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select Display Options using buttons, then press the ENTER or buttons.

4

Select option to change using or buttons, then press the

ENTER.

Set-Up

Aspect ratio

• 4:3 PS (Pan-Scan) : Select this for conventional size

TVs when you want to see the central portion of the

16:9 screen.(Extreme left and right side of movie picture will be cut off.)

• 4:3 LB (Letter Box) : Select when you want to see total

16:9 ratio screen DVD supplies, even though you have a TV with 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

• 16:9 Wide :You can view the full 16:9 picture on your widescreen TV.

OSD Message

• On : Displays playing status icon or message on screen.

• Off : Not displays playing status icon or message on screen.

Front Display

• On : Turn on display panel all the time.

• Off : Turn off display panel all the time.

Video Out

• COMPONENT

• S-Video

Color System

• PAL : Make sure select PAL when you watch

PAL program.

• SECAM : Make sure sulect SECAM when you watch SECAM program.

30 31

HDD Format

Set-Up

You can erase all data in HDD.

1

Press the MENU button.

2

Select Set-Up using buttons, then press the ENTER or buttons.

3

Select HDD Format using buttons, then press the ENTER or buttons.

4

Select Format option using buttons, then press the ENTER button.

• Option 1 : 40Hours recording (SQ Standard)

250 MP3 Songs Store (128Kbps, 4min Standard)

10,000 JPG Images Store

• Option 2 : 30Hours recording (SQ Standard)

2500 MP3 Songs Store (128Kbps, 4min Standard)

10,000 JPG Images Store

5

Select Yes, then press the ENTER button.

• Some options you already setup can be initialized.

6

The power will be turned off automatically after formatting the

HDD.

Digital Recorder

It has a 40Giga Byte large quantity HDD(Hard Disk Drive).

So you can edit saved programs and record in digital format(MPEG2).

Watch the recorded program in HDD

It shows you recorded program list.

see page 34

Set the parental lock

You can lock adult or violent programs for children.

see page 35~36

Edit the recorded program in HDD

You can combine, divide, delete or partial delete saved programs.

see page 37~40

Record TV program

You can record TV programs by timer recording function.

see page 41~43

Turn the power off and on again when the DHR works abnormal by sudden power off, plug off or not supported files, broken files in HDD.

– Abnormal working case : no key input except Standby/On button, flickering display panel.

– Supported files in DHR : MP3, JPG.

32 33

34

Watch the recorded program in HDD

Digital Recorder

It shows recorded data and you can make it play.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Program List , then press the ENTER or buttons.

4

Select program to see using buttons, then press the ENTER b u t t o n.

• The Selected program starts to play, then go back to the Program list after end of playback.

• Press the Stop button during playback, then go back to the Program list .

Highlight play

Select program, then press the P-LIST button. The selected program will be played for 5 seconds in every 5 minutes length.

5

Press Text button to change title.

Press the RETURN button to go back to the previous menu.

Press the MENU button to close menu mode.

Press the P-LIST button to see program list in direct digest mode. (See the key-Feature part page 5)

Virtual keyboard

• Select character using button.

buttons, then press the ENTER

• Move cursor to the bottom right corner, then select OK and press the ENTER or RETURN button to save.

Set the parental lock

It prevents children from watching adult or violent programs.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Parental Lock using buttons, then press the ENTER or buttons.

4

Enter a 4-digit password using the 0-9 buttons on the remote control.

• Write your password down, and keep it in safe place in case you need it to change your setting later.

• Initial password is set as 1111 .

5

Select Lock Setting, then press the ENTER button.

6

Select programs to lock using buttons, then press or button.

• Lock icon is displayed.

• The locked program is not displayed in Program list .

• You must release the locked program first to watch it again.

7

Press Return or Menu button to save lock setting.

Press the RETURN button to go back to the previous menu.

Press the MENU button to close menu mode.

This password is for HDD only and is different from the

DVD password setting.

See the page 65 when you forget the password.

Digital Recorder

• This is the picture that appears in the program list when the

TEXT key is pressed.

35

36

Change the lock password

Digital Recorder

You can change password in Parental Lock menu.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Parental Lock using buttons, then press the ENTER or buttons.

4

Enter a 4-digit password using the 0-9 buttons on remote control.

• Write your password down, and keep it in a safe place in case you need it to change your setting later.

5

Select Change Password using

ENTER or buttons.

buttons, then press the

6

Enter new 4-digit password using the 0-9 buttons on the remote control.

7

Enter the new password again to confirm.

If you press RETURN button, then change password procedure is cancelled.

Edit the recorded program in HDD(Combine)

You can combine several programs to one, so play programs continuously.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Edit using buttons, then press the ENTER or buttons.

4

Select Combine, then press the ENTER or buttons.

5

Select a program to combine using buttons, then press the ENTER button.

• Selected programs are displayed at below window.

• Up to 6 programs can be selected.

• The same program can not be selected.

6

Select Execute using button.

7

Press the ENTER button.

• If you would like to combine selected programs, select

Yes

and press the ENTER button.

• Selected programs combine to one program.

• The combined program’s initial name is “New”.

If you would like to cancel the Combine, select

N o u s i n g buttons and press the ENTER button.

If you would like to erase the selected scene, press clear button, then the last selected scene will be erased

Only final combined file is saved & displayed in program list.

The original files will be erased.

Original file

A

B C

After combine

A

B C

Live TV control will be stopped at the Edit mode.

The combine operation cannot be performed between files whose recording qualities (SQ, HQ, or SHQ) are not the same.

The program can be broken or erased in case of sudden power off or plug off during Edit mode (Combine, divide, delete, partial delete) using.

Digital Recorder

37

Edit the recorded program in HDD(Divide)

Digital Recorder

White : Unselected part

Blue : Selected part

Red : Current playback position

You can divide a program to several parts and save.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Edit using buttons, then press the ENTER or buttons.

4

Select Divide using buttons, then press the ENTER or buttons.

5

Select a program to divide using buttons, then press the ENTER button.

• Selected program is played and playback progress bar is displayed at below.

6

Search parts you want to divide using (REW), (FF), ll (Play/Pause) buttons.

7

Press the ENTER button at start & end position to divide.

• Press ll (Play/Pause) button to search in normal speed.

• Press (REW), (FF) buttons to search in fast.

• Press ll (Play/Pause) button at start or end position, then press the ENTER button in pause mode.

• The selected part would be changed from white to blue color, and the first scene of part is displayed at bottom.

8

You can divide a program to several parts by repeat step 7.

• Up to 6 parts can be selected.

• The divided program’s initial name is “New”.

After divided, A’. B. C file will be saved and displayed in

Program list.

A’ means a program combined with the remainder except selected parts in original file.

The file name of A’ is assigned to the original file name(the name of program A), B and C are placed its name as “New”, r e s p e c t i v e l y .

Original file

A

Divide to parts

A

B A

After divided, New A’, B, C files will be existed

C A

Live TV control will be stopped at the Edit mode.

The program can be broken or erased in case of sudden power off or plug off during Edit mode (Combine, divide, delete, partial delete) using.

Make sure select the END point before move down to the

Execute.

38

Edit the recorded program in HDD(Delete)

You can delete recorded programs.

This is used to delete unwanted files to free up more space.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Edit using buttons, then press the ENTER or b u t t o n s .

4

Select Delete using buttons, then press the ENTER or buttons.

5

Select a program to delete using buttons, then press the

ENTER or buttons.

6

Select

Yes to delete the program using buttons.

7

Selected program is deleted.

Press the RETURN button to go back to the previous menu.

Press the MENU button to close menu scene.

Live TV control will be stopped at the Edit mode.

The program can be broken or erased in case of sudden power off or plug off during Edit mode (Combine, divide, delete, partial delete) using.

Digital Recorder

39

Edit the recorded program in HDD(Partial Delete)

Digital Recorder

You can delete parts you want to skip like commercial.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Edit using buttons, then press the ENTER or buttons.

4

Select Partial Delete using buttons, then press the

ENTER or buttons.

5

Select a program to delete using buttons, then press the ENTER or buttons.

6

Search parts you want to delete using (REW), (FF), ll ( P l a y

/Pause) buttons.

7

Press the ENTER button at start & end position to delete.

• The selected part would be changed from white to blue color, and the first scene of blue part is displayed at bottom.

8

You can delete part of program by repeat step 7.

• Up to 6 parts can be selected.

Original file

A

Delete parts

A

B A

C A

After delete

A

Live TV control will be stopped at the Edit mode.

The program can be broken or erased in case of sudden power off or plug off during Edit mode (Combine, divide, delete, partial delete) using.

Make sure select the END point before move down to the

Execute.

White : Unselected part

Blue : Selected part

Red : Current playback position

Record TV program(Timer program setting)

Digital Recorder

You can record TV programs in the HDD.

Make sure present time is set.

1

Press the MENU button.

2

Select Digital Recorder, then press the ENTER or buttons.

3

Select Recording using buttons, then press the ENTER or buttons.

4

Select Timer Recording, then press the ENTER button.

• If clock was not set, then the popup menu is displayed. Set the present time using buttons, then it goes back to Timer recoding menu automatically.

5

ENTER specific data to record using buttons.

• Press the ENTER button to change or enter data.

• Press clear button to delete programmed schedule.

6

Turn off the power after finishing the timer recording.

See to page 42 to select recording quality(Speed).

If the current time is set, you can directly move the Timer

Program mode by pressing the TIMER button on the remote control.

40 41

4

1

Recording Television Broadcast

Digital Recorder

3

You can save watching TV program or DVD title in HDD.

1

Press the REC button to save current watching TV program or DVD title.

2

REC mark is displayed on the screen.

• Recording contents will be saved automatically.

You can check saved programs in program list.

3

Press the

(STOP) button to finish recording.

4

Press Speed button to adjust recording quality.

The higher quality is needed more space in HDD.

• Change the recording quality before recording.

After starting record, you can not change quality.

SQ : Standard Quality (2Mbps/40Hr)

HQ : High Quality (4Mbps/20Hr)

SHQ : Super High Quality (6Mbps/13Hr)

Record TV program (One Touch Recording)

Digital Recorder

Your DHR stops automatically after the requested length of time.

1

Switch on the television.

2

To monitor the programme being recorded, select the television channel reserved for use with your DHR

(or the LINE input if used).

3

Select:

• The station to be recorded using the PROG ( or ) buttons or

• The LINE1, LINE2 source using the INPUT SEL. button for a satellite tuner or external video source

Result: The channel number is displayed and the programme can be seen on the television.

4

Hold the REC button (

) down for a while to start recording.

Result: The record mark appears on the television screen.

5

Press the REC button (

) several times to increase the recording time:

• From 30 min. to 8 hours

6

If you wish to cancel the recording before the end, press

STANDBY/ON.

3

4

3

3

42 43

44

DVD player

You can setup DVD title's language and rate.

Disc Language

You can select DVD title's menu language.

see page 46

Audio Language

You can select DVD title's audio language.

see page 46

Subtitle

You can select DVD title's subtitle language.

see page 46

Parental Lock

You can lock adult or violent DVD titles for children.

see page 47~48

The language change functions support only to multi-language menu included DVD titles.

Turn the power off and on again when the DHR works abnormal by sudden power off, plug off or not supported files, broken files in HDD.

– Abnormal working case : no key input except Standby/On button, flickering display panel.

– Supported files in DHR : MP3, JPG.

Disc Copy

You can copy DVD title to HDD.

Copy protected DVD titles will not be copied.

1

Insert DVD title to copy and change to DVD mode using

DVD button on the remote control or on the front panel.

2

Press the Copy button on the front panel or the REC button on the remote control.

3

Press the

(STOP) button to finish copy.

After end of copy, “program”(file name) is created automatically.

Copy protected titles can not be copied.

After 2 hours and 30 minutes copying, it stops automatically.

DVD player

2

2

45

46

Preset of DVD language

DVD player

You can select language of DVD title's menu, audio, subtitle.

1

Press the MENU button.

2

Select DVD Player using buttons, then press the ENTER or buttons.

3

Select submenu you want to change using buttons, then press the ENTER or buttons.

Set the parental lock

You can adjust DVD title's rating for children.

1

Press the MENU button.

2

Select DVD Player using buttons, then press the ENTER or buttons.

3

Select Parental Lock using buttons, then press the ENTER or buttons.

4

Enter a 4-digit password using the 0-9 buttons on remote control, then press the ENTER button.

• Write your password down, and keep it in safe place in case you need it to change your setting later.

5

Select Lock setting using buttons, then press the ENTER or buttons.

6

Adjust rate using buttons, then press the ENTER button.

• If you adjust rating up to 6 level, upper 7, 8 level titles are not played.

• The higher level is the closer to adult or violent titles.

DVD player

Disc language

DVD title's menu language selection.

Audio language

DVD title's audio language selection.

Sub-Title

DVD title's subtitle language selection.

4

Select language using buttons, then press the ENTER button.

Press the RETURN button to go back the previous menu.

Press the MENU button to close menu scene.

This function supports only to DVD title's included r a t i n g information.

This password is for DVD only and is different from the HDD password setting.

See the page 65 when you forget the password.

47

48

Change the lock password

DVD player

You can change password in Parental Lock menu.

1

Press the MENU button.

2

Select DVD Player, then press the ENTER or buttons.

3

Select Parental Lock using buttons, then press the ENTER button.

4

Enter a 4-digit password using the 0-9 buttons on remote control.

• Write your password down, and keep it in a safe place in case you need it to change your setting later.

5

Select Change Password using buttons, then press the

ENTER or buttons.

6

Enter new 4-digit password using the 0-9 buttons on the remote control.

7

Enter the new password again to confirm.

If you press RETURN button, then change password procedure is cancelled.

This password is for DVD only and is different from the HDD password setting.

Using the Disc/Title Menu

Many DVDs feature their own menu system, where you can select

Titles, Chapters, Audio Tracks, Subtitles, and special disc features, such as movie trailers, and information on the cast. Use these buttons to make selections in the Disc menus.

1

Press the DISC MENU button to access DVD's disc menu.

• Move to DVD's disc menu.

2

Press the TITLE button to access DVD's title menu.

• Move to DVD's title menu.

DVD player

2

1

3D Sound Function

3D Audio is an enhanced audio mode that creates the illusion of

Surround Sound with only two speakers.

1

During playback of a Disc, press the 3D button on the remote control.

2

Press the 3D button to set 3D SOUND On/Off.

DVD player

1

49

DVD

VCD/CD

Selecting the Audio Language

DVD player

1

You can select a desired language quickly and easily with the AUDIO button.

1

Press the AUDIO button.

2

Select the desired language on DVD using b u t t o n s .

3

Select audio output mode(Stereo, Right, Left) on VCD/CD using buttons.

• This function depends on what languages are encoded on the disc and may not work with all DVDs.

• How to have the same audio language comes up whenever you play DVD titles ; See “Disc Language/Audio Language

/Sub-Title” on page 46.

Selecting the Subtitle Language

1

DVD player

You can select a desired subtitle quickly and easily with the subtitle button.

1

Press the SUBTITLE button.

2

Select the desired subtitle language using buttons.

3

Select subtitle On/Off using buttons.

• This function depends on what languages are encoded on the disc and may not work with all DVDs.

• How to make the same audio language comes up whenever you play DVD titles ;See “Disc Language/Audio

Language/Sub-Title" on page 46.

* If DVD titles have own languages, default disc’s language comes out.

Using the Display Function

You check DVD title's status or select options.

1

Press the Display button during DVD playing.

2

Select submenu to change using buttons, then change option using buttons.

• If you would like to save changes or escape menu, press the Return or Display buttons again.

• The display submenu can be changed if you use VCD using.

Title

Display current playback title's status and move to a title

Chapter

Display current playback chapter's status and move to a chapter

Time

Display current playback time

Enter time using 0~9 buttons to more the scene, then press the ENTER button.

Audio

Display current audio language and change another

Subtitle

Display current subtitle language and change another

Angle

Change scene angles

This function supports only multi-angle scene included DVD titles.

Repeat

Repeat title or chapter

DVD player

1

2

50 51

Special Playback Features

DVD player

During DVD/CD playback you can select from the following special playback options. To resume normal playback, press the

ll

(PLAY/PAUSE) button.

Pause

Press the ll (PLAY/PAUSE) button on the remote control during playback.

• The picture will Pause and the audio will mute.

• To resume playback, press the ll (PLAY/PAUSE) button.

• If the player is left in Pause mode for 5 minutes, it will play automatically.

Frame Search (Step)

While in Pause mode, roll the jog on the remote control to forward/backward one frame at a time.

• Audio is muted during Frame search mode.

• Press ll (PLAY/PAUSE) to resume normal playback.

Forward/Backward Chapter Search

While a CD or DVD disc is in Play mode, press and hold the Skip

Forward/Backward ( / ) buttons on the remote control or front panel to jump forward and backward through disc chapters/tracks.

• Skip Forward will jump to the next chapter/track.

• Skip Back will jump to the beginning of the current chapter/track.

• Press the Skip Back button again to jump to the beginning of the previous c h a p t e r / t r a c k .

Forward/Backward Picture Search

While a disc is in Play mode, press and the Forward/Backward ( / ) buttons on the remote control or front panel to visually search forward/backward at 2X - 4X - 8X - 16X - 32X - 64X - 128X speed.

Press ll (PLAY/PAUSE) button to resume normal speed.

Slow Motion

During playback, press the ll (PLAY/PAUSE) button to Pause the image.

Then use the Search Forward ( ) to play in slow motion at variable speeds.

• Each press increases the slow motion speed playback to 1/8, 1/4 or 1/2 of normal speed.

• Audio is muted during slow motion playback.

• Press the ll (PLAY/PAUSE) button to resume normal playback.

Stop/Resume

• Press the ■ (Stop) button ONCE to stop playback. Press

ll(PLAY/PAUSE) button to resume the current stop position.

• Press the ■ (Stop) button TWICE to completely stop playback.

The next time you press the ll(PLAY/PAUSE) button, the disc will start from the beginning.

A-B Repeat

The A-B Repeat function allows you to repeat any segment of a

DVD or CD. Simply mark the beginning point (A) and the ending point (B) of the segment you want to review.

1

Press the REPEAT A-B button at starting position.

•“A” will be selected when A-B repeat is selected.

“B” will be selected after pressing the REPEAT A-B button.

2

Repeat from "A" to "B".

3

Press the REPEAT A-B button again to cancel A-B repeat.

DVD player

1

52 53

1

Using the Zoom (DVD/VCD)

DVD player

Zooms the scene to see more specific.

1

Press the Zoom button during playback or Pause mode.

2

Select part of screen to zoom using press the ENTER button.

• DVD : Normal/1.5X/2X/4X

• VCD : Normal/1.5X/2X/4X

buttons, then

3

Press the ENTER button.

• During DVD play : press ENTER to zoom in1.5X/2X/4X/2X/1.5X/

Normal in order.

• During VCD play, press ENTER to zoom in 1.5X/2X/1.5X/Normal in order.

Using the Bookmark Function (DVD/VCD)

DVD player

The Bookmark function lets you select parts of a DVD or VCD

(MENU OFF mode) so that you can quickly find the section at a later time.

1

Press the Mark button during playback.

2

Mark desired scene using the Enter button.

• You can mark up to 3 scenes.

3

Press the Mark button again to turn off menu.

4

Press the Mark button to recall marked scenes, then select a scene(1, 2, or 3) using , ll buttons.

• The marked scene will be played.

5

Delete Mark Number Select a mark number to delete using buttons, then press the Clear button.

When in VCD 2.0 mode(Menu On mode), this f u n c t i o n does not work.

The Bookmark function may not work depends on d i s c .

1

Changing the Camera Angle

1

DVD player

When a DVD contains multiple angles of a particular scene, you can use the Angle function.

Press the ANGLE button to see if an ANGLE ( ) mark is present at the upper right hand corner of the screen.

1

Press the Angle button when an angle icon is shown at the upper right hand corner, then angle selection icon will be appeared at the upper left hand corner.

2

Select desired screen angle using buttons.

3

To turn off the display, press the ANGLE button again.

54 55

56

Juke Box

You can play MP3 files in HDD.

You also make your own play-list or edit MP3 files easily.

View the MP3 file list in HDD

You can display saved MP3 files list in HDD and play.

see page 57

Edit the MP3 file in HDD

You can move, copy, save, or delete files and also change file name in HDD.

see page 58

View the MP3 file list in CD

You can display MP3 files list in CD and play.

see page 57

Copy MP3 file from CD to HDD

You can copy MP3 files from CD to HDD.

see page 59

Turn the power off and on again when the DHR works abnormal by sudden power off, plug off or not supported files, broken files in HDD.

– Abnormal working case : no key input except Standby/On button, flickering display panel.

– Supported files in DHR : MP3, JPG.

View the MP3 file list in HDD/CD

You can display files on screen and play.

• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of

HDD PlayList.

1

Press the MENU button.

2

Select Juke Box using buttons, then press the ENTER or buttons.

3

Select HDD Playlist using buttons, then press the ENTER or buttons.

4

Select Folder or file using buttons, then press the ENTER button.

• Press the ENTER button again to cancel file selection.

If you select folder, then it shows you included files in folder.

5

Press the P-LIST button.

• The selected files are displayed in selected order and play the first file.

• All files in the folder are selected when you press the P-LIST button after selecting a folder.

6

Select Repeat All using buttons, then press the ENTER button.

• The selected MP3 files will be played continuously.

Select Slide Show using buttons, then press the ENTER button.

• The JPEG files will be displayed as a slide show during MP3 playing if JPEG files are in the same folder.

• Press the DISPLAY button to make full screen slideshow.

Press

button to Stop or to select other file.

Juke Box

57

Edit the MP3 file in HDD

Juke Box

You can move, save, or delete files and also change file name in

HDD.

1

Press the MENU button.

2

Select Juke Box using buttons, then press the ENTER or buttons.

3

Select HDD Edit using buttons, then press the ENTER or buttons.

4

Select folder or file using buttons, then press the ENTER button.

• If you select files, then Check icon is displayed.

• Press the ENTER button to cancel file selection.

• If you select folder, then it shows you included files in the folder.

5

Move to the right side edit menu using buttons, then edit selected files using , ENTER buttons.

6

In case of move :

Select folder to move using button. buttons, then press the ENTER

Select

Execute

using buttons, then press the ENTER button.

Copy MP3 file from CD to HDD

You can copy MP3 files from CD to HDD.

1

Press the MENU button.

2

Select Juke Box using buttons, then press the ENTER or buttons.

3

Select Copy MP3 CD to HDD using buttons, then press the

E N T E R or buttons.

4

Select folder or files to copy from CD to HDD using buttons, then press the ENTER button.

• Press the ENTER button again to cancel file selection.

If you would like to choose all files in folder, move to

Select

All using buttons, then press the ENTER button.

All files in the folder are selected when you press the P-LIST button after selecting a folder.

5

Select

Copy to HDD using buttons, then press the ENTER button.

Up to 200 files can be copied at once.

Juke Box

Select All

Select all files

Clear All

Unselect all files

Move file

Move files to another folder

And after move, existed file would be deleted.

Delete file

Delete files

Make Folder

Make new folder

Rename

Change file or folder name

Enter the new file or folder using , ENTER buttons.

Delete Folder

Delete folder

In case of making new folder :

1. Select Make New Folder using

ENTER button.

2. Enter a new folder name using

3. Press the RETURN button to cancel.

buttons, then press the

, ENTER buttons.

4. Select OK to save folder name on the virtual keyboard, then press the ENTER or RETURN button.

5. Press the CLEAR button to delete previous character.

You can make new folder only in the Root.

58 59

60

Photo Album

You can display JPEG files in CD or HDD and make your own

Photo Album or edit JPEG files easily.

View the JPEG file list in HDD

You can display up to 8 JPEG files on a screen with thumbnail size or one JPEG file on a screen with full size. Also you can display

JPEG files continuously thru slideshow function.

see page 61

Edit the JPEG file in HDD

You can move, copy, save, or delete files and also change file name in HDD.

see page 62

View the JPEG file list in CD

You can display JPEG files list in CD and display on screen.

see page 61

Copy JPEG file from CD to HDD

You can copy JPEG files from CD to HDD.

see page 63

Turn the power off and on again when the DHR works abnormal by sudden power off, plug off or not supported files, broken files in HDD.

– Abnormal working case : no key input except Standby/On button, flickering display panel.

– Supported files in DHR : MP3, JPG.

View the JPEG file list in HDD/CD

You can display files on screen and play.

• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of HDD p l a y l i s t .

1

Press the MENU button.

2

Select Photo Album using buttons, then press the ENTER or buttons.

3

Select HDD Playlist using buttons, then press the ENTER or buttons.

4

Select Folder or file using buttons, then press the ENTER button.

• You can preview the selected file at the right side window.

• Press the ENTER button again to cancel file selection.

If you select folder, then it shows you included file’s folder.

5

Press the P-LIST button.

• 8 files are display.

Select Next using buttons, then press the Enter button to see the next 8 files.

Select Previous using to see the previous 8 files.

buttons, then press the Enter button

6

Select file to see using buttons, then press the ENTER button.

• You can enlarge it to full screen size.

7 Select Slideshow using button.

buttons, then press the ENTER

8 Select interval using buttons, then press the ENTER button.

• Interval is from 3 sec to 10 sec.

9 Slide Show will be started for all JPEG files in playlist on the screen with full size.

Press buttons to rotate pictures.

Press the ZOOM button to change picture scale.

(Scale : 25%, 50%, 100%, 150%, 200%)

Press the ENTER button to change scale.

Photo Album

61

Edit the JPEG file in HDD

Photo Album

You can edit saved JPEG files in HDD.

1

Press the MENU button.

2

Select Photo Album using buttons, then press the ENTER or buttons.

3

Select HDD Edit using buttons, then press the ENTER or buttons.

4

Select folder or file using buttons, then press the ENTER b u t t o n .

• If you select files, then Check icon is displayed.

• Press the ENTER button to cancel file selection.

If you select folder, then it shows you included files in the folder

.

5

Move to the right side edit menu using buttons, then edit selected files using , ENTER buttons.

6

In case of move :

Select

Execute

using buttons, then press the ENTER button.

Copy JPEG file from CD to HDD

You can copy JPEG files from CD to HDD.

1

Press the MENU button.

2

Select Photo Album using buttons, then press the ENTER or buttons.

3

Select Copy Photo CD to HDD using buttons, then press the ENTER or buttons.

4

Select files to copy from CD to HDD using buttons, then press the ENTER button.

• Press ENTER button to cancel file selection.

If you would like to choose all files in folder, move to

Select

All using buttons, then press the ENTER button.

All files in the folder are selected when you press the P-LIST button after selecting a folder.

5

Select

Copy to HDD using buttons, then press the ENTER button.

Up to 200 files can be copied at once.

Photo Album

Select All

Select all files

Clear All

Unselect all files

Move file

Move files to another folder

And after move, existed file would be deleted.

Delete file

Delete files

Make Folder

Make new folder

Rename

Change file or folder name

Enter the new file or folder using , ENTER buttons.

Delete Folder

Delete folder

In case of making new folder :

1. Select Make New Folder using

ENTER button.

2. Enter a new folder name using

3. Press the RETURN button to cancel.

buttons, then press the

, ENTER buttons.

4. Select OK to save folder name on the virtual keyboard, then press the ENTER or RETURN button.

5. Press the CLEAR button to delete previous character.

You can make new folder only in the Root.

62 63

Technical Specifications

General

Input

Output

HDD

DVD

Rated voltage

Power consumption

Weight

Size

Operating ambient temperature

Installation conditions

Video (Rear)

Audio (Rear)

Video (Front)

Audio (Front)

Video (Rear)

Audio (Rear)

RF out

Audio

Audio

Video

Video

CODEC Format

REC Speed

Color system

Tuning system

Video S/N

Resolution

Audio S/N

Audio frequency characteristics

Disc

Audio S/N

Audio dynamic range

220 - 240V~, 50Hz

33 Watts

4.5 Kg

430mm X 360mm X 70mm

+5°C ~ +35°C

Operation position : Horizontal,

Relative humidity : Below 75%

RCA Jack 1 : 1.0Vp-p (unbalanced) 75

RCA Jack 1 : -8dBm, 47K

unbalanced

RCA Jack 2 : 1.0Vp-p (unbalanced) 75

RCA Jack 2 : -8dBm, 47K

unbalanced

S-Video for S-Video using

UHF 21-69 (Initial CH36)

RCA Jack

Digital audio out (OPTICAL, COAXIAL)

RCA Jack

S-Video

COMPONENT : RCA Jack

MPEG II

SQ(2Mbps), HQ(4Mbps), SHQ(6Mbps)

PAL for Video signal output

B/G, D/K, I

Above 43dB (standard recording)

Above 350 lines (standard recording)

Above 70dB (standard recording)

20Hz - 20KHz

DVD, CD (12cm), CD (8cm), VIDEO-CD (12cm)

CD-R (12cm), CD-RW (12cm)

95dB

105dB

64

Problems and Solutions

1. No power

- Check that the power plug is connected to a wall outlet.

- Have you pressed the STANDBY/ON button?

2. When the power is turned on, the logo is displayed for some time before the picture appears.

- The DHR has a built-in hard disk drive (HDD). Because of the time required to initialize the hard disk drive, the logo will be displayed on the screen for about 15 seconds after power-on.

3. The television programme was not recorded

- Check the DHR aerial connections.

- Is the DHR tuner properly set?

- Check the HDD’s free space.

4. Timer recording was unsuccessful

- Was the STANDBY/ON button pressed to activate the timer?

- Re-check the recording start/stop time setting.

- If there was a power failure or interruption during timer recording, the recording will have been cancelled.

5. The picture is paused or an earlier broadcast than the current time is showing.

- The DHR has the Time Shift function (see page 29) so that you can pause the incoming broadcast signal and resume watching the program later.

- Press the PLAY/PAUSE (

ll

) button while watching a TV broadcast to pause the picture.

To resume viewing the broadcast, press the

ll

button again.

- If you press the button to watch the broadcast in real-time, the picture will be fast forwarded until incoming live broadcast is reached and played back at normal speed again.

6. The picture is played back at 2X speed in the reverse direction while watching a broadcast.

- The DHR has the Time-Shift function that allows you to instantly replay certain scenes from the current television programming. You can watch the program starting from as far back into the program as the time set in the Setup.

- Press the button to play back at 2X speed in the reverse direction during the reception of a TV program.

7. The Copy key is pressed, but does not respond.

- The copy function will only work with DVDs, but if they contain a copy-protection signal the copy operation cannot be performed.

- Discs other than DVDs, such as VCDs and CDs, cannot be copied.

8. The recorded video signals cannot be combined.

- The Combine operation is possible only on the files with the same record speed.

That is, it doesn't work if one file is in SHQ mode and the other is in HQ mode.

9. I have forgotten the password.

- In the DVD mode, while "NO DISC" is displayed, press and hold down both the ■ and

ll

buttons on the front panel at the same time for over 5 seconds to initialize the password to "1111".

- The password will be initialized to default, but the user setup will remain the same.

10. Disc does not play

- Ensure that the disc is installed with label side facing up.

- Check the region number of the DVD.

- This player cannot play some kinds of discs. (See page 12)

65

Problems and Solutions

(cont.)

11. The icon appear or screen.

- The features or action cannot be completed at this because;

(1) The DVD’s software restricts it.

(2) The DVD’s software doesn’t support the feature (e.g., angles).

(3) The feature is not available at the moment.

(4) You’re requested a title or chapter number or search time that is out of range.

12. Playback mode differs from the Setup menu selection.

- Some of the function selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.

13. The screen ratio cannot be changed.

- The screen ratio is fixed on your DVDs. (See page 31)

14. No audio.

- Make sure you have selected the correct Digital Output in the Audio Option Menu. (See page 30)

15. If you experience other problems.

- Go the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.

- Turn the power off and on again.

- If the problem still cannot be solved, please contact your nearest authorized service center.

Memo

66 67

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
