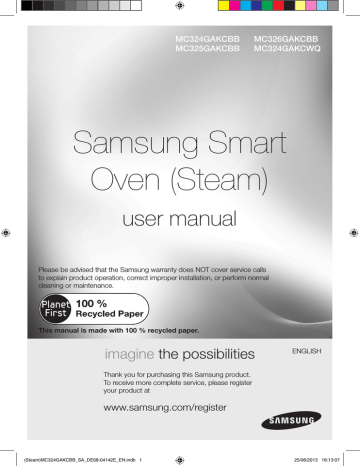

MC324GAKCBB
MC325GAKCBB
MC326GAKCBB
MC324GAKCWQ
Samsung Smart
Oven (Steam)
user manual
Please be advised that the Samsung warranty does NOT cover service calls
to explain product operation, correct improper installation, or perform normal
cleaning or maintenance.
This manual is made with 100 % recycled paper.
imagine the possibilities
ENGLISH
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 1
25/06/2013 18:13:07
Using this instruction booklet
You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions
contain valuable information on cooking with your microwave oven:
•
•
•
•
Safety precautions
Suitable accessories and cookware
Useful cooking tips
Cooking tips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe personal injury
or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury
or property damage.
Warning; Fire hazard
Warning; Hot surface
Warning; Electricity
Warning; Explosive material
Do NOT attempt.
Do NOT touch.
Do NOT disassemble.
Follow directions explicitly.
Unplug the power plug from the
wall socket.
Make sure the machine is grounded
to prevent electric shock.
Call the service center for help.
Note
Important
2_using this instruction booklet
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 2
25/06/2013 18:13:08
Important safety instructions
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE.
Make sure that these safety precautions are obeyed at all
times.
Before using the oven, confirm that the following
instructions are followed.
WARNING
(Microwave function only)
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave
energy.
WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
This appliance is intended to be used in household
only.
WARNING: This appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
Only use utensils that are suitable for use in microwave
ovens.
important safety information _3
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 3
25/06/2013 18:13:08
When heating food in plasitic or paper containers, keep
an eye on the oven due to the possibility of ignitions.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
WARNING: Microwave heating of beverages can result
in delayed eruptive boiling, therefore care must be
taken when handling the container.
WARNING: The contents of feeding bottles and baby
food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
The oven should be cleaned regularly and any food
deposites removed.
Failure to maintain the oven in a clean conditioin could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
The appliance is not intended for installing in road
vehicles, caravans and similar vehicles etc.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
4_important safety information
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 4
25/06/2013 18:13:08
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been
given so that the child is able to use the oven in a safe
way and understands the hazards of improper use.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Liquids or other foods must not be heated
in sealed containers since they are liable to explode;
The appliance should not be cleaned with a water jet.
This oven should be positioned proper direction and
height permitting easy access to cavity and control
area.
Before using the your oven first time, oven should be
operated with the water during 10 minute and then
used.
If the oven generates a strange noise, a burning
smell, or smoke is emitted, unplug the power plug
immediately and contact your nearest service center.
The microwave oven has to be positioned so that plug
is accessible.
The microwave oven is intended to be used on the
counter or counter top use only, the microwave oven
shall not be placed in a cabinet.
WARNING
(Oven function only) - Optional
WARNING: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
important safety information _5
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 5
25/06/2013 18:13:08
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
WARNING: The appliance and its accessible parts
become hot during use.
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away
unless continuously supervised.
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
The temperature of accessible surfaces may be high
when the appliance is operating.
The door or the outer surface may get hot when the
appliance is operating.
Keep the appliance and its cord out of reach of
children less than 8 years.
Appliances are not intended to be operated by means
of an external timer or separate remote-control system.
This product is a Group 2 Class B ISM equipment.
The definition of group 2 which contains all ISM equipment
in which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation
for the treatment of material, and EDM and arc welding
6_important safety information
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 6
25/06/2013 18:13:08
equipment.
For Class B equipment is equipment suitable for use in
domestic establishments and in establishments directly
connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
INSTALLING YOUR MICROWAVE OVEN
Place the oven on a flat level surface 85 cm above the
floor. The surface should be strong enough to safety bear
the weight of the oven.
1.When you install your oven, make sure there 20 cm 10 cm
above
behind
is adequate ventilation for your oven by
leaving at least 10 cm (4 inches) of space
85 cm of
10 cm on
the floor
the side
behind and, on the sides of the oven and
20 cm (8 inches) of space above.
2.Remove all packing materials inside the oven.
3.Install the roller ring and turntable. Check that the
turntable rotates freely.
(Turntable type model only)
4.This microwave oven has to be positioned so that plug is
accessible.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
For your personal safety, plug the cable into a proper AC
earthed socket.
Do not install the microwave oven in hot or damp
surroundings like next to a traditional oven or radiator.
The power supply specifications of the oven must be
respected and any extension cable used must be of the
same standard as the power cable supplied with the
oven. Wipe the interior and the door seal with a damp
cloth before using your microwave oven for the first time.
important safety information _7
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 7
25/06/2013 18:13:09
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven should be
cleaned regularly to prevent grease and food particles from
building up:
• Inside and outside surfaces
• Door and door seals
• Turntable and Roller rings
(Turntable type model only)
ALWAYS ensure that the door seals are clean and the
door closes properly.
Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
1.Clean the outside surfaces with a soft cloth and warm,
soapy water. Rinse and dry.
2.Remove any splashes or stains on the inside surfaces of
oven with a soapy cloth. Rinse and dry.
3.To loosen hardened food particles and remove smells,
place a cup of diluted lemon juice in the oven and heat
for ten minutes at maximum power.
4.Wash the dishwasher-safe plate whenever necessary.
DO NOT spill water in the vents. NEVER use any abrasive
products or chemical solvents. Take particular care when
cleaning the door seals to ensure that no particles:
• Accumulate
• Prevent the door from closing correctly
Clean the microwave oven cavity right after each use
with a mild detergent solution, but let the microwave
oven cool down before cleaning in order to avoid injury.
When cleaning the upper part inside the cavity,
it will be convenient to turn heater downward
by 45 ° and clean it.
(Swing heater model only)
8_important safety information
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 8
25/06/2013 18:13:09
STORING AND REPAIRING YOUR MICROWAVE OVEN
A few simple precautions should be taken when storing or
having your microwave oven serviced.
The oven must not be used if the door or door seals are
damaged:
• Broken hinge
• Deteriorated seals
• Distorted or bent oven casing
Only a qualified microwave service technician should
perform repair
NEVER remove the outer casing from the oven. If the
oven is faulty and needs servicing or you are in doubt
about its condition:
• Unplug it from the wall socket
• Contact the nearest after-sales service centre
If you wish to store your oven away temporarily, choose
a dry, dustfree place.
Reason : Dust and damp may adversely affect the
working parts in the oven.
This microwave oven is not intended for commercial
use.
The Light bulb should not be replaced in person for
safety reasons.
Please contact nearest authorised Samsung customer
care, to arrange for a qualified engineer to replace the
bulb.
WARNING
Only qualified staff should be allowed to modify or repair the
appliance.
Do not heat liquids and other food in sealed containers for
microwave function.
For your safety, do not use high-pressure water cleaners or steam
jet cleaners.
important safety information _9
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 9
25/06/2013 18:13:10
Do not install this appliance; near heater, inflammable material; in a
humid, oily or dusty location, in a location exposed to direct sunlight
and water or where gas may leak; on un level ground.
This appliance must be properly grounded in accordance with local
and national codes.
Remove all foreign substances such as dust or water from the
power plug terminals and contact points using a dry cloth on a
regular basis.
Do not pull or excessively bend or place heavy objecton the power
cord.
In the event of a gas leak (such as propane gas, LP gas, etc.),
ventilate immediately without touching the power plug.
Do not touch the power plug with wet hands.
Do not turn the appliance off by unplugging the power plug while an
operation is in progress.
Do not insert fingers or foreign substances, If any foreign substance
such as water has entered the appliance, unplug the power plug
and contact your nearest service centre.
Do not apply excessive pressure or impact to the appliance.
Do not place the oven over a fragile object such as a sink or glass
object.
Do not use benzene, thinner, alcohol, steam cleaner or high
pressure cleaner to clean the appliance.
Ensure that the power voltage, frequency and current are the same
as those of the product specifications.
Plug the power plug into the wall socket firmly. Do not use a multiple
plug adapter, an extension cord or an electric transformer.
Do not hook the power cord on a metal object, insert the power
cord between the objects or behind the oven.
Do not use a damaged power plug, damaged power cord or loose
wall socket. When the power plug or power cord is damaged,
contact your nearest service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside or on the door of the oven.
Do not spray volatile material such as insecticide onto the surface of
the oven.
Do not store flammable materials in the oven. Take special care
when heating dishes or drinks that contain alcohol as alcohol
vapours may contact a hot part of the oven.
10_important safety information
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 10
25/06/2013 18:13:14
Keep children away from the door when opening or closing it as
they may bump themselves on the door or catch their fingers in the
door.
WARNING: Microwave heating of beverages can result in delayed
eruptive boiling,therefore care must be taken when handling the
container; To prevent this situation ALWAYS allow a standing time
of at least 20 seconds after the oven has been switched off so that
the temperature can equalize. Stir during heating, if necessary, and
ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID instructions:
•
•
•
Immerse the scalded area in cold water for at least 10 minutes.
Cover with a clean, dry dressing.
Do not apply any creams, oils or lotions.
CAUTION
Only use utensils that are suitable for use in microwave ovens; DO
NOT use any metallic containers, Dinnerware with gold or silver
trimmings, Skewers, forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and may damage the
oven.
Do not use your microwave oven to dry papers or clothes.
Use shorter times for smaller amounts of food to prevent
overheating and burning food.
Do not immerse the power cable or power plug in water and keep
the power cable away from heat.
Eggs in their shell and whole hard-boiled eggs should not be heated
in microwave ovens since they may explode, even after microwave
heating has ended; Also do not heat airtight or vacuum-sealed
bottles, jars, containers, nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper. They may
catch fire as hot air escapes from the oven. The oven may also
overheat and switch itself off automatically, and will remain off until it
cools sufficiently.
Always use oven mitts when removing a dish from the oven to avoid
unintentional burns.
Stir liquids halfway during heating or after heating ends and allow
the liquid stand at least 20 seconds after heating to prevent eruptive
boiling.
Stand at arms length from the oven when opening the door to avoid
getting scalded by escaping hot air or steam.
important safety information _11
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 11
25/06/2013 18:13:15
Do not operate the microwave oven when it is empty. The
microwave oven will automatically shut down for 30 minutes for
safety purposes. We recommend placing a glass of water inside the
oven at all times to absorb microwave energy in case the microwave
oven is started accidentally.
Install the oven in compliance with the clearances stated in this manual.
(See installing your microwave oven.)
Take care when connecting other electrical appliances to sockets
near the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY.(MICROWAVE FUNCTION ONLY)
Failure to observe the following safety precautions may result in harmful exposure to microwave energy.
(a) Under no circumstances should any attempt be made to operate the oven with the door
open or to tamper with the safety interlocks (door latches) or to insert anything into the safety
interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner
residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces
are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave
service technician trained by the manufacturer. It is particularly important that the oven door
closes properly and that there is no damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d) The oven should not be adjusted or repaired by anyone other than a properly qualified
microwave service technician trained by the manufacturer.
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic
defect if the damage to the unit and/or damage to or loss of the accessory was caused
by the customer. Items this stipulation covers include:
(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.
(b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.
• Use this appliance only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics
of your microwave oven may differ slightly from those described in this manual and not
all warning signs may be applicable. If you have any questions or concerns, contact your
nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use
only. Do not heat any type of textiles or cushions filled with grains, which could cause burns
and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect
use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and possible result in a hazardous situation.
12_important safety information
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 12
25/06/2013 18:13:16
contents
OVEN FEATURES
14
15
17
18
Checking the product and parts
Accessories
Checking the control panel
Display
BEFORE YOU BEGIN
19
20
21
22
22
23
23
Setting the clock
Setting the water hardness
Switching off the beeper
Power saving
Child safety lock
Idle
Auto cooling
OVEN USE
24
26
28
29
30
36
37
Types of heating
Using the convection mode
Using the grill mode
How a microwave oven works
Using the microwave mode
Using the microwave+grill mode
Using the microwave+convection
mode
Using the steam mode
Using the deodorization Mode
Using the slim fry cook mode
Using the dough proof/Yogurt mode
Using the keep warm mode
Using the power defrost mode
Using the smart auto cook mode
14
19
24
40
42
43
45
47
48
50
CLEANING AND CARE
57
TROUBLESHOOTING AND
ERROR CODE
62
65
TECHNICAL DATA
57 Cleaning your oven
59 Using the steam clean mode
62 Troubleshooting
64 Error and safety codes
65 Technical data
contents _13
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 13
25/06/2013 18:13:16
oven features
CHECKING THE PRODUCT AND PARTS
Grill
Level 2
Steam Outlet
Cooking Menu Labeling
Level 1
Hot-Air Hole
Bottom Heating Elements
Door Handle & Control Panel
(integrated with the door)
Safety Door Lock
Drip tray
Water Tank
• Do not apply excessive force to the bottom of the oven. This could damage the
oven.
• Do not store accessories inside the oven (unless otherwise directed). Store
all accessories in their correct place. Otherwise, this may degrade cooking or
cause fire.
• Do never use any accessory as direct fired container that is designed to use
with gas stoves or microwave ovens. Use only the accessories provided with
this oven.
• Do not use the accessories in a cooking chamber without food. Failure to do so
may result in a system failure.
• To avoid burns, make sure to wear protective gloves when removing accessories
after operating the oven. Accessories get hot, which may cause burns.
• Do not remove the Multi-Pan until both the pan and the oven cool down.
14_ oven features
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 14
25/06/2013 18:13:16
ACCESSORIES
The following accessories are provided with your microwave oven:
Accessories
Range/
Rapid
Defrost
Oven/
Grill
Super
Steam
Smart Cook
Description
This pan is mostly used for
baking bread, pies, cookies,
etc.
In most cases, it is used
for cooking thin food such
as baked fish or cooking
steaks.
Use the first or second shelf
rack, depending on the food.
Make sure to insert the pan
Select a
recipe, and into the applicable rack.
the necessary Do not place the pan at
accessories the bottom of the oven.
and the rack Do not use it for microwave
position are and defrosting functions.
displayed on This may cause fire inside
the display. the oven.
OVEN FEATURES
Multi-Pan
Insert Rack
This rack is often used to
remove fats and grease from
food such as chicken and
pork.
(Use only with the MultiPan. Do not use it for the
microwave and defrosting
functions. This may cause
fire inside the oven.)
Water Tank
This tank is designed to
supply water to the steam
generator.
When not it use, mount it
onto the oven.
To avoid overflow, make
sure to keep it level.
Empty and clean the tank
after each use.
oven features _15
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 15
25/06/2013 18:13:17
Accessories
Range/
Rapid
Defrost
Oven/
Grill
Super
Steam
Smart Cook
Description
Drip Tray
This tray is used to catch
water condensation from the
oven door.
Make sure it is correctly
inserted before cooking.
Empty the tray after each
use.
When not in use, mount in
onto the oven.
• Do not use the multi-pan for the range and the defrosting functions. Failure to
do so may result in a fire hazard.
• The accessories are not heat-resistant. Do not use any accessory with direct
fire from gas stoves or microwave ovens. Use only the accessories provided
with this oven.
• Do not use the accessories in the oven without food. Failure to do so may result
in a system failure.
• To avoid burns, make sure to wear protective gloves when removing
accessories after operating the oven.
Accessories get hot, which may cause burns.
• Contact the nearest service center if you need replacement accessories.
• Put the grill on the multi-pan only.
• Do not remove the multi-pan until both the pan and the oven cool down.
16_ oven features
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 16
25/06/2013 18:13:17
CHECKING THE CONTROL PANEL
1
2
3
1. DISPLAY
Displays the current time, cooking
progress, temperature, and rack
position of accessories.
2. KEEP WARM BUTTON
Used to keep food warm after
cooking.
3. +/- DIAL
Used to set the cooking time and
temperature, menu type, and the
serving size/weight.
4. SELECT/START BUTTON
Used to confirm selections or start
cooking.
5. STOP/CANCEL BUTTON
- Used to stop/cancel cooking or for
power saving purposes.
- While cooking, press it once to
stop cooking, and press it twice to
cancel cooking.
6
7
8
9 10 11
12 13 14 15 16 17
6. CONVECTION BUTTON
OVEN FEATURES
4
5
7. MICROWAVE BUTTON
8. M
ICROWAVE+CONVECTION
BUTTON
9. SMART AUTO COOK BUTTON
10. STEAM BUTTON
11. SLIM FRY COOK BUTTON
12. GRILL BUTTON
13. MICROWAVE+GRILL BUTTON
14. POWER DEFROST BUTTON
15. STEAM CLEAN BUTTON
16. DEODORISE BUTTON
17. D
OUGH PROOF/YOGURT
BUTTON
• For details of their respective
operations, refer to page 24.
- When the oven enters the power
saving mode, the display panel will
not display information.
oven features _17
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 17
25/06/2013 18:13:17
DISPLAY
1
2
3
6
1. Descaling
Blinks if the steam generator needs to
be cleaned.
2. Refill
Turns on if the water tank is not
installed properly, or the water tank
needs to be refilled.
3. Steam Plus
Turns on when using steamed auto
cooking.
4. Weight/Temperature/Power
Displays the weight (kg) of food,
temperature (°C), and the power (W)
consumed.
5. Time Display
Displays the current time, cooking
time.
4
5
7
6. Accessories and Rack Position
:Insert rack
:Multi-Pan
:Level 1
:Level 2
7. Description
• Door Open
: Turns on if the door is
opened while the oven is operating.
(While the door is open, all the buttons
and the dial are disabled to prevent an
unintended operation.)
• Preheat
: After you set the
temperature, the preheat indicator
turns on when pressing the SELECT/
START (
) button, and it turns
off when the preheating process is
complete.
• Operating
: Turns on while the
oven is operating.
• Cooling
: Turns on when the oven
is cooling down.
• Keep Warm
: Turns on when the
Keep Warm function is in process.
18_ oven features
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 18
25/06/2013 18:13:19
before you begin
SETTING THE CLOCK
Setting the clock
1. Turn the +/- DIAL to set the current hour (h).
2. Press the SELECT/START (
The (m) indicator blinks.
BEFORE YOU BEGIN
When the appliance is first plugged in, the DISPLAY lights up. After three seconds, the
Clock symbol and “12:00” blink on the DISPLAY.
) button.
3. Turn the +/- DIAL to set the current minute (m).
4. Press the SELECT/START (
) button.
This will complete the time settings.
Re-setting the clock
1. With the current time displayed, press the
SELECT/START (
) button to change the
current time.
2. Repeat steps 1 through 4 above to set the
time.
before you begin _19
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 19
25/06/2013 18:13:19
3. Press the SELECT/START (
) button.
The time settings will be finished unless you set
the time within 7 seconds.
SETTING THE WATER HARDNESS
It is necessary to descale your appliance at regular intervals.
This is the only way to prevent damage.
Your appliance has a system that automatically displays when it needs descaling.
It is preset to a water hardness of 2. Chage the value if your water is softer or harder.
Checking the water hardness
Information on the hardness of the water in your area can be obtained from the
local water board.
Filtered water
You can only dispense with descaling completely if you use filtered water
exclusively. If this is the case change the water hadness to “soft water”.
Changing the water hardness
1. Press the MICROWAVE+GRILL (
) and
STEAM (
) button at the same time and hold
for 3 seconds.
2. Turn the +/- DIAL to desired water hardness.
3. Press the SELECT/START (
) button.
• The appliance is now programmed to
provide the descaling warning when
necessary, based on the actual hardness of
the water.
20_ before you begin
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 20
25/06/2013 18:13:20
Type
PPM
French deg.
(°dñ)
German deg.
(°dH)
1
Soft water
0-105
0-11
0-6
2
(Default)
Medium soft water
125-230
12-23
7-13
3
Medium hard water
250-350
24-36
14-20
4
Hard water
> 375
> 37
> 21
SWITCHING OFF THE BEEPER
You can choose to enable or disable the key tone, buzzer, or alarm.
This setting should be done when the current time is displayed.
BEFORE YOU BEGIN
Display
1. To turn off the sound, hold down both the
SELECT/START (
) button and the
STOP/CANCEL ( ) button for one second.
“OFF” is displayed and no sound is emitted.
2. To turn the sound back on, hold down both
the SELECT/START (
) button and the
STOP/CANCEL ( ) button for one second.
“ON” is displayed and the sound is output
normally.
before you begin _21
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 21
25/06/2013 18:13:21
POWER SAVING
In this mode, you can reduce power consumption.
1. With the current time displayed, press the
STOP/CANCEL ( ) button. No message is
displayed on the display.
Auto energy saving function
If you do not select any function when appliance is in the middle of setting or
operating with temporary stop condition, function is canceled after 25 minutes.
Oven Lamp will be turned off after 5 minutes with door open condition.
CHILD SAFETY LOCK
This safety lock is to prevent children from being hurt or injured from an accident or a
system failure. It is advisable to set the lock when you leave children home alone.
This setting should be done when the current time is displayed.
To lock the oven
1. Press the STOP/CANCEL (
3 seconds.
) button during
2. With a beep, (L) is displayed and all the buttons
are disabled.
To unlock the oven
1. Press the STOP/CANCEL (
3 seconds.
) button during
2. With a beep, (L) disappears and all the buttons
and functions are enabled.
22_ before you begin
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 22
25/06/2013 18:13:22
IDLE
Useful for the first time use of the oven or if the oven emits unpleasant odors.
(The oven may emit smoke or unpleasant odors at first. This is normal.)
Move any pets to another area. Open a window to ventilate the room.
1. Make sure the oven is empty.
) button on the
BEFORE YOU BEGIN
2. Press the CONVECTION (
touch panel.
3. When the 180 °C temperature message blinks,
press the SELECT/START (
) button.
4. Using the +/- DIAL, set the cooking time to
10 minutes.
5. Press the SELECT/START (
The idle mode starts.
) button.
This oven generates extremely high temperatures inside. Use protective
gloves for your safety.
If the oven emits unpleasant odors, wipe out any food residue inside the
oven and run the idle mode.
AUTO COOLING
This mode is useful for cooling down the oven.
To cool down the oven, the cooling fan automatically rotates for 3 minutes after the oven
is used. During this time, the Cooling ( ) icon is displayed. This is normal.
Using the oven for an extended period of time may affect its performance. For extended
periods of use, adjust the cooking time or resume using the oven after it has cooled
down.
The auto cooling function is set by default.
before you begin _23
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 23
25/06/2013 18:13:22
oven use
TYPES OF HEATING
Oven modes
The following table represents the various oven modes and settings of your oven.
Use the cooking guide tables for those modes as guidelines for cooking.
Mode
Description
CONVECTION
Food is heated by two heating elements on top and back of
cavity while the fan from back distributes the hot air evenly.
This setting is suitable for roasting meat, baking gratins and
cake.
GRILL
Uses the direct fire from the upper grill to broil food. This mode
is especially useful for fish or steak.
MICROWAVE
Microwave energy is used to cook, reheat or defrost food.
By using this mode you can save time. It provides efficient cooking
without changing colour or shape of food. Time and power level is
selected manually according to types of food and its weight.
MICROWAVE+GRILL
Food is heated by the top heating elements combined with a
cycle of microwave energy. We recommend this mode for grilling
chicken pieces, fish and frozen snacks.
MICROWAVE+CONVECTION
Food is heated by convection heating element, combined with
a cycle of microwave energy. This setting is suitable for speed
roasting meat and speed baking gratins and frozen convenience
food.
STEAM CLEAN
By the help of hot steam the surface of the oven cavity will be
soaked and you can easily clean your oven. The steam clean
programme takes only 10 minutes time.
STEAM
Food is cooked by steam provided by the steam generator and
injected into the cavity by several jet nozzles.
This mode is suitable for steaming food like vegetables, fish,
eggs, fruits and rice. When cooking by using this mode, always
fill the water tank with fresh water.
24_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 24
25/06/2013 18:13:23
Mode
Description
DEODORISE
Use this feature after cooking odorous food or when there is a
lot of smoke in the oven interior. First clean the oven interior.
OVEN USE
KEEP WARM
This mode is suitable for keeping warm food.
(Do not keep food warm for longer than 2 hours. Warm food
spoils more quickly).
Temperature: 40 °C
Automatic functions
The following table represents additional programmes and functions.
Mode
Description
POWER DEFROST
Five pre-programmed power defrost settings can be selected
for your convenience. Time and power level will be set
automatically.
You simply select programme and weight and start the
defrosting process.
SMART AUTO COOK
34 pre-programmed smart auto cook settings can be selected
for your convenience. Time and temperature will be set
automatically. You simply select the programme, the weight of
your dish and start cooking process.
SLIM FRY COOK
You don’t need to set either cooking time or power level. You
can adjust the slim fry cook category in user manual. You will
use less oil compared to frying with oil fryer. Using this function,
you can feel that is much more healthy as you reduce use of oil.
DOUGH PROOF/YOGURT
You can use the dough proof/yogurt function of the smart oven
to keep the inside of the oven at a certain degree, optimized for
fermenting yeast plants and lactobacilli.
oven use _25
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 25
25/06/2013 18:13:24
USING THE CONVECTION MODE
Cooking with convection is the traditional and well known
method of cooking food in a traditional oven with hot air.
The heating element and the fan are situated on the backwall, so that the hot air is circulated.
Place the food on multi-pan or multi-pan + insert rack in
level 1.
Convection mode setting
1. Press the CONVECTION (
touch panel.
) button on the
2. When the 180 °C temperature message
blinks, turn the +/- DIAL to select a cooking
temperature.
(temperature range: 40-230 °C)
3. Press the SELECT/START (
) button.
4. If you wish to preheat, press the SELECT/
START (
) button.
• After preheating, the Preheat ( ) symbol
disappears with a beep.
• Be careful the cooking chamber is very hot
inside.
• Use the accessories according to the food and the cooking type.
5. Turn the +/- DIAL to set the cooking time.
• The cooking time can be adjusted using the
+/- DIAL.
(Max: 1 hour 30 minutes)
26_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 26
25/06/2013 18:13:25
6. Press the SELECT/START (
) button.
• The convection mode starts.
• The cooking time can be adjusted using the
+/- DIAL.
• The cooking temperature can be adjusted by
holding down the SELECT/START (
)
button and turning the +/- DIAL when the
temperature message blinks.
OVEN USE
Cooking guide
Use settings and times in this table as guide lines for baking and roasting.
We recommend to preheat the oven to the desired temperature.
Shelf
Level
Convection
Mode (°C)
Accessory
Time
(min.)
Frozen Pizza (350 g)
1
200 °C
Multi-pan
15-18
Frozen French Fries (450 g)
1
200 °C
Multi-pan
18-20
Frozen Bread Roll (250 g)
1
160 °C
Multi-pan
7-9
Homemade Pizza (1300 g)
1
200 °C
Multi-pan
20-25
Sponge Cake (500 g)
1
160 °C
Multi-pan
30-35
Marble Cake (700 g)
1
150 °C
Multi-pan
50-60
Muffins (300-350 g)
1
160 °C
Multi-pan
28-33
Cookies (200 g)
1
180 °C
Multi-pan
10-15
Scones (375g)
1
180 °C
Muiti-pan with
insert rack
12-14
Food Item
oven use _27
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 27
25/06/2013 18:13:25
USING THE GRILL MODE
The grill-heating elements are located underneath the
ceiling of the cavity.
It operates while the door is closed. Preheating the grill
for 2-3 minutes will make the food brown more quickly.
The grill enables you to heat and brown food quickly,
without using microwaves. Place the food on the multipan or multi-pan + insert rack in level 2.
Grill mode setting
1. Press the GRILL (
panel.
) button on the touch
2. To grill food, turn the +/- DIAL to set the
cooking time. No temperature setting is
necessary.
(Max 60 minutes)
3. Press the SELECT/START (
) button.
• The grill mode starts.
• The cooking time can be adjusted using the
+/- DIAL.
For fish : To reduce the fish smell, add one or two slices of lemon or a
teaspoon of baking soda to the fish.
Always use oven gloves when touching the recipients in the oven, as they
will be very hot.
28_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 28
25/06/2013 18:13:26
Cooking guide
Use settings and times in this table as guide lines for grilling.
We recommend to preheat the oven with Grill Mode for 2-3 minutes.
Mode
Accessory
Time (min.)
Toast (4 slices)
2
Grill
Multi-pan with
Insert rack
1st side: 2-4.25
2nd side: 2-3
Cheese Toast (4 pcs)
2
Grill
Multi-pan with
Insert rack
7-8
Beef Steaks (500 g)
2
Grill
Multi-pan with
Insert rack
1st side: 9-11
2nd side: 5-7
Lamb Chops (400 g)
2
Grill
Multi-pan with
Insert rack
1st side: 8-10
2nd side: 6-8
Fresh Vegetables (250 g)
2
Grill
Multi-pan with
Insert rack
12-15
OVEN USE
Shelf
Level
Food Item
HOW A MICROWAVE OVEN WORKS
Microwaves are high - frequency electromagnetic waves; the energy released enables
food to be cooked or reheated without changing either the form or the colour.
You can use your microwave to:
• Defrost
• Cook
Cooking principle
1. The microwaves generated by the magnetron
are distributed uniformly by using a stirrer
distribution system. The food is thus cooked
evenly.
2. The microwaves are absorbed by the food up
to a depth of about 1 inch (2.5 cm). Cooking
then continues as the heat is dissipated within
the food.
3. Cooking times vary according to the container
used and the properties of the food:
• Quantity and density
• Water content
• Initial temperature (Refrigerated or not)
As the centre of the food is cooked by heat dissipation, cooking continues
even when you have taken the food out of the oven.
Standing times specified in recipes and in this booklet must therefore be
respected to ensure.
• Even cooking of the food right to the centre
• The same temperature throughout the food
oven use _29
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 29
25/06/2013 18:13:26
USING THE MICROWAVE MODE
Place the food on a heat-resistant dish, and place the dish at the bottom of the oven.
Microwave mode setting
1. Press the MICROWAVE ( ) button on the
touch panel. Power level and time will appear
on DISPLAY.
2. Turn the +/- DIAL to set desired power levels.
• Default : 800 W
• 100, 180, 300, 450, 600, 700, 800 W
3. Press the SELECT/START (
) button.
4. Turn the +/- DIAL to set desired cooking time.
(The maximum cooking time is 90 minutes.)
5. Press the SELECT/START (
) button.
• Refer to cooking guides pages 31-35 for guidelines on appropriate cooking
times and power levels.
• You can change the cooking time and temperature during the cook.
- Just turn the +/- DIAL or press SELECT/START (
) button.
• Do not use the multi-pan, insert rack, aluminum foil, or gilt/tin foil. This may
cause fire.
• A sealed container or packed food, such as eggs or chestnuts, can blow-up
during cooking. Put such food on a heat-resistant dish before cooking.
• Liquids can boil over, resulting in burns when removing the dish. Wait at least
30 seconds before removing the dish.
30_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 30
25/06/2013 18:13:26
Guide to microwave power levels
Power Level
Percentage
(%)
Output
Power (W)
Remark
100
800
For heating up liquids.
83
700
For heating up and cooking food.
MEDIUM HIGH
67
600
For heating up and cooking food.
MEDIUM
50
450
MEDIUM LOW
33
300
For cooking meat and heating up
delicate foods.
DEFROST
20
180
For defrosting and continued cooking.
LOW
11
100
For defrosting delicate foods.
OVEN USE
HIGH
HIGH LOW
Microwave cookware guide
Cookware used for Microwave Mode must allow microwaves to pass through
and penetrate food. Metals such as stainless steel, aluminum and copper
reflect microwaves. Therefore, do not use cookware made of metallic materials.
Cookware marked microwave - safe is always safe for use. For additional
information on appropriate cookware refer to the following guide.
Cookware
MicrowaveSafe
Comments
Can be used in small quantities to protect
areas against overcooking. Arcing can occur
if the foil is too close to the oven wall or if too
much foil is used.
Aluminium foil

Crusting plate

Do not preheat for more than 8 minutes.
China and
earthenware

Porcelain, pottery, glazed earthenware
and bone china are usually suitable, unless
decorated with a metal trim.
Disposable polyester
cardboard dishes

Some frozen foods are packaged in these
dishes.
• Polystyrene cups
containers

Can be used to warm food. Overheating may
cause the polystyrene to melt.
• Paper bags or
newspaper

May catch fire.
• Recycled paper or
metal trims

May cause arcing.
• Oven-to-table ware

• Fine glassware

Can be used, unless decorated with a metal trim.
Can be used to warm foods or liquids. Delicate
glass may break or crack if heated suddenly.
• Glass jars

Fast - Food packaging
Glassware
Must remove the lid. Suitable for warming only.
oven use _31
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 31
25/06/2013 18:13:27
Cookware
MicrowaveSafe
Comments
Metal
• Dishes

• Freezer bag twist ties

May cause arcing or fire.
Paper
• Plates, cups, napkins
and Kitchen paper

For short cooking times and warming. Also to
absorb excess moisture.
• Recycled paper

May cause arcing.
• Containers

Particularly if heat-resistant thermoplastic. Some
other plastics may warp or discolour at high
temperatures. Do not use Melamine plastic.
• Cling film

Can be used to retain moisture. Should not
touch the food. Take care when removing the
film as hot steam will escape.

Only if boilable or oven-proof. Should not be
airtight. Prick with a fork, if necessary.

Can be used to retain moisture and prevent
spattering.
Plastic
• Freezer bags
Wax or grease-proof
paper
“Arcing” is the microwave term for sparks in the oven.
 : Recommended
: Use Caution
 : Unsafe
Microwaves
Microwave energy actually penetrates food, attracted and absorbed by its water,
fat and sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid
movement of these molecules creates friction and the resulting heat cooks the food.
Cooking
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum
efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium
and copper, but they can penetrate through ceramic, glass, porcelain and plastic
as well as paper and wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen
vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard,
soups, steamed puddings, preserves, and chutneys can also be cooked in a
microwave oven. Generally speaking, microwave cooking is ideal for any food
that would normally be prepared on a hob. Melting butter or chocolate, for
example (see the chapter with special hints and tips).
32_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 32
25/06/2013 18:13:27
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises
as steam and contributes to cooking process. Food can be covered in different
ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
Cooking Guide for fresh vegetables
Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for
every 250 g unless another water quantity is recommended – see table. Cook
covered for the minimum time – see table. Continue cooking to get the result you
prefer. Stir once during and once after cooking. Add salt, herbs or butter after
cooking. Cover during a standing time of 3 minutes.
OVEN USE
After cooking is over food the standing time is important to allow the temperature
to even out within the food.
Cut the fresh vegetables into even sized pieces. The smaller they are cut,
the quicker they will cook.
All fresh vegetables should be cooked using full microwave power (800 W).
Portion
Time
(min.)
Standing
Time (min.)
Potatoes
500 g
7-8
3
Weight the peeled potatoes and
cut them into similar sized halves
or quarters.
Broccoli
250 g
3½ -4
3
Prepare even sized florets.
Arrange the stems to the centre.
Carrots
250 g
4 -4½
3
Cut carrots into even sized slices.
Cauliflower
500 g
7- 7½
3
Prepare even sized florets.
Cut big florets into halves.
Arrange stems to the centre.
Courgettes
250 g
3- 3½
3
Cut courgettes into slices. Add
30 ml (2 tbsp.) water or a knob of
butter. Cook until just tender.
Food
Instructions
Cooking Guide for rice and pasta
Rice - Use a large glass pyrex bowl with lid – rice doubles in volume during
cooking. Cook covered. After the cooking time is over, stir before standing time
and add salt, herbs and butter.
The rice may not have absorbed all water after the cooking time is finished.
Pasta - Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir
well. Cook uncovered. Stir occasionally during and after cooking. Cover during
standing time and drain thoroughly afterwards.
oven use _33
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 33
25/06/2013 18:13:27
Portion
Power
Time
(min.)
Standing
Time (min.)
Instructions
White Rice
(parboiled)
250 g
800 W
15-16
5
Add 500 ml cold water.
Brown Rice
(parboiled)
250 g
800 W
20-21
5
Add 500 ml cold water.
Pasta
250 g
800 W
10-11
5
Add 1000 ml hot water.
Food
Reheating
Your microwave oven will reheat food in a fraction of the time that conventional
ovens hobs normally take. Use the power levels and reheating times in the
following chart as a guide. The times in the chart consider liquids with a room
temperature of about +18 to +20 °C or a chilled food with a temperature of about
+5 to +7 °C.
Arranging and covering
Avoid reheating large items such as joint of meat – they tend to overcook and
dry out before the centre is piping hot. Reheating small pieces will be more
successful.
Power levels and stirring
Some foods can be reheated using 800 W power while others should be
reheated using 600 W, 450 W or even 300 W.
Check the tables for guidance. In general, it is better to reheat food using a lower
power level, if the food is delicate, in large quantities, or if it is likely to heat up
very quickly (mince pies, for example).
Stir well or turn food over during reheating for best results. When possible, stir
again before serving.
Take particular care when heating liquids and baby foods. To prevent eruptive
boiling of liquids and possible scalding, stir before, during and after heating.
Keep them in the microwave oven during standing time. We recommend putting
a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore
spoiling) the food.
It is preferable to underestimate cooking time and add extra heating time, if
necessary.
Heating and standing times
When reheating food for the first time, it is helpful to make a note of the time
taken – for future reference.
Always make sure that the reheated food is piping hot throughout.
Allow food to stand for a short time after reheating - to let the temperature even out.
The recommended standing time after reheating is 2-4 minutes, unless another
time is recommended in the chart.
Take particular care when heating liquids and baby food. See also the chapter
with the safety precautions.
34_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 34
25/06/2013 18:13:27
Reheating liquids
Always allow a standing time of at least 20 seconds after the oven has been
switched off to allow the temperature to even out. Stir during heating, if
necessary, and ALWAYS stir after heating. To prevent eruptive boiling and
possible scalding, you should put a spoon or glass stick into the beverages and
stir before, during and after heating.
OVEN USE
Reheating Liquids and Food
Use the power levels and times in this table as guide lines for reheating.
Time
(min.)
Standing
Time (min.)
800 W
1½-2
3-3½
1-2
Pour into ceramic mugs and
reheat uncovered: 1 mug in
the centre, 2 mugs opposite
of each other.
Keep in microwave oven
during standing time and
stir well.
Food
Portion
Power
Drinks
(coffee, tea
and water)
250 ml
(1 mug)
500 ml
(2 mugs)
Instructions
Soup
(chilled)
250 ml
450 ml
800 W
2-2½
3½-4
2-3
Pour into a deep ceramic
plate or deep ceramic bowl.
Cover with plastic lid. Stir
well after reheating. Stir
again before serving.
Stew
(chilled)
350 g
600 W
4-5
2-3
Put stew in a deep ceramic
plate. Cover with plastic lid.
Stir occasionally during
reheating and again before
standing and serving.
Pasta with
Sauce
(chilled)
350 g
600 W
3-4
3
Put pasta (e.g. spaghetti
or egg noodles) on a flat
ceramic plate. Cover with
microwave cling film. Stir
before serving.
Filled
Pasta with
Sauce
(chilled)
350 g
600 W
4-5
3
Put filled pasta (e.g. ravioli,
tortellini) in a deep ceramic
plate. Cover with plastic
lid. Stir occasionally during
reheating and again before
standing and serving.
Plated
Meal
(chilled)
300 g
400 g
600 W
5-6
6-7
3
Plate a meal of 2-3 chilled
components on a ceramic
dish. Cover with microwave
cling-film.
After half time, turn around
the food for good result.
oven use _35
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 35
25/06/2013 18:13:27
USING THE MICROWAVE+GRILL MODE
Food is heated by the top heating elements combined
with a cycle of microwave energy.
Microwave+Grill (
) mode setting
You can also combine microwave cooking with the grill, to cook quickly and
brown at the same time.
1. Press the MICROWAVE+GRILL (
) button
on the touch panel. Power level and time will
appear on DISPLAY.
2. Turn the +/- DIAL to set desired power levels.
• Default : 450 W
• 100, 180, 300, 450 W
3. Press the SELECT/START (
) button.
4. Turn the +/- DIAL to set desired cooking time.
(The maximum cooking time is 90 minutes.)
5. Press the SELECT/START (
) button.
• Using improper accessories may affect the spark and cooking performance.
• Do not put food directly on the bottom of the oven without using a container.
• Refer to cooking guides pages 37 for guidelines on appropriate cooking times
and power levels.
• You can change the cooking time during the cook.
- Just turn the +/- DIAL or press SELECT/START (
) button.
36_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 36
25/06/2013 18:13:27
Cookware for cooking with microwaves + grill:
Please use cookware that microwaves can pass through. Cookware should be
flameproof. Do not use metal cookware with combination mode. Do not use any
type of plastic cookware, as it can melt.
Food suitable for microwaves + grill cooking:
OVEN USE
Food suitable for combination mode cooking include all kinds of cooked food
which need reheating and browning (e.g. baked pasta), as well as foods which
require a short cooking time to brown the top of the food. Also, this mode can
be used for thick food portions that benefit from a browned and crispy top (e.g.
chicken pieces, turning them over half way through cooking). Please refer to the
grill table for further details.
Cooking guide
Shelf
Level
Mode
Accessory
1. Side
Time
(min.)
2. Side
Time
(min.)
Grilled Tomatoes
(400 g, 2 pcs)
2
300 W + Grill
Multi-pan with
Insert rack
10-11
-
Tomato-Cheese
Toast
(300 g, 3 pcs)
2
300 W + Grill
Multi-pan with
Insert rack
9-10
-
Toast Hawaii
(ham, pineapple,
cheese slices)
(500 g, 4 pcs)
2
300 W + Grill
Multi-pan with
Insert rack
6-7
-
Baked Potatoes
(500 g)
2
450 W + Grill
Multi-pan with
Insert rack
18-20
-
Roast Fish
(400-500 g)
2
300 W + Grill
Multi-pan with
Insert rack
8-9
7 ½-8 ½
Food Item
USING THE MICROWAVE+CONVECTION MODE
This mode combines the microwave energy with the hot
air and is therefore reducing the cooking time while giving
the food a brown and crispy surface.
Cooking with convection is the traditional and well known
method of cooking food in an oven with hot air circulated
by a fan on the back-wall.
Microwave+Convection (
) mode setting
1. Press the MICROWAVE+CONVECTION
(
) button on the touch panel. Power
level and time will appear on DISPLAY.
oven use _37
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 37
25/06/2013 18:13:28
2. Turn the +/- DIAL to set desired power levels.
• Default : 450 W
• 100, 180, 300, 450 W
3. Press the SELECT/START (
) button.
4. Turn the +/- DIAL to set desired temperature.
• Default : 180 °C
• 40-200 °C
5. Press the SELECT/START (
) button.
6. Turn the +/- DIAL to set desired cooking time.
(The maximum cooking time is 90 minutes.)
7. Press the SELECT/START (
) button.
• Using improper accessories may affect the spark and cooking performance.
• Do not put food directly on the bottom of the oven without using a container.
• Refer to cooking guides pages 39 for guidelines on appropriate power level,
temperature and cooking time.
• You can chage the cooking time and temperature during the cook.
- Teamperature : Press the SELECT/START (
) button and then turn the
+/- DIAL.
- Cooking time : Just turn the +/- DIAL.
Important
1. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic
dishes are ideal as they allow the microwaves to penetrate the food evenly.
2. ALWAYS use oven gloves when touching the recipients in the oven, as they
will be very hot.
3. Check that the heating element is in the horizontal position.
38_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 38
25/06/2013 18:13:28
Cookware for cooking with microwave + convection:
Should be able to let the microwaves pass through. Should be ovenproof (like
glass, pottery or china without metal trims); similar to the cookware described
under MW + Grill.
Food suitable for microwave + convection cooking:
Cooking guide
OVEN USE
All kinds of meats and poultry as well as casseroles and gratin dishes, sponge
cakes and light fruit cakes, pies and crumbles, roast vegetables, scone rounds
and breads.
Preheat the convection to the desired temperature.
Use the power levels and times in this table as guide lines for convection cooking.
Shelf
Level
Mode
Accessory
Cooking Time
(min.)
Standing
Time
(min.)
Frozen
Lasagne
(400 g)
The bottom
of the oven
200 °C /
450 W
Insert rack
16-18
3
Baked
Potatoes
(500 g, 2-3 pcs)
The bottom
of the oven
200 °C /
450 W
Insert rack
1st side: 7-9
2nd side: 6-8
5
Whole
Chicken
(1200 g)
The bottom
of the oven
200 °C /
450 W
Oven dish on
Insert rack
1st side: 23-25
2nd side: 17-19
5
Roast Beef
(1000 g)
The bottom
of the oven
180 °C /
450 W
Oven dish on
Insert rack
1st side: 22-24
2nd side: 15-17
10
(wrapped
in foil)
Frozen Cake
(500 g)
The bottom
of the oven
160 °C /
180 W
Insert rack
7-9
5
Quiche
Reheat (600 g)
1
1st 800
W / 2nd
180 °C
Muiti-pan with
insert rack
1st side : 4
2nd side : 16-17
2
Homemade
Pizza (800g)
2
200 °C /
180 W
Muiti-pan with
insert rack
14-16
2
Food Item
oven use _39
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 39
25/06/2013 18:13:28
USING THE STEAM MODE
Place the food on the multi-pan or multi-pan + Insert rack
in level 1.
Steam mode setting
1. Fill the water supply tank up and place it on the
product. Then place your food into the cooking
chamber.
• If the water tank is not installed properly, the
Refill (
) icon turns on and the cooking
does not progress.
2. Press the STEAM (
panel.
) button on the touch
3. Turn the +/- DIAL to set the time.
• The cooking time is defaulted to 15 minutes.
(The maximum cooking time is 30 minutes.)
4. Press the SELECT/START (
) button.
• The steam mode starts.
• The cooking time can be adjusted using the
+/- DIAL.
If the water tank is empty, refill it with water. Then,
press the SELECT/START (
) button to
resume cooking.
• The Refill (
) icon turns on with a beep.
(You can refill the tank during cooking.)
• When done, empty the water tank and water
tray. Clean the water tank with water.
• Wipe out the remaining moisture in the oven.
• The cooling fan automatically rotates for
40_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 40
25/06/2013 18:13:29
3 minutes after the STEAM modes have been used. This is normal.
• While removing any remaining water after cooking is stopped or complete, the
motor pump may emit noises. This is normal.
• You may hear a boiling sound while in steam cooking mode. This is normal.
• Do not pour hot water in the water tank. This may deform the water tank.
• Refill the tank with 400 ml or more of water.
• When the steam cooking is complete or stopped, keep the water tank in its
position for about one minute so that the remaining moisture drains naturally.
OVEN USE
• To avoid burns, use caution when taking out the dish. Do not come close to the
steam outlet.
• The draining water and water tank is extremely hot. To avoid burns, use caution
when taking out or emptying the water tank.
Cooking guide
Use settings and times in this table as guide lines for steaming.
We recommend to always fill the water tank with fresh water.
Food Item
Shelf Level
Accessory
Time (min.)
Broccoli Florets
1
Multi-pan + Insert rack
15-18
Sliced Vegetables
(pepper, courgettes, onions)
1
Multi-pan
12-15
Cauliflower
1
Multi-pan + Insert rack
20-25
White Asparagus
1
Multi-pan
16-20
Frozen Vegetables
(peas, green beans, artichokes)
1
Multi-pan
18-22
Cubed Potatoes
1
Multi-pan
23-28
Fish Fillet
1
Multi-pan
20-25
Blue Prawns
1
Multi-pan
12-15
Chicken Breast
1
Multi-pan
23-28
Hardboiled Eggs
1
Multi-pan
18-23
oven use _41
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 41
25/06/2013 18:13:29
USING THE DEODORIZATION MODE
Use this feature after cooking odorous food or when there is a lot of smoke in the oven
interior. First clean the oven interior.
1. Press the DEODORIZE ( ) button.
2. Turn the +/- DIAL to set the time.
(Default : 5 minutes , Max : 15 minutes)
3. Press the SELECT/START (
) button.
42_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 42
25/06/2013 18:13:30
USING THE SLIM FRY COOK MODE
The 10 slim fry cook features include/provide pre-programmed cooking times. You do
not need to set either the cooking times or the power level.
You can adjust the slim fry cook category by press the slim fry cook button.
Slim fry cook mode setting
1. Press the SLIM FRY COOK (
) button.
OVEN USE
ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes
are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use
oven gloves when touching the recipients in the oven, as they will be very hot.
2. Turn the +/- DIAL to select the type of food,
and press the SELECT/START (
)
button.
(Refer to the table on page 44-45.)
3. Select the serving size of food by turning the
+/- DIAL.
4. Press the SELECT/START (
) button.
oven use _43
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 43
25/06/2013 18:13:30
Using Slim Fry Features
The following table presents the 10 Slim Fry auto programmes for frying.
It contains its quantities, standing times and appropriate recommendations.
You will use less oil compared to frying with oil fryer, while you will get tasty results.
Programmes are running with a combination of convection, top heater and
microwave energy.
Code
Food
Serving
Size
Standing
Time (min.)
Recommendations
1
Frozen Oven
Chips
0.3-0.35 kg
0.45-0.5 kg
-
Distribute frozen oven chips
evenly on the multi-pan. Insert in
shelf level 1.
Turnover after beep sounds. Press
start to continue. (The oven keeps
operating if you do not turn over).
2
Frozen Prawns,
Breaded
0.2-0.25 kg
0.3-0.35 kg
-
Distribute frozen breaded prawns
evenly on the multi-pan. Insert in
shelf level 1.
3
Frozen Chicken
Nuggets
0.2-0.25 kg
0.35-0.4 kg
-
Distribute frozen frozen chicken
nuggets evenly on the multi-pan.
Insert in shelf level 1.
4
Frozen Potato
Croquettes
0.2-0.25 kg
0.3-0.35 kg
-
Distribute frozen potato
croquettes evenly on the multipan. Insert in shelf level 1.
5
Frozen Mini
Spring Rolls
0.2-0.25 kg
0.35-0.4 kg
-
Distribute frozen mini spring rolls
evenly on the multi-pan. Insert in
shelf level 1.
6
Homemade
French Fries
0.3-0.35 kg
0.45-0.5 kg
1-2
Preheat the oven up to 200 °C.
Use hard to medium type of
potatoes and wash them. Peel
potatoes and cut into sticks with
a thickness of 10x10 mm.
Soak in cold water (for 30 min.). Dry
them with a towel, weigh them and
brush with 5 g olive oil. Distribute
homemade fries evenly on the
multi-pan. Insert in shelf level 1.
Turnover after beep sounds. Press
start to continue. (The oven keeps
operating if you do not turn over).
7
Potato Wedges
0.2-0.25 kg
0.3-0.35 kg
0.4-0.45 kg
1-2
Wash normal sized potatoes and
cut them into wedges. Brush with
olive oil and spices. Put them with
the cut side on the multi-pan.
Insert in shelf level 1.
44_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 44
25/06/2013 18:13:30
Code
Food
Serving
Size
Standing
Time (min.)
Drumsticks
0.2-0.25 kg
0.3-0.35 kg
0.4-0.45 kg
1-2
9
Sliced
Courgettes
0.1-0.15 kg
0.2-0.25 kg
-
10
Apple Halves
0.3-0.35 kg
0.4-0.45 kg
-
Weigh drumsticks and brush with
oil and spices. Place them evenly
on multi-pan with insert rack.
Insert in shelf level 2. Turnover
after beep sounds, oven will stop
process. Press start to continue.
Rinse and slice courgettes. Brush
with 5 g olive oil and add spices.
Put slices evenly on the multi-pan
and inset in shelf level 2. Turnover
after beep sounds. Press start
to continue. (The oven keeps
operating if you do not turn over).
Rinse and core apples (each
150 g). Cut them into halves
horizontally. Put halves with the cut
side down on multi-pan, add filling
e.g. raisins or grated almonds.
Insert in shelf level 1. After cooking
serve with vanilla ice cream.
OVEN USE
8
Recommendations
USING THE DOUGH PROOF/YOGURT MODE
The features include/provide pre-programmed cooking
times. You do not need to set either the cooking times or
the power level. You can adjust the dough proof/yogurt
category by press the dough proof/yogurt button.
Put the food on the multi-pan and insert in shelf level 1.
Dough Proof/Yogurt mode setting
1. Press the DOUGH PROOF/YOGURT (
button on the touch panel.
)
2. Turn the +/- DIAL to select one from 1 or 2,
and press the SELECT/START (
) button.
(1-Dough Proof, 2-Yogurt)
oven use _45
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 45
25/06/2013 18:13:31
3. Turn the +/- DIAL to select a menu, and press
the SELECT/START (
) button. (Refer to
table on page 46-47 for a description.)
• The Auto Cook starts.
Using the Dough Proof/Yogurt Feature
The following table presents how to use the auto programme for dough proof
and yogurt.
Code
Dough
Proof
Yogurt
Serving
Size
Standing
Time
1-1 Pizza Dough
0.3-0.5 kg
-
Put dough in suitable sized
bowl and set on multi-pan, shelf
level 1. Cover with cling film.
1-2 Cake Dough
0.5-0.8 kg
-
Put dough in suitable sized
bowl and set on multi-pan, shelf
level 1. Cover with cling film.
1-3 Bread Dough
0.6-0.9 kg
-
Put dough in suitable sized
bowl and set on multi-pan, shelf
level 1. Cover with cling film.
2-1 Small
Ceramic Cup
or Glass Jars
0.5 kg
6 hours in Distribute 150 g yogurt into
fridge
5 ceramic cups or small glass jars
evenly (30 g each). Add 100 ml
milk into each cup. Use long-life
milk (room-temperature; 3,5 %
fat). Cover each with cling film
and set on multi-pan, shelf level 1.
2-2 Large Glass
Bowl
0.5 kg
6 hours in Mix 150 g natural yogurt with
fridge
500 ml long-life milk (roomtemperature; 3,5 % fat).
Pour evenly into large glass bowl.
Cover with cling film and set on
multi pan, shelf level 1.
Food
Recommendations
46_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 46
25/06/2013 18:13:31
Basic Yeast Dough Recipes:
Pizza
Mix 300 g white flour, 1 package dried yeast (7 g), 1 teaspoon sugar, and
1 teaspoon salt. Add 200 ml luke warm water, 1 tablespoon olive oil and prepare
dough using knead function of your kitchen-machine for 5 minutes.
Mix 500 g white flour, 1 package dried yeast (7 g), 50 g sugar, and ¼ teaspoon salt.
Add 250 ml warm milk (to warm chilled milk use 30-40 seconds. with 900 W)
and mix well. Add 100 g soft butter (to soften chilled butter use 30-40 seconds
with 900 W), and 1 fresh egg (room-temperature). Prepare dough using knead
function of your kitchen-machine for 5 minutes.
OVEN USE
Cake
USING THE KEEP WARM MODE
Place the food on the multi-pan or the multi-pan + insert
rack in level 1.
Keep warm mode setting
1. Press the KEEP WARM (
) button.
2. Turn the +/- DIAL to select a KEEP WARM
time.
(time range: 1 minute ~ 10 hours)
• The default time is set to 30 minutes.
• While in Keep Warm mode, you can adjust
the time using the +/- DIAL.
3. Press the SELECT/START (
) button.
• The Keep Warm mode starts.
oven use _47
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 47
25/06/2013 18:13:31
USING THE POWER DEFROST MODE
Samsung's smart oven enables you to quickly defrost frozen food.
When defrosting food, do not wrap it with aluminum or plastic wrap.
1. Press the POWER DEFROST (
) button.
2. Turn the +/- DIAL to select a menu.
(Refer to page 49)
3. After selecting a menu, press the SELECT/
START (
) button.
Put the food on a heat-resistant dish, and
place the dish at the bottom of the oven.
4. Turn the +/- DIAL to select a serving size, and
press the SELECT/START (
) button.
• The Defrost mode starts.
5. When a beep sounds, open the door and turn
the food over. Then, press the SELECT/START
(
) button to resume defrosting the food.
• If you do not open the door when hearing
the beep, the oven still continues defrosting.
• Do not use the Multi-pan or Insert rack. Otherwise, this may result in fire.
• Do not use the defrosting function immediately after using the oven for cooking
food. Start the defrosting after the oven has cooled down.
48_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 48
25/06/2013 18:13:32
Using the Power Defrost Programmes
The following table presents the various Power Defrost programmes, quantities,
standing times and appropriate recommendations. Remove all kind of package
material before defrosting.
Place meat, poultry and fish on a flat glass plate, arrange bread and cake on
kitchen paper.
Food
Serving
Size
Standing
Time (min.)
Recommendations
1
Meat
0.2-1.5 kg
20-90
Shield the edges with aluminium foil.
Turn the meat over, when the oven
beeps. This programme is suitable
for beef, lamb, pork, steaks, chops,
minced meat.
2
Poultry
0.2-1.5 kg
20-90
Shield the leg and wing tips with
aluminium foil. Turn the poultry
over, when the oven beeps.
This programme is suitable for
whole chicken as well as for chicken
portions.
3
Fish
0.2-1.5 kg
20-80
Shield the tail of a whole fish
with aluminium foil. Turn the fish
over, when the oven beeps. This
programme is suitable for whole
fishes as well as for fish fillets.
4
Bread/Cake
0.1-0.8 kg
10-60
Put bread horizontally on a piece
of kitchen paper and turn over, as
soon as the oven beeps. Place cake
on the bottom of the oven and if
possible, turn over, as soon as the
oven beeps. (Oven keeps operating
and is stopped, when you open the
door.)
This programme is suitable for all
kinds of bread, sliced or whole,
as well as for bread rolls and
baguettes. Arrange bread rolls in a
circle. This programme is suitable
for all kinds of yeast cake, biscuit,
cheese cake and puff pastry. It is
not suitable for short/crust pastry,
fruit and cream cakes as well as for
cake with chocolate topping.
5
Fruit
0.1-0.6 kg
5-20
Spread fruits evenly into a flat glass
dish. This programme is suitable for
all kind of fruits.
OVEN USE
Code
oven use _49
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 49
25/06/2013 18:13:32
USING THE SMART AUTO COOK MODE
Samsung's smart oven cooks for you. You don't need to worry about your recipe's time
and temperature.
According to the selected recipe of 34 predefined settings, the Smart Auto Cook
function sets the optimal cooking time and temperature for best taste and flavor.
1. Press the SMART AUTO COOK (
) button.
2. Turn the +/- DIAL to select one from 1 through
4, and press the SELECT/START (
)
button. (1-Auto Reheat, 2-Auto Cook, 3-Speed
Snack, 4-Steam Cook)
3. Turn the +/- DIAL to select a menu, and press
the SELECT/START (
) button.
(Refer to table on page 52-56 for a description)
4. Turn the +/- DIAL to select a serving size.
• The serving size differs depending on the
menu, and some menus do not provide a
serving size.
• You can skip this step for a menu that does
not provide a serving size.
Menus combined with the steaming process display the Steam Plus (
symbol on the display.
)
• If this is the case, refill the water tank. If the water tank is not installed
properly, the Refill (
) icon turns on and the cooking does not
progress.
50_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 50
25/06/2013 18:13:32
5. Press the SELECT/START (
• The Auto Cook starts.
) button.
OVEN USE
6. When a beep sounds, open the door and
turn the food over. Then, press the SELECT/
START (
) button.
• If you do not open the door when hearing a
beep, the oven still continues cooking.
If the water tank is empty, refill it with water. Then,
press the SELECT/START (
) button to resume
cooking.
• If the water tank runs out of water, the Refill (
)
icon turns on with a beep. (You can refill the tank
during cooking.)
• While in Auto Cook, you cannot use the
SELECT/START (
) button to adjust the
cooking time.
• When done, empty the water tank and water
tray. Clean the water tank with water.
• Wipe out the remaining moisture in the oven.
• The oven is extremely hot. Use protective gloves for your safety.
• Using the oven for an extended period of time may affect its performance. For
extended periods of use, adjust the cooking time or resume using the oven after
it has cooled down.
oven use _51
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 51
25/06/2013 18:13:33
Using the Auto Reheat Feature
The following table presents 8 Auto Reheat Programmes, quantities, standing
times and appropriate recommendations. Programmes no 1-1 to 1-3 are
running with microwave energy only. Programmes no 1-5 and 1-8 are running
with convection. Programme no 1-4 and 1-6 are running with a combination of
microwaves and convection. Programme no 1-7 is running with grill mode only.
Use oven gloves when taking out food.
Code
Food
Serving
Size
Standing
Time (min.)
Recommendations
1-1
Ready Meal
(chilled)
0.3-0.35 kg
0.4-0.45 kg
2-3
Put on a ceramic plate and cover
with microwave cling film. This
programme is suitable for meals
consisting of 3 components (e.g.
meat with sauce, vegetables and
a side dish like potatoes, rice or
pasta). Put the dish on the bottom of
the oven. When beep sounds during
cooking, turn around the food. Press
start to continue. (The oven keeps
operating if you do not turn around.)
1-2
Soup
(chilled)
0.2-0.25 kg
0.3-0.35 kg
0.4-0.45 kg
2-3
Pour into a deep ceramic soup
plate or bowl and put on a ceramic
plate. Cover with plastic lid during
heating. Put the dish on the bottom
of the oven. Stir carefully before
and after standing time.
1-3
Mini Ravioli
(chilled)
0.2-0.25 kg
0.3-0.35 kg
3
Put chilled ready mini ravioli in a
microwave proof plastic dish in the
centre of ceramic plate. Pierce film
of ready product or cover plastic
dish with microwave cling film.
Put the dish on the bottom of the
oven. Stir carefully before and after
standing time. This programme is
suitable for ravioli, as well as for
noodles in sauce.
1-4
Frozen Pizza
0.3-0.4 kg
0.45-0.55 kg
-
Put frozen pizza on multi-pan with
insert rack. Insert in level 1.
When beep sounds during cooking,
turn around the food. Press start
to continue. (The oven keeps
operating if you do not turn around.)
1-5
Frozen Pizza
Snacks
0.1-0.15 kg
0.2-0.25 kg
-
Put frozen pizza snacks on multipan and insert in to level 1.
1-6
Frozen
Lasagne
0.4-0.45 kg
0.8-0.85 kg
3-4
Put frozen lasagne into a suitable
sized ovenproof dish. Put dish on
rack. Set insert rack on bottom.
52_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 52
25/06/2013 18:13:33
Code
Food
Serving
Size
Standing
Time (min.)
Recommendations
Frozen
Chicken
Wings
0.2-0.45 kg
2
Put the frozen ready chicken wings
or small drumsticks (pre-cooked
and spiced) on the rack on multipan with skin-side down. Insert in
level 2. Turnover, as soon as the
oven beeps.
1-8
Frozen
Bread Rolls
0.1-0.35 kg
(2 pcs)
3-5
Put 2 to 6 frozen bread rolls on
multi-pan, insert into level 1. This
program is suitable for small frozen
bakery products as bread rolls,
ciabatta rolls and small baguettes.
OVEN USE
1-7
Using the Auto Cook Feature
The following table presents 11 Auto Cook Programmes, quantities, standing
times and appropriate recommendations. Programmes no 2-1 and 2-5 are
running with microwave energy only. Programmes no 2-6 and 2-7 are running
with a combination of convection and grill or grill only. Programmes no 2-8 and
2-9 are running with a combination of microwaves and convection. Programme
no 2-10 and 2-11 are running with convection mode. Use oven gloves when
taking out food.
Code
Food
Serving
Size
Standing
Time (min.)
Recommendations
2-1
Rice
0.15-0.2 kg
0.2-0.25 kg
5-10
Weigh parboiled white rice and add
double quantity of cold water.
For example: when cooking 0.25 kg
rice, add ½ liter cold water.
Use glass pyrex bowl with lid.
Put the bowl on the bottom of the
oven. Cook covered.
2-2
Broccoli
Florets
0.2-0.25 kg
0.3-0.35 kg
0.4-0.45 kg
0.5-0.55 kg
1-2
Weigh the vegetables after
washing, cleaning and cutting into
similar size.
Put them into a glass bowl with lid.
Add 30 ml (2 tablespoons) water
when cooking for 0.2-0.25 kg,
add 45 ml (3 tablespoons) for
0.3-0.45 kg and add 60-75 ml
(4-5 tablespoons) for 0.5-0.55 kg.
Stir after cooking. Put bowl on the
bottom of the oven. When cooking
higher quantities stir once during
cooking.
oven use _53
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 53
25/06/2013 18:13:33
Code
Food
Serving
Size
Standing
Time (min.)
Recommendations
2-3
Sliced
Carrots
0.1-0.15 kg
0.2-0.25 kg
0.3-0.35 kg
1-2
Weigh the vegetables after
washing, cleaning and cutting
into similar size. Put them into a
glass bowl with lid. Add 30 ml
(2 tablespoons) water when
cooking for 0.2-0.25 kg, add 45 ml
(3 tablespoons) for 0.3-0.35 kg.
Put bowl on the bottom of the
oven. This programme is suitable
for cauliflower.
2-4
Peeled
Potatoes
0.3-0.35 kg
0.4-0.45 kg
0.5-0.55 kg
0.6-0.65 kg
3
Wash and peel potatoes, cut into
halves and put into a glass bowl
with lid. Add 15-30 ml of water
(1-2 tablespoons). Put bowl on
the bottom of the oven. Stir after
cooking. When cooking higher
quantities stir once during cooking.
2-5
Jacket
Potatoes
0.2 kg
0.4 kg
0.6 kg
5
Use oven potatoes with a size of
0.2 kg each. Pierce skin and set on
the bottom of the oven.
2-6
Roast Fish
0.2-0.3 kg
0.4-0.5 kg
3
Brush skin of whole fish with oil and
add herbs and spices. Put fish side
by side, head to tail on multi-pan
with insert rack, level 2. Turnover,
as soon as the beep sounds.
2-7
Fish Fillet
0.2-0.3 kg
0.4-0.5 kg
2
Put fish filets, such as salmon
evenly on multi-pan with insert rack,
level 2. Turnover, as soon as the
beep sounds.
2-8
Roast
Chicken
1.0-1.1 kg
1.2-1.3 kg
5
Brush chilled chicken with oil and
spices. Put breast-side-down into
an ovenproof dish. Put dish on
insert rack on bottom. Turnover, as
soon as the oven beeps.
2-9
Roast Beef/
Roast Lamb
0.9-1.0 kg
1.2-1.3 kg
5-10
Brush the beef/lamb with oil and
spices (pepper only, salt should be
added after roasting). Put it into an
ovenproof dish. Put dish on insert
rack on bottom. Turnover, when
the oven beeps. After roasting and
during standing time it should be
wrapped in aluminium foil.
2-10
Sponge
Cake
0.45-0.55 kg
10
Put dough into a round black metal
baking tin, using baking paper
(diameter 26 cm).
Put tin on multi-pan with insert
rack, shelf level 1.
54_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 54
25/06/2013 18:13:33
Code
2-11
Serving
Size
Standing
Time (min.)
0.5-0.6 kg
-
Food
Muffins
Recommendations
Pour dough into metal baking tin
for 12 muffins (each muffin 45 g)
and set on multi-pan. Insert in shelf
level 1.
The following table presents Auto Programmes for types of snack and food which
take short preparation time.
Programmes no 3-1, 3-2, 3-4 and 3-5 are running with microwave energy only.
Programme no 3-3 is running with convection.
Code
Food
Serving
Size
Standing
Time (min.)
OVEN USE
Using the Speed Snack Features
Recommendations
3-1
Popcorn
0.1 kg
-
Use special popcorn product for
preparing in microwave oven.
Follow the instructions of food
manufacturer and put the bag in the
centre of the bottom of the oven.
During this programme corn will pop
and the bag will increase in volume.
Be careful when taking out and
opening the hot bag.
3-2
Nachos
0.12 kg
-
Put nachos (tortilla chips) on a flat
ceramic plate. Put 50 g grated
cheddar cheese and spices on top.
Place on the bottom of the oven.
3-3
Cookies
0.2 kg
0.3 kg
-
Put the biscuits 0.2 kg or cookies
0.3 kg evenly on the multi-pan.
Insert in shelf level 1.
3-4
Frozen
Mixed
Vegetables
0.3 kg
0.5 kg
3-4
Put frozen vegetable into an ovenproof
glass dish. Add 1 tablespoon water.
Cover with lid. Put the dish on the
bottom of the oven.
3-5
Sausages
0.1 kg
0.2 kg
1-2
Put sausages into a microwaveproof dish. Add 200 ml water.
Cover with lid. Put the dish on the
bottom of the oven.
oven use _55
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 55
25/06/2013 18:13:33
Using Steam Cook Features
The following table presents the 10 Steam Cook programmes.
It contains its quantities, standing times and appropriate recommendations.
Programmes are running with steam, provided by steam generator, injected by
nozzle into the cavity and the support of back heating element. After cooking dry
the cavity with a towel.
Code
Food
Serving
Size
4-1
Broccoli Florets
0.3-0.6 kg
Fill water tank with fresh water up to
maximum level. Put sliced vegetables, such
as broccoli florets on multi-pan with insert
rack, insert in shelf level 1.
4-2
Sliced Carrots
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Put sliced carrots on multipan, insert in shelf level 1.
4-3
Fennel Pieces
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Cut fennel into quarters and
put on multi-pan, insert in shelf level 1.
4-4
White
Asparagus
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Peel and prepare asparagus
and put side by side on multi-pan, insert in
shelf level 1.
4-5
Sliced
Courgettes
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Put courgette slices side by
side on multi-pan, insert in shelf level 1.
4-6
Cubed
Potatoes
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Peel potatoes and cut into
cubes, put on multi-pan, insert in shelf level 1.
4-7
Baby Potatoes
0.3-0.7 kg
Fill water tank with fresh water up to
maximum level. Wash potatoes and put with
skin on multi-pan, in shelf level 1.
4-8
Salmon Fillets
0.3-0.7 kg
Fill water tank with fresh water up to maximum
level. Rinse fish filets and sprinkle with lemon
juices, put on multi-pan with insert rack, in shelf
level 1.
4-9
Whole Fish
0.3-0.7 kg
Fill water tank with fresh water up to maximum
level. Rinse and clean for example trout and
add salt, lemon juice and herbs into fish.
Put head to tail, side by side on the multi-pan
with insert rack. Insert in shelf level 1. This
programme is suitable for 2-3 fish.
4-10
Hardboiled
Eggs
0.1-0.5 kg
Fill water tank with fresh water up to
maximum level. Pierce middle sized eggs
(each about 50-60 g). Put 2-10 eggs into the
multi-pan. Insert in shelf level 1.
Recommendations
56_ oven use
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 56
25/06/2013 18:13:33
cleaning and care
CLEANING YOUR OVEN
This is useful for removing residue that may have accumulated inside the steam
generator. If “ ” blinks on the display, you need to clean the steam generator.
1. Dilute and uses according to description of
buying citric acid.
CLEANING AND CARE
DESCALING
2. Pour the mixture into the water tank, and close
the lid before inserting it to the oven.
3. Press and hold both the
MICROWAVE+CONVECTION (
) button
and SLIM FRY COOK ( ) button for one
second.
• The time message of "30 min 00 sec" is
displayed, and the steam-generator cleaning
cycle starts.
4. After about 20 minutes, the message of
"10 min 00 sec" is displayed with a beep.
The cycle is complete.
5. Remove and empty the water tank.
cleaning and care _57
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 57
25/06/2013 18:13:35
6. Clean the water tank with water, and refill it up
to 500 ml. Close the lid and insert it into the
oven.
7. Press the SELECT/START (
) button.
8. When done, you hear a beep.
9. Empty the water tank and water tray. Clean the water tank with water.
When done, open the door and wipe the
inside of the oven with a dry cloth.
• We advise to use Citric acid when you descale the machine. Citric acid is a
highly effective descaler made exclusively from natural, totally biodegradable
substances.
• It is non-corrosive, non-aggressive and has no environmental impact. As well
as being an affective descaler, it also has an antimicrobial sanitising action, thus
helping to ensure the hygiene of the machine’s internal components, preserve
the taste of the food over time and extend the working life of the machine.
• Water is used for steam cooking, which contains calcium and magnesium.
Through heating, water evaporates and only the floating materials (minerals)
remain (not harmful to humans).
• If the descaling cycle is interrupted before completion, the programme must be
started again from the beginning.
58_ cleaning and care
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 58
25/06/2013 18:13:35
USING THE STEAM CLEAN MODE
Use this mode before cleaning the inside of the oven. This mode loosens food residue,
allowing you to easily clean the oven.
Steam clean mode setting
CLEANING AND CARE
1. Refill the water tank up to 500 ml, close the lid
and mount it onto the oven. Then, close the
door.
• If the water tank is empty, no steaming
function is enabled.
2. Press the STEAM CLEAN ( ) button.
• The steam cleaning lasts for 10 minutes.
3. Press the SELECT/START (
) button.
When done, open the door and wipe the
inside of the oven with a dry cloth.
• If you open the door while in steam cleaning, cleaning may not work properly.
Do not open the door.
• The oven is extremely hot. Use caution when cleaning the oven after using the
steam clean function.
• Only use water. Do not use detergent.
When done, empty the water tank and drip tray. Clean the water tank with water.
cleaning and care _59
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 59
25/06/2013 18:13:36
Removing any remaining water.
1. Empty the water tank and insert it back.
2. Press and hold both the CONVECTION ( )
button and DOUGH PROOF/YOGURT ( )
button for one second.
• The removal of remaining water operates for
45 seconds.
• Do not press any button during this process.
• Keep the door closed during this process.
When done, empty the water tank and drip tray. Clean the water tank with water.
Cleaning the inside of the oven
Inside the oven
Exterior,
control panel,
and door
window
1. With a dish towel dampened with neutral detergent, wipe out any food residue
on the oven's walls and ceiling.
2. Stains and dry food residue can be removed easily using steam cleaning.
3. Wipe the inside of the oven with a dry cloth.
60_ cleaning and care
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 60
25/06/2013 18:13:37
Cleaning the surface, control panel, and door window
1. Wipe the oven exterior with a dry cloth. (before cleaning the touch panel, turn
off the oven or set the child lock)
2. Do not apply excessive force to the control panel when cleaning it.
3. With a dish towel dampened with neutral detergent, wipe both sides of the
door window. Dry with a dry cloth.
Wipe them with a sponge with neutral detergents. Rinse with water.
Cleaning accessories
1. Wash the bottom of the oven with neutral
detergent. Dry, and then place it back in the
oven.
2. Do not clean accessories excessively with a
brush. This may damage the coating.
ent
l deterg
Neutra
CLEANING AND CARE
Cleaning the water tank and water tray
• Do not use benzene, thinner, or metal brushes for cleaning purposes. This may
damage the coating or result in discoloration.
• Do not spray cleaners directly onto the oven. This may result in electric shock or
fire.
• Do not expose the water tank and water tray to direct sunlight. This may result
in deformation or damage.
cleaning and care _61
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 61
25/06/2013 18:13:37
troubleshooting and error
code
TROUBLESHOOTING
If you have problems with your oven, try the solutions suggested below. They may save
you the time and inconvenience of an unnecessary service call.
What to do if you are in doubt or have a problem
Becoming familiar with a new appliance always takes a little time. If you have any
of the problems listed below, try the solutions given. They may save you the time
and inconvenience of an unnecessary service call.
The following are normal occurrences.
•
•
•
•
Condensation inside the oven
Air flow around the door and outer casing
Light reflection around the door and outer casing
Steam escaping from around the door or vents
The food is not cooked at all.
• Have you set the timer correctly and pressed the SELECT/START button?
• Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a
breaker to be triggered.
The food is either overcooked or undercooked.
• Make sure appropriate cook time was used.
• Make sure appropriate power level was used.
Sparking and cracking occur inside the oven (arcing).
• Make sure you are using proper cookware without metal trimmings.
• Make sure no forks or other metal utensils have been left inside the oven.
• If using aluminum foil, make sure it is not too close to inside walls.
The oven causes interference with radios or televisions.
• Slight interference may be observed on televisions or radios when the oven is
operating. This is normal.
• Solution: install the oven away from televisions, radios and aerials.
• If interference is detected by the oven’s microprocessor, the display may be reset.
• Solution: Disconnect the power plug and reconnect it. Reset the time.
Electronic interference causes DISPLAY to be reset.
• Disconnect the power plug and reconnect it. Reset the time.
62_ troubleshooting and error code
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 62
25/06/2013 18:13:37
Condensation appears inside the oven.
• This is a normal occurrence. Simply wipe away after cooking.
The fan continues to operate after the oven has been turned off.
• This is a normal occurrence. Cooling fan may continue to operate for up to
three minutes after oven has been turned off.
• This is a normal occurrence.
Light reflection around the door and outer casing.
• This is a normal occurrence.
Steam escapes from around the door or vents.
• This is a normal occurrence.
A clicking sound occurs while the oven is operating, especially
in defrosting mode.
• This is a normal occurrence.
The light bulb is not working.
TROUBLESHOOTING AND ERROR CODE
Air flow is detected around the door and outer casing.
• The Light bulb should not be replaced in person for safety reasons. Please
contact nearest authorised Samsung customer care, to arrange for a qualified
engineer to replace the bulb.
Smoke and bad smell when initial operating.
• It’s a temporary condition by new component heating. Smoke and smell
will disappear completely after 10 minutes operation. To remove smell more
quickly, place a cup of diluted lemon juice in the oven and heat for ten minutes
at maximum power.
Please have the following information read;
• The model and serial numbers, normally printed on the rear of the oven.
• Your warranty details.
• A clear description of the problem.
Then contact your local dealer or SAMSUNG after sales service.
troubleshooting and error code _63
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 63
25/06/2013 18:13:37
ERROR AND SAFETY CODES
Error Code
General Functions
TEMP SENSOR OPEN
It occurs due to a defective sensor, misplaced wires, a defective
PCB, Please contact SAMSUNG Customer Service.
TEMP SENSOR SHORT
It occurs due to a defective sensor, misplaced wires, a defective
PCB, Please contact SAMSUNG Customer Service.
UNFINISHED PREHEAT
In case the oven has not reached the desired temperature although
a certain amount of time has passed (unfinished preheating).
Please contact SAMSUNG Customer Service.
OVER 230 °C DURING OPERATION OF MWO MODE
In case the temperature rises over 230 °C during operation of mwo
mode (fire sensed).
After cooling the oven, re-working MW mode. If the problem
persists, Please contact SAMSUNG Customer Service.
STEAM SENSOR OPEN
Please contact SAMSUNG Customer Service.
STEAM SENSOR SHORT
Please contact SAMSUNG Customer Service.
WATER LEVEL SENSOR ERROR
Please contact SAMSUNG Customer Service.
EEPROM READ/WRITE ERROR
Please contact SAMSUNG Customer Service.
COMMUNICATION ERROR
Please contact SAMSUNG Customer Service.
TOUCH ERROR
Please contact SAMSUNG Customer Service.
KEY SHORT ERROR
Press the STOP/CANCEL button to try again. If the problem
persists, contact the nearest SAMSUNG Customer Service.
If the above guidelines do not enable you to solve the problem, then
contact your local SAMSUNG customer service centre.
64_ troubleshooting and error code
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 64
25/06/2013 18:13:39
technical data
Samsung strives to improve its products at all times. Both the design
specifications and these user instructions are thus subject to change
without notice.
TECHNICAL DATA
TECHNICAL DATA
Model
MC324GAKCBB/MC325GAKCBB
MC326GAKCBB/MC324GAKCWQ
Power Source
240 V ~ 50 Hz
Power
Consumption
Maximum Power
1700 W
Microwave
1300 W
Grill
1550 W
Convection
1700 W
Steam
1700 W
Output Power
800 W (IEC-705)
Operating Frequency
2450 MHz
Magnetron
OM75P (21)
Cooling Method
Cooling fan motor
Volume (Usable Capacity)
32 Liter
Dimensions
(W x H x D)
Outside
527 x 391 x 488 mm
Oven Cavity
438 x 231 x 315 mm
Weight
Net
27.8 Kg
technical data _65
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 65
25/06/2013 18:13:39
memo
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 66
25/06/2013 18:13:39
memo
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 67
25/06/2013 18:13:39
QUESTIONS OR COMMENTS
COUNTRY
AUSTRALIA
NEW ZEALAND
CHINA
CALL
OR VISIT US ONLINE AT
1300 362 603
0800 SAMSUNG (0800 726 786)
www.samsung.com
400-810-5858
HONG KONG
(852) 3698 4698
www.samsung.com/hk (Chinese)
www.samsung.com/hk_en (English)
INDIA
1800 3000 8282
1800 266 8282
www.samsung.com/in
INDONESIA
0800-112-8888
021-5699-7777
www.samsung.com/id
JAPAN
0120-327-527
www.samsung.com
1800-88-9999
www.samsung.com/my
PHILIPPINES
1-800-10-SAMSUNG(726-7864) for PLDT
1-800-3-SAMSUNG(726-7864) for Digitel
1-800-8-SAMSUNG(726-7864) for Globe
02-5805777
www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
MALAYSIA
www.samsung.com
THAILAND
1800-29-3232
02-689-3232
www.samsung.com/th
TAIWAN
0800-329-999
0266-026-066
www.samsung.com
VIETNAM
1 800 588 889
Code. : DE68-04142E
(Steam)MC324GAKCBB_SA_DE68-04142E_EN.indb 68
25/06/2013 18:13:39
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
