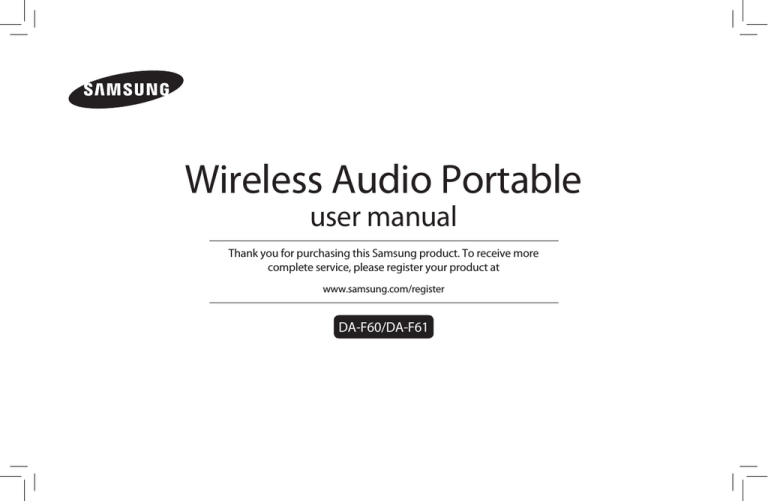

Wireless Audio Portable
user manual
Thank you for purchasing this Samsung product. To receive more
complete service, please register your product at
www.samsung.com/register
DA-F60/DA-F61
What’s included
ff When you charge smart phone via USB, the battery may discharge more quickly.
-- Charging smart phone through the Service (USB) port takes longer than charging the
unit using the adapter. It is only chargeable when this product is turned on.
Check for the supplied accessories shown below. The appearance of the accessories may differ
slightly from the illustrations.
SERVICE
VOL
5V 500mA
AUX IN
SERVICE
MUTE
5V 500mA
DC 14V 2.5A
AUX IN
FUNC.
Power Adapter
Audio Cable
Cover Fabric
DC 14V
User Manual
2.5A
BASS
OPEN
Using the Cover Fabric
Power Adapter
USB
5V 500mA
AUX IN connector (Analogue Input)
Charge the battery
The battery status indicator is normally off to
conserve battery power. To check the charge level,
press and hold the Power button for 5 seconds. You
can play this product for 12 hours continuously on
one charge. For a full charge, we recommend you
charge the battery for about 3 hours.
]
[
OFF ...................... Full charge
Green .................. 60% to 99% of full charge
Yellow .................. 30% to 60% of full charge
Red ...................... 30% or less
Red blink ............ Charge needed
Reset hole
Support
AUX IN
SERVICE
DC 14V 2.5A
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
3
OPEN
1
2
Wrap the cover around the product. The cover will be held in place by magnets.
Your Wireless Audio Portable
SERVICE Port (Use to charge the smart
phone via a USB cable connected to the
unit. Also use to update the unit's firmware.)
SERVICE
Power cable connector
5V 500mA
AUX IN
DC 14V 2.5A
VOL
Volume control
VOL
ff We recommend you charge the battery
for 3 hours.
ff Charge and store the battery at 5° C ~
35° C.
ff Do not charge the battery for more
than 12 hours or leave the battery fully
discharged for a long time. Doing so
may shorten the battery life.
ff Depending on how you use your
player, actual battery life may vary and
may be shorter than specified.
Reset your Product
VOL
VOL
VOL
SERVICE
5V 500mA
MUT
E
AUX IN
USB
MUTE
5V 500mA
MUTE button
MUTE
5V 500
FUN
DC 14V
C.
AUX IN
DC 14V
2.5A
BASS
DC 14V
NFC Tag
.
FUNC
BASS
Battery indicator
English
2.5A
BASS
OPEN
OPEN
, SoundShare
Power Bass button
Optimise the sound based on your tastes.
Function LED
2
Function button
Bluetooth , AUX
2.5A
AUX IN
FUNC.
Power button (On/Off)
OPEN
Don't pull the support too hard.
You can damage it.
If an error occurs while you are operating this
product and it doesn't work properly, press the
Reset hole with a pen tip or similar item for 2
seconds.
Using the NFC function
Connect your NFC compatible device via Bluetooth to the
Wireless Audio Portable using this simple set-up procedure and
play music on the device through the Wireless Audio Portable.
To connect the Wireless Audio Portable to a
Bluetooth device
ff The NFC function is built into Android devices running
Android OS 4.1 Jellybean or later.
-- If your device is running an Android OS earlier than
Android OS 4.1 Jellybean, you must download the
'Samsung NFC Connection' application from Android
market to use the NFC function.
ff The position of the NFC antenna differs on devices. Check
where the NFC antenna is located before connecting.
ff If your device is covered with a thick case, the connection
may not succeed.
VOL
Connect
MUTE
FUNC.
BASS
External device
aptX®
aptX enables high
quality Bluetooth
stereo audio that
delivers wired
audio quality
wirelessly.
Using Bluetooth
1. Turn on the NFC function on the device and make sure the
screen lock function on the device is off. The device's NFC
function will not work if screen lock is on.
2. Gently touch the top of the Wireless Audio Portable's left
panel with the NFC supported device.
• If the Wireless Audio Portable is off, it will turn on
automatically.
3. A pop-up asking whether to proceed with the Bluetooth
connection appears on the device. Select <Yes>.
• When the connection is complete, the 'connected'
message appears.
4. To disconnect the NFC device, touch the device to the
Wireless Audio Portable's left panel again. To connect another
NFC device while the first device is still connected, touch that
device to the Wireless Audio Portable's left panel. The
Wireless Audio Portable will disconnect the first device and
connect to the second device.
You can connect the Wireless Audio Portable to Bluetooth
devices and enjoy music with high quality stereo sound, all
without wires!
Bluetooth technology lets Bluetooth-compliant devices interconnect
easily with each other using a short wireless connection.
• A Bluetooth device may cause noise or malfunction,
depending on usage, when:
-- A part of your body is in contact with the receiving/transmitting
system of the Bluetooth device or the Wireless Audio Portable.
-- It is subject to electrical variation from obstructions caused
by a wall, corner, or by office partitioning.
-- It is exposed to electrical interference from same
frequency-band devices including medical equipment,
microwave ovens, and wireless LANs.
• Pair the Wireless Audio Portable with the Bluetooth device
while they are close together.
• The further the distance between the Wireless Audio Portable
and Bluetooth device, the worse the quality. If the distance
exceeds the Bluetooth operational range, the connection is lost.
• The Bluetooth connection only works when the Bluetooth
device is close to the set. The connection is automatically cut
off if the Bluetooth device moves out of range. Even within
range, the sound quality may be degraded by obstacles such
as walls or doors.
• This wireless device may cause electric interference during its
operation.
VOL
VOL
MUTE
FUNC.
MUTE
FUNC.
button on the Wireless Audio Portable to select
1. Press the
the Bluetooth function.
2. Press the
BASS
button for 3 seconds in Bluetooth mode.
BASS
3. The Bluetooth indicator blinks quickly and the product
changes to the pairing mode.
4. Scan or Search for the Wireless Audio Portable on your
Bluetooth device.
5. Select "[Samsung] W_Audio" on the list of items found by
the Bluetooth device.
• If the Bluetooth device fails to pair with the Wireless Audio
Portable, repeat Steps 2, 3, and 4.
6. Play music on the connected device.
ff In Bluetooth connection mode, the Bluetooth connection
will be lost if the distance between the Wireless Audio
Portable and the Bluetooth device exceeds 5m.
English
3
f You may be required to enter a PIN code (password)
when connecting the Bluetooth device to the Wireless
Audio Portable. If the PIN code input window appears,
enter <0000>.
f The Wireless Audio Portable supports SBC data
(44.1kHz, 48kHz).
f The AVRCP feature is not supported.
f Connect only to a Bluetooth device that supports the
A2DP (AV) function.
f You cannot connect to a Bluetooth device that supports
only the HF (Hands Free) function.
f Only one Bluetooth device can be paired at a time.
VOL
SERVICE
SERVICE
5V 500mA
MUTE
5V 500mA
AUX IN
FUNC.
AUX IN
DC 14V
2.5A
BASS
OPEN
DC 14V 2.5A
soFtWare uPgrade
This section explains how to connect the Wireless Audio
Portable to Bluetooth compatible SAMSUNG TVs.
Samsung may offer upgrades for
the Wireless Audio Portable's
system firmware in the future.
If an upgrade is offered, you can
upgrade the firmware by
connecting a USB drive with the
firmware upgrade stored on it to
the Service (USB) port on your
Wireless Audio Portable.
Please visit Samsung.com to receive more information about
downloading upgrades files.
To upgrade after you have downloaded the firmware, follow
these steps:
SERVICE
5V 500mA
AUX IN
DC 14V 4A
SERVICE
VOL
5V 500mA
Connect
AUX IN
MUTE
DC 14V 4A
FUNC.
BASS
connecting an audio deVice using auX in
This section explains how to connect the unit to an audio device.
This unit is equipped with one audio analogue jack for
connecting an audio device.
using the soundshare Function
VOL
1. Turn on the Samsung TV and Wireless Audio Portable.
• Set 'Add New Device' to 'On' in the TV's 'SoundShare
Settings' menu. (Refer to the TV's user manual for details.)
MUTE
FUNC.
VOL
BASS
button to change the mode of the Wireless
2. Press the
. A message asking whether to proceed
Audio Portable to
with Bluetooth pairing appears.
blinks in the standby mode.
• The
3. Select <Yes> on the TV screen. The Wireless Audio Portable
pairs with the TV.
indicator blinks, and then stops blinking.
• The
• The Wireless Audio Portable Bluetooth pairing is complete.
• If you want to cancel an existing pairing and pair the
Wireless Audio Portable to another TV, press the
mode.
button for 3 seconds with the unit in
VOL
MUTE
Earphones
jack
Audio Cable
External device
VOL
MUTE
Press the
FUNC.
button to select AUX function.
BASS
f Before moving or installing this product, be sure to turn off
the power and disconnect the power cord.
4
English
FUNC.
f SoundShare is supported by some Samsung TVs
released after 2012. Check whether your TV supports
SoundShare before you begin.
f Optimal pairing distance is 1m or less.
BASS
1. Turn on the product.
VOL
2. Insert a USB drive containing the firmware upgrade into the
Service (USB) port on the back of the product.
MUTE FUNC.
FUNC.
BASS
and
buttons for 5 seconds at the same time.
3. Press the
The update process starts.
• All LEDs indicators will blink during the update process.
MUTE
BASS
4. The LEDs will turn off automatically after the update process
is complete.
• Do not disconnect the power or remove the USB drive
while upgrades are being applied.
• The product will turn off automatically after completing the
firmware upgrade.
• When firmware is upgraded, settings you have made will
return to their default (factory) settings. We recommend
you write down your settings so that you can easily reset
them after the upgrade.
• When the battery indicator LED is red, do not update the
product. Doing so could cause the product to malfunction.
f If the firmware fails to upgrade, we recommend formatting
the USB drive in FAT16 and trying again.
f For upgrading purposes, do not format the USB drive in
NTFS format because it is not a supported file system.
f Depending on the manufacturer, the USB may not be
supported.
Troubleshooting
Other Notes
Before requesting service, please try the following solutions:
The unit will not turn on.
Sound is not produced in AUX mode.
• Connect the power plug to the outlet.
• Check the power of the external device and
• Your player will not turn on if the battery is
whether the music is playing or not.
completely drained. Recharge the battery • Make sure the AUX mode is selected.
and turn the player on again.
• Check if the audio cable is connected
• Check if the battery is discharged.
properly.
A function does not work when the button • Turn up the volume of the product/external
device.
is pressed.
• Disconnect the power plug and connect it
The SoundShare (TV pairing) failed.
again.
• Check whether your TV supports
• Check if the buttons correspond to the
SoundShare. (http://www.samsung.com)
functions you want to activate.
• Check whether your TV has the latest
Sound is not produced.
firmware.
• Make sure the unit is properly connected.
• Reset the unit.
• Check if the Mute function is on.
• If the function doesn't work even though
• Check if the volume is set to minimum.
the connection is completed, contact the
The power of the unit is off.
Samsung call centre.
• The unit automatically turns off in the
following situations.
-- If there is no KEY input for 8 hours
The Wireless Audio Portable may not search
when the cable is connected in AUX
or connect properly in the following cases.
mode.
• If there is a strong electrical field around
-- If the AUX cable in AUX mode is
the Wireless Audio Portable.
disconnected for 25 minutes.
• If several Bluetooth devices are simultaneously
-- If the Bluetooth or SoundShare mode
paired to the Wireless Audio Portable.
has been disconnected from this unit
• If the Bluetooth device is turned off, not in
for 25 minutes.
place, or malfunctions.
-- It does not turn off when the smart
phone is charging.
About the Battery
• If the battery is nearly discharged, red indicator begins to blink and eventually turned off.
• If the battery has insufficient charges, pressing the power button does not turn on the
product. Instead, the battery indicator blinks red a few times and turns off.
• While the battery indicator is blinking, all other buttons will not work.
• If the battery is fully discharged, all function, volume and bass settings are initialized.
About NFC
• NFC tagging for Bluetooth connection cannot be established while powering on and off.
• NFC tagging for Bluetooth connection will not work while the battery indicator is blinking.
About Automatic Bluetooth Connection
• When switching to Bluetooth mode or powered up in Bluetooth mode, the last Bluetooth
connection will be restored automatically if available. Automatic Bluetooth connection
attempt will abort after 1 minute.
• Within the automatic connection trial, connection to another Bluetooth device can be
limited. To connect to a different Bluetooth device, switch the product’s Bluetooth mode to
pairing mode. (See page 3.)
Specifications
Model name : DA-F60/ DA-F61
Dimensions (W x D x H) : 225 x 46.5 x 131 mm
Weight : 1.1 kg
Operating temperature range : +5°C~+35°C
Operating humidity range : 10 % to 75 %
-- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
-- Weight and dimensions are approximate.
-- For the Power Supply and Power Consumption, refer to the label attached to the product.
Open the rear cover to check the label.
Copyright
©2013 Samsung Electronics Co.,Ltd.
All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
English
5
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER(OR BACK). NO USERSERVICEABLE PARTS ARE INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage” inside
the product that presents a risk of electric shock or
personal injury.
This symbol indicates important instructions
accompanying the product.
WARNING : To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet
with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug
must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do
not put an object filled with liquid, such as a vase, on the
apparatus.
• To turn this apparatus off completely, you must pull the
power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all
times.
6
English
Safety PrecaUtiOns
Power Supply Precautions
• Do not overload outlets or extension cords.
-- This may result in abnormal heat or fire.
• Do not plug in or unplug the power cord with wet hands.
• Do not place the product near heating equipment.
• To clean the power plug blades, remove the plug from
the wall outlet and wipe the blades with a dry cloth only.
• Do not bend the power cord or pull it forcefully.
• Do not put heavy objects on the AC power adaptor.
• Do not use the AC adaptor if it is damaged. Do not
disconnect the AC adaptor by pulling on its power-cord.
• Do not plug the power cord into a loose or damaged
outlet.
• Fully insert the AC adaptor's plug into the the wall outlet
so that it's plug is firmly attached to the outlet.
-- If the connection is unstable, there is a risk of fire.
Installation Precautions
• Do not install the product near equipment or objects that
generate heat or produce fire (candles, mosquito coils,
heaters, radiators, etc.). Do not install in direct sunlight.
• When moving the product, turn off the power and
disconnect all cords (include the power cord) from the unit.
-- A damaged cord may cause a fire and poses a risk of
electric shock.
• Installing the product in environments with high heat or
humidity, dust, or extreme cold, can lead to quality
problems or cause the product to malfunction. Before you
install the product in an environment that is outside the
norm, please contact the Samsung service centre for
additional information.
• Place the product upright when installing it on a shelf,
cabinet, or desk. Do not place the product on an unstable
surface (e.g. a shaky shelf, a tilted desk, etc.).
-- Dropping the product can cause it to malfunction and
poses a risk of injury. Severe vibration or impact can
also cause the product to malfunction and lead to a
fire hazard.
• Install your product with enough space around it for the
ventilation.
-- Leave at least 10cm at the rear of the product and
more than 5cm on each side of the product.
• Keep the plastic packing materials out of reach of your
children.
-- Children playing with the plastic packing materials run
the risk of suffication.
Usage Precautions
• Using for an extended time at high volume may cause
serious damage to your hearing.
-- If you are exposed to sound louder than 85db for an
extended time, you may adversely affect your hearing.
The louder the sound is, the more seriously damaged
your hearing may become. Note that an ordinary
conversation is between 50 to 60 db and road noise is
approximately 80 db.
• This product contains dangerous high voltage. Do not
attempt to disassemble, repair, or modify it yourself.
-- Contact a Samsung service centre when your product
is in need of repair.
• Do not place any container that contains liquid on the
product (e.g. vase, beverages, cosmetics, chemicals,
etc.). Do do not allow any metal objects (e.g. coins, hair
clips, etc.) or flammable material (e.g. paper, matches,
etc.) to enter the product (through the air vents, I/O ports,
etc.).
-- If any harmful material or liquid enters the product,
turn off the product immediately, unplug the power
cord, and then contact a Samsung service centre.
• Do not drop the product. In case of a mechanical
breakdown, disconnect the power cord and contact a
Samsung service centre.
-- There is a risk of fire or electric shock.
• Do not hold or pull the product by the power cord or the
signal cable.
-- A damaged cable can cause the product to
malfunction, cause a fire, and poses a risk of electric
shock.
• Do not use or keep flammable materials near the
product.
• If the product emits an abnormal sound or a burnt smell
or smokes, unplug the power-cord immediately and
contact a Samsung service centre.
• If you smell gas, ventilate the room immediately. Do not
touch the power plug of the product. Do not turn the
product off or on.
• Do not strike or subject the product to a sudden shock.
Do not pierce the product with a sharp object.
Cleaning Precautions
• Never use alcohol, solvents, waxes, benzene, thinners,
air freshener, or lubricants to clean the product or spray
insecticide on the product.
-- Using any of these materials can discolor the exterior
coating or cause it to split or peel off, or remove the
labelling on the product.
• To clean the product, unplug the power cord, and then
wipe the product with a clean, dry, soft cloth (Microfiber,
cotton).
-- Avoid leaving dust on the product. Dust can scratch its
the surface.
Battery Usage Precautions
• Do not subject the product to high temperatures or fire.
Do not bring the product into hot, poorly ventilated areas
such as saunas or closed vehicles during the summer
time.
-- There is a risk of fire or the battery could explode.
• Do not expose the product to high humidity.
-- Humidity and liquids can damage the components and
electrical circuits of the product, cause the product to
malfunction, and may cause a risk of fire. We
recommended that you use the product in
environments with temperatures between 5° ~ 35 °C
and relative humidities between 10% ~ 75%.
• Do not leave the product connected to the AC adaptor
after the battery has been fully charged.
-- Disconnect the AC adapter after the battery is fully
charged to prevent damage to the battery.
Overcharging can decrease the battery's useful life.
• Check the charge status of the battery once a month. If
you do not use the product for long periods of time,
recharge the battery periodically to maintain battery
capacity and functionality.
-- Leaving the battery discharged for a long time can
reduce its useful life, cause the battery to malfunction,
or cause a risk of fire.
English
7
contact saMsung World Wide
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Area
Contact Centre 
Web Site
` Asia Pacific
AUSTRALIA
CHINA
1300 362 603
0800 SAMSUNG (0800 726
786)
400-810-5858
HONG KONG
(852) 3698 4698
NEW ZEALAND
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
1800 3000 8282
1800 266 8282
0800-112-8888
021-5699-7777
0120-327-527
0800-329-999
0266-026-066
1 800 588 889
800-SAMSUNG (726-7864)
OMAN
800-SAMSUNG(726-7864)
KUWAIT
183-2255 (183-CALL)
Web Site
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
www.samsung.com
Qatar
800-2255 (800-CALL)
Egypt
Syria
08000-726786
800-22273
065777444
18252273
IRAN
021-8255
www.samsung.com
www.samsung.com/id
Morocco
080 100 2255
www.samsung.com
www.samsung.com
Saudi Arabia
9200-21230
www.samsung.com/sa (Arabic)
Turkey
444 77 11
www.samsung.com
www.samsung.com
Cote D’ Ivoire
0800-726-7864
0800-10077
0302-200077
8000 0077
Senegal
800-00-0077
www.samsung.com
Cameroon
7095- 0077
www.samsung.com
KENYA
0800 545 545
www.samsung.com
UGANDA
0800 300 300
www.samsung.com
TANZANIA
0685 88 99 00
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/hk (Chinese)
www.samsung.com/hk_en (English)
www.samsung.com/in
www.samsung.com/th
www.samsung.com/th
www.samsung.com
www.samsung.com
` MENA
U.A.E
Contact Centre 
8000-4726
1800-88-9999
www.samsung.com/my
1-800-10-SAMSUNG(726-7864)
for PLDT
1-800-3-SAMSUNG(726-7864)
for Digitel
www.samsung.com/ph
1-800-8-SAMSUNG(726-7864)
for Globe
02-5805777
1800-SAMSUNG(726-7864)
www.samsung.com
1800-29-3232
02-689-3232
Area
BAHRAIN
www.samsung.com
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
JORDAN
www.samsung.com/Levant(English)
www.samsung.com/Levant(English)
` Africa
NIGERIA
Ghana
www.samsung.com
www.samsung.com
SOUTH AFRICA 0860-SAMSUNG(726-7864 )
www.samsung.com
Botswana
0800-726-000
www.samsung.com
Namibia
8197267864
www.samsung.com
Angola
91-726-7864
www.samsung.com
Zambia
211350370
www.samsung.com
AH68-02622N-00
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
