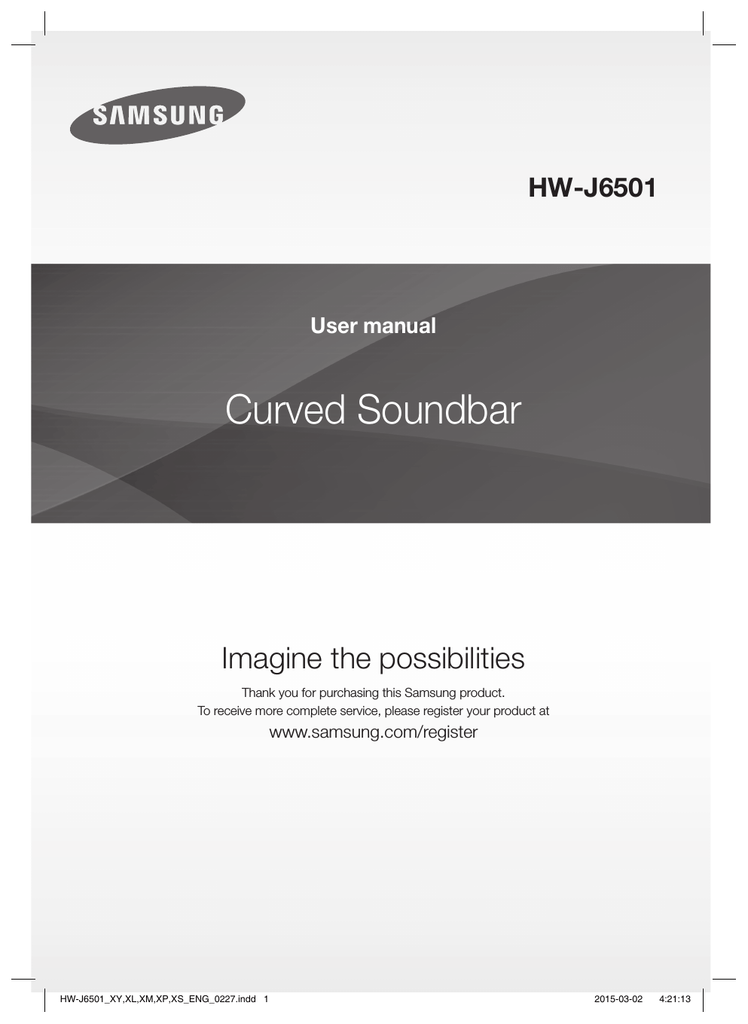

Samsung Series 6 Curved Soundbar User Manual

HW-J6501
User manual
Curved Soundbar
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 1
2015-03-02
4:21:13
GETTING STARTED
GETTING STARTED
FEATURES
Streaming Music Services
USB Host Support
The Curved Soundbar makes diving into all your favourite
music easier than ever before, thanks to its Wi-Fi
capabilities. Simply access the Samsung Multiroom App
to experience the best of the internet’s subscription
streaming music services.
You can connect and play music files from external USB
storage devices such as MP3 players, USB flash
memory, etc. using the Soundbar's USB HOST function.
Surround Sound Expansion
You can connect a Bluetooth device to the Soundbar
and enjoy music with high quality stereo sound, all
without wires!
The Surround Sound Expansion feature adds depth and
spaciousness to your listening experience.
TV SoundConnect
Connect your TV and Soundbar easily through Bluetooth
with TV Sound Connect. The absence of trailing wires
between the Soundbar and TV allows you to showcase
the slim and sleek design of both systems, while
maintaining a clean look in your living environment. Easily
control the Soundbar and TV from a single TV remote.
Bluetooth Function
LICENCES
Manufactured under Licence from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Music Source Sharing (= Multiroom Play)
Controlling and sharing one music source across multiple
audio devices in various locations is made easy with
Multiroom Link. The mobile app remotely controls volume
and music on your system across different devices,
including your TV, Soundbar, Home Entertainment
System and Blu-ray Disc Player. Enjoy the audio you
want, where you want.
HDMI
HDMI transmits video and audio signals simultaneously,
and provides a clearer picture.
The unit is also equipped with the ARC function which
lets you listen to sound from your TV through the
Soundbar via an HDMI cable. This function is only
available if you connect the unit to an ARC compliant TV.
For DTS patents, see http://patents.dts.com.
Manufactured under licence from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks, and DTS 2.0 Channel is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the
United States and other countries.
2
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 2
2015-03-02
4:22:11
GETTING STARTED
SAFETY INFORMATION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ENG
SAFETY WARNINGS
This symbol indicates “dangerous voltage”
inside the product that presents a risk of electric
shock or personal injury.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates important instructions
accompanying the product.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the
apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power
plug must be easily and readily accessible at all times.
3
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 3
2015-03-02
4:22:11
GETTING STARTED
PRECAUTIONS
68.6 mm
99.1mm
99.1mm
99.1mm
Ensure that the AC power supply in your house complies with the power requirements listed on the identification
sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough
space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on
amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the
unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of
time.
During thunderstorms
thunderstorms, disconnect the AC plug from the
wall outlet. Voltage peaks due to lightning could damage
the unit.
Do not expose the unit to direct sunlight or oth
other heat
sources. This could lead to overheating and cause the
unit to malfunction.
Protect the product from moisture (i.e. vases), and
excess heat (e.g. a fireplace) or equipment creating
strong magnetic or electric fields. Disconnect the power
cable from the AC supply if the unit malfunctions. Your
product is not intended for industrial use. It is for
personal use only. Condensation may occur if your
product has been stored in cold temperatures. If
transporting the unit during the winter, wait approximately
2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals
that are harmful to the environment. Do not dispose of
batteries in the general household trash. Do not dispose
of batteries in a fire. Do not short circuit, disassemble, or
overheat the batteries. There is a danger of explosion if
the battery is incorrectly replaced. Replace only with the
same or equivalent type.
WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD, The remote control supplied with
this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from
children. If the battery compartment does not close securely, stop using the product and keep it away
from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.
4
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 4
2015-03-02
4:22:11
GETTING STARTED
CONTENTS
ENG
2
GETTING STARTED
23 FUNCTIONS
2
Features
23
Input Mode
3
Safety Information
24
Bluetooth
6
What’s Included
26
Using the Network Standby On
Function
7
DESCRIPTIONS
26
Using the Multiroom Link
7
Top / Front Panel
28
Software Update
8
Rear / Bottom Panel
9
Remote Control
30 TROUBLESHOOTING
30
Troubleshooting
11 INSTALLATION
11
Installing the Soundbar
31 APPENDIX
11
Installing the Wall Mount
31
14
Attaching the Soundbar to your TV's Stand
14
Installing Soundbar to Free-Standing
Figures and illustrations in this User Manual are
provided for reference only and may differ from
actual product appearance.
15 CONNECTIONS
15
Connecting the Subwoofer
17
Connecting to a TV
17
Connections with TV Using HDMI (Digital)
Cable
17
Connections with TV Using Optical (Digital)
Cable
18
TV SoundConnect
20
Connections with External Device
20
HDMI Cable
20
Optical or AUX Cable
21
USB
Specifications
5
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 5
2015-03-02
4:22:12
GETTING STARTED
WHAT’S INCLUDED
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
+ Icons used in this manual
Icon
Term
Caution
Note
Definition
Indicates a situation where a function does not operate or settings may be cancelled.
Indicates tips or instructions on the page that help you operate a function.
Check for the supplied accessories shown below.
Remote Control /
Lithium Battery
(3V : CR2032)
Power Cord : 2EA
DC Adapter
HDMI Cable
USB Cable
User Manual
Holder-Fix Mount : 2EA
Bracket-Wall : 2EA
[ZW
Wall Mount Guide
● The appearance of the accessories may differ slightly from the illustrations above.
● Use the dedicated USB cable to connect external USB devices to the unit.
6
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 6
2015-03-02
4:22:12
DESCRIPTIONS
DESCRIPTIONS
TOP / FRONT PANEL
Controls the volume level.
The numeric value of the volume level
appears in the front panel display.
(Power) Button
Turns the power on and off.
ENG
VOL. - / +
(Source) Button
Display
Selects the D.IN, AUX, HDMI, BT, TV, or
USB input.
Displays the current mode.
● While the unit is powered on, pressing
(Source) button for more than
the
3 seconds sets the button to act as
(Mute) button. To cancel the
the
(Mute) button setup, press the
(Source) button for more than 3
seconds again.
● When you plug in the AC cord, the power key will work in 4 to 6 seconds.
● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
● If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the Audio
Setup menu of your TV. Refer to the owner's manual supplied with your TV.
7
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 7
2015-03-02
4:22:14
DESCRIPTIONS
REAR / BOTTOM PANEL
AUX IN
HDMI IN
Connect to the Analogue output of an
external device.
Inputs digital video and audio
signals simultaneously using an
HDMI cable. Use when connecting
a supported external device.
OPTICAL IN (D.IN)
HDMI OUT (TV-ARC)
Connect to the digital
(optical) output of an
external device.
Outputs digital video and
audio signals simultaneously
using an HDMI cable.
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
LABEL
LAN
5V 0.5A
DC14V
Wi-Fi SETUP SPK ADD
DC 14V
(Power Supply In)
Connect the DC power
adaptor to the power
supply jack, and then
connect the AC power
adaptor plug to a wall
outlet.
Wi-Fi SETUP
SPK ADD
Press this button to
connect your Soundbar to
your network using Wi-Fi
setup.
Press the button to
connect Soundbar to
the HUB.
(not supplied)
(USB Port)
Connect USB devices here to play
files on the devices.
LAN
Lets you connect to a network using a LAN cable.
● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.
Do not pull the cable.
● Do not connect this unit or other components to an AC outlet until all connections between components
are complete.
8
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 8
2015-03-02
4:22:19
DESCRIPTIONS
REMOTE CONTROL
ENG
SOURCE
Press to select a source connected to the Soundbar.
Mute
You can turn the volume down to 0 with the push of a button.
Press again to restore the sound to the previous volume level.
Repeat
Press to set the Repeat function during music playback from a USB device.
OFF - REPEAT : Cancells Repeat Playback.
TRACK - REPEAT : Repeatedly play a track.
ALL - REPEAT : Repeatedly play all tracks.
RANDOM - REPEAT : Plays tracks in random order.
(A track that has already been played may be played again.)
Skip Forward
If there is more than one file on the device you are playing, and you press
the $ button, the next file is selected.
SOUND CONTROL (*Use the #,$ buttons to adjust level.)
Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the #,$
buttons to adjust the Treble, Bass volume from -3 to +3.
Press and hold the SOUND CONTROL button for about 5 seconds to adjust
the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,
5KHz, and 10KHz are selectable and each can be adjusted to a setting between
-6 and +6.
If the Soundbar is connected to a digital TV and the video appears out of sync
with the audio, press the SOUND CONTROL button to sync the audio with the
video. Use the #,$ buttons to set the audio delay between
0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync
function may not available.
Anynet+
Press the Anynet+ button to turn the Anynet+ function on or off.
(Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF
- ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the
Soundbar with the remote from an Anynet+ compatible Samsung TV. The
Soundbar must be connected to the TV via an HDMI cable.
* Auto Power Link
Synchronizes the Soundbar to a connected Optical source via the Optical
jack so it turns on automatically when you turn on your TV. (See page 18)
You can also activate Wi-Fi SETUP function by pressing and holding Anynet+
button on the remote for over 7 seconds.
● Soundbar is a Samsung proprietary name.
● Operate the TV using the TV's remote control.
9
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 9
2015-03-02
4:22:22
DESCRIPTIONS
Power
Turns the Soundbar on and off.
Volume
Adjusts the volume level of the unit.
Play / Pause
Press the & button to pause the playing of a file temporarily.
Press the & button again to play the selected file.
Skip Back
If there is more than one file on the device you are playing, and you press the #
button, the previous file is selected.
SOUND EFFECT
You can select from 6 different sound modes - STANDARD (Original Sound),
MUSIC, VOICE, SPORTS, CINEMA, and NIGHT MODE - depending on the
content you want to listen to.
Select the STANDARD mode if you want to enjoy the original sound.
SOUND
Surr.Sound adds depth and spaciousness to the sound. Pressing the
SOUND button repeatedly cycles through the Surr.Sound settings :
ON - SURROUND SOUND, OFF - SURROUND SOUND
STREAMING MUSIC
Press STREAMING MUSIC button to listen to an Internet radio station. Each
time you press this button, the Soundbar switches to the next default station,
cycling through the 3 default stations.
To use the STREAMING MUSIC function, the soundbar must be connected to
the network. (See page 26)
DRC (Dynamic Range Control) *
Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and
Dolby TrueHD audio.
Press and hold the STREAMING MUSIC button, then the DRC (Dynamic
Range Control) function toggles between ON and OFF.
WOOFER (* Use the #,$ buttons to adjust woofer volume.)
Press the WOOFER button. Then, use the #,$ buttons to adjust Subwoofer
volume from -12, -6 to +6.
You can also activate SPK ADD function of the soundbar by pressing and
holding WOOFER button of the remote for over 5 seconds.
INSTALLING THE BATTERY IN THE REMOTE CONTROL
1. Use a suitable coin to turn the
remote control's battery cover
counterclockwise to remove it
as shown in the figure above.
2. Insert a 3V lithium battery. Keep the
positive (+) pole facing up when inserting
the battery. Put the battery cover on and
align the '●' marks side by side as shown
in the figure above.
3. Use a suitable coin to
turn the remote control
battery cover clockwise
as far as it will go to fix it
in place.
10
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 10
2015-03-02
4:22:23
INSTALLATION
INSTALLATION
INSTALLING THE SOUNDBAR
ENG
INSTALLING THE WALL MOUNT
+ Installation Precautions
● Install on a vertical wall only.
● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of
the set.
● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the
unit on a different wall that can support the unit's weight.
● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board,
wood, etc.). If possible, fix the support screws into wall studs.
● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
-
Diameter : M5
Length: L 35 mm or longer recommended.
● Connect cables from the unit to external devices before you install it on the wall.
● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.
5 cm or more
1. Place the installation guide against the wall surface.
•
The installation guide must be level.
•
If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.
11
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 11
2015-03-02
4:22:23
INSTALLATION
Center Line
Center Line
2. Mark the location where the screws will go through on the wall, and then remove the installation guide. Next, drill
holes for the screws using an appropriately sized drill bit.
3. Fasten the Bracket-Wall (2ea) and screws to the marked locations.
4. Lift up the product after inserting the Bracket-Wall as shown.
12
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 12
2015-03-02
4:22:24
INSTALLATION
ENG
SPK ADD
OPTICAL IN
Wi-Fi SETUP
HDMI OUT
(TV-ARC)
LAN
5V 0.5A
AUX IN
DC 14V
HDMI IN
5. Insert and fasten Holder-Fix Mount into each hole on the product’s bottom side. The product is fixed to the
Bracket-Wall.
● Do not hang onto the installed unit and avoid striking or dropping the unit.
● Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or
damage the product.
● When the unit is installed on a wall, please make sure that children do not pull any of the connecting
cables, as it may cause it to fall.
● For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the
TV, if the TV is mounted on the wall.
● For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely
to fall.
13
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 13
2015-03-02
4:22:24
INSTALLATION
ATTACHING THE SOUNDBAR TO YOUR TV'S STAND
You can attach the Soundbar to your TV's stand if you have a Samsung TV that has a stand that is compatible with this
Soundbar.
● This Soundbar is compatible with model JU6700, JU6500 and JU7500, 48 inch, 55 inch and 65 inch,
JU6610 - 48 inch and 55 inch, 2015 Samsung curved TVs. Please visit the home page of Samsung
Electronics (www.Samsung.com) to see a detailed list of the compatible models.
● This Soundbar cannot be installed to a non-compatible TV, in either form of TV mount or TV stand.
1. Align the Soundbar’s centre with the centre of the base of the TV, and then carefully push it onto the stand as far
as it will go, as shown in the illustration. Be careful not to unbalance the TV.
INSTALLING SOUNDBAR TO FREE-STANDING
1. Centre the Soundbar on the flat area in front of the TV.
● Install it on a level and firm surface.
14
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 14
2015-03-02
4:22:25
CONNECTIONS
CONNECTIONS
ENG
● Do not connect the power cord of this product or your TV to a wall outlet until all connections between
components are complete.
● Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
CONNECTING THE SUBWOOFER
CONNECTING TO THE SUBWOOFER AUTOMATICALLY
The main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are
turned on.
• If it is completely connected, the blue LED in the subwoofer stops blinking.
CONNECTING TO THE SUBWOOFER MANUALLY
The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly)
automatically when the main unit and subwoofer are turned on. If the Link indicator does not light when the main unit
and subwoofer are turned on, please set the ID by following the procedure below.
POWER
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
•
The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the
seconds.
(Mute) on the remote control for 5
4. The ID SET message appears on the Soundbar's display.
5. To finalise the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.
•
The main unit and the subwoofer should now be linked (connected).
•
The Link indicator (Blue LED) on the subwoofer should be on.
•
If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from
Step 2.
•
You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.
(See page 10)
15
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 15
2015-03-02
4:22:25
CONNECTIONS
● Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on
the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.
● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar,
interference may cause some sound interruption.
● The transmission distance of the wireless signal between the main unit and subwoofer is about 10 meters,
but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the
main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal
cannot penetrate metal.
● If the main unit doesn't make a wireless connection, follow steps 1-5 on the previous page to re-set the
connection between the main unit and wireless subwoofer.
● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and
moisture.
● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear
of any obstructions.
16
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 16
2015-03-02
4:22:26
CONNECTIONS
CONNECTING TO A TV
ENG
CONNECTIONS WITH TV USING HDMI (DIGITAL) CABLE
HDMI Cable
HDMI IN
HDMI OUT
(TV-ARC)
HDMI OUT
(TV-ARC)
HDMI IN
DC 14V
AUX IN
LAN
HDMI OUT
(TV-ARC)
OPTICAL IN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect an HDMI cable from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on
your TV.
(Source) button on the top panel of Soundbar or the SOURCE button on remote control to select
2. Press the
the D.IN mode.
● HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.
● If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
● We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose
diameter is less than 14 mm.
● Anynet+ must be turned on.
● This function is not available if the HDMI cable does not support ARC.
CONNECTIONS WITH TV USING OPTICAL (DIGITAL) CABLE
Optical Cable
(not supplied)
OPTICAL OUT
OPTICAL IN
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect OPTICAL IN (Audio) on the Soundbar to the OPTICAL OUT jack of the TV.
(Source) button on the top panel of Soundbar or the SOURCE button on remote control to select
2. Press the
the D.IN mode.
17
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 17
2015-03-02
4:22:26
CONNECTIONS
+ Auto Power Link
If you have connected the main unit to a TV with a digital optical cable, set the Auto Power function ON to have
the Soundbar turn on automatically when you turn the TV on.
AUTO POWER LINK
Display
ON
OFF - ANYNET+ / ON - POWER LINK
OFF
ON - ANYNET+ / OFF - POWER LINK
1. Connect the Soundbar and a TV with an Optical cable (not supplied).
(Source) button on the main unit’s top panel or the SOURCE button on the remote control to
2. Press the
select the D.IN mode.
3. Press the Anynet+ button on the remote control to toggle the Auto Power Link function on and off.
● Depending on the connected device, Auto Power Link may not function.
TV SOUNDCONNECT
You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV
SoundConnect function.
Connect
1. Turn on the TV and Soundbar.
• Turn on the menu of the TV.
• Move to Speaker Settings on "Sound" tab.
• Set the "Add New Device" menu to "On".
2. Press the
(Source) button on the main unit’s top panel or the SOURCE button on the remote control to
select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function appears.
4. Select <Yes> to finish connecting the TV and Soundbar using the TV's remote control.
18
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 18
2015-03-02
4:22:28
CONNECTIONS
ENG
● Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect.
● To connect the Soundbar to another TV, the existing connection must be terminated.
● Terminate the connection to the existing TV, and then press the & button on the remote control for 5
seconds to connect to another TV.
● The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on.
Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For
further information, refer to the TV’s user manual.).
● If your Samsung TV was released before 2014, check the SoundShare setting menu.
● If the distance between the TV and Soundbar exceeds 10 meters, the connection may not be stable or the
audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and
then re-establish the TV SoundConnect connection.
● TV SoundConnect Operational Ranges:
- Recommended pairing range: within 2 meters.
- Recommended operational range: within 10 meters.
● The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.
19
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 19
2015-03-02
4:22:28
CONNECTIONS
CONNECTIONS WITH EXTERNAL
DEVICE
HDMI CABLE
HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes,
and more.
HDMI prevents any degradation to the signal due to conversion to analogue and maintains the video and audio
quality of the original digital source.
HDMI Cable
Digital Devices
HDMI OUT
HDMI IN
HDMI IN
HDMI IN
DC 14V
AUX IN
LAN
HDMI OUT
(TV-ARC)
OPTICAL IN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect an HDMI cable from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital
device.
(Source) button on the top panel of Soundbar or the SOURCE button on remote control to select
2. Press the
the HDMI mode.
OPTICAL OR AUX CABLE
This unit comes equipped with one optical in digital jack and one audio analogue in jack, giving you two ways to
connect it to an External Devices.
Optical Cable
(not supplied)
OPTICAL IN
OPTICAL OUT
BD / DVD player /
Set-top box /
Game console
Audio Cable
(not supplied)
AUX OUT
AUX IN
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
20
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 20
2015-03-02
4:22:28
CONNECTIONS
+ AUX Cable
1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device.
ENG
2. Press the
(Source) button on the top panel of Soundbar or the SOURCE button on remote control to select
the AUX mode.
+ Optical Cable
1. Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the Source Device.
2. Press the
(Source) button on the top panel of Soundbar or the SOURCE button on remote control to select
the D.IN mode.
USB
You can play music files located on USB storage devices through the Soundbar.
Display
USB port
HDMI IN
DC 14V
AUX IN
5V 0.5A
Wi-Fi SETUP
SPK ADD
LAN
LAN
HDMI OUT
(TV-ARC)
OPTICAL IN
5V 0.5A
1. Connect the USB device to the USB port on the back of the product.
(Source) button on the main unit’s top panel or the SOURCE button on the remote control to
2. Press the
select the USB mode.
3. USB appears on the display screen.
•
The Soundbar connection to the USB device is complete.
•
The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 15
minutes.
+ Before you connect a USB device
Be aware of the following:
● If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar's
display.
● This product may not be compatible with certain types of USB storage media.
● The Soundbar supports the FAT16 and FAT32 file systems.
-
The NTFS file system is not supported.
● Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility
problem.
● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
21
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 21
2015-03-02
4:22:30
CONNECTIONS
● Digital camera PTP protocols are not supported.
● Do not remove the USB device while it is transferring files.
● DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.
● External HDDs are not supported.
● Mobile phone devices are not supported.
● File Format Type Compatibility list:
Extension
*.mp3
*.wma
Codec
Sampling Rate
Bit rate
MPEG 1 Layer1
32/44.1/48
32 ~ 448kbps
MPEG 1 Layer2
32/44.1/48
32 ~ 384kbps
MPEG 1 Layer3
32/44.1/48
32 ~ 320kbps
MPEG 2 Layer3
16/22.05/24/32/44.1/48
8 ~ 160kbps
MPEG 2.5 Layer3
8/11.025/12/16/22.05/24/32/44.1/48
8 ~ 160kbps
Wave_Format_MSAudio1
-
-
Wave_Format_MSAudio2
-
-
WMA Professional
Not Support
-
*.wav
-
8 KHz ~ 192KHz
~ 8.8Mbps
*.ogg
-
8 KHz ~ 48KHz
-
*.flac
-
8 KHz ~ 192KHz
~ 5.6Mbps
*.m4a
Alac
(Apple lossless Audo codec)
8 KHz ~ 192KHz
~ 1Mbps
*.ape
MON-KEY Audio
8 KHz ~ 48KHz
~ 1Mbps
*.aif
Audio Interchange File Format
8 KHz ~ 192KHz
~ 4.4Mbps
● If there are too many folders and files stored in the USB device, reading may take some time.
22
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 22
2015-03-02
4:22:30
FUNCTIONS
FUNCTIONS
INPUT MODE
Input mode
ENG
Press the
(Source) button on the main unit’s top panel or the SOURCE button on the remote control to select
the mode you want.
Display
Optical Digital input
D.IN
ARC (HDMI OUT) input
AUX input
AUX
HDMI input
HDMI
BLUETOOTH mode
BT
TV SoundConnect
TV
USB mode
USB
The unit turns off automatically in the following situations.
● D.IN / HDMI / BT / TV / USB / ARC Mode
-
If there is no audio signal for 15 minutes.
● AUX Mode
To turn the Auto Power Down function ON or OFF, press and hold the & button for 5 seconds.
ON - AUTO POWER DOWN / OFF - AUTO POWER DOWN appears on the display.
-
If the AUX cable is disconnected for 15 minutes.
-
If there is no KEY input for 8 hours when the AUX cable is connected.
23
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 23
2015-03-02
4:22:30
FUNCTIONS
BLUETOOTH
You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!
TO CONNECT THE SOUNDBAR TO A BLUETOOTH DEVICE
Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.
Connect
Bluetooth device
(Source) button on the main unit’s top panel or the SOURCE button on the remote control to
1. Press the
select the BT mode.
•
You will see BT READY on the front display of the Soundbar.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user
manual.)
3. Select "[Samsung] Soundbar" from the list.
•
When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name]  BT on
the front display.
•
The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in
English.
•
If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar" found
by the Bluetooth device and have it search for the Soundbar again.
4. Play music on the connected device.
•
You can listen to the music playing on the connected Bluetooth device over the Soundbar.
•
In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available
in Bluetooth devices supporting AVRCP.
●
●
●
●
If asked for PIN code when connecting a Bluetooth device, enter <0000>.
Only one Bluetooth device can be paired at a time.
The Bluetooth connection will be terminated when you turn the Soundbar off.
The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
- If there is a strong electrical field around the Soundbar.
- If several Bluetooth devices are simultaneously paired with the Soundbar.
- If the Bluetooth device is turned off, not in place, or malfunctions.
- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves
use the same frequency range as the Bluetooth device, which can cause electric interference.
24
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 24
2015-03-02
4:22:31
FUNCTIONS
The Soundbar supports SBC data (44.1kHz, 48kHz).
Connect only to a Bluetooth device that supports the A2DP (AV) function.
You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] Soundbar" from the
device's scanned devices list will automatically change the Soundbar to BT mode.
ENG
●
●
●
●
● Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device
and the Soundbar must have been previously paired at least once.)
● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying
BT READY.
● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
TO DISCONNECT THE BLUETOOTH DEVICE FROM THE
SOUNDBAR
You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.
● The Soundbar will be disconnected.
● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
BT DISCONNECTED on the front display.
TO DISCONNECT THE SOUNDBAR FROM THE BLUETOOTH
DEVICE
Press the SOURCE button on the remote control or the
from BT to another mode or turn off the Soundbar.
(Source) button on the product's top panel to switch
● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before
terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)
● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar
and the Bluetooth device exceeds 10 meters.
● The Soundbar automatically turns off after 15 minutes in the Ready state.
+ More About Bluetooth
Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a
short wireless connection.
● A Bluetooth device may cause noise or malfunction, depending on usage, when:
- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the
Soundbar.
- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
- It is exposed to electrical interference from same frequency-band devices including medical equipment,
microwave ovens, and wireless LANs.
● Pair the Soundbar with the Bluetooth device while they are close together.
● The further the distance between the Soundbar and Bluetooth device, the worse the quality is.
If the distance exceeds the Bluetooth operational range, the connection is lost.
● In poor reception areas, the Bluetooth connection may not work properly.
● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the
Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as
walls or doors.
● This wireless device may cause electric interference during its operation.
25
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 25
2015-03-02
4:22:31
FUNCTIONS
USING THE NETWORK STANDBY ON
FUNCTION
The Network Standby On function becomes available if wireless connection was properly established between the
smart device and Soundbar. This function turns on the Soundbar automatically when a smart device attempts to
connect to the Soundbar via Bluetooth or Wi-Fi. If the Soundbar was turned on via Bluetooth connection, its input
mode is set to BT automatically. Turning on the Soundbar via Wi-Fi is available only by using the App. For further
information, refer to the Web manual.
1. Connect the Smart device to your Soundbar.
2. Turn the Network Standby On function on by pressing the $ button on the Soundbar remote for more than 5
seconds. You can turn the function off by pressing the $ button again for more than 5 seconds.
● Available only if the Soundbar is listed among the Smart device’s paired devices. (The Smart device and the
Soundbar must have been previously paired at least once.)
● Soundbar will appear in the Smart device’s searched devices list only when the Soundbar is displaying [BT
READY] or [WiFi READY].
● In the TV SoundConnect mode, the Soundbar cannot be paired to another Smart device.
● If Network Standby On function did not work
- The Network Standby On is set to Off.
● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was
cut off. Turn on the Soundbar and reconnect.
USING THE MULTIROOM LINK
Once the Soundbar is connected to a smart device with Multiroom App, you can connect multiple Samsung Multiroom
devices together wirelessly.
BEFORE YOU BEGIN
+ Communication Basics
Smart Device:
Android or iOS
(App Control)
Internet
Wireless Router
1. Requirements: Wireless Router, Smart Device
2. The wireless router should be connected to the Internet.
3. The smart device should be connected to the router via a Wi-Fi connection.
26
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 26
2015-03-02
4:22:31
FUNCTIONS
INSTALLING THE SAMSUNG MULTIROOM APP
ENG
To use the Soundbar, you must download and then install the Samsung Multiroom App by accessing the app through
Google play or the App Store. With the Samsung Multiroom App installed, you can play music stored in your smart
device, from connected devices and other content providers, and from Internet radio stations.
+ Android or iOS
Download the Samsung Multiroom app from Google Play or the App Store of your smart device.
*
Market search : Samsung Multiroom
ANDROID APP ON
or
+ Accessing the Samsung Multiroom App
To access the Samsung Multiroom app, press the Multiroom app icon on your smart device.
CONNECTING THE SOUNDBAR TO YOUR NETWORK
On your Smart device, select the Samsung Multiroom app.
Follow the directions on your smart device’s screen.
● For further information, refer to the Web Manual.
- Web manual : www.Samsung.com  Support  Product name search  HW-J6501 PDF file
download.
● When connected to a wired network, try to use the CAT 7 cable to connect.
27
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 27
2015-03-02
4:22:32
FUNCTIONS
SOFTWARE UPDATE
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
LAN
5V 0.5A
UPDATING WITH USB
Samsung may offer updates for the Soundbar's system firmware in the future.
If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it
to the USB port on your Soundbar.
Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the
firmware one file at a time.
Please visit samsung.com or contact the Samsung call centre to receive more information about downloading updates
files.
1. While the Soundbar is turned off, connect the USB storage device that contains the updating firmware to the
Soundbar’s USB port.
2. Turn on the Soundbar UPDATE appears on the display and updating begins within 3 minutes.
•
Upon completion of updating, the Soundbar turns off and on automatically.
+ If UPDATE was not displayed
1. Turn off the Soundbar, connect the USB storage device that contains update files to the Soundbar’s USB port.
2. Disconnect the power cord, reconnect it and turn it on.
● Insert a USB device containing the firmware update into the USB port on the main unit.
● Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB
storage device.
● Do not disconnect the power or remove the USB device while updates are being applied. The main unit will
turn off automatically after completing the firmware update.
28
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 28
2015-03-02
4:22:32
FUNCTIONS
● Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.
ENG
● After the update, all settings are reset to their factory default settings. We recommend you write down your
settings so that you can easily reset them after the update. Note that updating firmware resets the
subwoofer connection too.
If connection to the subwoofer is not re-established automatically after the update, refer to page 15.
If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.
● Depending on the manufacturer, some USB devices may not be supported.
AUTO UPDATE
Even when the Soundbar is turned off, the Soundbar will automatically check latest software version and continue to
update if it was connected to the Internet.
● The Soundbar is configured to run auto update by default.
● To use auto update function, the Soundbar must be connected to the Internet.
● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was
cut off. Turn on the Soundbar and reconnect.
29
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 29
2015-03-02
4:22:32
TROUBLESHOOTING
TROUBLESHOOTING
TROUBLESHOOTING
Before requesting service, please check the following.
The unit will not turn on.
• Is the power cord plugged into the outlet?
 Connect the power plug to the outlet.
A function does not work when the button is pressed.
• Is there static electricity in the air?
 Disconnect the power plug and connect it again.
Sound is not produced.
• Is the Mute function on?
 Press the
• Is the volume set to minimum?
 Adjust the Volume.
(Mute) button to cancel the function.
The remote control does not work.
• Are the batteries drained?
 Replace with new batteries.
• Is the distance between the remote control and main
unit too far?
 Move closer to the unit.
The TV SoundConnect (TV pairing) failed.
• Does your TV support TV SoundConnect?
 TV SoundConnect is supported by some Samsung
TVs released from 2012 on. Check your TV to see if it
supports TV SoundConnect.
• Is your TV firmware the latest version?
 Update your TV with the latest firmware.
• Does an error occur when connecting?
 Contact the Samsung call centre.
• Reset the TV mode and connect again.
 Press and hold the & button for 5 seconds to reset
the TV SoundConnect connection.
The red LED on the subwoofer blinks and the subwoofer is not producing sound.
• Your subwoofer may not be connected to the
main body of the product.
 Try to connect your subwoofer again.
(See Page 15)
The subwoofer drones and vibrates noticeably.
• Try to adjust the vibration of your subwoofer.
 Press the WOOFER button on your remote control to
adjust its value (between -12, -6 to +6).
30
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 30
2015-03-02
4:22:32
APPENDIX
APPENDIX
SPECIFICATIONS
ENG
Model name
HW-J6501
USB
Weight
GENERAL
AMPLIFIER
Dimensions
(W x H x D)
5V / 0.5A
Main Unit
2.7 kg
Subwoofer (PS-WJ6501)
6.8 kg
Main Unit
1078 x 47.5 x 129 mm
Subwoofer (PS-WJ6501)
452 x 335 x 154 mm
Operating Temperature Range
+5°C to +35°C
Operating Humidity Range
10 % to 75 %
Rated Output Main Unit
Power
Subwoofer (PS-WJ6501)
22W/CH x 6, 4ohm, THD=10%, 1KHz
168W, 3ohm, THD=10%, 100Hz
S/N Ratio (Analogue Input)
65 dB
Separation (1kHz)
65 dB
*
S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering
Society) guidelines.
*
Nominal specification
*
-
Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
-
Weight and dimensions are approximate.
For the power supply and Power Consumption, refer to the label attached to the product.
For India Only
"This product is RoHS compliant"
a Open Source Licence Notice
-
To send inquiries and requests regarding open sources, contact Samsung via Email
([email protected]).
31
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 31
2015-03-02
4:22:33
©2015 Samsung Electronics Co.,Ltd. All rights reserved
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
Centre.
Contact Centre 
Area
` Asia Pacific
CHINA
400-810-5858
HONG KONG
(852) 3698 4698
MACAU
SINGAPORE
AUSTRALIA
NEW ZEALAND
VIETNAM
THAILAND
MYANMAR
0800 333
1800-SAMSUNG(726-7864)
1300 362 603
0800 726 786
1800 588 889
0-2689-3232, 1800-29-3232
+95-01-2399-888
1800-88-9999
603-77137477 (Overseas contact)
021-56997777
08001128888
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline and Mobile]
02-4222111 [Other landline]
0800-329999
0120-363-905
1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
9612300300
94117540540
MALAYSIA
INDONESIA
PHILIPPINES
TAIWAN
JAPAN
INDIA
BANGLADESH
SRI LANKA
AH68-02825J-00
HW-J6501_XY,XL,XM,XP,XS_ENG_0227.indd 32
Web Site
www.samsung.com/cn/support
www.samsung.com/hk/support (Chinese)
www.samsung.com/hk_en/support (English)
www.samsung.com/support
www.samsung.com/sg/support
www.samsung.com/au/support
www.samsung.com/nz/support
www.samsung.com/vn/support
www.samsung.com/th/support
www.samsung.com/support
www.samsung.com/my/support
www.samsung.com/id/support
www.samsung.com/ph/support
www.samsung.com/tw/support
www.samsung.com/jp/support
www.samsung.com/in/support
www.samsung.com/support
AH68-02825J-00
2015-03-02
4:22:33

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
