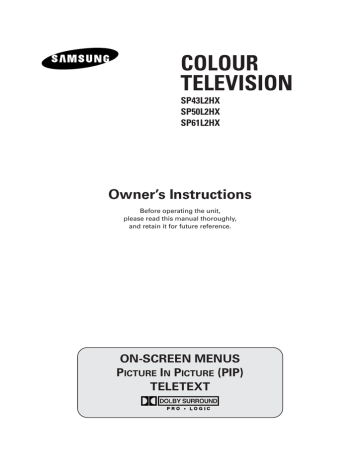

COLOUR
TELEVISION
SP43L2HX
SP50L2HX
SP61L2HX
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PICTURE IN PICTURE (PIP)
TELETEXT
Safety Instructions
ENG
◆ Do not expose the television to extreme temperature conditions or to extreme humidity conditions.
◆ Do not expose the television to direct sunlight and other sources of heat.
◆ Do not expose the television to any liquids.
◆ Never put objects of any kind into the television, and do not place a water-containing vessel on the
television.
◆ During a storm conditions (especially when there is lightning) unplug the television from the mains
socket and aerial.
◆ Do not step on or twist the power cord.
◆ Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.
◆ Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.
◆ If the television is broken, do not try to repair it yourself. Contact qualified service personnel.
◆ If the remote control is not used for a long period of time, remove the batteries and store it in a
cool, dry place.
◆ Do not drop the remote control.
This device is not for use in industrial environments.
Caution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO PREVENT ELECTRICAL SHOCK,
DO NOT REMOVE REAR COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT DAMAGE WHICH MAY RESULT
IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
2
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
☛
The main voltage is indicated on the
rear of the TV set and the frequency is
50 or 60Hz.
ENG
Contents (continued)
◆ FOREWORD
■
■
■
Safety Instructions .........................................................................................
Caution ..........................................................................................................
Replacing the Lamp.......................................................................................
2
2
5
◆ CONNECTING AND PREPARING YOUR TELEVISION
■
■
■
■
■
■
■
■
■
■
■
■
■
Control Panel of Your Television ...................................................................
Connection Panel of Your Television ............................................................
Connecting to an Aerial or Cable Television Network ...................................
Connecting a Satellite Receiver or Decoder..................................................
Connecting Additional Speakers ...................................................................
Inserting the Batteries in the Remote Control................................................
Infrared Remote Control ................................................................................
Switching Your Television On and Off...........................................................
Placing Your Television in Standby Mode .....................................................
Becoming Familiar with the Remote Control .................................................
Setting Up Your Remote Control ...................................................................
Plug & Play Feature.......................................................................................
Choosing Your Language..............................................................................
6
7
8
8
9
9
10
11
11
12
13
14
15
◆ SETTING THE CHANNELS
■
■
■
■
■
■
Storing Channels Automatically.....................................................................
Sorting the Stored Channels .........................................................................
Storing Channels Manually............................................................................
Assigning Names to Channels ......................................................................
Activating the Child Lock and Skipping Unwanted Channels ........................
Selecting a Channel by Information...............................................................
16
17
18
20
21
22
◆ USING YOUR TELEVISION (continued)
■
■
■
■
■
■
■
■
Changing the Picture Standard .....................................................................
Adjusting the Picture Settings........................................................................
Adjusting the Picture Settings (PC or DVI Mode) ..........................................
Setting the Picture (PC Mode).......................................................................
Extra Picture Settings ....................................................................................
- Size
- Blue Screen
- Film Mode
- Digital NR
Using the LNA (Low Noise Amplifier) Feature...............................................
Freezing the Current Picture .........................................................................
DNIeTM (Digital Natural Image engine)
...............................................
3
22
23
24
25
26
27
27
28
ENG
Contents
◆ USING YOUR TELEVISION
■
■
■
■
■
■
■
■
■
■
■
Changing the Sound Standard ......................................................................
Adjusting the Sound Settings ........................................................................
Adjusting the Volume Automatically ..............................................................
Setting the Dolby Pro Logic ...........................................................................
Adjusting Your Dolby Preferences.................................................................
Setting the External Sound............................................................................
Selecting the Sound Mode (depending on the model) ..................................
Setting the Melody Sound .............................................................................
Setting the Sleep Timer .................................................................................
Setting the Time and Switching the TV On/Off Automatically .......................
Viewing the Picture In Picture (PIP) ..............................................................
28
29
29
30
31
32
33
34
34
35
36
◆ USING THE TELETEXT FEATURE
■
■
■
■
Teletext Feature ............................................................................................
Displaying the Teletext Information ...............................................................
Selecting Display Options..............................................................................
Select a Teletext Page ..................................................................................
38
39
39
40
◆ ADDITIONAL INFORMATION AND CONNECTIONS
■
■
■
■
■
■
■
■
■
■
■
Viewing Pictures From External Sources ......................................................
Connecting to the External Input/Output .......................................................
Connecting to the DVD Input.........................................................................
Connecting to the Audio Outputs...................................................................
Connecting to the Audio/Video Input .............................................................
Connecting to the S-Video Input....................................................................
Connecting to the DVI Input ..........................................................................
Connecting to the PC Input ...........................................................................
Setting up Your PC Software (Windows only) ...............................................
Input Mode (PC/DVI) .....................................................................................
Pin Configurations .........................................................................................
41
42
43
43
44
44
45
45
46
47
48
◆ RECOMMENDATIONS FOR USE
■
■
Troubleshooting: Before Contacting Service Personnel................................
Technical Specifications ................................................................................
Symbols
Press
4
☛
➢
Important
Note
49
50
Replacing the Lamp
ENG
1
Use a screwdriver to remove the screw.
2
Remove the Lamp cover.
3
Use a screwdriver to remove the screws securing the Lamp.
There are 2 screws: one on the up and one on the down.
When the screws have been completely unfastened, they will still
be connected to the body of the Lamp.
4
Separate the Lamp from the engine by holding the handle and
pulling it out.
5
To reinstall the Lamp, follow these steps in reverse order.
Projection TV lamp is a consumable item, and should be
☛ Areplaced
from time to time for best projector operation. If the
screen image becomes dark, or timer, lamp and Temp LEDs
flicker off at the same time, you may have to replace the lamp.
When changing the lamp, you should first verify the
type/model, and then use only the correct lamp replacement.
The code for lamp regulation and usage is marked on the
label. If you remove the lamp, you can identify this
replacement code. You should only replace the lamp with the
one of the same regulation code.
◆ If you wish to buy a new lamp,please phone your Service Center
or a nearby TV dealer, and tell them the model of your projection
unit.
◆ You can identify the lamp type on the left side of TV and the
lamp cover.
◆ The TV will be damaged if you use a lamp that is different from
the original supplied by the manufacturer. Be sure the
replacement lamp is the same model.
◆ Please don't remove the lamp except when replacing with a new
one.
◆ Please turn off TV power before changing a lamp and then
unplug after waiting 1 minute.
◆ The cooling fan will help cool the lamp so you can safely remove
it. The surface of the Lamp is very hot. Please wait for 30
minutes after turning off your projection TV to handle the lamp.
◆ Please keep the old lamp away from flammable articles and
children. Dispose of properly.
◆ Don't allow dirt or dust to accumulate inside the lamp cover or on
the Lamp.
◆ A dirty cover or lamp can catch fire, explode and cause electric
shock.
◆ Please don't touch the front glass of a new lamp or the glass of
the lamp container.
◆ If a new lamp is improperly handled,the quality of the screen
image can be affected and the expected life span of the lamp
can be reduced.
◆ Be sure to tighten the lamp cover on the TV after changing the
lamp. Note that the TV will not function if the lamp cover is not
securely attached. Please tighten the holding screw on the lamp
cover after it has been attached to the TV.
5
Control Panel of Your Television
➢
ENG
The actual configuration on your TV may be different, depending on
your model.
SP43L2/50L2HX
SP61L2HX
a
b
a e
b
c
c
d
d
f
e
( a ) Input Source Selection
LED Indicators
( b ) Menu Display
( c ) Channel Selection
( d ) Volume Adjustment
f
(
:On,
:Blinking,
TIMER
LAMP
( e ) Confirm your choice
(Store or Enter)
( f ) Power On/Off
:Off)
TEMP
Indication
Standby mode.
A timer pilot lights when Timer Auto On or Off is selected.
Normal operation.
Normal operation (when Timer Auto On or Off is selected).
Lamp is warming up. The normal picture comes on after 25 seconds.
The normal picture comes on after 25 seconds. (when Timer Auto On or
Off is selected)
Air vent cover in the rear of the TV is not properly installed.
Inside temperature of the TV is over normal. Clean the air vent cover in the
rear of the TV. Turn the TV back on after 1 hour.
The lamp does not work, please contact an authorized Service Center for
assistance.
➢
Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:
◆
◆
◆
◆
6
Switch on the TV when it is in Standby mode and select channels ( ▲ CH ▼ ).
Access the menu ( MENU ).
Adjust the volume ( + VOL - ).
Switch among Video input modes ( TV/VIDEO ).
Connection Panel of Your Television
➢
The actual configuration on your TV may be different, depending on
your model.
ENG
Video Input
Audio Inputs
Side of the TV
S-Video Input
Rear of the TV
e
d
j
b
f
g
i
a
h
c
S-VIDEO 11
S-VIDEO
S-VIDEO 22
S-VIDEO
a) 75Ω
Coaxial connector for Aerial or Cable
Network.
b) MONITOR OUT / AV1 / AV2 / AV3
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
c) S-VIDEO 1 / S-VIDEO 2
Video input for external devices with an
S-Video output, such as a camcorder or VCR.
d) SURROUND SPEAKER (8Ω 15W)
Connectors for external rear speakers.
f) COMPONENT 1 / COMPONENT 2
Video (Y/PB/PR) and audio (L/R) inputs for
Component. (480i/480p, 576i/576p, 720p,
1080i)
g) PC AUDIO (L/R)
PC or DVI Audio inputs.
h) PC (15 Pin)
PC Video input.
i) DVI (24 Pin)
Video input for device with DVI input.
j) RS-232 (only for service)
e) AUDIO OUT
Amplifier (L/R) or powered speaker (WOOFER)
connection to take full advantage of the
surround sound effect.
➣
For further details about connection, refer to pages 42~45.
7
Connecting to an Aerial or Cable Television Network
ENG
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆ An outdoor aerial
◆ A cable television network
◆ A satellite network
1
In the first three cases, connect the aerial or network input cable to
the 75Ω coaxial socket on the rear of the television.
2
If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆ “Storing Channels Automatically” on page 16
◆ “Storing Channels Manually” on page 18
Rear of the TV
or
Cable Television
Network
Connecting a Satellite Receiver or Decoder
Rear of the TV
In order to watch television programmes broadcast via a
satellite network, you must connect a satellite receiver to the
rear of TV. Also, in order to descramble a coded
transmission signal, you must connect a decoder to the rear
of TV.
◆ Using a SCART cable
Connect the receiver (or decoder) SCART cable to one of
the SCART connectors on the rear of the television.
S-VIDEO 1
S-VIDEO 2 S-VIDEO 1
S-VIDEO 2
◆ Using a coaxial cable
Connect a coaxial cable to the:
- Receiver (or Decoder) output socket.
- Television aerial input socket.
➢
If you wish to connect both a satellite receiver (or decoder)
and a VCR, you should connect the:
◆ Receiver (or Decoder) to the VCR
◆ VCR to the television
Otherwise, connect the receiver (or decoder) directly to
the television.
8
Satellite receiver/
Decoder
Connecting Additional Speakers
ENG
To take advantage of the surround sound system, connect
additional speakers.
Rear of the TV
The speaker terminals are located on the rear of the television:
◆ Two for the left-hand surround speaker (marked L)
◆ Two for the right-hand surround speaker (marked R)
➢
To improve the quality of the sound, connect the:
◆ Red wire to the red terminal
◆ Black wire to the black terminal
Inserting the Batteries in the Remote Control
You must insert or replace the batteries in the remote control when
you:
◆ Purchase the television
◆ Find that the remote control is no longer operating
correctly
1
Remove the cover on the rear of the remote control by pressing
the symbol downwards and then pulling firmly to remove it.
2
Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆ - on the battery against - on the remote control
◆ + on the battery against + on the remote control
3
Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
9
Infrared Remote Control
ENG
AUTOMATIC SWITCH-OFF
DNIe ACTIVATING OR DEACTIVATING
VCR/DVD FUNCTIONS;
- STOP (Stop)
- REWIND (Rew)
- PLAY/PAUSE (Play/Pause)
- FAST FORWARD (FF)
Power
POWER ON/OFF
PIP FUNCTIONS;
- PIP ACTIVATING OR DEACTIVATING
(PIP ON)
- SWAPPING THE MAIN AND THE SUB
PICTURE (Swap)
- SELECTING THE LOCATION OF SUB
PICTURE (Locate)
- SELECTING THE CHANNEL OF SUB
PICTURE (P▲/▼)
- SETTING THE SIZE OF SUB PICTURE
(Size)
- SELECTING THE INPUT SOURCE
(Source)
- SCANNING THE CHANNEL OF SUB
PICTURE (Scan)
NUMERIC BUTTONS
MAKE THE REMOTE CONTROL WORKS
FOR TV, VCR, CABLE, DVD PLAYER
EXTERNAL INPUT SELECTION/
TELETEXT HOLD
ONE, TWO, OR THREE-DIGIT CHANNEL
SELECTION
TEMPORARY SOUND SWITCH OFF
NEXT CHANNEL/
TELETEXT NEXT PAGE
MENU DISPLAY/
TELETEXT INDEX
CONTROL THE CURSOR IN THE MENU
VOLUME DECREASE
VOLUME INCREASE
CONFIRM YOUR CHOICE
(STORE OR ENTER)
TELETEXT SUB CODE
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
DISPLAY INFORMATION/
TELETEXT REVEAL
PICTURE SIZE/
TELETEXT SIZE SELECTION
TELETEXT ON
VIDEO & TEXT
MIX
TELETEXT OFF
(Refer to page 39 for details)
FASTEXT TOPIC SELECTION
SOUND MODE SELECTION/
TELETEXT CANCEL
STILL THE MAIN PICTURE
➢
In the PIP mode, the main and sub
pictures are stilled at the same time.
SOUND EFFECT SELECTION
PICTURE EFFECT SELECTION
➢
10
The performance of the remote control may be affected by bright light.
Switching Your Television On and Off
ENG
The mains lead is attached to the rear of your television.
1
Plug the mains lead into an appropriate socket.
➢
2
The main voltage is indicated on the rear of the television
and the frequency is 50 or 60Hz.
Press the “ I “ (POWER) button (On/Off) on the side of the
television.
Result:
3
The Standby indicator on the front of the television
lights up.
Press the Power ( ) button on the remote control to switch the
television on.
Result:
The programme that you were watching last is reselected automatically.
you have not yet stored any channels, No clear picture
➣ Ifappears.
Refer to “Storing Channels Automatically” on page
16 or “Storing Channels Manually” on page 18.
4
To switch your television off, press the “ I “ (POWER) button
(On/Off) again.
☛
Point the remote control at the center of the screen for
best performance.
Placing Your Television in Standby Mode
Your television can be placed in Standby mode, in order to reduce
the Power consumption.
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
1
Press the Power ( ) button on the remote control.
Result:
2
The screen is turned off and the Standby indicator on
the front of the television lights.
To switch the television back on, simply press the Power ( )
button again or a numeric button.
➣ You can also switch on by pressing the P
☛
or
button.
Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the “ I “
(POWER) button (On/Off) on the side of the television.
It is best to unplug the set from the mains and aerial.
11
Becoming Familiar with the Remote Control
ENG
The remote control is used mainly to:
◆ Change channels and adjust the volume
◆ Display the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button
Viewing Function
Menu Function
Used to display the next
stored channel.
-
P
Used to display the
previous stored channel.
-
to
Used to display the corresponding channels.
For double digit channels, the second digit must be
pushed immediately after the first. Failure to do this will
result in a single digit channel being displayed.
Power
P
-/--/---
Mute
Menu
12
➢
Used to select a channel numbered ten or over.
Press this button, and enter the two or three-digit channel
number.
Used to increase the
volume.
-
Used to decrease the
volume.
-
Used to switch the sound off temporarily.
To turn the sound back on, press this button again, or
press the - or + button.
➣
Used to display the
on-screen menu system.
Used to return to the previous
menu or normal viewing.
-
Used to:
◆ Display a submenu
containing selections for
the current menu option
◆ Search forwards/
backwards manually for
channels
◆ Increase/decrease a
menu option value
-
Used to confirm your choice.
Setting Up Your Remote Control
ENG
This remote control can operate almost any Cable box, VCR, or
DVD, in addition to controlling the TV.
➣
The remote control is not compatible with the TV
manufactured by another company.
1
Turn off your VCR, Cable box, or DVD.
2
Press the Select button repeatedly to activate another component
(VCR, Cable, DVD).
Example: If you want to program the remote control to operate
your VCR, make sure that the VCR LED is
illuminated.
3
Press the Power button on the remote control. The component you
select should turn on. If it turns on, your remote control is now set
correctly.
4
Once your remote control is set up, press the Select button any
time you want to use the remote control to operate your VCR,
Cable box, or DVD.
➣
◆ When your remote control is in the VCR, Cable, or DVD
mode, the volume buttons still control your television’s
volume.
◆ When your remote control is in the TV or Cable mode,
the VCR control buttons (PLAY, PAUSE, etc.) still
operate your VCR.
13
Plug & Play Feature
ENG
When the television is initially powered ON, several basic customer
settings proceed automatically and subsequently. The following
settings are available.
Plug & Play
1
If the television is in Standby mode, press the Power button ( ) on
the remote control.
Result:
Antenna input check
2
Select the appropriate language by moving the joystick up or
down.
3
Press the joystick button (
Area
Asia/W.Europe
The message Plug & Play is displayed. It flickers for
a little while, and then the Language menu is
automatically displayed.
) to confirm your choice.
CIS/E.Europe
Result:
China
The message Antenna input check is displayed.
Hongkong/UK
4
Australia
NZ/Indonesia
Sel.
Make sure that the antenna is connected to the TV, and then
press the joystick button (
).
Result:
Store
The Area menu is displayed.
5
Select your area by moving the joystick up or down.
6
Press the joystick button (
Auto Store
Area
Asia/W.Europe
Result:
1%
The Auto Store menu is displayed.
P0 -----
57 MHz
œ √ Sel.
) to confirm your choice.
Exit
Start
7
To start the search, press the joystick button (
Result:
Enjoy viewing your new TV.
➢
8
14
).
The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.
To stop the search before it has finished or return to normal
viewing, press the Source (
) button.
When it has finished, the message Enjoy viewing your new TV
is displayed, and then the channel which has been stored will be
activated.
Plug & Play Feature (continued)
ENG
If you want to reset this feature...
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Function is selected.
The options available in the Function group are
Result:
displayed.
3
Move the joystick right.
4
Move the joystick up or down until the Plug & Play option is
selected. Move the joystick right.
Result:
5
The message Plug & Play is displayed.
Function
For further details on how to set, refer to the opposite page.
Language
English
Time
√
Plug & Play
√
Melody
Off
LNA
√
√ Enter
Move
Choosing Your Language
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1
2
Function
Language
English
Press the MENU button.
The main menu is displayed.
Result:
Time
√
Move the joystick up or down until the Function is selected.
The options available in the Function group are
Result:
displayed.
3
Move the joystick right.
The Language option is selected.
Result:
4
Move the joystick right again.
The languages available are listed.
Result:
5
Select the appropriate language by moving the joystick up or
down.
6
Press the joystick button (
7
When you are satisfied with your choice, press the Source (
button to return to normal viewing.
Plug & Play
√
Melody
Off
LNA
√
Move
) to confirm your choice.
)
15
√ Enter
Storing Channels Automatically
ENG
Channel
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
You can scan for the frequency ranges available to you, (availability
depends on your country). Automatically allocated programme
numbers may not correspond to actual or desired programme
numbers. However you can sort numbers manually and clear any
channels you do not wish to watch.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Channel is selected.
The options available in the Channel group are
Result:
displayed.
3
Move the joystick right.
The Area option is selected.
Result:
4
Move the joystick right again.
The areas available are listed.
Result:
5
Select your area by moving the joystick up or down.
6
Press the joystick button (
7
Press the MENU button.
The options available in the Channel group are
Result:
displayed again.
8
Move the joystick up or down until the Auto Store is selected.
Move the joystick right.
The Auto Store menu is displayed.
Result:
9
Press the joystick button (
√ Enter
Move
Area
Asia/W.Europe
CIS/E.Europe
China
Hongkong/UK
Australia
NZ/Indonesia
Sel.
Store
Channel
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
√ Enter
Move
Auto Store
Area
Result:
Asia/W.Europe
1%
P0 -----
57 MHz
œ √ Sel.
Exit
➢
Start
10
16
) to confirm your choice
) to start the search.
The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.
To stop the search before it has finished, press the Source
(
) button.
When the channels have been stored, you can:
◆ Sort them in the order required (see page 17)
◆ Clear a channel (see page 21)
◆ Fine-tune channel reception if necessary (see page 19)
◆ Assign a name to the stored channels (see page 20)
◆ Activate/deactivate the Digital Noise Reduction feature
(see page 26)
Sorting the Stored Channels
ENG
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using ATM.
You can delete those channels you do not want to keep.
1
2
3
Press the MENU button.
The main menu is displayed.
Result:
Move the joystick up or down until the Channel is selected.
The options available in the Channel group are
Result:
displayed.
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
Move
Move the joystick right.
4
Move the joystick up or down until the Sort is selected. Move the
joystick right.
The Sort menu is displayed.
Result:
5
Select the channel that you wish to move by moving the joystick
up or down. Move the joystick right.
6
Select the number of the programme to which the channel is to be
moved by moving the joystick up or down. Move the joystick left.
The channel is moved to its new position and all other
Result:
channels are shifted accordingly.
7
Channel
√ Enter
Sort
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
œ √ Sel.
Move
Exit
Sort
96
97
98
99
0
1
2
3
4
5
6
7
8
Repeat Steps 5 to 6 until you have moved all the channels to the
required programme numbers.
Move
*
*
*
*
*
*
*
*
*
*
*
*
*
œ √ Sel.
17
Exit
Storing Channels Manually
ENG
You can store up to television channels, including those received
via cable networks.
Channel
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
Move
When storing channels manually, you can choose:
◆ Whether or not to store each of the channels found
◆ The programme number of each stored channel which
you wish to identify
√ Enter
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Channel is selected.
The options available in the Channel group are
Result:
displayed.
3
Move the joystick right.
4
Move the joystick up or down until the Manual Store is selected.
Move the joystick right.
The Manual Store menu is displayed.
Result:
5
If necessary, select the broadcasting standard required. Move the
joystick up or down until the Colour System is selected and move
the joystick left or right. The colour standards are displayed in the
following order (depending on the model).
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
Fine Tune
œ √ Sel.
Move
Store
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
◆ AUTO - PAL - SECAM
6
Fine Tune
œ √ Sel.
Move
◆ AUTO - NTSC3.58 - NTSC4.43 - PAL60
Store
Move the joystick up or down until the Sound System is selected
and move the joystick left or right. The sound standards are
displayed in the following order (depending on the model).
◆ BG - DK - I - L
◆ BG - DK - I - M
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
Fine Tune
Move
œ √ Sel.
18
Store
Storing Channels Manually (continued)
ENG
7
If you know the number of the channel to be stored, see the
following steps.
◆ Move the joystick up or down until the Channel is selected.
◆ Move the joystick right.
◆ Move the joystick up or down to select C (Air channel) or S
(Cable channel).
◆ Move the joystick right.
◆ Press the numeric buttons (0~9) to select indicate the required
number.
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
Fine Tune
no sound or abnormal sound, re-select the sound standard
➣ Ifrequired.
8
If you do not know the channel numbers, select the Search by
moving the joystick up or down. Move the joystick right to start the
search.
Result:
9
The tuner scans the frequency range until the first
channel or the channel that you selected is received
on your screen.
If reception is weak, you can fine tune a channel manually. Move
the joystick up or down until the Fine Tune is selected. Move the
joystick left or right until the picture and sound are both clear and
sharp.
➢
◆ You can ignore any changes made and return to the
previous setting by pressing the green button.
◆ If you are unable to fine tune a channel, check that the
Colour System and Sound System settings are
correct.
√ Enter
Move
Store
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
Fine Tune
œ √ Sel.
Move
Store
Manual Store
Prog. No
P 1
Colour System
AUTO
Sound System
BG
Search
891MHz
Channel
C 16
Fine Tune
10
To assign a programme number to a channel, select the Prog.
No by moving the joystick up or down. Move the joystick left or
right until you find the correct number.
11
To store the channel and associated programme number, press
the joystick button (
).
12
Repeat Steps 7 to 11 for each channel to be stored.
Move
œ √ Sel.
Store
Fine Tune
30
Fine Tune
☛
Channel mode
◆ P (Programme mode): When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to max P99. You can select a
channel by entering the position number in this mode.
◆ C (Real channel mode): You can select a channel by
entering the assigned number to each air broadcasting station
in this mode.
◆ S (Cable channel mode): You can select a channel by
entering the assigned number for each cable channel in this
mode.
19
= 0
Assigning Names to Channels
ENG
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed, allowing
you to assign new names.
Channel
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
Move
*
*
*
*
*
2
Move the joystick up or down until the Channel is selected.
The options available in the Channel group are
Result:
displayed.
3
Move the joystick right.
4
Move the joystick up or down until the Name option is selected.
Move the joystick right.
The Name menu is displayed with the current channel
Result:
automatically is selected.
5
If necessary, select the channel to be assigned a new name by
moving the joystick up or down. Move the joystick right.
Arrow indications are displayed around the name box.
Result:
6
Move the joystick up or down to select a letter (A~Z), a number
(0~9) or a symbol (-, space). Move on the previous or next letter
by moving the joystick left or right.
7
When you have finished entering the name, press the joystick
button (
) to confirm the name.
*
*
*
*
*
*
*
*
√ Enter
Move
Press the MENU button.
The main menu is displayed.
Result:
√ Enter
Name
96
97
98
99
0
1
2
3
4
5
6
7
8
1
Exit
Name
96
97
98
99
0
1
2
3
4
5
6
7
8
œ √ Move
*
*
*
*
*
*
*
*
*
*
*
*
*
Sel.
20
Store
Activating the Child Lock and Skipping unwanted channels
ENG
◆ Activating the child lock
This feature allows you to lock the television so that it cannot
be switched on via the front panel. It can, however, still be
switched on via the remote control. Thus, by keeping the
remote control away from unauthorised users, such as
children, you can prevent them from watching unsuitable
programme.
◆ Skipping unwanted channels
You can exclude the channels of your choice from the
channel scan operation. When you scan through the stored
channels, those that you have chosen to skip are thus not
displayed. All channels that you do not specifically choose to
skip are displayed during scanning.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Channel is selected.
The options available in the Channel group are
Result:
displayed.
3
4
Channel
Area
Asia/W.Europe
Auto Store
√
Manual Store
√
Sort
√
Name
√
Edit
√
Move
Edit
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
5
Move the joystick up or down to select the channel to be locked.
6
Move the joystick left or right until the Child Lock is selected. To
lock the channel, select On by moving the joystick up or down (to
unlock the channel, select Off). Press the joystick button (
) to
confirm.
7
Move the joystick up or down to select the channel to be added or
erased.
8
Move the joystick left or right until the Add/Erase is selected. To
add or erase the channel, select Added or Erased by moving the
joystick up or down. Press the joystick button (
) to confirm.
Child Lock
Add
Erase
Off
œ √ Sel.
Move
Move the joystick right.
Move the joystick up or down until the Edit option is selected.
Move the joystick right.
The Edit menu is displayed with the current channel
Result:
automatically is selected.
√ Enter
Erased
Exit
Edit
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
œ √ Move
Child Lock
Off
Sel.
Erased
Store
Edit
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
œ √ Move
Add
Erase
Off
Sel.
21
Erased
Store
Selecting a Channel by Information
ENG
You can display the list of stored channels.
1
Press the Info. button.
Result:
A list is displayed with the first 13 channels. Two text
boxes to the right of the list indicate:
◆ Whether the Teletext feature is available.
◆ Which sound mode is being used.
Information
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
2
To scroll through the stored channels, move the joystick up or
down.
Result:
Mono
3
Press the Source (
Result:
Move
Exit
The corresponding channel is displayed.
➢
) button to select a specific channel.
The corresponding channel is displayed and the
Information box disappears.
◆ External inputs can be displayed and scrolled through in
the same way.
◆ You can display the name
of the channel or input by
pressing the Display button.
Mode
Sound
Surround
Sound Mode
Sleep timer
Clock
TV
Dynamic
Speech
Off
Mono
Off
-- : -P 1
Changing the Picture Standard
Mode
Custom
Adjust
√
Size
Wide
Blue Screen
Off
Film Mode
Off
Digital NR
Off
Move
œ √ Sel.
You can select the type of picture which best corresponds to your
viewing requirements.
1
Press the MENU button.
The options available in the Picture group are
Result:
displayed.
2
Move the joystick right.
The Mode is selected.
Result:
3
Select the option by moving the joystick left or right.
The following modes are available depending on the
Result:
input source.
◆ Custom - Dynamic - Standard - Movie
◆ Custom - High - Middle - Low
(PC or DVI Mode)
➣
22
You can also set these options simply by pressing the
P.STD (Picture Standard) button.
Adjusting the Picture Settings
ENG
Your television has several settings which allow you to control
picture quality.
Mode
1
Custom
Press the MENU button.
Adjust
√
Result:
Size
Wide
The options available in the Picture group are
displayed.
2
Move the joystick right.
3
Move the joystick up or down until the Adjust option is selected.
Move the joystick right.
Blue Screen
Off
Film Mode
Off
Digital NR
Off
√ Enter
Move
Result:
4
The Adjust menu is displayed with the Colour Tone
option is selected.
Select the option by moving the joystick left or right. The colour
tones are displayed in the following order.
Normal - Warm1 - Warm2 - Cool2 - Cool1
5
Move the joystick up or down to select the option (Contrast,
Brightness, Sharpness, Colour) to be adjusted. Move the
joystick left or right.
Result:
Adjust (Custom)
Colour Tone
œ
100
45
Sharpness
75
Colour
55
Move
œ √ Sel.
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by moving the joystick left or
right.
(ex. RF, Video, Component, PC or DVI).
When you are satisfied with the settings, press the joystick button
(
) to store them.
➣
√
Brightness
the picture mode is set to Custom, the value of these
➣ When
option may vary be changed depending on the input source
6
Normal
Contrast
If you make any changes to these settings, the picture
standard is automatically switched to the Custom
23
Store
Adjusting the Picture Settings (PC or DVI Mode)
➢
ENG
1
Preset to the PC mode by using the Source button.
Press the MENU button.
Result:
Mode
Custom
Adjust
√
Colour Tone
Custom
Colour Adjust
√
2
Move the joystick right.
3
Move the joystick up or down until the Adjust option is selected.
Move the joystick right.
√ Enter
Move
Result:
4
Adjust (Custom)
Contrast
75
Brightness
60
œ √ Adjust
Mode
The options available in the Picture group are
displayed again.
6
Move the joystick up or down until the Colour Tone option is
selected.
7
Select the option by moving the joystick left or right. The colour
tones are displayed in the following order.
Custom
Adjust
√
Colour Tone
Custom
Colour Adjust
√
Custom - Colour1 - Colour2 - Colour3
8
œ √ Sel.
Move
Move the joystick up or down until the colour Adjust option is
selected. Move the joystick right.
Result:
Mode
9
Custom
Adjust
√
Colour Tone
Custom
Colour Adjust
√
Move
√ Enter
Colour Tone (Custom)
Red
50
Green
50
Blue
50
œ √ Adjust
24
Store
The Colour Adjust menu is displayed.
Move the joystick up or down to select the option (Red, Green,
Blue) to be adjusted. Move the joystick left or right.
Result:
10
Move
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by moving the joystick left or
right.
Press the MENU button.
Result:
Store
The Adjust menu is displayed.
Move the joystick up or down to select the option (Brightness,
Contrast) to be adjusted. Move the joystick left or right.
Result:
5
Move
The options available in the Picture group are
displayed.
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by moving the joystick left or
right.
When you are satisfied with the settings, press the joystick button
(
) to store them.
Setting the Picture (PC Mode)
➢
1
Preset to the PC mode by using the Source button.
ENG
Press the MENU button.
Function
Result:
2
The main menu is displayed.
Move the joystick up or down until the Function is selected.
Result:
The options available in the Function group are
displayed.
3
Move the joystick right.
4
Move the joystick up or down to select the option (Frequency,
Phase) to be adjusted. Move the joystick left or right.
Frequency
50
Phase
10
Position
√
Auto Adjustment
√
Size
Wide
√ Enter
Move
Result:
5
50
œ √ Adjust
Press the MENU button.
Result:
Frequency
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by moving the joystick left or
right.
The options available in the Function group are
displayed again.
6
Move the joystick up or down until the Position option is
selected. Adjust the position by using the joystick.
7
Press the MENU button.
Phase
10
œ √ Adjust
Result:
8
10
Position
Adjust
To adjust the screen quality and position automatically, select the
Auto Adjustment by moving the joystick up or down. Move the
joystick right.
Result:
9
The options available in the Function group are
displayed again.
Adjust
The Auto Adjustment is displayed. The screen quality
and position are automatically adjusted.
To select the picture format which best corresponds to your
viewing requirement, select the Size by moving the joystick up or
down. Move the joystick right.
Select the option by moving the joystick left or right. The picture
formats are displayed.
Function
Frequency
50
Phase
10
Position
√
Auto Adjustment
√
Size
√
Move
Wide - Normal
11
When you are satisfied with the settings, press the joystick button
(
) to store them.
œ √ Sel.
Size
Wide
œ √ Sel.
Store
25
Extra Picture Settings
ENG
◆ Size
You can select the picture format which best corresponds to your
viewing requirements.
Mode
Custom
Adjust
√
Size
Wide
Blue Screen
Off
Film Mode
Off
Digital NR
Off
◆ Blue Screen
If no signal is being received or the signal is very weak, a blue
screen automatically replaces the noisy picture background.
If you wish to continue viewing the poor picture, you must set
the Blue Screen mode to Off.
√ Enter
Move
◆ Film Mode
You can automatically sense and process film signals from all
sources and adjust the picture for optimum quality.
Size
Wide
œ √ Sel.
Store
Mode
Custom
Adjust
√
Size
Wide
Blue Screen
Off
Film Mode
Off
Digital NR
Off
œ √ Sel.
Move
Mode
Custom
Adjust
√
Size
Wide
Blue Screen
Off
Film Mode
Off
Digital NR
Off
œ √ Sel.
Move
◆ Digital NR
You can activate this feature to reduce any static and ghosting
that may appear on the screen.
1
Press the MENU button.
The options available in the Picture group are
Result:
displayed.
2
Move the joystick right.
3
Select the required option by moving the joystick up or down.
4
Move the joystick left or right to change the setting.
◆ Size
Wide
Sets the picture to 16:9 wide mode.
Panorama
Use this mode for the wide aspect ratio of a
panoramic picture.
Zoom1
Magnify the size of the picture vertically on
screen.
Zoom2
Magnify the size of the picture more than
Zoom1.
Stretch
Using this mode, magnify the picture vertically
and horizontally to be bigger than the picture
in Zoom2.
14:9
Magnify the size of the picture more than
Normal.
Normal
Sets the picture to 4:3 normal mode.
➢
Mode
Custom
Adjust
√
Size
Wide
Blue Screen
Off
Film Mode
Off
Digital NR
Off
Move
26
œ √ Sel.
◆ If the PC is connected, you can adjust the VGA
mode by moving the joystick up, down, left, or right.
◆ You can also select these options simply by
pressing the P.Size button on the remote control.
◆ Blue Screen : Off or On
◆ Film Mode : Off or On
◆ Digital NR : Off or On
Using the LNA (Low Noise Amplifier) Feature
ENG
This function is very useful in the situation that the TV is used in
weak signal. LNA amplifies the TV signal in the weak signal area,
but not noise.
This feature is working only weak signal condition, and that is
memorized on current channel, additional.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Function is selected.
The options available in the Function group are
Result:
displayed.
Function
Language
English
Time
√
Plug & Play
√
Melody
Off
LNA
√
Move
3
Move the joystick right.
4
Move the joystick up or down until the LNA is selected.
The LNA menu is displayed with the current channel
Result:
automatically is selected.
5
Select the required channel by moving the joystick up or down.
Move the joystick right.
6
LNA
96
97
98
99
0
1
2
3
4
5
6
7
8
*
*
*
*
*
*
*
*
*
*
*
*
*
Off
√ Enter
Move
Select On or Off by moving the joystick up or down. Press the
joystick button (
) to confirm.
➣
Exit
LNA
96
97
98
99
0
1
2
3
4
5
6
7
8
If the picture is noisy with the LNA set to On, select Off.
Sel.
*
*
*
*
*
*
*
*
*
*
*
*
*
On
Store
Freezing the Current Picture
You can freeze the picture when watching a television programme
simply by pressing the “Still” button. To return to normal viewing,
press it again.
➣
√ Enter
In the PIP mode, the main and sub pictures are stilled at
the same time.
27
Exit
DNIeTM (Digital Natural Image engine)
ENG
PIP
PIP
Off
DNIe
On
This feature bring you more detailed image with 3D noise
reduction, detail enhancement, contrast enhancement and white
enhancement. New image compensation Algorithm gives brighter,
clearer, much detailed image to you. DNIeTM technology will fit
every signals into your eyes.
1
Press the MENU button.
Result:
√ Sel.
Move
2
Move the joystick up or down until the PIP is selected.
Result:
DNIe Demo
DNIe On
DNIe Off
The main menu is displayed.
The options available in the PIP group are displayed.
3
Move the joystick right.
4
Move the joystick up or down until the DNIe option is selected.
Select the option by moving the joystick left or right.
◆ On : Switches on the DNIe mode.
◆ Demo : The screen before applying DNIe appears on the right
and the screen after applying DNIe appears on the left.
◆ Off : Switches off the DNIe mode.
➣
You can also set these options simply by pressing the
DNIe button.
Changing the Sound Standard
Sound
Mode
You can select the type of special sound effect to be used when
watching a given broadcast.
Custom
Adjust
√
Auto Volume
Off
Surround
Off
Audio Out
Off
Int. Mute
Off
Move
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
3
Move the joystick right.
The Mode is selected.
Result:
4
Select the option by moving the joystick left or right. The sound
effects are displayed in the following order.
œ √ Sel.
Custom - Standard - Music - Movie - Speech
➣
28
You can also set these options simply by pressing the
S.STD (Sound Standard) button.
Adjusting the Sound Settings
ENG
The sound settings can be adjusted to suit your personal preferences.
Sound
1
2
Press the MENU button.
The main menu is displayed.
Result:
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
3
Move the joystick right.
4
Move the joystick up or down until the Adjust option is selected.
Move the joystick right.
Result:
5
6
Mode
Custom
Adjust
√
Auto Volume
Off
Surround
Off
Audio Out
Off
Int. Mute
Off
√ Enter
Move
Adjust (Custom)
The Adjust menu is displayed with the current
option.
R
.
Select the option (volume, balance, equalizer) to be adjusted by
moving the joystick left or right. Move the joystick up or down to
reach the required setting.
L
100
Adjust
300
1K
3K
œ √ Move
Store
When you are satisfied with the settings, press the joystick button
(
) to store them.
➣
If you make any changes to the equalizer settings, the
sound standard is automatically switched to the Custom.
Adjusting the Volume Automatically
Each broadcasting station has its own signal conditions, and so it
is not easy for you to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume of
the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the
modulation signal is low.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
3
Move the joystick up or down until the Auto Volume option is
selected.
4
Select the option (Off or On) by moving the joystick left or right.
Sound
Mode
Custom
Adjust
√
Auto Volume
On
Surround
Off
Audio Out
Off
Int. Mute
Off
Move
29
10K
œ √ Sel.
Setting the Dolby Pro Logic
ENG
This mode allows you enjoy Dolby Pro Logic Surround effect fully
with only surround speakers are connected to TV. This allows
various modes for the main, center and rear speakers to be
selected.
Rear of the TV
Surround Mode
Input Signal
Main
Pro Logic - Normal/
Wide
Stereo
Mono
✔
- Phantom
Stereo
Mono
✔
✔
3D Sound
Stereo
Mono
✔
✔
Hall
Stereo
Mono
✔
✔
Off
Stereo
Mono
✔
✔
Sound
Mode
Custom
Adjust
√
Auto Volume
Off
S-VIDEO 1
Surround
Off
S-VIDEO 2
Audio Out
Off
Int. Mute
Off
Move
√ Enter
➢
Surround
Mode
✔
✔
✔
✔
✔ ; Sound
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
3
Move the joystick right.
4
Move the joystick up or down until the Surround is selected.
Move the joystick right.
The Surround menu is displayed with the Mode is
Result:
selected.
5
Select the option by moving the joystick left or right. The surround
modes are displayed in the following order.
Pro Logic - 3D Sound - Hall - Off
Store
Surround
Mode
Pro Logic
Pro Logic
Normal
Center
Rear
Time Delay
20 ms
Test Tone
Off
œ √ Sel.
Store
➣
Surround
Mode
Pro Logic
Pro Logic
Normal
Rear
Time Delay
If you select the Pro Logic, the options available are displayed.
7
Move the joystick up or down until the Pro Logic is selected.
Move the joystick right.
8
Select the option by moving the joystick left or right. The surround
modes are displayed in the following order.
Normal - Phantom - Wide
9
When you are satisfied with the settings, press the joystick button
(
) to store them.
20 ms
Test Tone
Off
√ Enter
Store
➢
30
Woofer sound is not available in Hall mode.
6
Center
Move
Rear
Off
Move
Move
Speakers
Centre
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks
of Dolby Laboratories.
Adjusting Your Dolby Preferences
ENG
The following Dolby settings can be adjusted to suit your personal
preferences.
Surround
◆ Volume of the centre and rear speakers
◆ Pro Logic delay time for the rear speakers (between
15 and 30 ms)
◆ Activation/deactivation of the test tone to simulate the
volume on each speaker
Mode
Pro Logic
Pro Logic
Normal
Center
Rear
Time Delay
2
Press the MENU button.
The main menu is displayed.
Result:
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
Off
œ √ Adjust
Move
1
20 ms
Test Tone
Store
Surround
Mode
Pro Logic
Pro Logic
Normal
Center
Rear
3
Move the joystick right.
Time Delay
20 ms
Test Tone
4
5
Move the joystick up or down until the Surround is selected.
Move the joystick right.
The Surround menu is displayed with the current
Result:
option.
Select the option (Center, Rear, Time Delay, Test Tone) by
moving the joystick up or down. Move the joystick left or right to
reach the required setting.
Off
œ √ Adjust
Move
Surround
Mode
Pro Logic
Pro Logic
Normal
Center
Rear
Time Delay
6
When you are satisfied with the settings, press the joystick button
(
) to store them.
Store
20 ms
Test Tone
Off
œ √ Adjust
Move
Store
Surround
Mode
Pro Logic
Pro Logic
Normal
Center
Rear
Time Delay
20 ms
Test Tone
Move
Off
œ √ Sel.
31
Store
Setting the External Sound
ENG
Sound
Mode
This feature allows you can adjust to suit your personal preferences
when the equipment with output is connected to the television.
Custom
Adjust
√
Auto Volume
Off
Surround
Off
Audio Out
Off
Int. Mute
Off
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Sound is selected.
The options available in the Sound group are displayed.
Result:
3
Move the joystick right.
4
Move the joystick up or down until the Audio Out is selected.
5
Select the required option (Off or On) by moving the joystick left or
right.
œ √ Sel.
Move
Sound
Mode
Custom
Adjust
√
Auto Volume
Off
Surround
Off
Audio Out
Off
Int. Mute
On
Move
1
◆ If you want to adjust the volume level with the volume control
on the TV or external amplifier, set to Off.
◆ If you set to On...
- You can adjust the volume level with the volume control on
the audio amplifier. And the Int. Mute is set to On
automatically, and you can not select it.
- The volume control buttons (Mute,
+,
-) of the
television and remote control do not work.
œ √ Sel.
6
Move the joystick up or down until the Int. Mute is selected.
If you set to On, no sound outputs of all internal and external
speakers.
➢
32
When the Audio Out is set to Off, you can select the Int.
Mute and control it.
Selecting the Sound Mode (depending on the model)
ENG
The “S.Mode” button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “Dual-I ” or “Stereo”, depending on
the current transmission.
NICAM
Stereo
Type of broadcast
On-screen indication
Regular broadcast
(Standard audio)
Mono (Normal use)
Regular +
NICAM Mono
NICAM Mono ↔ Mono
NICAM Stereo
A2
Stereo
NICAM Dual-I/II
NICAM Dual-I →
NICAM Dual-II →
Mono
Regular broadcast
(Standard audio)
Mono
Bilingual or Dual-I/II
Dual-I ↔ Dual-II
Stereo
➣
NICAM Stereo ↔ Mono
(Forced mono)
Stereo ↔ Mono
(Forced mono)
◆ If the receiving conditions deteriorate, listening will be
easier if the mode is set to the Mono.
◆ If the stereo signal is weak and an automatic switching
occurs, then switch to the Mono.
◆ When receiving a mono sound in the AV mode, connect
to the “AUDIO-L” input connector on the side of the
television. If the mono sound comes out only from left
speaker, press the S.Mode button.
33
Setting the Melody Sound
ENG
Function
Language
English
Time
√
Plug & Play
√
Melody
On
LNA
√
Move
You can hear clear melody sound when the television is powered
on or off.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Move the joystick up or down until the Function is selected.
The options available in the Function group are
Result:
displayed.
3
Move the joystick right.
4
Move the joystick up or down until the Melody is selected.
5
Select the option (Off or On) by moving the joystick right
repeatedly.
œ √ Sel.
Setting the Sleep Timer
You can select a time period of between 15 and 180 minutes after
which the television automatically switches to Standby mode.
1
Press the Sleep button.
The Sleep timer menu is displayed.
Result:
◆ If the sleep timer is not yet set, Off is displayed.
If the sleep timer is already set, the remaining time
before which the television switches to Standby
mode is displayed.
2
Select the preset time intervals (15, 30, 45, 60, 75, 90, 105, 120,
135, 150, 165, 180) by moving the joystick left or right.
3
Press the joystick button (
Sleep timer
Off
œ √ Sel.
Store
34
) to confirm your selection.
Setting the Time and Switching the TV On/Off Automatically
ENG
You can set the television’s clock and set the On or Off timers so
that the television will:
1
2
Function
◆ Switch on automatically and tune to the channel of your
choice at the time you select
Language
English
Time
√
◆ Switch off automatically at the time you select.
Plug & Play
√
Melody
Off
LNA
√
Press the MENU button.
The main menu is displayed.
Result:
Move the joystick up or down until the Function is selected.
The options available in the Function group are
Result:
displayed.
Move
√ Enter
Time
Clock
11:35 am
3
Move the joystick right.
Timer
On Time
- - : - - am
Off
4
Move the joystick up or down until the Time is selected. Move the
joystick right.
The Time menu is displayed with the Clock option
Result:
selected.
Off Time
- - : - - am
On Time Prog.
Move
P01
œ √ Sel.
Store
5
Set the clock by pressing the numeric buttons.
6
Move the joystick up or down until the Timer is selected. Set to On
by moving the joystick left or right for switching on automatically.
Clock
➣
On Time
- - : - - am
Off Time
- - : - - am
7
If you have not set the clock, you can not select the Timer.
Move the joystick up or down until the On Time is selected.
Set the time to switch on automatically by pressing the numeric
buttons.
8
In the same way, set the Off Time to switch off automatically.
9
Move the joystick up or down until the On Time Prog. is selected.
Select the channel when it will be switched on by pressing the
numeric buttons.
➢
Time
11:35 am
Timer
On
On Time Prog.
Move
P01
œ √ Sel.
Time
Clock
11:35 am
Timer
On
On Time
06:30 am
Off Time
- - : - - am
On Time Prog.
When pressing the “ I “ button (On/Off) on the side of the
television, the clock setting will be reset.
Store
Move
P01
œ √ Sel.
Store
Time
Clock
11:35 am
Timer
On
On Time
06:30 am
Off Time
11:00 pm
On Time Prog.
Move
P01
œ √ Sel.
35
Store
Viewing the Picture In Picture (PIP) (continued)
ENG
PIP
PIP
On
DNIe
Off
TV/Video
TV
1
Swap
√
Size
Large
Prog. No
P01
œ √ Sel.
Move
You can display a sub picture within the main picture of TV
program or external A/V devices. In this way you can watch TV
program or monitor the video input from any connected devices
while watching TV or other video input.
Press the MENU button.
Result:
2
Move the joystick up or down until the PIP is selected.
Result:
PIP
PIP
On
DNIe
Off
TV/Video
TV
Swap
√
Size
Large
Prog. No
P01
The options available in the PIP group are displayed.
3
Move the joystick right.
4
To activate, set the PIP to on by moving the joystick left or right.
5
Move the joystick up or down until the TV/Video is selected.
Select a source of the sub picture by moving the joystick left or
right.
Result:
œ √ Sel.
Move
The main menu is displayed.
The sources are displayed in the following order:
TV - AV1 - AV2 - AV3 - AV4
6
PIP
PIP
On
DNIe
Off
TV/Video
TV
Result:
7
Swap
√
Size
Large
Prog. No
P01
Result:
PIP
On
DNIe
Off
TV/Video
TV
Swap
√
Size
Large
Prog. No
P01
œ √ Sel.
Move
PIP
PIP
On
DNIe
Off
TV/Video
TV
Swap
√
Size
Large
Prog. No
P01
36
œ √ Sel.
The sizes are displayed in the following order:
Large - Small - Double1 - Double2
8
PIP
The main picture and sub picture are interchanged.
Move the joystick up or down until the Size is selected. Select a
size of the sub picture by moving the joystick left or right.
√ Sel.
Move
Move
Move the joystick up or down until the Swap is selected. Move the
joystick left or right.
Move the joystick up or down until the Prog.No. is selected.
Select the channel that you want to view through sub picture by
moving the joystick left or right.
➣
If the sub picture is no signal and the main picture is
output from a Component, PC or DVI signal, the sub
picture will be blue. If the main picture is output from a
Video signal, the sub picture will be black.
Viewing the Picture In Picture (PIP)
ENG
Easy functions of remote control.
Buttons
Feature
PIP ON
Used to activate or deactivate the PIP function directly.
Swap
Used to interchange the main picture and the sub
picture.
the main picture is in the Video mode and
➣ When
the sub picture is in the TV mode, you might not
hear the sound of main picture when pressing
the Swap button after changing the sub picture
channel. At this time, reselect the channel of
main picture.
Locate
Used to move the sub picture counterclockwise.
P▲/▼
Used to select the channel of sub picture.
Size
Used to select a size of sub picture (Large, Small,
Double1, Double2).
➣
Power
◆ If the system is different between the main
picture and the sub picture, the Double
mode is not selected.
◆ In the PC mode, the size of sub picture may
be different depending on the type of PC
Monitor and its resolution.
◆ You can also select these options simply by
pressing the Size button.
Source
Used to assign a source of sub picture (TV, AV1, AV2,
AV3, AV4).
Scan
Used to scan every memorized channel in order.
To stop scanning, press it again.
37
Teletext Feature
ENG
Most television channels provide written information services via
teletext. Information provided includes:
◆ Television programme times
◆ News bulletins and weather forecasts
◆ Sports results
◆ Travel information
This information is divided into numbered pages (see diagram).
Part
Contents
A
Selected page number.
B
Broadcasting channel identity.
C
Current page number or search indications.
D
Date and time.
E
Text.
F
Status information.
FASTEXT information.
➣
Teletext information is often divided between several
pages displayed in sequence, which can be accessed by:
◆ Entering the page number
◆ Selecting a title in a list
◆ Selecting a coloured heading (FASTEXT system)
38
Displaying the Teletext Information
ENG
You can display Teletext information at any time on your television
Teletext information to be displayed correctly,
☛ For
channel reception must be stable; otherwise:
◆ Information may be missing
◆ Some pages may not be displayed
1
Select the channel providing the Teletext service by pressing the
P
or P
button.
2
Press the Text/Off button to activate the teletext mode.
Result:
The contents page is displayed. It can be redisplayed
at any time by pressing the
(index) button.
3
Press the Text/Off button again.
The screen will be split into two. This Double Teletext
Result:
feature lets you view the actual broadcast and teletext
information separately on the screen.
4
If you wish to display the actual broadcast and teletext information
on a single screen, press the Text/Off button again.
5
To exit from the teletext display, press the Text/Off button again.
Selecting Display Options
When you have displayed a Teletext page, you can select various
options to suit your requirements.
To display...
Press the...
◆ Hidden text
(answers to quiz games, for example)
(reveal)
◆ The normal screen
(reveal) again
◆ A secondary page by entering its number
(Time/Subcode)
◆ The broadcast when searching for a page
(cancel)
◆ The next page
(page up)
◆ The previous page
(page down)
◆ Double-size letters in the:
• Upper half of the screen
• Lower half of the screen
(size)
• Once
• Twice
◆ The normal screen
• Three times
39
Selecting a Teletext Page
ENG
You can enter the page number directly by pressing the numeric
buttons on the remote control.
1
Enter the three-digit page number given in the content by
pressing the corresponding numeric buttons.
Result:
The current page counter is incremented and the
page is then displayed. If the selected page is linked
with several secondary pages, the secondary pages
are displayed in sequence. To freeze the display on a
given page, press the
(hold) button. Press the it
again to resume.
2
If the FASTEXT system is used by the broadcasting company,
the different topics covered on a Teletext page are colour-coded
and can be selected by pressing the coloured buttons on the
remote control.
Press the coloured button corresponding to the topic that you wish
to select; the available topics are given on the status line.
Result:
The page is displayed with other coloured information
that can be selected in the same way.
3
To display the previous or next page, press the corresponding
coloured button.
4
To display the subpage, see the following steps.
◆ Press the
(Time/Subcode) button.
Result:
The available subpages appear.
◆ Select the required sub-page. Sub-pages can be scrolled by
pressing the
or
button.
40
Viewing Pictures From External Sources
ENG
Once you have connected up your various audio and video systems,
you can view different sources by selecting the appropriate input.
1
Check that all the necessary connections have been made.
2
Switch your television on, then press the Source (
Result: The input sources available are displayed.
3
Move the joystick up or down until the required input source is
selected and press the joystick button (
).
➣
) button.
If you change the external source while viewing, pictures
might take a short period of time to be switched.
AV Input
TV
AV1
AV2
AV3
AV4
Component1
Component2
PC
DVI
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Move
Sel.
41
Connecting to the External Input/Output
ENG
“AV3” is used for the equipment with an RGB output, such as video game
devices or video disc players.
VCR
①
DVD
Rear of the TV
or
or
S-VIDEO 1
S-VIDEO 2
S-VIDEO 1
S-VIDEO 2
Decoder /
Video game device
Video disc player
Satellite receiver
① This end can be fitted with:
◆ A SCART connector
◆ An S-Video connector and two audio RCA connectors (L+R)
◆ Three RCA connectors (VIDEO + AUDIO-L/R)
Input/Output Specification
Input
Connector
Output
Video
Audio (L/R)
S-Video
AV1
✔
✔
✔
AV2
✔
✔
✔
AV3
✔
✔
✔
MONITOR OUT
RGB
Video + Audio (L/R)
✔
Only TV output is available.
Output you are viewing.
☛
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
42
IDEO 1
Connecting to the DVD Input
ENG
The RCA connectors are used for equipment with a DVD output.
Rear of the TV
Y / Pb / Pr
DVD
L/R
S-VIDEO 2
Connecting to the Audio Outputs
The “AUDIO OUT” connectors are used for equipment, such as an audio system or external amplifier
(to take full advantage of the Surround sound effect).
Rear of the TV
S-VIDEO 1
Audio System/
External Amplifier
S-VIDEO 2
43
Connecting to the Audio/Video Input
ENG
The RCA (AUDIO-L/R + VIDEO) connectors are used for equipment such
as camcorders, video disc players and some video game devices.
Camcorder
Side of the TV
Video disc player
Video game device
S-VIDEO 1
S-VIDEO 2
S-VIDEO 1
S-VIDEO 2
Connecting to the S-Video Input
The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,
such as a camcorder or VCR.
Rear of the TV
①
S-VIDEO 1
or
S-VIDEO 2
and
Camcorder
VCR
Side of the TV
①
and
① To play picture and sound, both the S-VIDEO and RCA connectors must be used.
44
Connecting to the DVI Input
ENG
The “DVI” (video) and “PC AUDIO (L+R)” connectors are used for equipment with a DVI output.
Rear of the TV
Personal Computer
and
➢
The “DVI” does not support the Analog R (red), G (green) and B (blue) signals.
Connecting to the PC Input
The “PC” (video) and “PC AUDIO (L+R)” connectors are used for interfacing with your PC.
Rear of the TV
Personal Computer
and
45
Setting up Your PC Software (Windows only)
ENG
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
On the windows screen, select in the following
sequence: Start ➞ Settings ➞ Control Panel.
When the control panel screen appears, click on
Display and a display dialog-box will appear.
Select the Settings tab in the display dialog-box.
The two key variables that apply the television-PC
interface are “Resolution” and “Colours”.
The correct settings for these two variables are:
◆ Size (sometimes called “Resolution”)
1024 x 768 pixels.
◆ Colour
24-bit colour (might also be expressed as “16
million colours”)
Shown at left is a typical screen for “Display”
dialog box.
If a vertical-frequency option exists on your display
settings dialog box, the correct value is 60 Hz.
Otherwise, just click OK and exit the dialog box.
46
Input Mode (PC/DVI)
ENG
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Standard
Dot x Line
VGA
640 x 480
SVGA
720 x 400
800 x 600
XGA
1024 x 768
WVGA
848 x 480
Vertical
frequency (Hz)
Horizontal
frequency (kHz)
Vertical
polarity
Horizontal
polarity
75.0
72.8
59.9
70.1
75.0
72.2
60.3
56.3
75.0
70.1
60.0
75
72
70
60
37.5
37.9
31.5
31.5
46.9
48.1
37.9
35.2
60.0
56.5
48.3
37.5
36.1
35.0
29.8
N
N
N
P
P
P
P
P
P
N
N
N
N
N
N
N
N
N
N
P
P
P
P
P
N
N
P
P
P
P
(N: Negative / P: Positive)
◆
◆
◆
◆
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
The 4:3 mode does not work with input signals from “720 x 400”.
The DVI mode does not support “1024 x 768” (85Hz).
Notes
◆ The text quality of PC screen is optimum in the XGA mode (1024 x 768), the full size displayed PC
mode is optimum in the SVGA mode (800 x 600).
◆ When this television is used as a PC display, 24-bit colour is supported (over 16 million colours).
◆ Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a television.
◆ If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the Source button to enter the Video mode. Also, make sure that
the PC is connected.
◆ When connecting a notebook PC to the television, make sure that the PC screen is displayed through only the
television (Otherwise, random signals might appear).
◆ When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.
47
Pin Configurations
ENG
SCART Connector
(AV3)
Pin
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
➢
DVI Input Connector
(24Pin)
Audio output R
Audio input R
Audio output L
Audio chassis return
Video chassis return (RGB blue)
Audio input L
RGB blue input
Switching voltage
Video chassis return (RGB green)
RGB green input
Video chassis return (RGB red)
RGB red input
Blanking signal (RGB switching)
Video chassis return
Blanking signal ground
Video output
Video input
Screening/chassis return
Pins 5, 7, 9, 11, 13, 15 and 16 are used for
RGB processing and are only wired on the
AV3 connector.
PC Input Connector
(15Pin)
Pin
Red (R)
Green (G)
Blue (B)
Grounding
Grounding (DDC)
Red (R) Grounding
Green (G) Grounding
Blue (B) Grounding
Reserved
Sync Grounding
Grounding
Data (DDC)
Horizontal sync.
Vertical sync.
Clock (DDC)
48
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
T.M.D.S. Data2T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4T.M.D.S. Data4+
Clock (DDC)
Data (DDC)
Not Connected
T.M.D.S. Data1T.M.D.S. Data1+
T.M.D.S. Data1/3 Shield
T.M.D.S. Data3T.M.D.S. Data3+
+5V Power
5V Grounding
Hot Plug Detect
T.M.D.S. Data0T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock-
RS-232 Connector
(9Pin)
PC IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Pin
Pin
1
2
3
4
5
6
7
8
9
Signal
Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
System Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
Troubleshooting: Before Contacting Service Personnel
ENG
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
◆ Check that the mains lead has been connected to a wall socket.
◆ Check that you have pressed the “ I ” (POWER) button (On/Off) and
the Power ( ) button.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
Normal picture but no sound
◆ Check the volume.
◆ Check whether the volume Mute button on the remote control has
been pressed.
No picture or black and white picture
◆ Adjust the colour settings.
◆ Check that the broadcast system selected is correct.
Sound and picture interference
◆ Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆ Plug your television into a different mains socket.
Blurred or snowy picture,
distorted sound
◆ Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
Remote control malfunctions
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check the battery terminals.
49
Technical Specifications
ENG
The descriptions and characteristics in this booklet are given for information purposes only and are
subject to modification without notice.
Model name
Tube type
Screen size
SP43L2HX
SP50L2HX
SP61L2HX
16:9
16:9
16:9
43 inch (953/535.5 mm)
50 inch (1107/623 mm)
61 inch (1351/760 mm)
Colour systems
PAL, SECAM, NTSC4.43, NTSC3.58
TV standards
BG, DK, I, M
Sound
A2 Stereo, NICAM Stereo, Virtual Dolby
Audio output power
Sockets
Rear
External input/outputs (AV1 / AV2 / AV3 / MONITOR OUT)
Surround speaker outputs (+-R-- / --L-+)
Audio outputs (L / R / WOOFER)
S-Video inputs (S-VIDEO 1 / S-VIDEO 2)
Component inputs (Y / PB / PR / L / R)
PC audio inputs (PC AUDIO - L / R)
PC video input (PC - 15Pin)
DVI video input (DVI - 24Pin)
RS-232 input (RS-232 - 9Pin)
Side
Video/Audio inputs (VIDEO + L-AUDIO-R)
S-Video Input (S-VIDEO)
Demensions (H x W x D)
Weight
Acessories
50
15 W x 4
1029 x 755 x 399 mm
1184 x 859 x 444 mm
1436 x 1021 x 489 mm
27.6 kg
32.7 kg
44.5 kg
Remote control, 2 Batteries (AAA), RCA cable,
Owner’s manual, Warranty card, Service network list
Memo
ENG
51
- AFTER SALES SERVICE
- Do not hesitate to contact your retailer or service agent
if a change in the performance of your product indicates
that a faulty condition may be present.
ELECTRONICS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
