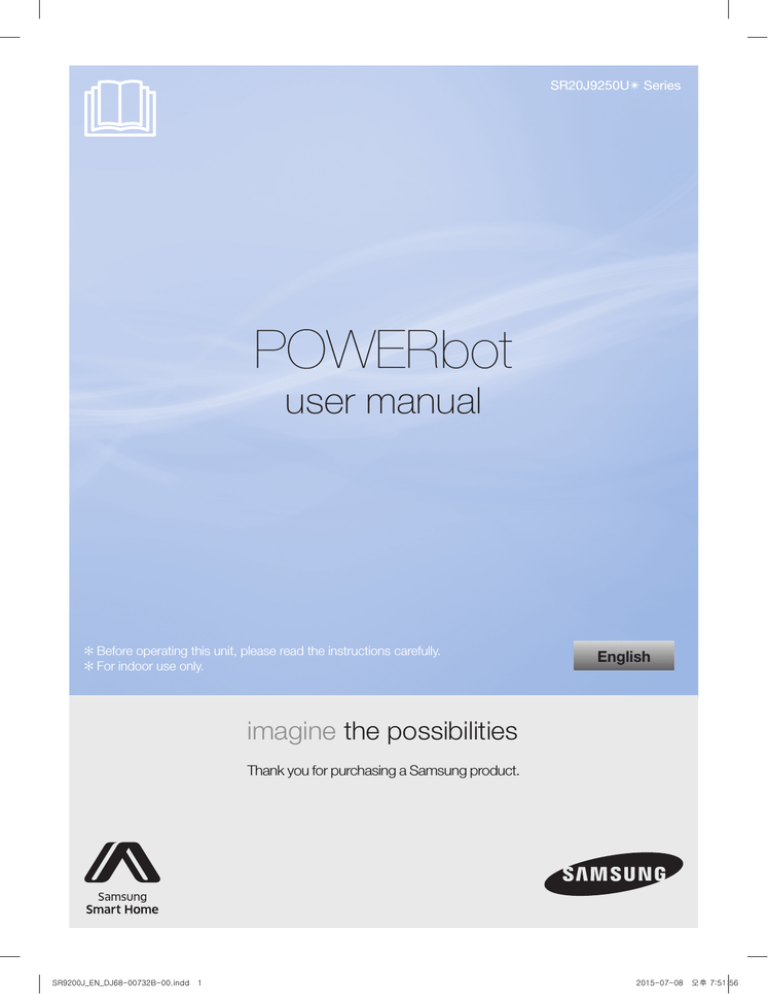

SR20J9250U✴ Series
POWERbot
user manual
✻ Before operating this unit, please read the instructions carefully.
✻ For indoor use only.
English
imagine the possibilities
Thank you for purchasing a Samsung product.
SR9200J_EN_DJ68-00732B-00.indd 1
2015-07-08 오후 7:51:56
Contents
03 Safety information
08 Installation
Accessories / Installation note
10 Charging
Automatic charging / Recharging / Low
battery (Lo)
the Virtual guard
12 Installing
Part name of the Virtual guard /
Inserting batteries
POWERbot
14 Using
Selecting cleaning mode
the remote control
16 Using
Power/Recharging / Suction power
/ Additional function / Manual clean
mode & Direction control / Point
cleaning
18 Name of each part
Top / Bottom / Display panel
19 Setting time/schedule
Setting the time / Setting the schedule
20 Cleaning and maintaining
Cleaning the dustbin / Cleaning the sensors
and the camera / Cleaning the Power brush /
Cleaning the Driving wheel
22 Samsung Smart Home App
Preparing the network / Using the Samsung
Smart Home app
28 Notes and cautions
Charging / In use / Cleaning and maintenance /
About battery / About the IrDA sensor
30 Information codes
31 Troubleshooting
33 Open Source Announcement
34 Specifications
ENGLISH-02
SR9200J_EN_DJ68-00732B-00.indd 2
2015-07-08 오후 7:51:56
Safety information
Safety information
• Before
WARNING
operating the appliance, please read this manual thoroughly and retain it
for your reference.
• Because
WARNING
these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
caution
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
note
Indicates that the following text contains additional important
information.
This Smart Robot vacuum supports from Samsung Smart Home.
More detailed information, please visit Samsung.com/Smarthome.
ENGLISH-03
SR9200J_EN_DJ68-00732B-00.indd 3
2015-07-08 오후 7:51:56
Safety information
Important safety instructions
When using an electrical appliance, basic precautions should be observed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING YOUR POWERbot.
Unplug from outlet when not in use and before conducting maintenance.
WARNING: to reduce the risk of fire, electric shock, or injury:
GENERAL
•Use only as described in this manual.
•Do not operate POWERbot or charger (station) if it has been damaged in any way.
•If the vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped in water, return it to a customer care center.
•Do not handle the charger (station) or POWERbot with wet hands.
•Use only on dry, indoor surfaces.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
BATTERY Charger (station)
•Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
•Do not use outdoors or on wet surfaces.
•Unplug the charger (station) from the outlet when not in use and before servicing.
•Use only the charger (station) supplied by the manufacturer to recharge.
•Do not use with a damaged cord or plug or a loose power outlet.
•Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,
or pull the cord around sharp edges or corners. Keep the cord away from heated
surfaces.
•Do not use extension cords or outlets with inadequate current carrying capacity.
•Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
•Do not mutilate or incinerate batteries as they will explode at high temperatures.
•Do not attempt to open the charger (station). Repairs should only be carried out by a
qualified customer care center.
•Do not expose the charger (station) to high temperatures or allow moisture or humidity
of any kind to come into contact with the charger (station).
ENGLISH-04
SR9200J_EN_DJ68-00732B-00.indd 4
2015-07-08 오후 7:51:56
POWERbot
•Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.
•Do not use without a filter in place. When servicing the unit, never put fingers or other
objects into the fan chamber in case the unit accidentally turns on.
•Do not put any objects into openings. Do not use with any openings blocked; keep
openings free of dust, lint, hair, and anything that may reduce air flow.
•Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
•Do not pick up anything that is burning or smoke, such as cigarettes, matches, or hot
ashes.
•Do not use to pick up flammable or combustible liquids such as gasoline, nor use on
areas where they may be present.
•Locations with candles or desk lamps on the floor.
•Locations with unattended fires (fire or embers).
•Locations with distilled alcohol, thinner, ashtrays with burning cigarettes, etc.
•Do not use POWERbot in an enclosed space filled with vapours given off by oil based
paint, paint thinner, moth proofing substances, flammable dust, or other explosive or
toxic vapours.
•Leaks from battery cells can occur under extreme usage or temperature conditions.
If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,
flush them immediately with clean water for a minimum of 10 minutes. Seek medical
attention.
ENGLISH-05
SR9200J_EN_DJ68-00732B-00.indd 5
2015-07-08 오후 7:51:56
Safety information
WARNING
ffDo not spill any liquids on the charger.
Power related
–– There is a risk of fire or electric shock.
ffPlease prevent any risk of electric shock or
fire.
–– Do not damage the power cord.
–– Do not pull the power cord too hard or touch
the power plug with wet hands.
–– Do not use a power source other than
100 - 240 V~ and also do not use a multi outlet
to supply power to number of devices at the
same time. (Do not leave the cord carelessly on
the floor.)
–– Do not use a damaged power plug, power cord
or loose power outlet.
ffClean dust or any foreign matters on the pin
and contact part of the power plug.
ffDo not use the charger for anything other
than its intended purpose.
–– There is a risk of fire or severe damage to the
charger.
ffAlways keep the cliff sensor clean for your
safety.
WARNING
In use
ffIf any abnormal sounds, smells or smoke
come from POWERbot, immediately shut
off the emergency switch at the bottom of
POWERbot and contact a service center.
–– There is a risk of electric shock or malfunction.
WARNING
WARNING
Before use
ffDo not use POWERbot near combustible
materials.
–– Place near candle, desktop lamps, fireplace or
near combustible materials such as gasoline,
alcohol, thinners etc.
ffThe POWERbot is intended for household
use therefore do not use it in an attic,
basement, storage, industrial building, out of
indoor space, places with moisture (such as
bathroom, laundry), on the table or shelves.
Cleaning and
maintenance
ffWhen power cord is damaged, contact a
service center to get it replaced by certified
repairman.
–– There is a risk of fire or electric shock.
ffPlease check with a Samsung Electronics
service center when exchanging batteries.
–– Using batteries from other products can cause
malfunction.
–– The POWERbot can be damaged or
malfunction.
ffInstall the Virtual guard in front of dangerous
areas (such as stairs or railings) to prevent
damaging the product or getting injured.
–– For your safety, always keep the cliff sensor
clean.
ffBe sure POWERbot does not pass through or
touch any kind of liquids.
–– The POWERbot can be severely damaged and
it may contaminate other areas if the wheels
pass through liquid.
ENGLISH-06
SR9200J_EN_DJ68-00732B-00.indd 6
2015-07-08 오후 7:51:56
CAUTION
Before use
CAUTION
ffInsert the dustbin before using POWERbot.
ffOpen room doors before cleaning in order
to have all rooms cleaned and install a
Virtual guard in front of entryway, balconies,
bathrooms, or other areas where POWERbot
may fall.
ffBe careful with the followings for proper
automatic recharging.
–– Always turn on the power of the charger.
–– Install the charger where POWERbot can easily
find.
–– Do not leave any object in front of the charger.
ffWhen installing the charger, do not leave the
cord carelessly on the floor since POWERbot
may get tangled by it.
ffDo not use POWERbot on black colored
floors.
–– The POWERbot may not be able to operate
normally.
ffDo not pick up POWERbot by the dustbin
holder.
ffDo not place any objects within 0.5 m to both
sides and 1 m to the front of the charger.
ffMake sure the charger's charging contact is
not damaged or have any foreign matters on
it.
ffDo not install the charger in an area with a
dark floor.
–– If the floor around the charger is dark,
recharging is hindered.
ffMove any obstacles that may disturb
POWERbot's movement (such as children's
indoor swing or slides) before cleaning.
In use
ffUsing POWERbot on thick carpet may
damage both POWERbot and the carpet.
–– The POWERbot cannot pass over carpet that is
thicker than 1 cm.
ffDo not use POWERbot on tables or other
high surfaces.
–– There is a risk of damage if it falls.
ffThe POWERbot may bump into chair, desk
legs therefore move them away for faster and
efficient cleaning.
ffWhen POWERbot is operating, do not lift it up
or carry it to another area.
ffDo not hold by driving wheels of POWERbot
when carrying it to another area.
ffDo not put any objects on top of POWERbot
since it may cause malfunction.
ffRemove any large papers or plastic bags
immediately when using POWERbot since
they may block the intake.
ffDo not aim the red pointer directly at people
or animals.
CAUTION
Cleaning and
maintenance
ffPrevent any damage to POWERbot by
complying the followings.
–– Do not clean POWERbot by spraying water
directly onto it or use benzene, thinner, acetone
or alcohol to clean it.
ffDo not disassemble or repair POWERbot.
This should only be done by a certified
repairman.
ffAlways keep the obstacle sensor and cliff
sensor clean.
–– If foreign matter accumulates, sensors may
malfunction.
ENGLISH-07
SR9200J_EN_DJ68-00732B-00.indd 7
2015-07-08 오후 7:51:56
Installation
Power of the charger must be on at all times.
Do not install the charger in a narrow
passage or near a door.
Install it in a place without obstacles
and danger of falling.
Power lamp (Red)
t1
u
bo
m
A
Abo
ut 0.
5m
DC-IN
Abou
t 0.5
m
DC-IN
1
Connect the
adapter jack to
the charger
2
Connect the
power cord to
the adapter
When using the adapter,
the side with the sticker
attached must face down.
3
Connect the
power plug to
the outlet
Power lamp (Red) will turn
on.
ENGLISH-08
SR9200J_EN_DJ68-00732B-00.indd 8
2015-07-08 오후 7:51:57
Accessories
Remote control
Batteries (AAA type)
User manual
Spare filter
Cleaning brush
Power cord
Adapter
Virtual guard
Installation note
Note
ffInstall charger in a place where the floor and wall are level.
ffIt is best to install the charger along the grain of wooden floors.
ffIf the emergency switch is off, POWERbot will not charge even if it is docked on the charger.
ffAlways turn on the power of the charger.
–– If power is not supplied to the charger, POWERbot cannot find it and cannot automatically recharge.
–– If POWERbot is left detached from the charger, the battery will drain naturally.
ffIf POWERbot is in energy-saving mode, power will not come on even if the emergency switch is
turned off and then on. Press and hold the [Start/Stop] button on POWERbot.
ENGLISH-09
SR9200J_EN_DJ68-00732B-00.indd 9
2015-07-08 오후 7:51:58
Charging
It takes approximately 160 minutes to
completely charge when charging for the
first time after purchase and can be used for
approximately 30 minutes in Max mode.
WARNING
• Rated input voltage of this product
is 100 - 240 V~.
Charging lamp during charging (green)
1
Turn on the
emergency switch
on the bottom
You must turn on the
emergency switch to turn on
POWERbot.
2
Manually charge
POWERbot by
placing it on the
charger
Make sure charge pins of
POWERbot and the charger is
aligned.
3
Check the
charging status
“
” will turn on
according to charging
progress and "FULL" will
turn on when charging is
complete.
ENGLISH-10
SR9200J_EN_DJ68-00732B-00.indd 10
2015-07-08 오후 7:51:58
Automatic charging
When the battery indicator blinks
during cleaning, POWERbot will
return to the charger to charge itself
automatically.
Recharging
You may command POWERbot to
recharge at the charger while it is in
cleaning process.
Low battery (Lo)
Manually charge POWERbot by
placing it on the charger.
Steps to take if recharging is not being executed
Check the installation status of the
charger when:
Manually charge POWERbot when:
fcharger
f
is located in a place where POWERbot
cannot easily access
fdistance
f
of the charger and POWERbot is over 5 m
apart
–– It may take a long time for POWERbot to return to
the charger for recharging
fcharger
f
is located in a corner
fbattery
f
is fully exhausted
fPOWERbot
f
is stuck by obstacles (furniture etc.)
fPOWERbot
f
can't climb threshold near charger
(Height of the threshold that POWERbot can climb:
about 1.5 cm and below)
fBattery
f
indicator blinks and "Lo" is displayed
fPOWERbot
f
is set on Spot clean or Manual clean
mode
ENGLISH-11
SR9200J_EN_DJ68-00732B-00.indd 11
2015-07-08 오후 7:51:58
Installing the Virtual guard
Infrared ray from the Virtual guard will restrict POWERbot from approaching certain
area.
The distance of virtual wall is 2.5 m at minimum and may differ
depending on surroundings and movement status of POWERbot.
Virtual guard
.5 m
2
um
im
Min
1
Press the Power
button to turn it on
Power lamp (Red) will blink.
2
Install the Virtual guard
where you want to restrict
POWERbot's entrance
Make sure that distance sensor is facing
at the desired direction you want to
create a invisible barrier (which will restrict
POWERbot's approach).
ENGLISH-12
SR9200J_EN_DJ68-00732B-00.indd 12
2015-07-08 오후 7:51:59
Part name of the Virtual guard
Power button
POWERbot detection sensor
Power lamp
Power on: Red lamp blinks
Power off: Lamp is off
Distance detection sensor
(Infrared ray sensor)
Battery cover
Inserting batteries
Batteries for Virtual guard must be purchased separately.
the battery cover 2 Insert the alkaline
1 Open
of the Virtual guard by
batteries (D type)
pressing the locking
tab and lift it up.
as shown in the
illustration (check the
+, - polarity).
the tip of the
3 Insert
cover into the slot and
push the other end to
close the battery cover.
✻✻Specification: type D (LR20) batteries
ENGLISH-13
SR9200J_EN_DJ68-00732B-00.indd 13
2015-07-08 오후 7:51:59
Using POWERbot
You must turn on the emergency switch before using POWERbot.
Turning the power on/off
Press the
3 second
button for more than
WARNING
• When POWERbot is not used for
30 minutes, it will return to the charger
to charge itself automatically.
Using Auto clean mode
The POWERbot moves and cleans
automatically until it cleans entire space once.
✻✻Stop cleaning: Press the
button
Using Spot clean mode
The POWERbot cleans a localized area
intensely.
Recharging
You may command POWERbot to recharge at
the charger automatically while it is in cleaning
process.
ENGLISH-14
SR9200J_EN_DJ68-00732B-00.indd 14
2015-07-08 오후 7:52:00
Selecting cleaning mode
Cleaning mode
How to select
Displayed icon
Auto clean
Spot clean
✻✻Spot clean mode can be selected only
by pressing this button on the main
body of the POWERbot.
Manual clean
✻✻Manual clean mode can be selected
by the direction control buttons of the
remote control.
✻✻When cleaning is done within 15 minutes in Auto clean mode, the POWERbot will repeat cleaning
one more time.
✻✻When dust intake is detected in Spot/Manual clean mode, suction of the POWERbot will become
stronger.
✻✻If the POWERbot fails to return to the charger, it will be turned into the energy-saving mode. Then
the display panel of the main body will be turned off. Press [Start/Stop] or [Power] button to cancel
the energy-saving mode.
✻✻Charging and cleaning times can differ according to conditions of use.
Cleaning method for each modes
About 1.5 m
About 1.5 m
Auto clean
Spot clean
Cleans automatically until entire Cleans a localized area
space is cleaned once.
intensely. It can be used to
clean bread or cookie crumbs.
Manual clean
You can move POWERbot with
the remote control to clean the
desired spot.
ENGLISH-15
SR9200J_EN_DJ68-00732B-00.indd 15
2015-07-08 오후 7:52:00
Using the remote control
1 Power / Recharging / Start/Stop
Power
Recharging
Start/Stop
Turn POWERbot's power on/off
Select to recharge POWERbot at the charger automatically
Select to start or stop cleaning process
2 Suction power
Max mode
Normal mode
Quiet mode
Select to clean with the strongest suction power
Select to clean with moderate suction power
Select to clean with lower operation noise
3 Additional function
Sound
Remote control
Each time you press this button, Sound Effects → Mute is
selected in this sequence.
Select to turn on or off the remote control
✻✻Press [Sound] button for 3 seconds..
✻✻Wi-Fi connection should be done to control the
POWERbot using Samsung Smart Home app.
✻✻The previously selected setting will not change even if the emergency switch is turned off and then on.
Inserting batteries
Open the battery cover by lifting it up
while pressing the locking tab and
insert the batteries as shown in the
illustration. Then, close the cover until
it clicks into place.
ENGLISH-16
SR9200J_EN_DJ68-00732B-00.indd 16
2015-07-08 오후 7:52:01
1
4 Manual clean mode & Direction
control
Select to move forward
2
1
4
5
3
Refer to
page 19
Select to turn left
Select to turn right
✻✻Moving backward is not available.
5 Point cleaning
You can use the remote control to point and clean
the desired spot while the POWERbot is in cleaning
process.
Point the red light on the floor within 1 m around POWERbot's
location.
Press and hold the Point cleaning button to move the red light to
the desired spot. The POWERbot will follow the light while cleaning.
1m
Operating distance of the remote control
Height of the remote
control
Operating distance
Height of the remote
control
1m
1.5 m
Operating distance
About 2 m
About 2.5 m
ENGLISH-17
SR9200J_EN_DJ68-00732B-00.indd 17
2015-07-08 오후 7:52:01
Name of each part
Top
1
3
2
3
6
4
7
8
4
3
5
9
1
4
2
7
3
4
4
5
8
6
9
1.
2.
3.
4.
5.
6.
7.
8.
9.
Display panel
Dustbin holder
Remote control signal receiver
Virtual guard sensor
Obstacle sensor
Dustbin
Camera
Dustbin handle
Bumper sensor
Bottom
1.
2.
3.
4.
5.
6.
7.
8.
9.
Charge pins
Power brush
Power brush cover
Cliff sensor
Roller
Battery cover
Power brush cover button
Driving wheel
Emergency switch
5
3
4
1
5
2
6
8
7
9
10
15
11
12
13
14
16
17
Display panel
1. Mute
2. Information Indicator
3. Filter inspection
4. Remote lock
5. Wi-Fi
6. Battery indicator
7. One-time/Daily schedule
8. Number display
9. Spot clean mode
10. Manual clean mode
11. Quiet mode
12. Normal mode
13. Max mode
14. Dust sensor
15. Spot cleaning button
16. Start/Stop button
17. Recharging button
ENGLISH-18
SR9200J_EN_DJ68-00732B-00.indd 18
2015-07-08 오후 7:52:02
Setting time/schedule
Only Auto clean mode can be scheduled.
Setting the time
You must set the current time before using the One-time/daily schedule.
Start setting
Select "Hour"
Select "Minute"
Setting complete
Select "AM/PM"
Skip to previous, next setting
Setting the schedule
Setting/cancelling the schedule can only be done while POWERbot is docked on the charger.
Start setting Select "One-time" or
"Daily" schedule
Setting complete
Select "Hour"
Select "AM/PM"
Select "Minute"
Skip to previous, next setting
Cancelling during setup
fSetting
f
will be canceled automatically when there's no input
for 7 seconds
Cancelling One-time/Daily schedule
When both One-time/
Daily schedule is set
Press for 3 sec.
When either one of
One-time or Daily
schedule is set
or
or
Select the schedule
Cancel complete
Press for 3 sec.
ENGLISH-19
SR9200J_EN_DJ68-00732B-00.indd 19
2015-07-08 오후 7:52:03
Cleaning and maintaining
You must turn off the emergency switch before cleaning POWERbot.
Cleaning the dustbin
Clean the dustbin when filter inspection indicator (
1 Remove the dustbin
) turns on or if there's too much dust in the dustbin.
the dustbin
2 Remove
cover
dust in the
3 Remove
dustbin and cyclone
unit
"Click"
the cyclone unit 5 Reassemble the
4 Detach
from the dustbin cover
dustbin
then wash the dustbin
and the filter
the dustbin
6 Reinsert
into the main body until
it clicks
Cleaning the sensors and the camera
Lightly wipe with soft cloth.
Camera
Front sensor
window
Cliff sensors
Rear sensor
window
ENGLISH-20
SR9200J_EN_DJ68-00732B-00.indd 20
2015-07-08 오후 7:52:04
Cleaning the Power brush
the Power
2 Remove
brush
3 Clean the Power brush
ON
OFF
the Power
1 Remove
brush cover
ON
OFF
the Power 5 Reassemble the Power
4 Reassemble
brush
brush cover
Cleaning the Driving wheel
a soft cloth on the floor and place
1 Put
POWERbot upside-down.
a blunt rod or tweezers to remove the
2 Use
foreign matters.
ENGLISH-21
SR9200J_EN_DJ68-00732B-00.indd 21
2015-07-08 오후 7:52:05
Samsung Smart Home App
Preparing the network
Setting up the wireless router
fThis
f
product supports only DHCP(Dynamic Host Configuration Protocol). Please check if the DHCP server
option function of a wireless router is activated.
fThe
f
supported types of authorization/encryption of the wireless router are WEP-OPEN, WPA-PSK/TKIP and
WPA2-PSK/AES 801.11n.
–– WPA2-PSK/AES is recommended to be used.
fThe
f
quality of connection of the wireless network may be influenced by the surrounding wireless environment.
fWhen
f
your Internet service provider has permanently registered an MAC address (a unique identification
number) of your PC or modem, your POWERbot may be unavailable to be connected to the Internet. Ask your
Internet service provider about the procedure to connect an apparatus other than a PC to the Internet.
fIff your internet service provider requires your ID or password to connect to the internet, your POWERbot may
not be able to connect to the internet. In this case, you must enter your ID or password when connecting to
the internet.
fThe
f
connection to the Internet may be impossible because of issues of firewall. Ask your Internet service
provider for resolving the issue.
fSome
f
wireless routers may convey an abnormal Domain Name Server (DNS) address even if the Internet is not
connected. In this case, inquire the provider of the pertinent wireless router and your Internet service provider.
fIff you still cannot connect to the Internet even after trying the procedure informed by your Internet service
provider, please ask an agency or service center of Samsung Electronics.
Note
ffPlease refer to the user manual of the pertinent wireless router without access problems.
ffSamsung POWERbots support only Wi-Fi 2.4 Ghz.
ffSamsung POWERbots support the communication protocol of the methods of IEEE 802.11b/g/n
and Wi-Fi Direct. (Samsung Electronics recommends to use IEEE 802.11n.)
ffA wireless router with no authorization of Wi-Fi may be unavailable to be connected to the
POWERbot.
ffWhen the power is supplied and the POWERbot is docked on the charger, the POWERbot will be
connected to the server and then check if there is software updates. If there is the latest software, it
will be automatically downloaded and updated.
ffIf “UPAM” is displayed on the display panel while the POWERbot is charging, it means that the
update is in progress. Please wait for completing the rebooting.
ffIf the product registration is not done, please follow the following instructions:
––
––
––
––
Refer to the popup message and retry the registraion procedure.
Check if the UPnP option of the wireless router is available and retry the registration procedure.
Check if the operating mode of the wireless router is a router mode and retry the registration procedure.
If you have more than two POWERbot, turn off the others to register the one. The connection must be one
to one.
ffSamsung Smart Home Service does not guarantee a normal operation under firewall environment.
ENGLISH-22
SR9200J_EN_DJ68-00732B-00.indd 22
2015-07-08 오후 7:52:05
ffIf the POWERbot and smart phone are not connected to the same wireless router, response delay
may occur according to network environment.
ffRemote lock and Wi-Fi indicator
––
On : Remote control is locked.
––
Off : Remote control is allowed.
––
Off : The POWERbot is connecting to the wireless router.
––
On : The POWERbot is connected to the wireless router.
Using the Samsung Smart Home app
Creating your Samsung account
If you want to use the Samsung Smart Home app, please register your
Samsung account in Samsung account app.
Note
ffIf you do not set auto-login to the Samsung Smart Home app and run
the app, the screen of Samsung account appears one time at first.
ffIf you are a user of a Samsung smart phone, register your Samsung
account in the settings of the smart phone, and then the automatic
login gets set without any other login processes, and you can use the
Samsung smart home app immediately.
Downloading Samsung Smart Home app
You can download the Samsung Smart Home app by searching for “Samsung Smart Home App” at the Google
Play Store, Samsung Galaxy Apps and Apple App store.
Note
ffSamsung Smart Home apps are compatible with selected Samsung Galaxy S and Samsung Note
series devices.
–– support Android™(2) 4.0 (since Galaxy S2) or higher and iOS7 or higher
–– Application must be downloaded. Internet connection required. Data changes may apply.
–– Android is a trademark of Google Inc
ENGLISH-23
SR9200J_EN_DJ68-00732B-00.indd 23
2015-07-08 오후 7:52:06
Samsung Smart Home App
Registering the product (Easy-Setup)
Register the product to the Samsung Smart Home Service before using the Samsung Smart Home app.
1.Press the Add new icon on the device list screen of the Samsung Smart Home app to start the registration of
the product.
2.Select the Robot vacuum icon.
3.Enter the information of the wireless router to be connected.
4.Set the POWERbot according to the guidance on the screen.
–– To turn on the AP mode immediately, press [Clock] button for more than 5 seconds.
5.Then, the registration will proceed automatically.
6.When the product registration is complete, the main screen of the Samsung Smart Home app will appear.
✻✻If the product registration is failed, refer to page 14.
ENGLISH-24
SR9200J_EN_DJ68-00732B-00.indd 24
2015-07-08 오후 7:52:07
Downloading Samsung Smart Robot vacuum app
You can use more diverse functions through the Samsung Smart Robot vacuum App, which is exclusively for the
POWERbot.
1.Select the Robot vacuum icon on the device list screen of the Samsung Smart Home app. If the Samsung
Smart Robot vacuum app is not installed, you will be moved to the Google Play Store automatically.
2.Install the Samsung Smart Robot vacuum app.
3.If the installation is complete, select the Robot vacuum icon again on the device list screen of the Samsung
Smart Home app.
Screen description and major functions
Device list screen
fYou
f
can register smart home appliances made by Samsung Electronics on
the Smart Home Service to control them altogether remotely.
ENGLISH-25
SR9200J_EN_DJ68-00732B-00.indd 25
2015-07-08 오후 7:52:07
Samsung Smart Home App
Main screen
fSelect
f
the Robot vacuum icon on the main screen, and you can move to the
POWERbot control screen.
fYou
f
can control your smart home appliances made by Samsung Electronics
by Going out, Coming home, Good night, and Good morning icons.
fHome
f
view function is not supported for a POWERbot.
User menu screen
fYou
f
can control the smart home appliances made by Samsung Electronics
with Chat control and Master key functions.
Chat control
Master key
Customer service
fYou
f
can control the smart home appliances or check about the
status of them conveniently.
fYou
f
can control several home appliances at once using the
master keys(Going out, Coming home, Good night, Good
morning).
fYou
f
can see the manual of the product.
fWhen
f
a product is out of order, you can consult with our
customer center and request for an after-sales service.
ENGLISH-26
SR9200J_EN_DJ68-00732B-00.indd 26
2015-07-08 오후 7:52:07
Controlling POWERbot
When accessing the Samsung Smart Robot vacuum app, the control screen will appear.
1.
2.
3.
4.
5.
6.
Power on/off
Option (Settings, Customer Service)
Current status indicator
Suction power
Recharging
Manual clean mode and Direction control (forward movement, left turn,
right turn)
7. Auto clean mode start/stop
8. Spot clean mode
9. Sound (Man, Woman, Sound Effect, Mute)
10. Schedule (One-time/Daily schedule)
Note
ffA scheduled cleaning runs only when the POWERbot is docked on
the charger.
ENGLISH-27
SR9200J_EN_DJ68-00732B-00.indd 27
2015-07-08 오후 7:52:08
Notes and cautions
ffThe POWERbot cannot vacuum clumps of
dirt, so some may remain on the floor after
cleaning.
Charging
Note
ffIf the battery overheats during charging, it
may take longer to charge.
ffWhen automatic charging is not working,
please check the followings.
–– Turn the emergency switch (on the bottom of
POWERbot) off and on again.
–– Unplug the charger's power plug and then plug
it back on.
–– Check whether there is any foreign matter in
the charge pins and clean POWERbot and the
charge pins of the charger with a dry cloth or
rag.
–– Check for any obstacles such as reflective
objects, chairs, etc. near the charger.
ffIf POWERbot is left detached from the
charger, the battery will drain naturally.
–– Try to keep POWERbot being charged on the
charger. (Turn off the emergency switch and
leave the charger unplugged when planning
to leave the house for long periods of time by
going on a business trip or vacation, etc., )
–– Please use another cleaning tool to clean them
regularly.
ffIf the battery becomes low during Auto clean
mode, POWERbot will recharge and finish
cleaning the remaining area after recharging.
(Repeat cleaning frequency: 1 time)
ffYou cannot select and execute Manual clean
mode while charging.
–– If you press Manual clean / Point cleaning
button while charging, the POWERbot will be
detached from the charger and then turn into
the standby mode.
ffDo not unnecessarily move POWERbot or
press buttons while it is in Auto clean mode. It
assumes that cleaning is complete and starts
cleaning again from the beginning.
Cleaning and maintenance
Note
ffIf you washed the dustbin and filter with water
In use
–– Dustbin: Completely wipe out the water.
–– Filter: Completely dry it in a shade before use.
Note
Caution
ffThe POWERbot may get caught on
thresholds, etc. during cleaning.
–– To restart operation, shut off the emergency
switch, move POWERbot to an area where it
can move easily and then turn on the power
again.
ffThe POWERbot cannot completely clean
areas it cannot enter, such as corners,
between the wall and sofa, etc.
–– Please use another cleaning tool to clean them
regularly.
ffWatch your finger when attaching or
detaching the filter, since they may get stuck
in the dustbin's intake.
ffTo avoid blockages by foreign matter, do not
let toothpicks, cotton swabs etc. from being
vacuumed by POWERbot.
ffIf it is difficult to remove foreign matters from
the Power brush, contact a service center.
ffSince the power brush removes dirt from the
floor during cleaning, foreign matters such as
thread, long hair, etc. may get caught in it.
Therefore check and clean it regularly.
ENGLISH-28
SR9200J_EN_DJ68-00732B-00.indd 28
2015-07-08 오후 7:52:08
About battery
About the IrDA sensor
Caution
Note
ffPurchase batteries at service centers and
) and
check the genuine part symbol (
model name before purchasing.
ffThe infrared signal transmission may not
be smooth in locations exposed to halogen
lamps or in outdoor locations.
ffThis battery is exclusive for Samsung
Electronics POWERbot; do not use it for any
other product.
ffThe POWERbot uses 3 types of infrared
devices and a device may not work in front of
another device with a higher priority.
ffDo not disassemble or modify it.
ffDo not throw the battery out in fire or heat it
up.
ffDo not connect any metallic object to the
charging contacts (+, -).
ffStore it in indoor (at 0 °C~40 °C).
ffIf the battery malfunctions, do not
disassemble it yourself; contact your nearest
service center.
ffBattery charging time and usage time may
decrease the more the battery is used. If the
battery’s lifespan has been exceeded, have it
replaced at a service center.
ffThe battery warranty period is 6 months from
the date of purchase.
–– Infrared signal Priority: Remote control > Virtual
guard > Charger
ffWhen controlling POWERbot with the remote
control, POWERbot may cross the invisible
barrier set by the Virtual guard and enter the
area you don't want it to enter, since remote
control's signal has a higher priority.
ffDifferent infrared signals may interfere with
one another and cause malfunction to the
devices if they are used together in a small
space or in a close distance.
ffInstall the Virtual guard away from the charger
as auto charging may be interrupted if the
Virtual guard is near the charger.
ffIf more than one POWERbots are used
simultaneously, they may malfunction due to
interference of the infrared signals.
ENGLISH-29
SR9200J_EN_DJ68-00732B-00.indd 29
2015-07-08 오후 7:52:08
Information codes
information
1 Below
codes appear on
the display panel
off the
2 Turn
emergency switch
code
3 Information
will disappear
and check the below
instructions and take
appropriate action
Information codes
when you turn on
the emergency
switch
Checklist
The POWERbot is caught, stuck or trapped while
moving around.
fTurn
f
off the emergency switch and move the POWERbot to another
area.
Foreign matter caught in the Power brush.
fTurn
f
off the emergency switch and remove the foreign matter from the
Power brush.
Foreign matter caught in the left Driving wheel.
fTurn
f
off the emergency switch and remove the foreign matter from the
Driving wheel.
Foreign matter caught in the right Driving wheel.
fTurn
f
off the emergency switch and remove the foreign matter from the
Driving wheel.
Bumper sensor needs to be checked.
fTurn
f
off the emergency switch and turn it back on.
fWhen
f
information code does not disappear, check if there's any small
foreign matter between the bumper and the main body. If there is, pull
the bumper slightly and remove the foreign matter.
Foreign matter accumulated on the obstacle sensor.
fTurn
f
off the emergency switch and clean the front and rear sensor
with a soft cloth.
Foreign matter accumulated on the cliff sensor.
fTurn
f
off the emergency switch and clean the cliff sensor with a soft
cloth.
ENGLISH-30
SR9200J_EN_DJ68-00732B-00.indd 30
2015-07-08 오후 7:52:08
Troubleshooting
Symptom
The POWERbot is not
working at all.
Checklist
fCheck
f
if the emergency switch is on.
fCheck
f
if all the icons are displayed on display panel.
fCheck
f
if the battery of POWERbot is depleted.
–– When "Lo" is displayed, carry POWERbot to the charger to charge it.
fReplace
f
the batteries (AAA type) when the remote controller is not working.
The POWERbot
is stopped during
cleaning process.
fWhen
f
"Lo" is displayed on the display panel, carry POWERbot to the charger
to charge it.
fWhen
f
POWERbot is stuck by the obstacles such as cord, threshold etc, pick it
up to remove it from the obstacle.
–– If any fabrics or strings are caught in the drive wheel, turn off the emergency
switch and remove the fabrics or strings before using it again.
Suction power is weak.
fIff the "Filter inspection indicator" is on, turn off the emergency switch and clean
the dustbin.
fWhen
f
there's too much dust in the dustbin, suction power may get weakened.
Turn off the emergency switch and empty the dustbin.
fIff the intake (on bottom of POWERbot) is blocked by foreign matters, turn off
the emergency switch and remove foreign matter from the intake.
fWhen
f
noise suddenly increase, turn off the emergency switch and empty the
dustbin.
The POWERbot cannot
find the charger.
fCheck
f
if there's power failure or whether the power plug is unplugged.
fRemove
f
any obstacles around the charger that may disturb POWERbot from
returning to the charger.
fWhen
f
there's foreign matters on the charge pins that affects charging, clean
the foreign matter.
The POWERbot passes
through the Virtual
guard.
fIff the batteries are depleted, replace them. (2 type D (LR20) batteries)
fIff the lamp is off, check if the Virtual guard is turned off and turn it on.
The POWERbot
suddenly cleans
diagonally.
fCheck
f
if the charger is installed along the grain of wooden floors or tiles.
fItf may clean in diagonal direction for moving to another area in shortest route,
or it made contact with any obstacles in that angle, or if it was charged at the
charged at an angle, or grain of the wooden/tile floor is in that direction.
Point cleaning is not
working.
fIff you point the red light directly on POWERbot, it may not move to desired
direction.
–– Point the red light on the floor within 1 m around POWERbot.
✻✻Do not use the point cleaning under direct sunlight, bright light or on dark
floors.
"Filter inspection
indicator" is on even
after the dustbin has
been emptied.
fUse
f
POWERbot after turning off the emergency switch and then turning it back
on.
fEmpty
f
the dustbin again and re-clean the filter thoroughly.
ENGLISH-31
SR9200J_EN_DJ68-00732B-00.indd 31
2015-07-08 오후 7:52:08
Troubleshooting
Symptom
Checklist
POWERbot moves
around at the same
place.
fDust
f
sensor mode is on.
–– The dust sensor mode is on by default. When the POWERbot passes through a
dusty area, it moves around that area to focus on cleaning.
fPOWERbot
f
moves around an area and the "DUST" is on the display panel
even though there's no dust at the surrounding area.
–– Check if foreign matters are caught between the dustbin and power brush and
then remove them.
POWERbot does not
clean a certain area.
fCheck
f
if the charger is installed near a narrow passage or door, and reinstall it
in the other areas.
–– If the charger is installed near a narrow passage or door, the POWERbot
cannot pass through the passage or doorsill.
The battery usage time
of the Virtual guard is
too short.
fCheck
f
if you're using manganese drycell batteries and replace the batteries
with new ones. (2 type D (LR20) batteries)
I have installed the
Samsung Smart
Home app, but, the
POWERbot fails to be
connected.
fYou
f
can use the product after connecting the wireless router and the
POWERbot through Easy-Setup according to the procedure.
I fail to log into the
Samsung account.
fCheck
f
your ID and password on the screen of the Samsung account.
There appears a
message saying there
is a failure during
Easy-Setup.
fYou
f
may have failed temporarily due to the distance from the wireless router or
other obstacles. Please try again after a while.
The products do not
work even though
the smart phone is
normally connected to
the POWERbot.
fTurn
f
off the Samsung Smart Home app and then run it again, or disconnect
the smart phone from the wireless router and then connect it again. Or turn off
the power supply of the POWERbot, turn it on, wait for a minute or longer, and
then run the Smart Home app again.
The functions of the
Samsung Smart Home
App do not work.
fCheck
f
if the remote control blocking function of the POWERbot is set. (If the
Wi-Fi indicator is turned off, the remote control is locked.)
The Samsung Smart
Robot Vacuum App
fails to get started.
fCheck
f
if the POWERbot is connected to the wireless router.
POWERbot is not
connected to Wi-Fi.
fCheck
f
the setting status of the wireless router.
ENGLISH-32
SR9200J_EN_DJ68-00732B-00.indd 32
2015-07-08 오후 7:52:08
Open Source Announcement
The software included in this product contains open source software. You may obtain the complete
corresponding source code for a period of three years after the last shipment of this product by sending an email
to mailto:[email protected]
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM;
a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/VR9200/seq/0 leads to the download page of
the source code made available and open source license information as related to this product. This offer is valid
to anyone in receipt of this information.
ENGLISH-33
SR9200J_EN_DJ68-00732B-00.indd 33
2015-07-08 오후 7:52:08
Specifications
Classification
Mechanical
specifications
(POWERbot)
Power specifications
Item
Detail information
Size
(Depth x Height x Length)
378 mm x 135 mm x 362 mm
Weight
4.8 kg
Sensor
Ceiling shape recognition (Visionary mapping plus
TM)
Button type of POWERbot
Touch type
Power voltage
100 - 240 V~, 50 Hz / 60 Hz
Power consumption
180 W (Max mode)
Battery specifications
Lithium ion 21.6 V / 78 Wh
Charging type
Automatic charging/Manual charging
Cleaning mode
Auto, Spot, Manual
Scheduling function
One-time schedule, Daily schedule
Charging time
Approximately 160 minutes
Cleaning
Cleaning time
(On the basis of hard floor)
Max mode
Approximately
30 minutes
Normal mode
Approximately
60 minutes
Quiet mode
Approximately
100 minutes
ENGLISH-34
SR9200J_EN_DJ68-00732B-00.indd 34
2015-07-08 오후 7:52:08
Note
ENGLISH-35
SR9200J_EN_DJ68-00732B-00.indd 35
2015-07-08 오후 7:52:08
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Country
Customer Care Center
Web Site
U.K
0330 SAMSUNG (7267864)
www.samsung.com
SOUTH AFRICA
0860 7267864 (SAMSUNG)
www.samsung.com
AUSTRALIA
1300 362 603
www.samsung.com
HONG KONG
(852) 3698-4698
www.samsung.com/hk
www.samsung.com/hk_en/
MALAYSIA
1800-88-9999
www.samsung.com
SINGAPORE
1800-SAMSUNG (7267864)
www.samsung.com/ch_fr/(French)
DJ68-00732B-00
DJ68-00732B
SR9200J_EN_DJ68-00732B-00.indd 36
2015-07-08 오후 7:52:09
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
