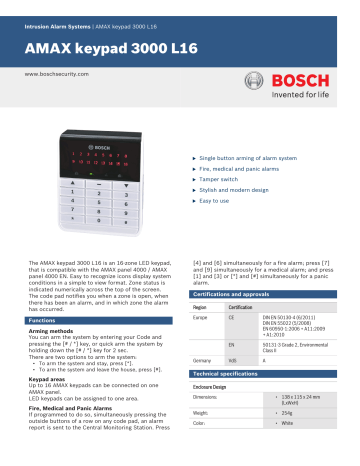

AMAX keypad 3000 L16
Intrusion Alarm Systems | AMAX keypad 3000 L16
AMAX keypad 3000 L16
www.boschsecurity.com
The AMAX keypad 3000 L16 is an 16-zone LED keypad,
that is compatible with the AMAX panel 4000 / AMAX
panel 4000 EN. Easy to recognize icons display system
conditions in a simple to view format. Zone status is
indicated numerically across the top of the screen.
The code pad notifies you when a zone is open, when
there has been an alarm, and in which zone the alarm
has occurred.
Functions
Arming methods
You can arm the system by entering your Code and
pressing the [# / *] key, or quick arm the system by
holding down the [# / *] key for 2 sec.
There are two options to arm the system:
• To arm the system and stay, press [*].
• To arm the system and leave the house, press [#].
Keypad areas
Up to 16 AMAX keypads can be connected on one
AMAX panel.
LED keypads can be assigned to one area.
Fire, Medical and Panic Alarms
If programmed to do so, simultaneously pressing the
outside buttons of a row on any code pad, an alarm
report is sent to the Central Monitoring Station. Press
u
Single button arming of alarm system
u
Fire, medical and panic alarms
u
Tamper switch
u
Stylish and modern design
u
Easy to use
[4] and [6] simultaneously for a fire alarm; press [7]
and [9] simultaneously for a medical alarm; and press
[1] and [3] or [*] and [#] simultaneously for a panic
alarm.
Certifications and approvals
Region
Certification
Europe
CE
DIN EN 50130-4 (6/2011)
DIN EN 55022 (5/2008)
EN 60950-1:2006 + A11:2009
+ A1:2010
EN
50131-3 Grade 2, Environmental
Class II
VdS
A
Germany
Technical specifications
Enclosure Design
Dimensions:
• 138 x 115 x 24 mm
(LxWxH)
Weight:
• 254g
Color:
• White
2 | AMAX keypad 3000 L16
Enviromental Considerations
Operating Temperature
• -10°C to +55°C
Relative Humidity
• 10% to 95%
Power Requirements
Input Voltage range:
• 10.8VDC to 13.8VDC
Current Consumption:
• standby 31mA , max.
60mA
Cable requirements:
• four wire, AWG18 or
AWG22
• maximum length 200m
(Panel to last KP)
• maximum BUS 1 length
700m (max 14 devices,
max 8 KPs)
• maximum BUS 2 length
700m (max 14 devices,
max 8 KPs)
EN Type:
• B
Ordering information
AMAX keypad 3000 L16
AMAX keypad 3000 L16 is a 16 zone LED keypad
Approval: EN 50131-3 Grade2
Order number IUI-AMAX3-LED16
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
11034533643 | en, V2, 25. Mar 2013
