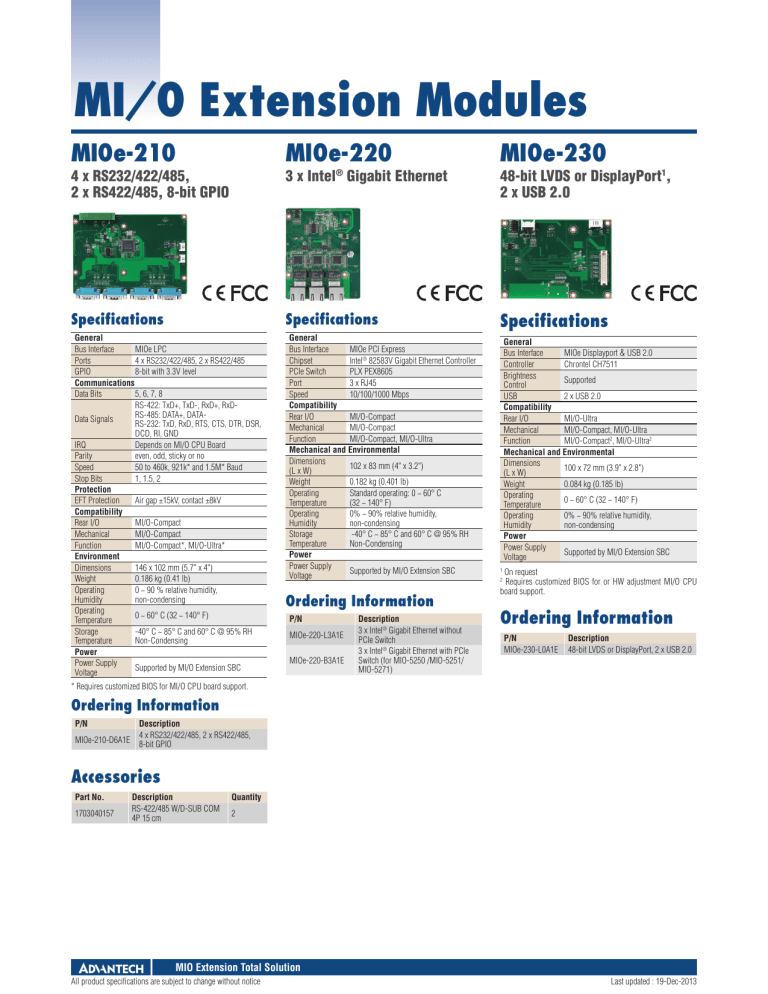

MI/O Extension Modules
MI/O Extension Modules
MIOe-210
MIOe-220
4 x RS232/422/485,
2 x RS422/485, 8-bit GPIO
Specifications
General
Bus Interface
MIOe LPC
Ports
4 x RS232/422/485, 2 x RS422/485
GPIO
8-bit with 3.3V level
Communications
Data Bits
5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxDRS-485: DATA+, DATAData Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR,
DCD, RI, GND
IRQ
Depends on MI/O CPU Board
Parity
even, odd, sticky or no
Speed
50 to 460k, 921k* and 1.5M* Baud
Stop Bits
1, 1.5, 2
Protection
EFT Protection
Air gap ±15kV, contact ±8kV
Compatibility
Rear I/O
MI/O-Compact
Mechanical
MI/O-Compact
Function
MI/O-Compact*, MI/O-Ultra*
Environment
Dimensions
146 x 102 mm (5.7" x 4")
Weight
0.186 kg (0.41 lb)
Operating
0 ~ 90 % relative humidity,
Humidity
non-condensing
Operating
0 ~ 60° C (32 ~ 140° F)
Temperature
Storage
-40° C ~ 85° C and 60° C @ 95% RH
Temperature
Non-Condensing
Power
Power Supply
Supported by MI/O Extension SBC
Voltage
MIOe-230
3 x Intel Gigabit Ethernet
48-bit LVDS or DisplayPort1,
2 x USB 2.0
Specifications
Specifications
®
General
Bus Interface
MIOe PCI Express
Chipset
Intel® 82583V Gigabit Ethernet Controller
PCIe Switch
PLX PEX8605
Port
3 x RJ45
Speed
10/100/1000 Mbps
Compatibility
Rear I/O
MI/O-Compact
Mechanical
MI/O-Compact
Function
MI/O-Compact, MI/O-Ultra
Mechanical and Environmental
Dimensions
102 x 83 mm (4" x 3.2")
(L x W)
Weight
0.182 kg (0.401 lb)
Operating
Standard operating: 0 ~ 60° C
Temperature
(32 ~ 140° F)
Operating
0% ~ 90% relative humidity,
Humidity
non-condensing
Storage
-40° C ~ 85° C and 60° C @ 95% RH
Temperature
Non-Condensing
Power
Power Supply
Supported by MI/O Extension SBC
Voltage
Ordering Information
P/N
MIOe-220-L3A1E
MIOe-220-B3A1E
Description
3 x Intel® Gigabit Ethernet without
PCIe Switch
3 x Intel® Gigabit Ethernet with PCIe
Switch (for MIO-5250 /MIO-5251/
MIO-5271)
General
Bus Interface
MIOe Displayport & USB 2.0
Controller
Chrontel CH7511
Brightness
Supported
Control
USB
2 x USB 2.0
Compatibility
Rear I/O
MI/O-Ultra
Mechanical
MI/O-Compact, MI/O-Ultra
Function
MI/O-Compact2, MI/O-Ultra2
Mechanical and Environmental
Dimensions
100 x 72 mm (3.9" x 2.8")
(L x W)
Weight
0.084 kg (0.185 lb)
Operating
0 ~ 60° C (32 ~ 140° F)
Temperature
Operating
0% ~ 90% relative humidity,
Humidity
non-condensing
Power
Power Supply
Supported by MI/O Extension SBC
Voltage
On request
Requires customized BIOS for or HW adjustment MI/O CPU
board support.
1
2
Ordering Information
P/N
MIOe-230-L0A1E
Description
48-bit LVDS or DisplayPort, 2 x USB 2.0
* Requires customized BIOS for MI/O CPU board support.
Ordering Information
P/N
MIOe-210-D6A1E
Description
4 x RS232/422/485, 2 x RS422/485,
8-bit GPIO
Accessories
Part No.
1703040157
Description
RS-422/485 W/D-SUB COM
4P 15 cm
Quantity
2
MIO Extension Total Solution
All product specifications are subject to change without notice
Last updated : 19-Dec-2013
MI/O Extension Modules
MIOe-110
2 x RS-232, 2 x RS-232/422/485
(with power and isolation),
2 x USB 2.0
MIOe-120
2 x GbE, HDMI, Mini PCIe, SIM
holder, speaker out, LPC,
2 x USB 2.0
MIOe-PWR1
12-24V DC to DC Power Module
MI/O-Chassis compliant
UL
®
Specifications
Specifications
General
Bus Interface
Super I/O
Rear I/O
MIOe LPC/USB
SCH3106
COM port
COM1/2: Both at coastline and internal box
wafer, simultaneously
COM1: RS-232/422/485 (With isolation.
RS-485 with auto flow control).
COM2: RS-232/422/485 (Supports wake
on ring. Supply 5V/12V power selected by
jumper. RS-485 with auto flow control).
General
Internal I/O
COM port
COM3/4: RS-232 (Support wake on ring)
USB 2.0
2
Communications
Data Bits
5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxDRS-485: DATA+, DATAData Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR,
DCD, RI, GND
IRQ
Depends on MI/O CPU Board
Parity
even, odd, sticky or no
Speed
50 to 460k, 921k* and 1.5M* Baud
Stop Bits
1, 1.5, 2
Protection
Air gap ±15kV and contact ±8kV for all
ESD
COM ports
Isolation
2.5kV for COM1
Compatibility
Rear I/O
MI/O-Ultra
Mechanical
MI/O-Ultra
Function
MI/O-Compact*, MI/O-Ultra*
Environment
Dimensions
100 x 72 mm (3.9" x 2.8")
Weight
0.04 kg (0.09lb), only for board
Operational
0 ~ 60° C (32 ~ 140° F)
Temperature
Operational
40° C @ 95% RH Non-Condensing
Humidity
Storage
-40° C ~ 85° C and 60° C @ 95% RH
Environment
Non-Condensing
Power
Power Supply
Supported by MI/O Extension SBC
Voltage
* Except for MIO-2261 and MIO-5270, other MI/O CPU boards need
customized BIOS.
MIOe-110F-00A1E
MIOe-110L-00A1E
Description
2 x RS-232/422/485, 2 x RS-232,
w/ isolation, 2 x USB
1 x RS-232/422/485, 2 x RS-232,
w/o isolation, 2 x USB
Description
COM3/4 cable 22cm
Quantity
1
Optional Accessories
P/N
1700019414
1700019071
General
Input Voltage
Output Voltage
Output Current
Protection
12 to 24 VDC ±5%
12V ±10%
Max. 5A
OVP, OCP, Anti-reverse
Input: Phoenix 2pin
Connector type
Output: ATX 2x2pin
Mechanical and Environmental
Dimensions (L x W)
90 x 53 mm (3.5" x 2.1")
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Weight
0.084 kg (0.185 lb)
0% ~ 90% relative humidity,
Operating Humidity
non-condensing
Ordering Information
P/N
MIOe-PWR1-00A1E
MIOe-PWR1Z-00A1E
HDMI: Only for MIO-2261, supported by request
LPC: Supported by OEM BIOS for PCA-COM232-00A1E,
PCA-COM485-00A1E, and PCA-TPM-00A1E
MIO-5250 doesn’t support MIOe-120L
Ordering Information
MIOe-120F-00A1E
MIOe-120L-00A1E
Description
2 x GbE w/ PCIe switch, 2 x USB, Mini
PCIe, SIM holder, speaker-out with
amplifier, LPC
1 x GbE w/o PCIe switch, 2 x USB, Mini
PCIe, SIM holder, speaker-out with
amplifier, LPC
Optional Accessories
Accessories
P/N
1700018999
* 1.
2.
3.
P/N
Ordering Information
P/N
MIOe PCI Express/ USB/ LPC/ Audio
line-out
Ethernet controller GbE Intel® 82583V
PCIe Switch
PLX PEX8605
USB Hub Controller Terminus FE1.1 USB 2.0 4-port hub
Rear I/O
1 (10/100/1000 Mbps), both at coastline
GbE
and internal box wafer, simultaneously
2 (Both at coastline and internal box wafer,
USB 2.0
simultaneously)
HDMI
1 (by request, only for MIO-2261)
Internal I/O
GbE
1 (10/100/1000 Mbps)
1 with amplifier (Max 2.2W/ch stereo into
Speaker out
a 3Ω load )
1 (support extra four COM ports by PCALPC
COM232-00A1E or PCA-COM485-00A1E,
TPM module by PCA-TPM-00A1E)
Expansion
1 (full size, with SIM holder, including of
Mini PCIe
USB interface)
Compatibility
Rear I/O
MI/O-Ultra
Mechanical
MI/O-Compact, MI/O-Ultra
Function
MI/O-Compact*, MI/O-Ultra*
Mechanical and Environmental
Dimensions (L x W) 100 x 72 mm (3.9" x 2.8")
Weight
0.04 kg (0.09lb), only for board
Operational
Standard operating: 0 ~ 60° C (32 ~ 140° F)
Temperature
Operational
40° C @ 95% RH Non-Condensing
Humidity
Storage
-40° C ~ 85° C and 60° C @ 95% RH
Temperature
Non-Condensing
Power
Power Supply
Supported by MI/O Extension SBC
Voltage
Bus Interface
Specifications
Description
COM1/2 internal cable 30cm
2 ports USB cable w/o bracket, 12cm
P/N
1700019001
1700019071
PCA-COM232-00A1E
PCA-COM485-00A1E
PCA-TPM-00A1E
Description
1 x LAN cable, 15cm
2 ports USB cable w/o bracket, 12cm
4 x RS-232 extension module,
31.5x48mm
4 x RS-422/485 extension module,
31.5x48mm
TPM module, 31.5 x 48 mm
Online Download www.advantech.com/products
Description
12-24V DC to DC power module
12-24V DC power module
-20 ~80 ° C
MI/O Extension Modules
MIOe-3680
MIOe-3674/3672
Specifications
Specifications
2-Port CAN-Bus MIOe Module with
Isolation Protection
General
Bus Interface
Certification
Connectors
MIOe PCI Express
CE,FCC
2 x DB9 male connectors / 2 x 10pin box wafer for
option
2
5 V @ 630 mA (Max)
Ports
Power Consumption
Compatibility
Rear I/O
MI/O-Compact
Mechanical
MI/O-Compact
Function
MI/O-Compact, MI/O-Ultra
Communications
CAN Controller
NXP SJA-1000
CAN Transceiver
NXP TJA1051T
Signal Support
CAN_H, CAN_L
Protocol
CAN 2.0 A/B
Data Transfer Rate(bps)
Programmable up to 1 Mbps
CAN Frequency
16MHz
Protection
Isolation Protection
2,500 VDC
Mechanical and Environmental
Operating Temperature
-40 ~ 85° C (-40 ~ 185° F) (refer to IEC 68-2-1, 2)
Storage Temperature
-40 ~ 85° C (-40 ~ 185° F)
Operating Humidity
5 ~ 95% Relative Humidity, non-condensing
Dimensions (L x W)
146 x 102 mm (5.7" x 4")
Ordering Information
P/N
MIOe-3680-AE
Description
2-Port CAN-Bus MIOe Module with Isolation Protection
4 or 2-port 10/100/1000 BaseT(X) 802.3af (PoE)
Compliant Ethernet ports
General
Bus Interface
Certification
Connectors
Power consumption
Compatibility
Rear I/O
Mechanical
Function
Communications
Compatibility
MIOe PCI Express
CE,FCC
RJ45 (10pin box wafer for option)
MIOe-3674: Typical: 15.4 W, Max: 70.8 W
MIOe-3672: Typical: 15.4 W, Max: 35.4 W
MI/O-Compact
MI/O-Compact
MI/O-Compact, MI/O-Ultra
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x,
IEEE802.3af
Powered Device (PD) auto detection and classification
Supports IEEE 802.3u Auto-Negotiation
10/100/1000 Mbps
4 or 2 Gigabit Ethernet MAC and PHY ports.
ESD 8KV, EFT 2KV, Over current protection
Speed
Ports
Protection
Power
Input Voltage
12 VDC power input
Input Connecter
2x2 power connector (2x4 pin box wafer for option)
Output PoE Power
15.4 watts at 48 VDC per PoE port
Mechanical and Environmental
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storage Temperature
-40 ~ 85° C (-40 ~ 185° F)
Operating Humidity
5 ~ 95% Relative Humidity, non-condensing
Dimensions (L x W)
146 x 102 mm (5.7" x 4")
Ordering Information
P/N
MIOe-3674-AE
lMIOe-3672-AE
Description
4-port PoE ports MIOe Module
2-port PoE ports MIOe Module
MIO Extension Total Solution
All product specifications are subject to change without notice
Last updated : 13-Dec-2013
