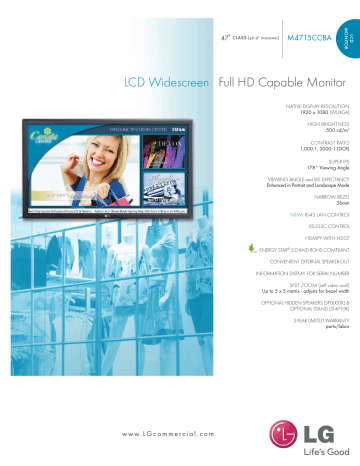

Full HD Capable Monitor LCD Widescreen

Full HD Capable Monitor LCD Widescreen
M4715CCBA
lcd
monitor
47" class (46.9" diagonal)
LCD Widescreen Full HD Capable Monitor
NATIVE DISPLAY RESOLUTION
1920 x 1080 (WUXGA)
HIGH BRIGHTNESS
500 cd/m2
CONTRAST RATIO
1,000:1, 3000:1 (DCR)
SUPER IPS
178° Viewing Angle
VIEWING ANGLE and LIFE EXPECTANCY
Enhanced in Portrait and Landscape Mode
NARROW BEZEL
36mm
NEW! RJ-45 LAN CONTROL
RS-232C CONTROL
HDMI™ WITH HDCP
ENERGY STAR® 5.0 AND ROHS COMPLIANT
CONVENIENT EXTERNAL SPEAKER-OUT
INFORMATION DISPLAY FOR SERIAL NUMBER
SPLIT ZOOM (self video wall)
Up to 5 x 5 matrix - adjusts for bezel width
OPTIONAL HIDDEN SPEAKERS (SP0000K) &
OPTIONAL STAND (ST4710K)
3-YEAR LIMITED WARRANTY
parts/labor
w w w. LG c o m m e rc i a l . c o m
lcd
monitor
HDTV Formats
M4715CCBA
PC Formats
HDMI with HDCP
RS-232C Input/Output
RJ-45
S-Video
Audio Jack Built-in (No Amp)
Discrete IR Input
External Speaker Out
AUDIO
Auto Volume
Balance
Audio Power
Speaker On/off
Sound mode
47" class (46.9" diagonal)
4.7”
2.9”
44.0”
SPECIAL FEATURES
Temperature Sensor
Split Zoom (Self Video Wall, Max 5 x 5)
Source Selection
26.0”
23.2”
29.8”
Display control (RS-232C & Network,
ez-Net Manager)
41.1”
Brightness/Contrast
Color
Position
Tracking
Set-up
11.9”
26.4”
800mm
Component : 720p/1080i
HDMI: 720p/1080i/1080p
Auto Scaling to XUGA
Yes
1 / 1, Female-to- Female Crossed Type
1
1 (S-Video has a priority but there is no input mode)
Yes
Yes
Yes
Yes
Yes
20W (10W x 2)
Yes
Clear Voice/Standard/Music/Cinema/
Sports/Game/User
Yes
Yes, supports natural mode
Digital (HDMI/DVI)/Analog (RGB)/
Component/AV
Single/Group WAN control, Scheduling,
Instant Messaging, Self Diagnosis (Temp,
FAN, Lamp), Alarm Service through mailing,
Easy Tile mode setup, S/W upgrade via
Network
Yes
Warm/Medium/Cool/User Control (R/G/B)
H/V
Auto/Clock/Phase
Language (English/French/Spanish/Italian/German/
Portuguese/Korean/Japanese/Chinese/Russian)
ISM Method
400mm
Advanced
Time
Information Display
Rear Jack Pack Panel
RS-232C
(CONTROL)
HDMI
RGB IN
AUDIO
(RGB)
Y
RGB OUT
IN
COMPONENT IN (BNC)
AUDIO IN/OUT
LAN
IN
OUT
REMOTE
CONTROL IN
Pb
VIDEO
Y
L
AUDIO
L
VIDEO
R
AUDIO
SPK_OUT
R
L
+
+
-
-
S-VIDEO
OUT
R
L
PANEL
LCD Panel Type
Display Area
Aspect Ratio
Native Resolution
Pixels (H x V x 3)
Brightness
Contrast Ratio
Viewing Angle (H x V)
Color Depth
Response Time
Surface Treatment
MTBF
VIDEO
Max Input Resolution
Recommended Resolution
H-Scanning Frequency
V-Scanning Frequency
Pixel Frequency
Sync Compatability
Video Input
Picture Mode
R
47"
46.9" diagonal
16 : 9
1920 x 1080 (Full HD)
6,220,800
500 cd/m2
1,000:1, 3,000:1 (DCR)
178 x 178
1.06 Billion
9ms (G to G)
Hard Coating (3H) Anti-glare
50,000 Hr. (Minimum) Portrait & Landscape
o
Color Temperature
REAR INPUTS/OUTPUTS
Component Video
PC Input via 15-Pin Sub "D"
Composite Video Input/Output
Audio Output
Audio Inputs
o
1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
30 ~ 83kHz (RGB, HDMI/DVI)
56 ~ 75 Hz (RGB), 60 Hz (HDMI/DVI)
148.5 MHz (RGB, HDMI/DVI)
Separate / Composite / Digital
RGB, HDMI/DVI
Vivid/Standard/Cinema/Sports/Game/
User1/User2
Warm/Medium/Cool/User
1 Hi-Res
1/1
1/ 1
1
2 Plus PC Sound
www.LGcommercial.com
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
Contact your LG Regional Sales Representative:
Vertical Markets: 800.897.8788
Channel: 800.897.8871
Hospitality: 800.228.1236
E-mail: [email protected]
SPEC_M4715CCBA_031012_PR
Mute
Sleep Timer
Auto Power/Source Memory
Key Lock
DPM Select
CABINET
Color
Bezel Width
Monitor Dimension (W×H×D)
Monitor Weight
Monitor Dimension w/opt. stand (W×H×D)
Weight w/opt. stand
Weight w/opt. stand and opt. speakers
Carton Dimensions (W×H×D)
Packed Weight
VESA™ Standard Mount Interface
POWER
Power Supply
Power Type
Power Switch Type
Power Saving
Normal
DPMS
Switch Off
STANDARD (CERTIFICATION)
Safety
EMC
Energy Efficiency
RoHS compliant
UPC
SERVICE/LIMITED WARRANTY
OPTIONAL ACCESSORIES
Hidden Speakers (SP0000K)
Speaker Dimensions (W x H x D)
Speaker Weight (each)
Packaging Dimensions (W x H x D)
Packed Weight
ST4710K (stand)
Stand Dimensions (W x H x D)
Weight
Normal/White Wash/Orbiter/Inversion/
Dot Wash
Gamma/Film Mode/Black Level/
Noise Reduction
Clock/On/Off Timer/Auto Sleep/
Power On Delay
Serial Number, MNT SET ID, S/W
Version, LAN S/W Version
Yes
Yes
Yes
Yes
Yes
Black
36mm
44.0" x 26.0" x 4.7"
63.5 Ibs
44.0" x 29.8" x 11.9"
72.4 Ibs
74.0 Ibs
55.4” x 31.9” x 11.8”
87.6 Ibs
800mm x 400mm, (AP-WX60)
100-240V~, 50/60Hz
Built-in Power
Tact Switch
300 W
1W (RGB)/4W (HDMI/DVI)
0.5W
UL/c-UL/CB scheme/TUV
FCC Class "B"/VCCI/C-tick/CE/KCC
Energy Star 5.0
Yes
7 19192 18595 1
3 Years (Parts/Labor)
Black
1.6" x 12.9" x 2.2"
0.8 Ibs
15.1" x 5.3" x 6.9"
2.4 Ibs (2 Speakers/1 Package)
Fits M4715CCBA
26.4” x 8.4” x 12.6”
8.9 Ibs
All screen images are simulated. Dimensions and weights are approximate. Design,
specifications, and features subject to change without notice. *HDTV monitors require
an optional set-top-box to receive high-definition broadcast.
© Copyright 2010 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is
a registered trademark of LG Corp.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency.
In Plane Switching is a trademark of LG Philips LCD Ltd. VESA is a trademark of Video
Electronics Standards Association. HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC. All other product and brand names are trademarks or registered trademarks of
their respective companies.
Printed in the USA. April 2010
