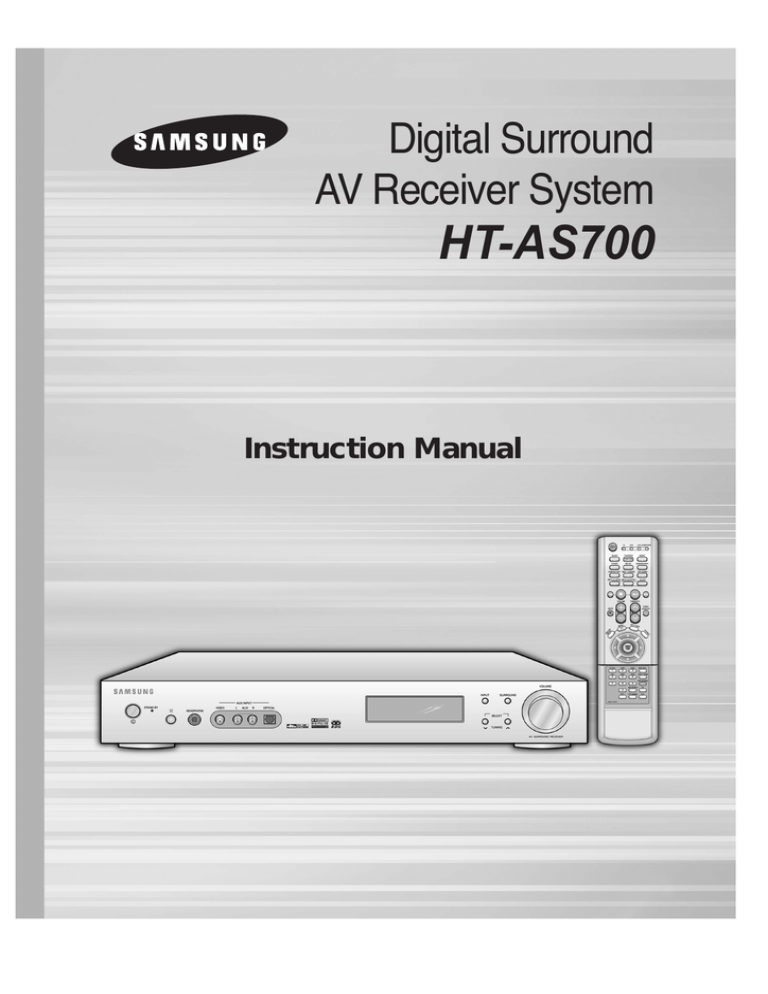

Digital Surround
AV Receiver System
HT-AS700
Instruction Manual
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Wiring the Main Power Supply Plug(UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin
face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same
colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should
obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the
plug to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as
follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E OR BY THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN
AND YELLOW.
1
Precautions
PREPARATION
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the
ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other
equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for
continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to
disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused
for a long period of time.
During thunderstorms, disconnect AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the
unit.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or
electric fields (i.e.speakers...). Disconnect the power cable from
the AC supply if the player malfunctions. Your player is not
intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been
stored in cold temperatures.
If transporting the player during the winter, wait approximately 2
hours until the unit has reached room temperature before using.
The battery used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
2
Features
√√ What is AV receiver?
It refers to home theater exclusive amplifier by amplifying the audio signal from DVD and CD player as a core element of
home theater.
√√ Let's find out difference between general amplifier and AV receiver!
General Amplifier
AV Receiver
2 channels (left speaker and right speaker)
Multiple Channel (5.1 channel by default)
Play back music mainly
Play back music and video sound realistically
No decoder
Has decoder
Not play back various kinds of sound formats
Play back various kinds of sound formats including Dolby
Digital and DTS
Many input/output connectors
No noise using digital signal type
Dolby Pro Logic ll x
DTS (Digital Theater Systems)
Dolby Pro Logic ll x is a new type of multiple
channel audio signal decoding method that
improves upon existing Dolby Pro Logic.
DTS play backs 5.1 channel sound of wide-range
by playing sound of DVD and CD disk as surround
sound system.
DTS 96/24
DTS-ES
DTS is the surround format implementing 5.1
channel multi channel sounds of 96KHz/24bit
without losing the image quality of DVD. In addition,
it can reproduce the matrix 6.1 of DTS 96/24
decoder signal.
DTS-ES is the surround format implementing
surround type of discrete 6.1 channel while
preserving upper compatibility in response to
existing DTS Digital Sound format.
It is the latest digital sound format maximizing the
space quality and 360 surround experience by
adding rear center channels.
DOLBY DIGITAL EX
DTS
It not only significantly enhances space expression
capability of surround channel but also easily
implements the sound localization at the rear
according to sound field reproduction at 6.1 channel
including rear center channel.
It reproduces the digital PCM or analog stereo
sound source in 6.1 channels using the high
precision digital matrix of DTS only.
Manufactured under license from Dolby Laboratories.
“Dolby”, “ProLogic” and double-D symbol are the trademark of Dolby Laboratories.
Confidential unpublished works
(c)1992-1997 Dolby Laboratories. All rights are Reserved.
3
This product is manufactured with technical cooperation with Digital
Theater Systems, Inc.,
is the registered trademark of Digital
Theater Systems.
(c)1996 Digital Theater Systems, Inc. All rights Reserved.
Contents
PREPARATION
PREPARATION
Safety Warnings ..............................................................................................................1
Precautions......................................................................................................................2
Features ..........................................................................................................................3
Contents ..........................................................................................................................4
Description ......................................................................................................................5
CONNECTIONS
Connecting the Speakers ...............................................................................................9
Connecting External Components ..................................................................................11
Connecting External Component.....................................................................................13
Connecting the FM Antenna............................................................................................14
OPERATION
Before Using AV Receivera .............................................................................................15
Selecting External Component Input ...............................................................................16
Setting the Speakera .......................................................................................................17
Setting DRC (Dynamic Range Compression) .................................................................21
Test Tone ........................................................................................................................22
Setting Speaker Level .....................................................................................................25
Dolby Pro Logic ll x Mode................................................................................................27
Dolby Pro Logic ll x Effect................................................................................................29
NEO:6 Mode....................................................................................................................31
SFE Mode........................................................................................................................33
EX/ES Mode ....................................................................................................................35
Stereo Mode ....................................................................................................................37
RADIO OPERATION
Listening to Radio ...........................................................................................................39
Presetting Radio Stations ...............................................................................................40
About RDS Broadcating ..................................................................................................41
MISCELLANEOUS
Convenient Functions .....................................................................................................43
Operating TV with Remote Control..................................................................................45
Operating VCR (DVD) with Remote Control....................................................................47
Before Calling for Service................................................................................................49
Specifications ..................................................................................................................51
4
Description
[ Front Panel ]
HEADPHONE Jack
POWER STANDBY Indicator
POWER button
INPUT button
SURROUND button
EXTERNAL AUDIO INPUT CONNECTOR
EXTERNAL VIDEO
INPUT CONNECTOR
REMOTE CONTROL Sensor
VOLUME CONTROL
EXTERNAL OPTICAL DIGITAL
AUDIO INPUT CONNECTOR
SELECTION button
TUNING ( , ) button
[ Display ]
DTS ES 96/24
INDICATOR
SPEAKER INDICATOR
NEO:6
INDICATOR
LIVE SURROUND
INDICATOR
L.PCM INDICATOR
DOLBY DIGITAL EX
INDICATOR
MPEG2
INDICATOR
COAXIAL DIGITAL INDICATOR
OPTICAL DIGITAL
INDICATOR
S.W
RADIO FREQUENCY
INDICATOR
ANALOG INDICATOR
RADIO STEREO INDICATOR
DOLBY PRO LOGIC
SUBWOOFER
IIX
LEVEL INDICATOR VARIOUS
INDICATOR
FUNCTION
INDICATOR
5
RADIO BROADCASTING
RECEIVING INDICATOR
SAT VIDEO INPUT
AM ANTENNA
5.1 CH ANALOG
CONNECTOR
CONNECTOR AUDIO CONNECTOR
DVD
VIDEO
INPUT
FM ANTENNA
CONNECTOR
CONNECTOR
CD COAXIAL DIGITAL
AUDIO INPUT
CONNECTOR
SAT OPTICAL DIGITAL AUDIO
INPUT CONNECTOR
PREPARATION
[ Rear Panel ]
VCR VIDEO INPUT CONNECTOR
VCR VIDEO OUTPUT CONNECTOR
MONITOR VIDEO OUTPUT
CONNECTOR
COOLING PAN
FRONT SPEAKER TERMINAL
DVD S-VIDEO
INPUT
CONNECTOR
DVD OPTICAL DIGITAL AUDIO INPUT CONNECTOR
OPTICAL DIGITAL AUDIO OUTPUT
CONNECTOR
MONITOR S-VIDEO OUTPUT CONNECTOR
VCR S-VIDEO OUTPUT CONNECTOR
REAR SPEAKER TERMINAL
CENTER SPEAKER TERMINAL
VCR S-VIDEO INPUT CONNECTOR
SAT S-VIDEO INPUT CONNECTOR
CD AUDIO INPUT CONNECTOR
VCR AUDIO INPUT CONNECTOR
VCR AUDIO OUTPUT CONNECTOR
DVD AUDIO INPUT CONNECTOR
SUBWOOFER OUTPUT CONNECTOR 1
SAT AUDIO INPUT CONNECTOR
SUBWOOFER OUTPUT CONNECTOR 2
√√ Accessories œœ
Remote Control
Battery(AAA Size 1.5V)
AM Antenna
USER’S
GUIDE
FM Antenna
User’s Manual
6
Description
[ Remote Control ]
POWER button
TV/VIDEO, FUNCTION button
SLEEP button
TUNER button
NEO : 6 button
DISPLAY button
MODE button
TV Indicator
VCR Indicator
AV RECEIVER Indicator
DVD Indicator
MODE button
MO/ST button
SUBWOOFER button
SFE MODE button
EX/ES button
EFFECT button
EXTERNAL DEVICE PLAYBACK button
MUTE button
VOLUME CONTROL button
MENU button
ANALOG/DIGITAL button
TUNER MEMORY button
TUNING/CHANNEL button
SPEAKER LEVEL button
STEREO button
MOVE/SELECT button
Direct Function Select button
SPEAKER SETUP button
TEST TONE button
SPEAKER DISTANCE button
Number(0~9) buttons
7
RDS Selection button
PREPARATION
Insert Remote Batteries
1
Remove the battery
cover on the back of
the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
Caution !
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
Follow these precautions to avoid leaking or cracking batteries:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Range of Operation of the Remote Control
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.
To open the remote control cover,
push the top of the cover, then slide
downward.
8
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
SL
SR
SB
Position of AV Receiver
Rear Speakers
• Place AV Receiver on the dedicated stand or chest of
living room or under the TV stand properly.
• Place the rear left and right speaker at the interval of front
left and right speaker.
• If there isn't enough now, place rear speakers to face
down other.
• Place the rear speakers about 70 cm to 1 m above your
ear, facing slightly downwards.
❈ Unlike the front and center speakers, the rear speakers
and used to mainly sound effects and sound will not
come from them all the time.
Front Speakers
• Adjust the angle of front left and right speakers so
that it can form 30 degree to the left and right from
the listening position.
• Place the speakers so that their tweeters will be at
the same height as your ear.
• Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speaker.
Center Speaker
• It is best to install center speaker at the same height as
the front speakers.
• You can also place center speaker directly over or
under the TV.
Subwoofer
• The position of the subwoofer is not so critical. Place it
anywhere you like.
• Usually, it is placed by a corner near the front speakers.
9
Rear Center Speaker
• If you place 1 rear center speaker, place it so that it faces
forward from the back of listener.
• Place the rear center speaker about 70 cm to 1 m above
rear speakers, facing slightly downwards.
Caution!
When you place the speaker on the wall, make sure
to fasten it tightly so that it may not fall off.
PASSIVE
SUBWOOFER
FRONT (R)
PSAF700E
POWER
AMPLIFIER
FRONT (L) REAR (R)
PSAF700E PSAR700E
REAR (L)
PSAR700E
ACTIVE SUBWOOFER
(BUILT-IN POWER
AMPLIFIER)
PSAW700E
CONNECTIONS
MAIN UNIT
AV-R700
SYSTEM MODEL NAME : HT-AS700
MAIN UNIT
FRONT SPEAKER
CENTER SPEAKER
REAR SPEAKER
REAR CENTER SPEAKER
ACTIVE SUB WOOFER
AV-R700
PSAF700E
PSAC700E
PSAR700E
PSAB700E
PSAW700E
CENTER
PSAC700E
REAR CENTER
PSAB700E
√ Connecting Front Speaker Wire
1
Turn and loosen the
speaker connector.
2
Insert the black wire into the black(-)
terminal and the red wire into the
red(+) terminal.
3
Turn and fasten the
speaker connector.
√ Connecting Center/Rear Speaker Wire
1
Press the tab of the
speaker connector.
2
Insert the black wire into the black(-)
terminal and the red wire into the
red(+) terminal.
Caution!
• Never touch speaker terminals while
the power is on. Doing so could
result in electric shock.
• Make sure the polarities (+ and -)
are correctly.
10
Connecting External Components
Connecting Video Component
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Video Player
DIGITAL
OUT
AUDIO
OUT
R
R
Video Projector
VIDEO S-VIDEO
OUT
OUT
S-VIDEO
IN
L
L
AUDIO
OUT
R
L
AUDIO
IN
VIDEO
OUT IN
S-VIDEO
OUT IN
DVD Player
Caution!
11
• Disconnect the power plug from the outlet if you do not use this unit for long period of time.
SAT Player
AUDIO
OUT
R
VIDEO
OUT
CONNECTIONS
DIGITAL
OUT
S-VIDEO
OUT
L
VIDEO
IN
S-VIDEO
IN
DIGITAL
IN
MD Player
TV
• If the Audio Output connector of external
component is only 1, connect Audio Output
connector or external component to either of
Audio Input connector (right or left) of main unit.
• Connect the red cable of audio cable to red
connector and white cable to white connector.
• When you connect Video Input connector of
external component to Video Output connector
of main unit, connect Video Input connector of
external component either to Video Output
connector or S-Video Output connector.
12
Connecting External Component
Connecting Audio Component/ 5.1 Channel
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
CD Player
DIGITAL
OUT
AUDIO
OUT
R
L
CENTER
R
L
FRONT
R
L
SUB
SURR.
WOOFER
DVD or 5.1 Channel Player
13
Connecting the FM and AM
Antennas
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
CONNECTIONS
AM Loop Antenna
(supplied)
FM Antenna (supplied)
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
FM antenna connection
1. Connect the FM antenna supplied to the FM
75ΩCOAXIAL terminal as a temporary mea-sure.
2. Slowly move the antenna wire around until you find
a location where reception is good, then fasten it to
a wall or other rigid surface.
COOLING FAN
AM antenna connection
1. Connect the AM loop antenna supplied to the AM
and terminals.
2. If reception is poor, connect an outdoor single vinylcovered wire to the AM ter-minal. (Keep the AM loop
antenna con-nected).
The cooling fan dissipates the heat generated inside the unit so that the unit can
be operated normally. The cooling fan is activated automatically to supply cool air
to the unit.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the
unit could rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
14
Before Using AV Receiver
Turning On/Off
MAIN UNIT
1 Connect the power plug to the outlet.
the POWER ( ) button of the main unit.
2 Press
This unit will be turned on or off.
•
REMOTE CONTROL
Press the POWER (
) button of the remote control while main unit is turned on.
• This unit will be turned on or off.
• This unit will not turned on or off even if you press the POWER (
) button of
remote controller while main unit is turned off.
• When you turn off the power by pressing the POWER (
) button of remote
control, this unit will be standby mode.To completely turn off the power, press the
POWER (
) button of the main unit. Standby indicator will be turned off.
Functions of Dedicated Remote Control
You can operate TV, VCR, DVD, AV Receiver with one remote control.
REMOTE CONTROL
Press MODE button.
• Each time you press this button, it will select and blink TV indicator ➝ VCR indicator
➝ DVD indicator ➝ AV Receiver indicator in turn.
• You can operate TV after TV indicator blinking.
You can operate VCR after VCR indicator blinking.
You can operate DVD after DVD indicator blinking.
You can operate AV Receiver after AV Receiver indicator blinking.
• Basic operation of remote control is set up based on Samsung products.
Refer to page 45~48 for more details on operation method.
To set the menu function of external component
Press the MENU button.
• Menu setup screen of TV, VCR and DVD Player will appear.
15
Selecting External Component Input
To Select the Function
REMOTE CONTROL
Method 1
Press the FUNCTION button.
Press the FUNCTION button.
• Each time you press the this button, 5.1CH MULTI CH ➝ CD ➝ DVD ➝ SAT ➝ VCR ➝
AUX ➝ FM ➝ AM will be selected in turn.
Method 2
Press DIRECT FUNCTION Select button.
• You can directly select 5.1CH, VCR, DVD, CD, SAT, or AUX.
MAIN UNIT
• Each time you press the this button, 5.1CH MULTI CH ➝ CD ➝ DVD ➝ SAT ➝ VCR ➝ AUX
➝ FM ➝ AM will be selected in turn.
• When you select the audio external component (external component without
Video Output connector), the image of video external component (external
component with Video Output connector) used last will appear in the TV screen.
• You can watch the image of video external component while listening to sound of
audio external component.
To Select Analog/Digital Input
You can listen ti sound in Analog 2 Channels or Dolby Digital 5.1 Channel using this unit.
REMOTE CONTROL
Press the ANALOG/DIGITAL button.
• For DVD, SAT, AUX Function
ANALOG and OPTICAL (1, 2, 3) will be selected repetitively.
• For CD Function
ANALOG and COAXIAL will be selected repetitively.
• You can enjoy Dolby Digital effect only if you connect Audio Output connector of
external audio component to optical/coaxial digital Audio Input connector of main unit.
Caution!
• You can operate this function only with remote controller.
• This function will be selected in analogue only for VCR function, and will not work for 5.1CH MULTI CH function.
16
OPERATION
Press INPUT button.
Setting the Speaker
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.Signal outputs
and frequency response from the speaker will automatically be adjusted according to your speaker configuration
and whether certain speakers are used or not.
√
REMOTE CONTROL
SPK SEL. button to select the speaker you want.
1 Press
Each time you press this button, F.SPK ➝ C.SPK ➝ S.SPK ➝ SB SPK ➝
•
SW SPK ➝ CROVR ➝ SPK MODE OFF will be selected in turn.
2 Press …† button to set the speaker as you want.
3 Repeat the steps 1 and 2 to set the speaker.
To Exit Setup Mode
• Wait for about 5 seconds or press the SPK SEL. button of the remote control to
select SPK MODE OFF.
To Use SUBWOOFER button of Remote Control
Press SUBWOOFER button.
• Each time you press this button, SW SPK : YES, SW SPK : NO will be selected in turn.
• If you play in 2 Channel Stereo, select 'YES' to use Subwoofer and 'NO' not to use.
Caution!
• If F.SPK is set to ‘SMALL’, SW SPK is fixed to ‘YES’.
• If S.SPK is set to ‘NONE’, SB SPK is fixed to ‘NONE’.
• You cannot use Speaker Setup Mode in 5.1CH MULTI CH function.
17
MAIN UNIT
1 Press and hold SURROUND button for about 5 seconds.
• “SETUP MODE” appears on the display and enters into Setup Mode.
SURROUND button to select the speaker you want.
3 Press
Each time you press this button, F.SPK ➝ C.SPK ➝ S.SPK ➝ SB
SPK ➝SW SPK ➝ CROVR will be selected in turn.
4 Press SELECT (
5
,
) button to set the speaker as you want.
Repeat the steps 3 and 4 to set the speaker.
To Exit Setup Mode
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit.
“SETUP MODE OFF” appears on the display and exits Setup Mode.
Setting the Speaker
• F.SPK (Front) : LARGE, SMALL
• C.SPK (Center) : LARGE, SMALL, NONE
• S.SPK (Rear) : LARGE, SMALL, NONE
• SB SPK (Rear Center) : LARGE, SMALL, NONE
• SW SPK (Subwoofer) : YES, NO
• CROVR (Crossover Frequency): 40, 60, 80, 100, 120, 150,200Hz
• LARGE : Select when you use large speaker. You can listen to full
ranges of sound from bass to treble.
• SMALL : Select this when you use small speaker. Bass below
100ß‘ will not be output from the whole speakers but only
from subwoofer.
• NONE : Select this when you use no speaker.
• YES : Select this when you use Subwoofer Speaker if you play
back in 2 Channel Stereo.
• NO : Select when you do not use Subwoofer Speaker if you play
back in 2 Channel Stereo.
• CROVR: Select the crossover frequency depending on the size of
speaker connected when you use subwoofer. Select 40Hz
if cone paper speaker is 16cm, select 60Hz for 14cm,
80Hz for 12cm, 100Hz for 10cm, 12Hz for 8cm ,150Hz for
6cm and 200Hz for 4cm.
18
OPERATION
INPUT button one time.
2 Press
• “SPEAKER SETUP” appears in the display.
Setting the Speaker
√
REMOTE CONTROL
1 Press the SPEAKER DISTANCE button to select the
speaker you want.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
S.W ➝ DISTANCE OFF will be selected in turn.
2 Press …† button to set the speaker distance.
• For F.L, CEN, F.R, S.W Speaker, you can set the distance from the speaker to
listening position between 0.0~1.5m at the interval of 0.3m.
• For S. R, S.B, S.L Speaker, you can set the distance from the speaker to
listening position between 0.0~4.5m at the interval of 0.3m.
3 Repeat the steps 1 and 2 to set the speaker distance.
To Exit Setup Mode
• Wait for about 5 seconds or press the SPEAKER DISTANCE button of remote control
to select DISTANCE OFF.
• If the listening position is beyond the range of speaker
distance setup when you place the speaker, set the
speaker distance to the maximum.
19
MAIN UNIT
and hold SURROUND button for about 5 seconds
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 2 times.
•
SURROUND button to select the speaker you want.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
•
will be selected in turn.
SELECT( , ) button to set the speaker distance.
4 Press
For F.L, CEN, F.R, S.W Speaker, you can set the distance from the speaker to
OPERATION
• “DISTANCE SETUP” appears on the display.
•
listening position between 0.0~1.5m at the interval of 0.3m.
• For S.R, S.B, S.L Speaker, you can set the distance from the speaker to listening
position between 0.0~4.5m at the interval of 0.3m.
5 Repeat the steps 3 and 4 to set the speaker distance.
To Exit Setup Mode
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit. “SETUP MODE
OFF” appears on the display and exit Setup Mode.
Setting Speaker Distance
Set the distance from the speaker to listening position at the interval of 0.3m.
• F.L (Front-Left) : 0ft 0.0m ~ 5ft 1.5m
• CEN (Center) : 0ft 0.0m ~ 5ft 1.5m
• F.R (Front-Right) : 0ft 0.0m ~ 5ft 1.5m
• S.R (Rear-Right) : 0ft 0.0m ~ 15ft 4.5m
• S.B (Rear Center): 0ft 0.0m ~ 15ft 4.5m
• S.L (Rear-Left): 0ft 0.0m ~ 15ft 4.5m
20
Setting DRC (Dynamic Range Compression)
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
√
MAIN UNIT
and hold SURROUND button for about 5 seconds.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 3 times.
•
• “DRC SETUP” appears on the display.
3 Press SURROUND button to set DRC.
• Each time you press this
button, DRC : STD ➝ DRC :
MIN ➝ DRC : MAX will be
selected in turn.
To Exit Setup Mode
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit.
“SETUP MODE OFF” appears on the display and exits Setup Mode.
Setting DRC
• STD : Set DRC effect to standard.
• MAX : Set DRC effect to maximum.
• MIN : Set DRC effect to minimum.
21
Caution!
• This function operates only in main unit.
Test Tone
Use test tine to check speaker connection status or defect of speaker or adjust the level.
To Automatically Output Test Tone
√
REMOTE CONTROL
1 Press TEST TONE button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R
➝ S.B ➝ S.L ➝ S.W.
• During test tone output, press …† button to adjust the speaker output level
from -10 to +10 dB by 1 step.
OPERATION
To Stop Test Tone
• Press TEST TONE button again.
Caution!
• You cannot use test tone in 5.1CH MULTI CH function.
22
Test Tone
Use test tone to check speaker connection status or defect of speaker or adjust the level.
To Automatically Output Test Tone
√
MAIN UNIT
and hold SURROUND button for about 5 seconds.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 4 times.
“TEST-T AUTO” appears in the display.
3 Press SURROUND button.
•
•
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B
➝ S.L ➝ S.W .
• During test signal output, press SELECT (
,
) button to adjust the speaker output
level from -10 to +10 dB by 1 step.
To Stop Test Tone
Method 1) Press INPUT button 2 times.
• “TEST-T OFF” appears on the display and test tone stops.
Method 2) Turn VOLUME CONTROL.
• “SETUP MODE OFF” appears on the display and test tone stops.
23
To Manually Output Test Tone
√
OPERATION
MAIN UNIT
and hold SURROUND button for about 5 seconds.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 5 times.
•
• “TEST-T MANU” appears in the display.
3 Press SURROUND button.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
will be selected in turn.
SELECT( , )button to set the test tone as you want.
4 Press
You can adjust the speaker output level from -10 to +10dB by 1 step.
•
To Stop Test Tone
Method 1) Press INPUT button 1 time.
• “TEST-T OFF” appears on the display and test signal stops.
Method 2) Turn VOLUME CONTROL.
• “SETUP MODE OFF” appears on the display and test tone stops.
Test Tone Output
• F.L (Front-Left) : -10 ~ +10dB
• CEN (Center) : -10 ~ +10dB
• F.R (Front-Right) : -10 ~ +10dB
• S.R (Rear-Right) : -10 ~ +10dB
• S.B (Rear Center): -10 ~ +10dB
• S.L (Rear-Left): -10 ~ +10dB
• S.W (Subwoofer): -10 ~ +10dB
Caution!
• You cannot use test tone in 5.1CH MULTI CH function.
24
Setting Speaker Level
You can set the balance and level of speakers
√
Remote Control
SPK LEVEL button to select the speaker you want.
1 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W ➝
•
SPK LEVEL OFF will be selected in turn.
…† button to set the speaker level you want.
2 Press
You can adjust it from -10 to +10dB by 1 step.
•
The sound gets smaller at -10dB and louder at +10dB.
Default setting value is 00dB.
3 Repeat the steps 1 and 2 to set it.
To Exit Setup Mode
• Wait for about 5 seconds or press SPK LEVEL button of remote control to select SPK
LEVEL OFF.
25
Remote Control
1 Press and hold SURROUND for about 5 seconds.
• “SETUP MODE” appears on the display and enters into Setup Mode.
•
3 Press SURROUND button.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
will be selected in turn.
4 Press SELECT(
,
) button to set to the speaker level you
want.
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets smaller at -10dB and louder at +10dB.
• Default setting value is 00dB
5 Repeat the steps 3 and 4 to set it.
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. “SETUP
MODE OFF” appears on the display and exits Setup Menu.
Setting Speaker Level
• F.L (Front-Left) : -10 ~ +10dB
• CEN (Center) : -10 ~ +10dB
• F.R (Front-Right) : -10 ~ +10dB
• S.R (Rear-Right) : -10 ~ +10dB
• S.B (Rear Center): -10 ~ +10dB
• S.L (Rear-Left): -10 ~ +10dB
• S.W (Subwoofer): -10 ~ +10dB
26
OPERATION
INPUT button 7 times.
2 Press
“LEVEL SETUP” appears on the display.
Dolby Pro Logic llx Mode
You can experience surround sound regardless of type of stereo mix by making existing Dolby Surround mix
sound similar to discrete 5.1 Channel Surround.
REMOTE CONTROL
MODE button.
1 Press
Each time you press this button, MUSIC ➝ CINEMA ➝ MATRIX ➝ GAME ➝
•
PROLOGIC will be selected in turn.
To Exit Setup Mode
• Wait for about 5 seconds.
• Sound will be output from some speaker only if you
connect the external component only to Audio Input
connector (or R) of the main unit.
27
MAIN UNIT
1 Press SURROUND button briefly to select “DPL llx” Mode.
• Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
,
) button.
) button, MUSIC ➝ CINEMA ➝ MATRIX ➝
GAME ➝ PROLOGIC will be selected in turn.
• Each time you press SELECT (
) button, PROLOGIC ➝ GAME ➝ MATRIX
➝ CINEMA ➝ MUSIC will be selected in turn.
• Each time you press SELECT (
To Exit Setup Mode
• Wait for about 5 seconds.
Dolby Pro Logic ll x Mode
• MUSIC : Provide 5.1 Channel Surround sound to digital, analog
or existing stereo source such as CD, TAPE, FM, TV and Stereo
VC.
• CINEMA : Provide 5.1 Channel Surround sound to sound track of
stereo movie encoded as Dolby Surround.
• MATRIX : You can feel 5.1 Channel Surround sound enjoying the
space of sound.
• GAME : When you play game, you can enjoy game with sound
effect as if you are at actual site.
• PROLOGIC : Decode(3/1 Surround) the sound track of stereo
music encoded as Dolby Surround to Dolby Pro Logic.
Caution!
• You cannot use Dolby Pro Logic ll x Mode for multi channel
signal encoded as Dolby Digital and DTS.
• You cannot use Dolby Pro Logic ll x Mode in 5.1 multi-
channel function.
• Pro Logic works only for PCM audio signals with sampling
frequency of 32KHz, 44KHz or 48KHz.
• Sound will not be output from rear center speaker if PCM
audio signal is not stereo but mono.
28
OPERATION
2 Press SELECT(
Dolby Pro Logic llx Effect
This function works only in Dolby PRO LOGIC IIX MUSIC Mode.
REMOTE CONTROL
MODE button to select ‘MUSIC’ Mode.
1 Press
EFFECT button.
2 Press
Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA will be
•
selected in turn.
…† button to select Dolby Pro Logic IIx effect you want.
3 Press
C-WIDTH: You can set from 0 to 7.
•
• DIMENSION: You can set from 0 to 7.
• PANORAMA: You can Set it ON or OFF.
4 Repeat the steps 2 and 3 to set the Dolby Pro Logic IIx effect.
To Exit Setup Mode
• Wait for about 5 seconds .
29
MAIN UNIT
1 Press and hold SURROUND button for about 5 seconds.
• “SETUP MODE” appears on the display and enters into Setup Mode.Press
•
3
Press SURROUND button.
• Each time you press this button, DIMENSION ➝ PANORAMA ➝ C-WIDTH will
be selected in turn.
SELECT(
4 Press
effect you want.
,
) button to select Dolby Pro Logic llx
5 Repeat the steps 3 and 4 to set Dolby Pro Logic llx effect.
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. “SETUP
MODE OFF” appears on the display and exits Setup Mode.
Dolby Pro Logic llx Effect
• C-WIDTH : Sound will be output from center speaker only. Front-left
and front-right speaker give sound field effect only. In addition, sounds
are output in different volumes from Front-Left, Front-Right Speaker and
Center Speaker.
• DIMENSION : Adjust the sound balance if the sound is unbalanced to
front or rear speaker.
• PANORAMA : Give the effect expanding and covering the sound from
front-left and front-right Speaker to both walls.
30
OPERATION
button 8 times.
2 INPUT
“DPL ll x MODE”appears on the display.
NEO:6 Mode
You can play back 2 channel sound in 6.1 channel of 360 degree surround when enjoying music or movie.
REMOTE CONTROL
NEO:6 MODE button.
1 Press
Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
•
To Exit Setup Mode
• Wait for about 5 seconds.
NEO : 6 Mode
Caution!
• NEO:6 Mode can be used in multi channel signal
encoded to Dolby Digital or DTS.
• Pro Logic works only for PCM audio signals with sampling
frequency of 32KHz, 44KHz or 48KHz..
31
This mode decodes 2 channel signals to high precision digital matrix
decoder.
DTS NEO:6 decoder discretes 2 channel sound to Discrete 6.1
channel sound.
• MUSIC : NEO:6 MUSIC Mode is used as optimized to music
according to played signal.
• CINEMA : NEO:6 CINEMA Mode is used as optimized to movie
according to played signal.
MAIN UNIT
SURROUND button briefly to select “NEO:6” Mode.
1 Press
Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝ STEREO will be
•
selected in turn.
SELECT( , ) button.
2 Press
Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
OPERATION
•
To Set Sound Image of Center Speaker
If TV (or screen) is installed high, you can feel the balance of sound and image by
raising the sound image of Center Speaker.
and hold SURROUND button for about 5 seconds.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
INPUT button 9 times.
2 Press
“NEO:6 MODE” appears on the display.
SURROUND button.
3 Press
“CEN-IMG” appears on the display.
SELECT( , ) button to set the sound image you want.
4 Press
You can set the sound image from 0 to 5.
•
•
•
•
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. ‘SETUP MODE OFF’ appears
on the display and exits Setup Mode.
Caution!
• You can use this function to set the sound image of Center
Speaker only in the main unit.
32
SFE Mode
Refer to the unique sound existing at specific place and you can feel live sound as if you are listening at
actual site.
REMOTE CONTROL
SEF MODE button.
1 Press
Each time you press this button, LIVE ➝ ROCK ➝ CLASSIC ➝ JAZZ ➝ MIDNIGHT
•
➝ HALL ➝ CINEMA ➝ CHURCH will be selected in turn.
To Exit Setup Mode
• Wait for about 5 seconds.
33
MAIN UNIT
SURROUND button briefly to select ‘SFE’ Mode. Each
1 Press
time you press this button, DPL II x ➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
,
) button.
) button, LIVE ➝ ROCK ➝ CLASSIC ➝ JAZZ
➝ MIDNIGHT ➝ HALL ➝ CINEMA ➝ CHURCH will be selected in turn
• Each time you press Select (
) button, CHURCH ➝ CINEMA ➝ HALL ➝
MIDNIGHT ➝ JAZZ ➝ CLASSIC ➝ ROCK ➝ LIVE will be selected in turn.
• Each time you press Select (
To Exit Setup Mode
• Wait for about 5 seconds.
SFE Mode
• LIVE, ROCK, CLASSIC, JAZZ : Select the genre suitable for the
music among Live, Rock, Classic and Jazz to listen to music.
• MIDNIGHT : Emphasize bass when you listen to music at midnight.
• HALL : Clear music as if you are listening at concert hall.
• CINEMA : Enjoy sound as if you are in cinema.
• CHURCH : Enjoy magnificent sound as if you are listening at
church.
34
OPERATION
2 Press SELECT(
EX/ES Mode
This mode enable you to listen 6.1 channel surround to the source encoded to Dolby Digital-EX, DTS-ES such as DVD.
This function works when Dolby Digital 5.1 channel source is inputted, and does not work when LPCM and Dolby Digital
2 channel source are entered.
REMOTE CONTROL
Press EX/ES button.
• Each time you press this button, EX/ES AUTO ➝ EX/ES ON ➝ EX/ES OFF
will be selected in turn.
To Exit Setup Mode
• Wait for about 5 seconds or press EX/ES button of the remote control to select EX/ES
: OFF.
EX/ES Mode
• AUTO : 7.1 channel(or 6.1 channel) sound will be played back to
7.1 channel(or 6.1 channel) and 5.1 channel sound will be
automatically converted to and output as 5.1 channel.
• ON : 5.1 channel sound will be converted to and output as 7.1
channel (or 6.1 channel).
• OFF : 7.1 channel (or 6.1 channel) sound will be converted to and
output as 5.1 channel.
35
MAIN UNIT
Method
and hold SURROUND button for about 5 seconds.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
•
OPERATION
Press INPUT button 10 times.
2 “EX/ES SETUP” appears on the display.
Press SURROUND button.
Each time you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝ EX/ES :
3 OFF
will be selected in turn.
•
•
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. ‘SETUP
MODE OFF’ appears on the display and exits Setup Mode.
Dolby Digital - EX
Movie sound track encoded with Dolby Digital EX can play back
the rear center channel added during program mixing. Rear
center channel provides fine image, in-depth and realistic
feeling.
Caution!
• You cannot use Dolby Digital-EX in the system without rear
center speaker.
• You need to set it to EX/ES Mode when playing back disk
encoded to Dolby Digital-EX in 6.1 channel.
• Some disks encoded with Dolby Digital-EX do not contain
identification signal. In this case, set EX/ES to ON.
DTS-ES (Discrete 6.1, Matrix 6.1)
Rear center channel is added to DTS 5.1 channel, improving the
sense of direction and space for sound. Since DTS-ES decoder
is built-in in the main unit, you can play back the disk encoded
with DTS-ES Discrete and DTS-ES Matrix. DTS-ES Discrete 6.1
can record the sound of all channels including rear center
channel digitally and play back the recorded sound as they are.
Caution!
• You cannot use DTS-ES in the system without rear center
speaker.
36
Stereo Mode
You can select this mode when you listen to the sound at Front-Left speaker, Front-Right speaker and
subwoofer.
REMOTE CONTROL
Press STEREO button. • “STEREO” appears in the
display and Stereo Mode is
selected.
MAIN UNIT
Press SURROUND button briefly to select
‘STEREO’.
• Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝
STEREO will be selected in turn.
To Exit Setup Mode
To Exit Setup Mode
• Wait for about 5 seconds.
• Wait for about 5 seconds.
Caution!
• 96KHz PCM is not played back in Stereo Mode.
• When PCM and Analog Stereo signal are input,
left/right channel is played back in Stereo Mode.
37
For Surround Mode and Input Signal
Surround Mode
DOLBY
(MUSIC,
CINEMA,
MATRIX,
GAME,
PROLOGIC)
NEO:6
(MUSIC,
CINEMA)
EX/ES
STEREO
Decoding
Dolby D Surr. EX
Dolby D (5.1ch)
L/R
Output Channel
SL
C
SB SubW
SR
Dolby Digital 5.1
O
O
O
Dolby Digital 5.1
O
O
O
Dolby D (2ch)
Pro Logic II x
O
O
Dolby D (2ch Surr)
Pro Logic II x
O
O
L.PCM (Audio)
Pro Logic II x
O
Analog
Pro Logic II x
DTS-ES
Display Information
Display Signal Format
Channel Status
-
O
DIGITAL
L, C, R, SL, SR, S, SW
-
O
DIGITAL
L, C, R, SL, SR, SW
O
O
O
DIGITAL
L, R
O
O
O
DIGITAL
O
O
O
O
L.PCM
L, R
O
O
O
O
O
ANALOG
-
DTS 5.1
O
O
O
O
O
dts, ES
L, C, R, SL, SR, S, SW
DTS 96/24
DTS 96/24
O
O
O
O
O
DTS 96/24
L, C, R, SL, SR, SW
DTS (5.1)
DTS 5.1
O
O
O
-
O
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
Neo:6
O
O
O
O
-
L.PCM
L, R
Analog
Neo:6
O
O
O
O
-
ANALOG
-
Dolby D (2ch)
Neo:6
O
O
O
O
-
DIGITAL
L, R
Dolby D (2ch Surr)
Neo:6
O
O
O
O
-
DIGITAL
L, R, S
Dolby Surr. EX
SFE
-
-
-
-
-
DIGITAL
L, C, R, SL, SR, S, SW
Dolby D (5.1ch)
SFE
-
-
-
-
-
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
SFE
O
O
O
O
O
DIGITAL
L, R
Dolby D (2ch Surr)
SFE
O
O
O
O
O
DIGITAL
DTS-ES
SFE
-
-
-
-
-
dts, ES
DTS (5.1ch)
SFE
-
-
-
-
-
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
SFE
O
O
O
O
O
L.PCM
L, R
Analog
SFE
O
O
O
O
O
ANALOG
-
Dolby D Surr. EX
Dolby Digital EX
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, S, SW
Dolby D (5.1ch)
Dolby Digital EX
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SW
DTS-ES
DTS-ES
O
O
O
O
O
dts, ES
L, C, R, SL, SR, S, SW
DTS (5.1ch)
DTS-ES
O
O
O
O
O
dts
L, C, R, SL, SR, SW
Dolby Surr. EX
Stereo
O
-
-
-
O
DIGITAL
L, C, R, SL, SR, S, SW
Dolby D (5.1ch)
Stereo
O
-
-
-
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
Stereo
O
-
-
-
-
DIGITAL
L, R,
Dolby D (2ch Surr)
Stereo
O
-
-
-
-
DIGITAL
DTS-ES
Stereo
O
-
-
-
O
dts, ES
L, C, R, SL, SR, S, SW
DTS 96/24
Stereo
O
-
-
-
O
dts 96/24
L, C, R, SL, SR, SW
DTS (5.1ch)
Stereo
O
-
-
-
O
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
Stereo
O
-
-
-
-
L.PCM
L, R
L.PCM 96KHz
Stereo
O
-
-
-
-
L.PCM
L, R
Analog
Stereo
O
-
-
-
-
ANALOG
-
L, R, S
OPERATION
SFE
Input Signal
L, R, S
L, C, R, SL, SR, S, SW
L, R, S
L/R : Front Speaker (Left/Right) C : Center Speaker SL/SR : Rear Speaker (Left/Right) S : Rear Center Speaker SW : Subwoofer
Caution!
• 2 channel Dolby Digital signal has Dolby Digital Pro Logic. Speaker Setup is set to LARGE, SMALL, or YES.
• If there is no surround signal in DVD disk, sound will not output from rear-left speaker, rear-right speaker, center speaker, and
subwoofer.
38
Listening to Radio
You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual
tuning operation.
REMOTE CONTROL
MAIN UNIT
1 Press TUNER button.
1 Press INPUT button to select FM or
• Each time you press this button, FM ➝ AM will be repetitively
selected.
2 Select frequency.
• Automatic Tuning 1
:
1) Press ENTER button to select PRESET.
2) Press TUNING/CH( , ) button to select the preset
frequency.
• Automatic Tuning 2 :
1) Press ENTER button to select MANUAL
2) Press and hold TUNING/CH( , ) button to
automatically tune in frequency.
• Manual Tuning :
1) Press ENTER button to select MANUAL.
2) Press TUNING/CH( , ) button briefly to increase or
decrease frequency by step by step.
AM.
2 Select the frequency.
• Automatic Tuning :
Press and hold TUNING/CH( ,
automatically tune in frequency.
) button to
• Manual Tuning :
Press TUNING/CH( , ) button briefly to
increase or decrease frequency by step by step.
To Listen to Mono/Stereo
Press MO/ST button.
• Each time you press this button, STEREO, MONO will be selected in turn.
• If you select MONO in the area with weak reception and blanket area, you can listen to clear broadcasting without noise.
• This function works only in Remote Control.
39
Presetting Radio Stations
You can preset to 30 stations including FM and AM broadcasting.
REMOTE CONTROL
Ex) If you preset FM 89.1 station in 2ch
TUNER button.
1 Press
Each time you press this button, FM ➝ AM will be selected in turn.
•
Select button and then TUNING/CH(
2 Press
select 89.1.
,
) button to
• Refer to step 2, page 39, to tune in automatically and manually.
TUNER MEMORY button.
3 Press
Tuner number will blink on the display.
•
TUNING/CH( ,
4 Press
You can select from 1 to 30ch.
) button to select 2ch.
•
RADIO OPERATION
TUNER MEMORY button.
5 Press
Tuner number will disappear and 89.1 station will be preset in 2ch.
•
6 To preset other stations, repeat the steps 2 to 5.
To Listen to Preset Station
• Press Select button of the remote control to select the PRESET and press
TUNING/CH (
,
) button.
40
About RDS broadcasting
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with their regular program signals. For
example,the stations send their station names,as well as information about what type of program they
broadcast, such as sports or music,etc.
When tuned to an FM station which provides the RDS service,the RDS indicator
lights up on the display.
• Description on RDS function
1. PTY (Program Type) : Displays the type of programme currently being broadcast
2. PS NAME (Program Service Name) : Indicates the name of broadcasting station
and is composed of 8 characters.
3. RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed
of maximum 64 characters.
4. CT (Clock Time) : Decodes the real time clock from the FM frequency.
• Some stations may not transmit PTY, RT or CT information therefore this may not be
displayed in all cases.
5. TA (Traffic Announcement) : When this symbol flashes it shows that the traffic
announcement is in progress.
• RDS is not available for AM broadcasts.
• RDS may not operate correctly if the station tuned is not transmitting
RDS signal properly or if the signal strength is weak.
What information can RDS signals provide?
You can see the RDS signals the station sends on the display.
TO show the RDS signals
Press RDS DISPLAY while listening to an FM station.
Each time you press the button, the display change to show you the following information:
PS (Program Service) :While searching,"PS"appears and then the station names will be
displayed."NO PS" appears if no signal is sent.
RT(RadioText) : while searching,"RT"appears and then text messages the station sends
will be displayed. "NO RT"appears if no signal is sent.
Frequency : station frequency (non-RDS service)
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
• The display window cannot differentiate upper case and lower case lrtters and always
uses upper case letters.
• The display window cannot show accented letters, “A,” for instance, may stans for
accented “A’s” like “À, Â, Ä, Á, Åand Ã.”
• If searching finishes at once,“PS”,and “RT” will not appear on the display.
41
PTY (Program Type) indication and PTY-SEARCH function
One of the advantages of the RDS service is that you can locate a particular kind of program from the
preset channels by specifying the PTY codes.
To search for a program using the PTY codes
Before you start, remember...
• The PTY Search is only applicable to preset
•
•
•
stations.
To stop searching any time during the process,
press PTY SEARCH while searching.
There is a time limit in doing the following steps.
If the setting is cancelled before you finish, start
from step 1 again.
When pressing the buttons on the primary remote
control, make sure that you have selected the FM
station using the primary remote control.
1
2
Press the PTY-or PTY+until the PTY code
you want appears on the display.
• The display gives you the PTY codes described
to the right.
Press PTY SEARCH again, while the PTY
code selected in the previous step is still on
the display.
• The center unit searches 15 preset FM
stations,stops when it finds the one you
have selected, and tunes in that station.
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
• News including an announced opinion and
report
• Several matters including a current incident,
documentary, discussion and analysis.
• Information including weights and measures,
returns and forecast, matters interesting the
customer, medical information, etc.
• Sports
• Education
• Drama-Radio serial, etc.
CULTURE
• Culture-National or local culture including the
religious problem, social science, language,
theater,etc.
SCIENCE
• Natural science and technology
VARIED
• Others-Speech, amusing program (quiz,
game), interview, comedy and satirical play,
etc.
POP M
• Pop music
ROCK M
• Rock music
M.O.R.M
• Current contemporary music considered to be
“easylistening.”
LIGHT M
• Light classical music- Classical music and
instrumental and chorus music
CLASSIC
• Heavy classical music-Orchestra music,
symphony, chamber music and opera
OTHER M
• Other music - Jazz, R&B country music
WEATHER
• Weather
FINANCE
• Finance
CHILDREN
• Children’s programmes
SOCIAL A
• Social affairs
RELIGION
• Religion
PHONE IN
• Phone in
TRAVEL
• Travel
LEISURE
• Leisure
JAZZ
• Jational Music
COUNTRY
• Oldies Music
NATION M
• Folk Musicazz Music
OLDIES
• Country Music
FOLK M
•N
DOCUMENT
RADIO OPERATION
3
Press PTY SEARCH while listenning to an
FM station.
Program Type
Display
• Documentary
42
Convenient Functions
Sleep Timer Function
You can set the time that this unit will shut itself off.
REMOTE CONTROL
Press the SLEEP button.
• SLEEP : OFF ➝ 15 ➝ 30 ➝ 45 ➝ 60 ➝ 90 ➝ 120MIN will be selected in turn.
To Check Sleep Timer
Press SLEEP button.
• The remaining time before this unit will shut itself off is displayed on the display.
• Pressing the button again changes the sleep time from what you have set earlier.
To Cancel Sleep Timer
• Press SLEEP button until SLEEP : OFF appears on the display.
Mute Function
This function is useful what answering a doorbell or telephone call.
REMOTE CONTROL
Press the MUTE button.
• MUTE appears on the display.
To Output Sound Again
Press MUTE button again.
• MUTE will disappear and sound will Output.
Caution!
• Sleep , Mute, Display Off function will work only in Remote
Control.
43
Reset Function
REMOTE CONTROL
1 Press the MUTE button.
• MUTE appears on the display.
2 Press “0” button five times and then press ENTER button.
…,† buttons to select “YES”.
3 Press
The unit automatically back on in 5 seconds.
Caution!
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Turning Display On/Off
You can turn the display off to prevent the dazzling light or when you go to bed.
REMOTE CONTROL
Press the DISPLAY OFF button.
• Each time you press this button, the display is turned on or off.
Using Headphone
Use headphones (not supplied) for private listening pleasure.
Connect the headphone to the headphone jack and listen to
music.
MISCELLANENOUS
Do not volume up when you use headphone.
It may damage your hearing.
44
Operating TV with Remote Control
1
Press MODE button to make the TV
indicator on the remote control flash.
2
Press POWER(
TV.
3
Point the remote control toward the TV.
4
While holding down POWER( ) button,
enter the code corresponding to your brand
of TV.
) button to turn on the
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table, enter
one at a time to determine which code works.
Ex) For a ‘Samsung’ TV
While holding down POWER button, use the Numeric buttons
to enter 00, 01, 02, 03, 04, and 05.
5
If TV is turned on or off when you press the
power button of the remote control, the
setting is completed.
• You can use the TV POWER, VOLUME, CHANNEL, and Numeric
buttons (0~9).
• The remote control may not work on some brands of TVs. Also, some operation may not be
possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will work
on a Samsung TV by default.
45
TV Brand Code List
Brand
ADMIRAL(M.WARDS)
A MARK
ANAM
AOC
BELL & HOWELL(M.WARDS)
BROCSONIC
CANDLE
CETRONIC
CITIZEN
CINEMA
CLASSIC
CONCERTO
CONTEC
CORONADO
CRAIG
CROSLEX
CROWN
CURTISMATES
CXC
DAEWOO
DAYTRON
DYNASTY
EMERSON
HALL MARK
HITACHI
INKEL
JC PENNY
JVC
KTV
KEC
KMC
LG(GOLDSTAR)
Brand
LUXMAN
LXI(SEARS)
MAGNAVOX
MARANTZ
MATSUI
MGA
MITSUBISHI/MGA
MTC
NEC
NIKEI
ONKING
ONWA
PANASONIC
PENNEY
PHILCO
PHILIPS
PIONEER
PORTLAND
PROTON
QUASAR
RADIO SHACK
RCA/PROSCAN
REALISTIC
SAMPO
SAMSUNG
SANYO
SCOTT
SEARS
SHARP
SIGNATURE 2000(M.WARDS)
SONY
SOUNDESIGN
SPECTRICON
SSS
Code Number
018
019, 054, 056, 059, 060,
062, 063, 065, 071
015, 017, 018, 048, 054,
059, 060, 062, 072, 089
040, 054
054
018, 040
018, 040, 054, 059, 060,
075, 101
018
018, 019, 020, 040, 059,
060
003
003
003
006, 007, 008, 009, 054,
066, 067, 073, 074
018
003, 015, 017, 018, 048,
054, 059, 062, 069, 090
015, 017, 018, 040, 048
054, 062, 072, 112, 114,
117, 118
063, 066, 080, 091
015, 018, 059
040
006, 066, 067
017, 048, 056, 060, 061,
075
018, 059, 067, 076, 077
078, 092, 093, 094
003, 019
040
000, 015, 016, 017, 040,
043, 046, 047, 048, 049,
054, 059, 060, 098
019, 061, 065, 101, 102,
103, 104
003, 040, 060, 061
015, 018, 019
015, 057, 064, 101, 105,
106, 115
057, 058
050, 051, 052, 053, 055,
101
003, 040
001
018
Brand
SYLVANIA
SYMPHONIC
TATUNG
TECHWOOD
TEKNIKA
TMK
TOSHIBA
VIDTECH
VIDECH
WARDS
YAMAHA
YORK
YUPITERU
ZENITH
ZONDA
DONGYANG
LOWE
FINLUX
YOKO
LOEWE OPTA
PHONOLA
RADIOLA
SCHNEIDER
AKAI
GRUNDIG
BLAUPUNKT
SIEMENS
CGE
IMPERIAL
MIVAR
SABA
BANG&OLUFSEN
BRIONVEGA
FORMENTI
METZ
WEGA
RADIOMARELLI
SINGER
SINUDYNE
TELEFUNKEN
Code Number
018, 040, 048, 054, 059,
060, 062
061, 095, 096
006
018
003, 015, 018, 025
018, 040
019, 057, 063, 071, 101
107, 109, 110, 111, 113
018
059, 060, 069
015, 017, 018, 040, 048,
054, 060, 064
018
040
003
058, 079
001
003, 054
054
054, 109, 114
054
054, 114
054, 112, 114
054, 112
054
103
108, 109, 113, 119, 120,
121
108
108
113
113
113
114
114
114
114
114
114
114
114
114
116
MISCELLANENOUS
FISHER
FUNAI
FUTURETECH
GENERAL ELECTRIC(GE)
Code Number
056, 057, 058
001, 015
001, 002, 003, 004,005,
006, 007, 008, 009, 010,
011, 012, 013, 014
001, 018, 040, 048
057, 058, 081
059, 060
018
003
003, 018, 025
097
003
018
046
015
003, 005, 061, 082, 083,
084
062
003
059, 061, 063
003
002, 003, 004, 015,016,
017, 018, 019, 020, 021,
022, 023, 024, 025, 026,
027, 028, 029, 030, 032,
034, 035, 036, 040, 048,
059, 090, 099, 100
040
003
003, 015, 040, 046, 059,
061, 064, 082, 083, 084,
085
019, 065, 103
003
003
006, 040, 056, 059, 066,
067, 068
040
015, 018, 050, 059, 069
045
056, 059, 067, 086
070
059, 061, 087, 088
003, 015, 040
015
001, 015, 016, 017, 037,
038, 039, 040, 041, 042,
043, 044, 054, 086
46
Operating VCR (DVD) with
Remote Control
1
Press MODE button to make VCR indicator
on the remote control flash.
• If you operate DVD, press Device Select button to make DVD
indicator on the remote control flash.
2
Press POWER(
VCR (DVD).
3
Point the remote control toward the VCR
(DVD).
4
While holding down POWER( ) button,
enter the code corresponding to your brand
of VCR (DVD).
) button to turn on the
• If the code matches the VCR (DVD)'s code, the VCR (DVD) will
be turned off.
• If there is more than one code listed for your VCR (DVD) in the
table, enter one at a time to determine which code works.
Ex)For a ‘Samsung’ VCR (DVD)
While holding down POWER(
) button, use the Numeric
button to enter 00, 32~45, 87, and 88.
5
If VCR (DVD) is turned on or off when you press
the power button of the remote controller, the
setting is completed.
• You can use VCR (DVD) POWER, VOLUNE, PLAY, PAUSE,
STOP, SKIP and Numeric button (0~9).
• The remote control may not work on some brands of VCR (DVD)s. Also, some operations may not
be possible depending on your brand of VCR (DVD).
• If you do not set the remote control with the code for your brand VCR (DVD), the remote control
work on a Samsung VCR (DVD) by default.
47
VCR Brand Code List
Brand
ADMIRAL(M.WARDS)
AWIA
AKAI
ANAM
AOC
AUDIO DYNAMIC
BELL & HOWELL(M.WARDS)
BROKSONIC
CANON
CAPEHART
CITIZEN
CRAIG
CRITERION
CURTIS MATHES
DAEWOO
DAYTRON
DBX
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC(GE)
GO VIDEO
HARMAN KARDON
HITACHI
JVC
KENWOOD
LG(GOLDSTAR)
LXI(SEARS)
MAGIN
MAGNAVOX
MARANTZ
MARTA
Brand
MEI
MEMOREX
MINOLTA
MITSUBISHI/MGA
MTC
MULTITECH
NEC
OLYMPIC
OPTIMUS
ORION
PANASONIC
PENNEY
PENTAX
PHILCO
PHILIPS
PILOT
PIONEER
PORTLAND
QUASAR
RICO
RCA/PROSCAN
REALISTIC
044, 048, 054, 091,
SAMSUNG
SANYO
SANSUI
SCOTT
SEARS
SHARP
SINGER
SIGNATURE 2000(M.WARDS)
SHINTOM
SONY
STS
SYLVANIA
SYMPHONIC
TANDY
Code Number
001, 033
001, 025, 033, 054, 091,
100
020, 021, 062
068, 069, 070, 101, 102
072
044, 057, 069
019, 047, 052, 057, 092
049, 091
101
103
001, 004, 033, 049, 067,
091, 107
019, 020, 072
001, 020, 021, 033, 062
001, 033, 046, 049, 091,
094
001, 030, 033, 049, 050,
066, 091
025
049
011
001, 033, 049, 067, 091,
107, 108
036
001, 020, 021, 031, 032,
033, 049, 051, 062, 066,
070, 091, 104
001, 009, 025, 033,
101, 105
000, 006, 031, 032, 057,
058, 071, 072, 073, 074,
075, 076, 077, 078, 079,
080, 081
008, 009, 046, 048, 050,
054, 058, 093, 100
092
006, 051, 054, 057, 069,
070, 100, 101
020, 021, 025
043, 105, 106
096
043, 044, 054, 100, 106
096
034, 035, 036, 037, 038,
039, 040, 041, 042,082,
083, 084, 085, 086
020
001, 033, 044, 049, 066,
091
044
009
Brand
TASHIRO
TATUNG
TEAC
TECHNICS
TEKNIKA
TOSHIBA
TOTEVISION
TAEKWANG
UNITECH
VECTOR RESEARCH
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code Number
050
047, 052, 092
044, 047, 052, 092
001, 033, 049, 091
001, 025, 033
006, 051
025, 072
087
072
019
019
072
001, 020, 031, 032, 033,
043, 050, 054, 072, 100,
105, 106, 109
019, 047,048, 052, 092,
019, 047,048, 052, 092
DVD Brand Code List
Brand
DENON
DOONOON
DMTECH
FISHER
GE
HARMAN/KARDON
JVC
KENWOOD
LG
MAGNAVOX
MITSUBISHI
ONKYO
OPTIMUS
PANASONIC
PROSCAN
PHILIPS
PIONEER
RCA
SAMSUNG
SANYO
SONY
THETA DIGITAL
TOSHIBA
YAMAHA
ZENITH
TAEGWANG
PS2
X-BOX
APEX
MARANTZ
Code Number
003, 032
019
017
002
006
012
010, 013
008
001
004
005, 016
004, 014
011
021
006
004, 023
007, 011, 022, 025
006
000, 027
002
015, 020
011
004, 018
009, 033
004, 024
026
028
029
030
031
MISCELLANENOUS
HQ
INSTANT REPLAY
JCL
JCP
JC PENNY
Code Number
043, 106
044, 045, 046
088, 089, 090
001, 002, 003, 004, 005,
033
091
019, 047, 092
048, 093
092, 094, 095
001, 033, 049, 091
011
050
050, 072, 096
051
001, 031, 032, 033, 044,
091
006, 007, 008, 009, 010,
011, 012, 013, 014, 015,
016, 017, 018, 046, 051,
091
011
019, 047, 052, 092
025, 031, 032, 044, 046,
094, 095, 097, 098, 099
009, 048, 053, 054, 055,
100
044
001, 031, 032, 033, 056,
091
059, 060, 061
019
020, 021, 049, 054, 062,
100
051
001, 033, 049, 091
001, 033
025
047, 048, 052, 062, 091,
092
001, 033, 047, 052, 063,
064, 065, 092
047, 050, 052, 092
019, 020, 021, 022, 023,
024, 025, 026, 027, 028,
029, 030, 050
020, 025, 044, 048, 050,
053, 054, 055, 062, 100
072
001, 031, 032, 033, 049,
066, 067, 091
001, 019, 033, 047, 052,
092, 110
025, 050
48
Before Calling for Service
Check
Symptom
Remedy
Can't turn it on.
• Is the power code plugged into the outlet?
• Connect the power plug to the outlet.
It does not work when the
button is pressed.
• Isn’t the air too dry to cause
• Disconnect the power plug and connect it
electrostatics?
• Are the speaker and external
Sound is not produced.
component connected properly?
• Does the Mute function work?
• Is the volume set to minimum?
• Is the speaker setup selected to
NONE?
Picture does not appear when
the function is selected.
• Isn’t the external component connected
Remote controller does not
work.
• Are the batteries exhausted?
• Is the distance between remote
The sound from each device
is changed during stereo
playback.
• Is the left/right speaker or left/right
properly?
control and main unit proper?
input/output code connected
properly?
• Is AM or FM antenna connected
Can't receive broadcasting.
properly?
speaker.
properly?
• Is S.SPK (Rear) set to NONE in
Speaker Setup?
• Is Surround Mode selected to Stereo?
There is no sound from
center speaker
• Properly connect it.
• Press Mute button to cancel the function.
• Adjust the volume.
• Refer to page 17~18 to select LARGE,
SMALL or YES.
• Properly connect it.
• Replace with new batteries.
• Operate at close distance.
• Check the left/right channel and properly
connect it.
• Properly connect the antenna.
• If the input strength of antenna connector is
weak, install the FM antenna at the place
with good reception.
• Is the rear speaker connected
There is no sound from rear
again.
• Refer to page 17~18 to connect it properly.
• Refer to page 17~18 to select LARGE or
SMALL.
• Refer to page 27~38 to select other
Surround Mode.
• Is the center speaker connected properly?
• Refer to page 9~10 to connect it properly.
• Is C.SPK (Center) selected to NONE in
• Refer to page 17~18 to select LARGE or
Speaker Setup?
• Is the Surround Mode selected to Stereo?
SMALL.
• Refer to page 27~38 to select other
Surround Mode.
49
Symptom
Check
• Is the rear center speaker connected
There is no sound from rear
center speaker
properly?
• Is the SB SPK (Rear Center) selected
to NONE in Speaker Setup?
• Is SB SPK (Rear Center) selected to
Can't select Dolby Pro Logic
• Refer to page 9~10 to connect it properly.
• Refer to page 17~18 to select LARGE or
• Is Surround Mode selected to EX/ES
Can't select EX/ES Mode.
Remedy
NONE in Speaker Setup?
SMALL.
• Refer to page 35~36 to select Surround
Mode to EX/ES.
• Refer to page 17~18 to select LARGE or
SMALL.
• Is the input signal selected properly?
• Use 5.1 channel external component.
• Is the input signal selected properly?
• Select 2 channel Dolby Digital, PCM, and
llx Mode.
Analog input signal.
Can't select NEO:6 Mode.
• Is the input signal selected properly?
• Use PCM and Analog input signal.
There is no sound when
playing DTS encoded DVD
and CD.
• Is analog input selected?
• Check whether digital external component
√√ Product Protection Function
is properly connected and refer to page 19
to select the digital input.
œœ
DC Protection Circuit
MISCELLANENOUS
• If DC is output from output connector, DC protection circuit
works automatically to protect the speaker.
Heat Protection
• Protection function works if the main unit is overheated or power
transformer is overheated.
appears in the display when the “
” function
works.
- If speaker terminal is shorted
- If speaker cord is shorted
If there is no problem when you turn it on again after turning it
off, PROTECTION mark will disappear on the display and the
unit will work properly.
• If PROTECTION appears on the display,
check whether speaker terminal is shorted
and then turn on the device.
50
Specifications
GENERAL
FM TUNER
AM TUNER
AMPLIFIER
FREQUENCY
RESPONSE
VIDEO
OUTPUT
Power Supply
Standby Power Consumption
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Frequency Response
Usable Sensitivity
S/N Ratio
Distortion
Stereo Separation
Tuner Output Level
Frequency Response
S/N Ratio
Usable Sensitivity
Distortion
Rated Output
Front Speaker(Left+Right)
Center Speaker
Rear Speaker(Left+Right)
Rear Center Speaker
Input Sensitivity/Impedance
S/N Ratio(Analog Input/5.1CH Analog Input)
Separation(1KHz)
Analog Input/5.1CH Analog Input
Digital Input/96KHz PCM
TV Format
Input Level/Impedance
Output Level/Impedance
Video Frequency Response
Component Video Frequency Response
S/N Ratio
230V, 50 Hz
0.9W
110W
4.65 kg
430 x 65 x 350 mm
+5° C~+35° C
10%~75%
87.5~108.0MHz
12dBf
MONO/STEREO 55/55dB
MONO/STEREO 0.3/0.8%
30dB
1KHz, 75KHz Dev
522~1611KHz
40dB
60dB uV/m(Loop Antenna)
2% (MOD:80%)
20Hz~20KHz/THD = 1%
6 Ω 90W/CH
6 Ω 90W/CH
6 Ω 90W/CH
6 Ω 90W/CH
450mV/47kΩ
80dB
60dB
20Hz~20KHz(+_ 3dB)
20Hz ~44KHz(+_ 3dB)
NTSC/PAL
1Vp-p/75 Ω
1Vp-p/75 Ω
5Hz to 10KHz(-3dB)
5Hz to 40KHz(-3dB)
60dB
❈ S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES-17 filter.
51
S
P
E
A
K
E
R
S
Speaker system
Front / Rear / Rear Center
Center
Subwoofer speaker
Impedance
6Ω x 5
6Ω
4Ω
Rated input
90W
90W
150W
Maximum input
180W
180W
300W
91 x 135 x 98.5 mm
200 x 107 x 100 mm
205 x 418 x 455 mm
0.9 Kg
1.0 Kg
13 Kg
Dimensions (W x H x D)
Weight
ELECTRONICS
AH68-01646B
Contact Multi-all
2005.11.18
3:42 PM
Page 8
XEU (ENG)
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Region
North America
Latin America
Europe
CIS
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
RUSSIA
UKRAINE
AUSTRALIA
CHINA
HONG KONG
INDIA
Asia Pacific
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
Middle East & Africa
TAIWAN
VIETNAM
SOUTH AFRICA
U.A.E
Customer Care Center ☎
1-800-SAMSUNG (7267864)
01-800-SAMSUNG (7267864)
1-800-SAMSUNG (7267864)
0800-333-3733
0800-124-421
800-726-7864(SAMSUNG)
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-7267-864
1-800-100-5303
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (0,15€/Min)
01805 - 121213 (€ 0,12/Min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (€ 0.10/Min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
1300 362 603
800-810-5858, 010- 6475 1880
2862 6001
3030 8282
1600 1100 11
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG (7267864)
1800-SAMSUNG (7267864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
0860 7267864 (SAMSUNG)
800SAMSUNG (7267864)
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.ru
www.samsung.com/ur
www.samsung.com/au
www.samsung.com.cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/za
www.samsung.com/mea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
