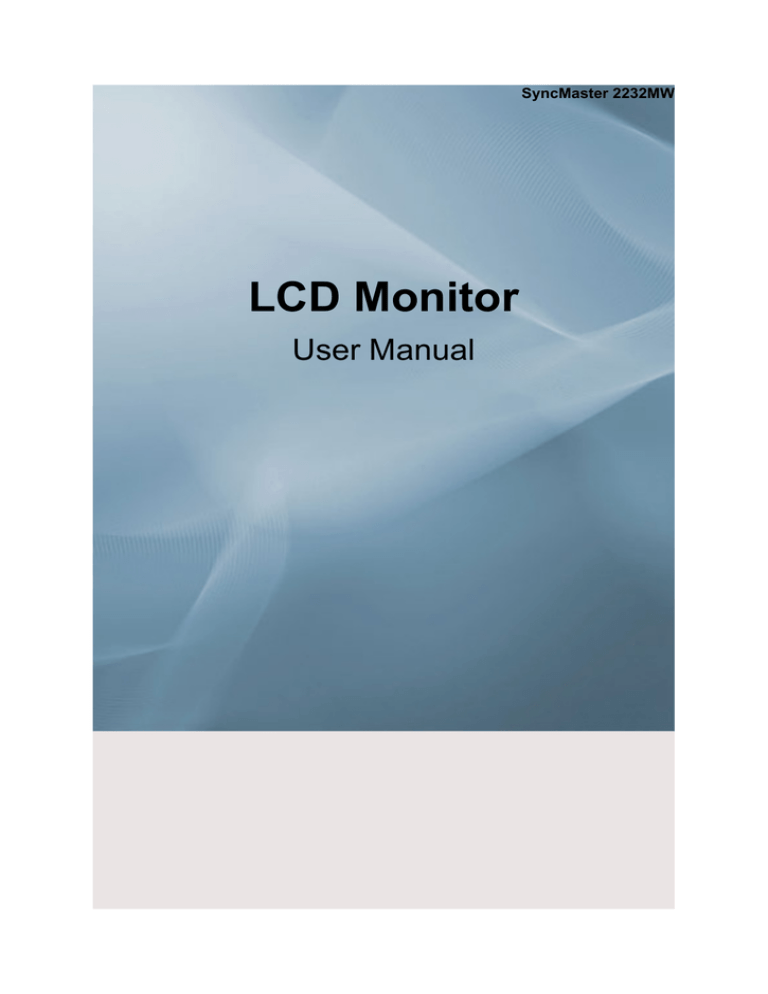

SyncMaster 2232MW
LCD Monitor
User Manual
Safety Instructions
Notational
Note
These safety instructions must be followed to ensure your safety and prevent property damage.
Make sure to read the instructions carefully and use the product in the correct manner.
Warning / Caution
Otherwise, it may result in death or personal injury.
Otherwise, it may result in personal injury or property damage.
Notational Conventions
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the
outlet
Do not touch
Ground to prevent an electric
shock
Power
When not used for extended period of time, set your computer to DPM.
If using screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or
countries).
Shortcut to Anti-Afterimage Instructions
Do not use a damaged power cord or plug or a damaged or loose power
outlet.
•
Otherwise, this may result in electric shock or fire.
Do not touch the power plug with wet hands when removing or plugging the plug into the outlet.
•
Otherwise, this may result in electric shock.
Make sure to connect the power cord to a grounded power outlet.
•
Otherwise, it may result in electric shock or personal injury.
1
Safety Instructions
Ensure that the power plug is plugged into the power outlet firmly and
correctly.
•
Otherwise, this may result in fire.
Do not forcefully bend or pull the power plug and do not place any
heavy material on it.
•
Otherwise, this may result in fire.
Do not connect multiple appliances to the same power outlet.
•
Otherwise, this may cause fire due to overheating.
Do not disconnect the power cord while using the product.
•
Otherwise, this may result in damage to the product due to electric
shock.
To disconnect the apparatus from the mains, the plug must be pulled
out from the mains socket, therefore the mains plug shall be readily operable.
•
This may cause electric shock or fire.
Use only the power cord provided by our company. Do not use the
provided power cord of another product.
•
Otherwise, this may result in fire or electric shock.
Installation
Be sure to contact an authorized Service Center when installing your monitor in
a location with heavy dust, high or low temperatures, high humidity, and exposed
to chemical substances and where it operates for 24 hours such as at airports,
train stations etc.
Failure to do so may cause serious damage to your monitor.
Do not drop the monitor when moving it.
•
This may cause damage to the product or the person carrying it.
Ensure that at least two persons lift and move the product.
•
Otherwise, it may be dropped and cause personal injury, and/or damage the product.
When installing the product in a cabinet or rack, make sure that the
front end of the bottom of the product does not project out.
•
Otherwise, it may fall or cause personal injury.
•
Use a cabinet or rack of a size appropriate to the product.
2
Safety Instructions
DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIGARETTES AND ANY HEATING APPLIANCES NEAR TNE PRODUCT.
•
Otherwise, this may cause fire.
Keep heating appliances as far away from the power cord or the product as possible.
•
Otherwise, this may result in electric shock or fire.
Do not install it in a badly ventilated location such as a bookcase or
closet.
•
Otherwise, this may result in fire due to an increase in the internal
temperature.
Put down the monitor carefully.
•
Failing to do so may damage the monitor.
Do not place the front of the product on the floor.
•
Otherwise, this may result in damage to the screen display.
Ensure that an authorized installation company installs the wall mount.
•
Otherwise, it may fall and cause personal injury.
•
Make sure to install the specified wall mount.
Install your product in a well ventilated location. Ensure that there is
a clearance of more than 10 cm from the wall.
•
Otherwise, it may result in fire due to an increase in the internal temperature.
To prevent rainwater from running along the outdoor antenna cable
and into the house, ensure that the outdoor portion of the cable is hanging
below the point of entry.
•
If the product is exposed to rainwater, it may cause electric shock or
fire.
When using an outdoor antenna, ensure that there is sufficient distance
between the antenna and any electric wires nearby so that they do not
come into with each other if the antenna is knocked over by strong wind
or any other accident.
•
A knocked-over antenna may cause injury or electric shock.
Keep the plastic packaging (bag) out of children's reach.
•
The plastic packaging (bag) may cause suffocation if children play
with it.
If the height of your monitor is adjustable, do not place any object or
part of your body on the stand when lowering it.
•
This may cause damage to the product or the person carrying it.
3
Safety Instructions
Clean
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe
with a slightly moistened and soft fabric.
Do not spray cleaner directly onto the surface of the product.
•
Otherwise, this may result in the discoloration and distortion of the
structure and the screen surface may peel off.
Clean the product using a soft cloth with a monitor cleaner only. If
you must use a cleaner other than the monitor cleaner, dilute it with water
at a ratio of 1:10.
When cleaning the power plug pins or dusting the power outlet, clean
it with a dry cloth.
•
Otherwise, it may result in fire.
When cleaning the product, make sure to disconnect the power cord.
•
Otherwise, it may result in electric shock or fire.
When cleaning the product, disconnect the power cord and clean it
softly with a dry cloth.
•
(Do not use chemicals such as wax, benzene, alcohol, thinner, mosquito repellant, lubricant, or cleaner.) These may change the appearance of the product surface and peel off the indication labels on the
product.
Since the product housing is easily scratched, make sure to use the
specified cloth only.
•
Use the specified cloth adding only a little water. As the product may
be scratched if there is any foreign material on the cloth, make sure
to shake it thoroughly before using it.
When cleaning the product, do not spray water directly onto the main
body of the product.
•
Ensure that water does not enter the product and that it is not wet.
•
Otherwise, this may result in electric shock, fire or a malfunction.
Others
The product is a high voltage product. Ensure that users do not disassemble, repair or modify the product themselves.
•
Otherwise, this may result in electric shock or fire. If the product
needs to be repaired, contact a Service Center.
4
Safety Instructions
If there is a strange smell or a strange sound or smoke is coming from
the product, disconnect the power plug immediately and contact a Service
Center.
•
Otherwise, this may result in electric shock or fire.
Do not place this product in a location exposed to moisture, dust,
smoke, water, or in a car.
•
Otherwise, this may result in electric shock or fire.
When you drop the product or the case is broken, turn the power off
and disconnect the power cord. Contact a Service Center.
•
Otherwise, this may result in electric shock or fire.
If thunder or lightening is occurring, do not touch the power cord or
antenna cable.
•
Otherwise, this may result in electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal
cable.
•
Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Do not lift or move the product back and forwards or right and left
while only holding the power cord or signal cables.
•
Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Make sure that the ventilating opening is not blocked by a table or
curtain.
•
Otherwise, it may result in fire due to an increase in the internal temperature.
Do not place any containers containing water, vases, flowerpots, medicines as well as any metal on the product.
•
If water or a foreign material enters the product, disconnect the power
cord and contact a Service Center.
•
This may result in a product malfunction, electric shock, or fire.
Do not use or keep combustible spray or flammable material near the
product.
•
Otherwise, this may result in an explosion or fire.
Do not insert any metal, such as chopsticks, coins, pins and steels, or
inflammable objects, such as matches or paper, inside the product
(through the ventilating openings, input and output terminals, etc).
•
If water or foreign material enters the product, disconnect the power
cord and contact a Service Center.
•
Otherwise, this may result in electric shock or fire.
5
Safety Instructions
When using a fixed screen for a long time, an afterimage or stain may
occur.
•
If you are not using your product for a long period of time, put it into
sleep mode or use a moving screen saver.
Set a resolution and frequency appropriate to the product.
•
Otherwise, your eyesight may be damaged.
Keep the volume at a comfortable level when using the headphones.
•
Excessively loud volume level may damage hearing.
If you continually move closer to the product screen, your eyesight
may be failing.
To ease eye strain, take at least a five-minute break after every hour
of using the monitor.
Do not install it in an unstable location such as an unstable rack or
uneven surface or a location exposed to vibrations.
•
Otherwise, it may fall and cause personal injury and/or damage the
product.
•
If you use the product in a location exposed to vibrations, it may
damage the product and result in fire.
When moving the product, turn the power off and disconnect the power
plug, antenna cable, and all the cables connected to the product.
•
Otherwise, it may result in electric shock or fire.
Ensure that children do not hang onto the product or climb up onto the
product.
•
The product may fall and cause personal injury or death.
If you do not use the product for a long period of time, disconnect the
power cord from the power outlet.
•
Otherwise, this may result in overheating or fire due to dust, and may
result in fire due to electric shock or leakage.
Do not place any heavy items or toys or confectionery, such as cookies
etc. that may attract the attentions of children onto the product.
•
Your children may hang onto the product causing it to fall and this
may result in personal injury or death.
6
Safety Instructions
When removing batteries from the remote control, ensure that the
children do not swallow the batteries. Keep the batteries out of children's
reach.
•
If the batteries are swallowed, see a doctor immediately.
When replacing batteries, place the batteries in the correct +/- polarity
position as indicated on the battery holder.
•
The incorrect polarity may cause a battery to break or leak and may
cause fire, injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used batteries together.
•
This may cause a battery to break or leak and may cause fire, injury,
or contamination (damage).
The batteries (and rechargeable batteries) are not ordinary refuse and
must be returned for recycling purposes. The customer is responsible for
returning the used or rechargeable batteries for recycling purposes as the
consumer.
•
The customer can return used or rechargeable batteries to a nearby
public recycling center or to a store selling the same type of the battery
or rechargeable battery.
When lifting up or moving the monitor, do not lift the monitor upside
down while holding only the stand.
•
This may cause your monitor to fall, and become damaged or cause
personal injury.
Do not place the product in a location exposed to direct sunlight or
near any heat such as a fire or heater.
•
This may reduce the lifetime of the product, and may result in fire.
Do not drop any objects onto the product or cause any impact to the
product.
•
Otherwise, this may result in electric shock or fire.
Do not use a humidifier or kitchen table near the product.
•
Otherwise, this may result in electric shock or fire.
When there is a gas leak, do not touch the product or the power plug
but ventilate immediately.
•
If a spark occurs, it may cause an explosion or fire.
If the product has been turned on for a long time, the display panel
becomes hot. Do not touch it.
•
Keep the small accessories in a location out of the reach of children.
7
Safety Instructions
Be careful when adjusting the angle of the product or the height of the
stand.
•
This may result in personal injury as your hand or fingers may become caught.
•
Also, if you tilt the product too far, it may fall and cause personal
injury.
Do not install the product in a location low enough for children to
reach.
•
Otherwise, it may fall and result in personal injury.
•
Since the front part of the product is heavy, install the product on a
level and stable surface.
Do not put any heavy objects on the product.
•
This may result in personal injury and/or damage to the product.
Good Postures When Using the Monitor
When using the product, use it in the correct position.
•
Keep your back straight while looking at the product.
•
The distance between your eyes and the screen should
be between 45 to 50 cm. Look at the screen from a
slightly higher location than the height of the screen.
•
When using the product, use it in the correct position.
•
Adjust the angle so that light is not reflected on the
screen.
•
Place your arms perpendicular to your sides and allow
your arms to be level with the back of the hand.
•
Keep your elbow at 90 degrees.
•
Keep your knees at greater than 90 degrees, and keep
your heels firmly on the floor. Keep your arms lower
than your heart.
8
Introduction
Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without stand
With stand
Manuals
Quick Setup Guide
Warranty Card
User's Guide, Monitor Driver
(Not available in all locations)
Cables
D-Sub Cable
DVI Cable
9
Power Cord
Introduction
Others
Remote Control
Batteries (AAA X 2)
Cleaning Cloth
(Not available in all locations)
Sold separately
HDMI Cable
DVI to HDMI Cable
Earphones/Headphones
RCA Cable (Video-Yellow,
Audio-Red and White)
TV Antenna Cable
Component (PR, PB, Y) Cable
(Coaxial Cable)
RCA to stereo (for PC) cable
S-VIDEO Cable
10
Introduction
Your Monitor
Front
SOURCE
Activates a highlighted menu item.
Push the 'SOURCE', button to change the input signal source.
Changing the source is only allowed for external devices connected to the product
at the time.
To switch Screen modes:
[PC] → [DVI] → [TV] → [AV] → [S-Video] → [Component] →
[HDMI]
>> Click here to see an animation clip
MENU
Use this button for open the on-screen menu and exits from the menu screen or
closes screen adjustment menu.
- VOL +
Moves from one menu item to another horizontally or adjusts selected menu values. Adjusts the audio volume.
CH
Moves from one menu item to another vertically or adjusts selected menu values.
In TV mode, selects TV channels.
Remote Control Sensor
Aim the remote control towards this spot on the monitor.
Power button [
] / Power indicator
Use this button for turning the product on and off
11
Introduction
This will enable you to see the overall power status of the system. For more information, see the PowerSaver section.
Speaker
You can hear sound by connecting the soundcard of your PC to the monitor.
Rear
Note
See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed or when leaving it unattended
for long periods.
(The configuration at the back of the monitor may vary from product to product.)
POWER
POWER
Connect the power cord for your monitor to the
POWER on the back of the monitor.
This product may be used with 100 ~ 240VAC
(+/- 10%).
DVI/PC IN / HDMI/PC/DVID AUDIO IN
12
Introduction
1.
PC
: Connect the signal cable to the PC port on
the back of your monitor.
2.
DVI-D
: Connect the DVI cable to the DVI-D port
on the back of your monitor.
3.
HDMI/PC/DVI-D AUDIO IN
: Connect the HDMI/PC/DVI-D AUDIO IN
terminal at the back of your monitor to your
computer�Øs sound card.
COMPONENT IN
R - AUDIO - L
Connect the port of the DVD, VCR (DVD / DTV
Set-Top Box) to the [ R - AUDIO - L] port of the
product.
PR, PB,Y
Connect the VIDEO OUT port of the DVD / DTV
Set-Top Box to the [ PR, PB,Y ] input ports using
a component video cable ( PR, PB,Y ).
ANT IN
Connect the CATV cable or TV antenna cable
to the "ANT IN" port on the rear side of the monitor. Make sure to use a TV antenna cable (sold
separately) as the antenna cable.
HDMI IN
Connect the HDMI IN terminal at the back of
your monitor to the HDMI terminal of your digital
output device using a HDMI cable.
Kensington Lock
13
Introduction
The Kensington lock is a device used to physically fix the system when using it in a public
place.
(The locking device has to be purchased separately.)
For using a locking device, contact where you
purchase it.
S-VIDEO / VIDEO / R - AUDIO - L /
1.
S-VIDEO / VIDEO: Input devices such as
DVD, VCR or Camcorder are connected to
the VIDEO or S-VIDEO terminal of the
monitor using the Video or S-Video cable.
2.
R - AUDIO - L : Connect the port of the
DVD, VCR (DVD / DTV Set-Top Box) to
the R - AUDIO - L port of the monitor.
3.
: Connect your headphones to the
Headphone connection terminal.
Note
See Connecting the monitor for further information regarding cable connections.
Remote Control
The performance of the remote control may be affected by a TV or other electronic device operated
near the monitor, causing malfunction due to interference with frequency.
14
Introduction
电源
频道按钮
-/--
项目
静音
上下按钮 / 频道按钮
确认
显示
节目源
返回
频道
退出
图像效果
伴音效果
画面静止
放大
节目源
立体声切换
定时
画中画
自动
1.
电源
Turns the monitor On/Off.
2. 频道按钮
Selects TV channels in the TV mode.Used to change channels
when PIP is selected and the PIP SOURCE is set to TV.
3. -/--
(One/Two-Digit channel selection)
Use to select a channel numbered ten or over.
Press this button, and the "--" symbol is displayed.
Enter the two-digit channel number.
4.
5.
6.
Adjusts the audio volume.
项目
静音
Opens the on-screen menu and exits from the menu or closes the
adjustment menu.
Press to mute the sound temporarily.Displayed on the bottom left
of the screen. Press the MUTE button again to cancel the Mute
function. Alternatively press the
buttons to cancel the
Mute function.
15
Introduction
上下按钮/频道
7.
按钮
8.
9.
10.
确认
显示
节目源
11. 返回
12.
13.
频道
退出
14. 图像效果
Moves from one menu item to another horizontally, vertically or
adjusts selected menu values.
Activates a highlighted menu item.
Current picture information is displayed on the upper left corner
of the screen.
Press the button to change the input signal SOURCE.Changing
the SOURCE is only allowed for external devices that are connected to the monitor at the time.
This button is used to return to the immediately previous channel.
In TV mode, selects TV channels.
Exits from the menu screen.
Press to select a pre-defined Picture Mode of the monitor or to
change the picture atmosphere as required.
When you press this button, current mode is displayed on the lower
center of the screen.
TV / AV / S-Video / Component / HDMI : P.MODE
The monitor has four automatic picture settings that are preset at
the factory.
Then press the button again to circle through available preconfigured modes.
( Dynamic -> Standard -> Movie -> Custom )
PC / DVI Mode : M/B (MagicBright)
MagicBright is a new feature providing the optimum viewing environment depending on the contents of the image you are watching.
Then press the button again to circle through available preconfigured modes.
( Entertain -> Internet -> Text -> Dynamic Contrast -> Custom )
15. 伴音效果
When you press this button, current mode is displayed on the lower
center of the screen. The monitor has a built-in high fidelity stereo
amplifier.
Then press the button again to circle through available preconfigured modes.
( Standard ->Music ->Movie ->Speech ->Custom )
16. 画面静止 - Operates only
for the CVBS, S-Video and RF
Signal SOURCEs.
Press the button once to freeze the screen. Press it again to unfreeze.
17. 放大
Press to change the screen size.
- PC / DVI mode : Wide / 4:3
- TV / Ext/AV/S-Video mode: Auto Wide / Wide /16:9 /
Zoom1 / Zoom2 / 4:3
16
Introduction
- Component / HDMI : Wide / 16:9 / Zoom1 / Zoom2 / 4:3
18. 节目源 - Adjustable when
the PIP function is ON.
Selects the Video SOURCE.
19. 立体声切换
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on broadcasting type by using DUAL button on the remote control while
watching TV.
20. 定时
Turns the monitor off after a pre-determined period of time.
21. 画中画 - Available in PC/
DVI Mode
Push the "画中画" button to turn PIP screen On/Off.
22. 自动 - Available In PC
mode Only
Adjusts the screen display automatically.
17
Connections
Connecting the monitor
1. Connecting to a Computer
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
•
Connect the signal cable to the [PC] port on the back of your monitor.
[PC]
Using the DVI (Digital) connector on the video card.
•
Connect the DVI Cable to the [DVI-D] Port on the back of your Monitor.
[DVI-D]
Connect the [HDMI / PC DVI-D AUDIO IN] port on the rear side of the monitor to the sound
card of the PC.
Turn on both your computer and the monitor.
18
Connections
2. Connecting to a Macintosh
1. Using the D-sub (Analog) connector on the video card.
•
Connect the signal cable to the D-SUB port on the back of your monitor.
[PC]
2.Turn on the monitor and Macintosh.
Connecting to Other devices
Note
This monitor allows the user to connect it to such input devices as a DVD player, a VCR or camcorder,
or a DTV or TV without disconnecting the PC.
The configuration at the back of the monitor may vary from product to product.
Connecting AV Devices / Connecting Headphone
The monitor has AV connection terminals to connect AV input devices like DVDs, VCRs or Camcorders. You may enjoy AV signals as long as the monitor is turned on.
You may connect your headphones to the monitor.
1.
Input devices such as DVD, VCR or Camcorder are connected to the VIDEO or S-VIDEO terminal
of the monitor using the Video or S-Video cable.
2.
Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the R-AUDIO-L port of the
monitor.
19
Connections
3.
Connect your headphones to the Headphone connection terminal.
4.
Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
5.
Select AV or S-Video using the SOURCE .
Connecting TV
Note
You may view television programs on the monitor if it is connected to an antenna or CATV cable
without installing any separate TV reception hardware or software on your computer.
1.
Connect the CATV cable or TV antenna cable to the "ANT IN" port on the rear side of the monitor.
Make sure to use a TV antenna cable (sold separately) as the antenna cable.
•
When using an interior antenna terminal:
Check the antenna terminal on the wall first and connect the antenna cable.
•
When using an outdoor antenna:
If you are using an outdoor antenna, use a professional for installation if possible.
•
To connect the RF cable to the antenna input terminal:
Keep the copper wire portion of the RF cable straight.
2.
Turn on the monitor.
3.
Select TV using the SOURCE
4.
Select a desired TV channel.
Note
Is weak signal causing poor reception?
Purchase and install a signal amplifier for better reception.
Connecting DVD / DTV Set Top Box
Note
Connect to the DVD / DTV Set Top Box input if the device has a [COMPONENT IN] connector. You
can watch Component simply by hooking up the Component with the monitor as long as the power is
on.
20
Connections
1.
Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the [R-AUDIO-L] port of the
monitor.
2.
Connect the VIDEO OUT port of the DVD / DTV Set-Top Box to the [PR, PB,Y] input ports using
a component video cable (PR, PB,Y).
3.
Select Component using the SOURCE
Connecting HDMI
Note
You cannot connect a PC to the HDMI IN terminal.
1.
Input devices such as digital DVD are connected to the HDMI IN terminal of the monitor using
the HDMI cable.
2.
Then, start the DVD with a DVD disc inserted.
3.
Select HDMI using the SOURCE button
21
Connections
Connecting Using a DVI to HDMI Cable
1.
2.
Connect the DVI output terminal of a digital output device to the [HDMI IN] terminal of the
monitor using a DVI to HDMI cable.
Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio
output terminals of the digital output device, and connect the opposite jack to the [HDMI/PC DVI
AUDIO IN] terminal of the monitor.
3.
Then, start the DVD with a DVD disc inserted.
4.
Select "HDMI" using the 'SOURCE' button.
Using the Stand
Folding the base
You can tilt the monitor upwards at an angle of 0° to 18°.
22
Using the Software
Monitor Driver
Note
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site
shown here.
Internet web site :
http://www.samsung.com/ (Worldwide)
Installing the Monitor Driver (Automatic)
1.
Insert CD into the CD-ROM drive.
2.
Click "Windows".
3.
Choose your monitor model in the model list, then click the "OK" button.
4.
If you can see following message window, then click the "Continue Anyway" button. Then click
"OK" button (Microsoft® Windows® XP/2000 Operating System).
23
Using the Software
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
http://www.samsung.com/
Installing the Monitor Driver (Manual)
Note
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site
shown here.
Internet web site :
http://www.samsung.com/ (Worldwide)
Microsoft® Windows Vista™‚ Operating System
1.
Insert your Manual CD into your CD-ROM drive.
2.
Click
3.
Click "Personalization" and then "Display Settings".
4.
Click "Advanced Settings...".
(Start) and "Control Panel". Then, double-click on "Appearance and Personalization".
24
Using the Software
5.
Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the
configuration for your monitor is completed. The monitor can be used as is.
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
6.
Click "Update Driver..." in the "Driver" tab.
7.
Check the "Browse my computer for driver software" checkbox and click "Let me pick from a
list of device drivers on my computer".
25
Using the Software
8.
Click "Have Disk...” and select the folder (for example, D:\Drive) where the driver setup file is
located, and click "OK".
9.
Select the model that matches your monitor from the list of monitor models on the screen, and
click "Next".
10. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.
26
Using the Software
Microsoft® Windows® XP Operating System
1.
Insert CD into the CD-ROM drive.
2.
Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.
3.
Click "Display" icon and choose the "Settings" tab then click "Advanced...".
4.
Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
27
Using the Software
5.
Click "Update Driver..." and select "Install from a list or..." then click "Next" button.
6.
Select "Don't search, I will..." then click "Next" and then click "Have disk".
7.
Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model
list and click the "Next" button.
8.
If you can see following message window, then click the "Continue Anyway" button. Then click
"OK" button.
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
28
Using the Software
http://www.samsung.com/
9.
Click the "Close" button then click "OK" button continually.
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1.
Choose "OK" button on the "Insert disk" window.
2.
Click the "Browse" button on the "File Needed" window.
3.
Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1.
Click "Start", "Setting", "Control Panel".
2.
Double click the "Display" icon.
3.
Select the "Settings" tab and click "Advanced Properties" button.
4.
Choose "Monitor".
Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please
stop installation
Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
5.
Click "Driver" and then click on "Update Driver..." then click on the "Next" button.
6.
Choose "Display a list of the known drivers for this device so that I can choose a specific driver"
then click "Next" and then click "Have disk".
7.
Click the "Browse" button then choose A:(D:\Driver).
8.
Click the "Open" button, then click "OK" button.
29
Using the Software
9.
Choose your monitor model and click the "Next" button then click "Next" button.
10. Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click
the "Finish" button then the "Close" button.
Microsoft® Windows® Millennium Operating System
1.
Click "Start", "Setting", "Control Panel".
2.
Double click the "Display" icon.
3.
Select the "Settings" tab and click "Advanced Properties" button.
4.
Select the "Monitor" tab.
5.
Click the "Change" button in the "Monitor Type" area.
6.
Choose "Specify the location of the driver".
7.
Choose "Display a list of all the driver in a specific location..." then click "Next" button.
8.
Click the "Have Disk" button.
9.
Specify A:\(D:\driver) then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to
your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.
Microsoft® Windows® NT Operating System
1.
Click "Start", "Settings", "Control Panel", and then double-click "Display" icon.
2.
In Display Registration Information window, click Settings Tab and then click "All Display
Modes".
3.
Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and
then click "OK".
4.
Click "Apply" button if you see the screen working normally after clicking "Test". If the screen
is not normal, change to a different mode (lower mode of resolution, colors or frequency).
Note
If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by
referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1.
Press "Enter" at the first and the second screen after executing the X86Config file.
2.
The third screen is for setting your mouse.
3.
Set a mouse for your computer.
4.
The next screen is for selecting a keyboard.
30
Using the Software
5.
Set a Keyboard for your computer.
6.
The next screen is for setting your monitor.
7.
First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
8.
Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9.
Enter the model name of your monitor. This information will not affect the actual execution of
X-Window.
10. You have finished setting up your monitor. Execute X-Window after setting other requested
hardware.
Natural Color
Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a printer
or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications
Research Institute (ETRI). This system is available only for Samsung monitors and makes the color
of the images on the monitor the same as the printed or scanned images. For more information, refer
to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of
the program Natural Color will be executed. Click Natural Color on the initial screen to install the
Natural Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM
Drive, click the [Start] button of Windows and then select [Run...]. Enter D:\color\NCProSetup.exe
and then press the [Enter] key. (If the drive where the CD is inserted is not D:\, enter the applicable
drive.)
31
Using the Software
How to delete the Natural Color software program
Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program".
Select Natural Color from the list and then click the "Add/Delete" button.
32
Adjusting the Monitor
Input
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may different depending on the selected Input Mode (input signal source selected
in External Input List) and the selected resolution.
Source List
Use to select PC, TV or other external input source connected to the Monitor.Use to select the screen
of your choice.
The direct button on the remote control is "节目源" button.
1.
PC
2.
DVI
3.
TV
4.
AV
33
Adjusting the Monitor
5.
S-Video
6.
Component
7.
HDMI
PIP
When external AV devices such as VCRs or DVDs are connected to the monitor, PIP allows you to
watch video from those devices in a small window super-imposed on the PC Video signal. (Off / On)
1.
PIP : Turn the PIP Screen on or off.
The direct button on the remote control is "画中画" button.
•
2.
Off / On
Source : Select the input SOURCE for the PIP.
The direct button on the remote control is "节目源" button.
•
PC / DVI : TV / AV / S-Video
34
Adjusting the Monitor
3.
Size : Change the Size of the PIP window.
•
/
/
If you select
4.
in Size, Position will not be activated.
Position : Change the Position of the PIP window.
•
/
/
/
35
Adjusting the Monitor
Edit Name
Name the input device connected to the input jacks to make your input source selection easier
1.
PC
2.
DVI
3.
AV
4.
S-Video
5.
Component
6.
HDMI
36
Adjusting the Monitor
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may different depending on the selected Input Mode (input signal source selected
in External Input List) and the selected resolution.
PC / DVI Mode
MagicBright
MagicBright is a new feature providing the optimum viewing environment depending on the contents
of the image you are watching. Currently five different modes are available:Entertain, Internet,
Text, Dynamic Contrast and Custom. Each mode has its own pre-configured brightness value.You
can easily select one of five settings by simply pressing the MagicBright‚ control button.
1.
Entertain
High Brightness.
For watching motion pictures such as a DVD or VCD.
2.
Internet
Medium Brightness.
37
Adjusting the Monitor
For working with a mixture of images such as texts and graphics.
3.
Text
Normal Brightness.
For documentations or works involving heavy text.
4.
Dynamic Contrast
Dynamic Contrast is to automatically detect distribution of inputted visual signal and adjust to
create optimum contrast.
5.
Custom
Although the values are carefully chosen by our engineers, the pre-configured values may not be
comfortable to your eyes depending on your taste.
If this is the case, adjust the Brightness and Contrast by using the OSD menu.
Custom
You can use the on-screen menus to change the contrast and brightness according to personal preference.
1.
Contrast : Adjust the Contrast.
2.
Brightness : Adjust the Brightness.
Note
If you adjust the picture by using Custom function, MagicBright will turn to the Custom mode.
38
Adjusting the Monitor
Colour Tone
The tone of the colour can be changed.
The individual colour DTVs are also user adjustable.
1.
PC : Cool / Normal / Warm / Custom
2.
DVI : Cool / Normal / Warm
Colour Control
Adjusts the individual R, G, B Colour Controls.
1.
Red
2.
Green
3.
Blue
39
Adjusting the Monitor
( Available in PC Mode Only. )
Note
If you adjust picture by using Colour Control function, Colour Tone will turn to the Custom mode.
Image Lock
Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images
with jitter and shimmer. If satisfactory results are not obtained using the Fine adjustment, use the Coarse
adjustment and then use Fine again.
(Available in PC Mode Only)
1.
Coarse
: Removes noise such as vertical stripes.
Coarse adjustment may move the screen image area. You may relocate it to the center using the
Horizontal Control menu.
2.
Fine
: Removes noise such as horizontal stripes.
If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).
40
Adjusting the Monitor
3.
Sharpness
- When the SOURCE is set to DVI, only this function operates.
: Adjusts the picture sharpness.
4.
Position
: Adjusts the screen location horizontally and vertically.
41
Adjusting the Monitor
Auto Adjustment
The values of Fine, Coarse, Position are adjusted automatically.
By changing the resolution in the control panel, auto function is performed.
(Available in PC Mode Only)
42
Adjusting the Monitor
Size
You can switch the Size.
1.
Wide
2.
4:3
PIP Picture
You can adjust the PIP Screen Settings.
1.
Contrast
: Adjusts the Contrast of the PIP window on the screen.
2.
Brightness
: Adjusts the Brightness of the PIP window on the screen.
43
Adjusting the Monitor
3.
Sharpness
: Adjusts the Sharpness of the PIP window on the screen.
4.
Colour
: Adjusts the Colour of the PIP window on the screen.
Available : PIP ON
TV / AV / S-Video / Component / HDMI Mode
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may be different depending on the selected Input Mode (input signal SOURCE
selected in External Input List) and the selected resolution.
Mode
The Monitor has four automatic picture settings ("Dynamic", "Standard", "Movie", and "Custom") that
are preset at the factory.You can activate either Dynamic, Standard, Movie, or Custom. You can select
"Custom" which automatically recalls your personalized picture settings.
The direct button on the remote control is the "图像效果" button.
44
Adjusting the Monitor
1.
Dynamic
2.
Standard
3.
Movie
4.
Custom
Custom
You can use the on-screen menus to change the contrast and brightness according to personal preference.
1.
Contrast
: Adjusts the contrast.
2.
Brightness
: Adjusts the brightness.
3.
Sharpness
: Adjusts the picture sharpness.
4.
Colour
: Adjusts the picture colour.
45
Adjusting the Monitor
Colour Tone
The tone of the colour can be changed. The individual colour components are also user adjustable.
1.
Cool2
2.
Cool1
3.
Normal
4.
Warm1
5.
Warm2
Size
You can switch the Size.
The direct button on the remote control is "放大" button.
46
Adjusting the Monitor
•
TV / AV / S-Video mode : Auto Wide / Wide / 16:9 / Zoom1 / Zoom2 / 4:3
•
Component / HDMI mode : Wide / 16:9 / Zoom1 / Zoom2 / 4:3
Sound
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may different depending on the selected Input Mode (input signal source selected
in External Input List) and the selected resolution.
Mode
The Monitor has a built-in high fidelity stereo amplifier.
1.
Standard
Choose Standard for the standard factory settings.
2.
Music
Choose Music when watching music videos or concerts.
3.
Movie
47
Adjusting the Monitor
Choose Movie when viewing movies.
4.
Speech
Choose Speech when watching a show that is mostly dialogue (i.e., news).
5.
Custom
Choose Custom if you want to adjust the settings according to personal preference.
Custom
The sound settings can be adjusted to suit your personal preference.
1.
Bass
Emphasize low frequency audio.
2.
Treble
Emphasize high frequency audio.
3.
Balance
Allows you to adjust the sound balance between the left and right speakers.
You can hear the sound even when the sound value is set to 0.
48
Adjusting the Monitor
Auto Volume
Reduces the differences in volume level among broadcasters.
•
Off
•
On
Sound Select
You can select either Main or Sub when PIP is On.
1.
Main
2.
Sub
Available : PIP ON
49
Adjusting the Monitor
Channel
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may different depending on the selected Input Mode (input signal source selected
in External Input List) and the selected resolution.
Auto Store
You can scan the frequency ranges available on your television in your area and store all the channels
found automatically.
50
Adjusting the Monitor
Manual Store
You can scan the frequency ranges available on your television in your area and store all the channels
found manually.
1.
Programme
: Inputting the appropriate program number on the screen.
2.
Colour System
: Adjusts repeatedly until the colour is of the best quality.
(Auto <-> PAL <-> SECAM <-> NTSC4.43 <-> NTSC3.58 )
3.
Sound System
: Adjusts repeatedly until the sound is of the best quality.
(BG <-> DK <-> I <-> M)
4.
Channel
: Choosing the air channel through the adjustment of up/down under the current frequency.
5.
Search
: The tuner scans the frequency range until the first channel or the channel that you selected is
received on your screen.
6.
Store
: It's used to restore the number user inputs.
Add/Delete
1.
Channel List
: You can add or delete a channel so only channels you want are displayed.
“
“ is active when "Child Lock" is selected to "On".
51
Adjusting the Monitor
2.
Child Lock
: Protects children from viewing inappropriate programs by blocking certain broadcast or video
programs.
The Child Lock feature can be selected only from the remote.
52
Adjusting the Monitor
Sort
It's used to exchange the numbers of two channels.
Name
If channel name information is broadcast when you store the channels either manually or automatically,
the names are assigned to the channels directly. You can however change these names or assign new
names as required.
53
Adjusting the Monitor
Fine Tune
Due to weak signals or an incorrect antenna configuration, some of the channels may not be tuned
correctly.
Setup
Available Modes
•
PC / DVI
•
TV
•
AV
•
S-Video
•
Component
•
HDMI
Note
The default setting may different depending on the selected Input Mode (input signal source selected
in External Input List) and the selected resolution.
54
Adjusting the Monitor
Language
You can choose one of 2 languages.
Note : The language chosen affects only the language of the OSD.
It has no effect on any software running on the computer.
Sleep Time
Turns the monitor off after a pre-determined period of time.
1.
Off
2.
30
55
Adjusting the Monitor
3.
60
4.
90
5.
120
6.
150
7.
180
The direct button on the remote control is the "定时" button.
Transparency
Changes the opaqueness of the background of the OSD.
1.
High
2.
Medium
3.
Low
4.
Opaque
56
Adjusting the Monitor
Blue Screen
If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy
picture background. If you wish to continue viewing the poor picture, you must set the "Blue screen"
mode to "Off".
1.
Off
2.
On
Reset
Picture parameters are replaced with the factory default values.
1.
Image Reset
2.
Colour Reset
57
Adjusting the Monitor
HDMI Black Level
When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the
screen quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending
on the external device connected. In this case, adjust the screen quality of your TV by configuring the
HDMI black level.
1.
Normal
2.
Low
58
Troubleshooting
Self-Test Feature Check
Note
Check the following items yourself before calling for service. Contact the service center for problems
that you cannot solve by yourself.
Self-Test Feature Check │ Not Optimum Mode │ Display Adapter Driver │ Maintenance and
Cleaning │ Symptoms and Recommended Actions
1.Self-Test Feature Check
1.
Turn off both your computer and the monitor.
2.
Unplug the video cable from the back of the computer.
3.
Turn on the monitor.
The figure shown below ("Check Signal Cable") appears on a black background when the monitor is in its normal working condition though it does not sense any video signal: While in the
Self-Test mode, the LED power indicator remains green and the figure moves around on the
screen.
4.
Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video controller
and computer system; your monitor is functioning properly.
2.Not Optimum Mode
If the vertical resolution is not optimum mode, you can still see the display but the warning message
below appears and disappears after one minute.
The user must adjust the frequency within that one minute.
Note
Refer to Specifications > Preset Timing Modes for the resolutions or frequencies that are supported
by the monitor.
3.Display Adapter Driver
Note
Display adapter refers to the computer video card driver.
59
Troubleshooting
If the adapter is not properly set, you cannot adjust resolution, frequency or color and you cannot install
the monitor driver.
1.
Checking Adapter Driver
Click Start -> Settings -> Control Panel -> Display -> Settings -> Advanced -> Adapter.
If "Default" or a wrong product model is indicated, it means that the adapter driver is not properly
installed. Install the adapter driver again according to the information provided by the computer
or video card manufacturers.
2.
Installing Adapter Driver
Note
The instructions given below are for general circumstances.
For specific issues, contact the relevant computer or video card manufacturers.
1.
Click Start -> Settings -> Control Panel -> Display -> Settings -> Advanced -> Adapter->
Update Driver -> Next -> Display a list of the known drivers for this device so that I can
choose a specific driver -> Next -> Have Disk (Insert Video Card Driver diskette) -> OK > Next -> Next -> Finish.
2.
In case you have Adapter Driver Setup file on your computer:
Run Setup.exe or Install.exe, which is found in the Adapter Driver Setup file.
4.Maintenance and Cleaning
1. Maintaining the Monitor Case.
Clean with a soft cloth after disconnecting the power cord.
•
Do not use benzene, thinner or other flammable substances, or a wet cloth.
•
We recommend a Samsung cleansing agent is used to prevent damage to the screen.
2. Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.
•
Never use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
•
The user will be required to pay costs and related expenses
for repair of damages caused by him/her.
5.Symptoms and Recommended Actions
Note
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the
computer or the video card, this can cause the monitor to become blank, have poor coloring, noise,
Video mode not supported, etc. In this case, first check the SOURCE of the problem, and then contact
a service center or your dealer.
60
Troubleshooting
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if you installed the adapter
(video) driver and the monitor driver.
4.Check if the scanning ratio of the video screen is set at 56 Hz ~ 75 Hz.
(Do not exceed 60 Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove
the Display Adapter at the "Control Panel, System, Device Administrator" and then reboot the computer
to reinstall the adapter (video) driver.
Check List
Note
Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or
contact your dealer.
Installation │ Screen │ Audio │ Remote Control
1. Problems related to Installation
Note
Problems related to the monitor installation and their solutions are listed.
PC Mode
Q:
It appears the PC does not function normally.
A:
Check if the Display Adapter Driver (VGA Driver) is properly installed. (Refer to Installing
Driver)
Q:
The monitor screen flickers.
A:
Check if the signal cable between the computer and the monitor is securely connected and tightened. (Refer to Connecting the monitor)
TV Mode
Q:
TV screen is blurred or shows noise signals.
A:
Check if the TV antenna connector is securely connected to the external antenna.(Refer to
Connecting TV)
Q:
TV signal is not received
A:
Select "Auto Store" to configure the channel system automatically. (Refer to the Auto Store)
2. Problems related to Screen
Note
Problems related to the monitor screen and their solutions are listed.
61
Troubleshooting
Q:
Screen is blank and power indicator is off.
A:
Ensure that the power cord is firmly connected and the LCD monitor is on.(Refer to the Connecting the monitor)
Q:
"Check Signal Cable" message.
A:
Ensure that the signal cable is firmly connected to the PC or video SOURCEs.(Refer to the
Connecting the monitor)
Ensure that the PC or video SOURCEs are turned on.
Q:
"Not Optimum Mode" message.
A:
Check the maximum resolution and the frequency of the video adapter.
Compare these values with the data in the Preset Timing Modes Chart.
Q:
Picture rolls vertically.
A:
Check if the signal cable is securely connected.Connect it again securely. (Refer to Connecting
the monitor)
Q:
Image is not clear. Picture is blurred.
A:
Run Frequency Coarse and Fine tuning.
Turn on again after removing all accessories. (video extension cable, etc)
Set resolution and frequency to the recommended ranges.
Q:
Picture image is unstable and vibrates.
Ghost images are shown in the picture.
A:
Check if the resolution and frequency set for the computer video card falls in the range supported
by the monitor. If not, reset them referring to the current Information under the monitor menu
and Preset Timing Modes.
Q:
The image is too light or too dark.
A:
Adjust the Brightness and Contrast.(Refer to the Brightness, Contrast)
Q:
Screen color is inconsistent.
Color image is distorted with dark shadows.
White color is poor.
A:
Adjust color using Custom under OSD Color Adjustment menu.
Q:
Power Indicator blinks green.
A:
The monitor is currently saving the changes made in settings to the OSD memory.
Q:
Screen is blank and power indicator light is steady green or blinks every 0.5 or 1 seconds.
A:
The monitor is using its power management system.
press a key on the keyboard.
Q:
The screen is blank and is blinking.
62
Troubleshooting
A:
If you see the "TEST GOOD" message on the screen when you press the MENU button, check
the cable connection between the monitor and the computer to ensure that the connector is
properly connected.
3. Problems related to Audio
Note
Problems related to audio signals and their solutions are listed below.
Q:
No sound
A:
Ensure that the audio cable is firmly connected to both the audio-in port on your monitor and
the audio-out port on your sound card.(Refer to the Connecting the monitor)
Check the volume level.(Refer to the Volume)
Q:
The sound level is too low.
A:
Check the volume level.(Refer to the Volume)
If the volume is still too low after turning the control to its maximum, check the volume control
on the computer sound card or software program.
Q:
Sound is too high pitched or too low pitched
A:
Adjust the Treble and Bassto appropriate level.
4. Problems related to Remote Control
Note
Problems related to the remote control and their solutions are listed.
Q:
The remote control buttons do not respond.
A:
Check the battery polarities (+/-).
Check if the batteries have been exhausted.
Check if the power is on.
Check if the power cord is securely connected.
Check if a special fluorescent or neon lamp is on in the vicinity.
Q&A
Q:
How can I change the frequency?
A:
The frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version of the driver used. (Refer to the
computer or the video card manual for details.)
Q:
How can I adjusts the resolution?
A:
Windows XP:
Set the resolution in the Control Panel → Appearance and Themes → Display → Settings.
A:
Windows ME/2000:
63
Troubleshooting
Set the resolution in the Control Panel → Display → Settings.
* Contact the video card manufacturer for details.
Q:
How can I set the Power Saving function?
A:
Windows XP:
Set the resolution in the Control Panel → Appearance and Themes → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).
A:
Windows ME/2000:
Set the resolution at the Control Panel → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).
Q:
How can I clean the outer case/LCD Panel?
A:
Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning
solution or plain water.
Do not leave any detergent or scratches on the case. Do not let any water enter the monitor.
64
Specifications
General
General
Model Name
SyncMaster 2232MW
LCD Panel
Size
22 inch (56 cm)
Display area
473.76 mm (H) x 296.1 mm (V)
Pixel Pitch
0.282(H) x 0.282(V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 75 Hz
Display Color
16.7M
Resolution
Optimum resolution
[email protected]
Maximum resolution
[email protected]
Input Signal, Terminated
RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
146.250MHz (Analog,Digital)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin - to - 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Dimensions (W x H x D) / Weight (Simple Stand)
531.5 x 390.9 x 69 mm / 20.93 x 15.39 x 2.72 inch (Without Stand)
531.5 x 438.9 x 209 mm / 20.93 x 17.28 x 8.23 inch (With Stand) / 5.6kg / 12.35 lbs
Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
65
Specifications
Environmental considerations
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. The interaction of the
monitor and the computer systems will provide the best operating conditions and monitor
settings. In most cases, the monitor installation will proceed automatically, unless the user
wishes to select alternate settings.
Dot Acceptable
TFT-LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above are used for this product. But the pixels of RED,
GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may
be seen. This is not from bad quality and you can use it without any problems.
For example, the number of TFT-LCD sub pixels contained in this product are 5,292,000.
Note
Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas. (Class B equipment emits less electromagnetic
waves than Class A equipment.)
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor to low-power mode when it has not been used for a certain amount of time.
The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.
State
Normal Operation Power saving mode Power off (Power button)
EPA/ENERGY 2000
Power Indicator
Blue
Blue blinking
black
Power Consumption
Less than 45 watts
Less than 2 watts
Less than 2 watts
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjusts the screen as follows.
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31.469
70.086
25.175
+/-
66
Specifications
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.75
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA, 1280 x 1050
64.674
59.883
119.000
+/-
VESA, 1680 x 1050
64.674
59.883
119.000
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the
left edge of the screen horizontally is called the Horizontal
Cycle and the inverse number of the Horizontal Cycle is
called the Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same
image many times per second to display an image to the
user. The frequency of this repetition is called the Vertical
Frequency or Refresh Rate. Unit: Hz
67
Information
For Better Display
Adjust the computer resolution and screen injection rate (refresh rate) on the computer
as described below to enjoy the best picture quality. You can have an uneven picture quality
on screen if the best picture quality is not provided for TFT-LCD.
•
Resolution: 1680 x 1050
•
Vertical frequency (refresh rate): 60 Hz
TFT-LCD panels manufactured by using advanced semiconductor technology with a
precision of 1ppm (one millionth) and above is used for this product. But the pixels of RED,
GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels
could be seen. This is not from bad quality and you can use it without any problems.
•
For example, the number of TFT-LCD sub pixels contained in this product are
5,292,000.
When cleaning the monitor and the panel outside, please apply the recommended small
amount of cleaner by using a soft cloth to polish. Do not force the LCD area but rub softly.
If excessive force is applied, you may stain it.
If you are not satisfied with the picture quality, you can get better quality of picture by
performing the "Auto Adjustment function" in display screen that is appeared as window
termination button is pressed.
If there's still noise after the automatic adjustment, use the Fine/Coarse adjustment function.
When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear.
Change the mode to energy save or set a screensaver to move the picture when you need
to be away from the monitor for an extended period of time.
Do not display a still image( such as on a video game or when hooking up a DVD to
this LCD_TV ) on the Color TFT-LCD ( Thin Film Transister Liquid Crystal Display) panel
for a long time as it can cause screen image retention. This image retention is also known
as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of this screen when displaying a still image.
PRODUCT INFORMATION (Image Retention Free)
LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time.
This guide is to demonstrate correct usage of LCD products in order to protect them from Image
retention.
Warranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.
68
Information
What is Image retention ?
During normal operation of a LCD panel, pixel image retention doesn't occur. However, if
the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid
crystal to build up in a certain areas of the display. Thus, the previous image is retained
when switching to a new video image. All display products, including LCD, are subject to
image retention. This is not a product defect.
Please follow the suggestions below to protect your LCD from image retention.
Power Off, Screen Saver, or Power Save Mode
Ex)
•
•
Turn the power off when using a stationary pattern.
•
Turn the power off for 4 hours after 20 hours in use
•
Turn the power off for 2 hours after 12 hours in use
Use a Screen saver if possible
•
•
Screen saver in one color or a moving image is recommended.
Set the Monitor to power off with the PC Display Properties Power Scheme.
Suggestions for specific applications
Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:
Display Information together with Logo or Moving image cycle.
Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image
for 1 minute.
Change the Color Information periodically (Use 2 different colors).
Ex) Rotate the Color Information with 2 colors every 30 minutes.
Avoid using a combination of characters and background color with large difference in
luminance.
Avoid using Grey colors, which can cause Image retention easily.
•
Avoid: Colors with big difference in luminance (Black & White, Grey)
Ex)
69
Information
•
Recommended settings: Bright colors with little difference in luminance
•
Change the characters color and background color every 30 minutes
Ex)
•
Every 30 minutes, change the characters with movement.
Ex)
The best way to protect your monitor from Image retention is to set your PC or System
to operate a Screen Saver program when you are not using it.
Image retention may not occur when a LCD panel is operated under normal conditions.
Normal conditions are defined as continuously changing video patterns. When the LCD
panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight
difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The
voltage difference between electrodes increases with time, forcing the liquid crystal to lean.
When this occurs, the previous image may be seen when the pattern is changed.
To prevent this, the accumulated voltage difference must be decreased.
70
Information
Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II
71
Appendix
Contact SAMSUNG WORLDWIDE
Note
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
North America
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864) http://www.samsung.com
Latin America
ARGENTINE
0800-333-3733
http://www.samsung.com/ar
BRAZIL
0800-124-421
http://www.samsung.com
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com/co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
HONDURAS
800-7919267
JAMAICA
1-800-234-7267
NICARAGUA
00-1800-5077267
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
http://www.samsung.com/latin
TRINIDAD & TO- 1-800-SAMSUNG(726-7864)
BAGO
http://www.samsung.com/latin
VENEZUELA
http://www.samsung.com/latin
0-800-100-5303
Europe
AUSTRIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/at
BELGIUM
0032 (0)2 201 24 18
http://www.samsung.com/be
CZECH REPUBLIC 844 000 844
http://www.samsung.com/cz
DENMARK
70 70 19 70
http://www.samsung.com/dk
EIRE
0818 717 100
http://www.samsung.com/ie
FINLAND
030-6227 515
http://www.samsung.com/fi
FRANCE
3260 SAMSUNG (€ 0,15/Min) http://www.samsung.com
08 25 08 65 65 (€ 0,15/Min)
72
Appendix
Europe
GERMANY
01805 - SAMSUNG (726-7864) http://www.samsung.com
(€ 0,14/Min)
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com
LUXEMBURG
0035 (0)2 261 03 710
http://www.samsung.com/be
NETHERLANDS
0900 SAMSUNG (726-7864) € http://www.samsung.com/nl
(0,10/Min)
NORWAY
815-56 480
http://www.samsung.com/no
POLAND
0 801 801 881
http://www.samsung.com/pl
022-607-93-33
PORTUGAL
80820-SAMSUNG (726-7864)
http://www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/sk
SPAIN
902 10 11 30
http://www.samsung.com
SWEDEN
0771-400 200
http://www.samsung.com/se
SWITZERLAND
0800-SAMSUNG (726-7864)
http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864)
http://www.samsung.com
CIS
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
800-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.kz
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
TADJIKISTAN
8-10-800-500-55-500
UKRAINE
8-800-502-0000
http://www.samsung.com
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.uz
http://www.samsung.ru
Asia Pacific
AUSTRALIA
1300 362 603
http://www.samsung.com
CHINA
800-810-5858
http://www.samsung.com
010-6475 1880
HONG KONG
3698 - 4698
http://www.samsung.com/hk
INDIA
3030 8282
http://www.samsung.com
1800 110011
INDONESIA
0800-112-8888
http://www.samsung.com
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG(726-7864)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG(726-7864) http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com
73
Appendix
Asia Pacific
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com
Middle East & Africa
SOUTH AFRICA
0860-SAMSUNG(726-7864)
http://www.samsung.com
TURKEY
444 77 11
http://www.samsung.com
U.A.E
800-SAMSUNG(726-7864)
http://www.samsung.com
8000-4726
Terms
Sync Signal
Sync (Synchronized) Signals refer to the standard signals that are
required to display desired colors on the monitor. They are divided
into Vertical and Horizontal Sync Signals. These signals display
normal color images by the set resolution and frequency.
Types of Sync Signals
Separate
This is a scheme of transmitting individual vertical and hori
sync signals to the monitor.
Composite
This is a scheme of combining vertical and horizontal syn
nals into one composite signal and transmitting it to the mo
The monitor displays the color signals by separating the co
site signal into original color signals.
Dot Pitch
The image on a monitor is composed of red, green and blue dots.
The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit:
mm
Vertical Frequency
The screen must be redrawn several times per second in order to
create and display an image for the user. The frequency of this
repetition per second is called the Vertical Frequency or Refresh
Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this
is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge
of the screen horizontally is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace
Methods
Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace
method. The Non-Interlace method is used for the majority of
monitors to ensure a clear image. The Interlace method is the same
as that used in TVs.
and
Non-Interlace
Plug & Play
This is a function that provides the best quality screen for the user
by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard
VESA DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the
screen image is called the 'resolution'. This number shows the ac-
74
Appendix
curacy of the display. A high resolution is good for performing
multiple tasks as more image information can be shown on the
screen.
Example: If the resolution is 1680(1920) x 1050(1200), this means
the screen is composed of 1680(1920) horizontal dots (horizontal
resolution) and 1050(1200) vertical lines (vertical resolution).
RF Cable
A round signal cable generally used for TV antennas.
Satellite Broadcasting
Balances the levels of the sound coming from each speaker in
televisions with two speakers.
Sound Balance
Balances the levels of the sound coming from each speaker in
televisions with two speakers.
Cable TV
Whereas the terrestrial broadcasting is delivered via frequency
signals through the air, cable broadcasting is transmitted via a cable network. In order to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
CATV
"CATV" refers to the broadcasting service offered at hotels,
schools and other buildings through their own broadcasting system, apart from VHF or UHF broadcasting by terrestrial broadcasters. The CATV programs may include movies, ment and
educational programs. (Different from cable TV.)
CATV can be viewed only within the area in which the CATV
service is offered.
S-Video
Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality video.
VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels
14 through 69.
Channel Fine Tuning
This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The Samsung LCD TV has both
automatic and manual channel fine-tuning features to enable the
viewer to adjust their desired settings.
External Device Input
External device input refers to video input from such external video devices as VCRs, camcorders and DVD players, separate from
a TV broadcast.
DVD
A type of digital disk technology that takes up only the benefits
of CD and LD, to implement a high resolution/quality, which enables the user to enjoy clearer images.
DTV Broadcasting (Digital TV
Broadcasting)
An enhanced broadcasting technology to process digital video
signals using a set-top box, which implements a high resolution
and clearer digital images on the screen.
LNA (Low Noise Amplifier)
This derives from artificial satellite technology that amplifies
weak signals even in poor reception areas for sharper images.
Antenna Converter
A connection part that is used to link a Wide antenna cable (feeder
cable) to the TV.
75
Appendix
English Caption (= Caption Setting)
A kind of language selection feature that provides English subtitles (caption) or character information services from broadcasting
services (ex: AFKN) or video tapes (marked CC), and which are
especially useful for studying English.
Multiplex Broadcasting
This enables the user to enjoy the broadcasting service in both
Korean and foreign (original) language as well as in stereo mode.
A2
This system uses two carriers to transmit voice data. Countries
such as South Korea and Germany use this system.
BTSC
Broadcast Television System CommitteeThe stereo broadcasting
system that is used in most of the countries that have adopted the
NTSC system, including the United States, Canada, Chile, Venezuela and Taiwan. It also refers to the organization that has been
organized to promote its development and management.
EIAJ
Electronic Industries Association of Japan.
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Europe only
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Authority
Information in this document is subject to change without notice.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are registered
trademarks of Video Electronics Standard Association; the ENERGY STAR® name and logo are reg-
76
Appendix
istered trademarks of the U.S. Environmental Protection Agency (EPA).All other product names
mentioned herein may be the trademarks or registered trademarks of their respective owners.
77
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
