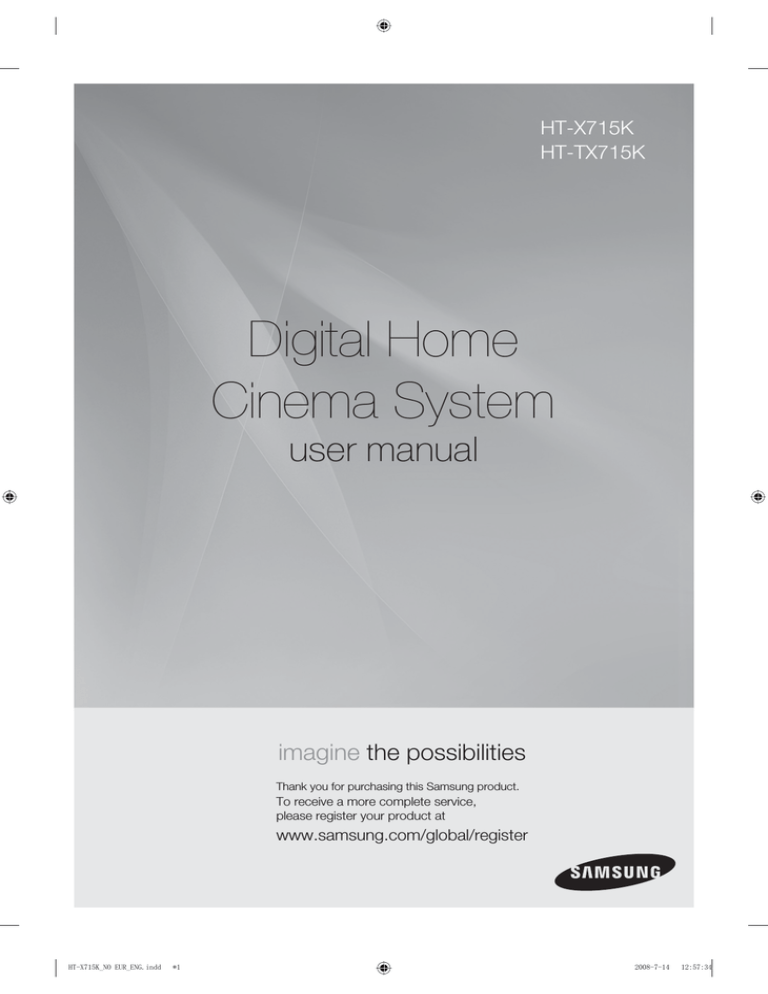

HT-X715K
HT-TX715K
Digital Home
Cinema System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
HT-X715K_NO EUR_ENG.indd
*1
2008-7-14
12:57:34
safety information
Playback of many different disc types
This Home Cinema System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD,
WMA-CD, DivX, CD-R/RW, and DVD±R/RW.
SAFETY WARNINGS
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to
deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
USB Host support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Cinema's USB HOST function.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Cinema Systems Inc. It delivers full-frequency 5.1 channel
sound.
TV Screen Saver Function
If the unit remains in Stop mode for 3 minutes, the Samsung logo appears on the TV screen.
The HT-X715K, HT-TX715K automatically switches itself into the power saving mode after 20 minutes in the Screen
Saver mode.
ENG
features
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
Power Saving Function
The HT-X715K, HT-TX715K automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-X715K, HT-TX715K allows you to select your favorite image during JPEG, DVD playback and set it as your
background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+(HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)
Bluetooth Function
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
WHAT’S INCLUDED
Check for the supplied accessories below.
Video Cable
2
HT-X715K_NO EUR_ENG.indd
FM Antenna
User's Manual
Remote Control
/ Batteries (AAA size)
ASC microphone
3
2-3
2008-7-14
12:57:54
contents
ENG
safety information
FEATURES
PRECAUTIONS
2
What’s included
3
4
Safety Warnings
Precautions
7
8
8
8
9
Before Reading the User’s Manual
Playable Discs
Do not use the following types of disc!
Copy Protection
Disc Type and Characteristics
10
11
Front Panel
Rear Panel
12
14
Tour of the Remote Control
Setting the Remote Control
16
20
22
24
25
27
27
Connecting the Speakers
Connecting the Optional Wireless Receiving
Amplifier
Connecting the Video Out to your TV
HDMI Function
Connecting Audio from External Components
Connecting the FM Antenna
Connecting Microphone
28
Before Using Your Home Cinema
29
30
31
32
34
42
44
Disc Playback
MP3/WMA-CD Playback
JPEG File Playback
DivX Playback
Using the Playback Function
Using BLUETOOTH
Playing Media Files using the USB Host
Feature
2
SAFETY INFORMATION
3
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10 cm). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove
the mains plug from the wall outlet, especially when left unused for a long period of time.
GETTING STARTED
7
DESCRIPTION
10
REMOTE CONTROL
During thunderstorms, disconnect the AC mains plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
12
CONNECTIONS
16
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approximately 2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
BEFORE USING YOUR HOME CINEMA
28
PLAYBACK
29
4
HT-X715K_NO EUR_ENG.indd
5
4-5
2008-7-14
12:57:56
getting started
SYSTEM SETUP
46
54
54
55
56
56
57
Setting the Language
Setting TV Screen Type
Setting Parental Controls (Rating Level)
Setting the Password
Setting the Wallpaper
To Select One of the 3 Wallpaper Settings
You've Made
DVD Playback Mode
Setting the SPEAKER MODE
Setting the Delay Time
Setting the Test Tone
Setting the Audio
Setting the DRC (Dynamic Range
Compression)
Setting the AV SYNC
Setting the HDMI Audio
Sound Field (DSP)/EQ Function
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
ASC (Auto Sound Calibration) SETUP
59
59
Listening to Radio
Presetting Stations
50
50
51
52
52
53
RADIO
59
60
CONVENIENT FUNCTION
60
60
60
61
61
Sleep Timer Function
Mute Function
S.VOL (Smart Volume)
P.BASS
Audio Upscaling
BEFORE READING THE USER’S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
B
A
G
D
M
M
Term
Definition
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that
have been recorded and finalized in Video Mode.
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs, including USB.
JPEG
This involves a function available with CD-R/-RW discs, including USB.
DivX
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
Caution
This involves a case where a function does not operate or settings may be
cancelled.
Note
This involves tips or instructions on the page that help each function
operate.
● GETTING STARTED
46
47
48
48
49
49
ENG
contents
 In this manual, the instructions marked with "DVD (
)" are applicable to DVD-VIDEO, DVD-AUDIO and
DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is
mentioned, it is indicated separately.
 If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
About the use of this user’s manual
1) Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4)
2) If a problem occurs, check the Troubleshooting. (See pages 62~63)
TROUBLESHOOTING
60
64
62
Troubleshooting
Copyright
© 2008 Samsung Electronics Co.,Ltd.
LANGUAGE CODE LIST
64
Language Code List
USB HOST FEATURE SUPPORTED
PRODUCTS
65
65
65
Digital Camera
USB Flash Disc
MP3 Player
66
67
Cautions on Handling and Storing Discs
Specifications
65
66
APPENDIX
6
HT-X715K_NO EUR_ENG.indd
6-7
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
7
2008-7-14
12:58:01
getting started
This product does not support Secure (DRM) Media files.
❖ CD-R Discs
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie cinema or concert hall.
DVD players and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
~ 6
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
❖ CD-R MP3 Discs
PLAYABLE DISCS
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
Max. Playing Time
Approx. 240 min. (single-sided)
12 cm
Approx. 480 min. (double-sided)
DVD-AUDIO
AUDIO + VIDEO
DVD-VIDEO
Approx. 80 min. (single-sided)
8 cm
Approx. 160 min. (double-sided)
COMPACT
12 cm
74 min.
8 cm
20 min.
12 cm
—
8 cm
—
AUDIO
AUDIO-CD
DIGITAL AUDIO
AUDIO + VIDEO
DivX
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession
disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
❖ CD-R JPEG Discs
•
•
•
•
•
DO NOT USE THE FOLOWING TYPES OF DISCS !
• LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the
TV screen.
COPY PROTECTION
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
8
HT-X715K_NO EUR_ENG.indd
● GETTING STARTED
1
ENG
DISC TYPE AND CHARACTERISTICS
•
•
•
Only files with the "jpg" extensions can be played.
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank segment.
A maximum of 9,999 images can be stored on a single CD.
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
❖ DVD±R/RW, CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by
the user might not play.
• Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.
net".
9
8-9
2008-7-14
12:58:02
description
1
ENG
REAR PANEL
2 3 4 5 6 7
FRONT PANEL
● DESCRIPTION
8
9
10
11
12
8
9
7
POWER( ) BUTTON
PLAY/PAUSE (
FUNCTION BUTTON
TUNING UP & SKIP ( ) BUTTON
10
MIC 2 JACK
TUNING DOWN & SKIP ( )
BUTTON
VOLUME CONTROL
11
AUX IN 1/ASC IN JACK
STOP (¦) BUTTON
DISC TRAY
12
USB PORT
10
HT-X715K_NO EUR_ENG.indd
) BUTTON
MIC 1 JACK
5.1 CHANNEL SPEAKER OUTPUT CONNECTORS
Connect the front, center, rear, subwoofer speakers.
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
AUX IN 2 JACKS
Connect to the 2CH analog output of an external device (such as a VCR)
VIDEO OUTPUT JACK
Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
EXTERNAL DIGITAL OPTICAL INPUT JACK
Use this to connect external equipment capable of digital output.
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the main unit and the
optional wireless receiver amplifier.
FM 75Ω COAXIAL JACK
Connect the FM antenna.
COOLING FAN
The fan always revolves when the power is on. Ensure a minimum of
10 cm of clear space on all sides of the fan when installing the product.
HDMI OUT JACK
Use the HDMI cable, connect this HDMI output terminal to the HDMI input
terminal on your TV for the best quality picture.
11
10-11
2008-7-14
12:58:03
DVD RECEIVER button
20
PORT button
2
TV button
21
SLEEP button
TOUR OF THE REMOTE CONTROL
3
POWER button
22
EJECT button
4
NUMBER (0~9) buttons
23
CANCEL button
5
REMAIN button
24
PAUSE button
6
REPEAT button
19
1
2
SLEEP
3
20
21
22
4
REPEAT
23
24
25
8
26
TUNING PRESET/CD SKIP buttons
8
VOLUME button
26
TUNING/CH button
9
MENU button
27
MUTE button
10
AUDIO button
28
RETURN button
29
CURSOR/ENTER button
PL II MODE button
12
TUNER MEMORY, SD(Standard
Definition)/HD(High Definition) button
30
SUBTITLE button
13
P.BASS button
31
EXIT button
14
ECHO button
32
INFO button
15
ASC button
33
LOGO button
16
MIC - button
34
AUDIO UPSCALE button
17
SLOW, MO/ST button
35
SOUND EDIT button
36
DSP/EQ button
37
ZOOM button
38
S.VOL button
39
MIC + button
18
PL II EFFECT button
DVD
9
27
28
29
PLAY button
STOP button
SEARCH buttons
7
11
5
6
7
25
19
DVD button
TUNER button
AUX button
● REMOTE CONTROL
1
ENG
remote control
Insert Remote Batteries
30
12
HT-X715K_NO EUR_ENG.indd
10
31
11
32
12
13
14
15
16
17
18
33
34
35
36
37
38
39
1. Remove the battery
cover in the direction
of the arrow.
M
2.
Insert two 1.5V AAA batteries, paying
attention to the correct polarities
(+ and –).
3. Replace the battery
cover.
Follow these precautions to avoid leaking or cracking cells:




Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.
13
12-13
2008-7-14
12:58:17
No.
No.
Brand
SETTING THE REMOTE CONTROL
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
You can control certain functions of your TV with this remote control.
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
46
Nikei
03
12, 13, 14
47
Onking
03
When operating a TV with the remote control
Brand
Code
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
1. Press the TV button to set the remote to TV mode.
6
Brocsonic
59, 60
50
Penney
18
2. Press the POWER button to turn on the TV.
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
3. While holding down the POWER button, enter the code
corresponding to your brand of TV.
• If there is more than one code listed for your TV in the
table, enter one at a time to determine which code
works.
Example : For a Samsung TV
While holding down the POWER button, use the number
buttons to enter 00, 15, 16, 17 and 40.
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Theater
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
21
Daytron
40
65
Sharp
15, 57, 64
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
M
 The remote control may not work on some brands of TVs. Also, some operations may not be possible
depending on your brand of TV.
 If you do not set the remote control with the code for your brand of TV, the remote control will work on a
Samsung TV by default.
Operation Range of the Remote Control
The remote control can be used up to approximately
7 meters in a straight line. It can also be operated at a horizontal angle of
up to 30° from the remote control sensor.
14
● REMOTE CONTROL
4
4. If the TV turns off, the setting is complete.
• You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
HT-X715K_NO EUR_ENG.indd
Code
ENG
remote control
TV Brand Code List
59, 60, 98
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
15
14-15
2008-7-14
12:58:23
ENG
connections
Front/Rear Tallboy Stand (HT-TX715K only)
Speaker Components
This section involves various methods of connecting the Digital Home Cinema to
other external components.
Before moving or installing the product, be sure to turn off the power and
disconnect the power cord.
SCREW (Large) :
4EA
● CONNECTIONS
CONNECTING THE SPEAKERS
SPEAKER
STAND
STAND BASE
SCREW (Small) :
16EA
How to Install the Speaker on the Stand
1. Turn the STAND upside-down and connect it to the STAND BASE.
1
STAND
BASE
STAND
2. Turning the SCREW (Small) clockwise, connect it to four holes marked with the
arrow using a screwdriver as shown in the illustration.
2
3. Connect the assembled stand to the SPEAKER.
3
Position of Digital Home Cinema
Place it on a stand or cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away
from the TV.
Example : For 32" TVs 2~2.4m
For 55" TVs 3.5~4m
Front Speakers ei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the center speaker or place them slightly
in front of the center speakers.
SPEAKER
STAND
4. Turning the SCREW (Large) clockwise, connect to a hole on the
screwdriver as shown in the illustration.
4
5. This is the successfully assembled speaker.
5
Subwoofer g
The position of the subwoofer is not so critical. Place it anywhere you like.
Center Speaker f
It is best to install it at the same height as the front speakers. You can also install it directly over or under
the TV.
Rear Speakers hj
Place these speakers behind your listening position. If there isn't enough room, place these speakers
such that they face each other. Place them about 60 to 90cm from your ear, facing slightly downward.
* Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and
sound will not come from them all the time.
M
 Make sure that the TALLBOY type speaker should be installed on the flat and stable area. Otherwise it may
fall down due to external shock.
16
HT-X715K_NO EUR_ENG.indd
17
16-17
2008-7-14
12:58:25
connections
ENG
HT-TX715K
Connecting The Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire into
the red (+) terminal, and then release the tab.
Front Speaker (R)
Black
● CONNECTIONS
3. Connect the connecting plugs to the back of the Home Cinema.
• Make sure the colors of the speaker terminals match the colors of
the connecting plugs.
Front Speaker (L)
Red
Center Speaker
Subwoofer
HT-X715K
Front Speaker (R)
Front Speaker (L)
Rear Speaker (R)
J
Center Speaker
Rear Speaker (L)
 Do not let children play with or near the speakers. They could get hurt if a speaker falls.
 When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
Subwoofer
 Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or
other objects into the duct (hole) of the subwoofer speaker.
Rear Speaker (R)
 Do not hang the subwoofer on the wall through the duct (hole).
Rear Speaker (L)
M
 If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
18
HT-X715K_NO EUR_ENG.indd
19
18-19
2008-7-14
12:58:32
M
 Place the wireless receiver module at the rear of the listening
To connect the rear speakers by wireless, you have to purchase the wireless receiving module and TX card from
your Samsung retailer.
When you have Purchased the Wireless Receiving Module (SWA-4000)
HT-X715K
Front Speaker (L)
J
 Do not insert any other card except the TX card dedicated to the product. The product might be damaged or
● CONNECTIONS
position. If the wireless receiver module is too close to the main unit,
some sound interruption may be heard due to interference.
 If you use a device such as a microwave oven, wireless LAN Card,
Bluetooth equipment, or any other device that uses the same frequency
(5.8GHz) near the system, some sound interruption may be heard due to
interference.
 The transmission distance of a radio wave is about 10m, but may
vary depending on your operating environment. If a steel-concrete
wall or metallic wall is between the main unit and the wireless
receiver module, the system may not operate at all, because the
radio wave cannot penetrate metal.
 This product (HT-X715K, HT-TX715K) is compatible with the wireless receiver module SWA-3000.
CONNECTING THE OPTIONAL WIRELESS RECEIVING AMPLIFIER
Front Speaker (R)
ENG
connections
the card may not be removed easily.
Rear Speaker (L)
 Do not insert the TX card upside down or in the reverse direction.
 Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a
Rear Speaker (R)
problem.
Center Speaker
Subwoofer
 If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit.
 The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
moisture.
 For optimal listening performance, make sure that the area around the wireless receiver module location is
clear of any obstructions.
 If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1 channel or Dolby ProLogic II.
 In 2-CH mode, no sound will be heard from the wireless rear speakers.
WIRELESS RECEIVER MODULE
HT-TX715K
Front Speaker (R)
Rear Speaker (L)
Front Speaker (L)
Rear Speaker (R)
Center Speaker
WIRELESS RECEIVER MODULE
Subwoofer
1. Connect the front, center and Subwoofer speakers to the
DVD Player. Please refer to Pages 18~19.
2. With the DVD Player turned off, insert the TX card into the TX
Card Connection(WIRELESS) on the back of the main unit.
• Hold the TX card so that the slanted side faces downward
and insert the card into the port.
• The TX card enables communication between the main
unit and the wireless receiver.
3. Connect the left and right rear speakers to the wireless
receiving module.
4. Plug the power cord of the wireless receiving module into
the wall outlet and turn the module ON.
20
HT-X715K_NO EUR_ENG.indd
TX card
Slanted side faces
down
21
20-21
2008-7-14
12:58:46
CONNECTING THE VIDEO OUT TO YOUR TV
• HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.
Using HDMI, the DVD Home Cinema transmits a digital video and audio signals and displays a vivid
picture.
ENG
connections
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on.
Choose one of the three methods for connecting to a TV.
• Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Cinema) or an
analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is
degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A
conversion and is a pure digital signal from the player to your TV.
METHOD2
METHOD3
(supplied)
METHOD1
(supplied)
METHOD 1 : HDMI
● CONNECTIONS
• HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
• What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device
(TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from
being made.
• What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the
Anynet+ feature.
- If your Samsung TV has an n logo, then it supports the Anynet+ function.
- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
Connect a HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on
your TV.
METHOD 2 : Component Video
If your television is equipped with Component Video inputs, connect a Component video cable(not
supplied) from the Component Video Output (PR, PB and Y) jacks on the back of the DVD Player to the
Component Video Input jacks on your TV.
METHOD 3 : Composite Video
Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the
VIDEO IN jack on your TV.
M
 The resolution from the Component Output is 576i(480i).
 If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Cinema
using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).
 Please check the n logo (If your TV has an n logo, then it supports the Anynet+ function.)
22
HT-X715K_NO EUR_ENG.indd
23
22-23
2008-7-14
12:59:05
connections
ENG
CONNECTING AUDIO FROM EXTERNAL COMPONENTS
AUX1 : Connecting an External Component/MP3 player
HDMI FUNCTION
Components such as an MP3 Player
Resolution Selection
In Stop mode, press and hold the SD/HD (Standard Definition/High
Definition) button on the remote control for longer than 5 seconds.
• Resolutions available for the HDMI output are 576p(480p),
720p, 1080i/1080p.
• SD(Standard Definition) resolution is 576P(480p) and HD
(High Definition) resolution is 720p, 1080i/1080p.
The default value of HDMI output is 576P(480P).
M
 If the TV does not support the configured resolution, you will
not be able to see the picture.
 When an HDMI cable is connected, composite and component
● CONNECTIONS
This function allows the user to select the screen resolution for
HDMI output.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD video
signal digitally without the process
of converting to analog. You will get
sharper digital pictures when using
an HDMI connection.
video signals are not output.
Audio Cable
(not supplied)
 See your TV owner's manual for more information on how to select the TV's Video Input source.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other
Samsung Devices with your Samsung TV's remote control.
Anynet + can be used by connecting this Home Cinema to a
SAMSUNG TV using an HDMI Cable. This is only available with
SAMSUNG TVs that support Anynet+.
Audio OUT
With Anynet+
You can operate this unit, power on
your TV, or watch a movie by pressing
the Play button on your Samsung TV's
remote control.
1. Connect the main unit of the Home Cinema to a Samsung
TV with an HDMI cable. (See page 22)
2. Set the Anynet+ function on your TV.
(See the TV instructions manual for more information.)
• You can operate the Home Cinema by using the TV remote
control. (Available TV buttons : ,
,
,
, ▲, ▼ and ◄, ►
buttons, ~
button)
1. Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/MP3
player.
MOVE
MOVE
ENTER
ENTER
EXIT
EXIT
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV.
• Receiver : On : You can listen to audio through the Home Cinema.
• Receiver : Off : You can listen to audio through the TV.
2. Press the AUX button on the remote control to select AUX1 input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD DIGITAL IN AUX 1 AUX 2 USB BT AUDIO TUNER.
If you select the Theater
Select THEATER to connect and set the option of each item below.
MOVE ENTER
EXIT
• View TV : If Anynet+(HDMI-CEC) is set to on and you select View TV, the
Home Cinema will automatically switch to DIGITAL IN mode.
• THEATER Menu : You can access and control the Home Cinema menu.
• THEATER Operation : The Home Cinema disc playback information will be displayed.
You can control the Disc operation of the Home Cinema such as title, chapter
and subtitle change.
• Receiver : On : You can listen to audio through the Home Cinema.
• Receiver : Off : You can listen to audio through the TV.
M
HT-X715K_NO EUR_ENG.indd
 The Cinema function is available only when you listen to the audio through the Home Cinema with the digital
optical cable connected.
24
24-25
25
2008-7-14
12:59:18
connections
ENG
CONNECTING THE FM ANTENNA
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
AUX2 : Rear Panel
OPTICAL : Rear Panel
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
Audio Cable (not supplied)
Optical Cable
(not supplied)
If the external analog
component has only one Audio
Out, connect either left or right.
External Analog
Component
● CONNECTIONS
FM Antenna (supplied)
M
External Digital
Component
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
 This unit does not receive AM broadcasts.
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit
may rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered
with a newspaper or cloth, heat may build up inside the unit and fire may result.)
1. Connect AUX IN 2 (Audio) on the Home Cinema to the Audio Out of the external analog component.
• Be sure to match connector colors.
2. Press the AUX button on the remote control to select AUX 2 input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD DIGITAL IN AUX 1 AUX 2 USB BT AUDIO TUNER.
M
CONNECTING MICROPHONE
 You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR
to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the Home Cinema to the Digital Output of the external digital
component.
2. Press the AUX button on the remote control to select DIGITAL IN.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD DIGITAL IN AUX 1 AUX 2 USB BT AUDIO TUNER.
You can enjoy the feeling of a karaoke bar in the comfort of your home.
Watch the video and sing along the lyrics displayed on the TV screen
against the accompaniment.
1. Connect the microphone to the MIC jack on the front panel.
 You can connect up to two microphones.
2. Press the MIC VOL button to adjust the voice volume of the
microphone.
3. Press the ECHO button to adjust the echo level of the
microphone.
M
If you hear strange noises (squealing or howling) while using
the Karaoke feature, move the microphone away from the
speakers. Turning down the microphone volume or the speaker
volume is also effective.
 When HDMI Audio is on, Mic is not available.
26
HT-X715K_NO EUR_ENG.indd
27
26-27
2008-7-14
12:59:24
The DVD Home Cinema's remote can be used to control Samsung TVs.
playback
ENG
before using your home cinema
DISC PLAYBACK
B
● PLAYBACK
1. Load a disc vertically into the Disc Insert Hole.
• Place a disc gently into the tray with the disc’s label facing
up.
2. Close the compartment by pressing the PLAY (
• Playback starts automatically.
) button.
1. Plug the main unit's power cord into the AC power supply.
2. Press the DVD RECEIVER button to switch to DVD
RECEIVER mode to operate the DVD Home Cinema.
3. Press the FUNCTION button on the main unit or DVD
button on the remote to enable DVD/CD playback.
4. Press the TV button to set the remote to TV mode.
5. Press the POWER button to turn on your Samsung TV with
this remote.
6. Press the TV/VIDEO button to select VIDEO mode on your
TV.
VIDEO
To stop playback, press the STOP () button during playback.
• If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory.
If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
• If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PAUSE ( ) button during playback.
• To resume playback, press the PLAY ( ) button again.
Selecting the Video Format
Press and hold the Number 7 button on the remote controller for over 5 seconds while the power is
turned off.
• By default, the video format is set to "PAL".
• "NTSC" or "PAL" will appear in the display. At this time, press the
Number 7 button shortly to select between "NTSC" and "PAL".
• Each country has a different video format standard.
• For normal playback, the video format of the disc must be the same
as the video format of your TV.
28
HT-X715K_NO EUR_ENG.indd
M
 You can use the product in either vertical or horizontal position. If you select to use it either vertically or
horizontally, The operation (Previous / Next) of the # or $ button will be automatically adjusted to the
applicable position.
 Depending on the content of the disc, the initial screen may appear different.
 Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
29
28-29
2008-7-14
12:59:32
playback
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played
back with this Home Cinema.
MP3/WMA-CD PLAYBACK
G
Rotate/Flip Function
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
Press the Cursor ▲, ▼, ◄, ► button during playback.
● PLAYBACK
A
ENG
JPEG FILE PLAYBACK
1. Load the MP3/WMA disc.
• The MP3/WMA menu screen will appear and
playback will start.
• The appearance of the menu depends on the
MP3/WMA disc.
• WMA-DRM files cannot be played.
2. In Stop mode, use the Cursor ▲, ▼, ◄, ► button
to select the album, and then press the ENTER button.
• Use the Cursor ▲, ▼ button to select the track.
3. To change the album, use the Cursor ▲, ▼, ◄, ► button to
select another album in Stop mode, and then press the
ENTER button.
button: Flip Vertically
4. Press the STOP () button to stop playback.
button: Rotate 90°
Counterclockwise
button: Rotate 90°
Clockwise
Original Image
button: Flip Horizontally
M
M
 The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files
and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
 Depending on the recording mode, some MP3/WMA-CDs may not play.
 Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
 If a JPEG file is played when the HDMI output resolution is 720p/1080i/1080p, the mode is automatically
switched to 576P(480p).
To play a file icon in the screen,
• Press the Cursor ▲, ▼, ◄, ► button when it is in Stop mode and select a desired icon from the
top part of the menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view all files, select the
30
HT-X715K_NO EUR_ENG.indd
Icon.
31
30-31
2008-7-14
12:59:36
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have to
select your subtitle language as follows:
DIVX PLAYBACK
The functions discussed on this page apply to DivX disc playback only.
During playback, press the #, $ button.
• Goes to the next file whenever you press the $ button,
if there are over 2 files on the disc.
• Goes to the previous file whenever you press the
# button, if there are over 2 files on the disc.
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
1. Supported Formats
During playback, press the ,  button.
To play back the disc at a faster speed, press the  or
 button during playback.
• Each time you press either button, the playback speed
will change as follows:
2x Π4x Π8x Π32x ΠNormal.
This product only supports the following media formats.If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.
Supported Video Formats
D
During playback, press the Cursor ◄, ► button.
• Playback skips 5 minutes forward whenever you press the Cursor ► button.
• Playback skips 5 minutes back whenever you press the Cursor ◄ button.
Audio Display

D
is displayed when there is one supported language on the disc.
Subtitle Display
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
MP3
WMA
AC3
Bit Rate
80~384kbps
56~128kbps
128~384kbps
Sampling Frequency
Press the AUDIO button.
• If there are multiple audio languages on a disc, you can
toggle between them.
• Each time you press the button, your selection will toggle
between AUDIO (1/N, 2/N ...).
M
2. When you select the desired DivX file from the TV
screen, the movie will be played normally.
DivX(Digital internet video express)
D
5 Minutes Skip function
1. In Stop mode, press the Cursor ▲, ▼ button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
● PLAYBACK
D
Skip Forward/Back
Fast Playback
D
If the Disc has more than One Subtitle File
ENG
playback
D
44.1khz
44.1/48khz
• Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports
up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature
properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean
and Chinese) for the file name.
Press the SUBTITLE button.
• Each time you press the button, your selection will toggle
between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.
• If the disc has only one subtitle file, it will be played
automatically.
• See number 2 (Caption Function) below for more details
concerning Subtitle usage with DivX discs.
32
HT-X715K_NO EUR_ENG.indd
33
32-33
2008-7-14
12:59:40
Fast Playback
Press the ,  button.
• Each time the button is pressed during playback, the
playback speed changes as follows:
USING THE PLAYBACK FUNCTION
Displaying Disc Information
BAD
BAGD
 2X ➞  4X ➞  8X ➞  32X ➞ X PLAY
Press the INFO button.
M
 Depending on the disc, the disc information display may
 During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.
● PLAYBACK
 2X ➞  4X ➞  8X ➞  32X ➞ X PLAY
You can view disc playback information on the TV screen.
M
ENG
playback
appear different.
 Depending on the disc, you can also select
Slow Playback
DTS, DOLBY DIGITAL, or PRO LOGIC.
D
Press the SLOW button.
• Each time the button is pressed during playback, the playback speed changes as follows:
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
1/2 ➞ 1/4 ➞ 1/8 ➞ 1/2 ➞ 1/4 ➞
1/8 ➞ X PLAY
D 1/2 ➞ 1/4 ➞ 1/8 ➞ X PLAY
Checking the Remaining Time
BA
Press the REMAIN button.
• For checking the total and remaining time of a title or
chapter being played.
M
 No sound is heard during slow playback.
 Reverse slow playback does not work with DivX.
Skipping Scenes/Songs
Each time the Remain button is pressed
DVD-VIDEO
TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN
DVD-AUDIO
GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN
A
Press the #, $ button.
• Each time the button is pressed during playback, the previous
or next chapter, track or directory (file) will be played.
• You cannot skip chapters consecutively.
B TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN
A TRACK REMAIN ➞ TRACK ELAPSED
34
HT-X715K_NO EUR_ENG.indd
35
34-35
2008-7-14
12:59:44
Repeat Playback
A-B Repeat Playback
You can repeatedly play back a designated section of a DVD.
BAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 file).
1. Press the INFO button twice.
2. Press the Cursor ► button to move to REPEAT PLAYBACK
( ) display.
● PLAYBACK
3. Press the Cursor ▲, ▼ button to select A- and then press
the ENTER button.
• When the ENTER button is pressed, the selected position
will be stored in memory.
Press the REPEAT button.
• Each time the button is pressed during playback, the repeat
playback mode changes as follows:
DVD-VIDEO
ENG
playback
4. Press the ENTER button at the end of the desired segment.
• The specified segment will be played repeatedly.
A-B
REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF
REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF
d To return to normal playback, press the Cursor ▲, ▼ button to select
DVD-AUDIO
B REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
BGD REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR
M
OFF.
 The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
➞ REPEAT : DISC ➞ REPEAT : OFF
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
GROUP : Repeatedly plays the selected group.
RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode on the disc Information Screen
B
1. Press the INFO button twice.
2. Press the Cursor ► button to move to REPEAT
PLAYBACK ( ) display.
3. Press the Cursor ▼ button to select the desired Repeat
Playback mode.
• To select another album and track, repeat s 2 and 3
above.
4. Press the ENTER button.
OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF
B OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF
M
36
HT-X715K_NO EUR_ENG.indd
 For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
37
36-37
2008-7-14
12:59:51
Bonus Group
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit
key number to access. See the disc packaging for details and the key
number.
Angle Function
This function allows you to view the same scene in different
angles.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
2. Press the Cursor ► button to move to ANGLE (
display.
)
M
3. Press the Cursor ▲, ▼ button or numeric buttons to select
the desired angle.
• Each time the button is pressed, the angle changes as
follows:
M
2/3 €
3/3 €
● PLAYBACK
1. Press the INFO button.
1/3 €
DVD-AUDIO
ENG
playback
 If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.
Navigating Pages
1/3
 The Angle function works only with discs on which multiple angles have been recorded.
DVD-AUDIO
During playback, press the ., , button on the remote control.
• You can select the desired image from a DVD-Audio disc
containing still images.
• With some discs, you may not be able to select images.
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the
displayed image.
1. Press the ZOOM button.
2. Press the Cursor ▲, ▼, ◄, ► button to move to the area
you want to enlarge.
Audio Language Selection Function
1. Press the INFO button twice.
3. Press the ENTER button.
• Each time the button is pressed, the zoom level changes
as follows:
ZOOM X 1.5 € ZOOM X 2 € ZOOM X 3 € ZOOM OFF
SELECT ZOOM POSITION
2. Press the Cursor ▲, ▼ button or numeric buttons to select
the desired audio language.
• Depending on the number of languages on a DVD disc,
a different audio language (ENGLISH, SPANISH,
FRENCH, etc.) is selected each time the button is
pressed.
EN 1/3 € SP 2/3 € FR 3/3 € EN 1/3
M
 To operate this function, you can also press the AUDIO buttons on the remote control.
 Depending on the disc, the Audio Language functions may not be available.
38
HT-X715K_NO EUR_ENG.indd
39
38-39
2008-7-14
12:59:54
Using the Disc Menu
You can use the menus for the audio language, subtitle
language, profile, etc.
DVD menu contents differ from disc to disc.
Subtitle Language Selection Function
1. In Stop mode, press the MENU button.
1. Press the INFO button twice.
2. Press the Cursor ▲, ▼ button or numeric buttons to move
to Disc Menu and then press the ENTER button.
• When you select Disc Menu and it is not supported by
the disc, the "This menu is not supported" message
appears on the screen.
)
3. Press the Cursor ▼ button or numeric buttons to select the
desired subtitle.
EN 01/03 € SP 02/03 € FR 03/03 € OFF/03 € EN 01/03
3. Press the Cursor ▲, ▼, ◄, ► button to select the desired
item.
4. Press the ENTER button.
 To operate this function, you can also press the SUBTITLE buttons on the remote control.
 Depending on the disc, the Subtitle Language functions may not be available.
d Press the EXIT button to exit the setup screen.
BAG
Moving Directly to a Scene/Song
● PLAYBACK
2. Press the Cursor ► button to move to SUBTITLE (
display.
M
ENG
playback
B
MOVE
M
ENTER
EXIT
 The disc menu display may be different depending on the disc.
1. Press the INFO button.
2. Press the Cursor ▲, ▼ button or numeric buttons to select
the desired title/track ( ) and then press the ENTER
button.
3. Press the Cursor ◄, ► button to move to the Chapter (
display.
)
4. Press the Cursor ▲, ▼ button or numeric buttons to select
the desired chapter and then press the ENTER button.
5. Press the Cursor ◄, ► button to move to time (
) display.
6. Press the numeric buttons to select the desired time and
then press the ENTER button.
AG
Using the Title Menu
For DVDs containing multiple titles, you can view the title of
each movie. Depending on the disc, the availability of this
feature may vary.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▲, ▼ button to move to Title Menu.
3. Press the ENTER button.
• The title menu appears.
d Press the EXIT button to exit the setup screen.
Press the numeric buttons.
• The selected file will be played.
• When playing an MP3 or JPEG disc, you cannot use the Cursor ▲, ▼
button to move to a folder.
To move a folder, press the STOP () and then press the Cursor
▲, ▼ button.
MOVE
M
HT-X715K_NO EUR_ENG.indd
EXIT
 You can press the #, $ button on the remote control to move directly to the desired title, chapter, or track.
 Depending on the disc, you may not be able to move to the selected title or time.
40
ENTER
M
 The Title menu display may be different depending on the disc.
41
40-41
2008-7-14
13:00:01
USING BLUETOOTH
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
To disconnect the Bluetooth device from the Home Cinema System
ENG
playback
You can disconnect the Home Cinema System from the
Bluetooth device. (refer to Bluetooth deivice's user's manual)
• The Home Cinema System will be disconnected.
• When the Home Cinema System is disconnected from the
Bluetooth device, the Home Cinema System will display
"Disconnect" on the front display.
Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect
with each other using a short wireless connection.
• A Bluetooth device may cause a noise or malfunction, depending on usage.
• When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device
or the Home Cinema System.
• Electrical variation from obstructions caused by a wall, corner or office partitioning.
• Electrical interference from same frequency-band devices including medical equipment, microwave
oven and wireless LAN.
• Pair the Home Cinema System with the Bluetooth device while maintaining a close distance.
• The further the distance is between Home Cinema System and Bluetooth device, the worse the
quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• The Home Cinema System only supports Middle Quality SBC data(up to [email protected]), and does
not support High Quality SBC data([email protected]).
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Home Cinema System has an effective reception range of up to 10 meters in all directions if there
are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even
within this range, the sound quality may be deteriorated by obstacles such as walls or doors.
To disconnect the Home Cinema System from the Bluetooth device
Press the FUNCTION button on the front panel of the home cinema system to switch from “BT AUDIO”
to another mode.
• The connected Bluetooth device will wait a certain time for response from the home cinema system
before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)
• The currently connected device will be disconnected.
M
● PLAYBACK
What is Bluetooth?
 In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Cinema
System and the Bluetooth device exceeds (10 meters). If the distance is returned to the effective range or you
restart the Bluetooth device, the Bluetooth connection can be restored.
 With some Bluetooth devices, some functions may not work properly.
To connect the Home Cinema System to a Bluetooth device
Check if the Bluetooth device supports the Bluetoothcompliant stereo headset function.
1. Press the FUNCTION button on the front panel of the
home cinema system repeatedly until "BT AUDIO"
appears.
• The mode switches as follows :
DVD/CD DIGITAL IN AUX 1 AUX 2 USB
BT AUDIO TUNER.
• You will see “WAIT” for 2 seconds and then
“READY” on the front display of the Home Cinema
System.
2. Select the Bluetooth menu on Bluetooth device you want
Connect
to connect. (refer to Bluetooth device's user manual)
3. Select the Stereo headset menu on the Bluetooth device.
• You will see a list of scanned devices.
4. Select "Samsung Home Theater" from the searched
Bluetooth devide
list.
• When the Home Cinema System is connected to the Bluetooth device, the Home Cinema System
will display "Connect" on the front display, followed by the device name of the connected
Bluetooth device.
• The Home Cinema System connection is complete.
5. Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the home cinema system.
M
 You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home cinema
system. If the PIN code input window appears, enter <0000>.
 The Home Cinema System may control play related function only when connected device supports the
function.
 The Home Cinema System only supports Middle Quality SBC data(up to [email protected]), and does not
support High Quality SBC data([email protected]).
42
HT-X715K_NO EUR_ENG.indd
43
42-43
2008-7-14
13:00:07
PLAYING MEDIA FILES USING THE USB HOST FEATURE
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital
camera in high quality video with 5.1 channel Home Cinema sound by connecting the storage device to the USB
port of the Home Cinema.
2. Press the FUNCTION button on the DVD Player or the
PORT button on the remote control to select the USB
mode.
• USB appears on the display screen and then
disappears.
• The USB MENU screen appears on the TV screen
and the saved file is played.
3. To stop playback, press the STOP () button.
Safe USB Removal
To prevent damage to the data stored in the USB device,
perform safe removal before disconnecting the USB cable.
• Press the STOP () button twice in a row.
The display will show REMOVE USB.
• Remove the USB cable.
M
 To listen to your music files with 5.1 channel home cinema sound, you must set the Dolby Pro Logic II mode
to Matrix. (See page 56)
Skip Forward/Back
During playback, press the #, $ button.
• When there is more than one file and you press the $
button, the next file is selected.
• When there is more than one file and you press the #
button, the previous file is selected.
44
HT-X715K_NO EUR_ENG.indd
During playback, press the ,  button.
• Each time you press either button, the playback speed will
change as follows:
2x € 4x € 8x € 32x € Normal.
Compatible Devices
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc
in Windows (2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 players.
● PLAYBACK
1. Connect the USB device to the USB port on the side of
the unit.
ENG
playback
Fast playback
3. Digital camera: Cameras that support USB Mass Storage v1.0.
• Cameras that operate as a removable disc in Windows (2000 or later) without additional driver
installation.
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper
operation.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
6. If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
Format
File name
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
Still Picture
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~
DivX5.1, XviD
720x480
44.1KHz~48KHz
Music
Movie
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a
PC are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
• Some MP3 players, when connected to this product, may not operate depending on the sector size
of their file systems.
• The USB host function is not supported if a product that transfers media files by its manufacturerspecific program is connected.
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
• The USB host function of this product does not support all USB devices. For information on the
supported devices, see page 65.
45
44-45
2008-7-14
13:00:08
system setup
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
For your convenience, you can set this Home Cinema System's features for the
best use in your home environment.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
SETTING THE LANGUAGE
3. Press the Cursor ▼ button to move to TV DISPLAY and then
press the ENTER or ► button.
4. Press the Cursor ▲,▼ button to select the desired item and then
press the ENTER button.
• Once the setup is complete, you will be taken to the previous
screen.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
EXIT
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
MOVE
ENTER
RETURN
EXIT
For a standard TV, select either 4:3PS or 4:3LB option according to personal preference.
Select WIDE/HDTV if you have a widescreen TV.
d Press the EXIT button to exit the setup screen.
OSD LANGUAGE : Selecting the OSD Language
AUDIO : Selecting the Audio Language (recorded on the disc)
SUBTITLE : Selecting the Subtitle Language (recorded on the disc)
DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
Ú If the language you selected is not recorded on the disc, menu
language will not change even if you set it to your desired language.
RETURN
d Press the EXIT button to exit the setup screen.
MOVE
5. Press the Cursor ▲,▼ button to select the desired language
and then press the ENTER button.
• Once the setup is complete, the OSD will be English if
English has been selected as the language.
•
•
•
•
ENTER
d Press the RETURN button to return to the previous level.
3. Select Language and then press the ENTER or ► button.
d Press the RETURN button to return to the previous level.
MOVE
● SYSTEM SETUP
OSD(On-Screen Display) language is set to English by default.
4. Press the Cursor ▲,▼ button to select OSD Language and then
press the ENTER or ► button.
ENG
SETTING TV SCREEN TYPE
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a
conventional TV.
• You can see the central portion of the screen only (with the sides of
the 16:9 picture cut off).
MOVE
ENTER
RETURN
EXIT
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a
conventional TV.
• Black bars will appear at the top and bottom of the screen.
• OTHERS : To select another language, select OTHERS and
enter the language code of your country (see page 64).
AUDIO, SUBTITLE and DISC MENU languages can be
selected.
MOVE
SELECT
RETURN
EXIT
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your
widescreen TV.
• You can enjoy the widescreen aspect.
M
 If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
 Since DVD discs are recorded in various image formats, they will look different depending on the software, the
type of TV, and the TV aspect ratio setting.
 When using HDMI, the screen is automatically converted to Wide mode.
46
HT-X715K_NO EUR_ENG.indd
47
46-47
2008-7-14
13:00:10
system setup
G
SETTING PARENTAL CONTROLS (RATING LEVEL)
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
1. During playback, press the PAUSE ( ) button when an
image you like appears.
2. Press the LOGO button.
• COPY LOGO DATA will be displayed on the TV screen.
MOVE
ENTER
RETURN
EXIT
SELECT
RETURN
M
d Press the EXIT button to exit the setup screen.
SETTING THE PASSWORD
M
 The password is set to "7890" by default.
 This function will not work when the HDMI output is 720p, 1080i or 1080p.
TO SELECT ONE OF THE 3 WALLPAPER SETTINGS YOU'VE MADE
 This function works only if a DVD disc contains rating level information.
You can set the password for the Parental (rating level) setting.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to PASSWORD and then
press the ENTER or ► button.
4. Press the ENTER button.
5. Enter the password and then press the ENTER button.
• Enter the old password, a new password, and confirm new
password.
• The setting is complete.
LOGO IS COPIED
 PAUSE
EXIT
d Press the RETURN button to return to the previous level.
M
3. The power will turn off and then back on.
• The selected wallpaper will be displayed.
• You can select up to 3 wallpaper settings.
COPY LOGO DATA
 PAUSE
MOVE
● SYSTEM SETUP
Use this to restrict playback of adult or violent DVDs you do not want
children to view.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to PARENTAL and then press the ENTER
or ► button.
4. Press the Cursor ▲,▼ button to select the desired rating level and then press
the ENTER button.
• If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
• The higher the level, the closer the content is to violent or adult material.
5. Enter the password and then press the ENTER button.
• The password is set to "7890" by default.
• Once the setup is complete, you will be taken to the previous screen.
ENG
SETTING THE WALLPAPER
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to LOGO and then press the
ENTER or ► button.
MOVE
ENTER
RETURN
EXIT
4. Press the Cursor ▲,▼ button select the desired USER, and then
press the ENTER button.
• This selects one of the 3 wallpaper screens.
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
5. Press the EXIT button to exit the setup screen.
• ORIGINAL : Select this to set the Samsung Logo image as your
wallpaper.
• USER : Select this to set the desired image as your wallpaper.
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
If you have forgotten the rating level password, do the following
• While the player is in No DIsc mode, hold the DVD Players STOP () button for longer than
5 seconds. INITIAL appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
48
HT-X715K_NO EUR_ENG.indd
49
48-49
2008-7-14
13:00:14
system setup
ENG
SETTING THE DELAY TIME
If the speakers cannot be placed at equal distances from the listening
position, you can adjust the delay time of the audio signals from the center
and rear speakers.
DVD PLAYBACK MODE
1. In Stop mode, press the MENU button.
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to DELAY TIME and then press
the ENTER or ► button.
1. Press the MENU button while the disc tray is open.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER or ► button.
4. Press the ENTER button.
MOVE
ENTER
RETURN
EXIT
5. Press the Cursor ◄, ► button to set the Delay time.
• You can set the delay time for C between 00 and 05mSEC and for
SL and SR between 00 and 15mSEC.
3. Press the Cursor ▼ button to move to DVD TYPE and then press
the ENTER or ► button.
4. Press the Cursor ▲,▼ button to move to DVD VIDEO and then press
the ENTER button.
• Set s 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.
• DVD VIDEO : Set to play the DVD video contents contained on a
DVD audio disc.
• DVD AUDIO : Set to play the default DVD audio.
M
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MOVE
ENTER
RETURN
EXIT
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each
speaker is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can
adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.
 DVD Play mode is set to DVD Audio as factory default setting.
 Powering off the main unit will automatically switch to the DVD Audio mode.
Setting CENTER SPEAKER
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
SETTING THE SPEAKER MODE
Signal outputs and frequency responses from the speakers will automatically be adjusted according to
your speaker configuration and whether certain speakers are used or not.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. In the SPEAKER SETUP, press the ENTER or ► button again.
MOVE
ENTER
RETURN
Ideal center speaker
placement
If the distance of Dc is equal to or longer than the distance of Df
in the figure, set the mode as 0ms. Otherwise, change the
setting according to the table.
DviX (R) Registration
4. Press the Cursor ▲, ▼, ◄, ► button to move to the desired
speaker and then press the ENTER button.
• For C, SL, and SR, each time the button is pressed, the mode
switches alternately as follows : SMALL ΠNONE.
• For L and R, the mode is set to SMALL.
● SYSTEM SETUP
To play back the DVD-Video portion of the DVD-Audio disc, set the unit
to DVD-Video mode.
Distance between
Df and Dc
0.00 m
0.34 m
0.68 m
1.06 m
1.40 m
1.76 m
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
Ideal
surround
speaker
placement
Setting REAR SPEAKERS
If the distance of Dc is equal to or longer than the distance of Dr
in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance between
Df and Dc
0.00 m
1.06 m
2.11 m
3.16 m
3.62 m
5.29 m
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
It is desirable to place all speakers within this circle.
Df: The distance from front speaker
Dc: The distance from center speaker
Ds: The distance from surround speaker
EXIT
M
• SMALL : Select this when using the speakers.
• NONE : Select this when no speaker is connected.
 With PL II (Dolby Pro Logic II), the delay time may be different for each mode.
 With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
 The Center channel is only adjustable on 5.1 channel discs.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
MOVE
CHANGE
RETURN
EXIT
 Depending on PRO LOGIC and STEREO settings, the speaker mode may
vary (see page 56).
50
HT-X715K_NO EUR_ENG.indd
51
50-51
2008-7-14
13:00:18
system setup
ENG
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
Press the SOUND EDIT button and then press the Cursor
◄, ► button.
• Each time you press the SOUND EDIT button, you can see
the balance and level for each speaker.
SETTING THE TEST TONE
Use the Test Tone feature to check the speaker connections.
1. In Stop mode, press the MENU button.
● SYSTEM SETUP
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to TEST TONE and then press
the ENTER or ► button.
• The test tone will be sent to L Œ C Œ R Œ SR Œ SL Œ SW in
order.
• If the ENTER button is pressed again at this time, the test tone
will stop.
MOVE
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
STOP
EXIT
Adjusting Center/Rear/Subwoofer Speaker Level
 The volume level can be adjusted in s from +6dB to –6dB.
 The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
SETTING THE AUDIO
You can adjust the balance and level for each speaker.
SETTING THE DRC (DYNAMIC RANGE COMPRESSION)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to SOUND EDIT and then
press the ENTER or ► button.
1. In Stop mode, press the MENU button.
MOVE
ENTER
RETURN
EXIT
4. Press the Cursor ▲, ▼ button to select and adjust the desired
item.
Press the Cursor ◄, ► button to adjust the settings.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to DRC and then press the
ENTER or ► button.
4. Press the Cursor ▲, ▼ to adjust the DRC.
• When the Cursor ▲ button is pressed, the effect is greater, and
when the Cursor ▼ button is pressed, the effect is smaller.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Adjusting Front/Rear Speaker Balance
 You can select between 0 dB, -6 dB, and OFF.
 The volume decreases as you move closer to – 6 dB.
MOVE
CHANGE
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
CHANGE
52
HT-X715K_NO EUR_ENG.indd
53
52-53
2008-7-14
13:00:20
system setup
ENG
SOUND FIELD (DSP)/EQ FUNCTION
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic
environments.
SETTING THE AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to
match the video.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Press the DSP/EQ button.
• DSP appears on the display panel.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
Each time the button is pressed, the selection changes as follows:
POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASS
3. Press the Cursor ▼ button to move to AV-SYNC and then press
the ENTER or ► button.
4. Press the Cursor ▲, ▼ button to select the AV-SYNC Delay Time
and then press the ENTER button.
• You can set the audio delay time between 0 ms and 300 ms. Set
it to the optimal status.
MOVE
ENTER
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
RETURN
EXIT
• POPS, JAZZ, ROCK : Depending on the genre of music,
you can select POPS, JAZZ, and ROCK.
• STUDIO : Provides a sense of presence as if in a studio.
• CLUB : Simulates the sound of a dance club with a
throbbing bass beat.
• HALL : Provides a clear vocal as if listening in a concert hall.
• MOVIE : Provides the feeling of a movie cinema.
• CHURCH : Gives the feel of being in a grand church.
• PASS : Select this for normal listening.
M
SETTING THE HDMI AUDIO
 The DSP/EQ function is only available in STEREO mode.
Press the
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER or ► button.
3. Press the Cursor ▼ button to move to HDMI AUDIO and then
press the ENTER or ► button.
4. Press the Cursor ▲, ▼ button to select ON or OFF and then press
the ENTER button.
● SYSTEM SETUP
1. In Stop mode, press the MENU button.
PL II mode button to show STEREO on the display.
 This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX, tuner and Dolby Digital discs.
 When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected
automatically and DSP/EQ function does not work.
MOVE
ENTER
MOVE
SELECT
RETURN
EXIT
• ON : Both video and audio signals are transmitted over the HDMI
connection cable, and audio is output through your TV
speakers only.
• OFF : Video is transmitted over the HDMI connection cable only, and
audio is output through the home cinema speakers only.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
RETURN
EXIT
 The default setting of this function is HDMI AUDIO OFF.
 HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
54
HT-X715K_NO EUR_ENG.indd
55
54-55
2008-7-14
13:00:24
DOLBY PRO LOGIC II MODE
ENG
system setup
ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for your environment.
You can select the desired Dolby Pro Logic II AUDIO mode.
● SYSTEM SETUP
PL II MODE button.
Press the
• Each time the button is pressed, the mode changes as follows.
MUSIC ➞ CINEMA ➞ PRO LOGIC ➞ MATRIX ➞
STEREO ➞ MUSIC
PRO LOGIC II
• MUSIC : When listening to music, you can experience sound
effects as if you are listening to the actual
performance.
• CINEMA : Adds realism to the movie soundtrack.
• PRO LOGIC : You will experience a realistic multi-channel effect, as if you're using five speakers,
though using just the front left and right speakers.
• MATRIX : You will hear 5.1 channel surround sound.
• STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.
M
ASC
Microphone
L: FRONT SPEAKER (L)
R: FRONT SPEAKER (R)
C: CENTER SPEAKER
SW: SUBWOOFER
SL: REAR SPEAKER (L)
SR: REAR SPEAKER (R)
 When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks
(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
M
 ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a DVD/CD inserted.
 Because the volume level of the tone is fixed during the ASC setup, you cannot adjust the volume using the
volume control buttons.
DOLBY PRO LOGIC II EFFECT
 If the auto sound microphone is disconnected during the ASC setup, the setup will be cancelled.
 When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll, and P. BASS sound effects will not work.
This function works only in Dolby Pro Logic II MUSIC mode.
To Verify the ASC
1. Press the
PL II MODE button to select MUSIC mode.
2. Press the
PL II EFFECT button.
Briefly press ASC button.
• Distance and level values specified for each channel will appear in the display.
3. Press the ◄, ► buttons to select the desired effect setting.
• PANORAMA : This mode extends the front stereo image
to include the surround speakers for an exciting
"wraparound" effect with side wall imaging.
You can select either 0 or 1.
• C- WIDTH : Sound is output to the center speaker only.
The front left and right speakers produce phantom sound.
You can select between 0 and 7.
• DIMENS : Incrementally adjusts the sound field (DSP) from the front or rear.
You can select between 0 and 6.
56
HT-X715K_NO EUR_ENG.indd
57
56-57
2008-7-14
13:00:35
radio
ASC (Auto Sound Calibration) SETUP
LISTENING TO RADIO
1. Plug the ASC microphone into the ASC input jack.
2. Place the ASC microphone at the listening position.
L ➞ C ➞ R ➞ SR ➞ SL ➞ SW
4. When the message "REMOVE MIC" appears in the display,
unplug the ASC microphone.
Remote Control
1. Press the TUNER button to select the FM band.
2. Tune in to the desired station.
• Automatic Tuning 1 : When the #, $ button is
pressed, a preset broadcast station is selected.
• Automatic Tuning 2 : Press and hold the ,, .
button to automatically search for active
broadcasting stations.
• Manual Tuning : Briefly press the ,, . button to
increase or decrease the frequency incrementally.
● RADIO
3. Press ASC button.
• To create the optimal 5.1 channel sound field, the
selections are in the following sequence:
ENG
system setup
Main Unit
M
 Setting the ASC function takes about 3 minutes.
To cancel the ASC (Auto Sound Calibration) setup, press ASC
button.
The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the
setup is cancelled.
To listen in the ASC (Auto Sound Calibration) mode, briefly press
ASC button.
1. Press the FUNCTION button to select the FM band.
2. Select a broadcast station.
• Automatic Tuning 1 : Press the STOP () button to
select PRESET and then press the #, $ button to
select the preset station.
• Automatic Tuning 2 : Press the STOP () button to
select MANUAL and then press and hold the #, $
button to automatically search the band.
• Manual Tuning : Press the STOP () button to select
MANUAL and then briefly press the #, $ button to
tune in to a lower or higher frequency.
Press the MO/ST button to listen in Mono/Stereo.
• Each time the button is pressed, the sound switches between STEREO and MONO.
• In a poor reception area, select MONO for a clear, interference-free broadcast.
PRESETTING STATIONS
The selection alternates between ASC ON and ASC OFF in the display.
If you select "ASC ON", you will hear sound in the ASC mode.
If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.
Example : Presetting FM 89.10 in the memory
1. Press the TUNER button to select the FM band.
2. Press the ,, . button to select 89.10.
3. Press the TUNER MEMORY button.
• 01 flashes in the display.
4. Press the #, $ button to select preset number.
• You can select between 1 and 15 presets.
5. Press the TUNER MEMORY button again.
• Press the TUNER MEMORY button before
Number disappears from the display.
• Number disappears from the display and the
station is stored in memory.
6. To preset another station, repeat s 2 to 5.
• To tune in to a preset station, press the #, $
button on the remote control to select a channel.
M
58
HT-X715K_NO EUR_ENG.indd
58-59
 This unit does not receive AM broadcasts.
59
2008-7-14
13:00:41
SLEEP TIMER FUNCTION
ENG
convenient function
P.BASS
P.BASS function stresses low tones providing thudding
sound effects.
Press the P.BASS button to select P.BASS mode.
P BAS ON P BAS OFF
You can set the time that the Home Cinema will shut itself off.
Press the SLEEP button.
To confirm the sleep timer setting, press the SLEEP button.
• The remaining time before the Home Cinema will shut itself off
is displayed.
• Pressing the button again changes the sleep time from what
you have set earlier.
To cancel the sleep timer, press the SLEEP button until OFF appears on the display.
M
 The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd and wma. Press
P.BASS button and "POWER BASS ON" will be displayed on the screen.
 The P.BASS does not work with DSP/EQ or DOLBY PRO LOGIC ll modes. If you press P.BASS in the DSP/EQ
mode, the DSP/EQ mode is automatically shut off and the P. BASS function comes on.
AUDIO UPSCALING
● CONVENIENT FUNCTION
• SLEEP will be displayed. Each time the button is pressed, the
preset time changes as follows :
➞ 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF
This also helps enhance your sound experience (ex. mp3 music).
Use this if you want to hear a better sound from a low-quality
mp3 source.
MUTE FUNCTION
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
• MUTE appears in the display.
• To restore the sound, press the MUTE button again.
Press the AUDIO UPSCALING button.
• Each time the button is pressed, the selection changes as
follows :
UPSC ON UPSC OFF
S.VOL (SMART VOLUME)
This will regulate and stabilize the volume level against a drastic
volume change in case of a channel change or scene transition.
Press the S.VOL button.
• Each time the button is pressed, the selection changes as
follows :
S.VOL ON S.VOL OFF
60
HT-X715K_NO EUR_ENG.indd
61
60-61
2008-7-14
13:00:46
SYMPTOM
Refer to the chart below when this unit does not function properly. If the problem
you are experiencing is not listed below or if the instruction below does not help,
turn off the unit, disconnect the power cord, and contact the nearest authorized
dealer or Samsung Electronics Service Center.
Check/Remedy
I cannot eject the disc.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD player.
• Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and motion
playback.
• Are the speakers connected properly? Is the speaker setup correctly
customized?
• Is the disc severely damaged?
Sound can be heard only from a few
speakers and not all six.
• When listening to a CD or radio, sound is output to the front speakers
(L/R) only. Select "PRO LOGIC II" by pressing
PL II (Dolby Pro Logic II) on the remote control to use all six
speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the audio
setup of the setup screen, no sound is heard from the center speaker
and the front left and right speakers. Set C, SL, and SR to SMALL.
Dolby Digital 5.1 CH Surround Sound
is not produced.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH
Surround Sound is produced only if the disc is recorded with 5.1
channel sound.
• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the
information display?
The remote control does not work.
• Is the remote control being operated within its operation range of angle
and distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the remote control
(TV or DVD) correctly?
62
HT-X715K_NO EUR_ENG.indd
Check/Remedy
• Disc is rotating but no picture is
produced.
• Picture quality is poor and picture is
shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
Audio language and subtitles do not
work.
• Audio language and subtitles will not work if the disc does not contain
them.
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode,
or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only.
Refer to the DVD disc jacket and then select the appropriate function.
• The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
• The DVD player is not working
normally.
• Turn off the power and hold the STOP () button on the remote
control for longer than 5 seconds.
The password for rating level has
been forgotten.
• While “NO DISC” message appears on the display of main unit, hold
the main unit's STOP () button for longer than 5 seconds. “INITIAL”
appears on the display and all settings will return to the default values.
• Press the POWER button.
● TROUBLESHOOTING
SYMPTOM
ENG
troubleshooting
Using the RESET function will erase all stored settings.
Do not use this unless it is necessary.
Using the RESET function will erase all stored settings.
Do not use this unless it is necessary.
Can't receive radio broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in
an area with good reception.
63
62-63
2008-7-14
13:00:51
USB host feature supported products
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 46).
DIGITAL CAMERA
Code
Language
Code
Language
Code
Language
Code
Language
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
64
HT-X715K_NO EUR_ENG.indd
Company
Fuji
Fuji
Fuji
Fuji
Fuji
Fuji
Konica
Kyocera
Kyocera
Kyocera
Kyocera
Minolta
Minolta
Minolta
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Olympus
Olympus
Olympus
Type
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Product
U300
X-350
C-760
C-5060
X1
U-mini
Lumix-FZ20
DMC-FX7GD
Lumix LC33
LUMIX DMC-F1
Optio-S40
Optio-S50
Optio 33LF
Optio MX
Digimax-420
Digimax-400
Sora PDR-T30
Coolpix 5900
Coolpix S1
Coolpix 7600
DMC-FX7
Dimage Xt
AZ-1
Company
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Panasonic
Panasonic
Panasonic
Panasonic
Pentax
Pentax
Pentax
Pentax
Samsung
Samsung
Toshiba
Nikon
Nikon
Nikon
Panasonic
Minolta
Olympus
Type
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Company
Sandisk
Sandisk
Sandisk
Sony
Serotech
A.L tech
Type
USB 2.0 USB Flash Drive 128M
USB 2.0 128M
USB 2.0 256M
USB 2.0 64MB
USB 2.0 32MB
USB 2.0 128MB
Product
XTICK
Micro Mini
iFlash
LG
RiDATA
Company
LG
Iomega
Imation
XTICK(M)
EZDrive
Type
USB 2.0 128M
USB 2.0 128M
USB 2.0 64M
USB 2.0 64M
USB 2.0 64M
Company
Creative
Iriver
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Type
128 MB MP3 Player
20G HDD MP3 Player
20G HDD MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
Product
YP-780
YP-35
YP-55
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YP-T5 VB
YP-53
Company
Samsung
Samsung
Samsung
Cowon
Cowon
Cowon
Sharp
Iriver
Samsung
Samsung
Type
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 Player
256MB MP3 Player
MP3 Player
MP3 Player
256MB MP3 Player
● USB HOST FEATURE SUPPORTED PRODUCTS
1027
Product
Finepix-A340
Finepix-F810
Finepix-F610
Finepix-f450
Finepix S7000
Finepix A310
KD-310Z
Finecam SL300R
Finecam SL400R
Finecam S5R
Finecam Xt
Dimage-Z1
Dimage Z1
Dimage X21
Coolpix4200
Coolpix4300
Coolpix 2200
Coolpix 3500
Coolpix 3700
Coolpix 4100
Coolpix 5200
Stylus 410 digital
300-digital
300-digital
ENG
language code list
USB FLASH DISC
Product
Cruzer Micro
Cruzer Mini
Cruzer Mini
SONY Micro Vault
FLEX DRIVE
AnyDrive
MP3 PLAYER
Product
Creative MuVo NX128M
Iriver H320
YH-920
YP-T7
YP-MT6
YP-T6
YP-53
YP-ST5
YP-T5
YP-60
65
64-65
2008-7-14
13:00:52
appendix
ENG
SPECIFICATIONS
90 W
Weight
4.2 kg
Dimensions
449.6 (W) x 251.5 (H) x 99.1 (D) mm
Operating Temperature Range
+5°C~+35°C
Handling discs
Operating Humidity Range
10 % to 75 %
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
DVD (Digital Versatile Disc)
CAUTIONS ON HANDLING AND STORING DISCS
General
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
● APPENDIX
Power Consumption
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Do not stick paper or tape on the disc.
Reading Speed : 4.8 ~ 5.6 m/sec.
Disc
CD : 12 cm (COMPACT DISC)
Maximum Play Time : 74 min.
Disc Storage
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 8cm (COMPACT DISC)
Do not keep in direct sunlight
Keep in a cool ventilated area
Keep in a clean Protection jacket.
Maximum Play Time : 20 min.
Store vertically.
Composite Video
1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Video Output
Component Video
PR : 0.70 Vp-p (75 Ω load)
PB : 0.70 Vp-p (75 Ω load)
HDMI
Impedance: 85~115Ω
Front speaker output
133W x 2(3Ω)
 Do not allow the discs to become contaminated with dirt.
Center speaker output
133W(3Ω)
 Do not load cracked or scratched discs.
Rear speaker output
133W x 2(3Ω)
Subwoofer speaker output
135W(3Ω)
Handling and Storing Discs
Frequency range
20Hz~20KHz
When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with
a soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)400mV
M
Amplifier
M
 Condensation may form if warm air comes into contact with cold parts inside the player. When condensation
forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player
stand for 1 or 2 hours with the power on.
66
HT-X715K_NO EUR_ENG.indd
67
66-67
2008-7-14
13:00:53
Contact SAMSUNG WORLD WIDE
appendix
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Region
SPECIFICATIONS
North America
HT-X715K
Speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Speaker
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Center/Rear
Subwoofer
3Ω
3Ω
140Hz~20KHz
35Hz~160Hz
86dB
86dB
133W
135W
266W
270W
Front : 96.5 x 535.9 x 101.6 mm (stand base : ø190.5)
Rear : 109.2 x 246.4 x 218.4 mm
Center : 375.9 x 83.8 x 142.2 mm
Subwoofer : 215.9 x 363.2 x 411.5 mm
Front : 2.2 kg, Rear : 0.9 kg
Center : 1.2 kg, Subwoofer : 6.7 kg
HT-TX715K
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Center/Rear
Subwoofer
3Ω
3Ω
140Hz~20KHz
35Hz~160Hz
86dB
86dB
133W
135W
266W
270W
Front/Rear : 188 x 1340 x 96 mm (stand base : ø306)
Center : 376x 83.5 x 142 mm
Subwoofer : 217 x 362 x 412 mm
Front/Rear : 6.5 kg
Center : 1.2 kg, Subwoofer : 6.7 kg
CIS
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
Asia Pacific
Middle East &
Africa
Customer Care Center Web Site
DENMARK
FINLAND
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421 , 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
0032 (0)2 201 24 18
844 000 844
Distributor pro Českou republiku:
Samsung Zrt., česka organizační složka
Vyskočilova 4, 14000 Praha 4
70 70 19 70
030-6227 515
FRANCE
3260 SAMSUNG (€ 0,15/Min),
08 25 08 65 65 (€ 0,15/Min)
www.samsung.com
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
SOUTH AFRICA
U.A.E
01805 - SAMSUNG(726-7864) (€ 0,14/Min)
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
0035 (0)2 261 03 710
0900-SAMSUNG(726-7864) (€ 0,10/Min)
815-56 480
0 801 801 881 , 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902 10 11 30
0771-400 200
0845 SAMSUNG (7267864)
0818 717 100
0800-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
800-7267
800-7267
1300 362 603
0800SAMSUNG(726-7864)
800-810-5858 , 010-6475 1880
3698-4698
3030 8282 , 1800 110011
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG(726-7864)
1800-SAMSUNG(726-7864)
1800-29-3232 , 02-689-3232
0800-329-999
1 800 588 889
444 77 11
0860-SAMSUNG(726-7864 )
800-SAMSUNG (726-7864), 8000-4726
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/be
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com
www.samsung.com/se
www.samsung.com
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.com
www.samsung.kz
www.samsung.uz
CZECH REPUBLIC
Europe
Speaker system
Speaker
Latin America
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
www.samsung.com/ca
www.samsung.com
www.samsung.com
www.samsung.com/ar
www.samsung.com
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com
www.samsung.lt
www.samsung.com/lv
www.samsung.ee
www.samsung.com
www.samsung.com/nz
www.samsung.com
www.samsung.com/hk
www.samsung.com
www.samsung.com
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com
www.samsung.com
www.samsung.com/tw
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
68
HT-X715K_NO EUR_ENG.indd
68-69
2008-7-14
13:00:55
AH68-02145A
HT-X715K_NO EUR_ENG.indd
70
2008-7-14
13:00:56
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
