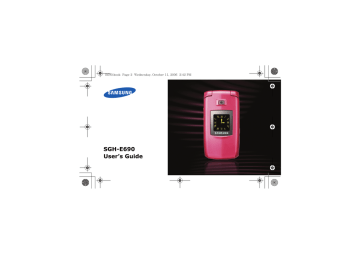

E690.book Page 2 Wednesday, October 11, 2006 2:42 PM
SGH-E690
User’s Guide
E690.book Page 3 Wednesday, October 11, 2006 2:42 PM
Drive safely at all times
Do not use a hand-held phone while driving. Park
the vehicle first.
Important
safety
precautions
Failure to comply with the following
precautions may be dangerous or illegal.
Switch off the phone when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using
them in an aircraft is both illegal and dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be using
equipment that could be sensitive to external radio
frequency energy. Follow any regulations or rules
in force.
Interference
All wireless phones may be subject to interference,
which could affect their performance.
E690.book Page 1 Wednesday, October 11, 2006 2:42 PM
Accessories and batteries
Meet any special regulations in force in any area
and always switch off your phone whenever it is
forbidden to use it, or when it may cause
interference or danger.
Use only Samsung-approved batteries and
accessories, such as headsets and PC data cables.
Use of any unauthorised accessories could damage
you or your phone and may be dangerous.
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency call
Key in the emergency number for your present
location, then press
.
Keep your phone away from small children
Keep the phone and all its parts, including
accessories, out of the reach of small children.
Important safety precautions
Be aware of special regulations
• The phone could explode if the battery is replaced
with an incorrect type.
• Dispose of used batteries according to the
manufacturer’s instructions.
At very high volumes, prolonged listening
to a headset can damage your hearing.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see "Health
and safety information" on page 123.
1
E690.book Page 2 Wednesday, October 11, 2006 2:42 PM
About this Guide
This User’s Guide provides you with condensed
information about how to use your phone. To
quickly learn the basics for your phone, please refer
to “Get started” and “Step outside the phone.”
In this guide, the following instruction icons
appear:
Indicates that you need to pay careful attention
to the subsequent information regarding safety
or phone features.
Indicates that you can get more information on
the referenced page.
→
Indicates that you need to press the Navigation
keys to scroll to the specified option and then
select it.
[ ]
Indicates a key on the phone. For example,
[
]
< > Indicates a soft key, whose function is displayed
on the phone screen. For example, <Menu>
2
• Camera and camcorder
Use the camera module on
your phone to take a photo or
record a video.
Special features of your phone
• Music player
Play music files using your
phone as a music player.
• Bluetooth
Transfer media files and
personal data and connect to
other devices using free,
wireless Bluetooth technology.
E690.book Page 3 Wednesday, October 11, 2006 2:42 PM
• Name card
Create name cards with your
number and profile. Whenever
introducing yourself to others,
use this convenient electronic
name card.
• Multimedia Message
Service (MMS)
Send and receive MMS
messages with a combination
of text, images, video, and
audio.
Special features of your phone
• FM radio
Listen to your favourite radio
stations anytime, anywhere.
• E-mail
Send and receive e-mails with
images, video, and audio
attachments.
• Java
Enjoy Java™-based embedded
games and download new
games.
• SOS message
Send SOS messages to your
family or friends for help in an
emergency.
• Digital data printing
Print images, messages, and
other personal data directly
from your phone.
• Offline mode
Switch your phone to offline to
use its non-wireless functions
in an airplane.
3
E690.book Page 4 Wednesday, October 11, 2006 2:42 PM
Contents
Unpack
6
Make sure you have each item
Your phone
6
Keys, features, and locations
Get started
7
Install and charge the phone ................................. 7
Power on or off.................................................... 9
Keys and display................................................ 10
Access menu functions ....................................... 13
Customise your phone ........................................ 14
Make/Answer calls ............................................. 17
18
Begin with your camera, the music player, and other
special features
Use the camera ................................................. 18
Play music ........................................................ 19
4
20
21
22
23
25
26
27
29
Enter text
32
ABC, T9, Number, and Symbol modes
First steps to operating your phone
Step outside the phone
Listen to the FM radio .........................................
Browse the web .................................................
Use Phonebook..................................................
Send messages .................................................
View messages ..................................................
Send SOS messages...........................................
Use Bluetooth....................................................
Use a memory card ............................................
Call functions
35
Advanced calling features
Menu functions
40
All menu options listed
Solve problems
121
Help and personal needs
Health and safety information
123
Index
133
E690.book Page 5 Wednesday, October 11, 2006 2:42 PM
Overview of menu functions
To access Menu mode, press <Menu> in Idle mode.
1 Call log
p. 40
3 Applications (continued)
5 Messages (continued)
8 Camera
p. 99
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
3
4
5
6
7
8
7 Broadcast messages p. 85
8 Memory status
p. 85
1
2
3
4
p.
p.
p.
p.
Recent contacts
Missed calls
Dialled calls
Received calls
Delete all
Call time
Call costs1
40
41
41
41
42
42
42
2 Phonebook
p. 43
1
2
3
4
5
6
7
8
9
p.
p.
p.
p.
p.
p.
p.
p.
p.
Contact list
FDN contacts1
Create contact
Group
Speed dial
My namecard
Own number
Management
Service number1
43
44
45
46
47
47
48
48
49
3 Applications
p. 49
1 Music Player
2 Voice recorder
p. 49
p. 52
Image editor
Decision maker
Bluetooth
Java world
FM radio
SIM-AT1
p.
p.
p.
p.
p.
p.
53
54
55
58
59
61
4 Browser
p. 61
1
2
3
4
5
6
p.
p.
p.
p.
p.
p.
Home
Bookmarks
Enter URL
Clear cache
Profile settings
Current profile
61
63
63
63
63
65
5 Messages
p. 65
1
2
3
4
5
6
p.
p.
p.
p.
p.
p.
Create new message
My messages
Templates
Delete all
Settings
SOS message
65
70
75
77
77
84
6 My files
p. 86
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
Images
Videos
Music
Sounds
Other files
Memory card2
Memory status
86
87
89
89
90
90
91
7 Planner
p. 91
1
2
3
4
5
6
7
8
p.
p.
p.
p.
p.
p.
p.
p.
Alarm
Calendar
Memo
World time
Calculator
Convertor
Timer
Stopwatch
91
92
96
97
97
98
98
99
Take photo
Record video
Go to My photos
Go to My video clips
99
103
107
107
9 Settings
p. 107
1
2
3
4
5
6
7
8
9
p.
p.
p.
p.
p.
p.
p.
p.
p.
Time and date
Phone settings
Display settings
Sound settings
Light settings
Network services
Security
Memory status
Reset settings
107
108
111
113
114
115
117
120
120
1. Shows only if supported by
your SIM card.
2. Shows only if a memory card
inserted.
5
E690.book Page 6 Wednesday, October 11, 2006 2:42 PM
Unpack
Make sure you have each item
• Phone
• Travel Adapter
• Battery
• User’s Guide
You can obtain various
accessories from your local
Samsung dealer.
The items supplied with your
phone and the accessories
available at your Samsung
dealer may vary, depending
on your country or service
provider.
Your phone
Keys, features, and locations
Camera lens
Camera key
Headset/Adapter
jack
Main display
Web access/
Confirm key
Left soft keys
Volume keys
Dial key
Memory card
slot
Special
function keys
6
External display
Earpiece
Navigation keys
(Up/Down/Left/Right)
Right soft key
Power on/off/
Menu exit key
Delete key
Alphanumeric keys
Microphone
E690.book Page 7 Wednesday, October 11, 2006 2:42 PM
Get started
First steps to operating your phone
SIM card information
When you subscribe to a cellular network, you
receive a plug-in SIM (Subscriber Identity
Module) card loaded with your subscription
details, such as your PIN, and available optional
services.
Install the SIM card.
Make sure that the
gold-coloured
contacts on the card
are face down.
Install the battery.
Install and charge the phone
Remove the battery
cover.
If the phone is
already on, first turn
it off by pressing and
holding [
].
Reattach the cover.
7
E690.book Page 8 Wednesday, October 11, 2006 2:42 PM
Get started
Plug the travel
adapter into the
phone.
Plug the adapter into a standard AC wall
outlet.
When the phone is completely charged (the
battery icon becomes still), unplug the
adapter from the wall outlet.
8
Remove the adapter
from the phone.
Low battery indicator
When the battery is low:
• a warning tone sounds,
• the battery low message displays, and
• the empty battery icon
blinks.
If the battery level becomes too low, the phone
automatically turns off. Recharge your battery.
E690.book Page 9 Wednesday, October 11, 2006 2:42 PM
Power on or off
1. Open the phone.
2. Press and hold [
].
Do not turn on
the phone when
mobile phone
use is prohibited.
3. If necessary, enter the
PIN and press <OK>.
Switch off
1. Open the phone.
2. Press and hold [
You can switch the phone to Offline mode, in
which the phone functions requiring network
connection are deactivated. This mode is helpful
when you want to use your phone in a place
where you are not allowed to use mobile
devices, such as in an airplane and at a
hospital.
To switch to Offline mode, press <Menu> and
select Settings → Phone settings → Offline
mode → On.
In Offline mode, you can use non-wireless
functions, such as games, calendar, camera,
and music player.
Get started
Switch on
Offline mode
].
9
E690.book Page 10 Wednesday, October 11, 2006 2:42 PM
Get started
Keys and display
Keys
Perform the function indicated on
the bottom line of the display.
In Idle mode, access your favourite
menus directly.p. 108
In Menu mode, scroll through menu
options.
In Idle mode, launch the web
browser.
In Menu mode, select the
highlighted menu option or confirm
input.
10
Make or answer a call.
In Idle mode, retrieve the numbers
recently dialled, missed, or received.
Delete characters from the display
or items in an application.
Press and hold to switch the phone
on or off.
End a call.
In Menu mode, cancel input and
return the phone to Idle mode.
Enter numbers, letters, and some
special characters.
In Idle mode, press and hold [1] to
access your voicemail. Press and
hold [0] to enter an international
call prefix.
E690.book Page 11 Wednesday, October 11, 2006 2:42 PM
Display
Layout
Icons
display various icons.
Text and graphics
display messages,
instructions, and
information you enter.
Adjust the phone volume.
In Idle mode, with the phone open,
adjust the key tone volume. With
the phone closed, press and hold to
turn on the external display.
In Idle mode, access the Camera
menu. Press and hold to turn on the
camera.
In Camera mode, take a photo or
record a video.
Get started
Enter special characters.
In Idle mode, press and hold [ ] to
activate or deactivate Silent mode.
Press and hold [ ] to enter a pause
between numbers.
Menu
Icons1
Contacts
Soft key function
indicators
show the current
functions assigned
to the soft keys.
Received signal strength
Call in progress
Out of your service area; you
cannot make or receive calls
Alarm setp. 91
New text message
11
E690.book Page 12 Wednesday, October 11, 2006 2:42 PM
Get started
New voicemail
New multimedia message
New e-mail
One of the message Inboxes
is full
SOS message feature active
p. 84
Call diverting feature active
p. 115
Bluetooth activep. 56
Synchronised with a PC
GPRS network
EDGE network
Home Zone, if registered for
the appropriate service
Office Zone, if registered for
the appropriate service
12
Memory card inserted
p. 29
Ringer typep. 113
• None: Melody
•
: Vibration
•
: Melody and
vibration
•
: Vibration then
melody
•
: Melody then
vibration
Silent mode (Vibration)
Silent mode (Mute)p. 114
Battery power level
1. Depending on your country or service provider, the
icons shown on the display may vary.
E690.book Page 13 Wednesday, October 11, 2006 2:42 PM
Access menu functions
The roles of the soft keys vary
depending on the function you
are using. The bottom line of the
display indicates their current
role.
Select
Select an
option
1. Press a desired soft key.
Get started
Use the
soft keys
2. Press the Navigation keys to
move to the next or previous
option.
3. Press <Select> or [ ] to
confirm the function displayed
or option highlighted.
Back
4. To exit, choose either of the
following methods:
• Press <Back> to move up
one level.
• Press [
] to return to Idle
mode.
Press the left soft
key to select the
highlighted option.
Press the right
soft key to return
to the previous
menu level.
Use
shortcuts
Press the number key
corresponding to the option you
want.
13
E690.book Page 14 Wednesday, October 11, 2006 2:42 PM
Get started
Customise your phone
Display
language
1. In Idle mode, press
<Menu> and select
Settings → Phone
settings → Language.
2. Select a language.
Call ringer
melody
1. In Idle mode, press
<Menu> and select
Settings → Sound
settings → Incoming call
→ Ring tone.
2. Select a ringtone category.
3. Select a ringtone.
4. Press <Save>.
14
Idle mode
wallpaper
You can set wallpaper for the
idle screen on each display.
For the main display:
1. In Idle mode, press
<Menu> and select
Settings → Display
settings → Wallpaper →
Main display.
2. Select an image category.
3. Scroll to an image.
4. Press <Save>.
For the external display:
1. In Idle mode, press
<Menu> and select
Settings → Display
settings → Wallpaper →
Cover display.
E690.book Page 15 Wednesday, October 11, 2006 2:42 PM
3. For Clock, scroll to a clock
type and press <Save>.
For Cover title, enter a
greeting and press [ ].
For Wallpaper images,
select an image category
and then an image.
Menu
shortcuts
You can set [Left], [Right], and
[Down] to function as
shortcuts to access your
favourite menus.
Get started
2. Select an image type.
1. In Idle mode, press
<Menu> and select
Settings → Phone
settings → Shortcuts.
2. Select a key.
Menu mode
skin color
You can change the colour for
the display components, such
as title bars and highlight bars.
3. Select a menu to be
assigned to the key.
1. In Idle mode, press
<Menu> and select
Settings → Display
settings → Skin.
2. Select a colour pattern.
15
E690.book Page 16 Wednesday, October 11, 2006 2:42 PM
Get started
My menu
mode
You can set up a menu of your
own using your favourite menu
items.
To set a My menu item:
1. In Idle mode, press
<Menu> and select
Settings → Phone
settings → My menu.
2. Select an item to be
changed.
3. Select the menu item you
want.
To access a My menu item:
1. In Idle mode, press [Up].
2. Scroll to an item.
3. Press [ ].
16
Silent mode
Phone lock
You can switch the phone to
Silent mode to avoid disturbing
other people.
Press and hold [ ] in Idle
mode.
You can protect the phone
against unauthorised use with
a phone password. The phone
will require the password on
power-up.
1. In Idle mode, press
<Menu> and select
Settings → Security →
Change password.
2. Enter the default password,
00000000, and press
<OK>.
E690.book Page 17 Wednesday, October 11, 2006 2:42 PM
4. Enter the new password
again and press <OK>.
Make/Answer calls
Make a call
].
3. To end the call, press [
6. Select Enable.
7. Enter the password and
press <OK>.
1. Enter an area code and
phone number.
2. Press [
5. Select Phone lock.
Answer
a call
Adjust the
volume
during a call
Get started
3. Enter a new 4- to 8-digit
password and press <OK>.
].
1. When the phone rings,
press [ ].
2. To end the call, press [
].
Press [ / ].
17
E690.book Page 18 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Begin with your camera, the music player, and
other special features
View a photo
Use the camera
Take a photo
1. In Idle mode, press and
] to turn on the
hold [
camera.
2. Aim the lens at the subject
and make any desired
adjustments.
] to take a
3. Press [ ] or [
photo. The photo is saved
automatically.
4. Press <Back> to take
another photo.
18
1. In Idle mode, press
<Menu> and select My
files → Images → My
photos.
2. Select the photo you want.
Record
a video
1. In Idle mode, press and
] to turn on the
hold [
camera.
2. Press [1] to switch to
Record mode.
3. Press [ ] or [
recording.
] to start
]
4. Press [ ], < >, or [
to stop recording. The video
is saved automatically.
5. Press < > to record
another video.
E690.book Page 19 Wednesday, October 11, 2006 2:42 PM
1. In Idle mode, press
<Menu> and select My
files → Videos → My video
clips.
• Receive via Bluetooth
p. 55
• Copy to a memory card and
insert the card into the
phone. p. 29
2. Select the video clip you
want.
Create a
play list
Play music
Copy music
files to the
phone
Use these methods:
• Download from the wireless
webp. 61
• Download from a computer
using the optional Samsung
PC StudioSamsung PC
Studio User’s Guide
Step outside the phone
Play a video
1. In Idle mode, press
<Menu> and select
Applications → Music
Player.
2. Press <Options> and
select Add music from →
Phone or Memory card.
3. Press [ ] to select the files
you want and press <Add>.
4. Press <Back> to return to
the Music player screen.
19
E690.book Page 20 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Play music
files
1. From the Music player
screen, press [ ].
2. During playback, use the
following keys:
•
: pauses or resumes
playback.
• Up: opens the current
play list.
• Left: returns to the
previous file. Moves
backward in a file when
held down.
• Right: skips to the next
file. Moves forward in a
file when held down.
/ : adjusts the
•
volume.
3. Press [Down] to stop
playback.
20
Listen to the FM radio
Listen to
the radio
1. Plug the connecter of the
supplied headset into the
jack on the right side of the
phone.
2. In Idle mode, press
<Menu> and select
Applications → FM radio.
3. Press <Options> and
select FM radio on.
4. Press [Left] or [Right] to
find available radio stations.
5. To turn off the radio, press
<Options> and select FM
radio off.
E690.book Page 21 Wednesday, October 11, 2006 2:42 PM
1. From the station list, scroll
to an empty location.
2. Press <Options> → Add.
3. Enter the frequency of the
station and press <Save>.
4. Select a location in which
you want to store the
station.
Browse the web
Using a built-in web browser, you can easily
access the wireless web to get a variety of upto-date services and information and to
download web content.
Launch the
web browser
Navigate
the web
In Idle mode, press [ ], or
press <Menu> and select
Browser → Home.
Step outside the phone
Store a
radio
station
• To scroll through browser
items, press [Up] or
[Down].
• To select an item, press
<
> or [ ].
• To return to the previous
page, press <Back> or [C].
• To return to the homepage,
press and hold [C].
• To access browser menu
options, select
or press
[ ].
• To access other phone
menus, press [ ].
21
E690.book Page 22 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Use Phonebook
Add a
contact
To the SIM card:
1. In Idle mode, enter a phone
number and press [ ].
To the phone’s memory:
1. In Idle mode, enter a phone
number and press [ ].
2. Select SIM → New.
3. Enter a name.
2. Select Phone → New → a
number type.
3. Specify contact information:
First name, Last name,
Mobile, Home, Office, Fax,
Other, Email, Graphic ID,
Alert, Group, and Notes.
4. Press <Options> and
select Save or <Save>.
4. Press <Options> and
select Save or [ ] to save
the contact.
Find a
contact
1. In Idle mode, press
<Contacts>.
2. Enter the first few letters of
the name you want.
3. Select a contact.
22
4. Scroll to a number and
press [ ] to dial, or press
[ ] to edit contact
information.
E690.book Page 23 Wednesday, October 11, 2006 2:42 PM
1. In Idle mode, press
<Menu> and select
Phonebook → My
namecard.
2. Specify your contact
information.
Send messages
Send a text
message
(SMS)
Step outside the phone
Create and
send a
name card
1. In Idle mode, press
<Menu> and select
Messages → Create new
message → Text
message.
3. Press [ ] to save the name
card.
2. Enter the message text and
press [ ].
4. To send the name card,
press <Options> and
select Send via → a
sending method.
3. Enter destination numbers.
4. Press [ ] to send the
message.
23
E690.book Page 24 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Send a
multimedia
message
(MMS)
1. In Idle mode, press
<Menu> and select
Messages → Create new
message → Multimedia
message.
6. Select Text.
7. Enter the message text and
press [ ].
8. Press <Options> and
select Send.
2. Select Subject.
9. Enter destination numbers
or e-mail addresses.
3. Enter the message subject
and press [ ].
10.Press [ ] to send the
message.
4. Select Image or video or
Sound.
5. For Image or video, select
Add image or Add video
and add an image or a video
clip.
For Sound, select Add
sound and add a sound
clip.
24
Send an
e-mail
1. In Idle mode, press
<Menu> and select
Messages → Create new
message → Email.
2. Select Subject.
E690.book Page 25 Wednesday, October 11, 2006 2:42 PM
4. Select Message.
5. Enter the e-mail text and
press [ ].
6. Select File attach.
7. Add image, video, sound,
music files, or document
files.
8. Press <Options> and
select Send.
9. Enter e-mail addresses.
View messages
View a text
message
Step outside the phone
3. Enter the e-mail subject
and press [ ].
When a notification appears:
1. Press <View>.
2. Select the message from
the Inbox.
From the Inbox:
1. In Idle mode, press
<Menu> and select
Messages → My
messages → Inbox.
2. Select an SMS message
( ).
10.Press [ ] to send the
e-mail.
25
E690.book Page 26 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
View a
multimedia
message
When a notification appears:
1. Press <View>.
2. Select the message from
the Inbox.
From the Inbox:
1. In Idle mode, press
<Menu> and select
Messages → My
messages → Inbox.
2. Select an MMS message
(
).
View an
e-mail
1. In Idle mode, press
<Menu> and select
Messages → My
messages → Email inbox.
2. Select Check new mail.
3. Select an e-mail or a
header.
4. If you selected a header,
press <Options> and
select Retrieve to view the
body of the e-mail.
Send SOS messages
You can send an SOS message to your family or
friends for help in an emergency.
26
E690.book Page 27 Wednesday, October 11, 2006 2:42 PM
1. In Idle mode, press
<Menu> and select
Messages → SOS
message.
2. Select Yes on the Message
sending field.
3. Select Recipients.
4. Enter the phone numbers to
which you want to send the
SOS message.
5. Press [ ] to save your
settings.
Send the
SOS
message
In Idle mode, with the phone
closed, press [ / ] 4 times.
The phone sends the SOS
message.
Use Bluetooth
Your phone is equipped with Bluetooth
technology, enabling you to connect the phone
wirelessly to other Bluetooth devices and
exchange data with them, talk hands-free, or
control the phone remotely.
Turn on
Bluetooth
Step outside the phone
Set up SOS
message
options
1. In Idle mode, press
<Menu> and select
Applications → Bluetooth
→ Activation → On.
2. Select My phone’s
visibility → On to allow
other devices to find your
phone.
27
E690.book Page 28 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Search for
and pair with
a Bluetooth
device
1. In Idle mode, press
<Menu> and select
Applications → Bluetooth
→ My devices → Search
new device.
2. Select a device.
3. Enter a Bluetooth PIN or the
other device’s Bluetooth
PIN, if it has one, and press
<OK>. When the owner of
the other device enters the
same code, the pairing is
complete.
Send data
1. Access an application,
Phonebook, My files,
Calendar, or Memo.
2. Select the item you want to
send.
3. Press <Options> and
select Send via →
Bluetooth.
4. Select a device.
5. For Phonebook, select
which data you want to
send.
6. If necessary, enter the
Bluetooth PIN and press
<OK>.
28
E690.book Page 29 Wednesday, October 11, 2006 2:42 PM
1. When a device attempts to
access your phone, press
<Yes> to permit the
connection.
2. If necessary, press <Yes>
to confirm that you are
willing to receive.
When an incoming call comes
in while receving data via
Bluetooth, the Bluetooth
connection is ended.
Use a memory card
Step outside the phone
Receive data
You can use a memory card to increase your
phone’s memory capacity.
Important
memory
card
information
• Frequent erasing and
writing will shorten a card’s
lifespan.
• Do not remove a card from
the phone or turn off the
phone while data is being
accessed or transferred.
This could result in loss of
data and/or damage to the
card or phone.
• Do not subject cards to
strong shocks.
29
E690.book Page 30 Wednesday, October 11, 2006 2:42 PM
Step outside the phone
Important
memory
card
information
(continued)
• Do not touch card terminals
with your fingers or metal
objects. If dirty, wipe the
card with a soft cloth.
• Keep cards away from small
children or pets.
• Do not expose cards in a
place subject to
electro-static discharge
and/or electromagnetic
interference.
Insert a
memory
card
1. Insert the card into the card
slot, with the label side face
up.
2. Press the card until it locks
into place.
Remove the
memory
card
30
1. Press the card so that it is
disengaged from the phone.
2. Remove the card from the
slot.
E690.book Page 31 Wednesday, October 11, 2006 2:42 PM
Using a card adapter and a
USB card reader/writer, you
can read the card on a
computer.
Step outside the phone
Use a card
adapter
1. Insert a memory card into a
card adapter, and then the
adapter into a card reader/
writer.
2. Plug the USB connecter of
the card reader/writer into
the USB port on your
computer.
3. Access the appropriate
memory disk and copy to
and from the card.
31
E690.book Page 32 Wednesday, October 11, 2006 2:42 PM
Using ABC mode
Enter text
ABC, T9, Number, and Symbol modes
You can enter text in some features such as
Messages, Phonebook, or Calendar, using ABC
mode, T9 mode, Number mode, and Symbol
mode.
Press the appropriate key until the character
you want appears on the screen.
Key
Characters in order displayed
Upper case
Lower case
Changing the text input mode
• Press the right soft key to change the text
input mode. Or, press and hold the right soft
key and select the mode you want.
: ABC mode
: T9 mode
: Number mode
: Symbol mode
• Press and hold [ ] to switch to Number
mode or back to the previous mode.
• Press and hold [ ] to switch to Symbol
mode.
32
(creating an SMS message with GSM-alphabet
encoding)
E690.book Page 33 Wednesday, October 11, 2006 2:42 PM
Using T9 mode
• To enter the same letter twice or to enter a
different letter on the same key, wait for the
cursor to move to the right automatically or
press [Right]. Then, enter the next letter.
• Press [ ] to change case. Lower case (No
indicator), Initial capital ( ), and Capital
lock ( ) are available.
• Press [ ] to insert a space.
• Press the Navigation keys to move the
cursor.
• Press [C] to delete characters one by one.
Press and hold [C] to clear the display.
T9 is a predictive text input mode that allows
you to key in any character using single
keystrokes.
Enter text
Other ABC mode operations
Entering a word in T9 mode
1. Press [2] to [9] to start entering a word.
Press each key once for each letter.
For example, press [4], [3], [5], [5], and
[6] to enter Hello in T9 mode.
T9 predicts the word that you are typing,
and it may change with each key that you
press.
2. Enter the whole word before editing or
deleting characters.
3. When the word displays correctly, go to step
4. Otherwise, press [0] to display alternative
word choices for the keys that you have
pressed.
33
E690.book Page 34 Wednesday, October 11, 2006 2:42 PM
Enter text
For example, Of and Me use [6] and [3].
4. Press [ ] to insert a space and enter the
next word.
Adding a new word to the T9 dictionary
Other T9 mode operations
1. Enter the word that you want to add.
2. Press [0] to display alternative words for
your key presses. When there are no more
alternative words, Spell displays on the
bottom line.
3. Press <Spell>.
4. Enter the word you want using ABC mode
and press <OK>.
• Press [1] to enter periods or apostrophes
automatically.
• Press [ ] to change case. Lower case (No
indicator), Initial capital ( ), and Capital
lock ( ) are available.
• Press [ ] to insert a space.
• Press [Left] or [Right] to move the cursor.
• Press [C] to delete characters one by one.
Press and hold [C] to clear the display.
This feature may not be available for some
languages.
Using Number mode
Number mode enables you to enter numbers.
Press the keys corresponding to the digits you
want.
34
E690.book Page 35 Wednesday, October 11, 2006 2:42 PM
Using Symbol mode
Symbol mode enables you to insert symbols.
To
Press
scroll to a symbol
set
the Navigation keys.
select a symbol
the corresponding
number key.
clear the entered
symbols
[C].
insert the symbols
<OK>.
Call functions
Advanced calling features
Making a call
1. In Idle mode, enter the area code and phone
number.
• Press [C] to delete the last digit or press
and hold [C] to clear the whole display.
• Press and hold [ ] to enter a pause
between numbers.
2. Press [ ].
3. When you want to end the call, press [
].
Making an international call
1. In Idle mode, press and hold [0]. The +
character appears.
2. Enter the country code, area code, and
phone number, then press [ ].
35
E690.book Page 36 Wednesday, October 11, 2006 2:42 PM
Call functions
Redialling recent numbers
1. In Idle mode, press [ ] to display the list of
recent numbers.
2. Scroll to the number you want and press
[ ].
Making a call from Phonebook
Once you have stored a number in Phonebook,
you can dial the number by selecting it from
Phonebook.p. 43
You can also use the speed dial feature to
assign your most frequently dialled numbers to
specific number keys.p. 47
You can quickly dial a number from the SIM
card using the location number assigned when
stored.
1. In Idle mode, enter the location number for
the phone number you want and press [ ].
2. Scroll through other numbers, if necessary.
36
3. Press <Dial> or [
want.
] to dial the number you
Answering a call
When you receive an incoming call, the phone
rings and displays the incoming call image.
Press <Accept> or [ ] to answer the call.
Tips for answering a call
• When Anykey answer is active, you can
press any key to answer a call, except for
<Reject> and [ ].p. 111
• When Active folder is active, you can
simply open the phone.p. 111
• Press <Reject> or [ ] to reject a call.
• Press and hold [ / ] to reject a call or mute
the ringer, depending on the Volume key
setting.p. 110
E690.book Page 37 Wednesday, October 11, 2006 2:42 PM
Viewing missed calls
1. Press <View>.
2. If necessary, scroll through the missed calls.
3. Press [ ] to dial the number you want.
To
Press
redial the last call
the button and then
press and hold it again.
answer a call
the button and hold.
end a call
the button and hold.
Using the headset
Options during a call
Use the headset to make or answer calls
without holding the phone.
Connect the headset to the jack on the right
side of the phone. The button on the headset
works as follows:
You can access a number of functions during a
call.
Call functions
If you have missed calls, the screen displays
how many calls you have missed.
Adjusting the volume during a call
Use [ / ] to adjust the earpiece volume during
a call.
Press [ ] to increase the volume level and [ ]
to decrease the volume level.
37
E690.book Page 38 Wednesday, October 11, 2006 2:42 PM
Call functions
Placing a call on hold/Retrieving
Answering a second call
Press <Hold> to place the call on hold, or press
<Retrieve> to retrieve the call.
You can answer an incoming call while already
on the phone, if your network supports this
function and you have activated the call waiting
feature.p. 116
Making a second call
You can make another call if your network
supports this function.
Press <Hold> to put the call on hold.
Make the second call in the normal way.
Press <Swap> to switch between the calls.
Press <Options> and select End held call
to end the call on hold.
5. To end the current call, press [
].
1.
2.
3.
4.
38
1. Press [ ] to answer the call. The first call is
automatically put on hold.
2. Press <Swap> to switch between the calls.
Using the speakerphone feature
Use the speakerphone feature to talk and listen
with the phone a short distance away.
Press [ ] and then <Yes> to activate the
speakerphone feature. Press [ ] again to
switch back to the earpiece.
E690.book Page 39 Wednesday, October 11, 2006 2:42 PM
Using In-call options
To communicate with answering machines
or computerised telephone systems, Send
keys must be selected.
Call functions
Press <Opt.> to access the following options
during a call:
• Switch to headset/Switch to phone:
switch the call to a Bluetooth headset or
hands-free car kit or back to the phone. To
use this feature, you first need to connect
your headset or car kit to the phone.
p. 55
• Voice clarity on/Voice clarity off: remove
extraneous noise and increase call quality so
that the person with whom you are speaking
can hear you clearly even if you are in a
noise place.
• Mute/Unmute: switch off the phone's
microphone so that the other person on the
phone cannot hear you, or switch it back on.
• Mute keys/Send keys: switch the key
tones on or off.
• Phonebook: access the contact list.
• Send DTMF: send the DTMF (Dual tone
multi-frequency) tones as a group. The
DTMF tones are the tones used in phones for
tone dialling, sounding when you press the
number keys. This option is helpful for
entering a password or an account number
when you call an automated system, like a
banking service.
• Message: read an incoming message and
send a new message.p. 65
• Join: set up a multi-party call by adding a
caller on hold to a currently active call. You
can include up to five people on a
multi-party call.
39
E690.book Page 40 Wednesday, October 11, 2006 2:42 PM
• Split: have a private conversation with one
multi-party call participant. The other
participants can converse with each other.
After the private conversation, select Join to
return both private participants to the multiparty call.
• Transfer: transfer the currently active call
to a caller on hold. The two callers can talk
to each other, but you are disconnected from
the call.
• Remove: disconnect the selected
participant.
• End held call: disconnect the call currently
on hold.
• SIM service: access special services, such
as news, weather forecasts, entertainment,
and location services, provided by your SIM
card. This option is available when you use a
SIM card supporting SIM AT menus.
• Conv. record: record your conversation.
40
Menu functions
All menu options listed
Call log
(Menu 1)
Use this menu to view the calls you have
dialled, received, or missed, and the length of
the calls. You can also check the cost of your
calls, if the SIM card supports this function.
To access this menu, press <Menu> in Idle
mode and select Call log.
Recent contacts (Menu 1.1)
This menu displays the most recent calls
dialled, received, or missed.
Accessing a call log
1. Press [Left] or [Right] to move to another
call type.
E690.book Page 41 Wednesday, October 11, 2006 2:42 PM
Using call log options
Missed calls (Menu 1.2)
This menu displays the most recent received
calls that you did not answer.
Call log (Menu 1)
From the call list, press <Options> to access
the following options:
• Details: access the call details.
• Call: make a call to the number.
• Add to Phonebook: save the number in
Phonebook.
• Send message: send an SMS or MMS
message.
• Delete: delete the selected call log or all call
logs.
• Reject list: specify numbers from which you
do not want to accept calls.
• Add to reject list: add the number to the
Reject list.
• View contact details: access contact
information, if the caller is saved in
Phonebook.
Menu functions
2. Press [Up] or [Down] to scroll through the
call list.
3. Press [ ] to dial a number, or press [ ] to
view the details of a call.
Dialled calls (Menu 1.3)
This menu displays the most recent calls you
have dialled.
Received calls (Menu 1.4)
This menu displays the most recent calls you
have received.
41
E690.book Page 42 Wednesday, October 11, 2006 2:42 PM
Menu functions
Delete all (Menu 1.5)
Use this menu to delete all of the records in
each call type.
1. Press [ ] to select the call types to be
cleared.
2. Press <Delete>.
3. Press <Yes> to confirm the deletion.
Call time (Menu 1.6)
This menu displays the time log for calls made
and received. The actual time invoiced by your
service provider will vary.
• Last call time: check the length of your last
call.
• Total sent: check the total length of all the
calls you have dialled.
• Total received: check the total length of all
the calls you have received.
42
• Reset timers: reset the call timers. You
need to enter the phone password.
The password is preset to 00000000. You
can change this password.p. 118
Call costs (Menu 1.7)
This network feature displays the cost of calls.
This menu is available only if your SIM card
supports this feature. Note that this is not
intended to be used for billing purposes.
• Last call cost: check the cost of your last
call.
• Total cost: check the total cost of all your
calls. If the total cost exceeds the maximum
cost set in Set max cost, you must reset
the counter before you can make another
call.
• Max cost: check the maximum cost limit set
in Set max cost.
E690.book Page 43 Wednesday, October 11, 2006 2:42 PM
(Menu 2)
You can store phone numbers on your SIM card
and in your phone’s memory. The SIM card and
phone’s memory are physically separate, but
they are used as a single entity called
Phonebook.
To access this menu, press <Menu> in Idle
mode and select Phonebook.
Contact list (Menu 2.1)
Use this menu to search for contacts in
Phonebook.
Finding a contact
1. Enter the first few letters of the name that
you want to find.
2. Select the name you want from the list.
3. Scroll to a number and press [ ] to dial, or
press [ ] to edit contact information.
Phonebook (Menu 2)
Phonebook
You can quickly access this menu by pressing
<Contacts> in Idle mode.
Menu functions
• Reset counters: reset the cost counters.
• Set max cost: set the maximum cost
authorised for your calls.
• Price/Unit: set the price per unit that is
applied when the cost of your calls is
calculated.
Using Phonebook options
While viewing contact details, press
<Options> to access the following options:
• Edit: edit contact information.
• Send message: send an SMS or MMS
message to the selected number, or send an
MMS message or e-mail to the selected
e-mail address.
• Copy: copy the number to the phone’s
memory, to the SIM card, or to the FDN list.
43
E690.book Page 44 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Copy to phone: copy the e-mail address
with the name to a new contact.
• Send via: send the contact via SMS, MMS,
e-mail, or Bluetooth.
• Delete: delete the selected contact.
• Print via Bluetooth: print the contact by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
• Mark as default number: set the selected
number as the default for the contact.
Adding a contact
FDN contacts (Menu 2.2)
Using contact options
Use this menu to create a list of contacts to be
used in FDN (Fixed Dialling Number) mode, in
which the phone allows outgoing calls only to
the specified phone numbers, if your SIM card
supports this feature. You can activate FDN
mode in the FDN mode menu.p. 119
44
1. From the FDN contacts screen, press
<Options> and select Add.
2. Enter your PIN2 supplied with the SIM card
and press <OK>.
3. Enter information about the contact:
• Name: assign a name.
• Phone number: add a number.
• Location: assign a location number.
4. Press <Save> to save the contact.
You can access contact options by pressing
<Options> in the FDN list.
E690.book Page 45 Wednesday, October 11, 2006 2:42 PM
Create contact (Menu 2.3)
Storing a contact to the phone’s
memory
You can set domain name extensions and
retrieve one by pressing <Options> and
selecting Common address.
• Graphic ID: assign a caller ID image to
alert you to a call from the person.
Depending on the ringtone format, the
phone may display a still image for the
caller ID image.
Phonebook (Menu 2)
1. Select Phone.
2. Change the settings or enter information
about the contact:
• First name/Last name: assign a name.
• Mobile/Home/Office/Fax/Other: add a
number in any category.
You can change the number type, or set
the number as the default for the contact
by pressing <Options> and selecting
Change type or Mark as default
number.
• Email: assign an e-mail address.
Menu functions
Use this menu to add a new contact to
Phonebook.
• Alert: assign a ringtone to alert you to a
call from the person.
The settings specified in Graphic ID and
Alert are given priority over group
settings.
• Group: assign the number to a caller
group.
• Notes: add a memo about the person.
3. Press <Options> and select Save to save
the contact.
45
E690.book Page 46 Wednesday, October 11, 2006 2:42 PM
Menu functions
Storing a contact to the SIM card
1. Select SIM → New.
2. Enter information about the contact.
• Name: assign a name
• Phone number: add a number.
• Location: assign a location number.
To assign a caller ID image, ringtone, or
group, the contact must be saved to the
phone’s memory.
3. Press <Save> to save the contact.
Group (Menu 2.4)
Use this menu to organise your contacts in
caller groups.
Adding members to a caller group
1. Select a group.
46
2. Press <Add>.
3. Press [ ] to select the contacts you want.
4. Press <Add>.
Managing caller groups
While viewing the group list, press <Options>
to access the following options:
• View: display the members of the selected
group.
• Add: add a new group.
• Edit: change the properties of the selected
group.
• Send message: send an SMS, MMS, or
e-mail to the members you want.
• Delete: delete the selected group. Group
members, however, will not be deleted from
Phonebook.
E690.book Page 47 Wednesday, October 11, 2006 2:42 PM
Speed dial (Menu 2.5)
Assigning speed dial numbers
Managing speed dial entries
From the Speed dial screen, press <Options>
to access the following options:
• Add: assign a number to an unassigned key.
You can select a contact from Phonebook or
the FDN list.
Dialling speed dial numbers
In Idle mode, press and hold the appropriate
key.
Phonebook (Menu 2)
1. Scroll to a key location from 2 to 9. Key 1 is
reserved for your voicemail server.
2. Press <Options> and select Add → Contact
or FDN contact.
3. Select a contact from the list.
4. Select a number, if the contact has more
than one number.
• View: check the name and number assigned
to the key.
• Change: assign a different number to a key.
• Remove: clear the speed dial setting for a
key.
Menu functions
Use this menu to assign speed dial numbers (2
to 9) for 8 of your most frequently dialled
numbers.
My namecard (Menu 2.6)
Use this menu to create a name card and send
it to other people.
Saving your name card
The procedure for creating your name card is
the same as the one for saving a number in the
phone’s memory.p. 45
47
E690.book Page 48 Wednesday, October 11, 2006 2:42 PM
Menu functions
Using name card options
Management (Menu 2.8)
After saving your name card, press <Options>
to access the following options:
• Edit: edit the name card.
• Send via: send the name card via SMS,
MMS, e-mail, or Bluetooth.
• Exchange namecard: exchange the name
card with another person via Bluetooth.
• Remove: delete the name card.
• Print via Bluetooth: print the name card
by connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
Use this menu to manage contacts in
Phonebook.
• Save new contacts to: select a default
memory location for saving contacts. If you
select Always ask, the phone will ask you to
select a memory location each time you save
a number.
• Copy all: copy all of the contacts stored on
the SIM card to the phone’s memory, or vice
versa.
• List by: sort your contacts by the first name
or last name.
• Delete all: delete all of the contacts from
your phone’s memory, your SIM card, or the
FDN list.
• Search by initials: search for a contact
with the initial letters of the first name and
last name in the contact list.
Own number (Menu 2.7)
Use this feature to check your phone numbers,
or to assign a name to each of the numbers.
Changes made here do not affect the actual
subscriber numbers on your SIM card.
48
E690.book Page 49 Wednesday, October 11, 2006 2:42 PM
Service number (Menu 2.9)
1. Scroll to the number you want.
2. Press <Dial> or [ ].
Applications
(Menu 3)
Use this menu to play Java applications, play
music files, or edit photos.
To access this menu, press <Menu> in Idle
mode and select Applications.
Use this menu to enjoy music. First, you need
to save music files in your phone’s memory. To
enjoy high quality music, you can use an
optional Bluetooth stereo headset.
Normal headsets and Bluetooth mono headsets
are not compatible with the music player.
Applications (Menu 3)
Use this menu to view the list of Service Dialling
Numbers (SDN) assigned by your service
provider, including emergency numbers and
numbers for directory enquiries. This menu is
available if your SIM card supports SDN.
Music Player (Menu 3.1)
Menu functions
• Memory status: display the number of
contacts you have stored in Phonebook.
Downloading or receiving music files
Use the following methods to save music files to
your phone:
• Download from the wireless webp. 61
• Download from a computer using the
optional Samsung PC Studio programme
Samsung PC Studio User’s Guide
• Receive via Bluetoothp. 55
• Copy to a memory card and insert the card
into the phone. p. 29
49
E690.book Page 50 Wednesday, October 11, 2006 2:42 PM
Menu functions
Creating a play list
Add the music files to the play list so you can
play them.
1. From the Music Player screen, press
<Options> and select Add music from →
Phone or Memory card.
2. Press [ ] to select the files you want and
press <Add>.
Playing music files
1. From the Music Player screen, press
<Options> and select Play via.
2. Select Phone to use the phone speaker.
Select Bluetooth stereo headset to use a
Bluetooth stereo headset and then search for
and connect the phone to the headset.
50
During playback, use the following keys:
Key
Function
Pauses or resumes playback.
Left
Returns to the previous file. Moves
backward in a file when held down.
Right
Skips to the next file. Moves
forward in a file when held down.
Up
Opens the current play list.
Down
Stops playback.
/
Adjusts the volume.
1
Changes the repeat mode.
2
Changes the playback animation.
3
Sets the music player to play
tracks in random order.
E690.book Page 51 Wednesday, October 11, 2006 2:42 PM
Using music player options
• Settings: change the default settings for
playing music files.
Repeat mode: select a repeat mode.
Shuffle: set the music player to play tracks
in random order.
Visualisation: change the playback
animation.
Volume: select a volume level.
• Details: access the file properties.
• Shortcuts: view the functions of the keys
you can use during playback.
Menu functions
Applications (Menu 3)
From the music player screen, press
<Options> to access the following options:
• Play via: play the selected file via the phone
speaker or a Bluetooth stereo headset.
• Play/Pause: begin or pause playback.
• Transfer to Bluetooth stereo headset/
Transfer to phone: switch the sound
output to a Bluetooth headset or the phone
speaker.
• Open playlist: access the current play list
or all play lists.
• Remove from playlist: remove the
selected file from the play list.
• Send via: send the file via e-mail or
Bluetooth.
• Set as: set the file as your ringtone, as a
ringtone for a phonebook entry, or as a
ringtone for alarms.
Accessing the play list
From the Music Player screen, press [Up].
Press <Options> to access the following
options:
• Play via: play the selected file via the phone
speaker or a Bluetooth stereo headset.
• Add music from: add files to the play list.
51
E690.book Page 52 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Move track in playlist: move the selected
file to the position you want within the play
list.
• Go to all playlists: access all play lists.
• Move to: move the selected file to another
play list.
• Copy to: copy the selected file to another
play list.
• Remove: remove the selected file or all files
from the play list.
Voice recorder (Menu 3.2)
Use this menu to record voice memos. A voice
memo can be up to one hour long.
Recording a voice memo
1. Press [ ] to start recording.
2. Speak into the microphone.
Press [ ] to pause or resume the recording.
52
3. When you have finished, press <Save> or
[Down]. The voice memo is automatically
saved.
4. Press [ ] to review the voice memo, or
press [Up] to record additional memos.
Playing a voice memo
1. From the Voice recorder screen, press
<Options> and select Go to My voice
clips.
2. Select a voice memo. The memo plays.
During playback, use the following keys:
Key
Function
Pauses or resumes playback.
Left
Moves backward in a file.
Right
Skips forward in a file.
E690.book Page 53 Wednesday, October 11, 2006 2:42 PM
Function
Down
Stops playback.
/
Adjusts the volume.
Using voice recorder options
Image editor (Menu 3.3)
Applications (Menu 3)
From the Voice recorder screen, press
<Options> to access the following options:
• Record: record a new voice memo.
• Go to My voice clips: access the voice
memo list.
• Settings: customise the default settings for
the voice recorder:
Recording time: select a recording time.
- Limit for multimedia messages: record
a voice memo for adding to an MMS
message.
- Limit for emails: record a voice memo for
adding to an e-mail.
- 1 hour: record a voice memo of up to one
hour.
Volume: select a volume level.
Default name: change the default prefix of
file names.
Visualisation: change the playback
animation.
Menu functions
Key
Use this menu to edit your photos using an
assortment of editing tools.
Applying an effect
1. Press <Options> and select New image →
Open or Take photo.
2. Select a photo or take a new photo.
3. Press <Load>, or press <Options> and
select Load.
4. Press <Options> and select Effects → an
effect option.
53
E690.book Page 54 Wednesday, October 11, 2006 2:42 PM
Menu functions
5.
6.
7.
8.
Press
Press
Press
Enter
<Done>.
<Options> and select Save as.
<Yes>.
a new file name and press [ ].
Adding visual features
You can decorate photos by adding a frame or
an image.
1. Select a photo or take a new photo.
2. Press <Load>, or press <Options> and
select Load.
3. Press <Options> and select Insert → a
feature type.
• Frame: add a decorative frame.
• Clip Art: add an image.
• Emoticon: add an emoticon.
4. Select an item.
54
5. Adjust the position of the inserted item and
press <Done>.
6. Press <Options> and select Save as.
7. Press <Yes>.
8. Enter a new file name and press [ ].
Decision maker (Menu 3.4)
This menu helps you make decisions when you
are not sure what to do in given situations.
Adding a decision category
1. Press <Create> to create a new category.
2. Enter the title for the category and press
[Down].
3. Select the number of the alternatives you
want and press [Down].
4. Enter content for each alternative and press
[ ].
E690.book Page 55 Wednesday, October 11, 2006 2:42 PM
Using Bluetooth, you can connect the phone
wirelessly to other Bluetooth devices and
exchange data with them, talk hands-free, or
control the phone remotely.
Bluetooth technology allows free wireless
connections between all Bluetooth-compliant
devices within a range of 10 metres. Since the
devices communicate using radio waves, they
do not need to be in line of sight to each other.
Using decision category options
From the Decision maker screen, press
<Options> to access the following options:
• Select: access the selected category.
• Create: add a new category.
• Delete: delete the selected category or all
categories.
Applications (Menu 3)
Bluetooth (Menu 3.5)
1. From the Decision maker screen, select a
decision category.
2. Press <Options> and select Try to make a
decision for the category.
3. The phone displays the decision result.
4. If you are not satisfied with the results,
press <Options> and select Retry.
To view the statistics for the results of your
decision category, press <Options> and
select View statistics.
Menu functions
Making a decision
• If there are obstacles between the devices,
the maximum operating distance may be
reduced.
• It is recommended that you do not use the
Bluetooth feature while using multimedia
features such as voice recorder, camera, and
music player, or vice versa, for better
performance.
• Some devices, especially those are not tested
or approved by SIG, may be incompatible with
your phone.
55
E690.book Page 56 Wednesday, October 11, 2006 2:42 PM
Menu functions
Setting up the Bluetooth feature
The Bluetooth menu provides the following
options:
• Activation: activate or deactivate the
Bluetooth feature.
• My devices: search for connectable
Bluetooth devices.
• My phone’s visibility: allow other
Bluetooth devices to connect to your phone.
• My phone’s name: assign a Bluetooth
device name to your phone, which is then
displayed on other devices.
• Secure mode: determine if the phone asks
for your confirmation when other devices
access your data.
• Bluetooth services: display available
Bluetooth services.
56
Searching for and pairing with a
Bluetooth device
1. From the Bluetooth menu, select My
devices.
2. Select Search new device.
After searching, a list of devices to which you
can connect displays. The following icons
indicate the kind of device:
•
Stereo headset
•
Mono headset/Hands-free car kit
•
Mobile phone
•
Computer
•
PDA
•
Unknown device
•
Printer
The colour of the icon indicates the status of
the device:
• Grey for unpaired devices
• Blue for paired devices
E690.book Page 57 Wednesday, October 11, 2006 2:42 PM
Using device options
Sending data via Bluetooth
From the device list, press <Options> to
access the following options:
• Connect: connect to a headset or
hands-free car kit.
• Disconnect: end the connection with the
connected device.
1. Activate the Bluetooth feature.
2. Select the application in which the item you
want to send is stored.
3. Select the item you want.
4. Press <Options> and select Send via →
Bluetooth.
Applications (Menu 3)
Some devices, especially headsets or hands-free
car kits, may have a fixed Bluetooth PIN, such
as 0000. If the other device has a code, you
must enter it.
• Browse files: search for data from the
device and import data directly to your
phone.
• Service list: access the Bluetooth service
list of the device.
• Rename: rename the paired device.
• Authorise device/Unauthorise device:
determine whether or not the phone asks
you to permit connection when other devices
try to connect to your phone.
• Delete: remove the selected device or all
devices from the list.
Menu functions
• Orange for devices that are currently
connected to your phone
3. Select a device.
4. Enter a Bluetooth PIN and press <OK>. This
code is used just once and you do not need to
memorise it.
When the owner of the other device enters
the same code, pairing is complete.
57
E690.book Page 58 Wednesday, October 11, 2006 2:42 PM
Menu functions
5. Select a device.
6. If necessary, enter the Bluetooth PIN needed
for pairing and press <OK>.
Receiving data via Bluetooth
To receive data via Bluetooth, your phone’s
Bluetooth feature must be active and its
visibility must be enabled.
1. If an unauthorised Bluetooth device sends
data to your phone, press <Yes> to allow
the device to access your phone.
2. Press <Yes> to receive data.
When an incoming call comes in while receving
data via Bluetooth, the Bluetooth connection is
ended.
Java world (Menu 3.6)
Use this menu to access the embedded Java
games and downloaded Java applications.
58
Playing a game
Select a game from the game list and follow the
onscreen instructions. The procedure may differ
from game to game.
Using Java application options
From the application list, press <Options> to
access the following options:
• Start: launch the selected application.
• Delete: delete the selected application.
• Details: access the application properties.
• Permission: set permission settings for
services charging you additional costs, such
as network access and SMS.
• Lock/Unlock: lock the application to
prevent it from being deleted, or unlock the
application.
• Upgrade: upgrade the application to the
latest version, except for embedded games.
E690.book Page 59 Wednesday, October 11, 2006 2:42 PM
When the proxy is set to Disable:
- DNS1: enter the primary address.
- DNS2: enter the secondary address.
Menu functions
FM radio (Menu 3.7)
Use this menu to listen to music or news via the
FM radio on your phone.
Turning on and listening to the radio
Applications (Menu 3)
• Send information via text message: send
the URL containing the application via SMS,
except for embedded games.
• Memory status: access memory
information for applications.
• Network settings: customise a connection
profile to be used for applications requiring
network access. The following options are
available:
APN: enter the access point name of the
network gateway.
Login ID: enter the user ID.
Password: enter the password.
Proxy: select whether or not the phone uses
a proxy server to launch the web browser.
Proxy settings: customise the following
proxy settings:
When the proxy is set to Enable:
- IP address: enter the gateway address.
- Port: enter the port number.
First, you must connect your phone with the
headset, which serves as a radio antenna.
1. Plug the connecter of the supplied headset
into the jack on the right side of the phone.
2. From the radio screen, press [ ] or, press
<Options> and select FM radio on.
3. Press [Left] or [Right] to find the radio
station you want.
You can also press and hold [Left] or [Right]
to scan through available radio stations.
59
E690.book Page 60 Wednesday, October 11, 2006 2:42 PM
Menu functions
4. To exit the FM radio menu without turning
off the radio, press [
]. This enables you to
access other functions while listening to the
radio.
Turning off the radio
From the radio screen, press <Options> and
select FM radio off or press [ ].
Setting up a radio station list
You can store your favourite radio stations to
quickly access them without searching through
noisy frequencies.
1. Connect the headset to the phone and turn
on the radio.
2. Scroll to an empty location and press
<Options> → Add.
3. Enter the frequency of the station and press
<Save>.
60
4. Select a location in which you want to store
the station.
5. Repeat from step 2 to store other stations.
To listen to the stored stations, press [Up] or
[Down] from the FM radio screen.
Using radio options
From the FM radio screen, press <Options> to
access the following options:
• FM radio on/FM radio off: turn the radio
on or off.
• Add: store a radio station.
• Edit: edit the frequency for a saved radio
station.
• Self-tuning: let the phone automatically
scan through and save available radio
stations.
• Remove: remove the selected station or all
stations.
E690.book Page 61 Wednesday, October 11, 2006 2:42 PM
This menu is available if you use a SIM-AT card
that supports SIM Application Toolkit menus
and provides additional services, such as news,
weather, sports, entertainment, and location
services. Available services may vary,
depending on your service provider’s plans. For
details, see your SIM card instructions or
contact your service provider.
(Menu 4)
The Wireless Application Protocol (WAP) on
your phone allows you to access the wireless
web. Using the web browser, you can access
up-to-date information and a wide variety of
media content, such as wallpapers, ringtones,
and music files.
To access this menu, press <Menu> in Idle
mode and select Browser.
Browser (Menu 4)
SIM-AT (Menu 3.8)
Browser
Menu functions
• Pop-up alert: set the phone to alert you to
listen to the radio at a specified time. When
the pop-up notification appears on the
screen, press <Listen> to turn on the
specified radio station.
• Speaker on/Earphone on: change sound
output to the phone speaker or headset.
Home (Menu 4.1)
Use this menu to connect your phone to the
network and load the homepage of the wireless
web service provider. You can also press [ ] in
Idle mode.
61
E690.book Page 62 Wednesday, October 11, 2006 2:42 PM
Menu functions
Navigating the web browser
To
Press
scroll through browser
items
[Up] or [Down].
select a browser item
<
return to the previous
page
<Back> or [C].
return to the homepage
and hold [C].
> or [ ].
Using browser menu options
1. Select
or press [ ].
2. Select one of the following browser options:
• Back: go back to the previous page.
• Home: go back to the homepage.
• Exit: exit the web browser.
• Reload: reload the current page.
62
• Show URL: display the URL address of
the current web page.
• About ...: access version and copyright
information about the browser.
Accessing other phone menus
From any web page, press [ ] to access the
following options:
• Enter URL: enter a URL address manually.
• Bookmarks: switch to the Bookmarks
menu.
• Messages: check the messages stored in
the My messages folder. You can also
create and send a new SMS message.
• My files: switch to the My files menu.
Exiting the browser
Press [ ] to end the network connection and
exit the browser.
E690.book Page 63 Wednesday, October 11, 2006 2:42 PM
Bookmarks (Menu 4.2)
Adding a bookmark
Accessing a bookmarked page
Selecting a bookmark item launches the web
browser and accesses the associated web page.
Using bookmark options
From the bookmark list, press <Options> to
access the following options:
• Open: access the bookmarked web page.
Enter URL (Menu 4.3)
Use this menu to manually enter a URL address
and access the associated web page.
Browser (Menu 4)
1. Select an empty location.
2. Enter a title for the bookmark and press
[Down].
3. Enter a URL address and press [ ].
• Edit: edit the URL address and title of the
bookmark.
• Delete: delete the selected bookmark or all
bookmarks.
Menu functions
Use this menu to save URL addresses in order
to quickly access web pages, or access ones
you have bookmarked while navigating the
wireless web.
Clear cache (Menu 4.4)
Use this menu to clear the cache, which is a
temporary memory site that stores recently
accessed web pages.
Profile settings (Menu 4.5)
Use this menu to set up servers for the web
browser. Contact your service provider for
details about your setting options.
63
E690.book Page 64 Wednesday, October 11, 2006 2:42 PM
Menu functions
For each server, the following options are
available:
• Profile name: assign a name to the server
profile.
• Home URL: enter the address of your
homepage.
• Bearer: select a bearer for each type of
network address accessed.
• Proxy: select whether or not the phone uses
a proxy server to launch the web browser.
• GPRS settings: customise the GPRS
network settings:
When the proxy is set to Enable:
Proxy IP: enter the web gateway address.
Proxy port: enter the port number.
APN: enter the access point name of the
GPRS network gateway.
Login ID: enter the user ID.
Password: enter the password.
64
When the proxy is set to Disable:
DNS1: enter the primary address.
DNS2: enter the secondary address.
APN: enter the access point name of the
GPRS network gateway.
Login ID: enter the user ID.
Password: enter the password.
• GSM settings: customise the following GSM
network settings:
When the proxy is set to Enable:
Proxy IP: enter the web gateway address.
Proxy port: enter the port number.
Dial number: enter the PPP server phone
number.
Login ID: enter the user ID.
Password: enter the password.
Data call type: select a data call type.
When the proxy is set to Disable:
DNS1: enter the primary address.
E690.book Page 65 Wednesday, October 11, 2006 2:42 PM
Current profile (Menu 4.6)
Messages
(Menu 5)
Use the Messages menu to send and receive
short messages, multimedia messages, and
e-mails. You can also access push messages,
broadcast messages.
To access this menu, press <Menu> in Idle
mode and select Messages.
Use this menu to create and send text
messages, multimedia messages, or e-mails.
Text message (Menu 5.1.1)
Short Message Service (SMS) allows you to
send or receive text messages including
pictures, audio clips, and animated images.
Messages (Menu 5)
Use this menu to activate one of the proxy
servers you have set up.
Create new message (Menu 5.1)
Menu functions
DNS2: enter the secondary address.
Dial number: enter the PPP server phone
number.
Login ID: enter the user ID.
Password: enter the password.
Data call type: select a data call type.
Creating and sending an SMS message
1. Enter your message and press [ ].
• The maximum number of characters
allowed in a message varies by service
provider. If your message exceeds the
maximum number of characters, the
phone will split the message.
• You can use various options by pressing
<Options>.next section
65
E690.book Page 66 Wednesday, October 11, 2006 2:42 PM
Menu functions
2. Enter a destination number.
To send the message to more than one
recipient, fill in additional destination fields.
3. Press [ ] to send the message.
Using options while composing an SMS
message
While composing a message, press <Options>
to access the following options:
• Send only: just send the message.
• Save and send: send the message and then
save it in the Sentbox folder.
• Insert: add a text template, Phonebook
entry, or bookmark.
• Add picture/Add animation/Add melody:
attach a simple image, an animated image,
or a melody.
• Attach: add a name card or a calendar item
as a data format attachment.
66
• Save in: save the message in another
message folder.
• Language select: change the language to
be used in T9 input mode.
• Text style: change the text attributes.
Multimedia message (Menu 5.1.2)
Multimedia Message Service (MMS) delivers
messages containing a combination of text,
image, video, and audio, from phone to phone
or from phone to e-mail.
Creating and sending an MMS message
1. Select the Subject line.
You can use various options by pressing
<Options> in each field.next section
2. Enter the message subject and press [ ].
3. Select the Image or video line.
E690.book Page 67 Wednesday, October 11, 2006 2:42 PM
• The maximum size allowed for a message
can differ, depending on your service
provider.
• Depending on the file type or DRM (Digital
Rights Management) system, some files
may not be able to be forwarded.
Select the Sound line.
Select Add sound and add a sound clip.
Select the Text line.
Enter the message text and press [ ].
When you have finished, press <Options>
and select Send.
10.Enter a phone number or an e-mail address.
To send the message to more than one
recipient, fill in additional destination fields.
11.Press [ ] to send the message.
Messages (Menu 5)
5.
6.
7.
8.
9.
Using options while composing an MMS
message
While composing a message, press <Options>
to access the following options:
• Add: add the message subject or message
text.
• Add image/Add video/Add sound: add an
image, a video clip, or a sound clip.
• Edit: edit the subject or text.
• Preview: view the message as it will be
shown on the recipient’s phone.
• View: open the selected attachment.
Menu functions
4. Select Add image or Add video and add an
image or a video clip.
Attached files from the Other files folder
cannot be opened in your phone.
• Send: send the message.
• Save in: save the message in another
message folder.
• Add page: add pages. Move to each page
by pressing [Left] or [Right].
67
E690.book Page 68 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Delete page: delete an added page.
• Edit page: change the duration of page
display or move the page between the other
pages.
• Attach: attach a Phonebook entry as a
name card or a calendar item as a data
format attachment, or a document file
stored in the Other files folder.
• Change image/Change video/Change
sound: replace an added item.
• Remove subject/Remove text/Remove
media/Remove sound/Remove: remove
an added item.
Email (Menu 5.1.3)
You can create and send e-mails that include
text, audio, and images. To use this feature,
you need to subscribe to an e-mail service and
set up your e-mail account and profile.
p. 81, p. 83
68
Creating and sending an e-mail
You can create and send e-mails.
1. Select the Subject line.
You can use various options by pressing
<Options> in each field.next section
2. Enter the subject of your e-mail and press
[ ].
3. Select the Message line.
4. Enter the e-mail text and press [ ].
5. Select the File attach line.
6. Add media files, document files stored in the
Other files folder, or Phonebook entries as
name cards or calendar item as data format
attachments.
Depending on the file type or DRM (Digital
Rights Management) system, some files
may not be able to be forwarded.
E690.book Page 69 Wednesday, October 11, 2006 2:42 PM
• Add from memory card: add media files,
or document files stored on the memory
card.
• View/Play: open the selected attachment.
Using options while composing an e-mail
While composing an e-mail, press <Options>
to access the following options:
• Add: add the subject of your e-mail or
e-mail text.
• Edit: edit the subject or text.
• Add image/Add videos/Add sounds/Add
music: add media files stored in the phone’s
memory or on the memory card.
• Add other file: add document files stored in
the Other files folder or on the memory
card.
• Send: send the e-mail.
• Save in: save the e-mail in another
message folder.
• Attach: attach Phonebook entries as name
cards or calendar item as data format
attachments.
• Remove subject/Remove message: clear
the subject or text.
• Remove: delete the selected attachment or
all attachments.
• Remove all attachments: delete all
attachments.
Menu functions
7. When you have finished, press <Options>
and select Send.
8. Enter an e-mail address.
9. To send the e-mail to more than one
recipient, fill in additional destination fields.
10.Press [ ] to send the e-mail.
Attached files from the Other files folder
cannot be opened in your phone.
Messages (Menu 5)
69
E690.book Page 70 Wednesday, October 11, 2006 2:42 PM
Menu functions
My messages (Menu 5.2)
Using message options
Use this menu to access messages you have
received, sent, or which have failed in sending.
While viewing a message, press <Options> to
access the following options:
Inbox (Menu 5.2.1)
SMS messages
• Reply via: send a reply to the sender via
SMS or MMS.
• Forward: forward the message to other
people.
• Delete: delete the message.
• Move to phone/Move to SIM: move the
message between the SIM card and the
phone’s memory.
• Add to block list: add the sender’s number
to the Block list to reject the messages from
the sender.
• Cut address: extract URL addresses, e-mail
addresses, or phone numbers from the
message.
This folder stores all of the messages you have
received, except for e-mails.
Viewing a message
The following icons may appear on the message
list to show the message type:
•
SMS
•
MMS
•
MMS notification
•
Push message
A ! icon next to a message means that the
message is of high priority. A grey-coloured
message icon indicates low priority.
70
E690.book Page 71 Wednesday, October 11, 2006 2:42 PM
Messages (Menu 5)
MMS messages
• Retrieve: retrieve the MMS message from
the server.
• Reply via text message: send a reply to
the sender via SMS.
• Reply via multimedia message to: send a
reply via MMS to the sender or all recipients.
• Forward: forward the message to other
people.
• Delete: delete the message.
• Add to block list: add the sender’s number
to the Block list to reject the messages from
the sender.
• Cut address: extract URL addresses, e-mail
addresses, or phone numbers from the
message.
• Attached items: save media contents from
the message to your phone’s memory.
• Lock/Unlock: lock the message to prevent
it from being deleted, or unlock the
message.
• Details: access the message properties.
Menu functions
• Attached items: save media content from
the message into your phone’s memory.
• Print via Bluetooth: print the message by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
• Lock/Unlock: lock the message to prevent
it from being deleted, or unlock the
message.
Push messages
• Go to URL: connect to the URL address
specified in the message.
• Delete: delete the message.
• Cut address: extract URL addresses, e-mail
addresses, or phone numbers from the
message.
71
E690.book Page 72 Wednesday, October 11, 2006 2:42 PM
Menu functions
Configuration messages
• Install: apply the configuration value in the
message to the phone.
• Cut address: extract URL addresses, e-mail
addresses, or phone numbers from the
message.
• Delete: delete the message.
• Lock/Unlock: lock the message to prevent
it from being deleted, or unlock the
message.
Draft (Menu 5.2.2)
This folder stores messages you have saved to
send at a later time.
When you select an SMS message or e-mail, it
opens in Edit mode so that you can edit and/or
send the message.
When you select an MMS message, it opens in
Preview mode as in the Inbox. To edit the MMS
message, press <Options> and select Edit.
72
Outbox (Menu 5.2.3)
This folder stores messages that the phone is
attempting to send or has failed to send.
While viewing a message, press <Options> to
access the following options:
• View/Play: open the selected file.
Attached files from the Other files folder
cannot be open in your phone.
• Register: save the attached name cards
and calendar items to the phone.
• Save to My files: save the selected file.
• Send again: retry sending the message.
• Forward: forward the message to other
people.
• Delete: delete the message.
• Move to SIM/Move to phone: move the
message between the SIM card and the
phone’s memory.
E690.book Page 73 Wednesday, October 11, 2006 2:42 PM
This folder stores messages that you have sent
successfully.
While viewing a message, press <Options> to
access the following options:
• View/Play: open the selected file.
Attached files from the Other files folder
cannot be open in your phone.
• Register: save the attached name cards
and calendar items to the phone.
Messages (Menu 5)
Sentbox (Menu 5.2.4)
• Save to My files: save the selected file.
• Forward: forward the message to other
people.
• Cut address: extract URL addresses, e-mail
addresses, or phone numbers from the
message.
• Delete: delete the selected message.
• Move to phone/Move to SIM: move the
message between the SIM card and the
phone’s memory.
• Print via Bluetooth: print the message by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
• Lock/Unlock: lock the message to prevent
it from being deleted, or unlock the
message.
• Details: access the message properties.
Menu functions
• Print via Bluetooth: print the message by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
• Lock/Unlock: lock the message to prevent
it from being deleted, or unlock the
message.
• Details: access the message properties.
73
E690.book Page 74 Wednesday, October 11, 2006 2:42 PM
Menu functions
Email inbox (Menu 5.2.5)
This folder stores e-mails that you have
received.
Viewing an e-mail
1. Press <Select> when Check new mail
displays. The phone checks the e-mail server
and downloads new e-mails.
The following icons may appear on the list to
show the e-mail status:
•
Being retrieved
•
Failed to be retrieved
A ! icon next to a message means that the
e-mail is of high priority. A grey-coloured
e-mail icon indicates low priority.
2. Select an e-mail or a header.
74
3. Press [ / ] to view other pages in the
e-mail.
Press and hold [ / ] to move to the first or
last page in the e-mail.
4. Press [ ] or [ ] to view the next or
previous e-mail.
Using e-mail options
While viewing the e-mail or header, press
<Options> to access the following options:
• Retrieve: retrieve the body of the e-mail
from the e-mail server.
• View/Play: open the selected file.
Attached files from the Other files folder
cannot be open in your phone.
• Register: save the attached name cards
and calendar items to the phone.
• Save to My files: save the selected file.
E690.book Page 75 Wednesday, October 11, 2006 2:42 PM
• Lock/Unlock: lock the e-mail to prevent it
from being deleted, or unlock the e-mail.
• Details: access the e-mail properties.
Menu functions
My folder (Menu 5.2.6)
Use this menu to view the messages you have
moved to this folder using the Move to my
folder option while viewing a message list.
Messages (Menu 5)
• Reply to: send a reply to the sender or all
recipients.
• Forward: forward the e-mail to other
people.
• Delete: delete the e-mail from the phone’s
memory or from both the phone’s memory
and the e-mail server.
• Add to block list: add the sender’s e-mail
address or subject to the Block list to reject
e-mails from that address or containing that
subject.
• Cut address: extract URL addresses, e-mail
addresses, and phone numbers.
• Attached items: save the selected
attachment or all attachments from the
e-mail to your phone’s memory.
• Print via Bluetooth: print the e-mail by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
Templates (Menu 5.3)
Use this menu to make and use templates of
frequently used messages.
Text template (Menu 5.3.1)
You can create SMS templates with the
sentences you use frequently so that you can
retrieve and insert them when composing an
SMS message.
75
E690.book Page 76 Wednesday, October 11, 2006 2:42 PM
Menu functions
Creating a template
Creating a template
1. Select an empty location.
2. Enter a message and press [ ].
1. Press <Options> and select Add new.
2. Create a template as you would when
creating an MMS message.
3. Press <Options> and select Save in →
Templates.
Using template options
From the template list, press <Options> to
access the following options:
• Edit: edit the template.
• Send: create and send a new message via
SMS, MMS, or e-mail.
• Delete: delete the selected template.
Multimedia message templates
(Menu 5.3.2)
You can access embedded MMS templates or
ones you have saved so that you can use them
in composing an MMS message.
76
Using template options
From the template list, press <Options> to
access the following options:
• View: open the selected template.
• Send: send the selected template via MMS.
• Edit: edit the selected template.
• Add new: add a new template.
• Delete: delete the selected template or all
templates. You cannot delete the embedded
templates.
E690.book Page 77 Wednesday, October 11, 2006 2:42 PM
Delete all (Menu 5.4)
Multimedia messages (Menu 5.5.2)
You can configure SMS settings.
• Sending options: set up the options for
sending SMS messages:
Request read receipt: send a read-reply
request along with your messages.
You can configure MMS settings.
• Sending options: set up the options for
sending MMS messages:
Request delivery receipt: set the network
to inform you when your messages have
been delivered.
Settings (Menu 5.5)
Messages (Menu 5)
Text messages (Menu 5.5.1)
1. Press [ ] to select the message folders to
be cleared.
2. Press <Delete>.
3. Press <Yes> to confirm the deletion.
Menu functions
Use this menu to set up various options for
using the messaging service.
Request delivery receipt: set the network
to inform you when messages have been
delivered.
Validity period: set the length of time your
messages are stored in the SMS server.
Message type: set the default message
type. The network can convert messages
into the selected format.
Service centre: store or change the
number of SMS server.
• Block number: store the phone numbers
from which you want to reject SMS
messages.
Use this menu to delete all messages in each
message type at once.
77
E690.book Page 78 Wednesday, October 11, 2006 2:42 PM
Menu functions
Address hiding: set your address to be
hidden from the recipient’s phone.
Request read receipt: send a read-reply
request along with your messages.
Priority: set the priority level of your
messages.
Expiry date: set the length of time your
messages are stored in the MMS server.
Delivery after: set a time delay before
messages are sent.
• Receiving options: set up the options for
receiving MMS messages:
Anonymous reject: reject messages from
unknown senders.
Advert allowed: accept advertisements.
Report allowed: set the network to inform
the sender when a message has been
delivered to you.
78
Home network: determine if your phone
retrieves new messages automatically when
you are in your home service area.
Network when abroad: determine if your
phone retrieves new messages automatically
when you are roaming on another network.
Reception within home network or abroad
has the following options:
- Automatic: the phone automatically
retrieves messages from the server.
- Reject: the phone rejects all messages.
- Manual: the phone displays notifications.
Use the Retrieve option to manually
download new messages.
• Multimedia message profile: set up an
MMS profile and select a profile to be used.
Current profile: select a profile.
Profile settings: configure MMS profiles
using different MMS servers:
E690.book Page 79 Wednesday, October 11, 2006 2:42 PM
APN: enter the access point name used for
the address of the GPRS network.
Login ID: enter the user ID.
Password: enter the password.
- Version: select an available OMA version
and maximum size limit for sending or
receiving messages.
Menu functions
Depending on your service provider, it
may not be possible to support the
maximum limit 300KB. In this case, try
again after changing the setting to 100KB.
Messages (Menu 5)
- Profile name: assign a name to the MMS
profile.
- Server URL: enter the address of your
MMS server.
- Proxy: connect to the GPRS network using
the proxy server.
- GPRS settings: customise the settings
required for connecting to the GPRS
network.
When the proxy is set to Enable:
IP address: enter the gateway address.
Port: enter the port number.
APN: enter the access point name used for
the address of the GPRS network.
Login ID: enter the user ID.
Password: enter the password.
when the proxy is set to Disable:
DNS1: enter the primary address.
DNS2: enter the secondary address.
• Block number: specify phone numbers
from which messages will not be accepted.
Numbers specified here are also included in
the SMS blocking list.
• Message class: select the type of message
content you will add or the message size.
Text only: you can add only text of up to 30
KB.
79
E690.book Page 80 Wednesday, October 11, 2006 2:42 PM
Menu functions
Small imaging: you can add any type of
item, except for video, of up to 30 KB.
Moderate imaging: you can add any type
of item, except for video, of up to 100 KB.
Small video: you can add any type of item
of up to 100 KB.
Moderate video: you can add any type of
items of up to 300 KB.
• Creation mode: select an MMS creation
mode.
Warning: you can create a message with
any type of content and of any size, but the
phone will inform you when the content and
size have exceeded the maximum.
Free: you can create a message with any
type of contents and of any size.
Restricted: you can create a message with
the type of content and size specified in
Message class.
80
Emails (Menu 5.5.3)
You can configure e-mails settings.
You cannot change e-mail profile and account
settings while an e-mail is being sent or
retrieved.
• Sending options: set up the options for
sending e-mails:
Send copy to self: send a copy of your
e-mail to your e-mail account.
Request delivery receipt: set the network
to inform you when e-mails have been
delivered.
Request read receipt: send a read-reply
request for a reply along with e-mails.
Priority: select the priority level of your
e-mail.
Add signature: attach your name, phone
number, or a simple memo to e-mails.
Edit name: edit the name in your signature.
E690.book Page 81 Wednesday, October 11, 2006 2:42 PM
Delete option: determine whether e-mails
are deleted immediately or the next time
you connect to the server.
Download limit: determine the maximum
size for incoming e-mails. Your phone will
reject e-mails that exceed the specified size.
Keep in server: leave copies of e-mails on
the e-mail server after retrieving.
• Email accounts: set up an e-mail account
and select an account to be used:
Current account: select an account.
Account settings: configure e-mail
accounts using different e-mail servers.
Press <Create>, or press <Options> and
select Create, if one has already been
saved.
- In use: select this option to use the
account and to display the account in
Email inbox.
Menu functions
Messages (Menu 5)
Edit telephone number: edit the phone
number in your signature.
Edit note: edit the tag line in your
signature.
• Receiving options: set up the options for
receiving e-mails:
Check interval: determine how often the
phone checks the server for incoming
e-mails. If you select Not used, you can use
the Check new mail feature to receive new
e-mails manually.
Send read receipt: determine whether or
not the phone sends a read-reply for
incoming e-mails. If you select Announce,
the phone asks you to send a read-reply.
Retrieve option: set whether the phone
downloads e-mail headers only or both
e-mail headers and bodies.
81
E690.book Page 82 Wednesday, October 11, 2006 2:42 PM
Menu functions
- Account name: enter a name for the
currently selected account.
To access the following options, press
<Options> and select Next, or press [ ].
- User name: enter a user name.
- Email address: enter your e-mail
address.
- Reply address: enter your e-mail address
to be used when the recipient sends a
reply.
To access the following options, press
<Options> and select Next, or press [ ].
- SMTP server: enter the IP address or host
name of the outgoing e-mail server.
- SMTP port: enter the SMTP port number.
- SMTP user ID: enter the SMTP user
name.
- SMTP password: enter the SMTP
password.
82
- Secure connection (SMTP): use a secure
connection for the e-mail service.
- Retrieve server type: select the protocol
for the incoming e-mail server. The
remaining options depend on the protocol
type setting.
When the protocol type is POP3:
- POP3 server: enter the IP address or host
name of the server that receives your
e-mail.
- POP3 port: enter the POP3 port number.
- Same ID and password: select if you
want to have the same user ID and
password with the outgoing e-mail server.
- POP3 user ID: enter the POP3 user name.
- POP3 password: enter the POP3
password.
- Secure connection (POP3): use a secure
connection for the e-mail service.
E690.book Page 83 Wednesday, October 11, 2006 2:42 PM
- Email retrieval limit: set the number of
headers you will retrieve from the server.
• Email profiles: set up an e-mail profile and
select a profile to be used.
Current profile: select a profile.
Profile settings: configure e-mail profiles
using different e-mail servers. Set the
options for each profile:
- Profile name: enter a name for the e-mail
profile.
- APN: enter the access point name used for
the GPRS network address.
- Login ID: enter the user ID.
- Password: enter the password.
- DNS1: enter the primary address.
- DNS2: enter the secondary address.
• Block list: specify e-mail addresses or
subjects you want to reject.
Menu functions
Messages (Menu 5)
- APOP login: connect to the server by
using the APOP login scheme when this
option is selected.
When the protocol type is IMAP4:
- IMAP4 server: enter the IP address or
host name of the server that receives your
e-mail.
- IMAP4 port: enter the IMAP4 port
number.
- Same ID and password: select if you
want to have the same user ID and
password with the outgoing e-mail server.
- IMAP4 user ID: enter the IMAP4 user
name.
- IMAP4 password: enter the IMAP4
password.
- Secure connection (IMAP4): use a
secure connection for the e-mail service.
- Include attachments: select this option
to receive attachments with e-mails.
83
E690.book Page 84 Wednesday, October 11, 2006 2:42 PM
Menu functions
Push message (Menu 5.5.4)
You can change the settings for receiving push
messages from the wireless web server.
• Receive: set how your phone receives push
messages.
• Service centre: enter the address of the
server from which you want to receive push
messages, if the Receive option is set to
Text message-C specific.
SOS message (Menu 5.6)
In an emergency, you can send SOS messages
to your family or friends for help. You can also
receive SOS messages from other people who
are in an emergency. Use this menu to specify
options for sending and receiving SOS
messages.
84
• Message sending: activate or deactivate
the SOS message feature. To send an SOS
message, press [ / ] 4 times in Idle mode,
with the phone closed.
While the phone is attempting to send an
SOS message,
turns to red and you
cannot access menu functions in this mode.
To use the phone as normal, press [
]
when the icon turns to blue.
• Recipients: specify the phone numbers to
which you want to send SOS messages.
• Repeat sending: set the number of times
the phone repeats sending SOS messages.
• Incoming SOS alert: set whether or not
the phone uses the preset alert type (siren
and alert message) for incoming SOS
messages. If you select No, the phone uses
the message ringer setting.
E690.book Page 85 Wednesday, October 11, 2006 2:42 PM
• Text: check the preset SOS message text.
Broadcast messages (Menu 5.7)
Memory status (Menu 5.8)
Messages (Menu 5)
The broadcast service delivers short messages
on various topics such as the weather or traffic.
Use this menu to change the settings for the
service and to access broadcast messages.
• Read: open received broadcast messages.
The Temporary box saves network
messages until the phone is switched off.
The Archive box saves network messages
indefinitely. Press <Options> and select
Save when a text notification appears to
save to the Archive box.
• Activation: select to receive broadcast
messages, or not.
• Receiving channels: indicate the channels
from which you wish to receive broadcast
messages. Please contact your service
provider for further details.
• Language: select the preferred languages
in which broadcast messages display.
Menu functions
You can view the onscreen help by pressing
<Options> and selecting Help.
Use this menu to view the amount of memory
currently in use in each message folder.
You can access a message folder by selecting it
from this menu.
85
E690.book Page 86 Wednesday, October 11, 2006 2:42 PM
Menu functions
My files
(Menu 6)
The My files menu allows you to access
images, videos, music files, and sound files
stored in the phone’s memory or on the
memory card.
To access this menu, press <Menu> in Idle
mode and select My files.
As a result of the Digital Rights Management
(DRM) system, some of the media items you
download from the Internet or receive by MMS
may require a license key to access them.
Images (Menu 6.1)
This menu displays photos you have taken and
images you have downloaded, received in
messages, or imported from a computer.
86
Viewing an image
1. Select an image folder.
2. Select an image.
Viewing a slide show
You can view your images as a slide show, a
sequential presentation of each image in the
current folder.
1. Select an image folder.
2. Press <Options> and select Create slide
show.
3. Select a time interval. The slide show begins.
4. Press <Back> to stop the slide show.
Using image options
While viewing an image, press <Options> to
access the following options:
• List: return to the image list.
E690.book Page 87 Wednesday, October 11, 2006 2:42 PM
• Print via: print the file by connecting the
phone to a printer via USB or Bluetooth.
Menu functions
• To print via USB, you first need to set the
USB mode to Pictbridge.p. 110
• Some printers may not be compatible with
the phone.
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
My files (Menu 6)
• Send via: send the file via MMS, e-mail, or
Bluetooth.
• Set as: set the file as your wallpaper for the
displays or as a caller ID image for a
Phonebook entry.
• Edit: edit the image using the Image editor
if it is a photo taken by the camera on the
phone.p. 53
• Move to: move the file to another folder or
to a memory card.
• Copy to card: copy the selected file or all
files to a memory card. This option is only
available if a memory card inserted.
• Delete: delete the selected file.
• Rename: change the file name.
• Create slide show: view all image as a
slide show.
• Bluetooth visibility: share the file with
other Bluetooth devices.
Videos (Menu 6.2)
This menu displays video clips you have
recorded, downloaded, received in messages,
or imported from a computer.
Video clips recorded on other devices, such as
camcorders, may not play correctly.
87
E690.book Page 88 Wednesday, October 11, 2006 2:42 PM
Menu functions
Playing a video clip
1. Select a video folder.
2. Select a video clip.
During playback, use the following keys:
Key
Function
Left
Returns to the previous file. Moves
backward in a file when held down.
Right
Skips to the next file. Moves
forward in a file when held down.
Pauses or resumes playback.
Up
Opens the file list.
Down
Stops playback.
/
88
Adjusts the volume.
From a file list, press <Options> to access the
following options:
• Play: play the selected file.
• View by: select the view mode of the file
list.
• Send via: send the selected file via MMS,
e-mail, or Bluetooth.
• Move to: move the file to another folder or
to a memory card.
• Copy to card: copy the file to a memory
card. This option is only available if a
memory card inserted.
• Delete: delete the selected file or all files.
• Rename: change the file name.
• List by: change the sort order of the file list.
• Bluetooth visibility: share the selected file
or all files with other Bluetooth devices.
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
E690.book Page 89 Wednesday, October 11, 2006 2:42 PM
While playing a sound clip, press <Options> to
access the following options:
• List: return to the sound list.
• Send via: send the selected file via MMS,
e-mail, or Bluetooth.
• Set as: set the file as your ringtone, alarm
tone, or as a ringtone for a Phonebook entry.
• Move to: move the file to another folder or
to a memory card.
• Copy to card: copy the file to a memory
card. This option is only available if a
memory card inserted.
• Delete: delete the file.
• Rename: change the file name.
• Bluetooth visibility: share the selected file
or all files with other Bluetooth devices.
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
1. Select Music.
2. Select a file. The music player opens.
p. 50
Sounds (Menu 6.4)
This menu displays the voice memos you have
recorded, and sound files you have
downloaded, received in messages, or imported
from a computer.
Playing a sound clip
1. Select a sound folder.
2. Select a sound clip. For a voice memo, see
Voice recorder.p. 52
My files (Menu 6)
Using sound options
This menu displays mp3 music files you have
downloaded, or imported from a computer.
Menu functions
Music (Menu 6.3)
89
E690.book Page 90 Wednesday, October 11, 2006 2:42 PM
Menu functions
Other files (Menu 6.5)
90
Files that you have received but which are not
supported by your phone are stored in this
folder. You cannot open these files on the
phone.
From the file list, press <Options> to access
the following options:
• Send via: send the file via e-mail, or
Bluetooth.
• Move to card: move the file to a memory
card.
• Copy to card: copy the file to a memory
card.
• Delete: delete the selected file or all files.
• Rename: change the file name.
• List by: change the sort order of the file list.
• Bluetooth visibility: share the selected file
or all files with other Bluetooth devices.
• Print via: print the image file by connecting
the phone to a printer via USB or Bluetooth.
• To print via USB, you first need to set the
USB mode to Pictbridge.p. 110
• Some printers may not be compatible with
the phone.
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
Memory card (Menu 6.6)
Use this menu to access the files stored on a
memory card. This menu is only available when
you insert a memory card into the phone.
• Your phone is preset to use FAT16-formatted
memory cards. If you insert a
FAT32-formatted memory card, the phone will
ask you to reformat the memory card. If you
do not, you will not be able to access the card
from the phone.
• Your phone can recognise only the Image,
Videos, Music, Sounds, and Other files
folders in a memory card.
E690.book Page 91 Wednesday, October 11, 2006 2:42 PM
Alarm (Menu 7.1)
You can check the total amount of memory and
the amount of memory currently in use in each
media box.
You can also access a media box by selecting it
from this menu.
Use this menu to set alarms. The alert type for
a normal alarm corresponds to the call alert
type settings. A wake-up alarm is not affected
by your sound settings.
(Menu 7)
Use this menu to keep track of your schedule.
You can also use convenient features, such as
an alarm clock, a memo pad, calculator,
convertor, timer, and stopwatch.
To access this menu, press <Menu> in Idle
mode and select Planner.
Setting an alarm
1. Select the type of alarm.
2. Set each alarm option.
• Alarm: activate the alarm.
• Alarm time: enter the time for the alarm
to sound.
• AM/PM: select AM or PM in 12-hour
format.
• Alarm day: select days of the week to
ring the alarm.
• Alarm tone: select an alarm tone.
3. Press <Save>.
Planner (Menu 7)
Planner
Menu functions
Memory status (Menu 6.7)
91
E690.book Page 92 Wednesday, October 11, 2006 2:42 PM
Menu functions
Stopping an alarm
Calendar (Menu 7.2)
• For a non-wake-up alarm, press any key.
• For a wake-up alarm, press <OK> or [ ].
Press any key, except for <OK> and [ ], to
cause it to sound again after 5 minutes. You
can do this a maximum of 5 times.
Use this menu to keep track of your schedule.
Deactivating an alarm
1. Select the alarm you want to deactivate.
2. Select Off on the Alarm line and press
<Save>.
Setting alarms to sound when the
phone is off
From the Alarm screen, select Auto power-up
→ On.
If the phone is off when it is time for the alarm
to sound, the phone switches on and sounds
the alarm.
92
Selecting a day on the calendar
When you access the Calendar menu, the
calendar in Month view appears with today’s
date indicated by a grey box.
• Press [Left] or [Right] to move by day.
• Press [Up] or [Down] to move by week.
• Press [ / ] to move by month.
Creating an item
You can store appointments, anniversaries,
miscellaneous items, and tasks on the calendar.
More than one item per day can be stored.
Entering an appointment or a
miscellaneous item
1. Select a date on the calendar.
E690.book Page 93 Wednesday, October 11, 2006 2:42 PM
• Repeat: (for Appointment) select to set
the item to recur and select a repeat unit.
• until: (for Appointment) set the ending
date, if the item will recur.
4. Press <Save> to save the item.
Entering an anniversary
Planner (Menu 7)
1. Select a date on the calendar.
2. Press <Options> and select Create →
Anniversary.
3. Enter information or change the settings:
• Occasion: enter information about the
anniversary.
• Date: enter the date.
• Alarm: set an alarm for the anniversary.
• before: set how long before the
anniversary the alarm is to alert you.
• Alarm time: enter the time for the alarm
to sound.
Menu functions
2. Press <Options> and select Create →
Appointment or Miscellany.
3. Enter information or change the settings:
• Subject: enter a title for the item.
• Details: enter item details.
• Start date and Start time: enter the
starting date and time for the item.
• AM/PM: select AM or PM in 12-hour
time format.
• End date and End time: enter the
ending date and time for the item.
• AM/PM: select AM or PM in 12-hour
time format.
• Location: (for Appointment) enter
information about the item location.
• Alarm: set an alarm for the item.
• before: set how long before the item the
alarm is to alert you.
• Alarm tone: select an alarm tone.
93
E690.book Page 94 Wednesday, October 11, 2006 2:42 PM
Menu functions
94
• AM/PM: select AM or PM in 12-hour
time format.
• Alarm tone: select an alarm tone.
• Repeat every year: set the phone to
remind you of the anniversary every year.
4. Press <Save> to save the anniversary.
• Alarm time: enter the time for the alarm
to ring.
• AM/PM: select AM or PM in 12-hour
time format.
• Alarm tone: select an alarm tone.
4. Press <Save> to save the task.
Entering a task
Consulting the calendar
1. Select a date on the calendar.
2. Press <Options> and select Create →
Task.
3. Enter information or change the settings:
• Task: enter information about the task.
• Start date: enter the starting date.
• Due date: enter the ending date.
• Priority: select a priority level.
• Alarm: set an alarm for the task.
• before: set how long before the task the
alarm is to alert you.
Once you have created items, the item icons
and the number of items for a specific day
appears at the bottom of the calendar.
•
Appointment
•
Anniversary
•
Task
•
Miscellaneous item
Viewing an item
1. Select a date on the calendar to display the
items for that day.
2. Select an item to view its details.
E690.book Page 95 Wednesday, October 11, 2006 2:42 PM
Using calendar options
On the calendar, press <Options> to access
the following options:
• View by: change the view mode of the
calendar.
• Create: add a new item.p. 92
• Go to: select today’s date or enter a specific
date.
• Event list: sort items by type of item.
• Delete: delete items stored on the calendar
by using various deleting options.
• Settings: change the default settings for
the calendar:
Starting day: select which day of the week
the calendar starts with.
Default view by: select the default
calendar view mode.
• Missed alarm events: access items whose
alarms you have missed.
Menu functions
Planner (Menu 7)
3. Press [Left] or [Right] to access the other
items scheduled for the selected day.
While viewing an item, press <Options> to
access the following options:
• Edit: edit the item.
• Create: add a new item.
• Send via: send the item via SMS, MMS,
e-mail, or Bluetooth.
• View by: change the view mode of the
calendar.
• Done/Not done: change the status of the
task item.
• Delete: delete the item.
• Print via Bluetooth: print the item details
by connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
95
E690.book Page 96 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Memory status: access memory
information for the items stored on the
calendar.
Viewing items in a different mode
96
Week view
You can view items for the selected week. A cell
on the timetable indicates the presence of item
information. Select a cell in the day you want.
You can change the calendar display to Day
view or Week view. Press <Options> and
select View by → a view mode.
Memo (Menu 7.3)
Day view
You can view items for the selected date. Select
an item to view its details.
The following icons may display to indicate the
item status:
•
Alarm set
•
Recurring item
•
Completed task
•
Task priority ( : high,
: normal,
: low)
Select an item to view its details.
Creating a memo
You can create a list of memos.
1. Press <Options> sand select Create.
2. Enter the memo contents.
3. Press <Options> and select Save.
Viewing a memo
Select a memo from the list.
While viewing a memo, press <Options> to
access the following options:
• Edit: edit the memo.
• Send via: send the memo via SMS, MMS,
e-mail, or Bluetooth.
E690.book Page 97 Wednesday, October 11, 2006 2:42 PM
Use this menu to find out the current time in
another part of the world.
Setting the local time zone
1. From the world map, press [Left] or [Right]
to scroll to the city you want on the upper or
lower line. As the time line moves, the time
and date of the given zone displays.
2. Press [ ] to save the time zone.
1. From the world map, press <Options> and
select Set daylight saving time.
2. Press [ ] to select the time zones you want.
3. Press <Save>.
Calculator (Menu 7.5)
Use this menu to perform basic arithmetic
functions, such as addition, subtraction,
multiplication, and division.
Planner (Menu 7)
World time (Menu 7.4)
Applying daylight saving time
Menu functions
• Delete: delete the selected memo.
• Print via Bluetooth: print the memo by
connecting the phone to a printer via
Bluetooth. Some printers may not be
compatible with the phone.
• Memory status: check the number of
memos stored in the phone’s memory.
1. Enter the first number.
• Press [ ] to insert a decimal point.
• Press [ ] to insert a bracket.
• Press [ / ] to move to the cursor.
• Press <Options> to use additional
arithmetic functions or switch to the
Convertor screen.
97
E690.book Page 98 Wednesday, October 11, 2006 2:42 PM
Menu functions
2. Press one of the Navigation keys to access
the math function you want.
3. Enter the second number.
4. Press [ ] to view the result.
5. If necessary, repeat from step 2 to continue
the calculation.
Convertor (Menu 7.6)
Use this menu for common conversions, such
as currency and temperature.
Performing a conversion
1. Select a convertor.
2. Press [Left] or [Right] to select the original
unit and press [Down].
3. Enter the value to be converted and press
[Down].
• Press [ ] to insert a decimal point.
98
• Press [ ] to change the temperature to
above zero (+) or below zero (-).
4. Press [Left] or [Right] to select the unit to
which you want to convert.
The equivalent value for the amount you
entered displays.
Using convertor options
Press <Options> to access the following
options:
• Clear: clear the current values.
• Reverse: reverse the conversion.
• Exchange rate: edit the currency rate list.
Timer (Menu 7.7)
Use this menu to set a period of time for the
phone to count down. The phone sounds an
alarm when the specified period of time has
expired.
E690.book Page 99 Wednesday, October 11, 2006 2:42 PM
Starting the timer
Camera
1. Press <Set>.
2. Enter the length of time you want to count
down and press <OK>.
3. Press [ ] to start counting down.
You can use the camera module embedded in
your phone to take photos and record videos.
To access this menu, press <Menu> in Idle
] in Idle
mode and select Camera, or press [
mode.
Stopwatch (Menu 7.8)
Use this menu to measure elapsed time. The
maximum time is 10 hours.
1. Press [ ] to start the stopwatch.
2. Press [ ] to check an interval. You can
repeat this step for a total of 4 intervals.
• Do not take photos of people without their
permission.
• Do not take photos in a place where cameras
are not allowed.
• Do not take photos in a place where you may
interfere with another person’s privacy.
Camera (Menu 8)
• Press any key when the timer sounds.
• Press [ ] on the Timer screen to stop the
timer before it sounds.
Menu functions
Stopping the timer
(Menu 8)
Take photo (Menu 8.1)
The camera produces jpeg photos.
When you take a photo in direct sunlight or in
bright conditions, shadows may appear on the
photo.
99
E690.book Page 100 Wednesday, October 11, 2006 2:42 PM
Menu functions
Taking a photo with the phone open
Using camera options in Capture mode
1. Access the Take photo menu or press and
hold [
] in Idle mode to turn on the
camera.
2. Make any desired adjustments.
• Press < > to access camera options.
next section
• Use the keypad to change the camera
settings or switch to other modes.
p. 101
] to take a photo. The
3. Press [ ] or [
In Capture mode, press < > to access the
following options:
• Record video: switch to Record mode.
• Shooting mode: take a photo in the
following modes:
Single shot: take a photo in Normal mode.
You can select whether or not the camera
automatically saves a photo.
Multi shot: take a series of action stills. You
can select the number of photos the camera
will take and the shooting speed.
Mosaic shot: take several stills and save
them in one frame. You can select the
layout.
• Effects: change the colour tone or apply a
special effect.
• Frames: apply a decorative frame.
photo is saved in the My photos folder.
4. To
Press
access photo options <Options>.p. 102
100
delete the photo
[C] and then <Yes>.
return to Capture
mode
<Back> or [ ].
E690.book Page 101 Wednesday, October 11, 2006 2:42 PM
Camera (Menu 8)
Preferences: change the following camera
settings:
- Shutter sound: select the sound that you
hear when you press the shutter.
- Zoom sound: turn the sound effect for
zooming on or off.
- Brightness sound: turn the sound effect
for brightness adjustment on or off.
- Default name: change the default prefix
of file names.
• Camera shortcuts: view the functions of
the keys you can use in Capture mode.
Menu functions
• Timer: set a time delay before the camera
takes a photo.
• Go to My photos: access the My photos
folder.
• Camera settings: change the default
settings for taking a photo.
Photo settings: change the following image
settings:
- Size: select an image size.
- Quality: select an image quality.
- Viewfinder mode: select a preview
screen.
- Scene program: set whether or not to use
Night shot mode.
- Exposure metering: select a method to
determine the exposure of an image,
based on a specific area of the image.
- White balance: adjust the colour balance
of the photo. You can make your photo
appear warmer or cooler.
Using the keypad in Capture mode
You can use the keypad to customise your
camera settings in Capture mode.
Key
Function
Left/Right
Adjusts the brightness.
Up/Down
Zooms in or out.
101
E690.book Page 102 Wednesday, October 11, 2006 2:42 PM
Menu functions
Key
102
Function
Key
Function
Flips the image vertically.
8
Sets the timer.
Shows the mirror image.
0
Goes to the My photos folder.
1
Switches to Record mode.
p. 103
2
Changes the image size.
3
Changes the image quality.
4
Changes the shooting mode.
5
Changes the colour tone or
applies a special effect.
6
Changes the white balance
setting.
7
Selects a decorative frame.
Changes the preview screen.
Using photo options
After saving a photo, press <Options> to
access the following options:
• Viewfinder: return to Capture mode.
• View: access one of the multi-shot photos.
• Send via: send the file via MMS, e-mail, or
Bluetooth.
• Set as: set the photo as your wallpaper for
the displays or as a caller ID image for a
Phonebook entry.
• Edit: edit the image using the Image editor.
p. 53
E690.book Page 103 Wednesday, October 11, 2006 2:42 PM
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
1. Press and hold [ ].
2. Make any desired adjustments.
• Press [ ] to flip the image vertically.
• Press [ ] to show the mirror image.
3. Press [ ] to take a photo. The photo is
saved automatically.
Camera (Menu 8)
• To print via USB, you first need to set the
USB mode to Pictbridge.p. 110
• Some printers may not be compatible with
the phone.
Taking a photo with the phone closed
Menu functions
• Delete: delete the file.
• Multi shot delete all: delete the multi-shot
photos you want.
• Rename: change the file name.
• Go to My photos: access the My photos
folder. p. 86
• Bluetooth visibility: share the selected file
with other Bluetooth devices.
• Print via: print the file by connecting the
phone to a printer via USB or Bluetooth.
Record video (Menu 8.2)
You can record a video of what is displayed on
the camera screen and save it.
Recording a video with the phone open
1. Access the Record video menu.
2. Make any desired adjustments.
• Press < > to access camera options.
next section
103
E690.book Page 104 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Use the keypad to change the camera
settings or switch to other modes.
p. 105
3. Press [ ] or [ ] to start recording.
4. Press [ ], < >, or [
] to stop
recording. The video is automatically
saved in the My video clips folder.
5. To
Press
play back the video clip [ ].
104
>.p. 106
access video options
<
delete the video
[C] and then
<Yes>.
return to Record mode
<
>.
Using camera options in Record mode
In Record mode, press < > to access the
following options:
• Take photo: switch to Capture mode.
• Effects: change the colour tone or apply a
special effect.
• Timer: set a time delay before the camera
starts recording a video.
• Go to My video clips: access the My video
clips folder.
• Camcorder settings: change the following
settings for recording a video:
Recording mode: select a video recording
mode.
Select Normal to record a video within the
limit of the currently available memory. The
video clip is saved in mp4 format.
E690.book Page 105 Wednesday, October 11, 2006 2:42 PM
Using the keypad in Record mode
You can use the keypad to customise your
camera settings in Record mode:
Key
Function
Left/Right
Adjusts the brightness.
Up/Down
Zooms in or out.
Menu functions
Camera (Menu 8)
Select Limit for multimedia messages or
Limit for emails to record a video suitable
for an MMS message or e-mail. The video
clip is saved in 3gp format.
Size: select a frame size.
Quality: select an image quality.
Record audio: record a video with audio.
White balance: adjust the colour balance of
the video. You can make your video appear
warmer or cooler.
Zoom sound: turn the sound effect for
zooming on or off.
Brightness sound: turn the sound effect
for brightness adjustment on or off.
Default name: change the default prefix of
file names.
• Camcorder shortcuts: view the functions
of the keys you can use in Record mode.
Flips the image vertically.
Shows the mirror image.
1
Switches to Capture mode.
p. 99
2
Changes the frame size.
3
Changes the image quality.
4
Changes the video recording
mode.
105
E690.book Page 106 Wednesday, October 11, 2006 2:42 PM
Menu functions
Key
Function
5
Changes the colour tone or
applies a special effect.
6
Changes the white balance
setting.
7
Mutes or unmutes the audio.
8
Sets the timer.
0
Goes to the My video clips
folder.
Using video options
After saving a video clip, press < > to access
the following options:
• Viewfinder: return Record mode.
• Send via: send the file via MMS, e-mail, or
Bluetooth.
• Delete: delete the file.
106
• Rename: change the file name.
• Go to My video clips: access the My video
clips folder. p. 87
• Bluetooth visibility: share the file with
other Bluetooth devices.
• Lock/Unlock: lock the file to prevent it from
being deleted, or unlock the file.
• Details: access the file properties.
Recording a video with the phone
closed
If you close the phone while in Record mode,
you can continue recording videos.
1. Press and hold [ ].
2. Make any desired adjustments.
Press [ ] to view the image vertically, or
press [ ] to show the mirror image.
3. Press [ ] to start recording.
E690.book Page 107 Wednesday, October 11, 2006 2:42 PM
Go to My photos (Menu 8.3)
Use this menu to access a list of photos you
have taken.p. 86
Use this menu to access a list of videos you
have recorded.p. 87
(Menu 9)
The Settings menu provides you with various
setting options to customise the phone to your
preferences and needs. You can also reset the
settings to their default values.
To access this menu, press <Menu> in Idle
mode and select Settings.
Settings (Menu 9)
Go to My video clips (Menu 8.4)
Settings
Menu functions
4. Press [ ] to stop recording. The video clip
is saved automatically.
Time and date (Menu 9.1)
Use this menu to set the current time and date
on your phone.
• Home zone: set the home time zone. Select
the city that corresponds to your home zone.
To set the daylight saving time, select Set
daylight saving time.
• Time: enter the current time.
• AM/PM: select AM or PM in 12-hour time
format.
• Time format: select the time format.
107
E690.book Page 108 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Date: enter the current date.
• Date format: select the date format.
• Auto update: activate the auto time update
feature. Your phone will read the MCC
(Mobile Country Code) from the network and
automatically update the current time for the
country that you are in when you travel
abroad.
Time information may not be updated when
you move to one time zone to another within
a country.
Phone settings (Menu 9.2)
Many different features of your phone’s system
can be customised to suit your preferences.
Language (Menu 9.2.1)
Use this menu to select a language for the
display text.
108
Greeting message (Menu 9.2.2)
Use this menu to enter the greeting that is
displayed briefly when the phone is switched
on.
Shortcuts (Menu 9.2.3)
You can use the Navigation keys as shortcuts to
access specific menus directly from Idle mode.
Use this menu to change the shortcut
assignments for [Left], [Right], and [Down].
Assigning a shortcut menu
1. Select a key to be used as a shortcut key.
2. Select a menu to be assigned to the key.
Using shortcut options
Press <Options> to access the following
options:
• Change: assign or change a shortcut menu
assignment.
E690.book Page 109 Wednesday, October 11, 2006 2:42 PM
My menu (Menu 9.2.4)
Setting up My menu item
1. Select an item to be changed.
2. Select the menu item you want.
Using item options
Press <Options> to access the following
options:
• Assign: assign an item.
• Change: change the selected item.
• Remove: remove the selected item.
• Remove all: remove all items.
Use this menu to activate the Advanced
shortcut feature. You can quickly access the
text message, alarm, calendar, convertor, and
calculator applications from the dialling screen.
Launching menus by number
1. From the Advanced shortcuts menu, select
On and press <Save>.
2. In Idle mode, enter the number for the
action you want.
For example, enter time as 4-digit to set an
alarm or date as 4-digits to enter your
schedule.
3. Press one of the Navigation keys.
You can access the following applications by
default:
• Up: Alarmp. 91
• Down: Convertorp. 98
• Left: Text messagep. 65
Settings (Menu 9)
You can set up a menu of your own using your
favourite menu items, which can be easily
accessed by pressing [Up] in Idle mode.
Advanced shortcuts (Menu 9.2.5)
Menu functions
• Remove: deactivate the shortcut
assignment to the selected key.
• Remove all: deactivate all shortcut
assignments.
109
E690.book Page 110 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Right: Calendarp. 92
Changing an Advanced shortcut key
1. From the Advanced shortcuts menu, Press
[Down] and select a key to be used as a
shortcut key.
2. Select a menu to be assigned to the key.
Using Advanced shortcut options
Press <Options> to access the following
options:
• Change: assign or change a shortcut menu.
• Remove: deactivate the shortcut
assignment to the selected key.
• Remove all: deactivate all shortcut
assignments.
110
Volume key (Menu 9.2.6)
Use this menu to change the volume key
settings.
• Volume key function: set whether the
phone mutes the call ringer or rejects a call
if you press and hold [ / ] when a call
comes in. You can also set whether the
phone sends an SMS message to the caller
when a call is rejected.
• Text message: enter a message to be sent
to the caller when a call is rejected.
USB settings (Menu 9.2.7)
Use this menu to select a USB mode that will be
used when you connect your phone to a PC or
printer via USB interface.
• Modem: use your phone as a modem for PC
network connections.
• Mass storage: access a memory card from
your PC, if a memory card is inserted.
E690.book Page 111 Wednesday, October 11, 2006 2:42 PM
Extra settings (Menu 9.2.8)
Use this menu to switch the phone to Offline
mode or back to Online mode.
Display settings (Menu 9.3)
Use this menu to change settings for the display
and light.
Settings (Menu 9)
You can turn the automatic redialling or
answering features on or off.
• Auto redial: set the phone to make up to
ten attempts to redial a phone number after
an unsuccessful call.
• Anykey answer: answer an incoming call
by pressing any key, except for <Reject>
and [ ].
• Voice clarity: remove extraneous noise and
increase call quality so that the person with
whom you are speaking can hear you clearly
even if you are in a noisy place.
• Active folder: answer an incoming call by
opening the phone.
Offline mode (Menu 9.2.9)
Menu functions
• Pictbridge: connecting your phone to a
PictBridge-compatible printer enables you to
directly print images stored in your phone.
Wallpaper (Menu 9.3.1)
You can change the background image that is
displayed on each display.
• Main display: select an image to be
displayed on the main display.
• Cover display: select an image or text to be
displayed on the external display.
Clock: select a clock type.
Cover title: enter the text you want.
Wallpaper images: select an image.
111
E690.book Page 112 Wednesday, October 11, 2006 2:42 PM
Menu functions
Menu style (Menu 9.3.2)
Brightness (Menu 9.3.5)
Use this menu to change the settings for the
main menu screen.
• Main menu: select a display style for the
main menu screen.
• Roll-up menu: set whether or not to show
the submenus in the main menu as a pop-up
window.
You can adjust the brightness of the display for
varying lighting conditions.
Text display (Menu 9.3.3)
Calendar (Menu 9.3.7)
You can change the display settings for the text
displayed on the idle screen.
• Text position: select a position. If you do
not want to display text in Idle mode, select
Off.
• Text style: select a font style.
• Text colour: select a font colour.
Use this menu to display the calendar of the
current month on the idle screen.
Skin (Menu 9.3.4)
You can select a skin colour pattern for Menu
112 mode.
Dialling display (Menu 9.3.6)
Use this menu to select a font size and colour
for the numbers entered and the background
colour of the display while dialling.
Show caller ID (Menu 9.3.8)
Use this menu to set whether or not your phone
displays the caller’s information when you have
missed a call.
• On: the phone displays the most recently
missed caller’s information. To set the
external display to show the caller’s
information, select Also on cover display.
E690.book Page 113 Wednesday, October 11, 2006 2:42 PM
You can adjust the key tone volume using
[ / ] in Idle mode.
Message tone (Menu 9.4.3)
Use this menu to customise various sound
settings.
Use this menu to set up the ringtone for
incoming messages and e-mails.
• Tone: select one of the several message
tones.
• Alert type: specify how you are to be
informed when a message comes in.
• Repetition: specify how often the phone
informs you of a new message.
Incoming call (Menu 9.4.1)
Use this menu to select a volume level and alert
type for incoming calls.
• Alert type: specify how you are to be
informed of incoming calls.
• Ring tone: select a ringtone for the call
ringer.
• Volume: select a ringtone volume.
Keypad tone (Menu 9.4.2)
Use this menu to select the tone that the phone
sounds when you press a key.
Settings (Menu 9)
Sound settings (Menu 9.4)
Menu functions
• Off: the phone displays missed call
notifications without the callers’ information.
Power-on/off tone (Menu 9.4.4)
Use this menu to select the melody that the
phone sounds when it is switched on or off.
Folder tone (Menu 9.4.5)
Use this menu to select the tone that the phone
sounds when you open or close the phone.
113
E690.book Page 114 Wednesday, October 11, 2006 2:42 PM
Menu functions
Silent mode (Menu 9.4.6)
Light settings (Menu 9.5)
Use this menu to set how the phone acts to
alert you to a specific event in Silent mode.
Use this menu to change settings for light.
Extra tones (Menu 9.4.7)
Use this menu to customise additional tones for
the phone.
• Minute minder: set the phone to beep
every minute during an outgoing call to keep
you informed of the length of your call.
• Connection tone: set the phone to beep
when an outgoing call is connected to the
system.
• Alerts on call: set the phone to beep when
you receive a new message or when the time
for an alarm comes during a call.
• Indicative tone: set the phone to beep
when a pop-up window displays.
114
Backlight (Menu 9.5.1)
You can select the length of time the backlight
or display stays on when the phone is not used.
• Main display on: select the length of time
the backlight stays on.
• Main display dim: select the length of time
the display stays on in Dim mode after the
backlight turns off. After a specified time,
the display turns off.
Keypad light (Menu 9.5.2)
Use this menu to set how the phone controls
the use of the keypad light.
• Any time: the keypad light is always used.
• Night time: the keypad light is used only
between 5:00 PM and 9:00 AM.
E690.book Page 115 Wednesday, October 11, 2006 2:42 PM
Network services (Menu 9.6)
2.
3.
Call diverting (Menu 9.6.1)
4.
5.
This network service reroutes incoming calls to
a phone number that you specify.
1. Select a call diverting option:
• Divert always: divert calls.
• Busy: divert calls when you are on
another call.
• No reply: divert calls when you do not
answer the phone.
6.
Settings (Menu 9)
Use this menu to access network services.
Please contact your service provider to check
their availability and subscribe to them, if you
wish.
• Unreachable: divert calls when you are
not in a service area or when your phone
is switched off.
• Cancel all: cancel all call diverting
options.
Select the type of calls to be diverted.
Select Activate. To deactivate call diverting,
select Deactivate.
Move to the Divert to line.
Enter the number to which calls are to be
diverted and press <Select>.
If you selected No reply, move to the sec
line and select the length of time the
network delays before diverting a call.
Menu functions
• Custom time: you can specify the time
period that the keypad light is used.
Call barring (Menu 9.6.2)
This network service allows you to restrict your
calls.
1. Select a call barring option:
115
E690.book Page 116 Wednesday, October 11, 2006 2:42 PM
Menu functions
• All outgoing: prohibit outgoing calls.
• International: prohibit international
calls.
• International except home: only allow
calls to numbers within the current
country when you are abroad, and to your
home country.
• All incoming: prohibit incoming calls.
• Incoming while abroad: prohibit
incoming calls when you use your phone
outside of your home service area.
• Cancel all: cancel all call barring
settings, allowing to be sent and received
normally.
• Change barring password: change the
call barring password obtained from your
service provider.
2. Select the type of calls to be barred.
3. Select Activate. To deactivate call barring,
select Deactivate.
116
4. Enter the call barring password supplied by
your service provider and press <Select>.
Call waiting (Menu 9.6.3)
This network service informs you when
someone is trying to reach you while you are on
another call.
1. Select the type of calls to which the call
waiting option will apply.
2. Select Activate. To deactivate call waiting,
select Deactivate.
Network selection (Menu 9.6.4)
This network service allows you to manually
select the network to be used while roaming
outside of your home area, or to let the network
be chosen automatically.
You can select a network other than your home
network only if there is a valid roaming
agreement between the two.
E690.book Page 117 Wednesday, October 11, 2006 2:42 PM
For the phone to make and receive phone calls,
it must register with an available network.
Your phone can handle any of the following
types of networks: Combined GSM 900/1800,
GSM 1900, and Tri band (GSM 900/1800/
1900).
The country where you purchased your phone
determines the default band that it uses. When
you travel abroad, you must remember to
change to an appropriate band.
Voice mail server (Menu 9.6.6)
Use this menu to store the number of the
voicemail server and access your voicemails.
You must store the voicemail server number
before accessing the server. Your service
provider can give you the number.
• Connect to voice server: connect to the
voicemail server to allow you to listen to
your messages.
• Voice server number: enter the voicemail
server number.
Settings (Menu 9)
Band selection (Menu 9.6.7)
This network service allows you to hide your
phone number from the person you are calling.
However, some networks do not allow the user
to change this setting. If you select Default,
the phone will use the default setting provided
by the network.
Menu functions
Caller ID (Menu 9.6.5)
Security (Menu 9.7)
Use this menu to protect the phone against
unauthorised use by managing the several
access codes of your phone and SIM card.
117
E690.book Page 118 Wednesday, October 11, 2006 2:42 PM
Menu functions
If you enter an incorrect PIN/PIN2 three times,
the SIM card is blocked. To unblock it, you need
to enter your PUK/PUK2 (Personal Unblocking
Key). The codes are supplied by your network
operator.
PIN check (Menu 9.7.1)
The 4- to 8-digit PIN (Personal Identification
Number) protects your SIM card against
unauthorised use. When this feature is enabled,
the phone requires your PIN each time it is
switched on.
Change PIN (Menu 9.7.2)
Use this menu to change your PIN. The PIN
check feature must be enabled to use this
feature.
118
Phone lock (Menu 9.7.3)
The Phone lock feature locks the phone from
unauthorised use.
When this feature is enabled, you must enter a
4- to 8-digit phone password each time the
phone is switched on.
The password is preset to 00000000. To
change the password, use the Change
password menu.
Change password (Menu 9.7.4)
Use this menu to change your phone password.
Privacy (Menu 9.7.5)
Use this menu to lock access to call logs,
Phonebook entries, messages, or files stored in
the phone’s memory. When a privacy options
enabled, you must enter the phone password to
access the locked items or functions.
E690.book Page 119 Wednesday, October 11, 2006 2:42 PM
Mobile tracker (Menu 9.7.9)
The SIM lock feature allows your phone to work
only with the current SIM by assigning a SIM
lock code. You must enter the SIM lock code to
use a different SIM card.
When someone tries to use your phone with
another SIM card, the phone will automatically
send the preset tracking message to your
family or friends. You can check the phone
number from which the messages are sent and
then track your phone. This feature is useful
when the phone is stolen or lost.
FDN mode (Menu 9.7.7)
Change PIN2 (Menu 9.7.8)
If supported by your SIM card, the Change PIN2
feature changes your current PIN2.
Sending of the tracking message will be billed to
the user of the unauthorised SIM card. To use
your phone with any other SIM card, you must
first deactivate the Mobile tracker feature.
Settings (Menu 9)
If supported by your SIM card, Fixed Dialling
Number (FDN) mode restricts your outgoing
calls to a limited set of phone numbers. When
this feature is enabled, you can make calls only
to phone numbers stored on the SIM card.
Menu functions
SIM lock (Menu 9.7.6)
1. Enter the phone password and press <OK>.
2. Specify the following options:
• Mobile tracker: activate the Mobile
tracker feature.
• Recipients: specify phone numbers to
which you want to send the tracking
messages.
119
E690.book Page 120 Wednesday, October 11, 2006 2:42 PM
Menu functions
• Sender: enter the sender’s name.
• Message: check the preset tracking
message text.
3. When you have finished, press <Save>.
4. Press <Accept> if you agree to the terms
and conditions of service listed on the
screen.
Memory status (Menu 9.8)
Use this menu to check the amount of memory
being used for storing data in Messages, My
files, Calendar, Phonebook, JAVA world, and
Memo. You can also view the amount of shared
memory.
120
Reset settings (Menu 9.9)
Use this menu to reset the phone’s settings you
have changed.
1. Press [ ] to select the setting categories to
be reset.
2. Press <Reset>.
3. Press <Yes> to confirm the reset.
4. Enter the phone password and press
<OK>.
The password is preset to 00000000. You
can change this password.p. 118
E690.book Page 121 Wednesday, October 11, 2006 2:42 PM
Solve problems
Help and personal needs
To save the time and expense of an
unnecessary service call, perform the simple
checks in this section before contacting a
service professional.
When you switch on your phone, the
following messages may appear:
“Insert SIM”
• Be sure that the SIM card is correctly
installed.
“Phone lock”
• The automatic locking function has been
enabled. You must enter the phone’s
password before you can use the phone.
“Enter PIN”
• You are using your phone for the first time.
You must enter the PIN supplied with the
SIM card.
• The PIN check feature is enabled. Every time
the phone is switched on, the PIN has to be
entered. To disable this feature, use the PIN
check menu.
“Enter PUK”
• The PIN code has been entered incorrectly
three times, and the SIM card is now
blocked. Enter the PUK supplied by your
service provider.
“No network,” “Network unavailable,” or
“Not done” displays
• The network connection has been lost. You
may be in a weak signal area. Move and try
again.
121
E690.book Page 122 Wednesday, October 11, 2006 2:42 PM
Solve problems
• You are trying to access an option for which
you have no subscription with your service
provider. Contact the service provider for
further details.
You have entered a number but it was not
dialled
• Be sure that you have pressed [ ].
• Be sure that you have accessed the right
cellular network.
• Be sure that you have not set an outgoing
call barring option.
Your correspondent cannot reach you
• Be sure that your phone is switched on.
([ ] pressed for more than one second.)
• Be sure that you have accessed the right
cellular network.
• Be sure that you have not set an incoming
call barring option.
122
Your correspondent cannot hear you
speaking
• Be sure that your microphone is switched on.
• Be sure that you are holding the phone close
enough to your mouth. The microphone is
located at the bottom of the phone.
The phone starts beeping and “Battery
low” flashes on the display
• Your battery is insufficiently charged.
Recharge the battery.
The audio quality of the call is poor
• Check the signal strength indicator on the
display (
). The number of bars indicates
the signal strength from strong (
) to
weak ( ).
• Try moving the phone slightly or moving
closer to a window if you are in a building.
E690.book Page 123 Wednesday, October 11, 2006 2:42 PM
No number is dialled when you re-call a
Phonebook entry
• Use the Contact list menu to ensure the
number has been stored correctly.
• Re-store the number, if necessary.
The battery does not charge properly or
the phone sometimes turns itself off
• Wipe the charging contacts both on the
phone and on the battery with a clean soft
cloth.
If the above guidelines do not help you to
solve the problem, take note of:
• The model and serial numbers of your phone
• Your warranty details
• A clear description of the problem
Then contact your local dealer or Samsung
after-sales service.
Health and safety information
SAR certification information
This phone meets European Union (EU)
requirements concerning exposure to radio
waves.
Your mobile phone is a radio transmitter and
receiver. It is designed and manufactured to not
exceed the limits for exposure to radiofrequency (RF) energy, as recommended by the
EU Council. These limits are part of
comprehensive guidelines and establish
permitted levels of RF energy for the general
population. The guidelines were developed by
independent scientific organisations through
the periodic and thorough evaluation of
scientific studies. The limits include a
substantial safety margin designed to ensure
the safety of all persons, regardless of age and
health.
123
E690.book Page 124 Wednesday, October 11, 2006 2:42 PM
Health and safety information
The exposure standard for mobile phones
employs a unit of measurement known as
Specific Absorption Rate (SAR). The SAR limit
recommended by the EU Council is 2.0W/kg.1
The highest SAR value for this model phone was
0.714 W/kg.
SAR tests are conducted using standard
operating positions with the phone transmitting
at its highest certified power level in all tested
frequency bands. Although the SAR is
determined at the highest certified power level,
the actual SAR level of the phone while
operating can be well below the maximum
value.
1. The SAR limit for mobile phones used by the public is
2.0 watts/kilogram (W/kg) averaged over ten grams of
body tissue. The limit incorporates a substantial margin
of safety to give additional protection for the public and
to account for any variations in measurements. The SAR
values may vary, depending on national reporting
requirements and the network band.
124
This is because the phone is designed to
operate at multiple power levels so as to use
only the power required to reach the network.
In general, the closer you are to a base station,
the lower the power output of the phone.
Before a new model phone is available for sale
to the public, compliance with the European
R&TTE Directive must be shown. This directive
includes as one of its essential requirements the
protection of the health and safety of the user
and any other person.
Precautions when using batteries
• Never use a charger or battery that is
damaged in any way.
• Use the battery only for its intended
purpose.
• If you use the phone near the network’s
base station, it uses less power. Talk and
standby time are greatly affected by the
E690.book Page 125 Wednesday, October 11, 2006 2:42 PM
• Extreme temperatures will affect the
charging capacity of your battery: it may
require cooling or warming first.
• Do not leave the battery in hot or cold places
because the capacity and lifetime of the
battery will be reduced. Try to keep the
battery at room temperature. A phone with a
hot or cold battery may not work
temporarily, even when the battery is fully
charged. Li-ion batteries are particularly
affected by temperatures below 0°C (32°F).
• Do not short-circuit the battery. Accidental
short-circuiting can occur when a metallic
object like a coin, clip or pen causes a direct
connection between the + and – terminals of
the battery (metal strips on the battery). For
example, do not carry a spare battery in a
pocket or bag where the battery may contact
metal objects. Short-circuiting the terminals
may damage the battery or the object
causing the short-circuiting.
Health and safety information
signal strength on the cellular network and
the parameters set by the network operator.
• Battery charging time depends on the
remaining battery charge, the type of
battery, and the charger used. The battery
can be charged and discharged hundreds of
times, but it will gradually wear out. When
the operation time is noticeably shorter than
normal, it is time to buy a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries, and
recharge your battery only with Samsungapproved chargers. Disconnect the charger
from the power source when it is not in use.
Do not leave the battery connected to a
charger for more than a week, since
overcharging may shorten its life.
125
E690.book Page 126 Wednesday, October 11, 2006 2:42 PM
Health and safety information
• Dispose of used batteries in accordance with
local regulations. Always recycle. Do not
dispose of batteries in a fire.
Road safety
Your wireless phone gives you the powerful
ability to communicate by voice, almost
anywhere, anytime. But an important
responsibility accompanies the benefits of
wireless phones, one that every user must
uphold.
When driving a car, driving is your first
responsibility. When using your wireless phone
while driving, follow local regulations in the
country or region you are in.
126
Operating environment
Remember to follow any special regulations in
force in the area you are in, and always switch
off your phone whenever it is forbidden to use
it, or when it may cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for
detailed safety instructions. Do not connect
incompatible products.
As with other mobile radio transmitting
equipment, users are advised that for the
satisfactory operation of the equipment and for
the safety of personnel, it is recommended that
the equipment should only be used in the
normal operating position (held to your ear with
the antenna pointing over your shoulder).
E690.book Page 127 Wednesday, October 11, 2006 2:42 PM
Hearing aids
Most modern electronic equipment is shielded
from radio frequency (RF) signals. However,
certain electronic equipment may not be
shielded against the RF signals from your
wireless phone. Consult the manufacturer to
discuss alternatives.
Some digital wireless phones may interfere with
some hearing aids. In the event of such
interference, you may wish to consult your
hearing aid manufacturer to discuss
alternatives.
Pacemakers
If you use any other personal medical devices,
consult the manufacturer of your device to
determine if it is adequately shielded from
external RF energy.
Your physician may be able to assist you in
obtaining this information.
Switch off your phone in health care facilities
when regulations posted in these areas instruct
you to do so.
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with
the pacemaker. These recommendations are
consistent with the independent research and
recommendations of Wireless Technology
Research. If you have any reason to suspect
that interference is taking place, switch off your
phone immediately.
Other medical devices
Health and safety information
Electronic devices
127
E690.book Page 128 Wednesday, October 11, 2006 2:42 PM
Health and safety information
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer or
its representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted facilities
Switch off your phone in any facility where
posted notices require you to do so.
Potentially explosive environments
Switch off your phone when in any area with a
potentially explosive atmosphere, and obey all
signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in
bodily injury or even death.
128
Users are advised to switch off the phone while
at a refuelling point (service station). Users are
reminded of the need to observe restrictions on
the use of radio equipment in fuel depots (fuel
storage and distribution areas), chemical
plants, or where blasting operations are in
progress.
Areas with a potentially explosive atmosphere
are often but not always clearly marked. They
include the areas below decks on boats,
chemical transfer or storage facilities, vehicles
using liquefied petroleum gas, such as propane
or butane, areas where the air contains
chemicals or particles, such as grain, dust or
metal powders, and any other area where you
would normally be advised to turn off your
vehicle engine.
E690.book Page 129 Wednesday, October 11, 2006 2:42 PM
Emergency calls
1. Switch on the phone.
2. Key in the emergency number for your
present location. Emergency numbers vary
by location.
3. Press [ ].
Certain features like Call Barring may need to
be deactivated before you can make an
emergency call. Consult this document and
your local cellular service provider.
Other important safety information
• Only qualified personnel should service the
phone or install the phone in a vehicle.
Faulty installation or service may be
dangerous and may invalidate any warranty
applicable to the device.
• Check regularly that all wireless phone
equipment in your vehicle is mounted and
operating properly.
• Do not store or carry flammable liquids,
gases, or explosive materials in the same
compartment as the phone, its parts, or
accessories.
Health and safety information
This phone, like any wireless phone, operates
using radio signals, wireless, and landline
networks as well as user-programmed
functions, which cannot guarantee connection
in all conditions. Therefore, you should never
rely solely on any wireless phone for essential
communications like medical emergencies.
To make or receive calls, the phone must be
switched on and in a service area with adequate
signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features
are in use. Check with local service providers.
To make an emergency call:
129
E690.book Page 130 Wednesday, October 11, 2006 2:42 PM
Health and safety information
• For vehicles equipped with an air bag,
remember that an air bag inflates with great
force. Do not place objects, including
installed or portable wireless equipment, in
the area over the air bag or in the air bag
deployment area. Improperly installed
wireless equipment could result in serious
injury if the air bag inflates.
• Switch off your phone before boarding an
aircraft. It is dangerous and illegal to use
wireless phones in an aircraft because they
can interfere with the operation of the
aircraft.
• Failure to observe these instructions may
lead to the suspension or denial of telephone
services to the offender, or legal action, or
both.
130
Care and maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care.
The suggestions below will help you fulfill any
warranty obligations and allow you to enjoy this
product for many years.
• Keep your phone and all its parts and
accessories out of the reach of small children
and pets. They may accidentally damage
these things or choke on small parts.
• Keep the phone dry. Precipitation, humidity,
and liquids contain minerals that corrode
electronic circuits.
• Do not use the phone with a wet hand. Doing
so may cause an electric shock to you or
damage to the phone.
• Do not use or store the phone in dusty, dirty
areas, as its moving parts may be damaged.
E690.book Page 131 Wednesday, October 11, 2006 2:42 PM
• Do not put the phone in or on heating
devices, such as a microwave oven, stove, or
radiator. The phone may explode when
overheated.
• When the phone or battery gets wet, the
label indicating water damage inside the
phone changes colour. In this case, phone
repairs are no longer guaranteed by the
manufacturer's warranty, even if the
warranty for your phone has not expired.
• If your phone has a flash or light, do not use
it too close to the eyes of people or animals.
This may cause damage to their eyes.
• Use only the supplied or an approved
replacement antenna. Unauthorised
antennas or modified accessories may
damage the phone and violate regulations
governing radio devices.
Health and safety information
• Do not store the phone in hot areas. High
temperatures can shorten the life of
electronic devices, damage batteries, and
warp or melt certain plastics.
• Do not store the phone in cold areas. When
the phone warms up to its normal operating
temperature, moisture can form inside the
phone, which may damage the phone’s
electronic circuit boards.
• Do not drop, knock, or shake the phone.
Rough handling can break internal circuit
boards.
• Do not use harsh chemicals, cleaning
solvents, or strong detergents to clean the
phone. Wipe it with a soft cloth slightly
dampened in a mild soap-and-water
solution.
• Do not paint the phone. Paint can clog the
device’s moving parts and prevent proper
operation.
131
E690.book Page 132 Wednesday, October 11, 2006 2:42 PM
Health and safety information
• If the phone, battery, charger, or any
accessory is not working properly, take it to
your nearest qualified service facility. The
personnel there will assist you, and if
necessary, arrange for service.
132
E690.book Page 133 Wednesday, October 11, 2006 2:42 PM
Index
A
ABC mode, text input • 32
Active folder • 111
Alarm • 91
Answering
call • 36
second call • 38
Anykey answer • 111
Auto redial • 111
B
Background image • 111
Backlight, set
display • 114
keypad • 114
Band selection • 117
Barring, calls • 115
Battery
charging • 7
low indicator • 8
precautions • 124
Bluetooth
receiving, data • 58
sending, data • 57
settings • 56
Broadcast messages • 85
Browser, web • 61
C
Calculator • 97
Call cost • 42
Call log
dialled • 41
missed • 41
received • 41
Call time • 42
Caller groups • 46
Caller ID • 117
Calls
answering • 36
barring • 115
diverting • 115
holding • 38
making • 35
redialling • 36
rejecting • 36
transferring • 40
waiting • 116
Camera
photos • 99
videos • 103
CB (Cell Broadcast) messages •
85
Characters, enter • 32
Configuration messages • 72
Connection tone • 114
Convertor • 98
Creating messages
e-mail • 68
MMS • 66
SMS • 65
133
E690.book Page 134 Wednesday, October 11, 2006 2:42 PM
Index
D
Date, set • 108
Deleting
call log • 42
e-mail • 75, 77
MMS • 71, 72, 77
phonebook • 48
scheduled items • 95
SMS • 70, 72, 77
Dialled calls • 41
Dialling display, set • 112
Display
brightness • 112
icons • 11, 12
language • 108
layout • 11
settings • 111
Diverting, calls • 115
Document files • 90
DRM (Digital Rights Management)
• 86
DTMF tones, send • 39
134
E
E-mails
creating/sending • 68
deleting • 75
setting • 80
viewing • 74
Emergency calls • 129
F
FDN (Fixed Dialling Number)
mode • 119
File manager • 86
FM radio • 59
Folder tone • 113
G
Games • 58
Greeting message • 108
H
Health and safety • 123
Holding, call • 38
I
Icons, description • 11
Image editor • 53
Images, downloaded • 86
Inbox, messages
e-mail • 74
MMS/SMS • 70
International calls • 35
Internet • 61
K
Key tones
selecting • 113
sending/muting • 39
volume • 113
L
Language, select • 108
Last number, redial • 36
Light settings • 114
Locking
menu functions • 118
phone • 118
SIM card • 119
E690.book Page 135 Wednesday, October 11, 2006 2:42 PM
Low battery indicator • 8
Memory card
acccessing files 90
installing • 30
Memory status
file manager • 91
messages • 85
phone • 120
phonebook • 49
Menu style • 112
Messages
cell broadcast • 85
configuration • 72
e-mail • 68
greeting • 108
MMS • 66
push • 71
SMS • 65
SOS • 84
Minute minder • 114
Missed calls • 41
MMS messages
creating/sending • 66
deleting • 71
setting • 77
viewing • 70
Mobile tracker • 119
Multiparty-call • 39
Music player • 49
Music, downloaded • 89
My files • 86
My menu • 109
N
Name card • 47
Names
entering • 32
searching • 43
Network band, select • 117
Network selection • 116
Network services • 114
Numbers
searching • 43
storing • 44
O
Offline mode • 9, 111
Outbox, messages • 72
P
Index
M
Password
call barring • 116
phone • 118
Phone
care and maintenance •
130
display • 11
Icons • 11
locking • 118
password • 118
resetting • 120
switching on/off • 9
unpacking • 6
Phonebook
adding • 45
deleting • 48
editing • 43
finding • 43
135
E690.book Page 136 Wednesday, October 11, 2006 2:42 PM
Index
managing • 48
options • 43
speed dialling • 47
Photos
editing • 53
taking • 99
viewing • 86
PIN, change • 118
PIN2, change • 119
Power on/off tone • 113
Privacy • 118
Problems, solve • 121
Push messages • 71, 84
R
Received calls • 41
Received messages
e-mail • 74
MMS/SMS • 70
Recording
videos • 103
voice memos • 52
136
Redialling
automatically • 111
manually • 36
Resetting phone • 120
Ringer
incoming calls • 113
messages • 113
Road safety • 126
Roaming • 116
S
Safety
information • 123
precaution • 1
Security, calls • 117
Sent messages • 73
Shortcut • 108, 109
Silent mode
entering • 16
setting • 114
SIM card
inserting • 7
locking • 119
Skin colour • 112
SMS messages
creating/sending • 65
deleting • 70
setting • 77
viewing • 70
Sound settings • 113
Sounds, downloaded • 89
Speakerphone • 38
Speed dial • 47
Stopwatch • 99
Switching on/off
microphone • 39
phone • 9
T
T9 mode, text input • 33
Templates, message • 75
Text, enter • 32
Time, set • 107
Timer • 98
U
USB setting • 110
E690.book Page 137 Wednesday, October 11, 2006 2:42 PM
V
Index
Videos
playing • 88
recording • 103
Voice recorder
playing • 52
recording • 52
Voicemail server • 117
W
Waiting call • 116
Wallpaper • 111
Web browser
access • 61
bookmarks • 63
World time • 97
137
E690.book Page 138 Wednesday, October 11, 2006 2:42 PM
E690.book Page 1 Wednesday, October 11, 2006 2:42 PM
* Depending on the software installed or your service provider or country, some of the descriptions in
this guide may not match your phone exactly.
* Depending on your country, your phone and accessories may appear different from the illustrations
in this guide.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-11806A
English (SEA). 10/2006. Rev. 1.1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
