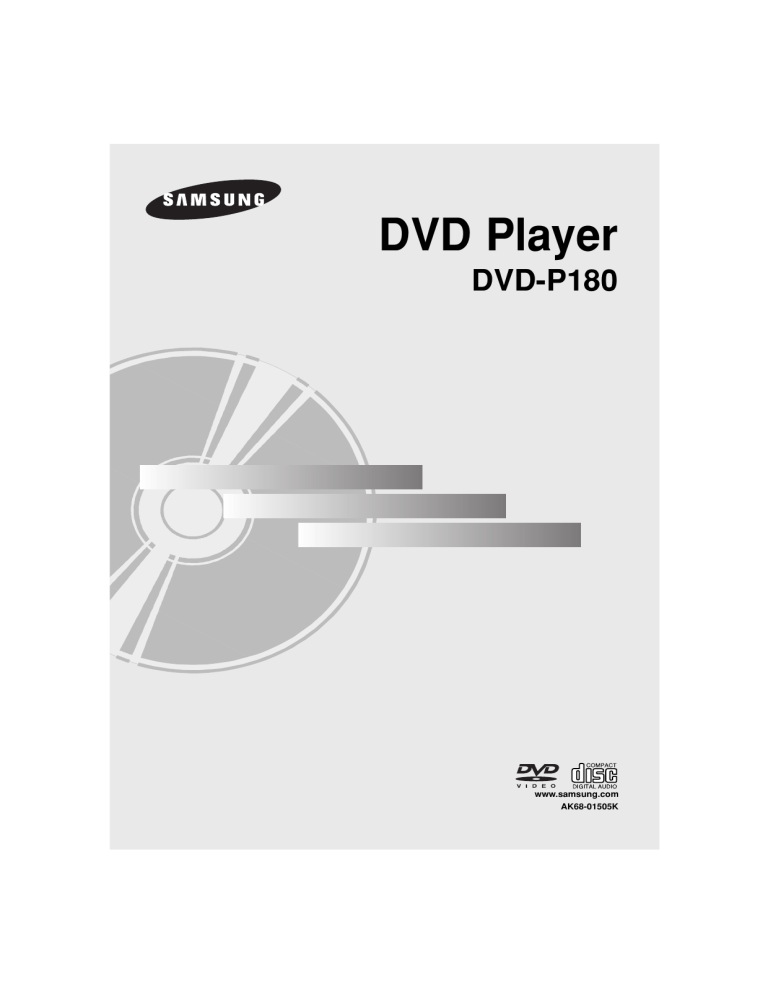

DVD Player

DVD-P180 www.samsung.com

AK68-01505K

1. Setting up

- Refer to the identification label located on the rear of your player for its proper operating voltage.

- Install your player in a cabinet with adequate ventilation holes (7~10cm). Do not block ventilation holes on any of the components for air circulation.

- Do not push the disc tray in by hand.

- Do not stack components.

- Be sure to turn all components off before moving the player.

- Before connecting other components to this player, be sure to turn them off.

- Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.

- To disconnect the apparatus from the mains. the plug must be pulled out from the mains socket, therefore the mains plug shallbe readily operable.

occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

- Do not clean the disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.

- Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center.

- Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environ ment.

- So, dispose of batteries in the proper man ner, according to federal, state, and local regulations.

2. For your safety

- This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

- Do not open covers and do not repair yourself. Refer servicing to qualified personnel.

3. Caution

- Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.

- Do not put any container filled with liquid or any small metal objects on the player.

- Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

- When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this

2

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or

ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR

13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS,

ADJUSTMENTS, OR PROCEDURES OTHER

THAN SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

BEFORE

YOU

ST AR T

T

ABLE OF

Accessories

Remote Control

User’s Manual

Video/Audio

Cable

Install Batteries in the Remote control

1. Open the battery cover on the back of the remote control.

2. Insert two AAA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

3. Replace the battery cover.

If remote control doesn’t operate properly:

- Check the polarity + - of the batteries (Dry-Cell)

- Check if the batteries are drained.

- Check if remote control sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setup

General Features . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disc Type and Characteristics . . . . . . . . . . . . . . . . 5

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tour of the Remote Control . . . . . . . . . . . . . . . . . . 8

Connections

Choosing a Connection . . . . . . . . . . . . . . . . . . . . . 9

Basic Functions

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the Search and Skip Functions . . . . . . . . . 13

Using the Display Function . . . . . . . . . . . . . . . . . 13

Using the Disc Menu and Title Menu . . . . . . . . . 14

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Slow Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Advanced Functions

Adjusting the Aspect Ratio (EZ View) . . . . . . . . . 15

Selecting the Audio Language . . . . . . . . . . . . . . . 16

Selecting the Subtitle Language. . . . . . . . . . . . . . 16

Changing The Camera Angle . . . . . . . . . . . . . . . . 16

Using the Bookmark Function . . . . . . . . . . . . . . . 17

Using the Zoom Function . . . . . . . . . . . . . . . . . . . 17

Clips Menu for MP3/WMA/JPEG/CD Audio . . . . . 18

Folder Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 18

MP3/WMA/CD Audio Playback. . . . . . . . . . . . . . . 18

Picture CD Playback. . . . . . . . . . . . . . . . . . . . . . . 19

Changing Setup Menu

Using the Setup Menu . . . . . . . . . . . . . . . . . . . . . 20

Setting Up the Language Features . . . . . . . . . . . 21

Setting Up the Audio Options . . . . . . . . . . . . . . . . 22

Setting Up the Display Options . . . . . . . . . . . . . . 22

Setting Up the Parental Control . . . . . . . . . . . . . . 23

Reference

Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby

Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view digital photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

Note

- Discs which cannot be played with this player.

• DVD-ROM • DVD-RAM

• CD-ROM

• CDI

• CDV

• CVD

• CDGs play audio only, not graphics.

- Ability to play back may depend on recording conditions.

• DVD-R, +R

• CD-RW

• DVD+RW, -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection.

Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

4

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)

DVD

Recording Types

Audio

+

Video

Disc Size

12 Cm

8 Cm

Max. Playing Time Characteristics

Single-sided 240 min.

Double-sided 480 min.

Single-sided 80 min.

Double-sided 160 min.

- DVD contains excellent sound and video due to Dolby Digital and MPEG-

2 system.

- Various screen and audio functions can be easily selected through the onscreen menu.

VIDEO-CD

12 Cm

74 min.

Audio

+

Video

8 Cm

20 min.

- Video with CD sound, VHS quality &

MPEG-1 compression technology.

AUDIO-CD

Audio

12 Cm

74 min.

- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

8 Cm

20 min.

Disc Markings

~

PAL

Play Region Number

PAL broadcast system in

U.K, France, Germany, etc.

Dolby Digital disc

STEREO

DIGITAL

SOUND

Stereo disc

Digital Audio disc

DTS disc

MP3 disc

You must only insert one DVD disc at a time.

Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

5

Description

Front Panel Controls

1

2

3 4

5 6

1.

STANDBY/ON ( )

When STANDBY/ON is pressed on, the indicator goes out and the player is turned on.

2.

STANDBY indicator

When the unit is first plugged in, this indicator lights.

3.

DISC TRAY

Place the disc here.

4.

REMOTE CENSOR

5.

OPEN/CLOSE /STOP ( )

Stops disc play.

Press to open and close the disc tray.

6.

PLAY/PAUSE ( )

Begin or pause disc play.

6

Rear Panel

3

1

2

1.

AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

2.

VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television

.

3.

DIGITAL AUDIO OUT JACKS

- Use either coaxial digital cable to connect to a compatible Dolby Digital receiver.

- Use either coaxial digital cable to connect to an A/V

Amplifier that contains a Dolby Digital, MPEG2 or

DTS decoder.

Note

-

See pages 22 ~ 23 to get more information on how to use the setup menu.

7

8

Tour of the Remote Control

11

12

13

14

3

7

8

9

4

5

6

10

1

2

1.

DVD Power Button

Turns the power on or standby.

2.

NUMBER Buttons

3.

ZOOM Button/-/--

Enlarge DVD Picture or use this button to select the channel of TV program by inserted the channel number (TV mode).

4.

TV VOLUME

TV VOL(+,-) button

22

23

24

25

15

16

17

18

19

20

21

5.

SEARCH Buttons (

/

)

Allow you to search forward/backward through a disc.

6.

VIDEO SEL.Button

Change video output mode

7.

SKIP Buttons (

/

)

Use to skip the title, chapter or track.

8.

STOP Button ( )

9.

MENU Button

Brings up the DVD player’s menu.

10. ENTER/

œ

/

ƒ

,

¦

/

‹

Buttons

This button functions as a toggle switch.

11. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3)

12. DISC MENU Button

Brings up the Disc menu.

13. OPEN/CLOSE ( ) Button

To open and close the disc tray

14. AUDIO Button

Use this button to access various audio functions on a disc.

15. DVD Button

Use to operate DVD

16. TV Button

Use to operate TV

17. STEP /TV SOURCE Button

Advances play one frame at a time.

18. TV CH Buttons ( / )

Use to change channel.

19. SUBTITLE Button

) 20. PLAY/PAUSE Button (

Begin/Pause disc play.

21. RETURN Button

Returns to a previous menu.

22. INFO Button

Displays the current disc mode.

23. CANCEL Button

Use to remove menus or status displays from the screen.

24. REPEAT A-B Button

Allows you to repeat A-B disc.

25. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

-

-

T o

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

- Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.

- Refer to the user’s manual of the additional components you are connecting for more information on those particular components.

Connection to a TV (For Video)

1

Using video/audio cable, connect the

VIDEO

(yellow)/Audio (red and white)

terminals on the rear of the

DVD player to the

VIDEO (yellow)/Audio (red and white)

IN

terminals of TV.

2

Turn on the DVD player and TV.

WHITE

RED

YELLOW

Video Cable

Audio Cable

RED

WHITE

YELLOW

3

Press the

TV/VIDEO

button on the TV's remote control to select

Video

.

Note

- Noise may be generated if the audio cable is too close to the power cable.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 10 to 11)

- The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.

- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the

DVD player.

9

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the

AUDIO (red and white) OUT

on the rear of the DVD player to the

AUDIO

(red and white) IN

terminals of the Amplifier.

2

Using the video signal cable, connect the

VIDEO

terminals on the rear of the DVD player to the

VIDEO

terminal of your

TV.

3

Turn on the DVD player, TV, and Amplifier.

WHITE

RED

Audio Cable

RED WHITE

4

Press the input select button of the Amplifier to select

external input

in order to hear sound from the DVD player.

Note

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier. (See pages 22)

- The position of terminals can vary depending on the Amplifier.

Please refer to the user's manual of the Amplifier.

10

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

1

If using a coaxial cable (not included), connect the

DIGI-

TAL AUDIO OUT (COAXIAL)

terminal on the rear of the

DVD player to the

DIGITAL AUDIO IN (COAXIAL)

terminal of the Amplifier.

2

Using the video signal cable, connect the

VIDEO

terminals on the rear of the DVD player to the

VIDEO

terminal of TV.

Coaxial cable

(not supplied)

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select

external input

in order to hear sound from the DVD player.

Note

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier. (See pages 22)

- The position of terminals can vary depending on the Amplifier.

Please refer to the user's manual of the Amplifier.

11

Playing a Disc

Before Play

- Turn on your TV and set it to the correct Video

Input by pressing TV/VIDEO button on the TV remote control.

- If you connected an external Audio System, turn on your Audio System and set it to the correct

Audio Input.

After plugging in the player, the first time you press the DVD

POWER

button, this screen comes up: If you want to select a language, press a

NUMBER

button. (This screen will only appear when you plug in the player for the first time.)

If the language for the startup screen is not set, the settings may change whenever you turn the power on or off.

Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the

SELECT

MENU LANGUAGE

window appears again where you can reset your preferred language.

4.

Stopping Play

Press the

STOP ( )

button during play.

5.

Removing Disc

Press the

OPEN/CLOSE ( )

button.

6.

Pausing Play

Press the

PLAY/PAUSE ( )

or

STEP

button on the remote control during play.

- Screen stops, no sound.

To resume, press the PLAY/PAUSE ( ) button once again.

7.

Step Motion Play (Except CD)

Press the

STEP

button on the remote control during play.

- Each time the button is pressed, a new frame will appear.

- No sound is heard during STEP mode.

- Press the PLAY/PAUSE ( ) button to resume normal play.

- You can only perform step motion play in the forward direction.

8.

Slow Motion Play

Press the

SEARCH ( / )

button to choose the play speed between 1/8, 1/4 and 1/2 of normal during

PAUSE or STEP mode.

- No sound is heard during slow mode.

- Press the PLAY/PAUSE ( ) button to resume normal play.

Playback

1. Press the

OPEN/CLOSE ( )

button. The STANDBY indicator light goes out and the tray opens.

2. Place a disc gently into the tray with the disc’s label facing up.

- You must only insert one DVD disc at a time.

Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

3. Press the

PLAY/PAUSE ( )

button or

OPEN/ CLOSE

( )

button to close the disc tray.

- When you stop disc play, the player remembers where you stopped, so when you press

PLAY/PAUSE ( ) button again, it will pick up where you left off.

Note

- If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the

PLAY/PAUSE ( ) button to resume normal play.

- If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off. (Automatic Power-Off Function)

- If the player is left for about 5 minutes in pause mode, it will stop.

- This ( ) icon indicates an invalid button press.

12

Using the Search and Skip

Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or

Track

During play, press the

SEARCH

( or ) button on the remote control for more than 1 second.

Using the Display Function

When Playing a DVD/VCD

1. During play, press the

INFO

button on the remote control.

- You can select Info in the function menu by pressing the MENU button.

2. Press the

œ

/

ƒ buttons to select the desired item.

- Only Menu Off is available for VCD2.0. Each press of the DISC MENU button toggles between Menu On and

Menu Off.

3. Press the

¦

/

‹ buttons to make the desired setup and then press the

ENTER

button.

- You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from the desired time.

4. To make the screen disappear, press the

INFO

button again.

DVD

VCD

CD

2X, 4X, 64X, 128X

4x, 8X

2X, 4X, 8X

Note

- The speed marked in this function may be different from the actual speed of playback.

- No sound is hearing during search mode

(Except CD).

Skipping Tracks

During play, press the

SKIP

(

- When playing a DVD, if you press the SKIP ( ) button, it moves to the next chapter. If you press the SKIP ( ) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

- When playing a VCD 2.0 in Menu Off mode, or a VCD 1.1

or a CD, if you press the SKIP ( ) button, it moves to the next track. If you press the SKIP ( ) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.

- If a track exceeds 15 minutes when playing a VCD and you press the button, it moves forward 5 minutes.

If you press the button, it moves backward 5 minutes.

Note

Only Menu Off is available for VCD2.0. Each press of the DISC MENU button toggles between Menu

On and Menu Off.

Note

Title

Chapter

To access the desired title when there are more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.

Most DVD discs are recorded in chapters so that you can quickly find a specific passage

(similar to tracks on an video CD).

Time

Audio

Subtitle

Shortcut

Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc.

Refers to the language of the film soundtrack.

In the example, the soundtrack is played in

English 5.1CH. A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

To access the desired Bookmark or Angle function.

Some DVD discs are have more angle function from any picture.

Bookmark function make you easily and quickly to find a track or chapter from DVD or VCD ( Menu Off).

13

Using the Disc Menu and Title Menu

Using the Disc Menu

1. During Stop mode, press the

MENU

button on the remote control.

2. Press the

œ

/

ƒ buttons to select

Disc Menu

, then press the

‹ or

ENTER

button.

Press ENTER key for Disc Menu

Enter Return Menu

Note

- Depending on a disc, the Disc Menu may not work.

- You can also use the Disc Menu, using the

DISC MENU button on the remote control.

- Only Menu Off is available for VCD2.0. Each press of the DISC MENU button toggles between Menu On and Menu Off.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD

1. Press the

REPEAT

button on the remote control.

Repeat screen appears.

2. Press the

¦

/

‹ buttons to select

Chapter

,

Title

or

A-B

, then press the

ENTER

button.

- DVD repeats play by chapter or title, VCD repeat play by disc or track.

- Chapter ( ): repeats the chapter that is playing.

- Title (

T

): repeats the title that is playing.

- Disc ( ): repeats the disc that is playing.

- Track ( ): repeats the track that is playing.

- A-B: repeats a segment of the disc that you select.

DVD

Off 01

T

01 A - B

ENTER REPEAT

VCD

Off

T

01

D

01 A - B

ENTER REPEAT

Using the Title Menu

1. During Stop mode, press the

MENU

button on the remote control.

2. Press the

œ

/

ƒ buttons to select

Title Menu

, then press the

‹ or

ENTER

button.

Press ENTER key for Title Menu

Using the A-B Repeat function

1. Press the

REPEAT

button on the remote control.

2. Press the

¦

/

‹ buttons to Select

A-B

button.

3. Press the

ENTER

button at the point where you want repeat play to start (A).

B

is automatically highligh ted.

4. Press the

ENTER

button at the point where you want the repeat play to stop (B).

- To return to normal play, press the

CANCEL

button.

5. To return to normal play, press

REPEAT

button again, then press the

¦

/

‹ buttons to select

Off

and press

ENTER

button.

DVD

Off 01

T

01 A - B

ENTER REPEAT

Enter Return Menu

Note

- Depending on a disc, the Title Menu may not work.

- Title Menu will only be displayed if there are at least two titles in the disc.

VCD

Off

T

01

D

01 A - B

ENTER REPEAT

14

Note

- A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point (A) has been set.

- Depending on a disc, the Repeat function may not work.

- Only Menu Off is available for VCD2.0. Each press of the DISC MENU button toggles between Menu On and Menu Off.

Slow Play

ADV

ANCED

Adjusting the Aspect Ratio

(EZ View)

To play back using aspect ratio

(DVD)

This feature allows you to play scenes slowly containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

1. During play, press the

PLAY/PAUSE ( )

button.

2. Press the

SEARCH

(

/

) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during

PAUSE or STEP mode.

Press the

EZ VIEW

button.

- The screen size changes when the button is pressed repeatedly.

- The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.

- To ensure correct operation of the

EZ VIEW

button, you should set the correct aspect ratio in the Display Setup menu. (See pages 22 to 23).

4:3 Letter Box EZ VIEW

If you are using a 16:9 TV

For 16:9 aspect ratio discs

-

WIDE SCREEN

Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off.

When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio.

The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

15

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan& Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

Note

- This function depends on audio languages are encoded on the disc and may not work.

- A DVD disc can contain up to 8 audio languages.

- To have the same audio language come up whenever you play a DVD;

Refer to “Using the Audio Language” on page

21.

Selecting the Subtitle

Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD)

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

1. Press the

SUBTITLE

button. The subtitle languages are represented by abbreviations. The subtitle changes when the button is pressed repeatedly.

DVD

Off

SUBTITLE

Note

This function may behave differently depending on the type of disc.

Selecting the Audio

Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button

1. Press the

AUDIO

button. The Audio changes when the button is pressed repeatedly.

The audio languages are represented by abbreviations.

DVD

ENG DOLBY DIGITAL 5.1CH

AUDIO

VCD

2. To remove the

SUBTITLE

icon, press the

CANCEL

or

RETURN

button.

Note

- You have to change the desired subtitle in the

Disc Menu, according to discs. Press the DISC

MENU button.

- This function depends on what subtitles are encoded on the disc and may not work on all

DVDs.

- A DVD disc can contain up to 32 subtitle languages.

- To have the same subtitle language come up whenever you play a DVD; Refer to “Using the

Subtitle Language” on page 21.

Changing the Camera

Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE Function (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

When playing a VCD, you can select among

Stereo

,

Left

or

Right

Stereo AUDIO

2. To remove the

AUDIO

icon, press the

CANCEL

or

RETURN

button.

16

1. During play mode, press the

INFO

button on the remote control.

2. Press the

œ

/

ƒ buttons to select

Shortcut

.

3. Press the

¦

/

‹ buttons to select

Angle

, then press the

ENTER

button.

Shortcut

Angle

Enter

4. Press the

¦

/

‹ buttons or you can use the number buttons on the remote control to select the desired angle.

4/6

Recalling a Marked Scene

1~3. The first 1~3 steps are the same as those for “Using the

Bookmark Function” on page 17.

4. Press the

¦

/

‹ buttons to select a marked scene.

1 2 3

Note

- If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.

- Depending on the disc, these functions may not work

Using the Bookmark

Function

This feature lets you bookmark sections of a DVD or

VCD (Menu Off mode) so you can quickly find them at a later time.

Using the Bookmark Function

(DVD/VCD)

5. Press the

PLAY/PAUSE

( scene.

) button to skip to the marked

Clearing a Bookmark

1~3. The first 1~3 steps are the same as those for “Using the

Bookmark Function” on page 17.

4. Press the

¦

/

‹ buttons to select the bookmark number you want to delete.

5. Press the

CANCEL

button to delete a bookmark number.

1 2 3

1. During play, press the

INFO

button on the remote control.

2. Press the

œ

/

ƒ buttons to select

Shortcut

.

3. Press the

¦

/

‹ buttons to select

Bookmark (Except VCD)

, then press the

ENTER

button.

DVD

VCD

Shortcut

Bookmark

Enter

Using the Zoom Function

Using the Zoom Function

(DVD/VCD)

1. During Play or Pause mode, press the

ZOOM

button on the remote control, and than press the

ENTER

button.

2. Press the

œ

/

ƒ or

¦

/

‹ buttons to select the part of the screen you want to zoom in on.

- During DVD play, press ENTER to zoom in

2X/4X/2X/Normal in order.

- During VCD play, press ENTER to zoom in

2X/4X/2X/Normal in order.

Shortcut

Bookmark

Enter

4. When you reach the scene you want to mark, press the

ENTER

button. Up to three scenes may be marked at a time.

1 - -

Note

- Only Menu Off is available for VCD2.0. Each press of the DISC MENU button toggles between Menu On and Menu Off.

- Depending on a disc, the Bookmark function may not work.

17

-

-

-

-

-

-

-

Clips Menu for

MP3/WMA/JPEG/CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

S t o p Off

0 0 : 0 0 : 0 0

Open the disc tray.

Place the disc on the tray.

Close the tray.

The tray closes and this screen displays.

W M A

J P E G

M P 3

Enter Return Menu

: Name of currently playing file.

: Current Playback Time.

: Current Playback Mode : There are four modes. They can be selected in order by pressing the

REPEAT

button.

- Off: Normal Playback

- Track: Repeats the current track.

- Folder: Repeats the current folder

- Random: Files in the disc will be played in random order.

: MP3 file icon. -

: WMA file icon. -

: JPEG file icon.

: CD Audio file icon.

: Folder icon.

: Current Folder icon.

Folder Selection

The folder can be selected both in Stop or Play mode.

- To select the Parent Folder

Press the

RETURN

button to go to parent folder, or press the

œ

/

ƒ buttons to select “..” and press

ENTER

to go to the parent folder.

- To select the Peer Folder

Press the

œ

/

ƒ buttons to select the desired folder, then press

ENTER

.

- To select the Sub-Folder

Press the

œ

/

ƒ buttons to select the desired folder, then press

ENTER

.

R o o t

W M A

J P E G

M P 3 P a r e n t F o l d e r

C u r r e n t F o l d e r M U S I C

1 s t

2 n d

S O N G F I L E 1

S O N G F I L E 2

S O N G F I L E 3

S u b - F o l d e r s

P e e r F o l d e r s

MP3/WMA/CD Audio Playback

1. Open the disc tray. Place the disc on the tray. Close the tray.

- Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.

2. Press the

œ

/

ƒ buttons to select a song file.

Press

ENTER

to begin playback of the song file.

Off

0 0 : 0 0 : 2 3

P l a y

B e c a u s e Y o u

. . .

B e c a u s e Y o u

C a c t u s

S a d D a y u

W o n d e r f u l

Enter Return REPEAT Repeat

18

k

Repeat/Random Playback

Press the

REPEAT

button to change the playback mode. There are four modes, such as

Off

,

Track

,

Folder

and

Random

.

- Off: Normal Playback

- Track: Repeats the current song file.

- Folder: Repeats the song files which have the same extension in the current folder.

- Random: Song files which have the same extension will be played in random order.

To resume normal play, press the

CANCEL

button.

- Important:

The above recommendations cannot be taken as a guaran tee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player

(degraded sound quality and in some cases, inability of the player to read the files).

- This unit can play a maximum of 500 files and 500 folders per disc.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with

Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160

Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

- Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types:

Windows Media

TM

(registered trade mark of Microsoft Inc) and

SDMI

TM

(registered trade mark of The SDMI Foundation). You cannot copy such files.

Picture CD Playback

1. Select the desired folder.

2. Press the

œ

/

ƒ buttons to select a Picture file in the clips menu and then press the

ENTER

button.

3. Press the

INFO

button on the remote control to select the menu you want to view and then press the

ENTER

button.

ENTER RETURN

Note

- Press the STOP button to return to the clips menu.

- When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Rotation

: Each time the

ENTER

button is pressed, the picture rotates 90 degrees clockwise.

Zoom

: Press the

œ

/

ƒ buttons to select the part of the screen you want to zoom in on.

Press the

ENTER

button. Each time the

ENTER

button is pressed, the picture is enlarged up to 2X.

Slide Show

: The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set.

: When this icon is selected and

ENTER

is pressed, the pictures change automatically with about a 6 second interval.

: The pictures change automatically with about a 12 second interval.

: The pictures change automatically with about a 18 second interval.

19

TIMER:

ENTER

RETURN

Note

- Depending on a file size, the amount of time between each picture may be different from the manual.

- If you don’t press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Discs

- Only files with the “.jpg” and “.JPG” extensions can be played.

- If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

- The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).

- Only a consecutively written multi-session disc can be played.

If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.

- A maximum of 3000 images can be stored on a single CD.

- Kodak Picture CDs are recommended.

- When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.

- Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.

- Konica Picture CD: If you want to see the Picture, select the

JPEG files in the clips menu.

- Fuji Picture CD: If you want to see the Picture, select the

JPEG files in the clips menu.

- QSS Picture CD: The unit may not play QSS Picture CD.

- If the number of files in 1 Disc is over 500, only 500 JPEG files can be played.

- If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the

MENU

button on the remote control. Use the

œ

/

ƒ buttons to select Setup, then press the

‹ or

ENTER

button.

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

Language Setup: Setup of the Language.

Audio Setup : Setup of the Audio Options.

Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options.

Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

2. Press the

œ

/

ƒ buttons to access the different features.

Press the

‹ or

ENTER

button to access the sub features.

3. To make the setup screen disappear after setting up, press the

MENU

button again.

Note

Depending on the disc, some Setup Menu selections may not work.

20

Setting Up the Language

Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Language Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select

Player Menu

, then press the

‹ or

ENTER

button.

5. Press the

œ

/

ƒ buttons to select the desired language, then press the

‹ or

ENTER

button.

- The language is selected and the screen returns to Language Setup menu.

- To make the setup menu disappear, press the MENU button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Language Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select

Disc Menu

, then press the

‹ or

ENTER

button.

5. Press the

œ

/

ƒ buttons to select the desired language, then press the

‹ or

ENTER

button.

- If the selected language is not recorded on the disc, the original pre-recorded language is selected.

- The language is selected and the screen returns to

Language Setup menu.

- To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP

Player Menu

: English

Audio

Subtitle

Nederlands

Enter Return Menu

Using the Audio Language

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Language Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select

Audio

, then press the

‹ or

ENTER

button.

5. Press the

œ

/

ƒ buttons to select the desired language, then press the

‹ or

ENTER

button.

- Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in.

- If the selected language is not recorded on the disc, the original pre-recorded language is selected.

- The language is selected and the screen returns to

Language Setup menu.

- To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP

Player Menu

Disc Menu

Subtitle

: English

Deutsch

: English

Italiano

Enter Return Menu

Using the Subtitle Language

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Language Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select

Subtitle

, then press the

‹ or

ENTER

button.

5. Press the

œ

/

ƒ buttons to select the desired language, then press the

‹ or

ENTER

button.

- Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language.

- Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

- The language is selected and the screen returns to setup menu.

- To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP

Player Menu

Disc Menu

Audio : English

Deutsch

: English

Italiano

Enter Return Menu

21

Setting Up the Audio

Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

Dynamic Compression

- On : To select dynamic compression.

- Off : To select the standard range.

PCM Down Sampling

- On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the

96KHz signals will be down converted to 48KHZ.

- Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Audio Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select the desired item, then press the

‹ or

ENTER

button.

Note

Even when PCM Down sampling is Off

• Some discs will only output down sampled audio through the digital outputs.

• To make the Setup menu disappear, press the

MENU button.

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

Setting Up the Display

Options

AUDIO SETUP

Dolby Digital Out :PCM

MPEG-2 Digital Out :PCM

Dynamic Compression :On

PCM Down Sampling :On

Enter Return Menu

Dolby Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Outputs Dolby Digital via the digital output.

Select Bitstream when connecting to a Dolby Digital

Decoder..

MPEG-2 Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Converts to MPEG-2 Digital Bitstream

(5.1CHor 8CH). Select Bitstream when using the Digital

Audio Output.

Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

3. Press the

œ

/

ƒ buttons to select

Display Setup

, then press the

‹ or

ENTER

button.

4. Press the

œ

/

ƒ buttons to select the desired item, then press the

‹ or

ENTER

button.

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

22

TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

- 4:3 Letter Box : Select when you want to see the total

16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

- 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

- 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

Setting Up the Parental

Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Setting Up the Rating Level

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

DISPLAY SETUP

: 16:9 Wide

Still Mode

4:3 Letter Box

: Auto

4:3 Pan&Scan

Screen Messages : On

16:9 Wide

Black Level : On

TV System : PAL

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

- Auto : When selecting Auto, Field/Frame mode will be automatically converted.

- Field : Select this feature when the screen shakes in the Auto mode.

- Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

Screen Messages

Use to turn on-screen messages On or Off.

Black Level

Adjusts the brightness of the screen.

TV System

- NTSC : In case of using NTSC disc

• If your TV system only has PAL-Video input, you must choose “PAL”. When you choose “PAL”, Interlace output format is PAL 60 Hz output.

• If your TV system only has NTSC, input you must choose “NTSC ”.

- PAL : In case of using PAL disc

• If your TV system only has NTSC-Video input, you must choose “NTSC”.

• If your TV system only has PAL input, you must choose “PAL ”.

Enter Return Menu

3. Press the

œ

/

ƒ buttons to select

Parental Setup

, then press the

‹ or

ENTER

button.

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

4. Press the

œ

/

ƒ buttons to select

Rating Level

, then press the

‹ or

ENTER

button.

PARENTAL SETUP

Rating level : Kids Safe

Change Password

Enter Return Menu

5. Enter your password.

- By default, password is set to 0000.

DISPLAY SETUP

TV Aspect : 4:3 L-Box

Still Mode : Auto

Screen Messages : On

Black Level : Off

Enter

PAL

Return Menu

PARENTAL SETUP

Rating Level

Change Password

: Kids Safe

Enter Password

Enter Return Menu

23

6. Press the

œ

/

ƒ buttons to select the Rating Level you want, then press the

‹ or

ENTER

button.

e.g) Setting up in

Kids Safe

.

PARENTAL SETUP

4. Press the

œ

/

ƒ button to select

Change Password

, then press the

‹ or

ENTER

button. Enter your password (default password). Enter the new password.

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

Setup

Change Password

Level 2

Level 3

Level 4

Level 5

Level 6

Enter Return Menu

Enter Return Menu

Note:

- For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

To make the setup menu disappear, press the

MENU button.

Changing the Password

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

Enter Password

Enter Return Menu

1. With the unit in Stop mode, press the

MENU

button.

2. Press the

œ

/

ƒ buttons to select

Setup

, then press the

‹ or

ENTER

button.

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

Enter New Password

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

3. Press the

œ

/

ƒ buttons to select

Parental Setup

, then press the

‹ or

ENTER

button.

Enter Return Menu

Note

If you have forgotten your password, see

“Forgot Password” in the Troubleshooting Guide.

Language Setup

Audio Setup

Display Setup

Parental Setup :

Enter Return Menu

24

Firmware upgrade

2. Press the

¦

/

‹ buttons to select

Total

, then press the

ENTER button.

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site

(www.samsung.com).

What improvements are made depends on the upgrade software you are using as well as thesoftware that your

DVD-player contained before theupgrade.

How to make an upgrade disc

Write the downloaded file onto a blank CD-R or CD-

RW disc, using the following settings:

1. You have to download a new file through Download Center of Samsung Internet Site (www.samsung.com).

2. Write the file to Disc using CD-RW of your computer.

Note

- File System CD-ROM ISO Level

- Character set ISO 9660

- Finalized, single session

- Write speed low

Firmware upgrade starts

- In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.

- If the unit was succesfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.

3. Press the number buttons to select the desired language

Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

Note

- If the “Select Menu Language” doesn’t appear, please contact to “Samsung Service Center”.

- Do not press any button and unplug the power cord during upgrade.

- The upgrade procedure may change, refer to the web site (www.samsung.com).

Firmware upgrade appears on the display

25

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem

No operations can be performed with the remote control.

Disc does not play.

Action

• Check the batteries in the remote control.

They may need replacing.

• Operate the remote control at a distance of no more than 20 feet.

• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is installed with the label side facing up.

• Check the region number of the DVD.

5.1 channel sound is not being reproduced.

The icon appears on screen.

• 5.1 channel sound is reproduced only when the following conditions are met :

1) The DVD player is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on the outside.

• Check if your audio system is connected and working properly.

• In SETUP Menu, is the Audio Output set to Bitstream?

• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

Disc Menu doesn’t appear.

• Check if the disc has a Menu.

Play mode differs from the

Setup Menu selection.

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.

The screen ratio cannot be changed.

• The Screen Ratio is fixed on your DVDs.

No audio.

The screen is blocked

• Make sure you have selected the correct Digital Output in the Audio Options

Menu.

• Press the button (on front panel) for more than 5 seconds under no disc inside.

All settings will revert to the factory settings.

Forgot password

Other problems.

• Press the button (on front panel ) for more than 5 seconds under no disc inside.

All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.

• Go to the contents of the instruction book and find the section that contains the explanations regarding the current problem, and follow the procedure once again.

• If the problem still cannot be solved, please contact your nearest authorized service center.

The picture is noisy or distorted

• Make sure that the disc is not dirty or scratched.

• Clean the disc.

Page

P3

P5

P 10~11

P22

P20~25

P22~23

P22

P12

P23

P2

26

Specifications

General

Disc

Power Requirements

Power Consumption

Weight

Dimensions

Operating Temperature Range

Operating Humidity Range

DVD

(DIGITAL VERSATILE DISC)

CD : 12Cm

(COMPACT DISC)

CD : 8Cm

(COMPACT DISC)

VCD : 12Cm

AC 110-240 V, 50/60 Hz

9 W

1.7 Kg

430mm (W) X 207mm (D) X 37mm (H)

+5°C to +35°C

10 % to 75 %

Reading Speed : 3.49 ~ 4.06 m/sec.

Approx. Play Time

(Single Sided, Single Layer Disc) : 135 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 20 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min. (Video + Audio)

Video

Output

Composite Video

1 channel : 1.0 Vp-p (75

Ω load)

Audio

Output

2 Channel

*Frequency Response

*Dynamic Range

L(1/L), R(2/R)

48 kHz Sampling : 4 Hz to 22 kHz

96 kHz Sampling : 4 Hz to 44 kHz

100 dB

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

27

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center

.

Region

North America

Latin America

Europe

CIS

Asia Pacifi c

Middle East &

Africa

UZBEKISTAN

KYRGYZSTAN

TADJIKISTAN

UKRAINE

LITHUANIA

LATVIA

ESTONIA

AUSTRALIA

NEW ZEALAND

CHINA

HONG KONG

INDIA

INDONESIA

JAPAN

MALAYSIA

PHILIPPINES

SINGAPORE

THAILAND

TAIWAN

VIETNAM

TURKEY

SOUTH AFRICA

U.A.E

GERMANY

HUNGARY

ITALIA

LUXEMBURG

NETHERLANDS

NORWAY

POLAND

PORTUGAL

SLOVAKIA

SPAIN

SWEDEN

U.K

EIRE

AUSTRIA

SWITZERLAND

RUSSIA

KAZAHSTAN

Country

CANADA

MEXICO

U.S.A

ARGENTINE

BRAZIL

CHILE

NICARAGUA

HONDURAS

COSTA RICA

ECUADOR

EL SALVADOR

GUATEMALA

JAMAICA

PANAMA

PUERTO RICO

REP. DOMINICA

TRINIDAD & TOBAGO

VENEZUELA

COLOMBIA

BELGIUM

CZECH REPUBLIC

DENMARK

FINLAND

FRANCE

Customer Care Center

1-800-SAMSUNG(726-7864)

01-800-SAMSUNG(726-7864)

1-800-SAMSUNG(726-7864)

0800-333-3733

0800-124-421 , 4004-0000

800-SAMSUNG(726-7864)

00-1800-5077267

800-7919267

0-800-507-7267

1-800-10-7267

800-6225

1-800-299-0013

1-800-234-7267

800-7267

1-800-682-3180

1-800-751-2676

1-800-SAMSUNG(726-7864)

0-800-100-5303

01-8000112112

0032 (0)2 201 24 18

844 000 844

Distributor pro Českou republiku:

Samsung Zrt., česka organizační složka

Vyskočilova 4, 14000 Praha 4

70 70 19 70

030-6227 515

3260 SAMSUNG ( 0,15/Min),

08 25 08 65 65 ( 0,15/Min)

01805 - SAMSUNG(726-7864) ( 0,14/Min)

06-80-SAMSUNG(726-7864)

800-SAMSUNG(726-7864)

0035 (0)2 261 03 710

0900-SAMSUNG(726-7864) ( 0,10/Min)

815-56 480

0 801 801 881 , 022-607-93-33

80820-SAMSUNG(726-7864)

0800-SAMSUNG(726-7864)

902 10 11 30

0771-400 200

0845 SAMSUNG (7267864)

0818 717 100

0800-SAMSUNG(726-7864)

0800-SAMSUNG(726-7864)

8-800-555-55-55

8-10-800-500-55-500

8-10-800-500-55-500

00-800-500-55-500

8-10-800-500-55-500

8-800-502-0000

8-800-77777

800-7267

800-7267

1300 362 603

0800SAMSUNG(726-7864)

800-810-5858 , 010-6475 1880

3698-4698

3030 8282 , 1800 110011

0800-112-8888

0120-327-527

1800-88-9999

1800-10-SAMSUNG(726-7864)

1800-SAMSUNG(726-7864)

1800-29-3232 , 02-689-3232

0800-329-999

1 800 588 889

444 77 11

0860-SAMSUNG(726-7864 )

800-SAMSUNG (726-7864), 8000-4726

Web Site www.samsung.com/ca www.samsung.com

www.samsung.com

www.samsung.com/ar www.samsung.com

www.samsung.com/cl www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com.co

www.samsung.com/be www.samsung.com/cz www.samsung.com/dk www.samsung.com/fi www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com/be www.samsung.com/nl www.samsung.com/no www.samsung.com/pl www.samsung.com/pt www.samsung.com/sk www.samsung.com

www.samsung.com/se www.samsung.com

www.samsung.com/ie www.samsung.com/at www.samsung.com/ch www.samsung.com

www.samsung.kz

www.samsung.uz

www.samsung.com

www.samsung.lt

www.samsung.com/lv www.samsung.ee

www.samsung.com

www.samsung.com/nz www.samsung.com

www.samsung.com/hk www.samsung.com

www.samsung.com

www.samsung.com/jp www.samsung.com/my www.samsung.com/ph www.samsung.com

www.samsung.com

www.samsung.com/tw www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

3030-8282/1800-1100-11/ www.samsung.com

AK68-01505K

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
